Symmetric Operation of the Resonant Exchange Qubit

TL;DR

This study demonstrates symmetric operation of a resonant exchange qubit in a triple-dot system, revealing insights into noise effects and coherence enhancement techniques, with implications for quantum computing scalability.

Contribution

It introduces a symmetric triple-dot configuration for resonant exchange qubits and analyzes noise impacts and coherence improvements using dynamical decoupling.

Findings

Operating at the sweet spot reduces sensitivity to control voltages.

Dynamical decoupling extends qubit coherence times.

Voltage noise and Overhauser fluctuations influence Rabi decay.

Abstract

We operate a resonant exchange qubit in a highly symmetric triple-dot configuration using IQ-modulated RF pulses. At the resulting three-dimensional sweet spot the qubit splitting is an order of magnitude less sensitive to all relevant control voltages, compared to the conventional operating point, but we observe no significant improvement in the quality of Rabi oscillations. For weak driving this is consistent with Overhauser field fluctuations modulating the qubit splitting. For strong driving we infer that effective voltage noise modulates the coupling strength between RF drive and the qubit, thereby quickening Rabi decay. Application of CPMG dynamical decoupling sequences consisting of up to n = 32 {\pi} pulses significantly prolongs qubit coherence, leading to marginally longer dephasing times in the symmetric configuration. This is consistent with dynamical decoupling from low frequency noise, but quantitatively cannot be explained by effective gate voltage noise and Overhauser field fluctuations alone. Our results inform recent strategies for the utilization of partial sweet spots in the operation and long-distance coupling of triple-dot qubits.

Figures

Equations

$$\left(\begin{array}[]{c}\varepsilon\\ \delta\\ \gamma\end{array}\right)=\frac{1}{\sqrt{6}}\left(\begin{array}[]{ccccc}-\sqrt{3}&0&\sqrt{3}\\ -1&2&-1\\ \sqrt{2}&\sqrt{2}&\sqrt{2}\end{array}\right)\left(\begin{array}[]{c}V_{\mathrm{LP}}-V_{\mathrm{LP}}^{\mathrm{sym}}\\ V_{\mathrm{MP}}-V_{\mathrm{MP}}^{\mathrm{sym}}\\ V_{\mathrm{RP}}-V_{\mathrm{RP}}^{\mathrm{sym}}\end{array}\right)$$

$$\left(\begin{array}[]{c}\varepsilon_{B}\\ \gamma_{B}\end{array}\right)=\frac{1}{\sqrt{6}}\left(\begin{array}[]{ccccc}-\sqrt{3}&\sqrt{3}\\ \sqrt{3}&\sqrt{3}\end{array}\right)\left(\begin{array}[]{c}V_{\mathrm{LB}}-V_{\mathrm{LB}}^{\mathrm{sym}}\\ V_{\mathrm{RB}}-V_{\mathrm{RB}}^{\mathrm{sym}}\end{array}\right),$$

$$S=\sqrt{\sum _{\begin{array}{c}i\in \{\mathrm{LP},\mathrm{LB},\\ \mathrm{MP},\mathrm{RB},\mathrm{RP}\}\end{array}}{\left(\frac{\partial f}{\partial V_i}\right)}^2}=\sqrt{\sum _{\begin{array}{c}\xi \in \{\epsilon ,\delta ,\\ \gamma ,{\epsilon }_B,{\gamma }_B\}\end{array}}{\left(\frac{\partial f}{\partial \xi }\right)}^2}$$

$${\left(\frac{1}{T_{\mathrm{R}}}\right)}^2=\frac{{\sigma }_f^4}{4f_{\mathrm{R}}^2}+f_{\mathrm{R}}^2{A}^2,$$

$$A^2=\frac{8\pi }{{\eta }^2}\sum _{\begin{array}{c}\xi =\epsilon ,\delta ,\\ \gamma ,{\epsilon }_B,{\gamma }_B\end{array}}{\left(\frac{\partial \eta }{\partial \xi }{\sigma }_{\xi }\right)}^2,$$

$$\eta =\sqrt{{\left(\frac{\partial J}{\partial V_{LP}}\right)}^2+3{\left(\frac{\partial j}{\partial V_{LP}}\right)}^2}$$

Full text

Spin qubits are widely investigated for applications in quantum computation Loss1998 ; Petta2005 ; Shulman2012 ; Koppens2006 ; Nowack2011 ; Veldhorst2015 ; Nichol2017 , with several operational choices depending on whether the qubit is encoded in the spin state of one Koppens2006 ; Nowack2011 ; Veldhorst2015 ; Kawakami2016 ; Maurand2016 ; Takeda2016 , two Petta2005 ; Shulman2012 ; Foletti2010 ; Nichol2017 or three electrons Laird2010 ; Gaudreau2011 ; Medford2013 ; Medford2013a ; Kim2014 ; Eng2015 ; Russ2016 . In particular, spin qubits encoded in three-electron triple quantum dots allow universal electrical control with voltage pulses, and enable integration with superconducting cavities Petersson2012 ; Stockklauser2015 ; Liu2015 ; Russ2015a ; Srinivasa2016 ; Mi2016 . Multi-qubit coupling via superconducting cavities, however, is challenging due to the effects of environmental noise on resonant exchange (RX) qubits Medford2013a ; Srinivasa2016 . A recent approach to improve coherence times is the operation at sweet spots, where the qubit splitting is to first order insensitive to most noisy parameters Martins2016 ; Reed2016 ; Russ2015 ; Shim2016a . Here, we operate a symmetric resonant exchange (SRX) qubit in which the qubit splitting is highly insensitive to all three single-particle energies Shim2016a , and compare its performance to its conventional configuration as a RX qubit Medford2013a ; Taylor2013 .

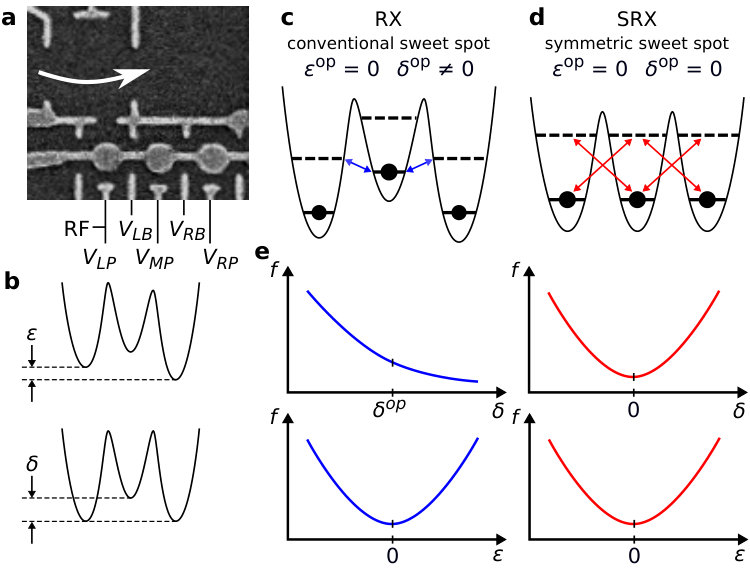

We configure a triple-quantum-dot device either as a SRX or RX qubit by appropriate choice of gate voltages. Gate electrodes are fabricated on a doped, high-mobility GaAs/AlGaAs quantum well, and the triple dot is located $\sim 70$ nm below three circular portions of the accumulation gate (Fig. 1a). The occupation of the dots is controlled on nanosecond timescales by voltage pulses on gates $V_{i}$, where $i$ refers to the left/middle/right plunger gate (LP/MP/RP) or left/right barrier gate (LB/RB). Radio frequency (RF) bursts for resonant qubit control are applied to the left plunger gate. The conductance through the proximal sensor dot is sensitive to the charge occupation of the triple quantum dot, allowing qubit readout (see below).

In the presence of an in-plane magnetic field, $B=400$ mT in this experiment, the triple-dot qubit is defined by the two three-electron spin states with total spin $S=1/2$ and spin projection $S_{z}=1/2$  Laird2010 ; Medford2013a ; Taylor2013 ; Russ2016 . Ignoring normalization, these spin states can be represented by $\ket{0}\propto(\ket{\downarrow\uparrow\uparrow}-\ket{\uparrow\downarrow\uparrow})+(\ket{\uparrow\uparrow\downarrow}-\ket{\uparrow\downarrow\uparrow})$ and $\ket{1}\propto(\ket{\uparrow\uparrow\downarrow}-\ket{\downarrow\uparrow\uparrow})$. Here, arrows indicate the spin of the electron located in the left, middle and right quantum dot. Note that the spin state of $\ket{0}$ and $\ket{1}$ is, respectively, symmetric and antisymmetric under exchange of the outer two electrons. In the presence of interdot tunneling this exchange symmetry affects hybridization of the associated orbital wavefunctions, splitting $\ket{0}$ and $\ket{1}$ by $hf$ (where $h$ is Planck’s constant and $f$ sets the frequency of the qubit’s rotating frame). Similarily, an additional triple-dot state with $S=3/2$ and $S_{z}=1/2$ is split from the qubit states due to interdot tunneling. All other triple-dot states have different $S_{z}$ and are energetically separated from the qubit states due to the Zeeman effect.

In the conventional operating regime of the RX qubit (Fig. 1c) the (111) charge state of the triple dot is hybridized weakly with charge states (201) and (102) (here number triplets denote the charge occupancy of the triple dot). This lowers the energy of $\ket{0}$ with respect to $\ket{1}$ and makes the resulting qubit splitting sensitive to detuning of the central dot, $\delta$ (cf. Fig. 1b,e) Medford2013a . The qubit splitting is, however, to first order insensitive to detuning between the outer dots, $\varepsilon$, Taylor2013 , reflecting that tunneling across left and right barrier contribute equally to the qubit splitting (Fig. 1c,e). Qubit rotations in the rotating frame are implemented by applying RF bursts to gate $V_{\mathrm{LP}}$, such that the operating point oscillates around $\varepsilon=0$. When the RF frequency matches the qubit splitting, the qubit nutates between $\ket{0}$ and $\ket{1}$, allowing universal control using IQ modulation Medford2013a . When the detuning of the outer dots is ramped towards (201), $\ket{0}$ maps to a singlet state of the left pair ($\ket{S_{L}}\propto(\ket{\downarrow\uparrow\uparrow}-\ket{\uparrow\downarrow\uparrow})$, see first terms in $\ket{0}$), whereas $\ket{1}$ remains in the (111) charge state due to the Pauli exclusion principle Laird2010 ; Medford2013 ; Medford2013a . This spin-to-charge conversion allows us to perform single-shot readout on microsecond timescales, by monitoring a proximal sensor dot using high-bandwidth reflectometry Barthel2010a . In this work we estimate the fraction of singlet outcomes, $P_{\mathrm{S}}$, by averaging 1000-10000 single-shot readouts.

In the case of the SRX qubit, however, all three single-particle levels are aligned, and the (111) state hybridizes with the charge states (201), (102), (120) and (021) Shim2016a . This introduces additional symmetries between the tunneling of the electron from the central dot to the outer dots and tunneling of the outer electrons to the central dot (Fig. 1d). As a consequence, the qubit splitting is expected to be insensitive to first order to both $\varepsilon$ and $\delta$ (Fig. 1e) as well as to the barrier detuning, $\varepsilon_{B}$ (introduced below). Due to the required alignment of single-particle levels, hybridization is suppressed by the charging energy within each dot (indicated by the large energy spacing between solid and dashed lines in Fig. 1c,d). Accordingly, we find that much larger tunnel couplings have to be tuned up to maintain a significant qubit splitting. In practice, the gate voltage configuration needed to achieve a SRX qubit splitting of a few hundred megahertz does no longer allow spin-to-charge conversion solely by a ramp of $\varepsilon$. Therefore, we also apply voltage pulses to the barrier gates when ramping the qubit between the operation configuration (indicated by superscript $\mathrm{op}$) and readout configuration (see below).

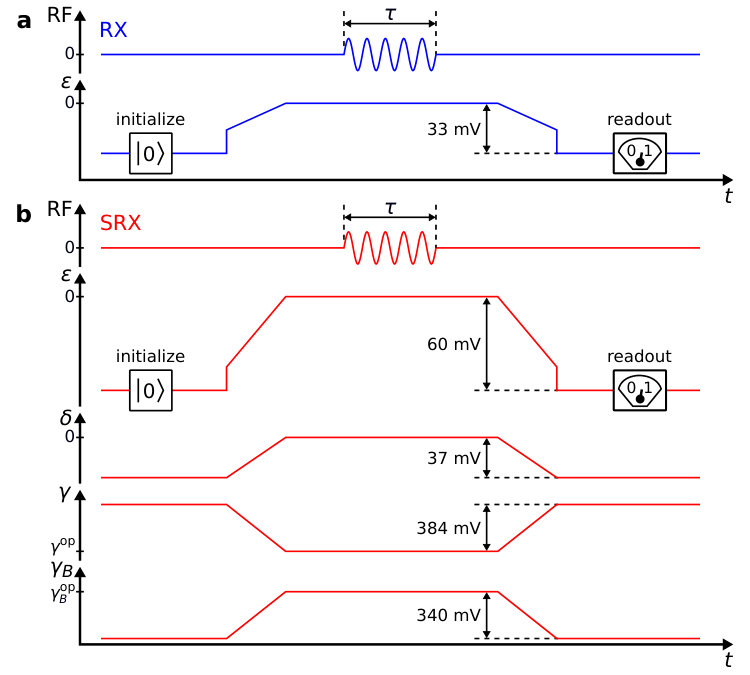

Figure  2a (2b) defines the pulse cycle used for spectroscopy and operation of the RX (SRX) qubit. Taking into account the physical symmetries of the device (cf. Fig. 1), control parameters $\varepsilon,\gamma,\delta,\varepsilon_{B},\gamma_{B}$ are specified in terms of gate voltages $V_{i}$,

[TABLE]

[TABLE]

and the power ($P_{\mathrm{RF}}$), duration ($\tau$), frequency ($f_{\mathrm{RF}}$) and phase of the IQ-modulated RF burst. The operating point of the SRX qubit, defined by $V_{i}=V_{i}^{\mathrm{sym}}$, was chosen to yield a qubit frequency of 530 MHz  111($V_{\mathrm{LP}}^{\mathrm{sym}},V_{\mathrm{LB}}^{\mathrm{sym}},V_{\mathrm{MP}}^{\mathrm{sym}},V_{\mathrm{RB}}^{\mathrm{sym}},V_{\mathrm{RP}}^{\mathrm{sym}}$) = (-1.53, -0.14, -1.05, -0.15, -0.83) V.. The operating point of the RX qubit, located at $\{\delta^{\mathrm{op}}>0,\gamma^{\mathrm{op}}>0,\gamma_{B}^{\mathrm{op}}<0\}$, was chosen to yield a comparable qubit frequency of 510 MHz. The linear ramps before (after) the RF burst facilitate initialization (readout) of the qubit state via an adiabatic conversion of a two-electron spin singlet state in the left dot. For the RX qubit $\{\delta-\delta^{\mathrm{op}},\gamma-\gamma^{\mathrm{op}},\varepsilon_{B},\gamma_{B}-\gamma_{B}^{\mathrm{op}}\}$ all remain zero throughout the pulse cycle, i.e. the operation and readout configuration differ only in detuning $\varepsilon$ (Fig. 2a). In contrast, to adiabiatically connect the initialization/readout point of the SRX qubit to its operating point, we found it necessary to vary $\varepsilon$, $\delta$, $\gamma$ and $\gamma_{B}$ during the pulse cycle (Fig. 2b), which involves voltage pulses on all five gates indicated in Fig. 1a.

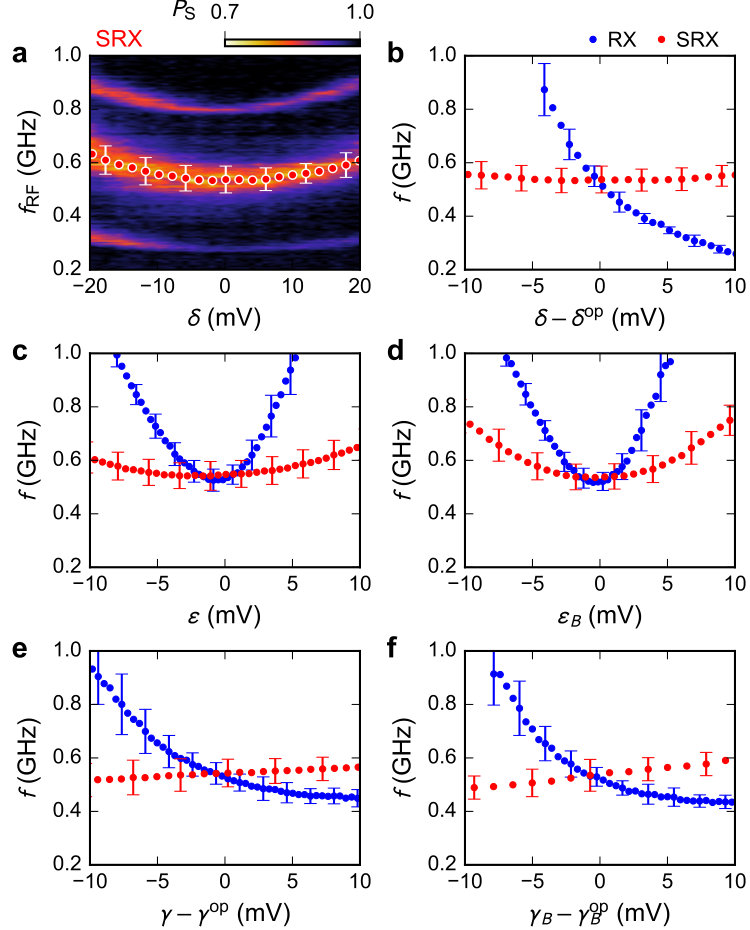

Qubit spectroscopy performed in the vicinity of the operating point quantitatively reveals each qubit’s symmetries and susceptibilities to gate voltage fluctuations. First, maps as in Fig 3a are acquired by repeating a pulse cycle with $\tau=150$ ns fixed, and plotting the fraction of singlet readouts, $P_{\mathrm{S}}$, as a function of $f_{\mathrm{RF}}$, while stepping the control parameters along five orthogonal axes that intersect with the operating point. The qubit frequency $f$ is extracted from the center of the dominant $P_{\mathrm{S}}(f_{\mathrm{RF}})$ resonance (cf. red circles in Fig 3a), and plotted as a function of $\varepsilon$, $\delta$, $\gamma$, $\varepsilon_{B}$ and $\gamma_{B}$ (Fig. 3b-f). Indeed, the dependence of $f$ on $\delta$ reveals that the SRX qubit splitting is to first order insensitive to $\delta$, in contrast to the conventional RX qubit (Fig. 3b). Further, we observe that both qubits show a sweet spot with respect to $\varepsilon$ and $\varepsilon_{B}$ (Fig. 3c,d), indicating that the symmetry breaking associated with $\varepsilon_{B}\neq 0$ is analogues to the well-known symmetry breaking associated with $\varepsilon\neq 0$ Taylor2013 . Interestingly, for both detuning parameters, the curvature of the qubit splitting is significantly smaller for the SRX configuration, compared to the RX configuration. Moreover, the SRX qubit frequency is also significantly less susceptible to changes in parameters $\gamma$ and $\gamma_{B}$, compared to the conventional RX qubit (Fig. 3e,f), corroborating the potential use of this highly symmetric configuration for prolonging qubit coherence.

The qubit spectra from Figures 3 allow us to quantify the susceptibility of the qubit splitting to gate voltage fluctuations, by evaluating

[TABLE]

for both operating points. For the SRX qubit we find a susceptibility to gate noise ($S=6$ MHz/mV) that is one order of magnitude smaller compared to the RX qubit ($S=66$ MHz/mV). For the linear coupling regime this means that voltage fluctuations on gate electrodes, including instrumentation noise propagating on the cryostats wideband transmission lines, are expected to be much less detrimental to the SRX qubit than to the RX qubit.

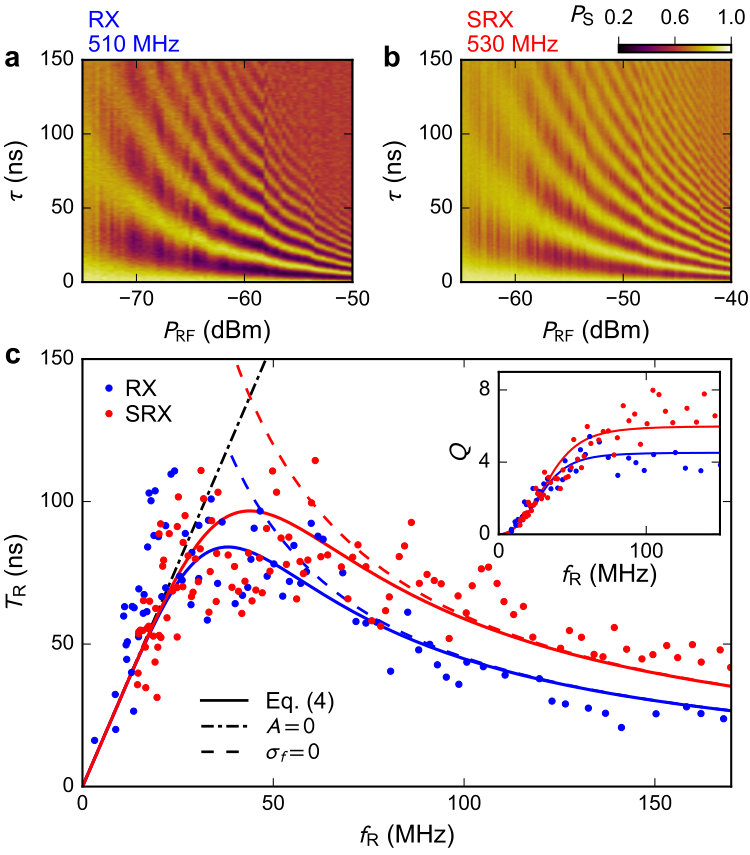

Next we investigate whether the reduced noise susceptibility of the SRX qubit results in improved Rabi oscillations (Fig. 4). To achieve a comparable Rabi frequency, $f_{\mathrm{R}}$, we find that $P_{\mathrm{RF}}$ needs to be 10 dB larger for the SRX qubit compared to the RX qubit, consistent with the smaller curvatures observed in Fig. 3. However, only for high $P_{\mathrm{RF}}$ do we observe improvement in SRX qubit performance relative to the RX qubit. For quantitative comparison we fit an exponentially damped cosine to $P_{\mathrm{S}}(\tau)$ for each RF power. Figure 4c parametrically plots the extracted $1/e$ decay time ($T_{\mathrm{R}}$) and quality factor ($Q=T_{\mathrm{R}}\times f_{\mathrm{R}}$) of Rabi oscillations as a function of $f_{\mathrm{R}}$. For $f_{\mathrm{R}}<50$ MHz the quality of SRX Rabi oscillations is comparable to the RX qubit, while for $f_{\mathrm{R}}>50$ MHz $T_{\mathrm{R}}$ and $Q$ are enhanced by approximately 50%, relative to the RX qubit.

The marginal performance improvement observed for the SRX qubit can be analyzed quantitatively by extending theory from Ref. Taylor2013, to include the dependence of the Rabi oscillations decay time $T_{\mathrm{R}}$ on the Rabi frequency $f_{\mathrm{R}}$. Assuming quasistatic gate-voltage noise and quasistatic nuclear spin noise, we derive

[TABLE]

where $\sigma_{f}$ quantifies the rms deviation of $f$ from $f_{\mathrm{RF}}$ due to effective voltage flucuations and Overhauser field fluctuations (discussed below). The quantity $A^{2}$ captures the effect of voltage fluctuations on the coupling strength of the RF drive

[TABLE]

with $\sigma_{\xi}$ being the standard deviation of the fluctuating paramater $\xi$ and $\eta$ being the lever arm between amplitude of the RF drive and the qubit nutation speed in the rotating frame. We find that the observed $T_{\mathrm{R}}(f_{\mathrm{R}})$ is well fitted by our theoretical model, using $A=0.17$ (0.22) for the SRX (RX) qubit and a common value $\sigma_{f}=0.025$ (solid lines in Fig. 4c). Although Ref. Taylor2013, formally identified $\eta$ with

[TABLE]

(here $J=(J_{\mathrm{L}}+J_{\mathrm{R}})/2$ and $j=(J_{\mathrm{L}}-J_{\mathrm{R}})/2$ are symmetry-adapted exchange energies arising from exchange $J_{\mathrm{L/R}}$ between central and left/right dot), its implications for the properties of the $A^{2}$ term and associated Rabi coherence were not considered. Equations (3,4) would in principle allow the extraction of voltage noise in more detail, but experimentally the partial derivatives are not easily accessible. However, by plotting the expected limit of $T_{\mathrm{R}}$ if only detuning noise (black dash-dotted line) or only drive noise (red and blue dashed lines) is modeled, we deduce that the dominating contribution to $\sigma_{f}$ arises not from effective gate voltage noise, but from fluctuations of the Overhauser gradient between dots. Assigning $\sigma_{f}=0.025$ entirely to Overhauser fluctuations, we estimate the rms Overhauser field in each dot to be approximately 4.2 mT, in good agreement with previous work on GaAs triple dots Medford2013a ; Delbecq2016 .

The detrimental effect of fluctuating Overhauser fields on qubit dephasing is not surprising, given that the qubit states are encoded in the $S_{z}=1/2$ spin texture: For $\ket{0}$ the spin angular momentum resides in the outer two dots, whereas for $\ket{1}$ it resides in the central dot. This makes the qubit splitting to first order sensitive to Overhauser gradients between the central and outer dots Taylor2013 . Equation 4 further suggests that the qubit drive strength depends on $j=(J_{\mathrm{L}}-J_{\mathrm{R}})/2$, which likely is first-order-sensitive to both $\varepsilon$ and $\varepsilon_{B}$, and hence we suspect that $f_{\mathrm{R}}$, unlike $f$, remains sensitive to the charge noise. These conclusions suggest that triple-dot qubits will benefit from implementation in nuclear-spin-free semiconductors, and possibly from replacing IQ-control in the rotating frame by baseband voltage pulses. Recent theoretical work indicates that this may allow efficient two-qubit gates between neighboring qubits using exchange pulses Shim2016a and long-distance coupling via superconducting resonators Russ2015a ; Srinivasa2016 .

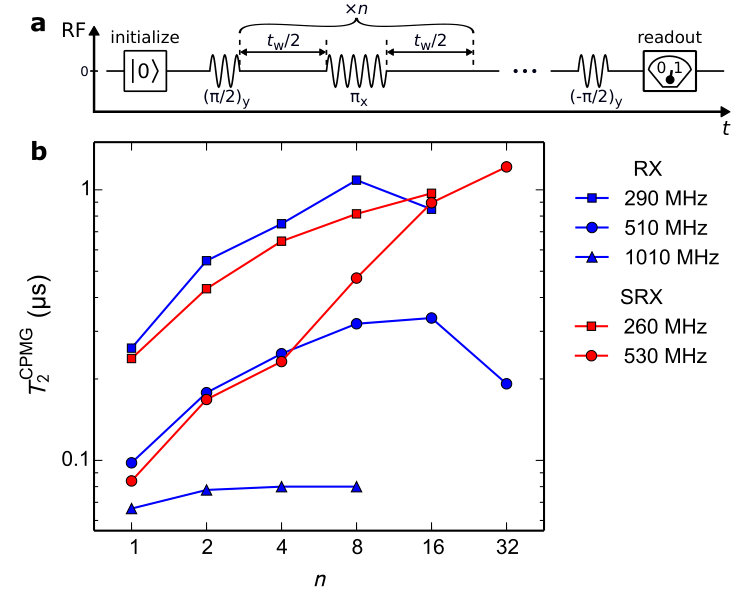

Finally, we test the prospect of the SRX qubit as a quantum memory, using Hahn echo and CPMG sequences consisting of relatively strong ($\tau\lesssim 10$ ns) $\pi$-pulses (defined in Fig. 5a). These dynamical decoupling sequences are particularly effective against nuclear noise Bluhm2011 ; Malinowski2017 , which is known to display relative long correlation times Reilly2008 ; Barthel2009 ; Malinowski2017a . Figure 5 shows the resulting coherence time, $T_{2}^{\mathrm{CPMG}}$, for different qubit frequencies, for up to $n$=32 pulses. Values for $T_{2}^{\mathrm{CPMG}}$ were extracted from Gaussian fits to $P_{\mathrm{S}}(T)$, where $T=n\cdot t_{w}$ is the total dephasing time. For small number of $\pi$-pulses we see no difference in the performance of the RX and SRX qubit, indicating that effective voltage noise (incl. instrumentation noise on gate electrodes) is not limiting coherence. Qualitatively, this may point towards high-frequency Overhauser fluctuations playing a dominant role, although we find coherence times significantly shorter than expected from nuclear spin noise alone Petta2005 ; Bluhm2011 ; Malinowski2017a and values reported for RX qubits Medford2013a . While $T_{2}^{\mathrm{CPMG}}$ strongly depends on the qubit frequency, the ratio $f\times T_{2}^{\mathrm{CPMG}}$ is roughly independent of $f$ (not shown). This is reminiscent of gate defined quantum dots that showed a nearly exponential dependence of the exchange splitting on relevant control voltages  Higginbotham2014 ; Veldhorst2015 ; Dial2013 ; Medford2013a ; Martins2016 ; Reed2016 .

Although we do not know the exact origin of the effective noise observed here and in previous work Medford2013a ; Medford2013 , we note that the overall noise levels need to be reduced by several orders of magnitude to allow high-fidelity entangling gates Srinivasa2016 . As a cautionary advice against the overuse of partial sweet spots, we note that for any qubit tuned smoothly by $N$ (in our work five) gate voltages one can always (i.e., for any operating point) define at least $N-1$ (in our work 4) independent control parameters that to first order do not influence the qubit splitting. This underlines the importance of careful analysis of noise sources and noise correlations Szankowski2016 in determining optimal working points of qubits Cywinski2014 .

For the 530 MHz tuning the SRX qubit appears to outperform the RX qubit for $n>8$, indicating that the spectral noise density at higher frequencies, filtered by the CMPG sequence Martinis2003 ; Cywinski2008 ; Soare2014 ; Malinowski2017 , may indeed be reduced for the SRX qubit. The scaling of $T_{2}^{\mathrm{CPMG}}$ with (even) number of pulses appears to follow a power law. Although the exponent (0.77$\pm$0.07) for the SRX data is consistent with values reported for RX qubits Medford2013a , a spectral interpretation may need to take into account unconventional decoherence processes that can occur at sweet spots, such as non-Gaussian noise arising from quadratic coupling to Gaussian distributed noise and the appearance of linear coupling to noise arising from low-frequency fluctuations around a sweet spot Bergli2006 ; Cywinski2014 .

In conclusion, we have operated a triple-dot resonant exchange qubit in a highly symmetric configuration. At the three-dimensional sweet spot the overall sensitivity of the qubit frequency to five control voltages is reduced by an order of magnitude, but resonant operation of the qubit is technically more demanding. For weak resonant driving the quality of Rabi oscillations show no significant improvement due to the dominant contributions of nuclear Overhauser gradients to fluctuations of the qubit splitting, motivating the future use of nuclear-spin-free semiconductors. For strongly driven Rabi oscillations and CPMG decoupling sequences the coherence times are significantly shorter than expected from instrumentation noise alone and Overhauser fluctuations, suggesting that recent theory must be extended to include the dependence of drive strength on control voltages. An optimization of gate lever arms and materials’ charge noise may then allow non-resonant operation of multi-qubit structures that take advantage of highly symmetric configurations of triple-dot qubits.
