Single jet inclusive production for the individual jet $p_{T}$ scale choice at the LHC

TL;DR

This paper presents a next-to-next-to-leading order QCD calculation of the single jet inclusive cross section at the LHC, focusing on the impact of different jet transverse momentum scale choices and comparing with ATLAS data.

Contribution

It introduces a detailed NNLO calculation with individual jet scale choice and compares its effects to the leading jet scale choice in the context of LHC jet data.

Findings

NNLO predictions match ATLAS data within uncertainties.

Individual jet scale choice affects the theoretical predictions.

Comparison shows differences between scale choices are significant.

Abstract

We study the single jet inclusive cross section up to next-to-next-to leading order in perturbative QCD, implemented in the parton-level event generator NNLOJET . Our results are fully differential in the jet transverse momentum and rapidity and we apply fiducial cuts for comparison with the available ATLAS 7 TeV 4.5 fb$^{-1}$ data for jet radius $R=0.4$. For the theoretical calculation we employ the antenna subtraction method to reliably cancel all infrared divergences present at intermediate stages of the calculation. We present all results using the individual jet transverse momentum $\mu_{R}=\mu_{F}\sim p_{T}$ as the renormalization and factorization scale for each jet's contribution to the single jet inclusive cross section. Finally, we consider the differences between our predictions using this scale choice to those for the leading jet transverse momentum scale choice, $\mu_{R}=\mu_{F}\sim p_{T_{1}}$, used in [14], with reference to the ATLAS data.

Figures

Equations

$$\frac{{\mathrm{d}}^2\sigma }{\mathrm{d}{p}_T\mathrm{d}y}\sim E_T^{-5}.$$

$$d_{ij}$$

$$d_{iB}$$

$$\mathrm{d}{\hat{\sigma }}_{ij}^{NNLO}$$

Full text

JET

. Our results are fully differential in the jet transverse momentum and rapidity and we apply fiducial cuts for comparison with the available ATLAS 7 TeV 4.5 fb*-1* data for jet radius $R=0.4$. For the theoretical calculation we employ the antenna subtraction method to reliably cancel all infrared divergences present at intermediate stages of the calculation. We present all results using the individual jet transverse momentum $\mu_{R}=\mu_{F}\sim p_{T}$ as the renormalization and factorization scale for each jet’s contribution to the single jet inclusive cross section. Finally, we consider the differences between our predictions using this scale choice to those for the leading jet transverse momentum scale choice, $\mu_{R}=\mu_{F}\sim p_{T_{1}}$, used in [14], with reference to the ATLAS data.

\PACS

12.38.Bx, 13.87.Ce

1 Introduction

The single jet inclusive cross section is one of the most basic observables at any hadron collider. At its heart is the $2\to 2$ QCD subprocess which already at leading order (LO) carries a dependence on the strong coupling, $\alpha_{s}$, and significant sensitivity to the parameterization and value of the gluon’s Parton Distribution Function (PDF), as can be seen in Fig. 1. It is clear that the $gg$ and $qg$ initial states dominate the production of jets over much of the experimentally accessible range in transverse momentum.

This observable has been measured by the ATLAS [1] and CMS [2] experiments at the LHC and has been used for determinations of $\alpha_{s}$ [3, 4] and in global PDF fits [5, 6, 7]. These studies have so far been carried out using theoretical predictions at next-to-leading order (NLO) accuracy in the strong coupling [8, 9, 10] which is typically accurate at the 10% level (although this can be higher or lower in specific regions of phase space). Where jet data has been included in NNLO PDFs this has been done using approximate NNLO predictions based upon threshold resummation tecnniques [11, 12].

The single jet inclusive cross section approximately scales with the jet transverse energy, $E_{T}$, as,

[TABLE]

The dominant systematic error in the measurement of jets comes from the Jet Energy Scale (JES)  [13] which is typically at the level of 1-2% for central jets at moderate $p_{T}$ (but significantly larger for very high $p_{T}$ and forward rapidity bins). This uncertainty in the jet energy translates into a systematic uncertainty on the cross section of $\sim$ 5-10%, as is confirmed by the detailed quantitative study of such errors in [1].

To improve the theoretical description of the single jet inclusive cross section in line with experimental advances, we have recently reported the calculation of the next-to-next-to leading order (NNLO) correction to jet production [14]. The inclusion of the NNLO contribution should systematically reduce the theoretical uncertainty as estimated by the magnitude of the variation of the observable upon variation of the unphysical renormalization, $\mu_{R}$, and factorization, $\mu_{F}$, scales.

2 Jets at the LHC

To make a connection between a parton-level calculation in perturbation theory and the experimentally observable jet found in the detector, it is necessary to employ a jet algorithm to cluster both the partons of the theoretical calculation and the energy deposits in the calorimeter into jets. The most commonly used class of jet algorithms for LHC era jet studies are the sequential recombination algorithms. These algorithms are characterized by a resolution parameter, $R$ and an integer, $p$ [15]. The algorithm begins with the set of parton momenta coming from a point in phase space and sequentially clusters the momenta into “proto-jets” using the distance measures,

[TABLE]

If the smallest distance calculated is a $d_{ij}$ then the two proto-jet momenta are merged using a “recombination scheme” into a single proto-jet and the algorithm starts over. The standard recombination scheme is the “4-vector” scheme which simply adds the 4-momenta of the proto-jets and so generically produces massive proto-jets from massless partons. If the smallest distance calculated is a $d_{iB}$ then that proto-jet is removed from the list of proto-jets, stored as a “jet candidate” and the algorithm starts over. Once all proto-jets have been iteratively merged or removed and labelled as jet candidates, the algorithm terminates. We then apply the fiducial cuts to the set of jet candidates and those which survive the cuts are identified as jets which can be compared to data. Different choices of the parameter $p$ define different algorithms with the $k_{T}$ [16], Cambridge/Aachen [17] and anti-$k_{T}$ [18] algorithms defined for $p=1,0$ and -1 respectively. The value of the resolution parameter $R$ defines how far in $y$-$\phi$ space (which provides cylindrical coordinates for the detector geometry) the algorithm reaches out to merge proto-jets. For the purposes of comparing to ATLAS data we employ the anti-$k_{T}$ jet algorithm with $R=0.4$ throughout this paper.

3 Antenna Subtraction

It is well known that the various contributions to the physical cross section, as calculated in perturbation theory, contain infrared (IR) singularities, either as explicit poles in the dimensional regularization parameter $\epsilon=(4-d)/2$ or as unregulated divergences in the phase space integrals over parton-momenta.

For inclusive jet production at NNLO we have the double real (RR) contribution given by the tree-level six-parton amplitude squared [19], the real-virtual (RV) contribution given by the interference of the one-loop with the tree-level five parton amplitudes [20, 21, 22] and the double virtual (VV) given by the interference of the two-loop with tree-level and self-interference of the one-loop four-parton amplitudes [23, 24, 25].

These contributions can be integrated numerically in four dimensions by introducing a set of local subtraction terms so as to reorganize the NNLO partonic cross section for initial-state partons of species $i,j$, into the form,

[TABLE]

The subtraction terms are constructed from antenna functions [26, 27] and reduced multiplicity matrix elements. The details of the construction of the various subtraction terms can be found in [26, 28].

4 Theoretical scale choice

The single jet inclusive cross section is accumulated by binning every jet in an event with at least one jet according to its transverse momentum, $p_{T}$, and rapidity, $y$. As such, it is important to remember that a single event can contribute several times to the distributions. For the theoretical calculation, each jet is binned with a weight which depends on the value of the appropriate PDF and $\alpha_{s}$, which in turn depend on the chosen values of the theoretical scales $\mu_{F}$ and $\mu_{R}$ respectively. The fact that contributions to inclusive distributions come from individual jets, rather than events, introduces an ambiguity to the choice of theoretical scale; should we set the theoretical scales to reflect the hardness of the individual jets or the event from which they originated?

In a previous study [14] we set the theoretical scales equal to the transverse momentum of the hardest jet in the event, denoted $p_{T_{1}}$. This is an event-wide scale choice and is applied to the weights carried by all jets in an event, such that in a four jet event, the value of $\alpha_{s}$ and the PDF weight is the same for the contribution of the fourth jet as it is for the leading jet.

An alternative is to use the individual jet $p_{T}$ as the theoretical scale for each jet entering the distribution. For the leading jet in the event this scale is identical to $p_{T_{1}}$ and so 1-jet events, where only a single jet survives the fiducial cuts, is insensitive to the scale choice between $p_{T}$ and $p_{T_{1}}$. Similarly, 2-jet events where the jets are balanced in $p_{T}$ cannot generate any difference as $p_{T}=p_{T_{1}}=p_{T_{2}}$. Away from these jet configurations, the subleading jets will have smaller $p_{T}$ than the leading jet in the event and so choosing the individual jet $p_{T}$ as the theoretical scale will mean that the scale used to calculate the weight associated with a jet will on average be smaller than the scale $p_{T_{1}}$. A smaller value of $\mu_{R}$ will induce a larger value of $\alpha_{s}$ for the subleading jets and a smaller value of $\mu_{F}$ will alter the relative values of the PDFs. These differences will affect the calculated cross section in regions of phase space where the $p_{T}$ of the subleading jets differs significantly from $p_{T_{1}}$, particularly for jets with low transverse momentum.

5 Results for $\mu_{R},\mu_{F}\sim p_{T}$

The results presented here are for the experimental setup ($p_{T}$ and rapidity bin widths) used by the ATLAS collaboration for the $\sqrt{s}=7$ TeV 4.5 fb*-1* data set with jets reconstructed using the anti-$k_{T}$ jet algorithm with $R=0.4$. The cuts imposed on the jet data include all jets found with $p_{T}\geq 100$ GeV and $|y|<3$. The theoretical calculation uses the NNPDF3.0 NNLO PDF set with $\alpha_{s}(M_{Z}^{2})=0.118$ for LO, NLO and NNLO contributions. The unphysical theoretical scales are set equal to the individual jet $p_{T}$ such that for a jet with transverse momentum $p_{T}$, $\mu_{R}=\mu_{F}=p_{T}$ is the central scale choice. To obtain an estimate of the residual theoretical uncertainty associated with the unphysical scales we vary the central scale choice by factors of two and one half to obtain an envelope of predictions for the cross section.

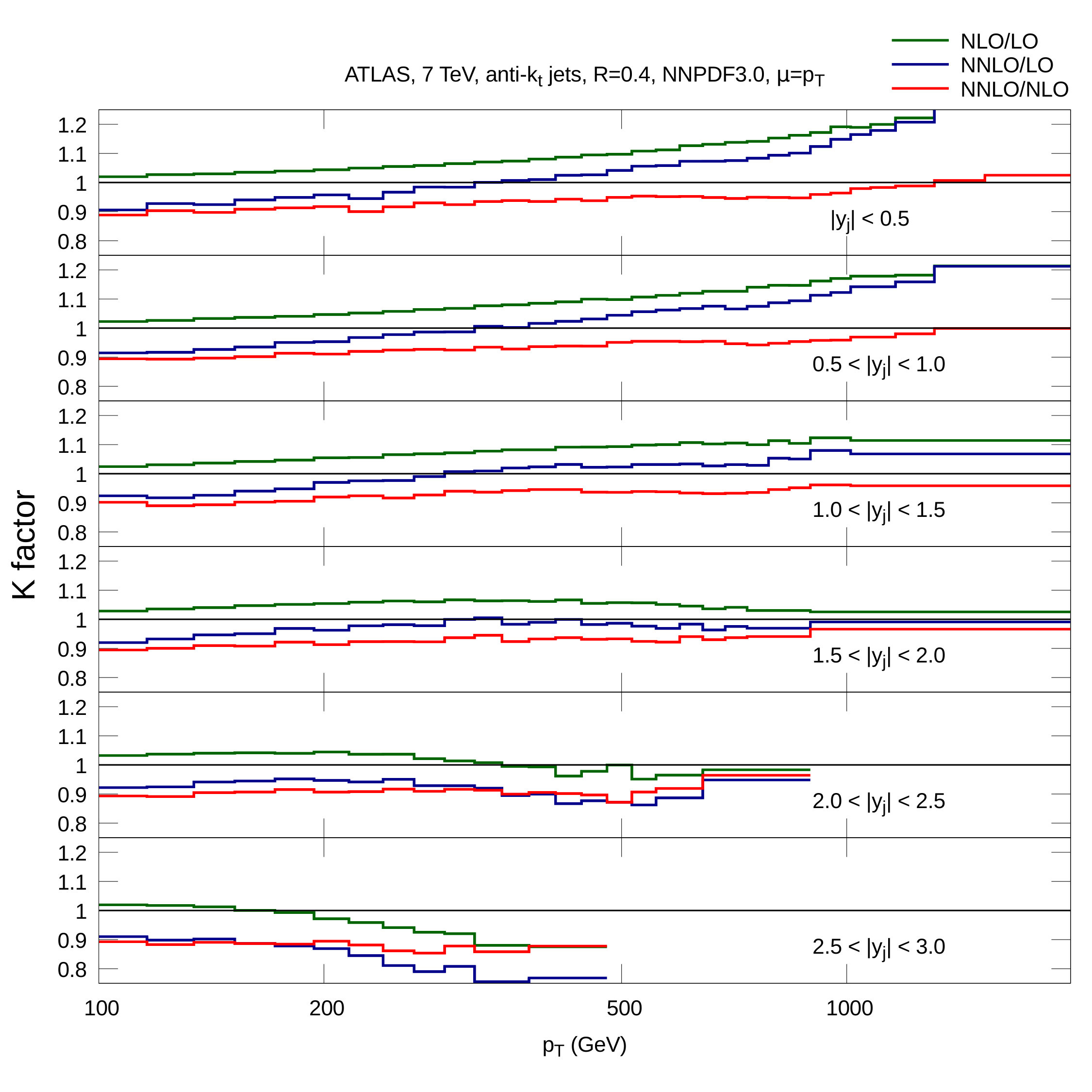

In Fig. 2 we show the NLO/LO, NNLO/NLO and NNLO/LO $K$-factors across a range of $p_{T}$ and rapidity bins. For the central rapidity bin the NLO/LO $K$-factor is small and positive at low $p_{T}$ and grows to $\sim 20\%$ at 1 TeV. In contrast, the NNLO/NLO $K$-factor provides a negative $\sim 10\%$ correction at low $p_{T}$ and decreases in magnitude at higher $p_{T}$. The overall behaviour of the higher order corrections is encapsulated in the NNLO/LO $K$-factor which is driven by the NNLO correction at low $p_{T}$ and the NLO correction at high $p_{T}$. As the rapidity of the jets increases we see that the low $p_{T}$ $K$-factors are similar to those of the central bin. At high $p_{T}$ the NLO/LO $K$-factor varies from a large positive correction in the central bin to a moderate negative correction in the most forward rapidity bin.

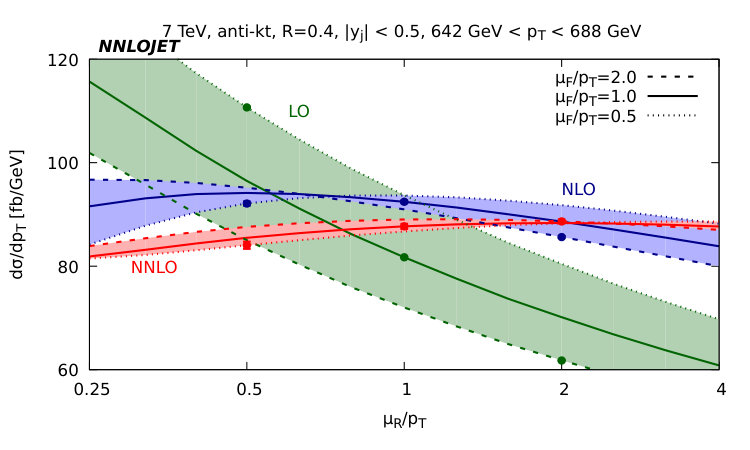

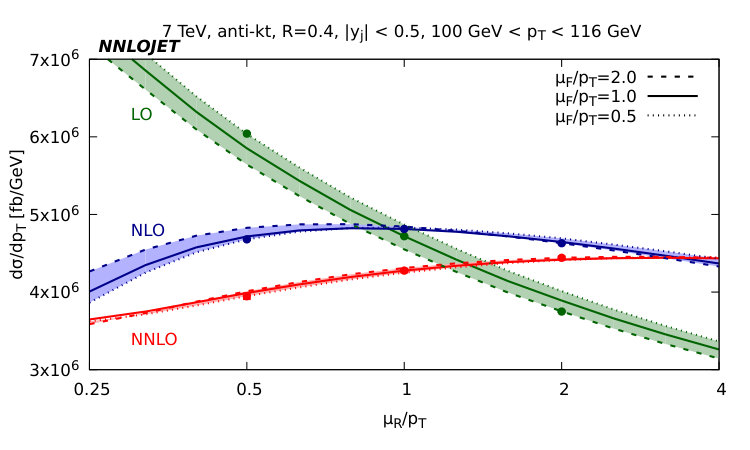

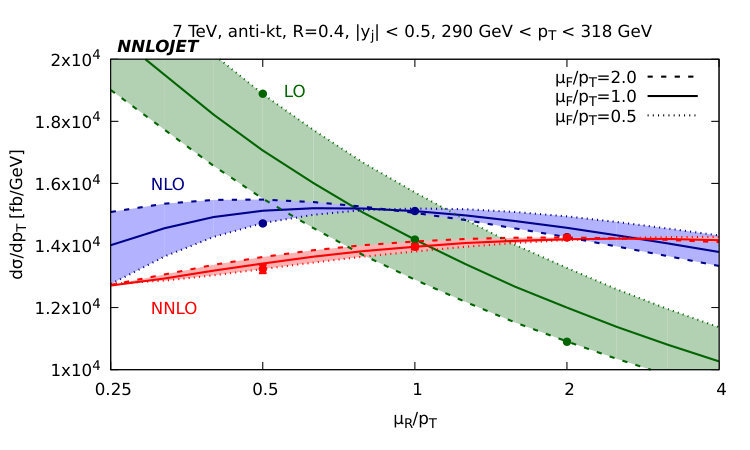

In addition to the size and shape of the theoretical predictions, the NNLO contribution can affect the residual scale variation. In Fig. 3 we show how the cross section changes upon variation of the renormalization and factorization scales in a low, medium and high $p_{T}$ bin for central rapidity. Across all bins we observe that for fixed $\mu_{F}$ the LO cross section varies monotonically with the variation of the renormalization scale, as is to be expected as $\mu_{R}$ only affects the value of $\alpha_{s}$ at LO.

At NLO we observe a more complicated variation due to the appearance of scale logarithms in the calculation which can oppose the variation coming from the strong coupling for $\mu_{R},\mu_{F}<\mu_{0}$, where $\mu_{0}$ is the central scale choice, i.e. $p_{T}$. The resultant shape has a maximum in the region of $\mu_{R}/p_{T}\sim$0.5-1 depending on the $p_{T}$ bin. The peaked shape of NLO curve ensures that the variation of the cross section due to $\mu_{R}$ is always negative compared to the central value. The position of the peak being close to the central scale choice means that the scale band is smallest about this point. Whilst such a band gives a true account for the range of values taken by the cross section upon variation, it gives a misleading estimate of the degree to which the cross section is changing in response to the scale variation.

At NNLO we observe that the curve has less curvature than the NLO curve and is approximately linear with a decreasing gradient for increasing $p_{T}$. The variation of the NNLO cross section due to $\mu_{R}$ is larger than NLO in the low $p_{T}$ bin, largely owing to the fact that the peaked shape of the NLO curve probably underestimates the uncertainty; but even taking this into account, the magnitude of the variation is similar to that at NLO. At higher $p_{T}$ the $\mu_{R}$ scale variation of the NNLO cross section decreases as the curve flattens in Fig. 3(c). At low $p_{T}$ the change due to $\mu_{F}$ variation, displayed as the thickness of the bands in Fig. 3, is relatively small, even at LO; whereas at high $p_{T}$ the $\mu_{F}$ variation becomes large at LO and is significantly reduced by including the NLO and especially NNLO corrections.

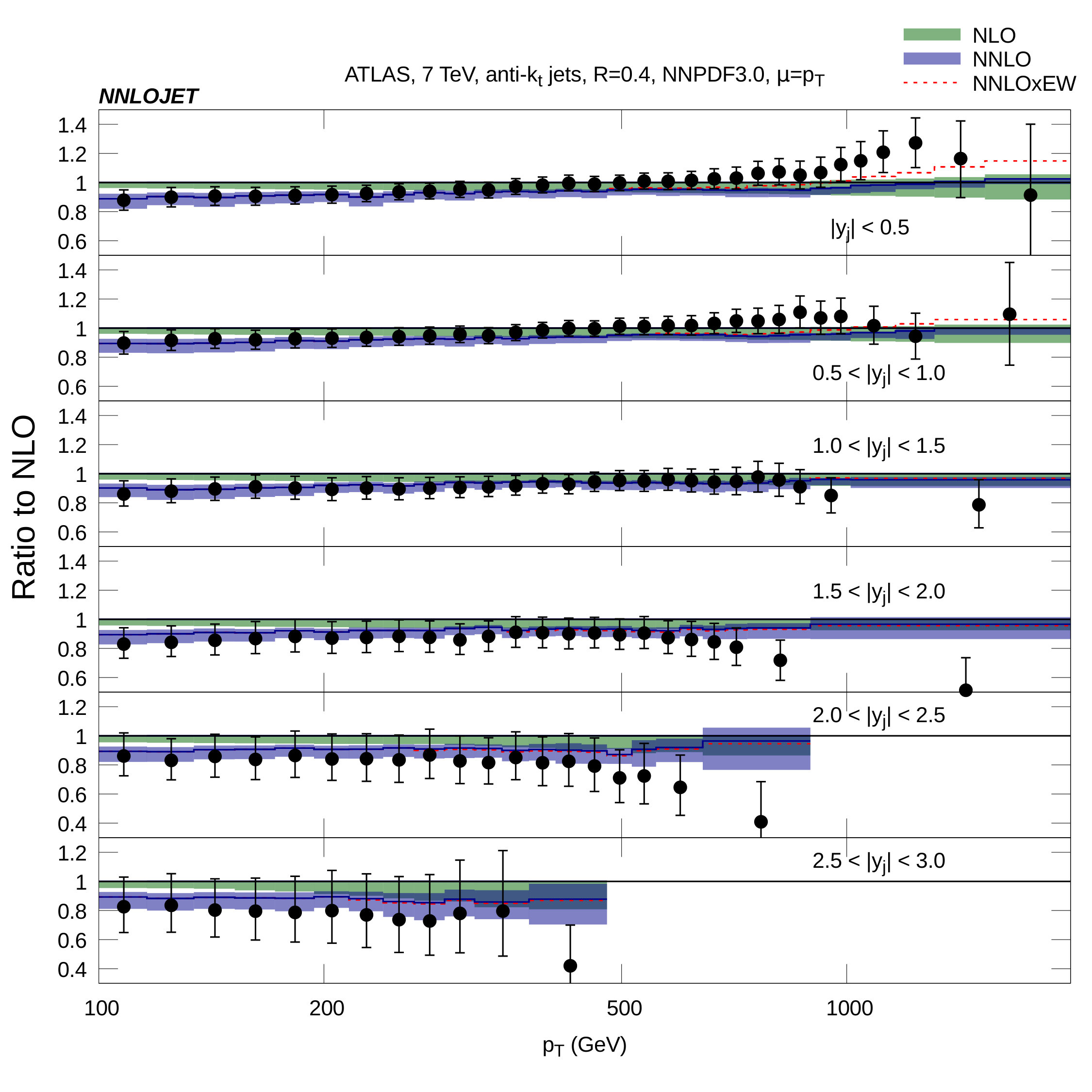

The information in Figs. 2-3 can be combined and compared to the available ATLAS data, as shown in Fig. 4. We observe that at low $p_{T}$ the NLO prediction shows some tension with the data, which lies approximately 10% below the NLO prediction. The NNLO correction acts negatively and brings the theoretical prediction in line with the data. At medium and high $p_{T}$ the theoretical prediction is largely consistent with the data and at very high $p_{T}$ and central rapidity the difference between the NNLO prediction and data can be largely accounted for by including the NLO electroweak corrections [29].

6 Comparison to $\mu_{R},\mu_{F}\sim p_{T_{1}}$

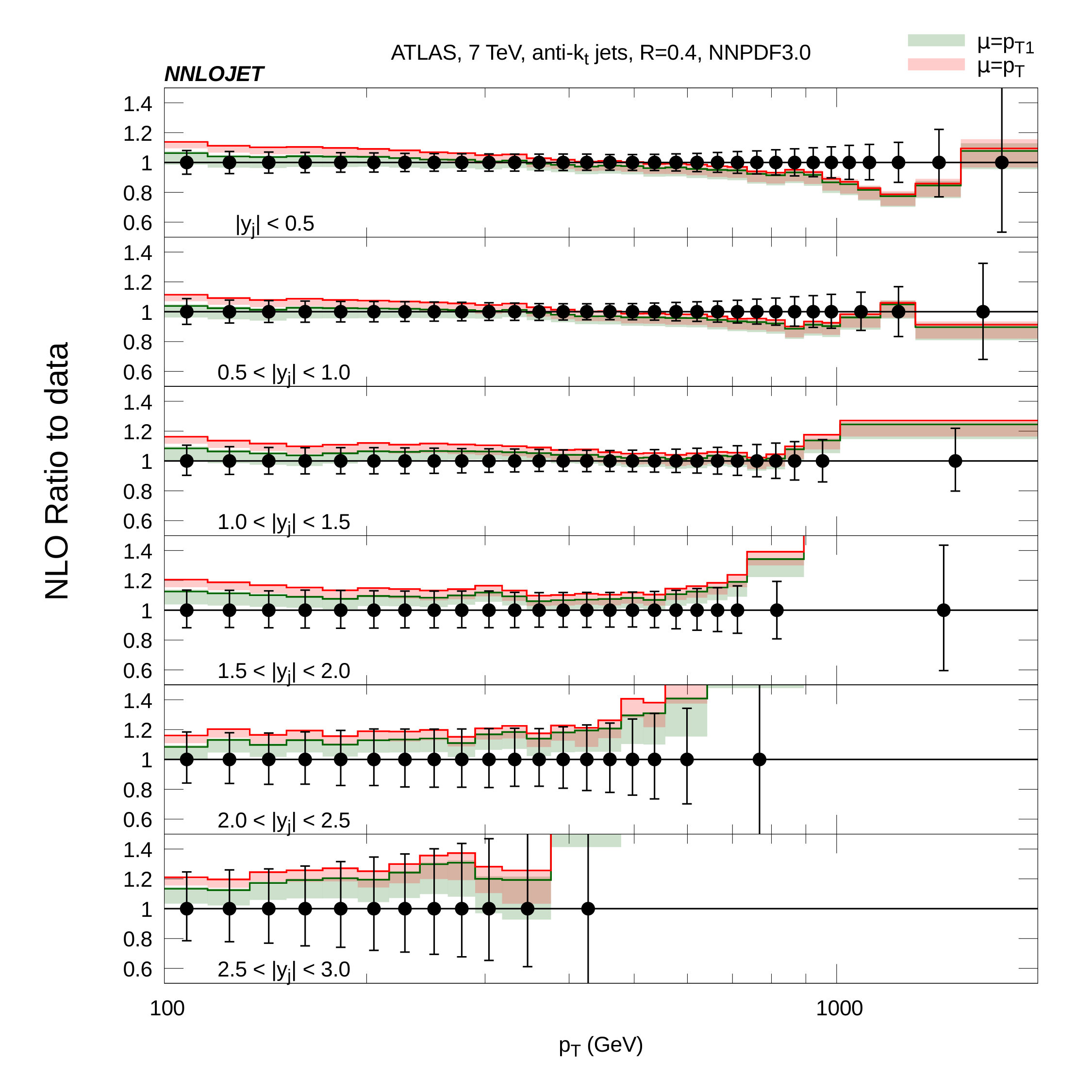

In addition to comparing to data, we can also compare to the same NNLO calculation, using the leading jet $p_{T}$ as the theoretical scale, as reported in [14]. In Fig. 5 we show the NLO predictions for difference scale choices, normalized to the data. We see that at low $p_{T}$ there is a significant difference between the predictions for the different scale choices with the $p_{T_{1}}$ scale choice sitting close to the data whereas the $p_{T}$ scale choice lies approximately 10% above the data in the lowest $p_{T}$ bin for central rapidity. The scale bands at low $p_{T}$ are of similar size for the two scale choices. At high $p_{T}$ we observe that the predictions for the two scale choices converge, particularly for central rapidities. The NLO scale bands are once again similar in size for the two scale choices and similar in size to the scale bands at low $p_{T}$.

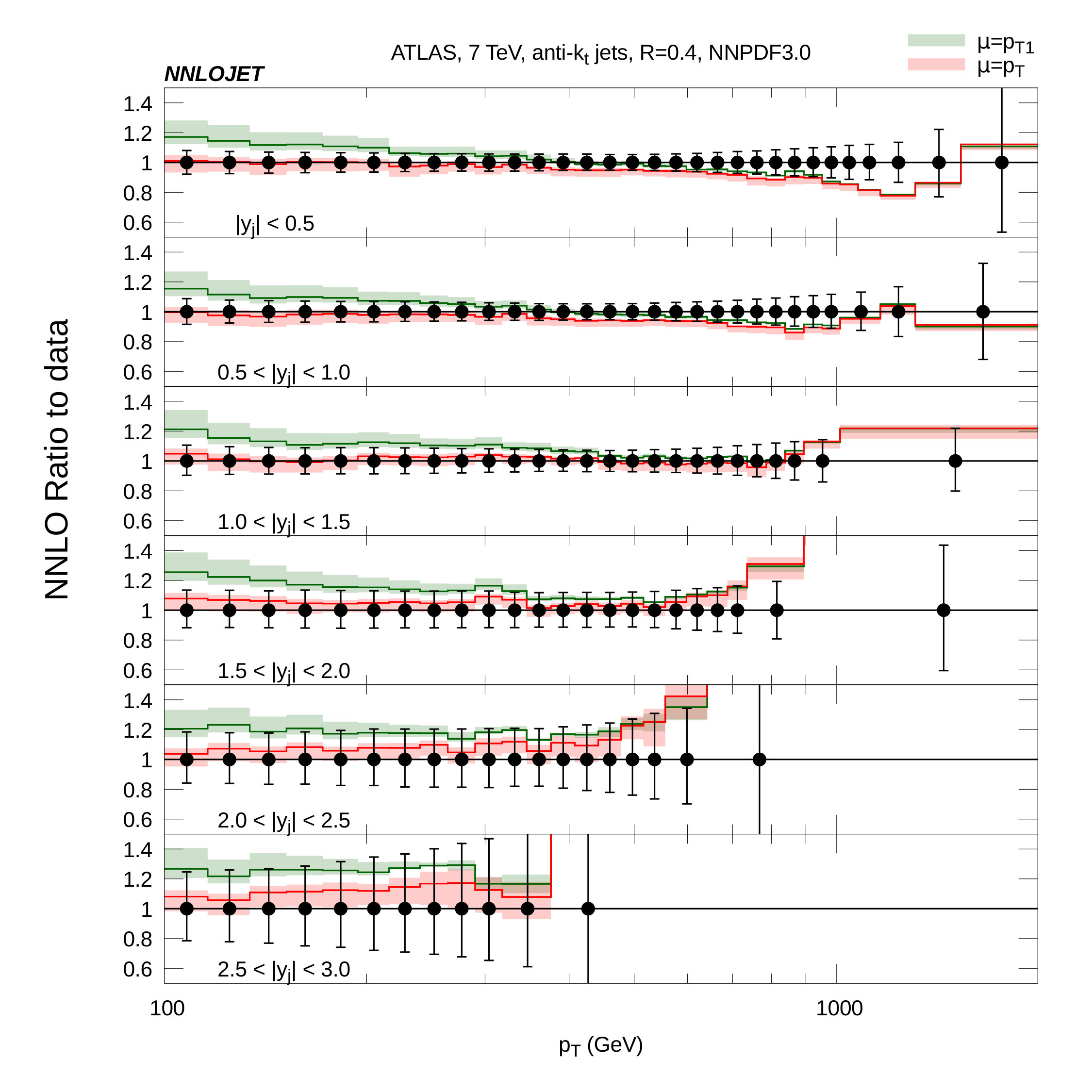

In Fig. 6 we show the analogue of Fig. 5 at NNLO, again for the two scale choices. At low $p_{T}$ we find the behaviour somewhat different to NLO: the NNLO correction for the $p_{T_{1}}$ scale moves the prediction away from the data, with which it was consistent at NLO; whereas using the $p_{T}$ scale brings the NNLO prediction in line with the data with which there was some tension at NLO. The NNLO scale band is larger than the NLO scale band for both scale choices in the lowest $p_{T}$ bin. At high $p_{T}$ the predictions for the two scale choices once again converge as is to be expected for the largely back-to-back configurations found at high $p_{T}$. The NNLO scale band for the $p_{T}$ scale choice offers only a moderate improvement over the NLO scale band in the $p_{T}$ range 300-900 GeV (and deterioration below this range) whereas the $p_{T_{1}}$ scale choice shows a more dramatic reduction in scale uncertainty above 400 GeV and a more dramatic deterioration below 300 GeV. For $p_{T}$ above 900 GeV both scale choice show a similar reduction in scale uncertainty when passing from NLO to NNLO predictions.

7 Discussion

The individual jet $p_{T}$ scale choice sets the scale dynamically for each jet in the distribution, rather than at a scale reflecting the hardness of the event. This scale choice can only produce different results to the previously published results using the leading jet $p_{T}$ scale choice when the subleading jets in an event have a $p_{T}$ differing from the leading jet and this generically occurs for low $p_{T}$ jets in the distributions considered here.

In the low $p_{T}$ region we find significant differences between the central values for the predictions using the two scale choices at NLO and NNLO. The uncertainty due to scale variation about those central scales also increases from NLO to NNLO for both scale choices and despite this increase, the bands do not overlap at low $p_{T}$. At higher $p_{T}$ the difference between the two scale choices decreases, as does the uncertainty due to scale variation, although the reduction in scale variation is more marked for the $p_{T_{1}}$ scale for moderate $p_{T}$ and central rapidities.

The comparison to ATLAS data, as shown in Figs. 5-6, exemplifies this difference in scale choice. At NLO we observe that the $p_{T_{1}}$ scale choice sits closer to the data, whereas at NNLO the fortunes are reversed and the $p_{T}$ scale choice is more consistent111The data is being used here merely as a reference point; we are using NNLO PDFs and so any genuine comparison of the NLO predictions to data is inappropriate. In any case the NLO PDF has been fitted to this data for the scale choice $p_{T}$.. The inconsistencies between the theoretical calculations clearly poses a problem when it comes to deciding which scale should be used when comparing to data or fitting PDFs.

The NNLO calculation with $p_{T}$ scale choice appears to provide a good description of the data, better than with the $p_{T_{1}}$ scale choice. However, it achieves this by generating a relatively large NNLO/NLO $K$-factor alongside a slightly deteriorating scale dependence. As an unphysical scale in the theoretical calculation, there is no a priori preferred parameterization except for scales which minimize the disruptive influence of large logarithms on the perturbative expansion. It is often sensible to choose a scale which reflects the underlying Born-level kinematics, which for jet production is the LO $2\to 2$ scattering where the two scales considered here coincide. The significant effect of this scale ambiguity on the NNLO predictions, and the lack of a theoretically well motivated preference, motivates further study of this issue and consideration of non-standard scale choices to ensure the greatest possible phenomenological impact from jet data.
