Quantum-memory-assisted multi-photon generation for efficient quantum information processing

TL;DR

This paper demonstrates how quantum memories can synchronize multiple heralded single-photon sources, significantly increasing photon generation rates and enabling advanced quantum communication and computing applications.

Contribution

It introduces a method to synchronize multiple photon sources using quantum memories, enhancing photon generation efficiency and indistinguishability for scalable quantum information processing.

Findings

Enhanced photon coincidence rate by ~30x using quantum memories

Achieved high photon indistinguishability of 95.7%

First demonstration of HSPS-based measurement-device-independent QKD

Abstract

In the last two decades, many quantum optics experiments have demonstrated small-scale quantum information processing applications with several photons. Beyond such proof-of-principle demonstrations, efficient preparation of large, but definite, numbers of photons is of great importance for further scaling up and speeding up photonic quantum information processing. Typical single-photon generation techniques based on nonlinear parametric processes face challenges of probabilistic generation. Here we demonstrate efficient synchronization of photons from multiple nonlinear parametric heralded single-photon sources (HSPSs), using quantum memories (QMs). Our low-loss optical memories greatly enhance (~30x) the generation rate of coincidence photons from two independent HSPSs, while maintaining high indistinguishability (95.7%) of the synchronized photons. As an application, we perform the first demonstration of HSPS-based measurement-device-independent quantum key distribution (MDI-QKD). The synchronized HSPSs demonstrated here will pave the way toward efficient quantum communication and larger scale optical quantum computing.

Figures

Tables

Table 1. Table 1: Experimental parameters

Description	Symbol	Value
Mean photon number per pulse	$\mu$	0.013
Trigger-mode system detection efficiency	${\eta }_t$	0.18
Optical channel transmission	$T_c$	0.083
Quantum memory transmission	$T_{QM}$	0.988
HOMI/BSM detector efficiency	${\eta }_d$	0.75

Table 2. Table 2: Experimental MDI-QKD quantities and estimated key rate.

	With synchronization	Without synchronization
$Q_Z$ ($\times {10}^{-7}$ per pulse)	$1.976\pm 0.033$	$0.0688\pm 0.0060$
$Q_X$ ($\times {10}^{-7}$ per pulse)	$1.969\pm 0.033$	$0.0718\pm 0.0062$
$e_Z$	$0.0771\pm 0.0045$	$0.0747\pm 0.0237$
$e_X$	$0.0797\pm 0.0046$	$0.0791\pm 0.0239$
$N_p$	$4\times {10}^9$	$4\times {10}^9$
$R$ ($\times {10}^{-7}$ per pulse)	0.212	-0.00107

Equations

$$P_c(k)=\frac{{\mu }^k}{(1+\mu {)}^{k+1}},$$

$$P_d(k)=\sum _{l=1}^k{\eta }_d^l(1-{\eta }_d{)}^{k-l}(\genfrac{}{}{0ex}{}{k}{l}){\left(\frac{1}{D}\right)}^{l-1},$$

$$P_e(k^{\prime }|k,j,j^{\prime })=(T_c{T}_{QM}^{j-j^{\prime }+1}{)}^{k^{\prime }}(1-T_c{T}_{QM}^{j-j^{\prime }+1}{)}^{k-k^{\prime }}(\genfrac{}{}{0ex}{}{k}{k^{\prime }}).$$

$$P_h(j)=$$

$$P_h(1)=$$

$$P_s(M)=$$

$$P_l(1|j)=$$

$$P_e(1|j)=$$

$$+P_h(j-1)\sum _{k^{\prime }=1}^{\infty }{P}_c(k^{\prime })P_d(k^{\prime })P_t(1|k^{\prime },j,j).$$

$$P_s^{\prime }(k_A,k_B)=$$

$$R=Q_Z^L\left\{1-h(e_X^U)-f_{e}h(e_Z^U)\right\}.$$

Full text

For single- and multi-photon generation, quantum optics experiments have typically used nonlinear optical parametric sources due to experimental convenience and their stable performances (in contrast, solid-state single-emitter sources Aharonovich:2016hm typically require cryogenic cooling and suffer from source inhomogeneity and difficulty achieving high-efficiency collection of emitted photons into a single spatial mode, e.g., optical fiber). However, these cannot generate single photon pairs deterministically; for a mean number of photon pairs $\mu$, the generation probability of $k$ photon pairs is $\mu^{k}/(\mu+1)^{k+1}$. Therefore, the single-pair generation probability peaks at only 25% due to the non-negligible likelihood ($\sim\mu^{k}$) of unwanted zero- and multiple-pair generations. For example, a recent ten-photon experiment Wang:2016dk using 5 spontaneous parametric downconversion (SPDC) sources needed to keep $\mu<0.05$ to suppress the multi-pair emissions, resulting in a ten-photon coincidence rate of only several events per hour.

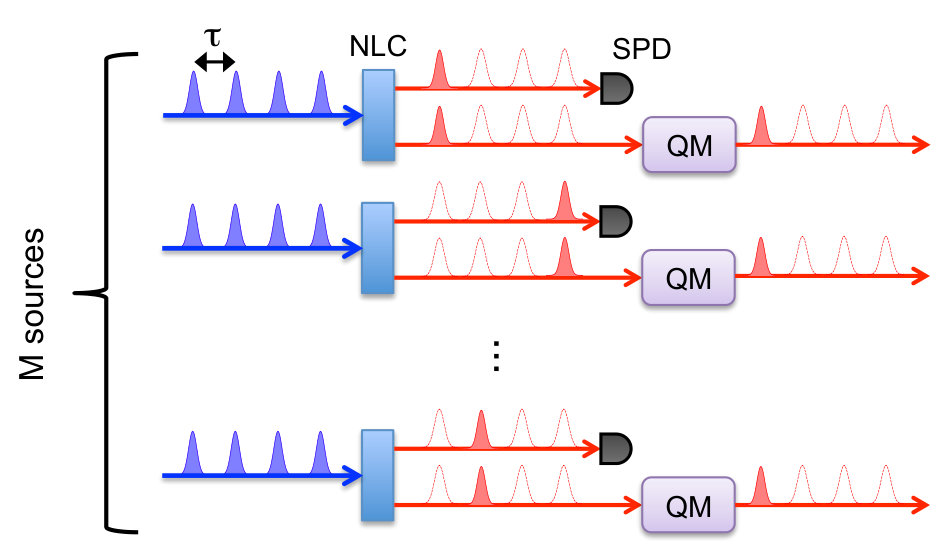

Here we employ QMs to synchronize such probabilistic parametric sources to efficiently generate multiple simultaneous single photons, as shown in Fig. 1. $M$ parametric sources pumped with a period $\tau$, generate photon pairs probabilistically, though in general not simultaneously. Each parametric source works as a HSPS in which photons generated in a trigger mode are sent to a single-photon detector (SPD), whose click “heralds” in which time slot the corresponding twin photon is present. Each QM triggered by a heralding signal from its corresponding HSPS, stores heralded photons for an arbitrary integer time of $\tau$, until other sources produce their pairs. After the last source heralds a “last-born” photon, the $M-1$ memories storing the earlier-born photons release them simultaneously, thereby producing $M$ simultaneous photons. Given each source’s heralding probability per pump pulse $p\sim\mu\eta\ll 1$ (where $\eta$ is the system detection efficiency of the trigger mode), a maximum number of storage time slots $N$, and lossless QMs, the $M$-fold coincidence probability is given by $\{1-(1-p)^{N}\}^{M}\simeq(pN)^{M}$. Hence, one can obtain up to $\times N^{M-1}$ enhancement over a non-synchronized case that requires $M$ sources to simultaneously herald $M$ photons (with probability $p^{M}N$). Theoretical details of the synchronization scheme are discussed in Ref. Nunn:2013hua ; GimenoSegovia:2017vl and Supplementary Information. Similar schemes have been demonstrated by using optical parametric oscillators Makino:2016bi and atomic ensembles Felinto:2006gw ; however, our pulsed-pump scheme is advanced in high-speed capability. Note that this synchronization scheme even has a higher generation rate compared to recently demonstrated periodic time-multiplexed HSPSs Kaneda:2015dn ; Mendoza:2016gr ; Xiong:2016bv : $M$ periodic time-multiplexed sources need to wait for periodic output time windows even if all QMs have loaded photons earlier. In contrast, our proposed scheme needs to store $M-1$ photons only for the difference of the generation time slots, substantially reducing total storage loss in imperfect (and practical) QMs. Also, the synchronization process can be repeated immediately after the last source heralds its photon.

Our scheme in general can be applied to multiple HSPSs not only in a local laboratory together but also in remote locations; the former case is very useful for quantum computing applications Kok:2007ep ; Aaronson:2011ja ; Childs:2013hh , while the latter has great potential for realizing efficient quantum networking. Particularly, synchronized remote sources can be directly applicable to an important quantum communication application, MDI-QKD Lo:2012df , that is secure against all detector side-channel attacks. Our proposed MDI-QKD scheme with QMs is depicted in Fig. 2 (a). In general MDI-QKD, Alice and Bob, who want to share secure cryptographic keys with each other, both need to simultaneously send qubit-encoded photons to Charlie, who identifies the correlation between Alice’s and Bob’s qubits (but not those qubits themselves) via Bell-state measurement (BSM), i.e., projection measurement of them into the Bell-state basis. Therefore, in MDI-QKD efficient simultaneous generation of single-photon states is more critical to produce higher secure key rates than a traditional BB84 protocol Lo:2014ex . In our scheme, in addition to the standard BSM configuration, Charlie possesses a QM module so that an early-arrival photon from Alice’s (Bob’s) HSPS is delayed to be sent to the BSM setup simultaneously with a late-arrival photon from Bob’s (Alice’s) source. Thus, the success event rate of the BSM and thereby the secure key rate and transmission distance are significantly increased compared to the standard (non-synchronized) case Abruzzo:2014it ; Panayi:2014jr .

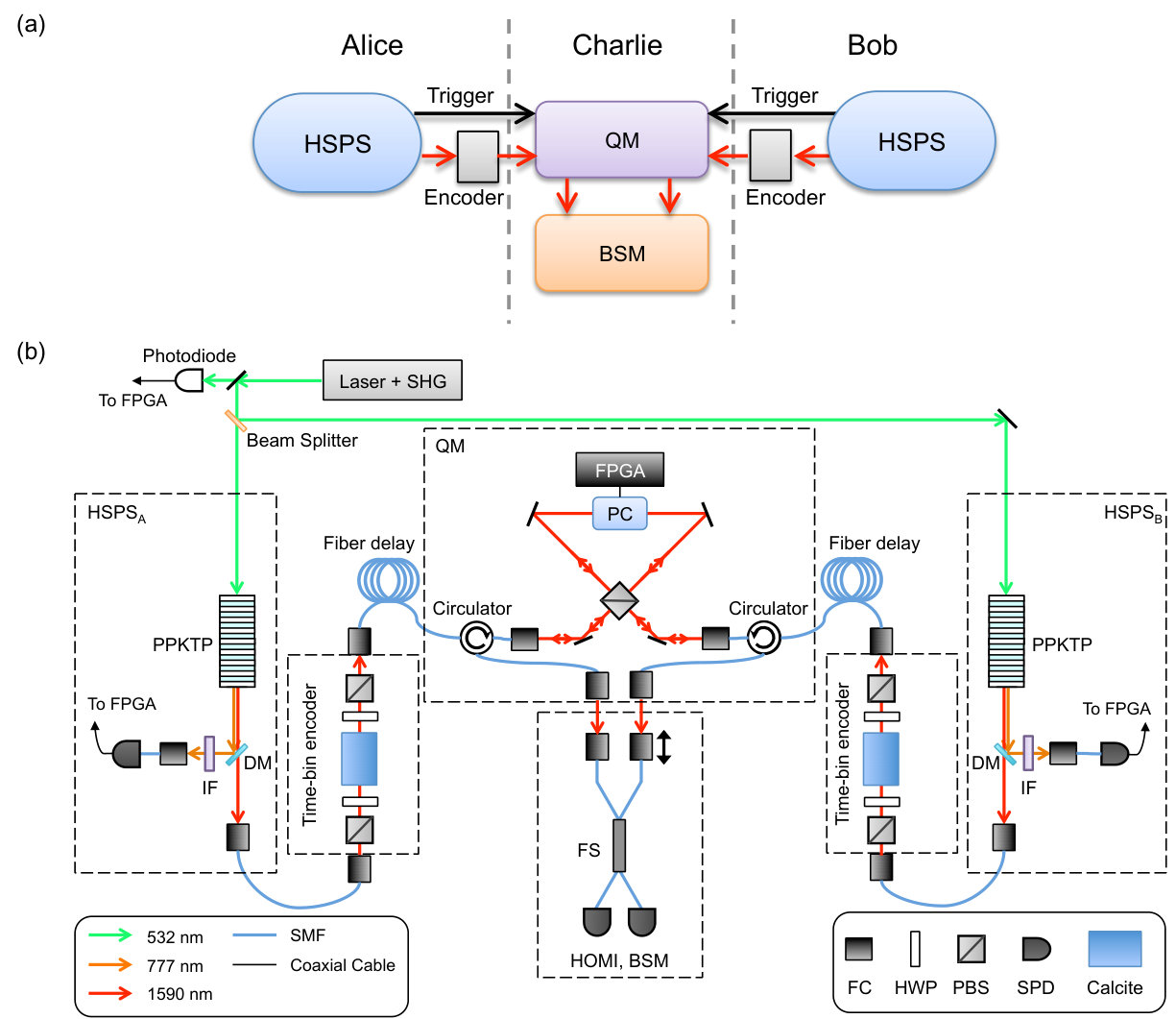

A schematic diagram of our experiment for synchronizing two HSPSs is shown in Fig. 2 (b). Our HSPSs Kaneda:2016fh pumped by a common pulsed laser source (with period $\tau=10$ ns) generate heralded photons at 1590 nm with a 96% spectral indistinguishability. We operated the pair generation rate at $\mu=0.013$ per pulse, for which the SPDC multi-pair contribution to the total coincidence counts was limited to $\sim$4%. Our QM, consisting of a bulk optics delay cavity with a matched cycle length $\tau$ and a high-speed polarization switch (a Pockels cell, PC), has 98.8% transmission per cycle. Incorporating two fiber optic circulators, the QM can delay photons coming from either of the HSPSs (see Methods). Due to the low switching rate (1 MHz) of the PC, the synchronization process is not repeated immediately after synchronizing two photons, but after a fixed cycle (every 1 $\mu$s).

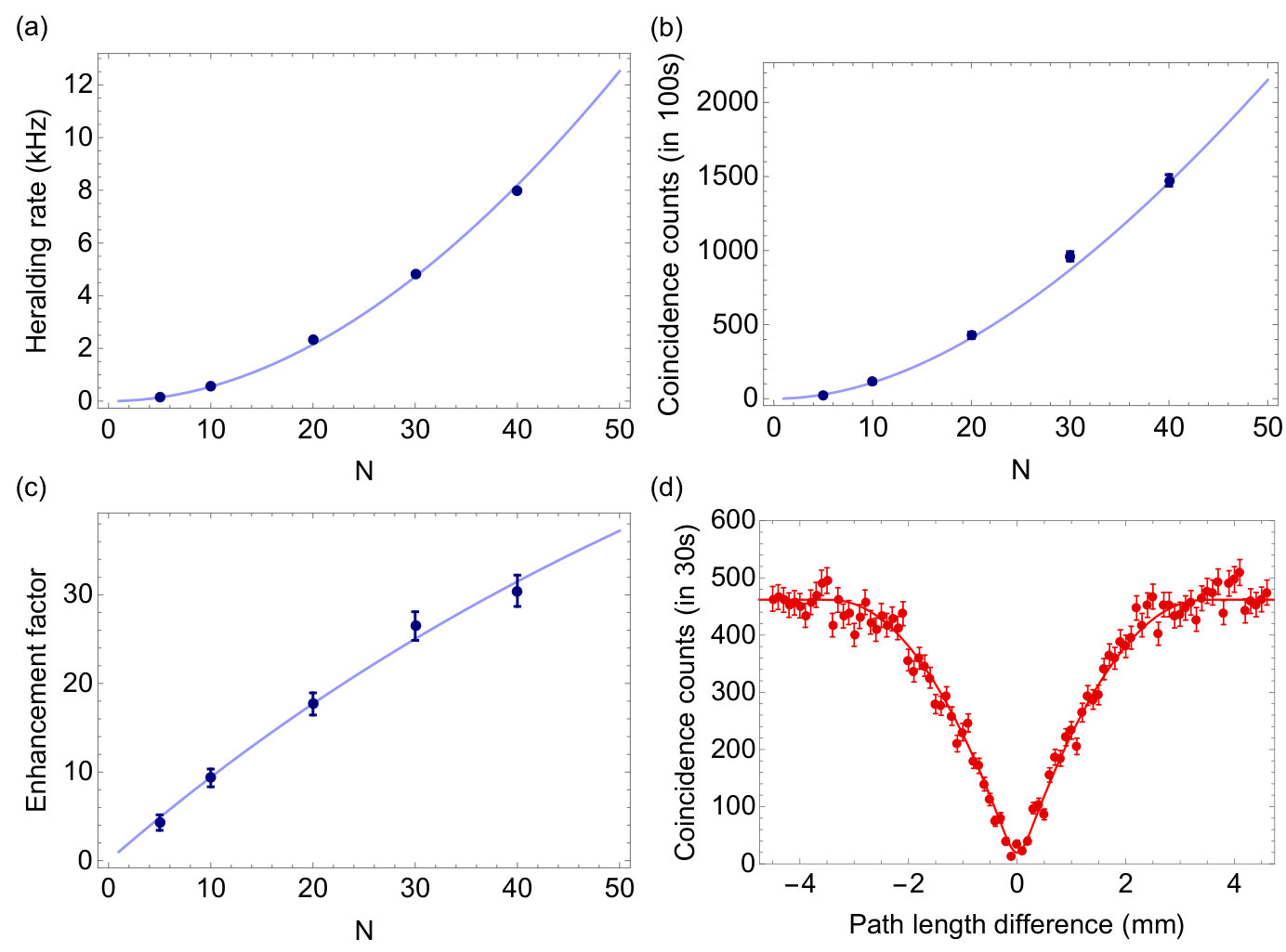

Figure 3 (a,b) respectively show synchronized trigger signal rates from two HSPSs and two-photon coincidence count rates versus $N$. The synchronized trigger signal rate increases approximately as $N^{2}$ as expected; an $\sim N^{2}$ increase is also observed for the two-photon coincidence count rates, due to the high storage efficiency. Without the synchronization process, we observed a coincidence count rate of only $121\pm 6$ per 100 s with the pump repetition rate of $1/\tau=100$ MHz. We determined the enhancement factor for the two-photon coincidence count rate as the ratio of the synchronized and non-synchronized case’s coincidence count rates per pump pulse (see Fig. 3 (c)); the enhancement factor increases almost linearly as $N$, and $\times 30.5\pm 1.6$ enhancement was obtained with $N=40$. Note that this same approach, generalized to preparing, e.g., 10 simultaneous photons, would have an enhancement factor of $30.5^{9}=2.28\times 10^{13}$. Our results are in agreement with the theoretical predictions, shown as solid lines in Fig. 3 (a,b,c) (see Supplementary Information).

We characterized the indistinguishability of the synchronized photons by Hong-Ou-Mandel interference (HOMI) Hong:1987vi , of which visibility is a direct measure, and essential for BSM (as will be demonstrated). Our observed HOMI with $N=40$ as well as the best-fit theoretical curve Kaneda:2016fh , is shown in Fig. 3 (d). The estimated visibility and dip width after subtracting background counts (23.2 counts for each data point) were $95.7\pm 1.5$% and $6.00\pm 0.02$ ps, respectively, which closely matches our prediction based on the observed joint spectral intensities of the HSPSs (see Supplementary Information); the background counts are mainly due to the multi-photon emissions. This high HOMI visibility indicates that our QM well preserves the time-bandwidth characteristics ($\Delta t=6.1$ ps, $\Delta\lambda=0.8$ nm) and indistinguishability of the heralded photons.

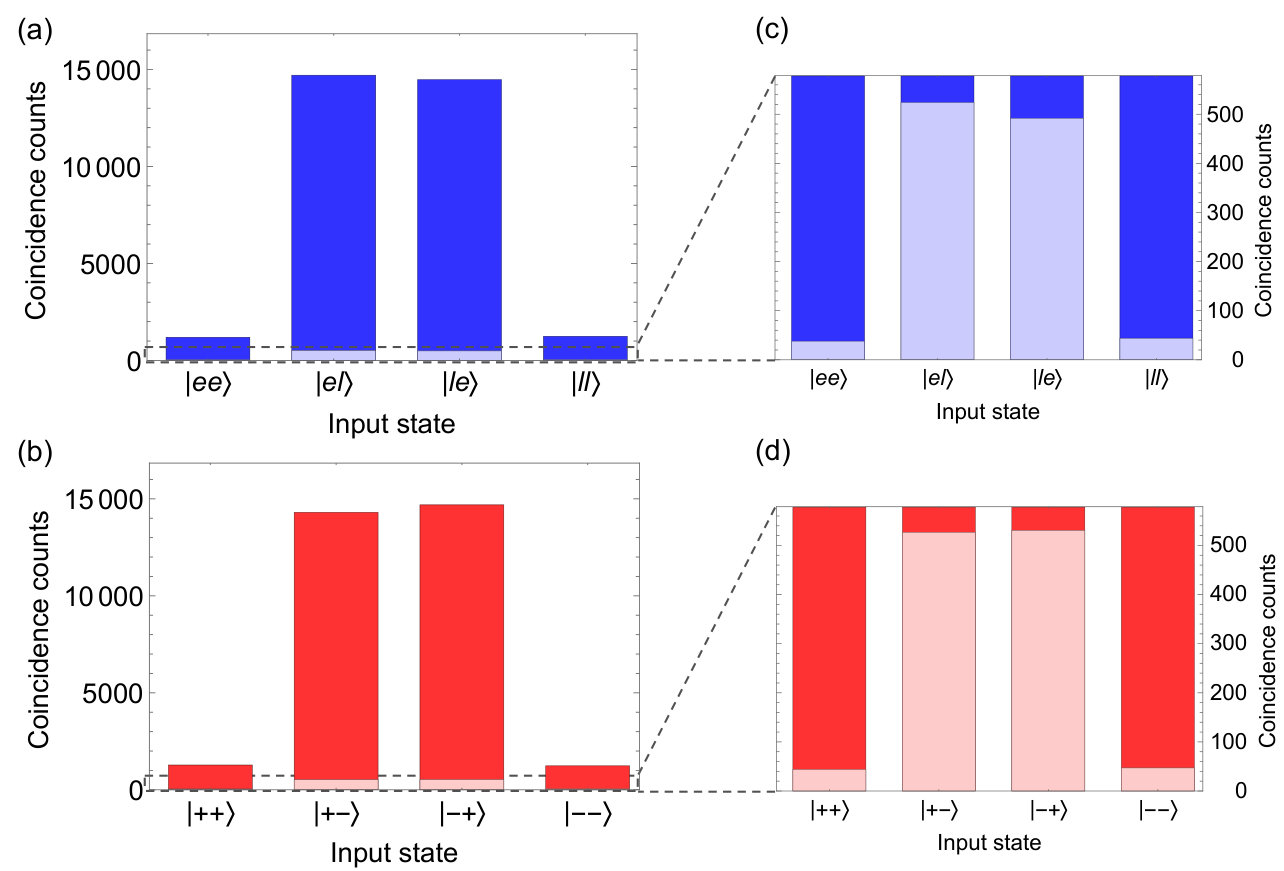

Lastly, we apply our synchronization technique to demonstrate proof-of-concept MDI-QKD with time-bin-encoded heralded single photons. Note that polarization qubits are not switchable, because our QM switches polarization to control a photon’s delay, so instead we use time-bin encoding (see Methods). Figure 4 (a,b) shows experimental results of the BSM for the early-/late-qubit basis $\{|{e}\rangle,|{l}\rangle\}$ and their superposition basis $\{|{+}\rangle,|{-}\rangle\}$, where $|{e}\rangle\perp|{l}\rangle$, $|{\pm}\rangle=(|{e}\rangle\pm|{l}\rangle)/\sqrt{2}$. Coincidence events are collected for $N_{p}=4\times 10^{9}$ pump pulses. With our BSM setup projecting two qubits onto a singlet state $|{\psi^{-}}\rangle\equiv(|{el}\rangle-|{le}\rangle)/\sqrt{2}=(|{+-}\rangle-|{-+}\rangle)/\sqrt{2}$ (see Methods), our observed coincidence counts (without subtracting background counts) from identical qubits are only $\sim$ 8% of those from orthogonal qubits, due to high-visibility HOMI ($\sim$92%). Note that these highly suppressed error count rates depend on the low multi-photon contributions ($\sim$4%); in contrast, previous demonstrations Rubenok:2013ip ; PhysRevA.88.052303 ; PhysRevLett.112.190503 ; Comandar:2016em ; PhysRevLett.117.190501 of MDI-QKD with weak coherent pulses could only have 50% HOMI visibility because of their large photon-number noise.

Based on the result of the BSM, we estimate the lower bound of secure key rate $R=0.212\times 10^{-7}$ bit per pump pulse (corresponding to 0.851 bit/s with our 1-MHz system repetition rate) over an equivalent loss, i.e., the total loss of two optical channels from each SPDC crystal to the first circulator, of $\sim$14 dB. See Supplementary Information for details of secure key rate evaluations. For comparison, we also performed our MDI-QKD experiment without synchronization. Although a similar distribution of coincidence counts is observed (see Fig. 4 (c,d)), no positive key could be guaranteed because of the large uncertainty in the estimates of the QKD bit error rates, due to $\sim 30\times$ fewer photon count rates compared to the synchronized case. Therefore, the enhanced coincidence count rate with our synchronization technique is critical to enable useful HSPS-based MDI-QKD.

Our current secure key generation rate could be enhanced by a factor of $\sim 250$ by several improvements on our current physical setup (see Supplementary Information). In addition, we expect that employing decoy-state methods would allow us to use much higher values of $\mu$, thereby further increasing the secure key rate Abruzzo:2014it ; Panayi:2014jr . Furthermore, passive decoy-state methods PhysRevLett.99.180503 ; PhysRevA.75.050305 can be applied for HSPS-based MDI-QKD to remove active decoy intensity modulations.

In conclusion, we have demonstrated QM-assisted synchronization of multiple HSPSs for efficiently generating multiple single-photon states. Our synchronization scheme can be applied with both local and remote HSPSs; the former is valuable for larger scale quantum computing, while the latter has great potential of realizing efficient and low-noise quantum communication. We observed greatly enhanced coincidence count rates as well as high indistinguishability of photons from two synchronized HSPSs. Moreover, for the first time we obtained secure keys via HSPS-based MDI-QKD, with the help of the source synchronization. We anticipate that these synchronization methods will pave the way toward larger scale optical quantum computation and communication applications.

Methods

Heralded single-photon source

We used a frequency-doubled mode-locked Yb laser ($\lambda=521$ nm, $\tau=10.0$ ns) to pump two 20-mm-long periodically-poled potassium titanyl phosphate (PPKTP) crystals each of which generates collinear photon pairs centered at 777 and 1590 nm via SPDC. We used a shared pump merely for a convenience, not necessity; it is feasible to have independent but locked pump lasers Kaltenbaek:2006ch . The spectral purity is estimated to be 97% after filtering the original 2.5-nm bandwidth of the 777-nm mode with 1.1-nm bandpass filters. Due to the spectral filtering, we observed largely different transmissions in the two SPDC modes after a collection SMF; the transmission for the heralded (1590-nm) mode is 88%, while only 30% for the trigger (777-nm) mode. Each trigger detector, a Si avalanche photodiode, has a $\sim$60% detection efficiency and $10^{-6}$ background count rate per 1-ns coincidence window.

Quantum memory and synchronization procedure

We implemented a bulk-optics-based QM, consisting of a 10-ns delay loop, custom Brewster-angled PBS, and PC comprising a pair of rubidium titanyl phosphate (RTP) crystals. The two PBS inputs allow the QM to delay photons from either of the sources, with photons from different HSPSs always cycling in opposite directions in the optical delay cavity. A field-programmable gate array (FPGA) module processes input signals from trigger SPDs, triggering the PC to store/release early-born photons. When an early-born photon from either source enters into the cavity, the PC is activated, rotating that photon’s polarization by 90∘ to store and delay it in the cavity. To switch a photon from one HSPS into and out of the QM without affecting a potential photon from the other HSPS, the two sources have a time-slot offset by $\tau/2=5$ ns, greater than the 4-ns rise/fall time of our PC. After delaying the early-born photon for the necessary integer multiples of $\tau$, photons from the two HSPS are synchronously emitted (but offset by $\tau/2$) from the different ports of the PBS, each coupling to a fiber circulator that directs it to a fiber splitter (whose input arm lengths are chosen to remove the $\tau/2$ offset between the two photons). The single-pass cavity transmission $T_{c}$ is 98.8%, and the corresponding photon lifetime in the QM is $\sim$ 830 ns (i.e., 83 cycles for $1/e$ total switching transmission). The slightly imperfect cavity transmission is due to the transmission of the PC ($99.2$%) and the reflection of the two concave mirrors (99.8%). The group-velocity dispersion in the QM cavity is very small (\sim$$1.2\times 10^{-3} $\mathrm{ps^{2}}$ at 1590 nm) compared to the photon coherence time ($\Delta t=6.1$ ps); thus, the cycle-dependent chromatic dispersion, which could degrade indistinguishability of the synchronized photons, is negligible for up to $N=40$. Each fiber delay line can hold photons for $\sim$500 ns to compensate for the electronic latencies ($\sim 100$ ns from a trigger photon to firing the PC). In addition, the rest of the delay ($>400$ ns) after the compensation allows us to select the latest heralded time slot (for up to $N=40$) of the first-heralding HSPS, thus minimizing the effective storage loss in the QM Kaneda:2015dn (for example, if HSPSA produces photons in time slots 3 and 29, and HSPSB produces a photon in slot 31, we only need to store the second HSPSA photon for 2 cycles instead of 28).

Time-bin encoder

A time-bin qubit state is created by using a common-path polarization-dependent unbalanced interferometer. For this proof-of-concept MDI-QKD experiment, no random number generator or fast active switch is used to encode qubits. Horizontally polarized photons generated from an HSPS first pass through a HWP with its optic axis at either 0∘, 45∘, $22.5^{\circ}$, or $-22.5^{\circ}$, respectively creating the horizontal, vertical, diagonal, or anti-diagonal state ($|{H}\rangle$, $|{V}\rangle$, $|{D}\rangle$, or $|{A}\rangle$), where $|{H}\rangle\perp|{V}\rangle$, $|{D}\rangle\equiv(|{H}\rangle+|{V}\rangle)\sqrt{2}$, and $|{A}\rangle\equiv(|{H}\rangle-|{V}\rangle)\sqrt{2}$. A pair of 40-mm-long calcite crystals provides a group delay ($\sim$ 25 ps) between $|{H}\rangle$ and $|{V}\rangle$ without transverse walk-off, correlating the polarization state to a temporal one, i.e., $|{H}\rangle\rightarrow|{H}\rangle|{e}\rangle,|{V}\rangle\rightarrow|{V}\rangle|{l}\rangle$. This group delay is much larger than $\Delta t$ but much smaller than the 4-ns switching rise/fall time of our PC, so that both time-bin states can be efficiently switched in the PC. A HWP at 22.5∘ after the calcite crystals rotates the polarization from $|{H}\rangle$ ($|{V}\rangle$) to $|{D}\rangle$ ($|{A}\rangle$), and a following PBS transmits only $|{H}\rangle$. Thus, time-bin qubit states ($|{e}\rangle$, $|{l}\rangle$, $|{+}\rangle\equiv(|{e}\rangle+|{l}\rangle)/\sqrt{2}$, $|{-}\rangle\equiv(|{e}\rangle-|{l}\rangle)/\sqrt{2}$) with an identical polarization state $|{H}\rangle$ are successfully generated with a 50% postselection probability; the overall transmission including optics loss, fiber coupling efficiency, and this postselection, is about 22%.

Measurement of synchronized photons

In order to perform the HOMI experiment as well as the BSM, we implemented an interferometer with a 50:50 fiber splitter. The path length difference between the two fiber input mode is adjusted to be zero by translating one of input fiber couplers. Coincidence counts of the synchronized photons are measured by two fiber-coupled superconducting nanowire detectors (SNSPDs) with $\sim$75% detection efficiency and $\sim 10^{-6}$ dark count probability per 1-ns coincidence window. This setup with zero path-length difference and coincidence measurements performs as a BSM projecting onto $|{\psi^{-}}\rangle\equiv(|{el}\rangle-|{le}\rangle)/\sqrt{2}=(|{+-}\rangle-|{-+}\rangle)/\sqrt{2}$ for time-bin qubits Rubenok:2013ip ; PhysRevLett.111.130502 ; PhysRevLett.117.190501 . For the measurement of coincidence counts versus $N$ shown in Fig. 3 (b), we used the large path-length difference ($\sim$15 mm) of the interferometer to avoid two-photon interference.

Acknowledgement

Funding for this work has been provided by NSF Grant No. PHY 12-12439 and PHY 15-20991, US Army ARO DURIP Grant No. W911NF-12-1-0562, ARO Grant No. W911NF-13-1-0402, and US Navy ONR MURI Grant No. N00014-13-1-0627.

Supplementary Information

Theory of synchronized HSPSs

Here we show theoretical details of $M$ synchronized HSPSs with imperfect optical components. We first define following probabilities:

[TABLE]

[TABLE]

[TABLE]

$P_{c}(k)$ is the probability that an SPDC source generates $k$-photon pairs; for an SPDC source generating pure heralded photons, its photon number statistics follow a thermal distribution. $P_{d}(k)$ is the probability of a trigger detector click, given that an SPDC source generates a $k$-photon state. $\eta_{D}$ is the total transmission of the signal photons from the SPDC crystal to SPDs, and $D$ is the number of SPDs used for a trigger-detector cascade to herald idler photons. Here, we assume that the SPDs are “bucket” detectors that only discriminate between zero and one-or-more photons, and the detector cascade distributes the signal photons to $D$ detectors with an equal probability ($1/D$). $P_{e}(k^{\prime}|k,j,j^{\prime})$ is the idler photon’s transmission to an output time slot, where $T_{QM}$ denotes the storage efficiency in a QM for a delay time $\tau$, and $T_{c}$ is the net transmission of the other optics (including an initial delay line, fiber coupling efficiency, etc.).

We also define $P_{h}(j)$ as the probability that one HSPS heralds at least one single photon within $j$ time slots:

[TABLE]

With the above definitions, the probability that all $M$ HSPS’s synchronously generate single photons, is given by

[TABLE]

[TABLE]

where $N$ is the maximum number of storage time slots. $P_{l}(k|j)$ is the probability that an HSPS initially heralds and generates a $k$-photon state in the $j$-th time slot, while $P_{e}(k|j)$ is the probability of heralding at least one time within $j-1$ time slots and then emitting a $k$-photon state at the $j$-th time slot. The first and second term in (6) describe, respectively, the probabilities that all $M$ sources generating single photons in the first time slot and from the second to the $N$-th time slots.

For $M=2$, as used for our experiment, we extended Eq. (6) to calculate multi-photon emission probabilities from each HSPS. The probability of Source A and B respectively producing $k_{A}$ and $k_{B}$ photons is given by

[TABLE]

The experimental parameters used for our theoretical estimations are shown in Table LABEL:parameters.

Spectral characterization of HSPSs

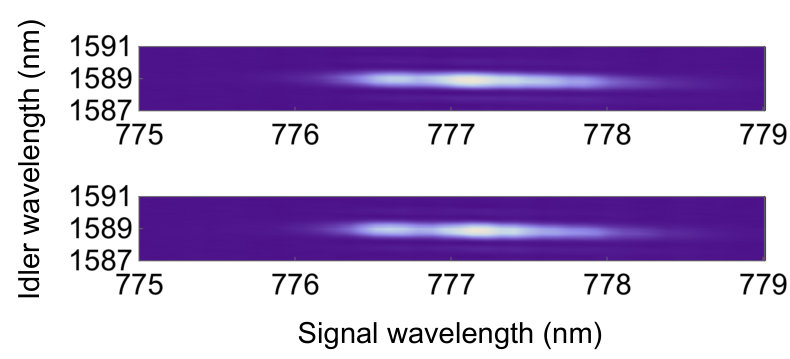

In order to estimate an attainable visibility of our HOMI measurement, we measured joint spectral intensities (JSIs) of the two SPDC sources (see Fig. 5), using frequency-resolved optical parametric amplification Fang:2014dk ; Kaneda:2016fh . As shown in Fig. 5, the SPDC sources have a very similar JSI, each of which is estimated to generate heralded single-photons with 97.1% purity, assuming for no spectral phase shift in the JSI. We then estimate the final indistinguishability of the heralded photons from the two independent sources to be 96.4%; our experimental visibility ($95.7\pm 1.5$%) is very close to this estimate.

Secure key rate evaluation and possible improvements in MDI-QKD

We determined the gain and quantum bit error rate (QBER) respectively as $Q_{W}=(C_{00}+C_{11}+C_{01}+C_{10})/N_{p}$, $e_{W}=(C_{00}+C_{11})/(C_{00}+C_{11}+C_{01}+C_{10})$, where $W\in[Z=\{|{e}\rangle,|{l}\rangle\},X=\{|{+}\rangle,|{-}\rangle\}]$ is the basis choice, and $C_{ij}$ ($i,j\in\{0,1\}$) is the number of coincidence counts for input qubits $|{ij}\rangle$, given a total number of pump pulses $N_{p}$ Lo:2012df . In our proof-of-principle implementation, a lower bound of secure key rate $R$ is estimated by assuming that our HSPS is an ideal single-photon source (i.e., ignoring the low multi-pair contributions):

[TABLE]

Here, $Q_{Z}^{L}$, $e_{X}^{U}$, $e_{Z}^{U}$ are the lower (L) and upper (U) bounds of gain and QBER due to statistical fluctuations (we consider 3 standard deviations); $h(x)=-x\log x-(1-x)\log(1-x)$ is the binary entropy, and $f_{e}=1.16$ is the error correction inefficiency factor Brassard:1993db . Our observed QKD parameters as well as estimated secure key rates $R$ are shown in Table LABEL:QKDparameters.

We expect that our current observed secure key rate can be increased by a factor of $\sim 500$ by using efficient optics, a deterministic time-bin encoding method, and decoy-state method with parameter optimizations. Since we used this postselective method for simplicity of implementation (see Methods), each time-bin encoder has only 22% transmission; however, lossless and deterministic encoding can be achieved, for example, by using time-bin entangled photon sources instead of an HSPS, detecting trigger photons with projection onto corresponding time-bin states. $e_{Z}$ can be reduced to $<1$% by extending the time bin’s separation from our current 25 ps to $\geq 200$ ps such that SNSPDs can resolve time-bin states. This has already been demonstrated in previous weak-coherent-pulse(WCP)-based MDI-QKD experiments Rubenok:2013ip ; PhysRevLett.111.130502 ; PhysRevLett.117.190501 . Our BSM setup has only $\sim 60$% transmission due to the high fiber-coupling loss; employing free-space BSM would make this loss negligibly small. Overall, these improvement would increase $Q_{z}$ and $Q_{x}$ by a factor of $(0.22\times 0.6)^{-2}=57$, reduce $h(e_{z})$ from 0.408 to $<0.081$, and therefore $R$ increased by a factor of $\sim 250$. In addition, decoy-state methods together parameter optimizations can substantially increase the secure key rate, potentially by as much as another factor of $\sim$ 10–20. The resulting $R$ could then be $\sim 10^{-5}$ bit per pulse, which is comparable to WCP-based MDI-QKD experiments Rubenok:2013ip ; PhysRevLett.111.130502 ; PhysRevA.88.052303 ; PhysRevLett.112.190503 ; Comandar:2016em ; PhysRevLett.117.190501 ). Finally, a faster Pockels cell which can repeat a synchronization process immediately after previous one, is able to increase the success event rate of the BSM as well as the secure key rate per second by a factor of 2.5.
