On-chip quantum tomography of mechanical nano-scale oscillators with guided Rydberg atoms

TL;DR

This paper proposes a fully integrated on-chip method using guided Rydberg atoms to perform quantum state tomography and coherent control of nano-scale mechanical oscillators, advancing quantum nano-mechanics.

Contribution

It introduces a novel hybrid platform combining Rydberg-atom waveguides with nano-mechanical oscillators for on-chip quantum control and measurement.

Findings

Numerical simulations demonstrate feasible on-chip quantum tomography.

Quantum non-demolition measurements enable full state reconstruction.

External driving allows coherent displacement of the oscillator.

Abstract

Nano-mechanical oscillators as well as Rydberg-atomic waveguides hosted on micro-fabricated chip surfaces hold promise to become pillars of future quantum technologies. In a hybrid platform with both, we show that beams of Rydberg atoms in waveguides can quantum-coherently interrogate and manipulate nanomechanical elements, allowing full quantum state tomography. Central to the tomography are quantum non-demolition measurements using the Rydberg atoms as probes. Quantum coherent displacement of the oscillator is also made possible, by driving the atoms with external fields while they interact with the oscillator. We numerically demonstrate the feasibility of this fully integrated on-chip control and read-out suite for quantum nano-mechanics, taking into account noise and error sources.

Figures

Tables

Table 1. Table S1: Parameters used for our simulations underlying Fig. 2 and Fig. 3 of the main article.

Atomic system (Rubidium, 87Rb)	Symbol	Value
Mass	$M$	$1.44\text{×}{10}^{-25}\mathrm{kg}$
Initial atom position (with $D$ being the impact parameter)	$𝐑(t=0)=(X\left(0\right),Y\left(0\right)=D,Z\left(0\right))$	$(0.0\mu m,21.675\mu m,-15.436\mu m)$
Spatial atomic beam widths (transverse to $z$-axis)	${\sigma }_X={\sigma }_Y$	$0.707\mu m$
Initial atom velocity: displacement sequence Initial atom velocity: measurement sequence	$𝐯\left(t=0\right)=(v_X\left(0\right),v_Y\left(0\right),v_Z\left(0\right))$	$(0m{s}^{-1},0m{s}^{-1},14m{s}^{-1})$ $(0m{s}^{-1},0m{s}^{-1},8m{s}^{-1})$
Velocity atomic beam width (along $z$-axis)	${\sigma }_{v_Z}$	$0.01m{s}^{-1}$
Principal quantum number	$\nu$	80
Rydberg state basis	$\left\{|\nu L_J,m_J⟩\right\}$	$\left\{|a⟩=|80S_{1/2},1/2⟩,|b⟩=|80P_{1/2},1/2⟩\right\}$
Transition frequency ($|b⟩\leftrightarrow |a⟩$)	${\omega }_{ba}/\left(2\pi \right)$	$6835.81\mathrm{MHz}$
Electric dipole moment strength	$d_{ba}$	$5.69\text{×}{10}^{-26}Cm$
Torsional mechanical oscillating mode
Torsional spring constant of the nanotube	$\kappa$	$2.085\text{×}{10}^{-11}Nm$
Total moment of inertia with respect to the tube axis	$I$	$1.126\text{×}{10}^{-32}{\mathrm{kg}}^{2}m$
Permanent dipole moment strength of ferroelectric load	$d_{\text{osc}}$	$2.58\text{×}{10}^{-20}Cm$
Frequency	${\omega }_{\text{osc}}/\left(2\pi \right)={\left(2\pi \right)}^{-1}\sqrt{\kappa /I}$	$6848.69\mathrm{MHz}$
Number state basis	$\left\{|n⟩\right\}$	$\{|0⟩,|1⟩,\dots ,|15⟩\}$
Quality factor	$Q={\omega }_{\text{osc}}/{\Gamma }_{\text{osc}}$	$1.37\cdot {10}^8$
Heat bath temperature	$T_{\text{osc}}$	$0.025K$
Coupling and decoherence rates
Atom-oscillator coupling rate	${𝒦}_0/\left(2\pi \right)=\frac{d_{ba}{d}_{\text{osc}}}{8{\pi }^2{\epsilon }_0{D}^3}\frac{1}{\sqrt{2\hslash {\omega }_{\text{osc}}I}}$	$0.64\mathrm{MHz}$
Effective Rabi frequency	${\Omega }_0/\left(2\pi \right)$	$0.0\mathrm{MHz}\text{ to }1.8\mathrm{MHz}$
Mechanical damping rate	${\Gamma }_{\text{osc}}/\left(2\pi \right)$	$50\mathrm{Hz}$
Pure relaxation rate due to black body radiation induced transitions ($|b⟩\leftrightarrow |a⟩$)	${\Gamma }_{\text{bbr}}/\left(2\pi \right)$	$988.63\mathrm{Hz}$
Pure dephasing rate of $|a⟩$ and $|b⟩$ levels due to noisy stray electric fields	${\Gamma }_{\text{deph}}/\left(2\pi \right)$	$1.50\mathrm{kHz}$
Protocol of state tomography
Dimensions (number of pixels) of the reconstructed Wigner function	$S\times S$	$11\times 11$
Number of atoms per displacement sequence to reach a given phase space pixel	$N$	8
Number of atoms per measurement sequence to collapse oscillator into Fock state	$K$	43
Number of repetitions (samples) of a displacement plus measurement sequence to obtain a set of phonon probabilities at a given pixel	$N_{\text{s}}$	$512$
Atom-oscillator detuning	$\left|\delta \right|/\left(2\pi \right)=\left|{\omega }_{\text{osc}}-{\omega }_{ba}\right|/\left(2\pi \right)$	$12.88\mathrm{MHz}$
Passage time per atom in a displacement sequence	${\tau }_{\mathrm{disp}}$	$2.205\mu s$
Passage time per atom in a measurement sequence	${\tau }_{\mathrm{meas}}$	$3.859\mu s$

Equations

$$\hat{H}$$

$${\hat{H}}_{\text{int}}$$

$$\dot{\hat{\rho }}=-\mathrm{i}[\hat{H}(t),\hat{\rho }]+\sum _{\alpha }{\mathcal{L}}_{{\hat{L}}_{\alpha }}[\hat{\rho }].$$

$$W(\alpha )=\frac{2}{\pi }\mathrm{tr}[{\hat{\mathcal{D}}}^{†}(\alpha )\hat{\varrho }\hat{\mathcal{D}}(\alpha )\hat{\Pi }],$$

$${\omega }_{\text{osc}}=\sqrt{\frac{\kappa }{I}}\text{.}$$

$${\hat{H}}_{\text{int}}$$

$${\hat{H}}_{\text{int}}(\mathbf{R},\phi )$$

$$\displaystyle=V_{0}\Big{[}f(\mathbf{R})\cos\varphi-g(\mathbf{R})\sin\varphi\Big{]}\Big{[}\hat{\sigma}_{ba}+\hat{\sigma}_{ab}\Big{]}\text{,}$$

$${\hat{H}}_{\text{int}}(\mathbf{R},\phi )$$

$$\delta \phi ={\phi }_{\text{zpm}}[\hat{c}+{\hat{c}}^{†}]$$

$${\delta \phi }^2={\phi }_{\text{zpm}}^2[{\hat{c}}^2+({\hat{c}}^{†}{)}^2+2{\hat{c}}^{†}\hat{c}+{\widehat{\text{openone}}}_{\text{osc}}]\text{.}$$

$$A_{\pi /2}(\varphi )=\frac{1}{\sqrt{2}}\left(\begin{array}{cc}1& -{\mathrm{e}}^{\mathrm{i}\varphi }\\ {\mathrm{e}}^{-\mathrm{i}\varphi }& 1\end{array}\right)\text{.}$$

$${\hat{H}}_{\text{dho}}(t)=\frac{{\mathcal{K}}^2(\mathbf{R})}{\delta }{\hat{c}}^{†}\hat{c}-\frac{\mathcal{K}(\mathbf{R})\Omega (t)}{2\delta }\hat{c}-\frac{\mathcal{K}(\mathbf{R}){\Omega }^{\ast }(t)}{2\delta }{\hat{c}}^{†}.$$

$$\hat{\varrho }(\tau )=\hat{\mathcal{U}}(\tau )\hat{\varrho }(0){\hat{\mathcal{U}}}^{†}(\tau ),$$

$$\displaystyle\hat{{\cal U}}(\tau)=\mathrm{e}^{\,\mathrm{i}\lambda(\tau)}\,\hat{{\cal D}}\Big{(}\xi(\tau)\mathrm{e}^{\,-\mathrm{i}\theta(\tau)}\Big{)}\,\mathrm{e}^{\,-\mathrm{i}\theta(\tau)\hat{c}^{\dagger}\hat{c}},$$

$$\displaystyle\lambda(\tau)=-\frac{1}{2\hbar^{2}}\int_{0}^{\tau}{\mathrm{d}t\int_{0}^{t}{\mathrm{d}t^{\prime}\big{[}\hat{H}_{\text{dho}}(t),\hat{H}_{\text{dho}}(t^{\prime})\big{]}}},$$

$$\xi (\tau )=\mathrm{i}{\int }^{\tau }\mathrm{d}t\frac{{\Omega }^{\ast }(t)\mathcal{K}(t)}{2\delta }{\mathrm{e}}^{\mathrm{i}\theta (t)},$$

$$\theta (\tau )={\int }^{\tau }\mathrm{d}t\frac{{\mathcal{K}}^2(t)}{\delta }.$$

$$\hat{\mathcal{D}}(\alpha )\hat{\mathcal{D}}(\beta )=\exp [(\alpha {\beta }^{\ast }-{\alpha }^{\ast }\beta )/2]\hat{\mathcal{D}}(\alpha +\beta ),$$

$$\exp [\mathrm{i}\theta {\hat{c}}^{†}\hat{c}]\hat{\mathcal{D}}(\alpha )=\hat{\mathcal{D}}(\alpha \exp [\mathrm{i}\theta ])\exp [\mathrm{i}\theta {\hat{c}}^{†}\hat{c}]\text{,}$$

$$\displaystyle\hat{{\cal U}}_{N}(\tau)=\hat{{\cal D}}\Big{(}\xi(\tau)\sum_{l=1}^{N}\mathrm{e}^{\,-\mathrm{i}l\theta(\tau)}\Big{)}\,\mathrm{e}^{\,-\mathrm{i}N\theta(\tau)\hat{c}^{\dagger}\hat{c}}=\hat{{\cal D}}\big{(}\alpha_{N}(\tau)\big{)}\,\mathrm{e}^{\,-\mathrm{i}N\theta(\tau)\hat{c}^{\dagger}\hat{c}},$$

$$\displaystyle\alpha_{N}(\tau)=\frac{\sin\big{(}N\theta(\tau)/2\big{)}}{\sin\big{(}\theta(\tau)/2\big{)}}\xi(\tau)\mathrm{e}^{\,-\mathrm{i}[N+1]\theta(\tau)/2}.$$

Full text

Introduction: Quantum optomechanics was originally developed in the context of gravitational wave detection Abbott et al. (2016). Subsequently, it took up the challenge to cool nanoscale quantum systems all the way to their ground state Chan et al. (2011), and more generally to gain the level of control over them that we are used to have over quantum optical systems Aspelmeyer et al. (2014); Kippenberg and Vahala (2007); Poot and van der Zant (2012), e.g, through coupling to non-classical light Palomaki et al. (2013); Riedinger et al. (2016). Experiments on the quantum non-demolition (QND) read-out of the phonon state of a nanomechanical oscillator or its state-tomography have only begun recently Lecocq et al. (2015); Lei et al. (2016) and most existing proposals interface the oscillator with a cavity Vanner et al. (2015); Woolley et al. (2010); Gangat et al. (2011); Ludwig et al. (2012); Yin et al. (2013).

For torsional oscillators Kim et al. (2016, 2013), we develop in the following a scheme without direct cavity interfacing, allowing for integration of mechanical- and measurement elements into the same nano-fabricated substrate using Rydberg atoms. With their long life times and strong long-range interactions Gallagher (1994), they mingle naturally with the time- and spatial scales of optomechanics. Furthermore, with accessible atomic transition frequencies spanning orders of magnitude when varying the principal quantum number $\nu$, Rydberg atoms as an interface partner promise to preserve the wide range of oscillation frequencies which can be generated from nano-mechanical elements Poot and van der Zant (2012); Aspelmeyer et al. (2014); Kippenberg and Vahala (2007).

Recent advances in manipulation and control of Rydberg atoms through on-chip waveguides Hogan et al. (2012a); Lancuba and Hogan (2013, 2014) as well as in retaining atomic coherence closer to chip surfaces Carter et al. (2012); Carter and Martin (2013); Thiele et al. (2014); Hermann-Avigliano et al. (2014) render Rydberg on-chip integration promising and realistic by matching Rydberg atom interaction ranges with the spatial $\mu$m scales of the chip geometry.

To achieve a full quantum tomography of the torsional nano-oscillator, the Rydberg atoms have to fullfill a twofold role: Firstly, the atomic Rydberg beam in the waveguide passing by the oscillator acts as probe for the oscillator state Keil et al. (2016); Hogan (2016): Controlled electro-static interactions between the oscillator and the atoms cause a phonon-number dependent phase shift, to be read out interferometrically Brune et al. (1990, 2008, 1992); Gleyzes et al. (2007); Deléglise et al. (2008). Secondly, we can coherently displace the nano-mechanical oscillator by externally driving the Rydberg atom while it is passing by the oscillator in order to scan the oscillator state in a controlled fashion. In this step the Rydberg atom acts as a mediator for quantum control of the oscillator.

So far, destructive Wigner tomography Singh and Meystre (2013) has been proposed, was well as the use of classical oscillators for atomic quantum state control Singh et al. (2008), which could also be achieved through interaction of nano-mechanical elements with atoms or molecules Bariani et al. (2014); Stevenson et al. (2016).

We extend these works by transferring Rydberg-atom based QND detection developed in the context of cavity-QED Brune et al. (1990, 2008, 1992); Gleyzes et al. (2007); Deléglise et al. (2008) to the realm of quantum nano-mechanics, and integrate all these functional elements into a versatile on-chip Rydberg atomic probe technique without the need of a cavity.

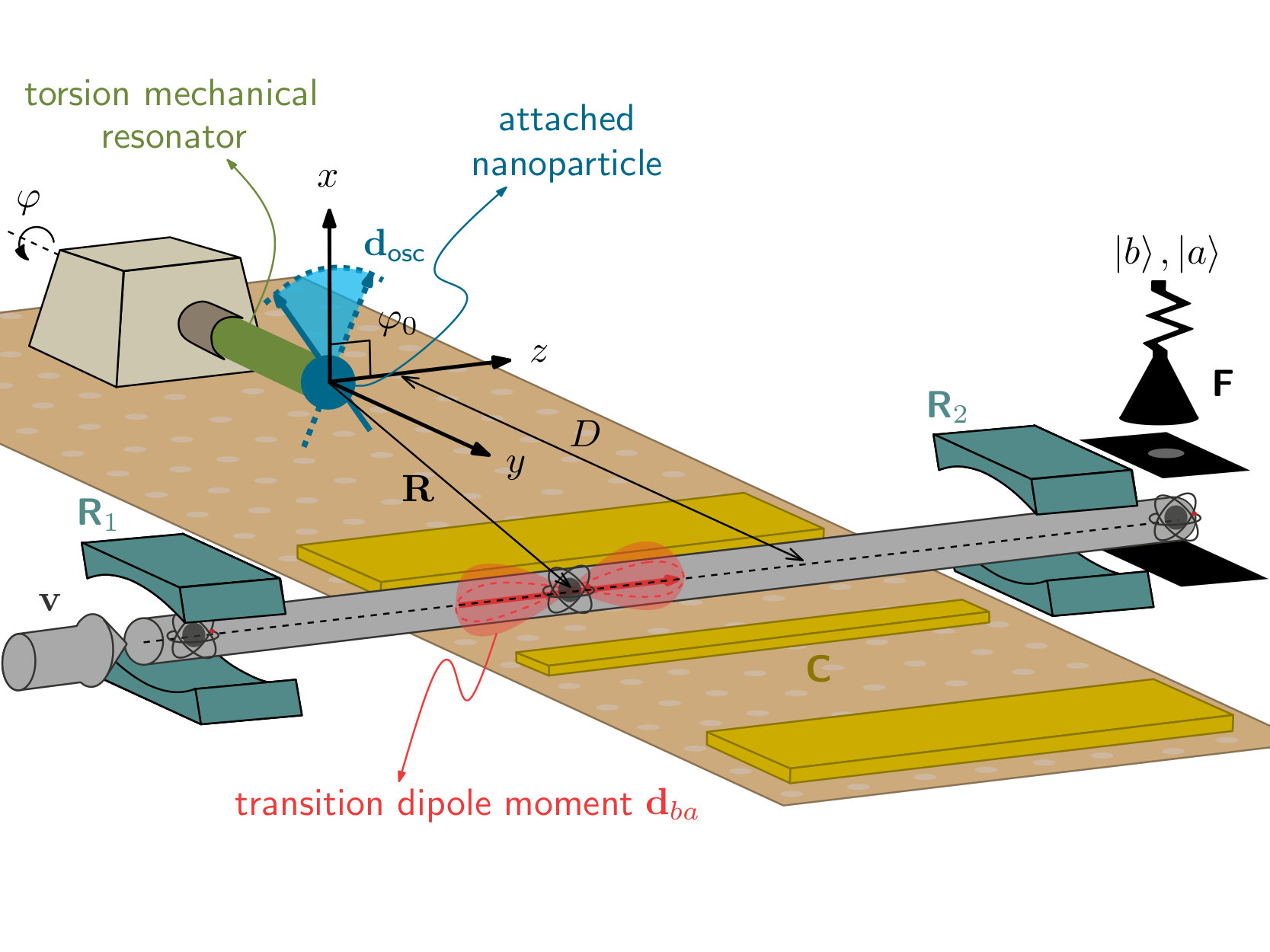

Hybrid setup of nano-oscillator and Rydberg waveguide: While our scheme is quite general, we nevertheless will consider a carbon nanotube (CNT) as torsional oscillator to be specific. Interfacing the Rydberg waveguide, we will explicitly take into account the expected dominant decoherence sources. The CNT is clamped to a chip-surface and equipped with a weight at one end, as, e.g., in Meyer et al. (2005); Ganzhorn et al. (2013), which allows for tuning the oscillation frequency. The weight will be a ferroelectric nanoparticle with a permanent electric dipole moment $\mathbf{d}_{\text{osc}}$ Basun et al. (2011), providing a simple and adjustable interaction between oscillator and Rydberg atoms, independent of surface and material properties. The Rydberg atoms, confined to an atomic waveguide Hogan et al. (2012b); Keil et al. (2016), pass the oscillator with impact parameter $D$ as shown in Fig. 1.

First, the atoms in the guide are excited to a Rydberg state $\mathinner{\lvert a\rangle}$ (not shown in Fig. 1). In the region $\text{R}_{1}$ of Fig. 1 the waveguide passes a micro-wave cavity, which generates a Rabi $\pi/2$ pulse tuned to the transition between $\mathinner{\lvert a\rangle}$ and a second Rydberg state $\mathinner{\lvert b\rangle}$. As a consequence, atoms in the state $[\mathinner{\lvert a\rangle}+\mathinner{\lvert b\rangle}]/\sqrt{2}$ are produced.

Parameters are chosen such that the interactions with the oscillator (in the coupling region C) effect only a relative phase shift between $\mathinner{\lvert a\rangle}$ and $\mathinner{\lvert b\rangle}$, to be inferred from detection of the Rydberg state at F after a second $\pi/2$ pulse in region $\text{R}_{2}$. If the oscillator is in a Fock state, such a Ramsey interferometric measurement leaves the oscillator state unchanged, thus furnishing a QND-measurement. For more general oscillator states, a series of these measurements will gradually collapse the state towards a phonon number (Fock) state Guerlin et al. (2007). Repeating such series multiple times eventually reveals the entire phonon-number distribution.

Full quantum-state tomography requires knowledge of the phases between different number states, which can be obtained after quantum coherently displacing the oscillator prior to the phonon-number distribution measurement. To obtain a well defined displacement, we propose to externally drive Rydberg atoms while they pass through the strong interaction region C as discussed below. For a well defined coupling the driving should target only the Rydberg atoms and not directly the oscillator by using well localized evanescent fields from a coplanar microwave guide Beck et al. (2016); Thiele et al. (2015) or a three-photon off-resonant Raman transition de Melo and Vianna (2015).

Model: We formalize our scheme with the Hamiltonian

[TABLE]

to demonstrate quantitatively the feasibility of this protocol. The oscillator with frequency ${\omega}_{\mbox{\!\! \scriptsize osc}}$ is described by $\hat{H}_{\text{osc}}=\hbar{\omega}_{\mbox{\!\! \scriptsize osc}}\hat{c}^{\dagger}\hat{c}$, with corresponding oscillator states $\mathinner{\lvert n\rangle}$ and ladder operators $\hat{c}$, $\hat{c}^{\dagger}$. The Hamiltonian for the internal state of a single atom is $\hat{H}_{\text{at}}=\hbar\omega_{ba}\hat{\sigma}_{bb}$, where $\hat{\sigma}_{\mu^{\prime}\mu}=\mathinner{\lvert\mu^{\prime}\rangle\langle\mu\rvert}$ denotes the atomic transition operator between levels $\mathinner{\lvert\mu^{\prime}\rangle}$ and $\mathinner{\lvert\mu\rangle}$, and $\omega_{\mu^{\prime}\mu}$ the corresponding Bohr frequency. Motion of the atoms in the waveguide is treated classically as described below. The atom-oscillator coupling $\hat{H}_{\text{int}}$ is due to electric dipole-dipole interactions between the transition dipole of the atom and the permanent dipole of the nano-particle attached to the oscillator. By choosing the atomic transition dipole $\mathbf{d}_{ba}=\mathinner{\langle{b\lvert\hat{\mathbf{d}}_{\text{at}}\lvert a}\rangle}$ ($\hat{\mathbf{d}}_{\text{at}}$ is the atomic dipole operator) along the $z$-axis and for an atom precisely at the centre of the waveguide, we find sup

[TABLE]

Here the interaction strength is ${\cal K}(\mathbf{R})={\cal K}_{0}f(\mathbf{R})$, where ${\cal K}_{0}=V_{0}/\sqrt{2\hbar\omega_{\text{osc}}I}$, with $V_{0}=\|\mathbf{d}_{ba}\|\|\mathbf{d}_{\text{osc}}\|/[4\pi\varepsilon_{0}D^{3}]$, and $I$ the moment of inertia of the oscillator (CNT and nanoparticle). The vector $\mathbf{R}=\mathbf{R}(t)$, with $R=\|\mathbf{R}\|$, points from the center of the nanoparticle in equilibrium (origin of our coordinate system) to the atom in the waveguide, as shown in Fig. 1. Then the interaction amplitude becomes $f(\mathbf{R})=[D/R]^{3}[1-3Z^{2}/R^{2}]$. We assumed small excursions of the oscillator from an equilibrium torsional angle $\varphi_{0}=\pi/2$.

Finally, $\hat{H}_{\text{coup}}=\hbar\mathnormal{\Omega}(t)[\hat{\sigma}_{ba}+\hat{\sigma}_{ab}]/2$ represents the controllable inter-state resonant coupling with Rabi frequency $\mathnormal{\Omega}(t)$ in dipole and rotating wave approximations. This term is due to a microwave field in regions R1, R2 and possibly C.

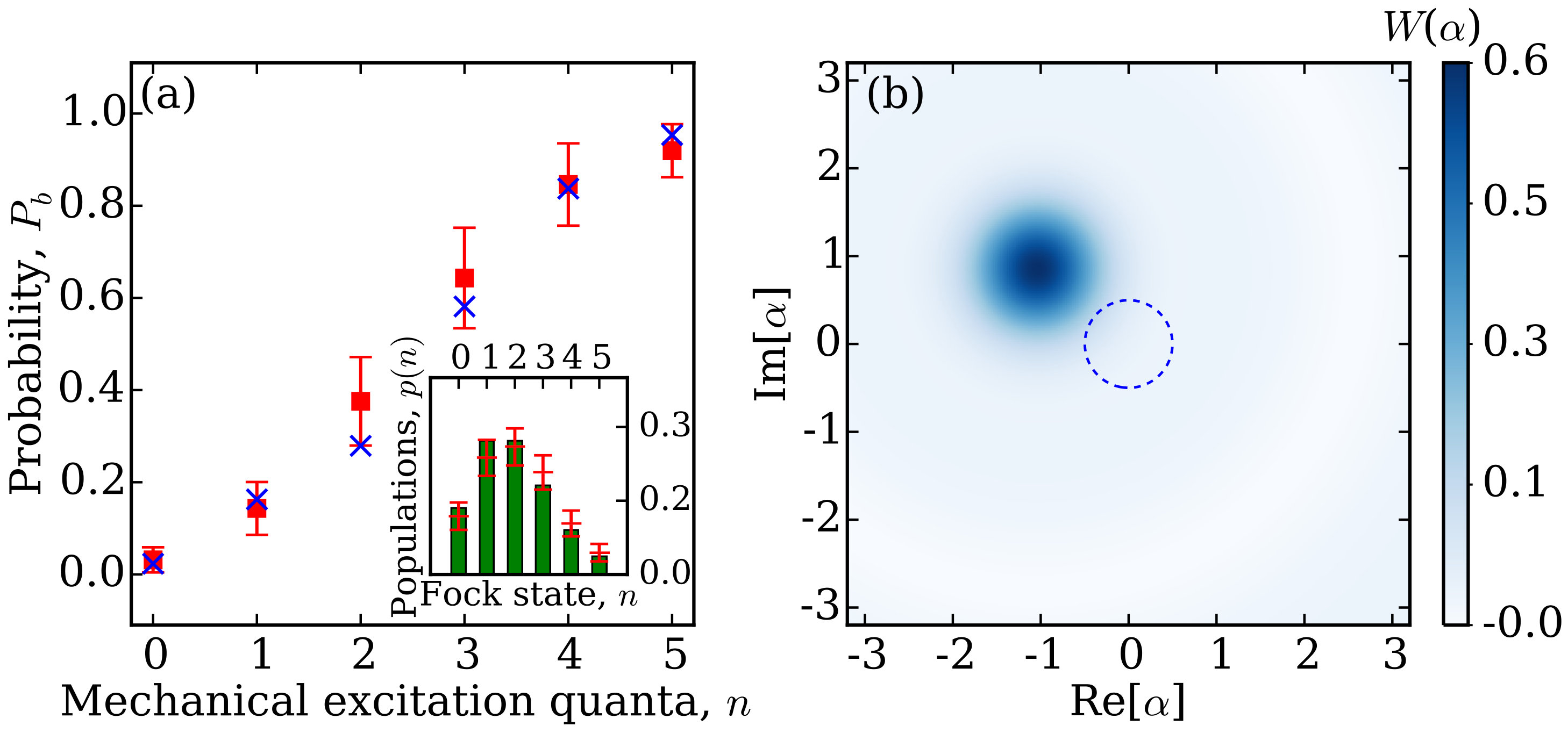

Ramsey measurement of phonon number: We consider a scenario where the atomic transition frequency $\omega_{ba}$ is much closer to resonance with the oscillator $\omega_{\text{osc}}$ than any other transition frequency. This justifies taking into account atomic states $\mathinner{\lvert a\rangle},\mathinner{\lvert b\rangle}$ only. There are two advantages in choosing these as Rydberg states: (i) For a wide range of mechanical oscillation frequencies $1$ MHz $<\omega_{\text{osc}}<10$ GHz, some near resonant atomic transitions can be found with $\omega_{ba}=\omega_{\text{osc}}+\delta$ and atom-oscillator detuning $\delta$ much smaller than energy gaps to any other atomic states. (ii) The large Rydberg transition dipoles $\mathbf{d}_{ba}$ provide strong coupling ${\cal K}_{0}$ between atom and oscillator without too close proximity.

Nonetheless, we can achieve a situation where the atom and oscillator are far off-resonant with respect to the coupling strength ${\cal{K}}(\mathbf{R})$. Then creation and destruction of phonons through (2) are suppressed. Thus, while the compound system of atom plus oscillator adiabatically follows its interacting eigenstates as the atom passes the oscillator, the interaction only causes a phase shift $\Phi^{(n)}[\delta]$ between the superimposed states $\mathinner{\lvert a\rangle}$, $\mathinner{\lvert b\rangle}$ depending on the detuning $\delta$ and the phonon number $n$. After the second Rabi $\pi/2$ pulse at $\text{R}_{2}$, this phase shift affects the results of destructive state measurement in F. Ultimately, after a succession of such measurements we may infer $\cos(\Phi^{(n)}[\delta])$. Further details can be found in sup and Haroche and Raimond (2006).

We now proceed to simulate measurements, taking into account de-coherence sources to explore the practical limitations arising through the vicinity of a micro-chip surface and the Rydberg atom waveguide. We work in a frame rotating with the oscillator frequency, keeping only resonant terms in (2), and employ the master equation for the density matrix $\hat{\rho}$ of harmonic oscillator plus a single atom ($\hbar=1$)

[TABLE]

The Hamiltonian is time dependent due to the classical (uniform) atomic motion sup . We include several Lindblad terms ${\cal L}_{\hat{O}}[\hat{\rho}]=\hat{O}\hat{\rho}\hat{O}^{\dagger}-(\hat{O}^{\dagger}\hat{O}\hat{\rho}+\hat{\rho}\hat{O}^{\dagger}\hat{O})/2$ accounting for decoherence processes, which are fully described in sup : (i) Mechanical oscillator states decohere because they are coupled to a heat bath at temperature $T_{\text{osc}}$ with mechanical energy damping rate $\Gamma_{\text{osc}}/(2\pi)=50\,\mathrm{Hz}$. Atomic Rydberg states (ii) undergo incoherent relaxation between $\mathinner{\lvert a\rangle}$ and $\mathinner{\lvert b\rangle}$ due to black body radiation and (iii) dephase with a rate $\Gamma_{\text{deph}}/(2\pi)=1.5\,\mathrm{kHz}$ due to stray electric fields from the oscillator-bearing surface. The latter effect, a major challenge for Rydberg atom quantum technologies near solid state surfaces, has been steadily reduced Carter and Martin (2013); Hermann-Avigliano et al. (2014). (iv) Finally, we incorporate the width of the interrogating atomic beam as a random distribution of initial positions and velocities of a train of Rydberg probe atoms that are all explicitly modelled using Eq. (3).

In our simulations, we consider states $\mathinner{\lvert a\rangle}=\mathinner{\lvert\nu S_{1/2},m_{J}=1/2\rangle}$ and $\mathinner{\lvert b\rangle}=\mathinner{\lvert\nu P_{1/2},m_{J}=1/2\rangle}$ of 87Rb with principal quantum number $\nu=80$. Their resonance frequency is $\omega_{ba}/(2\pi)\simeq 6835.81\,\mathrm{MHz}$ with transition dipole moment $\|\mathbf{d}_{ba}\|\simeq 6711\,ea_{0}$ (where $e$ is the electron charge and $a_{0}$ the Bohr radius). A $148.54\,\mathrm{nm}$ long and $75.79\,\mathrm{nm}$ wide CNT with a spherical ferroelectric load can yield a moment of inertia $I\simeq 1.12\times 10^{-32}\,{\mathrm{kg}}^{2}\,\mathrm{m}$ with torsional oscillation frequency $\omega_{\text{osc}}/(2\pi)\simeq 6848.69\,\mathrm{MHz}$ sup , and thus a small atom-oscillator detuning $\delta/(2\pi)\simeq 12.88\,\mathrm{MHz}$. A dipole of strength $\|\mathbf{d}_{\text{osc}}\|\simeq 3.04\times 10^{9}\,ea_{0}$ can be attached. We choose an impact parameter $D=21.68\,\mathrm{\mu m}$, and hence a coupling constant ${\cal K}_{0}/(2\pi)=0.64\,\mathrm{MHz}$. The transverse atomic wave-guide widths are $\sigma_{X}=\sigma_{Y}=0.71\,\mathrm{\mu m}$. The standard deviation of the longitudinal (on-axis) atomic velocity is $\sigma_{v_{Z}}=0.1\,\mathrm{m}\,\mathrm{s}^{-1}$.

To measure phonon quantum numbers in the range [math]-$5$, the corresponding probabilities $P_{b}$ for the atom to end up in state $\mathinner{\lvert b\rangle}$ should be distinguishable, as in the example of Fig. 2 (a). The beam impact parameter $D$ and atom velocities can be adjusted to yield phase-shifts $\Phi^{(n)}[\delta]$ that fulfil this requirement. The figure demonstrates that even taking into account deviations in $\Phi^{(n)}[\delta]$ due to imperfections as discussed above, a clear inference of $\mathinner{\lvert n\rangle}$ can be made. For an oscillator in a Fock state a sequence of QND measurements using atoms can yield the probability $P_{b}$. If the initial oscillator state $\mathinner{\lvert\Psi\rangle}$ is not a Fock state, this sequence initially quickly collapses it into one, say $\mathinner{\lvert n\rangle}$, with probability $p_{n}=|\mathinner{\langle{n\lvert\Psi}\rangle}|^{2}$. A series of such collapse sequences, starting from a re-initialised oscillator state $\mathinner{\lvert\Psi\rangle}$ then yields the entire phonon distribution $p_{n}$ as shown exemplarily in the inset of Fig. 2 (a).

Quantum state tomography: Phonon-state QND measurements yield the probabilities $p_{n}=\varrho_{nn}=\mathrm{tr}[\mathinner{\lvert n\rangle\langle n\rvert}\hat{\varrho}]$, where $\hat{\varrho}$ is the reduced density matrix for the oscillator, but no coherences between $\mathinner{\lvert n\rangle}$, $\mathinner{\lvert m\rangle}$. The full quantum state of the oscillator may be inferred from a tomographical reconstruction of the Wigner function

[TABLE]

where $\hat{{\cal D}}(\alpha)=\exp{[\alpha\hat{c}^{\dagger}-\alpha^{*}\hat{c}]}$ is the displacement operator for a complex amplitude $\alpha$ and $\hat{\Pi}=\mathrm{e}^{\,\mathrm{i}\pi\hat{c}^{\dagger}\hat{c}}$ is the phonon number parity operator. Eq. (4) is the expectation value of $\hat{\Pi}$ in the state $\hat{\varrho}(-\alpha)=\hat{{\cal D}}(-\alpha)\hat{\varrho}\hat{{\cal D}}^{\dagger}(-\alpha)$. We can thus obtain $W(\alpha)$ as $W(\alpha)=[2/\pi]\sum_{n}(-1)^{n}\tilde{p}_{n}$ from a phonon-distribution $\tilde{p}_{n}$ as in Fig. 2 (a), after a coherent displacement by $-\alpha$.

An established method for the quantum coherent displacement of nano-mechanical oscillators does not yet exist. A major advantage of the on-chip architecture proposed here, is that this coherent displacement can be conveniently achieved with the same Rydberg atomic wave guide used for phonon-state measurement. To this end the atomic dipole transition has to be strongly driven in region C. Under appropriate conditions, see sup , this leads to the effective emergence of a coherent drive for the oscillator. The evolution operator describing the reduced dynamics of the oscillator for a succession of $N$ atoms reads $\hat{{\cal U}}_{N}(\tau)=\hat{{\cal D}}(\alpha_{N}(\tau))\exp{[\,-\mathrm{i}N\theta(\tau)\hat{c}^{\dagger}\hat{c}]}$, a product of a displacement with complex amplitude $\alpha_{N}(\tau)$ depending on $\mathnormal{\Omega}$ and $\delta$, as well as a phase-shift with $\theta(\tau)=\int^{\tau}{\mathrm{d}t\,{\cal K}^{2}(\mathbf{R}(t))/\delta}$ that can be compensated (see sup for details). Fig. 2 (b) shows an exemplary oscillator Wigner function before- and after a sequence of $N=8$ displacement atoms, modelled explicitly as in the previous section. To sample the entire Wigner function with displacements of this kind, one can vary the amplitude and complex phase of the effective Rabi-frequency through parameters of the external drive in region C sup .

To assess the impact of the decoherence sources and imperfections mentioned earlier, we now simulate the complete Wigner tomography sequence:

1. (i)

Initialise the oscillator in the state $\hat{\varrho}$ to be measured. This initialisation must be reproducible. 2. (ii)

Effectuate a coherent displacement, $\hat{\varrho}\mapsto\hat{\varrho}(-\alpha)$, using a flyby sequence of $N$ explicitly modelled displacement atoms. 3. (iii)

Measure the phonon number with a flyby sequence of $K$ atomic Ramsey interference measurements. The first few atoms collapse the oscillator into a Fock state $\mathinner{\lvert n^{\prime}\rangle}$, which is read out by the remaining majority of the $K$ atoms. 4. (iv)

Repeat steps (i)-(iii) $N_{\text{s}}$ times, to obtain the phonon probability distribution $p_{n}$ for the displacement $-\alpha$. 5. (v)

Repeat step (iv) for an ($S\times S$) array of different values for $\alpha\in\mathbb{C}$ to obtain the Wigner function $W(\alpha)$.

Details on how we implement measurements in our simulation can be found in sup . The Wigner functions reconstructed with this sequence and the ideal expectation are shown in Fig. 3 for the superposition of Fock states $\mathinner{\lvert\Psi\rangle}=[\mathinner{\lvert 1\rangle}+\mathinner{\lvert 3\rangle}]/\sqrt{2}$. It can be seen that all major qualitative features of the Wigner function, particularly the non-classical negativity, are correctly inferred. Quantitative deviations indicate that the decoherence rates employed here should not be exceeded.

Conclusions: By porting technologies from cavity quantum electrodynamics to nano-mechanics, our scheme addresses two outstanding challenges for quantum nano-mechanics, namely phonon QND-detection and quantum-state tomography. Thereby, we have also described a technique for the quantum coherent state displacement of nano-mechanical elements. The ingredients of our hybrid setup, nano fabricated oscillators and Rydberg atomic waveguides, can naturally co-exist on the same chip surface Keil et al. (2016).

S1 System Hamiltonian

S1.1 Torsional oscillator frequency

The resonance frequency for the harmonic motion of the torsional mechanical oscillator is assumed to be Meyer et al. (2005)

[TABLE]

Here, $I$ is the total moment of inertia with respect to the symmetry axis. It takes into account the entire assembly of ferroelectric particle, and carbon nanotube that comprises the oscillator. The quantity $\kappa$ denotes the torsional spring constant of the nanotube. We consider a value of $\kappa=$2.085\text{\times}{10}^{-11}\text{,}\mathrm{N}\text{,}\mathrm{m}. For a carbon nanotube of mass $m_{\text{cnt}}=$8.71\text{\times}{10}^{-19}\text{\,}\mathrm{kg} (length $\ell=$148.54\text{,}\mathrm{nm}) and diameter $w=$75.79\text{\,}\mathrm{nm} with a spherical ferroelectric load of mass $m_{\text{sfl}}=$6.31\text{\times}{10}^{-18}\text{,}\mathrm{kg} and radius $r=$63.3\text{\,}\mathrm{nm} we obtain a total moment of inertia $I\approx m_{\text{cnt}}w^{2}/4+2m_{\text{sfl}}r^{2}/5\simeq$1.126\text{\times}{10}^{-32}\text{,}{\mathrm{kg}}^{2}\text{,}\mathrm{m}. This finally corresponds to a frequency $\omega_{\text{osc}}/(2\pi)\simeq$6848.69\text{\,}\mathrm{MHz} as specified in the main text.

S1.2 Atom-oscillator coupling

The atoms passing by the oscillator experience a dipole-dipole interaction

[TABLE]

with the permanent dipole-moment $\mathbf{d}_{\text{osc}}$ of the nano-particle attached to the oscillator. Here the vector $\mathbf{R}$ points from the oscillator to the atom and $\mathbf{u}=\mathbf{R}/R$ with $R=\|\mathbf{R}\|$. The direction of the atomic transition dipole-moment $\mathbf{d}_{ba}$ in principle depends on the states in question. For simplicity we choose the two atomic states such that their transition dipole-moment is along the $z$-axis foo . In this case, the interaction reduces to

[TABLE]

with $d_{\text{osc}}=\|\mathbf{d}_{\text{osc}}\|$, $d_{ba}=\|\mathbf{d}_{ba}\|$, $V_{0}=\frac{d_{ba}d_{\text{osc}}}{4\pi\varepsilon_{0}D^{3}}$, $\mathbf{R}=(X,Y,Z)$ and coupling functions $f(\mathbf{R})=[D/R]^{3}[1-3Z^{2}/R^{2}]$, $g(\mathbf{R})=3XZD^{3}/R^{5}$. These are sketched for an example in Fig. S1.

We now make use of the fact that the coordinate $\varphi$ is harmonically bound to a stable equilibrium configuration given by the angle $\varphi_{0}=\pi/2$, and introduce the small angular displacement $|\delta\varphi|\ll\varphi_{0}$, such that $\varphi=\varphi_{0}+\delta\varphi$.

Then a Taylor series expansion of the sinusoidal functions in the potential energy, around the equilibrium value $\varphi_{0}=\pi/2$, and up to second order in $\delta\varphi$ yields

[TABLE]

Next, we recast the above in terms of the mechanical phonon creation and annihilation operators $\hat{c}$ and $\hat{c}^{\dagger}$ as

[TABLE]

where $\varphi_{\text{zpm}}=\sqrt{\hbar/(2\omega_{\text{osc}}I)}$ represents the amplitude of the zero point motion of the torsion oscillator and $\hat{\openone}_{\text{osc}}=\sum_{n}\mathinner{\lvert n\rangle\langle n\rvert}$.

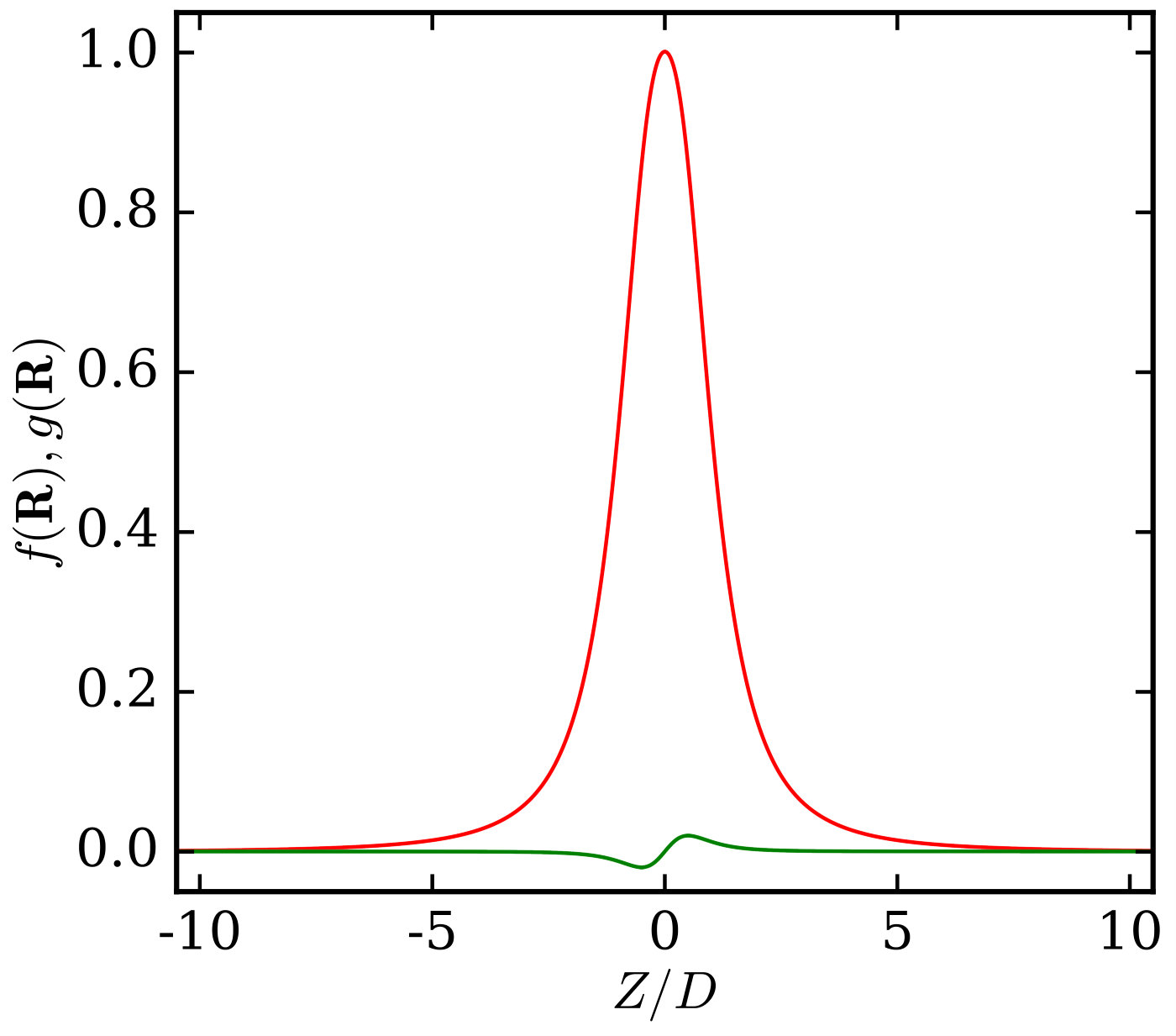

For atoms travelling perfectly at the centre of the atomic waveguide ($X=0$, see Fig. 1 in the main article), we then obtain the interaction Hamiltonian $\hat{H}_{\text{int}}$ given in the main article.

S2 Ramsey measurements of phase shifts

As discussed in the main text, the train of Rydberg atoms passing the oscillator is modelled explicitly, with atom $k$ being given a randomized initial position $\mathbf{R}_{k}(0)$ and velocity $\mathbf{v}_{k}$, subsequently following a uniform trajectory $\mathbf{R}_{k}(t)=\mathbf{R}_{k}(0)+\mathbf{v}_{k}t$. The initial widths of these random distributions, $\sigma_{X,Y}$ in the position plane transverse to the beam and $\sigma_{v_{Z}}$ in the velocity along the beam, are chosen to mimic the relevant uncertainties for a beam of atoms travelling within a very tight waveguide. Uniform motion is justified as long as forces on the atom are negligible or weak compared to waveguide trapping, as we assume here.

To implement a single interferometric measurement we excert a sequence of two identical microwave pulses (mw) onto an atom. The two mw pulses are applied in $\text{R}_{1}$ and $\text{R}_{2}$, and thus they are delayed from each other by a time period $\tau=L/|\mathbf{v}|$, which is the time of flight of the atom in the region C of length $L=$30.872\text{,}\mathrm{\SIUnitSymbolMicro m}$$, during which the atom is let to interact with the mechanical oscillator. We model the atomic evolution in the two locations $\text{R}_{1/2}$ by applying a unitary transformation $\hat{A}_{\pi/2}(\phi)$, that in the basis $\{\mathinner{\lvert a\rangle},\mathinner{\lvert b\rangle}\}$ reads

[TABLE]

Here $\phi$ represents a phase that in practice can be controlled by tuning the microwave pulse. In an experiment one adjusts the relative phase between the two pulses to scan the Ramsey fringes of the signals described by the probabilities $P_{b}$ and $P_{a}$ that the atom is detected in the state $\mathinner{\lvert b\rangle}$ or $\mathinner{\lvert a\rangle}$, respectively, when reaching the detector at F. We use $\hat{A}_{\pi/2}(\phi=0)$ in region $\text{R}_{1}$ and choose the phase of $\hat{A}_{\pi/2}(\phi)$ in region $\text{R}_{2}$ such that $P_{b}$ equals zero when the mechanical oscillator mode is in its ground state and the atom has traversed the interferometer with velocity and transverse position corresponding to the mean atomic beam values.

Finally, the relative phase shift $\Phi^{({n})}[\delta]$ incurred by each atom depends on the difference between two adjacent eigenenergies $E_{-}^{(n+1)}(\mathbf{R})-E_{+}^{(n)}(\mathbf{R})$ integrated over time and thus can be found from E_{\pm}^{(n)}(\mathbf{R})=\hbar\mathnormal{\delta}/2\Big{[}-1\pm\sqrt{1+4n{\cal K}^{2}(\mathbf{R})/\mathnormal{\delta}^{2}}\Big{]} following Brune et al. (1990). This helps to choose the right parameters for mapping the relative phase shift $\Phi^{({n})}[\delta]$ from a selected range of phonon numbers (e.g. [math]-$5$) onto the interval $[0,\pi]$ (see section S6).

S3 Effective coherent driving of mechanical oscillator

Simultaneous action of the Hamiltonians $\hat{H}_{\text{int}}$ and $\hat{H}_{\text{coup}}$ from the main article can effectively create a drive for the quantum harmonic oscillator. For that we need to have $|\mathnormal{\delta}|>|\mathnormal{\Omega}(t)|,|{\cal K}(\mathbf{R})|$ and start with all the atomic population in $\mathinner{\lvert a\rangle}$. In this regime we can adiabatically eliminate the second Rydberg state $\mathinner{\lvert b\rangle}$ to obtain the effective Hamiltonian $\hat{H}_{\text{dho}}(t)\otimes\hat{\sigma}_{aa}$, where

[TABLE]

While the atom essentially remains in the Rydberg state $\mathinner{\lvert a\rangle}$, the evolution for the mechanical oscillator can be written as

[TABLE]

where $\hat{\varrho}$ denotes the density matrix describing the oscillator. The quantity $\hat{{\cal U}}(\tau)$ equals the time development operator for a driven quantum harmonic oscillator, which one can see by exploiting the commutation relations of $\hat{c}$, $\hat{c}^{\dagger}$ Gardiner and Zoller (2004)

[TABLE]

Here we adopted the shortened notation ${\cal K}(t)={\cal K}(\mathbf{R}(t))$ and $\hat{{\cal D}}$ is the displacement operator introduced in the main text. Since $\lambda(\tau)$ is a $c$-number, $\exp{[\mathrm{i}\lambda(\tau)]}$ is a global phasor that we will ignore from now on. The $N$-th power of $\hat{{\cal U}}(\tau)$ then accounts for the state evolution of the mechanical oscillator after a successive fly-by of $N$ atoms, each atom passing through the oscillator in a time interval $\tau$. To compute $\hat{{\cal U}}_{N}(\tau)\equiv[\hat{{\cal U}}(\tau)]^{N}$ we use the following properties of the displacement operator:

[TABLE]

such that, ignoring again global phasors, one has

[TABLE]

In the manuscript, all the numerical calculations involving the Hamiltonian $\hat{H}_{\text{coup}}$ were assuming continuous waves with $\mathnormal{\Omega}(t)=\mathnormal{\Omega}_{0}$. Sampling the dynamical phase space of the mechanical oscillator is then achieved by adjusting the amplitude and phase of the complex Rabi frequency $\mathnormal{\Omega}_{0}$, while taking into account the additional phase offset generated by $\exp{[\,-\mathrm{i}N\theta(\tau)\hat{c}^{\dagger}\hat{c}]}$.

S4 Decoherence sources

As discussed in the main text, we consider a variety of practically relevant decoherence sources, in order to explore the limitation of our proposal.

The specific Lindblad operators with which we describe the effects listed in the main text are as follows: (i) Mechanical oscillator states decohere because they are coupled to a heat bath equilibrated at a temperature $T_{\text{osc}}$. This is described by the two terms $\hat{L}_{-}=\sqrt{(\bar{n}_{\text{th}}+1)\Gamma_{\text{osc}}}\hat{c}$ and $\hat{L}_{+}=\sqrt{\bar{n}_{\text{th}}\Gamma_{\text{osc}}}\hat{c}^{\dagger}$, with a thermal occupation number $\bar{n}_{\text{th}}=(\exp{[\hbar\omega_{\text{osc}}/(k_{\text{B}}T_{\text{osc}})]}-1)^{-1}$ and a mechanical energy damping rate $\Gamma_{\text{osc}}=\omega_{\text{osc}}/Q_{\text{osc}}$ for a given quality factor $Q_{\text{osc}}$ of the mechanical oscillator. (ii) Atomic Rydberg states are assumed to undergo pure relaxation due to black body radiation induced transitions, modelled with two terms $\hat{L}_{\mu^{\prime}\mu}=\sqrt{\Gamma_{\text{bbr}}}\hat{\sigma}_{\mu^{\prime}\mu}$, where $\{\mu^{\prime},\mu\}=\{a,b\}$ or $\{b,a\}$. We employ $\Gamma_{\text{bbr}}/(2\pi)=$988.63\text{,}\mathrm{Hz}, determined following Beterov et al. ([2009](#biba.bib5)). (iii) They are also assumed subject to dephasing with $\hat{L}_{\text{deph},\mu}=\sqrt{\Gamma_{\text{deph}}}\hat{\sigma}_{\mu\mu}$ using $\mu\in\{a,b\}$ due to stray electric fields from the oscillator-bearing surface Carter and Martin ([2013](#biba.bib6)). We employ $\Gamma_{\text{deph}}/(2\pi)=$1.50\text{\,}\mathrm{kHz}, the same order of magnitude as values reported in Hermann-Avigliano et al. (2014).

Due to the short distances between Rydberg probes and mechanical oscillator, a primary challenge for our scheme are the finite widths of the atomic beam within the waveguide. The implementation of the interrogating atomic beam in the waveguide via a random distribution of initial positions $\mathbf{R}_{k}(0)$ and velocities $\mathbf{v}_{k}$ was discussed in section S2.

S5 Quantum state tomography simulations

Simulations of measurement sequences:

The physical sequence for a full oscillator quantum state tomography has been discussed in the main text. Here we supply further technical details about the simulations. In the following let $\hat{\rho}$ denote the full density matrix of the compound atom-oscillator system. We then use $\hat{\varrho}=\mathrm{tr}_{\text{at}}[\hat{\rho}]$ for the reduced density operator of the oscillator after tracing over the atomic degrees of freedom.

Each atom, whether for a Ramsey measurement or a phase space displacement of the oscillator state, is initialized in $\mathinner{\lvert a\rangle}$ and made to move on a trajectory as discussed in section S2. Then its fly-by past the oscillator is modelled with the master equation (3) of the main text. The mw pulses required for Ramsey measurements are emulated via the instantaneous application of the operator $\hat{A}_{\pi/2}(\phi)$ in Eq. (S6). The Lindblad terms listed in section S4 take into account decoherence processes. Of crucial importance for modelling the experimental sequence is the final atom state detection at F. We assume detection can only yield the two states $\mathinner{\lvert a\rangle}$ or $\mathinner{\lvert b\rangle}$. To numerically represent this measurement, we compare a pseudorandom number $\eta$, drawn from a standard uniform distribution, with the probability $P_{b}=\mathrm{tr}[\hat{\sigma}_{bb}\hat{\rho}]$ that the atom is found in $b$. The output of the measurement is $\hat{\sigma}_{aa}\hat{\rho}\hat{\sigma}_{aa}/[1-P_{b}]$ if $P_{b}<\eta$ and $\hat{\sigma}_{bb}\hat{\rho}\hat{\sigma}_{bb}/P_{b}$ otherwise, thus collapsing the state onto $\mathinner{\lvert a\rangle}$ or $\mathinner{\lvert b\rangle}$ in the subspace of the atom Wiseman and Milburn (2009). After a series of $K=43$ atoms typically all but one of the phonon probabilities are depopulated, such that $\varrho_{nn}\simeq\mathrm{\delta}_{nm}$, with $\mathrm{\delta}_{nm}$ being the kronecker delta and $m$ a positive integer, the final phonon number. The mechanical oscillator is then assumed to have collapsed into the a priori unknown Fock state $\mathinner{\lvert m\rangle}$. In the theory, we can directly extract $m$ from the simulation, repeat the process multiple times and thus extract the entire phonon distribution. We call this approach “Method A”.

However, an experiment would not have access to $m$ directly, instead it would extract the probabilities $P_{a/b}$ from the measurement results of the $K=43$ probing atoms. Using Fig. 2 (a) of the main article, these can then be translated into values of $m$, but this translation may be subject to different error sources. We also extract a second value of $m$ from the simulation in this manner, called “Method B”.

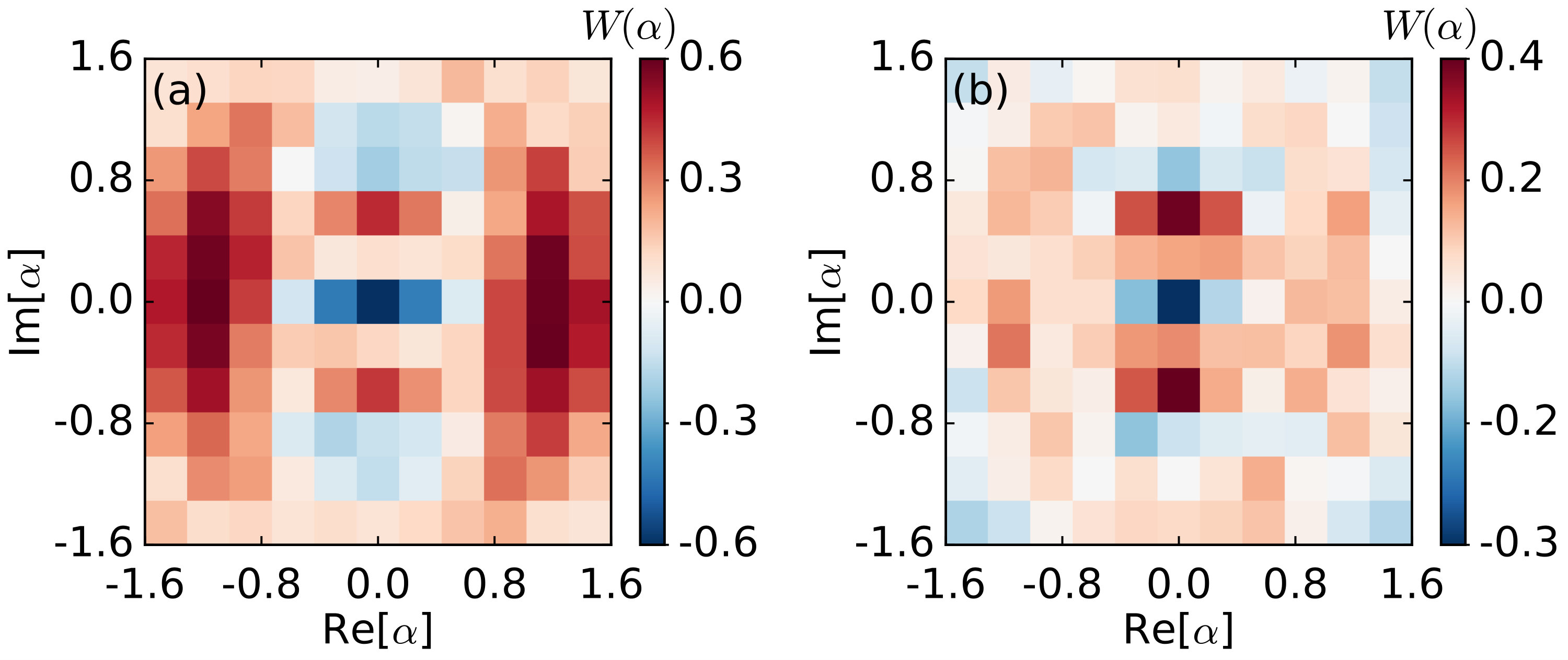

We finally sample the entire phase space of the oscillator on a square grid of $S\times S$ points, by explicitly modelling different displacements $\alpha\in\mathbb{C}$. The density matrix is propagated in time using Eq. (3) of the main text, while the passing atoms are driven, such that it effectively evolves as described by the operator $\hat{{\cal U}}_{N}$. This is described in section S3 and visualized in Fig. 2 (b) of the main article. For each point of the square grid a phonon count distribution is sampled and the Wigner function is finally computed as discussed in the main text.

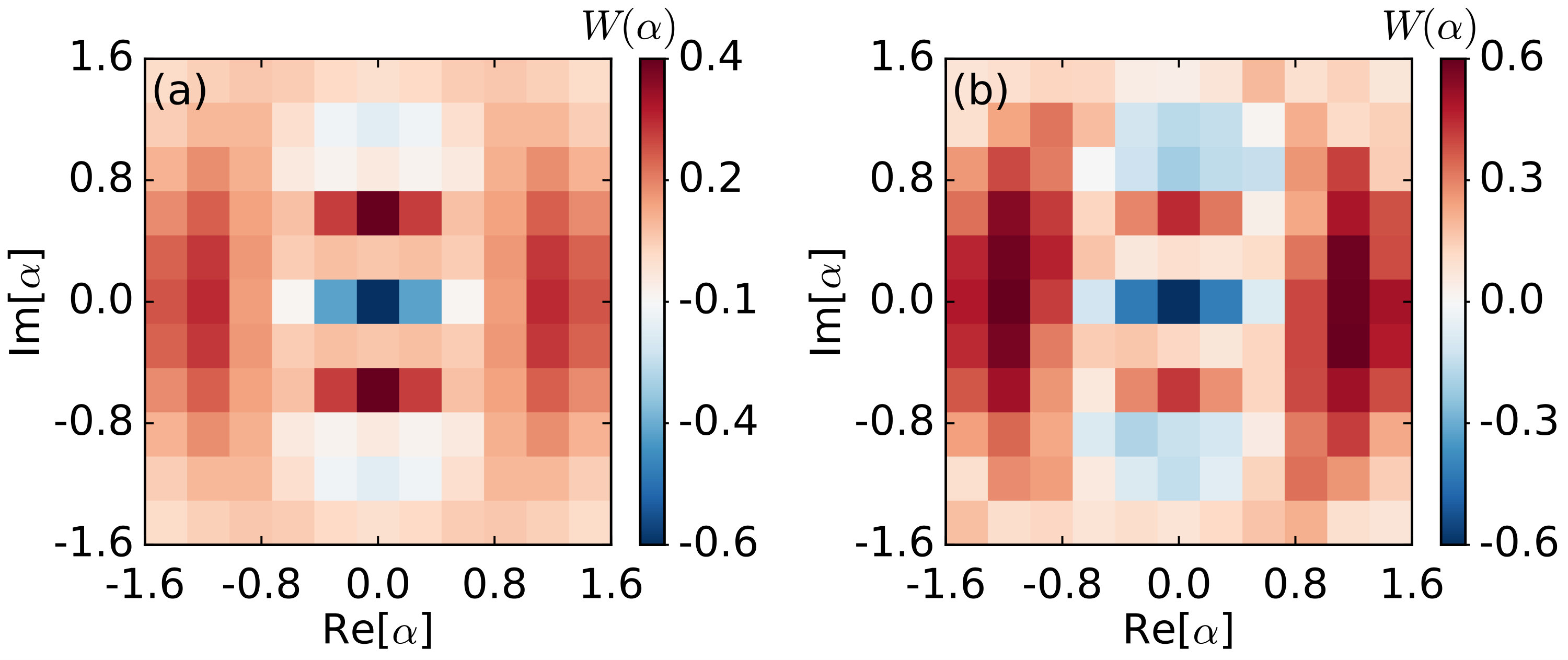

Figure 3 (b) of the main text illustrates the Wigner density of the mechanical oscillator superposition state $\mathinner{\lvert\Psi\rangle}=[\mathinner{\lvert 1\rangle}+\mathinner{\lvert 3\rangle}]/\sqrt{2}$ as obtained through “Method A”. Here we show it again in Fig. S2 (a) together with Fig. S2 (b), which depicts also the Wigner density of $\mathinner{\lvert\Psi\rangle}=[\mathinner{\lvert 1\rangle}+\mathinner{\lvert 3\rangle}]/\sqrt{2}$ derived in this case from “Method B”. The Wigner density computed via “Method A” resembles the exact outcome displayed in Fig. 3 (a) of the main text more than the counterpart result determined through “Method B”. Considering that occasionally a series of $K=43$ Ramsey measurements may not suffice to project the mechanical oscillator state into a Fock state, we expect a higher inaccuracy of “Method B” compared to “Method A”. Indeed, if a complete Fock state collapse is not realized, applying “Method B” may lead to a wrong Fock state record or to the loss of a statistical sample. Contrarily, if we apply “Method B” in a similar situation, a statistical loss never occurs and the error for a Fock state miscount is lower.

S6 System design and parameter choices

The following central requirements dictate the choice of parameters for the setup:

• •

The distance $L$ between regions $\text{R}_{1,2}$ and the parameters $D$ and $\mathbf{v}$ have to be adjusted such that (i) the average fly by time $\tau$ of an atom across the interferometer is much shorter than the Rydberg lifetime, and (ii) each atomic record can serve as a non-destructive measurement of discrete (phonon) number states in the range between $n=0$ and $n=5$, as can be seen from the atomic excited state probability $P_{b}$ shown in Fig. 2 (a) of the main article.

• •

For each detection event there is no energy exchange between the atom and the mechanical oscillator. In other words, the instantaneous atom-oscillator coupling is designed to remain sufficiently weak (off-resonant) until the atom interferometric measurement is completed. In this way, transitions between atomic states $\mathinner{\lvert b\rangle}$ and $\mathinner{\lvert a\rangle}$ via the absorption or emission of a phonon are negligible, such that the mechanical oscillator contains $n$ phonons before and after the atom traverses the interferometer.
