Anomalous magnetism in hydrogenated graphene

TL;DR

This paper investigates the unique magnetic properties of hydrogenated graphene, revealing anomalous magnetic responses that differ from traditional gapped systems and conductors, using large-scale simulations and theoretical models.

Contribution

It demonstrates the non-traditional magnetic behavior of local moments in hydrogenated graphene, highlighting continuous magnetization curves and unconventional susceptibility laws.

Findings

Magnetization $m(B)$ is continuous with divergent susceptibility at $U=0$.

At finite temperature, susceptibility follows a power law with exponent 0.77.

Mean field results show smaller magnetic moments than expected, differing from periodic cell calculations.

Abstract

We revisit the problem of local moment formation in graphene due to chemisorption of individual atomic hydrogen or other analogous sp$^3$ covalent functionalizations. We describe graphene with the single orbital Hubbard model, so that the H chemisorption is equivalent to a vacancy in the honeycomb lattice. In order to circumvent artefacts related to periodic unit cells, we use either huge simulation cells of up to $8\times10^5$ sites, or an embedding scheme that allows the modelling of a single vacancy in an otherwise pristine infinite honeycomb lattice. We find three results that stress the anomalous nature of the magnetic moment ($m$) in this system. First, in the non-interacting ($U=0$), zero temperature ($T=0$) case, the $m(B)$ is a continuous smooth curve with divergent susceptibility, different from the step-wise constant function found for a single unpaired spins in a gapped system. Second, for $U=0$ and $T>0$, the linear susceptibility follows a power law $\propto{T}^{-\alpha}$ with an exponent of $\alpha=0.77$ different from conventional Curie's law. For $U>0$, in the mean field approximation, the integrated moment is smaller than $m=1\mu_B$, in contrast with results using periodic unit cells. These three results highlight that the magnetic response of the local moment induced by sp$^3$ functionalizations in graphene is different both from that of local moments in gaped systems, for which the magnetic moment is quantized and follows a Curie law, and from Pauli paramagnetism in conductors, for which a linear susceptibility can be defined at $T=0$.

Figures

Equations

$$H=H_{0}+W=\left(\begin{array}[]{cc}H_{A}&0\\ 0&H_{B}\end{array}\right)+\left(\begin{array}[]{cc}0&V_{AB}\\ V_{BA}&0\end{array}\right)$$

$$G_A(E)=\frac{1}{E+i\eta -H_A-{\Sigma }_{AB}(E)}$$

$$G_{A^{\prime }}(E)=\frac{1}{(2\pi {)}^2}{\int }_{\text{BZ}}(E+i\eta -H(\vec{k}){)}^{-1}{d}^2\vec{k}$$

$${\Sigma }_{AB}(E)=E+i\eta -H_{A^{\prime }}-\frac{1}{(2\pi {)}^2}{\left({\int }_{\text{BZ}}(E+i\eta -H(\vec{k}){)}^{-1}{d}^2\vec{k}\right)}^{-1}$$

$${\rho }_i(E)=-\frac{1}{\pi }\mathrm{Im}\left[G_{i,i}(E)\right]$$

$$H_U=U\sum _i{n}_{i,\uparrow }{n}_{i,\downarrow }$$

$$H_U\approx \sum _{i}U\left[⟨n_{i,\uparrow }⟩n_{i,\downarrow }+⟨n_{i,\downarrow }⟩n_{i,\uparrow }-⟨n_{i,\downarrow }⟩⟨n_{i,\uparrow }⟩\right]$$

$$⟨n_{i,\sigma }⟩={\int }_{-\infty }^{E_F}{\rho }_{\sigma }(E)dE$$

$$⟨m(i)⟩\equiv g{\mu }_B\frac{⟨n_{i,\uparrow }⟩-⟨n_{i,\downarrow }⟩}{2}$$

$$T_{n+1}(x)=2x{T}_n(x)-T_{n-1}(x)$$

$${\rho }_i(\bar{E})=\frac{1}{\pi \sqrt{1-{\bar{E}}^2}}\left({\bar{\mu }}_0+2\sum _{n=1}^{N-1}{\bar{\mu }}_n{T}_n(\bar{E})\right)$$

$${\bar{\mu }}_n=g_n^N{\mu }_n$$

$$g_n^N=\frac{(N-n-1)\cos \frac{\pi n}{N+1}+\sin \frac{\pi n}{N+1}\cot \frac{\pi }{N+1}}{N+1}$$

$${\mu }_n={\int }_{-1}^1{T}_n(\bar{E})\sum _k\delta (\bar{E}-{\bar{E}}_k)|⟨k|i⟩{|}^2=⟨i|T_n(\bar{H})|i⟩$$

$${\mu }_n=⟨{\alpha }_0|{\alpha }_n⟩$$

$$|{\alpha }_0⟩=|i⟩$$

$$|{\alpha }_1⟩=\bar{H}|{\alpha }_0⟩$$

$$|{\alpha }_{n+1}⟩=2\bar{H}|{\alpha }_n⟩-|{\alpha }_{n-1}⟩$$

$$m_i(B)=g{\mu }_B\left(\Theta (B)-\frac{1}{2}\right)|{\psi }_0(i){|}^2$$

$$⟨s_z(i)⟩=\frac{1}{2}{\int }_{-\infty }^{\infty }\left[{\rho }_{i\uparrow }(E)-{\rho }_{i\downarrow }(E)\right]f(E,T)dE$$

$$\chi (T)={\frac{\partial m(T)}{\partial B}|}_{B=0}$$

$${\tilde{G}}_A^{\lambda }(E)=\frac{1}{E+i\eta -{\tilde{H}}_A-{\lambda }_{\Sigma }{\Sigma }_{AB}(E)}$$

Full text

I Introduction

Whether or not the addition of an impurity atom into an otherwise non-magnetic crystal results in the formation of local moments is one of the central problems in condensed matter physics.Anderson (1961) In the cases when the host is either a conductor with a well defined Fermi surface, or an insulator with the Fermi energy inside an energy gap, the problem is well understood. In the former case, the formation of a local moment is controlled by the competition between the addition energies of the impurity levels and their broadening, due to quasi-particle tunneling in and out of the impurityAnderson (1961); Daybell and Steyert (1968). This quantity depends on the density of states of the energy of the localized level. In contrast, when the impurity level lies inside a gap, as it happens for donors in semiconductors, the unpaired electronic spin behaves like a paramagnetic center with $S=1/2$.Slichter (1955)

The hydrogenation of graphene has attracted interest for various reasons. In the dense limit, it leads to the opening of a large band-gap.Elias et al. (2009); Sofo et al. (2007) In the dilute limit, chemisorbed hydrogen was predicted to create a $S=1/2$ local moment Duplock et al. (2004); Yazyev and Helm (2007); Boukhvalov et al. (2008); Palacios et al. (2008); Yazyev (2010); Santos et al. (2012) associated with the formation of an $E=0$, or mid-gap, state that hosts an unpaired electron. This led early on to propose hydrogenated graphene as a magnetic material with spin-dependent transport propertiesSoriano et al. (2010); Leconte et al. (2011); Sor apt for spintronics in graphene.Han et al. (2014) Recent scanning tunneling microscope experimentsGonzález-Herrero et al. (2016) match the computed theoretical density of states as a function of both energy and position, that shows a split resonance close to the Dirac point, providing thereby indirect evidence for local moment formation. It also has been proposed that the small local lattice distortion induced by the $sp^{3}$ hybridization enhances the effect of spin-orbit interaction.Castro Neto and Guinea (2009); Gmitra et al. (2013) This has been proposed as the explanation for the observation of large spin Hall angles in hydrogenated graphene.Balakrishnan et al. (2013) Resonant scattering with the zero mode resonance has also been considered as a source of enhanced quasi-particle spin relaxation in graphene.Wojtaszek et al. (2013); Kochan et al. (2014); Soriano et al. (2015)

Chemisorption of atomic Hydrogen in graphene structures entails the formation of a strong covalent bond between the carbon $\pi$ orbital and the hydrogen $s$ orbital. The pair of bonding-antibonding states lies far from the Fermi energy. This picture is valid not only for chemisorption of atomic hydrogen, but for a large variety of other $sp^{3}$ adsorbates. Santos et al. (2012) Effectively, the result of this hybridization is to remove both one electron and one state from the $\pi$ cloud, which justifies modeling $sp^{3}$ functionalization with the one orbital tight-binding model with the removal of one atomic site, and 1 electron, in the honeycomb lattice111This vacancy in the effective model is different from a real vacancy in graphene, which entails the formation dangling bonds from the $sp^{2}$ orbitals, in addition to the removal of the $\pi$ orbital as well. The removal of a site in the honeycomb lattice breaks sub-lattice symmetry and produces a zero energy state.Pereira et al. (2006); Kumazaki and S. Hirashima (2007); Wehling et al. (2007); Pereira et al. (2008); Palacios et al. (2008)

In gapped graphene structures, such as graphene with a spin-orbit gap, González and Fernández-Rossier (2012) graphene nanoribbons,Palacios et al. (2008) or a planar aromatic hydrocarbon molecule, the formation of an in-gap $E=0$ state due to $sp^{3}$ functionalization trivially leads to a local moment formation with $S=1/2$, very much like it happens for acceptors and donors in semiconductors. The zero energy state is singly occupied by one electron that occupies a bound state. The rest of this manuscript is devoted to study the case of a $sp^{3}$ chemisorption in infinite gapless graphene. In that situation, the formation of a local moment is not warranted. Whereas the $E=0$ state appears exactly at the energy where the DOS vanishes, a finite DOS due to the Dirac bands is infinitesimally close, and its wave function, described with $\psi\propto\frac{1}{x\pm iy}$ is a quasi-localized non-normalizable state.Pereira et al. (2006) The DOS of the resonant state diverges at $E=0$ and hence lacks a Lorentzian lineshape. This situation is genuinely different from conventional magnetic impurities in metals, that are coupled to a bath with finite DOS and show conventional Lorentzian lineshapes and it is also different for the situation in which the resonant state lies inside a proper gap.

Previous works usually address this problem by using supercells, where translation symmetry is preserved, hence considering not a single defect but a periodic array of them.Duplock et al. (2004); Boukhvalov et al. (2008); Yazyev (2010); Sofo et al. (2012a); González-Herrero et al. (2016) In this case the bands of such a system will always present a gap which at half filling, results in a quantized $m=1\mu_{B}$ magnetic moment since all the valence bands would be doubly occupied but only one of the two states in the gap would be occupied. While this approach has been proven very useful in many studies, it does not strictly solve the problem of a single impurity in an otherwise pristine graphene sheet. To tackle this problem we use two different methodologies. On the one hand, we make a Green’s function description of the defected region embedded into an infinite pristine crystal which yields an exact description, but results in computationally relatively expensive calculations. On the other hand, we use the kernel polynomial method which allows the calculation of spectral properties for huge systems (800000 atoms) in a computationally efficient way, but has the drawback of lower resolution in energy.

The rest of the paper is organized as follows. Section II is devoted to present the methods, i.e. the formalism to treat a single impurity in an infinite system. In Sec. III we study the physical properties of a single $sp^{3}$ chemisorption on graphene including the effect of an external magnetic field with and without temperature. Sec. V is devoted to the study of electron-electron interactions, and finally in Sec. VI we summarize our work.

II Methods

In the following, we describe graphene with a one orbital tight-binding model. Electron-electron interactions are described within the Hubbard approximation. Thus, the energy scales in the Hamiltonian are the first neighbor hopping $t$ and the Hubbard on-site repulsion $U$. When an external magnetic field is introduced it is considered to be an in-plane magnetic field $B$ coupled only to the spin degree of freedom. The effect of $sp^{3}$ hybridization is included by the removal of both of a site in the honeycomb lattice and one electron, as discussed above.

We use two different techniques to tackle the problem of a single impurity in pristine graphene. The first one consists in the calculation of the (exact) Green’s function for a region close to the defect by means of the Dyson equation, using an embedding method described below. The second one is the kernel polynomial method, that allows the calculation of spectral properties of extremely large systems with minimal computational effort.

II.1 The embedding technique

We first present a general method to study single impurities in infinite systems, from now on referred as embedding technique, devised earlier by one of us in a similar context.Jacob and Kotliar (2010) Since a single defect in an infinite system breaks the translation symmetry, we cannot use a Bloch description. Instead, we describe the system in terms of Green’s functions, making use of the Dyson equation.

We start by dividing the system into two regions, a central unit cell $A$ containing the defect, and the rest of the system $B$, containing everything else, as depicted in Fig. 1 (b). The Hamiltonian of the whole (infinite) system can then be written in terms of the two separated contributions, one arising from each isolated region, $H_{0}$, and the other arising from the coupling between the two regions $W$:

[TABLE]

The Green’s function corresponding to region $A$ can be written (exactly) as:

[TABLE]

where the embedding self-energy $\Sigma_{AB}$ can be calculated from the Green’s function of region $B$ $g_{B}(E)=(E+i\eta-H_{B})^{-1}$, as $\Sigma_{AB}(E)=V_{AB}\;g_{B}(E)\;V_{BA}$. For numerical reasons $\eta$ has to be finite but we checked that the results do not depend on its exact value. We found that $\eta=0.001$ offers a good combination of precision in energy while keeping the convergence time of the Dyson equation reasonable. In general the Green’s function $g_{B}(E)$ for region $B$ are not straightforward to calculate, as $g_{B}(E)$ describes the Green’s function of an infinite system without translation symmetry, on account of the missing region $A$. However, the calculation of $\Sigma_{AB}$ is made possible when we consider two facts. First, $\Sigma_{AB}$ does not depend on whatever is in region $A$, second, equation (2) holds true for a pristine system with translation invariance, that permits to compute $G_{A}(E)$, and evaluate $\Sigma_{AB}=E-H_{A}-(G_{A}(E))^{-1}$.

The evaluation of $G_{A}(E)$ is now done by dividing the infinite pristine crystal system into periodic supercells $A^{\prime}$ of the same size and shape as the defect region $A$. The Green’s function of region $A^{\prime}$ in the perfect crystal can thus be calculated by integrating the $\vec{k}$-dependent Green’s function in the whole Brillouin zone

[TABLE]

with $\vec{k}$ the Bloch wavevectors and $H(\vec{k})$ the Bloch Hamiltonian for the pristine host crystal. The final expression for the self-energy $\Sigma_{AB}$ reads:

[TABLE]

where $H_{A^{\prime}}$ describes a region with the same dimensions than the original defective region $A$, but without the defect(s). This is a general procedure and can be applied for multi-band Hamiltonians. As long as the dimensions of the pristine and the defected Hamiltonian are the same, it can deal with more than one defect without computational overhead. Notice that this method does not require the analytic evaluation of the host crystal Green’s function necessary in a recently proposed methodSettnes et al. (2015), and can be applied to a very large class of systems, including superconductors.Lado and Fernández-Rossier (2016)

The combination of equations (2) and (4) allows the computation of the Green’s function of the defective area, $G_{A}$, embedded in an otherwise pristine crystal as shown in Fig. 1. The density of states (DOS) of an atom $i$ in region $A$ can then be calculated from the imaginary part of the Green’s function as

[TABLE]

where $G_{i,i}$ is the diagonal matrix element $(i,i)$ of the Green’s function. Summing over the contributions from all atoms $i$ in region $A$, the total DOS of region $A$ is obtained.

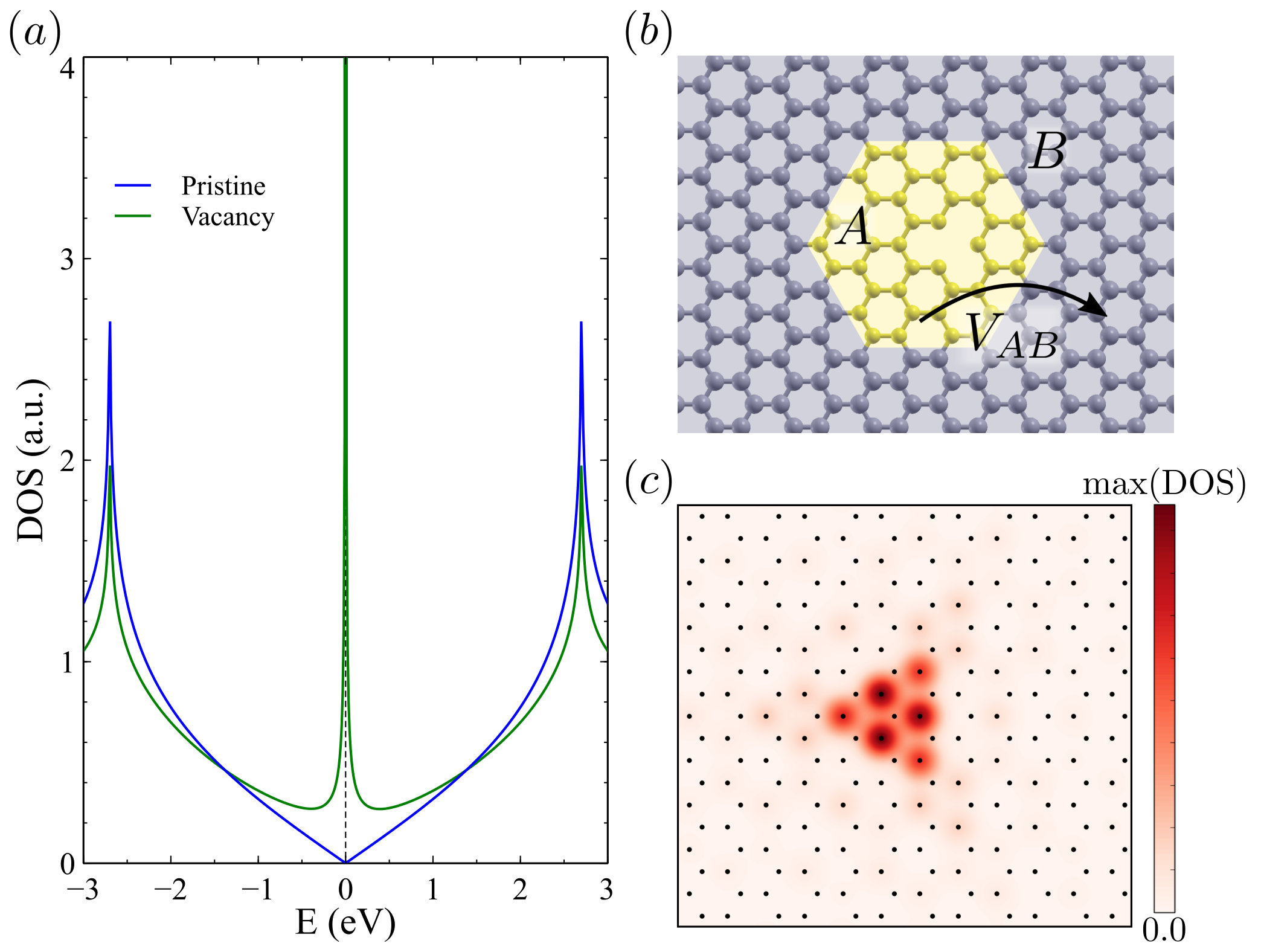

In Fig. 1 we show the results of the method for the case of a single vacancy in the honeycomb lattice. Fig. 1 (a) shows the density of states both for pristine graphene, that shows the characteristic $\rho\propto|E|$ around the Dirac point,Katsnelson (2012) and for the defective case, that presents a diverging zero energy resonance. The embedding method permits also the calculation of the local density of states as shown in Fig. 1 (c), where we show the map of the density of states evaluated at $E=0$, finding that the main contribution for this state comes from the 3-6 nearest neighbors to the vacancy that belong to the sublattice opposite to the one of the missing site.Pereira et al. (2006); Kumazaki and S. Hirashima (2007); Wehling et al. (2007); Pereira et al. (2008); Palacios et al. (2008) Of course, for the case of a non-interacting single vacancy, this problem can be dealt with using the standard T matrix theory.Economou (2006); González and Fernández-Rossier (2012); Wehling et al. (2007). The embedding method shows its added value when it comes to treat several vacancies or when interactions are included, as we discuss now.

II.2 Mean field Hubbard model

The Hubbard term acting on every site $i$ reads:

[TABLE]

where $n_{i\sigma}$ is the standard number operator for site $i$ with spin $\sigma$. Exact solutions of this model are, in general, not possible so that we use a mean field approximation:

[TABLE]

where $\langle n_{i,\sigma}\rangle$ stand for the expectation values of the number operators computed with the eigenstates of the mean field Hamiltonian. Of course, this is a non-linear problem that is solved self-consistently. Here, this is done in combination with the two dimensional embedding technique, which is formally similar to the one dimensional case.Muñoz Rojas et al. (2009) In this approach, the occupations in the external region $B$ are frozen to $\langle n_{i,\uparrow}\rangle=\langle n_{i,\downarrow}\rangle=\frac{1}{2}$. In contrast, the expected values of the defective cell are calculated by self-consistent iteration.

In a first step, we assume a random guess spin polarization and then compute the expected values of the spin operators $\langle n_{i,\sigma}\rangle$ by integrating the DOS up to the Fermi energy

[TABLE]

which defines a new Hamiltonian for region $A$,$H_{A}\rightarrow\bar{H}_{A}+H^{MF}_{U}$, including the mean field Hubbard term.Fernández-Rossier and Palacios (2007); Palacios et al. (2008) Notice that the numerical integration of eq. (8) is much more efficiently done in the complex plane using Cauchy’s integral theorem. Also it is important to notice that even when the Hamiltonian for the region $A$ will change over the self-consistent iterations the self-energies will not since they do not depend on what is inside of said region. This procedure is iterated until a self-consistent solution is found.

The magnetic moment is calculated as the difference of the expected values of each spin densities.

[TABLE]

There is a trade off between computational cost, due mainly to the size of the region $A$, and the accuracy of the description of the semi-localized nature of the induced magnetism. The role of the chosen size for region $A$ is discussed bellow.

II.3 The kernel polynomial method

The Kernel polynomial methodWeiße et al. (2006) is a spectral method that allows to calculate spectral properties of very large matrices without explicit diagonalization or inversion of the matrix. This makes the method especially suitable for very large systems described by sparse Hamiltonians, as is the case for the first neighbor hopping model for the honeycomb lattice, considered here. In our case, we set up the Hamiltonian for an extremely large graphene island, with a single vacancy in the center.

The Chebyshev polynomials form a complete basis in the function space, so that they can be used as a basis to expand any well behaved function $f(x)$ for $x\in(-1,1)$ The method consists in expanding the density of states in $N$ Chebyshev polynomials $T_{n}(x)$, that are calculated using $T_{0}(x)=1$, $T_{1}(x)=x$ and the recursive relation

[TABLE]

valid for $x\in(-1,1)$.

The first step in the method is to scale the Hamiltonian $H\rightarrow\bar{H}=\sum_{k}\bar{E}_{k}|k\rangle\langle k|$ so that all the eigenstates $\bar{E}_{k}$ fall in the interval $\bar{E}_{k}\in(-1,1)$. The density of states as a function of the scaled energy, at site $i$, is expressed as

[TABLE]

The coefficients $\bar{\mu}_{n}$ are the modified coefficients of the expansion,

[TABLE]

that are obtained using the Jackson kernelJackson (1912)

[TABLE]

that improves the convergence of the expansion. The original Chebyshev coefficients are calculated as a conventional functional expansion

[TABLE]

with $|i\rangle$ the wave function localized in site $i$. Importantly, the second equality in eq. (14) relates $\mu_{n}$ to an expression where the eigenstates $|k\rangle$ of $H$ are absent. Thus, diagonalization of $H$ is not necessary and the computation of the the $\mu_{n}$ coefficients only requires calculating an overlap matrix element involving $T_{n}(H)$. The Chebyshev recursion relation allow to write down the $\mu_{n}$ coefficients in term of the overlaps with the vectors $|\alpha_{n}\rangle$

[TABLE]

generated by the recursion relation

[TABLE]

In our case, we will choose a state, $|i\rangle$, localized in the first neighbor of the carbon with the hydrogen ad-atom. To calculate the previous coefficients we only need matrix vector products, so that the scaling is linear with the size $L$ of the system, in contrast with the $L^{3}$ scaling for exact diagonalization. Our calculations are performed in a graphene island with 800000 atoms, taking a expansion with $N=10000$ polynomials.

III Non interacting zero temperature magnetization

In this section we study the spin polarization in the neighborhood of a $sp^{3}$ defect, driven by an external in-plane magnetic field coupled to the electronic spin, at zero temperature and in the non-interacting limit $U=0$. In a gapped graphene system, this problem is straightforward. At $T=0$, the spin density would be dominated by the contribution of the only singly occupied state, the $E=0$ mid-gap state, whose wave function we denoted by $\psi_{0}(i)\equiv\langle i|\psi_{0}\rangle$. The zero temperature magnetization in an atom $i$ would be given by:

[TABLE]

where $B$ is the magnitude of the magnetic field, $\Theta(B)$ is the step function, $g\simeq 2$ is the gyromagnetic ratio and $\mu_{B}$ is the Bohr magneton. The local magnetization $m_{i}$ is stepwise constant, and discontinuous at $B=0$, $m_{i}(0^{+})-m_{i}(0^{-})=g\mu_{B}|\psi_{0}(i)|^{2}$. It is apparent that the total moment $M=\sum_{i}m_{i}$ integrates to $M=\pm\frac{g\mu_{B}}{2}$ on account of the normalization of the wave function of the mid-gap state. This result holds true as long as the Zeeman energy $\mu_{B}B$ is smaller than the gap of the structure.

We now study what happens in the case of infinite pristine graphene, for which there is no gap, and we cannot define a normalized zero energy state. For that matter, we compute the density of states of the system using the Green’s function embedding approach This methods is trivially adapted to include the Zeeman splitting that introduces a rigid spin dependent energy shift $\pm\mu_{B}B$. This symmetric shift allows the expression of all the spectral functions for each of the spin channels in terms of the spinless Green’s function, $G^{\sigma}(E)=G(E-\sigma\mu_{B}B)$, with $\sigma=\pm 1$.

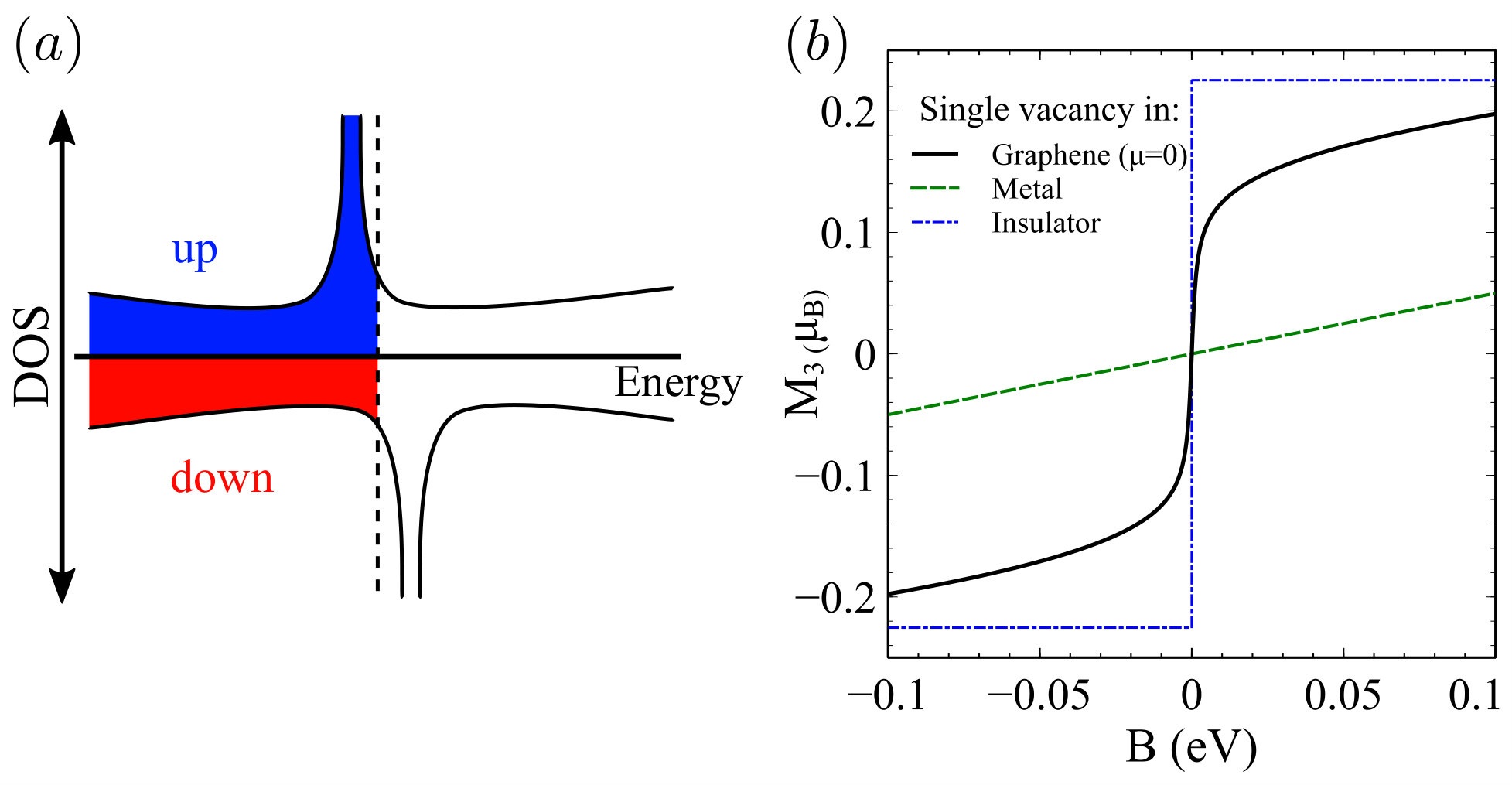

The results for the magnetization of the three first neighbors of a $sp^{3}$ defect in an otherwise pristine graphene are shown in Fig. 2 for a single $sp^{3}$ defect in two scenarios. A gapped finite size graphene hexagonal island with armchair edges, resulting in the expected step-wise response, a single defect in otherwise pristine gapless graphene. In both cases we plot the magnetization of the three atoms closest to the vacancy, $M_{3}=\sum^{3}_{i=1}m_{i}$, that gives the dominant contribution to the defect-induced local moment. The result for the paramagnetic response of a metal is included in Fig. 2 for comparison with a standard case.

The most prominent feature of the obtained results is the fact that the $M_{3}(B)$ curve is not stepwise constant for the defect in infinite graphene, in marked contrast with the case of the defect in a gapped island. This difference shows the qualitatively different behavior of the zero mode in gapless infinite graphene, compared to the standard case of an in-gap truly localized state. The continuous variation of the magnetic moment can be related to the fact that the zero mode has an intrinsic line-width that reflects the lack of a gap to host a true localized state.

IV Finite temperature susceptibility

We now discuss the effect of temperature on the non-interacting $m(B)$ curve. The only effect of temperature is to smear out the occupation of the one-particle levels, so that the expected value of the local magnetization has to include now excited states.

To calculate the magnetization in a site $i$ as a function of the magnetic field and the temperature we just need to compute the difference in the occupation of the spin-up and spin-down density of states weighted with the Fermi-Dirac distribution function. Thus, the local magnetic moment is given by $m_{i}=g\mu_{B}\langle s_{z}(i)\rangle$ with

[TABLE]

where $f(E,T)$ is the Fermi Dirac distribution and $\rho_{i\sigma}(E)$ is the spin resolved density of states. The resulting magnetization of the three closest atoms, $M_{3}$ is shown in Fig. 3 (a), computed with two different approaches, the embedding method for a single $sp^{3}$ defect in infinite graphene and the kernel polynomial method for a single defect on a finite size island with a very large number of atoms. It is apparent that both methods give identical results in the chosen range of temperatures.

In order to highlight the anomalous behavior of the magnetic moment associated to an individual $sp^{3}$ defect, we focus on the spin susceptibility, defined as

[TABLE]

For $T=0$ the results of the previous section show that this quantity diverges, both for the gapped and gapless cases. Here we study the dependence of $\chi(T)$ as a function of temperature $T$. For a conventional local moment, the zero field susceptibility follows the Curie law $\chi(T)\propto T^{-1}$. This result holds true, based on very general considerations, for any spin governed by the Hamiltonian $g\mu_{B}\vec{S}\cdot\vec{B}$ as well as any classical magnetic moment $\vec{M}$ governed by the interaction energy $-\vec{M}\cdot\vec{B}$. In particular, the Curie susceptibility of a single electron in an in-gap level will follow a Curie law.

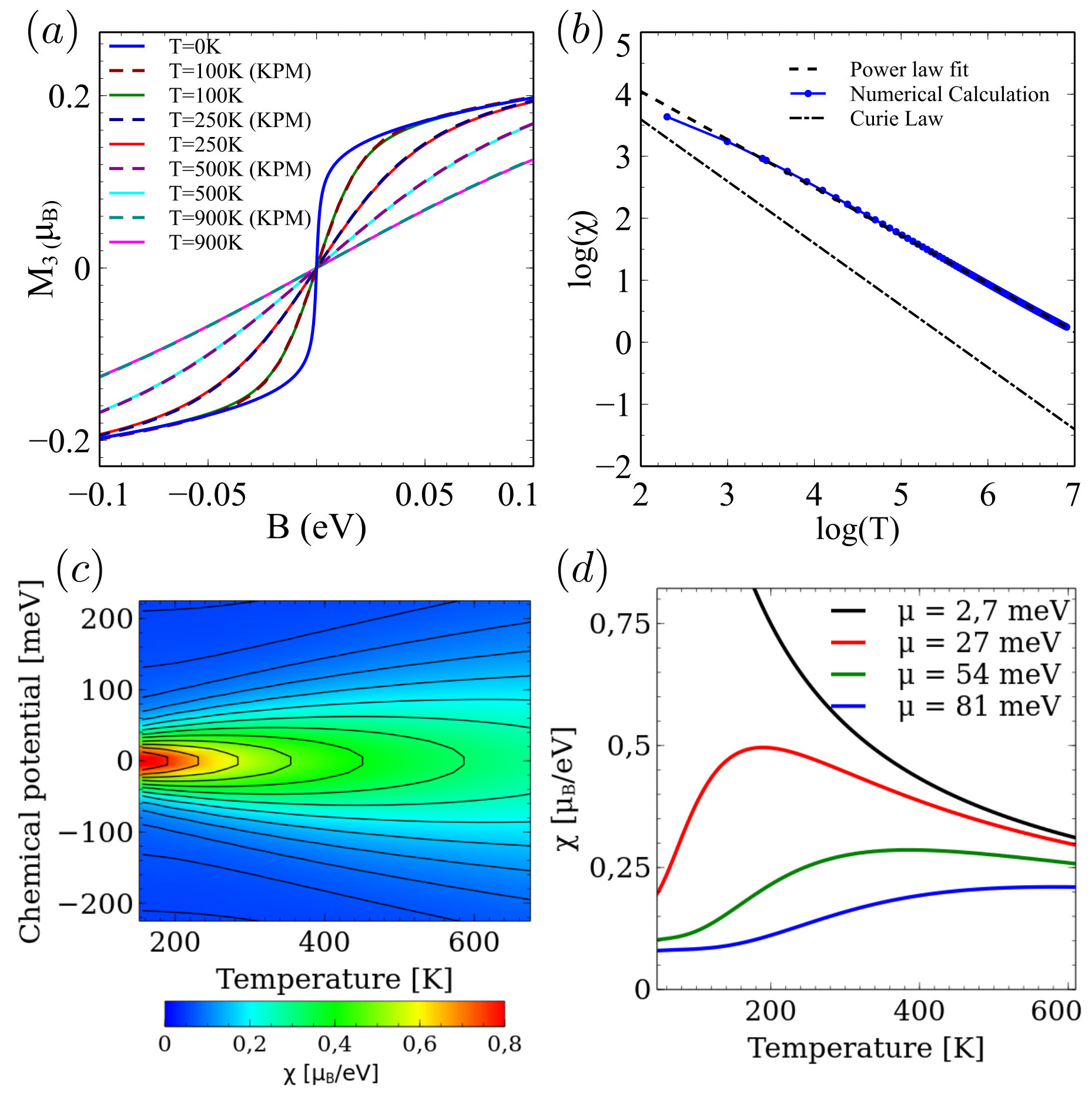

Numerical derivation of the results of Fig. 3 (a) allows the calculation of $\chi(T)$, shown in Fig. 3 (b) in a Log-Log representation. It is apparent that the spin susceptibility for the $sp^{3}$ defect on graphene does not follow the Curie law. In particular, we obtain a high temperature power law dependence $\chi\propto T^{-\alpha}$, with $\alpha\sim 0.77$, in comparison with the conventional $\alpha=1$. This exponent reflects, again, the anomalous nature of the $sp^{3}$ local moment in infinite graphene, in marked contrast with the behavior of the same chemical functionalization in a gapped graphene structure. Interestingly, $\chi(T)$ has been measuredNair et al. (2012) for defective graphene obtaining a Curie law dependence, probably because the samples used are in fact nanoflakes with small confinement gaps that permit the existence of in-gap states with quantized spins.

Further insight into the magnetic properties of this system is obtained by considering the dependence of the magnetic susceptibility as a function of the graphene chemical potential, that could be modified by gating doping,Nair et al. (2013) as shown in Fig. 3 (c,d). The maximal local susceptibility is obtained at half-filling and small temperatures where it monotonically decreases both with temperature and doping. In comparison, in the case of slightly doped samples, the magnetic susceptibility can either increase or decrease as a function of the temperature, showing a maximum at a doping-dependent temperature. The previous behavior can be understood as a crossover from the impurity in an insulator to the metallic regime. Importantly, the local maximum implies that graphene doping introduces an energy scale that determines the temperature for the impurity-metal crossover. In the case of heavily doped samples ($\mu=81$ meV), the susceptibility grows monotonically with temperature, signaling the conventional metallic regime.

V Effect of interactions

We now study the effect of electron-electron interactions in the formation of local magnetic moments associated to the $sp^{3}$ functionalization. A single unpaired electron in an in-gap energy level has a spin $S=1/2$ (equivalent ot a magnetic moment $m=1\mu_{B}$). In the current study this is not the case, the $E=0$ resonance is embedded in a region with finite DOS (except in just one point, the Dirac energy) and the existence of an emergent magnetic moment follows the Stoner criterion $U\rho(E_{F})=1$. For graphene with a single $sp^{3}$ defect the diverging nature of $\rho(E)$ at $E=0$, the presence of arbitrarily small interactions gives rise to a local moment. However, because of the coupling of the mid-gap state to a continuum of states (the linear bands of graphene) it is not obvious a priori whether or not the local moment should have a quantized $S=1/2$ spin. In the following we address this issue, using the mean field approximation for the Hubbard model and the embedding technique as discussed in previous sections. The Hubbard model, while is not certainly the complete description of such a system, offers a simple model to gain an insight on the possible magnetic solutions for the systems.

V.1 Local magnetic moment

In general, the results of the mean field calculation yield a non-zero magnetization above rather small values of $U$. However, the integrated local moment $M=\sum_{i\in A}m_{i}$ is far below the quantized value of $M=1\mu_{B}$. A characteristic snapshot of the magnetization density computed for a simulation cell with 162 atoms within the mean field Hubbard model is shown in Fig. 4 (a). The dominant magnetic moments appear in the sublattice opposite to the one of the defect, but small contributions of opposite sign appear in the same sublattice.

The influence of the coupling to infinite graphene is neatly shown in a calculation where we artificially tune the intensity of the interaction between the central simulation cell $A$, and the rest of graphene. For that matter, we define the following modified full Green’s function

[TABLE]

where $\lambda_{\Sigma}\in[0,1]$ is a control parameter that smoothly interpolates between limit where the region $A$ is decoupled ($\lambda_{\Sigma}=0$) from the rest of the universe, quantum dot regime, and the infinite-crystal regime ($\lambda_{\Sigma}=1$).

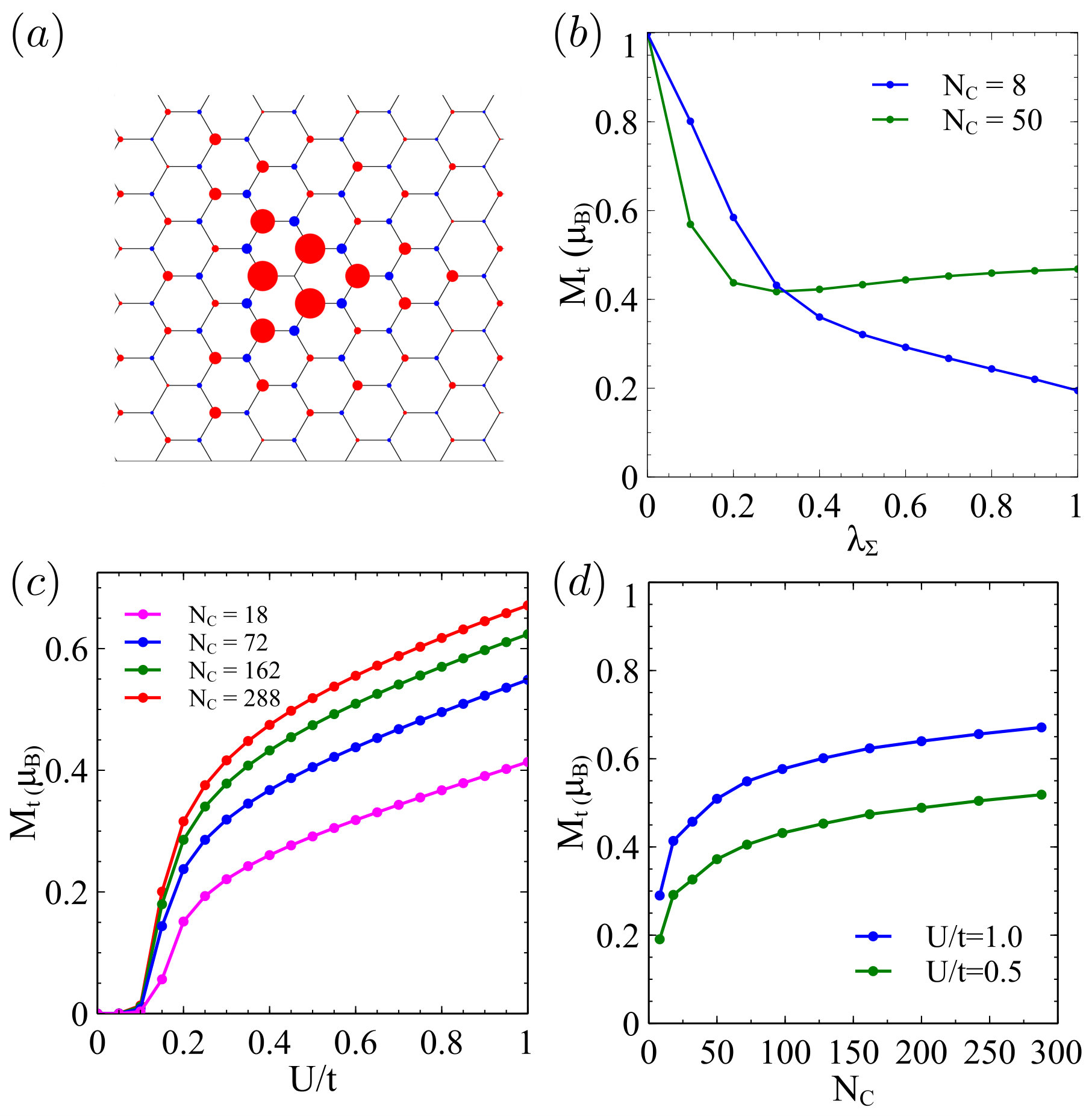

As it is shown in Fig. 4 (b), in the quantum dot regime $\lambda_{\Sigma}=0$ the magnetic moment is quantized $M=1\mu_{B}$. However, as soon as the unit cell is coupled to the rest of the graphene, $\lambda_{\Sigma}\neq 0$, the magnetic moment rapidly becomes non-quantized, with an evolution that depends on the size and geometry of the region $A$.

As soon as $U$ is larger than a small critical $U\simeq 0.01t$, magnetic solutions are obtained and we find that the non integer nature of the magnetic moment holds for a wide regime of electronic interactions $U$. The net magnetic moment is an increasing function of $U$ as well as the size of the central region, $N_{C}$, Fig. 4 (c,d). Even for the largest simulation cells, with up to 288 sites, the total magnetic moment remains clearly below $1\mu_{B}$. However, a representation of the total moment as a function of $N_{C}^{-1}$, not shown, makes it hard to predict whether or not the extrapolation to an infinite cell would recover the quantized value. Whereas it might be that the magnetic moment is quantized, our calculations emphasize the rather extended nature of this object.

V.2 Spin splitting

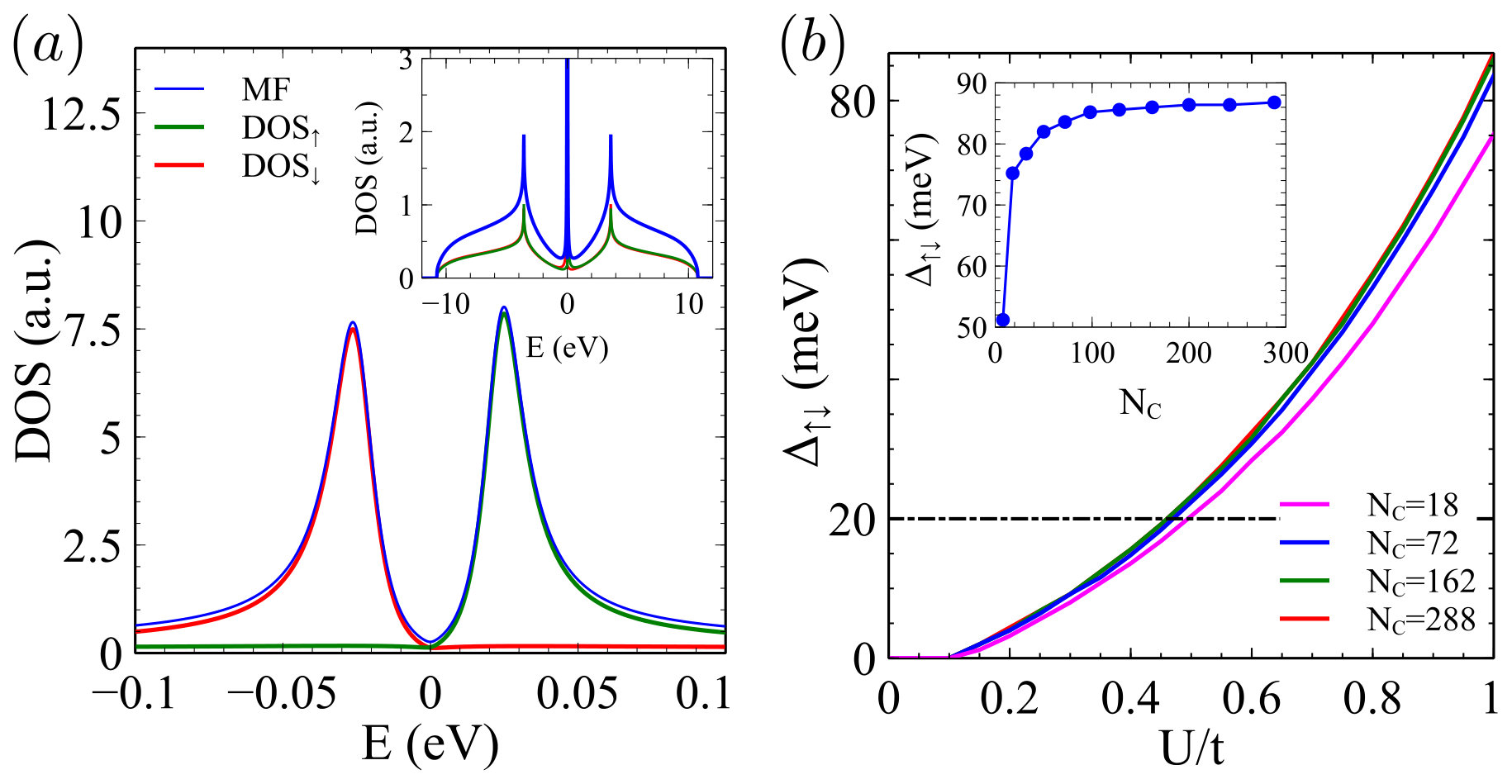

Our magnetic self-consistent solutions spontaneously break symmetry and result in spin-split density of states, shown in Fig. 5. Importantly, the interacting DOS does not have any integrable singularity, as it happens for the $U=0$ case at $E=0$. Summing over spin projections, the total density of states still shows electron-hole symmetry. However, the spin-resolved DOS is split, so for one spin projection the resonance is below the Fermi energy, while for the other one is above, which accounts for the net magnetization. We define the spin splitting, $\Delta$, as the difference in energy between these two resonances. We find that $\Delta$ has a super-linear dependence on the Hubbard interaction $U$, as shown in Fig. 5 (b). This reflects the fact that the spin splitting is linear both in $U$ and in the magnetic density $m$, which is also an increasing function of $U$. These results depend weakly on the size of the defective region, $A$, in the embedding calculation (inset of Fig. 5 (b)).

In order to compare with the experimental observations,González-Herrero et al. (2016) that also show two peaks in the DOS with a splitting of $\Delta\sim 20meV$ (black dashed line in Fig. 5 (b)). However, the interpretation of the experiments requires some cautionary remarks. The image of spin-split peaks would definitely make sense in a magnetic system that breaks symmetry, such as a ferromagnetic system, large enough to keep the magnetization frozen along a given direction that defines a spin quantization axis that permits the definition of the spin orientation of the spin-split bands. The quantum fluctuations of this mean field picture can be safely neglected for a large enough magnetic moment, but this is definitely not the case of a system that, at most, has $S=1/2$. Therefore, and in line with the discussion Gonzalez et al. González-Herrero et al. (2016), a more correct interpretation of the split peaks is the following. The STM $dI/dV$ is proportional to the spectral function of the graphene.

A proper treatment of the a local moment will probably give two resonances in the spectral function reflecting the addition energy between the empty and singly occupied level, in the case of the lower addition energy, and a second higher energy peak related the difference between the singly and doubly occupied statesIjäs et al. (2013). For a single in-gap level with wave function $\psi_{0}$, at the mean field level, this difference in addition energies can be related to $U\sum_{i}|\phi_{0}|^{4}$, that relates to the spin splitting of the broken symmetry solution. Thus, the splitting of the peaks observed in the experiment is a Coulomb-Blockade type of phenomena, rather than a symmetry breaking of the spin levels. Of course, this picture entails the existence of an unpaired spin, very much like in the Anderson model Anderson (1961) and does not preclude the emergence of Kondo effect at very low temperatures. The proper treatment of the addition energies in this system would involve solving in a many body frameworkHaase et al. (2011); Sofo et al. (2012b); Mitchell and Fritz (2013) the single impurity problem of a resonance in a Dirac bath, which is out of the scope of the present work.

V.3 Localization

Our calculations show that magnetic moment associated to a hydrogen ad-atom is dellocalized in more than 250 carbon atoms. In this sense, our calculations highlight the anomalous nature of the resonance due to a single $sp^{3}$ impurity in contrast to the phenomenology in gapped systems. This behavior arise from the special condition of the DOS, (null only in exactly one point) and the absence of an energy scale able to confine the $E=0$ resonance.

It is worth noting that in real graphene some effects not captured by the first neighbor Hubbard model that can play a relevant role. First, the existence of second neighbor carbon hopping breaks electron-hole symmetry and shifts the vacancy state away from $E=0$. Second, single hydrogenation introduces an effective on-site energy in the carbon atom that is actually finite, although rather large, which also leads to a displacement of the resonance away from zero energy. Third, non-local electronic interaction in graphene may have a sizable effect on the magnetic moment. And finally, spin-orbit coupling would open a gap of around $0.03meV$. Gmitra et al. (2009) Whether any of the previous perturbations would be capable of moving the system to the conventional quantum dot regime would require a careful study with a first principles Hamiltonian, which is out of the scope of the present work.

VI Conclusions

We have addressed the problem of the local moment formation induced by an individual $sp^{3}$ functionalization in graphene, with chemisorbed atomic hydrogen as the main motivation. We model this within the single orbital Hubbard model, so that the functionalization is modeled as a vacancy in the honeycomb lattice. We have shown that the magnetic moment in this system departs from the conventionally accepted $m=1\mu_{B}$ picture. This relates to the fact that the lack of a gap in graphene prevents the existence of a standard in-gap state that can host an unpaired electron. Our calculations show that the local moment induced by $sp^{3}$ functionalization in otherwise gapless and pristine graphene give rise to specific signatures in the magnetic response of the system, such as a non-Curie temperature dependence and a non-linear (and non-monotonic for some doping values) magnetic susceptibility. We have also shown by means of mean-field calculations that the resulting magnetic moment is non-quantized in the whole regime explored. Our results should pave the way for future work treating many-body spin fluctuations beyond mean field theoryHaase et al. (2011); Sofo et al. (2012b); Mitchell and Fritz (2013)
