Broadband monolithic extractor for metal-metal waveguide based terahertz quantum cascade laser frequency combs

TL;DR

This paper introduces a monolithic broadband extractor for metal-metal waveguide terahertz quantum cascade lasers, significantly enhancing output power and spectral bandwidth for frequency comb applications.

Contribution

It presents a novel monolithic extractor design that improves power output and bandwidth in terahertz quantum cascade lasers with metal-metal waveguides.

Findings

Five-fold increase in output power

Broadband operation up to 670 GHz

Single-lobed far-field pattern

Abstract

We present a monolithic solution to extract efficiently light from terahertz quantum cascade lasers with metal-metal waveguides suitable for broadband frequency comb applications. The design is optimized for a bandwidth of 500 GHz around a center frequency of 2.6 THz. A five-fold increase in total output power is observed compared to standard metal-metal waveguides. The extractor features a single-lobed far-field pattern and increases the frequency comb dynamical range to cover more than 50 % of the laser dynamic range. Frequency comb operation up to a spectral bandwidth of 670 GHz is achieved.

Figures

Full text

Recent years have brought up a new family of frequency combs (FC) in the mid-infrared and terahertz (THz) frequency ranges formed by four-wave mixing (FWM) in quantum cascade lasers (QCLs) Hugi et al. (2012); Burghoff et al. (2014); Rösch et al. (2015); Faist et al. (2016). Due to their internal locking mechanism, these devices are very compact and therefore very interesting for integrated spectroscopy systems Villares et al. (2014). For spectroscopic applications a broad spectrum is desired. Recent work on THz QCLs has shown the possibility of achieving octave-spanning lasers Rösch et al. (2015). Such lasers would be ideal candidates for octave-spanning, fully stabilized FCs Telle et al. (1999); Jones et al. (2000); Udem, Holzwarth, and Hänsch (2002).

All broadband THz QCLs, including THz QCL FCs, are based on a metal-metal waveguide Turčinková et al. (2011); Burghoff et al. (2014); Rösch et al. (2015). The metal-metal waveguide is a cutoff-free waveguide with very flat losses and low dispersion over the entire THz frequency range ideal for FC operation Williams et al. (2003); Rösch et al. (2015); Bachmann et al. (2016a, b). The major drawback of the metal-metal waveguide is its facets with sub-wavelength dimensions. This results in a high reflectivity and a strongly diffracted far-field Williams et al. (2003); Kohen, Williams, and Hu (2005); Adam et al. (2006). For most applications, including FC based spectroscopy, a high power and a well-defined far-field are essential. For THz QCLs with metal-metal waveguides several attempts have been undertaken to overcome the limitations of the subwavelength facet. A very successful approach uses a distributed feedback grating (DFB) matching the 3rd order Bragg condition Amanti et al. (2009a). Their almost Gaussian beam features high power in single mode operation. Similar results were achieved using various one dimensional (1D) or two dimensional (2D) confinement such as 1D photonic heterostructures Xu et al. (2012, 2014), 2D annular DFBs Liang et al. (2013), 2D photonic crystal lasers Chassagneux et al. (2009, 2010); Halioua et al. (2014), photonic quasi-crystals Vitiello et al. (2014), metasurface external cavity lasers Xu et al. (2015), integrated patch antennae Bonzon et al. (2014); Bosco et al. (2016); Justen et al. (2016), plasmonic lasers Wu et al. (2016), and random lasers Schönhuber et al. (2016). However, all these techniques are based on frequency selection and yield single mode operation.

Some other techniques have been reported to improve the far-field performance of multi-mode THz QCLs. One can either place a silicon lens in front of a standard ridge Lee et al. (2007), or a horn antenna is post-processed to a laser Amanti et al. (2009b). Both approaches have the drawback of being non-monolithic and requiring advanced post-processing steps. A simpler approach has recently been reported, which uses a post-process focused ion beam (FIB) step to remove part of the top metallization to form a horn antenna Brewer et al. (2014); Wang et al. (2016). However, the far-fields are not fully single lobed. In addition, this approach has not been investigated concerning its complience with broadband FC operation.

We report here a technique to improve far-field and power performance in a multi-mode regime which can be implemented during the standard processing steps. An extractor structure has been implemented on one side of the laser. This helps to increase the output power and leads to a better confined far-field while keeping the broadband frequency range. The reported extractors are also compatible with FC operation.

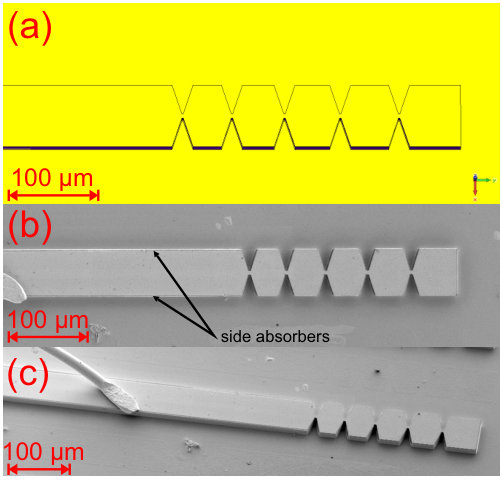

The extractor structure we report on here, is conceptionally an end-fire antenna. The antenna is integrated in the waveguide of the QCL similar to the patch antennae reported in Ref. Bonzon et al. (2014); Bosco et al. (2016); Justen et al. (2016). To select a forward directioned output beam the starting point for the design is the 3rd order Bragg condition for the central wavelength of 2.6 THz. In contrast to a 3rd order DFB, not the entire waveguide is patterned. Instead only 5 periods of the grating were used, leaving the major part of the waveguide unpatterned. The grating will not be used for the optical feedback of the laser cavity, as in a DFB, but only to shape the far-field of the extracted light.

Simulations have been performed using the 3D finite-element solver CST Microwave Studio${}^{\text{\textregistered}}$. The simulations have been used to calculate the expected far-field pattern of the designed extractor over the frequency range of interest. Starting from a pure 3rd order Bragg grating, the design has been modified to make it usable for a broad frequency range of 600 GHz centered around 2.6 THz. In this range the far-field should be directional in a forward direction, ideally single-lobed with a small convergence angle.

The reported, optimized design consists of deep-etched triangles rather than rectangular slits as in the case of patch antennae or DFBs Amanti et al. (2009a); Bonzon et al. (2014). This relaxes the 3rd order Bragg condition, making it compatible with broadband frequency operation while keeping a directional beam in a forward direction. Additionally, a longitudinal chirp has been added to the grating, increasing the grating period by 3 µm every period. The main limitation for the bandwidth is the 2nd order Bragg condition which will cause an extraction shifted by 90°. The unpatterned section of the 60 µm wide waveguide features side-absorbers to prevent lasing on higher order lateral modes Bachmann et al. (2016a). The side-absorbers were introduced by FIB and a deposition of 5 nm of Nickel (see Figure 1(b)). Figure 1 shows the simulated structure (a), along with scanning electron microscope (SEM) images (b)-(c) of the fabricated extractor. A standard fabrication has been used, including a deposition of a sacrificial silicon nitride (SiNx) etch mask, and a inductivly coupled plasma (ICP) dry etching step.

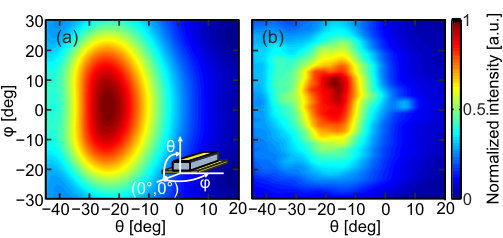

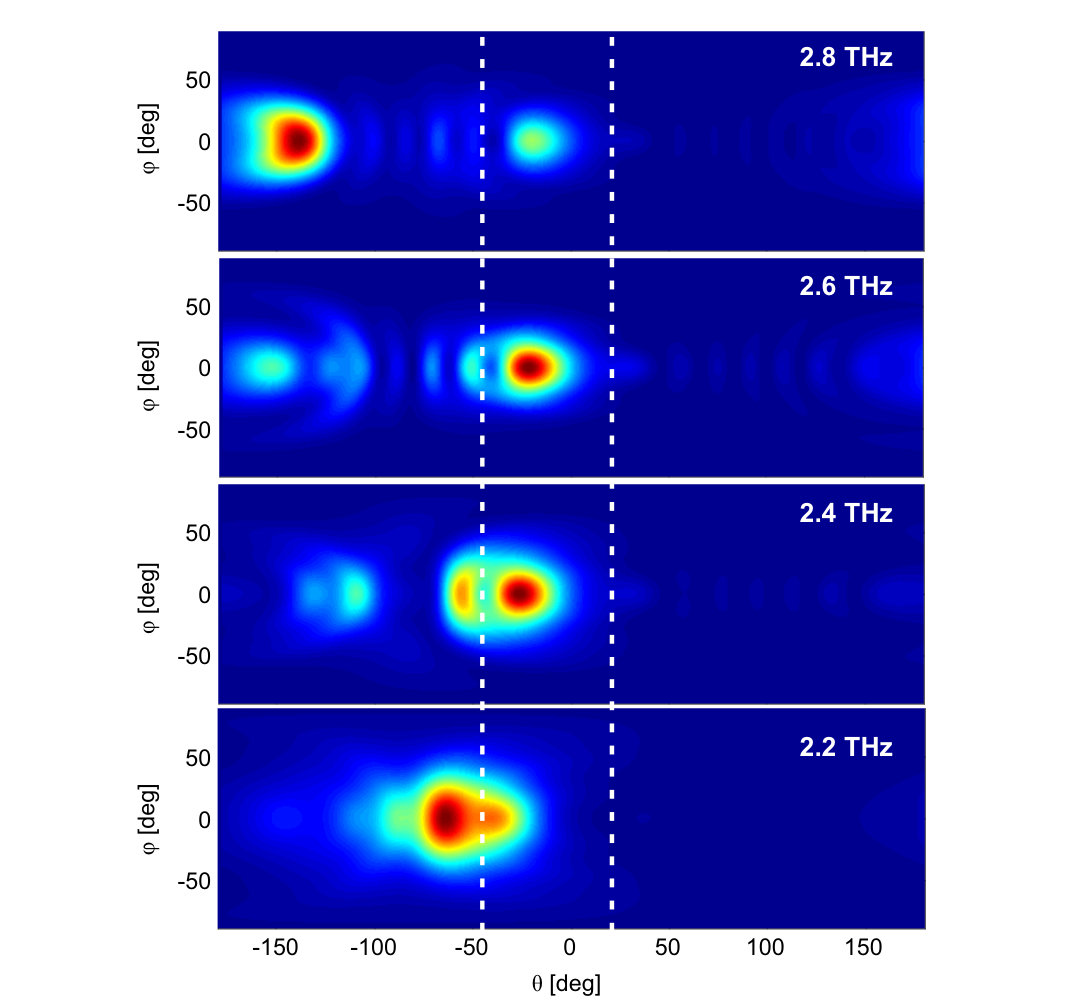

Figure 2(a) shows the simulated far-field pattern at a frequency of 2.5 THz for the extractor. A single-lobed far-field with a full-width at half-maximum (FWHM) of 15°x 40° is predicted by the simulations. To estimate the limits of the extracting structure the farfield was simulated as a function of frequency foo . A forward-directed farfield is achieved only for frequencies between 2.2-2.8 THz, defining the bandwidth of the extractor.

The fabricated lasers with extractor were measured to confirm their simulated properties. Hence, the far-field pattern was recorded. The laser was driven close to its maximal operation point in a quasi-continuous wave (quasi-CW) configuration. A micro-pulse (200 kHz, 95% duty cycle) macro-pulse (30 Hz, 50% duty cycle) scheme has been used to enable a lockin detection with the used pyroelectric detector (Gentec-EO: THZ2I-BL-BNC). The detector is then scanned around the laser facet with the extractor using two rotational stages. The measured far-field, reported in Figure 2(b), is in good agreement with the simulation in Figure 2(a). A FWHM of approximately 25°x 30° is achieved with a single lobe. Compared to standard metal-metal waveguide far-fields, the reported far-field is mcuh stronger confined.

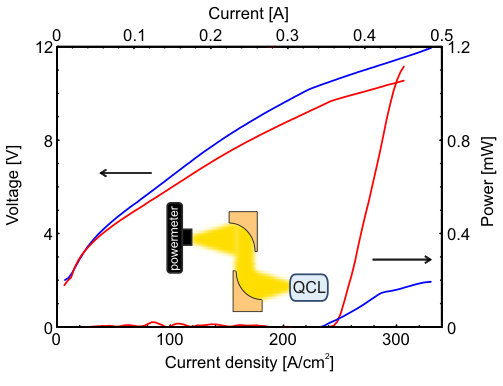

This large improvement in far-field has also a strong impact on the collectable power, e.g. with a off-axis parabolic mirror ($f/3$), of such a laser. To demonstrate that, the light-current characteristics of the laser were measured while collecting and focusing the light using a off-axis parabolic mirror ($f/3$) each, as displayed in the inset of Figure 3. The measurement is then compared to a conventional waveguide laser with similar active area and the same active region using the same setup. These measurements were carried out in continuous wave (CW) operation at a temperature of 15 Kelvin. A calibrated pyroelectric detector (Ophir: 3A-P-THz) was used to measure the absolute power in both measurements.

Comparing the laser with extractor to the reference laser shows a five-fold increase in maximal output power. A maximal power of 1.1 mW in CW is measured. This increase can be expected due to the more directional far-field of the laser with extractor. The difference in the current-voltage characteristics of the two lasers in Figure 3 arises from slightly different contacts resulting from two independent fabrications of the lasers.

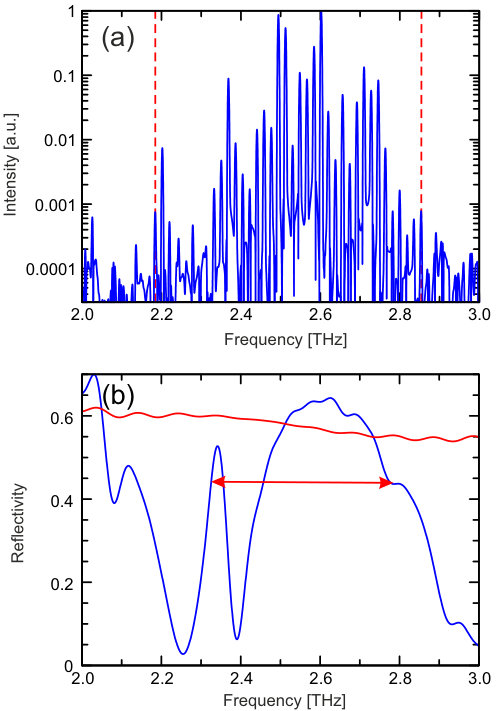

Also the spectral performance significantly changes if an extractor is implemented. Figure 4(a) shows an FTIR spectrum in CW at the maximal operation point of the laser. Lasing on a spectral bandwidth of 670 GHz is observed. This is significantly lower than the spectral bandwidth of standard ridges, which can span more than 1.7 THz for the same active region Rösch et al. (2015); Bachmann et al. (2016a). Essentially, the spectral bandwidth is limited to the bandwidth for which we expect a directional farfield. Simulations of the facet reflectivity using the same model as for the far-field simualtions show a strongly reduced reflectivity outside this bandwidth compared to standard waveguides (see Figure 4(b)). The reduced reflectivity outside the design range of roughly 500-600 GHz around 2.6 THz increases the mirror losses drastically at these frequencies, preventing lasing outside the design range.

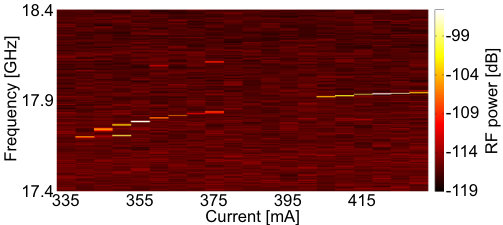

An important aspect of the presented extractor is its compatibility with FC operation of the laser. To probe the comb performance of the laser with an integrated extractor, the radio frequency (RF) signal of the repetition rate of the laser was measured as a function of the driving current. A single narrow beatnote for a fixed current is a strong indicator of FC operation Hugi et al. (2012); Burghoff et al. (2014); Rösch et al. (2015, 2016). As shown in Figure 5, a single narrow beatnote can be observed for more than 50% of the dynamic range of the laser, indicating FC operation. For some specific currents more than one narrow beatnote is observed which could hint a multi-comb formation in the laser Li et al. (2015). In the range of 380 mA to 400 mA no beatnote is observed. For this range of driving currents the optical spectrum shows only modes at a multiple spacing of the actual laser repetition frequency. Similar behaviour has also been observed on lasers without extractors using the same active region Li et al. (2015). A similar behaviour has lately been observed, and theoretically described in mid-infrared QCLs Mansuripur et al. (2016).

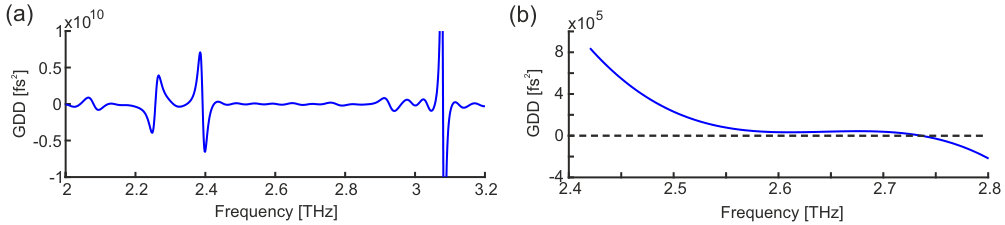

Most importantly, also for high bias currents a narrow beatnote can be observed up to the maximal operation point. Therefore the full optical power is also available for FC operation, making this laser an efficent and powerful source for FC generation at THz frequencies. Simulations of the introduced group delay dispersion (GDD) of the extractor structure confirm a flat dispersion over the observed laser spectral bandwidthfoo . The calculated GDD is mostly below $2\cdot 10^{5}$ fs2. The additionally introduced GDD is smaller than the values of the order of $\sim 2\cdot 10^{5}$ fs2 of the bare laser ridge Rösch et al. (2015); Bachmann et al. (2016b). The total dispersion is therefore still low enough to allow FC operation on the limited spectral bandwidth of the laser with extractor.

We have presented here a broadband extracting structure for THz QCLs. The reported design is also compatible with FC operation. A comparison to standard metal-metal waveguides reveals a 5-fold increase in output power. This power increase can mainly be attributed to a significantly improved far-field pattern. A single-lobed, almost Gaussian shaped beam profile was measured with a FWHM of 25°x 30°.

The FC operation of a laser with extractor is increased to more than 50% of the dynamic range. Also at the maximal operation point comb operation is observed with a spectral bandwidth of 670 GHz at a center frequency of 2.5 THz with a total power in CW operation of 1.1 mW. This makes such a laser the ideal candidate for FC based spectroscopy experiments such as dual-comb spectroscopy at THz frequencies. Further improvement of the extractor design might also help to improve the spectral shape to get a more evenly distributed power over the individual modes and could also be used to introduce additional dispersion to improve the FC performance of such lasers.

Acknowledgement

The presented work is partially funded by the EU research project TERACOMB (Call identifier FP7-ICT-2011-C, Project No.296500) and by the Swiss Natinal Science Foundation (SNF) through project 200020 165639. The funding is gratefully acknowledged. The authors would like to thank J. Keller for providing the SEM images.
