Squeezed thermal reservoirs as a resource for a nano-mechanical engine beyond the Carnot limit

TL;DR

This paper demonstrates that nano-mechanical engines coupled to squeezed thermal reservoirs can surpass the traditional Carnot efficiency limit, revealing new possibilities in non-equilibrium thermodynamics at small scales.

Contribution

It provides the first experimental evidence that squeezed thermal reservoirs enable heat engines to operate beyond the Carnot limit, introducing a novel approach to nano-engine design.

Findings

Efficiency exceeds Carnot limit with squeezed reservoirs

Single squeezed reservoir can power a cyclic engine

New regime of non-equilibrium thermodynamics at nanoscale

Abstract

The efficient conversion of thermal energy to mechanical work by a heat engine is an ongoing technological challenge. Since the pioneering work of Carnot, it is known that the efficiency of heat engines is bounded by a fundamental upper limit, the Carnot limit. Theoretical studies suggest that heat engines may be operated beyond the Carnot limit by exploiting stationary, non-equilibrium reservoirs that are characterized by a temperature as well as further parameters. In a proof-of-principle experiment, we demonstrate that the efficiency of a nano-beam heat engine coupled to squeezed thermal noise is not bounded by the standard Carnot limit. Remarkably, we also show that it is possible to design a cyclic process that allows for extraction of mechanical work from a single squeezed thermal reservoir. Our results demonstrate a qualitatively new regime of non-equilibrium thermodynamics at small scales and provide a new perspective on the design of efficient, highly miniaturized engines.

Figures

c). The non-exponential decays for parameter sets (iii) (upright triangles) and (iv) (upside-down triangles) demonstrate the non-equilibrium nature of the state of the nano-beam. The solid lines in Fig. 1c show the theoretically expected energy distribution $\rho(E)\propto I_{0}\left(E\,\sinh(2r)\,/k_{\text{B}}T\right)\,\exp\left(-E\,\cosh(2r)\,/k_{\text{B}}T\right)$ with $I_{0}$ as the modified Bessel function of order zero [Klaers2016 ](#bib.bib28). Finally, the mean energy $U$ of the nano-beam motion as a function of the squeezing parameter $r$ (at fixed temperature) closely follows the cal

c). The non-exponential decays for parameter sets (iii) (upright triangles) and (iv) (upside-down triangles) demonstrate the non-equilibrium nature of the state of the nano-beam. The solid lines in Fig. 1c show the theoretically expected energy distribution $\rho(E)\propto I_{0}\left(E\,\sinh(2r)\,/k_{\text{B}}T\right)\,\exp\left(-E\,\cosh(2r)\,/k_{\text{B}}T\right)$ with $I_{0}$ as the modified Bessel function of order zero [Klaers2016 ](#bib.bib28). Finally, the mean energy $U$ of the nano-beam motion as a function of the squeezing parameter $r$ (at fixed temperature) closely follows the cal

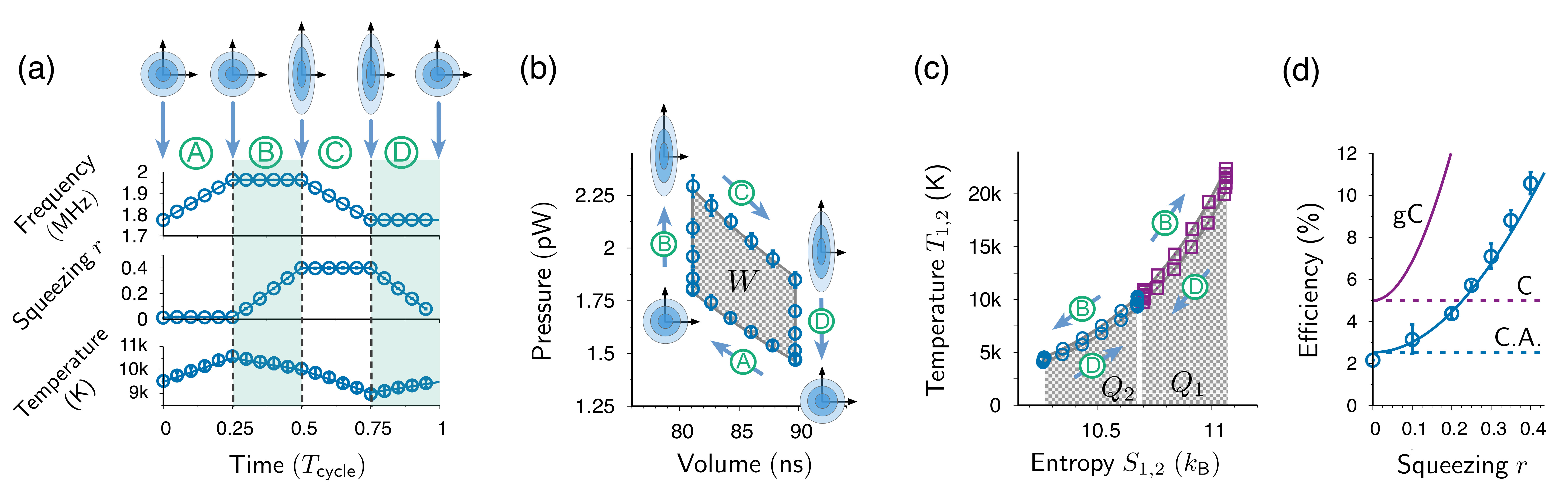

a shows frequency, squeezing and temperature of the nano-beam state throughout one cycle of the engine under quasi-static operation (the cycle time $T_{\text{cycle}}$ amounts to several seconds). The pressure-volume (p-V) and temperature-entropy (T-S) diagrams are shown in Fig. 2b,c. The shaded area in the p-V diagram corresponds to a net work output of $W\simeq 26\,\text{meV}$ performed per cycle. We point out that presently, this work is neither used to perform a certain task, nor stored in some form of potential energy. The T-S diagram is composed of two closed curves corresponding to tempe

a, that is applied to a radio-frequency switch. The mean energy of the mechanical oscillator as a function of the relative phase $\Delta$ between the phase of the switching function and the phase of the squeezed bath is shown in the bottom panel of Fig. 3a for three different squeezing parameters. For non-vanishing squeezing parameters (boxes and triangles), the measured energy reaches a maximum when the oscillator is coupled to the anti-squeezed quadrature of the bath at $\Delta_{\text{max}}\simeq\pi/2$, whereas an energy minimum is obtained for coupling to the squeezed quadrature at $\Delta_

Equations

$$\rho (x_0,p_0)\propto \exp \left(-\frac{\hslash \omega x_0^2}{2k_{\text{B}}{T}_1}-\frac{\hslash \omega p_0^2}{2k_{\text{B}}{T}_2}\right)\text{,}$$

$$dU=T_{1}d{S}_1+T_{2}d{S}_2-pdV\text{,}$$

Full text

I Introduction

Advances in micro- and nano-technology allow for testing concepts derived from classical thermodynamics in regimes where the underlying assumptions, such as the thermodynamic limit and thermal equilibrium, no longer hold Liphardt2002 ; Toyabe2010 ; Berut2012 ; Trotzky2012 ; Roldan2014 ; Vinjanampathy2015 . Extremely miniaturized forms of heat engines, where the working medium is represented by a single particle, have revealed a fluctuation-dominated regime in the conversion of heat to work far away from the thermodynamic limit Blickle2012 ; Koski2014 ; Martinez2016 ; Rossnagel2016 ; Krishnamurthy2016 . By employing non-equilibrium reservoirs it is furthermore expected that the efficiency of work generation surpasses the standard Carnot limit Carnot1978 , as has been theoretically suggested for quantum coherent Scully2003 , quantum correlated Dillenschneider2009 ; Perarnau-Llobet2015 and squeezed thermal reservoirs Huang2012 ; Rossnagel2014 ; Correa2014 ; Niedenzu2016 ; Niedenzu2017 .

In optics, the electric field of a monochromatic wave can be decomposed into two quadrature components that vary as $\cos\omega t$ and $\sin\omega t$ respectively. For coherent states such as laser light, the uncertainties in the two quadratures are equal and follow the lower bound of Heisenberg’s uncertainty relation. By contrast, squeezed states of light have reduced fluctuations in one (squeezed) quadrature at the cost of enhanced fluctuations in the other (anti-squeezed) quadrature allowing for optical measurements with reduced quantum noise LIGO2011 ; Wolfgramm2010 . Squeezed states are, however, neither restricted to electromagnetic waves nor to minimum uncertainty states. For example, a mechanical oscillator may be prepared in a squeezed thermal state Fearn1988 ; Kim1989 ; Tucci1991 by a periodic modulation of the spring constant Rugar1991 . This results in a state with reduced thermal fluctuations in one quadrature (e.g. momentum) and enhanced thermal fluctuations in the other quadrature (e.g. position) compared to the expected level of fluctuations at the given temperature. In the context of heat engines, a theoretical work by Roßnagel et al. Rossnagel2014 suggests that squeezed thermal states may be used as an additional resource to overcome the standard Carnot limit. Due to the non-equilibrium nature of squeezed thermal reservoirs, this result does not violate the second law of thermodynamics. In our work, we present a physical realization of such an engine with a working medium consisting of a vibrating nano-beam that is driven by squeezed electronic noise to perform work beyond the standard Carnot limit. Furthermore, we demonstrate that by a phase-selective coupling to the squeezed or anti-squeezed quadrature, work can be extracted even from a single squeezed reservoir, which is not possible with a standard thermal reservoir Scully2003 ; Abah2015-1 .

II Nano-beam heat engine

Figure

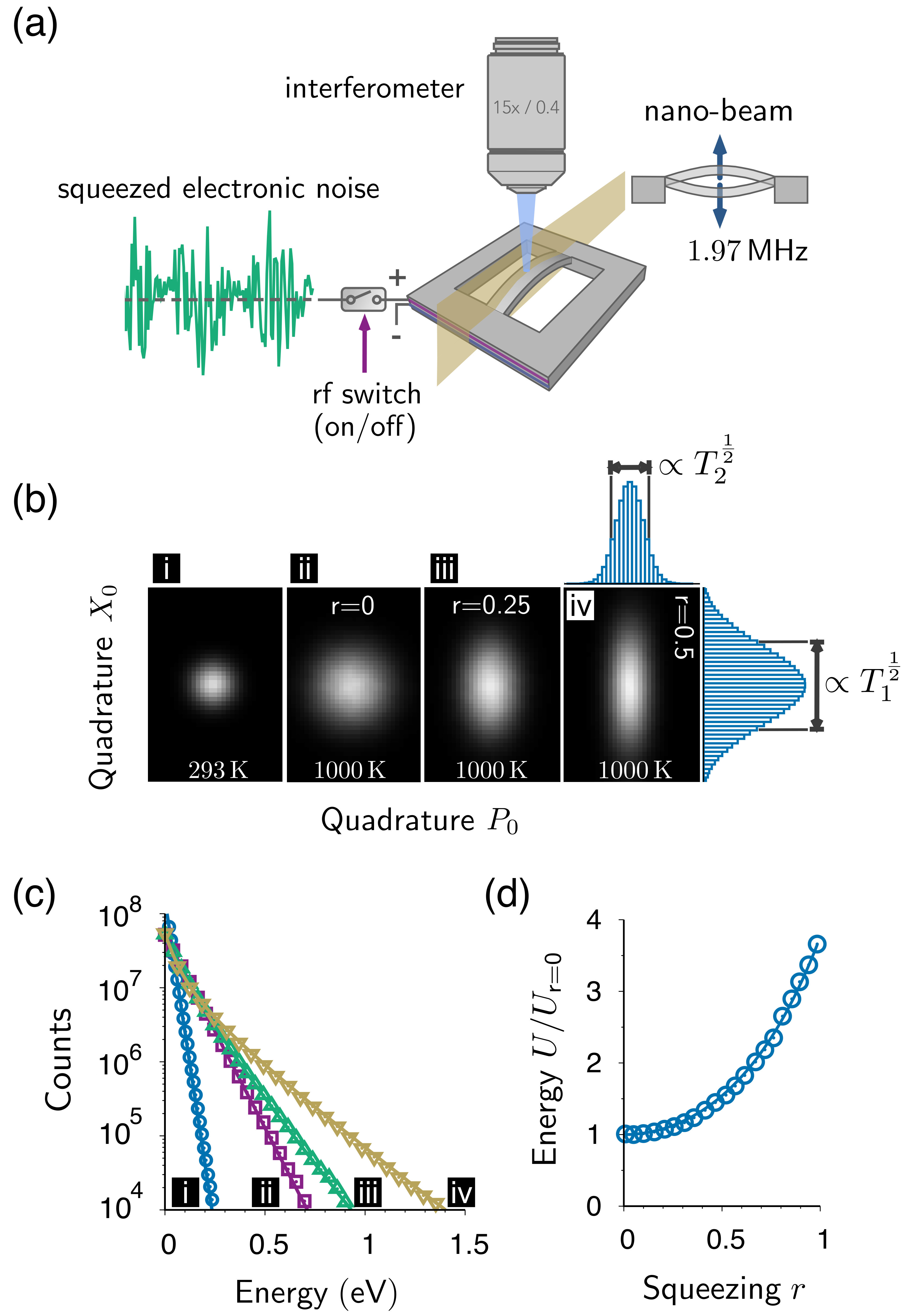

1a shows a sketch of the experiments: The working medium of our heat engine consists of a single harmonic oscillator given by the fundamental flexural mode of a doubly-clamped (GaAs) nano-beam structure with eigenfrequency $\nu=\omega/2\pi=1.97\,\text{MHz}$, quality factor of order $Q\simeq 10^{3}$ at room temperature and under vacuum conditions ($p\simeq 10^{-4}\,\text{mbar}$). The beam has a length of $18.8\,\mu\text{m}$, width of $2\,\mu\text{m}$, thickness of $270\,\text{nm}$, and is fabricated using conventional nano-structuring techniques such as electron beam lithography and selective etching. In the growth direction the beam contains two doped layers, which allow us to apply electric fields across the beam material. These electric fields lead to forces being applied to the beam structure due to the piezo-electricity of the employed gallium arsenide material. When driven by a noisy waveform, this creates a random force that allows us to mimic an engineered thermal environment for the beam structure. The waveform is synthesized from two independent white noise signals $\xi_{1,2}(t)$ that are mixed with sine and cosine component of a phase reference at frequency $\nu$ leading to a stochastic force $f(t)=a_{0}\left[\text{e}^{+\tilde{r}}\xi_{1}(t)\,\cos(\omega t)+\text{e}^{-\tilde{r}}\xi_{2}(t)\,\sin(\omega t)\right]$. A positive squeezing parameter $\tilde{r}$ corresponds to an amplified cosine and attenuated sine component at frequency $\nu$ in the thermal bath, while the overall strength of the noise can be controlled by the amplitude $a_{0}$.

To demonstrate the generation of squeezed thermal states, we experimentally determine the motional state of the nano-beam by recording the instantaneous position (out-of-plane displacement) of the beam via Mach-Zehnder interferometry Klaers2016 and calculating the corresponding phase-space probability distribution, see Fig. 1b. In the absence of additional noise ($a_{0}=0$), the nano-beam motion is fully determined by the residual thermal noise at room temperature, see panel (i) in Fig. 1b. By increasing the noise amplitude $a_{0}$, the state of the nano-beam can be prepared in a thermal state at higher temperature $T=1000\,\text{K}$, see panel (ii). Squeezed noise leads to the expected elliptical phase-space probability distribution, see panels (iii) and (iv). We emphasize that all results are presented in a position-momentum-frame that rotates with frequency $\nu$ with respect to the laboratory frame. The observed probability densities closely follow the theoretically expected Gaussian distribution Fearn1988

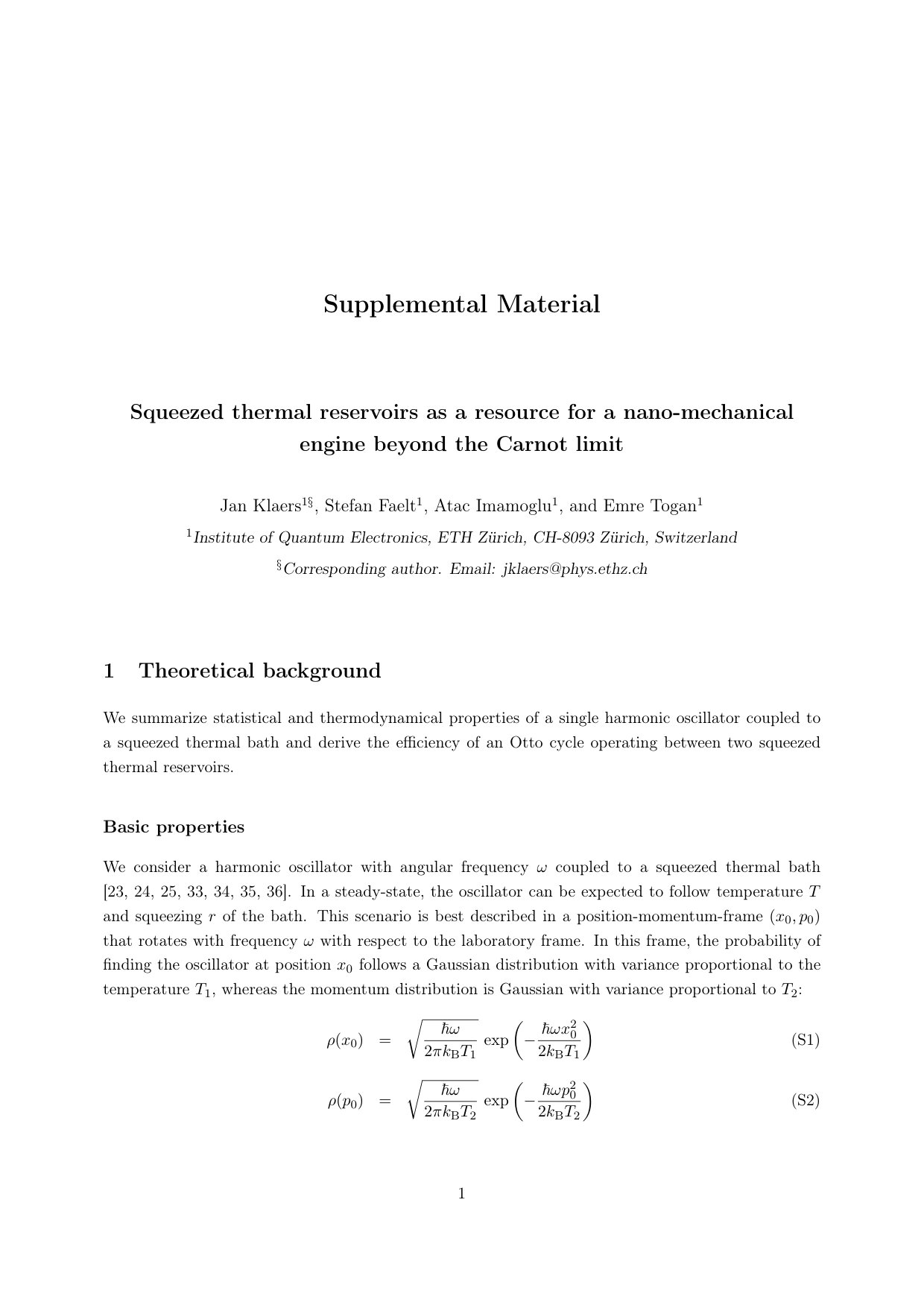

[TABLE]

where $x_{0}$, $p_{0}$ are dimensionless position and momentum variables and $T_{1}$, $T_{2}$ are two temperature parameters describing the level of fluctuations in the anti-squeezed and squeezed quadratures (proportional to the variance of the gaussian distribution). These parameters are related to the effective temperature and squeezing parameter of the system by $T_{1,2}=T\,\exp(\pm 2r)$ Tucci1991 ; Fearn1988 . The corresponding energy histograms reveal exponential distributions for cases (i) (circles) and (ii) (boxes) as is expected from purely thermal states (Fig. 1c). The non-exponential decays for parameter sets (iii) (upright triangles) and (iv) (upside-down triangles) demonstrate the non-equilibrium nature of the state of the nano-beam. The solid lines in Fig. 1c show the theoretically expected energy distribution $\rho(E)\propto I_{0}\left(E\,\sinh(2r)\,/k_{\text{B}}T\right)\,\exp\left(-E\,\cosh(2r)\,/k_{\text{B}}T\right)$ with $I_{0}$ as the modified Bessel function of order zero Klaers2016 . Finally, the mean energy $U$ of the nano-beam motion as a function of the squeezing parameter $r$ (at fixed temperature) closely follows the caloric equation of state $U=k_{\text{B}}T\,(1+2\sinh^{2}r)$, as demonstrated in Fig. 1d.

In our experiment, the eigenfrequency of the fundamental flexural mode can be tuned over a few $100\,\text{kHz}$ by applying a DC electrical potential to the nano-beam Klaers2016 allowing for a cyclic process with work output. The extraction of work in an engine is normally realized by an increase in volume of a gaseous working medium driving a piston. For a harmonically trapped working medium, such as the one investigated here, an expansion of the working medium may be realized by a decrease in trapping frequency $\omega$. The latter suggests to define the volume of the system as the inverse trapping frequency $V=\omega^{-1}$, see Ref. Romero-Rochin2005 . With this, a relation similar to the state functional formulation of the first law of thermodynamics holds Klaers2016

[TABLE]

with $S_{1}=-k_{\text{B}}\int_{-\infty}^{+\infty}\rho(x_{0})\ln(\rho(x_{0}))\,dx_{0}$ as the entropy of the anti-squeezed quadrature and the corresponding definition for $S_{2}$ being obtained by replacing $x_{0}$ with $p_{0}$. The pressure is defined by $p=-(\partial U/\partial V)_{S_{1},S_{2}}$, which evaluates to $p=U/V$ for the given system. In this way, the term $-p\,dV$ represents the work associated to a change in volume or trapping frequency, whereas the terms $T_{i}\,dS_{i}$ with $i=1,2$ describe heat exchange with the environment.

III Otto cycle with squeezed  thermal reservoirs

In a first line of experiments, we construct an Otto cycle between a hot squeezed thermal reservoir at $T_{\text{h}}=10,000\,\text{K}$ with squeezing factor $r=0.4$ and a cold purely thermal bath at $T_{\text{c}}=9,500\,\text{K}$ under maximum power condition Rossnagel2014 . The four strokes include an adiabatic compression, isochoric heat addition, adiabatic expansion and isochoric heat rejection. Similar to colloidal heat engines Martinez2016 , the working medium in our system cannot be fully decoupled from its environment rendering the implementation of adiabatic steps not obvious. Experimentally, it is however feasible to replace the adiabatic steps by isentropic steps. The isentropic steps are implemented by simultaneously varying frequency and temperature such that the ratios $T_{1,2}/\omega$ remain constant, which conserves the entropies $S_{1,2}$ Klaers2016 . Figure 2a shows frequency, squeezing and temperature of the nano-beam state throughout one cycle of the engine under quasi-static operation (the cycle time $T_{\text{cycle}}$ amounts to several seconds). The pressure-volume (p-V) and temperature-entropy (T-S) diagrams are shown in Fig. 2b,c. The shaded area in the p-V diagram corresponds to a net work output of $W\simeq 26\,\text{meV}$ performed per cycle. We point out that presently, this work is neither used to perform a certain task, nor stored in some form of potential energy. The T-S diagram is composed of two closed curves corresponding to temperature and entropy variation of the squeezed (circles) and anti-squeezed quadrature (boxes) within one cycle. Note that the curve for the anti-squeezed quadrature is run through clockwise, while the curve for the squeezed quadrature is run through counterclockwise. The net amount of heat consumed from the environment $Q_{\text{h}}$ during the hot isochore (B) corresponds to the difference of the two shaded areas, which is $Q_{\text{h}}=Q_{1}-Q_{2}\simeq 244\,\text{meV}$. The efficiency of the cycle finally evaluates to $\eta=W/Q_{\text{h}}=(10.6\pm 0.5)\text{\%}$, which is roughly twice the efficiency of a Carnot cycle operating between $T_{\text{h}}$ and $T_{\text{c}}$ and four times the Curzon-Ahlborn efficiency Curzon1975 . We emphasize that the costs of providing a squeezed thermal bath are not accounted for in our analysis, which is fully analogous to neglecting the costs of providing a hot or cold bath in standard thermodynamics. Figure 2d shows the efficiency for varying squeezing parameters of the hot bath. The solid blue line corresponds to the theoretical expectation $\eta=1-\sqrt{T_{\text{c}}/T_{\text{h}}}\,/\cosh(r)$, see Ref. Rossnagel2014 ; Klaers2016 , whereas the two horizontal dashed lines show the (standard) Carnot (C) and Curzon-Ahlborn (C.A.) efficiencies given by $\eta_{\text{Carnot}}=1-T_{\text{c}}/T_{\text{h}}$ and $\eta_{\text{C.A.}}=1-\sqrt{T_{\text{c}}/T_{\text{h}}}$ respectively. These results clearly demonstrate that squeezing, given as a free resource, can be used to increase the work output and efficiency of an engine beyond the (standard) Carnot limit. The engine operation, however, does obey a generalized Carnot limit (solid line ’gC’) Abah2015-1 ; Rossnagel2014 .

IV Work extraction from a single reservoir

In a second line of experiments, we eliminate the cold thermal heat bath in the operation of the engine and introduce a phase-selective thermal coupling that will allow to periodically extract work from a single squeezed heat bath. In these measurements, the coupling of the mechanical oscillator to the squeezed electronic noise is periodically switched on and off by means of a rectangular control signal with frequency $2\nu$ and duty cycle 50%, see top panel in Fig. 3a, that is applied to a radio-frequency switch. The mean energy of the mechanical oscillator as a function of the relative phase $\Delta$ between the phase of the switching function and the phase of the squeezed bath is shown in the bottom panel of Fig. 3a for three different squeezing parameters. For non-vanishing squeezing parameters (boxes and triangles), the measured energy reaches a maximum when the oscillator is coupled to the anti-squeezed quadrature of the bath at $\Delta_{\text{max}}\simeq\pi/2$, whereas an energy minimum is obtained for coupling to the squeezed quadrature at $\Delta_{\text{min}}\simeq 3\pi/2$. This phase-selective coupling allows us to extract work from a single squeezed reservoir by a periodic variation of mechanical frequency and phase difference $\Delta$ as shown in the upper two panels of Fig. 3b (circles). The four strokes include an “isophasal” compression, during which the phase relation between squeezed noise and periodic coupling is kept fixed, an isochoric heat addition, isophasal expansion, and isochoric heat rejection. Temperature and squeezing of the nano-beam state as consequence of the applied protocol are shown in the bottom two panels of Fig. 3b (circles). Finally, the p-V diagram in Fig. 3c clearly reveals a finite amount of work ($W\simeq 37\,\text{meV}$) that is extracted from the single squeezed reservoir per cycle (circles). Compared to the case of an unmodulated coupling (switch in ’on’ position), resulting in a squeezed thermal state with $T=10,000\,\text{K}$ and $r=0.3$ throughout the cycle (boxes in Fig. 3b, c), the working medium operates at a reduced temperature. The latter originates from the incomplete decoupling of the oscillator from its environment during the ’off’-phases of the phase-selective coupling. Here, an improved isolation would further increase the extracted work per cycle.

V Conclusions

Single-particle heat machines provide an excellent platform to test theoretical advances in and our understanding of thermodynamics at the micro- and nano-scale. In this work, a minimalist heat engine has been realized that takes advantage of squeezed heat to outperform conventional heat engines. The non-equilibrium nature of these reservoirs permit work extraction from a single reservoir and engine efficiencies unbounded by the standard Carnot limit. A major open question remains whether highly miniaturized heat engines, such as the one reported here, will be able to use the extracted work to accomplish mesoscopic tasks as transporting particles H=0000E4nggi2009 or manipulating biological matter Douglas2012 . Squeezed thermal noise may naturally arise in non-equilibrium environments with temporally or spatially modulated temperature profiles and could be used to fuel such devices.
