Configuration Memory in Patchwork Dynamics for Low-dimensional Spin Glasses

TL;DR

This paper uses a patchwork heuristic to study memory effects in spin glass models, revealing how original configurations can be recovered after aging under different couplings, with implications for understanding spin glass dynamics.

Contribution

It introduces a patchwork method to analyze configuration memory and recovery in low-dimensional spin glasses, demonstrating recovery phenomena and scaling relations.

Findings

Recovery of original ground state in 2D Ising spin glasses

No overlap change in 1D Ising glasses during recovery

Recovery length scales grow as a power of aging length scale

Abstract

A patchwork method is used to study the dynamics of loss and recovery of an initial configuration in spin glass models in dimensions d=1 and d=2. The patchwork heuristic is used to accelerate the dynamics to investigate how models might reproduce the remarkable memory effects seen in experiment. Starting from a ground state configuration computed for one choice of nearest neighbor spin couplings, the sample is aged up to a given scale under new random couplings, leading to the partial erasure of the original ground state. The couplings are then restored to the original choice and patchwork coarsening is again applied, in order to assess the recovery of the original state. Eventual recovery of the original ground state upon coarsening is seen in two-dimensional Ising spin glasses and one-dimensional Potts models, while one-dimensional Ising glasses neither lose nor gain overlap with the ground state during the recovery stage. The recovery for the two-dimensional Ising spin glasses suggests scaling relations that lead to a recovery length scale that grows as a power of the aging length scale.

Figures

Equations

$$⟨\Delta ⟩$$

$$\displaystyle=\frac{1}{L}\Biggl{(}\sum_{i,++}\sum_{k=i+1}^{i+s}(1-\sigma_{k})+\sum_{i,--}\sum_{k=i+1}^{i+s}(-1-\sigma_{k})$$

$$+\sum _{i,-+}\left[\sum _{k=i+1}^{i+b(i,s)}(-1-{\sigma }_k)+\sum _{k=i+b(i,s)+1}^{i+s}(1-{\sigma }_k)\right]$$

$$\displaystyle\>+\sum_{i,+-}\left[\sum_{k=i+1}^{i+b(i,s)}(1-\sigma_{k})+\sum_{k=i+b(i,s)+1}^{i+s}(-1-\sigma_{k})\right]\Biggr{)}$$

$$=\frac{s}{L}\left(-\sum {\sigma }_k+n_{++}-n_{--}+n_{-+}-n_{+-}\right)$$

$$+\frac{2}{L}\left(\sum _{i,+-}b(i,s)-\sum _{i,-+}b(i,s)\right).$$

$$2n_{++}+n_{+-}+n_{-+}$$

$$2n_{--}+n_{+-}+n_{-+}$$

$$N_{+}-N_{-}$$

$$-\sum {\sigma }_k+n_{++}-n_{--}$$

$$n_{-+}$$

$$⟨\Delta (J_{ij})⟩$$

Full text

Spin glass models are quintessential models for the study of disordered magnetic alloys, in the case where the interaction of magnetic moments has both frozen randomness and competition. The equilibrium and non-equilibrium behaviors of spin glass models are essentially different from those for homogeneous materials. For example, at zero temperature, the ground states do not exhibit conventional magnetic order but instead exhibit spatially randomly varying correlations of spins over long distances. The spin glass, whether it is a model or material, poses formidable challenges to the understanding of its complex non-equilibrium behaviors, including extremely slow dynamics and strongly history-dependent effects.SGReviews At low temperature, the full relaxation time for a spin glass material exceeds experimental time scales, though the slow approach to equilibrium can be studied in detail. A prototypical example of the resulting history-dependent effects is found in temperature cycling experiments.MemoryEx Below the spin glass temperature, spin glass samples are always out of equilibrium. If the otherwise uniform-rate cooling of a spin glass material is paused at one temperature, its magnetic susceptibility will slowly vary, “aging” with time. Upon further cooling and subsequent reheating at a uniform rate, when the aging temperature is crossed, the magnetic susceptibility will fluctuate from a monotonic curve, moving towards its aged value. That is, the sample can “recall” its temperature history. Numerous explanations for this memory effect have been presented.Explanation1 ; Explanation2 Nonetheless, despite intensive study, many aspects of spin-glass dynamics remain poorly understood. As theoretical approaches, including dropletDroplet and replica-symmetry-breakingSymmBreak pictures, rely on distinct views of spin glasses and exact results are rare, numerical approaches have proven invaluable for verifying theories and motivating new ideas. SGAlgorithm

Generic simulation approaches for spin glass models can also be excessively slow, due to the computational complexity of spin glass models. Finding the exact ground states of spin glasses in the general case is an NP-hard problem and so appears to require exponential time to solve. Finding ground states in three dimension can be impractical for more than a few thousand spins.Barahona ; ComComplexity ; Liers Direct Monte Carlo simulations, using single-spin-flip Glauber dynamics, have been used to explore the non-equilibrium spin configurations.PARISI However, the evolution of a spin glass model under Glauber dynamics is extremely slow due to the high free-energy barriers between low free-energy configurations. Multiple applicable techniques for accelerating the process to equilibrium in spin glasses, such as parallel tempering Tempering and simulated annealing,Annealing have been developed but are also limited, though these techniques provide a wealth of information on the non-equilibrium behaviors of spin glasses. A fortunate exceptional case is the two-dimensional (2D) Ising spin glasses (ISG). Efficient algorithms that run in polynomial time do exist for exactly computing the equilibrium states of the 2DISG in the absence of a magnetic field.Barahona ; MatchingCity Here we exploit a fast algorithm for regional equilibration, “patchwork dynamics”,Patchwork implemented here for zero temperature, to mimic the aging and memory effects in low-dimensional spin glass systems.

Patchwork dynamics is motivated by the expected dependence of free-energy barriers on length scale. For a domain with scale $\mathcal{L}$, the free-energy barrier $\mathcal{B}$ for the reversal of all spins is anticipated to scale as ${\mathcal{L}}^{\psi}$, where $\psi$ is a barrier exponent.Droplet ; EnergyBarrier At temperature $T$, a domain will then survive for a characteristic time $t\sim e^{{\mathcal{B}}/T}$, as thermal excitation is required to conquer the free-energy barrier. Given this exponential dependence on $\mathcal{L}$, a strong separation of time scales is provided by an examination of geometrically separated length scales. Patchwork dynamics uses this separation to replace a dependence on time scales by a dependence on length scales. This approach equilibrates the system at a given length scale directly using efficient equilibrium algorithms, which overcome large energy barriers quickly, rather than waiting for local single-site dynamics to slowly reach that length scale. By equilibrating collections of spins on a succession of increasing length scales, patchwork dynamics approximates the coarsening process. It takes advantage of efficient equilibrium algorithms to investigate the non-equilibrium behaviors of spin glasses. The evolution of spin glasses configurations is sped up, in a heuristic fashion, by leaping over intermediate configurations with higher-free energies. We use this approach with the hope that it will provide us new insights into non-equilibrium behaviors of spin glasses.

In this paper, we investigate Ising spin glass systems on low-dimensional lattices: the square grid in two dimensions, the quasi-1D “ladder”, and the one-dimensional (1D) “chain”. We also examine the 1D $m$-state clock model spin glasses (CMSG). For the ISG, the Hamiltonian is $\mathcal{H_{I}}=-\sum_{\langle ij\rangle}J_{ij}\sigma_{i}\sigma_{j}$; for the CMSG, the Hamiltonian has the form $\mathcal{H_{C}}=-\sum_{\langle ij\rangle}J_{ij}\cos(\theta_{j}-\theta_{i}+\alpha_{ij})$. For all models, the couplings $J_{ij}$ between nearest neighbor spins $\langle ij\rangle$ are mean-zero independent Gaussian random variables. The $\sigma_{i}$ and $\theta_{i}$ are spin variables on a $d$-dimensional lattice with $\sigma_{i}=\pm 1$ and $\theta_{i}=\frac{2\pi n}{m}$, where $n=1,\ldots,m$; the random noises $\alpha_{ij}$ between near neighbor spins for the CMSG are random variables chosen from a uniform distribution on the interval $[0,2\pi)$. Note that the ISG is equivalent to the standard CMSG with $m=2$ where the angle $\alpha_{ij}$ can be eliminated in the Hamiltonian. Highly efficient equilibrium algorithms exist for these spin glass systems in dimensions $d=1$ and $d=2$.DP ; MatchingCity

Patchwork dynamics can be employed to attempt to replicate aging and memory effects. These dramatic history-dependent effects are typically observed in temperature cycling experiments. Similar effects are expected to be seen when the couplings are perturbed and then reverted rather than perturbing the temperature.DisorderChaos1 ; DisorderChaos2 These behaviors are clearly related if temperature and disorder chaosBrayMoore are related to the memory effects. At finite temperature, a small change in temperature leads to randomization of the coarse-grained couplings at the chaos scale. We mimic “temperature cycling” experiments by “disorder cycling”, replacing the temperature chaos by the disorder chaos at $T=0$.

Our simulation protocol is divided into two stages. The first stage is aging. We start with a ground state configuration for given couplings $J_{ij}$ as our initial spin configuration. In a finite sample, the ground states of the ISG with a continuous distribution for $J_{ij}$ are doubly degenerate (as accidental degeneracies have zero probability), distinguished by a global spin flip,flipSymmetry while the $m$-state CMSG possesses $m$-times degenerate ground states, related by spin rotation symmetry. This finite degeneracy is a result of the continuous distribution of couplings that are used here, so that (with unit probability in the choice of random couplings) the energies of each configuration is distinct from configurations that are not related by global spin flips or rotations. The initial spin configuration is randomly chosen from the twofold ($m$-fold) ground state configurations (using the extended ground state with variable boundary conditions for the 2DISG MatchingCity ). We then change the couplings $J_{ij}$ to an independently chosen set $J^{\prime}_{ij}$ , using disorder changes as a proxy for temperature changes. Patches are then applied using the new couplings $J^{\prime}_{ij}$ at a sequence of increasing scales $\ell$. In each step of the sequence, we choose randomly located patches of length scale $\ell$, and update the spins in that patch to the lowest energy configuration, given fixed spins at the boundary of the patch. For each $\ell$, we apply $C(L/\ell)^{d}$ patches, with coverage $C=20$. This ages towards a ground state for the new disorder $J^{\prime}_{ij}$ that is uncorrelated with the initial ground state for bond couplings $J_{ij}$. The second stage after this aging stage is recovery. We halt the aging process at a chosen patch size, the aging scale, and then the couplings are reverted to $J_{ij}$. Recovery advances by optimizing patches on successive length scales $s=1,2,4,\ldots$, now using the original couplings. The maximum of the patch size $s$ used during recovery is $L/2$, for a system of size $L$.

The sample averaged spin overlap $q=N^{-1}\overline{\sum_{i}\sigma^{0}_{i}\sigma_{i}}$ is a measure of the similarity of the initial ground state configuration $\sigma^{0}_{i}$ with subsequent configurations $\sigma_{i}$ for the ISG, where $N$ is the number of spins in the system. The overlap $q$ takes the maximal value $q=1$ for $\sigma_{i}=\sigma^{0}_{i}$, the minimal value $q=-1$ for $\sigma_{i}=-\sigma^{0}_{i}$, and has average value zero when $\sigma_{i}$ is uncorrelated with $\sigma^{0}_{i}$. The 2DISG has $N=L\times L$ spins arranged on a square lattice with toroidal boundary conditions MatchingCity . The ladder IGS and the chain Ising spin system also have periodic boundary conditions and have $k\times L$ spins where $k$ is the number of layers of length $L$ with open boundaries in the layer direction ($k=2$ in the ladder ISG and $k=1$ in the chain system). In equilibrium, the overlap between two equilibrium configurations is used to extract thermodynamic behavior of spin glasses.overlapMiddleton Here we use the overlap with the initial global ground state to quantify the aging and memory effects. For the 1DCMSG, the spin overlap is chosen to be $q=N^{-1}\overline{\sum_{i}\cos(\theta^{0}_{i}-\theta_{i})}$. The $\theta^{0}_{i}$ and $\theta_{i}$ are spin variables in the initial state and subsequent states, respectively; the number of spins is $N=L$ and periodic boundary conditions are imposed. The notation $q_{a}(\ell)$ and $q_{r}\left(s,\ell\right)$ will be used to denote overlaps computed in the aging stage at scale $\ell$ and the recovery stage at scale $s$, respectively.

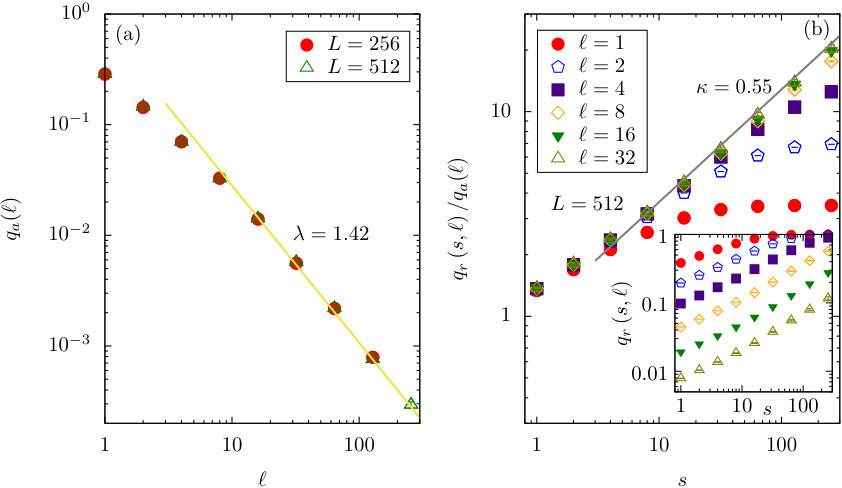

Our patchwork heuristic aging and recovery procedures were applied to the 2DISG with sample sizes $L=256,512$. The behaviors of spin overlap $q_{a}(\ell)$ and $q_{r}\left(s,\ell\right)$ during aging and recovery shown in Fig. 1. In the aging stage, the decay of spin overlap $q_{a}(\ell)$ is well described by an asymptotic power law, $q_{a}(\ell)\sim{\ell}^{-\lambda}$. This result is consistent with the conjecture introduced by Fisher and Huse,Droplet where $\lambda$ is an independent exponent of spin glass dynamics, and previous numerical results on 2D patch dynamics.Patchwork

In the recovery stage, we expect that the spin configuration will approach a ground state for $J_{ij}$ as the patch size reaches $L$. However, it is undetermined whether the initial spin configuration $\sigma_{i}=\sigma^{0}_{i}$ or the reversed configuration $\sigma_{i}=-\sigma^{0}_{i}$ will be reached, given that the ground states are doubly degenerate. Since $q_{r}\left(s,\ell\right)>0$, our results indicate that samples approaching the initial spin configuration dominate those accessing the opposite ground state configuration, which statistically confirms that the 2DISG does have a memory of the initial spin configuration. We confirm that during the recovery stage, until saturation, the growth of spin overlap is well described by another asymptotic power law, $q_{r}\left(s,\ell\right)/q_{a}(\ell)\sim s^{\kappa}$, until saturation to $q=1$ is approached.Patchwork

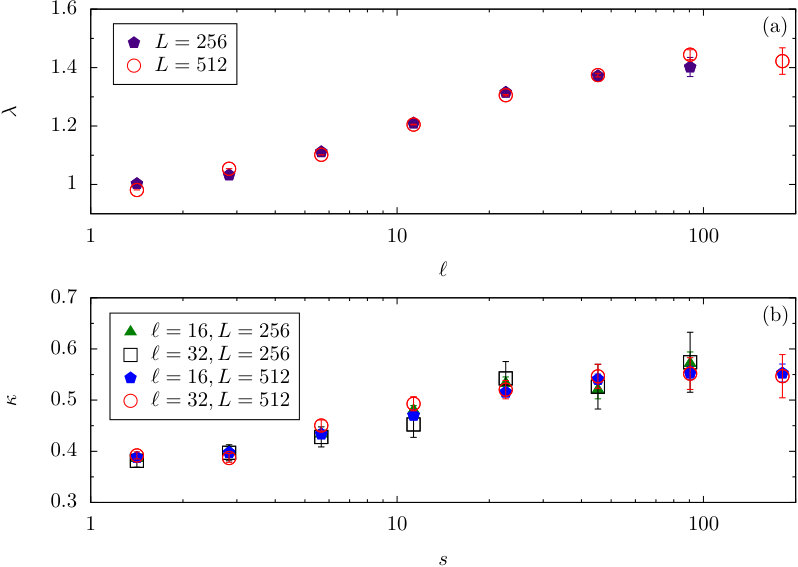

To attain an improved estimate of the scaling exponents $\lambda$ and $\kappa$, we present the local exponents of spin overlap in Fig. 2. These are the slopes, $\frac{\Delta ln(q_{a}(\ell))}{\Delta ln(\ell)}$ and $\frac{\Delta ln(q_{r}\left(s,\ell\right))}{\Delta ln(s)}$, between two neighbor patch sizes. The patch sizes $\ell$ and $s$ on the horizontal axes in Fig. 2 are the geometrical mean of the two subsequent patch sizes used to calculate the local exponent. Given our high precision and our use of local slopes (rather than a simpler power law fit), we can see that $\lambda$ and $\kappa$ are not constant at small $\ell$ and $s$ and appear to crossover to a large distance limit for $\ell,s\geq 50$. The estimated values are $\lambda=1.42\pm 0.08,\kappa=0.55\pm 0.06$, where systematic uncertainties are subjective and exceed the statistical error estimates at these length scales. We use these values to show consistency with power law fits to the largest scale points in Fig. 1.

We observe in these latest simulations that as the maximum patch size $\ell$ decreases, the spin overlap in the recovery stage $q_{r}\left(s,\ell\right)$ diverges from the asymptotic power law seen for large $\ell$. Instead, the spin overlap $q_{r}\left(s,\ell\right)$ crosses over to a plateau as patch sizes $s$ increase at fixed small values of $\ell$. The existence of this plateau is consistent with the spin configurations reaching the global ground state, which implies that the spin overlap $q_{r}\left(s,\ell\right)\rightarrow 1$ at sufficiently large $s$. This suggests a scaling form for recovery that incorporates an initial power law increase followed by a plateau at $q_{r}\left(s,\ell\right)=1$. We emphasize that this scaling form assumes full recovery to the original spin direction with probability near 1, consistent with simulations for $s\gg\ell$. We also assume that the power law fits for aging and recovery are valid, so that the starting spin overlap $q_{a}(\ell)$ at the start of the recovery stage is $\ell^{-\lambda}$. This overlap then grows $q_{r}\left(s,\ell\right)\sim s^{\kappa}{\ell}^{-\lambda}$ during recovery until this overlap $q_{r}\left(s,\ell\right)$ approaches unity. This leads to a crossover recovery scale $s_{c}$ at patch size $s_{c}\sim{\ell}^{\frac{\lambda}{\kappa}}$ at which the spin overlap $q_{r}\left(s,\ell\right)$ approaches $1$. The existence and scaling of this recovery scale is a central result of this current work. As $\lambda>\kappa$, the coarsening length scale for recovery $s_{c}$ grows faster than the aging scale $\ell$. The aging process erases the initial state sufficiently that the recovery scale, defined as the point where the overlap exceeds some fixed fraction of unity, say $1/2$, must span a scale many times that of the aging scale, in the 2DISG.

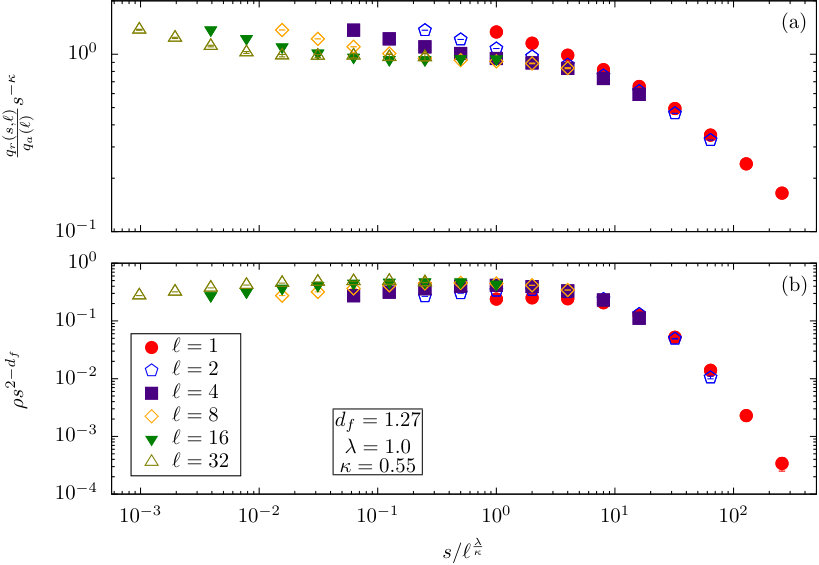

Assuming a single recovery scale, scaling forms for both the spin overlap $q_{r}\left(s,\ell\right)$ and the domain wall bond density $\rho$ in the recovery stage are fixed. Scaling collapses for these statistics are shown in Fig. 3, based on this description. The domain wall density is the fraction of bonds belonging to domain walls that separate ground states $A$, with spins $\sigma^{0}_{i}$, and $\bar{A}$, with spins $-\sigma^{0}_{i}$. The number of domain wall bonds in the 2DISG are taken to scale as $s^{d_{f}}$, with the domain walls for domains at recovery scale $s<s_{c}$ are taken to have the standard 2DISG domain wall fractal dimension $d_{f}\simeq 1.27$.FractalDomain1 ; FractalDomain2 The domain wall bond density $\rho$ thus scales as $s^{d_{f}-2}$ until the recovery scale $s_{c}$ is reached. To better describe our data following scaling collapses, we use the estimate $\lambda=1.0$, the value of the effective exponent for small $\ell$, given that our data show the plateau in Fig. 1 for small aging patch sizes, such as $\ell=1,2,4$, along with the large $s$ value $\kappa=0.55$. We do not observe the scaling collapse for larger $\ell$, because under that circumstance the patch size $s_{c}$ that scales $s_{c}\sim{\ell}^{\frac{\lambda}{\kappa}}$ exceeds $L/2$ and thus is unreachable for our system sizes. The spin overlap $q_{r}\left(s,\ell\right)$ and domain wall bond density $\rho$ in Fig. 3 both indicate an identical patch scale $s_{c}$ where $q_{r}\left(s,\ell\right)$ approaches $1$ and $\rho$ vanishes rapidly from the scaling collapses, which corroborates our anticipated connection. Those points slightly deviating from a single curve for the scaling collapse at fixed values of $s$ smaller than $s_{c}$ are believed to stem from lattice effects. Overall, this scaling collapse with effective exponents for the domain wall density support a scaling picture for the recovery scale and for the relationship between domain wall density and recovery scale.

We have also carried out simulations to explore how the recovery depends on the sample preparation. For the results above (and those below for lower dimensional systems), we studied recovery after a specific coarsening process. This process decreases the spin overlap with the initial configuration by growing domains at the patch scale that are given by an independent set of spin couplings. For comparison, we have prepared samples by randomly selecting a subset of the initial spins and then flipping all of the spins in that subset. The size $F$ of the subset chosen determines the overlap $q$ with the initial configuration, via the relation $q=1-2F/N$. There is no spatial correlation in which spins are flipped or remain unchanged in this process (by contrast, such a correlation could conceivably result from patchwork aging). The overlap can be tuned arbitrarily without going through an aging process. We find that the recovery $q_{r}(s)$ from the chosen values for $q$ are described by the same exponent $\kappa$, i.e., $q_{r}(s)\sim qs^{\kappa}$. This suggests that the memory left after the aging process is not specific to coarse-graining towards another ground state. Isolated, uncorrelated remnant spins can be used to recover the initial configuration with the same quantitative growth of overlap.

To explore the effect of dimensionality on these non-equilibrium behaviors of spin glasses, we investigate memory effects in Ising spin systems with lower dimensionality, including the frustrated ladder ISG and the chain Ising spin system. Patchwork dynamics drives the spin configuration to a state that is low energy at the given scale for the given couplings. In the limit of coverage $C\rightarrow\infty$, the configuration is minimal with respect to arbitrary changes of spins up to that scale. This scale-dependent optimization results in domain walls separating subsets of global ground states. This is consistent with the droplet picture used by Fisher and Huse,Droplet where the energy and geometry of the domain walls depends on dimensionality, and the droplet energy and geometry affects equilibration and aging.Droplet These ladder and chain systems are both one-dimensional at large scales. Their ground states both consist of spins with statistically random orientations, as in the 2DISG. Nonetheless, there is an essential difference between their ground states. In the ground states of the chain Ising spin system, all bonds but for at most one are satisfied. Therefore, the chain Ising spin system is not a spin glass, as there is no frustration. A bond is satisfied when neighbor spins on that bond are parallel if the bond coupling $J_{ij}$ is positive, or they are in opposite orientations if $J_{ij}$ is negative. Frustration results only from boundary conditions. The situation where a single bond with the minimum absolute value of $J_{ij}$ is unsatisfied in the ground state of the chain system occurs with probability $\frac{1}{2}$ due to the randomness of the $J_{ij}$. With respect to the ladder ISG, conversely, frustrated plaquettesBarahona commonly exist in its ground states. Bonds belonging to a frustrated plaquette cannot be all satisfied. Thus, the ground states of the ladder ISG include a finite density of unsatisfied bonds. Though the chain Ising system does not have frustration, the effects of disorder remain important and, as we will see, the recovery of memory in the chain is quite similar to that in the ladder and can be analyzed.

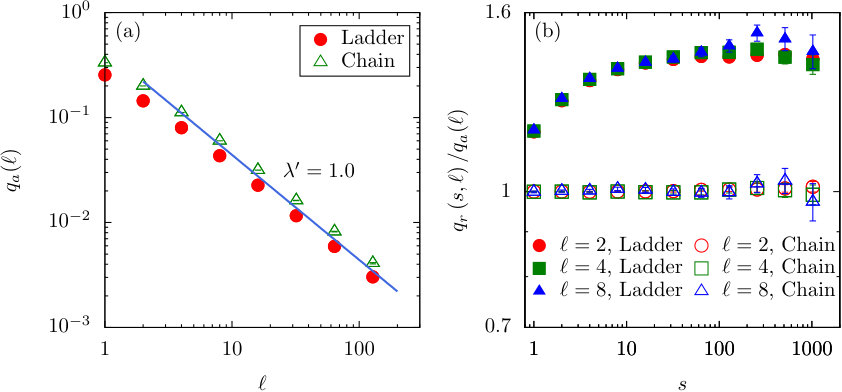

We applied the patch aging and recovery protocols to the two-layer ($k=2$) ladder ISG system and to the chain Ising spin system, for sample sizes $L\leq 2^{17}=262\,144$. The evolutions of spin overlaps for aging and recovery are displayed in Fig. 4. The spin overlap $q_{a}(\ell)$ for both the ladder and the chain in the aging stage appear to follow power law decays, as seen in the 2DISG. The power laws for the two one-dimensional cases are similar to each other: The spin overlap $q_{a}(\ell)$ for both ladder and chain systems are both well described by a single power law, $q_{a}(\ell)\sim{\ell}^{-\lambda^{\prime}}$ with a best fitted exponent $\lambda^{\prime}=1.00\pm 0.03$. However, in the recovery stage the spin overlap $q_{r}\left(s,\ell\right)$ behave distinctly from each other at small recovery scales $s$. The recovery also differs at larger scales from that seen for the 2DISG (at all scales). To study the recovery of the spin overlap, we interrupt the aging at $\ell=2,4,8$ and then revert the couplings to the original $J_{ij}$. The recovery statistic $q_{r}\left(s,\ell\right)/q_{a}(\ell)$ of the ladder ISG grows slightly and crosses over to a plateau $q_{r}\left(s,\ell\right)/q_{a}(\ell)\simeq 1.5$. Compared to the 2DISG, the memory effects for the ladder ISG are weak and apparently do not include a power law growth at large recovery patch sizes, only a plateau value for the recovery ratio $q_{r}/q_{a}$ that is independent of $L$. We have also studied the ISG with more layers, such as $k=3$, where memory effects are apparently stronger than those of the two-layer ladder ISG, but we still find a plateau to a fixed recovery ratio that increases with $k$. It is plausible to infer that the capability of memory grows and trends towards the full recovery seen in the 2DISG, as $k$ increases. The $k=1$ chain shows no initial recovery. The statistic $q_{r}\left(s,\ell\right)/q_{a}(\ell)$, the ratio of overlap in recovery to the overlap at maximal aging, of the chain system does not grow but stays fixed at $1$ for all length scales $s$, within our numerical error. This implies that the chain system does not show either any memory effects or any further aging under recovery coarsening.

We find it interesting that the chain Ising spin system shows no memory in our simulations. To explain this absence of memory, with the goal of possibly explaining the plateau in the $k>1$ one-dimensional systems, we calculate analytically the expected change of spin overlap when patches of arbitrary size $s$ are applied during the recovery stage. This expected change can be computed for an arbitrary spin configuration. Given a spin configuration in a given sample with fixed $J_{ij}$, we define $\Delta_{i}$ as the change of spin overlap $q_{r}\left(s,\ell\right)$ caused by optimizing the spins in a patch with size $s$ starting at position $i+1$, that is, with boundary spins $\sigma_{i}$ and $\sigma_{i+s+1}$ fixed. The average $\langle\Delta_{i}\rangle$ is then defined as the expectation value of the change in the spin overlap, where the angle brackets indicate an average over the position $i$. We will use the symbol $+$ for a spin of the same sign as in the chosen ground state configuration; the symbol $-$ means a spin has the opposite orientation. The overlap can be found from the sum of the number $N_{+}$ of $+$ spins, with $q=L^{-1}(2N_{+}-1)$. There are $L$ different patches with size $s$ and they can be classified into four categories, one for each patch boundary condition. Boundary conditions for these categories are indicated by $++$, $--$, $-+$ and $+-$, with the two symbols referring to the relative orientation of two boundary spins for the linear patch with respect to the ground state configuration. The number of four different categories of patches in a given sample and given $s$ are respectively $n_{++}$, $n_{--}$, $n_{-+}$ and $n_{+-}$. When a patch is applied, the value of $\Delta_{i}$ depends on the category and the spins inside the patch. All spins in patches with boundary conditions $++$ will be set to $+$; spins in patches with boundary conditions $--$ will have a post-patch orientation of $-$; for patches with boundary conditions $+-$ or $-+$, a domain wall will result at $b(i,s)$ where $b(i,s)$ is the relative location for the local minimum of $J_{ij}$ within the given patch. The sign of the spin with respect to the ground state changes between the spin with index $i+b(i,s)$ and the spin with index $i+b(i,s)+1$. We use the notation $\sum_{i,+-}$ to indicate a sum over all $i$ restricted to patches of type $+-$, for example. When a patch forces a spin $\sigma_{k}$ to be $+$, the change in overlap is $(1-\sigma_{k})/L$. and when a patch forces a spin $\sigma_{k}$ to be $-$, the change in overlap is $(-1-\sigma_{k})/L$. Thus, given a uniform probability over location for the placement of patches, $\langle\Delta_{i}\rangle$ can be written as

[TABLE]

Letting $N_{-}$ be the number of $-$ spins, the number of patch categories is constrained by the equations

[TABLE]

from counting the contributions of each type of patch category to the total number of up or down spins (Eq. (2) and Eq. (3)) and from the definitions of $N_{+}$ and $N_{-}$ (Eq. (4)). It follows from Eqs. (2-4) that

[TABLE]

It is also true, for a given sample, due to the periodic boundary condition, that

[TABLE]

To show this, the set of sites $\{1,\ldots,L\}$ can be decomposed into distinct orbits $O_{1},O_{2},\ldots$, where each orbit $O_{m}$ is a sequence of sites $O_{m}=\{i_{m}+k(s+1)\mod L|k=0,1,\ldots\}$. These orbits are sets of the left ends of patches where the patches share boundary points. As $L$ is finite, each $O_{i}$ is finite. In each orbit $O_{i}$, there must be an equal number of $+-$ and $-+$ patches. Since $n_{+-}$ and $n_{-+}$ is the sum of these counts over the set of orbits, we have $n_{-+}=n_{+-}$.

Using Eq. (5) and Eq. (6), we can write the expected change in overlap for a patch of size $s$ in a given sample, $\langle\Delta(J_{ij})\rangle$, as

[TABLE]

The distance to the domain wall for mixed boundaries $b(i,s)$ can take any integer value in the range $[0,L-1]$. In an individual sample, it is likely that $\sum_{i,+-}b(i,s)\neq\sum_{i,-+}b(i,s)$. However, if we average over a large number of samples, the mean change of the spin overlap $\langle\Delta(J_{ij})\rangle=0$, due to the statistical left-right symmetry that does not on average distinguish $-+$ from $+-$ boundary points. We conclude that during patch dynamics for the 1D Ising spin system, the overlap with the ground state for the $J_{ij}$ used does not change. This analytic result is consistent with our simulation results for the recovery phase.

In the ladder system, there is an initial recovery seen in $q_{r}/q_{\ell}$, but this ratio reaches a fixed value at larger recovery patch size $s$. This plateau is plausibly explained using our observed and proven fixed value for $q_{r}/q_{\ell}$ for the 1D chain system, through universality. The effective dimensionality of domain walls is zero in both the ladder and chain systems and the cost of domain walls is finite in both cases. This suggests that an initial recovery in the ladder system occurs for patch sizes $s$ not much larger than the plaquette size, the scale where frustration is evident and the spins are behaving roughly as in the two-dimensional case. At large $s$, the frustration of the spin plaquettes is not relevant, as domain walls have finite cost and are of transverse size less than the patch scale. The recovery then approaches that for the 1D chain, with little additional recovery of the initial state.

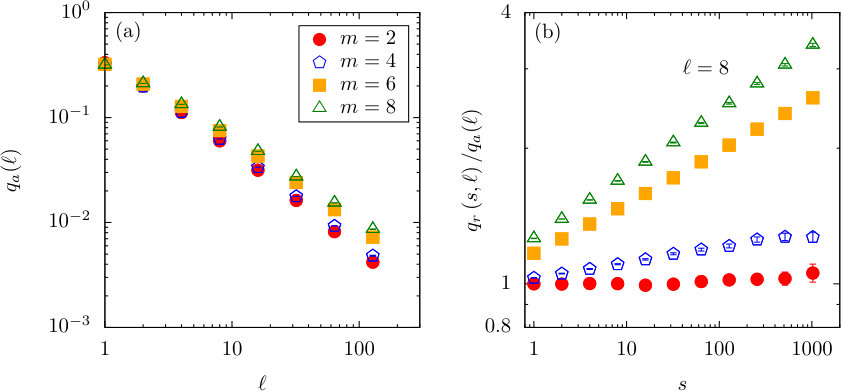

We have also explored how the symmetry of the spin degrees of freedom (DOF) affects the recovery of memory in spin glasses. We employ our patch aging/recovery protocols on the 1DCMSG with varying number of single spin states, $m=2,4,6,8$. In the ground states of the 1DCMSG with $L>2m$, the bonds are mostly all satisfied, as the periodic boundary conditions can lead up to $m$ unsatisfied bonds. These ground states are $m$-fold degenerate. The spin overlap in coupling cycling simluations are exhibited in Fig. 5. In the aging stage, the spin overlap $q_{a}(\ell)$ is well fitted by power laws, $q_{a}(\ell)\sim{\ell}^{-{\lambda}_{\mathcal{C}}}$. A local exponent analysis shows that, as the number of spin states $m$ increases, the local power law exponent ${\lambda}_{\mathcal{C}}$ marginally decreases with increasing $m$, though perhaps within systematic uncertainties. For example, quantitatively, the fitted exponent ${\lambda}_{\mathcal{C}}\simeq 0.97,0.94$ for $m=2,4$ respectively. We then study the behavior of spin overlap $q_{r}\left(s,\ell\right)$ in the recovery stage after halting the aging at $\ell=8$. The 1DCMSG with $m=2$ exhibits no memory effects, as in the case of the chain Ising spin system, though the Hamiltonian is slightly different from the chain case. For $m>2$, the 1DCMSG exhibits memory effects and the statistic $q_{r}\left(s,\ell\right)/q_{a}(\ell)$ is plausibly described by a small power law growth for recovery, $q_{r}\left(s,\ell\right)/q_{a}(\ell)\sim s^{\kappa_{\mathcal{C}}}$. A logarithmic growth of the recovery ratio with $r$ is possible, though the fit is less good. The strength of memory exhibits some enhancement as $m$ increases over the range we studied , as is seen in Fig. 5; the estimated scaling exponent ${\kappa}_{\mathcal{C}}\simeq 0.14$ with $m=8$ is greater than ${\kappa}_{\mathcal{C}}\simeq 0.12$ with $m=6$.

In conclusion, patchwork dynamics provides an efficient heuristic technique to investigate the non-equilibrium behaviors of large spin glass systems, which are more difficult to study at large scales using conventional Monte Carlo methods. We use patchwork dynamics to mimic the cooling and reheating processes on spin glass materials, by varying the bond couplings in a random fashion. The spin overlap and domain wall density show memory effects, as magnetic susceptibility does in experiments.MemoryEx We expand upon the scaling description of the aging and recovery stages, consistent with numerical evidence. In particular, we identify a recovery scale $s_{c}$ which grows as a power law of the aging scale $\ell$, $s_{c}\sim\ell^{\lambda/\kappa}$, where $\lambda$ is the decay exponent for the spin overlap during aging and $\kappa$ is the overlap recovery exponent. As the exponent ratio $\lambda/\kappa\approx 2.58$, the recovery scale grows much more quickly than the aging scale. Thus recovery of the original spin direction requires coarsening to a scale that grows faster than the aging scale that causes erasure. We note that the recovery exponent $\kappa$ is independent of whether the erasure is caused by coarsening through aging or through random flipping of the spins. We have also studied how the dimensionality and the spin symmetry affect the strength of memory in various spin glass models. It is notable that the chain system shows the exact absence of memory effects. The ladder ISG, effectively one-dimensional at long scales but with local frustration, exhibits a plateau in recovery, i.e., the memory effect is only a finite multiple of the aged memory, so that full recovery does not occur. Simulations results from the one-dimensional clock model spin glass indicate that memory effects become stronger as the number of spin states increases.

Acknowledgments. This work was supported in part by the National Science Foundation Grant No. DMR-140937. This work was carried out primarily using the Syracuse University campus OrangedGrid , a computing resource supported by NSF award No. ACI-1341006.
