Estimation of gradients in quantum metrology

TL;DR

This paper develops a quantum metrology framework for estimating magnetic field gradients using entangled and decoherence-free states, achieving maximal accuracy and robustness against magnetic offset fluctuations.

Contribution

It introduces a general theory for quantum gradient estimation, identifying optimal states and measurements, including decoherence-free subspace states, for enhanced precision.

Findings

Decoherence-free states enable direct gradient measurement without offset estimation.

Optimal entangled states maximize quantum Fisher information for gradient estimation.

Feasible measurements can saturate the quantum Cramér-Rao bound.

Abstract

We develop a general theory to estimate magnetic field gradients in quantum metrology. We consider a system of $N$ particles distributed on a line whose internal degrees of freedom interact with a magnetic field. Usually gradient estimation is based on precise measurements of the magnetic field at two different locations, performed with two independent groups of particles. This approach, however, is sensitive to fluctuations of the off-set field determining the level-splitting of the particles and results in collective dephasing. In this work we use the framework of quantum metrology to assess the maximal accuracy for gradient estimation. For arbitrary positioning of particles, we identify optimal entangled and separable states allowing the estimation of gradients with the maximal accuracy, quantified by the quantum Fisher information. We also analyze the performance of states from the decoherence-free subspace (DFS), which are insensitive to the fluctuations of the magnetic offset field. We find that these states allow to measure a gradient directly, without the necessity of estimating the magnetic offset field. Moreover, we show that DFS states attain a precision for gradient estimation comparable to the optimal entangled states. Finally, for the above classes of states we find simple and feasible measurements saturating the quantum Cram\'er-Rao bound.

Figures

Tables

Table 1. Table 1: QFI for different states and scenarios considered in this work. For the case of full a priori knowledge about the offset field B 0 subscript 𝐵 0 B_{0} GHZ states [Eq. ( 24 )] and from the set of separable states | P ⟩ ket P |\mathrm{P}\rangle [Eq. ( 21 )] are optimal. For the case of no a priori knowledge about the offset field B 0 subscript 𝐵 0 B_{0} ODF states [Eq. ( 52 )] with k = N 2 𝑘 𝑁 2 k=\frac{N}{2} are optimal and are here compared to the separable state | P ⟩ ket P |\mathrm{P}\rangle . In this table we list the QFI for a fixed positioning (general), for the optimal positioning, and for equidistant spacing.

		general	optimal positioning	equidistant spacing
$B_0$ is known	$|\mathrm{GHZ}⟩$	${\left(\gamma t\right)}^2{\left[{\sum }_{i=1}^N\left(x_i-x_0\right)\right]}^2$	${\left(\gamma t\right)}^2{L}^2{N}^2$	${\left(\gamma t\right)}^2{L}^2\frac{N^2}{4}$
	$|P⟩$	${\left(\gamma t\right)}^2{\sum }_{i=1}^N{\left(x_i-x_0\right)}^2$	${\left(\gamma t\right)}^2{L}^{2}N$	${\left(\gamma t\right)}^2{L}^2\frac{N\left(2N-1\right)}{6\left(N-1\right)}$
$B_0$ is not known	$|{\mathrm{ODF}}_{N/2}⟩$	${\left(\gamma t\right)}^2{\left[{\sum }_{i=1}^{N/2}\left(x_i-x_{N-i+1}\right)\right]}^2$	${\left(\gamma t\right)}^2{L}^2\frac{N^2}{4}$	${\left(\gamma t\right)}^2{L}^2\frac{N^4}{16{\left(N-1\right)}^2}$
	$|P⟩$	${\left(\gamma t\right)}^2\left[{\sum }_{i=1}^N{x}_i^2-\frac{1}{N}{\left({\sum }_{i=1}^N{x}_i\right)}^2\right]$	${\left(\gamma t\right)}^2{L}^2\frac{N}{4}$	${\left(\gamma t\right)}^2{L}^2\frac{N\left(N+1\right)}{12\left(N-1\right)}$

Equations

$${\Delta }^2\tilde{\phi }\ge \frac{1}{\nu F_{\mathrm{cl}}\left(\left\{p_j(\phi )\right\}\right)},$$

$$F_{\mathrm{cl}}\left(\left\{p_j(\phi )\right\}\right):=\sum _j\frac{{\left[{\partial }_{\phi }{p}_j(\phi )\right]}^2}{p_j(\phi )}$$

$${\Lambda }_{\phi }:\varrho \to {\varrho }_{\phi }:={\Lambda }_{\phi }(\varrho )$$

$$p_j(\phi )=\mathrm{Tr}\left[M_j{\Lambda }_{\phi }(\varrho )\right].$$

$${\Delta }^2\tilde{\phi }\ge \frac{1}{\nu F_Q[\varrho ,{\Lambda }_{\phi }]}.$$

$$\operatorname{\mathnormal{F_{Q}}\!}[\operatorname{\varrho},\Lambda_{\varphi}]=2\sum_{\alpha,\beta:\lambda_{\alpha}+\lambda_{\beta}\neq 0}\frac{|\mbox{$\langle\alpha|\partial_{\varphi}\Lambda_{\operatorname{\varphi}}(\operatorname{\varrho})|\beta\rangle$}|^{2}}{\lambda_{\alpha}+\lambda_{\beta}}\,,$$

$$F_Q\left[\psi ,H\right]=4{\Delta }_{\psi }^{2}H:=4\left[\mathrm{tr}\left(H^2\psi \right)-\mathrm{tr}{\left(H\psi \right)}^2\right].$$

$$\underset{\varrho \in \mathcal{D}(\mathcal{H})}{\max }{F}_Q\left[\varrho ,H\right]={\left({\lambda }_{\max }-{\lambda }_{\min }\right)}^2,$$

$$\mbox{$|\psi_{\mathrm{opt}}\rangle$}=\frac{1}{\sqrt{2}}\left(\mbox{$|\max\rangle$}+\mbox{$|\min\rangle$}\right)\ ,$$

$${\tilde{\phi }}_M-{\phi }_0\approx \frac{⟨M{⟩}_{\phi }-⟨M{⟩}_{{\phi }_0}}{{{\partial }_{\phi }⟨M⟩|}_{{\phi }_0}},$$

$${\Delta }^2{\tilde{\phi }}_M=\frac{{\left({\Delta }_{{\varrho }_{{\phi }_0}}^{2}M\right)}^2}{\nu {\left[{{\partial }_{\phi }⟨M⟩|}_{{\phi }_0}\right]}^2}.$$

$$B(x)=B_0+(x-x_0)G,$$

$$H_0:=B_0{J}_z,H_G:=\frac{1}{2}\sum _{i=1}^N(x_i-x_0){\sigma }_z^{(i)},$$

$$U_G:=\exp \left[-\mathrm{i}\gamma B_{0}t{J}_z-\mathrm{i}\gamma Gt\sum _{i=1}^N(x_i-x_0)\frac{{\sigma }_z^{(i)}}{2}\right].$$

$$\left[J_z,H_G\right]=\left[U_G,H_G\right]=0.$$

$$F_Q\left[\varrho ,{\Lambda }_G\right]=(\gamma t{)}^2{F}_Q\left[\varrho ,H_G\right].$$

$$F_Q(\varrho ):=F_Q\left[\varrho ,{\Lambda }_G\right]$$

$$H_G=\sum _{i=1}^N{h}_G^{(i)},$$

$$F_Q\left[\underset{i=1}{\overset{N}{⨂}}{\varrho }_i,H_G\right]=\sum _{i=1}^N{F}_Q\left[{\varrho }_i,h_G^{(i)}\right],$$

$$\underset{\varrho \in {\mathrm{SEP}}_N}{\max }{F}_Q(\varrho )=(\gamma t{)}^2\sum _{i=1}^N{\left(x_i-x_0\right)}^2.$$

$$\mbox{$|\mathrm{P}\rangle$}:=\mbox{$|+\rangle$}^{\otimes N},\,\,\,\mathrm{with}\,\,\,\mbox{$|+\rangle$}=\frac{1}{\sqrt{2}}\left(\mbox{$|0\rangle$}+\mbox{$|1\rangle$}\right).$$

$${\Delta }^2\tilde{G}\ge \frac{1}{(\gamma t{)}^2{\sum }_{i=1}^N{\left(x_i-x_0\right)}^2}.$$

$$\underset{\varrho \in \mathcal{D}({\mathcal{H}}_N)}{\max }{F}_Q(\varrho )=(\gamma t{)}^2{\left[\sum _{i=1}^N\left(x_i-x_0\right)\right]}^2,$$

$$\mbox{$|\mathrm{GHZ}\rangle$}\coloneqq\frac{1}{\sqrt{2}}\left(\mbox{$|0\rangle$}^{\otimes N}+\mbox{$|1\rangle$}^{\otimes N}\right).$$

$${\Delta }^2\tilde{G}\ge \frac{1}{(\gamma t{)}^2{\left[{\sum }_{i=1}^N\left(x_i-x_0\right)\right]}^2}.$$

$$\underset{\varrho \in {\mathrm{SEP}}_N}{\max }{F}_Q(\varrho )=\frac{(\gamma tL{)}^2}{6}\frac{N(2N-1)}{N-1},$$

$$\underset{\varrho \in \mathcal{D}({\mathcal{H}}_N)}{\max }{F}_Q(\varrho )=\frac{(\gamma tL{)}^2}{4}{N}^2,$$

$$\underset{\varrho \in {\mathrm{SEP}}_N}{\max }{F}_Q(\varrho )=(\gamma t{)}^{2}N{L}^2.$$

$$\underset{\varrho \in \mathcal{D}({\mathcal{H}}_N)}{\max }{F}_Q(\varrho )=(\gamma t{)}^2{N}^2{L}^2.$$

$${\Delta }^2\tilde{G}\ge \frac{1}{(\gamma t{)}^{2}N{L}^2},$$

Full text

I Introduction

Quantum metrology holds the promise to enhance the measurement of physical quantities with the help of quantum effects Giovannetti2006 ; Toth2014 . In practice, ideas from quantum metrology may improve gravitational wave detectors schnabel , imaging in biology biology or sensors for protein molecules jelezko . In a typical metrological scenario one aims to estimate a certain phase $\varphi$, e.g., generated by a magnetic field, with quantum probe systems. By using entanglement between the probes, the uncertainty $\Delta^{2}\tilde{\varphi}$ of the estimate can be reduced Giovannetti2006 . In this way, quantum metrology offers an advantage in theory, but for practical implementations noise and decoherence have to be taken into account. Here, it has been shown that noise has often a negative effect and the improved scaling gets lost Escher2011 ; Demkowicz-Dobrzanski2012 . Nevertheless, concepts such as differential metrology, where some probe systems are used to monitor the noise, can be used to maintain a quantum advantage Landini2014 ; Altenburg2016 .

A different problem is the estimation of the gradient of a spatially distributed magnetic field othergradientpapers ; inigo ; Schmidt-Kaler2012a . Of course, one may just measure the field at different positions Snadden1998 or move a single probe through the field Walther2011 ; Keenan2012 , and then compute the gradient. But these are not necessarily the optimal strategies, especially in cases where one aims to measure small fluctuations of a large offset field. Then, a detection of magnetic fields with high precision and spatial resolution is often not possible Wildermuth2005 . Furthermore, techniques to measure spatial varying fields by probes with well known position can be reversed in order to measure the spatial distributions of probes MRIpapers or the spatial distribution of entanglement Woelk2016a by a well known spatial field distribution. For example in magnetic resonance imaging (MRI) the spatial resolution of such an image depends on the strength of the applied magnetic field gradient and the calibration of this gradient. The larger the magnetic field gradient, the better the resolution. However, practically the resolution is limited by the patients, e.g., for patients with medical implants. An old cardiac pacemaker or a cochlea implant would make the application of a large magnetic field gradient and therefore a high spatial resolution MRI impossible. A precise calibration of the applied spatial field distribution is necessary. Here, quantum metrology could offer a solution for a precise calibration. With the here presented findings it will be possible to calibrate a gradient for MRI with high precision.

In this paper we discuss the estimation of magnetic gradients using the language of quantum metrology. We consider $N$ particles distributed in an arbitrary but fixed manner along a line, and ask in which quantum state they have to be prepared and which measurements have to be carried out in order to estimate the magnetic field gradient with the optimal precision. We also consider the case of collective dephasing noise, as it occurs in realistic set-ups with trapped ions Monz2011 or neutral atoms in optical microtraps. We arrive at a general scheme with optimal states and measurements, depending on the knowledge of the offset field, or on the presence of noise.

This paper is organized as follows: In Section II we explain basic facts about quantum metrology and the Fisher information, being the central figure of merit in estimation scenarios. In Section III we introduce the scenario of gradient estimation. Section IV deals with the case that the offset field $B_{0}$ at a certain position is known and the gradient should be estimated. In this part we also consider the effect of collective phase noise on the performance of gradient estimation. Section V considers the situation, where the offset field $B_{0}$ is not known. Section VI discusses shortly the measurement of more general notions than the gradient of the field. Finally, we conclude and discuss the optimal strategies.

II Quantum metrology

We first review the basics of quantum metrology Giovannetti2006 and introduce the main technical tools and notation that will be used in our work. Then we briefly present the canonical phase estimation scheme and compare it with gradient estimation that is studied in this work.

The task in a typical quantum metrology scheme is to determine an unknown parameter $\operatorname{\varphi}$ which is encoded in a quantum state $\operatorname{\varrho}_{\operatorname{\varphi}}$ by a quantum channel described via the map $\Lambda_{\operatorname{\varphi}}$. After passing through the quantum channel, the state is subsequently measured and the whole process repeated $\nu$ times to gather the sufficient statistics.

Let $p_{j}(\operatorname{\varphi})$ be the probability for the measurement outcome $j$, given that the initial state was $\operatorname{\varrho}$ and the unknown parameter was $\operatorname{\varphi}$. Then a result in classical statistics states that the variance $\Delta^{2}\tilde{\operatorname{\varphi}}$ of any unbiased and consistent estimator $\tilde{\operatorname{\varphi}}$ of $\operatorname{\varphi}$ is lower-bounded by the Cramér-Rao Bound (CRB) ClassStat :

[TABLE]

where

[TABLE]

is the classical Fisher information (FI). A single estimator saturating Eq. (1) may not always exist for the whole parameter range. When estimating small fluctuations of a parameter around a given value, the CRB in Eq. (1) is guaranteed to be tight in the limit of large number of repetitions $\nu$ ClassStat .

If the probabilities $p_{j}(\operatorname{\varphi})$ come from a quantum mechanical experiment, the classical Fisher information (FI) $\operatorname{\mathnormal{F}_{\mathrm{cl}}}$ depends on the initial state $\varrho$, the map $\Lambda_{\operatorname{\varphi}}$ encoding the phase

[TABLE]

and the performed measurement. In quantum mechanics the measurement process is described by a Positive Operator-Valued Measure (POVM), i.e. a collection $\mathbf{M}=\{M_{j}\}$ of positive semi definite operators satisfying the normalization condition $\sum_{j}M_{j}=\openone$. The probability of measuring the outcome $j$ on the state $\operatorname{\varrho}_{\operatorname{\varphi}}$ is given by

[TABLE]

In the following we will denote the classical Fisher information for the measurement statistics obtained from $\operatorname{\varrho}_{\operatorname{\varphi}}$ by the POVM $\mathbf{M}$ by $\operatorname{\mathnormal{F}_{\mathrm{cl}}}(\rho_{\operatorname{\varphi}},\mathbf{M})$. The optimization of $\operatorname{\mathnormal{F}_{\mathrm{cl}}}(\rho_{\operatorname{\varphi}},\mathbf{M})$ over all possible POVMs is called Quantum Fisher Information $\operatorname{\mathnormal{F_{Q}}\!}[\rho,\Lambda_{\operatorname{\varphi}}]$ (QFI) Caves1994 . The QFI depends solely on the quantum state $\operatorname{\varrho}$ and $\Lambda_{\operatorname{\varphi}}$, whereas the FI depends on the state $\operatorname{\varrho}$, $\Lambda_{\operatorname{\varphi}}$ and the POVM $\mathbf{M}$. The QFI operationally quantifies the metrological usefulness of the initial state $\operatorname{\varrho}$ under the map $\Lambda_{\operatorname{\varphi}}$ for the estimation of $\operatorname{\varphi}$. The precision limitations for estimating $\operatorname{\varphi}$ is usually put in the from of the quantum Cramér-Rao Bound

[TABLE]

The QFI $\operatorname{\mathnormal{F_{Q}}\!}$ can be computed explicitly via the formula Toth2014 ; RDD2015 ,

[TABLE]

where $\{\lambda_{\alpha}\}$ are the eigenvalues and \{\mbox{|\alpha\rangle}\} the eigenvectors of $\Lambda_{\operatorname{\varphi}}(\operatorname{\varrho})$. If the parameter $\operatorname{\varphi}$ is encoded via an unitary evolution, i.e. when $\Lambda_{\operatorname{\varphi}}(\operatorname{\varrho})=U_{\operatorname{\varphi}}\operatorname{\varrho}U^{\dagger}_{\operatorname{\varphi}}$, where $U_{\operatorname{\varphi}}=\exp(-\mathrm{i}\operatorname{\varphi}H)$ for some Hermitian operator $H$, then the QFI depends only on the initial state $\operatorname{\varrho}$ and the operator $H$ and will be denoted by $\operatorname{\mathnormal{F_{Q}}\!}\left[\operatorname{\varrho},H\right]$. The QFI for pure states \psi\coloneqq\mbox{|\psi\rangle!\langle\psi|} in unitary time evolutions is related to the variance of the operator $H$,

[TABLE]

Let us also recall that $\operatorname{\mathnormal{F_{Q}}\!}\left[\operatorname{\varrho},H\right]$ is a convex function of $\operatorname{\varrho}$. For this reason the maximal value of QFI is always attained for pure states. In fact, for a fixed Hermitian operator $H$, the maximal $\operatorname{\mathnormal{F_{Q}}\!}$ can be computed explicitly by Giovannetti2006

[TABLE]

where $\lambda_{\max}$ and $\lambda_{\min}$ are the maximal and minimal eigenvalues of $H$ respectively, and $\mathcal{D}(\mathcal{H})$ denotes the set of (mixed and pure) quantum states supported on the Hilbert space $\mathcal{H}$. The pure state for which the QFI attains Eq. (8) is given by

[TABLE]

where $|\max\rangle$ and $|\min\rangle$ are eigenvectors of $H$ corresponding to eigenvalues $\lambda_{\max}$ and respectively $\lambda_{\min}$.

In the experimental context it is common to infer the value of the parameter solely from the expectation value $\langle M\rangle_{\operatorname{\varphi}}\coloneqq\operatorname{tr}(\operatorname{\varrho}_{\operatorname{\varphi}}M)$ of some observable $M$. This is done by using the Taylor expansion

[TABLE]

to construct the estimator $\tilde{\operatorname{\varphi}}_{M}$ 111More specifically, in order to construct the estimator $\tilde{\operatorname{\varphi}}_{M}$, one has to assume that the statistical fluctuations of the phase $\operatorname{\varphi}$ around the known value $\operatorname{\varphi}_{0}$ are small (so that Eq. (10) makes sense) and that the expectation value $\langle M\rangle_{\operatorname{\varphi}_{0}}$ is known. of the value of $\operatorname{\varphi}$. This strategy is in general only optimal for a specific choice 222Note, however, that locally (in the neighborhood of the specific value $\operatorname{\varphi}_{0}$) the precision attainable by this method saturates the quantum Cramér-Rao bound given in Eq. (5), for the suitable choice of the observable. The optimal observable in general depends on the value of the phase. In particular, it is known that the error propagation formula in Eq. (11) for the so-called symmetric logarithmic derivative Toth2014 saturates Eq. (5). However, in general there is no guarantee that symmetric logarithmic derivative is an observable easily accessible in an experiment. of the operator $M$. The precision of this estimator $\Delta^{2}\tilde{\operatorname{\varphi}}_{M}$, after the experiment is repeated $\nu$ times, is given by the error-propagation formula Toth2014

[TABLE]

In what follows, we will drop the number of repetitions $\nu$ in order to simplify the notation and discussion.

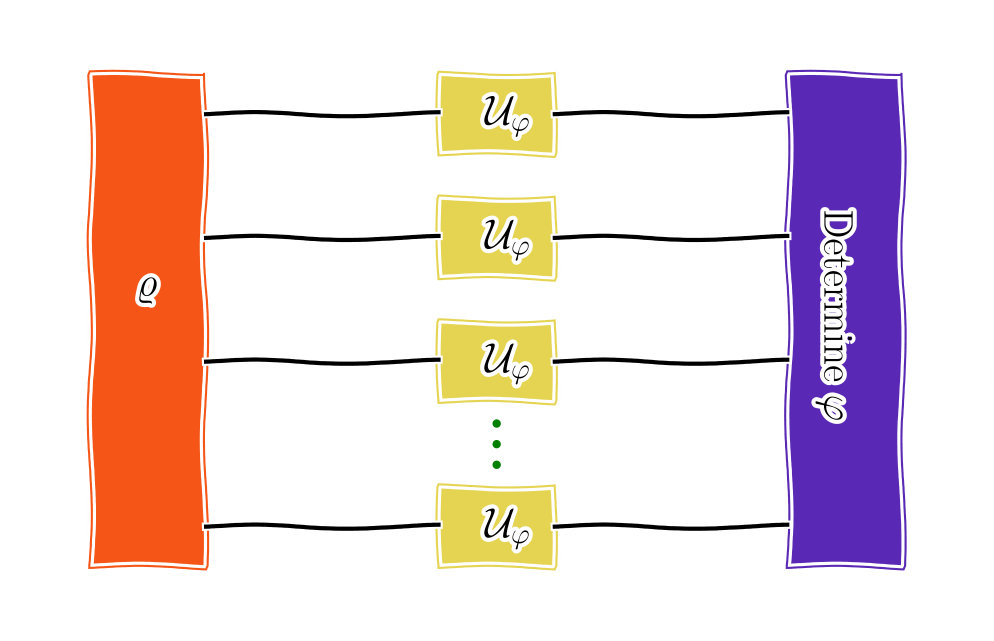

Standard metrological scenario: In the standard scenario a quantum device (e.g., an interferometer) acts on a single particle (photon, atom, etc.) with the Hamiltonian $h_{0}$ (often taken to be equal to $\frac{1}{2}\sigma_{z}$). The device encodes the unknown parameter $\operatorname{\varphi}$ on the system of $N$ particles by performing the parallel unitary transformation $U_{\operatorname{\varphi}}=\mathcal{U}_{\operatorname{\varphi}}^{\otimes N}$, where $\mathcal{U}_{\operatorname{\varphi}}=\mathrm{e}^{-\mathrm{i}h_{0}\operatorname{\varphi}}$ [see Figure 1(a)]. This unitary evolution is generated by the global Hamiltonian $H=\sum_{i}^{N}h_{0}^{(i)}$, where $h_{0}^{(i)}$ denotes the Hamiltonian on the $i$th particle. In classical measurement strategies (corresponding to separable input sates), the particles are only classical correlated and the variance $\Delta^{2}\tilde{\operatorname{\varphi}}$ for measuring $\varphi$ is limited by the number of particles $N$ via the standard quantum limit (SQL) $\Delta^{2}\tilde{\operatorname{\varphi}}\propto 1/N$. However, in quantum mechanics we have the freedom to apply the device in parallel to an entangled state of $N$ particles [see Figure 1 (a)]. This allows to obtain the accuracy $\Delta^{2}\tilde{\operatorname{\varphi}}\propto 1/N^{2}$, which is usually referred as the Heisenberg limit (HL).

The concepts of SQL and HL are tailored to the schemes where every particle is affected by the same unitary $\mathcal{U}_{\operatorname{\varphi}}$. As we will see later, in the context of the estimation of gradients of electric or magnetic fields, it is natural to consider again parallel encoding, but this time allowing single particle unitaries $U^{i}_{\operatorname{\varphi}}$ acting differently on different particles - see Figure 1 (b). The standard HL and the SQL are no longer valid and new bounds in precision have to be derived. This is one of the main aim of the present paper.

At this point, it is important to remark that in the standard metrological scenario, the Heisenberg scaling is typically destroyed by local noise and asymptotically only an enhancement by a constant factor can be achieved Demkowicz-Dobrzanski2012 ; Escher2011 . However, in the case of global noise such as collective phase noise the scaling $\Delta^{2}\tilde{\operatorname{\varphi}}\propto 1/N^{2}$ can be restored, e.g., by differential interferometry Landini2014 ; Altenburg2016 . In this work we will also discuss the impact of collective phase noise on the performance for gradient estimation.

III Set-up for gradient estimation

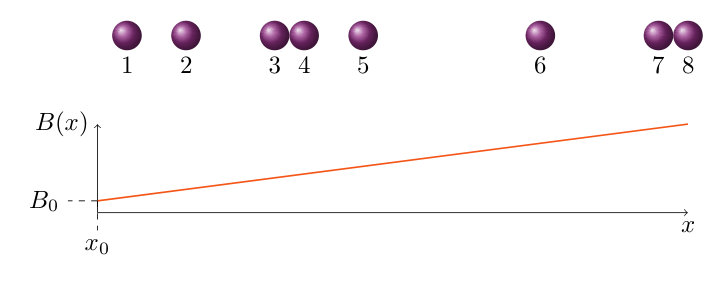

Throughout this paper we consider a string of $N$ particles whose internal, qubit-like, degrees of freedom are coupled to the $z$ component of the spatially-varying magnetic field $B(x):=B(x)\vec{e}_{z}$ with

[TABLE]

with $B_{0}:=B(x_{0})$ being the field at position $x_{0}$, called offset field, and $G$ being the strength of the gradient. Usually in experiments the offset field $B_{0}$ is set to split the degenerate energetic levels. The direction of the offset field $B_{0}$ is defined to be the quantization axis that is called $z$ axis. Furthermore, the offset field $B_{0}$ is strong comparing to fields that point in other directions. Therefore, we neglect all other components. We assume without loss of generality a spatial gradient in the $x$ direction. The particles are arranged along the $x$ axis and labeled in such a way that $B(x_{i})\leq B(x_{i+1})$, where $x_{i}$ with $i\in\{1,\cdots,N\}$ denotes the position of the $i$th qubit - see Fig. 2.

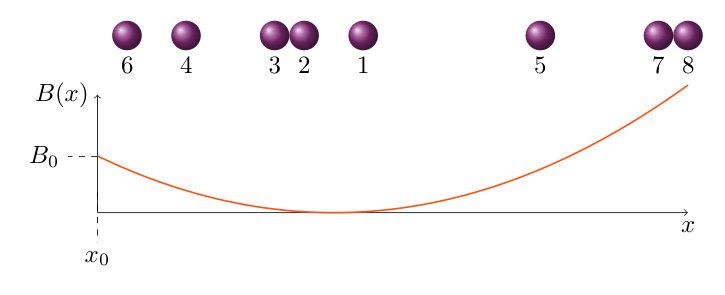

The magnetic field $B(x)$ depends on the positions $x_{i}$ of the qubits. In our analysis we will focus on experiments, where these positions can be measured with high precision. This is the case, e.g., in experiments with trapped ions Monz2011 ; Leibfried2004 or neutral atoms in optical microtraps Schlosser2011 ; Bloch2008 . In both kinds of experiments the position of the qubits can be measured up to $\sim\,$nm, whereas the distance of the qubits scales with $\sim\,\mu$m. Generally, position dependent fields such as magnetic gradients lead to a coupling between the internal and external degrees of freedom Mintert2001 ; Woelk2016 . Within this paper, we will assume that this coupling is negligible small, such that the position $x_{i}$ of the $i$th qubit can be treated classically. This can be always achieved by, e.g., trapping the particles strong enough.

The Hamiltonian describing the interaction of the internal degrees of freedom with the magnetic field is given by $H=\hbar\gamma H_{0}+\hbar\gamma GH_{G}$, with

[TABLE]

where $\sigma_{z}^{(i)}$ denotes the Pauli matrix acting on the $i$th qubit, $J_{z}=\frac{1}{2}\sum\sigma_{z}^{(i)}$ is the collective spin operator, and $\gamma$ is the coupling strength. The map $\Lambda_{G}$ describing the unitary time evolution due to $H$ for time $t$ is given by $\Lambda_{G}(\operatorname{\varrho})=U_{G}\operatorname{\varrho}U_{G}^{\dagger}$, where

[TABLE]

In the following, we will use tools of quantum metrology to derive limits in precision for a classical and quantum enhanced estimation of the gradient $G$, analogous to SQL and HL known from the standard phase estimation scheme depicted in Fig. 1(a). The maximal achievable precision of $G$ depends on the knowledge about the magnetic offset field $B_{0}$. In general, an experimenter could measure the offset field with some uncertainty $\Delta^{2}\tilde{B}_{0}$ first and would have some a priori knowledge about the offset field before estimating the gradient $G$. However, throughout this paper we focus on two extremal situations: full and no a priori knowledge about $B_{0}$. The first scenario is coverd in Section IV and allows to study the „clean“ situation, where the only parameter to-be-estimated is the gradient of the field and leads to the ultimate bounds in precision. The second scenario is described in Section V and applies to two interconnected cases where either (i) an experimenter has no access to the reference frame associated to the rotations generated by the offset field or (ii) the system is strongly affected by the action of collective phase noise.

As we discuss in Section IV.3 collective phase noise is the main source of noise in setups of trapped ions or trapped atoms in an optical micro-trap. It leads to an effective erasure of the information about the offset field $B_{0}$. In Section V.3 we will argue that in these experimental scenarios the precision in gradient estimation does not gain much from the measurements of the offset field or having a partial knowledge about it. Hence, we a fortiori justify why we focused on the two extreme cases of full and no a priori knowledge about $B_{0}$. Other experimental scenarios may require a more refined analysis of the problem such as multiparameter estimation Ragy2016 ; Proctor2017 and systematically taking into account the lack of knowledge about $B_{0}$ OpDeph2013 .

Please note that in the main text of the paper we will make two implicit assumptions on the system that we are considering. First, we will assume that $x_{i}\geq x_{0}$ for all particles. This affects the precise form of the optimal states and the formula for the maximal QFI. For the sake of simplicity of the presentation we decided to discuss this in detail in Appendix A. Second, we will assume that the number of particles $N$ is even. This has only a slight effect on the form of the results for the case of no a priori knowledge about $B_{0}$. The change for odd $N$ is that the summation range has to be changed from $N/2$ to $\lfloor N/2\rfloor$. These are discussed in full generality in Appendix G.

IV Gradient estimation with full a priori knowledge about $B_{0}$

Having the full a priori knowledge about the offset field $B_{0}$ amounts to treating it as a fixed constant. Using the commutation relations

[TABLE]

and Eq. (6) we obtain the following relation

[TABLE]

In what follows we will reserve the notation

[TABLE]

to avoid ambiguity and simplify the notation. The physical meaning of Eq. (16) is that the QFI for gradient estimation is reduced to the QFI for the „standard Hamiltonian“ $\operatorname{\mathnormal{F_{Q}}\!}\left[\operatorname{\varrho},H_{G}\right]$, and that $\operatorname{\mathnormal{F_{Q}}\!}\left[\operatorname{\varrho},\Lambda_{G}\right]$ does not depend on the value of the magnetic offset field $B_{0}$ at $x_{0}$. However, the QFI does depend on $x_{0}$, via the dependence of $H_{G}$ on this parameter - see Eq. (13). Notice that the unitary transformation generated by the field has a product structure $U_{G}=\otimes_{i=1}^{N}\mathcal{U}^{i}_{G}$, where $\mathcal{U}^{i}_{G}=\exp\{-\mathrm{i}\gamma t[B_{0}+G(x_{i}-x_{0})]\sigma^{(i)}_{z}/2\}$ is a single qubit unitary. Therefore, the problem of deriving the maximal QFI and the optimal state becomes mathematically equivalent to the case of parallel encoding of the phase given in Figure 1 (b).

The rest of this section is organized as follows. First, in Part A we identify the bounds in precision for the estimation of the gradient $G$ with separable and entangled states. Then, in Part B we give simple, physically-accessible measurements saturating these bound. Finally, in Part C, we discuss the influence of collective phase noise on the proposed gradient estimation scheme.

IV.1 Bounds on precision for gradient estimation

Here, we first derive precision bounds for fixed positions $\{x_{i}\}$ and identify optimal probe states. Then, we discuss the case of linear spacing of particles. Finally, we identify the optimal positioning of qubits and give the ultimate bounds for gradient estimation.

Separable states: Our first result concerns the maximal QFI for estimating $G$ using separable states. We start with the observation that from the decomposition

[TABLE]

with $h^{(i)}_{G}=(x_{i}-x_{0})\sigma^{(i)}_{z}/2$, we can simplify the QFI for product states $\operatorname{\varrho}=\bigotimes_{i=1}^{N}\operatorname{\varrho}_{i}$ via

[TABLE]

by using the additivity of the QFI Toth2014 . Using this relation together with the convexity of QFI and Eq. (16) we find that the maximum of the QFI on the set of separable states on $N$ qubits $\mathrm{SEP}_{N}$ is obtained for the product state $\otimes_{i=1}^{N}\operatorname{\varrho}_{i}$ such that each $\operatorname{\varrho}_{i}$ maximizes $\operatorname{\mathnormal{F_{Q}}\!}\left[\operatorname{\varrho}_{i},h^{(i)}_{G}\right]$. Therefore, we have

[TABLE]

and the maximum is obtained for the state

[TABLE]

From Eq. (20) we get the bound in precision for separable input states

[TABLE]

Entangled states: The second result concerns the maximal QFI over all states from the $N$ qubit Hilbert space $\mathcal{H}_{N}$. To compute this maximum we use Eq. (16), Eq. (8), and the fact that $H_{G}$ can be explicitly diagonalized by the computational basis of the $N$ qubit Hilbert space $\mathcal{H}_{N}$. We obtain

[TABLE]

with the optimal state being the $N$ qubit Greenberger-Horne-Zeilinger (GHZ) state Greenberger1989

[TABLE]

Analogously to the case of separable states in Eq. (22) we use the quantum Cramér-Rao bound to get the limitations on the precision for estimating $G$ with entangled states

[TABLE]

Let us remark that both, the maximal QFI in Eq. (23) and the maximal QFI for separable states in Eq. (20) strongly depend on the positioning of the particles and the coordinate $x_{0}$, if the value of the magnetic offset field $B_{0}$ is assumed to be known. Notice, however, that the quantum states for which the optimal values are attained do not depend on the spacing of particles. Moreover, the optimal states derived by us are invariant under the relabeling of qubits according to $B(x_{i})\geq B(x_{i+1})$, which proves that our scheme works also for a negative value of the gradient $G$. Let us finally remark that in our analysis we have assumed, according to the note in the end of Section III, that $x_{i}\geq x_{0}$. The structure of optimal states and the precise formula for maximal QFI changes if this assumption is dropped. We discuss this in detail in Appendix A.

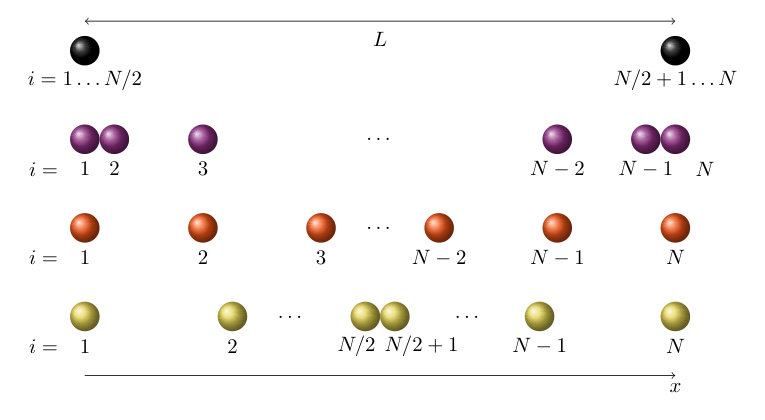

Equidistant spacing: Neutral atoms in an optical microtrap are equidistant spaced. We consider an equidistant spacing in the interval $\left[x_{0},L+x_{0}\right]$, i.e. $x_{i}-\!x_{0}\!=\!(\!i-\!1\!)\frac{L}{N-1}$ for measuring the gradient $G$ with $N$ qubits. For this positioning the QFI for separable states is given by

[TABLE]

which (for fixed length $L$) scales proportionally to $N$ for a large number of particles. On the other hand, the QFI for entangled states becomes

[TABLE]

and scales with $N^{2}$ (for fixed $L$).

Optimal positioning and the ultimate bounds: We can optimize the QFI in Eq. (20) and Eq. (23) over the positioning $x_{0}$. Again, we assume that the particles are located in the interval $\left[x_{0},L+x_{0}\right]$ and we fix both $x_{0}$ and $L$. In order to maximize the right-hand sides of both Eq. (20) and Eq. (23), an experimenter should put all qubits at the position $x_{i}=x_{0}+L$. This means that the particles are as far away as possible from the point $x_{0}$. If this is the case we get for separable states

[TABLE]

Similarly, the maximal QFI over all states becomes

[TABLE]

An experimental realization of this positioning includes another dimension of the system. Atoms in an optical microtrap can be arranged in a $2$ dimensional lattice. Then, one dimension can be defined as the $x$ dimension and all qubits can be placed at one position $x=x_{0}+L$ by using the second dimension. In state of the art ion traps this arrangement is hard to realize. However, in future on-chip ion traps as proposed, e.g., in Refs. Kielpinski2002 ; Lekitsch2017 this arrangement is possible. In both types of experiments the extension of the qubit chain at $x_{0}+L$ must be much smaller as $L$ in order to exclude effects due to field gradients in the second dimension.

Using Eq. (22) and Eq. (25) we can give now the ultimate bounds for the precision of estimating $G$, with the usage of $N$ qubits placed in the fixed interval $\left[x_{0},L+x_{0}\right]$, and when we perfectly know the value of the field at $x_{0}$. For separable probe states, the best achievable precision for the determination of $G$ is given by

[TABLE]

similar to the SQL. Likewise, for entangled probe states, we get a Heisenberg-like scaling given by

[TABLE]

For both, the scaling behavior in $N$ (for fixed length $L$) is identical to the case of the estimation of global parameters. This is not surprising, since we assumed that we perfectly know the value of the offset field $B_{0}$ at the position $x_{0}$ and the optimal strategy is to use all particles for the estimation of the field at the position $x_{0}+L$.

IV.2 Optimal measurements for experimental realizations

The optimal states derived by us can be prepared in experimental settings such as trapped ions and neutral atoms in optical microtraps. In experiments with trapped ions the preparation of GHZ states Greenberger1989 up to $N=14$ qubits with high fidelity is possible Monz2011 . In experiments with neutral atoms in optical microtraps the preparation of a Bell or GHZ state as defined in Eq. (24) with $N=2$ qubits has been achieved Wilk2010 .

However, as explained in Section III the bounds involving the QFI assume implicitly the application of the optimal measurement. In general, the optimal measurement saturating the quantum Cramér-Rao bound is the projective measurement in the eigenbasis of the so-called symmetric logarithmic derivative Giovannetti2006 . This measurement can be difficult to perform in practice. Fortunately, the optimal measurement is not necessarily unique. In what follows we show that parity measurements in the $x$ basis are sufficient in order to reach the maximal possible precision in gradient estimation with GHZ states. Parity measurements can be easily performed in experiments with trapped ions Leibfried2004 ; Monz2011 as first proposed by Bollinger et al. in 1996 Bollinger1996 and neutral atoms in optical microtraps Isenhower2010 ; Wilk2010 . A parity measurement is basically a detection of the number of qubits in either the spin-up or spin-down state and can be realized with almost $100\%$ efficiency Bollinger1996 . Interestingly, the parity measurement does not depend on the spacing of particles and is thus the same for any configuration $\{x_{i}\}$.

Classical Fisher information: A parity measurement in the $x$ basis is a projective measurement $\mathbf{P}\coloneqq\{P_{+},P_{-}\}$ with the projective operators

[TABLE]

After the time $t$ the initial $N$-qubit state $\operatorname{\varrho}$ evolves due to $U_{G}\rho U_{G}^{\dagger}$. Upon measuring $\mathbf{P}$ on $\rho_{G}$, the output probabilities are given by

[TABLE]

In Appendix B we show that

[TABLE]

where \psi_{\mathrm{GHZ}}\coloneqq\mbox{|\mathrm{GHZ}\rangle!\langle\mathrm{GHZ}|}. Using this expression, together with Eq. (32) and the definition of the FI in Eq. (2) we find that the classical Fisher information associated with the statistics of parity measurements with GHZ states is given by

[TABLE]

and equals the QFI for estimating $G$ with GHZ states [see Eq. (25)]. Therefore, parity measurements in the $x$ basis are optimal for gradient estimation with GHZ states. The choice of an optimal measurement is not unique, also measurements of the collective spin operator in the $x$-direction $J_{x}$ are optimal as shown in Appendix C.

Error propagation formula: It turns out that measurements of the expectation value of the parity $\hat{M}=P_{+}+P_{-}=\sigma^{\otimes N}_{x}$ with GHZ states also saturate the ultimate limitations given in Eq. (25) for the accuracy of the measurement of $G$. In usual experiments this expectation value $\langle\hat{M}\rangle$ is measured for different probing times $t$ and if the initial state is $\psi_{\mathrm{GHZ}}$ the theoretical time dependence is given in Eq. (34). In this measurement scheme the gradient $G$ is deduced from the value of the frequency, which can be estimated by a fit on the data. This procedure however requires the known value of the offset field $B_{0}$. If one has no a priori knowledge about $B_{0}$ one has to average Bartlett2007 over all possible values of $B_{0}$ and one cannot infer the value of $G$. It is possible to avoid this problem by measuring this expectation value for different positioning $\{x_{i}\}$ at a fixed probing time $t$. This strategy has been realized with a single ion moving through a gradient field in Ref. Walther2011 . However, this scheme is definitely a less practical solution as one has to make sure that the initial quantum states are the same, despite the change in the configuration of the chain. The case of no a priori knowledge about the offset field will be considered systematically in Section V.

With the error propagation formula in Eq. (11) and using Eq. (34) together with the fact that $\langle\hat{M}^{2}\rangle=1$ we can show that both measurement strategies (varying the probing time at a fixed positioning and varying the positioning at a fixed probing time) saturate the Cramér-Rao bound and therefore also the analogue HL for gradient estimation, assuming that the positioning $\{x_{i}\}$ and the measurement time $t$ can be determined with high precision, so we have

[TABLE]

IV.3 Gradient estimation in presence of collective phase noise

In realistic experiments noise affects the time evolution of a quantum system, reducing the entanglement of the probe states. This can diminish the enhancement in precision for gradient estimation obtained with entangled states. In both types of experiments considered in this work collective phase noise is the main source of decoherence. In experiments with trapped ions, this noise is caused by temporal magnetic field fluctuations Monz2011 , whereas in experiments with neutral atoms in optical microtraps, collective phase noise is caused by temporal fluctuations of the trapping potential Kuhr2005 . In what follows we describe the influence of collective phase noise on the proposed scheme for the estimation of the gradient of the magnetic field.

Collective phase noise: We focus our attention on trapped ions. We follow the steps and assumptions for describing the noise source in this system given in Ref. Monz2011 . The total Hamiltonian of the system including the noise is given by

[TABLE]

where operators $H_{0}$ and $H_{G}$ are defined in Eq. (13), $\gamma^{\prime}$ is the coupling constant, and $\Delta E(t)$ is the temporally fluctuating random field. We will use $\left\langle\cdot\right\rangle$ to denote the average over the stochastic fluctuations of this field. Following Ref. Monz2011 we assume (i) no systematic time-dependent bias due to phase fluctuations $\langle\delta\varphi\rangle=0$, where $\delta\varphi\coloneqq\int_{0}^{t}\mathrm{d}\tau\Delta E(\tau)$, (ii) Gaussian character of the fluctuations $\delta\varphi$, (iii) stationarity of the noise process, $\langle E(t+\tau)E(t)\rangle=\langle E(\tau)E(0)\rangle$, and finally (iv) that the time correlation $\langle\Delta E(t)\Delta E(0)\rangle=(\Delta E)^{2}\exp\left[-t/\tau_{c}\right]$ decays exponentially, with the correlation time $\tau_{c}$ and the fluctuation strength $\Delta E$.

Now, for a fixed realization of the stochastic process the output state at a given time $t$ is given by

[TABLE]

with $U^{\prime}_{t}=U_{G}U_{\mathrm{noise}}$, where $U_{G}$ is given in Eq. (14) and $U_{\mathrm{noise}}=\mathrm{exp}\left[-\mathrm{i}\gamma^{\prime}\int_{0}^{t}\Delta E(\tau)\mathrm{d}\tau J_{z}\right]$ describes the noise acting on the system. By averaging over the realization of the stochastic process $\Delta E(t)$ (for the fixed time $t$) we get that the initial state $\operatorname{\varrho}$ is mapped into $\Lambda^{\prime}_{G}(\operatorname{\varrho})$, where

[TABLE]

Since the encoding of the value of the gradient commutes with the map describing the noise we have

[TABLE]

That is, in order to compute the QFI in the presence of collective phase noise it suffices to calculate the ”standard” QFI on the noisy initial state. In ion trap experiments, for which this paper is relevant, the repetition rate (i.e. the rate with which a single experiment can be repeated) typically is fixed for noise cancellation of another noise source and $t\approx\mu$s-ms Monz2011 . Moreover, the correlation time for the field fluctuations $\Delta E(t)$ is of order $\tau_{c}\approx$s . Therefore, we can assume $\tau_{c}\gg t$ Monz2011 .

Noisy gradient estimation with GHZ states: For a GHZ state in presence of collective phase noise, the QFI can be calculated analytically (see Appendix E.1 for details) and takes a closed form

[TABLE]

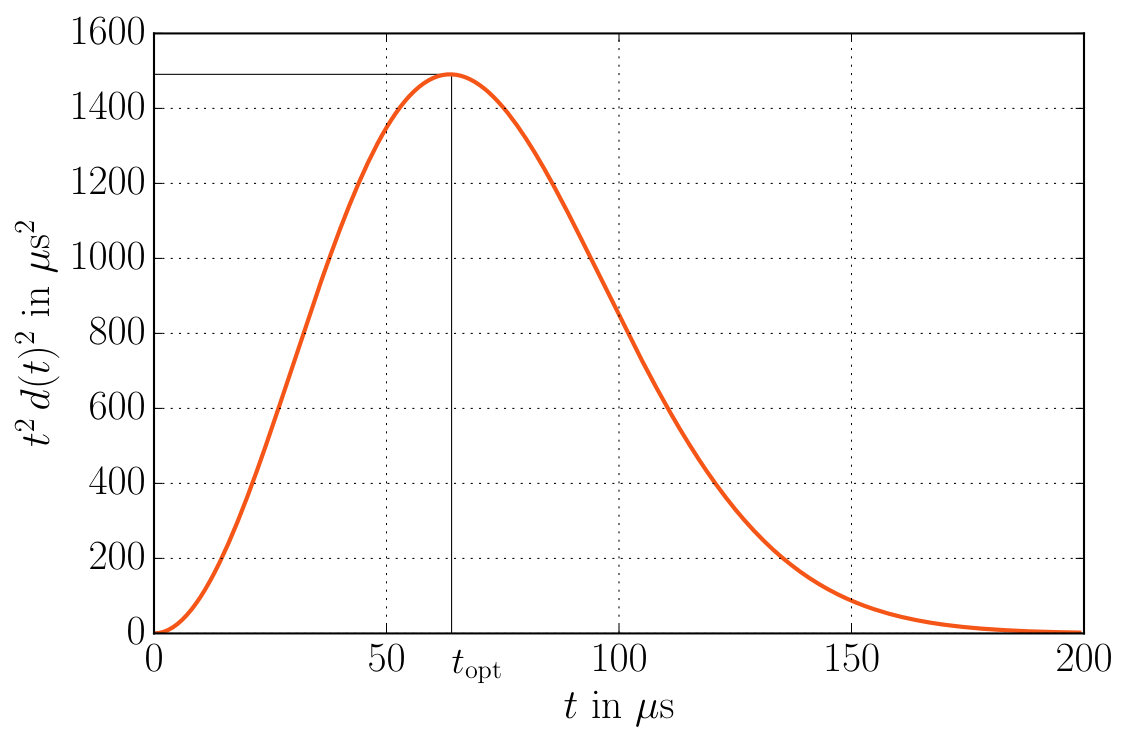

with $d(t)=\mathrm{exp}\left\{-\left(N\gamma^{\prime}\Delta E\tau_{c}\right)^{2}\left[\exp(-\frac{t}{\tau_{c}})+\frac{t}{\tau_{c}}-1\right]\right\}$. We see that the QFI first increases with $t^{2}$ and then, in the limit of large times, decreases double exponentially to zero. Therefore, there exists a global maximum333Because the repetition rate is fixed, the relevant figure of merit to optimize is $\operatorname{\mathnormal{F_{Q}}\!}(t)$ rather than $\operatorname{\mathnormal{F_{Q}}\!}(t)/t$, which appears naturally when a variation of the repetition rate is possible and the total time of the experimental procedure is fixed Demkowicz-Dobrzanski2012 ; Escher2011 . and an optimal measurement time as shown in Fig. 3. Under the condition $\tau_{c}\gg t$ [see the discussion below Eq. (40)] we get $\mathrm{exp}[(-t/\tau_{c})+t/\tau_{c}-1]\approx 1/2(t/\tau_{c})^{2}$, which gives the optimal measurement time $t_{\mathrm{opt}}=\sqrt{2}/(N\gamma^{\prime}\Delta E)$ and the maximal QFI

[TABLE]

which can be maximized over the positioning $x_{i}$. The positioning maximizing the QFI in Eq. (42) leads to placing all qubits as far away as possible from $x_{0}$ that is $x_{0}+L$. Then, the maximal QFI is given by

[TABLE]

which does neither scale with $N$ nor with $N^{2}$.

Now we will discuss the saturation of the quantum Cramér-Rao bound for the estimation of the gradient $G$, with the QFI as in Eq. (41) with parity measurements. Generically we can achieve such a saturation by a suitable choice of the global phase $\theta$ for the probe state

[TABLE]

and performing a parity measurement $\hat{M}=\sigma_{x}^{\otimes N}$ as shown in Appendix B.2 and D. Then, the Cramér-Rao bound can be saturated if the condition

[TABLE]

holds. However, due to this condition an experimenter must have full knowledge about $B_{0}$ and $G$ at all measurement times $t$ in order to prepare the state in Eq. (44) that is not feasible.

Noisy gradient estimation with the state $|\mathrm{P}\rangle$: In general, it is difficult to evaluate the QFI in Eq. (40) analytically for arbitrary probe states $\operatorname{\varrho}$. The initial pure product state \psi_{\mathrm{P}}\coloneqq\mbox{|\mathrm{P}\rangle!\langle\mathrm{P}|}, given in Eq. (21), evolves into a mixed state $\bar{\psi}_{\mathrm{P}}(t)$ due to noise. We will focus on the regime of large probing times $t\xrightarrow{}\infty$. In this limit, the state does not change any more due to collective phase noise and $[\bar{\psi}_{\mathrm{P}}(\infty),J_{z}]=0$ Lidar1998 and therefore we call this regime the steady state regime. We get that for this state the QFI does not vanish in the limit of large times (see Appendix F for details),

[TABLE]

Thus, in the steady state regime, the product state $|\mathrm{P}\rangle$ performs better then the GHZ state in the presence of noise. Interestingly the QFI in Eq. (46) is independent of $x_{0}$. This is due to the fact that in the steady state regime the probe state is not only invariant under collective phase noise but also under the offset field $B_{0}$ since $[\bar{\psi}_{\mathrm{P}}(\infty),J_{z}]=0$.

Optimal positioning: For the GHZ state in the steady state regime the QFI vanishes independent of the positioning of the qubits. However, for the separable state $|\mathrm{P}\rangle$ in the steady state regime the optimal positioning (see Lemma 1 in Appendix F for the proof) at the interval $x_{i}\in[\tilde{x}_{0},\tilde{x}_{0}+L]$ is to place one half of the qubits at position $x_{i}=\tilde{x}_{0}$ and the other half as far away as possible $x_{i}=L+\tilde{x}_{0}$ (note that the position $\tilde{x}_{0}$ is some fixed reference coordinate and can have any value including $x_{0}$). For this case the QFI is given by

[TABLE]

that is linear in $N$ and by constant factor of $1/4$ smaller than in the case of having no noise and placing all qubits at $x_{i}=x_{0}+L$ [see Eq. (28)]. This can be realized by a similar arrangement as described in Section IV A.

The optimal spacing of the particles leads to the situation in which the particles are located at two different positions. As a result, two different unitaries $\mathcal{U}_{G}^{I}$ and $\mathcal{U}_{G}^{II}$ act on one half of the particles each. This is a local estimation strategy similar to differential interferometry Landini2014 ; Altenburg2016 . In these works phase and frequency estimation in the presence of correlated phase noise were investigated. It was shown that the quadratic scaling in $N$ can be preserved by the usage of differential interferometry in presence of correlated noise. Furthermore, it was shown that for the product state $|\mathrm{P}\rangle$ a linear scaling in $N$ up to a constant factor can be preserved. In Eq. (47) we find a similar result. Furthermore, in Ref. Dorner2013 also similar results where found. Here, the two unitaries $\mathcal{U}_{G}^{I}$ and $\mathcal{U}_{G}^{II}=\mathcal{U}_{-G}^{I}$ act on half of the particles each. For this estimation scenario it was shown that the HL can be preserved in presence of correlated dephasing.

V Gradient estimation without a priori knowledge about $B_{0}$

In Section IV, we derived bounds in precision for the estimation of the gradient $G$, assuming complete knowledge of the offset field $B_{0}$. The question arises whether it is possible to measure $G$ without knowing anything about $B_{0}$. We can already answer this question: collective phase noise can be interpreted as an erasure of information about $B_{0}$ in time. Therefore, waiting long enough leads to the case of having no knowledge about $B_{0}$. In Eq. (41) we saw that in the steady state regime the QFI for the GHZ state $|\mathrm{GHZ}\rangle$ vanishes such that the GHZ state is useless in order to estimate $G$ in the case of having no knowledge about $B_{0}$. However, in Eq. (47) we saw that in the steady state regime the QFI for the product state $|\mathrm{P}\rangle$ didn’t vanish. Therefore, it is possible to measure $G$ without knowing $B_{0}$. In this section we systematically study limits on the accuracy for estimating the gradient $G$, when no knowledge about $B_{0}$ is available.

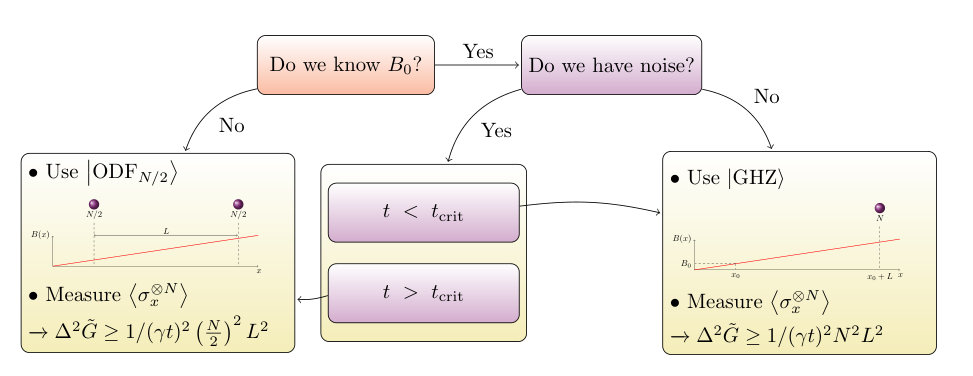

In this section we first (A) identify optimal probe states and the corresponding bounds in precision for estimating $G$ when no a priori knowledge of $B_{0}$ is available. Interestingly, we find that these bounds asymptotically behave in the similar way, as in the noiseless case. Then, (B) we prove that similarly to the noiseless case parity measurements in the $x$ basis saturate the derived bounds in precision. Finally, (C) we compare these results with the other measurement strategies considered in this paper and earlier works on the subject.

V.1 Bounds in precision for gradient estimation

In what follows we derive precision bounds for estimating a gradient with a fixed positioning $\{x_{i}\}$. Then, we discuss the case of equidistant spacing. Finally, we derive the optimal positioning for the particles located in the fixed interval of length $L$.

When assuming no a priori knowledge about the offset field $B_{0}$ the Hamiltonian of the system does not change compared to Eq. (13). However, now the offset field $B_{0}$ is unknown and therefore must be treated as a random variable and all states, operations, and measurements performed on the system have to be averaged over all realizations of this random variable 444Because of the specific form of the measurements and evolutions used in our analysis, we can limit ourselves only to averaging the initial quantum states.. Phrasing this in a different language it can be said that we erase the reference frame Bartlett2007 associated to the knowledge of the offset field [or, formally speaking, the one-parameter group of transformations formed by operators $\exp\left(-\mathrm{i}\theta J_{z}\right)$, where $\theta\in[0,2\pi)$]. Complete erasure of the knowledge about $B_{0}$ is modeled by averaging the initial state $\operatorname{\varrho}$ over all possible rotations around the $z$-axis

[TABLE]

States of the above form are called decoherence-free states since they are stationary states with respect to collective phase noise: $\left[\bar{\operatorname{\varrho}},J_{z}\right]=0$. Conversely, every state $\tau$ satisfying $\left[\tau,J_{z}\right]=0$ can be written as $\tau=\bar{\operatorname{\varrho}}$, for a suitable $\operatorname{\varrho}$ Lidar1998 . Decoherence-free states are insensitive to the offset field $B_{0}$ but in general can be affected by gradients i.e. $[\bar{\varrho},H_{G}]\neq 0$. This suggests that they can be used for gradient estimation. In what follows we will use the decoherence-free subspace for $N$ qubits $\mathrm{DFS}_{N}$ to denote the set of decoherence-free states in the considered scenario. It is easy to see from the definition that every $\operatorname{\varrho}\in\mathrm{DFS}_{N}$ can be written as a convex combination

[TABLE]

of decoherence-free states $\operatorname{\varrho}_{k}\in\mathcal{D}(\mathcal{V}_{k})$, each supported on the subspaces $\mathcal{V}_{k}$ spanned by computational basis vectors \mbox{|i_{1}\rangle}\mbox{|i_{2}\rangle}\ldots\mbox{|i_{n}\rangle} containing exactly $k$ excitations (”1”) and $N-k$ qubits in the ground state ”0” 555Alternatively, $\mathcal{V}_{k}$ can be characterized as the eigenspace of $J_{z}$ corresponding to the eigenvalue $\lambda_{k}=\frac{1}{2}(N-2k)$..

Optimal decoherence-free states: In order to compute how useful decoherence-free states are for the estimation of the gradient $G$ we use directly Eq. (16), which reduces the problem of computing the QFI for the proposed metrological scheme to the computation of the $\operatorname{\mathnormal{F_{Q}}\!}[\operatorname{\varrho},H_{G}]$, where $H_{G}=\sum_{i=1}^{N}(x_{i}-x_{0})\frac{\sigma_{z}^{(i)}}{2}$. Using the fact that $H_{G}$ preserves subspaces $\mathcal{V}_{k}$ and the properties of $\operatorname{\mathnormal{F_{Q}}\!}[\operatorname{\varrho},H_{G}]$ (see Appendix G for details), we prove that in order to find optimal decoherence-free states it suffices to look only at optimal (and thus necessary pure) states in each subspace $\mathcal{V}_{k}$ separately,

[TABLE]

The maximal attainable QFI for states in the subspaces $\mathcal{V}_{k}$ with $k$ excitations is given by (see Appendix G)

[TABLE]

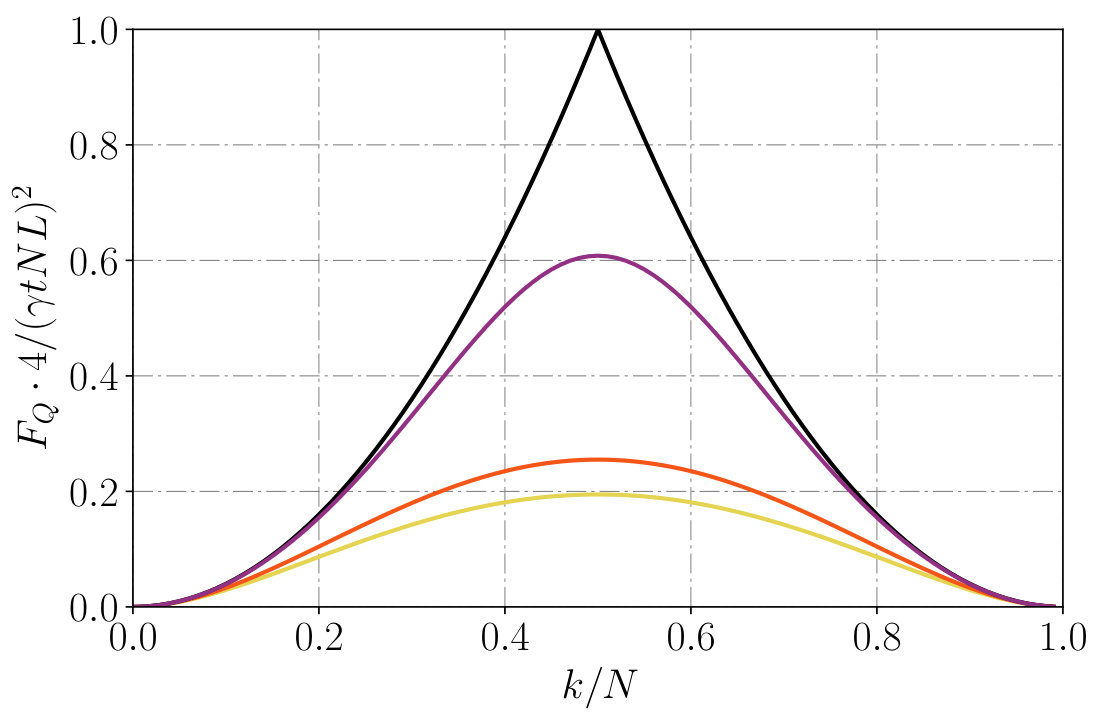

where $l=\min\{k,N-k\}$. We observe that the above result is independent of $x_{0}$ and that it does not change under the simultaneous translation of each $x_{i}\xrightarrow{}x_{i}+\delta$ by the same distance $\delta$. This is a consequence of the relation $\left[{\varrho},J_{z}\right]=0$, valid for $\operatorname{\varrho}\in\mathrm{DFS}_{N}$. The optimal decoherence-free (ODF) state for a given number of excitations $k$, yielding Eq. (51) is given by

[TABLE]

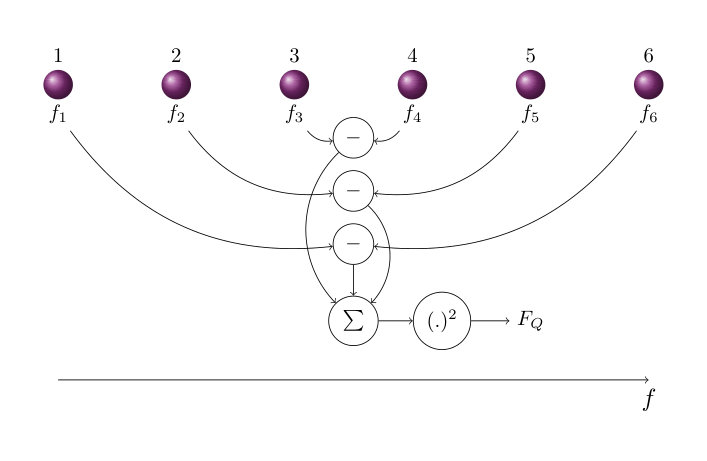

The detailed derivation of Eq. (51) and Eq. (52) is given in Appendix G. A remarkable fact is that for decoherence-free states the QFI for the estimation of the gradient $G$ does not decrease in time due to the collective phase noise. In Fig. 4 we show the QFI from Eq. (51) for different number of excitations $k$ and for different positioning $\{x_{i}\}$. We observe that the maximal QFI is attained exactly for $k=N/2$, for an arbitrary positioning of the qubits666For simplicity we assumed that $N$ is even. In general the maximal QFI is attained for $k=\lfloor N/2\rfloor$ (see Appendix G for details.). This observation can be proven analytically for any positioning of the particles (see Appendix G for details) and we find

[TABLE]

with $|\mathrm{ODF}_{N/2}\rangle$ being the optimal state. It is important to note that just like in the noiseless case [see Eq. (24)], the optimal state does not depend on the spacing of particles. From the quantum Cramér-Rao bound in Eq. (5) we get the ultimate bound on the precision of the estimation of the gradient $G$ with decoherence-free states

[TABLE]

Separable states: In the case of no a priori knowledge about the offset field it is hard to derive precision bounds for separable states. This follows from the difficulty to characterize the convex set $\mathrm{DFS}_{N}\cap\mathrm{SEP}_{N}$, consisting of states that are both decoherence-free and separable. In particular, extremal points of $\mathrm{DFS}_{N}\cap\mathrm{SEP}_{N}$ generally do not have the form of pure state. We leave the problem of finding the optimal decoherence-free separable state open. However, let us remark that the decoherence-free separable state777Recall that the averaging operation $\bar{\operatorname{\varrho}}(t)$ preserves separability of quantum states. $\bar{\psi}_{P}(\infty)$ exhibits asymptotically the same (linear in $N$) scaling of the QFI as the optimal product state \psi_{\mathrm{P}}=\mbox{|\mathrm{P}\rangle!\langle\mathrm{P}|} at least for the case of equal and optimal spacing (that is placing half of the qubits at each position $\tilde{x}_{0}$ and $\tilde{x}_{0}+L$ for $\bar{\psi}_{P}(\infty)$ and placing all qubits at position $x_{0}+L$ for $\psi_{P}$) - see Eq. (46) and Eq. (47).

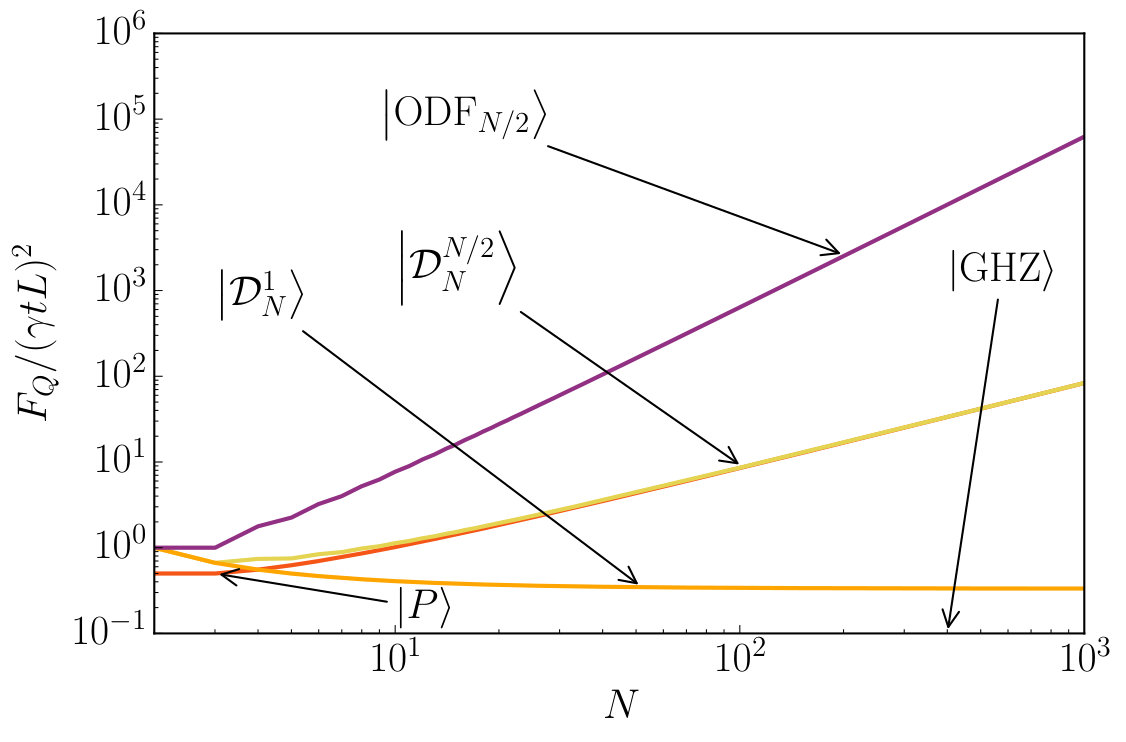

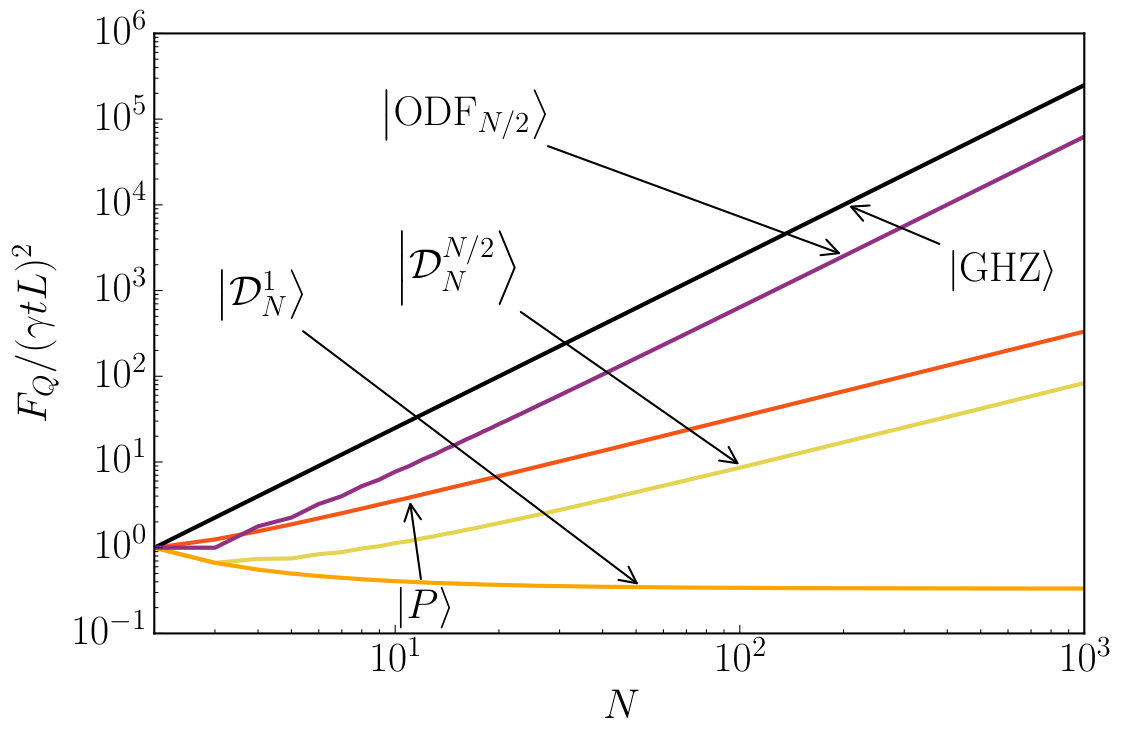

Equidistant spacing: Just like in the case of complete knowledge about $B_{0}$ (described in Sec. IV) we consider a measurement scheme in which $N$ particles are equally spaced in the interval $\left[\tilde{x}_{0},\tilde{x}_{0}+L\right]$, i.e. $x_{i}=\tilde{x}_{0}+(i-1)\frac{L}{N-1}$ (recall that the position $\tilde{x}_{0}$ is some fixed reference coordinate and can have any value including $x_{0}$). Then, for the optimal decoherence-free state \psi^{N/2}_{\mathrm{ODF}}\coloneqq\mbox{|\mathrm{ODF}{N/2}\rangle!\langle\mathrm{ODF}{N/2}|} we have

[TABLE]

which scales $\propto N^{2}$ for large numbers of particles.

With the optimal separable state from the noiseless case $|\mathrm{P}\rangle$, the QFI for equidistant spacing in the steady state regime becomes

[TABLE]

which scales $\propto N$ for large numbers of particles.

Optimal positioning: Optimizing the right hand side of Eq. (53) over the positions $x_{i}\in[\tilde{x}_{0},\tilde{x}_{0}+L]$, we find the maximal QFI over all decoherence-free states

[TABLE]

which is independent of $\tilde{x}_{0}$ and scales  $\propto N^{2}$. The optimal positioning leading to Eq. (57) is $x_{i}=\tilde{x}_{0}$ for $i\leq N/2$ and $x_{i}=\tilde{x}_{0}+L$ for $i>N/2$ (see Appendix G for the proof). This corresponds to locating the particles at two positions with the maximal possible distance $L$. Recall that the same positioning was found to be optimal for estimating the gradient $G$ with the state $|\mathrm{P}\rangle$ in the steady state regime [$\bar{\psi}_{P}(\infty)$ as discussed above Eq. (47)].

V.2 Optimal measurements for the experimental realization

Optimal decoherence-free states $|\mathrm{ODF}_{k}\rangle$ are equivalent under local unitaries to GHZ states, that means that ODF states can be transformed into GHZ states and vice versa by local unitaries. ODF states can be prepared with high fidelity by a global Sørensen-Mølmer gate Sorensen1999 in experiments with trapped ions. That has been performed for $N=14$ qubits in Ref. Monz2011 . In experiments with neutral atoms in a lattice the preparation of the ODF state with $k=N/2$ for $N=2$ qubits has been realized Isenhower2010 ; Wilk2010 . We therefore conclude that optimal probe states for gradient estimation can be realized in experiments considered in this work. As in the case of full knowledge about $B_{0}$ and the absence of noise, the question remains of which measurement should be performed in order to attain the maximal precision. In what follows we show that for parity measurements in the $x$ basis (i) the classical Fisher information [see Eq. (2)] and (ii) the error propagation formula [see Eq. (11)] saturate the quantum Cramér-Rao bound in Eq. (54) for optimal decoherence-free states $|\mathrm{ODF}_{k}\rangle$.

Classical Fisher information: As described in Sec. IV.2, the projective measurement $\mathbf{P}$ of the parity in the $x$-basis is described by the projectors $P_{\pm}=\frac{1}{2}\left(\mathbb{I}\pm\sigma_{x}^{\otimes N}\right)$ [see Eq. (32)]. In Appendix B we show that the expectation value of the parity on the state $\psi^{k}_{\mathrm{ODF}}$ evolves according to

[TABLE]

where $l=\min\{k,N-k\}$. Using this result and performing the analogous computations as the ones given in Sec. IV.2 we get

[TABLE]

with $l=\min\{k,N-k\}$. Comparing Eq. (59) and Eq. (53) we see that parity measurements in the $x$ basis saturate the quantum Cramér-Rao bound for the estimation of $G$ with the optimal decoherence-free state $|\mathrm{ODF}_{k}\rangle$. In particular, the quantum Cramér-Rao bound is saturated for the optimal state $|\mathrm{ODF}_{N/2}\rangle$ and therefore also the bound in Eq. (54) is saturated.

Error propagation formula: Just like in the noiseless case (discussed in Sec. IV.2), one can try to estimate the gradient $G$ from the measurements of the expectation value of $\hat{M}=\sigma_{x}^{\otimes N}$ given in Eq. (58). Using the error propagation formula in Eq. (11) and the formula for the expectation value in Eq. (58) with $\langle\hat{M}^{2}\rangle=1$, we obtain that this measurement strategy again leads (for small fluctuations of the gradient $G$) to the maximal achievable precision, provided by the optimal state $|\mathrm{ODF}_{N/2}\rangle$:

[TABLE]

From the above discussion we see that parity measurements in the $x$ basis are optimal in both extremal scenarios considered in this paper - under the condition of full and no a priori knowledge about the offset field $B_{0}$. As discussed in Sec. IV.2 these measurements can be routinely realized in experiments with trapped ions and neutral atoms in an optical lattices. It is also important that the ultimate accuracy given in Eq. (60) is saturated independently on the value of the gradient $G$ and does not deteriorate with time due to collective phase noise.

V.3 Comparison of the performance of decoherence-free states with other strategies

In this part we compare the performance of ODF states with (i) GHZ states in the case of full a priori knowledge of $B_{0}$ but in the presence of collective phase noise, and (ii) with Dicke states, for the estimation of gradients.

Comparison with GHZ states: We compare the performance of GHZ states with optimal decoherence-free states when we have complete information about $B_{0}$ and collective phase noise is present. As mentioned before, collective phase noise can be interpreted as an erasure of information about $B_{0}$. Therefore, the QFI for $\mathrm{GHZ}$ states vanishes for long measurement times $t$ and ODF states $|\mathrm{ODF}_{N/2}\rangle$ with $k=N/2$ excitations perform better. In contrast, for short probing times $t$ GHZ states perform better. We can calculate the critical time $t_{\mathrm{crit}}$ for which the QFI for GHZ states under noise is equal to the QFI for $|\mathrm{ODF}_{N/2}\rangle$. In experiments for which this paper is relevant typically $t\approx\mu$s-ms and the correlation time $\tau_{c}\approx$s of the field fluctuations $\Delta E(t)$. Therefore, we can assume $\tau_{c}\gg t$ from which we get (see Appendix G.2)

[TABLE]

In the case of complete a priori knowledge about $B_{0}$ at the beginning and collective phase noise GHZ states perform good for $t<t_{\mathrm{crit}}$. For $t>t_{\mathrm{crit}}$ ODF states $|\mathrm{ODF}_{N/2}\rangle$ outperform GHZ states.

Neutral atoms in an optical microtrap are arranged equidistant $x_{i}-x_{0}=(i-1)L/(N-1)$. For this positioning we find the critical time $t_{\mathrm{crit}}=2\sqrt{\log[2(N-1)/N]}/(N\gamma^{\prime}\Delta E)$. This is independent of the total length $L$ of the string. For $N=50$ qubits and $\gamma^{\prime}\Delta E=2\pi\cdot 50\,$Hz (as used for Fig. 3) we find $t_{\mathrm{crit}}=104\,\mu$s and for $N=8$ we find $t_{\mathrm{crit}}=595\,\mu$s. Both are within typical coherence times of such experiments.

In Sec. IV we discussed the case of full a priori knowledge about $B_{0}$. Here, we found that in the absence of noise GHZ states are optimal. However, this holds only under the assumption that $x_{i}\geq x_{0}$, this means that the whole string of qubits is on the right hand side of the position $x_{0}$ where $B_{0}$ is known. If $x_{0}$ is defined to be located within the range of the qubit string GHZ states are not optimal anymore (as shown in Appendix A). The experimentally relevant case is, if an experimenter has full a priori knowledge about the offset field $B_{0}$ right in the middle of the qubit string $x_{N/2}\leq x_{0}<x_{N/2+1}$, e.g., by estimating the average field. Interestingly, in this case the optimal states are ODF states (as shown in Appendix A) that are decoherence free. Therefore, when $x_{0}$ is defined to be in the middle of the string it doesn’t matter whether an experimenter has knowledge about the offset field. This fact implies, that only if an experimenter is able to measure the offset field at a position that is not right in the middle of the string, she could gain from having information about the offset field.

In principle a priori knowledge about the offset field could enhance the precision for gradient estimation since the maximal QFI when having full a priori knowledge about the offset field in Eq. (29) is by constant factor of $4$ greater than the one in the case of having no a priori knowledge about the offset field in Eq. (57). However, this comparison is unfair because this enhanced precision is gained by an unknown amount of resources that was previously used to determine the off-set field $B_{0}$. Furthermore, as discussed before a gradient measurement does not always gain from having a priori knowledge about the offset field. In fact only for $t<t_{\mathrm{crit}}$ knowledge about the offset field enhances the precision for gradient estimation since collective phase noise immediately erases the information about the offset field. However, even for $t<t_{\mathrm{crit}}$ the gain from measuring the offset field is only a constant factor (up to $4$). This factor can also be reached by using longer measurement times since $\operatorname{\mathnormal{F_{Q}}\!}\propto t^{2}$ for ODF states (that are insensitive to the offset field). In the here considered experiments $t_{\mathrm{crit}}\propto\,\mu$s whereas typical measurement times $t\propto\,$ms such that $t>t_{\mathrm{crit}}$ as we discussed above. Then, ODF states perform better than GHZ states. Therefore, in the here considered experiments it is not worth to spend any resources for a measurement of the offset field for the estimation of gradients.

One possible objection to the above reasoning is that for any specified probing time $t$ there exist in principle optimal states and measurements that would give a precision for gradient estimation higher than the one for optimal DFS states [given in Eq. (54)]. The technical limitation of such a scheme is that the optimal states and measurements depend on the probing time which results in experimental difficulties. On the other hand, the optimal DFS states and the corresponding measurements have already been implemented in experiments Monz2011 .

Gradient estimation with Dicke states: In Ref. Zhang2014 it was claimed that for gradient estimation with a W state a good scaling of the QFI in $N$ is possible. Recall that W states are decoherence-free states and belong to the set of symmetric Dicke states Dicke1954 \mbox{|\mathcal{D}^{k}{N}\rangle}=\frac{1}{\mathcal{N}}\sum_{j}\mathcal{P}_{j}\{\mbox{|0\rangle}^{\otimes N-k}\otimes\mbox{|1\rangle}^{\otimes k}\}, where $\mathcal{N}$ is a normalization constant and $\sum_{j}\mathcal{P}_{j}\{.\}$ denotes the sum over all possible permutations. Symmetric Dicke states with $k=1$ excitations are exactly W states. We use Eq. (16) to compute the QFI for Dicke states \mathcal{D}_{N}^{k}\coloneqq\mbox{|\mathcal{D}^{k}{N}\rangle!\langle\mathcal{D}^{k}_{N}|} [see Appendix F, Eq. (109) for details] and the final result is

[TABLE]

For equidistant positioning $x_{i}=(i-1)\frac{L}{N-1}$ we have

[TABLE]

which is maximal for $k=N/2$,

[TABLE]

For W states ($k=1$) we have

[TABLE]

This is exactly the same result as the one from Ref. Zhang2014 with $a=L/(N-1)$. In Ref. Zhang2014 $a$ is defined as a fixed distance between the qubits with $x_{i}=(i-1)a$, such that adding a qubit leads to an extension of the total length $L$ of the string. Using this convention the QFI for W states in Eq. (65) scales with $\operatorname{\mathnormal{F_{Q}}\!}\propto a^{2}N^{2}$ for large $N$. At first sight this seems to be a good scaling since it is quadratic in $N$. However, when fixing the distance between the qubits $a$ the HL from Eq. (31) for gradient estimation is $\Delta^{2}\tilde{G}\propto 1/N^{4}$ and the SQL from Eq. (30) is $\Delta^{2}\tilde{G}\propto 1/N^{3}$ for large $N$ and with $L=(N-1)a$. Therefore, a quadratic scaling in $N$ is not a good scaling for a fixed distance between the qubits. Furthermore, when fixing the total length $L$ the QFI for W states decreases with $N$ to a constant $\operatorname{\mathnormal{F_{Q}}\!}\left(\mathcal{D}_{N}^{1}\right)\xrightarrow{N\rightarrow\infty}(\gamma t)^{2}L^{2}/3$. The product state $|\mathrm{P}\rangle$ in the steady state regime in Eq. (56) performs better then a W state in Eq. (65) and is for large $N$ equal to the maximal attainable QFI with symmetric Dicke states ($k=N/2$).

We conclude the section with the graphical comparison of the performance of different families of states for gradient estimation in Fig. 5, under the assumption of (a) full or (b) no a priori knowledge about the offset field $B_{0}$.

VI Generalization

The model described in Section III can be generalized to an arbitrary known spatial distribution $f(x)$ of the $z$ component of the magnetic field. We can consider an experiment for the estimation of the strength $G$ of a spatial magnetic field distribution given by

[TABLE]

where the function $f(x)$ is known and $f(x_{0})=0$ holds. E.g., due to the quadratic Zeeman effect it may be known that the field has to be quadratic in $x$ such that $f(x-x_{0})=(x-x_{0})^{2}-(x-x_{0})a$ as depicted in Fig. 6. The Hamiltonian in Eq. (13) is then generalized by replacing $x_{i}-x_{0}$ by $f(x_{i}-x_{0})$, for $i=1,\ldots,N$. The labeling of the particles is then imposed by the ordering of the values of the magnetic field i.e. $B(x_{i})\leq B(x_{i+1})$. Under these slight modifications essentially all the results presented in this paper carry over. In particular, the bounds on the precision given by the QFI in Eq. (23) and Eq. (20) for the case of full a priori knowledge of $B_{0}$ and in Eq. (53) for the case of no a priori knowledge are valid in this generalized model.

Also the optimal states and the optimal measurements attaining these bounds do not change. Furthermore, the optimal positioning for the case of full a priori knowledge about $B_{0}$ is to put all qubits at the position $x_{\max}$ that maximizes $f(x-x_{0})$. For the case of no a priori knowledge about $B_{0}$ it is optimal to put half of the qubits at the position $x_{\min}$ that minimizes $f(x-x_{0})$ and the other half of the qubits at the position $x_{\max}$ that maximizes $f(x-x_{0})$.

Note that one has to keep in mind that the above analysis is valid under the assumption $f(x-x_{0})\geq 0$ (which corresponds to the condition $x_{i}\geq x_{0}$ from the note given in the end of Sec. III). As depicted in Fig. 6 the assumption $f(x-x_{0})\geq 0$ does in general not always hold. If this assumption is dropped all the results for the case of no a priori knowledge about $B_{0}$ (decoherence free states) still carry over. However, for the case of full a priori knowledge about $B_{0}$ the precise form of the optimal states and formulas for maximal QFI change. Although one can still recover the results by substituting $x_{i}-x_{0}$ by $f(x_{i}-x_{0})$ in the appropriate formulas given in Appendix A.

VII Conclusions

We presented a systematic analysis of the ultimate limits in precision for the estimation of a gradient of a spatially-varying magnetic field in systems of cold atoms and trapped ions. The position degrees of freedom were treated classically and taken as fixed. We used the framework of quantum metrology to study two extreme scenarios: (i) the case when the magnetic offset field is known and (ii) the case, where the magnetic offset field is not a priori known.

For the first case (i) we have introduced the bounds in precision for gradient estimation analogous to the standard quantum limit (maximal possible accuracy with separable states) and the Heisenberg limit (maximal possible accuracy with entangled states) known from the usual phase estimation scenario. Moreover, we have identified the optimal probe state, that is a GHZ state [see Eq. (24)]. It is then optimal to put all qubits as far away as possible from the point $x_{0}$, where the magnetic offset field is known. This leads to a magnetic field measurement, similar to a magnetic offset field measurement, but at a different place.

For the second case (ii) we found that GHZ states are completely useless ($\operatorname{\mathnormal{F_{Q}}\!}=0$) for the estimation of a magnetic field gradient. In the absence of knowledge about $B_{0}$ effective super-selection rules restrict the class of allowed states to decoherence-free states. We proved that the decoherence-free state given in Eq. (52) with $k=N/2$ excitations is optimal and does not depend on the positions of the qubits. Here, the optimal positioning is, to put half of the qubits at one place and the other half as far away as possible. We also showed that the performance of optimal decoherence-free states is generically comparable to optimal GHZ states in the case of complete knowledge about $B_{0}$ – both scale with $N^{2}$. Both optimal states can be prepared with high fidelities in experiments with trapped ions up to $N=14$ and cold atoms up to $N=2$.

For both scenarios, we identified the parity measurement in the $x$ basis as the optimal measurement saturating the quantum Cramér-Rao bounds for gradient estimation. This measurement is feasible in experiments considered in this work, as for the positions of the particles can be considered fixed and local measurement of $\sigma_{x}$ can be easily performed.

Finally, we investigated the effect of collective phase noise. Collective phase noise can be interpreted as an erasure of knowledge about the magnetic offset field and continuously interpolates between scenario (i) and (ii) for strong noise or rather long probing times. We found a critical time $t_{\mathrm{crit}}$ for which the GHZ state performs as good as the ODF state with $k=N/2$ excitations. For $t<t_{c}$ GHZ states perform better than ODF states and for $t>t_{c}$ ODF states outperform GHZ states. These results are summarized in the decision diagram in Fig. 7. Values of the QFI for different positioning and different states in the two cases (i) and (ii) are summarized in Table 1.

We derived Cramér-Rao bounds for gradient estimation from the QFI and discussed their saturation with FI. Such a saturation implies an unlimited amount of statistics and therefore many repetitions of a measurement. However, realistic experiments are limited in measurement time and therefore limited in the amount of possible repetitions. In such a scenario, a proper analysis of bounds in precision can be performed in a Bayesian estimation approach. For the standard scheme [as depicted in Fig. 1(a)] it was shown in Ref. Berry2000 that only the bound $\Delta^{2}\varphi\geq\pi^{2}/N^{2}$ can be saturated with limited statistics in contrary to the bound $\Delta^{2}\varphi\geq 1/N^{2}$ from the QFI. An investigation of bounds from a Bayesian approach for the estimation of gradients would be interesting for further work. Moreover, it would be interesting to take the uncertainty in positioning of the qubits into account. In fact, independently from our work, an article on gradient estimation with systems of atoms with probability distributions in position has appeared Apellaniz2017 . For such a system also weak value measurements could offer an enhancement in precision for the estimation of gradients Aharonov1988 . Furthermore, in certain setups there is a coupling between the internal and external degrees of freedom, i.e. the spin and the position Mintert2001 . This requires an adaption of our ideas. Also, the investigation of precision limits and optimal strategies for simultaneous estimation of many parameters describing a field (i.e., the offset field B 0 , the gradient G, and higher derivatives), could be interesting (especially in the presence of collective dephasing noise Dorner2012 ; Dorner2013 ). A first step in this direction, however without considering the effect of noise has been done in Ref. Apellaniz2017 . Finally, another interesting topic for further studies is the performance of random multiparticle states RandSTAT for gradient estimation.

Acknowledgements

We are grateful to Antonio Acín, Iagoba Apellaniz, Michael Johanning, Janek Kołodyński, Morgan Mitchell, Christina Ritz, and Gael Sentís for interesting and fruitful discussions. This work has been supported by the European Research Council (Consolidator Grants TempoQ/683107 and QITBOX), Spanish MINECO (QIBEQI FIS2016-80773-P, and Severo Ochoa Grant No. SEV-2015-0522), Fundació Privada Cellex, Generalitat de Catalunya (Grant No. SGR 874, 875, and CERCA Programme), the Friedrich-Ebert-Stiftung, the FQXi Fund (Silicon Valley Community Foundation), and the DFG. M.O acknowledges the support of Homing programme of the Foundation for Polish Science co-financed by the European Union under the European Regional Development Fund.

Appendix A Maximal QFI and optimal states for arbitrary position $x_{0}$

In this part we derive the maximal QFI for gradient estimation for an arbitrary position of $x_{0}$, in which the offset field is assumed to be perfectly known. Let us first introduce the auxiliary notation $f_{i}\coloneqq x_{i}-x_{0}$. Moreover, just like in the main text let us label the qubits in such a way that $f_{i+1}\geq f_{i}$. By the virtue of Eq. (16) we can focus on maximizing $\operatorname{\mathnormal{F_{Q}}\!}[\operatorname{\varrho},H_{G}]$, where

[TABLE]

Let us note that the above Hamiltonian can be diagonalized by the computational basis

[TABLE]

The symbol $I$ labels the set of positions of particles which are in the state $|0\rangle$ and is formally defined by

[TABLE]

Note that $I$ can be arbitrary (in particular it can be also the empty set). The eigenvalue corresponding to the eigenvector $|I\rangle$ is given by

[TABLE]

where $\bar{I}$ denotes the complement of the set $I$ in the set $\{1,2,\ldots,N\}$. The maximal eigenvalue $\lambda_{\max}$ is given by

[TABLE]

with the corresponding eigenvector that is $|I_{\max}\rangle$, where

[TABLE]

Let $m$ be the minimal number with $f_{m}\leq 0$, that is the number of particles on the left side of $x_{0}$ such that $x_{m}\leq x_{0}<x_{m+1}$. Now, using the ordering $f_{i+1}\geq f_{i}$ we find

[TABLE]

Because of $\lambda_{\bar{I}}=-\lambda_{I}$ we get $\lambda_{\min}=-\lambda_{\max}$ and

[TABLE]

Finally, by virtue of Eq. (16), Eq. (8), and Eq. (9), we obtain

[TABLE]

with the optimal state given by

[TABLE]

Note that for $m=N/2$ this state happens to be the optimal decoherence-free state $|\mathrm{ODF}_{N/2}\rangle$.

Appendix B Parity measurements

In this part of the Appendix we compute expectation values of the parity operator $\hat{M}=\sigma_{x}^{\otimes N}$ on the families of quantum states investigated in this paper. These computations are relevant for the computations involving the classical Fisher information and the error propagation formula given the main text.

B.1 Parity expectation value for GHZ states

Recall that \mbox{|\mathrm{GHZ}\rangle}=\frac{1}{\sqrt{2}}(\mbox{|0\rangle}^{\otimes N}+\mbox{|1\rangle}^{\otimes N}). Using the identities

[TABLE]

[TABLE]

and the property \hat{M}\mbox{|0\rangle}^{\otimes N}=\mbox{|1\rangle}^{\otimes N} we obtain

[TABLE]

B.2 Parity expectation value for noisy GHZ states

Let \psi_{\mathrm{GHZ},\theta}\coloneqq\mbox{|\mathrm{GHZ}{\theta}\rangle!\langle\mathrm{GHZ}{\theta}|}, where

[TABLE]

In this part we compute the expectation value of the parity $\sigma_{x}^{\otimes N}$ on the noisy state $\rho:=U_{G}\bar{\psi}_{\mathrm{GHZ},\theta}(t)U^{\dagger}_{G}$. Using Eq. (95) we find

[TABLE]

where $d(t)$ is given below Eq. (95) in Appendix E.1. From the above expression and using \hat{M}\mbox{|0\rangle}^{\otimes N}=\mbox{|1\rangle}^{\otimes N}, we get

[TABLE]

Finally, repeating essentially the same computations as the ones from Section B.1 we obtain

[TABLE]

B.3 Parity expectation value for optimal decoherence-free states

Repeating the analogous computations to these given in Appendix B.1 for

[TABLE]

we obtain

[TABLE]

[TABLE]

where we denoted \mbox{|a\rangle}:=\mbox{|1\rangle}^{\otimes N/2}\otimes\mbox{|0\rangle}^{\otimes N/2} and \mbox{|b\rangle}:=\mbox{|0\rangle}^{\otimes N/2}\otimes\mbox{|1\rangle}^{\otimes N/2}. Using the above expressions together with the identity \hat{M}\mbox{|b\rangle}=\mbox{|a\rangle} we obtain

[TABLE]

where \psi^{N/2}_{\mathrm{ODF}}=\mbox{|\mathrm{ODF}{N/2}\rangle!\langle\mathrm{ODF}{N/2}|}.

Appendix C Classical Fisher information for $J_{x}$ measurement

Analogous computations to the ones performed in Section IV can be performed to show that the classical Fisher Information for the measurement of the projective POVM $\mathbf{P}_{J_{x}}$, associated with the eigenspaces of $J_{x}$, also gives the QFI for the optimal states. More precisely

[TABLE]

for $\operatorname{\varrho}=\psi_{\mathrm{GHZ}}$ and $\operatorname{\varrho}=\psi^{N/2}_{\mathrm{ODF}}$.

This result can be also derived from the monotonicity of QFI under coarse-graining, i.e.,

[TABLE]

where $\{N_{i}\}$ is a POVM obtained by coarse-graining of a POVM $\{M_{i}\}$ i.e for every outcome $i$ we have $N_{i}=\sum_{j}q(i|j)M_{j}$ for some stochastic matrix $q(i|j)$ (we call a matrix $q(i|j)$ stochastic if and only if $q(i|j)\geq 0$ and for every $j$ we have $\sum_{i}q(i|j)=1$). A measure $\mathbf{P}$, describing the measurement of the parity in $x$ basis $\sigma_{x}^{\otimes N}$, can be obtained as follows: First, measuring the projective measurement $\mathbf{P}_{J_{x}}$. Second, output ”+1” or ”-1” depending on the number of excitations contributing to the observed eigenvalue of $J_{x}$. Therefore, $\mathbf{P}$ is coarse-graining of $\mathbf{P}_{J_{x}}$ and thus, by the virtue of Eq. (89) we obtain Eq. (88) for arbitrary states $\operatorname{\varrho}$.

Appendix D Computations of error-propagation formula for GHZ states in presence of noise

The aim of this section is to show that for a suitable chosen value of the initial relative phase in a state $|\mathrm{GHZ}_{\theta}\rangle$ it is possible to saturate the quantum Cramér-Rao bound with the measurement of $\hat{M}=\sigma_{x}^{\otimes N}$, even in the presence of collective phase noise. Our reasoning essentially mimics the one given in the previous section. Setting $\psi_{G,\mathrm{noise}}=U_{G}\bar{\psi}_{\mathrm{GHZ},\theta}U^{\dagger}_{G}$ and using (83) we obtain

[TABLE]

with $\alpha(t):=N\gamma B_{0}t+\gamma Gt\sum_{i=1}^{N}(x_{i}-x_{0})+\theta$. Using this formula in the error propagation formula given in Eq. (11) we get

[TABLE]

From this we see that the quantum Cramér-Rao bound [in this case given by the inverse of the QFI in Eq. (41)] is saturated for $\mathrm{cot}\left[\alpha(t)\right]=0$ (for a suitable choice of the initial phase $\theta$).

Appendix E Optimal states in presence of collective phase noise

In this section we will assume full * a priori* knowledge about $B_{0}$. We calculate the QFI first for GHZ states in presence of noise and then for optimal states for arbitrary position $x_{0}$ in presence of noise.

E.1 GHZ states in presence of collective phase noise

Due to the noise, the probe state $\varrho$ evolves into a mixed state $\bar{\operatorname{\varrho}}(t)\coloneqq\langle U_{\mathrm{noise}}\operatorname{\varrho}U^{\dagger}_{\mathrm{noise}}\rangle$ where $U_{\mathrm{noise}}=\mathrm{exp}\left[-\mathrm{i}\gamma^{\prime}\int_{0}^{t}\Delta E(\tau)\mathrm{d}\tau J_{z}\right]$ describes the noise acting on the system. The diagonal entries of the probe state do not change $\bar{\varrho}(t)_{ii}=\varrho_{ii}$. However, the off-diagonal ones do. The GHZ state has only two non-zero off-diagonal entries $\varrho_{0,q}=(\varrho_{q,0})^{\dagger}$, where $q=2^{N}-1$ for a state of dimension $2^{N}$. For these entries we find Monz2011

[TABLE]

Now we use the fact that $\langle\exp[\pm\mathrm{i}\delta\varphi]\rangle=\exp[-\frac{1}{2}\Delta^{2}\delta\varphi]$ for an unbiased Gaussian distribution of $\delta\varphi$ that means that $\langle\delta\varphi\rangle=0$. With the fact that the variance $\Delta^{2}\delta\varphi=\langle\delta\varphi^{2}\rangle$ we can calculate

[TABLE]

with $C(t)=\langle\int_{0}^{t}\mathrm{d}\tau_{1}\int_{0}^{t}\mathrm{d}\tau_{2}\Delta E(\tau_{1})\Delta E(\tau_{2})\rangle$. Substituting $t_{1}=\tau_{1}-\tau_{2}$ and $t_{2}=\tau_{1}+\tau_{2}$ and using $\langle E(t+\tau)E(t)\rangle=\langle E(\tau)E(0)\rangle$ and $\langle\Delta E(t)\Delta E(0)\rangle=(\Delta E)^{2}\exp\left[-t/\tau_{c}\right]$ we find

[TABLE]

Together, we find the $N$-particle GHZ state evolves in presence of collective phase noise into the state

[TABLE]

with $d(t)=\mathrm{exp}\left[-\left(N\gamma^{\prime}\Delta E\tau_{c}\right)^{2}\left(\exp(-t/\tau_{c})+t/\tau_{c}-1\right)\right]$. This state in its eigendecomposition is given by the non-zero eigenvalues $\lambda_{\pm}=\frac{1}{2}(1\pm d(t))$ and the corresponding eigenvectors \mbox{|v_{\pm}\rangle}=\frac{1}{\sqrt{2}}\left(\mbox{|0\cdots 0\rangle}\pm\mbox{|1\cdots 1\rangle}\right). In order to compute the QFI for a noisy GHZ state and for estimating $G$ we use Eq. (16) and Eq. (6), with the final result

[TABLE]

where all other terms in Eq. (6) vanish since

[TABLE]

E.2 Optimal states for arbitrary position $x_{0}$ in presence of noise

Let $m$ be the minimal number with $f_{m}\leq 0$, that is the number of particles on the left side of $x_{0}$. Then, in Appendix A we showed that the optimal state is given by

[TABLE]

Following the calculations from the previous section we find the averaged state for a given time $t$

[TABLE]

with

[TABLE]

In the cases of $m=0$ and $m=N$ the optimal state is a GHZ state \mbox{|\Psi_{0}\rangle}=\mbox{|\Psi_{N}\rangle}=\mbox{|\mathrm{GHZ}\rangle} and we find $d_{0}(t)=d_{N}(t)=d(t)$. The non-zero eigenvalues of $\bar{\varrho}(t)$ are given by $\lambda^{m}_{\pm}(t)=\frac{1\pm d(m,t)}{2}$ with the corresponding eigenvectors

[TABLE]

Now we can use the fact that

[TABLE]

to evaluate the QFI for estimating $G$ that is given by

[TABLE]

Appendix F Optimal product state in the steady state regime

In the noiseless case, the product state $|\mathrm{P}\rangle$ is the best classical probe state. We now want to understand, what noise (loosing information about $B_{0}$) does to the scaling for this state. The state \bar{\psi}_{P}(t\rightarrow\infty)=\sum_{k=0}^{N}p_{k}\mbox{|\mathcal{D}{N}^{k}\rangle}\mbox{\langle\mathcal{D}{N}^{k}|} is a mixture of symmetric Dicke states $|\mathcal{D}_{N}^{k}\rangle$ Dicke1954 with probabilities $p_{k}=2^{-N}\binom{N}{k}$, where $\sum_{k=0}^{N}p_{k}=1$. Recall first that

[TABLE]

where we set for convenience $f_{i}\coloneqq x_{i}-x_{0}$. We perform the calculations analogous to the ones given in Ref. Altenburg2016 . Because of the fact that $H_{G}$ preserves subspaces $\mathcal{V}_{k}$ and \mbox{|\mathcal{D}{N}^{k}\rangle}\in\mathcal{V}_{k} we have \mbox{\langle\mathcal{D}{N}^{s}|H_{G}|\mathcal{D}_{N}^{l}\rangle}\propto\delta_{l,s} and therefore the QFI reduces to

[TABLE]

with $\Delta_{k}^{2}H_{G}$ being the variance of $H_{G}$ in the state $|\mathcal{D}_{N}^{k}\rangle$. The second term of the variance is the squared expectation value $\langle H_{G}\rangle$, which is given by

[TABLE]

using the symmetry of the state. The expectation value of the squared operator $\langle H_{G}^{2}\rangle$ is

[TABLE]

Using the symmetry of the state \mbox{\langle\mathcal{D}{N}^{k}|\sigma{z}^{(i)}\sigma_{z}^{(j)}|\mathcal{D}{N}^{k}\rangle}=\mbox{\langle\mathcal{D}{N}^{k}|\sigma_{z}^{(a)}\sigma_{z}^{(b)}|\mathcal{D}_{N}^{k}\rangle} for arbitrary $a$ and $b$, we can rewrite the second term

[TABLE]

Together the variance is given by

[TABLE]

Here, all terms with $x_{0}$ vanish. Therefore, $4\Delta_{k}^{2}H_{G}$ is independent of $x_{0}$. Using $\sum_{k=0}^{N}2^{-N}\binom{N}{k}\left(2k-N\right)^{2}=N$, we can calculate the QFI

[TABLE]

For the maximization of Eq. (110) over the positioning $\{x_{i}\}$ we can state:

Lemma 1**.**

Let $N$ be an even natural number and let

[TABLE]

Then, the restriction of $f$ to the domain $x_{i}\in[x_{0},x_{0}+L]$ attains the maximum value for $x_{i}=x_{0}$, for $i=1,\ldots,N/2$ and $x_{i}=x_{0}+L$ for $i=N/2+1.\ldots,N$.

Proof.

A direct computation shows that for any $\delta\in\mathbb{R}$ we have

[TABLE]

Therefore, the problem of maximizing $f$ in the domain specified by the restrictions $x_{i}\in[x_{0},x_{0}+L]$ can be reduced to the problem of maximizing this function for its arguments satisfying $x_{i}\in[-L/2,L/2]$. For such restrictions setting half of $x_{i}$ equal to $-L/2$ and the other half equal to $L/2$ maximizes $\sum_{i=1}^{N}x_{i}^{2}$ while at the same time minimizing $\left(\sum_{i=1}^{N}x_{i}\right)^{2}$. Thus, such configuration maximizes $f$ for $x_{i}\in[-L/2,L/2]$. Coming back to the original interval we get the thesis of the lemma. ∎

Appendix G Bounds in precision for gradient estimation with no a priori knowledge about $B_{0}$

In this Section we derive the bounds in precision for gradient estimation under the assumption of no a priori knowledge about the offset field $B_{0}$. In particular, we will prove Eq. (50), Eq. (51), Eq. (52), and Eq. (53) given in Section V.

Let us start with proving Eq. (50) which reads

[TABLE]

In order to prove this equation we first recall the connection $\operatorname{\mathnormal{F_{Q}}\!}(\operatorname{\varrho})=(\gamma t)^{2}\operatorname{\mathnormal{F_{Q}}\!}[\operatorname{\varrho},H_{G}]$. Then, for the ”Hamiltonian” quantum Fisher information we have

[TABLE]

where $\{p_{k}\}$ is a probability distribution and states $\operatorname{\varrho}_{k}$ are supported on $\mathcal{V}_{k}$. Eq. (114) follows from the fact that $H_{G}$ preserves decoherence-free subspaces $\mathcal{V}_{k}$ and the ”additivity” QFI under the convex combinations of states supported on orthogonal subspaces Toth2014 . The identity in Eq. (113) follows now from the linearity of the right-hand side of Eq. (114) in $\{p_{k}\}$ and the fact that decoherence-free states are precisely of the form $\sum_{k=0}^{N}p_{k}\operatorname{\varrho}_{k}$ for $\operatorname{\varrho}_{k}$ supported on $\mathcal{V}_{k}$.

The optimal value of the QFI on $\mathcal{D}(\mathcal{V}_{k})$ can be found by using Eq. (8) and Eq. (9). Let $\lambda_{\max}^{(k)}$ and $\lambda_{\min}^{(k)}$ denote the maximal and respectively minimal eigenvalues of $\left.H_{G}\right|_{\mathcal{V}_{k}}$ [the formula for $H_{G}$ is given for example in Eq. (67)]. Using the monotonicity of the coefficients $f_{i+1}\geq f_{i}$ with $f_{i}=(x_{i}-x_{0})$ we get

[TABLE]

The corresponding eigenvectors are given by

[TABLE]

Using Eq. (115) and Eq. (116) we get

[TABLE]

From Eq. (16) and Eq. (118) we obtain the explicit formula for the maximal QFI on $\mathcal{V}_{k}$,

[TABLE]

where $l=\min\{k,N-k\}$. From Eq. (9) we find that the above value is attained for the state

[TABLE]

We have therefore proved Eq. (51) and Eq. (52).

We conclude by noting that the right hand side of Eq. (119) is a monotonic function in $k$ for $2k\leq N$ and $\max_{\operatorname{\varrho}\in\mathcal{D}(\mathcal{V}_{k})}\operatorname{\mathnormal{F_{Q}}\!}(\operatorname{\varrho})=\max_{\operatorname{\varrho}\in\mathcal{D}(\mathcal{V}_{N-k})}\operatorname{\mathnormal{F_{Q}}\!}(\operatorname{\varrho})$ – see Fig. 8 for a graphical explanation of this fact. Therefore, the QFI is maximal for $k=\left\lfloor\frac{N}{2}\right\rfloor$, where $\lfloor n\rfloor$ is the smallest integer smaller or equal to $n$ that is called the floor of $n$. Using Eq. (113) we get

[TABLE]

This maximum is obtained for the state

[TABLE]

where $\lceil n\rceil$ is the highest integer greater or equal to $n$ that is called the ceil of $n$. Let us note that if $N$ is not even also the state

[TABLE]

attains the maximal QFI given in Eq. (121).

G.1 Optimal positioning of the qubits

Consider $N$ particles that are set to be located in the interval $x_{i}\in\left[\tilde{x}_{0},L+\tilde{x}_{0}\right]$. Here, $\tilde{x}_{0}$ is an arbitrary point. We are interested in how to optimally locate the qubits in order to get the best possible accuracy for the estimation of $G$ (for fixed $N$ and $L$). According to Eq. (119) the maximal QFI, attainable with a state from the $\mathrm{DFS}_{N}$ is given by

[TABLE]

The maximum of (124) over the locations of all particles $\left\{x_{i}\right\}_{i=1}^{N}$ is attained for $x_{i}=\tilde{x}_{0}$ for $i\leq\left\lfloor\frac{N}{2}\right\rfloor$ and $x_{i}=L+\tilde{x}_{0}$ for $i>\left\lfloor\frac{N}{2}\right\rfloor$ or vice versa. Then, the maximal QFI is given by

[TABLE]

Let us note that in the case when $N$ is odd the position of the “middle” particle can be arbitrary. We want to emphasize that the scaling behavior (with respect to $N$ and $L$) of the (over the choice of $x_{i}$’s) optimized QFI is preserved if one picks the optimal state which is invariant to the considered noise model.

G.2 Crosspoint GHZ in presence of noise and optimal state from the DFS

In the noiseless case the GHZ state is optimal for gradient estimation when $B_{0}$ is known. However, collective phase noise causes an erasure of knowledge about the offset field $B_{0}$. In the limit of no knowledge about $B_{0}$ we found an optimal state from the $\mathrm{DFS}_{N}$ given in Eq. (120) with $k=\lfloor N/2\rfloor$. In total the maximal attainable QFI for this state is smaller then for the GHZ state in the noiseless case. Therefore, in this section we calculate the measurement time $t_{\mathrm{crit}}$ in which both perform similar. The QFI for GHZ states in presence of collective phase noise is given by

[TABLE]

with $d(t)=\mathrm{exp}\left[-\left(N\gamma^{\prime}\Delta E\tau_{c}\right)^{2}\left(\exp(-t/\tau_{c})+t/\tau_{c}-1\right)\right]$. The QFI for the optimal state from the $\mathrm{DFS}_{N}$ with $k=\lfloor N/2\rfloor$ is given by

[TABLE]

Then, we can calculate the critical time $t_{\mathrm{crit}}$ by setting both equal and solve for $t$. In realistic experiments the correlation time $\tau_{c}\propto\,$s and the measurement time $t\propto\,$ms. Such that we can assume $t/\tau_{c}\ll 1$ which leads to $[\exp(-t/\tau_{c})+t/\tau_{c}-1]\approx 1/2(t/\tau_{c})^{2}$ and we find

[TABLE]

Appendix H Spatial distributions used in Fig. 4

In Fig. 4 we illustrated the QFI with a state from the $\mathrm{DFS}_{N}$ with $k$ excitations for different kinds of spatial distributions of the qubits. For these, we used the following functions: The optimal spatial distribution for the positioning of the qubits is marked in black in Fig. 4 and is given by

[TABLE]

The spatial distribution marked by the color darker grey (purple), is given by

[TABLE]

The equidistant spatial distribution marked in grey (red) is given by

[TABLE]

and the spatial distribution marked by lighter grey (yellow), is given by

[TABLE]
