Anisotropic exchange and spin-wave damping in pure and electron-doped Sr$_2$IrO$_4$

TL;DR

This study investigates magnetic excitations in Sr$_2$IrO$_4$ and its electron-doped variants, revealing anisotropic interactions and spin-wave damping effects that distinguish it from cuprate superconductors.

Contribution

It provides the first detailed analysis of anisotropic exchange interactions and spin-wave damping in both pure and doped Sr$_2$IrO$_4$ using resonant inelastic x-ray scattering.

Findings

Magnon energy gaps observed at all doping levels.

Pronounced momentum-dependent spin-wave broadening.

Significant anisotropy in magnetic interactions.

Abstract

The collective magnetic excitations in the spin-orbit Mott insulator (Sr$_{1-x}$La$_x$)$_2$IrO$_4$ ($x=0,\,0.01,\,0.04,\, 0.1$) were investigated by means of resonant inelastic x-ray scattering. We report significant magnon energy gaps at both the crystallographic and antiferromagnetic zone centers at all doping levels, along with a remarkably pronounced momentum-dependent lifetime broadening. The spin-wave gap is accounted for by a significant anisotropy in the interactions between $J_\text{eff}=1/2$ isospins, thus marking the departure of Sr$_2$IrO$_4$ from the essentially isotropic Heisenberg model appropriate for the superconducting cuprates.

Figures

Tables

Table 1. Table 1: Equation ( 1 ) best-fit parameters as extracted from the Q 𝑄 Q -resolution-corrected single-magnon dispersion (Fig.  4 ) and measured and Q 𝑄 Q -resolution-corrected sup energy gap values for the different doping concentrations. | J 2 | / J 3 subscript 𝐽 2 subscript 𝐽 3 \lvert J_{2}\rvert/J_{3} was kept fixed to 1.33 1.33 1.33 for all samples. The values in parentheses represent 1 ​ σ 1 𝜎 1\sigma confidence intervals for the best-fit parameters, while they correspond to the maximum between the statistical 2 ​ σ 2 𝜎 2\sigma confidence interval and the estimated systematic error sup for the gap values.

$𝐱$	$\widetilde{𝐉}$ (meV)	${𝐉}_{\mathrm{𝟐}}$ (meV)	${𝐉}_{\mathrm{𝟑}}$ (meV)	${𝚫}_{\lambda }$	Measured gap (meV)		Corrected values (meV)
					$(\mathrm{𝟎},\mathrm{𝟎})$	$(𝝅,𝝅)$	$(\mathrm{𝟎},\mathrm{𝟎})$	$(𝝅,𝝅)$
0	57(1)	-16.5(4)	12.4(3)	0.05(2)	24(5)	27(4)	19(7)	22(4)
0.01	51(1)	-18.5(4)	13.9(3)	0.06(2)	33(5)	19(4)	29(7)	13(4)
0.04	44.5(5)	-17.2(2)	12.9(1)	0.03(2)	22(6)	20(4)	12(11)	14(4)
0.1	41.7(5)	-18.4(2)	13.8(2)	0.04(2)	23(6)	20(4)	16(8)	14(4)

Equations

$$H=$$

$$+$$

Full text

I Introduction

The combination of strong spin-orbit coupling in the presence of significant electron correlations leads to radically new electronic and magnetic phases, the elucidation of which is the subject of intense experimental and theoretical efforts Witczak-Krempa et al. (2014). In their landmark paper, Jackeli and Khaliullin (2009) established how for the case of a $J_{\text{eff}}=1/2$ ground state, relevant for octahedrally coordinated Ir4+-based transition-metal oxides (TMOs), a unique balance arises between anisotropic and isotropic exchanges, enshrined in the Kitaev-Heisenberg model, which depends exquisitely on lattice topology. Therefore determining the nature of anisotropic interactions is central to the program of understanding the novel physics displayed by $5d$ (and, indeed, $4d$) TMOs.

Sr2IrO4 is of particular significance as the first spin-orbit Mott insulator to be identified Crawford et al. (1994) and because of its electronic and structural similarities Crawford et al. (1994); Kim et al. (2014a, 2016); de la Torre et al. (2015); Cao et al. (2016) to the cuprate superconductor parent compound La2CuO4. This has led to the prediction of a superconducting state in doped Sr2IrO4 Wang and Senthil (2011); Meng et al. (2014). Analogous to the Cu2+ ($S=1/2$) magnetic moments in La2CuO4, the spin-orbit entangled $J_{\text{eff}}=1/2$ Kim et al. (2009, 2008) isospins of the Ir4+ ions in Sr2IrO4 order at low temperature in a two-dimensional (2D) square lattice of antiferromagnetically coupled moments confined in the IrO2 planes of the tetragonal crystal structure Boseggia et al. (2013); Kim et al. (2009). Upon doping Sr2IrO4 with electrons, the long-range order is suppressed, while short-range magnetic correlations have been shown to persist up to about $6\%$ La substitution Liu et al. (2016); Gretarsson et al. (2016); Chen et al. (2015). A similar behavior is also encountered in the hole-doped cuprates Dean et al. (2013), as expected given the opposite sign of the next-nearest-neighbor hopping amplitude Wang and Senthil (2011). Collective magnetic excitations with vanishing energy gap and a qualitatively similar energy dispersion have been reported to date in the parent and doped compounds of both La2CuO4 Coldea et al. (2001); Dean et al. (2013) and Sr2IrO4 Kim et al. (2012); Liu et al. (2016); Gretarsson et al. (2016), which were interpreted in both cases in terms of a standard isotropic Heisenberg Hamiltonian extended to include next-nearest-neighbor interactions.

The experimental reports of a purely isotropic exchange model for Sr2IrO4 are, in fact, at variance with the detailed predictions of Jackeli and Khaliullin (2009), who argued that there should be significant departures from the rotationally invariant Heisenberg model when Hund’s coupling ($J_{H}=0.45$ eV in the case of Ir4+ Igarashi and Nagao (2014, 2013)) and the deviation from cubic symmetry are incorporated. In this scenario, collective magnetic excitations will acquire a finite energy gap at both the crystallographic and antiferromagnetic (AF) zone centers. Evidence supporting the presence of anisotropic magnetic interactions in Sr2IrO4 has come from a number of sources, including a detailed study of the magnetic critical scattering Vale et al. (2015) and the observation of a small, zero-wave-vector magnon energy gap in electron spin resonance ($0.83$ meV) Bahr et al. (2014) and Raman spectroscopy ($1.38$ meV) Gim et al. (2016). Nonetheless, all previous resonant inelastic x-ray scattering (RIXS) investigations on the magnetic excitation spectrum of the parent Kim et al. (2012) and electron-doped compounds Liu et al. (2016); Gretarsson et al. (2016) have not explicitly reported the presence of a gap, nor have they discussed the role of the anisotropic terms in the interaction Hamiltonian.

In this paper we report on a comprehensive RIXS study of the collective magnetic excitations in both parent Sr2IrO4 and its electron-doped version (Sr1-xLax)2IrO4. In contrast to earlier studies, we perform a full line-shape analysis of the RIXS spectra, including, most importantly, the effect of the finite momentum $Q$ and energy resolution. The excitation spectrum is shown to be fully gapped at all wave vectors in the Brillouin zone (BZ) up to $x=0.1$, indicating the existence of anisotropic exchange interactions, and a previously unreported anisotropic damping away from the zone centers is revealed.

II Samples and experimental setup

Single crystals of (Sr1-xLax)2IrO4 with varying La concentration [$x=0,\,0.01(1),\,0.04(1),\,0.10(1)$] were flux grown using standard methods and characterized by resistivity and susceptibility measurements as described in Ref. de la Torre et al., 2015 for samples of the same batch. The doping level of each of the crystals was checked by means of energy-dispersive x-ray spectroscopy (EDX). Substitution of trivalent La for divalent Sr dopes the system with electrons ($2x\,e^{-}/\text{Ir}$ atom) and suppresses the long-range magnetic order for $x>x_{c}=0.02(1)$ Chen et al. (2015), while short-range correlations persist in the basal plane of the crystal Chen et al. (2015); Gretarsson et al. (2016); de la Torre et al. (2015); sup .

The RIXS measurements were performed at the ID20 beamline of the European Synchrotron Radiation Facility (Grenoble, France). The experiment was carried out in horizontal scattering geometry using a spherical ($R=2$ m) Si(844) diced analyzer with a $60$ mm mask and a Si(844) secondary monochromator. This resulted in an overall energy resolution of $\text{FWHM}=23.4\,(28.0)$ meV for the $x=0,\,0.01,\,0.04\,(0.1)$ measurements and an in-plane momentum resolution of $\Delta Q_{\perp}\approx 0.18\,\text{\AA}^{-1}$ sup . The samples were cooled down to $T=20$ K (below the Néel transition at $T_{N}\approx 230$ K found in undoped Sr2IrO4 Vale et al. (2015)) by means of a He-flow cryostat.

The in-plane momentum transfer values $\mathbf{Q}_{\perp}=(Q_{x}\,,\,Q_{y})$ reported in this paper are quoted in units of $1/a$, where $a=3.89\,\text{\AA}$ is the in-plane lattice constant of the undistorted $I4/mmm$ unit cell. The out-of-plane component was kept fixed to $L=33$ for all the spectra ($L$ is the out-of-plane Miller index). The only exception is represented by the $(0,0)$ spectrum in the $x=0$ sample: this was measured for $L=32.85$ to minimize the strong elastic signal arising from the ordered magnetic structure.

III Results

III.1 Spin-wave excitation spectrum

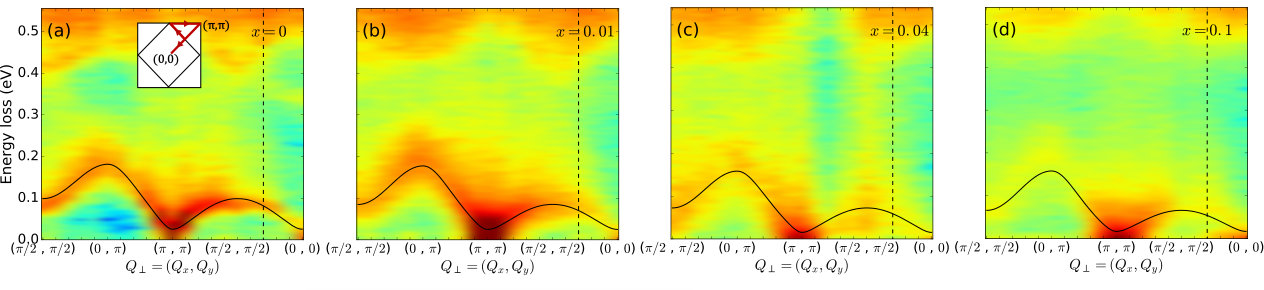

RIXS spectra were collected keeping the incident energy fixed to the Ir $L_{3}$ absorption edge and measuring the energy of the scattered photons in the energy loss range $E_{\text{loss}}=-0.2-0.6$ eV. For each value $x$ of La content, several spectra were collected for different values of $\mathbf{Q}_{\perp}$ along high-symmetry directions of the $(0,0,33)$ first BZ ($2\theta\approx 90^{\circ}$). These are plotted in the intensity maps of Figs. 1(a)-1(d). As first reported by Kim et al. (2012), the parent compound data show a collective magnetic excitation dispersing from the AF zone center $(\pi,\pi)$ and extending up to about $0.2$ eV. In agreement with earlier studies Gretarsson et al. (2016); Liu et al. (2016), damped magnetic excitations with a similar in-plane dispersion survive in the doped compounds deep into the metallic phase, where the long-range magnetic order is suppressed sup . In particular, the magnons in our heavily doped ($x=0.1$) Sr2IrO4 sample still reflect the persistence of commensurate short-range order, in contrast to hole-doped La2CuO4 sup ; Fujita et al. (2012); Vignolle et al. (2007); Cheong et al. (1991).

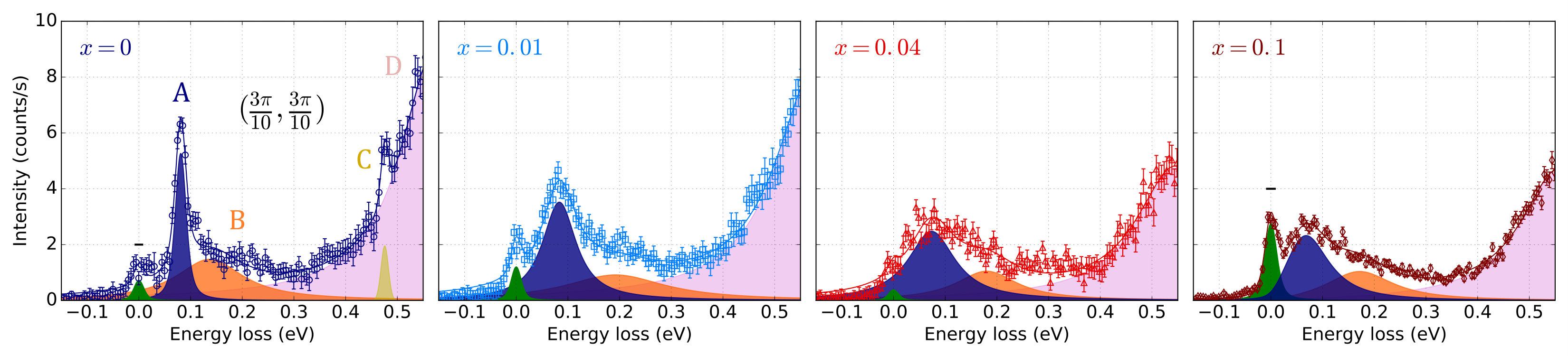

A quantitative analysis of the spin-wave spectrum was achieved by fitting the RIXS data by a sum of an elastic line and the following inelastic features (Fig. 2): (A) single-magnon excitation, (B) a multimagnon continuum and (C) and (D) intra-$t_{2g}$ excitations Kim et al. (2012, 2014b). Each feature was modeled by a Voigt profile, with the width of the Gaussian component constrained to the experimental energy resolution: this allows the extraction of both the energy and the intrinsic Lorentzian lifetime broadening of the excitations sup .

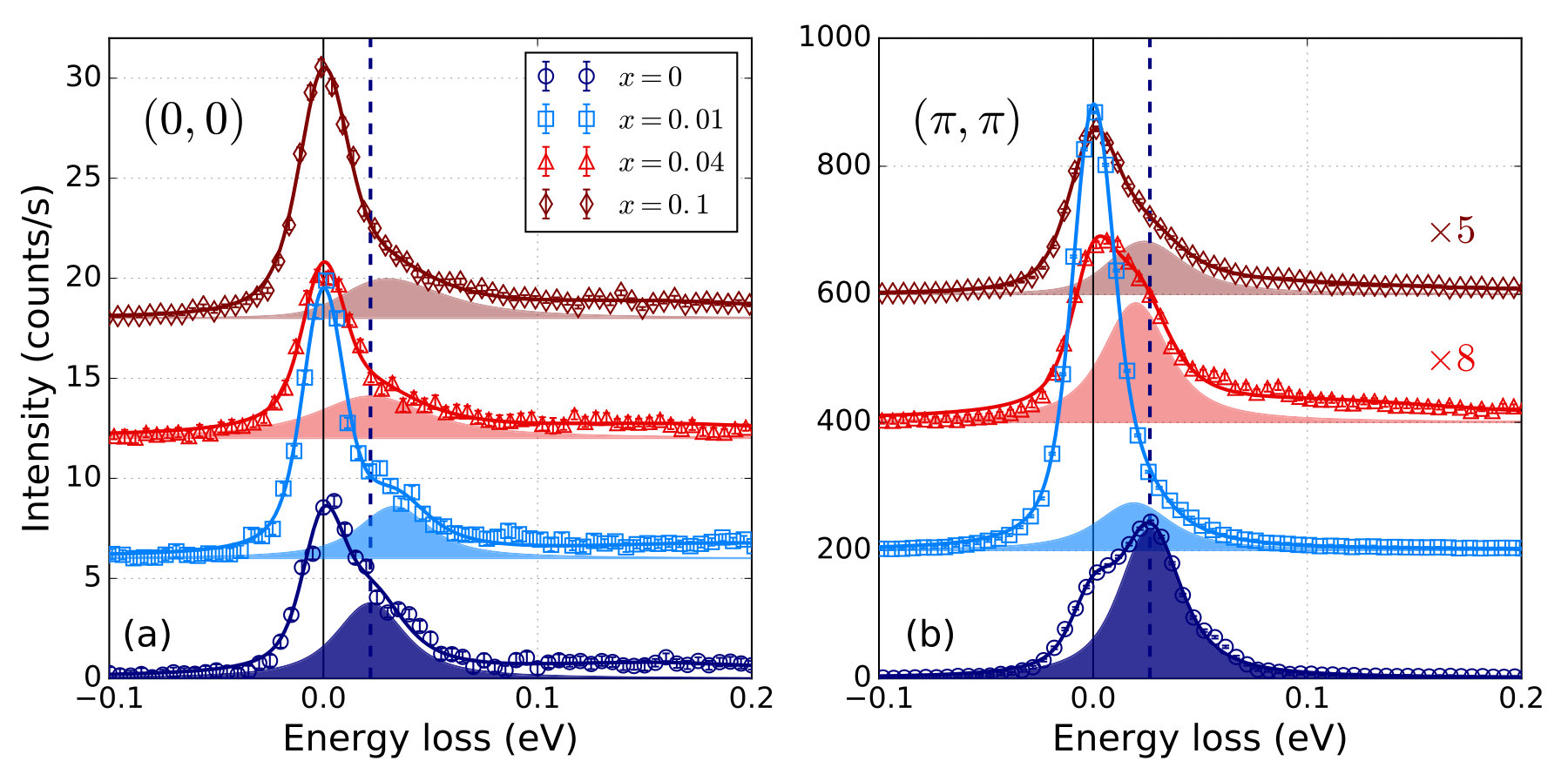

One of the main features emerging from our data is the presence of a finite energy gap, which appears relatively robust with La doping. This is evident from the low-energy detail of the spectra collected at the crystallographic and AF zone centers shown in Figs. 3(a) and 3(b), respectively. Simple inspection reveals a separate energy-loss peak partially overlapping with the elastic line. Based on its energy and momentum dependence, we argue that it corresponds to a gapped spin-wave excitation. We note that the finite $Q$ resolution of the spectrometer can generally lead to an artificial gap at minima of the dispersion. However, the measured gap values at all doping levels (Table 1) consistently exceed the artificial gaps simulated for the case of gapless excitations sup . This result is robust against both the statistical ($2\sigma$ confidence interval) and the estimated systematic error sup : the presence of gapped magnons is thus to be considered an intrinsic property of the excitation spectrum in (Sr1-xLax)2IrO4. As shown in the Supplemental Material sup , the impact of the $Q$ resolution can be factored out from the measured energy values, leading to an average gap of 19(9) and 16(4) meV at $(0,0)$ and $(\pi,\pi)$, respectively, with no systematic doping dependence (see Table 1). We note that recent electron spin resonance Bahr et al. (2014) and Raman spectroscopy Gim et al. (2016) studies reported a smaller gap of, respectively, $0.83$ and $1.38$ meV at the crystallographic zone center. The origin of the discrepancy with the above analysis remains an open issue. Nonetheless, our value appears to be roughly consistent with a previous estimate in the undoped compound Vale et al. (2015).

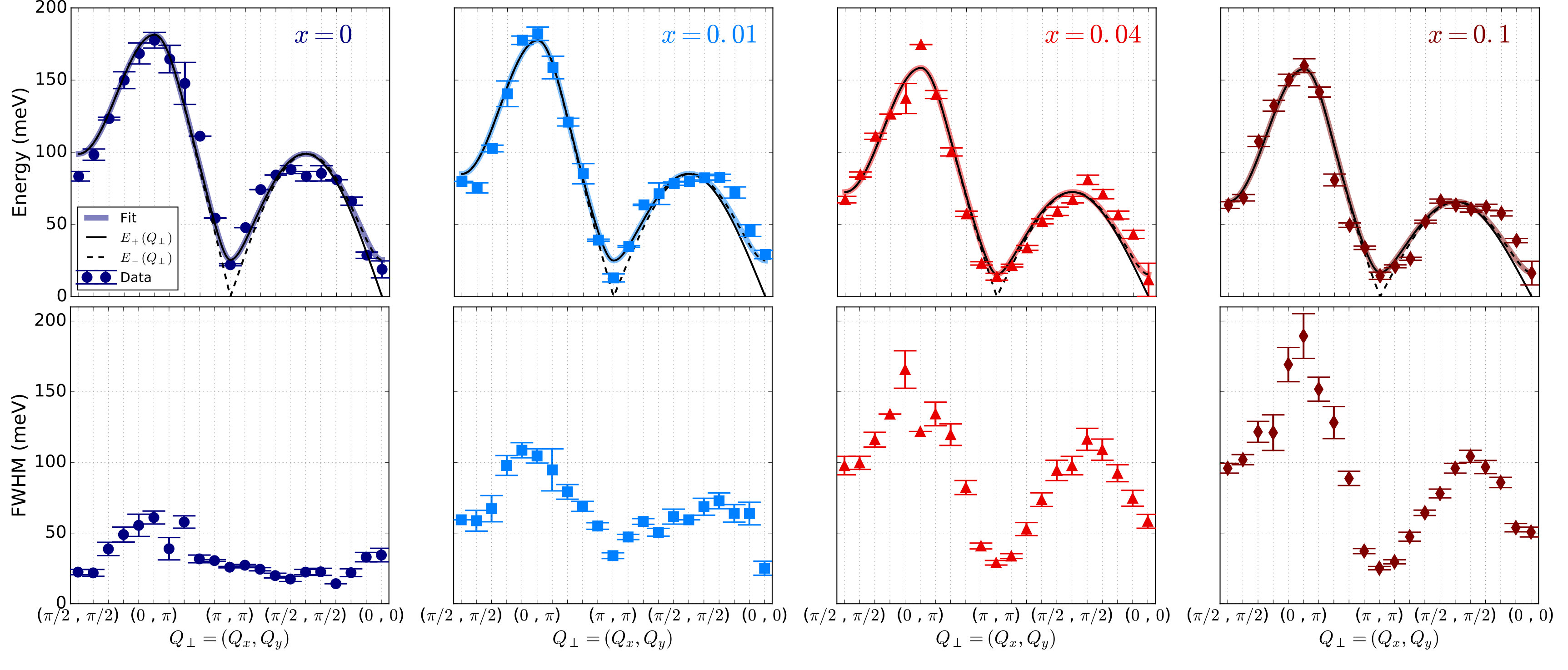

The full energy dispersion (corrected for the finite $Q$ resolution sup ) of the single magnon for the different doping levels across the BZ is summarized in Fig. 4 along with the corresponding Lorentzian FWHM. Besides displaying a finite energy gap, Fig. 4 reveals that the magnon peak at $(0,0)$ and $(\pi,\pi)$ does not considerably broaden as the dopant concentration is increased (the FWHM increases by only $60\%$ going from the parent to the heavily doped $x=0.1$ sample). On the other hand, a remarkably pronounced anisotropic broadening occurs away from the zone centers. The largest effect is seen at the zone boundaries $(0,\pi)$ and $(\pi/2,\pi/2)$, where the FWHM increases by a factor of about $3$ and $4$, respectively, going from $x=0$ to $x=0.1$. Here, heavily damped magnetic excitations (paramagnons) are thus present.

III.2 Magnetic Hamiltonian

The spin-wave gap arises as a result of a significant easy-plane anisotropy in the exchange interaction between $J_{\text{eff}}=1/2$ isospins. In Ref. Vale et al., 2015, the magnetic critical scattering and RIXS data were found to be correctly described by the following two-dimensional anisotropic Heisenberg (2DAH) Hamiltonian:

[TABLE]

where $\tilde{J}=J_{1}/(1-\Delta_{\lambda})$ is an effective nearest-neighbor (NN) exchange integral depending on the in-plane anisotropy parameter $0\leq\Delta_{\lambda}\leq 1$ Keimer et al. (1993) and $J_{2}$ and $J_{3}$ model the next-NN. and third-NN exchange interactions, respectively. In the framework of linear spin-wave theory, Eq. (1) gives rise to two momentum-dependent magnetic modes $E_{\pm}(\mathbf{Q}_{\perp})$ sup . For $\Delta_{\lambda}\neq 0$, the latter are nondegenerate and display a finite energy gap at the crystallographic ($E_{-}$) and AF ($E_{+}$) zone centers (see Fig. 4). The two magnetic modes $E_{\pm}$ are not resolved in our measurements. The reason is that their energy is almost degenerate for most of the $\mathbf{Q}_{\perp}$ values explored, with a non-negligible splitting present only at the zone centers. Moreover, the gapless mode carries a vanishingly small spectral weight at $(0,0)$, while it is hidden by the elastic signal arising from a weak structural reflection Ye et al. (2013); Dhital et al. (2013) at $(\pi,\pi)$. Only the gapped mode is thus expected to be visible in the RIXS spectra and to account for the observed gap. Following this reasoning, the measured dispersion was then fitted to (i) $E_{+}$ along the path $(\pi/2,\pi/2)\rightarrow(0,\pi)\rightarrow(\pi,\pi)\rightarrow(\pi/2,\pi/2)$ and (ii) $E_{-}$ along the path $(\pi/2,\pi/2)\rightarrow(0,0)$. The results are shown in Fig. 4, while the corresponding best-fit parameters are summarized in Table 1.

The $Q$-resolution-corrected gap at all doping levels is correctly reproduced by a value of the easy-plane anisotropy $\Delta_{\lambda}$ in the range $0.03-0.06$ (Table 1), in good agreement with previous theoretical predictions Igarashi and Nagao (2014, 2013); Solovyev et al. (2015) and experimental estimates Vale et al. (2015) for the undoped compound. These values are significantly larger than the ones found in La2CuO4 Keimer et al. (1993). Our results thus confirm the critical scattering data Vale et al. (2015) and firmly establish the importance of easy-plane anisotropy in the low-energy Hamiltonian of Sr2IrO4. The expression of the anisotropic exchange of Eq. (1) is consistent with the dipolar-like term expected to arise as a result of finite Hund’s coupling in the model by Jackeli and Khaliullin (2009). Considering the exchange parameters of Table 1, the latter predicts values of the in-plane ($\Delta_{xy}\approx\Gamma_{2}=3$ meV) and out-of-plane ($\Delta_{z}\approx\sqrt{\tilde{J}\Gamma_{1}}=9$ meV) gaps, which, although smaller, are consistent in order of magnitude with the ones measured from the RIXS spectra. The anisotropy does not show any significant dependence on the La content within the experimental uncertainty, thus suggesting that it is robust with carrier doping. The impact of electron doping on the spin-wave energy dispersion is limited to a renormalization of the NN exchange interaction: this decreases as $x$ is increased (Table 1), in agreement with what was reported by Gretarsson et al. (2016). The pronounced anisotropic broadening, however, suggests that the injection of free carriers causes a strong enhancement of the scattering processes along the zone boundary $(\pi/2,\pi/2)\rightarrow(0,\pi)$, which shortens the excitation lifetime with respect to the crystallographic and AF zone centers. Strikingly, a recent ARPES study of La-doped Sr2IrO4 de la Torre et al. (2015) found coherent excitations in the form of Fermi arcs around $(\pi/2,\pi/2)$ coexisting with strongly interacting, pseudo-gapped states at $(\pi,0)$. Such a behavior might arise from strongly anisotropic coupling to magnetic fluctuations, qualitatively consistent with the anisotropic damping of spin waves reported here.

IV Concluding remarks

In conclusion, our RIXS investigation has revealed the presence of gapped collective magnetic excitations in the electron-doped spin-orbit Mott insulator (Sr1-xLax)2IrO4 up to $x=0.1$. The magnon is robust upon carrier doping at the crystallographic and AF zone center, while paramagnons exhibiting a pronounced anisotropic damping are found elsewhere in the BZ. Consistent with theoretical predictions Jackeli and Khaliullin (2009), the gap can be ascribed to a significant in-plane anisotropy in the interaction between the Ir4+ $J_{\text{eff}}=1/2$ isospins that breaks the full rotational symmetry of the magnetic Hamiltonian. Despite apparent similarities with the superconducting cuprates, our results show that the spin-orbit entangled nature of the $J_{\text{eff}}=1/2$ ground state gives rise to magnetic interactions which differ significantly from the pure spin ones encountered in the cuprates. This will pave the way to a deeper understanding of the differences between the two classes of compounds in light of the long-sought-after superconductivity in iridate oxides.

Acknowledgements.

The authors would like to thank M. Rossi (ID20, ESRF) and S. Boseggia (UCL) for the helpful discussions and the support provided during the data analysis. This work is supported by the UK Engineering and Physical Sciences Research Council (Grants No. EP/N027671/1 and No. EP/N034694/1) and by the Swiss National Science Foundation (Grant No. 200021- 146995).D. Pincini and J.G. Vale contributed equally to this work.
