A Bitcoin-inspired infinite-server model with a random fluid limit

TL;DR

This paper introduces a novel infinite-server queue model inspired by Bitcoin's synchronization process, revealing unique properties like a busy period distribution independent of arrival rate and a stochastic fluid limit under scaling.

Contribution

It presents a new Bitcoin-inspired queue model with closed-form characteristics and a novel random fluid limit, expanding understanding of such systems with interacting customers.

Findings

Busy period distribution is independent of arrival rate.

Derived a closed-form stationary distribution.

Established a stochastic fluid limit with growth-collapse behavior.

Abstract

The synchronization process inherent to the Bitcoin network gives rise to an infinite-server model with the unusual feature that customers interact. Among the closed-form characteristics that we derive for this model is the busy period distribution which, counterintuitively, does not depend on the arrival rate. We explain this by exploiting the equivalence between two specific service disciplines, which is also used to derive the model's stationary distribution. Next to these closed-form results, the second major contribution concerns an asymptotic result: a fluid limit in the presence of service delays. Since fluid limits arise under scalings of the law-of-large-numbers type, they are usually deterministic, but in the setting of the model discussed in this paper the fluid limit is random (more specifically, of growth-collapse type).

Figures

Equations

$$q(i,j)=\mu ,i\ge 1,0\le j\le i-1,$$

$$\mathbb{P}\{Q_{\infty }=k\}={\pi }_k:=\text{a.s.-}\underset{t\to \infty }{\lim }\frac{{\int }_0^t\mathbb{I}\{Q(s)=k\}ds}{t},k\in {\mathbb{Z}}_{+}.$$

$$\sum _{i\ge k}{\pi }_i=\mathbb{P}\{Q_{\infty }\ge k\}=\frac{1-\mathbb{E}{e}^{-k\tilde{A}/\rho }}{k/\rho }\prod _{i=1}^{k-1}\mathbb{E}{e}^{-i\tilde{A}/\rho },k\ge 1.$$

$$Q(t)\Rightarrow Q_{\infty }\text{as t→∞}$$

$$\sum _{i\ge 1}{\pi }_i=\text{a.s.-}\underset{t\to \infty }{\lim }\frac{{\int }_0^t\mathbb{I}\{Q(s)\ge 1\}ds}{t}=\frac{\mathbb{E}E(\mu )}{\mathbb{E}C}.$$

$$\text{a.s.-}\underset{t\to \infty }{\lim }\frac{{\int }_0^t\mathbb{I}\{Q(s)\ge k\}ds}{{\int }_0^t\mathbb{I}\{Q(s)\ge k-1\}ds}=\frac{\mathbb{E}{N}_k\mathbb{E}E(k\mu )}{\mathbb{E}E((k-1)\mu )},k\ge 2,$$

$$\text{a.s.-}\underset{t\to \infty }{\lim }\frac{{\int }_0^t\mathbb{I}\{Q(s)\ge k\}ds}{t}=\frac{\mathbb{E}E(k\mu )}{\mathbb{E}C}\prod _{i=2}^k\mathbb{E}{N}_i,k\ge 1.$$

$$m_0:=1,m_n:=\mathbb{E}\prod _{i=0}^{n-1}(Q_{\infty }-i),n\ge 1.$$

$$m_{n+2}=(n+2)(\rho m_n-m_{n+1}),n\ge 0.$$

$$\mathbb{P}\{\zeta \ge x\}=e^{-\frac{x^2}{2}},x>0.$$

$$\mathbb{P}\{Q(t)=k\}=C_{k,0}+\sum _{i=1}^{k+1}{C}_{k,i}{e}^{-(\lambda +i\mu )t},t>0,$$

$$C_{k,0}$$

$$(k+1-i)C_{k,i}$$

$$C_{k,k+1}$$

$$\mathbb{P}\{Y_1\ge k\}=\prod _{i=0}^{k-1}\mathbb{P}\{A<E(i\mu )\}=\prod _{i=1}^{k-1}{\mathbb{E}}^{-i\tilde{A}/\rho },k\ge 1.$$

$$\mathbb{P}\left\{\frac{Y_1}{\sqrt{\rho }}\ge x\right\}\sim \mathbb{P}\left\{\frac{Q_{\infty }}{\sqrt{\rho }}\ge x\right\}\to e^{-\frac{x^2}{2}},x>0.$$

$$\lambda =\text{const},\mu \to 0,{\overline{Q}}^{\rho }(t):=\frac{Q(\sqrt{\rho }t)}{\sqrt{\rho }},t\ge 0.$$

$$\mathbb{P}\{\overline{Q}({\tau }_n-)\ge y|\overline{Q}({\tau }_{n-1})=x\}=e^{\frac{-y^2+x^2}{2}},y>x,$$

$$\mathbb{P}\{\overline{Q}({\tau }_n)\le x|\overline{Q}({\tau }_n-)=y\}=\frac{x}{y},0<x<y.$$

$$\displaystyle\tau_{n}-\tau_{n-1}=\frac{1}{\lambda}\big{(}\overline{Q}(\tau_{n}-)-\overline{Q}(\tau_{n-1})\big{)},$$

$$\overline{Q}(t)=\overline{Q}({\tau }_{n-1})+\lambda (t-{\tau }_n),t\in [{\tau }_{n-1},{\tau }_n).$$

$${\tau }_n\to \infty \text{a.s. as n→∞}.$$

$$f_{\xi }(x)=\sqrt{\frac{2}{\pi }}{e}^{-\frac{x^2}{2}},f_{\eta }(y)=\sqrt{\frac{2}{\pi }}{y}^2{e}^{-\frac{y^2}{2}},x,y>0.$$

$$\mathbb{E}f(\zeta )=\frac{\mathbb{E}{\int }_{\xi }^{\eta }f(u)du}{\mathbb{E}(\eta -\xi )}.$$

$$\mathbb{E}f(\zeta )=\text{a.s.-}\underset{t\to \infty }{\lim }\frac{{\int }_0^{t}f(\overline{Q}(s))ds}{t}=\frac{\mathbb{E}{\int }_{\xi }^{\eta }f(u)du}{\mathbb{E}(\eta -\xi )},$$

$${\left(\overline{Q}({\tau }_n)\right)}^2=U_n^2\left({\left(\overline{Q}({\tau }_{n-1})\right)}^2+2E_n(1)\right),n\ge 1,$$

$$f_{\xi }(x)=\frac{1}{\rho }{\int }_x^{\infty }{e}^{-\frac{y^2}{2\rho }}\left({\int }_0^y{e}^{\frac{u^2}{2\rho }}{f}_{\xi }(u)du\right)dy,x>0,$$

$$f_{\xi }^{\prime \prime }(x)+x{f}_{\xi }^{\prime }(x)+f_{\xi }(x)=0,x>0.$$

$$\mathbb{P}\{Q(n\delta +\epsilon )=0\}=\mathbb{P}\{Q(n\delta )=0\}+(1-\mathbb{P}\{Q(n\delta )=0\})\mathbb{P}\{E(\mu )<\epsilon \},$$

$$\mathbb{P}\{N=n\}=\mathbb{P}\{A<E(\mu ){\}}^{n-1}\mathbb{P}\{A\ge E(\mu )\}=(\mathbb{E}{e}^{-\mu A}{)}^{n-1}(1-\mathbb{E}{e}^{-\mu A}),$$

$$\mathbb{E}C=\mathbb{E}N\mathbb{E}A=\frac{\mathbb{E}A}{1-\mathbb{E}{e}^{-\mu A}}=\frac{1}{\lambda (1-{\mathbb{E}}^{-\tilde{A}/\rho })}.$$

$$\mathbb{P}\{N_k\ge n\}=\mathbb{P}\{A<E((k-1)\mu )\}\mathbb{P}\{C_k<E((k-1)\mu ){\}}^{n-1},n\ge 1,$$

Full text

Key words. Stochastic-process limit $\circ$ fluid limit $\circ$ growth-collapse process $\circ$ Bitcoin.

Affiliations. M. Frolkova and M. Mandjes are with Korteweg-de Vries Institute for Mathematics, University of Amsterdam, Science Park 105-107, 1098 XG Amsterdam, the Netherlands. M. Frolkova is corresponding author (email: maria.frolkova@gmail.com).

1. Introduction

The Bitcoin network is a payment system where all transactions between participants are carried out in the digital Bitcoin currency. These transactions are stored in a database called blockchain. In fact, every Bitcoin user maintains a blockchain version, thus keeping track of the global Bitcoin transaction history. This ensures transparency — one of the advertized Bitcoin features. Information spreads across the network via peer-to-peer communication. All transactions get broadcast, and certain users arrange them into blocks suitable to add to the blockchain. The blocks get broadcast, too, and other users update their blockchain versions as soon as they hear of new blocks. It is vital for the network to synchronize as soon as possible because the Bitcoin payment system is trustworthy to the degree it is synchronized. This explains the need for models that capture the desyncronization caused by communication delays. Due to such delays, some Bitcoin users are not up to date compared to others, meaning that their blockchain versions lack some blocks compared to the blockchain versions of others. This desynchronization effect motivates the model analyzed in the present paper. It can be seen as a seemingly minor modification of a conventional queueing system, but this modification gives rise to various unexpected features and, overall, intrinsically different behavior.

In our model we assume Bitcoin-like communication between two parties, where party A generates pieces of information and sends them off to party B, and B receives these information pieces with delay, i.e. B is not up to date compared to A. Such communication can be described by an infinite-server model where newly generated information pieces correspond to arrivals and their transmission corresponds to receiving service at parallel servers. An unconventional feature of this model is that customers do interact here (usually, in infinite-server models, customers do not interfere and act independently, which often facilitates explicit analysis). This interaction is inspired by the following mechanism in the blockchain dynamics. In the blockchain, each next block contains a reference to the previous one. Suppose participant B receives a block from participant A who knows more than B, and this new block does not directly link to B’s last block. Then B requests from A the new block’s predecessors using the references to the previous blocks. Once all the missing blocks have been retrieved, B adds the entire batch to his blockchain. On a somewhat stylized level, such update in batches translates to the following service discipline: whenever there is a service completion, then all earlier arrivals that are still in the system complete service and depart as well. That is, departures occur in batches, which we refer to as FIFO-batches. This departure mechanism leads to crucial differences compared to the conventional infinite-server model where customers depart one by one upon their own service completion.

In the above model, we assume a renewal arrival process and exponentially distributed service times. Our first contribution concerns a number of closed-form characteristics, in particular for the busy period distribution. Remarkably, this distribution turns out to not depend on the inter-arrival distribution or the arrival rate, contradicting the intuition that a large arrival rates should result in a longer busy period. This seeming paradox is resolved relying on an equivalent service discipline — LIFO-batch departures. Distributionally, the model’s evolution is the same under either discipline. This equivalence also makes it possible to identify the corresponding stationary distribution (in the generalized sense, since the underlying process is not Markov due to renewal arrivals). It is unclear whether this result could be obtained analytically under the original FIFO-batch departures discipline. Other closed-form results are obtained under the additional assumption of Poisson arrivals (such that the queue-length process is a continuous-time Markov chain): by direct methods, we derive moments of the stationary distribution and the queue-size distribution at any given time instant.

The second strand of results that we obtain is of an asymptotic nature. We develop a fluid limit for the queue-length process in presence of service delays. As fluid limits arise under law-of-large-numbers scalings, they are typically deterministic; this is for instance the case for the conventional infinite-server model. In our model, however, the fluid limit is radically different: rather than being deterministic, in the fluid limit some randomness is retained. More specifically, the fluid limit corresponds to a growth-collapse process: it grows linearly between randomly occurring downward jumps, where the jump rate is proportional to the current position. At each jump, the state undergoes a uniform cut-off (that is, the position drops to a level that is uniformly distributed between 0 and the pre-jump position). Growth-collapse processes have been studied in the literature and are used to describe a wide range of phenomena ranging from seismic to neuronal activity; see e.g. [3, 9] and references therein.

Interestingly, growth-collapse processes similar to the the fluid limit in our paper arise as scaling limits of Markovian AIMD (additive-increase/multiplicative-decrease) congestion control schemes analysed by Dumas et al. [5] and Guillemin et al. [8]. However, the generator approach that quickly yields the fluid limits in [5, 8] is non-applicable to our non-Markovian model. In this regard, this paper suggests a non-Markovian counterpart for the fluid limit analysis in [5, 8]. We present the proof of the fluid limit theorem under FIFO-/LIFO-batch departures, which correspond to the uniform cut-offs in the fluid limit. However, the proof is sufficiently flexible to allow for more general service disciplines that result in generally distributed multiplicative cut-offs in the fluid limit.

In more detail, the following techniques are used in the proof of the fluid-limit theorem. First, we identify an embedded Markov chain that converges to the post- and pre-jump fluid limit levels. This part of the proof builds on the embedded Markov chain analysis in [5, 8]. The derivation of the Weibullian increments between the jumps in the fluid limit (which yield the jump rate proportional to the state) is similar to the corresponding derivation in [5, 8]. The derivation of the uniform cut-offs in the fluid limit is more involved than the corresponding conclusion in [5, 8], where the multiplicative-decrease factor is fixed throughout the pre-limit models and is directly inherited by the fluid limit. In our case, the downward jumps of the embedded Markov chain only become uniform in the limit, which we additionally prove. In the second part of the proof, we establish convergence of the continuous-time queue-length process based on the convergence of the embedded Markov chain. We follow the conventional approach: first we show convergence of finite-dimensional distributions and then verify a compact-containment and oscillation-control conditions, which imply the relative-compactness of the pre-limit processes. As a final note on the proof techniques, we emphasize the following methodological difference with earlier work. In [5, 8], the embedded Markov chain is used to find (the fluid limit of) the stationary distribution of the full Markov chain. The fluid limit of the full Markov chain itself is obtained via generators. In this paper, (the fluid limit of) the stationary distribution of the queue-length process is known directly. We use the embedded Markov chain to derive the fluid limit of the non-Markov queue-length process.

Besides the mentioned connection with the AIMD and growth-collapse literature, our paper also relates, on the modelling level, to the Bitcoin study by Göbel et al. [7] on whether it could be profitable to abuse the Bitcoin protocol by hiding information instead of propagating it. The model that is the starting point for the analysis in [7] and our model are complementary in the following sense. Göbel et al. [7] consider Bitcoin-like communication between two parties that both generate new information and communicate it to each other, while we consider one-sided communication. On the other hand, [7] omits some communication transitions to ensure analytical tractability of the model, whereas those are taken into account in the present paper. More specifically, [7] assumes complete synchronization whenever communication takes place. However, unless the latest information has been communicated, the two parties only partially synchronize, i.e., remain desynchronized; we succeed to include this aspect in our model.

The rest of the paper is organized as follows. In Section 2, we introduce the model, discuss the insensitivity of the busy period distribution with respect to the arrival rate, present formulae for the stationary distribution and its moments (under Poisson arrivals). In Section 3, we characterize the transient behavior: give a formula for the queue-length distribution at a fixed time (under Poisson arrivals) and present the fluid limit theorem. In Section 4, we provide the proofs for Section 2 (noting that some core ideas have already been discussed in Section 2). In Section 5, we prove the fluid limit theorem. In the appendix, we prove the results that assume Poisson arrivals. In the remainder of this section, we list the notation used throughout the paper.

Notation. To define $x$ as equal to $y$, we write $x:=y$ or $y=:x$. The set of non-negative integers is $\mathbb{Z}_{+}:=\{0,1,2,\ldots\}$, and the non-negative half-line is $\mathbb{R}_{+}:=[0,\infty)$. The space of functions $f\colon\mathbb{R}_{+}\to\mathbb{R}_{+}$ that are right-continuous with left limits is denoted by $\mathbf{D}$, it is endowed with the Skorokhod $J_{1}$-topology. For functions $f(x)$, $g(x)$ that are asymptotically equivalent as $x\to\infty$, i.e. such that $f(x)/g(x)\to 1$ as $x\to\infty$, we write $f(x)\sim g(x)$. All random elements in the paper are defined on the same probability space with probability measure $\mathbb{P}$ and expectation operator $\mathbb{E}$. The signs $\Rightarrow$ and $\mathop{\rm=}\limits^{\text{d}}$ stand for weak convergence and equality in distribution, respectively. The complement of an event $B$ is denoted by $\overline{B}$. Finally, the following types of notation are used for vectors: $(d_{l})_{l=1}^{n}:=(d_{1},d_{2},\ldots,d_{n})$ and $(X_{l-1},Y_{l})_{l=1}^{n}:=(X_{0},Y_{1},X_{1},Y_{2},\ldots,X_{n-1},Y_{n})$.

2. Stochastic model and its stationary analysis

In this section, we introduce the model under study and discuss a number of its properties. First, we argue that two different service disciplines are equivalent. This equivalence provides insights into the results that we discuss next: an insensitivity property of the busy period and stationary characteristics of the model.

2.1. Model description

The model we analyze is a variant of one of the classical queueing models — the $G/M/\infty$ queue — where the service discipline is modified.

$G/M/\infty$-queue with FIFO-batch departures. The following aspects are the same in the conventional $G/M/\infty$ model and the variant $G/M/\infty$ under study. There are infinitely many servers that provide service at a unit rate. An arriving customer immediately starts service at one of the non-occupied servers. Customers arrive according to a renewal process of rate $\lambda$, and their service requirements are exponentially distributed with parameter $\mu$, mutually independent and also independent from the arrival process. What is different in the two models is the departure mechanism. In the conventional $G/M/\infty$ queue, a customer leaves the system upon service completion, and hence customers depart one by one. In the model we analyze, departures occur in batches. We assume additionally that customers line up in the queue in the order of arrival. (This assumption is not restrictive but convenient when referring to departure events.) Suppose the service of a particular customer has finished. Then it is not this customer only who leaves the system but those in front of  him in the queue leave as well.

We refer to a customer together with those in front of him in the queue as a FIFO (first-in-first-out) batch, and to the modified $G/M/\infty$ model described above — as the $G/M/\infty$* queue with FIFO-batch departures*.

Alternative interpretation: $G/M/\infty$ queue with LIFO-batch departures. Assume now that, instead of FIFO batches, LIFO (last-in-first-out) batches are formed upon departures. That is, if there is a service completion, the freshly served customer leaves together with those behind  him in the queue.

Note that the two departure policies are symmetric. A FIFO-batch departure “cuts off” a front part of the queue, and a LIFO-batch departure — the tail of the queue. But, in both scenarios, the post-departure queue size is a uniform sample of the queue size prior to the departure. This equivalence, in combination with the memorylessness of the exponential service times, implies that the queue dynamics is distributionally the same under either discipline.

More formally, between two consecutive arrivals, both the $G/M/\infty$ queue with FIFO-batch departures and that with LIFO-batch departures evolve like a continuous-time Markov chain on $\mathbb{Z}_{+}$ with transition rates

[TABLE]

and absorption at the zero state. Respectively, overall, the two models evolve like the Markov chain (1) that gets interrupted according to a renewal process that is independent from the chain, and every interruption (i.e., arrival) increases the state of the chain by one. In particular, this coupling implies that the two queue-length processes viewed as random elements of the Skorokhod space $\mathbf{D}$ have the same distribution.

Remark 1**.**

As discussed in the introduction, FIFO-batch departures align with the initial motivation for the model that comes from the blockchain update mechanism. LIFO-batch departures, on the other hand, are a more convenient assumption in some of the proofs (in the rest of the proofs, a particular interpretation does not matter). Under LIFO-batch departures, a customer is affected by those in front of him in the queue only but not by those who arrive after him, which turns out to simplify the analysis. Although some of the results, for example the insensitivity of the busy period distribution, are not intuitively clear under FIFO-batch departures, all results of the paper are valid for both FIFO- and LIFO-batch departures by the coupling discussed above.

Remark 2**.**

Borst et al. [2], too, employ a probabilistic coupling to show the equivalence of two service disciplines, processor sharing and random order of service, in the $G/M/1$ queue. In [2], each customer of one queue is coupled with a customer in the other queue. In this paper, we do not couple the two models directly but through a third model. Note that a straightforward modification of the coupling used here provides an alternative to the coupling used in [2].**

More notation. We conclude the model description by introducing some model-related notation used frequently throughout the paper.

The queue size at time $t\geq 0$ is denoted by $Q(t)$. The “stationary” distribution of the queue-length process is denoted by $\pi_{k}$, $k\in\mathbb{Z}_{+}$, where the term “stationary” has the conventional meaning if the arrival process is Poisson, and a slightly broadened meaning if the arrival process is renewal; the details follow in Section 2.3. By $Q_{\infty}$ we denote a random variable such that $\mathbb{P}\{Q_{\infty}=k\}=\pi_{k}$, $k\in\mathbb{Z}_{+}$. Note that the (“stationary”) distribution of the queue-length process does not depend on the particular interpretation of FIFO- or LIFO-batch departures.

By $E(\mu)$ we denote the generic service time of a customer (distributed exponentially with parameter $\mu$). More generally, $E(k\mu)$ stands for a random variable that is distributed exponentially with parameter $k\mu$, $k\geq 1$.

The generic inter-arrival time is denoted by $A$, its i.i.d. copies — by $A_{1},A_{2},\ldots$, and $S_{n}:=\sum_{i=1}^{n}A_{i}$, $n\geq 0$. We also use the normalized version of the inter-arrival time $\widetilde{A}:=A/\mathbb{E}A$. Respectively, $\widetilde{A}_{1},\widetilde{A}_{2},\ldots$ stand for i.i.d. copies of $\widetilde{A}$, and $\widetilde{S}_{n}:=\sum_{i=1}^{n}\widetilde{A}_{i}$.

2.2. Busy period

A busy period is a period of time between an arrival into the empty system and the first instant since this arrival when the system becomes empty again. Intuitively, a larger arrival rate should result in a longer busy period. Remarkably, in the model under study, the busy period distribution does not depend on the inter-arrival distribution (and in particular, it does not depend on the arrival rate).

Lemma 1**.**

Both under FIFO- and LIFO-batch departures, the busy period of the $G/M/\infty$ queue is distributed exponentially with parameter $\mu$.

Proof.

Under FIFO-batch departures, the result seems counter-intuitive but it does admit an analytical proof, which we provide here for completeness. Denote by $E_{0}(\mu)$ the service time of the customer that initiates the busy period, by $E_{1}(\mu),E_{2}(\mu),$ $\ldots$ the service times of the newly arriving customers, and by $A_{1},A_{2},\ldots$ their inter-arrival times. The queue becomes empty if the last customer in the queue finishes his service before the next customer arrives. Hence, the busy period lasts for $B=S_{N-1}+E_{N-1}(\mu),$ where $N:=\min\{n\geq 1\colon E_{n-1}(\mu)\leq A_{n}\}.$ But the memoryless property of the exponential distribution implies that $N\mathop{\rm=}\limits^{\text{d}}\min\{n\geq 1\colon E_{0}(\mu)\leq S_{n}\},$ and hence $B\mathop{\rm=}\limits^{\text{d}}E_{0}(\mu)$.

However, the coupling of FIFO- and LIFO-batch departures discussed in Section 2.1 allows for a more elegant proof. It ensures that the busy period distribution is the same under either discipline. Under LIFO-batch departures, in contrast to the analytical proof above, the lemma follows directly from the way customers interact. Indeed, a customer leaves as soon as his own service time expires or the service time of someone in front of him in the queue. Hence, the customer who initiates the busy period leaves exactly when his own service time expires. But if he leaves, the queue empties. That is, the busy period lasts for exactly the service time of the initial customer. ∎

2.3. Stationary queue-length distribution

In this paper, by the stationary queue-length distribution we mean the long-run fractions of time the process $Q(\cdot)$ spends in particular states, i.e. the limits

[TABLE]

If the arrival process is Poisson, then $Q(\cdot)$ is a continuous-time Markov chain and the distribution (2) is stationary in the conventional sense: if $Q(0)\mathop{\rm=}\limits^{\text{d}}Q_{\infty}$, then $Q(t)\mathop{\rm=}\limits^{\text{d}}Q_{\infty}$ for all $t>0$.

Lemma 2**.**

Both under FIFO- and LIFO-batch departures, the limits (2) exist and are given by

[TABLE]

In addition,

[TABLE]

if and only if the inter-arrival time distribution is non-lattice (i.e., not concentrated on a set of the form $\{\delta,2\delta,\ldots\}$).

Here we present the core ideas of the proof, and some further details follow in Section 4. First, note that the queue-length process $Q(\cdot)$ is regenerative with the initiation instants of busy periods as regeneration points. Respectively, a cycle is a period of time between the initiation instants of two successive busy periods. In particular, if the inter-arrival time distribution is non-lattice, then the cycle distribution is non-lattice, too, and then the limit queue-length distribution exists (see e.g. [1, Theorem VI.1.2]) and (4) necessarily holds.

Now we discuss why the limits (2) exist and satisfy the formula (3). The idea behind (3) for $k=1$ is that the queue is non-empty when it is in busy periods, which are distributed exponentially with parameter $\mu$ and are parts of i.i.d. cycles. Denote by $C$ the generic cycle length. Then the law of large numbers implies that

[TABLE]

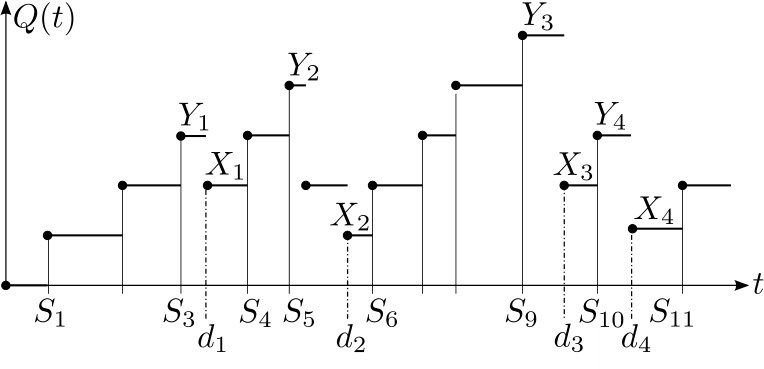

To derive (3) for $k\geq 2$, we assume LIFO-batch departures and classify customers into levels: a customer is of level $k\geq 1$ if he arrives into the system with $k-1$ other customers. The point of this classification is that the queue size is at least $k$ during the sojourn times of level $k$ customers. Note that the sojourn time (from arrival until departure) of a level $k$ customer is distributed exponentially with parameter $k\mu$ since it is the minimum of his own service time and the service times of the $k-1$ customers in front of him. Also note that the sojourn times of different level $k$ customers do not overlap and are i.i.d., and that each level $k$ sojourn time is within a level $k-1$ sojourn time. Denote by $N_{k}$ the number of level $k$ customers that arrive during the sojourn time of a level $k-1$ customer. Then, by Wald’s identity and the law of large numbers,

[TABLE]

and hence,

[TABLE]

It is left to compute the $\mathbb{E}C$ and $\mathbb{E}N_{i}$’s to get (3), which is postponed until Section 4.

2.4. Moments of the stationary queue length

With the additional assumption of Poisson arrivals, it is possible to derive a recursive relation for the factorial moments of the stationary queue-length, which are defined by

[TABLE]

Lemma 3**.**

Under Poisson arrivals,

[TABLE]

The base for the above recursion — the mean $m_{1}=\mathbb{E}Q_{\infty}$ — admits no closed-form expression but can be evaluated in a certain limit regime, see Section 2.5.

As for the proof of (6), it follows as one incorporates the balance equations for the Markov (due to Poisson arrivals) process $Q(\cdot)$ into the generating function of its stationary distribution $\pi_{k}$, $k\in\mathbb{Z}_{+}$, and applies a Taylor expansion around 1. The detailed derivation follows in Section 4.

2.5. Asymptotics of the stationary queue length

The final result of this section is that, for large $\rho$, i.e. in presence of service delays, the stationary queue length is of order $\sqrt{\rho}$. This asymptotic behavior motivates the scaling limit of the queue length process that we develop in the next section.

Lemma 4**.**

As $\rho\to\infty$, $Q_{\infty}/\sqrt{\rho}\Rightarrow\zeta,$ where the limit random variable $\zeta$ has the following Weibull (Rayleigh) distribution:

[TABLE]

Moreover, $\mathbb{E}Q_{\infty}/\sqrt{\rho}\to\mathbb{E}\zeta=\sqrt{\pi/2}.$

The proof of this lemma is provided in Section 4. We asymptotically characterize the tail $\mathbb{P}\{Q_{\infty}/\sqrt{\rho}\geq x\}$ and the mean $\mathbb{E}Q_{\infty}=\sum_{k\geq 1}\mathbb{P}\{Q_{\infty}\geq k\}$ based on the formula (3) and the dominated convergence theorem.

Corollary 1**.**

Under Poisson arrivals, $\mathbb{E}\left(Q_{\infty}/\sqrt{\rho}\right)^{n}\to\mathbb{E}\zeta^{n}=n!!(\sqrt{\pi/2})^{n\bmod 2}$, $n\geq 1$, where the double factorial is defined by $n!!:=\prod_{\begin{subarray}{l}1\leq l\leq n,\\ l\equiv n\,(\textup{mod}\,2)\end{subarray}}l$.

Lemma 4 and the recursion (6) imply the last corollary of this section.

3. Transient analysis

In this section, we characterize the evolution of the $G/M/\infty$ queue with FIFO/LIFO-batch departures in time.

3.1. Direct transient analysis

Under the additional assumption of Poisson arrivals, it is possible to find the queue-length distribution at a fixed time instant by solving the Kolmogorov equations.

Lemma 5**.**

Under Poisson arrivals,

[TABLE]

where the coefficients $C_{k,i}$ can be computed recursively as follows: for $k\geq 0$,

[TABLE]

The derivation of these formulae can be found in the appendix. Note that (8a) follows immediately since the stationary queue-length probabilities $\pi_{k}$ are also the limit queue-length probabilities as $t\to\infty$. As an aside, we mention that the above recursion allows the computation of $\mathbb{P}\{Q(t)\leq k\}$ in $O(k^{3})$ operations.

3.2. Fluid limit

While the last lemma gives the queue-length distribution at a fixed time instant, the next result characterizes the entire trajectory of the queue-length process $Q(\cdot)$. We treat $Q(\cdot)$ as a random element of the Skorokhod space $\mathbf{D}$ and develop a distributional approximation for it as $\rho\to\infty$. Lemma 4 suggests that space should be scaled with $\sqrt{\rho}$ as $\rho\to\infty$, and the following observation motivates the time scaling. Suppose the queue starts empty. Then the number $Y_{1}$ of customers that accumulate in the queue before the first departure has the distribution

[TABLE]

In particular, by (3) and Lemma 4, as $\rho\to\infty$,

[TABLE]

That is, an empty queue builds up to a level of order $\sqrt{\rho}$ until the first departure. If time is renormalized so that that the arrival rate $\lambda$ is fixed and the service rate $\mu\to 0$, then the time of the first departure is of order $\sqrt{\rho}$ as well. Hence, we consider the family of the scaled processes

[TABLE]

The above scaling is a law-of-large-numbers scaling (or: fluid scaling), since space and time are scaled with the same large factor. Limit processes that arise under such scalings are usually referred to as fluid limits. Typically, Markov processes have deterministic fluid limits, similarly to the deterministic limit in the law of large numbers. For the model under study, however, the fluid limit is random, as is stated in the next theorem.

Theorem 1**.**

Suppose that $\overline{Q}^{\rho}(0)\Rightarrow\xi_{0}$ as $\rho\to\infty$, where the limit initial condition $\xi_{0}$ is either deterministic or absolutely continuous. Then the scaled processes $\overline{Q}^{\rho}(\cdot)$ converge weakly in the Skorokhod space $\mathbf{D}$ to a random fluid limit $\overline{Q}(\cdot)$ that exhibits downward jumps of random size at random instants and grows linearly at rate $\lambda$ between the jumps.

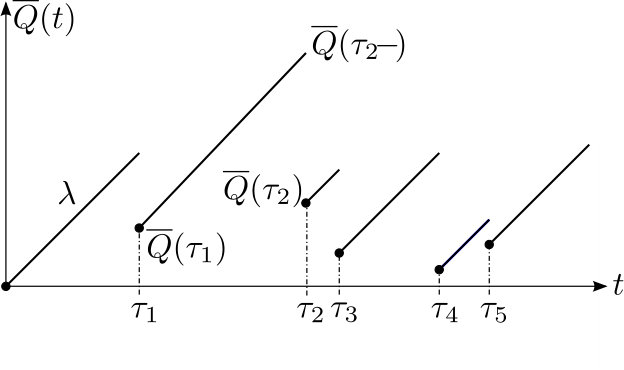

For $n\geq 1$, denote by $\tau_{n}$ the instant of the $n$-th jump of $\overline{Q}(\cdot)$ and put $\tau_{0}:=0$. The post- and pre-jump levels $\overline{Q}(\tau_{n-1})$ and $\overline{Q}(\tau_{n}-)$ form a Markov chain that starts from $\overline{Q}(\tau_{0})=\overline{Q}(0)=\xi_{0}$ and evolves according to the following transition probabilities: for $n\geq 1$,

[TABLE]

The above Markov chain determines the jump instants and the entire trajectory of the fluid limit: for $n\geq 1$,

[TABLE]

In addition,

[TABLE]

Remark 3**.**

The fluid limit $\overline{Q}(\cdot)$ in Theorem 1 belongs to the class of growth-collapse/ stress release processes. In the related literature, the property (11) is referred to as non-explosiveness. In particular, the process $\overline{Q}(\cdot)$ is non-explosive by Last [9, Theorem 3.1]. **

The structure of the fluid limit aligns with the evolution of the pre-limit model as follows (see Figure 1 below and also Figure LABEL:fig:post_pre_departure_levels in Section 5): the jump instants of the fluid limit and its post-/pre-jump levels are analogues of the departure instants and the post-/pre-departure queue levels. In fact, the former can be shown to arise as the scaling limits of the latter. Although this result is natural, it is tricky to prove directly. The renewal arrivals make the queue-length process non-Markov. In particular, the post- and pre-departure queue levels are not straightforward to analyze. Instead (see Section 5 for the proof of Theorem 1), we consider the queue levels in the beginning and at the end of those inter-arrival periods where departures occur. These queue levels do form a Markov chain that we show to converge weakly under the fluid scaling to the Markov chain formed by the post- and pre-jump fluid limit levels. Then we additionally prove that, with high probability, there is at most a single departure instant per inter-arrival period. That is, indeed, the post- and pre-jump fluid limit levels correspond one-to-one to the post- and pre-departure queue levels.

The mentioned convergence of the embedded Markov chain lays the foundation for the proof of the weak convergence $\overline{Q}^{\rho}(\cdot)\Rightarrow\overline{Q}(\cdot)$ in the Skorokhod space $\mathbf{D}$. We establish two ingredients that imply weak convergence in $\mathbf{D}$: convergence of finite-dimensional distributions and relative compactness of the pre-limit processes. To show the relative compactness, we follow a conventional approach (see e.g. Ethier and Kurtz [6]) and verify that the pre-limit processes $\overline{Q}^{\rho}(\cdot)$ remain bounded on finite intervals and have small oscillations on small intervals.

Remark 4**.**

A FIFO-/LIFO-batch departure is effectively a uniform cut-off, and this property is inherited by the fluid-limit: we have $\overline{Q}(\tau_{n})=U_{n}\overline{Q}(\tau_{n}-)$, where $U_{n}$, $n\geq 1$, are i.i.d. random variables distributed uniformly on the interval $(0,1)$. The proof of Theorem 1 in Section 5 generalizes in a straightforward way to accommodate the following service discipline: whenever there is a service completion, a number of customers still in service interrupt their service and leave together with the freshly served customer so that a generally distributed fraction $B$ of customers remains in the system. The fluid limit of the $G/M/\infty$ under this new discipline then satisfies $\overline{Q}(\tau_{n})=B_{n}\overline{Q}(\tau_{n}-)$, where $B_{n}$, $n\geq 1$, are i.i.d. copies of $B$.

3.3. Stationary fluid limit

As mentioned before, the random fluid limit $\overline{Q}(\cdot)$ in Theorem 1 belongs to the class of growth-collapse processes, which have been studied in the literature. In particular, there are results that characterize stationary and long-time limit behavior of such processes. Note that, in the context of growth-collapse processes like $\overline{Q}(\cdot)$, it is natural to consider the stationary distribution of the process itself and of the Markov chain of the post- and pre-jump levels, and to identify relations between the two stationary distributions. In the next lemma, we summarize these types of results for the fluid limit $\overline{Q}(\cdot)$. In addition to references, we also provide a simple alternative to the more general but also more involved derivation of the stationary post- and pre-jump distribution available in the literature.

Lemma 6**.**

(a)* The unique stationary distribution of the fluid limit $\overline{Q}(\cdot)$, which is also its limit distribution as $t\to\infty$, is that of the limit random variable $\zeta$ from Lemma 4.*

(b)* The unique stationary distribution of the Markov chain $(\overline{Q}(\tau_{n-1}),\overline{Q}({\tau_{n}-}))$, $n\geq 0$, which is also its limit distribution as $n\to\infty$, is absolutely continuous. Let a pair of random variables $(\xi,\eta)$ have this stationary/limit distribution, then their marginal densities are given by*

[TABLE]

(c)* The distributions of $\zeta$ and $(\xi$, $\eta)$ are related as follows: for any measurable non-negative function $f(\cdot)$,*

[TABLE]

Remark 5**.**

By Lemmas 2, 4 and 6(a), for the $G/M/\infty$ queue with FIFO-/LIFO-batch departures, the limits as $\rho\to\infty$ and $t\to\infty$ commute if the inter-arrival distribution is non-lattice.**

Note that, as Theorem 1 is applied to the initial conditions $\overline{Q}^{\rho}(0)\mathop{\rm=}\limits^{\text{d}}Q_{\infty}/\rho\Rightarrow\zeta$, $\rho\to\infty$, it follows that the distribution of $\zeta$ is stationary for the fluid limit $\overline{Q}(\cdot)$. The uniqueness of this stationary distribution and convergence to it as $t\to\infty$ (and hence (a)) follow by Boxma et al. [3] who prove these types of results for a class of growth-collapse processes that includes $\overline{Q}(\cdot)$. Their proof views a growth-collapse process as regenerative with regeneration instants being returns to a particular level, and shows that the mean return time to any level is finite. In combination with (b), this implies (c) since

[TABLE]

where the first identity is by the ergodic theorem for regenerative processes, and the second — by the ergodic theorem for the Markov chain $(\overline{Q}(\tau_{n-1}),\overline{Q}(\tau_{n}-))$, $n\geq 1$.

The stationary densities in (b) can be obtained from a more general result by Guillemin [8, Section 3, Example 2]. We include here a more straighforward derivation.

Proof of (b).

The relation (10a) means that the jump rate of the fluid limit $\overline{Q}(\cdot)$ is $\lambda x$ when it is in state $x$. Hence, the post-jump levels satisfy

[TABLE]

where the $U_{n}$’s are distributed uniformly on the interval $(0,1)$, the $E_{n}(1)$’s are distributed exponentially with parameter 1, all mutually independent (in detail, this derivation is conducted, for example, by Chafaï et al. [4]). Then the unique stationary and limit distribution for the Markov chain $\left(\overline{Q}(\tau_{n})\right)^{2}$, $n\geq 0$, is that of $\xi^{2}\mathop{\rm=}\limits^{\text{d}}\sum_{n\geq 1}E_{n}(1)\prod_{i=1}^{n}U_{i}^{2}$. In particular, this representation implies that $\xi$ is absolutely continuous and has a finite mean. Then we can find the density $f_{\xi}(\cdot)$ by simply solving a differential equation.

Indeed, by the relations (10), the stationary post-jump density $f_{\xi}(\cdot)$ solves the integral equation

[TABLE]

which is equivalent to the differential equation

[TABLE]

The general solution to (12) is $f_{\xi}(x)=C_{1}e^{-x^{2}/2}+C_{2}D(x/\sqrt{2}),$ where $C_{1}$, $C_{2}$ are constants and $D(\cdot)$ is the Dawson function given by $D(x)=e^{-x^{2}}\int_{0}^{x}e^{u^{2}}du.$ Note that $D(x)\sim 1/(2x)$ as $x\to\infty$, and hence $\xi$ has a finite mean if and only if $C_{2}=0$, i.e. $f_{\xi}(x)=\sqrt{2/\pi}\,e^{-x^{2}/2}.$ ∎

4. Proofs for Section 2

In this section, we fill in the details of the proof of Lemma 2 (the main ideas of that proof were already given in Section 2.3), and also we prove Lemma 4 here.

Proof of Lemma 2.

In Section 2.3, we have discussed why the non-latticeness of the inter-arrival distribution is sufficient for the limit queue-length distribution to exist, and here we show that it is also necessary. Indeed, if the inter-arrival distribution is concentrated on a grid $\{\delta,2\delta,\ldots\}$ (e.g. if the inter-arrival time is deterministic), then, for any $\varepsilon\in(0,\delta)$,

[TABLE]

and hence the limits $\lim_{n\to\infty}\mathbb{P}\{Q(n\delta+\varepsilon)=0\}$ and $\lim_{n\to\infty}\mathbb{P}\{Q(n\delta)=0\}$ can not be equal.

The remainder of the proof establishes (3). In Section 2.3, we derive the preliminary formula (5), and here we compute the $\mathbb{E}C$ and $\mathbb{E}N_{k}$’s, see the formulae (13) and (14) below. As one plugs (13) and (14) into (5), the expression (3) follows.

First we find the mean cycle length $\mathbb{E}C$. Under LIFO-batch departures, a busy period lasts as long as the service time of the customer that has initiated the busy period lasts. The first arrival following the service completion of this customer initiates the next busy period. Hence, $C\mathop{\rm=}\limits^{\text{d}}S_{N},$ where $N:=\min\{n\geq 1\colon S_{n}\geq E(\mu)\}$ and $E(\mu)$ is independent from $\{S_{1},S_{2},\ldots\}$. (This representation implies, in particular, that the cycle distribution is non-lattice if and only if the inter-arrival distribution is non-lattice.) We have

[TABLE]

and then Wald’s identity gives

[TABLE]

Now we compute the mean number $\mathbb{E}N_{k}$ of level $k$ arrivals during a level $k-1$ sojourn time, $k\geq 2$. Define a level $k$ cycle to be a period of time between two successive level $k$ arrivals during a level $k-1$ sojourn time, and denote by $C_{k}$ the generic level $k$ cycle length. Then

[TABLE]

where $X$ is independent from $E((k-1)\mu)$ and $C_{k}$ is not. By specifying the number $i$ of arrivals during a level $k$ cycle, we get

[TABLE]

where $E(\mu)$, $E((k-1)\mu)$ and $A$ are mutually independent, $E(\mu)$ represents the service time of the customer that has initiated a level $k$ cycle, $E((k-1)\mu)$ — the level $k-1$ sojourn time that contains this level $k$ cycle, and $A$ — an inter-arrival time during this level $k$ cycle. The above yields

[TABLE]

The proof of the lemma is now complete. ∎

The following three propositions are auxiliary results that are used in the proofs of Lemma 4, and also of Theorem 1 in Section 3. We provide brief comments about the proofs of these three statements.

Proposition 1**.**

For any $n\geq k\geq 1$, $\sum_{i=k}^{n}i\widetilde{A}_{i}\mathop{\rm=}\limits^{\textup{d}}(k-1)\widetilde{S}_{n-k+1}+\sum_{i=1}^{n-k+1}\widetilde{S}_{i}.$

The result follows as $\widetilde{A}_{i}$ in the sum is replaced by $\widetilde{A}_{n-i+1}$, $k\leq i\leq n$.

Proposition 2**.**

(a)* As $n\to\infty$, $\sum_{i=1}^{n}\widetilde{S}_{i}/n^{2}\to 1/2$ a.s. (b) Let $\alpha>0$ and $n\colon\mathbb{R}_{+}\to\mathbb{Z}_{+}$, $n(\rho)\sim\alpha\sqrt{\rho}$ as $\rho\to\infty$. Then $\mathbb{E}e^{-\sum_{i=1}^{n(\rho)}\widetilde{S}_{i}/\rho}\to e^{-\alpha^{2}/2}$.*

Proposition 3**.**

Let $\alpha>0$. (a) The function

[TABLE]

is decreasing and continuous. (b) As $x\to 0$, $\mathbb{E}f(\widetilde{A})\to 1$.

Both in Proposition 2 and Proposition 3, part (b) follows from part (a) by the dominated convergence theorem.

Now we are in a position to prove Lemma 4.

Proof of Lemma 4.

The weak convergence result follows since, by Lemma 2 and Proposition 1,

[TABLE]

and then Propositions 2(b) and 3(b) imply that $\mathbb{P}\left\{Q_{\infty}/\sqrt{\rho}\geq x\right\}\to e^{-x^{2}/2}$ as $\rho\to\infty$.

To prove the second part of the lemma, which states convergence of the mean, we use the formula

[TABLE]

Fix a $T>0$ and split the sum above into the sum over $k\leq T\sqrt{\rho}$ and over $k>T\sqrt{\rho}$. Then, by Proposition 3(a),

[TABLE]

where

[TABLE]

Now we find the limits of $\mathbb{E}L(\rho)$ and $U(\rho)$ as $\rho\to\infty$. Proposition 2(a) implies that $L(\rho)\to\int_{0}^{T}e^{-x^{2}/2}dx$ a.s. as $\rho\to\infty$, and because of the uniform boundedness $L(\rho)\leq T$, $\rho>0$, we also have

[TABLE]

To find the limit of $U(\rho)$, we split the sum in its definition into the sums over the sets of the form $n\lfloor T\sqrt{\rho}\rfloor<k\leq(n+1)\lfloor T\sqrt{\rho}\rfloor$ and get

[TABLE]

The last inequality and (15)–(16), in combination with Propositions 2(b) and 3(b), imply that, for any $T>0$,

[TABLE]

and then, by sending $T\to\infty$, we obtain $\mathbb{E}Q_{\infty}/\sqrt{\rho}\to\int_{0}^{\infty}e^{-x^{2}/2}dx=\sqrt{\pi/2}$. ∎

5. Proof of Theorem 1

5.1. Convergence to the fluid limit

In this section, we prove that the family of the scaled queue-length processes $\overline{Q}^{\rho}(\cdot)$ is relatively compact (in Lemma 8), and that their finite-dimensional distributions converge to those of the claimed limit process $\overline{Q}(\cdot)$ (in Lemma 7). These are the ingredients of weak convergence in the Skorokhod space $\mathbf{D}$.

Lemma 7**.**

Under the assumption of Theorem 1, for any $n\geq 1$ and partition $0\leq t_{1}<t_{2}<\ldots<t_{n}$, $\left(\overline{Q}^{\rho}(t_{j})\right)_{j=1}^{n}\Rightarrow\left(\overline{Q}(t_{j})\right)_{j=1}^{n}$ jointly as $\rho\to\infty$.

Lemma 8**.**

Under the assumption of Theorem 1, the family of the processes $\overline{Q}^{\rho}(\cdot)$, $\rho>0$, is relatively compact.

Proof of Theorem 1.

It follows by Lemmas 7 and 8 and [6, Theorem 3.7.8(b)] that the processes $\overline{Q}^{\rho}(\cdot)$ converge weakly in $\mathbf{D}$ to $\overline{Q}(\cdot)$. ∎

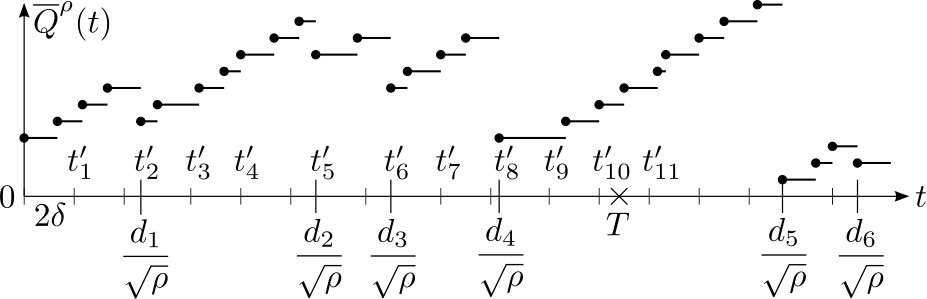

In the proofs of Lemmas 7 and 8 below, $A(\cdot)$ denotes the arrival process. We also use its fluid-scaled version

[TABLE]

Proof of Lemma 7.

The above relations imply the bounds (recall that $\overline{D_{l}}$ denotes the complement of the event $D_{l}$)

[TABLE]

where we keep $K$ fixed for the moment and let $\rho\to\infty$. Note that, by the functional law of large numbers, $\left(\overline{A}^{\rho}(t_{j})-A(d_{l_{j}})/\sqrt{\rho}\right)_{j=1}^{n}\Rightarrow\lambda\left(t_{j}-\tau_{l_{j}}\right)_{j=1}^{k}$ jointly with the weak convergence in Lemma LABEL:lem:joint_MC_FL. Then, by the absolute continuity of the weak limits in Lemma LABEL:lem:joint_MC_FL, we have

[TABLE]

where the events

[TABLE]

are analogues of the events $B^{1}_{(l_{j})_{j=1}^{n}}$ for the fluid limit. Finally, we let $K\to\infty$, and then Remark 3 implies that

[TABLE]

To prove the relative compactness of the processes $\overline{Q}^{\rho}(\cdot)$ in $\mathbf{D}$, we employ the standard tools of compact containment and oscillation control.

Proof of Lemma 8.

This proof makes use of the following moduli of continuity: for any $x\in\mathbf{D}$ and $\delta,T>0$,

Appendix

Here we provide the proofs of Lemmas 3 and 5, which assume Poisson arrivals.

Proof of Lemma 3.

This proof makes use of the generating function

[TABLE]

Since the arrival process is Poisson, the queue-length process $Q(\cdot)$ forms a continuous-time Markov chain with transition rates

[TABLE]

The balance equations for $Q(\cdot)$ and sets $\{0,1,\ldots,k\}$ read as

[TABLE]

and imply the following relation

[TABLE]

where

[TABLE]

Note that, by the Taylor expansion around $z=1$, the generating function $\pi(z)$ admits the alternative representation

[TABLE]

We now derive the Taylor expansion around $z=1$ for $r^{\prime}(z)$ as well. We have

[TABLE]

and hence

[TABLE]

Finally, by equating the coefficients in the Taylor series (17) multiplied by $\rho$ and (18), we obtain the relation (6). ∎

Proof of Lemma 5.

With the notation

[TABLE]

The Kolmogorov equations for the Markov process $Q(\cdot)$ read as follows:

[TABLE]

By the identity $\sum_{l\geq k+1}p_{l}(t)=1-\sum_{l=0}^{k}p_{l}(t)$, the above system can be rewritten as

[TABLE]

We now multiply the $k$-th equation by $e^{(\lambda+(k+1)\mu)t}$ and make the substitution

[TABLE]

which yields the new system

[TABLE]

It can be shown by induction that any solution to (20) is of the form

[TABLE]

with some constants $\widetilde{C}_{k,l}$. Hence, any solution to the original system (19) is of the form (7).

It is left to check that the constants $C_{k,i}$ in (7) satisfy the recursive relations (8). The identity (8a) is the limit of (7) as $t\to\infty$. The relation (8b) follows as one plugs (7) back into the system (19) and equates the corresponding coefficients of the (linearly independent) functions $e^{-(\lambda+i\mu)t}$, $1\leq i\leq k$. Finally, the relation (8c) follows by putting $t=0$ in (7). ∎

Acknowledgments. This research was partly funded by the NWO Gravitation Project Networks, Grant Number 024.002.003. The authors thank F. Simatos, P. Taylor, and B. Zwart for helpful discussions.
