Synergies between Exoplanet Surveys and Variable Star Research

TL;DR

This paper reviews how exoplanet survey techniques and data have significantly advanced variable star research by providing extensive, high-precision photometric data and inspiring new analysis methods.

Contribution

It highlights the synergy between exoplanet surveys and variable star research, emphasizing new data, methods, and impactful results in variable star astronomy.

Findings

Large-scale photometric surveys have created extensive variable star inventories.

Data analysis methods from exoplanet research have benefited variable star studies.

Variable star discoveries have been significantly enhanced by exoplanet survey data.

Abstract

With the discovery of the first transiting extrasolar planetary system back to 1999, a great number of projects started to hunt for other similar systems. Because of the incidence rate of such systems was unknown and the length of the shallow transit events is only a few percent of the orbital period, the goal was to monitor continuously as many stars as possible for at least a period of a few months. Small aperture, large field of view automated telescope systems have been installed with a parallel development of new data reduction and analysis methods, leading to better than 1% per data point precision for thousands of stars. With the successful launch of the photometric satellites CoRot and Kepler, the precision increased further by one-two orders of magnitude. Millions of stars have been analyzed and searched for transits. In the history of variable star astronomy this is the biggest undertaking so far, resulting in photometric time series inventories immensely valuable for the whole field. In this review we briefly discuss the methods of data analysis that were inspired by the main science driver of these surveys and highlight some of the most interesting variable star results that impact the field of variable star astronomy.

Figures

Tables

Table 1. Table 1: Major red noise filtering methods developed during the past 12 12 12 years

Acronym	Expanded name	Brief description∗	Ref.
TFA	Trend Filtering Algorithm	Cotrending by the stars in the field using	kovacs2005
		simple least squares
SysRem	Systematics Removal	Iterative step-by-step cotrending by the	tamuz2005
		stars in the field, using PCA-related method
SARS	Simultaneous Additive and	SysRem extended to additive and	ofir2010
	Relative Sysrem	multiplicative red noise
EPD	External Parameter	Using parameters (e.g., object pixel	bakos2010
	Decorrelation	coordinates) external to the light curve
PDC	Presearch Data Conditioning	Cotrending by using Bayesian approach	stumpe2012
		with PCA-selected template light curves	smith2012
MarPLE	Marginalized Probability of	Using Bayesian method to find single transit	berta2012
	a Lone Eclipse	events and the period to combine them
TERRA	Transiting Exoearth Robust	Cotrending by employing least squares fit,	petigura2012
	Reduction Algorithm	PCA and template outlier selection
ARC	Astrophysically Robust	Cotrending by using Bayesian approach	roberts2013
	Correction	with entropy criterion and PCA to select the
		essential contribution from the templates
SFF	Self Flat Fielding	Systematics, due the roll correction of the	vanderburg2014
		Kepler (K2) spacecraft, are filtered out by
		using pixel positions as external parameters
CPM	Casual Pixel Model	Using pixel-level autoregressive model to	wang2016
		predict systematics during transit
GPM	Gaussian Process Model∗∗	Signal search by using Gaussian models	aigrain2015
		for a simultaneous fit of the systematics
		and the underlying signal
FFF	Full-Fledged-Fit∗∗	Periodic transit search by simultaneous fit	foreman2015
		for systematics and the signal
SIP	Systematics Insensitive	FFF extended to sinusoidal signals	angus2016
	Periodogram
DOHA	capital of Qatar	Cotrending by best-correlating templates	mislis2017
		on full and nightly time bases

Equations

$$\hat{F}(t)$$

Full text

1 Introduction - some historical background

Up until 1999, telephoto lenses were not acknowledged as the source of major astronomical discoveries. This has changed dramatically when, after the discovery of the first extrasolar planet 51 Peg mayor1995 , marcy1995 , many research teams started concentrated efforts to observe the photometric transit signals of the already discovered planets, and find new ones. Because some of the systems discovered by radial velocity methods had short periods of a few days and the estimated masses were in the range of Jupiter masses, these extrasolar planets (dubbed as Hot Jupiters, or HJs for short) with their $5-20$% transit probabilities and $\sim 1$% transit depths were excellent targets for photometric detection, even for telescopes with apertures of $\sim 5-10$ cm. Indeed, five years after the discovery of 51 Peg, the photometric monitoring of HD 209458 resulted in the multiple observations of the transit events of the companion henry2000 , charbonneau2000 . This important discovery immediately fixed the ambiguity of the planet mass due to orbital inclination, proved that the source of radial velocity variation is an orbiting companion and not a stellar surface phenomenon and allowed for the first time to derive the two basic parameters (mass and radius) of an extrasolar planet.

After this ground-braking discovery, over twenty different projects started to monitor large ($\sim 100$ square degrees) chunks of the sky and look for the same kind of events in millions of stars, without a priori radial velocity velocity monitoring. Interestingly, the first photometric discovery came not from these small-telescope projects but from the OGLE project, operating a $1.3$ m telescope and originally devoted to microlensing surveys. Unlike HD 209458, OGLE-TR-56 udalski2002 is a faint, $V=16.6$ mag star. This mounted rather strong constraints on the possible spectrographs used for the validation of the system. Nevertheless, in spite of its faintness, the system was successfully verified (see konacki2003 ). It was soon realized that small telescopes are vital for the more massive discovery of additional systems that are considerably brighter.

In 2004, TrES-1, the first transiting extrasolar planet (TEP) was discovered by using small aperture wide-field automated telescopes alonso2004 . The Trans-Atlantic Exoplanet Survey (TrES) network hosted the STARE telescope, the one that was instrumental in the discovery of the first transiting exoplanet, HD 209458. Although the discovery of TrES-1 was a good sign that small telescope projects are, indeed, capable of making significant discoveries, it was not until the fall of 2006 when these projects started to yield the rate of discovery hoped for. The relative long delay between conceiving the idea and the first science output is attributed to several factors. This includes the time needed for the technical implementation (please note that these telescopes are autonomous with sophisticated software making decisions on telescope operation, data acquisition and basic image reduction), development of new methods for massive signal search and, especially, solve the problem of filtering out colored noise, accessibility of proper instrumentation for precise followup observations with the proper amount of telescope time to get accurate light curve and radial velocity solutions. Last, but not least, these objects are rather rare, with a $\sim 0.4$% (or lower) true occurrence rate (see, e.g., guo2016 ) and an even lower (a factor of $10-30$ lower) observability rate.

With the discovery of HAT-P-1 and WASP-1 bakos2007 , collier2007 the speed of the discoveries substantially increased, yielding by now over $200$ well-characterized HJ systems, covering a wide variety of stellar and planet parameters. Meanwhile, the long-planned space mission CoRoT was launched in 2006 and started to deliver high-quality, uninterrupted photometric time series on thousands of stars, leading to the discovery of the first super-Earth object Corot-7b. Three years later, after many years of planning, the Kepler satellite was launched and a new era has begun with startling discoveries, such as Kepler-9, the first system with multiple transiting planets holman2010 , or Kepler-186f the first of the several systems hosting planets in the habitable zone quintana2014 , some of which might even be similar to Earth, such as Kepler-22b borucki2012 . The Kepler mission still continues, from 2014 under the name K2, showing the ingenuity of engineering and community support for the brilliant solution of the lost of the two reaction wheels by the time the main mission was completed. The K2 mission has proven to be quite successful. By visiting ecliptic fields, a broad spectrum of astrophysically interesting objects are visited, driven by researchers across the various disciplines of astronomy.

The main science (discover and characterize planets outside the solar system) that drives the above ground- and space-based projects resulted in an increase in the quality and amount of the photometric data never seen before. It is obvious that this fundamental change has serious impact also on variable star research. In this review we focus on the ground-based wide-field surveys as the results of the variable star works on the space mission data are more widely known due to the large number of researchers working on these data. On the other hand, works on the variable star aspects of the ground-based surveys are less organized and sporadic. Nevertheless, as we will see, these surveys are both complementary and in many respects competitive to the space surveys. Therefore, it is very important to be aware of the results obtained so far and also of what these data could be used for in future works.

2 Wide-field photometric surveys - the overall importance

Unlike variable searches, targeting specific stars in earlier surveys (e.g., globular cluster studies, works on RR Lyrae stars in microlensing survey data alcock1996 ), current photometric projects, while looking for periodic transit signals, scan through the whole list of objects passing some minimum precision condition. Photometric surveys targeting extrasolar planets have to satisfy high standards in data quality (continuity and precision) and in volume (due to the rare occurrence and short duration of the event, even though it is periodic). This results in time series that surpass the quality of most of the photometric data gathered earlier and yields valuable source of a large diversity of various studies, not directly related to extrasolar planetary science. These science “by-products” may often be as important as those targeted by the original idea that has led to the initialization of the project.

Many projects started after the first discovery of the transit of HD 209458 in 2000. Some of them were not realized (e.g., Permanent All Sky Survey, or PASS111http://www.iac.es/proyecto/pass/, deeg2004 ), some of them were abandoned (e.g., Wise observatory Hungarian-made Automated Telescope, or WHAT222http://wise-obs.tau.ac.il/~what/index.html, and some of them survived, expanded and became important/major contributors to the exoplanet inventory (e.g., Wide Angle Search for Planets, or WASP, pollacco2006 ).

In the design of the instrumentation of these surveys, one might consider the optimization of the system (including hardware and observational strategy) for the most effective survey of large number of stars. One of the issues is the size of the optics used. In an interesting paper by pepper2003 , the authors come up with a solution that employing a $2$ inch telescope, with a $4K\times 4K$ CCD camera would be optimum. Indeed, this setting is very close to the ones used by most of the “classical” surveys that range from $4$ cm (KELT) to $\sim 20$ cm (e.g., HATSouth) with $10$ cm as the most often used and also, the combination of these under the same closure (Qatar Exoplanet Survey, or QES333http://www.qatarexoplanet.org/, alsubai2016 ).

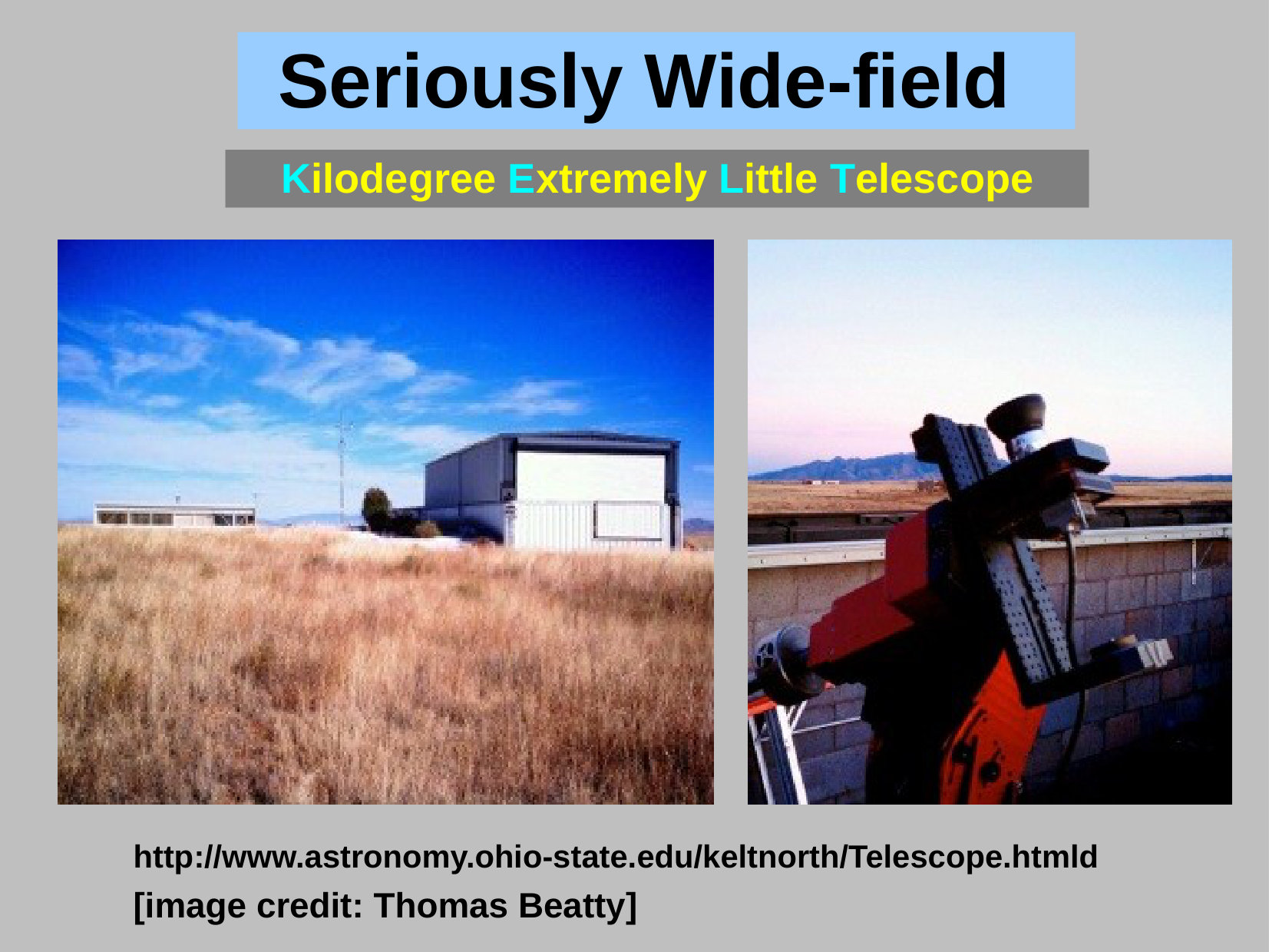

For illustration, the somewhat unique setting for KELT-North is shown in Fig. 1. The instrument has a field of view of $26\times 26$ square degrees, almost seven times as large as that of the instrument of the Kepler satellite. The southern station is hosted by the South African Astronomical Observatory and constitutes also of a single instrument, the replica of the one at the northern station. Both instruments are fully robotic. They covered so far $\sim 70$% of the sky, and supplied $4.5\times 10^{6}$ light curves. As is today, they discovered $15$ TEPs444http://exoplanet.eu and made possible visits to several important “side topics” (see Sect. 3).

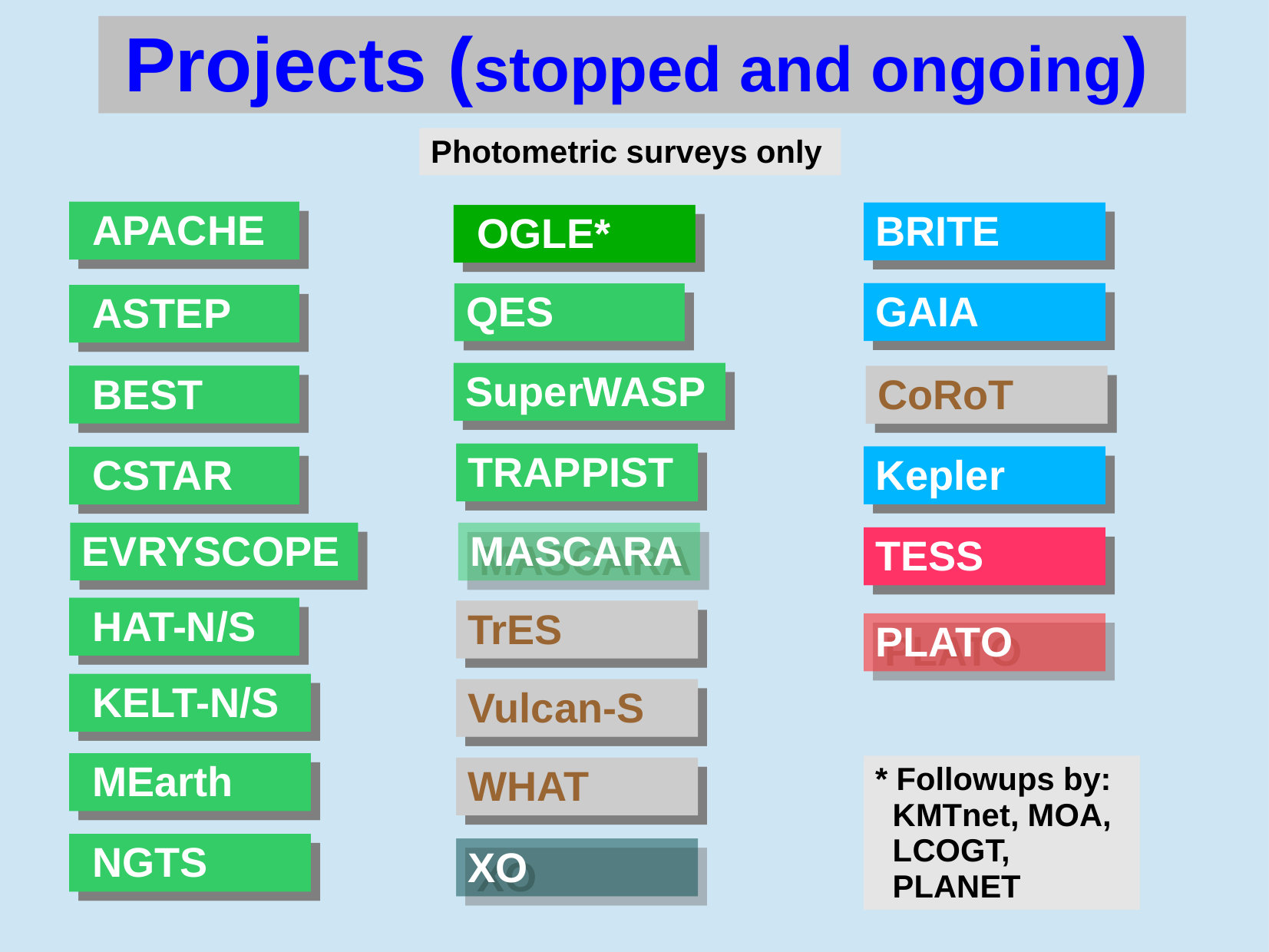

Fig. 2 summarizes the major photometric surveys contributed (or will contribute) to the discovery of TEPs. For a broader view, we included also related space mission555Gaia is not specified for planetary system search but will obviously yield a great contribution to it - mostly via the precise position measurements - but even through its low cadence photometry, once it is combined with dedicated ground-based followup observations (see dzigan2013 ).. It is impossible to give even a brief description of all these projects. Therefore, we focus on HAT-N/S and WASP, the two main surveys contributing to most of the TEPs discovered from the ground and describe some of the main parameters of these projects. However, it is important to note that several other projects also made very significant contributions. For example, MEarth666https://www.cfa.harvard.edu/MEarth/Welcome.html (M dwarf stars in search of new Earth-like exoplanets, see irwin2014 ) has important contribution to the variability survey of M dwarfs newton2016 and made the first discoveries of a transiting Super-Earth/Mini-Neptune charbonneau2009 and an Earth-sized planet from the ground berta2015 . Yet another, highly significant discovery comes from the TRAPPIST777http://www.ati.ulg.ac.be/TRAPPIST/Trappist_main/Home.html (TRAnsiting Planets and PlanetesImals Small Telescope) project. The system consists of two $60$ cm robotic telescopes are located at La Silla Observatory (Chile) and at the Oukaïmden Observatory (Marroco). In 2016 TRAPPIST made the first ground-based discovery gillon2016 of a multiplanetary system (consisting of three Earth-sized planets) around a nearby M8 dwarf. The proximity of the system makes it a prime candidate for deep study of the long-chased class of multiplanetary transiting planets around M dwarfs. And indeed, just before completing thus review, four additional planets were announced for this system, discovered by the Spitzer space telescope gillon2017 .

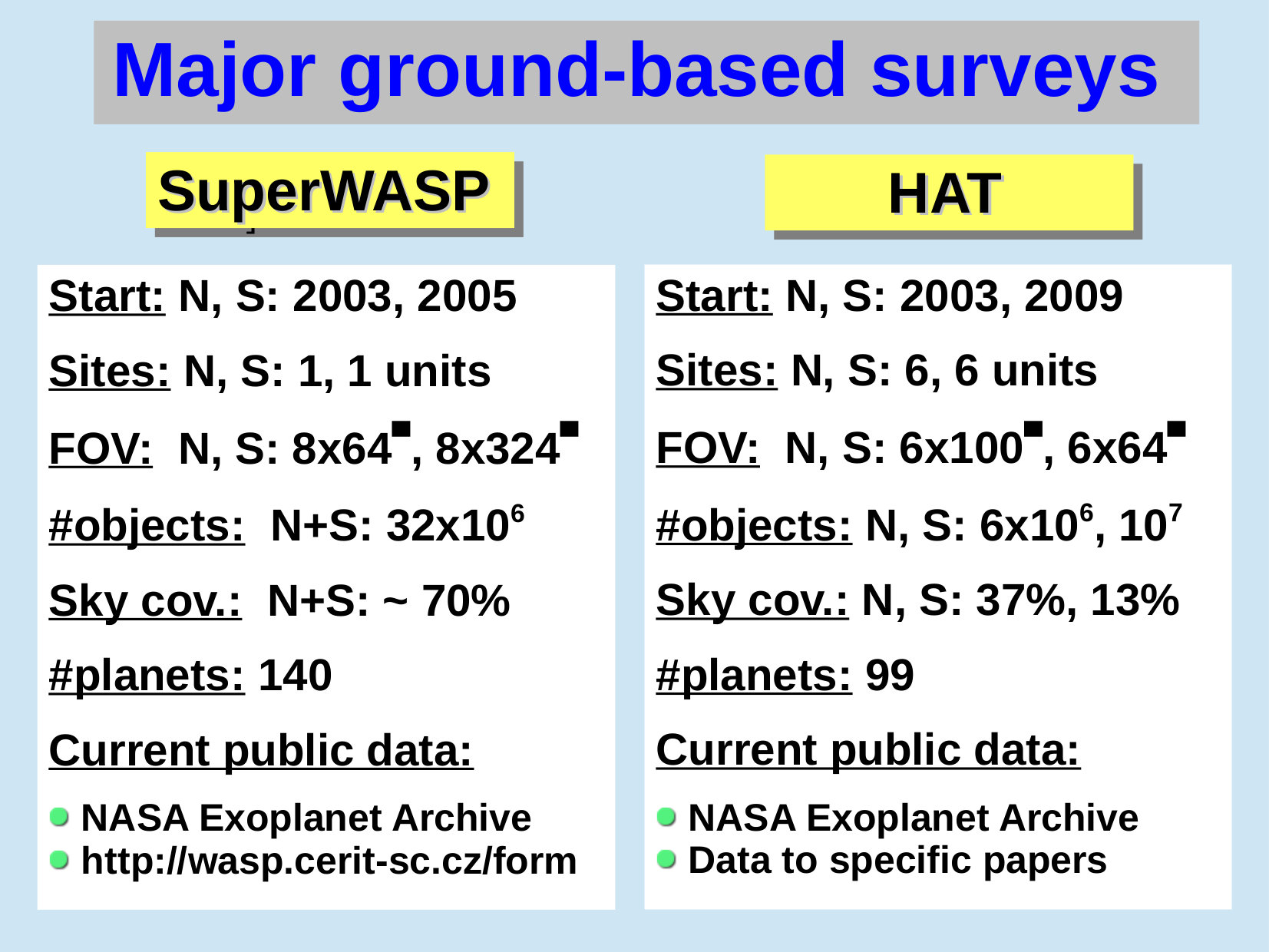

Some of the basic characteristics of the two major survey programs are listed in Fig. 3. SuperWASP888http://www.superwasp.org consists of two observing units. One (SuperWASP-North) is in La Palma (Spain), the other one (SuperWASP-South) is at the South African Astronomical Observatory. Each unit consists 8 telephoto lenses (of $11$ cm and $7$ cm diameter) attached to $2K\times 2K$ CCD cameras enabling to take images on a very large chunk of the sky. The more detailed description of SuperWASP can be found in pollacco2006 and an update in smith2014 .

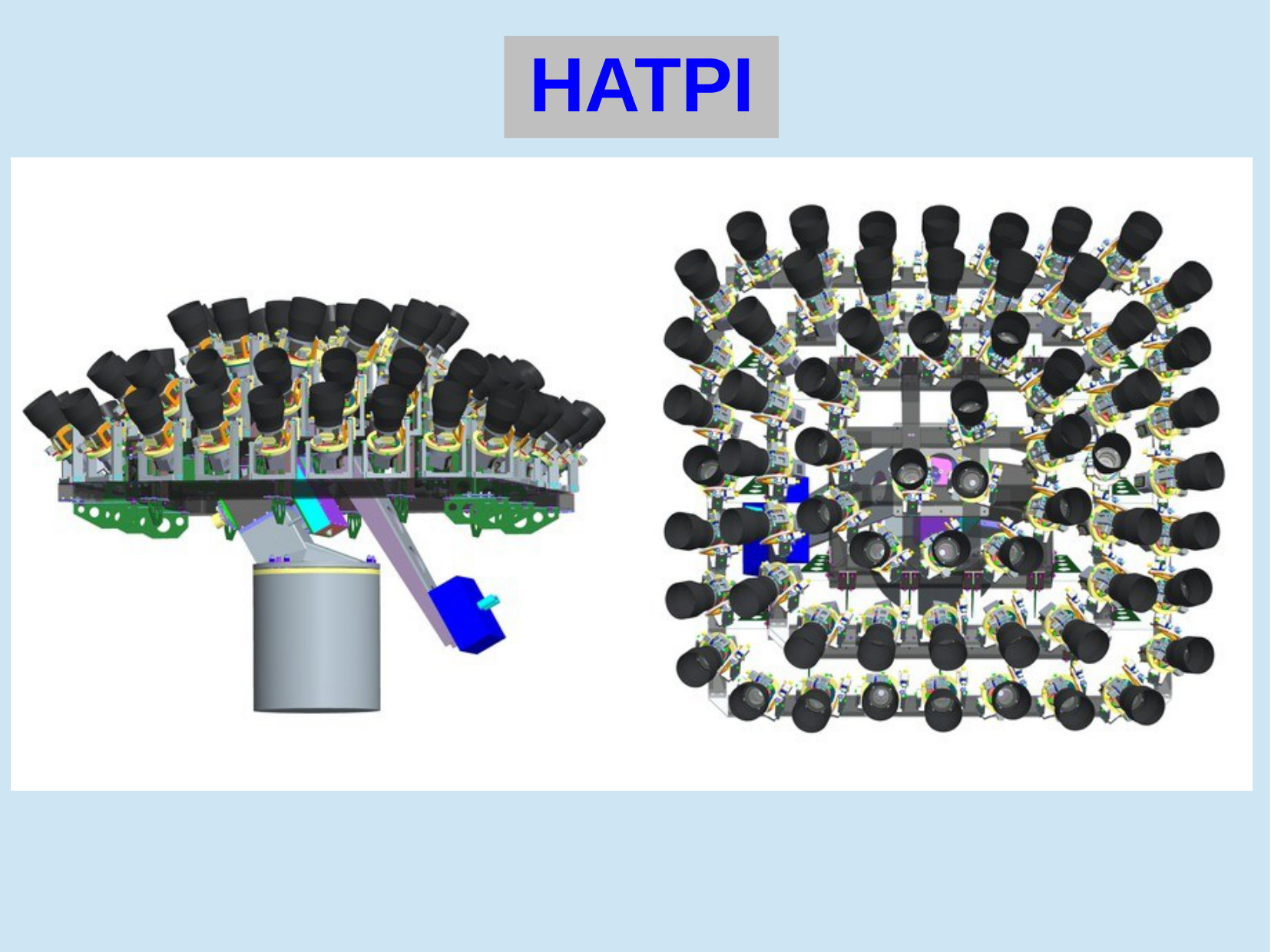

The HAT project went through two major steps in the development. The survey on the Northern Hemisphere, HATNet999http://hatnet.org/, started in 2004, and consists of two sites (the one at Mauna Kea Observatory/Havaii and the other at the Fred Lawrence Whipple Observatory/AZ) with altogether 6 observing units, each equipped with a $11$ cm diameter telephoto optics and a $4K\times 4K$ format CCD camera. The Southern counterpart (HATSouth101010http://hatsouth.org/) is a bigger undertaking, with observing units different in design than those of HATNet. Established in 2009, HATSouth consists of three sites: Las Campanas Observatory (Chile), Energy Stereoscopic System (HESS, Namibia) and Siding Spring Observatory (Australia). At each site there are two units with four $4K\times 4K$ CCD cameras attached to $18$ cm diameter astrographs. The detailed description of HATNet and HATSouth can be found in bakos2004 and bakos2013 , respectively.

Both projects made (and are making) important discoveries in the field of extrasolar planets. With the spread in the longitude, careful data acquisition, in-depth treatment of the data and the longevity of the projects, these surveys are capable of detecting short period Hot Neptunes (e.g., HAT-P-11b bakos2010 and HAT-P-26b hartman2011b ), Warm Jupiters with periods longer than 10 days (e.g., HAT-P-15 kovacs2010 , WASP-130 hellier2017 , HATS-17 brahm2016 ) and Hot Jupiters with shallow transits around evolved stars (e.g., WASP-73 delrez2014 , HAT-P-50 hartman2015 ). Both projects make the data used in their published papers available for the public. In addition, SuperWASP deposited all light curves gathered between 2004 and 2008 in a searchable format at the NASA/IPAC exoplanet site111111Similar (albeit less extensive) depository exists for the KELT project and fractional data releases for TrES and XO – see http://exoplanetarchive.ipac.caltech.edu.

3 Impact on data analysis - curing the red noise syndrome

As emphasized in Sect. 2, wide-field surveys have to satisfy certain conditions in order to meet the original science goal. Because in the transit surveys all “photometrically sound” objects are searched for signals, any miniscule details count. Therefore, it is not surprising, that a considerable effort has been taken to achieve the highest data quality possible for a given instrumentation. In this section we briefly summarize the various methods that are intended to reach this goal.

As follows from their very names, wide-field surveys cover a large part of the sky even if we consider only the single exposure images. Therefore, already the basic method of reduction (ensemble photometry, e.g., honeycutt1992 ) should be modified bakos2004 , considering vignetting, differential reddening and refraction, change in the size and shape of the point spread function (PSF). Furthermore, even after taking all these into account, most of the stars will still contain some residual scatter due to uncured (or improperly considered) observational and environmental effects. Although a considerable filtering of these effects is possible with the aid of Differential Image Analysis (DIA, alcock1999 , or OIS alard1998 ), even this, more in-depth treatment cannot cure all remaining systematics dekany2009 . Therefore, post-processing is an inevitable step in modern photometric surveys.

Differing in the details in the implementation, all these methods are based on the general idea that systematics are characterized by some combination of: a) the common perturbations in many objects in a given field, b) perturbations depending on external parameters, associated with each star, allowing peculiar (non-common) types of variability. Examples of type a) systematics are the nightly variation of the transparency, the trace of the improperly corrected track of an airplane or that of a cosmic ray. Type b) systematics include flux variability due to changes in the size and shape of the PSF, or to the spatial-dependent pixel sensitivity. The idea of systematics correction can be represented perhaps in the simplest way within the framework of TFA/EPD (see Table 1). We approximate the observed flux variation $F(t)$ of our target of interest by the following expression

[TABLE]

where $F_{0}(t)$ is the “true” signal (free from systematics and random - uncorrelated - noise), $N(t)$ is the instrumental/environmental white noise component, $\{X_{j}(t):j=1,2,...,M\}$, $\{E_{i}(t):i=1,2,...,K\}$ are, respectively, the $M$ template/cotrending time series of a representative group of objects in the field and the $K$ external parameters. The regression coefficients $\{a_{j}\}$ and $\{b_{i}\}$ are determined by some multiple regression method, in the simplest case by standard least squares. Since $F_{0}(t)$ is not known a priory, the standard approach in the case of signal search is to assume that systematics dominate the observed signal and set $F_{0}(t)$ equal to zero. The period search is performed on the time series obtained after the subtraction of the so-determined contribution of systematics. Once the period is found, the signal reconstruction phase follows, in which the complete signal model, represented by Eq. (1) is solved. For transit signals this step is iterative, whereas for multiperiodic signals, representable by Fourier series, the solution can be obtained in a single step kovacs2008 .

Please note that the philosophy of all systematics filtering methods is fundamentally different from the standard ensemble approach. In the latter we do not fit the target time series but simply use the time-dependent total (ensemble) flux to correct for the effects of atmospheric variations by dividing the instantaneous target fluxes by the corresponding ensemble fluxes. Under ideal circumstances, this method filters out only the atmospheric component of the variation, but leaves the intrinsic variation of the object intact. On the other hand, all systematics correction methods listed in Table 1 distort the signal at some degree, and the main purpose of many methods is to minimize this effect without jeopardizing the filter efficiency too much. This can be attempted by using only the “essential” cotrending time series (estimated by Principal Component Analysis, e.g., TERRA) and formulate the problem in the Bayesian framework to allow proper weightings of the different contributions to the systematics (e.g., PDC, ARC). One may also try to employ the full model (see Eq. 1) already in the period search phase, by assuming a certain type of signal with limited number of parameters. Surprisingly, this, highly time consuming method can be implemented by a proper grid-search algorithm that runs with an acceptable speed foreman2015 , angus2016 . Yet another way of running “full-fledged” period searches is to employ a Gaussian Process model that allows to weight the different contributions to the signal by using properly chosen correlation kernels aigrain2015 . MarPLE, the method developed for transit search on the sparse data of MEarth berta2012 is aimed also at conserving the signal shape, by using single nights to find single transits and combine these results within the Bayesian framework on the full dataset to find the period.

Unfortunately, these works lack a thorough comparison with the more traditional approach, in which the data are filtered first for systematics, and then, the signal search is performed on these filtered data (containing considerably less systematics and the signal – albeit the latter with various degree of distortion). In a subsequent study by kovacs2016 this comparison was performed on the subsets of the HATNet and K2 databases. They found that full-fledged methods may have limited applicability due to problems related to the proper disentangling of the signal and systematics in the observed signal. It seems that the traditional approach (filter first, then analyze), works better.

4 Selected highlights - the variable star aspects

In addition to the highly competitive nature of the field of extrasolar planets, ground-based wide-field surveys have been making a significant impact also on various fields of variable star research. So far, altogether over hundred papers have been published by these projects on objects (directly) unrelated to exoplanets. Several of them have received a considerable attention from the particular field (e.g., stellar rotations among Galactic field K$-$M stars hartman2011a and in the open clusters Come Berenices collier2009 and in the Hyades and Praesepe delorme2011 ). The fields covered by these “side” studies range from rotating asteroids parley2008 through classical pulsating stars skarka2014 to supernovae siverd2015 . It is impossible to summarize all these topics in the depth they deserve. Therefore, here we go through the main fields of study only briefly. Nevertheless, a few topics (reflecting mainly the prejudice of the author of this review) will be discussed somewhat deeper.

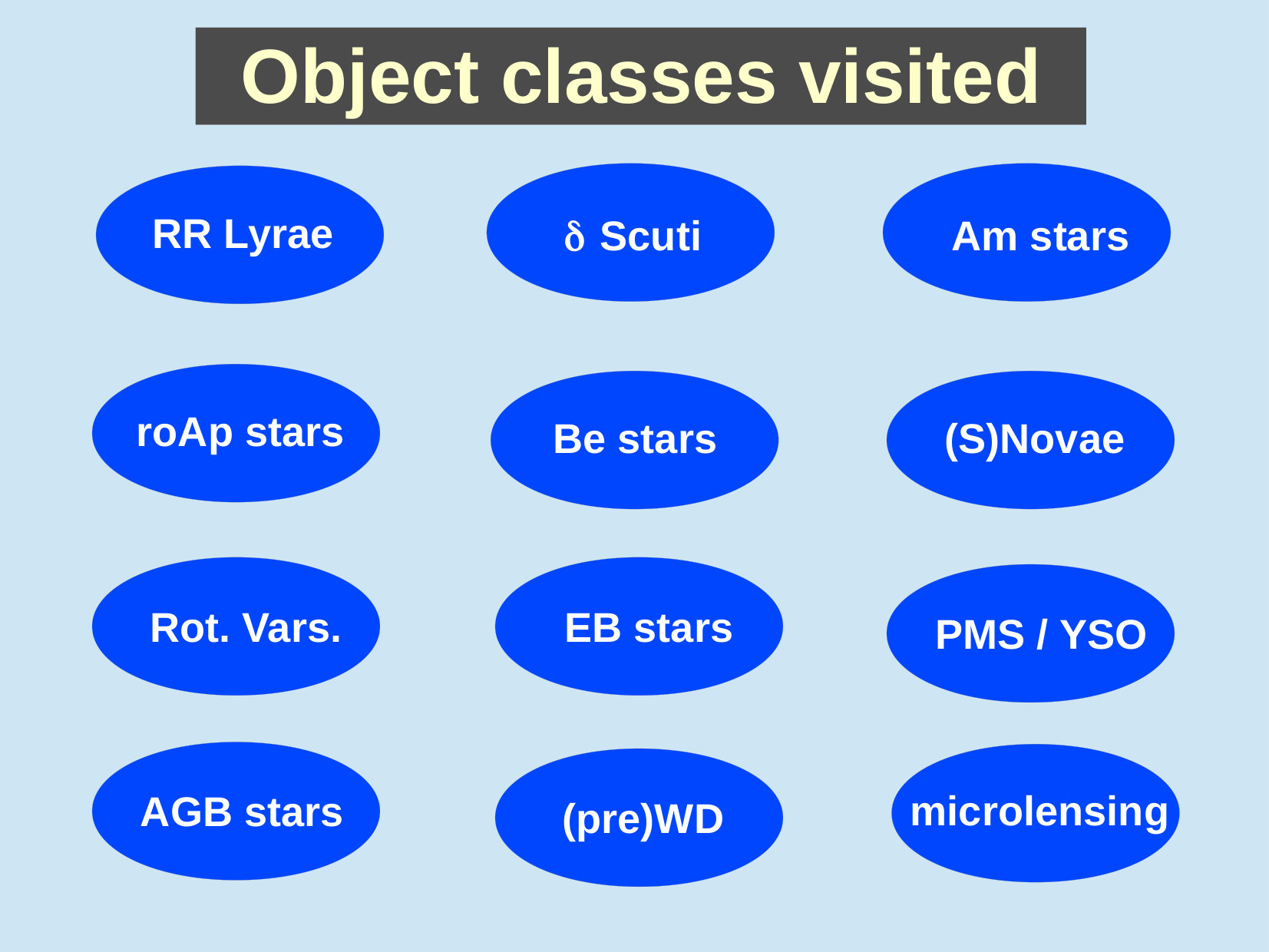

Except for some special topics (e.g., Solar System bodies parley2008 ), the main types of objects visited by the survey-related investigations are shown in Fig. 5. For curiosity, we also list “microlensing”, albeit this topic is limited to a single project only (for testing the ability of HATNet to detect microlensing events toward the Galactic Bulge nataf2009 ).

• •

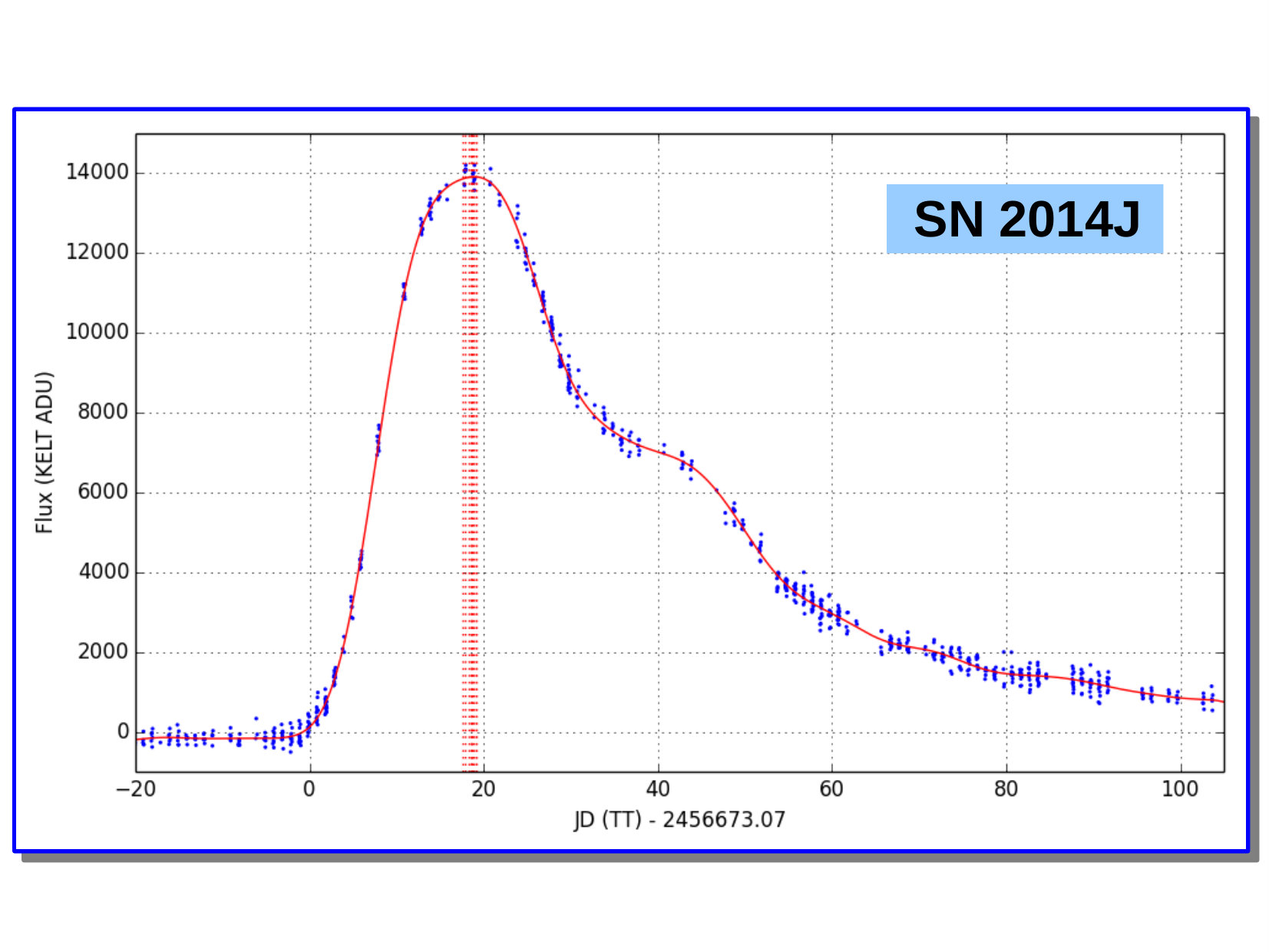

SN 2014J and eruptive stars: By the very nature of the supernova explosions, they are usually discovered in the brightest phase, although some of them caught already during rising light (e.g., shappee2016 ). On the other hand, the observation of the pre-supernova phase of SN 2014J in M82 siverd2015 was absolute unique until three similar events, back to 2011 and 2012, were disclosed in olling2015 , by using the archive of the Kepler satellite. The full light curve, as observed by the KELT project is shown in Fig. 5. Analysis of the pre-burst state is very important for making distinction between the various progenitor scenarios leading to type Ia supernovae explosions. In the particular case of SN 2014J, other (e.g., HST, X-ray and radio) observations exclude the single degenerate$+$large companion model, but white dwarf mergers are allowed both by the above data and by the pre-burst light curve goobar2015 .

Similarly exciting are the the discovery of the precursor of Nova Sco 2008 tylenda2011 and the quite recent announcement of the nova candidate KIC 9832227 for an outburst in 2022 molnar2017 . In both cases the precursors are W UMa binaries, and the prediction in the latter case relies on the observation of a similar steep decrease in the orbital period than for V1309 Sco, the binary progenitor of Nova Sco 2008. Both works utilize survey data, including those coming from wide-field projects (NSVS, ASAS, SuperWASP).

For other eruptive phenomena, we draw attention for several studies performed by utilizing the SuperWASP survey. A handful of novae (recurrent and transient) were investigated by mcquillin2012 . Other works on eruptive variables can be found in byckling2009 , thomas2010 .

• •

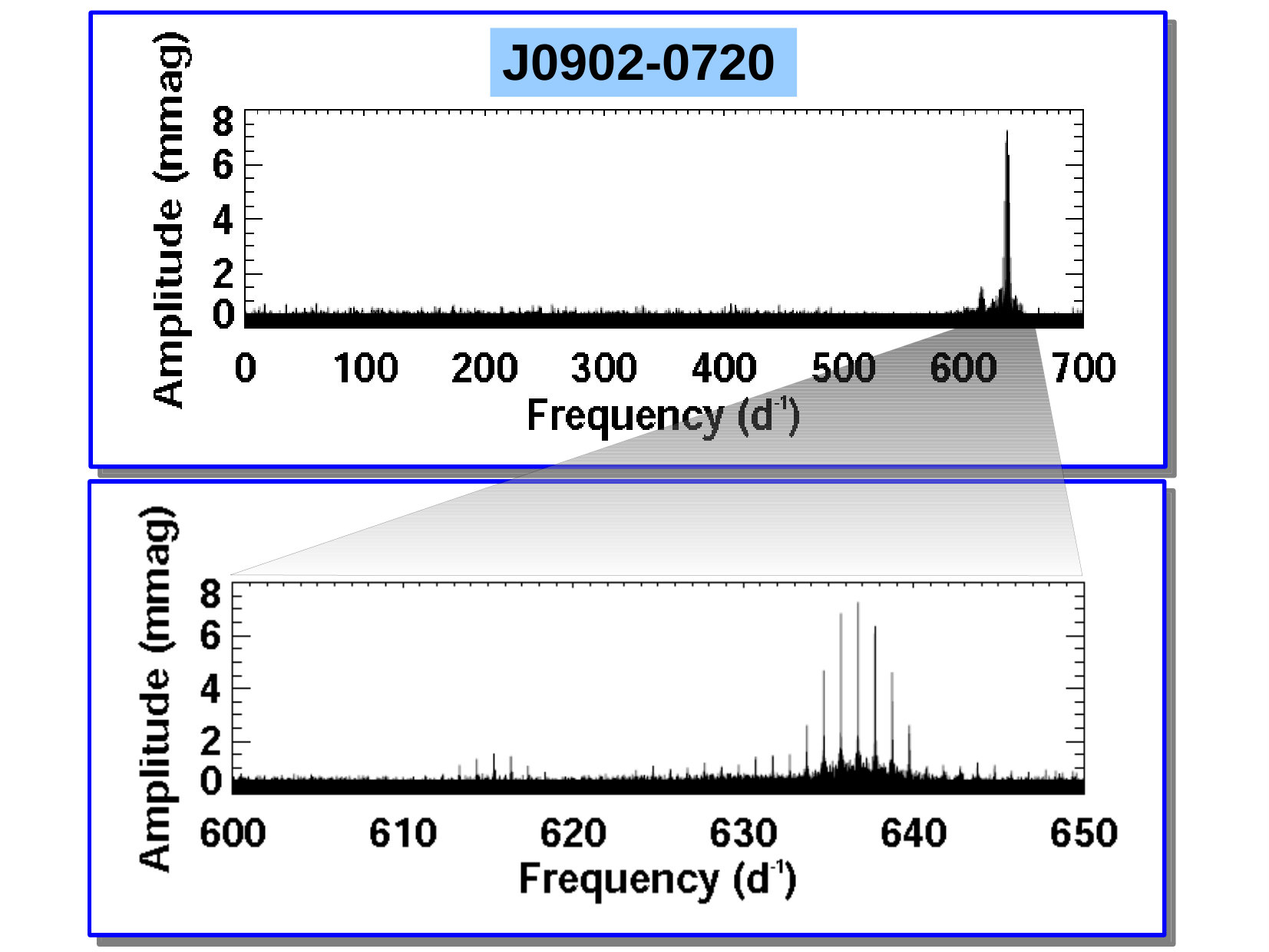

Pulsating sub-dwarf B stars: SuperWASP pioneered the extension of variability search in the frequency regime close to or above the sampling rate used in the standard exoplanet survey mode. This has led to various exciting discoveries, including rapidly oscillating Ap stars (see later) and pulsating sdB stars (see Fig. 7).

• •

Rotating stars in open clusters: Stellar rotation can be exhibited through the photometric variation induced by the varying spot coverage of the visible hemisphere of the star. Prior to the wide-field surveys, specific targets in the field and open clusters were the subjects of individual projects, often facing with the difficulties detecting low-amplitude non-stationary signals on the time scale of few days to month. On the other hand, this kind of variability is in the comfort zone of the wide-field surveys. As already noted at the beginning of this section, several pioneering works have been made on open clusters and on the field by SuperWASP, KELT and HATNet.

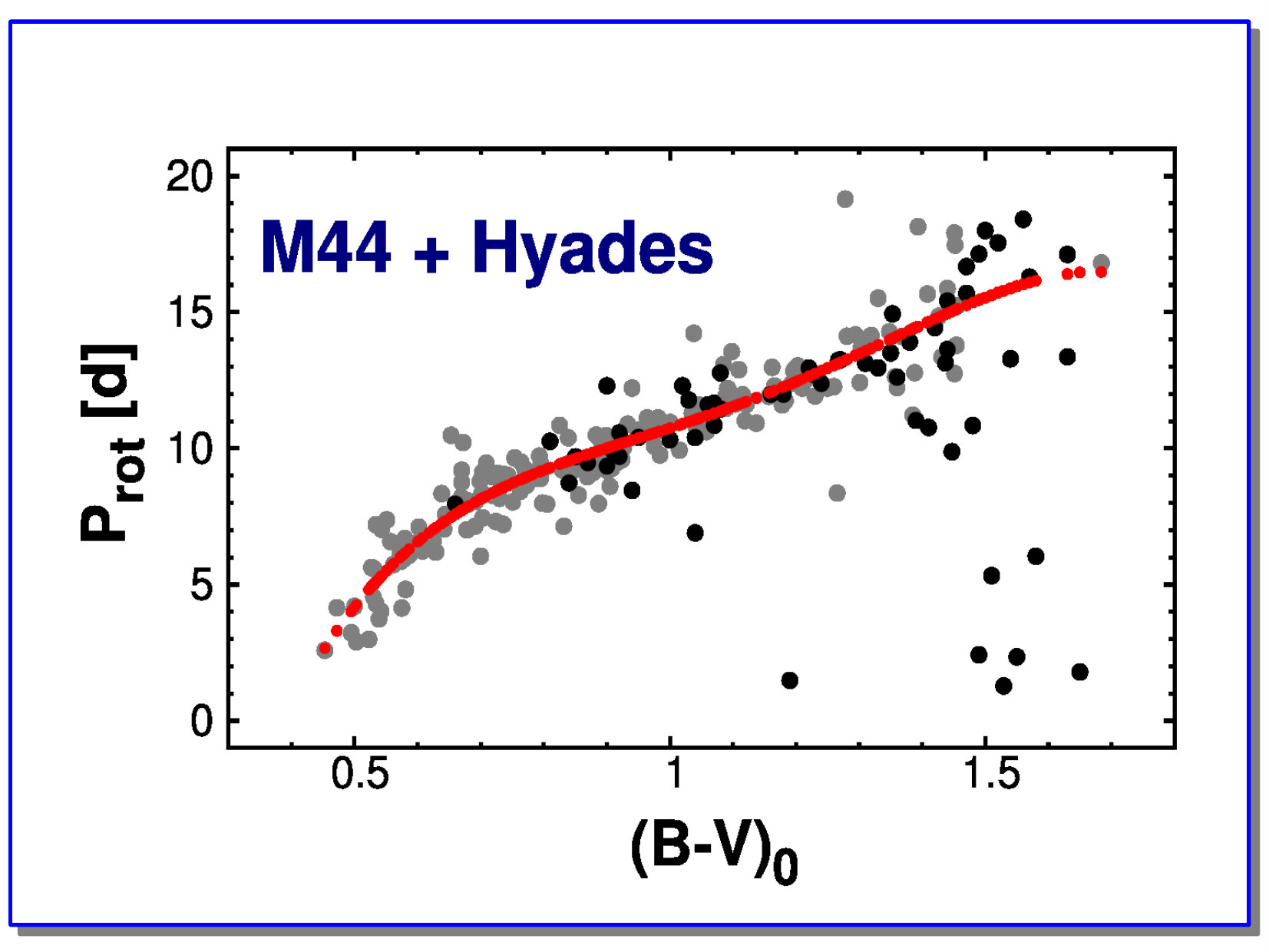

Fig. 7 shows the combined diagnostic diagram of stellar rotation for two famous clusters of the same-age. The method of gyrochronological age determination of field stars is based on these kinds of diagrams barnes2003 (see, however, current controversy on the applicability of this method on field stars: kovacs2015 , vansaders2016 , buzasi2016 .

• •

$\delta$* Scuti stars and variability of A-type stars:* Stars on and close to the main sequence with spectral types A to F are know to exhibit low-amplitude, short period pulsations, often identified as p- or g-mode pulsations or some mixture of these. One of the unanswered questions concerning these variables is the dependence of the occurrence of the pulsations on the physical parameters. In spite of the theoretical expectations, only a fraction of the stars pulsate in the instability strip. Low sensitivity of the variability surveys is no longer an issue. Indeed, even with the exquisite accuracy of the Kepler space telescope, we find that only 12% of the stars in the instability strip are $\delta$ Scuti or $\gamma$ Dor (or mixed) variables (44% are spotted or eclipsing variables, and the remaining 44% are constant bradley2015 – see also bowman2016 for a more extended survey). Most of the variables have amplitudes above $1$ mmag, i.e., within the reach of ground-based wide-field surveys. Indeed, many papers have been published on these stars, most of them utilizing the SuperWASP data.

One of the most exciting findings was the discovery of the large occurrence of pulsators among Am stars (although rare occurrence of Am star pulsations was known from sparse earlier works – e.g., kurtz1995 ). From the examination of $1600$ Am stars, smalley2011 found $200$ variables exhibiting pulsations similar to those of “normal” $\delta$ Scuti or $\gamma$ Dor stars. The excitation mechanism of these stars could result from some delicate mixture of gravitational depletion of metals, rotation and turbulence (see the spectroscopic survey of Am stars by smalley2017 . Further examination of $1.5$ million stars in the F$-$B spectral range also in the SuperWASP database by holdsworth2014 has led to the discovery of additional Am stars and $10$ rapidly oscillating Ap stars. (A class of chemically peculiar stars, discovered unexpectedly by kurtz1982 in 1982.)

• •

Other diversities: Unfortunately, we have space only to name few of the many exciting results: dimming episodes in young stellar objects rodriguez2013 , rodriguez2016a ; active main sequence B stars: labadie2016 ; RR Lyrae stars with Blazhko effects skarka2014 , sodor2012 ; AGB stars: arnold2015 ; eclipsing variables: quadruple (quintuple?) system lohr2013 , the longest eclipse ever measured rodriguez2016b (see also lipunov2016 ), EB close to the short period limit lohr2014 , etc.

5 Conclusions

We cannot conclude without emphasizing the great importance of the Northern Sky Variability Survey, NSVS (based on the observations of the Robotic Optical Transient Search Experiment, ROTSE-I, PI: Carl Akerlof) and the All Sky Automated Survey, ASAS (PI: Grzegorz Pojmanski) that proved the concept, the significance and the competitive scientific role of small, fully robotic instruments. We should also recall the indefeasible role of Bohdan Paczynski, who was a very strong supporter of small telescope variability surveys.

Today’s wide field surveys grew up from the exciting and highly challenging idea of discovering extrasolar planetary systems by using the rare events of tiny dimmings of light when the planet moves across of the line of sight between the star and the observer. These projects have reached the level of efficiency when the discovery of this kind of events became standard. New methods of time series analysis have been developed, fertilizing other fields of research and helping in the development of the proper filtering of the data acquired by the various space missions. The data gathered by these projects are immense and we are only at the beginning of utilizing the millions of light curves observed over the past $15$ years. The examples shown in this summary suggest the wide range of applicability of these databases.

Continuing and further developing ground-based wide field surveys will remain a significant goal in observational astronomy, in spite of highly competitive ground- and space-based projects (e.g., LSST, TESS). Full utilization of these data (including merging the different databases and the combination of them with other data from the ground and space) is still ahead. New projects are in progress (e.g., see Fig. 8), aiming at more continuous sky monitoring with the goal of covering great variety of astrophysical phenomena from transiting planets to supernovae. We are sure that these assets will constitute an integral part of future variable star studies.

{acknowledgement}

Acknowledgments: Many thanks are due to the organizers of this conference to keep alive the reputation of the Los Alamos stellar pulsation meetings and for the cordial spirit throughout the conference. We gratefully acknowledge the information received on current project statuses from Don Pollacco, Richard West and Andrew Collier Cameron (SuperWASP), from Gáspár Bakos (HAT) and from Joshua Pepper (KELT). Prompt responses to my questions from Keivan Stassun and Daniel Holdsworth are appreciated. Thanks are due for the financial support received from the organizers and from the Directory Fund of the Konkoly Observatory.
