Field-line localized destabilization of ballooning modes in 3D tokamaks

TL;DR

This paper reports the observation and analysis of field-line localized ballooning modes at the edge of high confinement plasmas in 3D tokamaks, showing how 3D magnetic distortions influence stability.

Contribution

It demonstrates the localization of ballooning modes to specific field-lines and links this to 3D magnetic shear distortions affecting stability predictions.

Findings

Ballooning modes are localized to specific field-lines during rotation.

3D magnetic shear distortions lower stability compared to axisymmetric cases.

Localization matches predictions from 3D ideal MHD stability calculations.

Abstract

Field-line localized ballooning modes have been observed at the edge of high confinement mode plasmas in ASDEX Upgrade with rotating 3D perturbations induced by an externally applied n = 2 error field and during a moderate level of edge localized mode-mitigation. The observed ballooning modes are localized to the field-lines which experience one of the two zero-crossings of the radial flux surface displacement during one rotation period. The localization of the ballooning modes agrees very well with the localization of the largest growth rates from infinite-n ideal ballooning stability calculations using a realistic 3D ideal magnetohydrodynamic equilibrium. This analysis predicts a lower stability with respect to the axisymmetric case. The primary mechanism for the local lower stability is the 3D distortion of the local magnetic shear.

Figures

Full text

ASDEX Upgrade

Introduction - In order to mitigate the possible harmful heat load from edge localized modes in the high confinement mode (H-mode) in future fusion devices, it is necessary to suppress or to mitigate the ELMs. The application of magnetic perturbations enables mitigation of ELMs and under certain circumstances even suppression. This method has the side-effect of a reduced plasma density at low collisionality ($\nu^{\star}$), and reduced pedestal plasma pressure, the so-called density ’pump-out’ Evans:2004 .

In recent years, there is growing evidence that stable ideal kink modes can amplify the externally applied MP-field Liu:2011 ; Paz-Soldan:2015 , which plays a key role in ELM mitigation Kirk:2015 and ELM suppression at low $\nu^{\star}$ Nazikian:2015 ; Suttrop:2017 . These magnetohydrodynamic (MHD) modes are driven by the edge pressure gradient and/or the associated bootstrap current. Comparative studies in combination with MHD modeling indicate that the highest ELM frequency, the strongest density ’pump-out’ and the strongest accompanying reduction in the edge pressure gradient are correlated with the coupling of the stable ideal kink modes to resonant components Paz-Soldan:2016 ; Liu:2016 ; Orain:2016 . The resulting 3D boundary distortion can be many times larger than expected solely from the MP of the vacuum field Chapman:2014a ; Moyer:2012 . It has been argued that the MPs modify the peeling-ballooning mode (PBM) stability by a change of edge bootstrap current due to the ’pump-out’ Chapman:2013 or equilibrium currents around rational surfaces Ham:2015 . To approximate changes in the finite-$n$ PBM stability Chapman:2013 , the local infinite-$n$ ideal MHD ballooning theory is often used as an estimate.

The infinite-$n$ ballooning theory in 3D MHD geometry has been extensively studied for stellerator configurations e.g. Ref Talmadge:1996 ; Hegna:1998 . First theoretical attempts to apply it to a 3D tokamak geometry induced by external MPs were done in Ref. Bird:2013 . It was proposed that the 3D modulations of the local magnetic shear associated with the presence of near-resonant Pfirsch-Schlüter currents peturb the ballooning stability boundary. This can lead to enhanced growth rates on local field-lines.

In this Letter, we present novel first measurements, which demonstrate field-line localized destabilization of ideal MHD ballooning modes in the presence of an edge perturbed 3D MHD tokamak equilibrium. The measured localization of the ballooning modes in the 3D geometry combined with infinite-$n$ ballooning calculations supports the proposed importance of the changes in the local magnetic shear.

Experimental setup - The presented example is from a series of ASDEX Upgrade experiments to measure the displacement by combining rigidly rotating MP-fields with the toroidal mode number $n=2$ and toroidally localized diagnostics Willensdorfer:2017 . In this work, we primarily use electron cyclotron emission (ECE) diagnostics, which deliver the electron temperature ($T\rm{{}_{e}}$) around the low field side (LFS) midplane from the measured radiation temperature ($T\rm{{}_{rad}}$) Willensdorfer:2016 . To have the best coverage at the edge for profile-ECE and ECE-imaging (ECE-I) Classen:2014 measurements, we set a toroidal field ($|B\rm{{}_{T}}|$) of around $2.5\ \rm{T}$. Further global parameters are a plasma current $I_{P}$ of $800\ \rm{kA}$, edge safety factor $q_{95}$ of $5.3$ and a core electron density ($n\rm{{}_{e}}$) of $4.3\;\rm{10^{19}m^{-3}}$. The applied neutral beam injection (NBI) and electron cyclotron resonance (ECR) heating are approximately 6 and $2\;\rm{MW}$, respectively (see Fig. 1(a)). A slow ($f\rm{{}_{MP}}=3\ \rm{Hz}$) rotating MP-field is applied. The MP-coil supply current shown in Fig. 1(b) illustrates the timing. The rotation is in the positive toroidal direction using a fixed differential phase angle ($\Delta\varphi\rm{{}_{UL}}$) of around $-90^{\circ}$ between the MP-field from the upper and lower coil set (see cartoon in right top corner of Fig. 1). Because of 8 coils in each row and a low intrinsic error-field, the dominant $n=2$ spectrum varies little during the rotation as seen by small core $n\rm{{}_{e}}$ perturbations ($<5\%$).

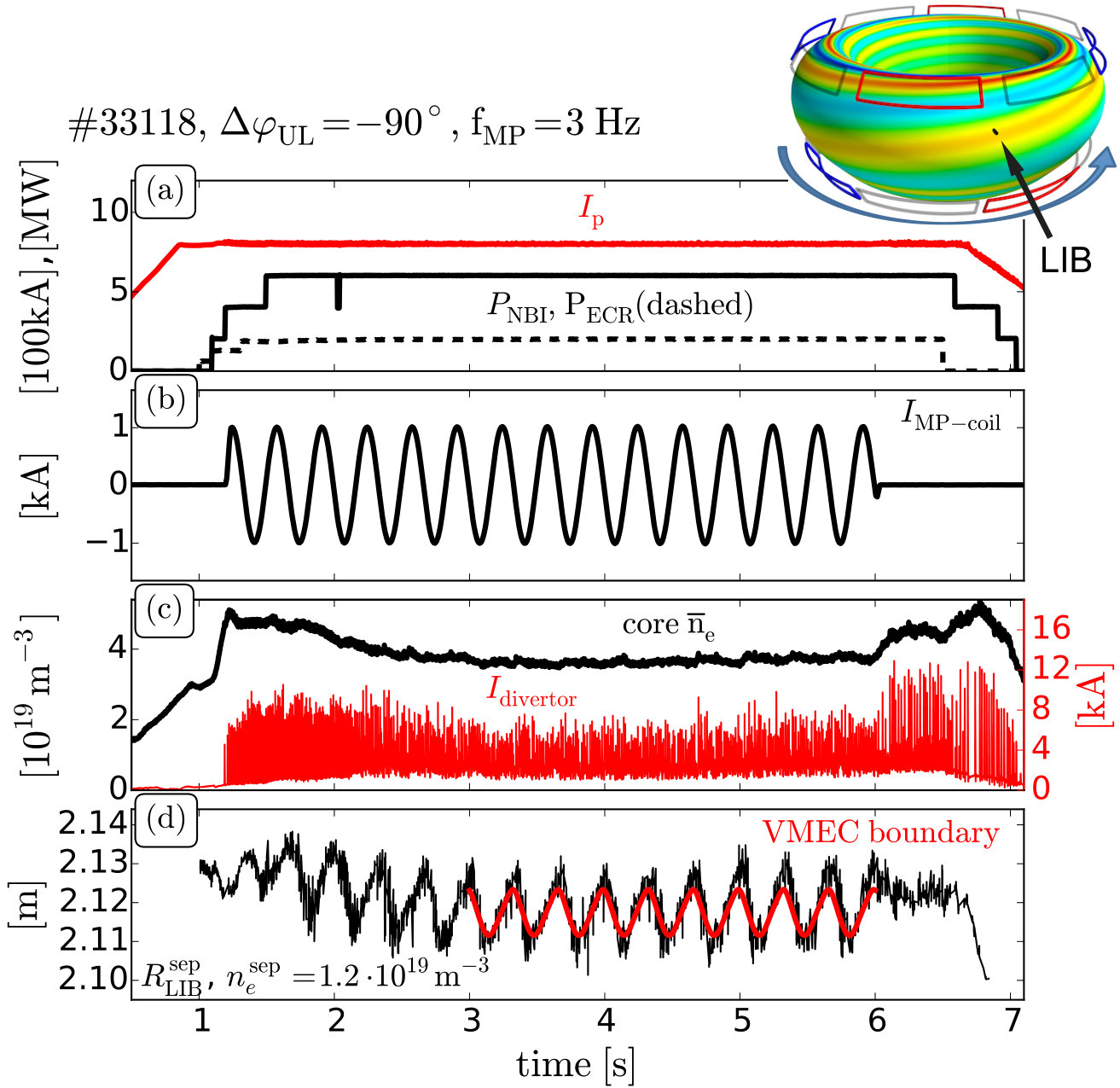

The applied MP-field configuration ($\acs{dphi}\approx-90^{\circ}$) is optimal to excite stable ideal kink modes at the edge Liu:2016 , which leads to a moderate level of density ’pump-out’ and a reduction of the ELM size. This is best seen in Fig. 1(c) at $6\;\rm{s}$ during the switch-off of the MP-field.

The rigidly rotating MP-field causes a rotation of the radial displacement ($\xi_{r}$, normal to axisymmetric flux surface) at the boundary, which is seen as a modulation in edge profile diagnostics. To track $\xi\rm{{}_{r}}$ at the boundary, we use the $n\rm{{}_{e}}$ profiles from the lithium beam (LIB) diagnostic Willensdorfer:2014 assuming a constant separatrix density (Fig. 1(d)).

To model $\xi_{r}$, we employ the 3D ideal MHD equilibrium code VMEC Hirshman:1983 . If no strong resistive MHD modes are active, VMEC is able to predict $\xi_{r}$ at the edge Chapman:2014a ; Willensdorfer:2017 . For details about its setup for ASDEX Upgrade discharges and the accuracy of VMEC in the presence of rational surfaces, we refer to Ref. Strumberger:2014 ; Willensdorfer:2016 ; Willensdorfer:2017 and Ref. Loizu:2016 ; Lazerson:2016 , respectively. For the given configuration VMEC predicts a maximum $\xi_{r}$ of $\pm 11\;\rm{mm}$ at the plasma top and $\pm 6\;\rm{mm}$ around the LFS midplane (visualized in the inset of Fig. 1). To underline the agreement of the calculated $\xi_{r}$ with experiments, the predicted boundary corrugation from the 3D VMEC equilibrium along the lines of sight (LOS) of the LIB is added in Fig. 1(d). This equilibrium is calculated once at $4\;\rm{s}$ and the corrugation is then mapped onto the time base according to the phase of the MP-field rotation Willensdorfer:2016 . Good agreement is found and the amplitudes differ by not more than $1.3\;\rm{mm}$.

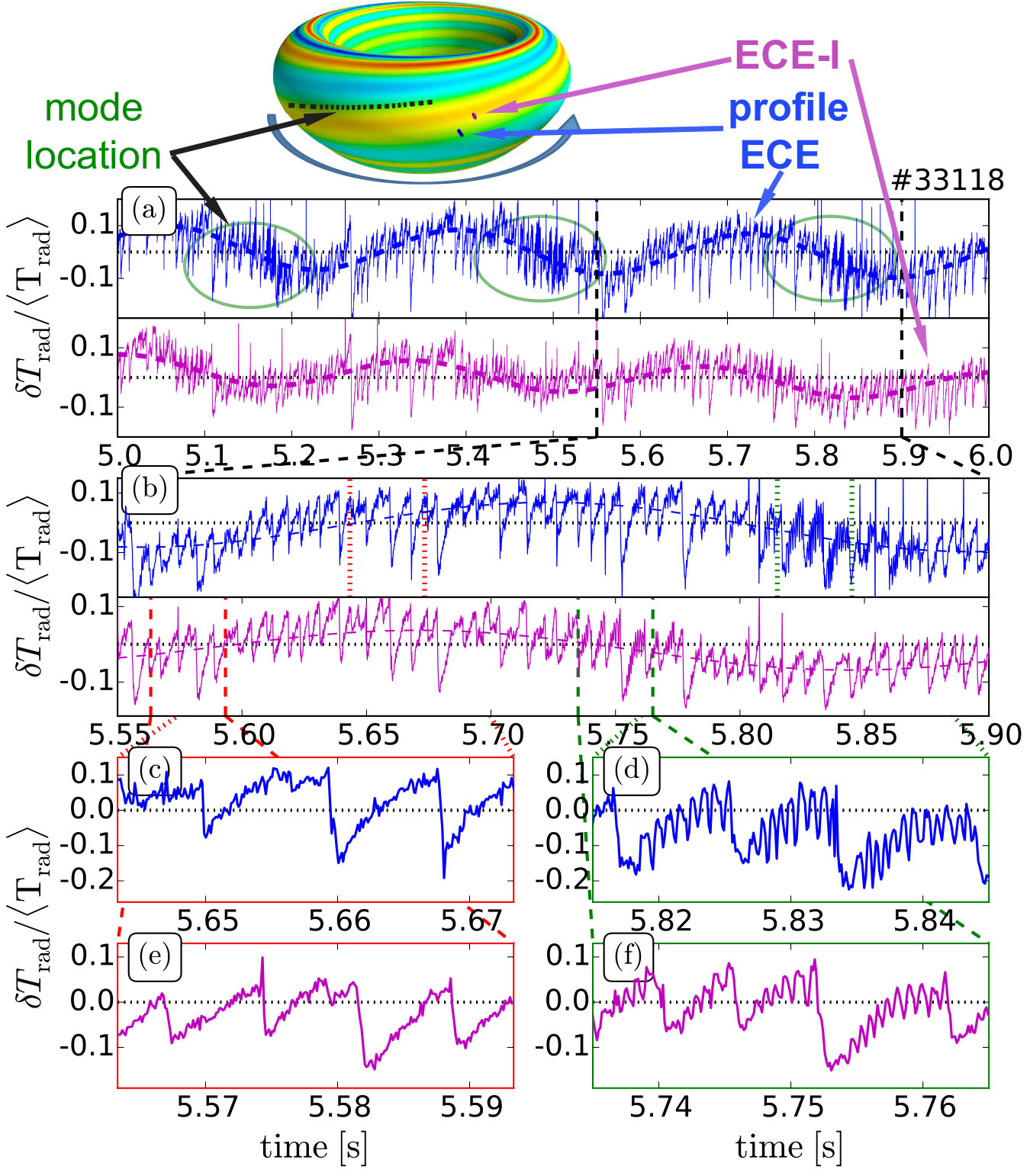

Observations - During rigid rotation experiments, we observe an instability occurring only at certain toroidal phases. Figure 2 shows time traces of the measured relative amplitude ($\delta\acs{Trad}/\langle\acs{Trad}\rangle$ with $\delta\acs{Trad}=\acs{Trad}-\langle\acs{Trad}\rangle$), where $\langle\acs{Trad}\rangle$ is averaged over the 3 periods, from one profile ECE (blue) and one ECE-I (magenta) channel probing the steep gradient region near the pedestal top. These channels are continuously optically thick, so we can assume $\acs{Te}\approx\acs{Trad}$. Three rotation periods and ELM crashes are seen Fig. 2(a). Fits of sinusoidal functions (dashed colored lines) using only pre-ELM data points emphasize the modulation from the rotating $\xi\rm{{}_{r}}$. Because of the poloidally as well as toroidally separated measurement positions and the alignment of $\xi\rm{{}_{r}}$ (see cartoon in Fig. 2), the two diagnostics exhibit a relative phase shift of around $\pi/2$.

High frequency modes ($f\approx 1\;\rm{kHz}$) appear in the diagnostics, when field-lines with specific 3D geometry pass their LOS (green circles). To enhance their visibility, Fig. 2(b) magnifies one period. It is clearly seen that these modes develop at different times in the profile ECE (Fig. 2(d)) and ECE-I channel (Fig. 2(f)), but at the same toroidal phase with respect to the $3\;\rm{Hz}$ modulation. They appear in-between ELMs and during one period they only occur once when the modulation crosses zero (dotted line) from positive to negative values (Fig. 2(d,f)). At other times, such pronounced oscillations are not seen e.g. Fig. 2(c,e). The amplitude of mode appears to be smaller in the ECE-I in comparison to the profile ECE (Fig. 2(d,f)). This is simply because of the twice as large observation volume of the ECE-I resulting in a smearing of the amplitude.

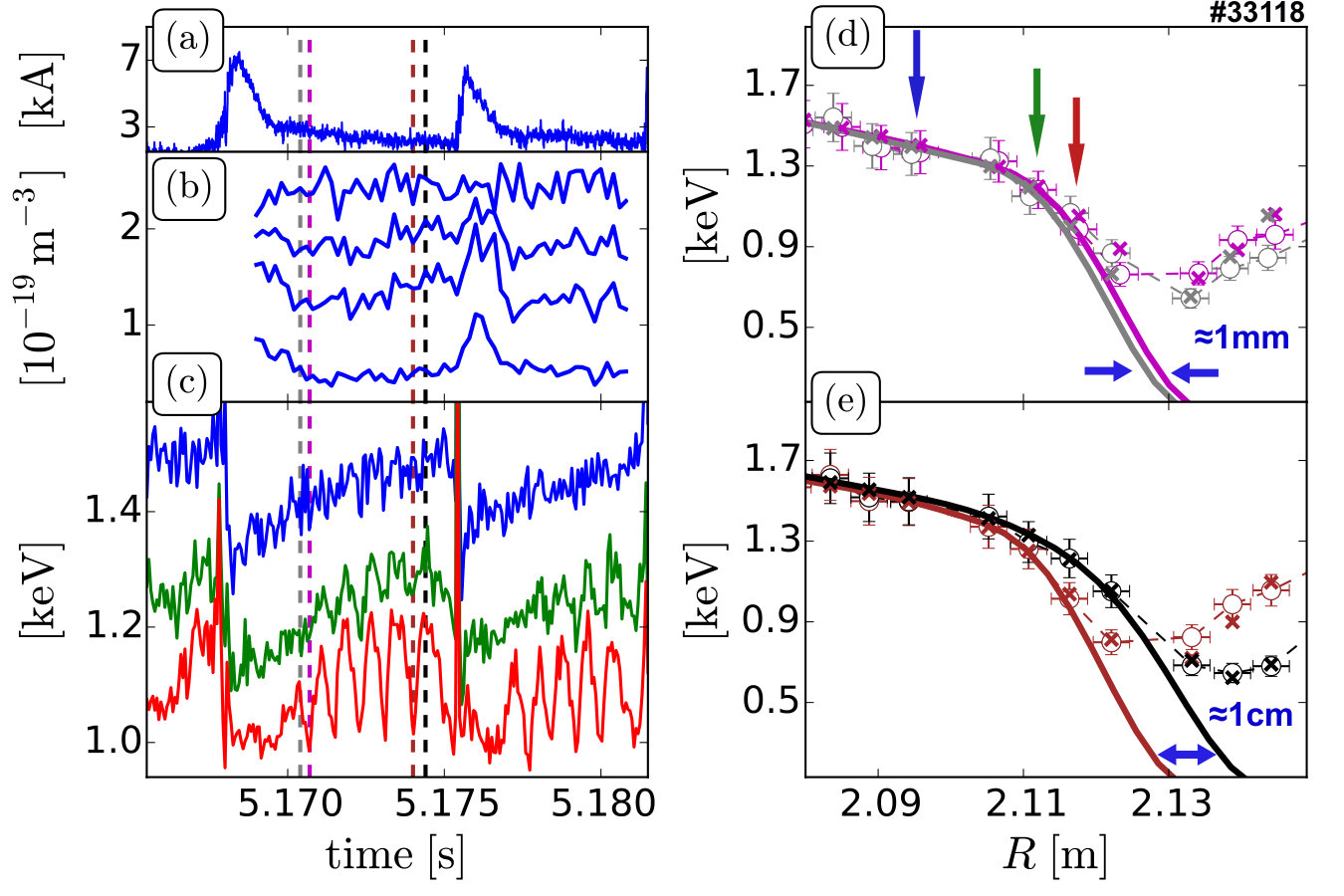

To demonstrate the properties of an ideal MHD instability, Fig. 3 shows $T\rm{{}_{e}}$ profiles during the ELM recovery determined from forward-modeling of the measured $T\rm{{}_{rad}}$ profiles Rathgeber:2013 . After the ELM crash, the edge pressure profile recovers as indicated by a slight steepening of $n\rm{{}_{e}}$ in the edge gradient region (Fig. 3(b)) and an increase of $T\rm{{}_{e}}$ at the pedestal top (blue in Fig. 3(c)). Simultaneously, the distortion amplitude of the high frequency mode increases from less than $1\;\rm{mm}$ to around $1\;\rm{cm}$ (Fig. 3(d,c)), which is suggestive for a pressure gradient driven instability. Clear radial displacements in the pedestal are observed. There is no indication of a magnetic island such as profile flattening at a rational surface or the $T\rm{{}_{e}}$ perturbations being in anti-phase on both sides of a rational surface.

The high frequency modes are also seen in other profile diagnostics around the LFS midplane like LIB. They are also measured at the LFS by soft X-ray, diode bolometers and weakly in $B\rm{{}_{\Theta}}$ probes, but these diagnostics do not detect these modes at the high field side (HFS). This gives us confidence that we are dealing with ideal MHD ballooning modes. Moreover, the mode rotates toroidally into the opposite direction of the MP-field rotation, so clockwise and poloidally into the electron diamagnetic direction as expected from ballooning modes.

These ballooning modes are also observed in other discharges from this experimental series and also in similar experiments at $\acs{bt}\approx 2.0\ \rm{T}$ with dominant ion cyclotron resonance heating. Their appearance seems to be correlated with a sufficiently large $\xi_{r}$ around LFS midplane and normalized beta ($\beta\rm{{}_{N}}$). Although these experiments have different applied poloidal mode spectra set by $\Delta\varphi\rm{{}_{UL}}$ Willensdorfer:2017 , the modes always occur around the same field-lines in the 3D geometry, which experience the zero-crossing $\xi_{r}$ from positive to negative values when the MP-field is rotated in positive toroidal direction. Moreover, the $2.0\ \rm{T}$ experiments in which the MP-field amplitude, normalized to the background magnetic field, is larger, show coupling of the modes to the external MP-field resulting in a vanishing phase velocity relative to the $n=2$ motion.

In summary, we observe rotating ballooning modes, which are only destabilized around a certain field-line in the 3D flux surface geometry. These ballooning modes do not appear at the maximum $\xi\rm{{}_{r}}$, where the local flux expansion causes the largest curvature and the smallest peak pressure gradients in real space $\partial p/\partial r$. They are also not at the minimum $\xi\rm{{}_{r}}$, where the local flux compression leads to the largest pressure gradients. This is different to the observed ballooning modes in the presence of internal kink modes in the core. In these cases the largest gradients come with the largest displacements, which then locally destabilizes the ballooning modes in the core Park:1995 . In the presence of perturbed flux surfaces from externally applied MPs, the modes are dominantly destabilized, where $\xi\rm{{}_{r}}$ is zero as predicted by Ref. Bird:2013 . Even more interestingly, they only appear at one specific zero-crossing although there are two in each period. The reason for this will be elucidated in the following.

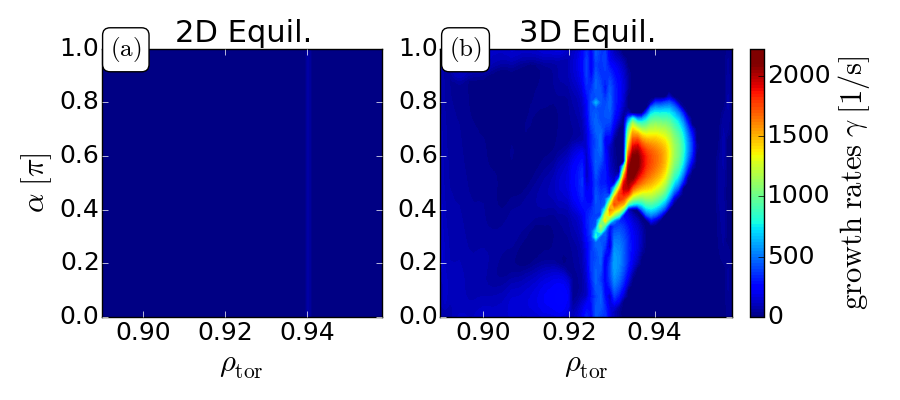

Stability analysis - Motivated by the experimental observations, we extended the stability analysis from Ref. Bird:2013 using the 3D equilibrium from VMEC introduced previously and its $n=0$ solution for the 2D case. The addition of 3D magnetic perturbations causes the local plasma stability to vary on different magnetic field-lines in the steep gradient region of the pressure profile. Applying the ideal ballooning theory allows us to solve for the high-$n$, local plasma stability on individual field-lines. The calculated growth rates $\gamma$ (color scaling) in the pedestal are shown in Fig. 4 as a function of the field-line label $\alpha=q\Theta^{\star}-\phi$ with the straight field coordinates ($\phi,\Theta^{\star}$) Hirshman:1983 versus the normalized toroidal flux ($\rho\rm{{}_{tor}}$) for one $n=2$ period. In comparison to the axisymmetric $n=0$ case (Fig. 4(a)), the growth rates of the perturbed equilibrium are enhanced (Fig. 4(b)), which indicates a lower stability in the 3D case with respect to the axisymmetric case. The growth rates are largest around the field-line $\alpha=0.6\pi$.

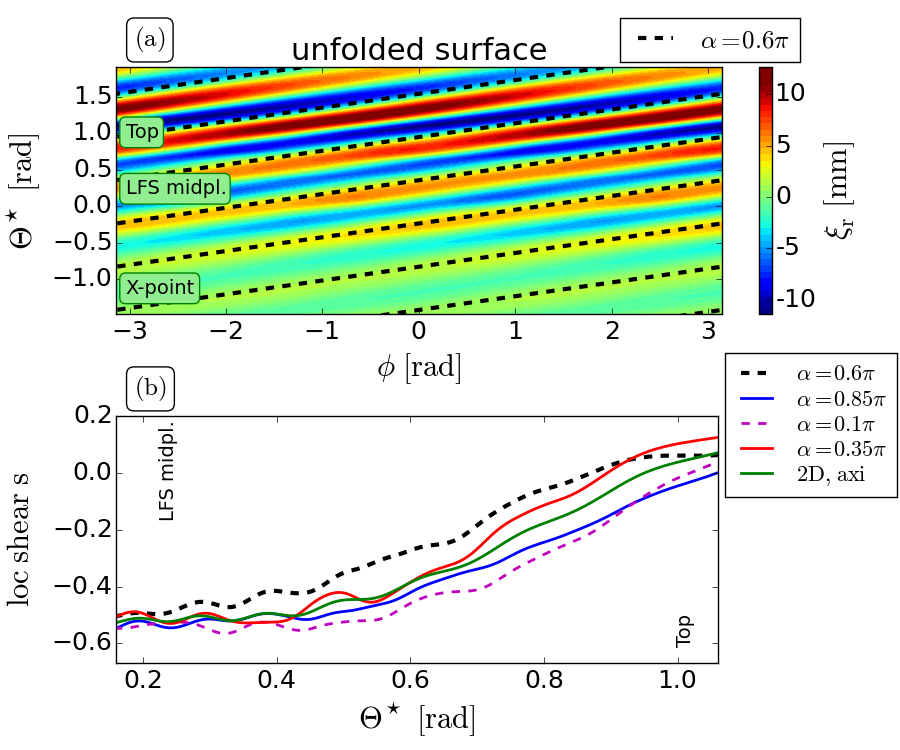

To identify the position of the most unstable field-line $\alpha=0.6\pi$ in the 3D geometry, Fig. 5(a) shows $\xi\rm{{}_{r}}$ on the unfolded axisymmetric flux surface and this field-line. It is located at the same zero-crossing as the measured localization of the ballooning mode in Fig. 2. To elucidate the reason for this specific field-line to be unstable, Figure 5(b) shows the corresponding local magnetic shear (defined $s=\hat{b}\times\hat{n}\cdot\nabla\times(\hat{b}\times\hat{n})$ where $\hat{b}$ and $\hat{n}$ are the unit magnetic field and normal components to the magnetic surface, respectively Hegna:2000 ) versus $\Theta^{\star}$ for several field-lines. $s$ enters the ballooning equation Bird:2013 and stabilizes ballooning modes against field-line bending. Thus, the most unstable field-line exhibits the lowest absolute values of $s$ in the region of the negative normal and positive geodesic curvature (region between LFS midplane and plasma top, Fig. 5(b)). Although the changes in $s$ are small, they are enough to significantly vary the growth rates of the ballooning modes as seen in Fig. 4.

The change in local magnetic shear is related to changes in the local parallel current profile and geometric shape of the magnetic surface as described by the identity $s=\mu_{0}J_{\parallel}/B-2\tau_{n}$, where the normal torsion is defined by $\tau_{n}=-\hat{n}\cdot(\hat{b}\cdot\nabla)\hat{b}\times\hat{n}$ Hegna:2000 . Near rational surfaces in 3D MHD equilibrium, Pfirsch-Schlüter currents become resonant and hence can produce large distortions in local shear Bird:2013 . However, analysis of the equilibrium presented here show the 3D distortion produced changes the normal torsion that corresponds to minimize the region of local shear in the vicinity of the field line $\alpha=0.6\pi$ Cote:2017 . The 3D distortions, however, do not produce appreciable changes to field-line curvature indicating that the dominant reason for ballooning destabilization is the reduction of stabilizing field-line bending.

Discussion - The presented measurements combined with 3D ideal MHD modeling evidence the importance of the additional 3D geometry on the infinite-n ballooning stability. The localization of the ballooning modes identifies the variation of the local magnetic shear as the dominant mechanism in the additional destabilization. Our observation and analysis suggest that the reduced edge pedestal pressure in H-mode plasmas with non-axisymmetric MP is due to a modification of the edge stability boundary introduced by the 3D distortion of the local magnetic shear. Furthermore, it could also deliver reasonable explanations for enhanced transport, the density ’pump-out’, since the local magnetic shear can also influence further curvature driven instabilities like kinetic ballooning modes and drift-waves Kendl:1999 ; Birkenmeier:2013 . Nevertheless, dedicated studies using 3D stability calculations of e.g. PBM Weyens:2017 , KBM Holod:2017 , DW Kendl:1999 are needed to pin down their role and the role of the 3D equilibrium in the ELM mitigation/suppression. Finally, we would like to point out that the described mechanism is solely based on single fluid ideal MHD physics and does not invoke any mode penetration Nazikian:2015 or ergodization Becoulet:2014 .

Acknowledgments - This research was supported by US Department of Energy under grant no. DE-FG02-86ER53218. M. W. has received funding from the Euratom training programme 2014-2018 under grant agreement No 633053. The views and opinions expressed herein do not necessarily reflect those of the European Commission.
