Emulating Majorana fermions and their braiding by Ising spin chains

TL;DR

This paper explores how to emulate Majorana fermions and their braiding using Ising spin chains, providing protocols and experimental setups despite the loss of topological protection.

Contribution

It introduces new protocols for braiding Majorana-like states in Ising chains and proposes experimental implementations with flux qubits and superconducting wires.

Findings

Protocols for braiding in Ising chains are feasible.

Extra spin coupler overcomes 1D limitations.

Experimental schemes with flux qubits and superconducting wires are proposed.

Abstract

We analyse the control of Majorana zero-energy states by mapping the fermionic system onto a chain of Ising spins. Although the topological protection is lost for the Ising system, the mapping provides additional insight into the nature of the quantum states. By controlling the local magnetic field, one can separate the Ising chain into ferromagnetic and paramagnetic phases, corresponding to topological and non-topological sections of the fermionic system. In this paper we propose (topologically non-protected) protocols performing the braiding operation, and in fact also more general rotations. We first consider a T-junction geometry, but we also propose a protocol for a purely one-dimensional system. Both setups rely on an extra spin-1/2 coupler. By including the extra spin in the T-junction geometry, we overcome limitations due to the 1D character of the Jordan-Wigner transformation. In the 1D geometry the coupler, which controls one of the Ising links, should be manipulated once the ferromagnetic (topological) section of the chain is moved far away. We also propose experimental implementations of our scheme. One is based on a chain of flux qubits which allows for all needed control fields. We also describe how to translate our scheme for the 1D setup to a chain of superconducting wires hosting each a pair of Majorana edge states.

Figures

Equations

$$H$$

$$\chi (n)$$

$$\eta (n)$$

$$H$$

$$\{\chi (n),\chi (m){\}}_{+}$$

$$\{\eta (n),\eta (m){\}}_{+}$$

$$\{\chi (n),\eta (m){\}}_{+}$$

$$H=\sum _{n=1}^{N}h(n)\left[2a^{†}(n)a(n)-1\right]-J\sum _{n=1}^{N-1}\left[a^{†}(n)a(n+1)+a(n)a(n+1)+h.c.\right].$$

$${\gamma }_L|\uparrow \uparrow \uparrow ⟩=|\uparrow \uparrow \uparrow ⟩$$

$$\displaystyle\gamma_{L}\left|\downarrow\downarrow\downarrow\right\rangle=-\left|\downarrow\downarrow\downarrow\right\rangle\$$

$${\gamma }_R|\uparrow \uparrow \uparrow ⟩=\mathrm{i}|\downarrow \downarrow \downarrow ⟩$$

$${\gamma }_R|\downarrow \downarrow \downarrow ⟩=-\mathrm{i}|\uparrow \uparrow \uparrow ⟩.$$

$$|0⟩\equiv \frac{|\uparrow \uparrow \uparrow ⟩+|\downarrow \downarrow \downarrow ⟩}{\sqrt{2}}$$

$$|1⟩\equiv \frac{|\uparrow \uparrow \uparrow ⟩-|\downarrow \downarrow \downarrow ⟩}{\sqrt{2}}$$

$$H_{\alpha }$$

$${\chi }_{\alpha }(n)$$

$${\eta }_{\alpha }(n)$$

$$[S^{\alpha },{\chi }_{\alpha }(n){]}_{-}=0$$

$$\{S^{\alpha },{\chi }_{\beta }(n){\}}_{+}=0$$

$$H_{\mathrm{int}}^{\mathrm{Ising}}$$

$$H_{\mathrm{int}}^{\mathrm{Ising}}=\mathrm{i}\sum _{\alpha <\beta }{J}_{\alpha \beta }{\chi }_{\alpha }(1){\chi }_{\beta }(1){ϵ}^{\alpha \beta \gamma }{S}^{\gamma }.$$

$$H_{\mathrm{int}}^S=-\frac{1}{2}{\sum _{\alpha \beta \gamma }}^{\prime }{J}_{\alpha \beta }{S}^{\gamma }{\sigma }_{\alpha }^z(1){\sigma }_{\beta }^z(1)$$

$$H_{\mathrm{int}}^S=\frac{\mathrm{i}}{2}\sum _{\alpha \beta \gamma }{ϵ}^{\alpha \beta \gamma }{J}_{\alpha \beta }{\chi }_{\alpha }(1){\chi }_{\beta }(1),$$

$${\tau }^z\to S^3{\tau }^z\to \left({\tau }^x{S}^1\right)S^3{\tau }^z\to S^2\left({\tau }^x{S}^1\right)S^3{\tau }^z$$

$${\tau }^y\to S^3{\tau }^y\to \left({\tau }^x{S}^1\right)S^3{\tau }^y\to S^2\left({\tau }^x{S}^1\right)S^3{\tau }^y$$

$$H=v_1{\sigma }_1^z{S}^z+v_2{\sigma }_2^z{S}^z-\Delta S^x,$$

$$R=-\frac{\mathrm{i}{S}^y}{2\Delta }(v_1{\sigma }_1^z+v_2{\sigma }_2^z).$$

$$\tilde{H}\approx H_0+\frac{1}{2}[V,R{]}_{-}=-\Delta S^x-\frac{S^x}{2\Delta }(v_1{\sigma }_1^z+v_2{\sigma }_2^z{)}^2=-\tilde{\Delta }{S}^x-\frac{v_1{v}_2}{\Delta }{\sigma }_1^z{\sigma }_2^z{S}^x,$$

$$|{\psi }_0⟩={|\uparrow ⟩}_S\otimes |\uparrow \uparrow \uparrow ⟩.$$

$$U_{\varphi }=\exp \left\{-\frac{i\varphi }{2}{S}^x\right\}=\cos \frac{\varphi }{2}-i\sin \frac{\varphi }{2}{S}^x.$$

$$|{\psi }_1⟩=U_{\varphi }{|\uparrow ⟩}_S\otimes |\uparrow \uparrow \uparrow ⟩=\left[\cos \frac{\varphi }{2}{|\uparrow ⟩}_S-i\sin \frac{\varphi }{2}{|\downarrow ⟩}_S\right]\otimes |\uparrow \uparrow \uparrow ⟩.$$

$$|{\psi }_2⟩=\cos \frac{\varphi }{2}{|\uparrow ⟩}_S\otimes |\uparrow \uparrow \uparrow ⟩-i\sin \frac{\varphi }{2}{|\downarrow ⟩}_S\otimes |\downarrow \downarrow \downarrow ⟩.$$

$$U_{\theta }=\exp \left\{-\frac{i\theta }{2}{S}^y\right\}=\cos \frac{\theta }{2}-i\sin \frac{\theta }{2}{S}^y.$$

$$|{\psi }_3⟩=\cos \frac{\varphi }{2}\left[\cos \frac{\theta }{2}{|\uparrow ⟩}_S+\sin \frac{\theta }{2}{|\downarrow ⟩}_S\right]\otimes |\uparrow \uparrow \uparrow ⟩-i\sin \frac{\varphi }{2}\left[\cos \frac{\theta }{2}{|\downarrow ⟩}_S-\sin \frac{\theta }{2}{|\uparrow ⟩}_S\right]\otimes |\downarrow \downarrow \downarrow ⟩.$$

$$|{\psi }_4⟩$$

Full text

I Introduction

Theoretically Majorana zero-energy states (also known as Majorana fermions) arise as a property of the Kitaev chain KitaevMajorana . A physical realization is provided by a one-dimensional (1D) p-wave superconductor or – more accessible to experiment – by a semiconducting wire with strong spin-orbit interaction and proximity-induced superconductivity OregPRL105.177002 . A fundamental elementary quantum gate, the braiding operation NayakReview , can be performed in these systems if one uses a T-junction geometry AliceaNatPhys7 . This adiabatic manipulation (errors emerging in such manipulations are discussed in Ref. Knapp2016, ) allows for a restricted class of operations only; in order to construct a universal set of gates, it is necessary to expand the set of gates by non-adiabatic manipulations (for discussion and further references see Ref. Karzig2016, ).

Mathematically closely related is a 1D Ising chain, which can be mapped onto the Kitaev chain via the Jordan-Wigner transformation. The ideal systems are exactly equivalent, however, they differ in a crucial way in the presence of disorder Greiter2014 , e.g., due to random fields. The Majorana states in the Kitaev chain are topologically protected (with exponential accuracy for long chains). I.e., local perturbations due to disorder do not lift the degeneracy of the ground states. Similarly the system remains topologically protected during the adiabatic braiding operation. In contrast, for the Ising chain a local longitudinal magnetic field does lift the degeneracy.

In spite of the lack of topological protection, simulating the physics of Majorana fermions by artificially constructed Ising chains can provide additional insight (see, e.g., the proposals of Refs. TserkovnyakPhysRevA.84.032333, ; Mezzacapo13, ). Short Ising chains exhibiting Majorana physics have already been simulated in optical systems Xu2016 ; Xu2017 . With present-day Josephson qubit circuits, which have reached an encouraging level of coherence, the Majorana physics could now be studied for interesting length and time scales. Several proposals on how to emulate Majorana states with Josephson circuits have already been formulated (see, e.g., Refs. LevitovMooij, ; vanHeckNJP14, ), but as a consequence of the 1D character of the Jordan-Wigner transformation the extension to a T-junction geometry, required for performing the braiding operation, remains problematic.

In this paper we first present a setup of Ising spins in a T-junction geometry which – except for the topologically protection – is equivalent to the fermionic Majorana system and allows performing the braiding operation. It relies on an extra spin-1/2 controlling the three-spin coupling in the junction. This spin also introduces Klein factors which assure that the fermionic anticommutation relations for different legs of the setup are obeyed. In addition, we propose a scheme based on a purely 1D geometry, which allows performing an operation which is equivalent to the braiding. This is achieved by attaching an extra spin-1/2 (the coupler) to the chain, such that one of the links of the Ising chain is controlled by this spin. Depending on the quantum state of the coupler, this link can be either ferromagnetic or antiferromagnetic, or a superposition thereof. The coupler should be manipulated once the ferromagnetic part of the chain, corresponding to the topological part hosting the Majorana fermions, has been moved sufficiently far away. An added advantage of this scheme is that it allows performing parity-conserving $U(1)$ rotations of the Majorana qubit by an arbitrary angle, whereas the topologically protected braiding in the fermionic system fixes this angle to discrete multiples of $\pi/4$. In this way one can construct a universal set of quantum logical gates.

Furthermore, we propose experimental implementations of our 1D setup and braiding scheme. One is based on a chain of Josephson flux qubits. They are well suited because they can be strongly coupled and the matrix element which plays the role of the transverse field can be efficiently tuned Paauw2009 . We also propose a direct translation of the 1D Ising scheme into the realm of topological wires Milestones ; Hell2016 hosting pairs of Majorana edge states, which allows arbitrary rotations of the Majorana qubit.

Throughout this paper we frequently use terminology appropriate for fermionic systems with topological protection, e.g., referring to topological qubits and braiding operations. This is done to emphasize the equivalence of the fermionic system and the Ising chains. We do not imply the existence of topological protection in Ising systems. But we want to stress – and this is one of the main messages of the present paper – that due to the exact mapping between the fermionic and Ising systems, topological notions have exact counterparts in the qubit chain.

II Ising chain

Let us first recall some well-known relations between Ising chains and Majorana fermions. We consider an Ising chain described by the Hamiltonian PFEUTY197079

[TABLE]

For definiteness we consider the ferromagnetic case, $J>0$. If the perpendicular magnetic field is weak, $h(n)<J$, the ground state of a long chain, $N\rightarrow\infty$, is ferromagnetic; for strong fields the system is paramagnetic. By controlling the transverse fields $h(n)$ at each site we can define a ferromagnetic domain, which is an interval where $h(n)\ll J$, in an otherwise paramagnetic chain where $h(n)\gg J$. In the paramagnetic state, at low temperature considered here, the paramagnetic spins are ”frozen” in the state $\left|\rightarrow_{x}\right\rangle$, the ($+1$)-eigenstate of $\sigma^{x}$. The two “ground states”, $\left|\uparrow\uparrow\uparrow\right\rangle$ and $\left|\downarrow\downarrow\downarrow\right\rangle$, of the ferromagnetic section are degenerate. If $h(n)=0$ for all $n$ in the chain the degeneracy is exact 111Interestingly, the degeneracy between the somewhat perturbed ground states remains exact even if $h(n)$ vanishes only at a single site, whereas in the rest of the chain $h(n)\ll J$.. For non-vanishing but small $h(n)$ a residual hybridisation between these two states decays exponentially as a function of the length of the ferromagnetic domain PFEUTY197079 . This remains so also when the ferromagnetic domain is surrounded by polarized paramagnetic domains (for further discussions see Ref. Narozhny2017, ). By switching the transverse fields $h(n)$ on and off one can adiabatically control the size and position of the ferromagnetic interval, similar to the “zipping” and “unzipping” procedure described in Ref. Dorner2003, .

By means of the Jordan–Wigner transformation

[TABLE]

we can map the Ising model to a fermionic system with Hamiltonian

[TABLE]

and fermionic Majorana operators $\chi(n)$, $\eta(n)$ satisfying the anticommutation relations

[TABLE]

Furthermore, by introducing the local Dirac fermions $a(n)\equiv[\eta(n)+\mathrm{i}\chi(n)]/2$ and $a^{\dagger}(n)\equiv[\eta(n)-\mathrm{i}\chi(n)]/2$ we recover the Kitaev-Hamiltonian KitaevMajorana of a 1D p-wave superconductor

[TABLE]

We observe that the perpendicular magnetic field of the Ising system is equivalent to the chemical potential of the Kitaev model KitaevMajorana , $-2h(n)\,\hat{=}\,\mu(n)$, and the ferromagnetic coupling strength $J$ replaces the hopping matrix element $w$, which in the case described by Eq. (6) is chosen to coincide with the gap of the p-wave superconductor, $J\,\hat{=}\,w=\Delta$ (see Ref. KitaevMajorana, ).

In the Hamiltonian (4) we note that for $-2h(n)\,\hat{=}\,\mu(n)=0$ in the whole chain, the two boundary operators $\gamma_{L}\equiv\chi(1)$ and $\gamma_{R}\equiv\eta(N)$ do not appear. They represent the famous zero-energy Majorana modes KitaevMajorana . For non-vanishing but weak fields, $0\neq h(n)\ll J$, the Majorana modes are no longer perfectly localized but acquire a finite extent. However, the overlap vanishes exponentially with growing length of the system. This is the origin of the topological protection of the Majorana system. For the Majorana system it is usual to introduce the Dirac fermion $d_{0}=(\gamma_{L}-\mathrm{i}\gamma_{R})/2$ and the parity operator of the zero energy subspace $P_{0}\equiv-\mathrm{i}\gamma_{R}\gamma_{L}=1-2d_{0}^{\dagger}d_{0}^{\phantom{{\dagger}}}$. Its even and odd eigenstates, $P_{0}\left|0\right\rangle=\left|0\right\rangle$, $P_{0}\left|1\right\rangle=-\left|1\right\rangle$, satisfy $d_{0}^{\dagger}\left|0\right\rangle=\left|1\right\rangle$, $d_{0}\left|1\right\rangle=\left|0\right\rangle$, $d_{0}^{\dagger}\left|1\right\rangle=d_{0}\left|0\right\rangle=0$.

In the spin system for vanishing perpendicular field the two states $\left|\uparrow\uparrow\uparrow\right\rangle$ and $\left|\downarrow\downarrow\downarrow\right\rangle$ are degenerate and span a qubit space. For non-vanishing but weak fields the spin states are no longer perfectly ferromagnetic. However, if the ferromagnetic domain is long the ensuing hybridisation is exponentially suppressed. The mapping between the Majorana and the spin system is achieved by $\gamma_{L}=\chi(1)=\sigma^{z}(1)$ and $\gamma_{R}=\eta(N)=\sigma^{y}(N)\prod_{p=1}^{N-1}\sigma^{x}(p)=-\mathrm{i}\sigma^{z}(N)P$, where the total parity operator of the chain reads $P\equiv\prod_{p=1}^{N}\sigma^{x}(p)$. Thus we have

[TABLE]

I.e., $\gamma_{L}\,\hat{=}\,\tau^{z}$ and $\gamma_{R}\,\hat{=}\,\tau^{y}$ correspond to two non-commuting spin-like operators (Pauli matrices) in the 2-dimensional subspace of ferromagnetic states. From here we also find the mapping between the even and odd eigenstates of the Majorana system and the ferromagnetic states of the spin system

[TABLE]

Finally we mention that the non-topological state of the Majorana system, found for $|\mu|\geq 2|w|$, corresponds to the paramagnetic phase of the spin system, $|h|\geq|J|$.

III T-Junction with 3 Ising chains

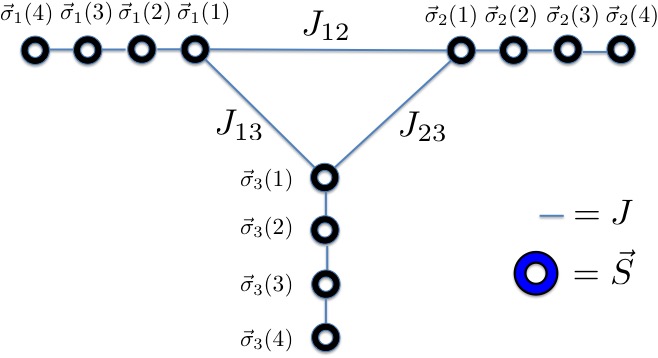

For strictly 1D setups the mapping between an Ising chain and the Majorana system is exact. However, for the latter the braiding operation has been recognized as an essential tool, which can be achieved in a T-junction geometry. In order to emulate this operation we consider now 3 Ising chains coupled to each other as shown in Fig. 1. The Hamiltonian of each of the chains with label $\alpha=1,2,3$ and – for convenience – the site index $n$ counting from the junction, reads

[TABLE]

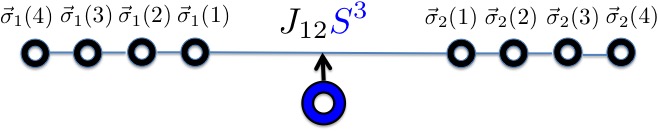

One could try to extend the Jordan–Wigner transformation by introducing a global 1D ordering, i.e., numbering the sites in all three chains in some order. However, any such order is artificial and leads to non-local interactions, thus precluding mapping to a fermionic system with a quadratic Hamiltonian and braiding by established procedures NoriBraiding . An alternative is provided by a modified Jordan-Wigner transformation similar to the one proposed in Ref. Crampe2013526, . It introduces an extra spin, denoted by the Pauli matrices $S^{\alpha}$,

[TABLE]

This extra spin provides Klein factors. The Hamiltonian of each chain is again of the form (1), while due to the extra operators $S^{\alpha}$ also the Majorana operators belonging to different chains anticommute. Thus, we have properly “fermionized” the whole system. In what follows it will be important to know the commutation relations between $S^{\alpha}$ and the Majorana operators (10) and (11),

[TABLE]

This doubles the Hilbert space and creates effectively two equivalent copies of the system. With this extension one arrives at a simple fermionic description.

To proceed one could introduce additional Ising couplings between the first spins of each chain, as indicated in the left panel of Fig. 1, with Hamiltonian

[TABLE]

In the fermionic representation this becomes

[TABLE]

This form suggests a connection to the Kondo model, which was explored in Refs. PhysRevLett.110.147202, ; Pino2015, and is most interesting for critical Ising chains with $h\approx J$. This connection may not be obvious, since some spin and fermionic operators do not commute with each other, cf. Eq. (III). To overcome this obstacle, one can proceed with the modified Jordan-Wigner transformation Crampe2013526 . Since this approach is irrelevant for our purposes it will not be discussed here any further. Furthermore, we note that the simple Ising coupling (13) between the chains does not lead to a quadratic Hamiltonian in terms of Majorana fermions. This will influence protocols intended to simulate braiding-type protocols in such systems. In fact, as can be seen in the spin description, the braiding-type procedure used in Ref. NoriBraiding, does not produce a desired qubit operation, rather it may lead to an identity operation.

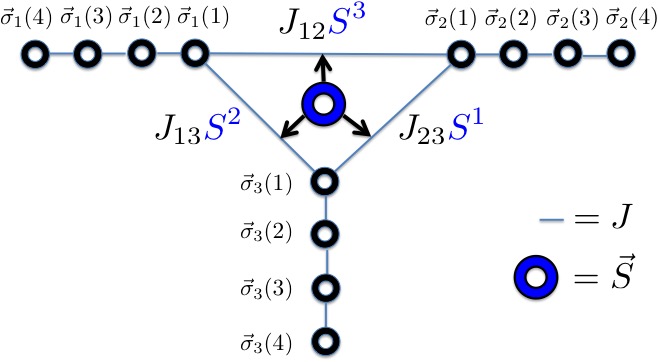

As an alternative we suggest proceeding with another coupling Hamiltonian, as illustrated in the right panel of Fig. 1. It relies on a three-spin interaction with an extra spin-1/2 with components $S^{\alpha}$ in the junction. We call this extra spin the “coupler”. The interaction between the chains is described by the Hamiltonian

[TABLE]

with summation over mutually distinct $\alpha$, $\beta$, $\gamma$ and $J_{\alpha\beta}=J_{\beta\alpha}$. The fermionic version of this coupling reads

[TABLE]

with the Levi-Civita symbol $\epsilon^{\alpha\beta\gamma}$. Thus the coupling (15) leads to a quadratic fermionic Hamiltonian; cf. a similar discussion in Ref. Crampe2013526, and three-spin couplings employed in Refs. Xu2016, ; Xu2017, . This ensures that braiding can be performed by standard methods AliceaNatPhys7 . Note that the operators $S^{\alpha}$ disappear from the Hamiltonian. Nevertheless, as we will see below, the spin is not decoupled since the components $S^{\alpha}$ do not, in general, commute with $H_{\rm int}^{S}$ (cf. Eqs. (III)).

To simulate braiding we follow the braiding protocol for a T-junction geometry as described in Ref. AliceaNatPhys7, . We begin with the state with only one ferromagnetic domain (representing the topological section) placed in the left leg, $\alpha=1$. In the first stage of the operation the ferromagnetic domain is transported adiabatically through the upper link of the coupler region to the right leg, $\alpha=2$, then through the right link to the lower leg, $\alpha=3$, and finally through the left link back to the left leg. At each stage of the protocol only one of three couplings $J_{\alpha\beta}$ is switched on while the ferromagnetic ($\sim$topological) domain is transported through the coupler. Let us consider the effect of these operations, first in the spin language. During the first stage, if $S^{3}=+1$, the state of the ferromagnetic region (qubit) is conserved, while for $S^{3}=-1$ all spins are switched between up- and down. To proceed it is useful to move to the Heisenberg picture and record what happens to the operators. We define in the (low-energy) qubit space the Pauli matrix operators $\hat{\tau}^{x,y,z}$, in the up-down ($\left|\uparrow\uparrow\uparrow\right\rangle$, $\left|\downarrow\downarrow\downarrow\right\rangle$) basis. In the Heisenberg picture, during the first stage $\tau^{x}$ and $S^{3}$ are conserved, while $\tau^{y,z}\to S^{3}\tau^{y,z}$ and $S^{1,2}\to\tau^{x}S^{1,2}$. In the second and third stages transformations are similar, with the part of $S^{3}$ played by $S^{1}$ and $S^{2}$, respectively. The combination of all three stages yields

[TABLE]

whereas $\tau^{x}$ and the three coupler spin components $S^{1}$, $S^{2}$, $S^{3}$ are preserved. After the three stages the coupler spin is again disentangled from the qubit, although they were entangled during the process, and the braiding operation is achieved (i.e., a $\pi/2$ $x$-rotation in the language of pseudospin $\boldsymbol{\tau}$). Indeed, within the doubly degenerate ground state the two fermionic Majorana operators, $\gamma_{\rm in}=\tau^{z}$ and $\gamma_{\rm out}=\tau^{y}$ are interchanged (see Eqs. (2,3) and after Eq. (1)): $\gamma_{\rm in}\to\gamma_{\rm out}$, $\gamma_{\rm out}\to-\gamma_{\rm in}$. (Since the notation $\gamma_{L}$ and $\gamma_{R}$, used in Section II for Majorana zero-modes becomes ambiguous in the T-junction geometry we use here the notation $\gamma_{\rm in}$ for the Majorana zero-mode which is closest to the junction and $\gamma_{\rm out}$ for the one that is further away.)

We conclude that the coupling (15) allows simulating the braiding protocol of Majorana systems in a spin system, which is one of the main messages of this paper. On the other hand, we can not exclude that the coupling is difficult to realize in an experiment. Fortunately, there are further possibilities, including one which is based on a strictly 1D geometry, which will be discussed in the following section.

IV A braiding-type protocol in a 1-D chain geometry

Based on the considerations presented above we suggest an alternative approach replacing the braiding, based on a purely one-dimensional geometry as displayed in Fig. 2. I.e., we consider a system with only two chains ($\alpha=1$ and $2$), with a 3-spin interaction coupling the two chains, $H_{\rm int}^{S}=-J_{12}\sigma_{1}^{z}(1)\sigma_{2}^{z}(1)\,S^{3}$. Effectively, the transport of the ferromagnetic ($\sim$topological) domain through all three components $S^{1}$, $S^{2}$, and $S^{3}$, described for the T-junction geometry, can be replaced by transport through a single spin provided we rotate the state of the coupler between various stages of the protocol. Depending on the angles of these rotations, the following protocol also provides a generalization of the single-domain braiding protocol, namely allowing for an arbitrary rotation angle, cf. below. Moreover, a single intermediate rotation of the coupler spin is sufficient, as we will demonstrate.

The braiding protocol in terms of spins described in the previous section showed the following: When the ferromagnetic interval is adiabatically transported through the coupler, the spins of the domain remain intact if the coupling is ferromagnetic ($S^{\gamma}=+1$) and flip if the coupling is antiferromagnetic ($S^{\gamma}=-1$). If the coupler is in a superposition of the two states, the coupler and the ferromagnetic domain become entangled. In the 1D geometry, one again should first pull the ferromagnetic region (qubit) through the special Ising link which is controlled by the coupler spin $S^{3}$. The stages controlled by $S^{1}$- and $S^{2}$ are no longer available, which limits the accessible possibilities. However, one could emulate various coupler-spin components by rotations of the coupler spin between the pulling operations. Thus, for instance, one can achieve a braiding-type operation by pulling the qubit through the coupler three times with proper coupler-spin rotations in between. The rotations should be chosen in such a manner that three spin components are involved in sequence. This statement can be also confirmed by a direct calculation of the evolution of $\boldsymbol{\tau}$ and $\bf S$ operators. Moreover, one can achieve a a braiding-type operation also with a shorter manipulation, which we will describe next.

Indeed, the full braiding, which we just outlined, is achieved after a sequence of three pulling operations past the coupler spin components $S^{3}$, $S^{1}$, and $S^{2}$. However, we notice that the operator $S^{2}$ returns to its initial value after the first two stages (this follows from the observation that all three coupler-spin components return back after the full cycle, and $S^{2}$ is conserved during the last, $S^{2}$-pulling stage). This allows us to avoid the third ($S^{2}$-)pulling by using the following approach: if the coupler is initially prepared in the ($+1$)-eigenstate of $S^{2}$, then $S^{2}=+1$ during the third pulling operation, and thus this operation is trivial (the qubit spins keep their states) and can be left out. Hence, the third stage is not needed, simplifying the overall procedure.

In the Appendix A we describe our suggested protocol in detail; here we concentrate of the underlying ideas and main result. One Ising link is controlled by the $S^{3}$ component of the coupler-spin. In order to emulate other components, we manipulate the coupler spin via local fields. To minimally disturb the qubit state, this should be done while the ferromagnetic ($\sim$topological) region is moved away from the coupler location. Let us follow the fate of the qubit and coupler operators in the three stages of the process: the first and third stage involve pulling the ferromagnetic section past the coupler, while the second stage involves a coupler-spin rotation $S^{2}\to S^{2}$, $S^{1}\to S^{1}\cos\theta+S^{3}\sin\theta$, $S^{3}\to S^{3}\cos\theta-S^{1}\sin\theta$. After the combination of the three stages we find that $S^{2}$ is conserved, while $\tau^{y}\to\tau^{y}\cos\theta-\tau^{z}S^{2}\sin\theta$ and $\tau^{z}\to\tau^{z}\cos\theta+\tau^{y}S^{2}\sin\theta$. In other words, if the coupler was initially prepared, e.g., in the (+1) eigenstate of $S^{2}$ (cf. the next section), it remains in this state after the operation, that is, the coupler remains disentangled from the qubit. At the same time a ‘braiding rotation’ is performed on the qubit subspace: $\gamma_{\rm in}\to\gamma_{\rm in}\cos\theta+\gamma_{\rm out}\sin\theta$, $\gamma_{\rm out}\to\gamma_{\rm out}\cos\theta-\gamma_{\rm in}\sin\theta$.

In Appendix B we reformulate the braiding-type protocol in Majorana fermionic representations.

V Physical realisation of the 3-spin coupling

An effective coupling of the type $H_{\rm int}^{S}=-J_{12}\sigma_{1}^{z}(1)\sigma_{2}^{z}(1)\,S^{1}$ (which is equivalent to that considered above upon the substitution $S^{1}\leftrightarrow S^{3}$) can be realised as follows. Consider three spins $\boldsymbol{\sigma}_{1}$, $\boldsymbol{\sigma}_{2}$, and $\bf S$ coupled by the following Hamiltonian

[TABLE]

where $\Delta\gg v_{1},v_{2}$. Under these conditions one can treat the couplings $v_{1}$ and $v_{2}$ perturbatively with $H_{0}=-\Delta S^{x}$ and perturbation $V=(v_{1}\sigma_{1}^{z}+v_{2}\sigma_{2}^{z})S^{z}$.

A Schrieffer-Wolf transformation $\tilde{H}=e^{-R}\,H\,e^{R}$ with

[TABLE]

yields $[H_{0},R]_{-}=-V$. We thus find the new Hamiltonian

[TABLE]

where $\tilde{\Delta}=\Delta+\frac{v_{1}^{2}+v_{2}^{2}}{2\Delta}$. This produces the desired interaction with $J_{12}=\frac{v_{1}v_{2}}{\Delta}$ if we transform to the rotating frame with respect to the term $-\tilde{\Delta}S^{x}$.

In a realistic situation we have to include the terms corresponding to the transverse fields acting on the spins $\boldsymbol{\sigma}_{1}$, $\boldsymbol{\sigma}_{2}$, i.e., $-h_{1}\sigma_{1}^{x}$ and $-h_{2}\sigma_{2}^{x}$ into $H_{0}$. A straightforward calculation shows that our conclusions remain intact as long as $\Delta\gg h_{1,2}$. Formally, also the limit $\Delta\ll h_{1,2}$ is possible (the effective coupling is then of the order $\Delta v_{1}v_{2}/h_{1,2}^{2}$). However, in this limit, once the spins $\boldsymbol{\sigma}_{1}$, $\boldsymbol{\sigma}_{2}$ are being “frozen” and “defrozen”, one would have to go through the resonances $\Delta=h_{1,2}$, where unwanted transitions would happen. Thus, we require the condition $\Delta\gg h_{1,2}$ at all stages of the protocol. One can also show that the terms describing the coupling of $\boldsymbol{\sigma}_{1}$ and $\boldsymbol{\sigma}_{2}$ to the further spins of the respective chains as well as the driving term $-\Omega(t)S^{z}$ acting on the coupler are only slightly modified by the transformation (19).

VI Practical implementation of the Ising chain

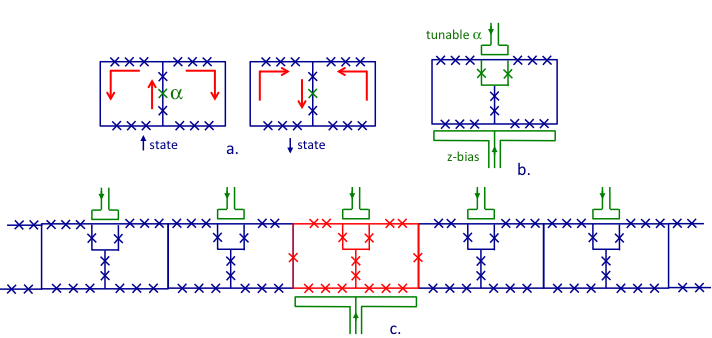

A practical implementation of the proposed schemes can be realised by means of Josephson junction circuits. Flux qubits are particularly suited because a strong coupling between them is easy to achieve and their tunnelling strength, which plays here the role of the transverse field, can be efficiently tuned Paauw2009 . A possible circuit is illustrated in Fig. 3. It consists of a chain of gradiometer flux qubits Paauw2009 . An individual gradiometer qubit is shown in Fig. 3a. It is an advanced version of the flux qubit Mooij1036 (persistent current qubit with a characteristic smaller junction denoted by $\alpha$), in which the outer inductance loop is replaced by two symmetrically placed loops. The two states denoted by $\left|\uparrow\right\rangle$ and $\left|\downarrow\right\rangle$ (eigenstates of $\sigma^{z}$) are the persistent current states depicted in Fig. 3a. The amplitude of tunnelling between $\left|\uparrow\right\rangle$ and $\left|\downarrow\right\rangle$, denoted here by $h$, is controlled by the Josephson energy of the $\alpha$-junction, which can be tuned by replacing it with a two-junction SQUID loop (see Fig. 3b). The gradiometer geometry allows tuning the $\alpha$-junction without affecting the bias energy between $\left|\uparrow\right\rangle$ and $\left|\downarrow\right\rangle$. Typical values could be: qubit tunnelling strength $h=2\pi\hbar\times 1$GHz within the topological region and $h=2\pi\hbar\times 9$GHz outside. The gradiometer inductive loops contain further Josephson junctions; the strength of the nearest-neighbour coupling can be varied by their number. The nearest-neighbour coupling could be $J=2\pi\hbar\times 3$GHz.

The coupler is a special gradiometer qubit with a particularly strong tunnelling, denoted here by $\Delta$ (see Eq. (18)). We envision $\Delta=2\pi\hbar\times 15$GHz. Moreover, an extra magnetic bias ($z$-bias) is needed in order to perform NMR-like rotations of the coupler. This bias can be described by adding to the Hamiltonian a term $H_{z}=-\Omega(t)S^{z}$. The coupling between the coupler and the first qubits of the chains can be made as strong as $v_{1/2}=2\pi\hbar\times 8$GHz (see Eq. (18)). This is achieved by placing extra Josephson junctions into the legs mutual to the coupler and the first qubits (Fig. 3c). These numbers are given as examples, they can be realised with available technology.

Switching of the individual qubits of the chains as well as of the coupler can be effected in a few nanoseconds while the coherence time can be above $10{\rm\mu s}$ Yan2016 . This will allow at least 1000 operations, enough to slide the topological region (5 qubits long) through the coupler and back.

Simulating a controllable Ising-Kitaev chain in the way described above would validate the high level of coherence and control of superconducting flux qubits. This would demonstrate that the superconducting qubits are sufficiently advanced and may simulate fermionic dynamics.

VII Implementation in a topological system with Majorana edge states.

We now ask the following question: Do the protocols developed in this paper for the Ising spin systems provide added insight into the use of topological systems with fermionic Majorana zero modes? First, we mention the recent developments (see Refs. Milestones, ; Hell2016, ) with advanced designs of Majorana wires. Instead of small semiconducting wires placed on top of large superconductors one uses multiple, relatively small elongated superconducting islands placed on top of a semiconducting wire. In Fig. 4 we show a chain of such islands (as described in detail in Refs. Milestones, ; Hell2016, ). It is easy to understand that by allowing for tunnelling between adjacent Majoranas fermions, $H_{T}=i\sum_{n}E_{M}\eta(n)\,\chi(n+1)$, we obtain a system completely equivalent to the Kitaev chain. Here $\eta(n)$ is the right Majorana fermion of island $n$, $\chi(n)$ is the left Majorana fermion of island $n$, and $E_{M}$ is the tunnelling amplitude discussed in detail in Ref. Hell2016, . The charging effects are suppressed if the residual Josephson coupling between the islands, $E_{J}$, which is always present in addition to Majorana coupling $E_{M}$ (see Refs. Milestones, ; Hell2016, ), is larger than the charging energy, $E_{C}$ of each island. Alternatively, one can think of coupling the islands to large superconducting reservoirs Milestones . The capacitive interactions between the islands do not change the situation qualitatively, as long as they remain small Gangadharaiah2011 .

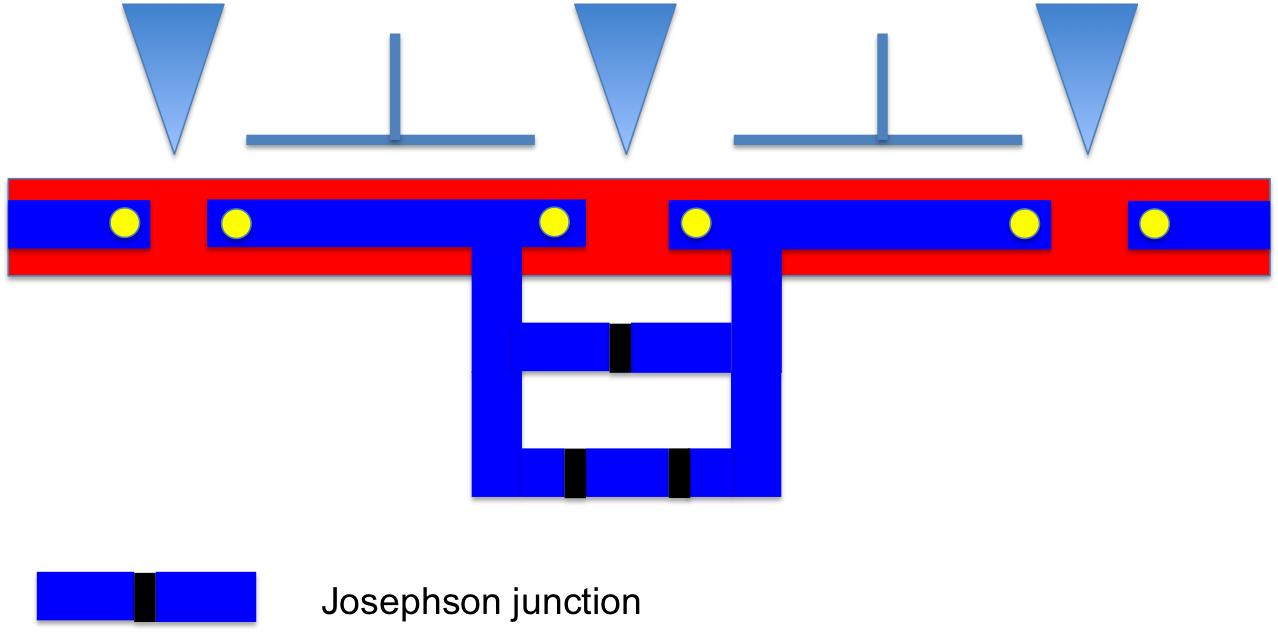

With the insight gained from the spin representation we envision coupling a flux qubit to one of the links between adjacent sections hosting Majorana fermions as shown in Fig. 5. At this stage we do not discuss the experimental realisation of this setup, which may present a challenge for present-day technology. The idea is to use the phase difference $\varphi$ across the Josephson junction of the qubit (the branch with a single junction) to control the tunnelling of Majoranas. As discussed, e.g., in Ref. Hell2016, , the tunnelling Hamiltonian for this particular link reads $H_{T}=iE_{M}\cos(\varphi/2)\eta(n)\,\chi(n+1)$. We consider the situation where the Josephson energy of the flux qubit is much higher than the tunnelling amplitude $E_{M}$. Then the phase difference across the junction can take two well defined values, depending on the quantum state of the flux qubit, and the system of Majoranas has to adjust to these two possible situations. In a usual symmetrically biased flux qubit the phase drop $\varphi$ takes the values $\varphi=\pi\pm\Delta\varphi$ with $\Delta\varphi<\pi/2$. Thus, $\cos(\varphi/2)$ takes one positive and one negative value, and the effective Hamiltonian of the link controlled by the flux qubit becomes $H_{\rm eff}=iJ^{\prime}S^{z}\eta(n)\,\chi(n+1)$, where $J^{\prime}\equiv E_{M}|\cos(\pi/2+\Delta\varphi/2)|$. This Hamiltonian is equivalent to the one considered above for the 1D setup.

VIII Discussion

In this paper we have proposed setups of Ising spins which allow emulating the physics of Majorana systems and, in particular, performing the braiding operation. In the first case we showed that this is possible in a T-junction geometry, when we introduce an extra spin coupling to the three legs and also appearing as Klein factor in the generalized Jordan-Wigner transformation, thus preserving the proper anticommutation relations. In the second case we showed that a braiding-type protocol can also be performed in a strictly 1D Ising setup, which may be easier to realize in experiments. In addition it allows performing the analogue of parity conserving rotations of a Majorana qubit by an arbitrary angle. This is achieved by placing a special spin-1/2 (coupler) in one of the Ising links of the chain. The coupler controls the sign (ferro- or anti-ferromagnetic) of that Ising link.

This 1D setup emerged in the search for methods to implement (non-protected) topological braiding in Ising chains. The well-known problem is the fact that the Jordan-Wigner transformation, which maps the Ising problem onto the fermionic one, is strictly one-dimensional. Placing a coupler between three Ising chains allows circumventing this obstacle but requires a very special kind of coupling. We showed that the same can be achieved in 1D if one is able to manipulate the coupler between the adiabatic passages of the ferromagnetic (topological) domain through the Ising link controlled by the coupler.

Our protocol could possibly be generalized. One prospective possibility is to rotate the coupler during sliding of the topological (ferromagnetic) domains. This could induce non-trivial Berry phases. Moreover, our protocol can be directly employed in systems containing topologically protected fermionic wires (islands). Such wires would have to be coupled in a non-protected fashion to a spin-1/2 (qubit).

IX Acknowledgements

This work was supported by DFG and RSF under RSF grant No. 16-42-01035 and DFG grant No. SH 81/4-1 as well as DFG grant No. SH 81/3-1, DFG CRC183, and the Minerva foundation.

Appendix A Braiding algorithm in the spin language

In this appendix we complement the previous discussions by an explicit calculation in the spin language. We assume that the chains $\alpha=1$ and $2$ are on the left and right side of the setup, and the coupling between the chains is controlled by $S^{3}$. We perform the following protocol: (i) We start with the ferromagnetic ($\sim$ topological) section (qubit) on the left side prepared in the state $\left|\uparrow\uparrow\uparrow\right\rangle$, while the coupler is in the state $\left|\uparrow\right\rangle_{S}$. I.e., the initial state is the product state

[TABLE]

(ii) To rotate the coupler around the $x$-axis by an angle $\phi$, we apply the operation

[TABLE]

This gives

[TABLE]

(iii) We pull the ferromagnetic section adiabatically to the right side. This gives

[TABLE]

(iv) We rotate the coupler around the $y$-axis by an angle $\theta$, by applying

[TABLE]

This produces

[TABLE]

(v) We pull the ferromagnetic section back to the left side. This produces

[TABLE]

For $\phi=\pi/2$ (this corresponds to a preparation of an eigenstate of $S^{2}$ at step (ii) above) the resulting state is a product state

[TABLE]

If, instead, we started with the state $\left|\psi^{\prime}_{0}\right\rangle=\left|\uparrow\right\rangle_{S}\otimes\left|\downarrow\downarrow\downarrow\right\rangle$, we would obtain

[TABLE]

Thus we perform a $(-\theta)$-rotation around the $x$-axis of the qubit, and after the operation the coupler is no longer entangled with the qubit. In the basis of the states with well-defined occupation numbers (parity) of the Dirac fermions, $(1/\sqrt{2})(\left|\uparrow\uparrow\uparrow\right\rangle\pm\left|\downarrow\downarrow\downarrow\right\rangle)$, the achieved rotation is a $U(1)$ rotation around the $z$-axis, as expected 222The frozen spins are in the state $\left|\rightarrow_{x}\right\rangle=(1/\sqrt{2})(\left|\uparrow\right\rangle+\left|\downarrow\right\rangle)$. If this spin ”joins” the $\left|\uparrow\uparrow\uparrow\right\rangle$ chain the rotation is performed by $U=\exp\left[\mathrm{i}(\pi/4)\,\sigma_{y}\right]$. We have $U\left|\rightarrow_{x}\right\rangle=\left|\uparrow\right\rangle$. If the frozen spin ”joins” the $\left|\downarrow\downarrow\downarrow\right\rangle$ chain the rotation is by $U^{\dagger}=\exp\left[-\mathrm{i}(\pi/4)\,\sigma_{y}\right]$. We obtain $U^{\dagger}\left|\rightarrow_{x}\right\rangle=\left|\downarrow\right\rangle$. Thus, no extra sign appears..

Appendix B Braiding in terms of the Majorana operators

B.1 Boundary translations

Assume that the topological ($\sim$ferromagnetic) interval is placed on one side of the coupler (that is, in one of the chains). The shift of the inner boundary of the interval towards the coupler, say, from spin ${\vec{\sigma}}_{\alpha}(k+1)$ to spin ${\vec{\sigma}}_{\alpha}(k)$ due to the adiabatic variation of the corresponding transverse field $h_{\alpha}(k)$ from $+\infty$ to [math] is given by the operator

[TABLE]

In particular, the zero-mode edge operator is shifted properly:

[TABLE]

The part of the boundary zero mode $\gamma_{\rm in}$ is played by $\chi_{\alpha}(k+1)$ before the shift and by $\chi_{\alpha}(k)$ after the shift. Similarly, the operator that shifts the outer boundary away from the coupler, i.e., from spin ${\vec{\sigma}}_{\alpha}(k)$ to spin ${\vec{\sigma}}_{\alpha}(k+1)$, reads

[TABLE]

Again, the corresponding zero-mode operator is shifted properly:

[TABLE]

If in the middle of the protocol the topological interval is shared by two chains, there are only outer boundaries, and only the operators $T_{k,\alpha}^{{\rm out}}$ and $(T_{k,\alpha}^{{\rm out}})^{-1}=T_{k,\alpha}^{{\rm out},{\dagger}}$ can be applied. The operator that transfers the inner boundary from chain $\alpha$ to chain $\beta$ (where it becomes an outer boundary) reads

[TABLE]

Here $\alpha$, $\beta$, $\gamma$ are mutually distinct, and $\Lambda_{\alpha\beta}\equiv\epsilon^{\alpha\beta\gamma}$ (which equals $\pm 1$ depending on whether the shift $\alpha\to\beta$ is in the clockwise/counter-clockwise direction). Here we obtain an extra minus sign while shifting the zero mode, i.e.,

[TABLE]

which is consistent with the sign of (16). As expected, the operators $S^{\alpha}$ do not enter final expressions in the fermionic language. Yet, they remain important due to the non-trivial commutation relations (III).

B.2 Braiding-type operations in one-dimensional geometry

Next we explain how to perform a braiding-type operation in the 1D geometry depicted in Fig. 2. We refer to this setup as a two-chain composite. Consider two chains $\alpha=1$ and $\beta=2$. We assume that, initially, the topological interval is limited by the inner boundary $N_{\alpha}^{\rm in}\gg 1$ and the outer boundary $N_{\alpha}^{{\rm out}}\gg N_{\alpha}^{\rm in}$. Thus, the zero mode is given by $\gamma_{{\rm out}}=\eta_{\alpha}(N_{\alpha}^{{\rm out}})$ and $\gamma_{\rm in}=\chi_{\alpha}(N_{\alpha}^{\rm in})$ (due to the inverse orientation of the chain $\alpha=1$, we avoid using left and right indices). Once the interval is transported to the chain $\beta$, the edges are located at $N_{\beta}^{\rm in}\gg 1$ and $N_{\beta}^{{\rm out}}\gg N_{\beta}^{\rm in}$. To maintain an adiabatic regime, we have to transfer the inner boundary in $\alpha$ to the outer boundary in $\beta$ and vice versa.

Now we construct the complete braiding operator:

[TABLE]

Here the rotation of the coupler in the middle of the protocol is described by

[TABLE]

The operator $U_{R}$ describes the transport of the inner edge on the left side ($\alpha=1$) to the outer edge on the right side ($\beta=2$):

[TABLE]

where

[TABLE]

and

[TABLE]

Analogously, the operator $U_{L}$ describes the transport of the inner edge on the right side ($\beta=2$) to the outer edge on the left side ($\alpha=1$):

[TABLE]

where we again use the definitions (39) and (40) with $\alpha$ and $\beta$ interchanged.

We obtain

[TABLE]

Next

[TABLE]

Since, in our case, $S^{y}=S^{2}=S^{\beta}$, we observe that $S^{\beta}$ commutes with operators $T^{{\rm in}}_{\alpha/\beta}$ and $T^{{\rm out}}_{\alpha/\beta}$, whereas

[TABLE]

This gives

[TABLE]

We notice that $[T_{\alpha\leftarrow\beta}^{\dagger}]^{2}=\Lambda_{\beta\alpha}\,\eta_{\alpha}(1)\,\chi_{\beta}(1)$. This immediately allows us to commute $T^{{\rm out}}_{\beta}$ and $T^{{\rm out},{\dagger}}_{\beta}$ out since these consist only of $\eta_{\beta}(k)$. We, thus, obtain

[TABLE]

Further, we observe that $T^{{\rm out}}_{\alpha}\eta_{\alpha}(1)T^{{\rm out},{\dagger}}_{\alpha}=\eta_{\alpha}(N_{\alpha}^{{\rm out}})=\gamma_{\rm out}$, as the edge transport relation (33) suggests. We obtain

[TABLE]

Finally we use (31) and obtain $T^{{\rm in},{\dagger}}_{\alpha}\,\chi_{\alpha}(1)\,T^{{\rm in}}_{\alpha}=\chi_{\alpha}(N_{\alpha}^{\rm in})=\gamma_{\rm in}$. This gives

[TABLE]

Since the system remains in the ground-state subspace, and after the completion of the protocol $h_{\beta}(1)=+\infty$, we observe from (1) that the first spin in the $\beta$ chain is frozen so that $\langle\chi_{\beta}(1)\,\eta_{\beta}(1)\rangle=-\mathrm{i}\langle\sigma_{\beta}^{x}(1)\rangle=-\mathrm{i}$. We, thus, finally obtain

[TABLE]

and

[TABLE]

This result coincides exactly with that obtained using the spin representation. I.e., if the coupler was initially prepared in the $(-1)$-eigenstate of $S^{y}$, we induce a $(-\theta)$-rotation of the topological qubit, described by $U_{\text{br}}=\cos\tfrac{\theta}{2}-\sin\tfrac{\theta}{2}\gamma_{\rm in}\,\gamma_{\rm out}=\exp\left[-\frac{\theta}{2}\gamma_{\rm in}\,\gamma_{\rm out}\right]$, whereas the coupler remains disentangled from the qubit.
