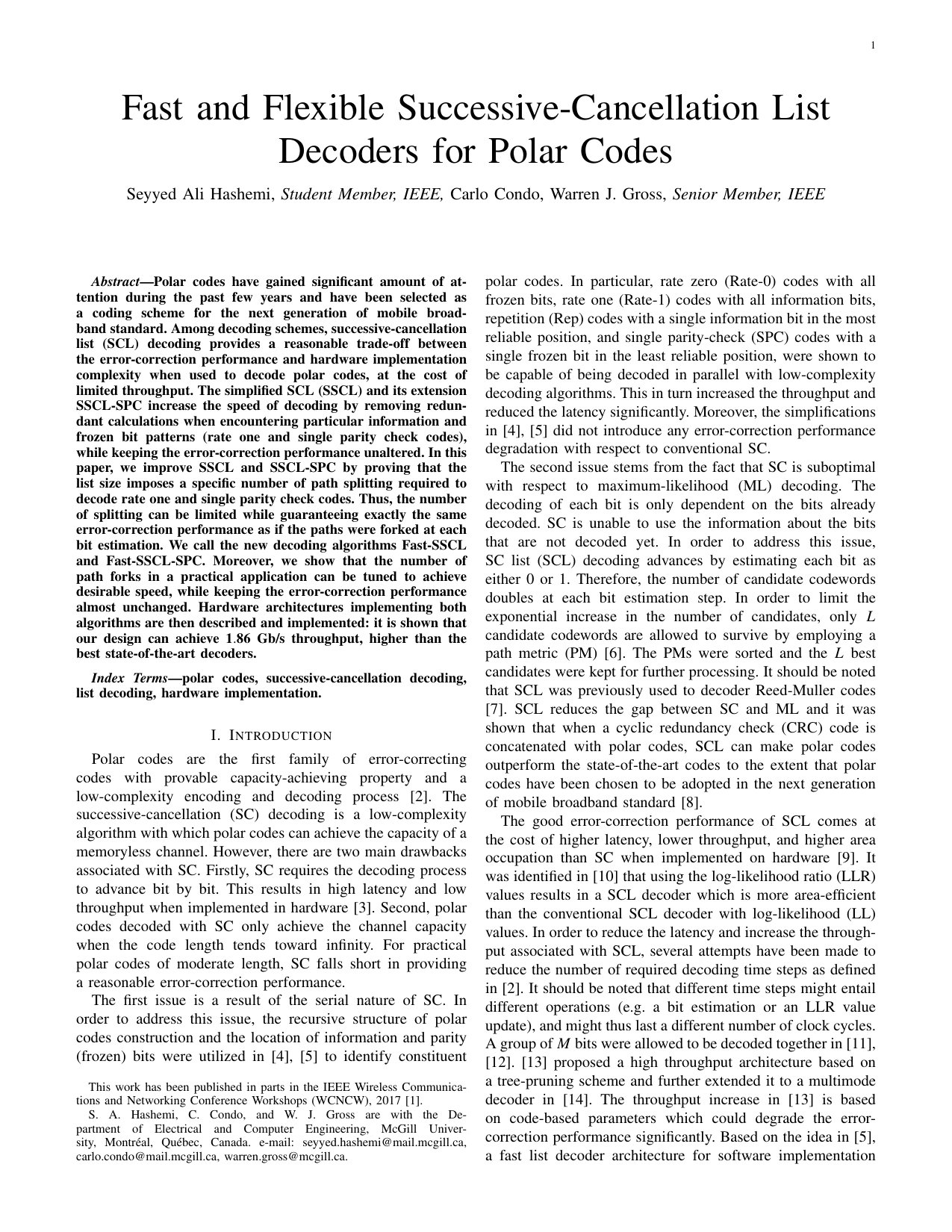

Fast and Flexible Successive-Cancellation List Decoders for Polar Codes

TL;DR

This paper introduces Fast-SSCL and Fast-SSCL-SPC, optimized polar code decoders that improve speed and throughput while maintaining error-correction performance, suitable for high-speed hardware implementations.

Contribution

The paper proves the number of bit estimations needed for certain code patterns, enabling faster decoding with guaranteed performance, and presents hardware architectures achieving high throughput.

Findings

Achieved 1.86 Gb/s throughput in hardware implementation.

Maintained error-correction performance with reduced estimations.

Improved decoding speed over state-of-the-art decoders.

Abstract

Polar codes have gained significant amount of attention during the past few years and have been selected as a coding scheme for the next generation of mobile broadband standard. Among decoding schemes, successive-cancellation list (SCL) decoding provides a reasonable trade-off between the error-correction performance and hardware implementation complexity when used to decode polar codes, at the cost of limited throughput. The simplified SCL (SSCL) and its extension SSCL-SPC increase the speed of decoding by removing redundant calculations when encountering particular information and frozen bit patterns (rate one and single parity check codes), while keeping the error-correction performance unaltered. In this paper, we improve SSCL and SSCL-SPC by proving that the list size imposes a specific number of bit estimations required to decode rate one and single parity check codes. Thus, the number of estimations can be limited while guaranteeing exactly the same error-correction performance as if all bits of the code were estimated. We call the new decoding algorithms Fast-SSCL and Fast-SSCL-SPC. Moreover, we show that the number of bit estimations in a practical application can be tuned to achieve desirable speed, while keeping the error-correction performance almost unchanged. Hardware architectures implementing both algorithms are then described and implemented: it is shown that our design can achieve 1.86 Gb/s throughput, higher than the best state-of-the-art decoders.
