CDT and Cosmology

TL;DR

This paper explores how Causal Dynamical Triangulations (CDT) can model quantum gravity and its potential to naturally produce a de Sitter universe, linking quantum gravity approaches with cosmological observations.

Contribution

It analyzes the cosmological implications of CDT, especially its ability to generate a de Sitter universe, highlighting its relevance for quantum gravity and cosmology.

Findings

CDT can produce a de Sitter universe in its scaling limit.

The approach emphasizes the importance of causal structure in quantum gravity.

Potential connections between CDT and observable cosmological phenomena.

Abstract

In the approach of Causal Dynamical Triangulations (CDT), quantum gravity is obtained as a scaling limit of a non-perturbative path integral over space-times whose causal structure plays a crucial role in the construction. After some general considerations about the relation between quantum gravity and cosmology, we examine which aspects of CDT are potentially interesting from a cosmological point of view, focussing on the emergence of a de Sitter universe in CDT quantum gravity.

Figures

Equations

$$Z=\int \mathcal{D}g{\mathrm{e}}^{i{S}^{\mathrm{EH}}[g]},$$

$$S_E(T)=-({\kappa }_0+6\Delta )N_0(T)+{\kappa }_4(N_4^{(4,1)}(T)+N_4^{(3,2)}(T))+\Delta (2N_4^{(4,1)}(T)+N_4^{(3,2)}(T)),$$

$$d{s}^2=d{\tau }_E^2+a({\tau }_E{)}^{2}d{\Omega }_{(3)}^2=d{\tau }_E^2+c^2{\cos }^2\left(\frac{{\tau }_E}{c}\right)d{\Omega }_{(3)}^2,$$

$$S_E^{mini}=\frac{1}{G_N}\int \mathrm{d}t\left(-a(t)\dot{a}(t{)}^2-a(t)+\Lambda a(t{)}^3\right),$$

Full text

1. I Introduction
2. II CDT Quantum Gravity
3. III Couplings and phases of CDT
4. IV Recovering cosmology

I Introduction

The aim of cosmology is to describe the behaviour of the universe as a whole. The current standard model of cosmology ($\Lambda$CDM) assumes that gravity on cosmological scales is described by general relativity (GR) or, more correctly, the Friedmann equations. The latter can be derived from Einstein’s field equations by assuming from the outset that the spatial universe is homogeneous and isotropic. This is an extremely strong symmetry assumption, describing a spatial universe where all sources of gravity are smeared out evenly and which is devoid of any local structure. It is clearly not satisfied by the real universe at the scale of stellar systems, galaxies, galaxy clusters or the even larger galaxy filaments. However, astrophysical observations appear to be compatible with statistical homogeneity and isotropy at a scale of about 100 Mpc and larger. In this sense, Friedmann-Lemaitre-Robertson-Walker (FLRW) space-times serve as effective models of gravity on sufficiently large scales. This leaves aside the question of how to average in an intrinsically nonlinear theory like general relativity, as would be needed to gain a more detailed understanding of the relation between the full theory and the real, large-scale universe approximated by a spatially flat FLRW geometry.

Should we be surprised by how well and robustly the universe at large can be described by a FLRW space-time, where at each moment $t$ the entire dynamical content of the metric tensor $g_{\mu\nu}(t,x)$ is captured by a single number, the global scale factor $a(t)$? This question is not easy to answer, given that – despite the tremendous successes of standard cosmology – some of its key fundamental issues remain unresolved, including the nature of dark matter and the cosmological constant problem (see dark for a recent review). What could we possibly learn about cosmology from a theory of quantum gravity, that we could not learn from classical GR alone?

Note first that even if general relativity (and not some version of “modified gravity”) is the correct theory describing gravity on very large scales, the geometrical symmetry reduction to the FLRW setting does not have fundamental status, since the exact symmetry is not realized in nature at any scale. This implies that a theory of quantum gravity, even if it has GR as its classical limit, need not reproduce the $\Lambda$CDM-model as such, but should only be able to explain the observed large-scale features of the universe, including those that are described correctly by the $\Lambda$CDM-model. Secondly, because of the non-renormalizability of perturbative quantum gravity, we know that an effective field theory description must break down at sufficiently large energies, beyond which it should be “ultraviolet completed”. This motivates the search for non-perturbative quantum gravity, a fundamental quantum theory of gravity valid on all scales, which includes a specification of its degrees of freedom – geometric, pre-geometric or otherwise – and their dynamics at the Planck scale.

All quantum and classical aspects of gravity and cosmology must ultimately follow from this fundamental, “true” theory of gravity, including the quantum behaviour of the very early universe and finding the non-perturbative quantum ground state of the universe. There may also exist less obvious implications of the quantum theory for large-scale cosmology, for example, in the form of quantum-gravitational contributions to the observed cosmological constant, implying some “mixing” of ultraviolet and infrared excitations. In any event, true cosmology should be derived from a consistent, non-perturbative quantum description of matter and gravity beyond classical GR. Of course, even a fully-fledged theory of quantum gravity is likely to leave some questions unanswered, for example, those of the initial conditions of our universe.

Given the robustness of the FLRW paradigm and the $\Lambda$CDM-model at the classical level, one may expect that true cosmology can be cast in similar terms. However, in view of the conundrums of standard cosmology, there must be at least some surprises and new insights awaiting us, which from our current viewpoint are unobvious, perhaps run counter to folklore or look incompatible with standard assumptions. When we examine candidate theories for quantum gravity – which at present are more or less incomplete – and their possible implications for cosmology, we need to watch out for such features and to some degree be open-minded.

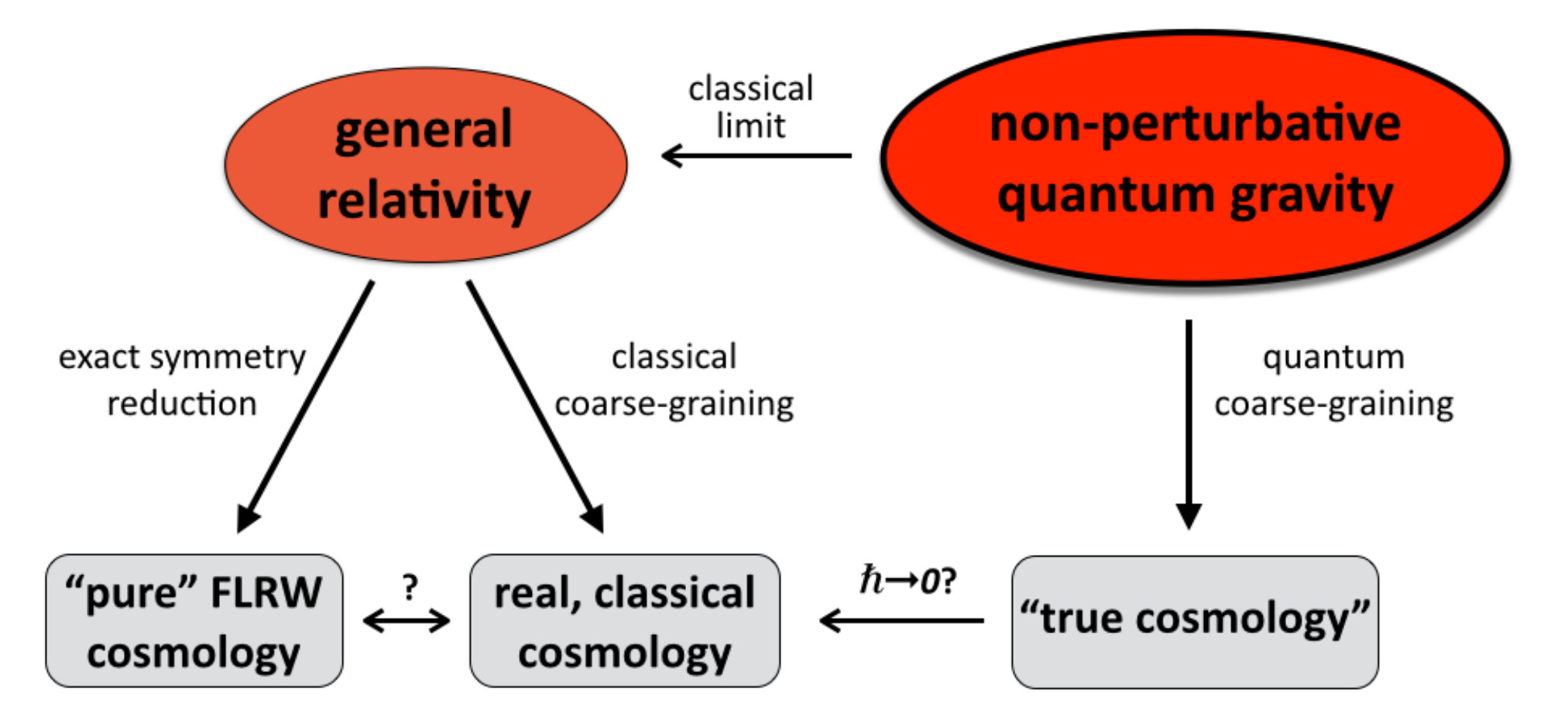

Fig. 1 illustrates the relation between the theories of quantum gravity, general relativity and cosmology. Assuming that GR is the correct classical theory of gravity on length scales much larger than the Planck scale $\ell_{\rm Pl}=1.6\times 10^{-35}m$, its exact reduction to the FLRW-sector occurs by imposing homogeneity and isotropy on spatial slices of constant time $t$. By contrast, what we observe astrophysically is a universe where this symmetry is realized (at best) in a statistical sense and on length scales above 100 Mpc. In standard cosmology, we nevertheless interpret these data in terms of a FLRW model. For which observables and on what scales this procedure is justified and yields a good quantitative description is the subject of ongoing analytical and numerical research. A main difficulty is how to evaluate in GR the so-called “backreaction” effect of inhomogeneities on smaller scales on the dynamics of the universe on larger scales, in a situation where neither averaging nor coarse-graining are uniquely defined processes (for recent overviews, see e.g. challenges ; inhomogeneous and references therein).

Interestingly, similar issues arises when considering candidate theories of non-perturbative quantum gravity that provide concrete models of microscopic dynamics at the Planck scale, typically in a regularized form involving some kind of discretized “building blocks”. To demonstrate that such a theory correctly reproduces general relativity in a classical limit or to extract cosmological predictions one needs to study quantum observables describing physical properties on large scales. To achieve this, many orders of magnitude need to be bridged, by “coarse-graining” observables and/or “integrating out” microscopic degrees of freedom. This calls for a non-perturbative and background-independent version of the renormalization group, to determine how physics depends on the scale, analogous to what is done in the approach of “Asymptotic Safety” based on the continuum metric $g_{\mu\nu}(x)$ (see as for an assessment of its cosmological implications). However, the physical principles underlying such a construction and its detailed numerical implementation have not yet been investigated widely, in part hampered by the current incompleteness of quantum gravity theories and the scarcity of effective numerical tools.

In the remainder of this article we will focus on the approach of Causal Dynamical Triangulation (CDT), and examine more closely what we have learned in practice about some of the theoretical issues just raised. To what extent can one rederive aspects of standard cosmology from the full, non-perturbative quantum theory? What are the obstacles and how robust are the results? Has one uncovered new quantum phenomena at the Planck scale, which may eventually lead to predictions that can be tested in cosmology? What more needs to be done to complete our theoretical understanding and bridge the gap to phenomenology?

In Sec. II we recap some important ingredients and properties of CDT quantum gravity, and in Sec. III we sketch what is known about the model’s phase structure. The main part of our discussion on CDT and cosmology is contained in Sec. IV. After describing possible pathologies of the non-perturbative path integral, we focus on the emergence of a de Sitter universe, which is a key result in CDT. We explain how it comes about dynamically, what we know about its physical properties, and that there is still some way to go to derive hard, quantitative predictions about true cosmology from Causal Dynamical Triangulations. Our treatment is mostly non-technical, with plenty of references for those wanting to delve deeper into the subject.

II CDT Quantum Gravity

Quantum Gravity in terms of Causal Dynamical Triangulation provides an explicit realization of a non-perturbative, Planckian quantum dynamics, obtained as the continuum limit of a regularized path integral. Importantly, it comes with powerful numerical tools that have made it possible to extract certain large-scale properties of the “ground state of the universe” and to compare them to a classical universe of FLRW-type. It is not our intention here to go into the details of the technical construction of the CDT path integral, which have been given in many places (see e.g. the review physrep ), but only to highlight some properties of the construction and to describe briefly some of its results that have some bearing on the theme of “cosmology from quantum gravity”. In this spirit, we will cover the theory in four space-time dimensions only, and only the case of pure gravity, because it is the one most investigated and far from trivial. Coupling matter is technically straightforward and has been studied extensively in Dynamical Triangulations (DT), the precursor and counterpart with Euclidean signature of CDT 4dsimpl . However, identifying physically interesting matter-gravity observables is not easy and will not be discussed further here, although it is an important area of current and future research. A point particle coupled to CDT was considered in references point and wilson .

In a nutshell, CDT quantum gravity provides a well-defined regularized version of the formal path integral over space-time geometries $g$, the famous “sum over histories”

[TABLE]

where each space-time $g$ is associated with a complex amplitude depending on the Einstein-Hilbert action evaluated at $g$. From the regularized path integral, one then seeks to obtain a quantum gravity theory in a suitable scaling limit, as the regulators are removed. An important property of this construction, if such a limit can be shown to exist, is that the final continuum theory will be largely independent of the details of the regularization, a phenomenon known as universality. It also means that there are few adjustable parameters, which is an enormous bonus if one is interested in robust results and the potential predictive power of the theory. The entire construction takes place within the realm of quantum field theory, without invoking any exotic ingredients, and can be thought of as the gravitational analogue of lattice gauge theory. Also the motivation is similar to that of QCD, say, in the sense that through numerical (Monte Carlo) methods one hopes to gain nontrivial and quantitative information about the non-perturbative regime of the theory, which currently is not obtainable by other means. Of course, quantum chromodynamics is a theory we already know much more about than quantum gravity.

Another difference with QCD are the symmetries of the theory. The freedom to perform space-time diffeomorphisms (a.k.a. coordinate transformations) in general relativity is an inevitable feature of the standard continuum formulation. Already classically, this redundancy obscures the distinction between what is physical and what is a mere coordinate effect. The situation in the quantum theory is usually worse, since beyond the linearized theory it is very difficult to account for the full diffeomorphism symmetry in a consistent manner, especially in the presence of discreteness (fundamental or cutoff), and to control the associated ambiguities and infinities. A beautiful and perhaps underappreciated feature of quantum gravity in terms of dynamical triangulations is the fact that this problem is absent. The reason is that the configuration space of the regularized path integral is a space of triangulations, given by piecewise flat manifolds made of equilateral triangular building blocks of geodesics edge length $a$. It is based on the ingenious idea of Regge’s regge to describe the curved space-times of GR in terms of purely geometric data, namely, the edge length assignments and connectivity (“gluing”) data of triangulated manifolds, thereby completely avoiding the introduction of coordinates and their associated redundancy.

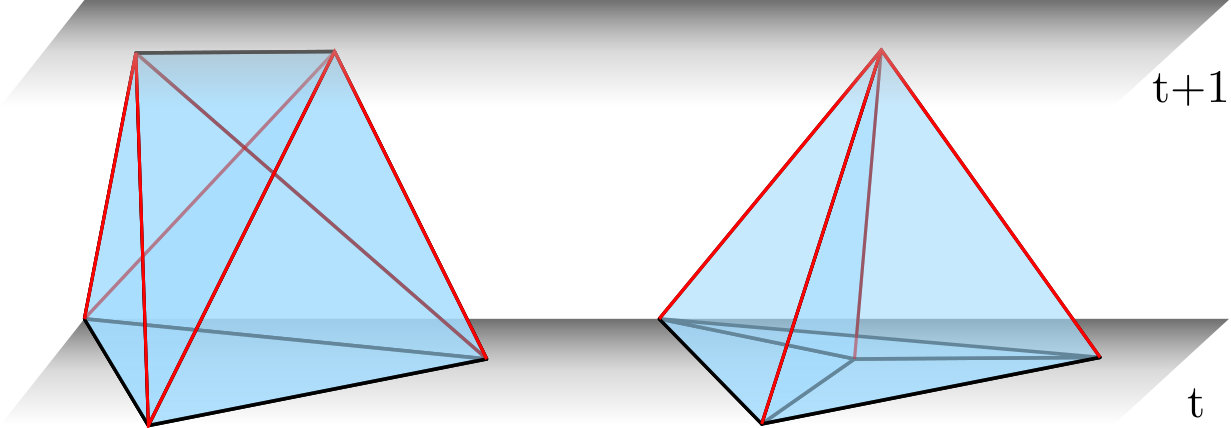

Fig. 2 shows the two kinds of four-simplices used to construct the space-time configurations summed over in the CDT path integral. The reason why one type of building block is not sufficient has to do with the fact that in Lorentzian signature a four-simplex cannot be equilateral, since in that case the flat geometry induced on its interior would be Euclidean and not Minkowskian. However, we can make the four-simplices “as equilateral as possible” by using two different edge lengths, in the case of CDT chosen to be space-like and time-like. In terms of the UV-cutoff $a$, the length-squared in CDT of all space-like edges is $\ell_{s}^{2}=a^{2}$, and that of all time-like edges $\ell_{t}^{2}=-\alpha a^{2}$, for some fixed $\alpha>0$. The figure also illustrates another important aspect of the standard CDT set-up, namely, that the elementary building blocks are by construction arranged in layers that can be labelled by a discrete “time” parameter $t$. The geometry of the spatial universe at any integer value $t$, shared by two consecutive space-time layers of “height” $\Delta t\!=\!1$, is a piecewise flat Riemannian space consisting of equilateral tetrahedra with edge length $\ell_{s}$. Note that $t$ is merely one of the parameters characterizing the regularized geometries, and not related to any gauge choice, since there are no coordinates in the first place111nor would it in general be possible to introduce coordinates in neighbourhoods that extend beyond individual building blocks, because of the presence of curvature singularities. Whether or not $t$ acquires any physical meaning in a suitable continuum limit cannot be determined a priori. Anticipating our discussion of Sec. IV below, in the CDT phase where a de Sitter-like behaviour is found, a renormalized version of $t$ attains the status of cosmological proper time. Whether there are observables with respect to which (a continuum version of) $t$ can be interpreted in terms of a more local notion of time is currently unknown.

At the regularized level, the presence of a “time” $t$ allows us to implement in a simple way the causality restriction that puts CDT quantum gravity in a different universality class from its purely Euclidean DT counterpart, which is the requirement that the topology of space of any path integral configuration should not change in time. Of course, such topology changes are never permitted in the classical theory because they are associated with degeneracies of the Lorentzian metric $g_{\mu\nu}$. A major insight gained from CDT quantum gravity is that such restrictions on the causal structure are also essential in the non-perturbative quantum theory to obtain a theory with a good classical limit. The standard choice made for the topology of the spatial slices is a that of a three-sphere $S^{3}$. A first study using tori $T^{3}$ instead of spheres as spatial slices has appeared recently torus .

Imposing causality conditions can in principle be done without referring to an explicit time slicing, and leads to a slightly generalized version of CDT in terms of “Locally Causal Dynamical Triangulations (LCDT)”. This variant has been implemented numerically in three space-time dimensions, where it appears to lead to large-scale results equivalent to those of CDT LCDT1 ; LCDT2 , providing nontrivial evidence that CDT and LCDT lie in the same universality class. However, apart from being more complicated and numerically expensive, it is unclear whether this model is still unitary. Unlike CDT quantum gravity cdt2001 ; physrep , LCDT does not have a transfer matrix and does not obviously obey reflection positivity, an important but sometimes neglected property of lattice gravity models and a prerequisite for recovering unitarity in the continuum limit.

Let us finally note another exceptional feature of CDT quantum gravity, which is the existence of a well-defined “Wick rotation”, which takes the form of an analytical continuation of one of the parameters describing the regularized, piecewise flat geometries (more specifically, a continuation $\alpha\mapsto-\alpha$ through the lower-half complex plane of the parameter $\alpha$ introduced above). It maps each curved Lorentzian CDT space-time to a unique curved Euclidean space-time, while simultaneously transforming the corresponding complex weight factor exp($iS$) to a real Boltzmann factor exp($-S_{\rm E}$) depending on the Euclideanized action $S_{\rm E}$, which is essential for being able to apply Monte Carlo simulations. Note that there is no known continuum analogue of this Wick rotation for general metrics or diffeomorphism equivalence classes of metrics.

The unique combination of properties of the CDT path integral just sketched has made it possible to derive a number of new and unexpected results in non-perturbative quantum gravity. In what follows, we will focus on those that are potentially relevant from the point of view of cosmology and describe them briefly in turn.

III Couplings and phases of CDT

The first step in understanding the dynamical system defined by the CDT-implementation of the path integral (1) is an investigation of its behaviour as a function of the values of the bare coupling constants of the model, which are the parameters in the gravitational action that can be varied freely. After Wick rotation, the Euclidean version of the bare Einstein-Hilbert action evaluated on a piecewise flat manifold $T$ – again following Regge regge – reads reconstructing ; physrep

[TABLE]

where $N_{0}(T)$ counts the number of vertices in the triangulation $T$, and $N_{4}^{(3,2)}(T)$ and $N_{4}^{(4,1)}(T)$ the numbers of the two types of four-simplices introduced previously in Sec. II. The coupling $\kappa_{0}$ is proportional to the inverse bare Newton constant, and $\kappa_{4}$ is essentially equal to the bare cosmological constant. In line with the standard philosophy of critical phenomena that underlie the CDT construction, the bare, dimensionless couplings do not have a direct physical meaning, but only their renormalized, dimensionful counterparts will. Whether a meaningful continuum theory depending on such renormalized couplings exists depends on whether the underlying statistical model possesses interesting scaling limits in the vicinity of critical points in the phase diagram, generally found along lines of phase transition of second or higher order.

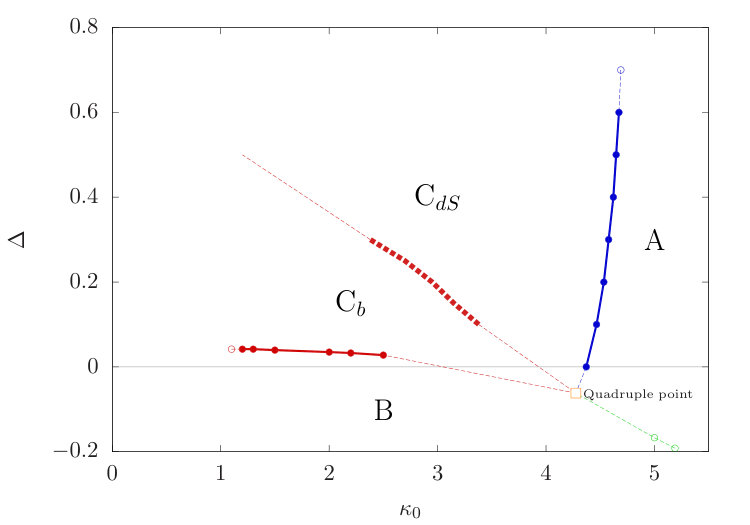

The phase diagram of CDT quantum gravity is spanned by three bare parameters. In addition to $\kappa_{0}$ and $\kappa_{4}$, a third, so-called “asymmetry parameter” $\Delta$ becomes relevant when discussing possible continuum limits. It is called asymmetry parameter because it is a function of $\alpha$, which we introduced above as the ratio between the length of space-like and time-like edges in the triangulated geometries. The reason for using $\Delta$ instead is that the bare action (2) depends on it in a simple way. Note that $\Delta$ vanishes when all edges of the four-simplices (in the Wick-rotated geometries) have equal length, i.e. $\Delta(\alpha\!=\!1)=0$. At the level of the bare action, different values of $\Delta$ amount to trivial, finite field rescalings. However, in the non-perturbative regime of CDT where interesting physics is observed, its character is changed to that of a relevant parameter. Its precise physical meaning must be extracted by measuring suitable observables near phase transitions. Whether or not (a renormalized counterpart of) the coupling $\Delta$ is related to time-space anisotropy of some continuum theory, perhaps in the spirit of Hořava-Lifshitz gravity horava ; cdthl , remains to be understood. There are currently too few non-perturbative observables to make a specific statement about any genuinely physical anisotropy, for example, regarding the large-scale behaviour of the quantum geometry.

Before discussing details of the phase diagram, note that CDT predicts a positive (renormalized) cosmological constant $\Lambda$! This generic feature of DT models has to do with the convergence behaviour of the non-perturbative path integral and the additive renormalization the cosmological constant undergoes in the limit as the number of building blocks is taken to infinity. CDT does not predict any particular value for the physical cosmological constant (or any other coupling constant), only that it should be positive, which at present is of course compatible with our understanding of the universe, based on $\Lambda$CDM cosmology.

The phase diagram is investigated with the help of Monte Carlo simulations (see emergence ; physrep for more information), which for technical reasons are performed at fixed four-volume, implemented by adding a volume-fixing term to the action and tuning $\kappa_{4}$ to its pseudo-critical value. The dependence on the remaining two bare parameters $\kappa_{0}$ and $\Delta$ is shown in the phase diagram of Fig. 3. Remarkably, and so far unique in non-perturbative quantum gravity theories, CDT has at least one second-order transition line, the one separating phases $B$ and $C_{b}$ transition1 ; transition2 . As mentioned above, the existence of such transition points is a crucial prerequisite to defining scaling limits of the theory. A new transition line, subdividing the old $C$-phase into the de Sitter phase $C_{dS}$ and the bifurcation phase $C_{b}$, was discovered only recently effective ; signature and is also a candidate for a higher-order transition newphasetransition . By contrast, the $A$-$C_{dS}$ line has been shown to be of first order transition2 .

One physical criterion to distinguish between the various phases is the behaviour of the expectation value $\langle V_{3}(t)\rangle$ of the spatial volume $V_{3}$ of the quantum universe as a function of time $t$ emergence ; reconstructing ; semilimit . Volume profiles compatible with a good classical limit are only found in phases $C_{b}$ and $C_{dS}$, while the phases $A$ and $B$ seem to be unphysical and are likely to have no continuum interpretation in terms of general relativity. This is also corroborated by studying other observables, like the dynamical dimensions considered below in Sec. IV, which show that an extended, four-dimensional universe emerges on large scales only in the $C$-phases. The distinction between the bifurcation phase $C_{b}$ and the de Sitter phase $C_{dS}$ was first spotted in the transfer matrix approach transfer , where one simulates only a pair of adjacent time slices instead of configurations that extend over 80 time steps, say, and contain the universe in its entirety. The bifurcation phase is characterized by the appearance of vertices of high order, where many four-simplices share the same vertex. This leads to a substructure of the quantum geometry, whose physical meaning is currently being investigated and has been tentatively associated with a breaking of spatial homogeneity, which would be very interesting from a cosmological point of view characteristics . Which of the de Sitter-like properties of the geometry in phase $C_{dS}$ – described in more detail in the next section – continue to hold throughout the phase $C_{b}$ is an interesting question and the subject of ongoing research.

IV Recovering cosmology

Going back to our considerations of the Introduction, what we have learned from studying non-perturbative models of quantum gravity, and in very explicit terms from DT and CDT, is that a generic “sum over histories” does not produce anything like a FLRW universe on any scale. In other words, the robustness of a FLRW-like description of large-scale geometry observed in classical cosmology does not carry over immediately to the quantum context, where Planckian curvature fluctuations are large. It turns out that the latter are associated with generic, “entropic” instabilities, where the path integral is dominated by highly degenerate configurations that never “average out” in expectation values to produce recognizable semi-classical behaviour. This undesirable outcome is largely insensitive to the choice of microscopic building blocks, the detailed form of the measure and the gravitational action used (see measure for a recent example) and the presence or otherwise of matter. A well-known type of pathological behaviour found in the continuum limit of quantum-gravitational systems is associated with so-called branched polymers, which can be identified in terms of their critical exponents. They are found in 4D Euclidean DT quantum gravity for sufficiently large $\kappa_{0}$ 4dEDT , but are also present generically in DT in dimension larger than two 3dEDT ; 5dEDT ; 10dEDT , as well as in tensor models melon , illustrating the strength of the underlying effect.

The nature of these pathological phases is pre-geometric, in the sense that they are dominated by specific dynamical geometric modes, to such a degree that a four-dimensional extended universe is never formed. For example, the branched-polymer behaviour just discussed is usually attributed to a dominance of the local conformal mode, and leads to a “quantum geometry” with a Hausdorff dimension of 2 and a spectral dimension of 4/3. The challenge is therefore to find quantum gravity models which at least in some region of their phase space exhibit behaviour that on large scales is compatible with general relativity, possibly in combination with a fine-tuning of couplings near a phase transition.

CDT quantum gravity was invented to tame the observed pathologies of non-perturbative Euclidean DT models sufficiently to make a physical interpretation possible, without constraining local curvature degrees of freedom or otherwise tampering with the gravitational dynamics. Its key finding is that requiring path integral histories to have a well-behaved causal structure (without acausal points) leads to completely different quantum gravity theories222in all space-time dimensions studied so far: two, three and four than their purely Euclidean counterparts, which have no notion of either time or causality. This “causality condition” in CDT is physically motivated – because the real world is Lorentzian – but by no means a necessary physical requirement, since individual path integral configurations are not in themselves physical. The CDT ansatz has proved very successful since its inception in firstcdt , and has given us the first explicit (and so far unique) example of the emergence of a specific classical, cosmological space-time from a fully non-perturbative and background-independent quantum gravity theory, as we will now explain in more detail.

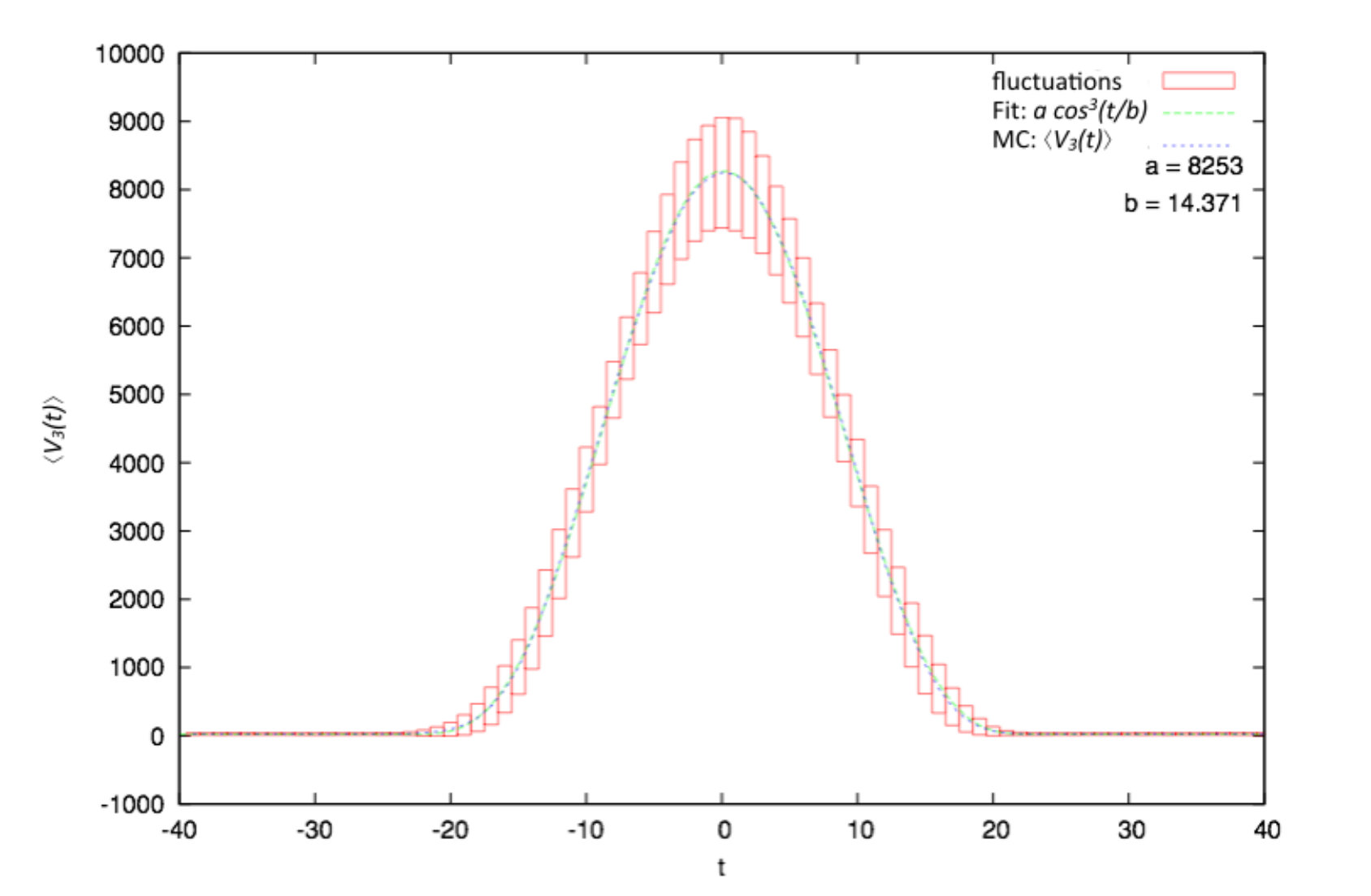

The observables that enable us to match properties of the non-perturbative vacuum state of pure quantum gravity with those of a four-dimensional de Sitter space are the volume profile $V_{3}(t)$ introduced earlier, and two different notions of dimension. Let us start by describing some results on the former. To be able to compare with Monte Carlo measurements of the Wick-rotated path integral, consider Euclidean general relativity in the presence of a positive cosmological constant, and assume spatial homogeneity and isotropy, as is usually done in deriving cosmological space-times of FLRW type. This reduces the Einstein equations to ordinary differential equations of the scale factor $a(\tau_{E})$, whose solution is the (Euclidean) de Sitter universe. Its line element is given by

[TABLE]

where $d\Omega^{2}_{(3)}$ denotes the line element of the unit three-sphere, $c$ is inverse proportional to the square root of the cosmological constant and $\tau_{E}=i\tau$ is Euclidean proper time. From the metric (3) it is straightforward to compute the associated classical volume profile as $V_{3}(\tau_{E})\propto\cos^{3}(\tau_{E}/c)$.333Note that after a Wick rotation $\tau\mapsto\tau_{E}$, Lorentzian de Sitter space becomes Euclidean de Sitter space, which geometrically is a round four-sphere. As illustrated by Fig. 4, the measured average volume profile of the dynamically generated quantum universe in CDT matches this functional form perfectly desitter1 ; desitter2 ; semilimit . Moreover, the data from the computer simulations can be used to reconstruct the effective action for the three-volume that leads to the measured volume profile $\langle V_{3}(t)\rangle$. This can be done from simulations of the full universe desitter2 and from the transfer matrix system that uses only two time slices effective , and in both cases matches the corresponding classical minisuperspace action up to an overall sign (more about which below). Even more, the behaviour of the quantum fluctuations $\delta V_{3}(t)$ of the three-volume has also been measured and compared to a perturbative continuum calculation around de Sitter space (in quadratic approximation), yielding a good agreement of the low-lying eigenmodes desitter2 .

This “recovery of cosmology” is a remarkable result. Without putting in any preferred background geometry from the start, there is a whole region in the phase space of CDT quantum gravity where the “democratic” superposition of all histories produces a quantum geometry whose shape matches that of a classical FLRW universe. The same is true for the large-scale dimension of this universe, which turns out to be 4 (within measuring accuracy), as required for a classical space-time emergence ; spectral ; reconstructing . The study of dynamical dimensions in quantum gravity has in the meantime become a whole subject in itself. The qualifier “dynamical” refers to the fact that in a non-perturbative, Planckian regime – inasmuch as prescriptions for measuring a dimension continue to be meaningful – these dimensions can differ from their canonical value of 4, and need not be integers either.444One reason why the dimension does not have to be 4, despite the use of four-dimensional building blocks, is that we perform a nontrivial continuum limit in which specific properties present at the cutoff scale need not survive. A case in point is that of the spectral dimension, which is the dimension “seen” by a diffusion process. The fact that quantum space-time seems to undergo a dynamical dimensional reduction to a value of or near 2 when one approaches the Planck scale is a phenomenon first discovered in CDT quantum gravity spectral ; reconstructing , which has since sparked a whole industry of determining spectral dimensions across a variety of quantum gravity approaches (see e.g. carlip and references therein). It is intriguing that many can reproduce evidence of such a dimensional reduction, but there are several reasons for not jumping to conclusions about the implications of this result. Firstly, due to the incompleteness of the underlying quantum gravity theories, many derivations require additional ad-hoc assumptions, which may make the result look more universal than it actually is. Secondly, although the requirement of recovering four-dimensionality as part of taking a classical limit is nontrivial and useful in identifying unphysical behaviour (like in the case of branched polymers), the spectral and Hausdorff dimensions that are usually considered provide only a very loose (and again pre-geometric) characterization of quantum geometry. Non-classical spaces that share the same dimensions can be totally different with regard to other geometric properties. Thirdly, and most importantly, as long as we do not have a better understanding of coupled gravity-matter systems on the scales associated with the dimensional reduction, its physical interpretation and potential cosmological implications remain unclear (see thermal for a recent critical assessment from a phenomenological point of view). This is an important and interesting field for future study.

Returning to the non-perturbative emergence of a de Sitter universe in CDT, some further comments are in order on the nature of this result. To begin with, in the relevant region of phase space and for the range of discrete four-volumes $N_{4}$ explored in the simulations, the physical size of the de Sitter universe is of the order of 20$\ell_{\rm Pl}$ across. The identification of lattice with physical units that underlies this number is not ad hoc, but derived from a comparison of the measured spatial volume-volume correlator with its expected continuum counterpart desitter1 ; desitter2 . There is no obstacle in principle to making the universe larger in terms of physical units, but there are obvious computational limitations to increasing $N_{4}$ significantly. At any rate, it may be more interesting to go the other way and increase the number of lattice units $a$ per physical unit555The lattice spacing $a$, introduced earlier as the length of an edge of a simplex, should not be confused with the Friedmann scale factor $a(t)$ used elsewhere in the text. Note that all CDT results quoted are obtained through finite-size scaling in the limit as $N_{4}\rightarrow\infty$ or, equivalently, as the UV-cutoff $a\rightarrow 0$., to better resolve quantum effects at the Planck scale. Because CDT dynamics at the cutoff scale – like in any lattice formulation – is largely an artefact of the regularization chosen, data points near the cutoff are always excluded when determining observables. The best resolution achieved in the simulations so far is on the order of $a\sim\ell_{\rm Pl}$, i.e. one lattice spacing per Planck unit desitter2 ; searching . This is not quite enough to distinguish between quantum corrections to the minisuperspace action produced by CDT, expected to become relevant for small values of the scale factor, and discretization ambiguities at the cutoff scale. In terms of possible applications, quantum modifications at small $a(t)$ were invoked in arguing for a specific form of the “wave function of the universe”, derivable directly from CDT data semiclassical . Further improvements in the efficiency of the simulations near the phase transition lines are expected to bring measurements in this short-distance regime within reach.

Next, the snapshot taken from a Monte Carlo simulation of the de Sitter universe shown in Fig. 5 could be misunderstood as depicting a universe whose local structure is approximately smooth and close to that of a round four-sphere. However, nothing could be further from the truth! What is depicted in the figure is a single global degree of freedom, the total three-volume as a function of time666Fig. 5 is simply a curve made into a body of revolution., just like in the graph of Fig. 4. This volume variable seems to be very robust, in the sense that it displays semi-classical behaviour at merely one order of magnitude above the Planck scale. By contrast, the local geometry of the CDT de Sitter universe is highly singular and quantum fluctuating, and cannot be captured by any classical metric, not even in an averaged sense, let alone a constantly curved one. Instead, it exhibits a number of fractal-like properties reconstructing ; geometry . This means that the dynamically generated quantum universe of the CDT formulation lives in a truly non-perturbative regime and cannot serve as a classical de Sitter “background”. Quantum field theoretic computations on a de Sitter background, which frequently occur in a cosmological context, cannot be imported in a straightforward way to this non-perturbative setting, unless the corresponding observables can be reformulated in a diffeomorphism-invariant and background-independent manner. Of course, this is one facet of the more general challenge in non-perturbative quantum gravity to identify interesting quantum observables and extrapolate them to a semi-classical regime. One distinct advantage of CDT quantum gravity in this endeavour is that these questions can be addressed in a well-defined and concrete calculational framework.

By focussing on the dynamics of the three-volume $V_{3}(t)$ (equivalently, the scale factor $a(t)$) of the quantum universe, we are following the path of extracting “real cosmology” from the full, non-perturbative quantum theory, as depicted in Fig. 1. In obtaining the average volume profiles, one is de facto integrating over all other geometric modes, without making any symmetry assumptions a priori. This should be contrasted with standard quantum cosmology, which amounts to a quantum-mechanical treatment of only those degrees of freedom that are left after a classical symmetry reduction. (In the gravitational sector of FLRW cosmologies, this is just $a(t)$.) Especially in the Planckian regime, where all modes of the metric give potentially large contributions, there is no particular reason why the two methods should agree. Phrased differently, one would not in general expect “reduction” (from the full gravitational field to a global scale or volume variable) to commute with “quantization”.

This latter assertion is supported by examining the mechanism behind the emergence of the de Sitter universe in CDT quantum gravity, which is genuinely non-perturbative and has no analogue in quantum cosmology. The quantum space-time generated by the CDT path integral is the state which minimizes the “effective” Euclidean action that determines the dynamics in that region of phase space. In the region where a physically interesting de Sitter behaviour is found, this effective action receives significant contributions from both the bare action and the entropy, by which we mean the number of configurations contributing at a given value of the bare action. In a statistical mechanics language, this behaviour and the associated phase transitions appear to be “entropy-driven”, similar to what happens in the Kosterlitz-Thouless transition of the two-dimensional XY-model (see entropy ; physrep for related discussions). We do not have direct analytical access to the full effective action of CDT to illustrate this point explicitly. However, as alluded to above, an explicit, integrated-out version of this action for the global conformal mode (a.k.a. the scale factor) has been derived in CDT desitter2 ; effective . As already mentioned, it can be matched to the standard Euclidean minisuperspace action of a homogeneous and isotropic universe haha ,

[TABLE]

where $G_{N}$ and $\Lambda$ denote Newton’s constant and the cosmological constant in the continuum, up to an overall sign. This overall sign is irrelevant when considering classical solutions $a(t)$, but it makes a crucial difference in a Euclidean path integral whose weight factors are given by exp$(-S^{mini}_{E})$. The action (4) is unbounded below, due to the “wrong” sign of the kinetic term, which implies that the path integral diverges for strongly oscillating scale factors $a(t)$. This is a version of the infamous conformal-factor problem in gravity mamo ; cure , which is a consequence of the fact that the local conformal mode of the metric appears in the Einstein-Hilbert action with a kinetic term of the wrong sign, rendering the action unbounded below, irrespective of the signature of the four-metric.

In the phase space region where a stable, de Sitter-like vacuum state exists, the CDT path integral does not exhibit any conformal-factor problem, so what has happened to the unboundedness of the Euclidean Einstein-Hilbert action in this formulation? The answer is that the usual conformal mode contribution is present in the bare action, and does potentially lead to a divergence in the continuum limit. However, for sufficiently small values of the bare inverse Newton coupling $\kappa_{0}$ this divergence is entropically suppressed (see e.g. physrep for a more detailed discussion). In other words, the collective contribution to the non-perturbative path integral of the other, local degrees of freedom “neutralizes” this divergence. We can be more specific about what happens by examining the minisuperspace action derived in CDT quantum gravity: it is of the same functional form as (4), but due to the entropic contributions it has the opposite overall sign.777Note that we are comparing the actions at fixed four-volume, where $\Lambda$ is a Lagrange multiplier, in order to match the situation present in the Monte Carlo simulations. In this way, one obtains a de Sitter-like non-perturbative ground state for the full quantum theory, without tinkering with the Einstein-Hilbert action or invoking a non-standard “Wick rotation”.

We have come full circle from our considerations in Sec. I, where we emphasized the robustness of FLRW space-times as effective models for classical cosmology. We then explained that there are obstacles to finding an analogous result in the non-perturbative quantum theory, which take the form of phases of highly degenerate “geometry” without any apparent classical limit. CDT quantum gravity provides a way of keeping these instabilities in check by imposing restrictions on the causal structure of the path integral configurations. Whether there are alternative prescriptions that have the same effect is currently not known. However, once this problem is taken care of, the emergence of a FLRW universe – in this case a de Sitter universe – appears to be more or less automatic. How this particular quantum incarnation of the de Sitter universe is related to its classical counterparts in “pure” or “real” cosmology (c.f. Fig. 1) needs to be analyzed in greater detail and clearly requires going beyond the global scale factor. In the context of CDT, efforts are under way to define and implement quantum observables that can resolve more local geometric properties, including curvature. Just like in the classical theory, it will be necessary to understand quantitatively how a specific micro-structure contributes to observables on larger, coarse-grained scales. Important information about how physics depends on the scale considered is usually captured by the renormalization group, but how to implement it in non-perturbative quantum gravity is not immediately obvious. It is therefore encouraging that there is a first, concrete proof of principle that renormalization group methods can be applied in CDT quantum gravity, despite its background-free character renorm . And perhaps there is more to be learned from comparing the “averaging problems” in both the classical and quantum theories!

Acknowledgements.

LG received funding from the People Programme (Marie Curie Actions) of the European Union’s Seventh Framework ProgrammeFP7/2007-2013/ under REA grant agreement n. 706349 “Renormalisation Group methods for discrete Quantum Gravity”.
