Invited review: Fluctuation-induced transport. From the very small to the very large scales

TL;DR

This review explores how fluctuation-induced transport causes directed particle motion across scales, influenced by substrate shape, fluctuation correlations, and particle properties, with implications from nanoscale to large-scale systems.

Contribution

It synthesizes two decades of research, highlighting the universal principles governing fluctuation-induced transport across diverse physical systems and scales.

Findings

Transport depends on substrate shape, fluctuation correlations, and particle properties.

Universal principles apply from nanoscale thermal systems to large granular materials.

The same concepts govern diverse phenomena across different scales.

Abstract

The study of fluctuation-induced transport is concerned with the directed motion of particles on a substrate when subjected to a fluctuating external field. Work over the last two decades provides now precise clues on how the average transport depends on three fundamental aspects: the shape of the substrate, the correlations of the fluctuations and the mass, geometry, interaction and density of the particles. These three aspects, reviewed here, acquire additional relevance because the same notions apply to a bewildering variety of problems at very different scales, from the small nano or micro-scale, where thermal fluctuations effects dominate, up to very large scales including ubiquitous cooperative phenomena in granular materials.

Figures

A, which is exactly solvable [[26](#bib.bib26)] for slow fluctuation $f(t)$; it has a characteristic time much larger than the ratchet’s relaxation time. The potential is periodic and extends to infinity in both directions. $\lambda$ measures the spacing of the wells, $\lambda_{1}$ and $\lambda_{2}$ the inverse steepnesses of the potential in opposite directions out of the wells, and $Q$ the well depths. The particle undergoes overdamped Brownian motion due to its coupling with a thermal bath of temperature $T$, and an external driving $F(t)$ which represents the forces. These two ingredients

A) and of the amplitude $A$ of the driving. As expected, the driving, the potential, and the thermal noise in fact play cooperative roles. For low temperatures, any transport depends on very large $A$ values, while for large noise the features of the potential and of the driving are washed out.

Equations

$$\begin{array}{rl}& \dot{x}=-U^{\prime }(x)+f(t),\\ & U(x)=U(x+\lambda ),⟨f(t)⟩=0,\end{array}$$

$$J(F)=\frac{P_2^2\sinh (\lambda F/2kT)}{kT{\left(\frac{\lambda }{Q}\right)}^2{P}_3-\left(\frac{\lambda }{Q}\right)P_1{P}_2\sinh \left(\frac{\lambda F}{2kT}\right)},$$

$$P_1=\delta +\frac{{\lambda }^2-{\delta }^2}{4}\frac{F}{Q},P_2={\left[1-\frac{\delta F}{2Q}\right]}^2-{\left(\frac{\lambda F}{2Q}\right)}^2,$$

$$P_3=\cosh [(Q-\delta F/2)/kT]-\cosh (\lambda F/2kT),$$

$$j=⟨J⟩=\frac{1}{\tau }{\int }_0^{\tau }J(F(t))dt,$$

$$F(t)=\left\{\begin{array}[]{ll}\left({1+\epsilon\over 1-\epsilon}\right)A&0\leq t<{\tau(1-\epsilon)\over 2},\mod\tau\\ -A&{\tau(1-\epsilon)\over 2}<t\leq\tau,\mod\tau\end{array}\right.$$

$$\begin{array}{rl}⟨J⟩=& \frac{1}{2}(1+ϵ)J(-A)\\ & +\frac{1}{2}(1-ϵ)J((1+ϵ)A/(1-ϵ))\end{array}$$

$$\frac{\partial \rho (x,t)}{\partial t}=\frac{\partial }{\partial x}\left[D\left(\frac{\partial \rho }{\partial x}+\beta \frac{\partial H}{\partial x}\rho \right)\right],$$

$$\frac{\partial n(x,t)}{\partial t}=\frac{1}{A}\frac{\partial }{\partial x}DA\left(\frac{\partial n}{\partial x}-\beta Fn(1-n)\right).$$

Full text

\articlenumber

080004 \journalyear2016 \editorG. Martínez Mekler \reviewersJ. Mateos, Departamento de Sistemas Complejos, Instituto de Física,

                              Universidad Nacional Autónoma de México, México. 080004

\pipabstract

The study of fluctuation-induced transport is concerned with the directed motion of particles on a substrate when subjected to a fluctuating external field. Work over the last two decades provides now precise clues on how the average transport depends on three fundamental aspects: the shape of the substrate, the correlations of the fluctuations and the mass, geometry, interaction and density of the particles. These three aspects, reviewed here, acquire additional relevance because the same notions apply to a bewildering variety of problems at very different scales, from the small nano or micro-scale, where thermal fluctuations effects dominate, up to very large scales including ubiquitous cooperative phenomena in granular materials.

Invited review: Fluctuation-induced transport. From the very small to the very large scales

G. P. Suárez

  

[inst1] M. Hoyuelos

  

[inst1]   D. R. Chialvo[inst2] E-mail: hoyuelos@mdp.edu.ar

(30 October 2015; 4 February 2016) ††volume: 8

\blfootnote{theaffiliation}

99 \institutioninst1Instituto de Investigaciones Físicas de Mar del Plata (IFIMAR - CONICET) and Departamento de Física, Facultad de Ciencias Exactas y Naturales, Universidad Nacional de Mar del Plata, Deán Funes 3350, 7600 Mar del Plata, Argentina. \institutioninst2 Consejo Nacional de Investigaciones Científicas y Técnicas (CONICET), Godoy Cruz 2290, Buenos Aires, Argentina.

1 Introduction

Much of the efforts devoted to particle transport were triggered by the famous challenge at very small scales presented by Feynman in 1959: “A biological system can be exceedingly small. Many of the cells are very tiny, but they are very active. (…) Consider the possibility that we too can make a thing very small, which does what we want — that we can manufacture an object that maneuvers at that level!” [1].

At the scales discussed by Feynman, our most usual notions of work, energy and transport seem to break down, including some counterintuitive observations. As discussed in these notes, these findings are not restricted to small scales since work in the last decades shows similar dynamics arising anytime there is a peculiar interplay of fluctuations, nonlinearity and correlations resulting in various classes of fluctuation-induced transport.

To visualize the problem, consider a gedankenexperiment involving, for the sake of discussion, our desk. Elementary physics explains how all the objects at the desk stay in place and/or which forces are needed to displace them. Now, consider the imaginary case in which we progressively shrink all the objects up to a size of a few nanometers. It will be noticed that while at the natural scale objects remain steady without any energy expenditure, at the nanometers scale things move around, our “nano cell phone” which was quiet at the natural scale desk, moves and falls off the “nano desk. This exercise reminds us that at the Brownian domain, energy would be required even to stay quiet since the basic macroscopic methods of controlling energy flow no longer remain valid. This nonintuitive phenomenon in the function of molecular machines was described by Astumian as follows [2]: “any microscopic machine must either work with Brownian motion or fight against it, and the former seems to be the preferable choice”. Analogous observations, with some additional caveats due to inertial forces, can be made if instead of shrinking the mass, we apply an increasingly large external fluctuating field, making now our real size desk to shake around.

This brief review is dedicated to discuss the essence of three elementary results of fluctuation-induced transport including the potential shape, the correlations of the fluctuations and the particle interactions and how they work, calling attention to some common lessons that can be borrowed from problems in apparently far apart scales and fields, from cellular biology to technological applications and applied physics. It should be noted that it is not our intention to cover the extent of the field, this is neither a fair, nor historically correct, exhaustive or updated review of the relevant literature; it only encompasses some interesting results which, in our opinion, warrant further exploration. The reader will find comprehensive reviews covering specific topics, including those on Brownian motors in [3, 4, 5, 6, 7], on the more general subject of molecular motors in [2, 8, 9, 10, 11, 12], on a more biological perspective of molecular springs and ratchets in [13], or on a systematic analysis of the space-time symmetries of the equations in [14].

The paper is organized as follows. The next section revisits pioneer works on these types of problems, carried on a hundred years ago. Next, we discuss the three fundamental aspects of the problem, including the substrate, the correlations of the fluctuations and the particle interactions. We start by briefly introducing the different realizations of fluctuation-induced transport as popularized two decades ago, i.e., in the so-called correlation ratchets. After that, the two elementary ways to break the symmetry are reviewed, either in the temporal or in the spatial aspects of the system, to conclude introducing yet another way to affect transport, the correlations born out of many particle interactions. The review closes with a discussion of some applications and new directions.

2 Smoluchowski-Feynman’s ratchet as a heat engine

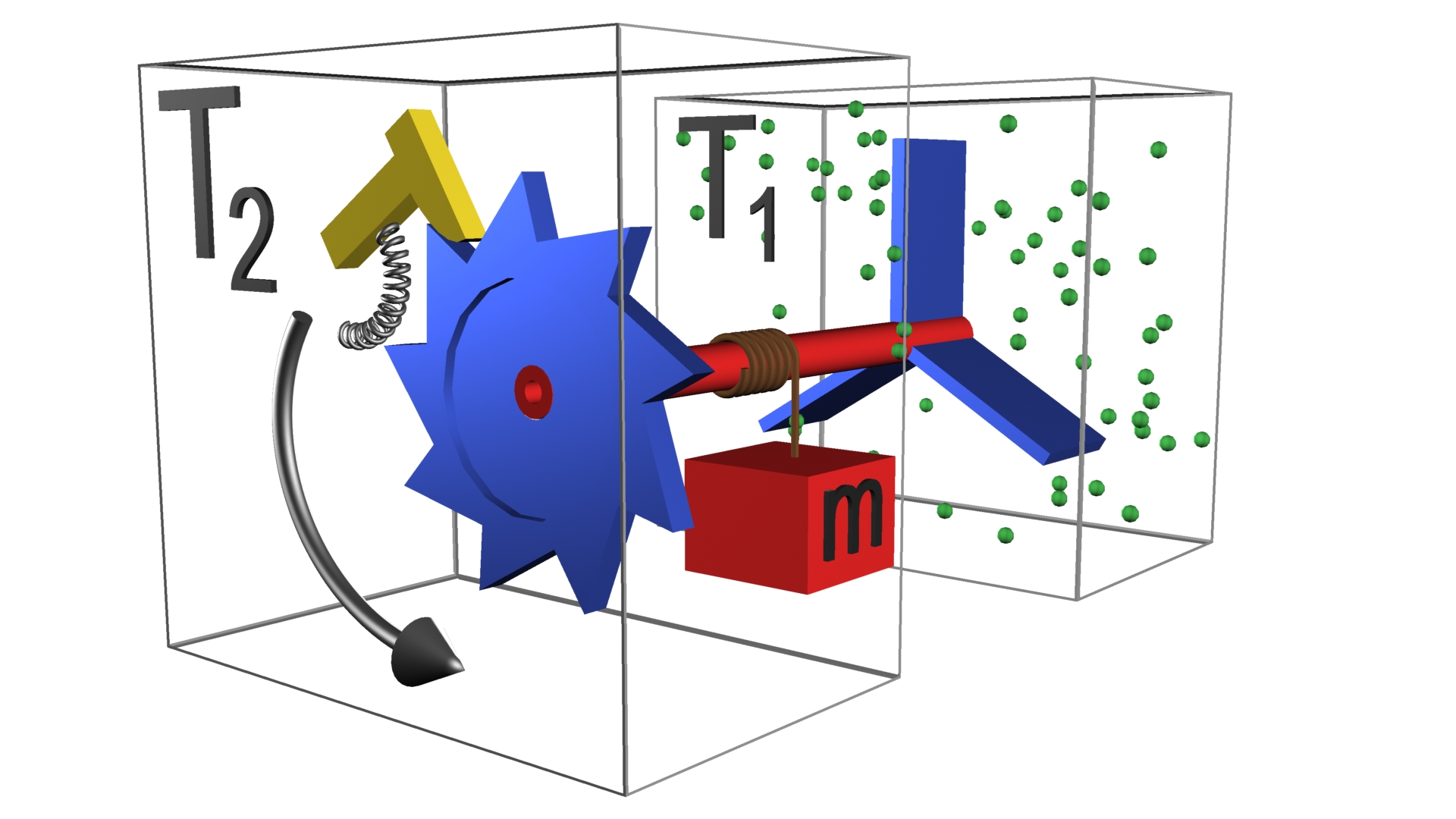

Feynman famous lectures [15] include an imaginary microscopic ratchet device to illustrate the second law of thermodynamics. The basic idea belongs to Smoluchowski who discussed it during a conference talk in Münster in 1912 (published as proceedings-article in Ref. [16]). As seen in Fig. 1, it consists of a ratchet, a paw and a spring, vanes, two thermal baths at temperatures $T_{1}>T_{2}$, an axle and wheel, and a load. The ratchet is free to rotate in one direction, but rotation in the opposite direction is prevented by the pawl. The system is assumed small so that molecules of the gas at temperature $T_{1}$ that collide with the vanes produce large fluctuations in the rotation of the axle. Fluctuations are rectified by the pawl. The net effect is a continuous rotation of the axle that can be used to produce work by, for example, lifting a weight against gravity. The pawl becomes a materialization of Maxwell’s demon, a small agent able to manipulate fluctuations at a microscopic level in order to violate the second law of thermodynamics, since in this case a given amount of heat is completely transformed into work. A closer inspection shows that such violation does not really take place. Feynman demonstrated that, if $T_{1}=T_{2}$, no net rotation of the axle is produced. The reason is that the pawl has its own thermal fluctuations that, from time to time, allow a tooth of the ratchet to slip in the opposite direction. Not even demons are free from thermal fluctuations. In order for the machine to work as intended, the pawl should be colder than the vanes, $T_{2}<T_{1}$. But in this case, there is a heat flux between thermal baths. The mechanical link between vanes and ratchet through the axle implies that the baths are not thermally isolated [17], even when the materials are perfect insulators. The system performs as a heat engine: some work is generated while some heat is transferred from a cold reservoir to a hot reservoir.

In summary, Feynmann’s ratchet —and Brownian motors— actually work, but without violating the laws of thermodynamics.

3 Breaking the symmetry: time, space and interactions

Feynman’s deep thinking motivated an entire generation of models around the same idea. The model ratchet is a fluctuations-driven overdamped nonlinear dynamical system described by

[TABLE]

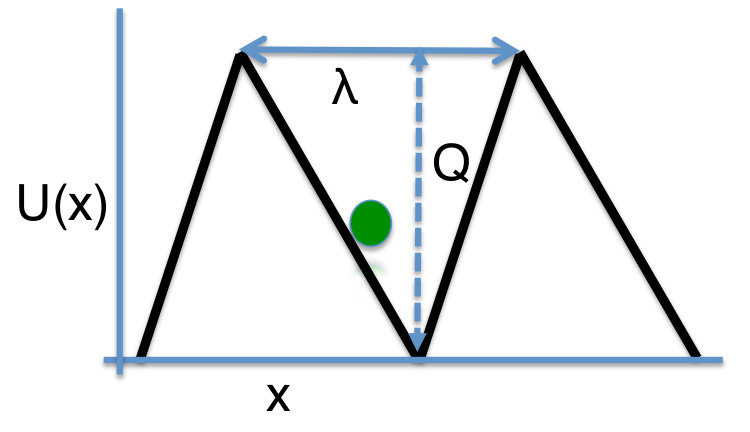

where $U(x)$ is a periodic potential, such as the one illustrated in Fig. 2, and $f(t)$ is zero-mean fluctuation of some type. In general, the initial theoretical problem is to find the stationary current density $j=\langle\dot{x}(t)\rangle$ in the ratchet given the statistical properties of the fluctuation $f(t)$ and the shape of $U(x)$, and to be able to determine the most efficient conditions for the transformation of fluctuations into a net current.

Multiple variations and extensions of the same problem were studied in the 90s resulting on a jargon of names such as on-off ratchets [8], fluctuating potential ratchets [18, 19], temperature ratchets [20, 21], chiral ratchets [22, 23, 24], and so on. In any case, three elements are always present: a particle which eventually will execute some motion and two forces, one coming from the external applied field and another given by the particular shape of the potential (i.e., the substrate where the particle resides). Thus, an isolated particle “feels” two forces, but while such information is available to an observer, it is important to realize that the particle has no way to distinguish or separate these sources. Thus, the break of symmetry resulting in average directed motion of a particle could come from either spatial or temporal sources. Yet, a third force needs to be considered in the cases in which the concentration of particles becomes relevant and then particles mutual interactions are not negligible anymore, an aspect crucial to understand flow in channels. We will consider all these cases in the following sections.

3.1 Asymmetries in the substrate

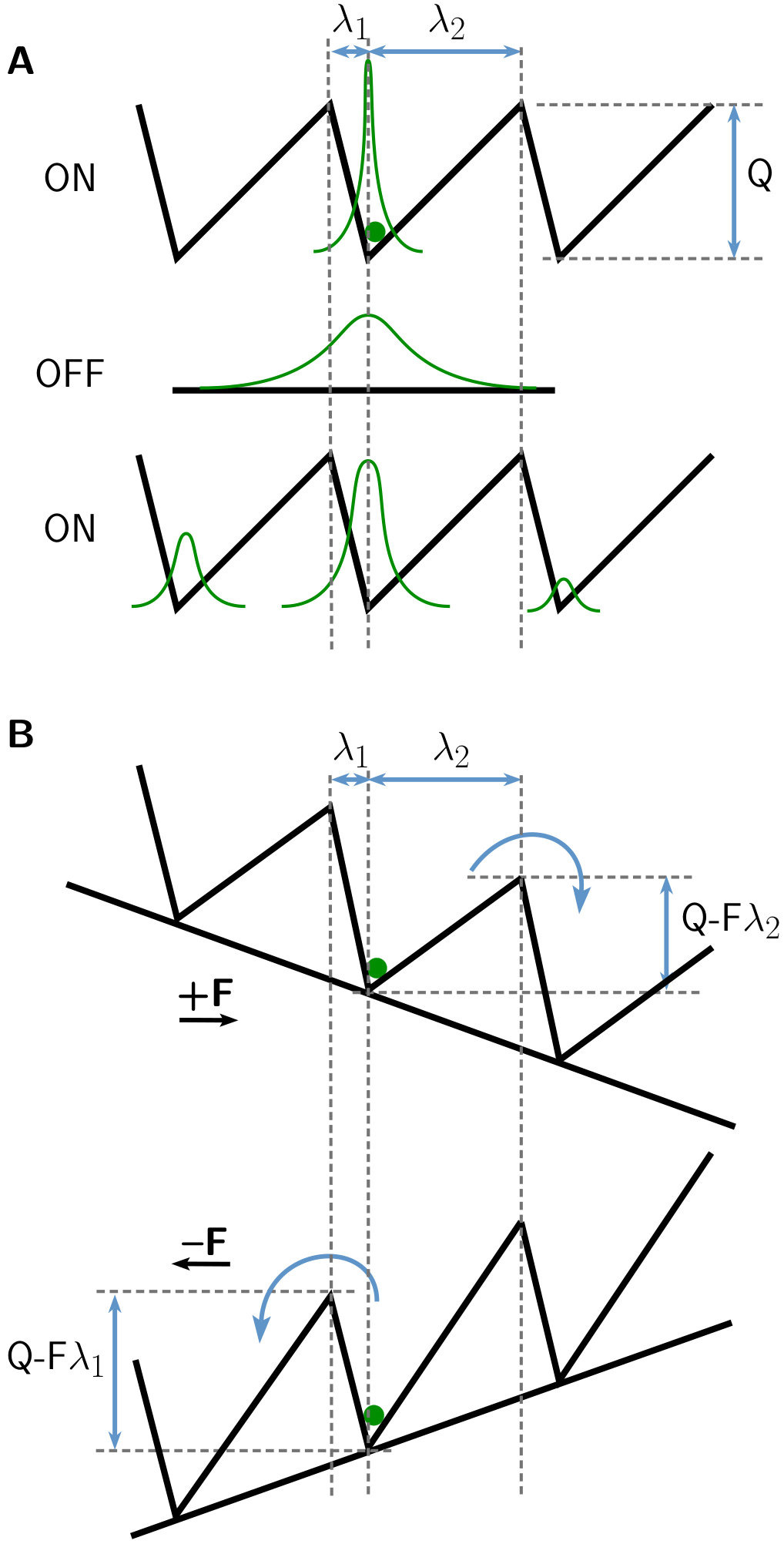

Figure 3 summarizes the two basic ways in which asymmetries in space (or some other degree of freedom of the system, such as phase [25]) contribute to noise-induced transport. The common situation involves an asymmetric periodic potential that breaks the spatial inversion symmetry combined with a temporal, zero mean, forcing periodicity. In Panel A, the case of turning on and off the asymmetric potential is depicted and Panel B shows the case in which a tilting force is added.

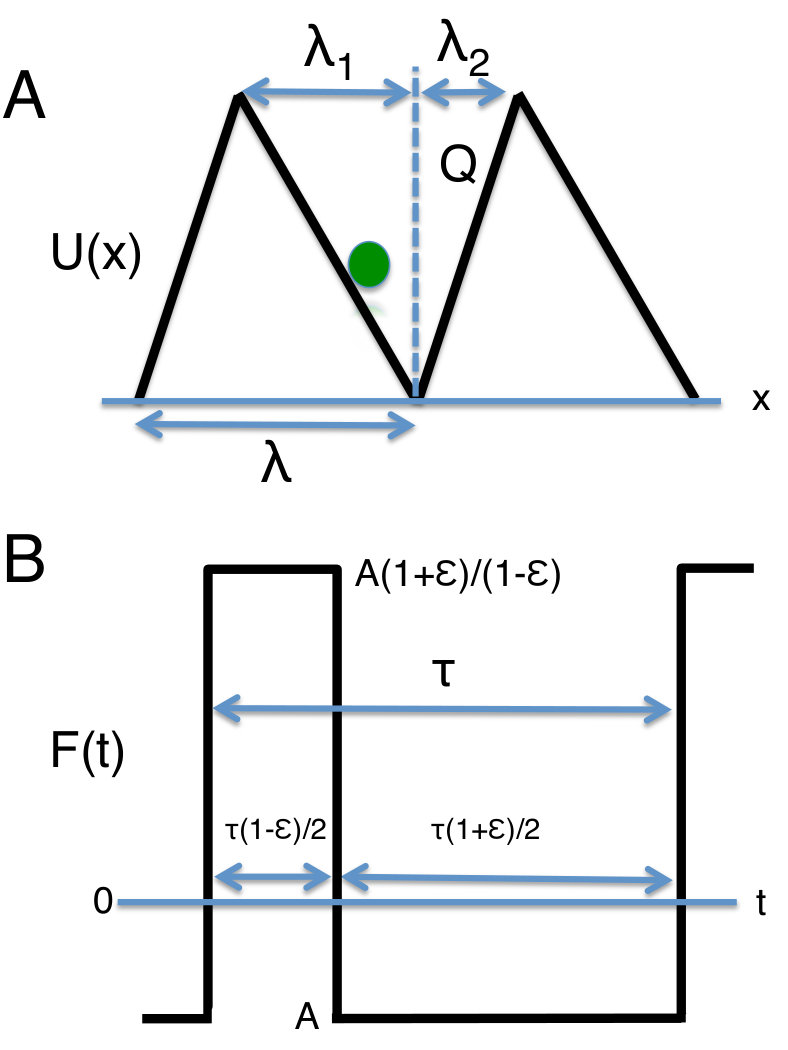

The first important result was due to Magnasco in [19] who considered the case of the piecewise linear potential $U(x)$ shown in Fig. 4A, which is exactly solvable [26] for slow fluctuation $f(t)$; it has a characteristic time much larger than the ratchet’s relaxation time. The potential is periodic and extends to infinity in both directions. $\lambda$ measures the spacing of the wells, $\lambda_{1}$ and $\lambda_{2}$ the inverse steepnesses of the potential in opposite directions out of the wells, and $Q$ the well depths. The particle undergoes overdamped Brownian motion due to its coupling with a thermal bath of temperature $T$, and an external driving $F(t)$ which represents the forces. These two ingredients compose what we called the fluctuation $f(t)$. The expression for the current in the adiabatic limit, which measures the work done by the ratchet was shown to be

[TABLE]

where $\lambda=\lambda_{1}+\lambda_{2}$ and $\delta=\lambda_{1}-\lambda_{2}$. The average current, the quantity of primary interest, is given by

[TABLE]

where $\tau$ is the period of the driving force $F(t)$, which is assumed longer than any other time scale of the system in this adiabatic limit. The current is maximized for a given value of the periodic forcing amplitude. Interestingly, numerical computations showed robustness in the results when the forcing is not periodic. The key feature is that it should have a long time correlation.

According to Magnasco, “all that is needed to generate motion and forces in the Brownian domain is loss of symmetry and substantially long time correlations” [19]. Indeed, if the forcing is white noise, the system is at thermal equilibrium and $j=0$. However, if the fluctuation auto-correlations are non-vanishing, i.e., for colored noise, the system is no longer in thermal equilibrium, and in general $j\neq 0$. Since onset of a current means breaking the “right-left” symmetry, currents may only arise, in the case of additive noise, if the potential $U(x)$ is asymmetric with respect to its extrema. It could be argued [27] that the emergence of current can be viewed as an example of “temporal order coming out of disorder”, since the current is apparently time-irreversible, whereas stationary noise does not distinguish “future” from the “past”; we notice, however, that Eq. (1) implies relaxation and is thus time-irreversible itself.

The flashing or pulsating ratchet depicted in Panel A of Fig. 3 was introduced in [28] and re-introduced in a more general theoretical context in [29]. Despite the huge structural complexity of biological Brownian motors, the majority of the models are compatible with a simplified description based on the flashing ratchet. The description is in terms of only one variable $x$ that may represent, for example, the position of a molecule or the coordinate of a complex reaction with many intermediate steps. The environment, composed by some aqueous solution acts, on one hand, as a heat bath and, on the other hand, as a source or sink of ATP, ADP and P${}_{\text{i}}$ molecules of the chemical reaction cycle that provides energy to the motor. In this simplified model, a periodic asymmetric potential is periodically turned on and off, as shown in Fig. 3A. The situation is generalized to stochastic variations of the potential with a characteristic correlation time. As happens for the rocked ratchet, the current vanishes for zero correlation time, or fast pulsating limit (white noise). It also disappears in the slow pulsating limit, i.e., when the potential is left on or off for a diverging time. There is an optimum value of the correlation time that maximizes the current.

A recent example of an experimental realization of a rocked ratchet in a mesoscopic scale can be found in [30], where dielectric particles suspended in water are affected by a ratchet potential given by a periodic and asymmetric light pattern.

3.2 Temporal asymmetries

Figure 4B summarizes one type of ratchet in which the higher order statistics of the driving force can be responsible for the transport. Indeed, the work of Millonas [31, 25, 32] and others [33] showed that directed motion can be induced with an unbiased driving force, deterministic or stochastic, as long as it has asymmetric correlations: non zero odd correlation of order higher than one [27].

The case analyzed in the seminal work of Magnasco [19] only considered $F(t)$ symmetric in time $F(t)=F(n\tau-t)$. Instead, the work of Millonas [31] considered the same setting but studying a more general case in which the driving force still is non biased zero mean, $\langle F(t)\rangle\ =0$, but which is asymmetric in time,

[TABLE]

as shown in Fig. 4B. In this case, the time averaged current can be easily calculated,

[TABLE]

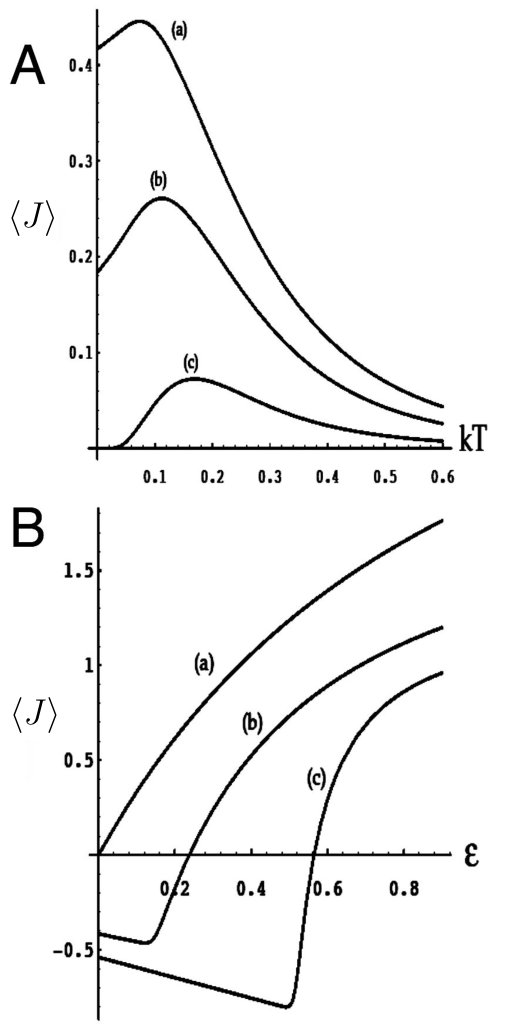

Solving for different values of parameters, it was shown that the current is a peaked function both of $kT$ (see Fig. 5A) and of the amplitude $A$ of the driving. As expected, the driving, the potential, and the thermal noise in fact play cooperative roles. For low temperatures, any transport depends on very large $A$ values, while for large noise the features of the potential and of the driving are washed out.

The most striking results are concerning the competition between the temporal asymmetry and the spatial asymmetry, as pictured in Fig. 5B, resulting on the switching of the direction of the current as the asymmetry factor $\epsilon$ is varied. This reversal represents the competition of the spatial asymmetry, which dominates for small $\epsilon$ an the temporal asymmetry, which dominates for large $\epsilon$.

Temporal asymmetry and spatial asymmetry relate to the problem of nonequilibrium transport in precisely the same way. In both cases, a net effect arises due to an interplay between the strength of a fluctuation, the time it acts, and the underlying dynamics. In the case of a spatial asymmetry, a fluctuation to the right with a given strength which lasts a given time will tend to take the system over the right-hand barrier while the same fluctuation with sign reversed does not lift it over the left-hand barrier. In the case of temporal asymmetry, the probabilities of the fluctuations to the right or to left are different, so the net effect arises in the absence of spatial asymmetries. What both of them show is that even a subtle asymmetry in the shape of the potential or in the shape of the spectral properties of the noise will give rise to an effect even when the net force due to each vanishes.

The time asymmetry of the mean zero fluctuations discussed above can be cast in several different ways. Dichotomic noise (a type of “Kubo-Anderson” process) was used to demonstrate phase transport in a pair of Josephson junctions [25]. There are also types of continuous noise exhibiting similar asymmetry, including shot noise (common in quantum electronics) which are of this type. Mean zero shot noise, which is temporally asymmetric, can be produced if the frequency and amplitude distribution are slightly different for positive and negative fundamental pulses. Another trivial example of temporally asymmetric driving force is a simple bi-harmonic signal which constitutes a curiosity since it results from adding two (zero mean symmetric) periodic process of harmonic frequencies.

3.3 Particle interactions

The previous discussions were limited to the cases in which an isolated or a few particles were present in the potential. As the concentration is increased, interaction among particles becomes relevant, and it can be the cause of a reduction, and even of a reversal [35, 36, 37, 38] of the current. We present two examples.

3.3.1 Vortex current in a 2D array of Josephson junctions

Current reversal has been experimentally observed in a two dimensional array of Josephson junctions [39]. It was numerically analyzed in [40]. A ratchet potential for vortices is generated by modulating the gap between superconducting islands. The density of vortices is controlled by an external magnetic field. There is a repulsive vortex-vortex interaction. The results show a preferred direction of the vortex motion, parallel to the ratchet modulation, when an alternating force is applied. But as the vortex concentration is increased, this direction is reversed for appropriate values of the periodic forcing intensity. (Vortex current reversal is also observed for a fixed value of the concentration when the periodic forcing, or AC current amplitude, is varied, see Fig. 4 in [39] or Fig. 2 in [40]).

The vortex current reversal produced by the increase of concentration is a consequence of the following symmetry [39]. Let us consider that the external magnetic field is such that positive vortices are produced. For small concentration (frustration parameter between 0 and 1/2), we have a small discrete number of positive vortices. For large concentration (frustration between 1/2 and 1), we can consider that there is a background of positive vortices in which some negative vortices move. But the movement of this negative vortices is in the opposite direction. For them, the ratchet potential is inverted so the rectification effect of the ratchet is inverted too.

3.3.2 Particle diffusion in a channel with asymmetric cavities

The same effect is observed in a different context. In the next paragraphs, we refer to the hard core interaction between particles that diffuse in a channel with a transverse section $A(x)$ that has a ratchet shape, see Fig. 6. An external periodic forcing is applied in the direction of the channel. There is a particle-hole symmetry. But before going into the interaction effects, let us consider the low concentration regime, where interactions can be neglected. Several interesting experiments have been performed with particles suspended in a liquid and contained in a channel qualitatively as the one shown in Fig. 6. There are basically two ways to apply the periodic external forcing. In one case, a periodic variation of the pressure is used: particles are drifted back and forth by the movement of the liquid; see [41, 42] and the critical report [43] (cavities of order 5 $\mu$m). In the other case, the liquid remains still and the force is directly applied on the particles by an external field as, for example, an electric field on charged particles [44] (cavities of order 50 $\mu$m).

Such a system has been proposed for separation of particles of different size [45]. The idea is based on the difference between rectification effects for different size particles. When a periodic —unbiased— forcing is applied, particles move in the forward direction because of the ratchet; but, in general, larger particles move faster than smaller ones. Now we apply a bias, a constant force in the backward direction that reduces the velocity of the larger particles and reverses the velocity of the smaller ones. Then we have that larger particles end up in one extreme of the channel and smaller particles in the opposite one, with an estimated purity of 99.997 % according to the authors of [45].

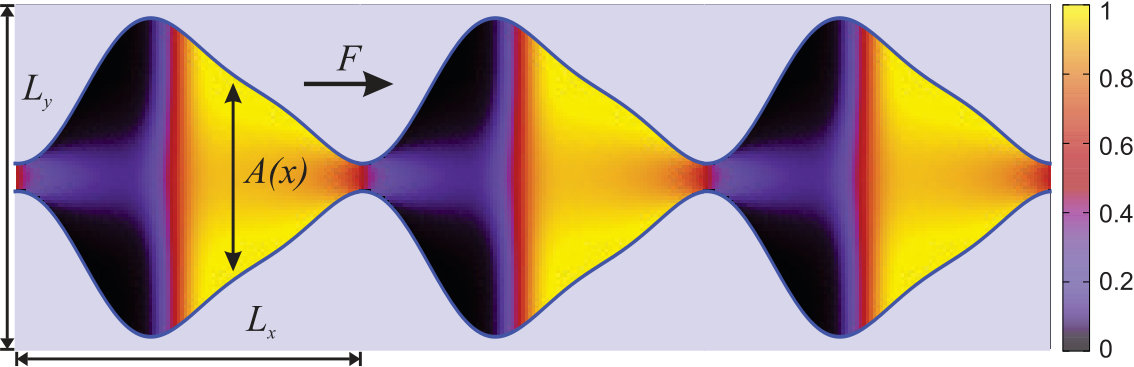

The Fick-Jacobs equation [46] gives an appropriate description of the particle density in the channel as long as its dependence on the transverse direction, $y$, can be neglected, i.e., $n(x,y,t)\simeq n(x,t)$. Let us consider the transverse integral of the concentration: $\rho(x,t)=\int dy\,n(x,y,t)\simeq A(x)n(x,t)$ (the two-dimensional channel can be easily extended to a three-dimensional tube). If $D$ is the diffusion coefficient and $F(t)$ is the total applied force, the Fick-Jacobs equation is

[TABLE]

where $\frac{\partial H}{\partial x}=-F(t)-\beta^{-1}\frac{d}{dx}\ln A(x)$ and $\beta^{-1}=kT$. The expression $\beta^{-1}\ln A(x)$ is called entropic potential due to the similarity with the thermodynamic relation among energy, free energy, temperature and entropy: $H=U-TS$, with $\frac{\partial U}{\partial x}=-F(t)$. In a first approximation, the diffusion coefficient is constant; a further refinement considers a dependence on $A^{\prime}(x)$, see [47].

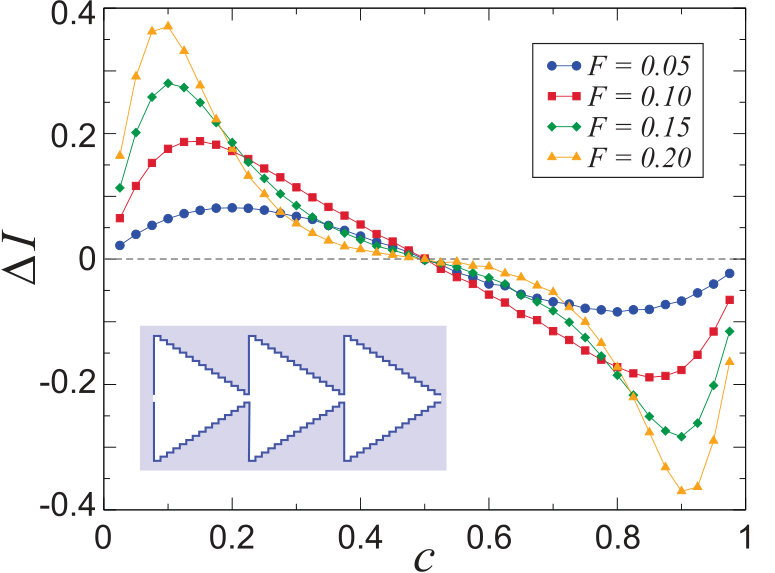

Now, let us consider the hard core interaction between particles, of the same size, diffusing in a lattice. A jump of a particle to the right is equivalent to a jump of a hole to the left. A concentration $c$ of particles subjected to a force $F$ is equivalent to a concentration $1-c$ of holes subjected to a force $-F$. This symmetry is the cause of the shape of Fig. 7, where Monte Carlo results of the rectified current $\Delta I$ against the average concentration $c$ for different values of the forcing amplitude is plotted [48]. A square wave in the limit of low frequency was used for the applied force; in this limit, the rectified current is equal to the difference between the current for the force in the positive phase and the current for the force in the negative phase. The particle-hole symmetry is evident in the figure: changing $c\rightarrow 1-c$ and $\Delta I\rightarrow-\Delta I$ (a consequence of the change $F\rightarrow-F$), we recover the same curves. Le us note the current reversal for large concentration. It is the same effect that was mentioned in the previous section for vortex current in 2D arrays of Josephson junctions.

A description based on the Fick-Jacobs equation is also possible for particles with hard-core [49]. Its derivation starts from the non-linear Fokker-Planck equation for fermions [50], where Pauli exclusion principle plays the role of the hard core interaction. Following the same steps used for derivation of the linear Fick-Jacobs equation [47], we can arrive at the following non linear version:

[TABLE]

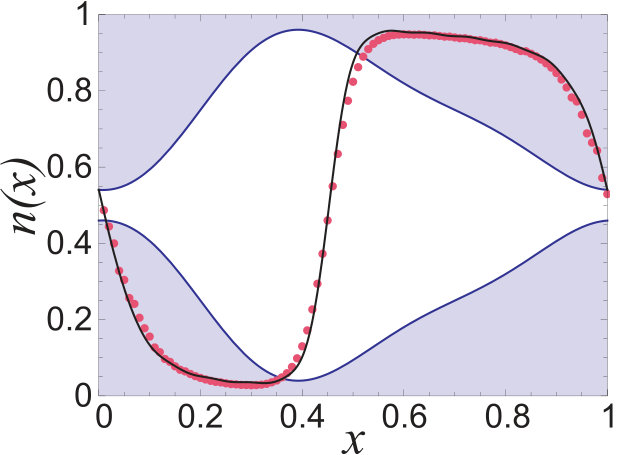

The non linear term, $n\,(1-n)$, is the responsible of the interaction. Fig. 8 shows numerical integration of (7) in good agreement with Monte Carlo simulation results.

4 Engineers knew it…

The principles discussed above ruling the correlation ratchets have, in a macro scale, important technological applications. Of course, some of them were applied even before a detailed statistical understanding was available. Vibratory conveyors, or vibratory bowl feeders, are regularly used in many branches of industry such as food processing, synthetic materials or small-parts assembly mechanics, to mention just a few [51]. The conveying speed of these devices was theoretically and experimentally studied, for example, in [52] and references cited therein.

There are many parameters involved in the operation of a vibratory conveyor: amplitude, frequency and mode of the vibrations, inclination angle and friction coefficient are only some of them. A classification in terms of the vibratory modes is as follows: sliding (linear horizontal vibration), ratcheting (linear vertical vibration) or throwing (circular, elliptical or linear tilted vibration).

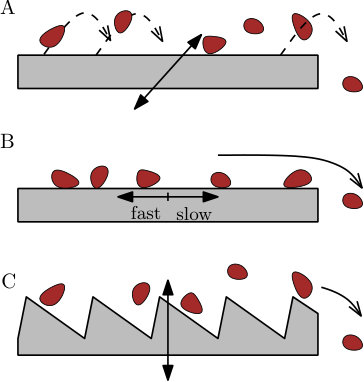

For throw conveyors, the material being transported loses contact with the through during part of the cycle, see Fig. 9A. Appropriate for granular materials o small objects, particles are forced to perform repeated short flights with a preferred direction, combined with rest and slide phases.

The other two types: sliding and ratcheting involve temporal and spatial asymmetries, respectively.

The sliding type of vibratory conveyors allows transport over a deck that vibrates back and forth with asymmetric motion (see Fig. 5A) in the horizontal direction. The particle or object moves relative to the deck due to alternate stick and slip steps driven by the asymmetric oscillations, as shown in Fig. 9B.

The ratchet conveyor achieves transport of granular material using vertical vibrations [38, 53]. Directed motion is caused by the broken space symmetry of the deck’s surface, given by a sawtooth-shaped profile, see Fig. 9C. The ratchet conveyor shares qualitative features with the flash or pulsating ratchet depicted in Fig. 3A. One difference is that it includes a ballistic flight phase.

5 Conclusions

Spatial or temporal asymmetries, or both, are able to generate directed motion in the presence of fluctuations. In addition to a thermal bath, fluctuations with large correlation time, compared to the characteristic relaxation time of the system, should be included. During the last decades, simple models based on these ideas provided a deeper understanding of the complex biological machinery at the nano scale. This success stimulated the study of ratchets in a wide variety of contexts, and in larger scales. Interactions among transported particles are relevant for high concentration; most noticeable, they may produce an inversion of the purported motion direction.

Vibrations inducing directed motion are used in industry for the transport of small —macroscopic— objects since, at least, around 1950. Vibratory conveyors applied the qualitative features of ratchets, with space or time asymmetries, before a detailed theoretical understanding was available. Half a century ago, Feynman called attention to the fact that in his view, “there’s plenty of room at the bottom” [1]. We can safely conclude that, even today, there is plenty of room at the top as well.
