Anomalies and entanglement renormalization

Jacob C. Bridgeman; Dominic J. Williamson

arXiv:1703.07782·quant-ph·September 7, 2017

Anomalies and entanglement renormalization

Jacob C. Bridgeman, Dominic J. Williamson

PDF

TL;DR

This paper investigates 't Hooft anomalies in discrete symmetries within (1+1)D lattice models using multiscale entanglement renormalization ansatz (MERA), deriving topological constraints and numerically analyzing critical phases.

Contribution

It introduces a MERA class optimized for anomalous symmetries and demonstrates its effectiveness in studying protected gapless phases and duality transformations.

Findings

01

Numerical conformal data for all projective representations of anomalous symmetries.

02

Identification of a protected gapless phase along a symmetric critical line.

03

Implementation of a duality transformation between critical lines using the new MERA class.

Abstract

We study 't Hooft anomalies of discrete groups in the framework of (1+1)-dimensional multiscale entanglement renormalization ansatz states on the lattice. Using matrix product operators, general topological restrictions on conformal data are derived. An ansatz class allowing for optimization of MERA with an anomalous symmetry is introduced. We utilize this class to numerically study a family of Hamiltonians with a symmetric critical line. Conformal data is obtained for all irreducible projective representations of each anomalous symmetry twist, corresponding to definite topological sectors. It is numerically demonstrated that this line is a protected gapless phase. Finally, we implement a duality transformation between a pair of critical lines using our subclass of MERA.

Figures40

Click any figure to enlarge with its caption.

Tables2

Table 1. Table 1: Primary fields in each topological sector labeled by a twist (an element of 𝒢 = ℤ 2 3 𝒢 superscript subscript ℤ 2 3 \mathcal{G}=\mathbb{Z}_{2}^{3} ) and an irreducible (projective) representation. These sectors are the simple objects of D ϕ ( ℤ 2 3 ) ≅ D ( 𝖣 4 ) superscript 𝐷 italic-ϕ superscript subscript ℤ 2 3 𝐷 subscript 𝖣 4 D^{\phi}(\mathbb{Z}_{2}^{3})\cong D(\mathsf{D}_{4}) . Note that the choices of e 𝑒 e and m 𝑚 m allowed for each representation under the trivial twist corresponds to ( − 1 ) e = χ ( 001 ) superscript 1 𝑒 𝜒 001 (-1)^{e}=\chi(001) and ( − 1 ) m = χ ( 110 ) superscript 1 𝑚 𝜒 110 (-1)^{m}=\chi(110) , where χ 𝜒 \chi is the representation being considered. Projective representations in each topological sector are indicated in Eqn. 88 , reproduced from Ref. de Wild Propitius, 1995 . The fusion table, computed using the symmetric MERA, for these sectors is explicitly presented in Table 2 . All sectors with a nontrivial twist have quantum dimension 2, and so are nonabelian.

Topological Sector		Topological spin	Scaling Dimension	Conformal spin	Parameters
Twist	Proj. Irrep.
$(000)$	$χ_{+}^{1}$	0	$\frac{e^{2}}{R^{2}} + \frac{m^{2} R^{2}}{4}$	$e m$	$e, m \in 2 ℤ$
	$χ_{+}^{4}$	0	${\frac{e^{2}}{R^{2}} + \frac{m^{2} R^{2}}{4}, 1}$	$e m$	$e, m \in 2 ℤ, e m \neq 0$
	$χ_{+}^{2}$	0	$\frac{e^{2}}{R^{2}} + \frac{m^{2} R^{2}}{4}$	$e m$	$e \in 2 ℤ, m \in 2 ℤ + 1$
	$χ_{+}^{3}$	0			$e \in 2 ℤ, m \in 2 ℤ + 1$
	$χ_{-}^{1}$	0			$e \in 2 ℤ + 1, m \in 2 ℤ$
	$χ_{-}^{2}$	0			$e \in 2 ℤ + 1, m \in 2 ℤ + 1$
	$χ_{-}^{3}$	0			$e \in 2 ℤ + 1, m \in 2 ℤ + 1$
	$χ_{-}^{4}$	0			$e \in 2 ℤ + 1, m \in 2 ℤ$
$(100)$	$α_{+}^{1}$	0	$h + \bar{h}$	$h - \bar{h}$	$h, \bar{h} \in {\frac{1}{16}, \frac{9}{16}}$	$h - \bar{h} \in ℤ$
	$α_{-}^{1}$	$\frac{1}{2}$				$h - \bar{h} \in ℤ + \frac{1}{2}$
$(010)$	$α_{+}^{2}$	0	$h + \bar{h}$	$h - \bar{h}$	$h, \bar{h} \in {\frac{1}{16}, \frac{9}{16}}$	$h - \bar{h} \in ℤ$
	$α_{-}^{2}$	$\frac{1}{2}$				$h - \bar{h} \in ℤ + \frac{1}{2}$
$(110)$	$β_{+}^{3}$	0	$\frac{e^{2}}{R^{2}} + \frac{m^{2} R^{2}}{4}$	$e m$	$e \in ℤ + \frac{1}{2}, m \in ℤ$	$e m \in ℤ$
	$β_{-}^{3}$	$\frac{1}{2}$				$e m \in ℤ + \frac{1}{2}$
$(001)$	$α_{+}^{3}$	0	$\frac{e^{2}}{R^{2}} + \frac{m^{2} R^{2}}{4}$	$e m$	$e \in ℤ, m \in ℤ + \frac{1}{2}$	$e m \in ℤ$
	$α_{-}^{3}$	$\frac{1}{2}$				$e m \in ℤ + \frac{1}{2}$
$(101)$	$β_{+}^{2}$	0	$h + \bar{h}$	$h - \bar{h}$	$h, \bar{h} \in {\frac{1}{16}, \frac{9}{16}}$	$h - \bar{h} \in ℤ$
	$β_{-}^{2}$	$\frac{1}{2}$				$h - \bar{h} \in ℤ + \frac{1}{2}$
$(011)$	$β_{+}^{1}$	0	$h + \bar{h}$	$h - \bar{h}$	$h, \bar{h} \in {\frac{1}{16}, \frac{9}{16}}$	$h - \bar{h} \in ℤ$
	$β_{-}^{1}$	$\frac{1}{2}$				$h - \bar{h} \in ℤ + \frac{1}{2}$
$(111)$	$γ_{+}$	$\frac{3}{4}$	$\frac{e^{2}}{R^{2}} + \frac{m^{2} R^{2}}{4}$	$e m$	$e, m \in ℤ + \frac{1}{2}$	$e m \in ℤ + \frac{3}{4}$
	$γ_{-}$	$\frac{1}{4}$				$e m \in ℤ + \frac{1}{4}$

Table 2. Table 2: Fusion rules for D ϕ ( ℤ 2 3 ) superscript 𝐷 italic-ϕ superscript subscript ℤ 2 3 D^{\phi}(\mathbb{Z}_{2}^{3}) sectors computed from symmetric MERA. Cell entries denote the allowed fusion outcome sectors for a × b 𝑎 𝑏 a\times b . The OPE coefficients defined in Eqn. 53 are zero if the resultant field c 𝑐 c does not lie in an allowed sector.

$𝒂 \times 𝒃$	$𝝌_{+}^{𝟏}$	$𝝌_{+}^{𝟐}$	$𝝌_{+}^{𝟑}$	$𝝌_{+}^{𝟒}$	$𝝌_{-}^{𝟏}$	$𝝌_{-}^{𝟐}$	$𝝌_{-}^{𝟑}$	$𝝌_{-}^{𝟒}$	$𝜶_{+}^{𝟏}$	$𝜶_{-}^{𝟏}$	$𝜶_{+}^{𝟐}$	$𝜶_{-}^{𝟐}$	$𝜷_{+}^{𝟑}$	$𝜷_{-}^{𝟑}$	$𝜶_{+}^{𝟑}$	$𝜶_{-}^{𝟑}$	$𝜷_{+}^{𝟐}$	$𝜷_{-}^{𝟐}$	$𝜷_{+}^{𝟏}$	$𝜷_{-}^{𝟏}$	$𝜸_{+}$	$𝜸_{-}$
$𝝌_{+}^{𝟏}$	$χ_{+}^{1}$	$χ_{+}^{2}$	$χ_{+}^{3}$	$χ_{+}^{4}$	$χ_{-}^{1}$	$χ_{-}^{2}$	$χ_{-}^{3}$	$χ_{-}^{4}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{2}$	$α_{-}^{2}$	$β_{+}^{3}$	$β_{-}^{3}$	$α_{+}^{3}$	$α_{-}^{3}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{+}^{1}$	$β_{-}^{1}$	$γ_{+}$	$γ_{-}$
$𝝌_{+}^{𝟐}$	$χ_{+}^{2}$	$χ_{+}^{1}$	$χ_{+}^{4}$	$χ_{+}^{3}$	$χ_{-}^{2}$	$χ_{-}^{1}$	$χ_{-}^{4}$	$χ_{-}^{3}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{+}^{2}$	$α_{-}^{2}$	$β_{-}^{3}$	$β_{+}^{3}$	$α_{+}^{3}$	$α_{-}^{3}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{+}^{1}$	$β_{-}^{1}$	$γ_{-}$	$γ_{+}$
$𝝌_{+}^{𝟑}$	$χ_{+}^{3}$	$χ_{+}^{4}$	$χ_{+}^{1}$	$χ_{+}^{2}$	$χ_{-}^{3}$	$χ_{-}^{4}$	$χ_{-}^{1}$	$χ_{-}^{2}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{-}^{2}$	$α_{+}^{2}$	$β_{-}^{3}$	$β_{+}^{3}$	$α_{+}^{3}$	$α_{-}^{3}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{-}^{1}$	$β_{+}^{1}$	$γ_{-}$	$γ_{+}$
$𝝌_{+}^{𝟒}$	$χ_{+}^{4}$	$χ_{+}^{3}$	$χ_{+}^{2}$	$χ_{+}^{1}$	$χ_{-}^{4}$	$χ_{-}^{3}$	$χ_{-}^{2}$	$χ_{-}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{2}$	$α_{+}^{2}$	$β_{+}^{3}$	$β_{-}^{3}$	$α_{+}^{3}$	$α_{-}^{3}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{-}^{1}$	$β_{+}^{1}$	$γ_{+}$	$γ_{-}$
$𝝌_{-}^{𝟏}$	$χ_{-}^{1}$	$χ_{-}^{2}$	$χ_{-}^{3}$	$χ_{-}^{4}$	$χ_{+}^{1}$	$χ_{+}^{2}$	$χ_{+}^{3}$	$χ_{+}^{4}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{2}$	$α_{-}^{2}$	$β_{+}^{3}$	$β_{-}^{3}$	$α_{-}^{3}$	$α_{+}^{3}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{-}^{1}$	$β_{+}^{1}$	$γ_{-}$	$γ_{+}$
$𝝌_{-}^{𝟐}$	$χ_{-}^{2}$	$χ_{-}^{1}$	$χ_{-}^{4}$	$χ_{-}^{3}$	$χ_{+}^{2}$	$χ_{+}^{1}$	$χ_{+}^{4}$	$χ_{+}^{3}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{+}^{2}$	$α_{-}^{2}$	$β_{-}^{3}$	$β_{+}^{3}$	$α_{-}^{3}$	$α_{+}^{3}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{-}^{1}$	$β_{+}^{1}$	$γ_{+}$	$γ_{-}$
$𝝌_{-}^{𝟑}$	$χ_{-}^{3}$	$χ_{-}^{4}$	$χ_{-}^{1}$	$χ_{-}^{2}$	$χ_{+}^{3}$	$χ_{+}^{4}$	$χ_{+}^{1}$	$χ_{+}^{2}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{-}^{2}$	$α_{+}^{2}$	$β_{-}^{3}$	$β_{+}^{3}$	$α_{-}^{3}$	$α_{+}^{3}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{+}^{1}$	$β_{-}^{1}$	$γ_{+}$	$γ_{-}$
$𝝌_{-}^{𝟒}$	$χ_{-}^{4}$	$χ_{-}^{3}$	$χ_{-}^{2}$	$χ_{-}^{1}$	$χ_{+}^{4}$	$χ_{+}^{3}$	$χ_{+}^{2}$	$χ_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{2}$	$α_{+}^{2}$	$β_{+}^{3}$	$β_{-}^{3}$	$α_{-}^{3}$	$α_{+}^{3}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{+}^{1}$	$β_{-}^{1}$	$γ_{-}$	$γ_{+}$
$𝜶_{+}^{𝟏}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{1}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{3} \\ χ_{-}^{1} & χ_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{4} \\ χ_{-}^{2} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$
$𝜶_{-}^{𝟏}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$α_{-}^{1}$	$α_{+}^{1}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{4} \\ χ_{-}^{2} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{3} \\ χ_{-}^{1} & χ_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$
$𝜶_{+}^{𝟐}$	$α_{+}^{2}$	$α_{+}^{2}$	$α_{-}^{2}$	$α_{-}^{2}$	$α_{+}^{2}$	$α_{+}^{2}$	$α_{-}^{2}$	$α_{-}^{2}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{2} \\ χ_{-}^{1} & χ_{-}^{2} \end{matrix}$	$\begin{matrix} χ_{+}^{3} & χ_{+}^{4} \\ χ_{-}^{3} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$
$𝜶_{-}^{𝟐}$	$α_{-}^{2}$	$α_{-}^{2}$	$α_{+}^{2}$	$α_{+}^{2}$	$α_{-}^{2}$	$α_{-}^{2}$	$α_{+}^{2}$	$α_{+}^{2}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{3} & χ_{+}^{4} \\ χ_{-}^{3} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{2} \\ χ_{-}^{1} & χ_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$
$𝜷_{+}^{𝟑}$	$β_{+}^{3}$	$β_{-}^{3}$	$β_{-}^{3}$	$β_{+}^{3}$	$β_{+}^{3}$	$β_{-}^{3}$	$β_{-}^{3}$	$β_{+}^{3}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{4} \\ χ_{-}^{1} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{3} \\ χ_{-}^{2} & χ_{-}^{3} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$
$𝜷_{-}^{𝟑}$	$β_{-}^{3}$	$β_{+}^{3}$	$β_{+}^{3}$	$β_{-}^{3}$	$β_{-}^{3}$	$β_{+}^{3}$	$β_{+}^{3}$	$β_{-}^{3}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{3} \\ χ_{-}^{2} & χ_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{4} \\ χ_{-}^{1} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$
$𝜶_{+}^{𝟑}$	$α_{+}^{3}$	$α_{+}^{3}$	$α_{+}^{3}$	$α_{+}^{3}$	$α_{-}^{3}$	$α_{-}^{3}$	$α_{-}^{3}$	$α_{-}^{3}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{2} \\ χ_{+}^{3} & χ_{+}^{4} \end{matrix}$	$\begin{matrix} χ_{-}^{1} & χ_{-}^{2} \\ χ_{-}^{3} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$
$𝜶_{-}^{𝟑}$	$α_{-}^{3}$	$α_{-}^{3}$	$α_{-}^{3}$	$α_{-}^{3}$	$α_{+}^{3}$	$α_{+}^{3}$	$α_{+}^{3}$	$α_{+}^{3}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} χ_{-}^{1} & χ_{-}^{2} \\ χ_{-}^{3} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{2} \\ χ_{+}^{3} & χ_{+}^{4} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$
$𝜷_{+}^{𝟐}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{+}^{2}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{4} \\ χ_{-}^{1} & χ_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{3} \\ χ_{-}^{2} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$
$𝜷_{-}^{𝟐}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{+}^{2}$	$β_{-}^{2}$	$β_{+}^{2}$	$β_{-}^{2}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{3} \\ χ_{-}^{2} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{4} \\ χ_{-}^{1} & χ_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$
$𝜷_{+}^{𝟏}$	$β_{+}^{1}$	$β_{+}^{1}$	$β_{-}^{1}$	$β_{-}^{1}$	$β_{-}^{1}$	$β_{-}^{1}$	$β_{+}^{1}$	$β_{+}^{1}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{3} & χ_{+}^{4} \\ χ_{-}^{1} & χ_{-}^{2} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{2} \\ χ_{-}^{3} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$
$𝜷_{-}^{𝟏}$	$β_{-}^{1}$	$β_{-}^{1}$	$β_{+}^{1}$	$β_{+}^{1}$	$β_{+}^{1}$	$β_{+}^{1}$	$β_{-}^{1}$	$β_{-}^{1}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} γ_{+} \\ γ_{-} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{2} \\ χ_{-}^{3} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} χ_{+}^{3} & χ_{+}^{4} \\ χ_{-}^{1} & χ_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$
$𝜸_{+}$	$γ_{+}$	$γ_{-}$	$γ_{-}$	$γ_{+}$	$γ_{-}$	$γ_{+}$	$γ_{+}$	$γ_{-}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{4} \\ χ_{-}^{2} & χ_{-}^{3} \end{matrix}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{3} \\ χ_{-}^{1} & χ_{-}^{4} \end{matrix}$
$𝜸_{-}$	$γ_{-}$	$γ_{+}$	$γ_{+}$	$γ_{-}$	$γ_{+}$	$γ_{-}$	$γ_{-}$	$γ_{+}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{1} \\ β_{-}^{1} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} β_{+}^{2} \\ β_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{3} \\ α_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} β_{+}^{3} \\ β_{-}^{3} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{2} \\ α_{-}^{2} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} α_{+}^{1} \\ α_{-}^{1} \end{matrix}$	$\begin{matrix} χ_{+}^{2} & χ_{+}^{3} \\ χ_{-}^{1} & χ_{-}^{4} \end{matrix}$	$\begin{matrix} χ_{+}^{1} & χ_{+}^{4} \\ χ_{-}^{2} & χ_{-}^{3} \end{matrix}$

Equations213

U_{g}

U_{g}

\displaystyle\begin{array}[]{c}\includegraphics{generalMPOcontractLHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{generalMPOcontractLHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{reductionbodyRHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{reductionbodyRHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{associatorbodyLHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{associatorbodyLHS}\end{array}

L_{(i)} : (C^{d_{i + 1}})^{\otimes N_{i + 1}} \to (C^{d_{i}})^{\otimes N_{i}},

L_{(i)} : (C^{d_{i + 1}})^{\otimes N_{i + 1}} \to (C^{d_{i}})^{\otimes N_{i}},

H^{(i + 1)} := L_{(i)}^{†} H^{(i)} L_{(i)} .

H^{(i + 1)} := L_{(i)}^{†} H^{(i)} L_{(i)} .

U_{g}^{(i + 1)} := L_{(i)}^{†} U_{g}^{(i)} L_{(i)},

U_{g}^{(i + 1)} := L_{(i)}^{†} U_{g}^{(i)} L_{(i)},

\displaystyle\begin{array}[]{c}\includegraphics{onsitesymmetryLHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{onsitesymmetryLHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{anomsymmetryLHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{anomsymmetryLHS}\end{array}

\displaystyle\mathcal{S}_{1}({\begin{array}[]{c}\includegraphics{ScalingB}\end{array}})

\displaystyle\mathcal{S}_{1}({\begin{array}[]{c}\includegraphics{ScalingB}\end{array}})

\displaystyle\mathcal{S}_{g}({\begin{array}[]{c}\includegraphics{NLScalingB}\end{array}})

\displaystyle\mathcal{S}_{g}({\begin{array}[]{c}\includegraphics{NLScalingB}\end{array}})

\displaystyle\begin{array}[]{c}\includegraphics{zipperLHS}\end{array}

\displaystyle\begin{array}[]{c}\includegraphics{zipperLHS}\end{array}

τ_{g}

τ_{g}

T_{g}

T_{g}

M_{h}^{(g)}

M_{h}^{(g)}

T_{g} M_{h}^{(g)}

T_{g} M_{h}^{(g)}

T_{g}^{n_{g}} M_{1}^{(g)}

T_{g}^{n_{g}} M_{1}^{(g)}

ϕ_{g} (i, j, k) := ϕ (g^{i}, g^{j}, g^{k})

ϕ_{g} (i, j, k) := ϕ (g^{i}, g^{j}, g^{k})

ϕ_{g} (i, j, k) = ω^{[ϕ_{g}] i (j + k - j \oplus k) / n_{g}},

ϕ_{g} (i, j, k) = ω^{[ϕ_{g}] i (j + k - j \oplus k) / n_{g}},

i = 1 \prod n_{g} - 1 ϕ (g, g^{i}, g)

i = 1 \prod n_{g} - 1 ϕ (g, g^{i}, g)

T_{g}^{n_{g}}

T_{g}^{n_{g}}

\frac{1}{n _{g}} Z_{n_{g}} + \frac{[ ϕ _{g} ]}{n _{g}^{2}} .

\frac{1}{n _{g}} Z_{n_{g}} + \frac{[ ϕ _{g} ]}{n _{g}^{2}} .

ϕ^{(g)} (h, k)

ϕ^{(g)} (h, k)

V_{h}^{(g)}

V_{h}^{(g)}

S_{g} (V_{h}^{(g)} (\cdot))

S_{g} (V_{h}^{(g)} (\cdot))

P_{g, μ}

P_{g, μ}

S_{G} (\cdot)

S_{G} (\cdot)

P_{C_{g}, μ} := k \in C_{g} \sum P_{k, μ},

P_{C_{g}, μ} := k \in C_{g} \sum P_{k, μ},

a \times b

a \times b

(C_{0}, μ_{0}) \times (C_{1}, μ_{1}) = (C_{2}, μ_{2}) \sum N_{(C_{0}, μ_{0}) (C_{1}, μ_{1})}^{(C_{2}, μ_{2})} (C_{2}, μ_{2}) .

(C_{0}, μ_{0}) \times (C_{1}, μ_{1}) = (C_{2}, μ_{2}) \sum N_{(C_{0}, μ_{0}) (C_{1}, μ_{1})}^{(C_{2}, μ_{2})} (C_{2}, μ_{2}) .

Peer Reviews

No public reviews on file for this paper yet. If you reviewed it on a platform where reviews are public (OpenReview, ICLR, NeurIPS, ICML), you can paste yours below so the community can read it here.

Videos

No videos yet. Explain this paper in a talk, walkthrough, or lecture? Add one.

Full text

Anomalies and entanglement renormalization

Jacob C. Bridgeman

Centre for Engineered Quantum Systems, School of Physics, The University of Sydney, Sydney, Australia

Dominic J. Williamson

Vienna Center for Quantum Technology, University of Vienna, Boltzmanngasse 5, 1090 Vienna, Austria

Abstract

We study ’t Hooft anomalies of discrete groups in the framework of (1+1)-dimensional multiscale entanglement renormalization ansatz states on the lattice. Using matrix product operators, general topological restrictions on conformal data are derived. An ansatz class allowing for optimization of MERA with an anomalous symmetry is introduced. We utilize this class to numerically study a family of Hamiltonians with a symmetric critical line. Conformal data is obtained for all irreducible projective representations of each anomalous symmetry twist, corresponding to definite topological sectors. It is numerically demonstrated that this line is a protected gapless phase. Finally, we implement a duality transformation between a pair of critical lines using our subclass of MERA.

Quantum many-body models of strongly interacting spins display surprisingly complex emergent physics. Understanding general classes of collective behaviors corresponds to understanding which phases of matter can be realized through local interactions. The universal behavior of phases, and their transitions, is determined by the fixed points under renormalization group (RG) flowsKadanoff (1966); Wilson (1975).

Symmetries play a fundamental role in the understanding of phases, due to constraints they impose on RG. Indeed, the conventional classification of phases describes how a symmetry can be brokenLandau and Lifshitz (1965). Distinct quantum phases emerge even without a broken symmetryWegner (1971); Kosterlitz and Thouless (1973); Wen (1989); Einarsson (1990); Wen (1990). In the absence of intrinsic topological order, these phases are known as symmetry protected topological (SPT) phasesHaldane (1983); Gu and Wen (2009); Pollmann et al. (2010); Chen et al. (2013a). Despite having no topological order and no local order parameter, SPT phases are resources for quantum computationMiyake (2010); Renes et al. (2013); Else et al. (2012a, b); Williamson and Bartlett (2015).

On the lattice, symmetries are usually assumed to act independently on each site. More exotic symmetries, which cannot be made on-site, have recently been studied in chains of anyonsFeiguin et al. (2007); Pfeifer et al. (2012); Gils et al. (2013); Pfeifer et al. (2010); König and Bilgin (2010) and at the boundary of SPT phasesChen et al. (2011a); Santos and Wang (2014); Wang et al. (2015a); Williamson et al. (2016a); Wen (2013); Kapustin and Thorngren (2014a); Kapustin (2014); Else and Nayak (2014); Kapustin and Thorngren (2014b); Wang and Wen (2013). In fact, a classification of SPTs can be obtained by considering possible boundary actions of the symmetry. Equivalence classes of such symmetries are labeled by the ’t Hooft anomalies’t Hooft (1980) of a discrete group. Such anomaly labels are preserved by symmetric RG transformations, so restrict the possible fixed pointsFuruya and Oshikawa (2017).

Tensor network methodsVerstraete et al. (2009); Orús (2014); Bridgeman and Chubb (2017) allow anomalous symmetries to be realized directly on the lattice. In $(1+1)$ dimensions, matrix product operators (MPOs) capture all ’t Hooft anomalies of discrete groupsChen et al. (2011a); Williamson et al. (2016a); Santos and Wang (2014); Wang et al. (2015a). Within the framework of tensor networks, phases are classified at the level of states. For example, matrix product states (MPS) have proven particularly successful for the study of gapped spin chainsWhite (1992); Östlund and Rommer (1995); Dukelsky et al. (1998); Affleck et al. (1987); Fannes et al. (1992); Klümper et al. (1993); Pérez-García et al. (2007); Chen et al. (2011b); Schuch et al. (2011); Cirac et al. (2017). Despite substantial complications arising for tensor networks in higher dimensions; significant progress has been made, particularly in the study of topological statesNishino et al. (2001); Verstraete and Cirac (2004); Schuch et al. (2010); Dubail and Read (2015); Wahl et al. (2013); Buerschaper (2014); Şahinoğlu et al. (2014); Bultinck et al. (2017); Bridgeman et al. (2016); Williamson et al. (2016b).

Imposing on-site symmetries on tensor network representations of quantum states is well understoodPérez-García et al. (2008); Singh et al. (2010); Pérez-García et al. (2010). Far less effort has been made to study the effect of anomalous group actions on these states. Such group actions naturally arise as the effective edge symmetries of $(d+1)$ D SPTsKapustin and Thorngren (2014a); Kapustin (2014); Else and Nayak (2014). In $(2+1)$ D, the edge theory must either spontaneously break this symmetry or be gapless. Since all MPS break the symmetryChen et al. (2011a), to study gapless, symmetric edge theories we turn to another class of tensor networks known as multiscale entanglement renormalization ansatz (MERA)Vidal (2007). These networks draw on ideas from RG to represent the low energy states of gapless HamiltoniansVidal (2007); Evenbly and Vidal (2009); Pfeifer et al. (2009).

In this work we define a variational subclass of MERA which can be used to simulate SPT edge physics in a manifestly symmetric way. This subclass allows us to investigate the interplay between RG and anomalies in the framework of tensor networks. We use tensor network methods to derive general consequences of an anomalous symmetry on the conformal field theory (CFT) data of an RG fixed point. For a family of Hamiltonians, corresponding to a line of fixed points, we numerically optimize within our variational class to find the lowest energy states and extract conformal dataGinsparg (1990); Di Francesco (1997). We observe the effects of the anomaly in these results. Furthermore, we demonstrate that as a consequence of the anomaly these Hamiltonians admit no relevant, symmetric perturbations. The Hamiltonians therefore support a gapless phase which is protected by an anomalous symmetry.

More generally, RG fixed points may transform non-trivially under an anomalous group action. Our variational class accommodates this possibility, and hence permits the study of gapless models which are not symmetric. We utilize this in a numerical simulation of two critical lines that are related by a duality transformation, which we implement at the level of a single tensor.

This paper is organized as follows: In Section I, we introduce background material on anomalies, symmetries and tensor networks. In particular, we introduce the ’t Hooft anomaly of a discrete symmetry. We then briefly review the MERA and what it means for it to be symmetric under an on-site group action. The difficulties in enforcing anomalous MPO symmetries locally are then discussed. In Section II, we derive general consequences of an anomalous symmetry on a MERA, which are later utilized in the numerical simulations. We study anomalous symmetry twists and the projective representations under which they transform. From these ingredients, projectors onto definite topological sectors are constructed. Consequences for fields within a sector are discussed. In Section III, we define a variational subclass of MERA which is later used for manifestly symmetric simulations. We present a disentangling unitary capable of decoupling a local piece of an anomalous $\mathbb{Z}_{N}^{3}$ group action. This allows the unconstrained variational parameters of any symmetric MERA scheme to be isolated, and therefore optimized over. In Section IV, we bring together tools developed in the preceding sections to simulate a family of Hamiltonians with three critical lines. One of these lines possesses an anomalous symmetry, whilst the other two are dual under the anomalous group action. We present conformal data for these critical lines obtained from a numerically optimized MERA, including two nontrivial topological sectors for the symmetric line. Additionally, we demonstrate that the symmetric line is in fact a protected gapless phase. In Section V we summarize the results and suggest several possible extensions of this work.

We have included several appendices for completeness. In Appendix A we provide conformal data obtained from a symmetric MERA in all topological sectors for the symmetric line of our example model. Additionally, we present fusion rules for these topological sectors computed using a symmetric MERA. In Appendix B we review the notion of third cohomology for an MPO representation of a finite group. In Appendix C we provide details of our ansatz for MPO symmetric MERA including example tensors for two MERA schemes. In Appendix D we describe a generalization of the CZX model Chen et al. (2011a) to arbitrary finite groups $\mathcal{G}$ , such that the bulk symmetry acts as an MPO duality of $\mathcal{G}$ -SPT phases on the boundary.

I Symmetries and anomalies in MERA

This section introduces the main tools and concepts utilized in the remainder of this manuscript. We begin by discussing ’t Hooft anomalies of group actions, including some historical context. Lattice realizations of these anomalies, and their influence on tensor network states, are our primary objects of study. Readers unfamiliar with this terminology may skip to Section I.1 for the definition of anomaly used throughout this work. We then review the MERA, the tensor network designed for critical behavior, and define what it means for it to be symmetric under a unitary group action. We briefly explain how one enforces an on-site symmetry via a local constraint before moving on to discuss the difficulties in enforcing an anomalous symmetry in a similar fashion.

Recently anomalies have played an important role in the classification and study of topological phases of matterRyu et al. (2012); Wen (2013); Wang et al. (2015b). Particularly relevant are ’t Hooft anomalies, which describe obstructions to gauging a global symmetry’t Hooft (1980). SPT phases, and their higher symmetry generalizationsKapustin and Thorngren (2013); Gaiotto et al. (2015); Thorngren and von Keyserlingk (2015), can be classified by the possible ’t Hooft anomalies on their boundariesKapustin and Thorngren (2014a); Kapustin (2014); Else and Nayak (2014); Kapustin and Thorngren (2014b). Conversely one can think of the possible ’t Hooft anomalies as being classified by what is known as anomaly inflow from one dimension higherWen (2013); Kapustin and Thorngren (2014a); Kapustin (2014); Kapustin and Thorngren (2014b); Wang and Wen (2013).

A global symmetry with an ’t Hooft anomaly has an interesting interplay with the renormalization group (RG). For a connected Lie group symmetry, an ’t Hooft anomaly restricts the possible RG fixed points, even if the symmetry is spontaneously brokenWess and Zumino (1971); Weinberg (2013). In the case of a broken discrete symmetry, this is no longer true. For a symmetry respecting RG flow, however, the ’t Hooft anomaly can not change and hence constrains the possible fixed pointsKapustin and Thorngren (2014a).

Symmetry actions which can be realized independently on each site have trivial ’t Hooft anomaly because they can be gauged directly on the latticeLevin and Gu (2012); Haegeman et al. (2015); Williamson et al. (2016a). Conversely, this gauging procedure cannot be applied directly to symmetries which cannot be made on site. Therefore, we treat the ’t Hooft anomaly as an obstruction to making a symmetry action on-siteWen (2013); Wang and Wen (2013); Wang et al. (2015a).

For a discrete symmetry group $\mathcal{G}$ in $(1+1)$ D, all ’t Hooft anomalies of bosonic unitary representations occur on the boundaries of $(2+1)$ D SPT phases, in other words they arise from anomaly inflow. The anomalies can therefore be classified by $\mathcal{H}^{3}(\mathcal{G},\mathsf{U}(1))$ , the same set of labels as the SPT phasesChen et al. (2011a); Kapustin (2014); Else and Nayak (2014). In the next section, we describe how matrix product operators can be utilized to represent these anomalous actions.

I.1 Symmetries on the lattice

In this work, we consider unitary representations of finite groups on the lattice. We say a state $\ket{\psi}$ is symmetric under a group $\mathcal{G}$ if $U_{g}\ket{\psi}=\ket{\psi}$ for all $g\in\mathcal{G}$ , where $U_{g}$ is some unitary representation of the group.

The symmetry is on-site if the representation can be decomposed as $U_{g}=\otimes_{j=1}^{N}(u_{g})_{j}$ , where each $(u_{g})_{j}$ is a (local) unitary representation.

Although group actions are usually considered to be on-site, this is not the most general way a symmetry can be represented. A more general class of group actions can be represented by matrix product operators (MPOs). Using the conventional tensor network notationVerstraete et al. (2009); Orús (2014); Bridgeman and Chubb (2017), these are denoted

[TABLE]

where $g$ next to the MPO indicates which group element it represents. We refer to the dimension of the horizontal indices as the bond dimension of the MPO. The on-site case corresponds to bond dimension 1, whilst arbitrary bond dimension allows representation of any unitary. We consider the case of a constant bond dimension in the length of the MPO.

To form a representation, the MPOs must obey

[TABLE]

for all lengths. In contrast to on-site representations, for bond dimensions larger than one this does not hold at the level of the local tensors. Rather there is a tensor $X(g,h)$ , referred to as the reduction tensorChen et al. (2011a); Pérez-García et al. (2007); Fannes et al. (1992) (Appendix B) such that

[TABLE]

The reduction procedure need not be associative. When reducing three tensors, there are two distinct orders of reduction which may differ by a phase $\phi$

[TABLE]

As discussed in Appendix B, $\phi$ is a 3-cocycle with $[\phi]\in\mathcal{H}^{3}(\mathcal{G},\mathsf{U}(1))$ . Since on-site representations are locally associative they have a trivial cocycle. Hence a nontrivial $[\phi]$ indicates an obstruction to making the symmetry action on-site. We can therefore regard a nontrivial $[\phi]$ as a nontrivial ’t Hooft anomaly for $\mathcal{G}$ in $(1+1)$ D. We remark that each class of ’t Hooft anomaly can be realized using MPOs in this wayBuerschaper (2014); Williamson et al. (2016a).

I.2 MERA and symmetry

In its most general formVidal (2007); Evenbly and Vidal (2009), the MERA can be thought of as a series of locality preserving isometric maps

[TABLE]

where $d_{i+1}^{N_{i+1}}\leq d_{i}^{N_{i}}$ . Since the size of the lattice decreases at each step, these maps can be thought of as enacting a renormalization group on the real-space lattice. At the base (layer 0), the high energy, short-wavelength, lattice scale Hamiltonian $H^{(0)}$ is defined, with subsequent layers defining increasingly low-energy, long-wavelength effective theories

[TABLE]

To correctly describe the physical RG fixed points, the MERA layers must be chosen to preserve the low-energy physics of $H^{(0)}$ .

For concreteness, in this discussion we specialize to the MERA depicted in Fig. 1, which we refer to as the 4:2 MERA. This MERA is built from a single kind of tensor, an isometry from 4 sites to 2 sites. In general, these tensors may all contain distinct coefficients, although space-time symmetries such as scale invariance can be imposed by, for example, forcing the tensors on each layer to be identical. We remark that our results are not specific to this choice, rather they work for all MERA schemes. In particular, in Appendix C, we describe how the results apply to the commonly used ternary MERAEvenbly and Vidal (2009); Pfeifer et al. (2009).

In the MERA the fundamental constraint that a symmetry is preserved under renormalization is that each coarse-graining circuit acts as an intertwiner of $\mathcal{G}$ representations. That is, the renormalized symmetry

[TABLE]

is again a representation of $\mathcal{G}$ . When this condition is satisfied the third cohomology anomaly label of the symmetry does not change along the renormalization group flowKapustin and Thorngren (2014a, b). Hence the presence of an anomaly does not introduce any additional constraints on the renormalization process (which is to be expected for a discrete group).

For both practical and physically motivated reasons it is common to require further restrictions on the form of a symmetry throughout renormalization. For example, at a scale invariant renormalization group fixed point, the symmetry is also required to be scale invariantPfeifer et al. (2009). Furthermore, along an RG flow one may require that the bond dimension of an MPO symmetry remain constant, or grow subexponentially with the renormalization step. An extreme case is that of an on-site symmetry where the bond dimension is always required to be one, such that the symmetry remains strictly on-site.

I.3 On-site symmetry

In the case of a trivial ’t Hooft anomaly, a physical symmetry can be realized by an on-site representation. For a MERA satisfying Eqn. 14, the ’t Hooft anomaly is preserved and hence it should remain possible to realize the symmetry in an on-site fashion at each RG step. This additional constraint is imposed by insisting that $U_{g}^{(i+1)}$ remains an on-site representation. Therefore the symmetry constraint becomes completely localSingh et al. (2010).

The symmetry can then be enforced on a MERA state by ensuring that the local tensors are locality preserving intertwiners for the group action

[TABLE]

where the representation on each bond may be distinct. Standard results in representation theory allow one to impose the conditions Eqn. 17.

I.4 Anomalous MPO symmetries

Generally $(2+1)$ D SPT states are gapped in the bulk (on a closed manifold), but, on a manifold with a boundary they either spontaneously break the ‘protecting’ symmetry, or possess gapless excitations in the vicinity of the boundaryChen et al. (2011a). Since the low energy physics is confined to the edge, it is interesting to consider the low energy, effective edge theory. When restricting the on-site bulk symmetry to the edge, it becomes anomalous with anomaly label $[\phi]\in\mathcal{H}^{3}(\mathcal{G},\mathsf{U}(1))$ matching the bulk SPTChen et al. (2011a); Else and Nayak (2014); Wang et al. (2015a). An on-site representation of the bulk symmetry cannot be recovered by any local operations on the edge.

Since anomalous symmetries cannot be made on-site, the condition in Eqn. 14 is no longer strictly local. If the bond dimension of an MPO is allowed to grow at each renormalization step, the only constraint in Eqn. 14 is that the symmetry remains a global representation.

So long as this constraint is satisfied, the nontrivial anomaly label $[\phi]\in\mathcal{H}^{3}(\mathcal{G},\mathsf{U}(1))$ of an MPO representation, discussed in Appendix B, is invariant under renormalizationKapustin and Thorngren (2014a).

For anomalous symmetries the natural analogue to Eqn. 17 is

[TABLE]

which is a sufficient condition for a symmetric MERA, but is not necessarily implied by Eqn. 14.

We remark that this condition does not correspond to a local group action unless further assumptions are made. Consequently conventional techniques from representation theory do not suffice to enforce the constraint. Despite this, in Section III we define a class of MERA which allow Eqn. 20 to be imposed via a strictly local condition.

Although Eqn. 20 generically allows the MPO to change one may wish to insist that the MPO is fixed under the RG. For instance, at an RG fixed point where identical tensors are used at each layer of the MERA.

Unlike an on-site symmetry, an MPO can act as a duality transformation between a pair of critical models. This can be realized in MERA by allowing the MERA tensors themselves to change in Eqn. 20. We demonstrate such an action in Section IV.3. One can also use the MPO to create a domain wall between the two critical theories by applying the MPO to a half-infinite chain. In the case where the dual theories coincide (i.e. the MPO acts as a symmetry) this corresponds to a symmetry twist (topological defect) or twisted boundary condition. This will be the subject of Section II.

I.5 Physical data from MERA

Once a MERA has been obtained, a variety of physical data can be extracted. The most straightforward of these is the energy of the MERA, which simply requires evaluation of $\bra{\psi}H\ket{\psi}$ .

For a MERA representing the ground state of a gapless Hamiltonian, one can also extract a variety of data about the associated conformal field theory (CFT)Ginsparg (1990); Di Francesco (1997). One can compute the central charge as discussed in Refs. Pfeifer et al., 2009; Evenbly and Vidal, 2013 using the scaling of entanglement entropy in the state. One can also obtain the scaling dimensions of the associated CFTPfeifer et al. (2009); Evenbly and Vidal (2013) by seeking eigenoperators of the scaling superoperator

[TABLE]

The scaling dimensions describe the decay of correlations in the theory. We will refer to $\Delta=-\log_{2}(\lambda)$ as the scaling dimension corresponding to a particular scaling field.

The scaling fields obtained from the scaling superoperator correspond to local fields in the CFT. Given a symmetric MERA, one can also obtain nonlocal scaling fields by constructing the ‘symmetry twisted’ scaling superoperators

[TABLE]

where is the symmetry MPO for the group element $g$ . These fields correspond to a half infinite symmetry twist, as in Fig. 2, terminated by a local tensor. Previously, nonlocal scaling operators with a tensor product structure have been obtained in the same way Evenbly et al. (2010), but this more general class involving an anomalous symmetry was not investigated.

II Symmetry twists and topological sectors

Once a symmetric MERA is optimized to represent the ground state of a critical model, conformal data can be obtained as discussed in Section I.5. In this section, we investigate the impact that an anomalous symmetry has on such conformal data. In particular, we use the properties of MPO group representations to obtain possible topological corrections to the conformal spins when a symmetry twist is applied. We observe these corrections in our example model, as shown in Table 1. Additionally, we construct the projective representations under which the nonlocal scaling fields (as defined in Eqn. 28) transform. These allow us to construct projectors onto irreducible topological sectors, extending the usual decomposition into symmetry sectors. We discuss the constraints that this decomposition imposes on the operator product expansion of the CFT. For our example model, we observe these constraints in Table 2.

Throughout this section, for simplicity of presentation, we treat the case of scale invariant MERA with scale invariant MPO symmetry. Furthermore, we assume the technical condition that the MPO representation satisfies the zipper conditionWilliamson et al. (2016a)

[TABLE]

These assumptions imply that the MPOs can be deformed freely through a symmetric MERA network. We remark that representative MPOs satisfying the zipper condition have been given for all anomalous discrete symmetries in $(1+1)$ DWilliamson et al. (2016a). Additionally, we have suppressed possible orientation dependencies of the MPOs, although this effect is accounted for in our results. For a full treatment of the intricacies that arise due to orientation dependence see Ref. Williamson et al., 2016a. We note that similar reasoning applies to MPOs not satisfying these simplifying assumptions.

II.1 Symmetry twist and topological correction to conformal spin

For a model described by symmetric Hamiltonian $H$ , a symmetry twist can be created by acting with an element of the group on a half-infinite chain. Hamiltonian terms far away from the end of the twist are left invariant and the only remnant is a single twisted Hamiltonian term crossing the end. This is captured by the MERA in Fig. 2 with uniform tensors.

The twisted Hamiltonian term can be used to close a chain into a ring of length $L$ . In the case of a trivial (identity) twist this yields periodic boundary conditions. For a nontrivial group element this corresponds to a flux insertion through the ring as there is now a nontrivial monodromy around the ring given by the group element.

The introduction of an MPO twist by group element $g$ leads to a twisted translation operator

[TABLE]

which translates the system by one site without moving the end of the twist (previously noted in Refs. Hauru et al., 2016; Aasen et al., 2016). We will see that this leads to corrections to the conformal spin.

The untwisted translation operator for periodic boundary conditions satisfies ${\tau_{1}^{L}=\openone}$ which implies that local fields have integer conformal spin Christe and Henkel (1993). The twisted translation operator satisfies ${\tau_{g}^{L}={T}_{g}}$ where

[TABLE]

is the Dehn twist operator. For a faithful on-site representation of $g$ the order of ${T}_{g}$ is simply the order of $g$ , denoted $n_{g}$ . Hence the conformal spins of $g$ -twisted fields may have a topological correction leading them to take valuesChriste and Henkel (1993) in $\frac{1}{n_{g}}\mathbb{Z}$ .

We now consider anomalous representations and show that the order of ${T}_{g}$ is $2n_{g}$ in some cases, reflecting a further correction due to the anomaly. We observe this additional correction in our numerical example, as shown in Table 1.

First we define

[TABLE]

which corresponds to the action of $h$ on the $g$ twisted MERA shown in Fig. 2. It was shown in Ref. Williamson et al., 2016a that

[TABLE]

where $\phi$ is the 3-cocycle of the MPO representation. Applying the Dehn twist $n_{g}$ times results in a phase

[TABLE]

where again $n_{g}$ denotes the order of $g$ . Since $g$ generates a subgroup $\mathbb{Z}_{n_{g}}\leqslant\mathcal{G}$ and

[TABLE]

defines a 3-cocycle of $\mathbb{Z}_{n_{g}}$ . Denote the relevant cohomology class by $[\phi_{g}]\in\mathcal{H}^{3}(\mathbb{Z}_{n_{g}},\mathsf{U}(1))\cong\mathbb{Z}_{n_{g}}$ . For simplicity, assume it has been brought into the normal formde Wild Propitius (1995)

[TABLE]

where $\omega$ is a primitive $n_{g}^{\text{th}}$ root of unity and $\oplus$ denotes addition modulo $n_{g}$ . Hence

[TABLE]

and

[TABLE]

Consequently an anomaly $[\phi]$ for $g$ -twisted fields may induce a further topological correction to their conformal spins. In particular, the correction to the conformal spins take values in

[TABLE]

To make this argument we fixed a particular representative of $\phi$ , however the topological correction to conformal spin is a gauge invariant quantity and should not depend on this choice.

For the case of $\mathcal{G}=\mathbb{Z}_{2}^{3}$ , we observe this anomalous correction in our numerical example, where we see quarter- and three-quarter- integer conformal spins (displayed in Table 1).

II.2 Projective representations and topological sectors

We proceed to construct topological sectors that have a definite topological correction to the conformal spin. These topological sectors are an extension of the usual symmetry sectors used to block diagonalize a Hamiltonian.

Topological sectors are labeled by a conjugacy class $\mathcal{C}\subset\mathcal{G}$ , indicating twist symmetry twist, and a (projective) irreducible representation (irrep.) $\chi_{g}^{\mu}$ of the centralizer of a representative element $g\in\mathcal{C}$ . The topological sectors are mathematically described by $\text{D}^{\phi}(\mathcal{G})$ , the quantum double of the symmetry group $\mathcal{G}$ twisted by the 3-cocycle anomaly $\phi$ . This category determines all topological properties of the sectors.

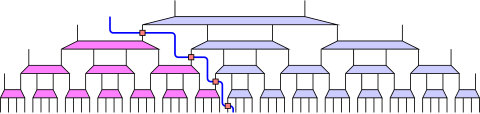

Since the MPO symmetry commutes with the MERA tensors, one can simultaneously diagonalize the twisted scaling superoperator $\mathcal{S}_{g}({\cdot})$ and the action of the symmetry. The vector space spanned by $g$ -twisted scaling fields (see Eqn. 28) transforms under a projective representation $V^{(g)}_{h}$ of the centralizer $\mathcal{Z}_{g}$ . This projective representation has 2-cocycle $\phi^{(g)}$ defined by

[TABLE]

which is the slant product of $\phi$ . The action is explicitly given byWilliamson et al. (2016a)

[TABLE]

where $h^{-1}gh=g$ for $h\in\mathcal{Z}_{g}$ .

The $g$ -twisted scaling superoperator commutes with the projective representation

[TABLE]

and hence can be block diagonalized into projective irreps.

Topological sectors that contribute a definite correction to the conformal spin can be constructed following the approach of Ref. Bultinck et al., 2017. The first step is to form projectors $P_{g,\mu}$ onto the projective irreps of $\mathcal{Z}_{g}$ . For a twist $g$ and projective irrep $\mu$ with 2-cocycle $\phi^{(g)}$

[TABLE]

where $d_{\mu}$ its dimension, $\chi^{\mu}_{g}$ its character and $\bar{\cdot}$ denotes complex conjugation.

The full scaling superoperator, taking into account all sectors, is given by

[TABLE]

This commutes with the full $|\mathcal{G}|^{2}$ dimensional algebra spanned by $V^{(g)}_{h}$ (note $V^{(k)}_{l}V^{(g)}_{h}=0$ unless $k=h^{-1}gh$ ). This is a ${C}^{*}$ algebraBultinck et al. (2017) and can be diagonalized into blocks. The simple central idempotents that project onto each irreducible block are given by

[TABLE]

where $\mathcal{C}_{g}$ is the conjugacy class of $g$ in $\mathcal{G}$ . These projectors block diagonalize $\mathcal{S}_{\mathcal{G}}({\cdot})$ into irreducible topological sectors. For the numerical example in Appendix A, all conformal data is decomposed into these sectors.

The topological sectors thus constructed have definite topological spinBultinck et al. (2017) (correction to conformal spin), which we observe in our example in Table 1. Additionally, these sectors obey a set of fusion rules, and support a notion of braiding monodromy and exchange statistics. The full set of topological data can be extracted from the idempotents constructed in Eqn. 51 via the procedure outlined in Ref. Bultinck et al., 2017.

In the MERA, with an MPO symmetry, the operator product expansion (OPE)Ginsparg (1990); Di Francesco (1997) for scaling fields $a$ and $b$ in topological sectors labeled $(\mathcal{C}_{0},\mu_{0})$ and $(\mathcal{C}_{1},\mu_{1})$ can be computed usingPfeifer et al. (2009); Evenbly et al. (2010)

[TABLE]

where the sum is over scaling fields $c$ . Eqn. 53 is a tensor network realization of a pair of pants topology with $a$ and $b$ at the feet and $c$ at the waist. The fusion rules imply topological restrictions on the OPE of scaling fields, generalizing symmetry constraints on the local fields. In particular, $C_{ab}^{c}=0$ unless the sector labeling $c$ appears in the fusion product

[TABLE]

We observe the constraints directly in the numerical MERA in Table 2.

Technically the symmetry twists and their fusion structure are described by the unitary fusion category (UFC) $\text{Vec}_{\mathcal{G}}^{\phi}$ while the topological sectors are given by its Drinfeld center $Z(\text{Vec}_{\mathcal{G}}^{\phi})$ — equivalently the twisted quantum double $\text{D}^{\phi}(\mathcal{G})$ — which is a modular tensor category (MTC)Drinfel’d (1986); Moore and Seiberg (1989); Evans and Kawahigashi (1995); Muger (2003); Bakalov and Kirillov (2001); Etingof et al. (2005). The mathematical structure of this MTC determines all topological properties of the fields in each sector, including the topological correction to their conformal spin (equivalently the exchange statistics), topological restriction on the OPE and monodromies (braiding)Fuchs et al. (2002a, b); Fröhlich et al. (2004, 2007, 2009).

Interestingly the fusion rules for the topological sectors can be nonabelian, even when the symmetry group is abelian. This requires a nontrivial anomaly $\phi$ . This occurs in our numerical example as discussed in Section IV and Table 2.

III A class of MPO symmetric MERA

To enforce a constraint on a MERA state requires an identification of the remaining variational parameters in such a way that it is possible to optimize over them. In this section we describe an approach that relies on a property of the MPO symmetry: the existence of a local unitary capable of disentangling a contiguous region of each MPO into an inner part that forms a local representation of the symmetry and is decoupled from the original MPO on the outer section. Given such a local representation, conventional techniques can be used to ensure the MERA is symmetric. We construct a large class of MPOs with this property and find the resulting constraints on the form of symmetric MERA tensors.

III.1 Disentangling an MPO

For scale invariant MERA, where the MPO symmetry is required to be identical at all layers, the goal is to identify a family of MERA circuits which locally coarse grains each MPO to itself. If the MPOs form an on-site symmetry, standard techniques of representation theory allow this to be achieved. For MPOs with bond dimension greater than one it is unclear how to apply these techniques. Our approach involves disentangling a local piece out of each MPO. We can then use representation theory to coarse grain this piece, allowing us to identify the desired family of MERA circuits.

This approach may seem counter-intuitive since no local constant depth circuit is capable of disentangling an MPO representation with a nontrivial third cohomology label into an on-site representation. This does not rule out the possibility of disentangling a contiguous region without decoupling the tensors in its complement. More precisely, there may exist constants $b,k\in\mathbb{Z}^{+}$ such that for all $n\in k\mathbb{Z}^{+}$ (where $k$ accounts for possible blocking of sites), and MPOs of arbitrary length $N$ , sufficiently larger than $n$ , there exists some unitary $\mathcal{D}_{n+2b}$ acting on $n+2b$ sites (where $b$ is a buffer depending on the correlation length of the MPO) such that

[TABLE]

for a local representation $u_{g}^{(n)}$ acting on $n$ sites.

This leads to a special form for a MERA tensor that coarse grains $i$ sites into $j$ sites, given by

[TABLE]

In this form the MPO symmetry condition in Eqn. 20 becomes

[TABLE]

which can be handled using standard techniques from representation theory.

III.2 A class of anomalous $\mathbb{Z}_{N}^{3}$ MPO symmetries

We now define a class of anomalous symmetries for the groups $\mathbb{Z}_{N}^{3}$ . These symmetries exemplify the role played by an anomalous symmetry both at the boundary of a two dimensional SPT phase and as a duality of distinct one dimensional SPT phasesChen et al. (2013b); Tsui et al. (2015a, b, 2017). They occur as the boundary symmetry actions of $\mathbb{Z}_{N}^{3}$ SPTs labeled by a type-III anomaly in two spatial dimensionsde Wild Propitius (1995). In addition, they can be seen to act transitively on the set of one dimensional SPT phases with $\mathbb{Z}_{N}^{2}$ symmetry. This particular example is an instance of a more general relation between a two dimensional $\mathcal{G}\times\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ SPT and the set of dualities of one dimensional $\mathcal{G}$ SPTs. Further details about the specifics of the $\mathbb{Z}_{N}^{3}$ models, including a fixed point bulk model, bulk to boundary mapping and boundary Hamiltonian, as well as the more general case are contained in Appendix D.

We consider a spin chain with a pair of $N$ -dimensional spins at each site. For this discussion, we label the first spin in red and the second in blue. Let $\omega=\exp(2i\pi/N)$ and define the generalized Pauli operators via $ZX=\omega XZ$ . Below we work in the basis where $Z$ is the diagonal clock matrix and $X$ is the shift matrix. We define the generalized controlled $X$ and $Z$ operators as

[TABLE]

respectively.

Using the notation $(\alpha_{1},\alpha_{2},\alpha_{3})$ for an element of $\mathbb{Z}_{N}^{3}$ , the group action is defined by the generators

[TABLE]

where $\mathcal{C}$ is defined by the (periodic) circuit

[TABLE]

The symmetry operators can be realized using a translationally invariant MPO with on-site tensor defined by

[TABLE]

with all other elements being zero. The reduction tensor (defined in Appendix B) associated to these MPOs is given by

[TABLE]

From this, one can verify that this MPO representation has cocycle $\phi(\alpha,\beta,\gamma)=\omega^{\alpha_{1}\beta_{2}\gamma_{3}}$ which is a representative of the root ‘type-III’ anomalyde Wild Propitius (1995).

III.3 Symmetric MERA tensors

The disentangling circuit, as defined in Eqn. 57, for this representation is given by

[TABLE]

and the residual local symmetry is given by

[TABLE]

For further details see Appendix C. This leads to the ansatz for MERA tensors

[TABLE]

which allows the symmetry to be enforced by a local condition on each tensor.

The symmetry can then be enforced by ensuring the residual tensors obey the local conditions

[TABLE]

which can be achieved using standard techniques of representation theory. We remark that the on-site $\mathbb{Z}_{N}^{2}$ symmetry is automatically enforced, without any further constraints.

Since the action can be applied locally, this ansatz class can also be used to investigate how the group acts on numerically optimized states which have not been constrained to be invariant. This allows investigation of theories which are dual under anomalous group actions.

The constraint in Eqn. 75 was used in an exact renormalization scheme introduced in Ref. Kubica and Yoshida, 2014 for the case of a $\mathbb{Z}_{2}\times\mathbb{Z}_{2}$ symmetryO’Brien et al. (2015). The form of the information transmitted to the next scale of renormalization is extremely restricted in this case. By considering more spins per site we find a less restrictive ansatz, described in Appendix C, capable of attaining accurate results as demonstrated in Section IV. The scheme described in Ref. Kubica and Yoshida, 2014 does not see similar improvement at larger blocking on a model which is unitarily equivalent to the one considered hereO’Brien et al. (2015). After blocking at least two spins per site, our ansatz cannot be captured by the approach of Ref. Kubica and Yoshida, 2014.

Analogous circuits exist for all MERA such that the number of ingoing/outgoing $N$ -dimensional indices is even. This leads to a family of symmetric MERA with increasing bond dimension and a larger number of variational parameters. Eqn. 75 can also be generalized to other MERA schemes, such as the ternary MERA as discussed in Appendix C.

IV Example: A $\mathbb{Z}_{2}^{3}$ symmetric model

In this section we focus on the $N=2$ case of the ansatz described in the previous section. We consider a particular Hamiltonian which transforms under the type-III anomalous $\mathbb{Z}_{2}^{3}$ group action. This Hamiltonian has three critical lines, one is symmetric and the other two are dual under the group action. We numerically optimize over the ansatz class presented in the previous section along these three lines. We present resulting conformal data for the local fields along each line, and for two nontrivial topological sectors along the symmetric line. Furthermore, we numerically implement the duality on the remaining pair of lines. Finally, we demonstrate that the symmetric line is a gapless phase protected by the anomalous symmetry and translation.

For a MERA with bond dimension 8 corresponding to three qubits per site, the ansatz for the tensors is

[TABLE]

with symmetry constraint

[TABLE]

This tensor contains all degrees of freedom which are not fixed by the symmetry, so can be optimized over.

IV.1 Family of Hamiltonians

The Hamiltonian we study is

[TABLE]

for positive values of $(a,b,c)$ . Here ${\color[rgb]{1,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{1,0,0}X_{j}}({\color[rgb]{1,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{1,0,0}Z_{j}})$ and ${\color[rgb]{0,0,1}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,1}\tilde{X}_{j}}({\color[rgb]{0,0,1}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,1}\tilde{Z}_{j}})$ are the qubit Pauli operators action on the first and second qubit on site $j$ . This model, which we refer to as the abc model, has a rich phase diagram as depicted in Fig. 3, possessing fully symmetric disordered and SPT phases, in addition to a fully symmetry breaking phase. For all values of $(a,b,c)$ , this Hamiltonian has an on-site $\mathbb{Z}_{2}\times\mathbb{Z}_{2}$ symmetry corresponding to Eqn. 64a and Eqn. 64b, whilst the anomalous action exchanges the terms with strength $a$ and $c$ , so is only a symmetry when $a=c$ . The SPT phase is protected by the on-site symmetry.

We note that unitarily equivalent models have previously been studiedYang (1987); Baake et al. (1987); Alcaraz et al. (1988a, b); Bridgeman (2014); Bridgeman et al. (2015). The critical lines in this model can all be exchanged by (nonlocal) unitary transformations, so all are known to be described by a conformal field theory (CFT) with central charge 1. Additionally, the ground state energy along each of these lines is knownAlcaraz et al. (1988b); Bridgeman (2014); Bridgeman et al. (2015).

In Fig. 4, we study the model with $a=c$ (referred to as the $b$ line) using a MERA with full anomalous symmetry enforced. For convenience, we allow a single transitional layer followed by a scale invariant portion. This leaves a pair of tensors which completely specify the state. After optimizing these residual degrees of freedom ( $2\times 16376$ real parameters) within this symmetric manifold, we obtain a good approximation to the ground state for all values of $b$ , as evidenced by the ground state energy in Fig. 4a (relative error $\mathcal{O}(10^{-4})$ ). When the symmetry operator is applied to the state, we see that the state is unchanged (a property which was explicitly enforced). The central charge remains within 4.2% of the analytic value for all values of $b$ , comparable to that found in Ref. Bridgeman et al., 2015.

IV.2 Scaling dimensions and topological sectors

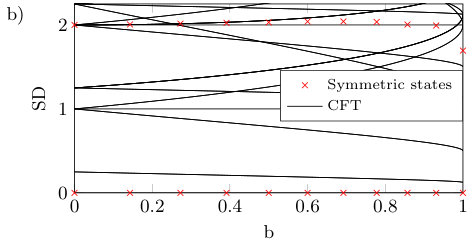

From our optimized MERA tensors, we have obtained the scaling dimensions of the associated CFT in each symmetry sector using Eqn. 24. The data is shown in Fig. 4b. As expected, the scaling dimensions vary continuously with the parameter $b$ .

The local fields are those of the compactified boson CFT at a radius

[TABLE]

The fields can be labeled by a pair of integers, and have scaling dimension $\Delta$ and conformal spin $s$ given byGinsparg (1990); Di Francesco (1997)

[TABLE]

Finally, we investigate the effect of $(1,1,1)$ symmetry twist in Fig. 4c. By applying the symmetry to half of the infinite chain we create the twist, and a set of nonlocal (with respect to the original theory) twisted fields can be obtainedEvenbly et al. (2010). These operators correspond to eigenoperators of the ‘symmetry twisted’ scaling superoperator (Eqn. 28). Since the symmetry acts projectively on the twisted fields, they can be decomposed into projective irreps corresponding to definite topological sectors. We can then diagonalize $\mathcal{S}_{g}({\cdot})$ within each sector, allowing us to label the twisted fields by the projective irrep under which they transform.

Again we can compare the numerically calculated twisted scaling dimensions to the analytic results to identify conformal spins of the twisted fields. As displayed in Table 1, within each topological sector, all conformal spins receive the same correction.

From the MERA data, we can identify the fields with a $(1,1,1)$ twist as carrying scaling dimension and conformal spin given by Eqn. 87a and Eqn. 87b respectively, but with $e,m\in\mathbb{Z}+\frac{1}{2}$ , leading to quarter- and three-quarter- integer spins in this sector.

To examine the effect of the anomalous symmetry on the OPE, we computed fusion rules for the topological sectors using Eqn. 53 for a symmetric MERA tensor. Despite the fact that the symmetry group is abelian, we observe nonabelian fusion for all sectors with nontrivial twist. For example, fusion of sectors with twist $(1,1,1)$ results in only half of the trivial twist sectors. The full set of fusion rules is given in Table 2 (Appendix A).

In this example, the modular tensor category describing the topological sectors is $D^{\phi}(\mathbb{Z}_{2}^{3})$ . This category is known to be equivalent to $D(\mathsf{D}_{4})$ , where $\mathsf{D}_{4}$ is the symmetry group of a square. The fusion table obtained from MERA matches that of $D^{\phi}(\mathbb{Z}_{2}^{3})\cong D(\mathsf{D}_{4})$ de Wild Propitius (1995); de Wild Propitius (1997); Goff et al. (2007); Wang and Wen (2015); He et al. (2017).

The data for all topological sectors is displayed in full in Appendix A.

IV.3 Duality and domain walls

We have also studied the ‘ $a$ ’ and ‘ $c$ ’ lines which are not symmetric under the anomalous $\mathbb{Z}_{2}$ , but are exchanged by its action. We optimize over tensors of the form Eqn. 81, but do not enforce the symmetry constraint on the residual degrees of freedom.

The ground state energy obtained after optimization along the $b=c$ line is shown in Fig. 5a. If the symmetry MPO corresponding to group element $(1,1,1)$ is applied to the optimized state (via local application of Eqn. 84), the result is an excited state. If the energy of this state is measured using the Hamiltonian with parameters $a$ and $c$ switched, we see that it is a ground state. This confirms that the state is transforming as expected under the anomalous action, that is, the MPO is acting as a duality transformation of the ‘ $a$ ’ and ‘ $c$ ’ critical lines.

We also show the scaling dimensions of the CFTs corresponding to the two dual lines (Fig. 5b). We observe that the local field content is identical, indicating that the same CFT describes these two lines. This CFT is distinct (in its local content) from that describing the ‘ $b$ ’ line, although it still has central charge 1.

IV.4 An anomaly protected gapless phase

In Ref. Chen et al., 2011a it was shown that a phase with anomalous MPO symmetry can either be gapped and spontaneous break the symmetry, or be gapless. Furthermore it is known from Refs. Feiguin et al., 2007; Trebst et al., 2008; Gils et al., 2009; Pfeifer et al., 2012; Gils et al., 2013 that a topological symmetry, together with translation, can protect a gapless phase. An anomalous MPO symmetry is in fact an example of a topological symmetry. Hence one may suspect that there exist gapless phases protected by such a symmetry.

Here we demonstrate that under an anomalous $\mathbb{Z}_{2}^{3}$ symmetry, along with translations, the gaplessness of the Hamiltonian along the ‘ $b$ ’ line is protected. That is, there are no translation invariant terms which are both symmetric under the full anomalous symmetry and are relevant in the renormalization group sense, and would therefore gap the Hamiltonian.

Since the effect of translations cannot be tested in the MERA framework, we performed a finite size scaling analysisChriste and Henkel (1993) to test this. Using the ALPS MPS libraryBauer et al. (2011); Dolfi et al. (2014), the lowest 40 eigenstates of the Hamiltonian (Eqn. 85) along the ‘ $b$ ’ line were obtained. Bond dimensions were capped at 100 and lengths of between 6 and 55 sites (12-110 qubits) were considered. Scaling dimensions are obtained by first normalizing the Hamiltonian such that the ground state has energy 0 and the first excited state has energy corresponding to the smallest nonzero scaling dimension of the CFTvon Gehlen and Rittenberg (1987). The energy levels are then fitted as a function of $1/N$ and extrapolated to $N=\infty$ . This is shown in Fig. 6a for $b=.6$ .

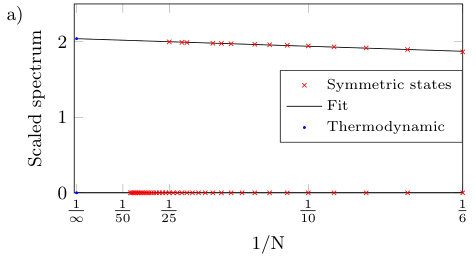

The Hamiltonian and symmetry operators were then simultaneously diagonalized within this subspace. In the fully symmetric sector (all symmetries acting as $+1$ ), the translation operator was diagonalized, allowing the momentum to be extracted.

Under the combined action of the anomalous symmetry group and translations by a single spin, there are no fully symmetric states with scaling dimension less than 2 (Fig. 6b). This implies there are no local symmetric terms which can gap the Hamiltonian, thus the gapless phase is protected. We remark that under the operator which translates by a full site; an RG relevant, fully symmetric state with momentum zero does exist and therefore the Hamiltonian can be gapped by a staggered term. A similar effect was observed in Ref. Feiguin et al., 2007.

V Conclusions

We have studied anomalous MPO symmetries in the framework of MERA. Following Ref. Kapustin and Thorngren, 2014a, the third cohomology class of an MPO representation of a finite group was identified with an ’t Hooft anomaly.

The properties of a fully MPO symmetric MERA were derived, including anomalous symmetry twists and the projective representations they carry. These were used to construct all topological sectors. This construction allows the complete set of topological data to be extracted, including a definite topological correction to the conformal spins of the fields in each sector and topological restrictions on the OPE.

A local condition to enforce the symmetry in the MERA was formulated, which allows for optimization of states with an anomalous symmetry. This ansatz works by locally disentangling the symmetry action, decoupling degrees of freedom on which the action can be expressed locally.

By way of an example, MERA states were optimized for a Hamiltonian with an anomalous $\mathbb{Z}_{2}^{3}$ symmetry. We have obtained accurate energy and conformal data for states optimized over our ansatz class, and demonstrated that the states transform as expected. All topological sectors were constructed and the resultant topological data was extracted. The conformal data was computed within each topological sector, and the projective action of the symmetry on the scaling fields was found. Furthermore, a correction to the conformal spin was identified, and shown to match the topological spin.

We applied the ansatz to study a duality of two critical lines. By extracting conformal data from optimized MERA the local content of the dual CFTs was shown to match. It was demonstrated that the action of the MPO mapped MERA ground-states optimized for Hamiltonians along one line to ground-states of the dual Hamiltonians. This required the ability to apply the MPO in a local fashion, which our ansatz permits.

We performed a finite size scaling analysis of the anomalous $\mathbb{Z}_{2}^{3}$ symmetric line for large system sizes. It was numerically demonstrated that the anomalous MPO symmetry, together with translation, protects a gapless phase.

There are several extensions of this work which suggest themselves. Our restricted MERA ansatz was only constructed for a particular class of anomalous group actions. It would be interesting to extend this to other MPOs, such as: nonabelian group representations with different cocycle anomalies, the Ising duality map or the translation operator.

The most general extension conceivable is to a set of MPOs described by a unitary fusion categoryBultinck et al. (2017); Aasen et al. ; Buican and Gromov (2017). While the construction of topological sectors is known in this general caseEvans and Kawahigashi (1995); Muger (2003); Aasen et al. ; Buican and Gromov (2017); Bultinck et al. (2017); Lan and Wen (2014); Haah (2016); Hu et al. (2015), an ansatz which allows the symmetry to be enforced locally in the MERA remains to be found.

It would be interesting to determine which of these general symmetries protects a gapless phase such as the one observed in this work and those in Refs. Feiguin et al., 2007; Trebst et al., 2008; Gils et al., 2009; Pfeifer et al., 2012; Gils et al., 2013.

One could adapt these results to the recent tensor network renormalization (TNR)Evenbly and Vidal (2015); Evenbly (2017); Yang et al. (2017); Bal et al. (2017) scheme, constraining the RG flow to remain MPO symmetric. We remark that the Ising duality has previously been studied both numerically, using TNR but without manifestly enforcing the symmetry, in Ref. Hauru et al., 2016 and theoretically in Ref. Aasen et al., 2016.

It would also be interesting to consider the influence of an MPO symmetry on the entanglement entropy. We remark that by considering MPO symmetries of topologically ordered tensor network states in $(2+1)$ D one recovers the topological entanglement entropyFlammia et al. (2009); Şahinoğlu et al. (2014); Bultinck et al. (2017); Kitaev and Preskill (2006); Levin and Wen (2006).

A particularly interesting future direction is to generalize our MPO symmetric MERA ansatz to a $(2+1)$ D MERA describing a topologically ordered state that is symmetric under an anomalous PEPO symmetry.

Acknowledgements.

The authors thank Dave Aasen, Matthias Bal, Stephen Bartlett, Nick Bultinck, Christopher Chubb, Andrew Doherty, Steve Flammia, Michaël Mariën, Sam Roberts, Thomas Smith, Ryan Thorngren, Frank Verstraete, Guifre Vidal and Juven Wang for useful discussions. DW especially thanks Dave Aasen for pointing out the connection between the tube algebra and topological defects in conformal field theories. JB acknowledges support from the Australian Research Council via the Center of Excellence in Engineered Quantum Systems (EQuS), project number CE110001013. The authors acknowledge the University of Sydney HPC service at The University of Sydney for providing HPC resources. DW acknowledges The University of Sydney quantum theory group for their hospitality, and the Perimeter Institute Visiting Graduate Fellowship program. Optimal contraction sequences of the networks used in this work were computed using the netcon package of Ref. Pfeifer et al., 2014.

Appendix A Conformal data in all topological sectors

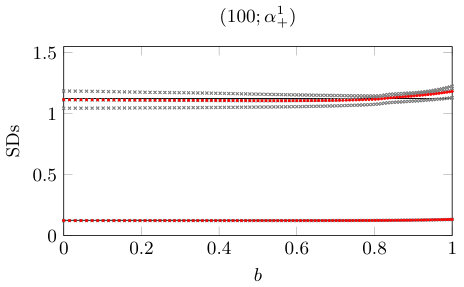

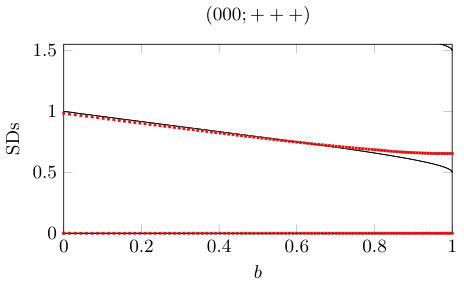

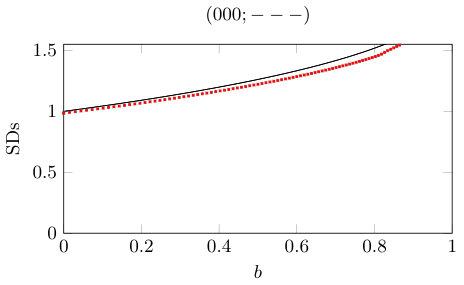

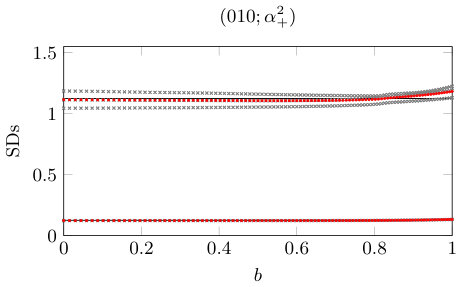

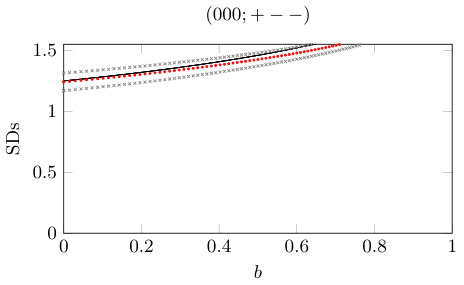

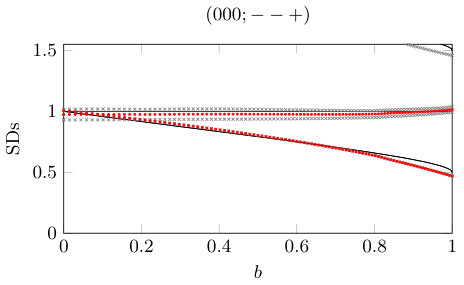

In this appendix, we present the full set of scaling dimensions extracted from the bond dimension 8 MERA with full anomalous symmetry enforced. The data is shown in Fig. 7 for the trivial twist, and Fig. 8 and Fig. 9 for the nontrivial twists. Each subplot in these figures corresponds to a distinct topological sector.

When examining the gray points, one notices a broken degeneracy. This was previously noted in Ref. Bridgeman et al., 2015. We conjecture that this occurs via coupling of states which, in the field theoretic limit, would be forbidden from coupling due to the full conformal symmetry. As such, we conjecture that the scaling dimensions corresponding to degenerate fields obtained from the MERA experience a splitting $\Delta_{\mathrm{MERA}}=\Delta_{\mathrm{CFT}}\pm\epsilon$ , where the size of the splitting $\epsilon$ decreases with increased bond dimension as the full conformal symmetry is effectively recovered.

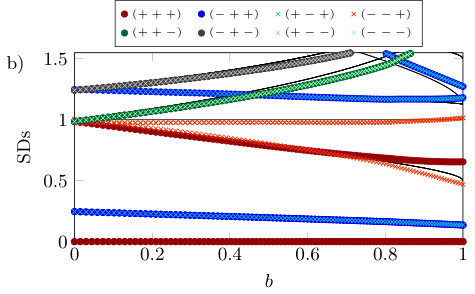

To combat this splitting, we average the MERA scaling dimensions in an attempt to recover the CFT values. When choosing which lines should be averaged together, we have taken all lines of similar gradient and position on the plot. The result of this procedure is indicated in red, and closely matches the CFT values.

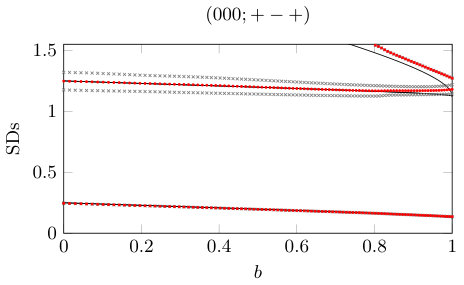

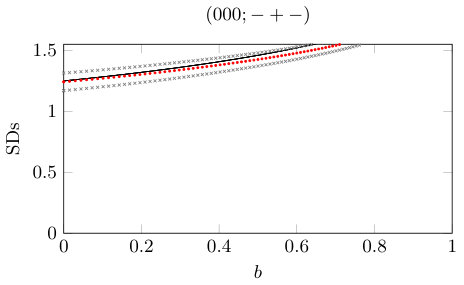

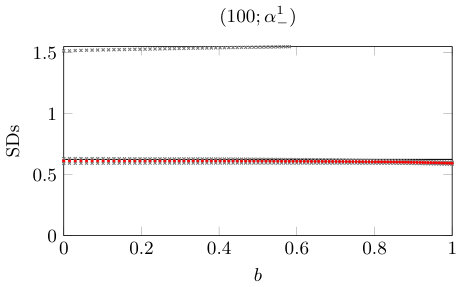

The scaling dimensions and conformal spins in each topological sector are given in Table 1. Table 2 shows the fusion rules for the sectors, computed using the symmetric MERA.

The irreps are given explicitly in Eqn. 88. Those below the line are nontrivial projective representations.

[TABLE]

Appendix B MPO group representations and third cohomology

In this appendix we recount the definition of the third cohomology class of an injective MPO representation of a finite group $\mathcal{G}$ , as first introduced in Ref. Chen et al., 2011a. MPO representations appear in the study of $(2+1)$ D SPT tensor network states and it was shown in Ref. Williamson et al., 2016a that they are always injective. The presence of such an MPO symmetry has an important physical consequence; all short range entangled states must break the symmetry, either explicitly or spontaneously. For details about group cohomology theory in the context of SPT order we refer the reader to Ref. Chen et al., 2013a.

In an MPO representation of $\mathcal{G}$ , multiplying a pair of MPOs labeled by the group elements $g_{0}$ and $g_{1}$ is equal to the MPO labeled by $g_{0}g_{1}$ for every length. For injective MPOs there exists a gauge transformation on the virtual indices that brings both representations into the same canonical form Fannes et al. (1992); Pérez-García et al. (2007); Cirac et al. (2017). This implies that there exists an operator (the reduction tensor) $X(g_{0},g_{1}):(\mathbb{C}^{\chi})^{\otimes 2}\rightarrow\mathbb{C}^{\chi}$ such that

[TABLE]

where $X(g_{0},g_{1})$ is only defined up to multiplication by a complex phase $\beta(g_{0},g_{1})$ .

If we now multiply three MPOs labeled by $g_{0}$ , $g_{1}$ and $g_{2}$ there are two ways to reduce the multiplied MPOs to the MPO labeled by $g_{0}g_{1}g_{2}$ . When only acting on the right virtual indices these two reductions are equivalent up to a complex phase

[TABLE]

When multiplying four MPOs, one observes that $\phi$ has to obey certain consistency conditions. By performing a series of moves (changing order of reduction), one can achieve the same reduction

[TABLE]

implying that

[TABLE]

This condition is known as the 3-cocycle conditions and identifies $\phi$ as a 3-cocycle. As mentioned above $X(g_{0},g_{1})$ is only defined up to a complex phase $\beta(g_{0},g_{1})$ . This freedom can change the $\phi$ , giving the equivalence relation

[TABLE]

so $\phi$ is only defined up to a 3-coboundary. For this reason the single block MPO group representation is endowed with the label $[\phi]$ from the third cohomology group $\mathcal{H}^{3}(\mathcal{G},\mathsf{U}(1))$ . One can check that multiplying any larger number of MPOs does not give additional conditions/equivalences on $\phi$ .

One can use a similar argument to demonstrate that no injective MPS can possess an anomalous symmetry. Assume an injective MPS with tensor $A$ is symmetric under an MPO symmetry for all lengths, similar reasoning that lead to Eqn. 91 implies the existence of another reduction tensor $Y(g)$ satisfying

[TABLE]

Similar to Eqn. 94 we find that acting with multiple group elements leads to a complex phase $\beta(g_{0},g_{1})$

[TABLE]

We now consider the application of three group elements

[TABLE]

which leads to a consistency equation

[TABLE]

implying $\phi$ is a coboundary. Therefore $\phi\sim 1$ , is in the trivial cohomology class. Hence no injective MPS can be symmetric under an anomalous MPO symmetry. This leaves open the possibility of a non-injective MPS, describing a state which spontaneously breaks the symmetry. Alternatively a symmetric state may be gapless and hence have no MPS description (with a fixed bond dimension).

Appendix C Ansatz for MERA tensors with type-III $\mathbb{Z}_{N}^{3}$ symmetry

In this appendix, we describe an ansatz for the tensors in a MERA with type-III $\mathbb{Z}_{N}^{3}$ symmetry. Let $\mathcal{G}=\mathbb{Z}_{N}^{3}$ , with action as defined in Eqn. 64. Let $T$ be an isometric tensor with $2A$ upper indices and $2B$ ( $B\geq A$ ) lower indices

[TABLE]

Define the decoupling circuit on $2K$ indices as

[TABLE]

Allowed MERA tensors are those given by

[TABLE]

where

[TABLE]

The $X$ portion of the symmetry is automatically enforced by this circuit. To enforce the $CZ$ part, one must ensure that

[TABLE]

C.1 4:2 MERA

For clarity, we now include the form of the constraint on the 4:2 MERA (introduced in Fig. 1) with bond dimension $N$ , $N^{2}$ and $N^{3}$ :

[TABLE]

C.2 Ternary MERA

For completeness, we show how our ansatz is applied to the ternary MERA shown in Fig. 10. The ternary ansatz is commonly seen in the literature due to its relatively low optimization cost. A ternary MERA is built from two kinds of tensors; unitary ‘disentanglers’ $v$ (rectangles in Fig. 10) and isometric tensors $w$ (triangles in Fig. 10). In the general case, these tensors may all contain distinct coefficients, although symmetries such as scale invariance can be imposed by, for example, forcing the tensors on each layer to be identical.

For bond dimension $N^{2}$ and $N^{4}$ , the constraint on the tensors is

[TABLE]

with the obvious generalization to other bond dimensions.

We remark that although our examples drawn here map $\chi$ dimensional sites to $\chi$ dimensional sites, this can be relaxed. This allows the effective dimension of the sites to be increased as desired.

Appendix D Generalized $\mathbb{Z}_{N}$ CZX model and its gapless boundary theory

The CZX model was introduced in Ref. Chen et al., 2011a as a simple exactly solvable representative of the nontrivial $\mathbb{Z}_{2}$ SPT phase in two spatial dimensions. In this paper we have considered the larger symmetry group $\mathbb{Z}_{2}^{3}$ of the model for which it is a representative of the $\mathbb{Z}_{2}^{3}$ type-III SPT phase. In this appendix we describe a simple generalization of the CZX model to a Hamiltonian with $\mathbb{Z}_{N}^{3}$ symmetry that is a representative of the root type-III $\mathbb{Z}_{N}^{3}$ SPT. We then outline how this fits into the more general setting of $(1+1)$ D $\mathcal{G}$ -SPT dualities at the edge of a particular $\mathcal{G}\times\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ -SPT bulk in $(2+1)$ D.

D.1 Definitions

The model is defined on a two dimensional square lattice with four $\mathbb{Z}_{N}$ spins per site. For concreteness we label them counterclockwise as follows

[TABLE]

Before stating the Hamiltonian, ground-state, and symmetries of the model we establish some definitions:

[TABLE]

where $X,CZ$ are defined in Section III.

D.2 Hamiltonian and ground state

The Hamiltonian is a sum of local terms acting on each plaquette of a square lattice $H=\sum_{p}h_{p}$ . The terms are given by

[TABLE]

which act on the lattice as

[TABLE]

The ground state is unique for closed boundary conditions and is given by a tensor product of the state $\ket{\text{GHZ}_{4}}$ on the four spins around each plaquette

[TABLE]

Note that this ground state is not a product state with respect the locality structure we have chosen by our grouping of spins into sites (if sites were instead defined to group the spins around each plaquette it would be a product state).

D.3 Symmetry

To describe the $\mathbb{Z}_{N}^{3}$ symmetry of the Hamiltonian in Eqn. 139 we first bipartition the lattice into black ( $b$ ) and white ( $w$ ) sites, as indicated in Fig. 11. The generators are then given by

[TABLE]

One can verify that each of these operators is of order $N$ and that they mutually commute. Furthermore each local Hamiltonian term commutes with all symmetries and they leave the ground state invariant. Note the $U_{CZ}$ symmetry is an on-site symmetry for our definition of site but would not be if sites were instead defined by grouping the spins around each plaquette.

D.4 Boundary theory

In the presence of an open boundary the bulk Hamiltonian is extensively degenerate as it only projects pairs of spins along the edge into the support subspace of $P_{2}$ . We identify effective $\mathbb{Z}_{N}$ edge spins with the $N$ states in this subspace via the projector $\sum\limits_{i}\ket{i}\bra{ii}$ . This identification is indicated by

$\{$

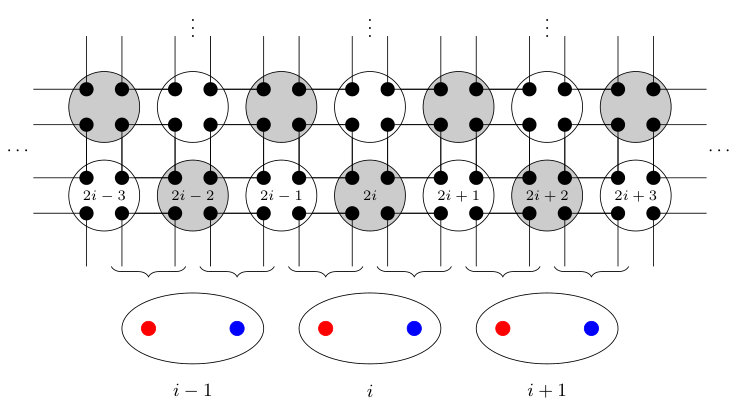

in Fig. 11. An edge site is formed by a pair of these spins, as shown in Fig. 11. This identification provides an exact mapping from bulk operators to the boundary. The symmetry acts on the edge as follows

[TABLE]

Due to the grouping of edge spins into sites only the subgroup generated by $U_{{\color[rgb]{1,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{1,0,0}X}}$ and $U_{{\color[rgb]{0,0,1}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,1}\tilde{X}}}$ acts on-site.

The bulk to boundary mapping can be used to find the edge action of certain operators that leave no residual effect on the bulk of the ground state. In particular

[TABLE]

where the numbering is indicated in Fig. 11. We find an effective edge Hamiltonian by considering symmetric perturbations in the bulk with minimal support.

[TABLE]

The edge Hamiltonian is given by

[TABLE]

where $b_{k}=b_{N-k}$ . The Hamiltonian is fully symmetric under $U_{{\color[rgb]{1,0,0}\definecolor[named]{pgfstrokecolor}{rgb}{1,0,0}X}}$ and $U_{{\color[rgb]{0,0,1}\definecolor[named]{pgfstrokecolor}{rgb}{0,0,1}\tilde{X}}}$ while the parameters transform as follows under $\mathcal{C}$

[TABLE]

When $c_{k}$ is the only nonzero parameter the Hamiltonian is in the $[k]\in\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ SPT phase, while for $b_{k}=b_{N-k}$ the only nonzero parameters it describes a symmetry broken phase. Hence the $\mathcal{C}$ operator cycles the SPT phases $[k]\mapsto[k+1]$ and the Hamiltonian is fully symmetric when all $c_{k}=c_{0}$ . This may correspond to an SPT critical point or a symmetry breaking point depending upon the relative strength of the $b_{k}$ parameters.

D.5 General $(1+1)$ D $\mathcal{G}$ SPT duality at the edge of a $(2+1)$ D $\mathcal{G}\times\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ SPT

The above construction for $\mathbb{Z}_{N}^{3}$ is a specific instance of a general connection between duality of $(1+1)$ D edge $\mathcal{G}$ SPT phases and a $(2+1)$ D bulk $\mathcal{G}\times\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ SPT phase. This connection may be of independent interest. The action of the bulk $\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ symmetry can be though of as pumping $\mathcal{G}$ SPTs onto the edge.

Similarly to the case above, the Hilbert space of each spin is given by $\mathbb{C}[\mathcal{G}]$ and 4 spins are grouped per site of a square lattice. $R_{g}$ denotes the right regular representation, we fix a choice of representative for a set of generators of $\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))\cong\prod_{k}\mathbb{Z}_{N_{k}}$ (their products fix all other representatives) and

[TABLE]

for $[\omega]\in\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ .

The local Hamiltonian terms are given by

[TABLE]

acting on the square lattice similarly to the term in Eqn. 141. The ground state is again given by

[TABLE]

The global on-site symmetry is generated by

[TABLE]

which can be seen to mutually commute and also commute with $h_{p}$ . These symmetries also leave the ground state invariant.

As above, the effective edge spins are identified with the ground state subspace of plaquettes crossing the boundary, via the projector $\sum\limits_{g}\ket{g}\bra{gg}$ . The action of the symmetry on the edge is given by

[TABLE]

This forms a matrix product operator representation of $\mathcal{G}\times\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ with 3-cocycle

[TABLE]

The edge action of $U_{\omega}$ maps a $\mathcal{G}$ SPT phase $[\beta]$ to $[\beta+\omega]$ . This can be seen by examining the effect of $U_{\omega}$ on a fixed point local Hamiltonian such as the $\mathcal{G}$ -paramagnet

[TABLE]

Alternatively, note the edge action of $U_{\omega}$ restricted to an open chain is an MPO with two dangling virtual indices associated to its boundaries. Denote this MPO $M_{\omega}$ . $M_{\omega}$ obeys the following commutation rules $R_{g}^{\otimes L}M_{\omega}R_{g}^{\dagger\otimes L}=V_{g}M_{\omega}V_{g}^{\dagger}$ . Here $V_{g}$ is a projective representation of $\mathcal{G}$ , with cocycle $\omega$ , given by

[TABLE]

which acts on one dangling virtual bond of the MPO. Hence applying $M_{\omega}$ to a unique symmetric ground state, such as $\ket{+}^{\otimes N}$ , maps it to a state in the SPT phase $[\omega]$ .

Bibliography127

The reference list from the paper itself. Each links out to its DOI / PubMed record.

1Kadanoff (1966) L. P. Kadanoff, Scaling laws for Ising models near T c , Physics 2 , 263 (1966). · doi ↗
2Wilson (1975) K. G. Wilson, The renormalization group: Critical phenomena and the Kondo problem, Rev. Mod. Phys. 47 , 773 (1975). · doi ↗
3Landau and Lifshitz (1965) L. D. Landau and E. M. Lifshitz, Course of theoretical physics (Pergamon Press, 1965).
4Wegner (1971) F. J. Wegner, Duality in generalized Ising models and phase transitions without local order parameters, J. Math. Phys. 12 , 2259 (1971). · doi ↗
5Kosterlitz and Thouless (1973) J. M. Kosterlitz and D. J. Thouless, Ordering, metastability and phase transitions in two-dimensional systems, J. Phys. C: Solid State Phys. 6 , 1181 (1973). · doi ↗
6Wen (1989) X.-G. Wen, Vacuum degeneracy of chiral spin states in compactified space, Phys. Rev. B 40 , 7387 (1989). · doi ↗
7Einarsson (1990) T. Einarsson, Fractional statistics on a torus, Phys. Rev. Lett. 64 , 1995 (1990). · doi ↗
8Wen (1990) X.-G. Wen, Topological Orders in Rigid States, Int. J. Mod. Phys. B 04 , 239 (1990). · doi ↗

TL;DR

Contribution

Findings

Abstract

Peer Reviews

Videos

Anomalies and entanglement renormalization

Abstract

I Symmetries and anomalies in MERA

I.1 Symmetries on the lattice

I.2 MERA and symmetry

I.3 On-site symmetry

I.4 Anomalous MPO symmetries

I.5 Physical data from MERA

II Symmetry twists and topological sectors

II.1 Symmetry twist and topological correction to conformal spin

II.2 Projective representations and topological sectors

III A class of MPO symmetric MERA

III.1 Disentangling an MPO

III.2 A class of anomalous ZN3\mathbb{Z}_{N}^{3}ZN3​ MPO symmetries

III.3 Symmetric MERA tensors

IV Example: A Z23\mathbb{Z}_{2}^{3}Z23​ symmetric model

IV.1 Family of Hamiltonians

IV.2 Scaling dimensions and topological sectors

IV.3 Duality and domain walls

IV.4 An anomaly protected gapless phase

V Conclusions

Acknowledgements.

Appendix A Conformal data in all topological sectors

Appendix B MPO group representations and third cohomology

Appendix C Ansatz for MERA tensors with type-III ZN3\mathbb{Z}_{N}^{3}ZN3​ symmetry

C.1 4:2 MERA

C.2 Ternary MERA

Appendix D Generalized ZN\mathbb{Z}_{N}ZN​ CZX model and its gapless boundary theory

D.1 Definitions

D.2 Hamiltonian and ground state

D.3 Symmetry

D.4 Boundary theory

D.5 General (1+1)(1+1)(1+1)D G\mathcal{G}G SPT duality at the edge of a (2+1)(2+1)(2+1)D G×H2(G,U(1))\mathcal{G}\times\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))G×H2(G,U(1)) SPT

III.2 A class of anomalous $\mathbb{Z}_{N}^{3}$ MPO symmetries

IV Example: A $\mathbb{Z}_{2}^{3}$ symmetric model

Appendix C Ansatz for MERA tensors with type-III $\mathbb{Z}_{N}^{3}$ symmetry

Appendix D Generalized $\mathbb{Z}_{N}$ CZX model and its gapless boundary theory

D.5 General $(1+1)$ D $\mathcal{G}$ SPT duality at the edge of a $(2+1)$ D $\mathcal{G}\times\mathcal{H}^{2}(\mathcal{G},\mathsf{U}(1))$ SPT
