Observation of a Modulational Instability in Bose-Einstein condensates

TL;DR

This paper reports the experimental observation of modulational instability in elongated Bose-Einstein condensates of rubidium-85, linking the breakup into solitons with theoretical predictions from stability analysis of the nonlinear Schrödinger equation.

Contribution

It demonstrates the first direct experimental observation of modulational instability in Bose-Einstein condensates and confirms theoretical predictions using a one-dimensional effective model.

Findings

The number of observed solitons matches the predictions from the fastest growing sidebands.

Modulational instability is identified as the key mechanism behind the condensate breakup.

Experimental data supports the theoretical model based on the nonlinear Schrödinger equation.

Abstract

We observe the breakup dynamics of an elongated cloud of condensed $^{85}$Rb atoms placed in an optical waveguide. The number of localized spatial components observed in the breakup is compared with the number of solitons predicted by a plane-wave stability analysis of the nonpolynomial nonlinear Schr\"odinger equation, an effective one-dimensional approximation of the Gross-Pitaevskii equation for cigar-shaped condensates. It is shown that the numbers predicted from the fastest growing sidebands are consistent with the experimental data, suggesting that modulational instability is the key underlying physical mechanism driving the breakup.

Figures

Equations

$$i\frac{\partial f}{\partial t}=\left[-c_1\frac{1}{2}\frac{{\partial }^2}{\partial z^2}+\frac{c_2}{{\sigma }^2}{\left|f\right|}^2+c_3\left({\sigma }^2+\frac{1}{{\sigma }^2}\right)\right]f,$$

$$g(k)$$

$$M$$

$$f(z,t)=u_0{e}^{i{\beta }_{u}t}+\int dkp(k)e^{ikz+i\beta (k)t+g(k)t}$$

Full text

Intensity-dependent instabilities are a dramatic manifestation of the strong nonlinear effects that can occur in nature, and they are observed throughout physics as the development of spatial or temporal modulations with growing amplitudes. Modulational instability (MI) is a well-known phenomenon in optics which manifests itself as a decay of long optical signals into pulse trains mi_optics ; hasegawa_tunable_1980 ; agrawal_modulation_1987 . MI is a general wave phenomenon that occurs when a weak perturbation to a waveform is enhanced by nonlinearity, giving rise to sidebands in the spectrum with subsequent modulation growth and the formation of a train of spatially or temporally separated solitary waves kivshar_optical_2003 .

Solitary matter-waves of a different origin have been extensively studied in Bose-Einstein condensates (BECs), where interatomic interactions give rise to strong nonlinearities. In particular, soliton trains in BECs have previously been observed in 7Li condensates with attractive interactions loaded into highly anisotropic traps strecker_formation_2002 . The formation of multiple solitary waves has also been observed during collapse of Rb condensates cornish_formation_2006 . Recently, BEC solitons have been employed for the first realization of a solitonic atom interferometer mcdonald_bright_2014 . Despite theoretical predictions Salasnich2003 ; Carr_2004 , the stochastic nature of many nonlinear processes, combined with traditionally destructive methods of BEC imaging, has impeded the direct observation of more subtle nonlinear effects.

In this Rapid Communication, we present real-time observations of MI in BECs. Using nondestructive in situ imaging, we are able to image a single BEC placed in an optical waveguide as it undergoes the transformation into a train of spatially localized components. We show that the number of localized components observed after the breakup is consistent with an MI analysis conducted in the framework of the nonpolynomial Schrödinger equation (NPSE) Salasnich2002 , suggesting that MI is the underlying physical mechanism driving the observed breakup.

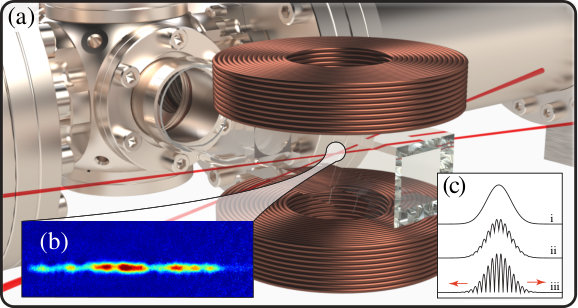

Experimental approach. The experimental apparatus is described in Ref. kuhn_bose-condensed_2014 . In summary, a combined two- and three-dimensional MOT system collects and cools both 85Rb and 87Rb atoms (Fig. 1). The atoms are then loaded into a magnetic trap and undergo RF evaporation before being loaded into an optical crossed-dipole trap. The cross trap consists of intersecting $1090\text{\,}\mathrm{nm}$ and $1064\text{\,}\mathrm{nm}$ laser beams with approximate waists of $300\text{\,}\mathrm{\SIUnitSymbolMicro m}$ and $250\text{\,}\mathrm{\SIUnitSymbolMicro m}$ (halfwidth at $1/e^{2}$ intensity), respectively. After loading, the magnetic trap coils are switched from antiHelmholtz to Helmholtz configuration, generating a bias magnetic field over the extent of the cloud. This allows the $s$-wave scattering length of the cloud, $a_{s}$, to be tuned utilizing a Feshbach resonance. Setting the 85Rb scattering length close to zero ($a_{s}=3a_{0}$, with $a_{0}$ the Bohr radius) while ramping down the cross trap intensity allows the remaining 87Rb atoms to be removed while minimizing three-body recombination losses in 85Rb. A further period of evaporation with $a_{s}=300a_{0}$ creates a 85Rb BEC of atom number $N=3\times 10^{4}$ with no observable thermal fraction. This is the initial condition for all experiments discussed below.

To monitor the cloud dynamics two orthogonal imaging systems are available. Firstly, a horizontal absorption beam allows the cloud to be imaged after 20ms of ballistic expansion ($a_{s}=0$) in free space to calibrate absolute atom number. A second vertical, far-detuned imaging beam utilizes nondestructive shadowgraph imaging to take in situ images of the condensate wigley_non-destructive_2016 . Up to 100 images can be taken in a single run as little as 0.4ms apart with no measurable change in atom number. The imaging laser is offset-beat locked, allowing the beam detuning to be dynamically changed during a run wei_compact_2016 . This allows several nondestructive pictures to be taken before the laser is brought onto resonance and a final destructive, high signal-to-noise ratio (SNR) picture is taken with the same optics.

The experiment is conducted as follows: a 85Rb condensate is formed at an s-wave scattering length of $a_{s}\approx 300a_{0}$ in a harmonic trap ($\omega_{z}=2\pi\times 7\;\mathrm{Hz}$ axially, $\omega_{r}=2\pi\times 70\;\mathrm{Hz}$ radially) before the axial trapping is turned off creating an optical waveguide for the atoms. The waveguide has a repulsive harmonic potential with frequency $\omega_{z}=2\pi\times 3i\;\mathrm{Hz}$ due to curvature in the magnetic potential mcdonald_bright_2014 . Simultaneously, the scattering length is rapidly quenched to another value ($a_{s}/a_{0}=[-2.1,5]$) before the condensate is allowed to evolve in the waveguide for approximately $100$\mathrm{ms}$$. In all figures $t$ is the time after this quench, once the condensate is freely propagating in the waveguide. For these initial conditions the chemical potential is $\mu=6.2\hbar\omega_{z}$, which is the strongly cigar-shaped regime petrov_regimes_2000 . The longitudinal shape of the condensate has a width ($L_{z}$) on the order of tens of micrometers. Dispersion of the cloud in the waveguide is minimized by careful choice of initial scattering length. Our choice ensures that the dimensions of the axially-trapped cloud prior to quenching $a_{s}$ are similar to those of an axially-untrapped soliton at the new (necessarily negative) scattering length. This is determined by a variational method Carr2002 . The condensates are then propagated in the waveguide for a range of scattering lengths ($a_{s}/a_{0}\in[-6,6]$).

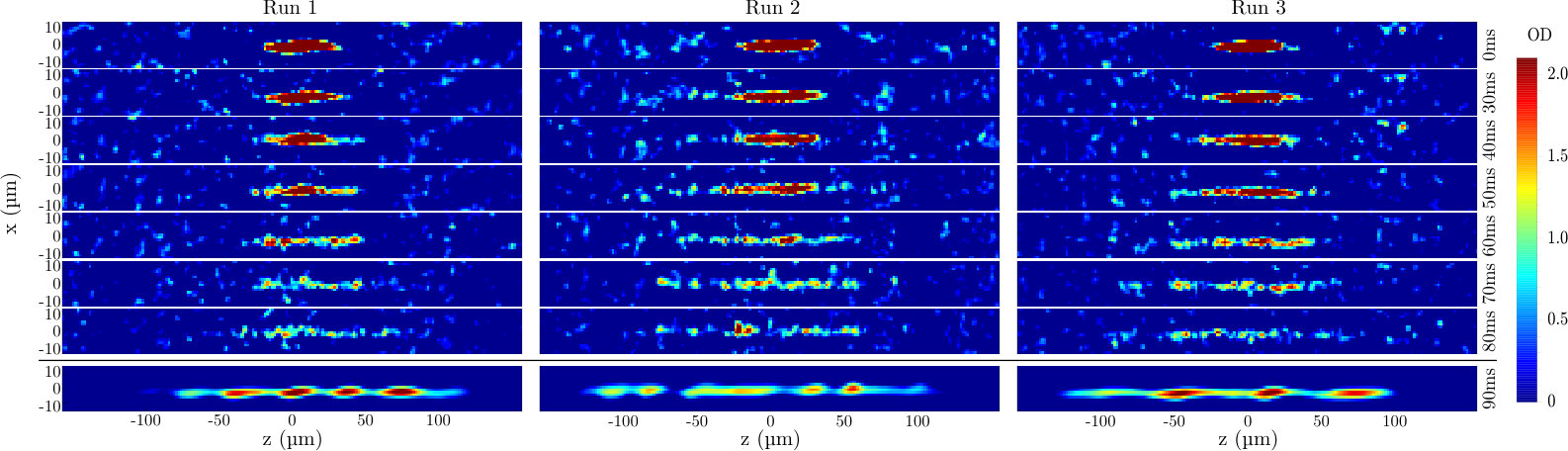

For propagation at certain negative scattering lengths the condensate breaks up into a train of similarly sized, spatially-localized components. These are soliton-like, in that they are stable under further propagation beyond $90$\mathrm{ms}$$. Three separate exemplar runs are shown in Fig. 2. These examples demonstrate the typical train formation at $-1.15a_{0}$, a scattering length for which the condensate is stable up to  60ms. Moreover, for $a_{s}>-1.15a_{0}$, three-body-recombination losses are $<5\%$ in the first-stage dynamics where train formation occurs.

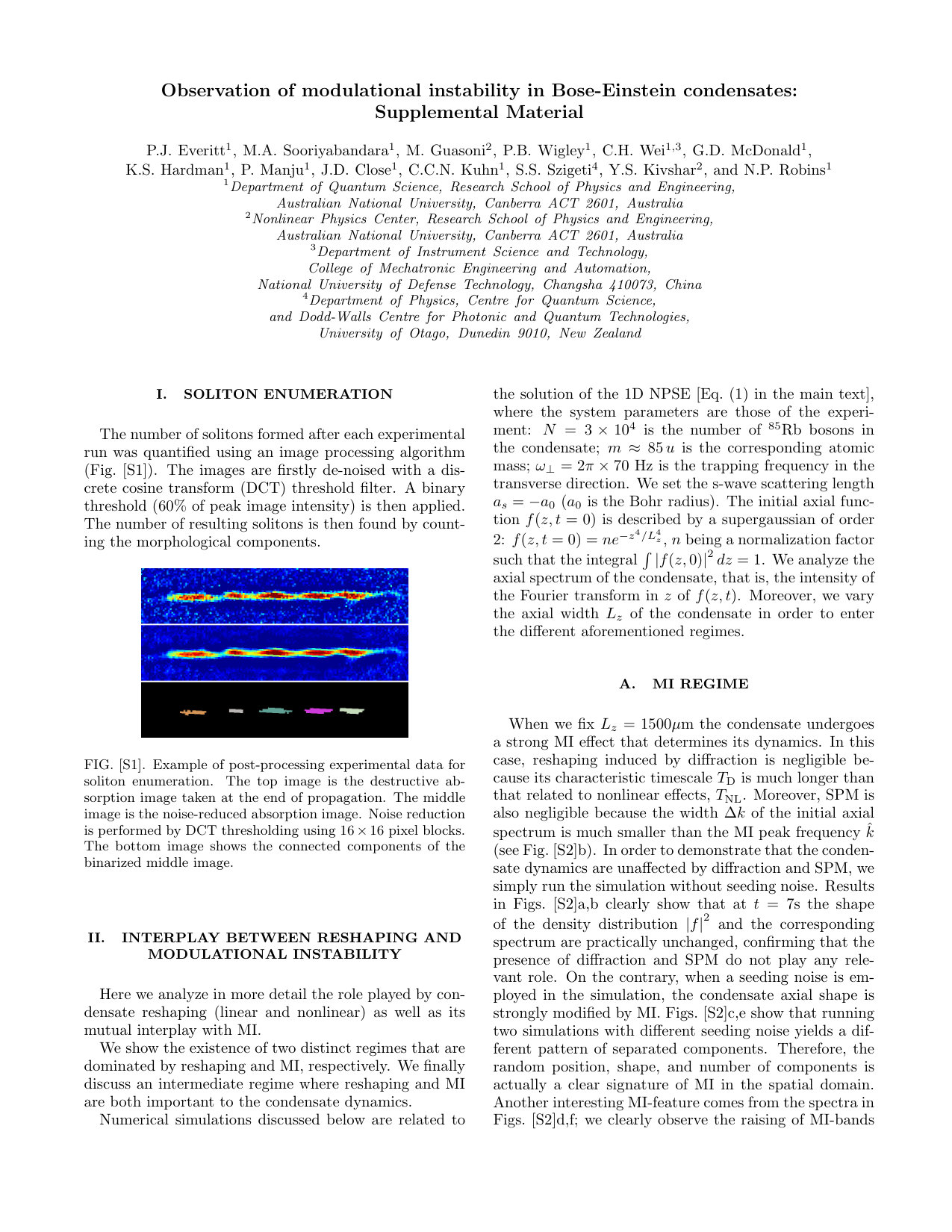

Ten runs were conducted for each choice of $a_{s}$. The number of spatial components was quantified using an image processing algorithm (see Supplemental Material supplemental ). Briefly, the images were de-noised then binarized with the number of resulting solitons given by counting the morphological components. Train formation is stochastic in nature – the same experimental conditions resulted in a varying number of constituent components (Fig. 2). Although the atom number varied shot-to-shot by up to 10%, this variation was shown to be uncorrelated with the final number of components. Variations in both the spatial locations of the individual components and the formation onset time were also observed.

Theoretical approach. The NPSE Salasnich2002 – an effective 1D model of the Gross-Pitaevskii equation (GPE) – provides a simple and effective theoretical insight into our experimental observations. It well-approximates the full 3D dynamics of the GPE for cigar-shaped condensates whose relevant dynamics occur in the axial direction Salasnich2002 ; Salasnich2003 . According to the NPSE, the 3D condensate wavefunction is factorized into transverse and longitudinal components: $\psi(x,y,z,t)=f(z,t)\phi(x,y,t;f(z,t))$. The axial component $f(z,t)$ is the unique unknown of the model, and its evolution is described by

[TABLE]

where $c_{1}=\hbar/(2m)$, $c_{2}=UN/(2\pi a_{\perp}^{2}\hbar)$, $c_{3}=\omega_{\perp}/2$ and $\sigma^{2}=(1+c_{4}\left|f\right|^{2})^{1/2}$, with $c_{4}=2a_{s}N$. Here $U=4\pi\hbar^{2}a_{s}/m$, $N$ is the condensate number, and $a_{\perp}=\sqrt{\hbar/(m\omega_{\perp})}$ is the oscillator length in the transverse direction with corresponding trapping frequency $\omega_{\perp}$.

Following the standard procedure hasegawa_tunable_1980 , we describe the MI dynamics in the axial coordinate by assuming $f(z,t)$ is the sum of a plane wave and two small perturbations centered at spatial frequencies $\pm k$: $f(z,t)=u\exp(i\beta_{u}t)+p_{+}\exp[ikz+i\beta_{+}(k)t+g(k)t]+p_{-}\exp[-ikz+i\beta_{-}(k)t+g(k)t]$, where $u,p_{\pm}$ are complex, $\beta_{u}$ is real, and $\beta_{\pm}$ and $g$ are real functions of $k$, with $g$ the temporal growth rate of the perturbations.

Inserting this ansatz into Eq. (1) and applying a linear stability analysis yields expressions for $\beta_{u,\pm}$ and $g$. The latter quantity is the gain spectrum of spatial modes with wavenumber $k$:

[TABLE]

where $\sigma_{0}^{2}=(1+c_{4}\left|u\right|^{2})^{1/2}$.

Equation (3) implies that all spatial frequencies in the MI-band $|k|\leq 2(M/c_{1})^{1/2}$ undergo amplification and that the fastest growing sidebands are at $\hat{k}=(2M/c_{1})^{1/2}$ with corresponding growth rate $\hat{g}=M$.

In the weakly-interacting limit $c_{4}\left|f\right|^{2}\ll 1$, Eq. (1) reduces to the well-known 1D GPE Salasnich2002 , which is less accurate than the NPSE as it fails to describe the condensate dynamics outside the weakly-interacting regime Salasnich2002 . Therefore, Eq. (3) accurately describes the growth rate of perturbations in both weak- and strongly-interacting regimes.

In the more general and realistic case where the initial axial function $u_{0}(z)=f(z,t=0)$ is not a plane wave but finite-sized, the BEC undergoes both a linear reshaping [first term in RHS of Eq. (1)] and a nonlinear reshaping [second and third terms in RHS of Eq. (1)], which are respectively analogous to the diffraction and nonlinear self-phase modulation (SPM) experienced by an optical beam propagating in nonlinear Kerr-media Dudley2006 .

Linear (diffraction) and nonlinear (SPM and MI) effects interplay with each other and a characteristic time defines the temporal scale over which they become relevant to the dynamics supplemental . Exploiting the analogy with optical phenomena in Kerr media, the characteristic time for linear diffraction and nonlinear phenomena can be roughly estimated as $T_{\textrm{D}}=L_{z}/c_{1}^{2}$ and $T_{\textrm{NL}}=1/(\left|c_{2}\right|u_{\text{peak}}^{2})$, respectively, where $L_{z}$ is the spatial width of $u_{0}$ and $u_{\text{peak}}=\max\{\left|u_{0}\right|\}$. In our experiment $T_{\textrm{D}}\gg T_{\text{NL}}$, hence the first-stage evolution of the condensate is dominated by MI and can be written as:

[TABLE]

where the integration is performed over the whole MI-band and $p(k)$ indicates the initial perturbation at spatial frequency $k$ that is amplified with growth rate $g(k)$ [see Eq. (3)]. The integral in Eq. (4) represents a superposition of sinusoidal waves giving rise to the typical components observed in the condensate axial profile. If the condensate is seeded by random noise, then the initial perturbation $p(k)$ is a stochastic variable whose value depends on the particular experimental run. Consequently, for a fixed time $t$, the position, amplitude, and shape of the components differs between runs. This explains the random nature of the components experimentally observed and represents a truly distinctive signature of the MI regime.

Although the number of morphological components after breakup is random, the average distance $\langle d_{z}\rangle$ between consecutive components is set by the fastest growing spatial frequency, i.e. $\langle d_{z}\rangle=2\pi/\hat{k}$. This allows a simple estimate of the average number of components via $\langle N_{\text{Comp}}\rangle=L_{z}/\langle d_{z}\rangle$.

Additional to this analytic theory, we performed NPSE simulations that aimed to reproduce experimental conditions, including the antitrapping waveguide potential and three-body recombination losses, modeled by including $iK_{3}N^{2}|f|^{4}f/(2\pi a_{\perp}^{2}\sigma^{2})^{2}$ in the RHS of Eq. (1) ($K_{3}=4\times 10^{-41}\mathrm{\;m}^{6}\mathrm{s}^{-1}$ is experimentally determined). The simulations were seeded with Gaussian noise with a minimum spatial correlation width determined by the condensate’s healing length, ensuring that the perturbation only contained physical noise. The noise amplitude was approximately 1% of $|\psi|$.

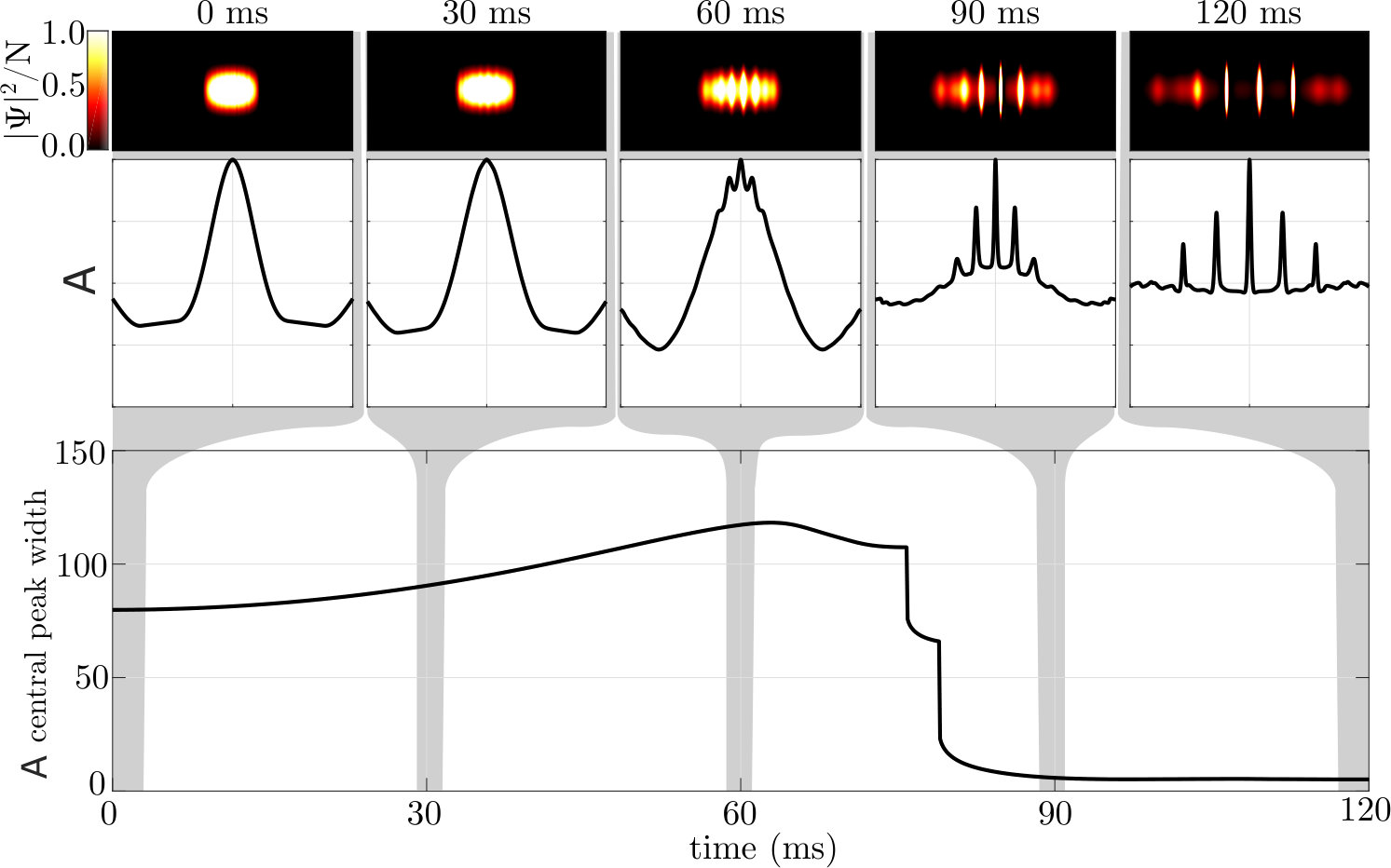

Figure 3 displays the evolution of a simulated BEC undergoing MI, resembling the typical evolution observed in experiments (Fig. 2). Condensate breakup causes the formation of spatial components, which become distinct and separated once MI amplification is well-developed. Furthermore, the final distribution is typically asymmetric as a result of the random seeding noise ($|\Psi|^{2}$ in Fig. 3).

SPM induces an axial compression of the condensate, corresponding to a broadening of the condensate’s initial axial spectrum (i.e. Fourier transform of $u_{0}$). The larger the width $\Delta k$ of the initial axial spectrum, the faster the spectral broadening and the corresponding spatial compression. When $\Delta k\gtrsim\hat{k}$, the spectral broadening of the axial spectrum overlaps the MI-band and amplification of the seeding noise is negligible. Here, the SPM-induced spatial compression is followed by complex dynamics that could lead to the creation of distinct spatial components supplemental . These dynamics are similar to those undergone by short optical pulses in Kerr-media Dudley2006 . However, in this circumstance the number, position, and shape of the spatial components are fully deterministic, as they do not depend on the seeding noise.

An intermediate regime exists where neither MI nor SPM are truly dominant, but are equally important to the condensate dynamics. In this instance, the condensate undergoes a partial reshaping followed by the creation of random spatial components related to the MI supplemental .

For typical experimental parameters $L_{z}\sim 50\mu$m and $a_{s}\sim-a_{0}$, we estimate $\Delta k\sim 1/L_{z}\approx 20$m*-1* and $\hat{k}\approx 100\Delta k$, therefore SPM does not dominate over MI. However, for sufficiently negative scattering lengths, simulations show that a fast and strong spectral broadening due to SPM occurs.

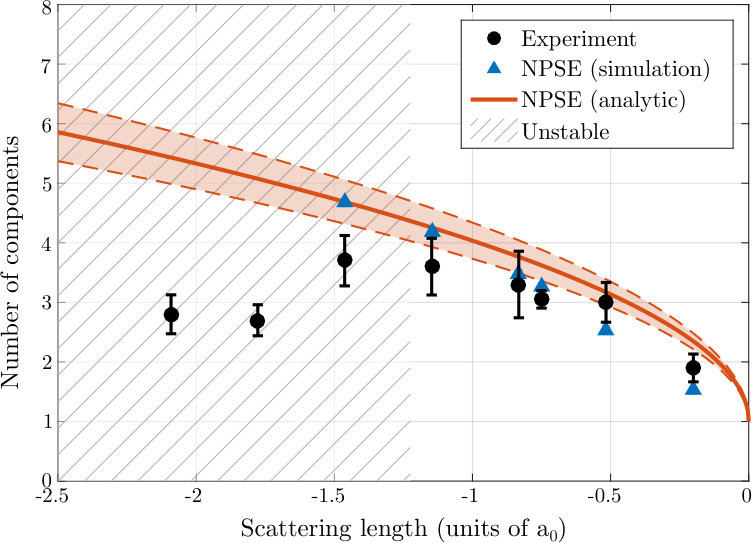

The average number of spatial components experimentally observed as a function of quenched $a_{s}$ is shown in Fig. 4 alongside the predictions from a stability analysis of the NPSE as well as NPSE simulations. The difference between simulations and analytic estimation is expected due to the presence of a partial SPM pulse reshaping as well as the antitrapping potential not accounted for by our analytical model. Nevertheless, after excluding data for $a_{s}<-1.7a_{0}$ (where a large thermal population was observed, so mean-field formalism is not applicable), $\chi^{2}$-tests show that our analytic theory ($\chi^{2}(6)=1.512$, $p=.959$) and NPSE simulations ($\chi^{2}(6)=0.861$, $p=.990$) agree well with the experimental data. Note also that stable soliton solutions of the initial condensate do not exist below $a_{s}=-1.2a_{0}$, as determined by a variational analysis of the GPE energy functional Carr2002 .

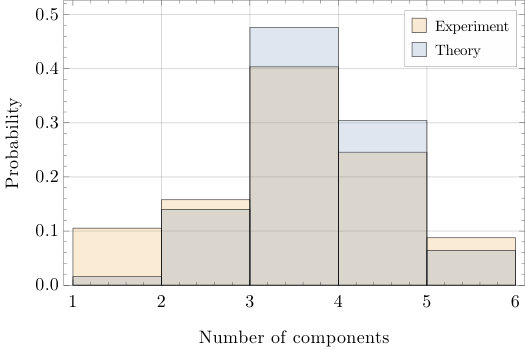

The distribution of measured components was also compared to that predicted by NPSE simulations. Independent sample $t$-tests show that the distribution of component numbers predicted by the NPSE do not significantly differ to the experimentally-measured distributions supplemental ; this agreement is pictorially demonstrated for $a_{s}=-0.75a_{0}$ in Fig. 5.

Discussion. The observed random position, number, and amplitude of measured components is truly indicative of MI dynamics. Agreement with NPSE simulations of MI is seen in both the mean and standard deviation of the number of measured components. In contrast, if train formation was seeded by linear effects, its dynamics would be deterministic, similar to what occurs with SPM reshaping. Furthermore, although the mean-field formalism employed here cannot account for fragmentation effects captured by the many-body model, the fragmentation dynamics predicted in an initially symmetric condensate are highly symmetric Cederbaum08 . Therefore, the stochastic breakup dynamics observed in our experiments are a truly distinctive signature of MI, whereas the observation of symmetric and deterministic behavior would be suggestive of a different underlying mechanism, such as MI seeded by linear effects from fragmentation or SPM reshaping.

In summary, we have presented a continuous experimental observation of MI in a BEC. A major advance of our experiment is the ability to nondestructively image stochastic time-dependent nonlinear phenomena with high temporal resolution. Our experimental observations are in good agreement with analytical and numerical predictions provided by the NPSE, and suggest that MI seeded by noise is the key physical mechanism underlying the breakup of elongated condensates into matter-wave solitary waves.

The improvements made to the experimental apparatus will allow the detailed study of many new aspects of nonlinear dynamics driven by MI. For MI to occur, an initial perturbation is required that then exponentially grows. Applying a reproducible initial noise profile to seed the condensate (necessarily greater in amplitude than those already present in the system) would remove the stochastic nature of the MI, allowing the timescales and transient dynamics of MI to be closely compared with simulation. Additionally, the solitons here are created by matching the dimensions of the trapped and untrapped clouds when switching off the confining potential and adjusting the scattering length. If, instead, a small mismatch in the radial widths of these two solutions is created, then a transverse excitation will be present during MI, altering the dynamics in a way not captured by the NPSE. Finally, the role of relative phase in soliton-soliton interactions, either attractive or repulsive, has previously only been inferred through comparison with GPE simulation nguyen_collisions_2014 . Combining the agile imaging system of the apparatus and the ability to perform Bragg interferometry along the waveguide mcdonald_bright_2014 would allow a direct measurement of this effect. By first nondestructively observing train formation and subsequent soliton interactions, neighboring solitons can then be interfered and their relative phase read out with higher SNR destructive imaging.

Similar work, developed independently, was released after the preparation of this manuscript, which focuses on MI in Li condensates nguyen_formation_2017 .
