Testing the existence of optical linear polarization in young brown dwarfs

TL;DR

This study investigates optical linear polarization in young brown dwarfs to understand atmospheric condensates, finding generally low polarization levels but detecting significant polarization in one M6 dwarf, supporting models linking oblateness and polarization.

Contribution

First measurement of optical linear polarization in a sample of young brown dwarfs, testing model predictions about atmospheric condensates and oblateness effects.

Findings

All targets have polarization below 0.69% in I-band and 1.0% in R-band.

Significant polarization detected in one M6 dwarf with 0.81% in R-band.

Results support the link between oblateness and polarization in young brown dwarfs.

Abstract

Linear polarization can be used as a probe of the existence of atmospheric condensates in ultracool dwarfs. Models predict that the observed linear polarization increases withthe degree of oblateness, which is inversely proportional to the surface gravity. We aimed to test the existence of optical linear polarization in a sample of bright young brown dwarfs, with spectral types between M6 and L2, observable from the Calar Alto Observatory, and cataloged previously as low gravity objects using spectroscopy. Linear polarimetric images were collected in I and R-band using CAFOS at the 2.2 m telescope in Calar Alto Observatory (Spain). The flux ratio method was employed to determine the linear polarization degrees. With a confidence of 3$\sigma$, our data indicate that all targets have a linear polarimetry degree in average below 0.69% in the I-band, and below 1.0% in the R-band, at the time they were observed. We detected significant (i.e. P/$\sigma$ $\le$ 3) linear polarization for the young M6 dwarf 2MASS J04221413+1530525 in the R-band, with a degree of $\mathrm{p^{*}}$ = 0.81 $\pm$ 0.17 %.

Figures

Tables

Table 1. Table 1: List of observed targets with their magnitudes, spectral types and gravity characteristics.

Name	$J$ [mag]	$W2$ [mag]	$d$ [pc]	SpT	Gravity ${\mathrm{flag}}^a$	Reference
2MASS J00452143+1634446	13.06$\pm$0.02	10.39$\pm$0.02	17.5$\pm$0.6	L0$\beta$	VL-G, Li detection, 10-100 Myr [9]	1, 9
2MASS J03350208+2342356	12.25$\pm$0.02	10.77$\pm$0.02	42.4$\pm$2.3	M7	VL-G, 10 Myr, Li detection [7]	2, 7
2MASS J04221413+1530525	12.76$\pm$0.02	10.71$\pm$0.02	40.3$\pm$5.0	M6$\gamma$	VL-G	3, 8
			${240}_{-40}^{+70}$	M6$\gamma$	VL-G	3, 11
2MASS J04433761+0002051	12.51$\pm$0.03	10.48$\pm$0.02		L0	VL-G	4
2MASS J06023045+3910592	12.30$\pm$0.02	10.13$\pm$0.02		L2	INT-G, $\sim$100 Myr [10]	5
2MASS J20575409–0252302	13.12$\pm$0.02	11.02$\pm$0.02	14.2$\pm$0.8	L2	INT-G	6, 8

Table 2. Table 2: Linear polarimetric results of the observed targets.

Name	Filter	Obs. date	MJD	$q$ (%)	$u$ (%)	$P$ (%)a	$p\ast$ (%)a	$\theta$ (∘)
2MASS J0045+1634	I	20141024	56954.9929000	$-0.57\pm 0.20$	$0.13\pm 0.10$	$0.59\pm 0.27$	$0.52\pm 0.27$
	R	20141026	56956.9751000	$0.02\pm 0.57$	$0.43\pm 0.34$	$0.43\pm 0.68$	$0.00\pm 0.68$
	R	20141027	56957.9586000	$0.05\pm 0.36$	$-0.77\pm 0.17$	$0.77\pm 0.43$	$0.64\pm 0.43$
2MASS J0335+2342	I	20141024	56954.9067000	$-0.22\pm 0.04$	$-0.15\pm 0.05$	$0.27\pm 0.16$	$0.21\pm 0.16$
	I	20141027	56958.0300000	$0.06\pm 0.09$	$-0.03\pm 0.06$	$0.07\pm 0.19$	$0.00\pm 0.19$
	R	20141025	56956.0211000	$-0.07\pm 0.09$	$0.45\pm 0.11$	$0.46\pm 0.21$	$0.41\pm 0.21$
	R	20141026	56957.0715000	$0.03\pm 0.49$	$-0.09\pm 0.43$	$0.09\pm 0.67$	$0.00\pm 0.67$
2MASS J0422+1530	I	20141024	56954.9680000	$0.19\pm 0.07$	$0.19\pm 0.07$	$0.27\pm 0.18$	$0.20\pm 0.18$
	I	20141027	56958.1188000	$0.12\pm 0.07$	$0.35\pm 0.12$	$0.37\pm 0.21$	$0.31\pm 0.21$
	R	20141025	56956.0914000	$-0.64\pm 0.06$	$-0.53\pm 0.07$	$0.83\pm 0.18$	$0.81\pm 0.17$	$109.9\pm 6.2$
2MASS J0443+0002	I	20141024	56955.0793000	$0.06\pm 0.04$	$-0.23\pm 0.09$	$0.24\pm 0.16$	$0.18\pm 0.16$
	I	20141027	56958.0945000	$-0.13\pm 0.23$	$-0.01\pm 0.14$	$0.13\pm 0.31$	$0.00\pm 0.31$
	R	20141025	56956.1636000	$-0.69\pm 0.24$	$-0.34\pm 0.32$	$0.77\pm 0.43$	$0.64\pm 0.43$
2MASS J0602+3910	I	20141024	56955.1420000	$0.21\pm 0.11$	$-0.12\pm 0.17$	$0.25\pm 0.25$	$0.00\pm 0.25$
	I	20141027	56958.1746000	$-0.02\pm 0.17$	$-0.05\pm 0.15$	$0.06\pm 0.27$	$0.00\pm 0.27$
	R	20141026	56957.1811000	$-0.01\pm 0.24$	$-0.03\pm 0.28$	$0.04\pm 0.39$	$0.00\pm 0.40$
2MASS J2057–0252	I	20141024	56954.8426000	$0.14\pm 0.15$	$0.01\pm 0.13$	$0.14\pm 0.25$	$0.00\pm 0.25$
	I	20141027	56957.8639000	$-0.03\pm 0.18$	$0.25\pm 0.22$	$0.25\pm 0.32$	$0.00\pm 0.32$
	R	20141025	56955.8381000	$0.00\pm 0.20$	$0.00\pm 0.20$	$0.00\pm 0.32$	$0.00\pm 0.32$
G191B2B	I	20141027	56958.5602780	$-0.11\pm 0.12$	$-0.03\pm 0.12$	$0.11\pm 0.17$	$0.00\pm 0.17$
	R	20141025	56956.7283220	$-0.11\pm 0.18$	$-0.10\pm 0.10$	$0.10\pm 0.21$	$0.00\pm 0.21$
	R	20141026	56957.7343980	$-0.03\pm 0.10$	$-0.19\pm 0.12$	$0.19\pm 0.15$	$0.12\pm 0.15$
BD+25 727	I	20141024	56955.6904170	$1.41\pm 0.22$	$5.55\pm 0.17$	$5.72\pm 0.31$	$5.71\pm 0.31$	$37.9\pm 1.6$
HD251204	I	20141024	56955.7046870	$2.61\pm 0.09$	$-2.98\pm 0.09$	$3.96\pm 0.19$	$3.96\pm 0.19$	$155.7\pm 1.4$
	I	20141027	56958.7065050	$2.88\pm 0.13$	$-3.08\pm 0.08$	$4.21\pm 0.21$	$4.21\pm 0.21$	$156.5\pm 1.4$
	R	20141026	56957.6505560	$3.38\pm 0.09$	$-3.28\pm 0.03$	$4.70\pm 0.18$	$4.70\pm 0.18$	$157.9\pm 1.1$

Table 3. Table 3 : Observing log. Exposures format: exposure time (s) × \times number of circles in angle 0 ∘ , exposure time (s) × \times number of circles in angle 22.5 ∘ , exposure time (s) × \times number of circles in angle 45 ∘ , exposure time (s) × \times number of circles in angle 67.5 ∘ .

Name	Date	Filter	Exposures	Airmass	Aperture ($\times$ FWHM)	FWHM (")
2M 0045+1634	October 24, 2014	I	120$\times$4, 120$\times$4, 120$\times$4, 120$\times$4	1.15	2–5	2.3
	October 26, 2014	R	300$\times$2, 300$\times$2, 300$\times$2, 300$\times$2	1.12	2–4	1.5
			360$\times$1, 360$\times$1, 360$\times$1, 360$\times$1			1.7
	October 27, 2014	I	180$\times$3, 180$\times$3, 180$\times$3, 180$\times$3	1.06	2–5	1.1
	October 27, 2014	R	300$\times$2, 300$\times$2, 300$\times$2, 300$\times$2	1.07	2–4	1.1
			420$\times$1, 420$\times$1, 420$\times$1, 420$\times$1			1.4
2M J0335+2342	October 23, 2014	R	240$\times$1, 240$\times$1, 240$\times$1, 240$\times$1	1.04	2–4	1.0
			300$\times$2, 300$\times$2, 300$\times$2, 300$\times$2			1.3
	October 23, 2014	I	120$\times$1, 120$\times$1, 120$\times$1, 120$\times$1	1.04	2–5	1.4
			100$\times$2, 100$\times$2, 100$\times$2, 100$\times$2			1.2
	October 24, 2014	I	100$\times$3, 100$\times$3, 100$\times$3, 100$\times$3	1.52	2–5	1.3
	October 25, 2014	R	240$\times$1, 240$\times$1, 240$\times$1, 240	1.03	2–4	1.3
			300$\times$1, 300$\times$1, 300$\times$1, 300$\times$1			1.3
			260$\times$1, 260$\times$1, 260$\times$1, 260$\times$1			1.3
	October 26, 2014	R	360$\times$3, 360$\times$3, 360$\times$3, 360$\times$3	1.05	2–4	2.0
	October 27, 2014	I	150$\times$3, 150$\times$3, 150$\times$3, 150$\times$3	1.02	2–5	1.4
2M J0422+1530	October 24, 2014	I	110$\times$2, 110$\times$2, 110$\times$2, 110$\times$2	1.40	2–5	2.9
	October 25, 2014	R	300$\times$2, 300$\times$2, 300$\times$2, 300$\times$2	1.07	2–4	1.3
			260$\times$1, 260$\times$1, 260$\times$1, 260$\times$1			1.3
	October 27, 2014	I	180$\times$1, 180$\times$1, 180$\times$1, 180$\times$1	1.17	2–5	2.3
			150$\times$3, 150$\times$3, 150$\times$3, 150$\times$3			2.3
2M J0443+0002	October 24, 2014	I	150$\times$3, 150$\times$3, 150$\times$3, 150$\times$3	1.25	2–5	3.4
	October 25, 2014	R	300$\times$2, 300$\times$2, 300$\times$2, 300$\times$2	1.40	2–4	1.1
			310$\times$1, 310$\times$1, 310$\times$1, 310$\times$1			1.2
	October 27, 2014	I	150$\times$1, 150$\times$1, 150$\times$1, 150$\times$1	1.25	2–5	2.2
			180$\times$1, 180$\times$1, 180$\times$1, 180$\times$1			2.3
2M J0602+3910	October 24, 2014	I	100$\times$4, 100$\times$4, 100$\times$4, 100$\times$4	1.00	2–5	1.7
	October 26, 2014	R	360$\times$3, 360$\times$3, 360$\times$3, 360$\times$3	1.02	2–4	1.9
	October 27, 2014	I	150$\times$3, 150$\times$3, 150$\times$3, 150$\times$3	1.10	2–5	1.9
2M J2057-0252	October 24, 2014	I	120$\times$1, 120$\times$1, 120$\times$1, 120$\times$1	1.42	2–5	3.9
			150$\times$1, 150$\times$1, 150$\times$1, 150$\times$1			4.3
			180$\times$1, 180$\times$1, 180$\times$1, 180$\times$1			1.8
	October 25, 2014	R	300$\times$3, 300$\times$3, 300$\times$3, 300$\times$3	1.40	2–4	1.7
	October 27, 2014	I	180$\times$2, 180$\times$2, 180$\times$2, 180$\times$2	1.50	2–5	1.27
			120$\times$1, 120$\times$1, 120$\times$1, 120$\times$1			1.2
${\mathrm{G191B2B}}^a$	October 23, 2014	I	8$\times$1, 8$\times$1, 8$\times$1, 8$\times$1	1.04	2–6	1.0
	October 23, 2014	R	10$\times$1, 10$\times$1, 10$\times$1, 10$\times$1	1.04	2–6	0.9
	October 24, 2014	I	11$\times$3, 11$\times$3, 11$\times$3, 11$\times$3	1.12	2–6	2.8
	October 25, 2014	R	2.5$\times$2, 2.5$\times$2, 2.5$\times$2, 2.5$\times$2	1.60	2–6	1.4
	October 26, 2014	R	4$\times$3, 4$\times$3, 4$\times$3, 4$\times$3	1.19	2–6	1.8
	October 27, 2014	I	4$\times$1, 4$\times$1, 4$\times$1, 4$\times$1	1.06	2–6	1.4
			4.5$\times$1, 4.5$\times$1, 4.5$\times$1, 4.5$\times$1			1.4
			5$\times$1, 5$\times$1, 5$\times$1, 5$\times$1			1.4
	October 27, 2014	R	4$\times$3, 4$\times$3, 4$\times$3, 4$\times$3	1.06	2–6	1.7
BD+28 ${4211}^{a,c}$	October 25, 2014	R	1$\times$3, 1$\times$3, 1$\times$3, 1$\times$3	1.02	2–6	1.2
	October 26, 2014	R	1.5$\times$3, 1.5$\times$3, 1.5$\times$3, 1.5$\times$3	1.28	2–6	1.6
	October 27, 2014	I	2$\times$2, 2$\times$2, 2$\times$2, 2$\times$2	1.01	2–6	1.1
			2.5$\times$2, 2.5$\times$2, 2.5$\times$2, 2.5$\times$2			1.1
	October 27, 2014	R	1.5$\times$3, 1.5$\times$3, 1.5$\times$3, 1.5$\times$3	1.01	2–6	1.1
BD+25 ${727}^b$	October 24, 2014	I	0.1$\times$3, 0.1$\times$3, 0.1$\times$3, 0.1$\times$3	1.12	2–6	1.2
	October 27, 2014	R	0.5$\times$2, 0.5$\times$2, 0.5$\times$2, 0.5$\times$2	1.37	2–6	2.9
	October 27, 2014	I	0.4$\times$3, 0.4$\times$3, 0.4$\times$3, 0.4$\times$3	1.32	2–6	2.1
${\mathrm{HD251204}}^b$	October 24, 2014	I	0.8$\times$2, 0.8$\times$2, 0.8$\times$2, 0.8$\times$2	1.05	2–6	1.1
	October 25, 2014	R	0.8$\times$3, 0.8$\times$3, 0.8$\times$3, 0.8$\times$3	1.07	2–6	2.2
	October 26, 2014	R	2$\times$3, 2$\times$3, 2$\times$3, 2$\times$3	1.03	2–6	2.2
	October 27, 2014	I	0.9$\times$3, 0.9$\times$3, 0.9$\times$3, 0.9$\times$3	1.06	2–6	2.2

Equations

$$R_q^2=\frac{o(0\text{textordmasculine})/e(0\text{textordmasculine})}{o(45\text{textordmasculine})/e(45\text{textordmasculine})}$$

$$R_u^2=\frac{o(22.5\text{textordmasculine})/22.5(0\text{textordmasculine})}{o(67.5\text{textordmasculine})/e(67.5\text{textordmasculine})}$$

$$q=\frac{R_q-1}{R_q+1}$$

$$u=\frac{R_u-1}{R_u+1}$$

$$P=\sqrt{q^2+u^2}$$

$$\theta =0.5{\tan }^{-1}(u/q)$$

$${\sigma }_{\theta }=28.65{\sigma }_P/P$$

$$p\ast =\sqrt{P^2-{\sigma }_P^2}$$

Full text

††pagerange: Testing the existence of optical linear polarization in young brown dwarfs ††thanks: Based on observations of the Calar Alto Observatory (Spain), using CAFOS at the 2.2 m telescope.–Testing the existence of optical linear polarization in young brown dwarfs ††thanks: Based on observations of the Calar Alto Observatory (Spain), using CAFOS at the 2.2 m telescope.††pubyear: 2002

1 Introduction

Brown dwarfs are substellar objects that do not have enough mass to maintain stable hydrogen fusion in their cores, therefore, brown dwarfs cool with time, contracting and changing spectral types, from the M to Y spectral class (Kirkpatrick et al., 2012). Due to their evolution, the age and the mass are not determined by the spectral type, in contrast to stars. Thus, in addition to a spectrum, an accurate determination of brown dwarf ages is necessary to determine stellar masses (Burrows et al., 1997).

Young brown dwarfs, with ages $\leq$500 Myr, are still contracting to their final radii. Therefore, young brown dwarfs have lower gravity than mature field brown dwarfs ($>$500 Myr). Low gravity affects the chemistry of the atmosphere of brown dwarfs, leading to the modification of some of the spectral features present in more evolved brown dwarfs: they have weaker alkali lines, and in some cases redder colors and a triangular $H$-band (Lucas et al., 2001; Gorlova et al., 2003). There are also very red low mass dwarfs that do not show any evidence of youth or low gravity atmospheres (Marocco et al., 2014; Liu et al., 2016). It has been suggested the the infrared flux excesses observed in both low- and high-gravity very red cool dwarfs are caused by extraordinary dusty atmospheres (Looper et al. 2008; Barman et al. 2011; Gizis et al. 2012; Allers et al. 2016), although other scenarios might be at play (e.g., different metallicity, presence of disks).

Linear polarization is likely produced by scattering processes of the dusty particles in brown dwarfs atmospheres (Sengupta & Krishan, 2001; Sengupta, 2003; Sengupta & Kwok, 2005). Polarization can thus become a useful method to determine the properties of the atmospheric dust as the degree of polarization correlates with the particle size (Sengupta & Krishan, 2001). Sengupta & Marley (2010, and references therein), predicted optical and near infrared values of linear polarization in the range 0-1% for dusty ultracool dwarfs. Non zero linear polarization due to scattering processes is thought to arise as a result of the non cancellation of the polarization signal from different areas of the ultracool dwarf due to asymmestries such as an oblate shape or an heterogeneous distribution of dust. At lower gravities, rotationally induced non-sphericity is favored. Therefore, for ultracool dwarfs with similar amounts of condensates, we expect that the degree of linear polarization increases with the degree of oblatness. Furthermore, Marocco et al. (2014) and Hiranaka et al. (2016) concluded that under the scenario of a dust haze of particles in the upper atmospheres, the grains must have sub-micron sizes (typically between 0.15 and 0.4 $\mu$m) in order to explain the observed red colors.

Observationally, linear polarization in the optical and in the near infrared has been detected for some mature ultracool dwarfs, and also for young brown dwarfs (Ménard et al., 2002; Zapatero Osorio et al., 2005; Goldman et al., 2009; Tata et al., 2009; Zapatero Osorio et al., 2011; Miles-Páez et al., 2013, 2015). The degree of polarization measured in field brown dwarfs in the optical is up to $\sim$1.4%, which agrees with the theoretical predictions.

In this paper, we present the linear polarimetric photometry of a sample of well-selected low-gravity dwarfs whose masses are quite likely substellar. By comparing our measurements with those of high-gravity dwarfs of related spectral types available in the literature, we will test whether there is a relation between linear polarization intensity and surface gravity.

2 Sample selection

We selected ultracool dwarfs from Allers & Liu (2013), with spectral types in the M–L transition (M6–L2), and confirmed as young objects, i.e. as low gravity brown dwarfs. All targets were observable from the Calar Alto observatory (Spain), and were bright enough ($J\leq$13.5 mag) in the $R$ and $I$-bands to achieve a precision of $\sigma_{P}\pm 0.2\%$ with a 2.2 m telescope. Only six objects of Allers & Liu (2013) sample satisfied our selection criteria. In Table 1 we provide a list of the targets with their magnitudes in $J$ and $W2$-bands, their spectral types, distances and their gravity flags. Henceforth we will use abridged names.

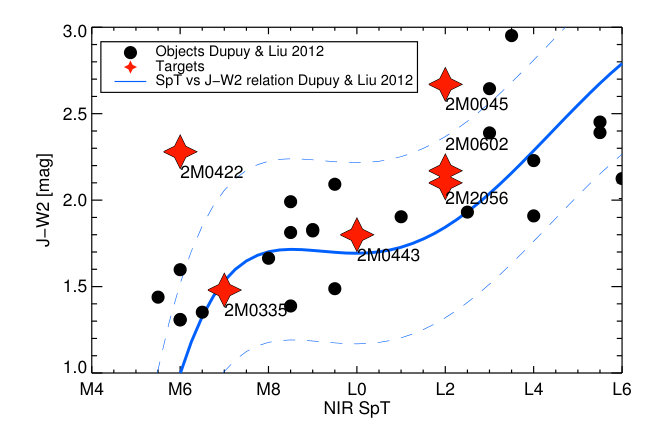

Our targets are brown dwarfs with low gravity signatures in their spectra: weak alkali metal lines, triangular $H$-band and redder colors than field brown dwarfs with the same spectral type. These objects have estimated ages lower than $\sim$500 Myr.

2M J0045+1634 is classified as an L0$\beta$ by Faherty et al. (2016), has lithium in its atmosphere and is a likely member of the Argus moving group according to Zapatero Osorio et al. (2014). Its age is estimated at the interval 10–100 Myr. Allers & Liu (2013) classified this object as a very low gravity dwarf using near-infrared spectra, which is consistent with a young age. Both Miles-Páez et al. (2013) and Zapatero Osorio et al. (2005) measured very low linear polarization indices, compatible with null polarization and in any case below 0.12%, in the $J$ and $I$ bands.

Object 2M J0335+2342 is a M8.5 dwarf with Li detection at 6708 Å(Reid et al., 2002), which provides an upper limit on its age of $\sim$150 Myr for M dwarfs. It has intense and resolved H-$\alpha$ emission as well (Shkolnik et al., 2009). Allers & Liu (2013) re-classified it as a young M7. Gagné et al. (2014) discussed that it might be a likely member of the $\beta$-Pictoris moving group.

The object 2M J0422+1530 was classified as a M6$\gamma$ by Cruz et al. (2009) using its optical spectra. Allers & Liu (2013) found that its near infrared spectrum was excessively red for its spectral type, and showed weak alkali metal lines, indicating low surface gravity. Faherty et al. (2012) reported an absolute parallax of 24.8$\pm$3.1 mas (d = 40.3$\pm$5.0 pc), which is 6.4$\sigma$ discrepant with the absolute parallax reported by Liu et al. (2016) ($\pi_{abs}$ = 3.9$\pm$1 mas or d =$\mathrm{240^{+70}_{-40}}$ pc). 2M0422 is $\sim$10*∘* to the South of the Taurus star-forming region on the sky (age $\sim$1 Myr, Briceño et al. 1999; Luhman 2004), therefore, depending on which of the two values of the trigonometric distance reported is correct, 2M0422 might be before, embedded or behind the Taurus-Auriga star-forming region.

2M J0443+0002 is a L0 dwarf classified as a very low gravity object by Allers & Liu (2013), showing all typical spectral characteristics of a low gravity dwarf.

2M J0602+3910 is a L2 intermediate gravity object (Allers & Liu, 2013), and a candidate member to the Pleiades moving group, with an estimated age of $\sim$100 Myr (Seifahrt et al., 2010).

Finally, the object 2M J2057-0252 is a L2 intermediate gravity brown dwarf based on its low resolution spectrum (Allers & Liu, 2013). Its optical spectrum shows both lithium absortion and H$\alpha$ emission (Cruz et al., 2003). Zapatero Osorio et al. (2005) measured its linear polarization in $I$ band obtaining a debiased value of p*=0.00$\pm$0.38%, and Miles-Páez et al. (2013) obtained a polarization in the $J$ band of p*=0.13$\pm$0.15%.

3 Observations and data reduction

We collected linear polarimetric images using the Calar Alto Faint Object Spectrograph (CAFOS, Patat & Taubenberger 2011), at the 2.2 m telescope at the Calar Alto Observatory (Spain). It is mounted at the Cassegrain focus, and it is equipped with a Wollaston prism for polarimetry that provides an effective beam separation of $\sim$20", plus a half-wave retarder plate. With this combination we were able to measure linear polarization using dual-beam imaging polarimetry. CAFOS has a 2048 x 2048 pixel SITe CCD detector, with a scale of 0."53/pixel. The CCD was windowed to the central 1024 x 1024 pixels, with a field of view of 9’ x 9’. Observations were obtained during the whole nights between October the 23th and October the 27th 2014.

Images were obtained in $R$ (641 nm, passband 158 nm) and $I$ bands (850 nm, passband 150 nm). All targets were observed in both filters in different days. Bias calibration frames, and twilight and dome flat frames with the polarization optics were taken every day in $I$ and $R$ filters. No systematic variation was detected in the calibration frames from night to night. Beside our targets, we observed two types of standard stars at approximately the same CCD spot (512, 512 on the windowed images): two polarized standard stars, BD+25 727 and HD251204, and two non-polarized standard stars, G191B2B and BD+28 4211. To investigate instrumental polarization we used only G191B2B, because the other unpolarized star has a close visual companion that may affect the polarization measurements . The white dwarf G191B2B allowed us to test the stability of the instrument and the existence of instrumental polarization, while the polarized standard stars allow us to identify zero offsets.

We collected images at four different angles of the retarder plate: 0*∘, 22.5∘, 45∘, and 67.5∘*. The observing log is shown in Table 3, including: date of observation for each target, filter of observation, exposure time, number of exposures per each retarder plates position, airmass, aperture and FWHM (Full Width at High Maximum).

We reduced the raw images using the $IRAF$ (Image Reduction and Analysis Facility) standard routines. Raw images were bias-substracted and flat-field corrected using the corresponding images to their respective filter. We used the dome flats acquired as a part of the daily standard calibrations taken in the telescope.

4 Polarimetric analysis

We calculated the degree of linear polarization in the $I$ and $R$ bands, and the polarization angles by means of the Stokes parameters $q$ and $u$. The equations to compute the Stokes parameters, the degree of linear polarization, and the angle of vibration of the polarization are taken from Zapatero Osorio et al. (2011) and Miles-Páez et al. (2013):

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

[TABLE]

where $o$ refers to the flux of the ordinary beam, and $e$ refers to the flux of the extraordinary beam in the dual images of the single frames. $P$ and $\theta$ are the linear polarization, and the angle of vibration of the linear polarization.

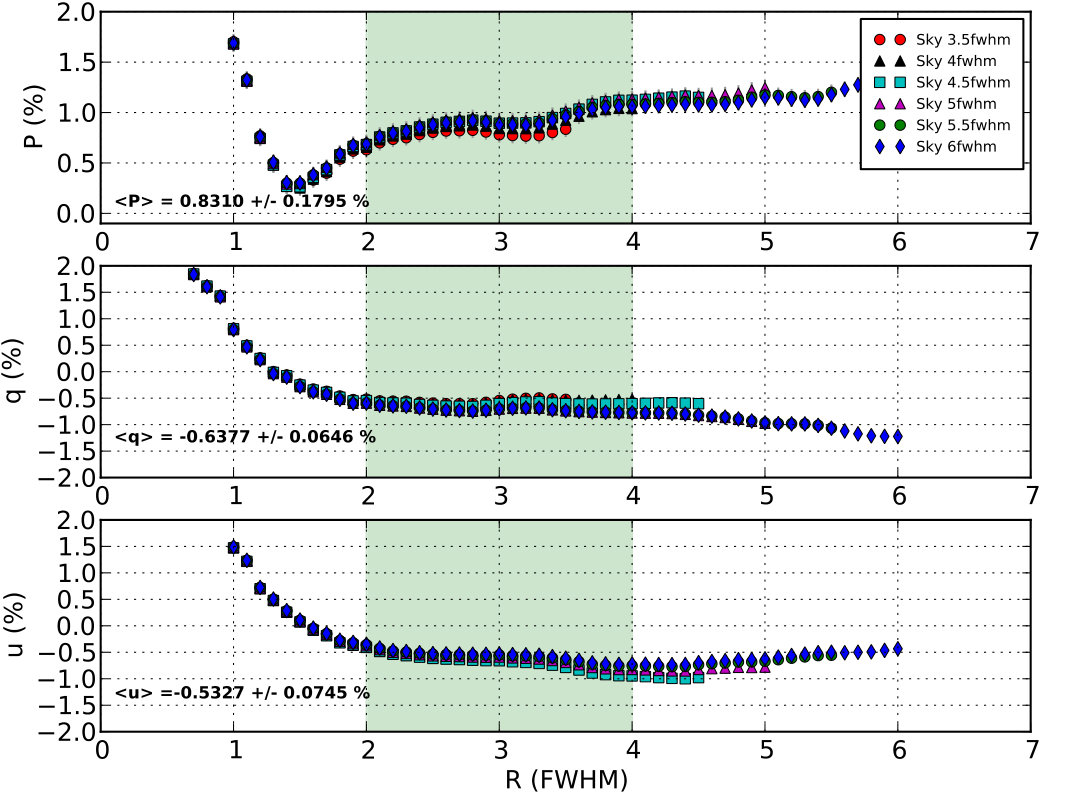

Fluxes of the targets and reference stars have been derived by doing aperture photometry using different aperture radii and different annuli for the sky at different distances from the centroid of the target. We calculated the flux for every target employing circular photometric apertures of different sizes, from 0.5–6 $\times$ FWHM with steps of 0.1 $\times$ FWHM, and 6 sky rings, which were annuli with inner radii of 3.5 through 6 $\times$ FWHM (steps of 0.5 $\times$ FWHM) and widths of 1 $\times$ FWHM. These fluxes were used to compute the Stokes parameters, $q$ and $u$. We chose the range of apertures in which their estimated values remained nearly flat (typically 2–5 $\times$ FWHM, depending on brightness and filter, see Table 3). For every night and target we obtained figures similar to Figure 1. All the measurements are compatible with zero polarization within 3$\sigma$, suggesting that the instrument is free of instrumental polarization. The error obtained in the $I$-band for the unpolarized stars was 0.17%, and for the $R$-band was 0.18%. Uncertainties $u$ and $q$ are estimated as the standard deviation of values of the Stokes parameters $u$ and $q$. Uncertainties in $P$ are the quadratic sum of the uncertainties in $q$ and $u$, and the uncertainty derived from non-polarized standard star (0.17% for the $I$-band and 0.18% for the $R$-band). The error in the polarization vibration angle is:

[TABLE]

Where $\sigma_{\theta}$ are the errors of the linear polarization angle in degrees, $\sigma_{P}$ is the uncertainty of the polarization degree. The factor 28.65 $\sigma_{P}/P$ comes from the propagation of uncertainties, and it is only valid when $P/\sigma_{P}\geq$3 (Serkowski, 1974; Wardle & Kronberg, 1974). We identified as linearly polarized those sources in our sample that comply with $P/\sigma_{P}\geq 3$ (i.e. 3$\sigma$ criterion).

The degree of linear polarization is always a positive quantity, thus, small values of $P$ and measurements affected by poor S/N are biased towards an overestimation of the true polarization. We applied Wardle & Kronberg (1974) equation to debiase the linear polarization degree:

[TABLE]

We provide the observation dates, filter, Stokes parameters, linear polarization degree and debiased linear polarization degree with their respective uncertainties in Table 2. Polarization vibration angles are only provided for those sources that satisfy the 3$\sigma$ criterion, and therefore are likely linearly polarized.

5 Discussion

All objects in our sample have a linear polarization degree in the $I$-band compatible with zero polarization. In the $R$-band, only 2M0422 has a value of linear polarization degree different from zero. The 3$\sigma$ upper limit on our detectability in the $I$-band is 0.69%, and 1.0% in the $R$-band. These upper limits were calculated by computing a mean of the uncertainties of all measurements of polarization for $I$ and $R$-bands respectively, and multiplying by 3 the obtained values. Sengupta & Marley (2010) predicted a maximum polarization of 0.8% in the $I$-band for a log g = 4.5 object with $i$=90*∘* and spectral type between M7 and L2. For a similar object but with $i$=30*∘, the maximum predicted linear polarization is 0.2%. Therefore, with the precision of our measurements, we would only be able to detect polarization for objects with $i$ close to 90∘*.

The positive detection of polarization on the $R$-band and not in the $I$-band might be due to the size of the particles producing the polarization, or to time variable polarization, depending on the mechanisms producing the polarization in 2M0422.

Below we describe the most plausible mechanisms that can explain polarization found in 2M0422:

• •

Interstellar dust in the line of sight between the Earth and the targets. Interstellar dust might be a significant source of polarization for objects at distances further than 100 pc (Tamburini et al., 2002; Bailey et al., 2010; Cotton et al., 2016).

If the distance derived by Faherty et al. (2012) is correct, then 2M0422 cannot be embedded in the Taurus-Auriga star-forming region, thus, interstellar dust would not be a plausible explanation for the detected polarization for 2M0422.

In the case in which the distance obtained by Liu et al. (2016) is correct, then 2M0422 would be embedded or behind the Taurus-Auriga star-forming region. Therefore, the reddening found for 2M0422 colors, and the detected polarization in the $R$-band, could be explained by the presence of interstellar dust. This kind of linear polarization has an exponential dependence with wavelength (Serkowski et al., 1975). The positive detection of strong polarization in the $R$-band and no significant polarization in the $I$-band, despite the proximity of the two central wavelengths, implies that the polarization is maximum at a wavelength $\leq$400 nm, following the empirical function of the Serkowski’s law of the interstellar medium polarization due to submicron particles (Serkowski et al., 1975; Whittet et al., 1992). We have adopted a 3$\sigma$ upper limit of $P(I)=0.6\%$, which is three times the uncertainty associated with the polarimetric measurement of this particular source (Table 2), and $K=0.75$ after equation 3 of Whittet et al. (1992).

• •

Protoplanetary disk or debris disk surronding our target. Protoplanetary disks are expected to have lifetimes of about 10 Myr (Luhman & Mamajek, 2012). Some of the objects in our sample have estimated ages around $\sim$10 Myr. Thus, the linear polarization detected in some of these objects may be originated by a protoplanetary disk. Debris disks persist up to several Myr, but up to date, none has been confirmed around brown dwarfs.

In additon, in the case in which polarization is produced by a disk, we should find an excess of flux in the whole mid and/or far-infrared, depending on the type of disk we might find. In Figure 2, we show the color $J-W2$ as a function of the near infrared spectral type of our targets, and we compared them to the colors of the objects in Dupuy & Liu (2012), and the spectrophotometric relationship derived in the same work (blue line). Objects 2M J0422 and 2M J0045 are outside the 1$\sigma$ dispersion of the objects (dashed blue line), indicating mid-infrared flux excess in $J-W2$ color.

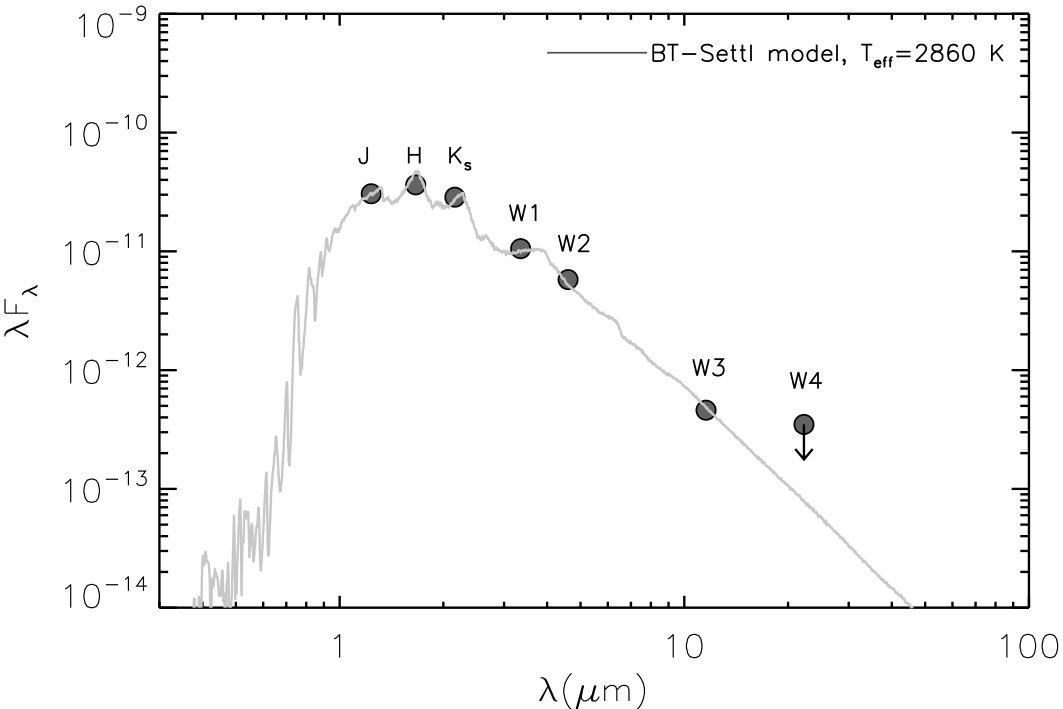

To try to confirm the existence of a disk, we searched for infrared excess in the whole SED (Spectral Energy Distribution) of 2M0422 using data available in VizieR (Ochsenbein et al., 2000). After reddened the model atmospheric emission to fit its broad-band photometry ($A_{V}$=3.1 mag), we fitted the SED predicted by the BT-Settl models for a M6 object, to the flux of 2M 0422+1530 in J, H, K (2MASS) and WISE (Fig. 3). No excess in the mid-infrared was found up to 11.6 $\mu$m.

• •

Presence of a transiting companion. During the transit, the symmetry of the dusty atmosphere of the young brown dwarf or giant exoplanet is broken, and the linear polarimetric signal should be enhanced (Sengupta, 2016). The peak polarization is predicted to range between 0.1–0.3% in the near infrared. Sengupta (2016) estimated that the peak in polarization for L dwarfs due to the transit of an Earth-size or larger exoplanets vary in the range between 0.2%–1.0%. Our data were not conceived as a continuous monitoring program. Therefore, this scenario, although possibly less plausible than disk extinction or dusty clouds, cannot be discarded for 2M0422.

• •

Dust particles in the atmosphere of young brown dwarfs. L dwarf atmospheres are composed of clouds of iron and silicate grains of $\mathrm{H_{2}O}$, FeH and CO (Cushing et al., 2005), that produces absorption bands in the near infrared spectrum, and change the opacity of the atmosphere. The formation of the dust in ultracool dwarf atmospheres is influenced by surface gravity. Low surface gravity is expected to enhance the formation of dust in the atmospheres of these objects, and therefore a higher degree of linear polarization is expected for young brown dwarfs. As explained in Section 1, Marocco et al. (2014) and Hiranaka et al. (2016) concluded that under the scenario of dust haze of particles in the upper atmospheres, the grains must have sub-micron sizes (typically between 0.15 and 0.4 $\mu$m) in order to explain the observed red colors. Furthermore, that the polarization index is greater in the R-band than in the I-band in the M6 J0422+1530 also favors small characteristic particles, which better agrees with Hiranaka and Marocco et al.’s prediction. The detection of linear polarization in our targets would favor the scenario of the dusty atmospheres. The quite different polarimetric measurements in $R$ and $I$-band could be ascribed to time variable polarization intrinsic to 2M0422, as the data were acquired on different nights. This is the most plausible scenario if the parallax reported by Faherty et al. (2012) is correct.

6 Conclusions

In the present work, we aimed to test the existence of optical linear polarization in a sample of brown dwarfs that show signs of youth characteristics in optical or near infrared spectra. We selected the most extensive sample of young brown dwarfs observable from CAHA, that were bright enough in the $R$ and $I$-bands to achieve a precision of $\sigma_{P}\pm 0.2\%$ in polarimetry observation with a 2.2 m telescope. We detected linear polarization for target 2MASS J04221413+1530525 in the $R$-band ($p^{*}$=0.81$\pm$0.17%). The two most plausible causes of the source of polarization in 2M0422 are:

• •

Dust in the line of sight between the Earth and the object, only if we assume that the trigonometric parallax reported by Liu et al. (2016) is correct. In this case, 2M0422 might be embedded or behing the Taurus-Auriga star-forming region. This hypothesis would explain the reddening of the spectrum of 2M0422, and the weak alkali lines indicating a young age of the object, in the case in which 2M0422 is a member of the star-forming region.

• •

A protoplanetary or debris disk, or dust particles in the atmosphere of the object, if we assume Faherty et al. (2012) as correct. The last hypothesis would agree with Marocco et al. (2014) and Hiranaka et al. (2016) predictions about the sub-micron particles in young brown dwarf atmospheres, which would explain red colors and the detection of polarization in the $R$-band.

For some of the objects in which polarization was not detected, the cause might be that a polarimetric cycle may cover a significant fraction of the rotation. If polarization is caused by inhomogeneous dusty concentrations over the surface, then it might be diluted over long exposures, or it might be below our detection limits.

To confirm the cause of the detected linear polarization in young brown dwarfs and in brown dwarfs in general, further polarimetric data with higher precision are necessary in the optical and in the near infrared.

Acknowledgements

We are thankful to the referee P. Lucas, for his valuable comments.

We gratefully acknowledge CAHA allocation time committee and CAHA Observatory staff for assiting the PI during the observations. This work was supported by Sonderforschungsbereich SFB 881 "The Milky Way System" (subproject B6) of the German Research Foundation (DFG). This research has made use of the SIMBAD database, operated at CDS, Strasbourg (France), and IRAF, the Image Reduction and Analysis Facility.
