Nature of the spiral state, electric polarisation and magnetic transitions in Sr-doped YBaCuFeO$_5$: A first-principles study

TL;DR

This study uses first-principles calculations to clarify the magnetic and ferroelectric properties of Sr-doped YBaCuFeO$_5$, revealing the absence of electric polarization in the helical spiral state and analyzing doping effects on magnetic transitions.

Contribution

It provides a detailed first-principles analysis of the magnetic spiral state and ferroelectric response in YBaCuFeO$_5$, clarifying previous ambiguities and exploring doping effects with QMC simulations.

Findings

Helical spiral is stable below the transition temperature with spins in the ab plane.

No electric polarization is found in the helical spiral state due to absence of DM interaction.

Doping influences the magnetic transition temperature, increasing up to x=0.5 then decreasing.

Abstract

Contradictory results on the ferroelectric response of type II multiferroic YBaCuFeO$_{5}$, in its incommensurate phase, has of late, opened up a lively debate. There are ambiguous reports on the nature of the spiral magnetic state. Using first-principles DFT calculations for the parent compound within LSDA+U+SO approximation, the multiferroic response and the nature of spiral state is revealed. The helical spiral is found to be more stable below the transition temperature as spins prefer to lie in ab plane. The Dzyaloshinskii-Moriya (DM) interaction and the spin current mechanism were earlier invoked to account for the electric polarisation in this system. However, the DM interaction is found to be absent, spin current mechanism is not valid in the helical spiral state and there is no electric polarisation thereof. These results are in good agreement with the recent single-crystal data. We also investigate the magnetic transitions in YBa$_{1-x}$Sr$_x$CuFeO$_5$ for the entire range $0\le x\le 1$ of doping. The exchange interactions are estimated as a function of doping and a quantum Monte Carlo (QMC) calculation on an effective spin Hamiltonian shows that the paramagnetic to commensurate phase transition temperature increases with doping till $x=0.5$ and decreases beyond. Our observations are consistent with experimental findings.

Figures

Tables

Table 1. Table 1: Experimental lattice constants of YBa 1-x Sr x CuFeO 5 yadav ; pissas ; kallias

x	a (Å)	b (Å)	c (Å)
0.00	3.8711	3.8711	7.6629
0.25	3.8603	3.8603	7.6595
0.50	3.8506	3.8506	7.6517
0.75	3.8408	3.8408	7.6342
1.00	3.8317	3.8317	7.6076

Table 2. Table 2: NN and NNN exchange interaction strengths in YBa 1-x Sr x CuFeO 5 in meV.

x	J1	J2	J3	J4	Jp1	Jp2	JNNN
0.00	-2.016	-2.016	14.01	2.86	149.5	8.78	-0.069
0.25	-2.383	-1.783	13.52	2.68	150.5	8.95	-0.087
0.50	-2.766	-1.646	13.10	2.59	155.5	9.15	-0.117
0.75	-2.511	-1.940	12.59	2.40	146.7	9.27	-0.095
1.00	-2.325	-2.325	12.27	2.31	147.6	9.41	-0.087

Equations

$$H=\frac{1}{2}\sum _{ij}{J}_{ij}({\mathbf{S}}_i\cdot {\mathbf{S}}_j)$$

$$H_{DM}=\sum _{ij}{\mathbf{D}}_{ij}\cdot [{\mathbf{S}}_i\times {\mathbf{S}}_j]$$

Full text

I Introduction

Type-II multiferroic materials, where ferroelectricity is induced by the spiral magnetic order  katsu ; mosto ; khomski ; tokura ; kimura , are expected to have various applications in magnetoelectric sensors, magnetic memory devices, etc. A prime objective is to design materials with high transition temperatures (TN) for the spiral magnetic state. In systems which are not geometrically frustrated, the spiral state results from competing nearest-neighbour (JNN) and next-nearest-neighbour exchange (JNNN) interactions herpin . High values for such interactions are therefore desired for raising the TN. However, in transition-metal oxides, such interactions are generally weak  good and TN for the spiral states are low  kimura2 ; hur .

There are only two exceptions where magnetism-driven ferroelectricity is observed close to room temperature via a stable spiral state: cupric oxide (CuO) kimura3 ; gio , where a spiral phase is observed above 200 K, but only in a narrow window between 213 K to 230 K kimura3 ; forsyth . The monoclinic symmetry with frustrating magnetic interactions and competing NN and NNN exchange interactions stabilize the magnetic spiral in this system around room temperature. The second one is the oxygen-deficient layered perovskite YBaCuFeO5 (YBCFO), which displays multiferroism at unexpectedly high temperature kund ; morin1 . Large electric polarisation kund ; morin1 associated with the spiral phase has been reported in ceramic samples within a wide temperature range (almost ten times that of CuO) at zero magnetic field. However, there are contradictions regarding the direction of electric polarisation. Kundys et al. kund proposed that the polarisation vector lies along the c axis due to the formation of dipole moments within the bipyramid, while Morin et al.morin1 suggest cycloidal nature of the spiral, tilted along c axis, favoring electric polarisation perpendicular to z direction.

A very recent experiment on a single crystal chung sample of parent YBCFO reach a completely different conclusion from what ceramic samples provided earlier. Their finding repudiates the ferroelectric nature of this compound as electric polarisation is entirely absent in the single crystal sample. However their experiments agree well with the previous magnetic measurements and confirm the presence of a spiral order. Subsequently, they suggested that the spins are rotated in the ab plane and form a magnetic spiral without any tilt along c.

YBCFO crystallizes into a tetragonal structure with $P4mm$ symmetrymorin2 . Experimentally it is not possible to assign any ordering of Fe/Cu ions due to their similar ionic radii. However, first-principles density functional theory calculations show that the bipyramidal layers are preferentially occupied by ferromagnetically coupled Fe-Cu pairs  morin1 (Fig. 1) within the experimentally observed commensurate magnetic structure. YBCFO undergoes two magnetic transitions kund ; morin1 ; morin2 ; kawa ; caig ; mombru ; ruiz : higher temperature paramagnetic (PM) to commensurate (CM) antiferromagnetic phase transition occurs at $T_{N1}$ with the magnetic propagation vector kcm=$(1/2,1/2,1/2)$ morin1 ; morin2 . An incommensurate (ICM) magnetic order sets in at a lower temperature $T_{N2}$. The neutron powder diffraction (NPD) data shows magnetic propagation vector kicm=$(1/2,1/2,1/2\pm q)$ in the ICM phase morin1 ; chung ; morin2 . However, ambiguity remains in the recent experiments morin1 ; kund ; chung ; the connection between ferroelectric properties and the ICM phase and the nature of magnetic spiral in that regime are still open and unresolved issues.

Morin et al.morin2 have recently observed that controlled introduction of chemical disorder into YBCFO during sample preparation, in the form of Fe-Fe or Cu-Cu impurity bonds, can enhance the stability of magnetic spiral state further, giving rise to a large increase of TN2 beyond room temperature, as high as 310 K. Subsequently, Monte-Carlo simulations have shown that these impurity-bonds introduce a large out of plane antiferromagnetic exchange interaction which stabilizes the spiral statemucci1 ; mucci2 . Application of pressure or doping isovalent ions at the A sites are believed to have similar effect as chemical disorder described above. Enhancement of TN2 by doping isovalent Sr at Ba sites has been observed in a very recent measurement yadav .

From first-principles calculations we shed light on some of these issues, in particular, we address the following: (i) the spin orientation in the ab plane, (ii) the nature of extant magnetic order - helical spiral or cycloidal, (iii) whether Dzyaloshinskii-Moriya (DM) interaction is present and if there is a possible route to electric polarisation in this system. We compare our results with recent single-crystal data and find good agreement. We comment on earlier data on polycrystalline samples as well.

We argue that the apparent discrepancy between different experimental data is likely to be an artifact of measurements on single-crystal versus polycrystal samples. Our theoretical results agree well with single crystal data. The rest of the paper is organized as follows. In Sec. II, we discuss the methodology of our ab -initio calculations in detail. In view of the recent disagreements on multiferroic nature of YBCFO, and the enhancement of transition temperature of the spiral phase with A site doping, we investigate the parent and doped compounds, using first-principles DFT calculations. The numerical results are discussed in Sec. III. First, we discuss the crystal and magnetic structure of both the parent and doped compounds in detail followed by the calculation of magnetic exchange interactions in CM phase to find the origin of the spiral phase. Next we study the effect of spin-orbit coupling (SOC) and calculate the anti-symmetric DM interaction parameter to identify the nature of the spin-spiral state in YBCFO. Finally, we study the effect of A site doping, followed by QMC calculation of an effective spin model whose exchange interactions are derived from DFT calculations. It would be useful to know how the exchange interactions evolve with doping and how they compete with each other in stabilizing or destabilizing the commensurate and incommensurate (spiral) magnetic phases. We also compare our results with existing experimental data. Finally in Sec. IV, we give a brief summary and outlook.

II Methodology

In order to study the electronic properties of the parent compound YBCFO and the Sr doped YBCFO (i.e. YBa1-xSrxCuFeO5), we have employed the first-principles density functional theory (DFT) calculations at various levels of approximations such as local spin-density approximation (LSDA), LSDA+U and LSDA+U+SO. For our DFT calculations we have used the plane-wave and psuedopotential based method as implemented in the Vienna ab-initio Simulation Package (VASP) kresse and projector augmented wave (PAW) potentials bloch . The wave functions were expanded in the plane-wave basis with a kinetic-energy cutoff of 600 eV. Reciprocal space integration was carried out with a k-mesh of $8\times 8\times 4$.

Electron correlation effects beyond LSDA, important to properly describe the ground state of transition metal oxides, are incorporated using LSDA+U duda calculations where U is the on-site Coulomb correlation. We considered the value of U to be 5 eV for Fe and 8 eV for Cu morin1 . Corresponding Hund’s coupling strengths (J) were set to JFe =1 eV and JCu=0 for Fe and Cu respectively, as used in the previous literature morin1 . Structural parameters were taken from experiments yadav ; pissas ; kallias for the parent and all the doped structures [Tab. 1]. Ionic positions for each structure are then optimized keeping the lattice constants at their respective experimental values.

We introduce SOC in our calculations to determine the spin easy-axis or easy-plane anisotropy of parent YBCFO within LSDA+U+SO approximation. In a previous report morin1 , it was suggested that DM interaction is the possible origin of electric polarisation in YBCFO. Since, DM interaction is associated with the SOC in the system, we have performed non-collinear DFT calculations with SOC to estimate the antisymmetric DM interaction parameter.

Further, we have carried out quantum Monte-Carlo (QMC) calculations using the loop algorithm of the ALPS 2.1 package  ALPS using the magnetic exchange interactions estimated from our DFT calculations to study temperature-dependence of magnetic susceptibility and specific heat of these systems. We also study the doping-dependence of PM to CM phase transition temperature. These calculations were performed on a $16\times 16\times 32$ supercell with periodic boundary condition.

III Results

We have investigated the possible origins of the spin spirals in YBCFO and also predicted it’s nature which supports recent experimental observations.

III.1 Crystal and Magnetic Structure

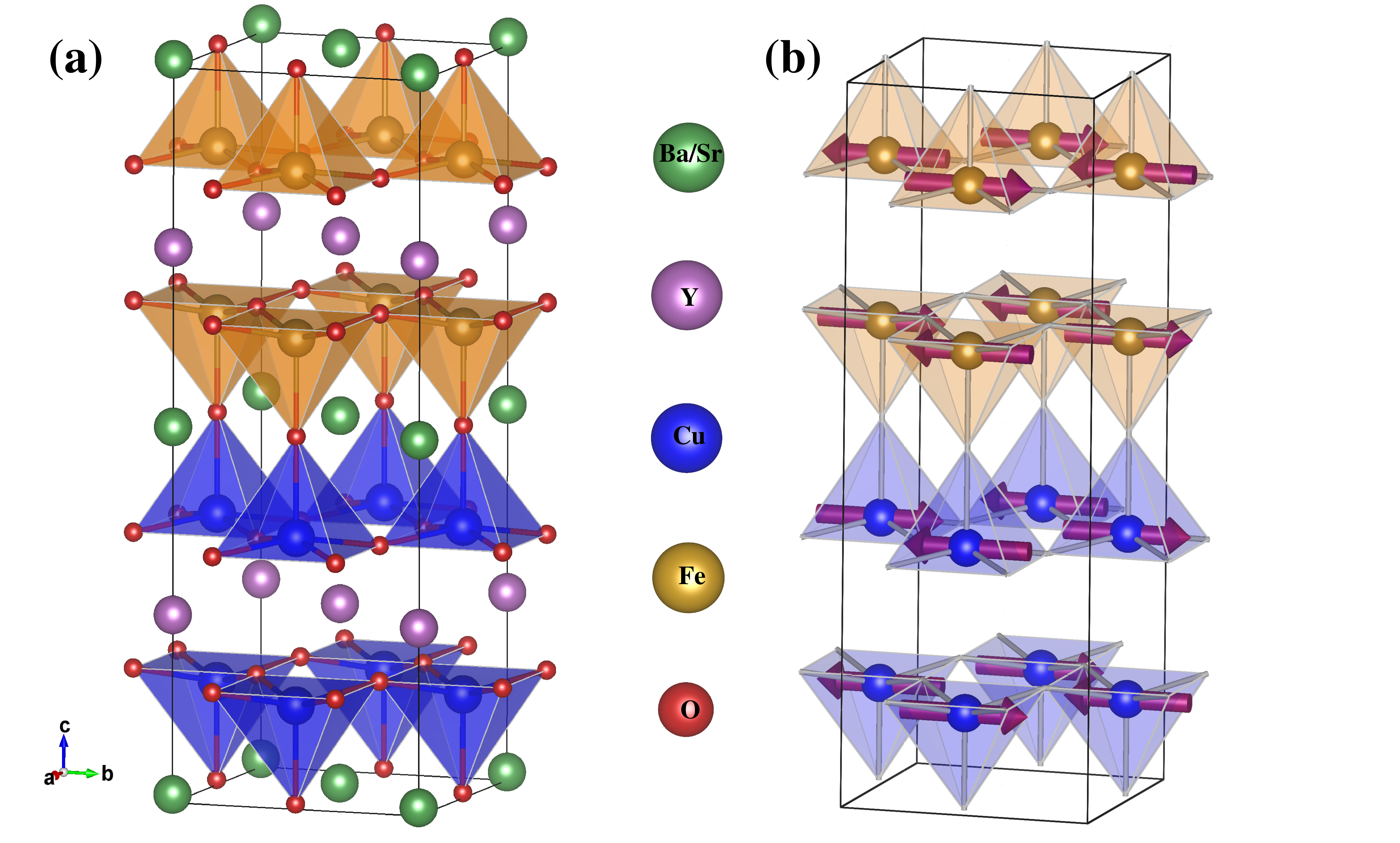

YBa1-xSrxCuFeO5 has the layered perovskite structure with a noncentrosymmetric $P4mm$ space group morin1 ; yadav for the entire range of doping as shown in Fig. 1(a). In the tetragonal structure, two square pyramids FeO5 and CuO5 are connected via apical Oxygen forming a layer of bipyramids. Ba2+/Sr2+ ions go into the interstitial positions in between the two square pyramidal layers. These bipyramidal layers (or bilayers) are separated by a layer of Y3+ ions.

In our ab-initio calculations we have considered a supercell with as=$\sqrt{2}a$ and cs=2c (a and c are the crystallographic unit cell parameters) containing four formula units, as depicted in Fig. 1(a). This construction of the supercell was required to incorporate the CM magnetic structure shown in Fig. 1(b)  morin1 . In this magnetic phase, the bipyramidal units connected via apical Oxygen are preferentially occupied by Cu-Fe pairs and the interaction within these Cu-Fe dimers is ferromagnetic (FM). Whereas Cu-Cu and Fe-Fe pairs separated by Y layers are antiferromagnetically coupled. Furthermore, all the nearest-neighbour (NN) interactions within the ab-plane are AFM in nature.

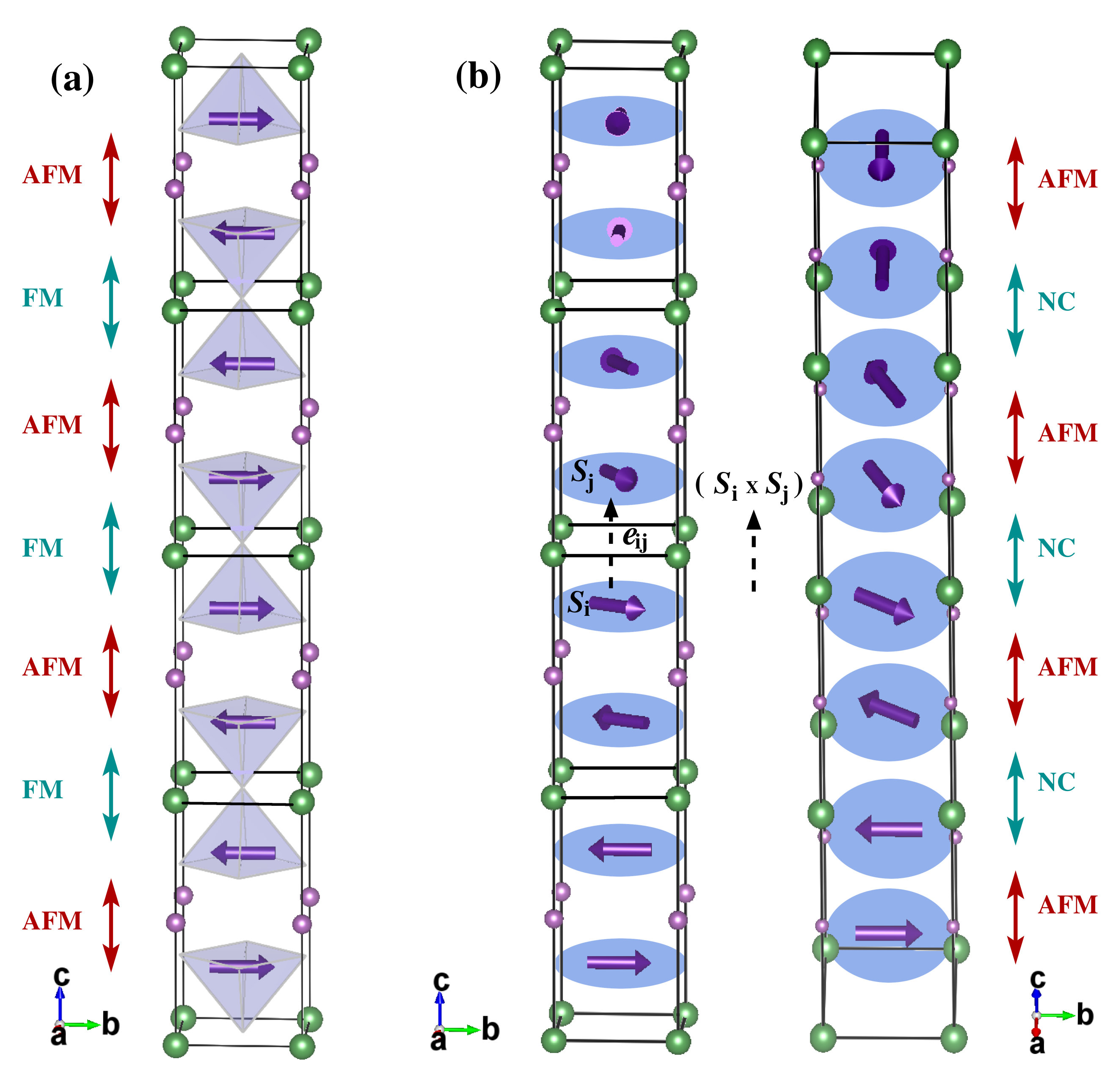

At lower temperatures (below TN2) a spiral magnetic state is formed in which non-collinear spin arrangements within the bipyramidal layer (Cu-Fe pairs) appears along c direction  morin1 ; morin2 ; chung . However, inter-bipyramidal exchange (Cu-Cu and Fe-Fe) interactions remain AFM in the ICM phase.

III.2 Magnetic Exchange Interactions

Consistent with the previous reportsmorin1 ; mucci1 , we also observe from our DFT total energy calculations that the parent compound YBCFO, in its commensurate magnetic phase, has the lowest energy when Fe3+ and Cu2+ ions are preferentially ordered in each bipyramid (Fig. 1(a)). Hence we considered this structure for further calculations as discussed below. The nearest (JNN) and next nearest neighbour (JNNN) exchange interactions were estimated by mapping the total energy difference between FM and AFM configurations for a pair of spins to the classical Heisenberg Hamiltonianmorin1 which can be written as

[TABLE]

Calculated J values are listed in Tab. 2 for parent as well as for doped compounds. For the parent compound, the J-values are comparable to the previously reported values morin1 . Here $J_{p1}$ and $J_{p2}$ are the in-plane Cu-Cu and Fe-Fe NN exchange couplings respectively which are found to be AFM in nature. We also observe that the strongest exchange interaction is in the ab-plane ($J_{p1}$). The out-of-plane interactions along c ($J_{1}$, $J_{2}$, $J_{3}$ and $J_{4}$) are much weaker (almost one order of magnitude less) compared to the in-plane $J_{p1}$.

To obtain insight into the origin of ICM phase, we studied the effect of next-nearest-neighbor (JNNN) exchange interactions along the c direction on the magnetic ordering. One possible way to create magnetic frustration in the unfrustrated CM phase is to have a strong ferromagnetic JNNN. However, our first-principles estimation of JNNN shows that this interaction (when ferromagnetic) is too small (Tab. 2) to cause enough frustration in destabilizing the CM phase in favour of an ICM one. The NNN interaction strengths for other structures with different Fe3+/Cu2+ ordering are also found to be either too weak or of wrong sign to stabilize a spiral spin statemorin1 . In the following section we explore the other possible scenarios for the formation of a spiral state in this system.

III.3 Effect of Spin-Orbit Coupling

The directions of spin moments in the CM phase of YBCFO was a matter of debate as far as recent experimental observations are concerned  morin1 ; chung . In order to determine the spin easy-axis or easy-plane anisotropy of the CM phase in YBCFO, we consider spin-orbit (SO) coupling in our calculations within LSDA+U+SO approach. Comparing total energies for three configurations with spin moments directed along x, y and z directions in the CM phase, we observed that spin moments prefer to lie in the xy-plane rather than along z-direction. The energy difference ($E_{xy}-E_{z}$) between them is $\approx-3$ meV. In a very recent single crystal measurements on YBCFO, Chung et al. chung also observed the spin moments are aligned in the ab-plane which corroborates our theoretical findings.

Moving on to the crucial and highly debated issue concerning this material $-$ magnetic spiral state induced ferroelectricity in its ICM phase, we explore a plausible microscopic mechanism  KNB ; sergienko which involves antisymmetric DM interaction  Dzya ; moriya . This interaction is a relativistic correction to the usual superexchange and its given by the following Hamiltonian

[TABLE]

The strength of the interaction is proportional to the SOC constant. The DM interaction favours non-collinear spin ordering in perovskite manganites  sergienko . It also transforms the collinear state into a magnetic spiral in ferroelectric materials  Zhao ; Kadomtsev .

We have performed DFT calculations with SOC to compute the antisymmetric DM interaction parameter (D) as described in the literature  xiang . The computed values for Dx, Dy and Dz are found to be negligibly small ($\approx 0.01$ meV) to cause any significant electric polarisation in YBCFO. This result rules out DM interaction as a possible origin of magnetically induced ferroelectricity in YBCFO as claimed in an earlier report  morin1 . Since the spin easy axis remains in the ab-plane, spins will prefer to remain in the plane when the system transits from CM to ICM phase. This implies that the nature of spiral state would be helical rather than cycloidal in the ICM phase. The proposed helical spiral state has been depicted in Fig. 2(b) where the non-colinearity appears within the ferromagnetically coupled bipyramids.

Based on the cycliodal spiral state a spin-current modelKNB was proposed earliermorin1 to explain the existence of electric polarisation in the ICM phase of YBCFO. According to this mechanism, the polarisation direction is given by $\mathbf{e}_{ij}\times(\mathbf{S}_{i}\times\mathbf{S}_{j})$, where $\mathbf{e}_{ij}$ is the vector connecting the i and j sites (see Fig. 2(b)) and spin indices are given by $\mathbf{S}_{i}$ and $\mathbf{S}_{j}$ respectively. However, if the spiral state is helical as proposed here (shown in Fig. 2(b)), one can immediately see that the direction of $(\mathbf{S}_{i}\times\mathbf{S}_{j})$ is along c direction and hence parallel to $\mathbf{e}_{ij}$ which will give rise to zero electric polarisation. Therefore, in both cases the polarisation is expected to be absent. From the above discussions we therefore conclude that (i) the spins are oriented in the ab plane, (ii) spin spiral state in the ICM phase of YBCFO is helical rather than cycloidal morin1 ; morin2 , (iii) there is no electric polarisation in the ICM phase of YBCFO. These conclusions agree very well with the recent single crystal measurements chung .

III.4 Effect of Sr doping on Magnetic Exchange Interaction

In order to see the effect of Sr doping on the various magnetic exchange interactions present in YBCFO, we have performed DFT calculations of YBa1-xSrxCuFeO5 compound for $x=0,0.25,0.5,0.75,1$. We have calculated the magnetic exchange interactions for the doped compounds considering the CM magnetic structure as shown in Fig. 1(b) within LSDA+U (see Tab. 2). For $x=0.5$ case we observed that alternate layers containing only Sr or Ba has lower energy than both layers having equal number Sr and Ba ions. So we have considered the former in the $x=0.5$ structure. From Tab. 2 we see that $J_{p1}$ increases with doping up to $x=0.5$ and then decreases. One would therefore expect the PM to CM phase transition temperature ($T_{N1}$) to also follow a similar trend. Along $c$, two types of NN interactions exist in the CM magnetic phase; one is the intra-bipyramidal ferromagnetic exchange interaction between Fe and Cu and the other is inter-bipyramidal antiferromagnetic exchange interaction between Fe-Fe and Cu-Cu pairs. We discuss below how various exchange interactions along c evolve with respect to doping.

III.4.1 NN-FM interaction

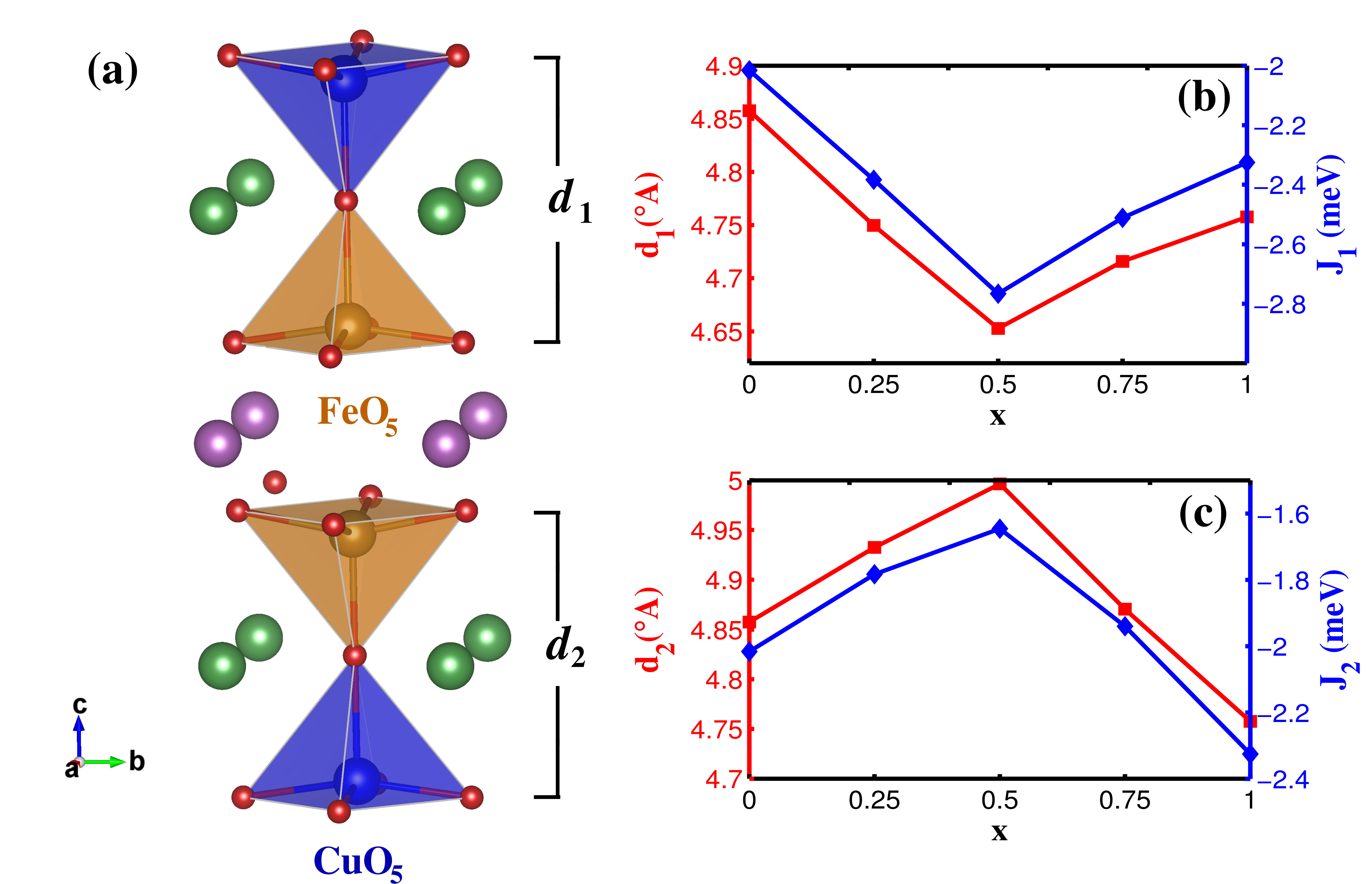

As we replace Ba with Sr having smaller ionic size, the thickness of bipyramidal layer starts to shrink from the corresponding value in the parent compound YBCFO. For example, at x=0.25 the thickness of the bilayer containing Sr (d1) decreases, whereas the thickness of the bilayer not containing Sr (d2) increases (see Fig. 3). This change in the thickness is expected to affect the corresponding exchange interactions. As we see in Fig. 3(b), ferromagnetic exchange interaction strength between Fe-Cu pairs ($J_{1}$) corresponding to the bilayer containing Sr increases whereas the same for the bilayer not containing Sr ($J_{2}$) decreases (Fig. 3(c)). This trend is followed for x=0.5 case as well where Sr and Ba segregate into different bilayers (see Fig. 3(b)).

For $x>0.5$, when both the bilayers contain Sr ions, the dependence of (d1) and (d2) on doping is opposite to what is observed in $x\leq 0.5$ case. So are the behaviour of $J_{1}$ and $J_{2}$. Note that at x=1.0 (i.e. YSrCuFeO5) the FM exchange of both bilayers are equal and is slightly more than the corresponding exchange interactions for x=0 (i.e. YBaCuFeO5). As it has been reported in the literature morin1 ; morin2 that the ICM phase is connected with the appearance of non-collinearity within the bilayers, the enhancement of FM exchange in YSrCuFeO5 (YSCFO) could imply that the CM phase would be more stable in this compound. The experimental reports on YSCFO compound pissas ; kallias indeed show that there is no CM to ICM phase transition.

III.4.2 NN-AFM interaction

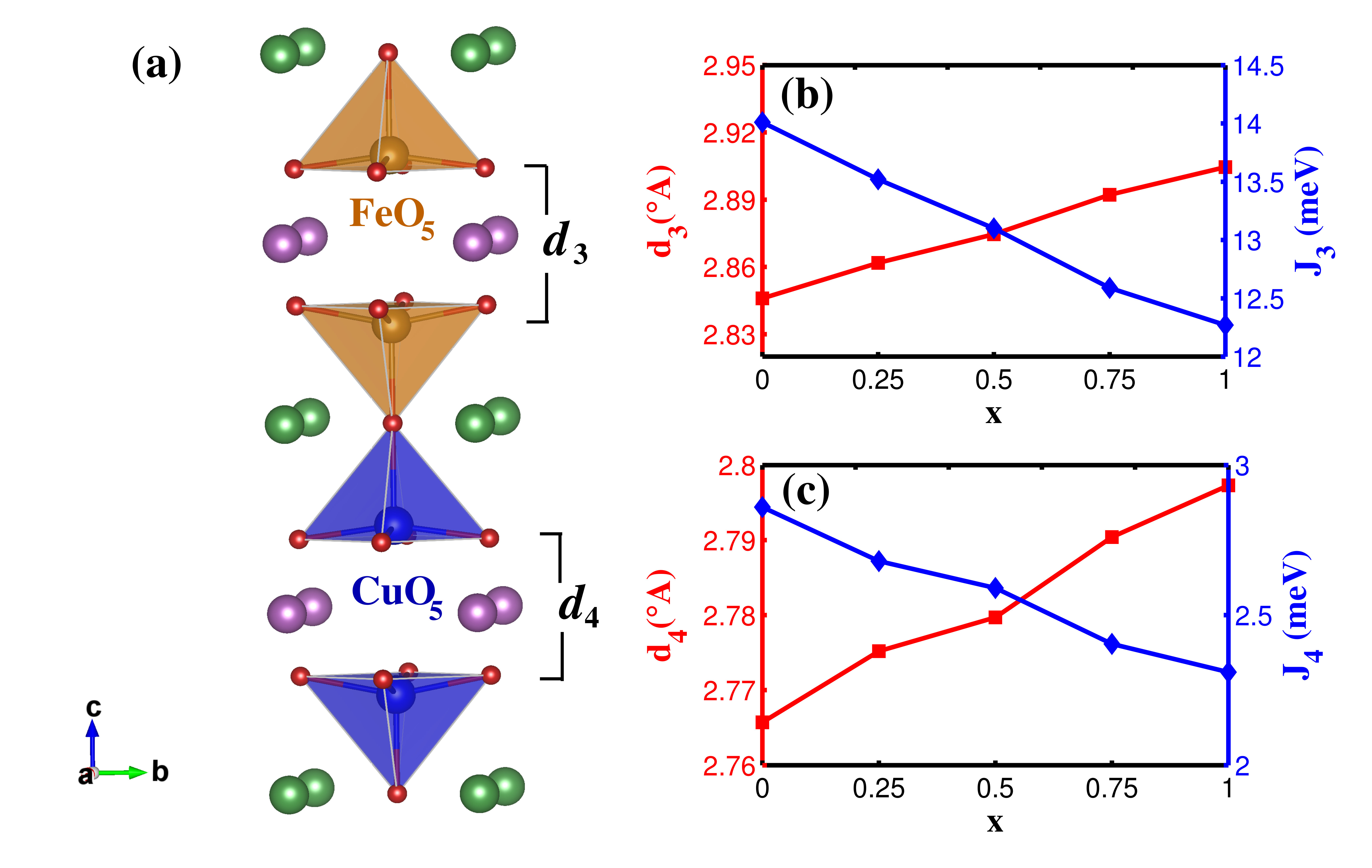

In addition to its effect on the Fe-Cu ferromagnetic exchange interactions within the bipyramidal layers, Sr doping is also seen to influence the AFM exchange interactions present between Cu-Cu and Fe-Fe ions in the adjacent bilayers as shown in Fig. 4. The inter-bipyramidal distances (d3 and d4) are observed to increase with doping almost linearly. The corresponding AFM exchanges (J3 and J4) decrease monotonically with Sr doping. This effect is similar to what is observed in a recent experimental measurement in YBCFO with Fe/Cu chemical disorder morin2 . The authors have reported that on increasing disorder the inter-bilayer distance increases whereas intra-bilayer distance decreases.

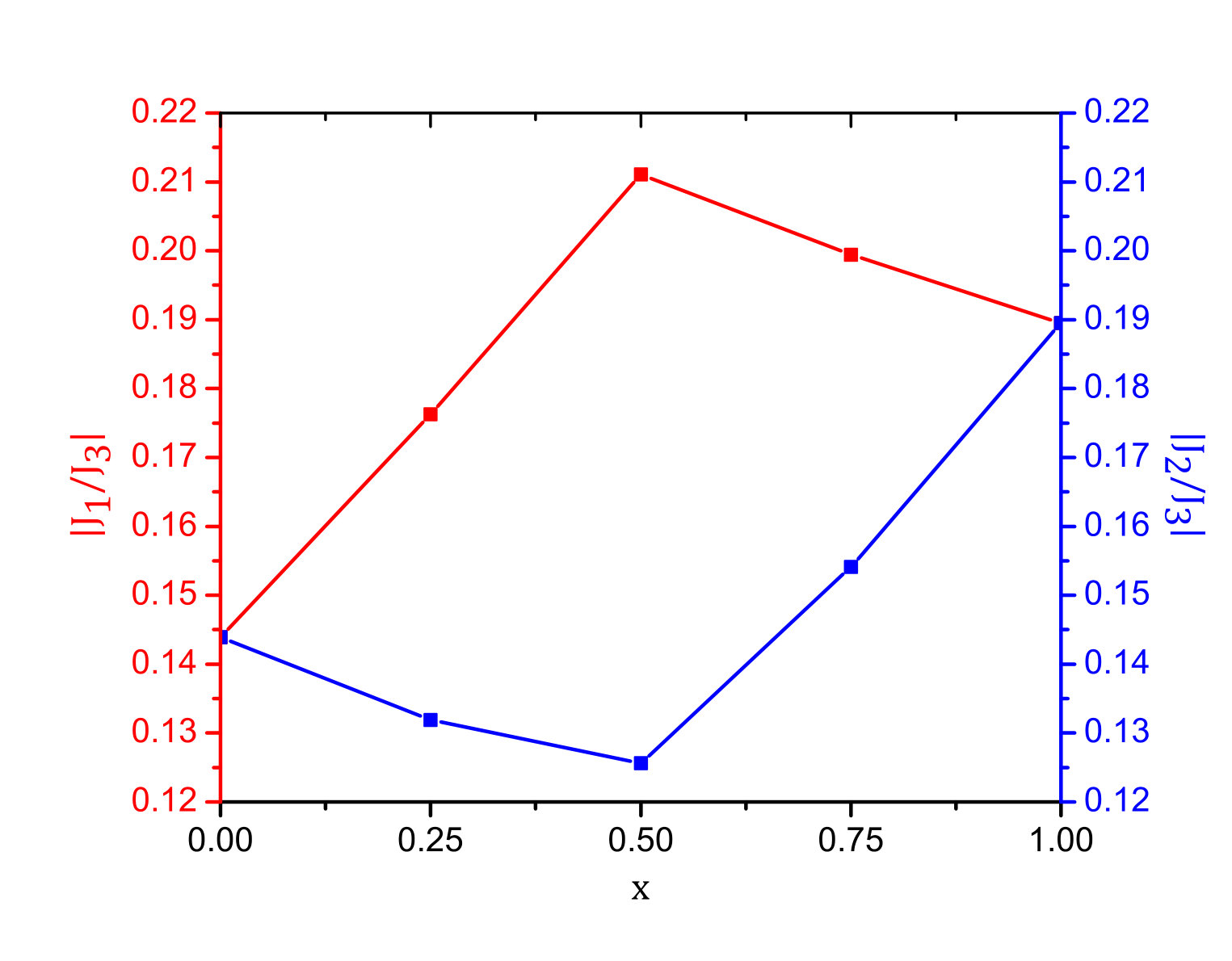

In Fig. 5 we have plotted the ratios $J_{1}$/$J_{3}$ and $J_{2}$/$J_{3}$ with doping, and we observe that these two ratios follow opposite trend with respect to the doping concentration. This indicates that the competition between these two interaction ratios may decide the magnetic phase diagram of these systems which is more complex than that due to Fe/Cu chemical disorder.

III.4.3 NNN interaction

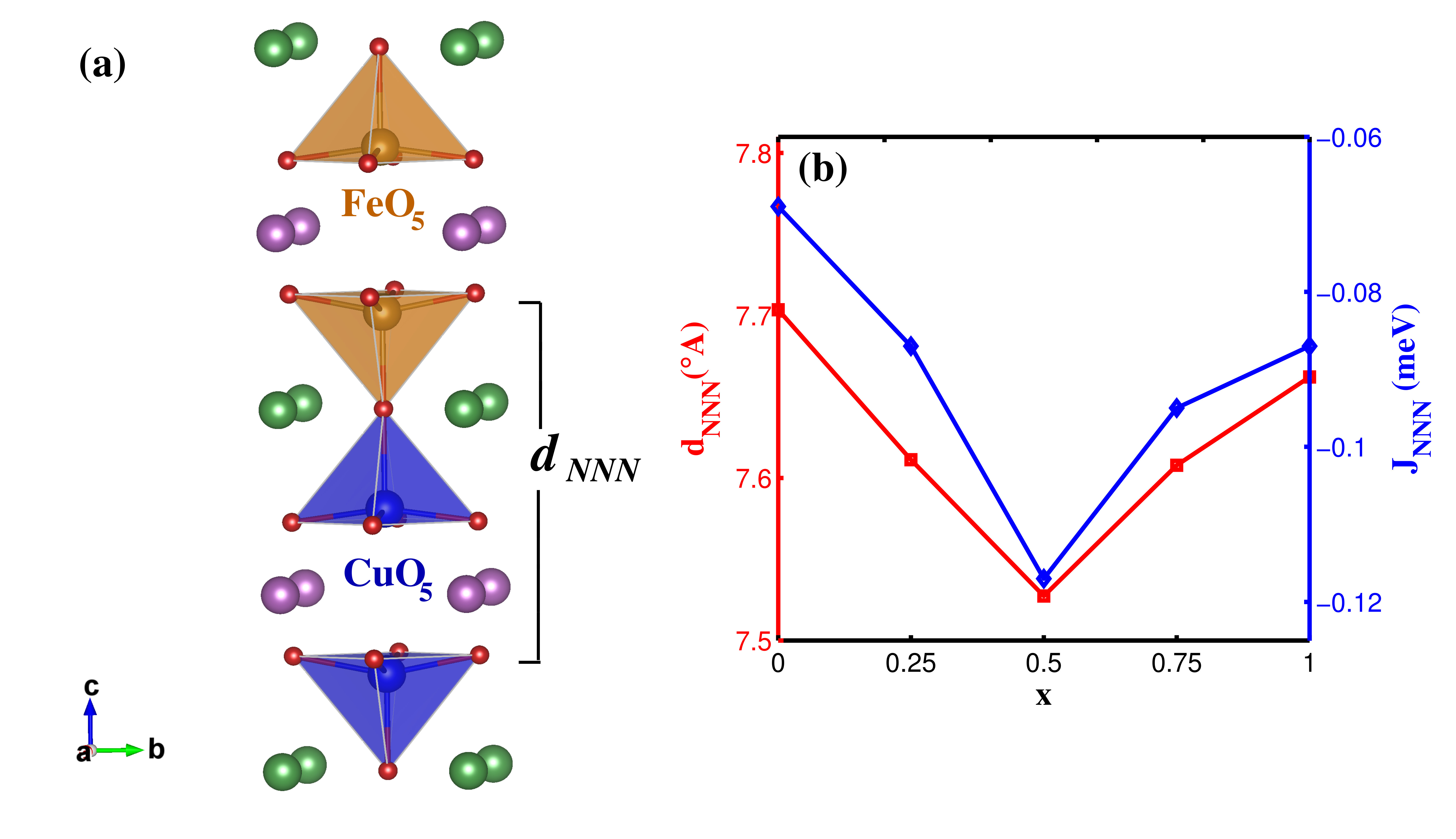

Finally, it is important to study the next nearest neighbour (NNN) exchange interaction with doping as it can play a very important role in stabilizing the ICM phase. In Fig. 6 we plot the calculated NNN exchange interaction strengths ($J_{NNN}$) with respect to doping along with the corresponding NNN distance (dNNN). We observe that the interaction is ferromagnetic throughout the entire range of doping which is required to generate frustration in the CM phase. Though the strength by far is the smallest and it is seen to increase with Sr doping up to x=0.5 and then decreases with higher doping. This result implies that the spiral state in the parent compound may get stabilized with doping at least up to x=0.5 with Sr doping.

III.5 Finite Temperature Calculations: QMC results

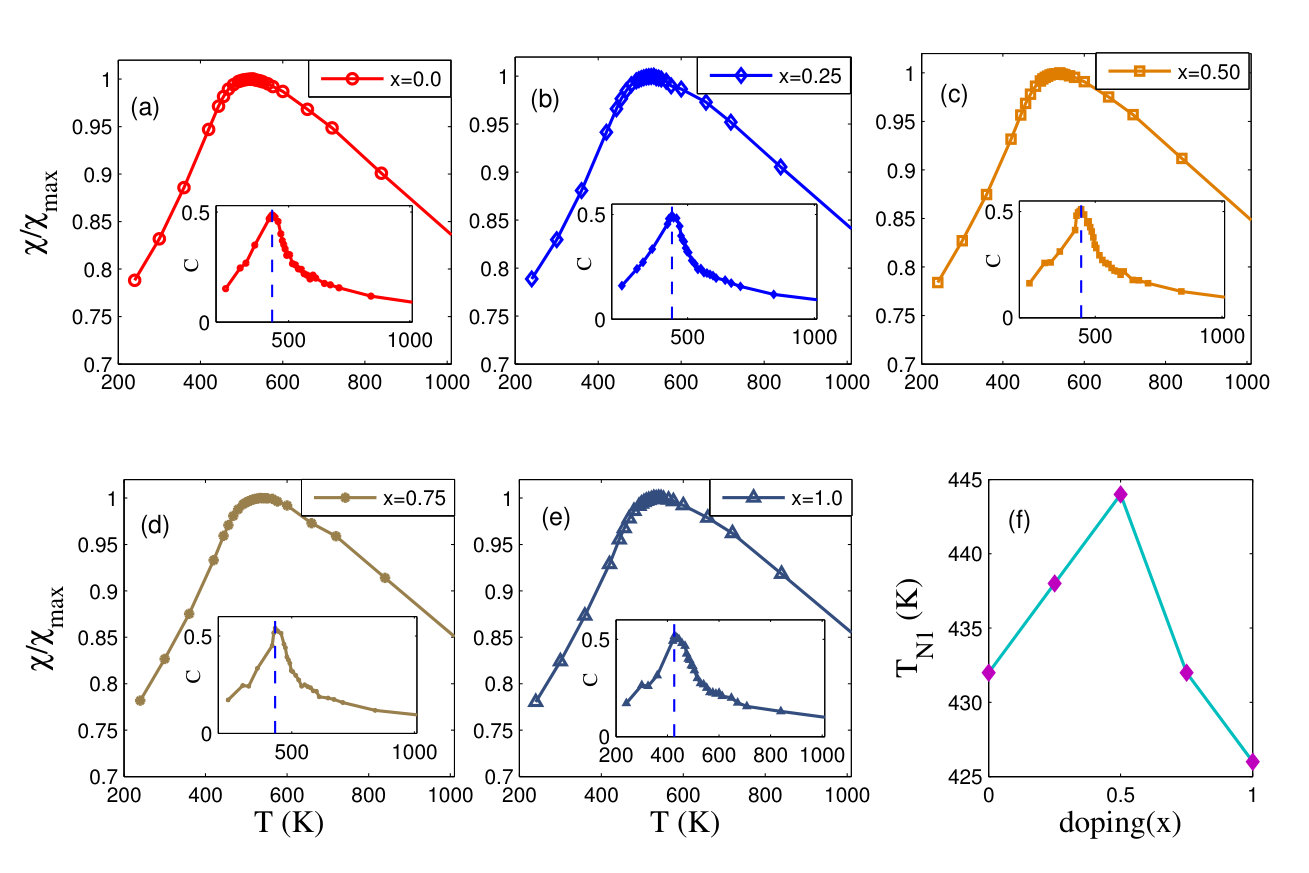

At last, we have performed QMC calculations with a Heisenberg spin Hamiltonian using the magnetic exchange interactions estimated from our DFT calculations as discussed above. In Fig. 7(a)-(e) we present the temperature-dependence of the magnetic susceptibility and specific heat (inset) at different Sr-doping. We identify the magnetic transition from the peak in the susceptibility and specific heat curves. In Fig. 7(f) we plot the variation of TN1 with doping. We observe that the transition temperature increases with doping up to $x=0.5$ and reaches its maximum at 444 K. However, on further doping, the transition temperature starts to decrease. A comparison of calculated TN1s for the parent compounds (YBCFO and YSCFO) match very well with the previous experimental and theoretical results morin1 ; morin2 ; pissas on them. Experimental observations on PM to CM phase transition for YBCFO morin1 and YSCFO pissas show that the TN1 is higher in case of YBCFO than that for YSCFO. This is also borne out quite well from our QMC results.

We would like to note that, JNNN has also been included in our QMC calculation but it fails to create enough frustration for stabilizing spiral phase.

IV Conclusions

Using first-principles density functional theory, we have studied in detail the nature of spin spiral state in the parent YBCFO and its correlation to the ferroelectric behaviour of the compound. We have clearly identified the magnetic spiral state to be a helical one where the spin moments rotate in the ab-planes without any out of plane components. We also rule out the role of DM interaction in inducing ferroelectricity in the compound as the interaction strength is found to be exceedingly small. We also show that the proposed mechanism based on spin current modelKNB can not lead to finite electric polarisation in a helical spiral spin state. These findings are corroborated by the very recent experimental observations on a single crystal  chung YBCFO sample, where the authors did not find any electric polarisation in the ICM phase and the spiral state is found to be helical rather than cycloidal.

In another recent experimental observation, it has been reported that the stability of the spiral state can be tuned with A site doping  yadav . A systematic study of magnetic phase transitions in Sr-doped YBCFO for the entire range of doping has therefore been performed by us using DFT and QMC calculations. The structural changes due to doping is seen to affect various magnetic exchange interactions and the corresponding transition temperatures. We have evaluated various NN and NNN exchange interactions between Fe-Cu, Fe-Fe and Cu-Cu spins, for the experimentally observed CM magnetic structure. We find a strong dependence of the exchange interactions on Sr doping. The Fe-Cu exchange (J1) along c direction, within the bipyramidal layer containing Sr, is ferromagnetic. It is found to increase with doping up to $x\leq 0.5$. However, the magnetic exchange (J2), within a bipyramidal layer containing Ba, is seen to decrease. The reverse trend is observed for both J1 and J2 in the region $x>0.5$. In addition, the inter-bipyramidal (separated by Y) AFM exchange couplings J3 and J4, between Cu-Cu and Fe-Fe pairs respectively, decrease monotonically with Sr doping.

Quite importantly, JNNN is ferromagnetic; its value is found to increase with doping up to $x=0.5$ though the strength is small compared to NN exchanges. It’s enhancement with doping, therefore, indicates that the spiral state in the parent compound might be more stable with Sr doping at Ba sites atleast upto $x=0.5$. From a QMC calculation on a spin Hamiltonian, whose spin exchange parameters are derived from DFT, we observe that the PM to CM phase transition temperature TN1 increases with doping up to $x=0.5$ and decreases beyond. These observations are consistent with experimental data morin1 ; yadav ; pissas ; kallias and show the way forward in doping-control of transition temperature in YBCFO.
