Fragmentation and disk formation in high-mass star formation: The ALMA view of G351.77-0.54 at 0.06" resolution

TL;DR

This study uses high-resolution ALMA observations to analyze the small-scale structure, fragmentation, and disk properties of the high-mass star-forming region G351.77-0.54, revealing a stable, rotating disk with multiple cores and complex gas dynamics.

Contribution

First high-resolution ALMA imaging of G351.77-0.54 at 0.06" resolution, revealing detailed fragmentation, disk structure, and gas kinematics in a high-mass star-forming region.

Findings

G351.77 fragments into at least four cores within a few 1000AU.

Central structure around source #1 shows no further fragmentation.

Gas temperature exceeds 1000K, while dust brightness remains below 200K.

Abstract

Aims: We resolve the small-scale structure around the high-mass hot core region G351.77-0.54 to investigate its disk and fragmentation properties. Methods: Using ALMA at 690GHz with baselines exceeding 1.5km, we study the dense gas, dust and outflow emission at an unprecedented spatial resolution of 0.06" (130AU@2.2kpc). Results: Within the inner few 1000AU, G351.77 fragments into at least four cores (brightness temperatures between 58 and 197K). The central structure around the main submm source #1 with a diameter of ~0.5" does not show additional fragmentation. While the CO(6-5) line wing emission shows an outflow lobe in the north-western direction emanating from source #1, the dense gas tracer CH3CN shows a velocity gradient perpendicular to the outflow that is indicative of rotational motions. Absorption profile measurements against the submm source #2 indicate infall rates on the order of 10^{-4} to 10^{-3}M_sun/yr which can be considered as an upper limit of the mean accretion rates. The position-velocity diagrams are consistent with a central rotating disk-like structure embedded in an infalling envelope, but they may also be influenced by the outflow. Using the CH_3CN(37_k-36_k) k-ladder with excitation temperatures up to 1300K, we derive a gas temperature map of source #1 exhibiting temperatures often in excess of 1000K. Brightness temperatures of the submm continuum never exceed 200K. This discrepancy between gas temperatures and submm dust brightness temperatures (in the optically thick limit) indicates that the dust may trace the disk mid-plane whereas the gas could be tracing a hotter gaseous disk surface layer. In addition, we conduct a pixel-by-pixel Toomre gravitational stability analysis of the central rotating structure. The derived high Q values throughout the structure confirm that this central region appears stable against gravitational instability.

Figures

Tables

Table 1. Table 1: Continuum 438  μ 𝜇 \mu m parameters

Name	R.A. (J2000.0)	Dec. (J2000.0)	$S_{\mathrm{peak}}$	$T_{\mathrm{bright}}$	$S_{\mathrm{int}}^a$	$N_{H_2}^b$	$M^b$
	(h:m:sec)	(∘:′:′′)	(Jy/beam)	(K)	(Jy)	($\times {10}^{24}$cm-2)	$M_{\odot }$
#1	17:26:42.534	-36:09:17.38	0.255	201	2.33	6.2	0.49
#2	17:26:42.564	-36:09:17.69	0.231	183	0.364	5.6	0.08
#3	17:26:42.345	-36:09:16.13	0.082	75	0.256	2.0	0.05
#4	17:26:42.797	-36:09:20.50	0.048	49	0.125	1.2	0.03

Table 2. Table 2: Parameters of main CH 3 CN ( 37 k − 36 k ) subscript 37 𝑘 subscript 36 𝑘 (37_{k}-36_{k}) lines in spectral window 1 (spw1)

Line	Freq.	$E_l/k$
	(GHz)	(K)
CH3CN$\left({37}_0-{36}_0\right)$	679.947	588
CH3CN$\left({37}_1-{36}_1\right)$	679.934	595
CH3CN$\left({37}_2-{36}_2\right)$	679.895	616
CH3CN$\left({37}_3-{36}_3\right)$	679.831	652
CH3CN$\left({37}_4-{36}_4\right)$	679.740	701
CH3CN$\left({37}_5-{36}_5\right)$	679.624	766
CH3CN$\left({37}_6-{36}_6\right)$	679.482	844
CH3CN$\left({37}_7-{36}_7\right)$	679.315	937
CH3CN$\left({37}_8-{36}_8\right)$	679.122	1043
CH3CN$\left({37}_9-{36}_9\right)$	678.903	1165
CH3CN$\left({37}_{10}-{36}_{10}\right)$	678.659	1300
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_0-{36}_0\right)$	679.610	587
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_1-{36}_1\right)$	679.597	595
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_2-{36}_2\right)$	679.558	616
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_3-{36}_3\right)$	679.494	652
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_4-{36}_4\right)$	679.404	702
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_5-{36}_5\right)$	679.288	766
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_6-{36}_6\right)$	679.147	844
CH${}_{}{}^{13}{}_3{}^{}$CN$\left({37}_7-{36}_7\right)$	678.980	937

Equations

$$Q=\frac{c_s\kappa }{\pi G\Sigma }$$

Full text

*Aims. *We resolve the small-scale structure around the high-mass hot core region G351.77-0.54 to investigate its disk and fragmentation properties.

*Methods. *Using the Atacama Large Millimeter Array at 690 GHz with baselines exceeding 1.5 km, we study the dense gas, dust and outflow emission at an unprecedented spatial resolution of $0.06^{\prime\prime}$ (130 AU @2.2 kpc).

Results. Within the inner few 1000 AU, G351.77 fragments into at least four cores (brightness temperatures between 58 and 197 K). The central structure around the main submm source #1 with a diameter of $\sim$0.5′′ does not show additional fragmentation. While the CO(6-5) line wing emission shows an outflow lobe in the north-western direction emanating from source #1, the dense gas tracer CH3CN shows a velocity gradient perpendicular to the outflow that is indicative of rotational motions. Absorption profile measurements against the submm source #2 indicate infall rates on the order of $10^{-4}$ to $10^{-3}$ M*⊙* yr*-1* which can be considered as an upper limit of the mean accretion rates. The position-velocity diagrams are consistent with a central rotating disk-like structure embedded in an infalling envelope, but they may also be influenced by the outflow. Using the CH3CN($37_{k}-36_{k}$) $k-$ladder with excitation temperatures up to 1300 K, we derive a gas temperature map of source #1 exhibiting temperatures often in excess of 1000 K. Brightness temperatures of the submm continuum never exceed 200 K. This discrepancy between gas temperatures and submm dust brightness temperatures (in the optically thick limit) indicates that the dust may trace the disk mid-plane whereas the gas could be tracing a hotter gaseous disk surface layer. In addition, we conduct a pixel-by-pixel Toomre gravitational stability analysis of the central rotating structure. The derived high $Q$ values throughout the structure confirm that this central region appears stable against gravitational instability.

*Conclusions. *Resolving for the first time a high-mass hot core at $0.06^{\prime\prime}$ resolution at submm wavelengths in the dense gas and dust emission allowed us to trace the fragmenting core and the gravitationally stable inner rotating disk-like structure. A temperature analysis reveals hot gas and comparably colder dust that may be attributed to different disk locations traced by dust emission and gas lines. The kinematics of the central structure #1 reveal contributions from a rotating disk, an infalling envelope and potentially also an outflow, whereas the spectral profile toward source #2 can be attributed to infall.

1 Introduction

Understanding the fragmentation of high-mass gas clumps and the subsequent formation and evolution of accretion disks around young high-mass protostars is one of the main unsolved questions in high-mass star formation research from an observational (e.g., Cesaroni et al. 2007a; Sandell & Wright 2010; Keto & Zhang 2010; Beltrán et al. 2011; Beuther et al. 2007a, 2009, 2013; Johnston et al. 2015; Boley et al. 2013, 2016) as well as theoretical point of view (e.g., Yorke & Sonnhalter 2002; McKee & Tan 2003; Bonnell et al. 2007; Krumholz et al. 2007b, 2009; Smith et al. 2009; Kuiper et al. 2011; Kuiper & Yorke 2013; Tan et al. 2014).

Much indirect evidence has been accumulated that suggests high-mass accretion disks do exist. The main observational argument stems from collimated molecular outflows, resembling low-mass star formation (e.g., Beuther et al. 2002; Arce et al. 2007a; López-Sepulcre et al. 2009). Such structures are best explained with underlying high-mass accretion disks driving the outflows via magneto-centrifugal acceleration. (Magneto)-hydrodynamical simulations of collapsing high-mass gas cores in 3D also result in the formation of high-mass accretion disks (Krumholz et al., 2007c; Kuiper et al., 2011; Seifried et al., 2011; Klassen et al., 2016). There is a growing consensus in the high-mass star formation community that accretion disks should also exist, however, it is still unknown whether such disks are similar to their low-mass counterparts, hence dominated by the central young stellar object and in Keplerian rotation, or whether they are self-gravitating non-Keplerian entities. They may also be a hybrid of both possibilities with a stable inner Keplerian disk embedded in a larger self-gravitating non-Keplerian rotating envelope. The existence of disks may be even more important around high-mass protostars because disks enable the accretion flow to be shielded against the strong radiation pressure in the direction of the disks, whereas the radiation can escape along the perpendicular outflow channels (e.g., Yorke & Sonnhalter 2002; Krumholz et al. 2005; Kuiper et al. 2010; Tanaka et al. 2016).

In contrast to the indirect evidence, direct observational studies are scarce, mainly because of two reasons: The clustered mode of high-mass star formation and the typically large distances, making spatially resolving such structures difficult. Near-infrared interferometry has imaged the warm inner dust disks around high-mass protostars (Kraus et al., 2010; Boley et al., 2013, 2016), showing that these are very small ($<100$ AU) and asymmetric structures. However, this way one can only study the innermost regions ($\leq 30$ AU) whereas the total gas and dust disk sizes are expected on scales of several 100 to 1000 AU (e.g., Krumholz et al. 2007a; Kuiper et al. 2011). Additional near-infrared evidence for disks around high-mass young stellar objects stems from CO band-head emission (e.g., Bik et al. 2006; Ilee et al. 2013). So far, interferometric cm to submm wavelength studies of high-mass disk candidates resulted in the finding of larger-scale toroid structures of several 1000 to $10^{4}$ AU (e.g., Beuther et al. 2009, 2013; Sandell & Wright 2010; Beltrán et al. 2011; Beltrán & de Wit 2016). Almost all these objects are comparably high-mass and non-Keplerian pseudo-disks, whereas Keplerian accretion-disk-like structures have so far remained almost elusive to observations (well-known exceptions are the intermediate-mass objects IRAS 20126+4104 and AFGL490, e.g., Cesaroni et al. 2005; Keto & Zhang 2010; Schreyer et al. 2002, or the famous source I in Orion-KL, Greenhill et al. 2003; Matthews et al. 2010). Just recently, Johnston et al. (2015) identified for the first time robust evidence of a Keplerian disk around a high-mass protostar where in addition to the central protostar the inner disk mass is also included to explain the Keplerian motions.

The new Atacama Large Millimeter Array (ALMA) capabilities now allow us to address many exciting issues. For example, simulations suggest that the high-mass disks fragment at scales of about 300-500 AU (e.g., Krumholz et al. 2007a). Submm interferometric observations at 690 GHz (ALMA band 9) are inherently technically challenging because of several reasons: Low precipitable water vapor (pwv) and a stable atmosphere are needed to penetrate the atmosphere properly. Furthermore, for phase and amplitude calibration, detections of nearby quasars are needed, and the large collecting area of ALMA is mandatory for that. In the past, only very few observations with the Submillimeter Array (SMA) were conducted at these wavelengths (e.g., Beuther et al. 2006, 2007b), and ALMA is opening a new window to related science. ALMA observations at 690 GHz, with $>$1 km baselines, results in angular resolution elements $\leq 0.1^{\prime\prime}$, corresponding to linear scales $\leq$200 AU for our proposed target. An additional unique feature of 690 GHz observations is that the dust continuum emission is very strong and can become optically thick at the highest densities and smallest spatial scales, which allows us to conduct spectral line absorption studies, ideally suited to study the infall rates in the innermost regions around the high-mass protostars (e.g., Wyrowski et al. 2012; Beuther et al. 2013).

G351.77-0.54 (IRAS 17233-3606):

This luminous high-mass star-forming region exhibits linear CH3OH masers in the northeast-southwest direction aligned with a CO outflow of similar orientation (Walsh et al., 1998; Leurini et al., 2009, 2013). The first estimated luminosity of $\sim 10^{5}$ L*⊙* is based on a kinematic distance of 2.2 kpc determined by Norris et al. (1993) based on a CH3OH maser velocity of 1.2 km s*-1*. However, the thermal line emission shows slightly lower values, usually below $-$3 km s*-1* (depending on the tracer, e.g., Leurini et al. 2011a). In the following, we use as a reference $v_{\rm{lsr}}$ a value of $-3.63$ km s*-1* measured for CH3CN$(12_{2}-11_{2})v_{8}=1$ by Leurini et al. (2011a). Since kinematic distances around $v_{\rm{lsr}}$ velocities of 0 can only give rough limits, smaller kinematic distances are derived, and Leurini et al. (2011a) estimate an approximate distance of 1 kpc. That would then reduce the luminosity of the region to $\sim 1.7\times 10^{4}$ L*⊙* (Leurini et al., 2011a, 2013). From large-scale 870 $\mu$m continuum emission, Leurini et al. (2011b) estimate a gas mass reservoir of $\sim$664 M*⊙* for a distance of 1 kpc and a temperature of 25 K. For the proposed larger distance of 2.2 kpc, that would correspond to a 4.8 times larger mass. Both estimates clearly show the large mass reservoir available for star formation in this region. Using the Submillimeter Array (SMA) at 1.3 mm with a spatial resolution of $4.9^{\prime\prime}\times 1.8^{\prime\prime}$, Leurini et al. (2011a) resolved a compact core with an estimated mass of 12 M*⊙* at the proposed 1 kpc distance (again up to a factor 4.8 larger for greater distance). Beuther et al. (2009) detected strong NH3(4,4) and (5,5) emission (excitation temperatures $\geq$200 K) with a clear velocity gradient approximately perpendicular to the (main) outflow orientation, interpreted as evidence for rotational motion of the core. The rotating envelope has a projected diameter of $\sim 5^{\prime\prime}$ corresponding at the distance of $\sim$2.2 kpc to an extent of $\sim$11000 AU, or at the closer distance of 1 kpc to $\sim$5000 AU. Since this structure encompasses six cm continuum sources signposting fragmentation (Zapata et al. 2008), several smaller individual accretion disks and/or sub-sources may exist (see clumpy sub-structure in Fig. 23 of Beuther et al. 2009). Nevertheless, since the (multiple) outflows and rotation are not strongly disturbed by the multiplicity, the region appears to be dominated by one object, likely a real O-star progenitor. After Orion and SgrB2, it is one of the brightest line emission sources in the sky and therefore a perfect ALMA high-frequency candidate.

2 Observations

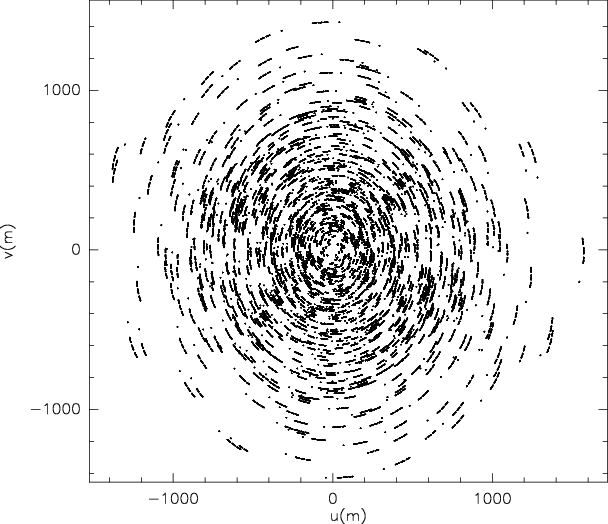

The target region G351.77-0.54 was observed with ALMA in cycle 2 in the 690 GHz band with 42 antennas in the array. One noisy antenna and very short baselines have been flagged because of outlying amplitudes. This results in a baseline length coverage from 40 m up to almost $\sim$1.6 km. The total duration of that one execution of one scheduling block was 1 h 40 min with an on-target time of 35 min. Because of the large number of antennas, even in such comparably short time, ALMA achieves an excellent uv-coverage (Fig. 1). This results in an almost circular beam (see below) and allows us to recover spatial scales between approximately $0.06^{\prime\prime}$ and $2.7^{\prime\prime}$. The phase center of the observations was R.A. (J2000.0) $17^{\rm{h}}26^{\rm{m}}42.568^{\rm{s}}$ and Dec.  (J2000.0) $-36^{\circ}09^{\prime}17.6^{\prime\prime}$. Bandpass calibration was conducted with observations of J1924-2914, and the absolute flux was calibrated with observations of Pallas. For the gain phase and amplitude calibration, the regularly interleaved observations of J1717-3342 were used. The quasar was visited every 7 min for 1 min integration time, allowing to track the phase variability and associated calibration well. To check the solutions in this difficult to observed frequency range, another quasar J1745-2900 was observed as well. Imaging that quasar results in the expected very good image of a point source at the phase center, confirming the good calibration. The receivers were tuned to an LO frequency of 684.405 GHz with four spectral windows distributed evenly in the lower and upper sideband.The width and spectral resolution of each spectral unit was 1.875 GHz and 488 kHz, respectively (corresponding in velocity space to $\sim$815 km s*-1* and $\sim$0.21 km s*-1*). The central frequencies of the four windows are 677.185, 679.479, 691.478, and 693.867 GHz, respectively (Fig. 2). The primary beam for ALMA at this wavelength is $\sim 9.2^{\prime\prime}$. The calibration was conducted in CASA version 4.3.1 with the ALMA-delivered reduction script. In a following step we tested self-calibration (with solution intervals of 30 sec and shorter), but since that did not improve the data, we used the non-self-calibrated data.

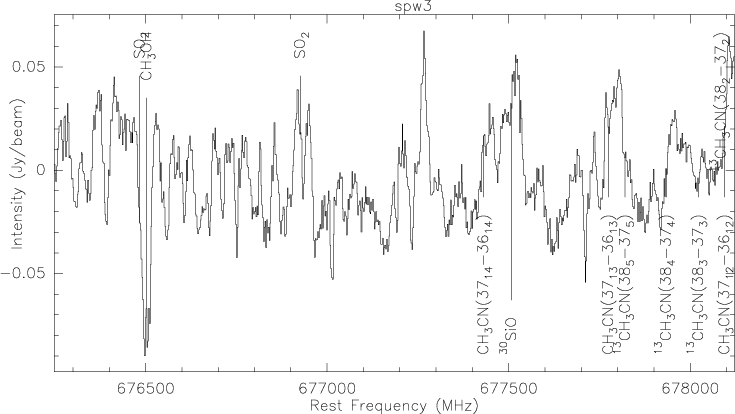

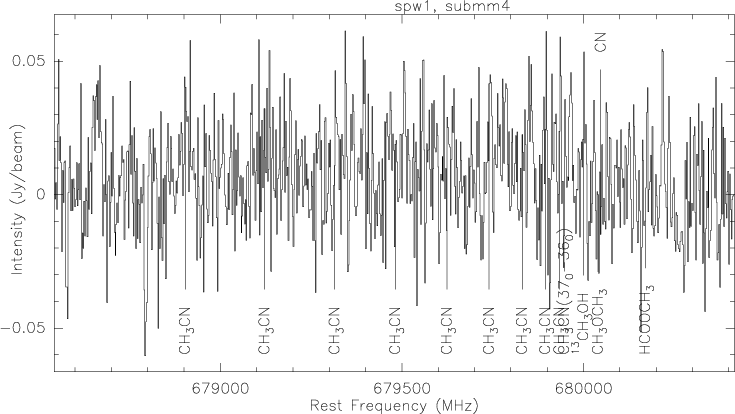

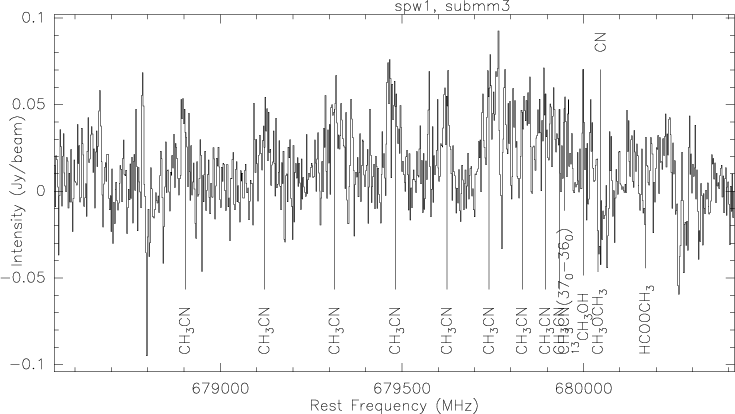

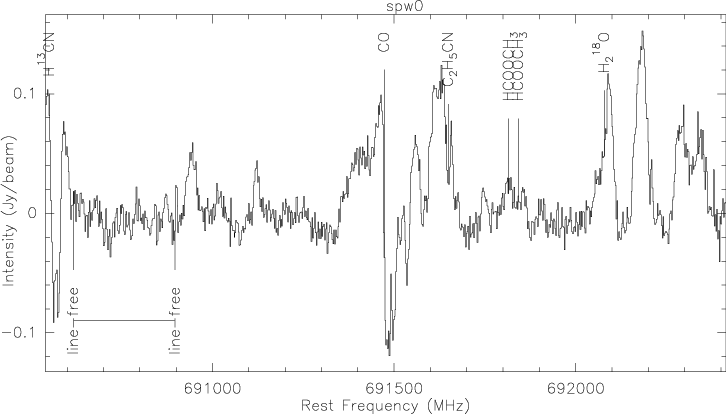

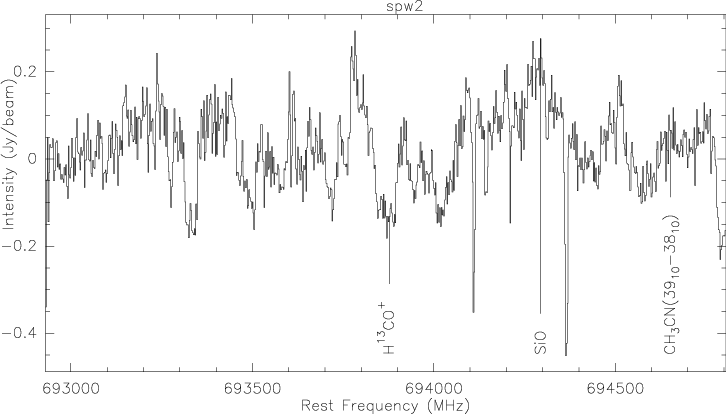

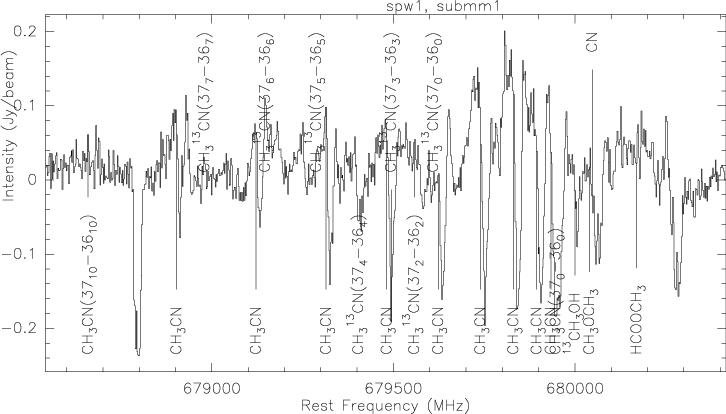

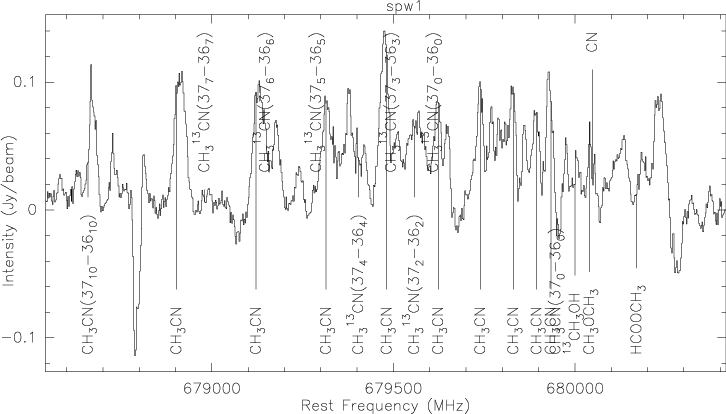

Imaging and further data processing was also conducted in CASA. As visible in Fig. 2, there are very few line-free parts of the spectra, and creating a pure continuum image is difficult. Therefore, for the continuum data, we avoided the strongest line emission features (spw1 for the main CH3CN emission, and the strongest features in spw0 – 690.537 to 690.634 GHz, 691.357 to 691.870 GHz and 692.042 to 692.417 GHz), and collapsed the remaining spectral coverage into a continuum dataset. While these data provide a good signal-to-noise ratio they are still line-contaminated. To test how large that effect is, we created an additional continuum dataset with a small spectral band in spw0 from 690617 MHz to 690897 MHz that appears almost line-free (Fig. 2). Comparing the flux values in the corresponding two images, we find that the continuum fluxes largely agree within 10% increasing at most to 20% difference. Hence, line contamination does not affect our continuum data much. Applying a robust weighting of -2 for the continuum data and a robust weighting of 0.5 to increase the signal-to-noise ratio for the line data, we achieve spatial resolution elements of $0.06^{\prime\prime}$ and $0.07^{\prime\prime}$ for the continuum and line data, respectively. The $1\sigma$ rms of the 438 $\mu$m continuum and spectral line maps at 0.5 km s*-1* resolution are 7 mJy beam*-1* and 30 mJy beam*-1* (corresponding to brightness temperature sensitivities of $\sim$5.1 K and $\sim$16.0 K), respectively.

The study presented here focuses on the analysis of the submm continuum as well as the spectral line emission from CH3CN (as dense gas tracer) and CO (as outflow tracer).

3 Results

3.1 Submm continuum emission at 438 $\mu$m

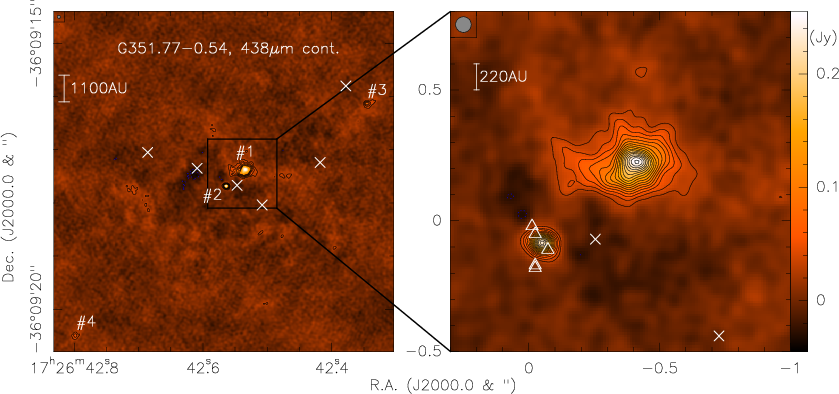

Figure 3 presents the 438 $\mu$m continuum image of the G351.77-0.54 region. The first impression one gets from this image is that on scales of several 1000 AU we find only a small degree of fragmentation. In the remainder of the paper, we will always state the quantitative parameters for both distance estimates of 2.2 and 1.0 kpc (see Introduction), where the 1.0 kpc parameter will be stated in brackets. While within approximately the inner 500(250) AU the region fragments into two cores (#1 and #2), outside of that we have several 1000 AU scales without any further submm core, and then we find the two additional cores #3 and #4. Assuming optically thin dust emission at 200 K (see more details below), our $3\sigma$ detection limit of 21 mJy beam*-1* corresponds to mass and column density sensitivities of $\sim$0.004($\sim$0.0009) M*⊙* and $\sim 5\times 10^{23}$ cm*-2*, respectively. While we can obviously miss some low-column density cores, assuming a distribution of column densities it seems unlikely that we are missing a whole population of lower-mass cores in this region. Figure 3 also shows the five cm continuum sources reported by Zapata et al. (2008). We also present the CH3OH class II maser positions from Walsh et al. (1998) in Figure 3, and they seem to be associated with source #2. However, the absolute maser positions of this dataset are only certain within $1^{\prime\prime}$, hence, we cannot associate them unambiguously with any of the source and hence refrain from any further speculation about them. Since none of them has a submm counterpart, the protostellar nature of these emission features is unclear, and it may be that the cm emission stems from protostellar jets in the region (see also section 3.2).

Zooming into the central two cores (Fig. 3 right panel) we clearly resolve the region at $0.06^{\prime\prime}$ resolution, corresponding to linear resolution elements of 132(60) AU. While source #2 is almost unresolved by these observations, the main source #1 is clearly extended in the east-west direction, approximately perpendicular to the main outflows reported in Leurini et al. (2011a). As will be shown below, #1 is extremely strong in line emission whereas #2 is weaker. Without kinematic evidence we cannot provide firm proof of this, but it seems likely that #1 and #2 could form a high-mass binary system. It seems likely that the central part (essentially the central beam of 132(60) AU diameter) is optically thick in the 438 $\mu$m dust continuum emission. This is partially based on the high Planck brightness temperature of the central beam towards source #1 of approximately 201 K (see section 3.4). For a protostar of luminosity of $\sim 2-10\times 10^{4}$ L*⊙* and assuming a typical dust temperature distribution $T\propto r^{-0.4}$, temperatures on the order of 200 K at 100 AU distance are expected, agreeing reasonably well with the high brightness temperature and moderate optical depth. At such comparably high optical depth of the submm continuum emission, we cannot unambiguously distinguish whether source #1 is a single source or whether multiplicity is hidden by optical depth. As we discuss in section 3.4, the optical depth should decrease rapidly with radius. It is worth noting also that the CH3CN$(37_{k}-36_{k})$ emission (see section 3.3) appears to follow an arc or ring centered on the continuum maximum which also suggests dust obscuration towards the peak of source #1. Our mass estimates given below based on the optically thin assumption are thus underestimates though likely not by a large factor.

The submm continuum emission can also be employed to estimate column densities and masses of the four submm sources. Table 1 presents the peak positions, the corresponding peak flux densities and Planck brightness temperatures as well as the total fluxes integrated within the $4\sigma$ contour levels. Although the highest column density peak positions have increased optical depth, offset from the peak position most of the dust continuum emission should still be optically thin. Therefore, assuming optically thin emission from thermally emitting dust grains we can estimate lower limits of the column densities and masses following the outline of Hildebrand (1983) or Schuller et al. (2009). For these estimates we use a dust opacity $\kappa_{438\mu\rm{m}}=6.3$ cm2 g*-1*, extrapolated for densities of $10^{6}$ cm*-3* from Ossenkopf & Henning (1994), and a conservative hot core temperature of 200 K is used for all calculations here (measured continuum peak brightness temperatures are $\sim$201 K, see also temperature discussion below, section 3.4). Furthermore, we use a gas-to-dust mass ratio of 150 (Draine, 2011). The derived column densities are all above $10^{24}$ cm*-2* showing that we are dealing with extremely high extinction regions in excess of 1000 magnitudes of visual extinction. In comparison, the mass estimates are rather low around 0.49(0.1) M*⊙* assuming a distance of 2.2(1.0) kpc. The main reason for that is the large amount of spatial filtering because of the missing baselines below 40 m (section 2). Although no single-dish 438 $\mu$m measurement exists to exactly estimate the amount of missing flux, a comparison of the single-dish mass reservoir estimated by Leurini et al. (2011b) of 664 M*⊙* (@1 kpc) indicates that more than 99% of the extended flux is filtered out by our extended baseline ALMA data. This is expected since the single-dish data trace the larger-scale less dense envelope structure. Even on smaller scales ($4.9^{\prime\prime}\times 1.8^{\prime\prime}$), Leurini et al. (2011a) measure a peak flux of 2.09 Jy beam*-1* at 1.3 mm wavelength. Assuming a spectrum $\propto\nu^{3.5}$ in the Rayleigh-Jeans limit (with $3.5=2+\beta$ and the dust opacity index $\beta=1.5$) this would correspond to $\sim 98$ Jy beam at our wavelength of 438 $\mu$m. Even in the optically thick case with $beta=0$ a flux density of 18.9 Jy beam*-1* would be expected at 438 $\mu$m. So, even on these smaller scales, our ALMA data recover only a small fraction of the core flux. Additionally, at 438 $\mu$m the assumption of optically thin emission breaks down (also visible in the absorption spectra presented in the section 3.3), and one underestimates the masses and column densities as well. The 0.49 M*⊙* measured toward source #1 may be considered as a lower limit to the mass associated with that source (see section 3.3). Nevertheless, as outlined in the introduction, the region has a very large mass reservoir on the order of 1000 M*⊙* capable of forming high-mass stars.

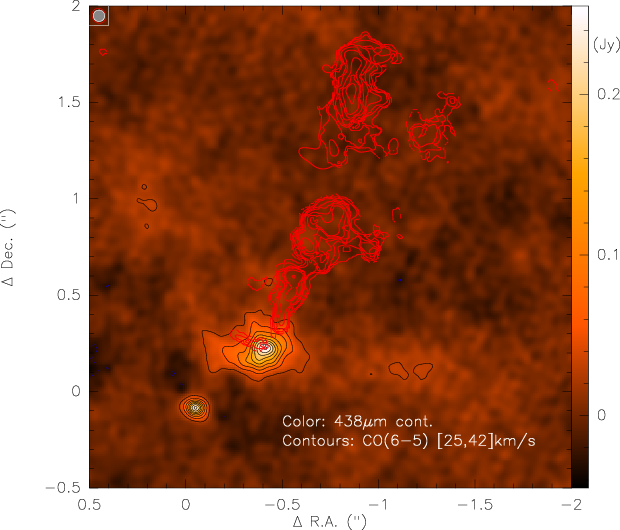

3.2 Outflow emission

With the shortest baselines around 40 m (corresponding to spatial scales of $\sim$2.7*′′, see section 2), it is extremely difficult to identity any coherent large-scale structure in this dataset. Nevertheless, we investigated the CO(6–5) observations channel by channel to search for potential high-velocity gas from a molecular outflow. While we do not find any such signature in the blue-shifted gas, we do clearly identify a red-shifted outflow lobe in the velocity regime from 25 to 42 km s-1*. Figure 4 presents the integrated CO(6–5) emission in that velocity regime overlaid on the dust continuum emission. Although the blue-shifted counterpart is missing - most likely because the blue-shifted gas may be more diffusely distributed and thus filtered out - the almost cone-like red-shifted emission emanating from the main submm peak #1 in north-northwestern direction exhibits the clear structural shape of a molecular outflow. Although Leurini et al. (2011a) identify multiple outflows in the region, one of them (OF1 in their nomenclature) appears consistent with the main outflow we find here. The larger-scale northeast-southwest outflow in Leurini et al. (2011a) is not recovered in our new high-resolution data here.

Additionally, almost perpendicular to the main outflow structure, we find another much smaller red-shifted emission structure emanating from the main submm peak #1 in approximately east-northeastern direction. This feature may stem from a second outflow driven from within the main source #1. As outlined in section 3.1, source #1 can easily host a secondary source, either at unresolved spatial scales or even hidden by the high optical depth of the continuum emission.

3.3 Dense gas spectral line emission

As shown in Fig. 2, the region is a typical hot molecular core with extremely rich spectral line emission. In this paper, we focus on the dense gas and dust emission. Therefore, in the following, we concentrate on the hot core and dense molecular gas tracer methyl cyanide which is observed here in its main isotopologue CH3CN and its rarer isotopologue CH${}_{3}^{13}$CN in the transitions $(37_{k}-36_{k})$ with $k$-levels from 0 to 10. CH3CN traces the dense gas and is a well-known tool to study the dynamics at the center of high-mass star-forming regions (e.g., Cesaroni et al. 2007b). Furthermore, the lines of the rotational $k-$ladder can be used as a thermometer (e.g., Loren & Mundy 1984). Table 2 presents the frequencies and lower level energies $E_{l}/k$ of the respective transitions.

The $E_{l}/k$ values between 588 and 1300 K show that we are tracing a very warm gas component. Furthermore, it is interesting to note that we do see pure emission only toward the extended parts of submm source #1 whereas toward the regions of peak emission of the central two submm peaks #1 and #2 the spectra are dominated by absorption (Figs. 5, 6 and 7). In comparison to Fig. 2 where the spectra toward the region of the main peak #1 are shown after averaging over $0.3^{\prime\prime}$ diameter to show the general absorption and emission features, Fig. 5 presents the corresponding spectra in spw1 toward the regions of all four continuum peaks with a smaller averaging diameter of $0.06^{\prime\prime}$ (units Jy beam*-1*). The secondary source #2 is clearly an absorbing source, while source #3 shows weak emission and source #4 exhibits mainly a noise spectrum.

3.3.1 Kinematics of source #1

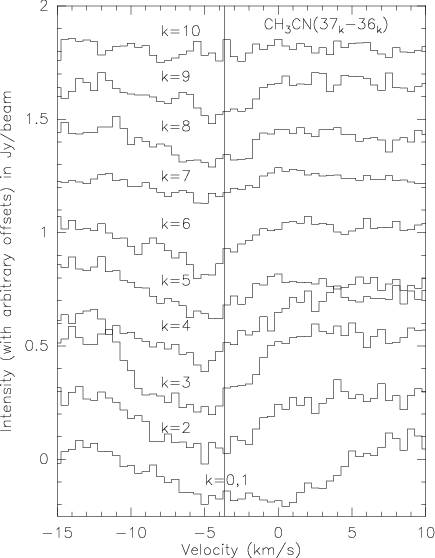

The absorption spectra toward the main source #1 in Fig. 6 are dominated by blue-shifted absorption (the blended $k=0,1$ components are too broad to isolate blue- and red-shifted absorption properly). Hence, the dense gas along the line of sight of that main peak appears to be dominated by outflowing gas kinematics. Interestingly, the CH3CN$(37_{10}-36_{10}$) component toward the main submm peak #1 exhibits neither absorption nor emission but only a flat noise spectrum. Since this $k=10$ component shows clear emission in the immediate environment (see below and Fig. 8), sensitivity seems unlikely to be the reason for that non-detection. The more reasonable explanation is high optical depth of the continuum. With an excitation temperature $E_{l}/k=1300$ K, the main excitation region of the $k=10$ component may stem from inside the $\tau=1$ surface of the 438 $\mu$m continuum emission and can thus be veiled by the continuum.

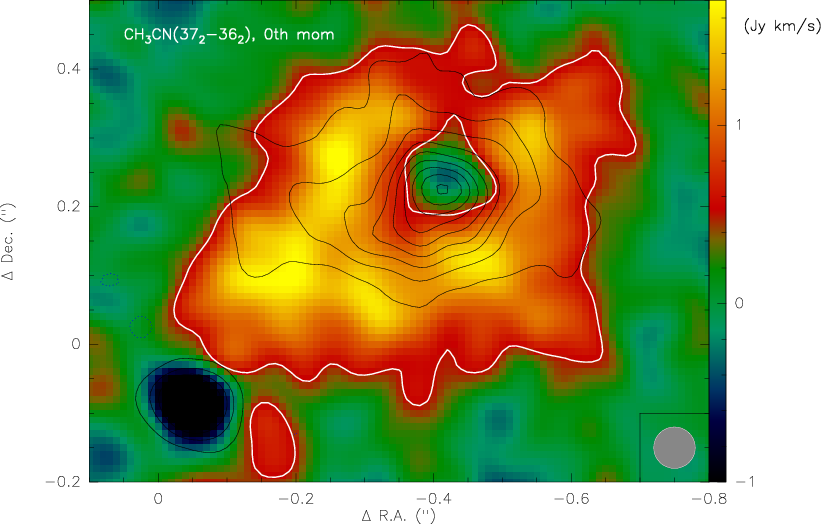

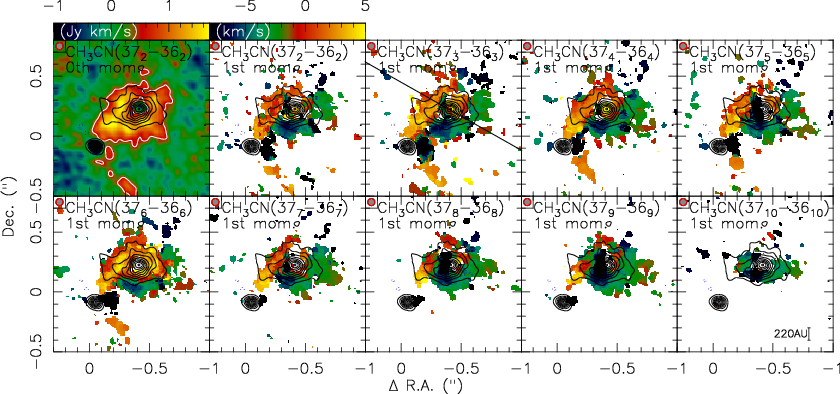

A different way to analyze the CH3CN data is via spatially imaging the data and discussing the kinematics via moment and position-velocity analysis. Fig. 8 presents the 1st moment maps (intensity-weighted peak velocities) of the CH3CN$(37_{k}-36_{k})$ data for the $k$-components $2-10$. ($k=0,1$ are blended). The Figure also shows for comparison the integrated emission of the $k=2$ component. This integrated intensity map exhibits a ring-like structure around the main peak with an approximate diameter of $\sim 0.28^{\prime\prime}$, however, this does not imply a ring-like CH3CN distribution but is certainly caused by absorption toward the center. Although this ring-like structure is not entirely smooth, intensity variations within that structure usually do not exceed $3\sigma$. Hence, we refrain from further interpretation of such CH3CN fluctuations.

As shown in section 3.2, the CO(6–5) data reveal a clear outflow in the north-northwest direction and additional high-velocity gas almost perpendicular to this outflow. Based on the main outflow structure and also indicated by the 1st moment maps, we identify the axis for the rotational structure perpendicular to the main outflow and mark that axis in the CH3CN$(37_{3}-36_{3})$ panel in Figure 8. While this axis is clearly perpendicular to the outflow presented in section 3.2 and figure 4, Leurini et al. (2011a) showed multiple outflows emanating from this region. Hence, the CH3CN velocity structure is likely also influenced by additional outflow kinematics. Along this axis marked in Fig. 8 we present position-velocity (pv) cuts for the $k=2...10$ components of CH3CN$(37_{k}-36_{k})$ in Fig. 9. These pv-cuts exhibit several interesting features. First, one can clearly identifies the absorption structure toward the continuum peak dominated by blue-shifted absorption, again reinforcing that we do not just see the dense rotating structure in the CH3CN gas but also contributions from the outflow. Furthermore, the pv diagrams partly show structures reminiscent of Keplerian rotation with the highest velocities close to the center and lower velocities further away from the center. To illustrate this, the pv-diagram also shows the expected signature for a Keplerian disk around a 10(4.5) M*⊙* star at 2.2(1) kpc, respectively. In particular for the $k=2...6$ components, the pv diagram reflects this structure. However, there is a caveat to this interpretation: A real Keplerian pv diagram would only show the Keplerian structures as indicated by the lines in Fig. 9, but we see similar structures in the two opposing quadrants of these pv-diagrams which are untypical for Keplerian disks. However, Seifried et al. (2016) have recently shown that, depending on the inclination, emission from disks can also appear in these other quadrants of the pv-diagrams. Nevertheless, it appears likely that the CH3CN emission includes additional gas components that are not represented by a pure Keplerian rotation model, e.g., emission from the infalling envelope and the outflows (see section 4.2 for further discussion).

3.3.2 Infall motions toward source #2

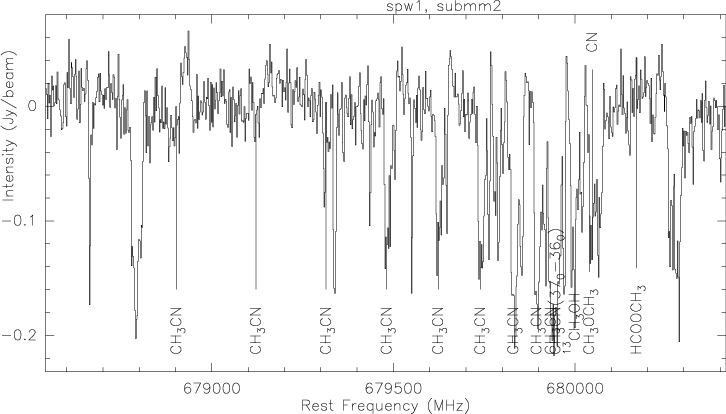

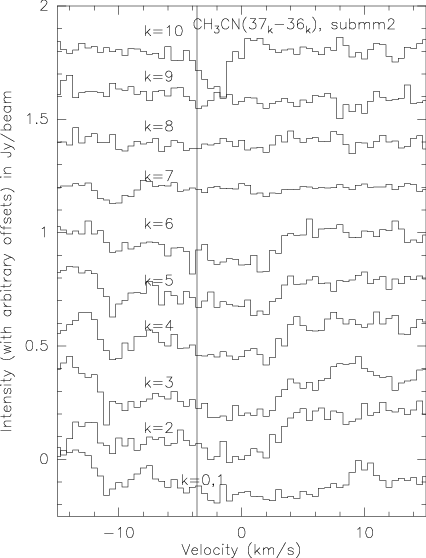

In contrast to the main peak, the absorption spectra for the secondary peak #2 (see Fig. 7) exhibit absorption on the blue- and red-shifted side of the spectrum. This can be seen in particular for the $k-$components 2 to 6 (again the 0,1 components are blended), while the K-components 7 to 9 are showing mainly noise. Interestingly, the $k=10$ component of CH3CN in Fig. 7 again shows a clear and pronounced red-shifted absorption feature. However, since the $k$- 7 to 9 components do not show this behavior, we caution that this absorption feature near the $k=10$ component may be a line-blend from an unidentified species. Nevertheless, based on the $k=2-6$ CH3CN$(37_{k}-36_{k})$ lines, infall and outflow motion toward/from submm source #2 appears the most likely kinematic interpretation of the data.

We cannot spatially resolve any kinematics but just analyze the kinematics along the line of sight. In addition to the blue-shifted absorption likely stemming from outflowing gas, the red-shifted absorption spectra in the $k=2...6$ components are indicative of infall motions toward that core. If we assume spherical symmetry, we can estimate the mass infall rate with $\dot{M}_{\rm{in}}=4\pi r^{2}\rho v_{\rm{in}}$ where $\dot{M}_{\rm{in}}$ and $v_{\rm{in}}$ are the infall rate and infall velocity, and $r$ and $\rho$ the core radius and density (see also Qiu et al. 2011; Beuther et al. 2013). Since the infall rate scales linearly with the distance, the following estimate is only conducted for the distance of 2.2 kpc and can be scaled to 1.0 kpc. We estimate the radius to $r\sim 80$ AU which is half our spatial resolution limit in the line emission of $0.07^{\prime\prime}$. For the density estimate, we $\rho\sim 2.3\times 10^{9}$ cm*-3* assuming that the peak column density (Table 1) is smoothly distributed along the line-of-sight at our spatial-resolution limit (i.e., 160 AU at 2.2 kpc). The infall velocity can be estimated to $\sim$7.1 km s*-1*, corresponding to the difference between the most red-shifted absorption at $\sim+3.5$ km s*-1*, and the $v_{\rm{lsr}}\sim-3.6$ km s*-1*. Using these physical parameters, we can estimate approximate mass infall rates toward submm source #2 of $\dot{M}_{\rm{in}}\sim 1.6\times 10^{-3}$ M*⊙* yr*-1*. At a distance of 1 kpc, that infall rate is a factor 2.2 lower.

Since collapse motions in star formation are typically associated with outflow and rotational dynamics, we hypothesize a 2D disk-like geometry to refine the infall rate estimate following Beuther et al. (2013): If the accretion follows along a flattened disk-like structure with a solid angle $\Omega$ (instead of the $4\pi$ in the spherical case), the corresponding disk infall rate $\dot{M}_{\rm{disk,in}}$ scales approximately like $\dot{M}_{\rm{disk,in}}=\frac{\Omega}{4\pi}\times\dot{M}_{\rm{in}}$. Following Kuiper et al. (2012, 2015, 2016), an outflow covers approximately an opening angle of $120^{\circ}$ while the disk covers $\sim$60*∘* (both to be doubled to take into account the north-south symmetry). Because opening angles do not scale linearly with the surface elements, full integration results in approximately 50% or $\sim 2\pi$ being covered by the disk-like structure. Taking these arguments into account, we estimate approximate disk infall rates around $\dot{M}_{\rm{disk,in}}\sim 0.8\times 10^{-3}$  M*⊙* yr*-1* at 2.2 kpc distance, or again a factor 2.2 lower at 1.0 kpc. Although strictly speaking these are disk infall rates and not accretion rates, one can use them as upper limit for the mean actual accretion rates (due to variable accretion from disk to star, the actual accretion rate can be much higher than the large scale infall rate on short timescales), and they are fully consistent with expected accretion rates for high-mass star formation (e.g., Krumholz et al. 2007b; Beuther et al. 2007a; Zinnecker & Yorke 2007; McKee & Ostriker 2007; Kuiper et al. 2010; Tan et al. 2014).

3.4 Temperature structure

The CH3CN$(37_{k}-36_{k})$ $k-$ladder allows a detailed derivation of the gas temperature of the central rotating core/disk structure associated with source #1. With energy levels between 588 and 1300 K (Table 2) we are tracing the hot component of the gas. Since the same spectral setup also covers the CH${}_{3}^{13}$CN$(37_{k}-36_{k})$ isotopologue (Fig. 2 and Table 2), high optical depth can also be taken into account. In addition to this, at the given very high spatial resolution, we do not get just an average temperature, but we can derive the temperature structure pixel by pixel over the full extent of the CH3CN emission. Figure 10 shows in the top panel the integrated 0th moment map of the CH3CN$(37_{2}-36_{2})$ to outline the extent of the CH3CN emission in comparison to the submm continuum.

For the pixel-by-pixel fitting of the CH3CN$(37_{k}-36_{k})$ data we used the XCLASS (eXtended CASA Line Analysis Software Suite) tool implemented in CASA (Möller et al., 2015). This tool models the data by solving the radiative transfer equation for an isothermal homogeneous object in local thermodynamic equilibrium (LTE) in one dimension, relying on the molecular databases VAMDC and CDMS (http://www.vamdc.org and Müller et al. 2001). It furthermore uses the model optimizer package MAGIX (Modeling and Analysis Generic Interface for eXternal numerical codes), which helps to find the best description of the data using a certain model (Möller et al., 2013). To fit our data we used the XCLASS version 1.2.0 with CASA version 4.6.

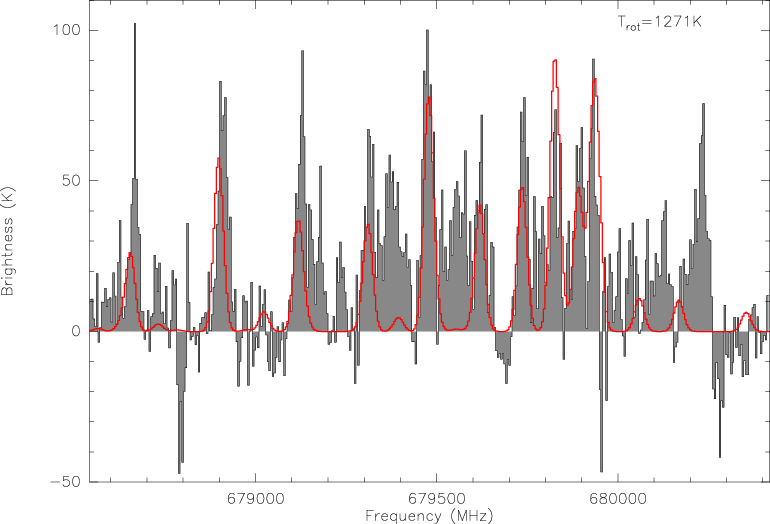

To fit the data, we explored a broad parameter space and also investigated whether single-component or double-component modeling were more appropriate. The source structure with a central luminous source implies that the temperature structure is more complicated, with temperature gradients, and even shocks may contribute to the gas temperature structure. However, increasing the fit complexity did not improve the fit quality significantly. Temperature results for the central area of interest varied by less than 10% between the single- and double-component fits. Nevertheless, to account at least partly for the complexity, we resorted to a two-component fit. Figure 11 shows one example spectrum and the corresponding XCLASS fit. While this fit itself does not appear great at first look, the differences can largely be attributed to additional spectral lines from other molecular species within the same spectral area.

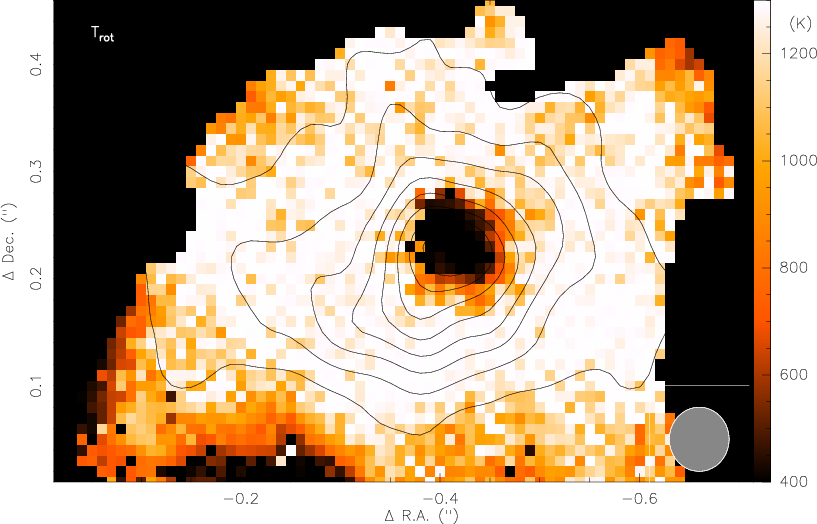

In the following, we will continue our analysis with the warmer of the two components because that resembles the innermost region best. Figure 10 (middle panel) presents the derived hot component temperature map for our central core/disk rotating structure. The hole in the center of the map is caused by the absorption against the strong continuum where no reasonable CH3CN fits are possible. We find very warm gas with temperatures largely around 1000 K with no steep gradient.

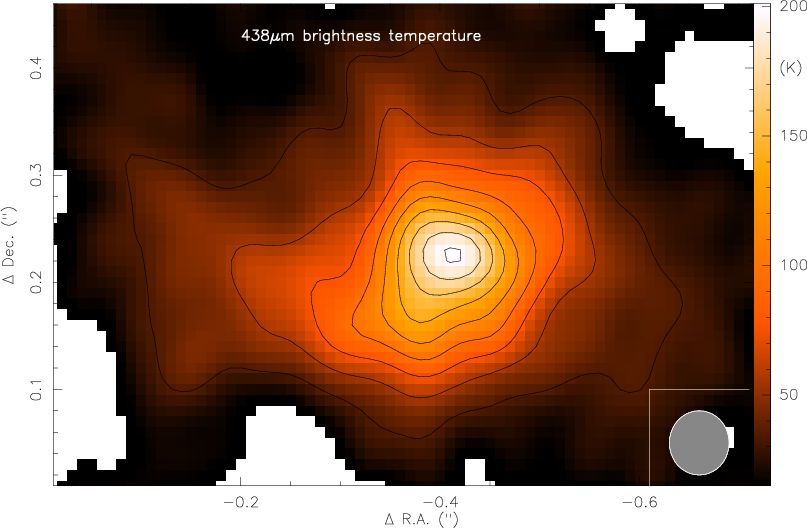

For comparison, in the bottom panel of Fig. 10 we show also the 438 $\mu$m continuum map, this time converted to Planck brightness temperatures $T_{b}$. Since we see all spectral lines in absorption against the main peak, the central position may be optically thick and thus could give an estimate of the dust temperature. The highest value we find this way is 201 K, significantly below the gas temperatures estimated above from the CH3CN data. With the unknown exact optical depth, this dust temperature should be considered a lower limit to the actual dust temperature. Since the optical depth decreases going further out, this assumption breaks down soon after leaving the main peak position. This can also be tested by fitting profiles to the dust continuum map. We explored this by fitting brightness temperatures to the west and east from the center ($\Delta\rm{Offset}\propto T_{b}^{\alpha}$), and we derived profile values $\alpha$ of $-1.7$ and $-1.6$, respectively. This is far too steep for any reasonable disk or core profile (usually $\alpha\sim-0.4$, e.g., Kenyon & Hartmann 1987)) and hence shows that the dust continuum map cannot be optically thick away from the central position.

4 Discussion

4.1 Fragmentation

The number of submm continuum sources found toward G351.77-0.54 in Figure 3 appears to be low within that field of view. However, quantifying this more closely, we find 4 sources (#1 through #4) within a projected separation between #3 and #4 of $\sim 7^{\prime\prime}$, corresponding to 15400(7000) AU at proposed distances of 2.2(1.0) kpc. Since the continuum optical depth is very high (see section 3.1), the extended structure of source #1 may hide potential additional substructure. Independent of that, the overall continuum structure resembles a proto-Trapezium-like system (e.g., Ambartsumian 1955; Preibisch et al. 1999). Assuming a spherical distribution, this corresponds to source densities of $\sim 1.8\times 10^{4}$ pc${}^{-3}(2.0\times 10^{5}$ pc*-3*) at 2.2(1) kpc distance. These densities compare or are even higher than source densities found in typical embedded clusters (protostellar densities typically around $10^{4}$ pc*-3*, Lada & Lada 2003). The separations also compare well to the Orion Trapezium system (e.g., Muench et al. 2008). Furthermore, similar high densities have also been found in a few other high-mass star-forming regions, e.g., W3IRS5 (Rodón et al., 2008) or G29.96 (Beuther et al., 2007c). Although our mass sensitivity is very low $\leq 0.004$ M*⊙, the comparably high column density sensitivity of $5\times 10^{23}$ cm-2* (section 3.1) indicates that some lower column density sources may be hidden below our sensitivity estimates. Therefore, the above estimated source densities should be considered as lower limits to the actual densities in the region.

4.2 (Disk) rotation?

As described in section 3.3 and shown in Figs. 8 and 9 we identify clear velocity gradients perpendicular to the main CO(6-5) outflow emanating from source #1. However, the position-velocity diagram also shows non-Keplerian contributions in the two opposing quadrants of the pv-diagrams in Fig. 9. While inclination effects can partly account for this (e.g., Seifried et al. 2016), models of embedded disks within infalling and rotating structures naturally result in such pv-diagrams (e.g., Ohashi et al. 1997; Sakai et al. 2016; Oya et al. 2016).

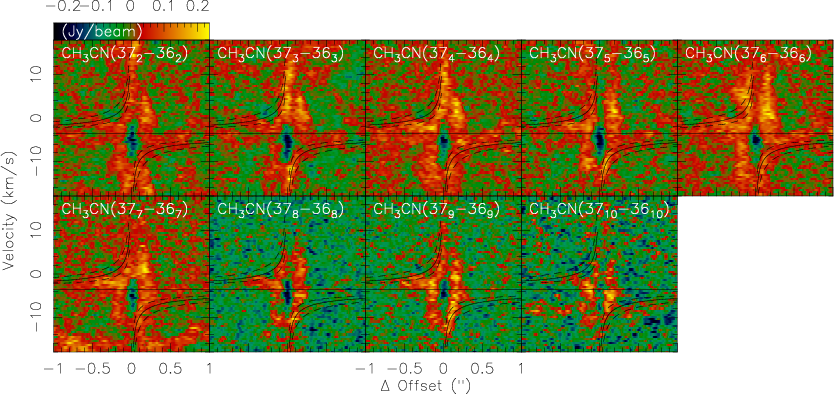

While ideally one would like to estimate the mass of the central object by fitting a Keplerian curve to the outer structure in the pv-diagram (Fig. 9), this seems hardly feasible for G351.77. In comparison to the fiducial 10(4.5) M*⊙* Keplerian curve (at 2.2(1.0) kpc presented in Fig. 9, we also show the corresponding Keplerian curves for half and double the central masses. Although one could argue that for example the $k=8,9$ transitions may be best represented by the 10(4.5) M*⊙* curve, this is less obvious in some of the other transitions (e.g., $k=5,6$). Hence, determining the exact mass of the central object unfortunately remains difficult.

Leurini et al. (2011a) note that there also seems to be CH3CN emission associated with the outflow, and if this is the case, the interpretation becomes more complicated. We confirm this result in that we see blue-shifted absorption along the line of sight as well as a smaller scale red-shifted CO(6–5) emission feature in the east-northeastern direction (Fig. 4). It is interesting to note that this is the case even for spectral lines with high excitation temperatures (Table 2). Furthermore, also outflows can produce emission features in the other quadrants of the pv-diagrams (e.g., Arce et al. 2007b; Li et al. 2013).

Hence, although we find a clear velocity gradient perpendicular to an outflow that is likely stemming to a significant fraction from an embedded disk-like structure, there are several additional kinematic signatures attributable to an infalling envelope as well as outflow emission that complicate the overall interpretation.

4.3 Gas and dust temperatures

Why does the gas temperature derived from the CH3CN$(37_{k}-36_{k})$ $k-$ ladder deviate so much from the brightness temperature based on the dust continuum emission? To first order, at the high densities present in this region, one would expect that gas and dust should be well coupled. For CH3CN, Feng et al. (2015) have shown that not considering optical depth effects may cause significant overestimates of estimated temperatures. However, since XCLASS takes also into account the CH${}_{3}^{13}$CN$(37_{k}-36_{k})$ isotopologue emission, this does not seem to be the case here. Therefore, the data indicate that the CH3CN and dust continuum emission both may trace different physical entities within the region. While shocks can partially be responsible for differences in the temperature structure, the gas and dust may also trace different components of the expected underlying massive disk. Considering that both emission structures are dominated by a disk-like structure around the central object and less affected by the envelope because that is filtered out by the extended array used here, the dust continuum emission may trace a colder disk mid-plane whereas the CH3CN emission may stem more from the disk surface. While this scenario has been discussed for low-mass disks (e.g., Henning & Semenov 2013; Dutrey et al. 2014), it is less well constrained for disks around higher-mass young stellar objects. However, from a physical point of view, one would expect similar behavior. Investigating the best-fit model of the high-mass disk source AFGL4176 by Johnston et al. (2015) in more detail, such a temperature structure is found qualitatively as well. We now may see first observational evidence of that here in G351.77-0.54. In addition to this, since the CH3CN emission may be partly influenced by the outflow, associated shocks may also contribute to the high temperatures.

4.4 Toomre stability of rotating structure

Using the temperature information derived from the CH3CN data, we can also address the stability of the central rotating structure around the main source #1. Originally derived by Toomre (1964) to estimate the gravitational stability of a disk of stars, it is used since then in various environments for a stability analysis (e.g, Binney & Tremaine 2008). In this framework, the Toomre $Q$ parameter refers to the stability of a differentially rotating, gaseous disk where gravity acts against gas pressure and differential rotation. The Toomre $Q$ parameter is defined as

[TABLE]

with the sound speed $c_{s}$, the epicyclic frequency $\kappa$ that corresponds to the rotational velocity $\Omega$ in the case of a Keplerian disk, and the surface density $\Sigma$. For thin disks, axisymmetric instabilities can occur for $Q<1$. Broadening the framework to disks with finite scale-height, the disks can stay stable to slightly lower values because the thickness reduces the gravity in the midplane where typically the structure formation takes place. Studies with different disk density profiles found critical $Q$ values below which axisymmetric instabilities occur between $\sim$0.6 and $\sim$0.7 (e.g., Kim & Ostriker 2007; Behrendt et al. 2015). In contrast to this, non-axisymmetric instabilities like spirals or bars can also occur at slightly higher $Q$ with $Q<2$ (e.g., Binney & Tremaine 2008). Taking these differences into account, for $Q$ significantly higher than 2, the disks should stay stable whereas at lower $Q$ non-axisymmetric and axisymmetric instabilities can occur.

In the following, we estimate the Toomre $Q$ parameter for the whole rotating structure around the main source #1 calculating the sound speed $c_{s}=\sqrt{kT/(2.3m_{H})}$ with the temperature $T$ (Fig. 10) and the mass of the hydrogen nucleus $m_{H}$, and using the Keplerian velocity $\Omega$ around a 10 M*⊙* star. The assumption of Keplerian motion appears reasonable for the inner disk considering the position-velocity diagram shown in Fig. 9, and it may become invalid in the outer regions when the disk mass becomes comparable to the mass of the central object and gravitational instabilities can occur. Furthermore, we use our 438 $\mu$m continuum map to estimate the column density $N_{{\rm H}_{2}}$ (or $\Sigma$) at each pixel with the assumptions outlined in section 3.1.

Regarding the temperature for the sound speed and the column density map, we present three different approaches: First, we use the CH3CN derived rotation temperature (Fig. 10) as a temperature proxy. Second, we use a uniform lower temperature of 200 K as temperature proxy that may resemble the dust temperature better (sections 3.1 and 4.3). And third, we use a dust temperature distribution with an approximate dust sublimation temperature of 1400 K at 10 AU and then a temperature distribution with radius $r$ as $T\propto r^{-\alpha}$. While $\alpha=0.5$ corresponds to the classical disk solution (e.g., Kenyon & Hartmann 1987), embedded disks can have lower $\alpha$ values (e.g., the best-fit disk temperature profile for AFGL4176 has $\alpha\sim 0.4$, Johnston et al. 2015, Johnston et al. in prep.), thus we assume a value of $\alpha=0.4$ for our analysis. Figure 12 presents the corresponding Toomre $Q$ maps in the three panels, with the third panel showing $Q$ for $T\propto r^{-0.4}$. Since the temperature difference between these approaches is large ($>1000$ K and below 100 K in the outskirts), we can consider these Toomre $Q$ maps as the bracketing values for the real physical Toomre $Q$ values in this region.

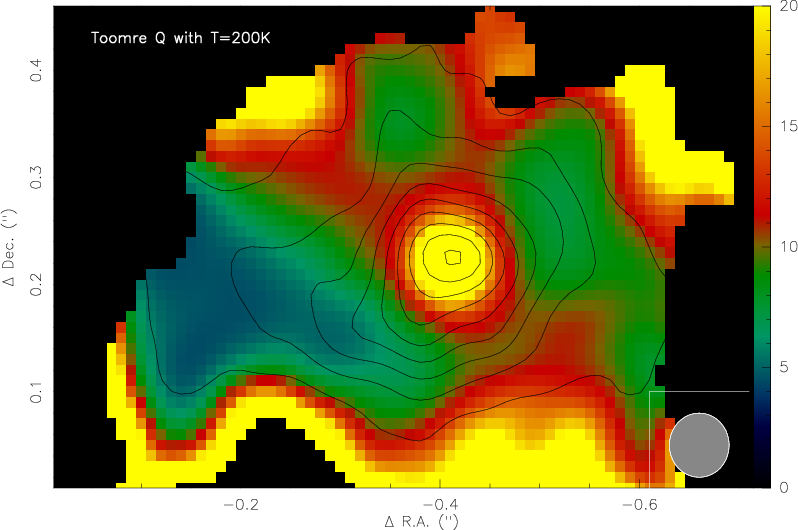

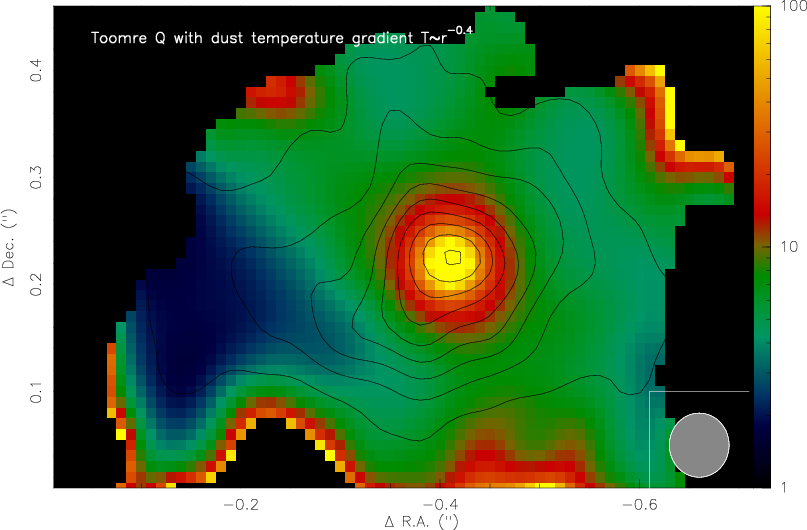

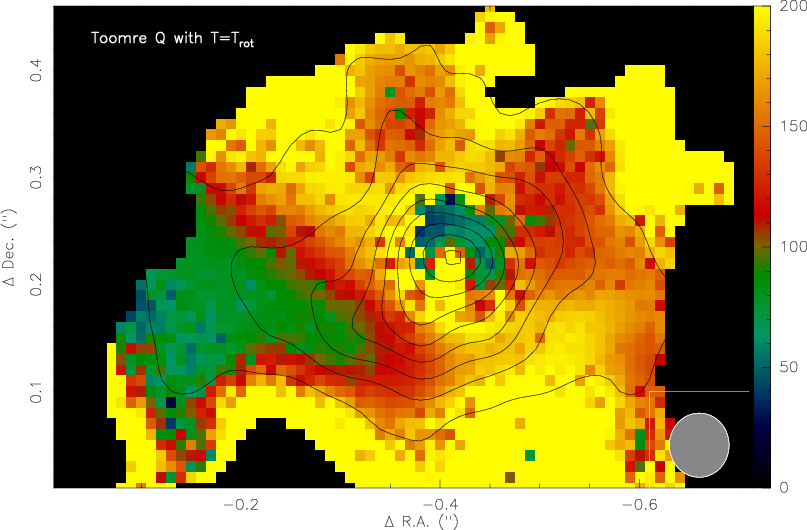

There is a large difference between the maps, with $Q$ values largely $>$100 for $T=T_{\rm{rot}}$, between 5 and 20 for $T=200$ K, and between $\sim 1.5$ and several 100 for the temperature distribution that varies as function of radius. However, even the lowest values in the map derived with the temperature distribution are greater than $\sim$1.5, hence in the axisymmetric stable regime. We note that with a steeper temperature distribution of $\alpha=0.5$ the bluish parts in the bottom panel of Fig. 12 would shift below Toomre $Q$ values of 1, but we consider such a steep distribution unlikely considering the deeply embedded phase and the very high gas temperatures measured in CH3CN. Therefore, while we do see sub-sources and fragments on larger scales (sources #2 to #4), the central disk-like structure around the main source #1 with an approximate diameter of 1000(500) AU @2.2(1) kpc appears stable against axisymmetric gravitational fragmentation. The main reason for that is the high average temperature of the rotating structure. This should at least be true for the resolved spatial scales. In addition to this, for $Q$ values between 1 and 2 disks can be prone to asymmetric instabilities such as spiral arms. Hence, it may still be possible that locally even higher densities exist which then may allow fragmentation on these smaller local scales.

5 Conclusions

The Atacama Large Millimeter Array (ALMA) in band 9 (around 690 GHz) opens an entirely new window to study star formation and in particular the formation of the highest mass stars. With correspondingly long baselines we reach unprecedented spatial resolution of $\sim$0.06*′′*, allowing us to dissect the small-scale structure in high-mass star-forming regions. Here, we present the first such study targeting the high-mass star-forming region G351.77-0.54. With a linear resolution of 130(60) AU, we resolve the fragmentation of the dense inner core in the 438 $\mu$m continuum emission as well as the kinematics and temperature structure of the dense gas.

We resolve four submm continuum sources in the field of view which result in approximate protostellar densities between $10^{4}$ and $10^{5}$ pc*-3* depending on the assumed distance of the source. This should be considered as a lower limit since our column density sensitivity is comparably high and we may miss lower column density sources in the field. These high protostellar densities are comparable to those found in other proto-Trapezia systems (e.g., Preibisch et al. 1999; Rodón et al. 2008).

The four spectral windows cover a multitude of spectral lines, here we concentrate on the CH3CN($37_{k}-36_{k})$ $k-$ladder that covers excitation levels above ground between 588 and 1300 K, tracing the warmest gas components in the region. Furthermore, we use the CO(6–5) line wing emission to identify high-velocity gas emanating from the main submm continuum source #1 in the north-northwestern direction. The kinematic analysis of the CH3CN data identifies a velocity gradient perpendicular to that outflow. While the position-velocity gradients show hints of Keplerian rotation, there is also an additional component that likely stems from the infalling envelope as well as possible outflow contributions.

The continuum emission at these wavelengths is so strong with likely high optical depth toward the peak positions that we identify absorption in the dense gas tracer CH3CN against the continuum sources #1 and #2. While the absorption toward the main source #1 is mainly blue-shifted and hence dominated by outflow motions, toward the secondary unresolved source #2, blue- and red-shifted absorption is identified. These absorption features indicate high mass infall rates on the order of $10^{-4}$ to $10^{-3}$ M*⊙* yr*-1* which can be considered as upper limit proxies for the actual mean accretion rates onto the central source embedded in #2.

Fitting simultaneously the CH3CN($37_{k}-36_{k})$ and CH${}_{3}^{13}$CN isotopologue $k-$ladders with XCLASS, we derive a rotational temperature map for the main source #1. Very high gas temperatures, often in excess of 1000 K are found. Hence, we are apparently seeing part of the hottest molecular component observed so far in dense high-mass star-forming regions. This is reasonable considering the high excitation levels of the used lines. Assuming that at least the central beam of the submm continuum emission is optically thick, one can use its brightness temperature as a proxy of the dust temperature. The highest continuum brightness temperature we find is 201 K, indicating that we see a difference in gas and dust temperature. We may witness here the difference between the colder dust mid-plane and the hotter gaseous surface layer of a high-mass accretion disk, similar to cases known for their low-mass counterparts.

Analyzing the stability of the rotating structure via determining the Toomre $Q$ parameter, we find the central disk-like structure to exhibit always high $Q$ values, hence being on the resolvable scales in the axisymmetrically stable regime. However, asymmetric instabilities like spiral arms may still occur on even smaller so far unresolved spatial scales.

Acknowledgements.

This paper makes use of the following ALMA data: ADS/JAO.ALMA#2013.1.00260.S. ALMA is a partnership of ESO (representing its member states), NSF (USA) and NINS (Japan), together with NRC (Canada) and NSC and ASIAA (Taiwan) and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO and NAOJ. We like to thank Alvaro Sanchez-Monge and Thomas Möller for their continuous help with and improvements on the spectral line fitting program XCLASS. Furthermore, we thank the referee for a detailed report improving the clarity of the paper. HB acknowledges support from the European Research Council under the Horizon 2020 Framework Program via the ERC Consolidator Grant CSF-648505. RK acknowledges support from the German Research Foundation under the Emmy Noether Program via the grant no. KU 2849/3-1.
