Ground-state phase diagram of an anisotropic spin-$1/2$ model on the triangular lattice

TL;DR

This study maps the ground-state phase diagram of an anisotropic spin-1/2 model on a triangular lattice, revealing multiple phases and phase transitions, but no evidence of a quantum spin liquid, thus informing the modeling of YbMgGaO4.

Contribution

The paper provides a detailed phase diagram of the anisotropic spin-1/2 model using advanced numerical methods, highlighting the nature of phase transitions and the absence of a quantum spin liquid in this model.

Findings

Identifies a 120° phase and two stripe phases in the quantum phase diagram.

First-order transitions from stripe phases to the 120° phase.

No evidence of a quantum spin liquid in the studied model.

Abstract

Motivated by the recent experiment on a rare-earth material YbMgGaO$_4$ [Y. Li \textit{et al.}, Phys. Rev. Lett. \textbf{115}, 167203 (2015)], which found that the ground state of YbMgGaO$_4$ is a quantum spin liquid, we study the ground-state phase diagram of an anisotropic spin-$1/2$ model that was proposed to describe YbMgGaO$_4$. Using the density-matrix renormalization group method in combination with the exact diagonalization, we calculate a variety of physical quantities, including the ground-state energy, the fidelity, the entanglement entropy and spin-spin correlation functions. Our studies show that in the quantum phase diagram there is a $120^{\circ}$ phase and two distinct stripe phases. The transitions from the two stripe phases to the $120^{\circ}$ phase are of the first order. However, the transition between the two stripe phases is not the first order, which is different from its classical counterpart. Additionally, we find no evidence for a quantum spin liquid in this model. Our results suggest that additional terms may be also important to model the material YbMgGaO$_4$. These findings will stimulate further experimental and theoretical works in understanding the quantum spin liquid ground state in YbMgGaO$_4$.

Figures

Tables

Table 1. Table 1: The classical phases, and the characteristic wave vectors Q , classical ground-state energy E cl / ( N ​ S 2 ) subscript 𝐸 cl 𝑁 superscript 𝑆 2 E_{\textrm{cl}}/(NS^{2}) , the allowed angles ( θ , ϕ ) 𝜃 italic-ϕ \left(\theta,\phi\right) , and the conditions for the phases for J z ± ≥ 0 subscript 𝐽 limit-from 𝑧 plus-or-minus 0 J_{z\pm}\geq 0 .

phases	Q	$E_{\text{cl}}/\left(N{S}^2\right)$	$(\theta ,\varphi )$	conditions
stripe-B	$M_0,M_{\pm }$	$-2\left(J_{\pm }-2J_{\pm \pm }\right)$	$\begin{array}{c}(\frac{\pi }{2},\frac{n\pi }{3})\\ \left(n=0,1,\cdots ,5\right)\end{array}$
${120}^{\circ }$	$K,K^{\prime }$	$-3J_{\pm }$	$\left(\frac{\pi }{2},\forall \varphi \in [0,2\pi )\right)$
stripe-A	$M_0,M_{\pm }$	$\alpha$ 111$\alpha =-\left[\left(J_{\pm }+2J_{\pm \pm }\right)+J_{zz}/2\right]-\sqrt{4J_{z\pm }^2+{\left[\left(J_{\pm }+2J_{\pm \pm }\right)-J_{zz}/2\right]}^2}$.	$\beta$ 222$\beta =(\frac{\pi }{4}+\frac{1}{2}{\tan }^{-1}\left[\frac{J_{\pm }+2J_{\pm \pm }-J_{zz}/2}{2J_{z\pm }}\right],\frac{\left(2n+1\right)\pi }{6})\left(n=0,1,\cdots ,5\right)$.

Equations

$$\mathcal{H}=$$

$$+J_{\pm \pm }({\gamma }_{ij}{S}_i^{+}{S}_j^{+}+{\gamma }_{ij}^{\ast }{S}_i^{-}{S}_j^{-})$$

$$\displaystyle-{\frac{iJ_{z\pm}}{2}(\gamma_{ij}^{*}S_{i}^{+}S_{j}^{z}-\gamma_{ij}S_{i}^{-}S_{j}^{z}+\langle i\leftrightarrow j\rangle)}\bigg{]}$$

$${\mathbf{S}}_i=S\left(\sin {\theta }_i\cos {\varphi }_i,\sin {\theta }_i\sin {\varphi }_i,\cos {\theta }_i\right),$$

$$\mathcal{H}$$

$$\displaystyle J({\bf{q}})=\left[\begin{array}[]{ccc}2J_{\pm}\mathcal{F}+2J_{\pm\pm}\mathcal{G}&-2\sqrt{3}J_{\pm\pm}\mathcal{K}&-\sqrt{3}J_{z\pm}\mathcal{K}\\ -2\sqrt{3}J_{\pm\pm}\mathcal{K}&2J_{\pm}\mathcal{F}-2J_{\pm\pm}\mathcal{G}&J_{z\pm}\mathcal{G}\\ -\sqrt{3}J_{z\pm}\mathcal{K}&J_{z\pm}\mathcal{G}&J_{zz}\mathcal{F}\\ \end{array}\right]$$

$$\displaystyle\left\{\begin{array}[]{l}\mathcal{F}=f({\bf{q}})=\cos q_{x}+2\cos\frac{q_{x}}{2}\cos\frac{\sqrt{3}q_{y}}{2}\\ \mathcal{G}=g({\bf{q}})=\cos q_{x}-\cos\frac{q_{x}}{2}\cos\frac{\sqrt{3}q_{y}}{2}\\ \mathcal{K}=h({\bf{q}})=\sin\frac{q_{x}}{2}\sin\frac{\sqrt{3}q_{y}}{2}\\ \end{array}\right..$$

$${\mathcal{S}}_{ij}^{\nu }=⟨S_i^{\nu }{S}_j^{\nu }⟩$$

$${\mathcal{S}}_N^{\nu }(\mathbf{Q})=\frac{1}{N}\sum _{ij}{e}^{i\mathbf{Q}\cdot ({\mathbf{R}}_i-{\mathbf{R}}_j)}{\mathcal{S}}_{ij}^{\nu }$$

$$M_N(\mathbf{Q})=\sqrt{\sum _{\nu }{\mathcal{S}}_N^{\nu }(\mathbf{Q})/N}$$

Full text

I Introduction

Frustrated antiferromagnets are the focus of recent research efforts in correlated systems, largely motivated by the keen interest in searching for exotic states of matter in materials as well as in microscopic modelsBalents-10 . In all proposed states, the quantum spin liquid (QSL)Anderson-73 ; Anderson-87 , in particular, is quite attractive because it is in close association with topological order and can host fractionalized excitationsSB-2016 ; ZKN-2016 .

Frustration is usually illustratedBalents-10 by the triangular lattice, in which the energy of all the bonds can not be simultaneously minimized. More than forty years ago, Anderson proposed that the ground state of the spin-1/2 antiferromagnetic Heisenberg model on the triangular lattice was a candidate for QSLAnderson-73 ; Anderson-87 . However, extensive numerical calculations have provided strong evidence that its ground state has a magnetic long-range order with a ${120^{\circ}}$ structureHuseElser-88 ; SLL-94 . The effect of the frustration only reduces the magnitude of the magnetic orderBLLP-94 and recent density-matrix renormalization group (DMRG) calculations show that the magnetization is approximately $M\approx 0.205(15)$WC-07 .

To destroy the magnetic order, one natural way is to include next-nearest-neighbor interactions, such as the $J_{1}$-$J_{2}$ model on the triangular lattice, which has been intensively studied by coupled cluster methodLBC-15 , DMRGZW-15 ; HGZS-15 and variational Monte Carlo methodZMQ-15 ; IHTPB-16 ; HGS-16 quite recently. Other proposals are to consider the anisotropic interactions with $J$ along the horizontal direction and $J^{\prime}$ along the zigzag directionWW-11 ; TS-14 , or the totally random nearest-neighbor interactionsWKNS-14 .

Interest in the triangular lattice is also stimulated by the synthesis of several promising candidate materials for QSL, which makes it possible to test theoretical predictions experimentally. These materials, including the inorganic Cs2CuCl4CTTT-01 , Cs2CuBr4OTKIMG-03 , and Ba3CoSb2O9STMK-12 , the organic salts $\kappa$-(ET)2Cu2(CN)3SMKMS-03 and EtMe3Sb[Pd(dmit)2]2Yamashitaetal-10 , have witnessed the successful composition of the ideal triangular lattice. Very recently, another triangular lattice material, YbMgGaO4QMZhang-15 ; QMZhang-15v2 , was found experimentally to be a strong candidate for QSL. In this material, ${\rm{Yb}^{3+}}$ sits on a perfect triangular lattice. It contains thirteen electrons in the $4f$ shell, which shall form spin-orbit entangled Kramers doublets. These Kramers doublets are split by the D3d crystal fields, and thus can be treated as an effective spin-$1/2$ degree of freedom at low temperature. Contrary to previous QSL candidate materials, the spin-orbit coupling (SOC) is strong in YbMgGaO4. It is argued that such SOC leads to anisotropic exchange interactions and eventually destroys the long-range magnetic order.

The rest of the paper is outlined as follows. In Sec. II, we introduce the model Hamiltonian proposed for YbMgGaO4. In Sec. III the classical phases are obtained by Luttinger-Tisza method. In Sec. IV we provide our phase diagram obtained by the exact diagonalization (ED) method and DMRG method. The criticality is also discussed. Sec. V is devoted to the conclusion, where we discuss our numerical results as well as the validity of the model Hamiltonian for YbMgGaO4.

II Model Hamiltonian

The model considered in this paper is a highly anisotropic spin-1/2 Hamiltonian with nearest-neighbor interactions, which is proposed to describe YbMgGaO4. It stems from the study of the pyrochlore latticeHFB-04 ; BIDK-08 ; SSPPF-12 ; HCH-14 , a three-dimensional network of corner sharing tetrahedra, which offers outstanding opportunities for the study of geometric magnetic frustration where exotic states such as spin ice can emergeSB-12 ; LOB-12 ; SB-13 . It should be noted that whether such an anisotropic exchange on triangular lattice resulted from SOC will stabilize or destabilize the conventional order is unclear a prioriNishimoto-2016 .

In general, the Hamiltonian is given byQMZhang-15

[TABLE]

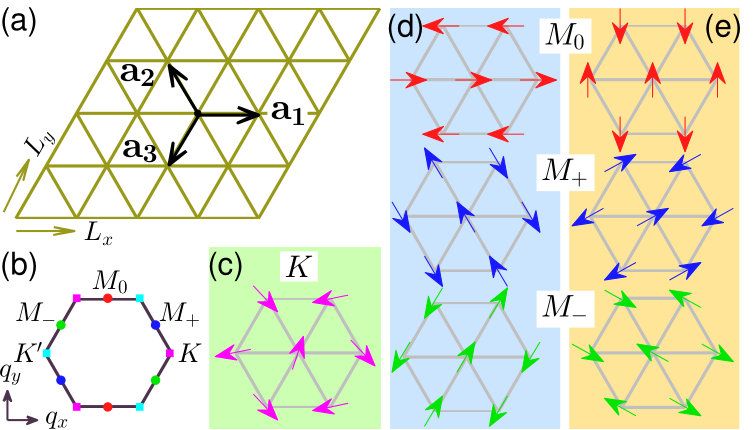

where $S_{i}^{\alpha}$ ($\alpha=x,y,z$) are the three components of spin-1/2 operators, and $S_{i}^{\pm}=S_{i}^{x}\pm iS_{i}^{y}$. The coupling $J_{zz}$ and $J_{\pm}$ are positive in our model. The phase factor $\gamma_{ij}=1,~{}e^{i2\pi/3},~{}e^{-i2\pi/3}$ for the bond $\langle{ij}\rangle$ along the $\bf{a}_{1}$, $\bf{a}_{2}$, $\bf{a}_{3}$ lattice direction, respectively, see Fig. 1 (a). In the absence of $J_{\pm\pm}$ and $J_{z\pm}$, Eq. (1) is an XXZ model whose ground state is known to be the $120^{\circ}$ phaseYMD-14 ; SZE-15 ; GMMSOT-15 . Due to the competition from the $J_{\pm\pm}$ and $J_{z\pm}$, the ground-state phase diagram is expected to be much richer. For simplicity, we will set $J_{zz}=1$ as the energy unit. Moreover, we set $J_{\pm}/J_{zz}=1$ throughout the paper, which agrees with the recent experimentNotes-JpmJzpm .

III Classical phase diagram

We firstly give glimpses of the classical phase diagram of the model (1) before moving to the large-scale numerical calculations. The classical phase diagram has already been obtained by Li et al. with Luttinger-Tisza methodLT-46 ; Bertaut-61 ; Litvin-74 and Monte Carlo simulationMetropolis-1953 ; LWC-2016 . Here, we will focus on the criticality of the phase transitions between those phases in the phase diagram. The classical spin is an $O(3)$ vector, which is given by

[TABLE]

where $\theta_{i}$ and $\phi_{i}=\textbf{Q}\cdot\boldsymbol{R}_{i}+\varphi$ are respectively the polar and azimuthal angles at site $i$ with the position $\boldsymbol{R}_{i}$. The ordering wave vector Q is determined after minimizing $\mathcal{H}$ with respect to $\{\theta_{i},\phi_{i}\}$. By the Fourier transformation $S_{i}^{\alpha}=\frac{1}{\sqrt{N}}\sum_{\bf{q}}e^{i{\bf{q}}\cdot{\boldsymbol{R}}_{i}}S_{\bf{q}}^{\alpha}$ with $\alpha=x,~{}y$ and $z$, the model (1) takes the form

[TABLE]

where $J(\bf{q})$ is a $3\times 3$ symmetric matrix, which is written as

[TABLE]

with

[TABLE]

The smallest eigenvalue of $J({\bf{q}})$ over the first Brillouin zone (FBZ) (Fig. 1 (b)) provides a lower bound for the classical ground-state energyLT-46 ; Bertaut-61 ; Litvin-74 . Therefore, we obtain the magnetic order with the characteristic Q for the given parameters.

In table 1, we present our results for $J_{z\pm}\geq 0$. These results are obtained with the toroidal boundary condition (TBC). We find three phases in the classical phase diagram, a $120^{\circ}$ phaseKB-2010 with the magnetic pattern shown in Fig. 1 (c), and two stripe phasesSBK-2012 which are called bond stripe (stripe-B) phase (Fig. 1 (d)) and angle stripe (stripe-A) phase (Fig. 1 (e)). In the $120^{\circ}$ phase, the spins lie in the $x$-$y$ plane, leaving the $z$ component disordered. The peaks of the static structure factors locate at the $K$ and $K^{\prime}$ and other symmetry equivalent points. In the stripe-B (A) phase the spins can be parallel (perpendicular) to one of the three bonds $\bf{a}_{1}$, $\bf{a}_{2}$ and $\bf{a}_{3}$. Therefore, both of the two stripe phases are three-fold degenerate, and in the ground state the $\bf{Q}$ locates at one of the three points $M_{0}$, $M_{+}$ and $M_{-}$. By comparing the ground-state energy in these phases, we can determine the transition points among these phases.

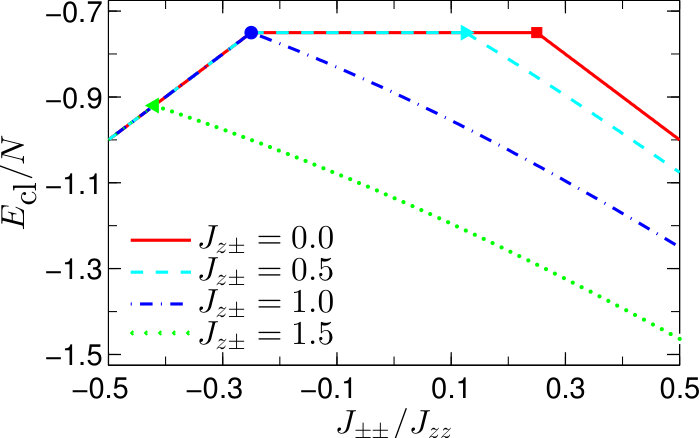

FIG. 2 shows the ground-state energy for $J_{z\pm}=$ 0.0, 0.5, 1.0 and 1.5. The symbols in the curves represent the phase transition points. At $J_{z\pm}=0.0$, we find a $120^{\circ}$ phase sandwiched by two stripe phases. The inversion symmetry of the curve for $J_{z\pm}=0.0$ with respect to $J_{\pm\pm}=0$ is a reminiscence of the invariance of Hamiltonian (1) under the $\pi/2$ rotation around the $z$ axis. This symmetry is broken for a nonzero $J_{z\pm}$, as can be seen from the curve for $J_{z\pm}=0.5$. The kink in the curve is the evidence of the first-order phase transition between each stripe phase and $120^{\circ}$ phase. As $J_{z\pm}$ increases, the transverse components ($x,y$) and the longitudinal component ($z$) become strongly coupled and the region of $120^{\circ}$ phase shrinks. Eventually, the $120^{\circ}$ phase vanishes at the tricritical point $(J_{\pm\pm},J_{z\pm})=(-0.25,1.0)$. The two stripe phases then transit into each other via a first-order phase transition.

IV Quantum Phase Diagram

IV.1 Energy derivative, fidelity and entanglement entropy

In this subsection, we turn to study the quantum phases in the Hamiltonian (1), which may help us to gain some insight into the QSL state in the YbMgGaO4. First, for a simple profile of the ground-state phase diagram, we study the Hamiltonian (1) by using ED on a $6\times{4}$ cluster with TBC. We will examine the ground-state energy and its derivative. They can provide direct evidences for quantum phase transitionsSachdev-2011 . Moreover, we study the ground-state fidelityVZ-2007 ; YLG-2007 ; ZB-2008 ; Gu-2010 ; TS-14-Fidelity and entanglement entropyOAFF-2002 ; WSL-04 , which are frequently used as probes for quantum phase transitions in a variety of models. For a given Hamiltonian with a control parameter $\lambda$ and a ground state $|\psi(\lambda)\rangle$, the fidelity $F(\lambda,\lambda^{\prime})$ is defined as the overlap of two wave functions, i.e. $F(\lambda,\lambda^{\prime})=|\langle\psi(\lambda)|\psi(\lambda^{\prime})\rangle|$. To determine the phase boundary, we choose $\lambda^{\prime}=\lambda+\delta$, with $\delta\ll{1}$. The fidelity is expected smaller if $\lambda$ and $\lambda^{\prime}$ are in different phases than in the same phase. Therefore, the fidelity shows a minimum around the critical point in our finite systems. The entanglement entropy, in our case the von Neumann entropy, is defined as $S_{\textrm{vN}}=-\textrm{Tr}{\rho\ln{\rho}}$, where $\rho$ is the reduced density matrix. To calculate $\rho$, we split the system into two halves. The reduced density matrix is obtained by tracing out the freedom of one half. At the transition point, $S_{\textrm{vN}}$ shows a maximum if such transition is continuous or a jump if the transition is first orderWSL-04 . Both the fidelity and the entanglement entropy can efficiently determine the phase boundary without the detailed knowledge of the phases.

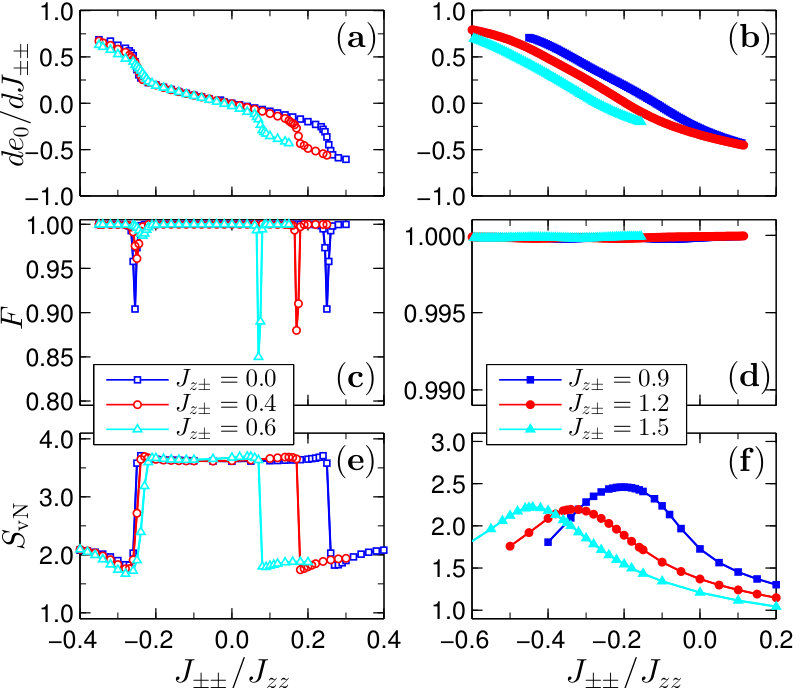

To do so, for a given $J_{z\pm}$, we set $J_{\pm\pm}$ as the control parameter and take $\delta=0.005$. In Fig. 3(a), we show the first derivative of the ground-state energy, ${de_{0}}/{dJ_{\pm\pm}}$, for $J_{z\pm}=0.0,0.4$ and $0.6$. There are two unconspicuous jumps for each curve, which are signals of a first-order phase transition. One can expect these jumps will become sharp as the system size increases, as shown in the next subsection. As for the fidelity illustrated in Fig. 3(c), two dips, which are interpreted as phase transitions, are seen for each curve of $J_{z\pm}$. Moreover, as $J_{z\pm}$ increases, the interval between the two dips decreases. These two transition points merge into one at $(J^{0}_{\pm\pm},J^{0}_{z\pm})=(-0.17(2),0.85(3))$. This behavior qualitatively agrees with that in its classical counterpart. Our results can be further confirmed by the entanglement entropy. In Fig. 3(e), we show $S_{\textrm{vN}}$ as a function of $J_{\pm\pm}$. Two jumps are observed in each curve of $J_{z\pm}$. The positions where the jumps occur agree well with those obtained by the fidelity and energy derivative. These results suggest a qualitative change in the ground state for our finite clusters and thus a first-order phase transition.

However, when $J_{z\pm}>J^{0}_{z\pm}$, as shown in panels (b) and (d), the curves for ${de_{0}}/{dJ_{\pm\pm}}$ are smooth and only tiny oscillations (order of $10^{-4}$) are seen in the fidelity $F$. Therefore, no characteristic behaviors of a first-order phase transition are observed. Meanwhile, a maximum in $S_{\textrm{vN}}$ is seen in panel (f). These may be taken as a possible signal of a continuous phase transition or a crossover.

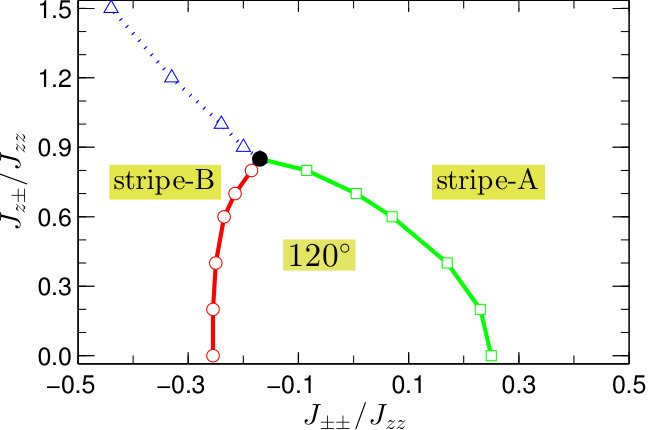

In Fig. 4, we summarize our phase diagram. The phase boundary is obtained from ED. It includes three phases, stripe-B phase, stripe-A phase and $120^{\circ}$ phase. The transitions from the two stripe phases to the $120^{\circ}$ phase are of the first order. Above the tricritical point, i.e. $J_{z\pm}>J_{z\pm}^{0}$, the $120^{\circ}$ phase disappears. The stripe-B phase transits into the stripe-A phase directly as $J_{\pm\pm}$ increases. Our analysis of the classic spin model tells us that such transition is first order. However, our ED results do not detect signals for a first-order phase transition. In addition, we confirm these conclusions on hexagonal clusters as well. In the following subsections, we will discuss more about the properties of each phase and phase transitions.

IV.2 Ground-state energy and magnetic structure factors

In the last subsection, we have mapped out the phase boundary by ED but without providing the details of those phases. Here, we resort to DMRGWhite-9293 ; PWKH-1999 ; SchRMP-2005 , which enables us to access large lattice sizes, to provide more information of those phases. To get accurate results with DMRG, we use cylindrical boundary condition (CBC). The clusters we use are L_{x}\times L_{y}=$$10\times{6}, $12\times{8}$ and $15\times{10}$. The aspect ratio is about 1.5, which was proposed to be the best to minimize the edge effectWC-07 ; StouWhite-ARCMP-12 . We keep up to 3000 states in our simulations and typically about 10 sweeps are performed to improve the accuracy.

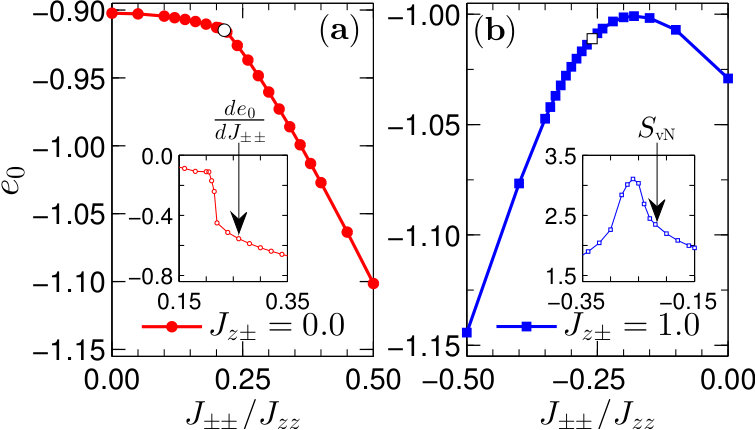

Let us start our discussion by showing the ground-state energy. The energy per site $e_{0}$ as a function of $J_{\pm\pm}$ is shown in FIG. 5. In panel (a), we show the energy for $J_{z\pm}=0.0$. A clear kink can be observed in the energy curve. The position of the kink, $J_{\pm\pm}=0.215(5)$, is marked by an open circle. It is remarkable to note that such a kink is characteristic of a first-order phase transition. In contrast, in panel (b) with $J_{z\pm}=1.0$, the energy is smooth as a function of $J_{\pm\pm}$ within our numerical accuracy. This provides further evidence that such transition is not first order. The possible phase transition point (the open square) $J_{\pm\pm}\simeq-0.265(5)$ is given by the sharp peak in the entanglement entropy, as shown in the inset.

Now we turn to study the magnetic order in each phase. The magnetic order is naturally detected by the spin-spin correlation functions

[TABLE]

and their Fourier transformation, i.e., static magnetic structure factors (SMSF),

[TABLE]

where $\nu=x,\;y$ and $z$ represents the spin component, $\langle\cdots\rangle$ is the average over the ground state, ${\bf{R}}_{i}$ is the position of site $i$, and $N=L_{x}L_{y}$ is the total number of the spins.

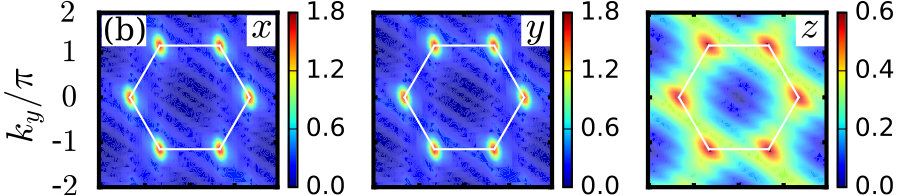

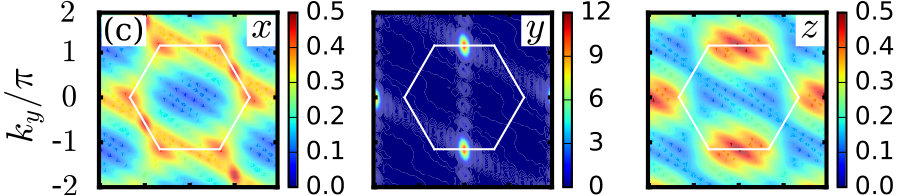

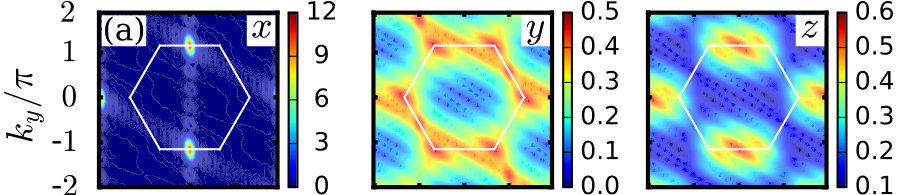

In Fig. 6, we show the typical SMSF of the stripe-B phase, $120^{\circ}$ phase and stripe-A phase at $J_{z\pm}=0.0$. The positions of the peaks of the SMSF clearly demonstrate the differences among the three phases. In the stripe-B phase, as we show in row (a) where $J_{\pm\pm}=-0.38$, the dominant spin component is $x$, and the peak of the SMSF locates at $M_{0}$. However, in the stripe-A phase shown in row (c) with $J_{\pm\pm}=0.40$, the dominant spin component becomes $y$ and the peak remains at $M_{0}$. Actually, the ground states of the two stripe phases are three-fold degenerate, and the peak of the SMSF can locate at any of the equivalent point $M_{0}$, $M_{+}$ or $M_{-}$. However, we do not detect all the degenerate states simultaneously in our DMRG calculations. This results from the CBC we imposed to simulate the highly anisotropic triangular lattice. In Appendix A, we will discuss more about this. Hereafter, for simplicity, we will restrict our discussion to ${\bf{Q}}_{M}=M_{0}=(0,\frac{2\pi}{\sqrt{3}})$ only because others are symmetrically equivalent. In the $120^{\circ}$ phase shown in row (b) with $J_{\pm\pm}=0.10$, both $x$ and $y$ components are dominant and of nearly equal weight. They peak at ${\bf{Q}}_{K}=K=(\frac{4\pi}{3},0)$. The behaviors in the $120^{\circ}$ phase agree with that in the standard XXZ Heisenberg modelGMMSOT-15 . From these data, one can immediately figure out that the magnetic order in the quantum model is similar to its classical version.

As $J_{z\pm}$ increases, the spins in the stripe-B phase remain in the $x$-$y$ plane, but in the stripe-A phase the $z$ component also becomes dominant. This phenomenon can be understood directly from $\mathcal{H}_{z\pm}$, the last line of the Hamiltonian (1), as follows. In the mean field level, $\mathcal{H}_{z\pm}$ is approximately zero in the stripe-B phase, and thus $J_{z\pm}$ is irrelevant in the stripe-B phase. However, in the stripe-A phase, $\mathcal{H}_{z\pm}\sim 2J_{z\pm}\sum_{i}S_{i}^{z}$. Therefore, the $z$ component should be ordered for a finite $J_{z\pm}$.

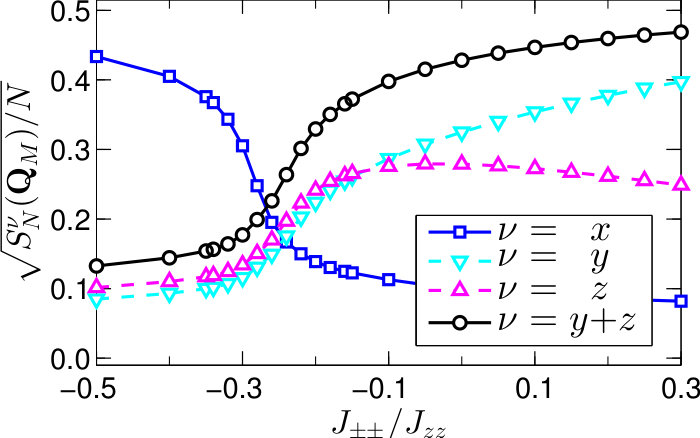

In Fig. 7, we show $\sqrt{\mathcal{S}_{N}^{\nu}({\bf{Q}}_{M})/N}$ as a function of $J_{\pm\pm}$ for $J_{z\pm}=1.0$, which is well above the tricritical point and only the two distinct stripe phases exist. One can distinguish from Fig. 7 that the SMSF in both stripe phases peak at ${\bf{Q}}_{M}$. From our previous analysis of the energy derivative, the fidelity, and the entanglement entropy, we do not find signals of a first-order phase transition between the two stripe phases. This can be further clarified by the order parameters in each phase. To investigate the phase transition between the two stripe phases, we make a comparison between the $x$ component and the summation of $y$ and $z$ components of the SMSF, which is also shown in Fig. 7. The intersection of the two curves occurs at $J_{\pm\pm}=-0.27(1)$, and is fairly consistent with the one obtained by the entanglement entropy in Fig. 5(b). Moreover, these quantities evolve smoothly as a function of $J_{\pm\pm}$, which provides us another evidence to exclude the possibility of a first-order phase transition between the two stripe phases. Therefore, there are two possibilities about the transition between the two phases. One is that the transition is continuous, and the other is a crossover. However, due to the limited sizes, we can not tell definitely which one is correct and therefore leave it as an open question.

IV.3 Numerical results relevant to YbMgGaO4

Since it is argued that the Hamiltonian (1) is sufficient to describe the nature of YbMgGaO4QMZhang-15 ; LiChen-arXiv1608 , in this subsection, we will focus on this material with the relevant coupling parameters. These parameters have been determined accurately by measuring the magnetization and magnetic susceptibility as well as by the electron spin resonance (ESR)QMZhang-15 . According to those experiments, $J_{z\pm}$ is rather small and is insignificant in the material, and this inference is further confirmed by the later experiment on the magnetic excitationsPadd-Yb-2016 . Though the ESR can only determine the intensity but not the sign of the $J_{\pm\pm}$ term, the sign of the $J_{\pm\pm}$ does not have any effect on the ground-state phases if $J_{z\pm}=0.0$. This is because that in the absence of the $J_{z\pm}$ term, the Hamiltonian (1) is invariant under the $\pi/2$ rotation around the $z$ axis. Consequently, in the following discussions, we will focus on $J_{zz}=J_{\pm}=1.0$, $J_{z\pm}=0.0$, and sweep the parameters in the region $0.0\leq J_{\pm\pm}\leq 0.5$ hereafter. The validity of our conclusions to other $J_{z\pm}$ is also confirmed by our DMRG calculations.

To search for the possible QSL phase and distinguish the phase boundaries, we introduce the order parameter

[TABLE]

where ${\bf{Q}}={\bf{Q}}_{K}$ or ${\bf{Q}}_{M}$.

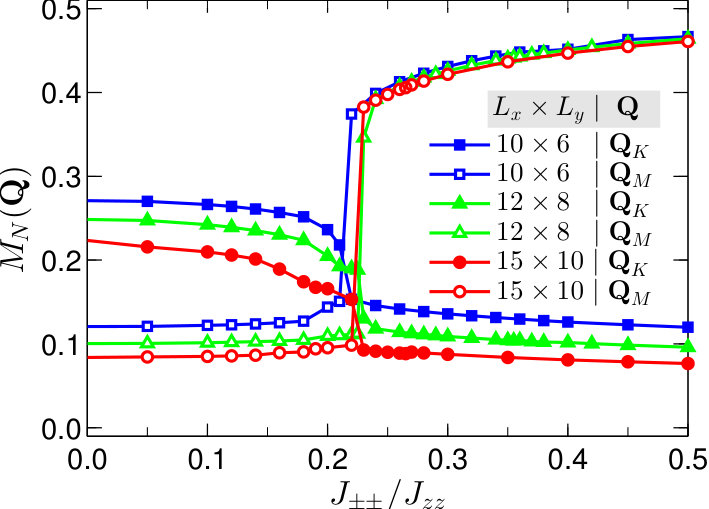

In Fig. 8, we plot $M_{N}(\bf{Q})$ at ${\bf{Q}}_{K}$ (filled symbols) and ${\bf{Q}}_{M}$ (open symbols) as a function of $J_{\pm\pm}$ for $J_{z\pm}=0.0$ and $L_{x}\times L_{y}=10\times 6,\;12\times 8$ and $15\times 10$. We observe a jump at $J_{\pm\pm}=J^{c}_{\pm\pm}=0.22(1)$ for all the curves. This sharp transition indicates a first-order phase transition, which is fairly in accordance with the independent verdicts in Fig. 3. Below $J^{c}_{\pm\pm}$, it is $120^{\circ}$ ordered and above $J^{c}_{\pm\pm}$ the stripe-A order dominates. Remarkably, in the stripe phase the $M_{N}({\bf{Q}}_{M})$ is nearly independent of the lattice size. Near the transition point, $M_{N}(\bf{Q})$ at both ${\bf{Q}}_{M}$ and ${\bf{Q}}_{K}$ are slightly suppressed but remains finite. Therefore, our results exclude the possibility of a QSL ground state in this model.

Reasons for the failure to detect the QSL phase in Eq. (1) numerically are perplexing. We conjecture that the Hamiltonian (1) may be incomplete to describe the nature of the compound YbMgGaO4, and additional terms should be taken into accountPadd-Yb-2016 . This is partially because as an spin-orbit-coupled insulator with odd number of electrons per unit cellQMZhang-15 , its ground state must be exotic if the time-reversal symmetry is not broken according to the recent extensionWPVZ-2015 of the Hastings-Oshikawa-Lieb-Schultz-Mattis theoremHastings-2004 ; Oshikawa-2000 ; LSM-1961 . The classical and semiclassical LWC-2016 ; LWY-Yb-2016 analysis make the ground-state phases of the Hamiltonian (1) be obscure (both are against the QSL phase), while various contemporaneous experimentsShen-Yb-2016 ; Padd-Yb-2016 ; Li-Yb-2016 ; SYLi-16 coincide with each other, and all show that the ground state of YbMgGaO4 is a strong candidate for a gapless $U(1)$ QSL phase. Remarkably, measurements of the magnetic excitations close to the field-polarized state indicate that the next-nearest-neighbor interactions may be indispensable to get the full nature of the YbMgGaO4Padd-Yb-2016 .

V Conclusion

In summary, by using ED and DMRG method, we study the ground-state phase diagram of an anisotropic spin-$1/2$ model with nearest-neighbor anisotropic interactions on the triangular lattice proposed to describe the YbMgGaO4. We utilize the ground-state energy and its derivative, the fidelity and the entanglement entropy as probes for phase transitions, and the magnetic structure factor to distinguish the phases therein. Our numerical results show that there are three distinct phases: a $120^{\circ}$ phase with three sublattice sandwiched by two stripe phases. Our large-scale DMRG calculations suggest that the $120^{\circ}$ phase and the stripe phases in model (1) are robust enough against the quantum fluctuations. The effects of the quantum fluctuations merely change the phase boundary compared with its classical counterpart. Although our result does not favor an intermediate nonmagnetic phase near the classical phase boundaries, nevertheless it can not exclude the existence of the QSL ground-state phase for YbMgGaO4. We attribute the possible reason to the incompleteness of the microscopic model (1). It calls for more accurate experiments to settle this issue. Moreover, in the classical phase diagram, the transition between the two stripe phases is of the first order, but our numerical results exclude such possibility in the quantum one.

Note added. Recently, we became aware of a preprint ZZhu-17 on a similar topics.

Acknowledgements.

We thank G. Chen for enlightening discussions as well as some comments and suggestions on the draft. We acknowledge C. Liu, R. Yu, Y.-C. He and X.-F. Zhang for some discussions. S. Hu was supported by the Nachwuchsring of the TU Kaiserslautern, and by the German Research Foundation (DFG) via the Collaborative Research Centers SFB/TR49, J. Zhao was supported by the the National Natural Science Foundation of China (Grants No. 11474029). X. Wang was supported by the National Program on Key Research Project (Grants No. 2016YFA0300501), and by the National Natural Science Foundation of China (Grant No. 11574200). We gratefully acknowledge the computing time granted by the John von Neumann Institute for Computing (NIC) and provided on the supercomputer JURECA at Jülich Supercomputing Centre (JSC). We also thanks the computational resources provided by Physics Laboratory for High Performance Computing (RUC), and by Shanghai Supercomputer Center where most of the computations are carried out.

Appendix A Note on the three-fold-degenerate ground states in the stripe phases

The ground states in both the stripe-B and stripe-A phases are three-fold degenerate Notes-inversion if TBC are used in our simulations. The three states in each phase can be distinguished by the positions ($M_{0}$, $M_{+}$ or $M_{-}$) of the peaks of the SMSF. However, to get accurate results, we use CBC instead of TBC in our DMRG simulations, which lifts the degeneracy of the ground states. This is because, under CBC, the number of the bonds along three directions $\bf{a}_{1}$, $\bf{a}_{2}$ and $\bf{a}_{3}$ are not equal. Consequently, the energy of the three states is different, depending on the size of the lattice and the parameters. As the parameters change, one or two of the three states may have lower energy than the others.

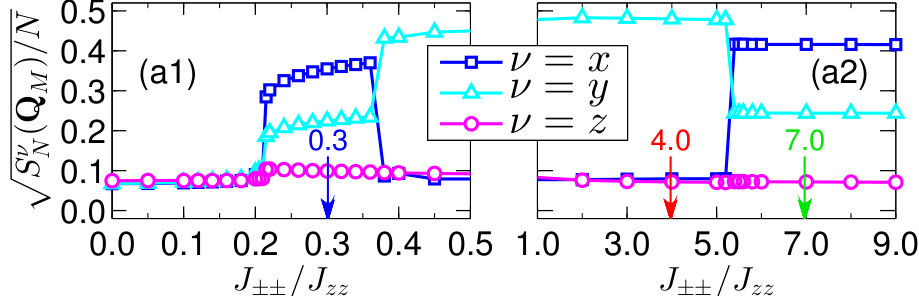

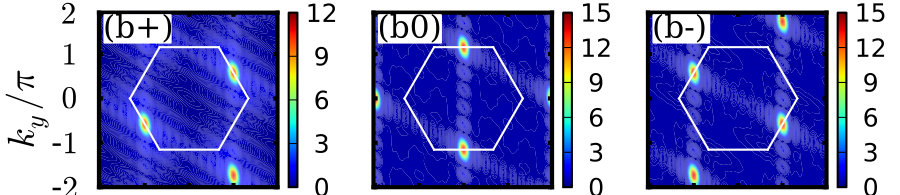

To verify our explanation, we show our numerical results for $L_{x}\times L_{y}$ = $10\times 6$ clusters under CBC in FIG. A.1. The $J_{z\pm}$ is set zero for simplicity, and $J_{\pm\pm}$ is a tunable parameter. We can see that the stripe-A phase emerges when $J_{\pm\pm}\gtrsim 0.215(5)$. This phase is split into three regimes at $J_{\pm\pm}^{c1}\simeq 0.37(1)$ and $J_{\pm\pm}^{c2}\simeq 5.3(1)$. In these three regimes, i.e., J_{\pm\pm}$$<$$J_{\pm\pm}^{c1}, J_{\pm\pm}^{c1}$$<$$J_{\pm\pm}$$<$$J_{\pm\pm}^{c2}, and J_{\pm\pm}$$>$$J_{\pm\pm}^{c2}, the SMSF peaks at $M_{+}$, $M_{0}$ and $M_{-}$, respectively. The three different positions of the peaks are the evidence of the three-fold-degenerate ground states in the stripe-A phase. Similarly, one can arrive at the same conclusion in the stripe-B phase.
