Dissipatively Coupled Waveguide Networks for Coherent Diffusive Photonics

TL;DR

This paper explores dissipatively coupled waveguide networks that enable novel coherent light control techniques, including optical equalization and channel distribution, by leveraging open quantum system dynamics and reservoir interactions.

Contribution

It introduces experimental demonstrations of dissipative coupling in photonic circuits for coherent light manipulation and discusses their quantum thermodynamic properties and unique stationary states.

Findings

Systems can perform optical equalization of multimode light

Networks can guide light into selected channels

Support for localized stationary states in the continuum

Abstract

A photonic circuit is generally described as a structure in which light propagates by unitary exchange and transfers reversibly between channels. In contrast, the term `diffusive' is more akin to a chaotic propagation in scattering media, where light is driven out of coherence towards a thermal mixture. Based on the dynamics of open quantum systems, the combination of these two opposites can result in novel techniques for coherent light control. The crucial feature of these photonic structures is dissipative coupling between modes, via an interaction with a common reservoir. Here, we demonstrate experimentally that such systems can perform optical equalisation to smooth multimode light, or act as a distributor, guiding it into selected channels. Quantum thermodynamically, these systems can act as catalytic coherent reservoirs by performing perfect non-Landauer erasure. For lattice structures, localised stationary states can be supported in the continuum, similar to compacton-like states in conventional flat band lattices.

Figures

a) from the system dynamics. This results in the fine-tuning of the evanescent coupling parameters $\kappa_{1,2}$, where the coupling between chain modes and lossy sites, $\kappa_{1}$, must be considerably smaller than intra–reservoir couplings, $\kappa_{2}$. For the particular design of Fig. [1](#S0.F1)c, it appears sufficient to have $\kappa_{1}/\kappa_{2}\!\approx\!0.5$ (see Supplementary Figure 1). The same ratio $\kappa_{1}/\kappa_{2}$ should hold for all $\gamma t$ (equivalently, $\kappa_{1}z$ in waveguide implementation, where $z$ is the propagation distance along the chain waveguides).

a of the main text, modes in the arms are coupled pairwise, $A_{j}=a_{j}-a_{j+1}$ for $j=1\ldots N-1,N+2\ldots 2N$. For the central controlling node $L_{N}=a_{N}-{\color[rgb]{00,00,0}a_{R}}+a_{L}-a_{N+1}$. From the master equation, Supplementary Eq. ([S1](#Sx2.E1)), the equation similar to Eq. (2) of the main text can be obtained for each arm. For four modes of the central node the equations are as follows:

a) from the system dynamics. This results in the fine-tuning of the evanescent coupling parameters $\kappa_{1,2}$, where the coupling between chain modes and lossy sites, $\kappa_{1}$, must be considerably smaller than intra–reservoir couplings, $\kappa_{2}$. For the particular design of Fig. [1](#S0.F1)c, it appears sufficient to have $\kappa_{1}/\kappa_{2}\!\approx\!0.5$ (see Supplementary Figure 1). The same ratio $\kappa_{1}/\kappa_{2}$ should hold for all $\gamma t$ (equivalently, $\kappa_{1}z$ in waveguide implementation, where $z$ is the propagation distance along the chain waveguides).

Equations

$$\frac{d}{dt}\rho =\sum _{j=1}^N{\gamma }_j\left(2A_j\rho A_j^{†}-\rho A_j^{†}{A}_j-A_j^{†}{A}_j\rho \right),$$

$$\frac{d}{dt}{\alpha }_k=-({\gamma }_k+{\gamma }_{k-1}){\alpha }_k+{\gamma }_k{\alpha }_{k+1}+{\gamma }_{k-1}{\alpha }_{k-1}.$$

$$A_{\text{sum}}=\sum _{j=1}^{N+1}\frac{a_j}{\sqrt{N+1}}.$$

$$\Delta E=\frac{N+1}{N+2}\sum _j{p}_j|{\beta }_j-\alpha {|}^2.$$

$$\frac{d}{dt}\rho =\sum _{j=1}^N{\gamma }_j\left(2A_j\rho A_j^{†}-\rho A_j^{†}{A}_j-A_j^{†}{A}_j\rho \right),$$

$$\rho (t)=\int d^2\vec{\alpha }P(\vec{\alpha },\overrightarrow{{\alpha }^{\ast }};t)|\vec{\alpha }⟩⟨\vec{\alpha }|,$$

$$\frac{\partial }{\partial t}P(\vec{\alpha },\overrightarrow{{\alpha }^{\ast }};t)=(\sum _{j=1}^N{\gamma }_j(\frac{\partial }{\partial {\alpha }_j}{\alpha }_j-\frac{\partial }{\partial {\alpha }_j}{\alpha }_{j+1}-\frac{\partial }{\partial {\alpha }_{j+1}}{\alpha }_j+\frac{\partial }{\partial {\alpha }_{j+1}}{\alpha }_{j+1})+h.c.)P(\vec{\alpha },\overrightarrow{{\alpha }^{\ast }};t)$$

$$\rho (0)=\sum _{\forall k}{p}_k\prod _{\forall j}|{\alpha }_{jk}⟩⟨{\alpha }_{jk}{|}_j,$$

$$P(\vec{\alpha },\overrightarrow{{\alpha }^{\ast }};t)=\sum _{\forall k}{p}_k\prod _{\forall j}\delta ({\alpha }_j-{\alpha }_{jk}(t))\delta ({\alpha }_j^{\ast }-{\alpha }_{jk}^{\ast }(t)),$$

$${\rho }_{\text{st}}=|{\Phi }_{\text{st}}⟩⟨{\Phi }_{\text{st}}|,|{\Phi }_{\text{st}}⟩=\prod _{\forall j}|\alpha {⟩}_j.$$

$$\rho_{{\text{st}}}=\frac{{\exp\{-\beta A_{{\text{\color[rgb]{00,00,0}sum}}}^{\dagger}A_{{\text{\color[rgb]{00,00,0}sum}}}\}}}{{{\rm Tr}\{\exp\{-\beta A_{{\text{\color[rgb]{00,00,0}sum}}}^{\dagger}A_{{\text{\color[rgb]{00,00,0}sum}}}\}\}}}$$

$$\displaystyle\rho_{{\text{\color[rgb]{00,00,0}st}}}=\sum\limits_{\forall k}{p}_{k}\prod\limits_{j=1}^{N+1}|{\bar{\alpha}}_{k}\rangle\langle{\bar{\alpha}}_{k}|_{j}$$

$$\displaystyle\frac{d}{dt}\alpha_{N}=-(\gamma_{N}+\gamma_{N-1})\alpha_{N}+\gamma_{N-1}{\color[rgb]{00,0,00}\alpha_{N-1}}+\gamma_{N}(\alpha_{N+1}+\alpha_{H}-\alpha_{L}),$$

$$\displaystyle\frac{d}{dt}{\color[rgb]{00,00,0}\alpha_{R}}=-\gamma_{N}({\color[rgb]{00,00,0}\alpha_{R}}-\alpha_{N}+\alpha_{N+1}-\alpha_{L}),$$

$$\frac{d}{dt}{\alpha }_L=-{\gamma }_N({\alpha }_L+{\alpha }_N-{\alpha }_{N+1}-{\alpha }_H),$$

$$\displaystyle\frac{d}{dt}\alpha_{N+1}=-(\gamma_{N}+\gamma_{N+1})\alpha_{N+1}+\gamma_{N+1}\alpha_{N+2}+\gamma_{N}({\color[rgb]{00,0,00}\alpha_{N}}-\alpha_{H}+\alpha_{L}).$$

$$A_j=a_{j,+}-a_{j,-}+a_{j-1,+}-a_{j-1,-}.$$

$$\frac{d}{dt}{\vec{\alpha }}_j=-\gamma \hat{O}(2{\vec{\alpha }}_j-{\vec{\alpha }}_{j-1}-{\vec{\alpha }}_{j+1}),$$

$$A_j=\sum _{k\in \{n_j\}}{x}_{jk}{a}_k.$$

$$A_{j,k}=a_{j,k}+a_{j+1,k}+a_{j,k+1}+a_{j+1,k+1}.$$

$$\frac{d}{dt}{\alpha }_{j,k}=-{\gamma }_{j,k}⟨A_{j,k}⟩-{\gamma }_{j+1,k+1}⟨A_{j+1,k+1}⟩,$$

$$\frac{d}{dt}{\alpha }_{j+1,k}=-{\gamma }_{j,k}⟨A_{j,k}⟩-{\gamma }_{j+1,k-1}⟨A_{j+1,k-1}⟩.$$

$$|{\Psi }^{\text{loc}}⟩=|\alpha {⟩}_{j+1,k}|-\alpha {⟩}_{j+2,k}$$

$$|\alpha {⟩}_{j+2,k+1}|-\alpha {⟩}_{j+1,k+1}\prod _{j,k\notin \{m\}}|0{⟩}_{j,k}.$$

$$\vec{a}(t\to \infty )=(1-\mathbf{S}/4)\vec{a}(0),$$

$$\displaystyle\frac{d}{dt}\lambda_{m,n}=-4\gamma\lambda_{m,n}+\gamma\bigl{(}\lambda_{m+1,n}+\lambda_{m-1,n}+\lambda_{m,n-1}+\lambda_{m,n+1}\bigr{)}.$$

$$|{\Psi }^{\text{loc}}⟩$$

$${\rho }_3=|{\psi }_3^{+}⟩⟨{\psi }_3^{+}|+|{\psi }_3^{-}⟩⟨{\psi }_3^{-}|+e^{-2|\alpha {|}^2}(|{\psi }_3^{+}⟩⟨{\psi }_3^{-}|+|{\psi }_3^{-}⟩⟨{\psi }_3^{+}|),$$

$$|\Psi^{\text{{\color[rgb]{00,00,0}loc}}}\rangle=\sum\limits_{k\in\{n\}}(-1)^{l}|1\rangle_{k},$$

Full text

]Accepted for publication in Nature Communications

Dissipatively Coupled Waveguide Networks for Coherent Diffusive Photonics

Sebabrata Mukherjee111These authors contributed equally to this work.

s.mukherjee@hw.ac.uk

Scottish Universities Physics Alliance (SUPA), Institute of Photonics and Quantum Sciences (IPaQS), School of Engineering $\&$ Physical Sciences, Heriot-Watt University, Edinburgh, EH14 4AS, United Kingdom

  

Dmitri Mogilevtsev∗

d.mogilevtsev@ifanbel.bas-net.by

Institute of Physics, Belarus National Academy of Sciences, F. Skarina Ave. 68, Minsk 220072, Belarus

  

Gregory Ya. Slepyan

Department of Physical Electronics, School of Electrical Engineering, Faculty of Engineering, Tel Aviv University, Tel Aviv 69978, Israel

  

Thomas H. Doherty

School of Physics and Astronomy, University of St Andrews, North Haugh, St Andrews KY16 9SS, United Kingdom

  

Robert R. Thomson

Scottish Universities Physics Alliance (SUPA), Institute of Photonics and Quantum Sciences (IPaQS), School of Engineering $\&$ Physical Sciences, Heriot-Watt University, Edinburgh, EH14 4AS, United Kingdom

  

Natalia Korolkova

School of Physics and Astronomy, University of St Andrews, North Haugh, St Andrews KY16 9SS, United Kingdom

([)

A photonic circuit is generally described as a structure in which light propagates by unitary exchange and transfers reversibly between channels. In contrast, the term ‘diffusive’ is more akin to a chaotic propagation in scattering media, where light is driven out of coherence towards a thermal mixture. Based on the dynamics of open quantum systems, the combination of these two opposites can result in novel techniques for coherent light control. The crucial feature of these photonic structures is dissipative coupling between modes, via an interaction with a common reservoir. Here, we demonstrate experimentally that such systems can perform optical equalisation to smooth multimode light, or act as a distributor, guiding it into selected channels. Quantum thermodynamically, these systems can act as catalytic coherent reservoirs by performing perfect non-Landauer erasure. For lattice structures, localised stationary states can be supported in the continuum, similar to compacton-like states in conventional flat band lattices.

The engineering of dissipation to a common reservoir generates a vast array of novel structures for photonic application and quantum simulation. It has already been shown that the coupling of a number of quantum systems to the same reservoir gives rise to a decoherence-free subspace of Hilbert space ekert . Moreover, the evolution of an initial state towards this decoherence-free subspace is able to preserve and even create entanglement zanardi ; braun ; benatti ; lidar . The careful engineering of loss can lead to coherence preservation dav2001 ; man1 ; man2 , deterministic creation of non-classical states zoll96 ; TFAb ; parkins2003 , and serve as a tool for quantum computation cirac2009 ; cirac2011 . Networks of dissipatively coupled systems were studied that can support topologically protected states zollertop ; Rudner ; Zeuner . Recently, optical setups were also used to study phenomena induced by engineered losses Marandi ; Pal ; Tradonsky .

Arrays of evanescently coupled optical waveguides is an excellent experimental platform to investigate a wide variety of semi-classical and quantum phenomena ranging from robust topological edge states Rechtsman2013 ; Mukherjee2017 to quantum walks of correlated photons Peruzzo2010 . Precise control in waveguide fabrication allows access to a desired Hamiltonian and the ability to probe the evolution of a specific initial state. Waveguide arrays with controllable loss and/or gain are also used to study various effects associated with non-Hermitian physics Guo2009 . In recent years, development of the femtosecond laser writing technique davis facilitated the fabrication of optical waveguides and waveguide based devices with three-dimensional geometry enabling the demonstration of intriguing phenomena known from condensed matter and quantum physics Garanovich .

Using the platform of integrated waveguide networks, here we propose that light can flow diffusively while remaining coherent and even entangled in a system of bosonic modes coupled to common reservoirs. In the experiment, performed using classical input states, we observed coherent diffusive equalisation in dissipatively coupled waveguide arrays. Coherent diffusive light propagation opens new vistas for photonic applications, such as directional light distribution and diffusive coherence-preserving equalisation. In other words, we demonstrate that the aforementioned phenomena can be realised in the network of coupled integrated waveguides suggesting an exciting area in optical technologies, coherent diffusive photonics.

**Results

Theoretical background.** The coherent diffusive photonic circuits considered in this article are described by the following generic quantum master equation:

[TABLE]

where $\rho(t)$ is the density matrix, $A_{j}$ denote the Lindblad operators for mode $j$ and $\gamma_{j}$ are the relaxation rates into corresponding reservoirs (see Supplementary Note 1 for more detail). In the experiments, we use femtosecond laser inscribed davis arrays of coupled optical waveguides, where the propagation of the light can mimic the time evolution described by specific Hamiltonians Garanovich . The relaxation rates $(\gamma_{j})$ then describe the coherence diffusion rate between neighbouring waveguides. Coupling to common reservoirs is realised by mutually coupling each pair of waveguides to a linear arrangement of further waveguides bigger ; see Fig. 1.

Let us start with a simple example of 1D dissipatively coupled chain (DCC) with $A_{j}=a_{j}-a_{j+1}$, where $a_{j}$ ($a_{j}^{\dagger}$) is the bosonic annihilation (creation) operator, $a_{j}|\alpha_{j}\rangle=\alpha_{j}|\alpha_{j}\rangle$. Eq.(1) can then be recast in terms of coherent amplitudes $\alpha_{j}$ (Supplementary Note 1):

[TABLE]

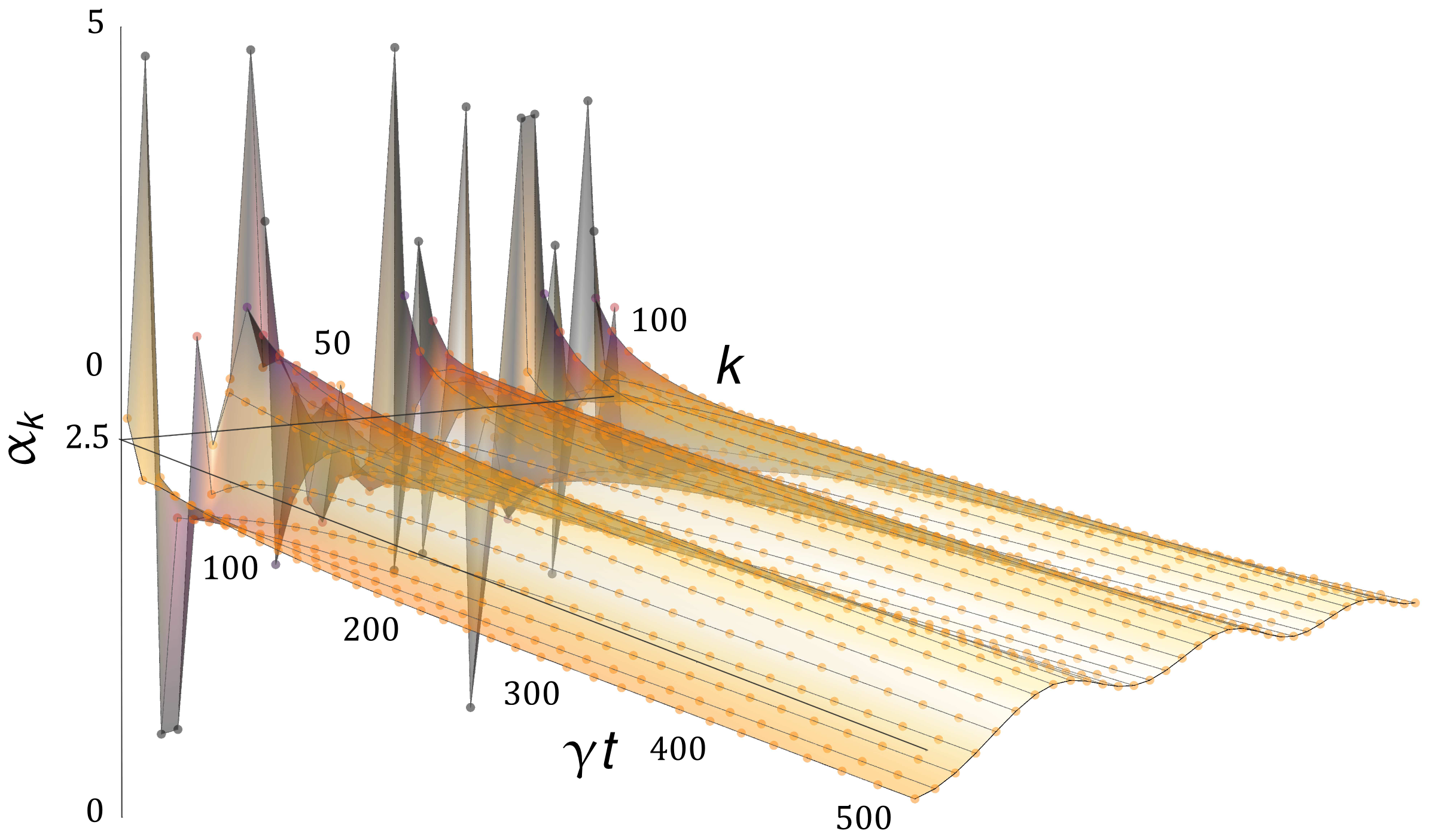

Eq. (2) formally coincide with the equations of a time-dependent classical random walk in one dimension, the discrete analogue of diffusion and heat transport dynamics. However, there are no classical probabilities in Eqs. (1, 2), with the amplitudes $\alpha_{j}$ being complex. While the light flows diffusively, like heat, its coherence is maintained: off-diagonal elements in the Fock-state basis do not decay. For this to be the case, a fundamental role is played by the collective symmetrical superposition of all modes, characterised by a sum of modal operators:

[TABLE]

If a state is not symmetrical over all modes, it follows from Eqs. (1, 2) that it will asymptotically decay to the vacuum state. Therefore, any state represented by a combination of operators $A_{\text{sum}}$ and $A_{\text{sum}}^{\dagger}$ is conserved by the dynamics of Eq. (3). These states can be quite diverse in nature, from highly non-classical to Gibbs states (see Supplementary Note 3). Furthermore, a stationary state can also be entangled: for a single photon in the DCC, the state $A_{\text{sum}}^{\dagger}\prod\limits_{\forall j}|0\rangle_{j}$ is stationary (see ref. our2015 for details).

Consider an initialization with all modal oscillators in coherent states. Eq. (1) shows that this will evolve into a product of coherent states with equal and averaged amplitudes, $\prod\limits_{\forall j}|\alpha_{\text{sum}}\rangle_{j}$ where ${\alpha_{\text{sum}}}=\sum\limits_{j}\alpha_{j}/(N+1)$. This feature of the diffusive, yet coherent 1D circuit, opens the possibility to realise an optical equaliser, suppressing both intensity and phase fluctuations in multimode fields. The equaliser performance is illustrated in Fig. 2, where it is shown how the DCC can completely smooth any arbitrary zero-mean variations of the input.

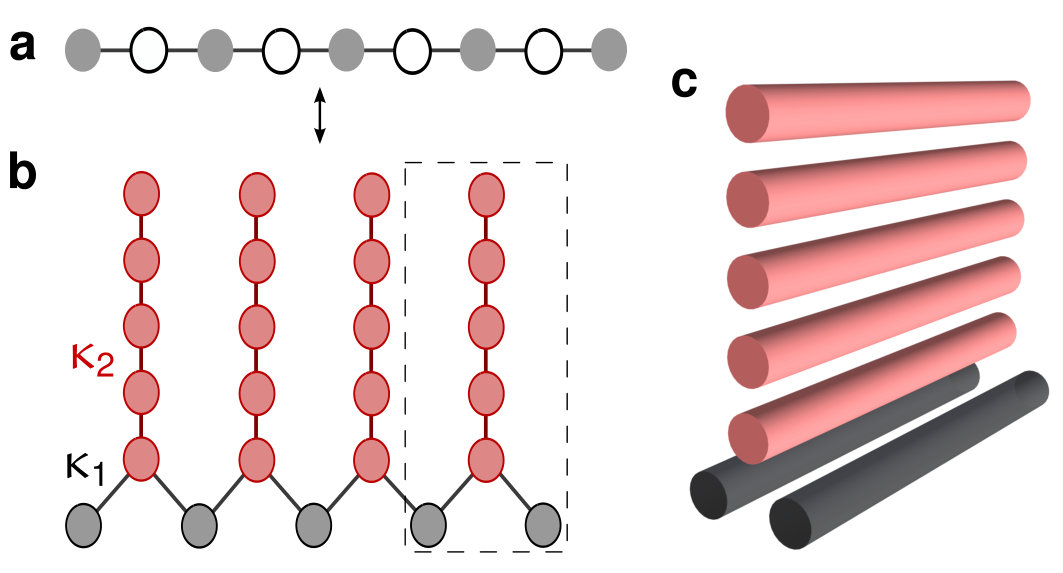

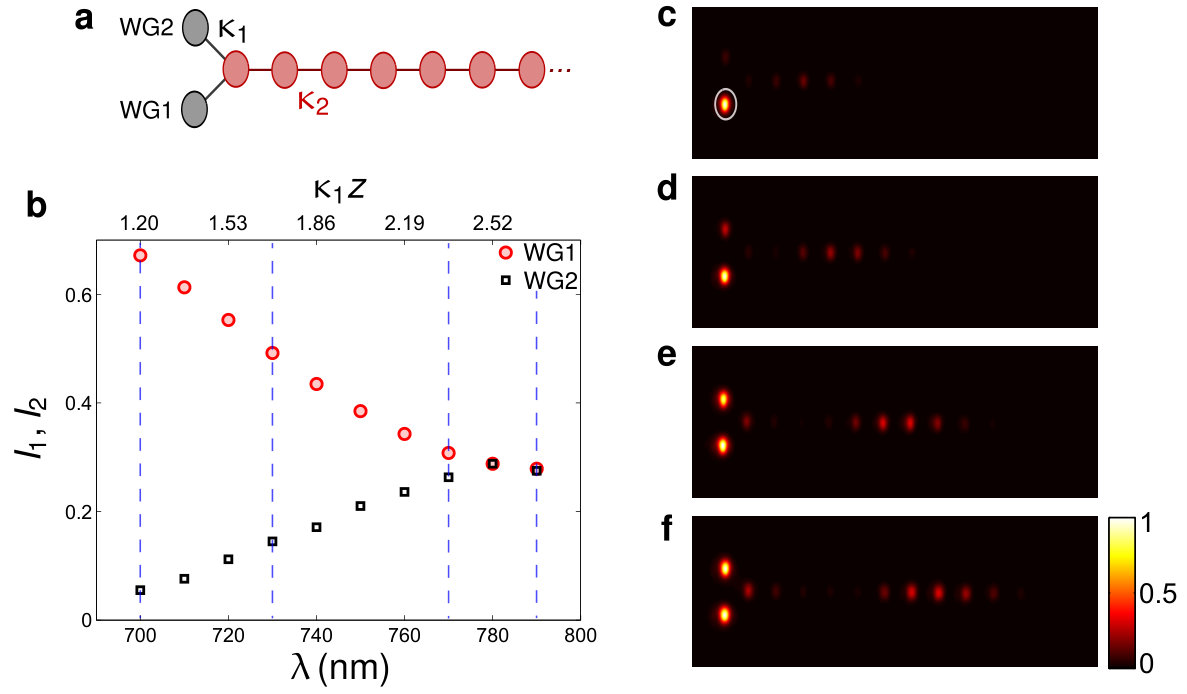

Photonic implementation. In order to realise engineered dissipative coupling in integrated waveguides in accordance with Eq. 1, one must be able to adiabatically eliminate lossy sites (Fig. 1a) from the system dynamics. This results in the fine-tuning of the evanescent coupling parameters $\kappa_{1,2}$, where the coupling between chain modes and lossy sites, $\kappa_{1}$, must be considerably smaller than intra–reservoir couplings, $\kappa_{2}$. For the particular design of Fig. 1c, it appears sufficient to have $\kappa_{1}/\kappa_{2}\!\approx\!0.5$ (see Supplementary Figure 1). The same ratio $\kappa_{1}/\kappa_{2}$ should hold for all $\gamma t$ (equivalently, $\kappa_{1}z$ in waveguide implementation, where $z$ is the propagation distance along the chain waveguides). The length of the DCC is not a prohibitive parameter and the collective behaviour, the coherent diffusive dynamics, can be established for merely two coupled bosonic modes. The effect of coherent optical equalisation can thus be readily achieved in the elementary circuit of Fig. 1c. In the experiment, a 30-mm-long elementary circuit with 20 waveguides in the reservoir was fabricated (see Methods) and the output intensity distribution was measured as a function of the wavelength, $\lambda$, of incident light. It should be mentioned that both $\kappa_{1,2}$ vary linearly in the wavelength range of interest without affecting $\kappa_{1}/\kappa_{2}$ significantly, and hence, wavelength tuning enables us to observe the dynamics as the effective analogous time, $\kappa_{1}(\lambda)z$, is tuned in this case (see Supplementary Note 2). Fig. 3 depicts the corresponding experimental results, clearly demonstrating equalisation of the input coherent signal. In the next step, we fabricated a chain of five waveguides, coupled via similar reservoirs, and demonstrate the coherent diffusive equalising. We excited the central waveguide of the chain at the input and measured the intensity distribution after a propagation of $z=30$ mm. Fig. 4 shows the output intensities for three different values of $\kappa_{1}z$. These experimental results are in good agreement with the numerically calculated output intensity distributions. Fig. 4 shows dynamically how the equalisation unfolds.

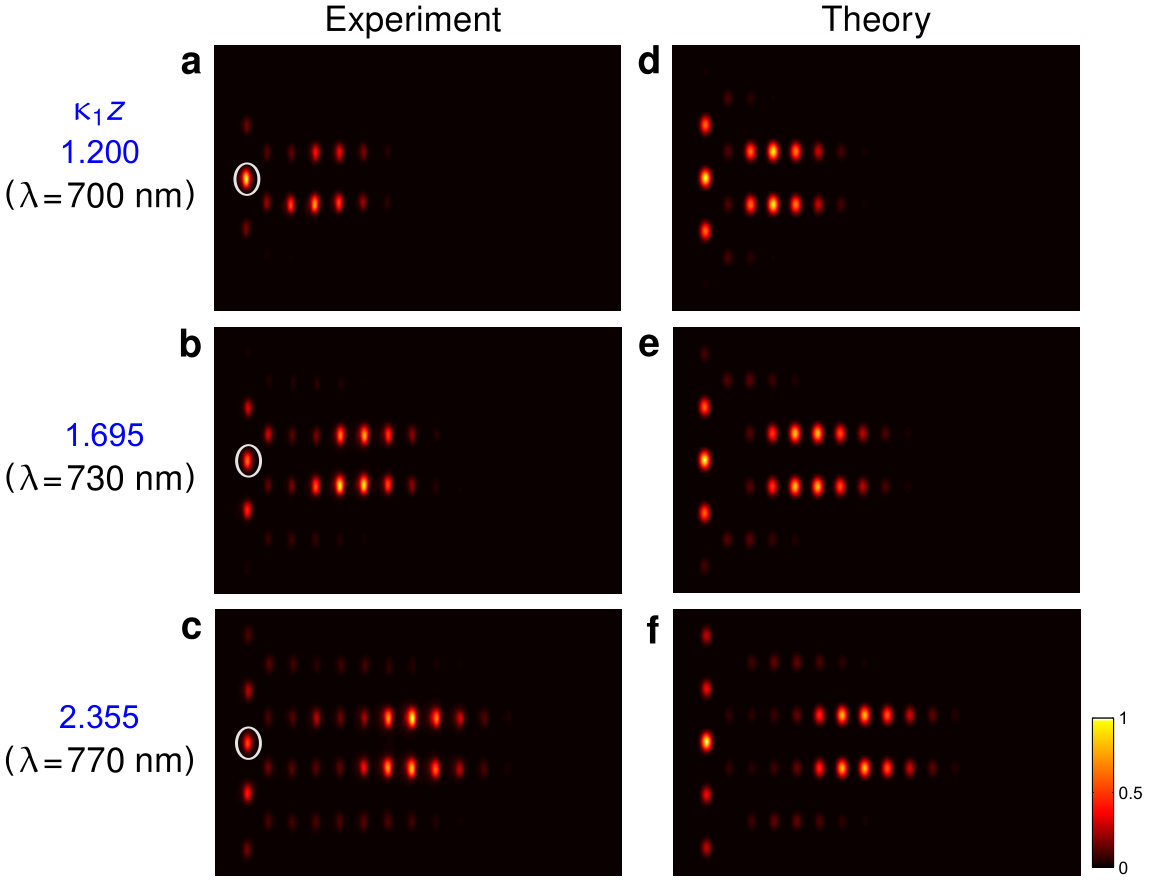

Two-dimensional diffusive circuits. When the linear arrangement of modes in the DCC is extended to further dimensions, a large vista of applications becomes accessible. These range from re-routing photonic devices to simulators of many-body quantum systems. Fig. 5a outlines a photonic circuit for which the excitation of two control modes can dissipatively direct a coherent flow of light (Fig. 5, b). This ‘Quantum Distributor’ comprises two linear DCC, connected by mutual interaction to the pair of control modes (see Supplementary Note 4). Here, the control modes perform the distribution catalytically, their coherence being conserved.

Another simple DCC structure comprises two linear chains placed parallel with dissipative connections between each neighbouring mode (Supplementary Figure 2). This arrangement gives rise to the localization of signals which, unusually, is not born of defects (Supplementary Note 5). This is similar to the recently experimentally demonstrated lattice of unitarily coupled waveguides erica ; vic . Alternative circuits are waveguides arranged as a honeycomb and square lattice (see Supplementary Figure 3 & 4). The Lindblad operator for the honeycomb structure is $L_{j}=\sum\limits_{k=1}^{6}(-1)^{k}a_{jk}$, where $j$ indexes hexagonal cells and $k$ numbers the modes in the cell. If each mode in a hexagonal cell has the same amplitude, the cell collectively constitutes a stationary, compacton-like state. These states satisfy $\langle L_{j}\rangle=0$, $\forall j$. It can be noted that they are robust with respect to additional losses in modes neighbouring the cell. If there are some losses within the stationary cell itself, some non-vacuum states can still be supported (Supplementary Note 5). Moreover, coherence can spread diffusively in the lattice. Detailed discussion on the dissipative localisation in the diffusive square lattice can be found in Supplementary Note 5.

Quantum thermodynamical interpretation. The coherent diffusive dynamics of DCC also have an intriguing quantum thermodynamical interpretation. For a long DCC with identical initial coherent states of modes, the system will strongly equalise any fluctuations. We then dissipatively couple one further ‘signal’ mode to this chain. This DCC will act as a reservoir, driving the signal mode towards some state independent of its initial excitation, asymptotically disentangled from the remainder of the chain. The state of the DCC after this interaction will belong to the same class of macro states as initially. Thus the long DCC chain is acting as a catalytic reservoir to the signal mode, and forthwith we use the term ‘reservoir’ to describe the arrangement.

Let us consider a DCC with $N+1\gg 1$ oscillators in coherent states, each of amplitude $\alpha$, and the dissipatively connected signal mode having amplitude $a_{0}$. For an arbitrary initial state of the $a_{0}$ mode represented as $\rho_{a0}=\sum\limits_{j}p_{j}|\beta_{j}\rangle\langle\beta_{j}|_{0}$ ourprl2010 , the stationary state of the chain will be $\rho_{st}=\sum\limits_{j}p_{j}\prod\limits_{k=0}^{N+1}|{\bar{\alpha}}_{j}\rangle\langle{\bar{\alpha}}_{j}|_{k}$, with ${\bar{\alpha}_{j}}=\frac{1}{N+2}(\beta+(N+1)\alpha_{j})$. For any finite set of $\beta_{j}$, the fidelity of the stationary state with the product of coherent states, $|\Phi\rangle=\prod\limits_{j=0}^{N+1}|\alpha\rangle_{j}$, tends to unity for large $N$. A sufficiently long DCC will, therefore, evolve any signal state into the coherent state initialised on the other oscillators in the chain. Hence, the DCC is indeed acting as a reservoir, washing away any information about the initial state. However, this clearly happens at a certain cost. The energy difference between the initial and asymptotic states of the chain and mode $a_{0}$ is given by:

[TABLE]

Note that in the limit of large $N$, the energy balance of the mode $a_{0}$ is the difference between the energies of the initial and the asymptotic state of the mode $a_{0}$: $\Delta E_{0}\approx\sum\limits_{j}p_{j}|\beta_{j}|^{2}-|\alpha|^{2}$. It can be equal to the energy loss of the whole mode $a_{0}$ plus DCC system, which holds for signal states satisfying $|\alpha|=\sum\limits_{j}p_{j}|\beta_{j}|\cos\{\arg(\beta_{j})-\arg(\alpha)\}$.

Therefore, erasure of the state of mode $a_{0}$ can be performed without energy change of our reservoir. Such an action seems to contradict the famous Landauer’s erasure principle: in order to erase information irreversibly, by an action of the environment, energy transfer into the environment needs to occur landauer . However, this principle was formulated for classical systems. The quantum Landauer’s principle holds under different assumptions. These consist of the reservoir being a closed, Gibbs state system, which is entirely uncorrelated with the signal state. If the reservoir is not isolated from the environment, the applicability of the Landauer’s principle is questionable reeb . Indeed, the use of an additional quantum system coupled to the reservoir allows the state of the signal to be erased without entropic change. The DCC is an example of the reservoir with such an additional quantum system.

**Discussions

**In summary, we have illustrated intriguing possibilities for photonics that are generated by diffusive light propagation. The dissipative coupling of bosonic modes can allow light to flow like heat, whilst retaining coherence and even entanglement. A linear system of dissipatively coupled waveguides can act as an optical equaliser, smoothing fluctuations in amplitude and phase towards a common output. Any input state, classical or non-classical, will evolve into a completely symmetrised, correlated, state of the whole system. This equalising action has been experimentally demonstrated with coherent input to an elementary photonic circuit (Fig. 3) and for the chain of five waveguides (Fig. 4). Further, we have outlined dissipative circuits which can catalytically direct the flow of light across multiple channels, or even support stationary lattice states without impurity.

Generally, integrated waveguide networks lend themselves to applications in quantum information science qucomm , particularly in quantum communication. Quantum communication based on so-called qumodes (continuous variables optical quantum systems) has already proven feasible in terms of point-to-point transmission of quantum states (see ref. Grosshans ; Croal ; Guenthner ) and this can be used in a number of applications such as quantum metrology and sensing, quantum cryptography and quantum signatures. Our coherent diffusive circuits are relevant as generic systems of qumodes propagating in integrated lossy networks where the loss mechanism provides quantum state engineering.

In the context of quantum thermodynamics, the DCC itself can be considered as a reservoir with non-trivial properties. Remarkably, the state of the reservoir can remain unchanged throughout the process of interaction with an external “signal” mode and allow non-Landauer erasure to be performed. Further, the optical equalisation and quantum evolution towards a stationary state can be used to study equilibration and thermalisation processes in quantum theory, one of the central problems in quantum thermodynamics  equilibration . In the future, we believe that diffusive photonic systems will find practical application both in studying the fundamental processes of structurally engineered open systems and in an array of integrated photonic technologies. Furthermore, the non-linear DCC can be engineered and implemented for producing and distributing non-Gaussian states SM1 .

Methods. The photonic devices formed by arrays of identical optical waveguides were fabricated using femtosecond laser writing technique davis . A $30$-mm-long borosilicate substrate (Corning Eagle2000) was mounted on $x$-$y$-$z$ translation stages (ABL1000), and each waveguide was fabricated by translating the stages once through the focus of the fs laser pulses generated by an Yb-doped fibre laser (Menlo Systems, BlueCut; 350 fs, 500 kHz, and 1030 nm). The waveguide arrays were characterised using single-mode-fibre input coupling and free-space output coupling. To excite waveguides with a tunable wavelength of light, a photonic crystal fibre Stone2008 was pumped using sub-picosecond laser pulses of $1064$ nm wavelength to generate a broadband supercontinuum. A tunable monochromator placed after the supercontinuum source was used to select narrow band ( $\!\sim\!3\!$ nm) light, which was coupled into an optical fibre (SMF-$600$). This fibre was then coupled to the desired waveguides. The output intensity distribution was observed using a CMOS camera (Thorlabs, DCC1545M).

Data availability Raw experimental data are available through Heriot-Watt University PURE research data management system (DOI: 10.17861/15c1715e-a7c4-4bbf-beb4-91341f1c5ca0).

Supplementary Information

Supplementary Note 1: Experimental model

The coherent diffusive photonic circuits, considered in the main text, are described by the following generic quantum master equation:

[TABLE]

where $\rho(t)$ is the density matrix and $A_{j}$ denote the Lindblad operators for mode $j$. Quantities $\gamma_{j}$ are relaxation rates into corresponding reservoirs describing the coherence diffusion rate between neighbouring waveguides. Supplementary Eq. (S1) with the Lindblad operator with $A_{j}=a_{j}-a_{j+1}$, where $a_{j}$ ($a_{j}^{\dagger}$) is the bosonic annihilation (creation) operator, follows from the usual model of the unitary coupled tight-binding chain of linear waveguides with every second waveguide being subjected to strong loss. The details of the derivation can be found, for example, in ref. our2015 . This time evolution is modelled in the experiment by the arrays of coupled optical waveguides. The reservoirs are realised by mutually coupling each pair of waveguides to a linear chain of further waveguides as shown in Fig. 1 in the main text.

An interesting feature of the behaviour of light in these devices is the interchangeability between propagation distance and wavelength. The effective time of evolution $\gamma t$ can be altered both by changing the length of the waveguide block, or the wavelength of incident light. As the wavelength is tuned, $\kappa_{1}$ changes almost linearly to keep $\kappa_{1}/\kappa_{2}\!\approx\!0.5$, maintaining the correct character of dynamics. Notice that the dependence of diffusion rates, $\gamma_{j}$, on time changes neither the diffusive character of the dynamics nor the asymptotic state provided that always $\gamma_{j}(t)>0$.

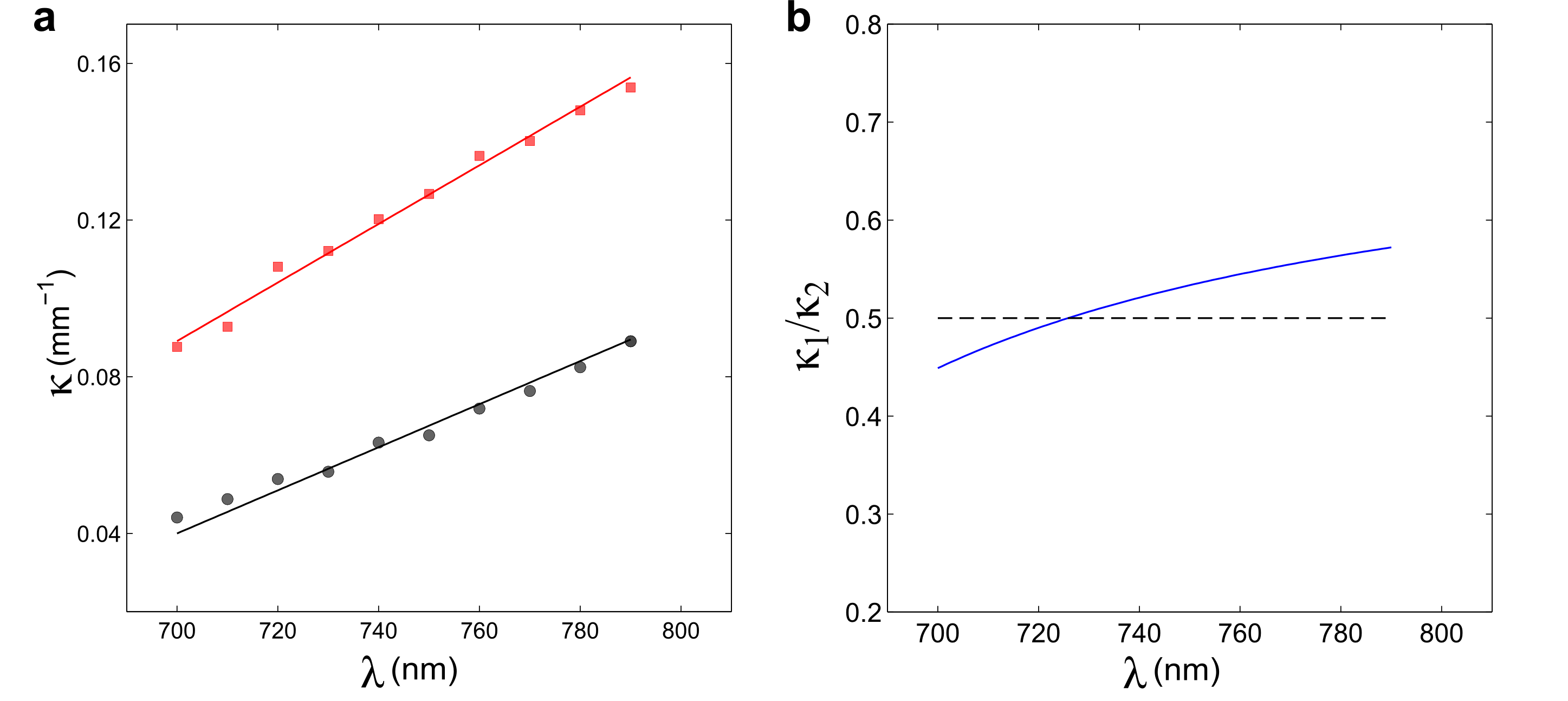

Supplementary Note 2: Measurement of evanescent coupling

As mentioned in the main text, the control of evanescent coupling is crucial for the experimental realisation of the diffusive equaliser. In Supplementary Fig. S1 we present the measured variation of $\kappa_{1,2}$ as a function of the wavelength of incident light, $\lambda$. We fabricated two types of directional couplers (each consisting of two evanescently coupled straight waveguides) which are the building blocks of the photonic circuits shown in Fig. 1 (main text). For the first type, where the two waveguides are at 45*∘* angle, the coupling constant is $\kappa_{1}$ and that for the second type (consisting of two horizontally separated waveguides) is $\kappa_{2}$. Measuring the light intensities at the output of these 30-mm-long directional couplers, $\kappa_{1,2}(\lambda)$ were calculated Szameit .

It was observed that for these couplers, the ratio of $\kappa_{1,2}$ remains very close to the desired value of 0.5 with a maximum deviation of $\approx\pm 0.05$.

Supplementary Note 3: Dynamics of the dissipatively coupled bosonic chain

Due to the linearity of Supplementary Eq. (S1), the initial coherent states propagation through DCC remain coherent states at any time moment of dynamics described by Supplementary Eq. (S1). Consider the Glauber $P$-function for the density matrix, $\rho(t)$, of the state describing the circuit:

[TABLE]

where $|\vec{\alpha}\rangle=\prod_{j}|{\alpha_{j}}\rangle$; $|{\alpha_{j}}\rangle$ is the coherent state of the $j$-th mode of the circuit and the amplitude $\alpha_{j}$ represents the $j$-th elements of the vector $\vec{\alpha}$. For the DCC with $N+1$ modes and $j$th Lindblad operator represented as $A_{j}=a_{j}-a_{j+1}$, the solution for the $P$-function is obtained from the following Fokker-Planck equation:

[TABLE]

Due to the linearity of this equation, the solution can be represented as $P(\vec{\alpha},\vec{\alpha^{\ast}};t)=P(\vec{\alpha}(t),\vec{\alpha^{\ast}}(t))$, where dynamics of amplitudes is described by Eq. (2) of the main text. It is instructive to represent the initial state in terms of discrete superposition of coherent state projectors ourprl2010 :

[TABLE]

where the index $k$ labels a set of amplitudes $\{\alpha_{k1},\alpha_{k2}\ldots\}$. The time-dependent Glauber function corresponding to the initial state [Supplementary Eq. (S4)] is given by Supplementary Eq. (S1) as

[TABLE]

where amplitudes $\alpha_{jk}(t)$ for the DCC are defined from Eq. (2) of the main text.

As follows from Supplementary Eq. (S1), any density matrix which is function of operators A_{{\text{\color[rgb]{00,00,0}sum}}}=\sum\limits_{j=1}^{N+1}\frac{a_{j}}{\sqrt{N+1}}, A^{\dagger}_{{\text{\color[rgb]{00,00,0}sum}}}, and the vacuum, \rho_{{\text{\color[rgb]{00,00,0}vac}}}=\prod\limits_{\forall j}|0\rangle\langle 0|_{j}, corresponds to a stationary state. These states can be of a quite different nature. The stationary state can be just the pure product of coherent states of individual modes with the same amplitude:

[TABLE]

However, it can also be quite exotic, for example, it can be a Schrödinger-cat entangled state with $|\Phi_{{\text{st}}}\rangle\propto\sum\limits_{k=1}^{K}w_{k}\prod\limits_{\forall j}|\alpha_{k}\rangle_{j}$, where $K$ is the number of different components in our cat-state and $w_{k}$ are scalar weights. The Gibbs state

[TABLE]

also belongs to the stationary states of the system. This state has maximal entropy for the given sum of the second-order coherences, $\langle a^{\dagger}_{k}a_{l}\rangle$ (which is also conserved by the dynamics). As was already mentioned, the stationary state can also be maximally entangled.

The DCC evolves toward a stationary state in a quite remarkable way. The initial state of the DCC with $N+1$ modes corresponding to the coherent state of all the chain modes, $|\Phi_{0}\rangle=\prod\limits_{\forall j}|\alpha_{j}\rangle_{j}$, evolves to the product of coherent states with equal amplitudes, |\Phi_{t\rightarrow\infty}\rangle=\prod\limits_{\forall j}|\alpha_{{\text{\color[rgb]{00,00,0}sum}}}\rangle_{j}, where the amplitude is the averaged sum of all the amplitudes, {\alpha_{{\text{\color[rgb]{00,00,0}sum}}}}=\sum\limits_{j}\alpha_{j}/(N+1). Then an arbitrary initial state of the DCC [Supplementary Eq. (S4)] will be asymptotically reduced to the following form:

[TABLE]

with ${\bar{\alpha}}_{k}=\frac{1}{N+1}\sum\limits_{j=1}^{N+1}\alpha_{jk}$. Actually, the DCC drives the initial state to the symmetrical state over all the modes. Note, that the smoothing action of DCC is preserved even for the case of different decay rates, $\gamma_{j}\neq 0$. Stationary states do not depend on them.

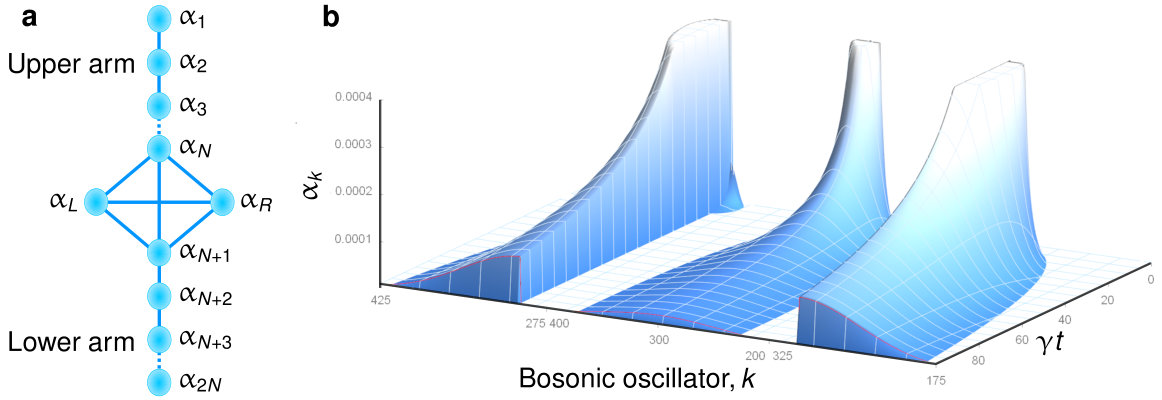

Supplementary Note 4: Two-arm distributor structure

The prerequisite of the distributing action considered here is the existence of several localised stationary states of the structure described by the master equation, Supplementary Eq. (S1). For the sake of simplicity, we consider here pure stationary states. We call the state |\chi^{{\text{\color[rgb]{00,00,0}loc}}}\rangle “localised” if exists some subset, $\{m\}$, of $M\!<\!K$ systems of our dissipatively coupled photonic circuit such that \sum\limits_{k\in\{m\}}\!\langle\chi^{{\text{\color[rgb]{00,00,0}loc}}}|a_{k}^{\dagger}a_{k}|\chi^{{\text{\color[rgb]{00,00,0}loc}}}\rangle\!>\!0, whereas for systems out of the subset $\{m\}$ we have \sum\limits_{k\notin\{m\}}\!\langle\chi^{{\text{\color[rgb]{00,00,0}loc}}}|a_{k}^{\dagger}a_{k}|\chi^{{\text{\color[rgb]{00,00,0}loc}}}\rangle\!=\!0. The most simple and obvious distributing action would be possible if the initial state of the structure, $\rho_{0}$, is orthogonal to some localised stationary state, $\langle\chi^{{\text{loc}}}_{j}|\rho_{0}|\chi^{{\text{loc}}}_{j}\rangle=0$. Then the part of the structure corresponding to subset $\{m_{j}\}$ will not be excited in the process of dynamics described by Supplementary Eq. (S1). For such a distributor to be non-trivial, sets corresponding to different localised states, $\{m_{j}\}$, have to be partially overlapping. The distributor can be realised even in the case when the localised stationary states corresponding to different parts of the structure are not mutually orthogonal.

Let us illustrate our consideration with the example of the slightly modified DCC. For the structure depicted in Fig. 5a of the main text, modes in the arms are coupled pairwise, $A_{j}=a_{j}-a_{j+1}$ for $j=1\ldots N-1,N+2\ldots 2N$. For the central controlling node L_{N}=a_{N}-{\color[rgb]{00,00,0}a_{R}}+a_{L}-a_{N+1}. From the master equation, Supplementary Eq. (S1), the equation similar to Eq. (2) of the main text can be obtained for each arm. For four modes of the central node the equations are as follows:

[TABLE]

These equations describe 1D classical random walk. So, stationary states for arms decoupled from the central node would be vectors with equal elements, $\alpha_{j}=\alpha$ for $j=1\ldots N$ or $j=N+1\ldots 2N$ and arbitrary $\alpha$. Also, there is a stationary state localised in two controlling modes, {\color[rgb]{00,00,0}a_{R}} and $a_{L}$, with {\color[rgb]{00,00,0}\alpha_{R}}=\alpha_{L} and $\alpha_{j}=0$, $j=1\ldots 2N$. Obviously, for the whole structure, the equal distribution of amplitudes in both arms $\alpha_{j}=\alpha$ for $j=1\ldots N$ and $j=N+1\ldots 2N$, and equal amplitudes in the controlling modes, {\color[rgb]{00,00,0}\alpha_{R}}=\alpha_{L} is also the stationary state. Excitation of just one arm and one of the controlling modes with equal amplitudes (i.e., for example, $\alpha_{j}=\alpha$ for $j=1\ldots N$, {\color[rgb]{00,00,0}\alpha_{R}}=\alpha and {\color[rgb]{00,00,0}\alpha_{R}}=0, $\alpha_{j}=0$ for $j=N+1\ldots 2N$ ) is also a stationary state. By exciting control modes, {\color[rgb]{00,00,0}a_{R}} and $a_{L}$ in certain states, one can make an initial excitation of a particular mode propagate either to the one arm, or to another, or to both arms simultaneously (see Fig. 5 in the main text). Notice, the such a distributing action can be achieved catalytically, since, as it follows from Supplementary Eq. (S12), the coherence of two controlling modes are conserved, {\color[rgb]{00,00,0}\alpha_{R}}(t)+\alpha_{L}(t)={\color[rgb]{00,00,0}\alpha_{R}}(0)+\alpha_{L}(0), for any time-moment, $t$. In Fig. 5b, one can see an illustration of the distribution for the two-arm structure shown in Fig. 5a.

Supplementary Note 5: Double chain and dissipative localisation

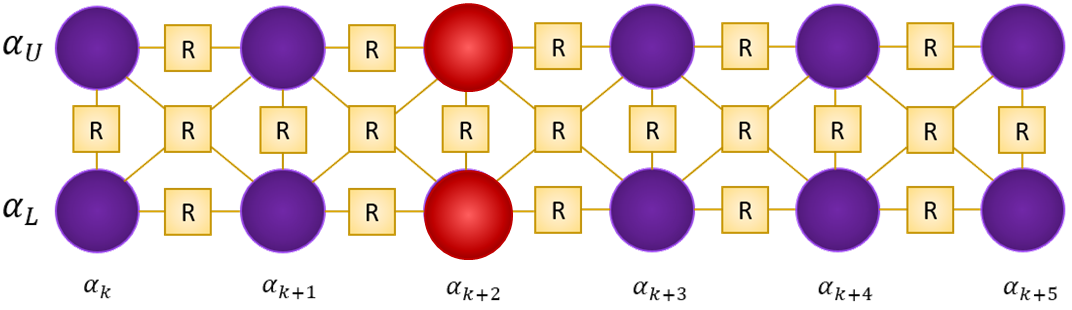

For the sake of generalisation, now we consider two parallel dissipatively coupled chains as shown in Supplementary Fig. S2. The chain consists of squares, connected side by sides, so, the Lindblad operator of $j$-th square is

[TABLE]

We obtain the following set of equations for the coherent amplitudes:

[TABLE]

where the matrix ${\hat{O}}$ has elements ${\hat{O}}_{j,k}=(-1)^{j+k}$, $j,k=1,2$. The vector $\vec{\alpha}_{j}=[\alpha_{j,+},\alpha_{j,-}]^{T}$. Despite being only a slight modification of the simplest DCC, the doubled chain has a number of drastically different features. First of all, any vector of coherent amplitudes, $\vec{\alpha}_{j}$, with equal upper ($+$) and lower ($-$) components is the stationary localised state. Then, initial excitation of any lattice site (say, $\alpha_{j,+}=x$) gives rise to the stationary state consisting of two-site localised state $\alpha_{j,+}=\alpha_{j,-}=x/2$ plus delocalised state $\alpha_{k,+}=(-1)^{j-k}x/2N$, $\alpha_{k,-}=(-1)^{j-k+1}x/2N$, where $N$ is the number of systems in each chain. It is interesting that the double chain can serve as an analogous filter. If both the lower and upper chains are excited, the stationary result in each site would be half of the sum of the lower and upper initial amplitudes. Also, localised states are robust. Additional losses on sites out of the localisation region do not affect the localised states. However, they do affect the de-localised stationary states driving them to the vacuum.

Such localisation phenomena can hold also for infinite perfectly periodic dissipatively coupled photonic lattices. Let us assume Lindblad operators of the following form

[TABLE]

where $\{n_{j}\}$ denotes a set of modes coupled to the same dissipative reservoir; $x_{jk}$ are scalar weights describing such a coupling. To avoid trivial localised states, we assume that there are no isolated sets, and for any $\{n_{j}\}$ there is a set $\{n_{l}\}$ such that the intersection, $\{n_{j}\}\cap\{n_{l}\}$, $j\neq l$, is not empty, but unequal to any of $\{n_{j}\}$. Additionally, for the ideally periodic structures, we assume that any operator, $a_{k}$, belongs to at least two different sets, and any set transforms to other set by translation along lattice vectors, ${\vec{e}}_{i}$. Obviously, for any localised stationary state we have A_{j}\rho^{{\text{\color[rgb]{00,00,0}loc}}}=0 $\forall j$. From Supplementary Eq. (S15) it follows that any localised state occupies at least two sites of the structure. An example of the honeycomb lattice allowing for dissipative localisation is shown in Supplementary Fig. S3 and briefly discussed in the main text.

To demonstrate basic features of dissipative localisation, let us consider here a simple example of a square lattice (see insets in Supplementary Fig. S4). Denoting the sites in the upper left corner of each square as $(j,k)$, we obtain the following Lindblad operators for such a lattice:

[TABLE]

The equations for the amplitudes, Supplementary Eqs. (S1,S16), then read:

[TABLE]

As can be seen from Supplementary Eqs. (S17, S18), the minimal localised states for an infinite square lattice of Supplementary Fig. S4 involve at least four sites (for example, the localised state can be in the set $\{m\}=\{(j+1,k),(j+2,k),(j+1,k+1),(j+2,k+1)\}$). An example of the localised state composed of coherent states is

[TABLE]

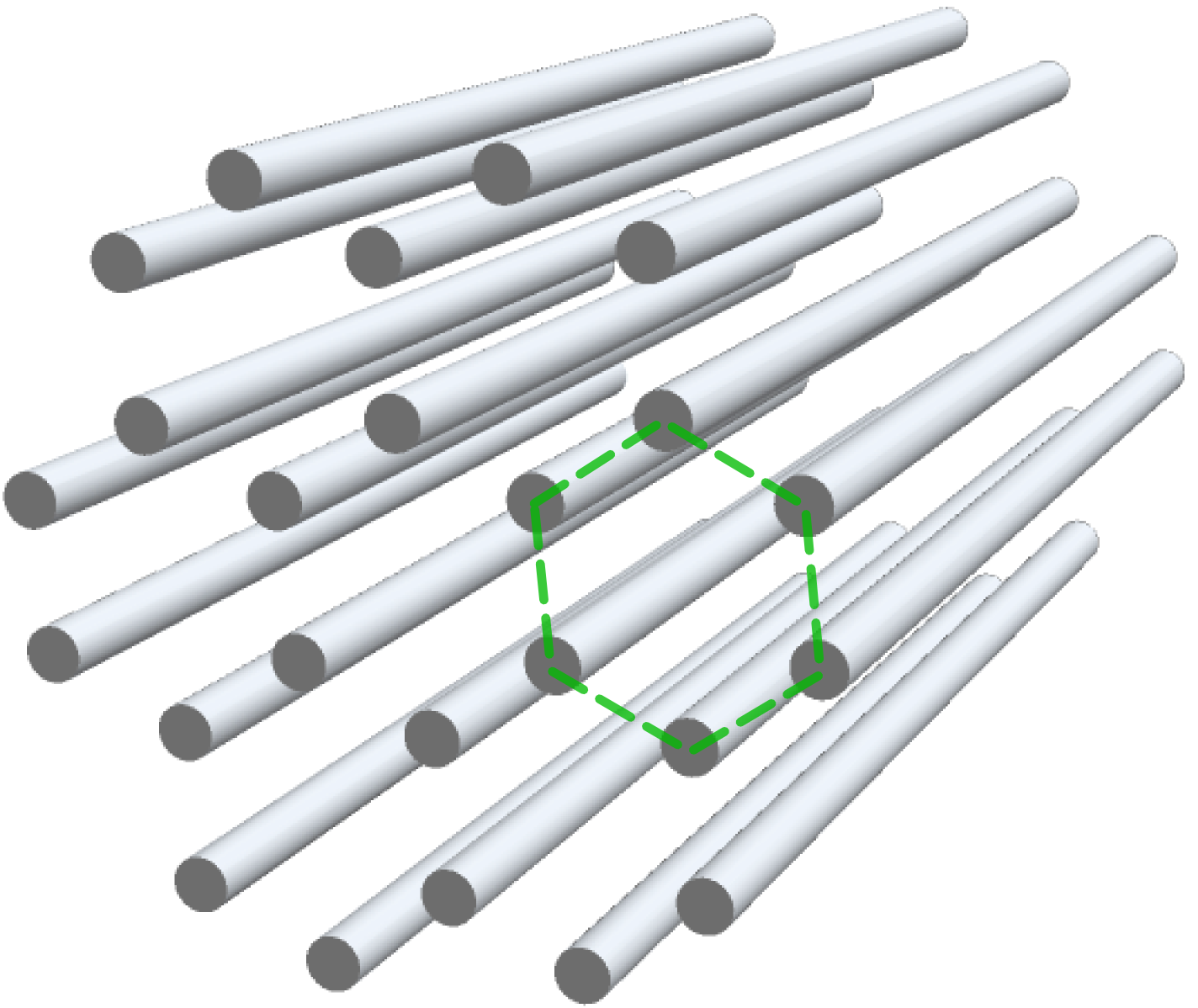

Any closed contour including either 0, 2 or 4 sites of every square can host a localised state. A finite lattice can also support localised edge states with even, as well as odd, number of sites. For example, the three-site edge state in the upper left corner of the lattice shown in the inset of Supplementary Fig. S4 can have the coherent state with amplitudes $2\alpha$ in $(1,1)$ and states with the amplitudes $-\alpha$ in sites $(2,1)$ and $(1,2)$.

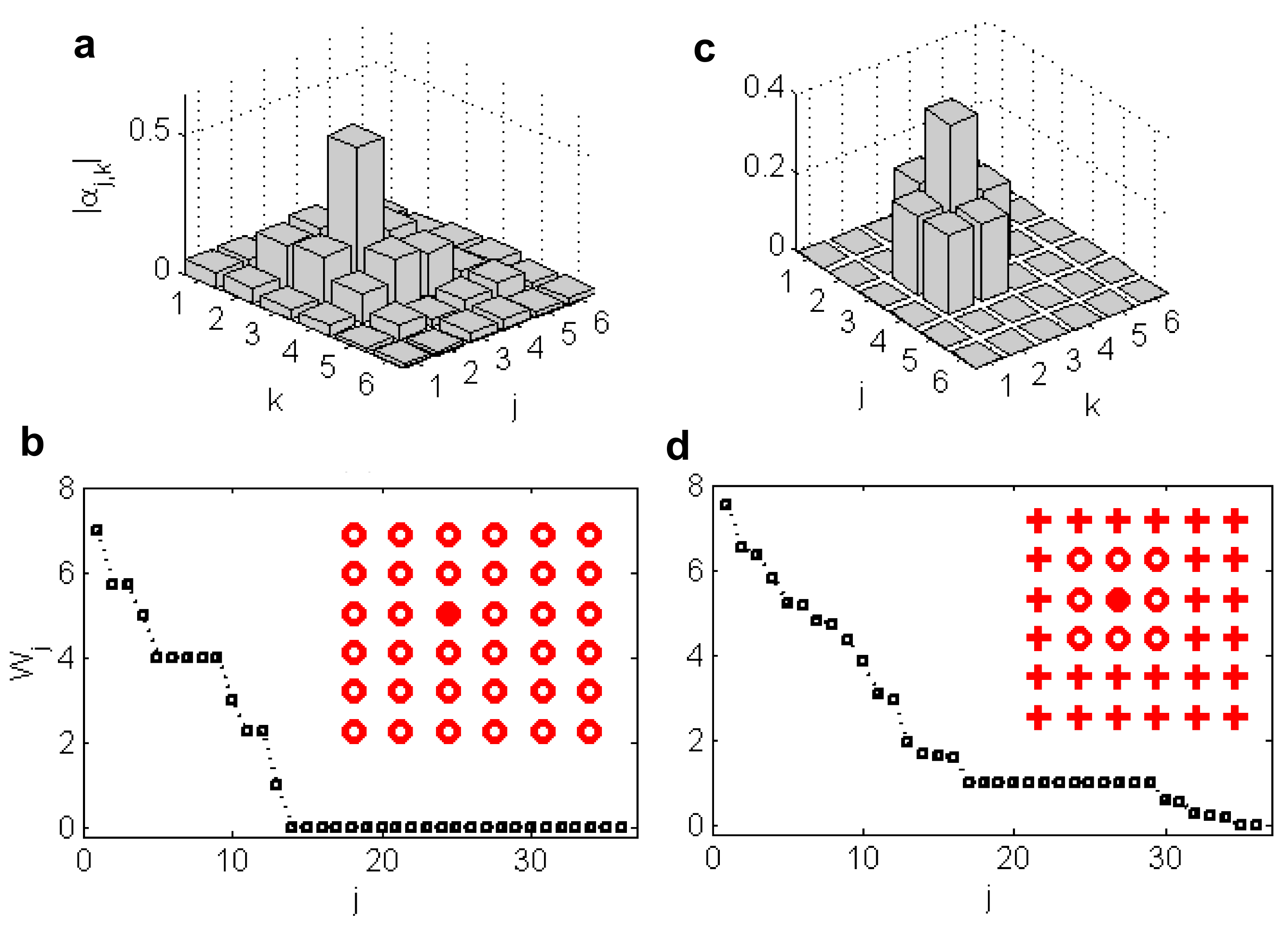

Localised states of a dissipatively coupled lattice can be arbitrarily extended. A state can propagate through the lattice exciting localised states in several cells. To illustrate the basic features of such propagation, let us consider the dynamics of just a single unit cell of the square lattice [just one $A_{j,k}$ of Supplementary Eq. (S16)]. One has

[TABLE]

where the vector of time-dependent modal amplitudes is $\vec{a}(t)=[\alpha_{1,1}(t),\alpha_{1,2}(t),\alpha_{2,1}(t),\alpha_{2,2}(t)]^{T}$ and $\bf{S}$ is the matrix of units. Supplementary Eq. (S20) shows that the final result is an initial state minus the result of complete symmetrisation of it over the cell. A similar process occurs for the complete lattice. Symmetrical parts propagate. Curiously, this process is described by the classical two-dimensional random walk. Let us introduce variables $\lambda_{m,n}(t)=(-1)^{m+n}\langle A_{m,n}(t)\rangle$. For $\gamma_{j}\equiv\gamma>0$, $\forall j$. From Supplementary Eqs. (S17, S18) it follows that

[TABLE]

Similar heat-like propagation of coherences was found recently in dissipatively coupled 1D spin chains our2015 . An illustration of the stationary distribution arising from the initial excitation of just one mode is given in Supplementary Fig. S4a. In Supplementary Fig. S4b, a spectrum of the equation matrix for Supplementary Eqs. (S17, S18) is given. The plateau of zero eigenvalues is separated from the non-zero eigenvalues with the gap of $\gamma$. Supplementary Eq. (S21) points also to the existence of delocalised stationary modes given by the condition $\langle A_{m,n}\rangle=(-1)^{m+n}\alpha$.

Despite coupling to neighbour sites, the stationary localised state is completely impervious to additional loss even on sites adjacent to those where the stationary state is localised. It can be seen even for the simplest example of the single-cell system. Taking the equation matrix Eq. (S18) with two sites subjected to additional loss with the rate $\gamma$ as $-\gamma({\bf S}-{\mathrm{diag}}(1,1,0,0))$, one gets $\vec{a}(t\rightarrow\infty)={\bf O}\vec{a}(0)$, where the only non-zero elements of the matrix ${\bf O}$ are $O_{3,3}=O_{4,4}=0.5$ and $O_{3,4}=O_{4,3}=-0.5$. Again, the result is the initial vector minus its symmetrisation, but only for the modes untouched by the additional loss. A similar effect holds for a larger lattice. In Supplementary Fig. S4c one can see an example of a localised state in the region free of additional loss arising from the initial excitation of just one initial mode. The inset in the Supplementary Fig. S4d shows sites affected by additional individual loss with rate $\gamma$. Supplementary Fig. S4d shows eigenvalues of the equation matrix Eq. (S17, S18) for this case. Only two localised states survive for the case, and the gap between the zero plateau and decaying modes are closed; there are modes with decay rates much less than $\gamma$.

Naturally, the localised stationary state can be entangled. The simplest example of the entangled states for the minimal localised states of the infinite square lattice of Supplementary Fig. S4a up to the normalization factor is

[TABLE]

which for $|\alpha|>0$ is entangled since an averaging over any mode included in this equation gives a mixed state. Up to the normalization factor, the reduced state of any three modes is given by

[TABLE]

where $|\psi_{3}^{\pm}\rangle=|\pm\alpha\rangle_{l}|\mp\alpha\rangle_{m}|\pm\alpha\rangle_{n}$, and indexes $l,m,n$ number three modes remained after averaging over the fourth one.

Another example of the localised state is the state with just a single photon distributed over several lattice sites, such as

[TABLE]

where the index $l$ numbers modes along the closed contour connecting all the sites belonging to the set $\{n\}$ where the state is localised; the state $|1\rangle_{k}$ corresponds to the photon in $k$-th mode and the vacuum in all other modes. The same localisation regions as for the coherent modal states are possible for both the perfect and finite lattices. For example, the upper-left corner state of the lattice presented in Supplementary Fig. S4a is |\Psi^{\text{{\color[rgb]{00,00,0}loc}}}\rangle=2|1\rangle_{1}-|1\rangle_{2}-|1\rangle_{3}. The states of Supplementary Eq. (S24) are entangled. Amount of entanglement is proportional to the number of systems in the localised state. For example, the generalised Schmidt number for the state of Supplementary Eq. (S24) is $2(N-1)$, $N$ being the number of sites guo . Notice that existence of the localised state, Supplementary Eq. (S24), points to the possibility of dissipative compacton-like localisation in fermionic lattices, too.
