Negative Differential Resistance and Steep Switching in Chevron Graphene Nanoribbon Field Effect Transistors

TL;DR

This paper demonstrates that chevron graphene nanoribbon transistors can exhibit negative differential resistance and steep switching due to their superlattice-like structure, with potential for high-performance electronic applications.

Contribution

It introduces a novel device concept using chevron graphene nanoribbons showing negative differential resistance and steep switching, supported by quantum transport calculations.

Findings

Peak-to-valley ratio exceeds 4800 at room temperature

Subthreshold swing of 6 mV/decade over five orders of magnitude

ON-current of 88 μA/μm

Abstract

Ballistic quantum transport calculations based on the non-equilbrium Green's function formalism show that field-effect transistor devices made from chevron-type graphene nanoribbons (CGNRs) could exhibit negative differential resistance with peak-to-valley ratios in excess of 4800 at room temperature as well as steep-slope switching with 6 mV/decade subtheshold swing over five orders of magnitude and ON-currents of 88$\mu$A/$\mu$m. This is enabled by the superlattice-like structure of these ribbons that have large periodic unit cells with regions of different effective bandgap, resulting in minibands and gaps in the density of states above the conduction band edge. The CGNR ribbon used in our proposed device has been previously fabricated with bottom-up chemical synthesis techniques and could be incorporated into an experimentally-realizable structure.

Figures

Full text

In 1970, L.Esaki and R. Tsu predicted Esaki and Tsu (1970) that in an appropriately made superlattice, it should be possible to obtain very narrow width bands, which could then lead to negative differential resistance. The remarkable property of these superlattices is in the fact that, unlike the Esaki diodes, this negative differential resistance does not need any tunneling, rather it comes from the direct conduction of electrons. Nonetheless, significant difficulty in synthesizing atomically precise, eptiaxial heterostructures has made it very challenging to realize such superlattice structures Esaki and Chang (1974); Choi et al. (1987); Ismail et al. (1989); Bernstein and Ferry (1987); Grahn et al. (1991); Kastrup et al. (1994); Warren et al. (1985). Much work has been done on modeling graphene nanoribbon heterostructures and superlattices which could exhibit NDR Ferreira et al. (2011); Li et al. (2015); Teong et al. (2009); Sevinçli, Topsakal, and Ciraci (2008); Sharifi, Akhoundi, and Esmaili (2016); Saha, Saha, and Rashid (2015); Girao, Cruz-Silva, and Meunier (2012). Other work has been done on steep slope devices based on GNR and CNT heterojunctionsKim et al. (2014); Yoon and Salahuddin (2010). Gnani et al. showed how superlattices could be used in a III-V nanowire FET to achieve steep slope behavior by using the superlattice gap to filter high energy electrons in the OFF state Gnani et al. (2011). Here, we show that the recently synthesized chevron nanoribbonsCai et al. (2010) provides a natural, monolithic material system where narrow-width energy bands and negative differential resistance (NDR) can be achieved. Our atomistic calculations predict that the NDR behavior should manifest at room temperature along with sub-thermal steepness ($<$60 mV/decade at room temperature). Such NDR behavior could lead to completely novel devices for next generation electronics.

Unlike a graphene sheet, a narrow strip etched out of graphene, often called a graphene nanoribbon (GNR), can provide a sizeable bandgap. As a result, GNRs could lead to devices with good ON/OFF ratio at the nanoscale. However, a number of studies have also shown the deleterious effect of edge roughness on the device performance Fiori and Iannaccone (2007); Yoon and Guo (2007). Recent breakthroughs in bottom-up chemical synthesis can produce GNRs with atomistically pristine edge states and overcome this shortcomingCai et al. (2010). In fact, a recent experimental work demonstrated working transistors with 9- and 13-AGNRs made with these techniquesLlinás et al. (2016). The methods used to synthesize these ribbons can also be used to generate complex periodic structures beyond simply armchair and zigzag nanoribbonsCai et al. (2014); Chen et al. (2015). In this work, we will consider one of those structures, the chevron graphene nanoribbon (CGNR).

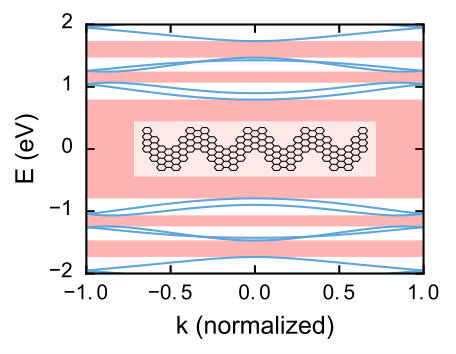

Fig. 1 shows both the atomic structure of the 6-9 CGNR originally fabricated by Cai et al. and the electronic structure calculated through a $p_{z}$ orbital-based tight-binding methodCai et al. (2010). A key feature of the band structure is the presence of minibands with regions of forbidden energy above the conduction band edge, such as those seen in superlattices of III-V semiconductors. Analogous to III-V superlattices, the CGNR contains regions of different effective bandgap. When we look at the CGNR in Fig. 1, we see that its narrowest segment is 6 carbon atoms across and its widest segment is 9 carbon atoms across, with both segments having armchair-type edges. Using a pz-basis set (GWYang et al. (2007)), the bandgap, $E_{g}$, of a 6-AGNR is 1.33 eV (2.7 eV) and the bandgap of a 9-AGNR is 0.95 eV (2.0 eV). However, given the very short length scale over which the width changes in our structure ($\sim$1\text{,}\mathrm{nm}$$), one would not expect the system to behave as though the local effective potential oscillates between the bulk values of $E_{g}$ for the isolated AGNRs. In fact, our chevron structure has an overall bandgap of 1.59 eV. This value is consistent with the $1.62\text{\,}\mathrm{eV}$ bandgap from LDA DFT calculations, but significantly smaller than the $3.74\text{\,}\mathrm{eV}$ value from calculations incorporating the GW correctionWang and Wang (2012). Both LDA and GW calculations show the presence of minibands and gaps above the conduction band edgeWang and Wang (2012).

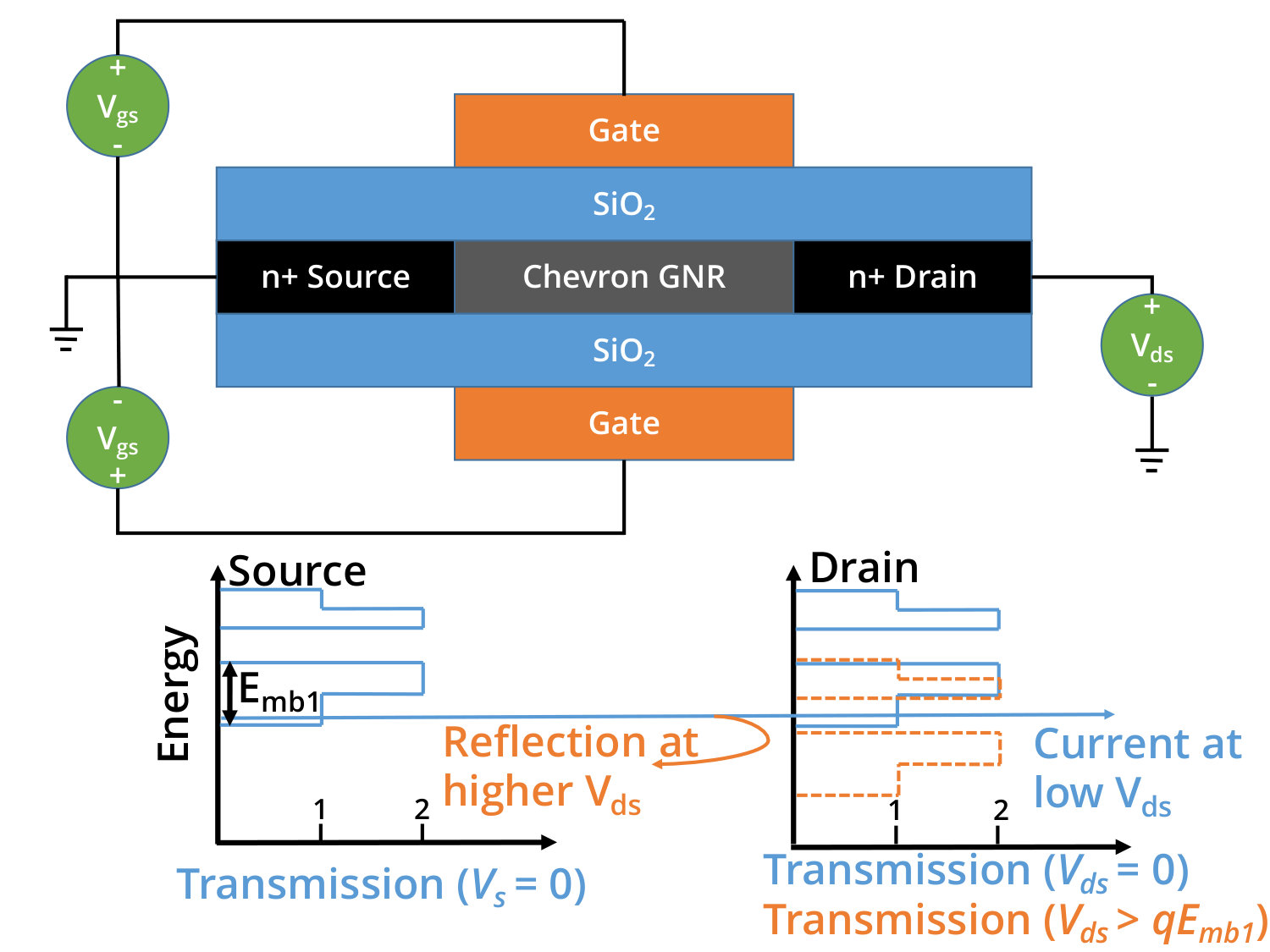

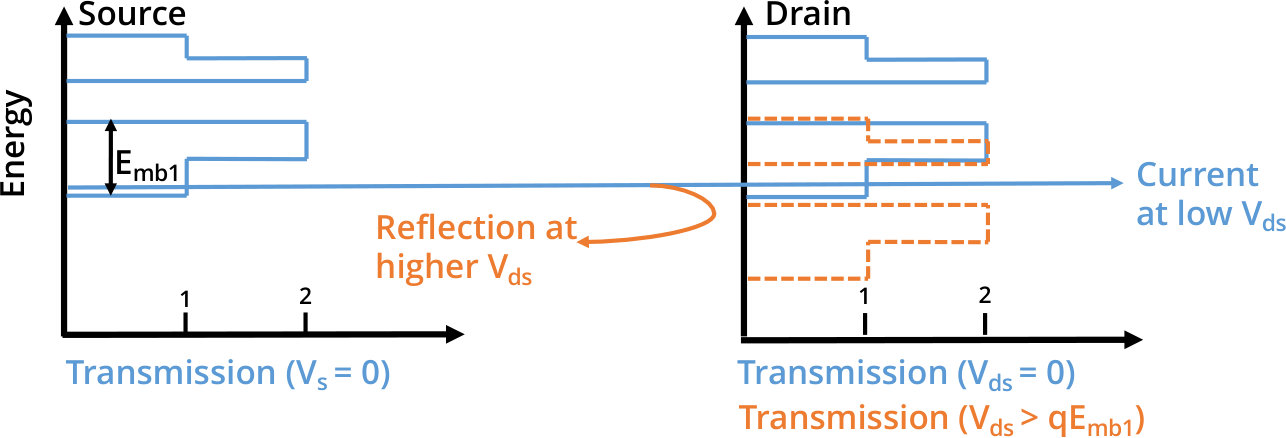

The structure of the simulated device is shown in in Fig. 2. Like a typical MOSFET, our superlattice field-effect transistor (SLFET) can be turned ON and OFF with a gate voltage at low drain biases. Operation differs from a MOSFET in two key ways. The first is that the device shows NDR with respect to the drain voltage. At some value of $V_{ds}$ determined by the width of the first miniband, $I_{d}$ decreases substantially when the conduction band at the source becomes aligned with the superlattice gap at the drain. At higher drain bias, current increases again when the conduction band at the source is aligned with the second miniband at the drain. The second feature of the SLFET is that the superlattice gap at the drain filters out higher energy electrons from the first miniband at the source when a source-drain bias is applied. This cuts off the higher energy portion of the thermionic tail at the source, which would contribute to leakage current in a traditional MOSFET. This filtering does not, however, affect the low-energy electrons, which carry most of the ON state current as they are in the window where the first minibands at the source and drain overlap. Transport in an SLFET is entirely intraband like a MOSFET, whereas a TFET relies on band-to-band tunneling. This could possibly allow higher ON current than a TFET.

The CGNR used in our simulation has a width of 1.9 nm. The simulation domain is approximately 70 nm long, and the gate has a length of 15 nm. The source and drain are doped with $N_{D}=1.0\times 10^{13}\;\mathrm{cm^{-2}}$ donors. An effective oxide thickness of $1.0\text{\,}\mathrm{nm}$ is used for both the top and bottom gates. The gate contacts are extended $30\text{\,}\mathrm{nm}$ in the direction perpendicular the channel to capture the effects of fringing gate fields. While our simulation uses an effective doping density to align the source and drain Fermi levels to the CGNR conduction band, the same effect could be achieved in an experiment through electrostatics alone.

Simulations are performed using the non-equilibrium Green’s function (NEGF) formalismDatta (2005). A simple $p_{z}$-basis is used for the Hamiltonian for the chevron graphene nanoribbon with the hopping parameter set to $t_{0}=$2.7\text{,}\mathrm{eV}$$. Charge and current are calculated with the recursive Green’s function algorithmLake et al. (1997), and contact self-energy is computed with the Sancho-Rubio iteration schemeSancho et al. (1985).

The NEGF equations are solved self-consistently with the Poisson equation for electrostatics in three dimensions. Our simulator solves the nonlinear Poisson equation using the predictor-corrector scheme described by Trellakis et al. using a semiclassical approximation for the charge densityTrellakis et al. (1997). The geometry of the system is modeled using a tetrahedral finite element mesh generated with the SALOME packageRibes and Caremoli (2007). The solution of the final sparse matrix form of the Poisson equation discretized the with finite element method is performed using the conjugate gradient solver from the Eigen libraryGuennebaud and Jacob (2010).

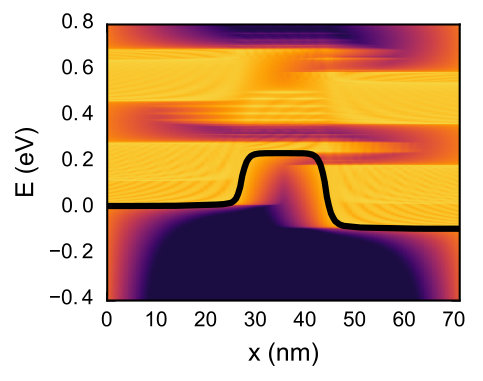

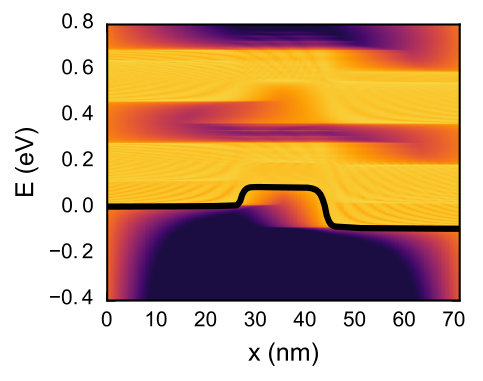

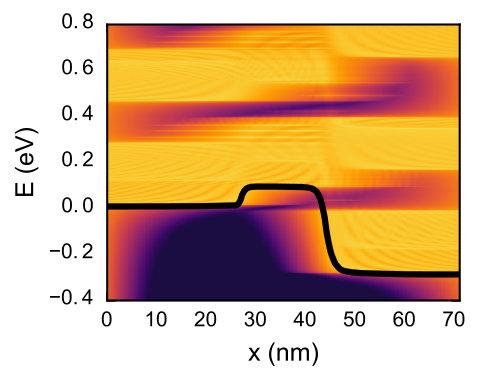

The local density of states for the CGNR MOSFET is shown in Fig. 3 for several biasing conditions. Fig. 3b shows the case for peak current for the device when a large enough drain bias has been applied to generate enough splitting between the source and drain Fermi levels to allow significant current to flow, but not a high enough bias to move the the first miniband outside of the current conduction window. For higher bias as in Fig. 3c, intraband conduction from the first miniband is completely cut off. As the drain bias is further increased, current can only flow due to a band-to-band tunneling from the first miniband at the source to the second miniband at the drain. Note that, due to the minibands, there will be regions of operation for both gate and drain voltages where current flow is abruptly turned on or off, as the overlap between source minibands and drain minibands is modified. This leads to a steep subthreshold swing ($<$ 60 mV/decade at room temperature) in the $I_{d}-V_{g}$ characteristic and a negative differential resistance in the $I_{d}-V_{d}$ characteristic.

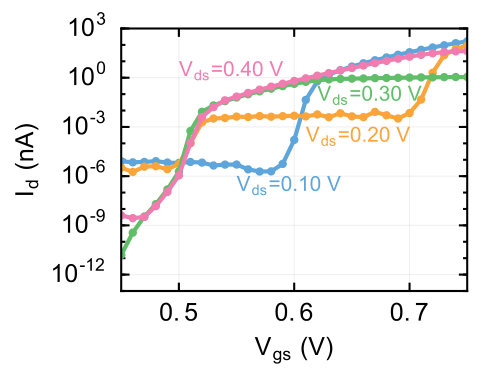

We shall first discuss the current vs gate voltage ($I_{d}-V_{g}$) characteristics. Fig. 4 shows $I_{d}$ vs. $V_{gs}$ for several values of $V_{ds}$. While steep slope behavior is exhibited at some point for all values of $V_{ds}$, the highest ON current is obverved for $V_{ds}=$0.1\text{,}\mathrm{V}. At this drain bias, an ON current of $168\text{\,}\mathrm{nA}$ ($88\text{\,}\mathrm{\SIUnitSymbolMicro A}\text{\,}{\mathrm{\SIUnitSymbolMicro m}}^{-1}$) is achieved at a gate bias of $V_{gs}=$0.75\text{\,}\mathrm{V}. In the steep slope region of this curve, the subthreshold swing is 6 mV/decade when averaged over five orders of magnitude of $I_{d}$. With gate work function engineering and additional device optimization, it should be possible to achieve reasonable ON current with a low supply voltage in devices of this type. The origin of the steep-slope behavior can be understood from Fig. 3. In the OFF state shown in Fig. 3a, the superlattice gap at the drain prevents leakage current from flowing over the source-side injection barrier. The states near the top of the barrier are seen to decay rapidly in the drain region. Fig. 3b shows the ON state, in which low-energy electrons, which make up virtually all of the ON current, can flow unimpeded from source to drain.

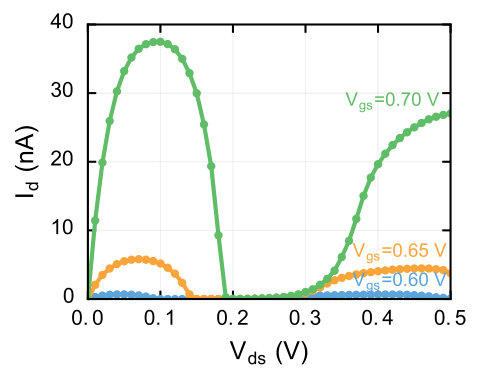

The $I_{d}-V_{ds}$ curves from the results of our simulation are shown in Fig. 5. Considering the case when $V_{gs}=$0.7\text{,}\mathrm{V}, we see an increase in current up to $V_{ds}=$0.10\text{\,}\mathrm{V}. As the drain bias is further increased, we see a decrease in current as the drain miniband goes out of alignment with the source miniband. The current beigins to pick up again as the second miniband at the drain starts to come in alignment with the source miniband again. The peak-to-valley ratio (PVR) at this gate voltage is $4.88\times 10^{3}$. At $V_{gs}=$0.60\text{,}\mathrm{V}$$, the calculated PVR is $1.71\times 10^{8}$. Note, however, that this value is expected to much smaller in a practical device due to the electron-phonon scattering mechanismsLake et al. (1997) that were not taken into account in our ballistic simulations.

In summary, we have shown that chevron graphene nanoribbon devices can exhibit both steep-slope subthreshold behavior and negative differential resistance. Both properties are the result of the superlattice-like electronic structure of the ribbon. CGNR SLFETs could be promising for a number of applications ranging from low-power logic transistors to high speed oscillators. A major obstacle to building a real device is making contacts with appropriate Schottky barrier heights to be able to match the band alignment conditions achieved in this work through a simple doping model. The performance of a real device would also likely be impacted by scattering mechanisms we have not considered here, though the ability to synthesize ribbons with virtually no defects may minimize these effects. Additional optimization will also likely be necessary to make a functioning device. DFT+GW calculations predict a much higher bandgap for the CGNR in vacuum than the tight-binding model used in this work. While surface screening may reduce the bangap somewhat, a wider ribbon with a narrower bandgap may be required. Co-optimization of the bandgap with the bandwidths of the minibands and the gaps between minibands is also a necessary topic for future work.
