Stochastic Stirling engine operating in contact with active baths

TL;DR

This paper investigates a stochastic Stirling engine driven by a nonequilibrium bath modeled as persistent non-Gaussian noise, revealing that its efficiency can match or fall below equilibrium engines depending on the definition of isothermal processes.

Contribution

It introduces a model of a Stirling engine operating with a nonequilibrium bath characterized by persistent non-Gaussian noise, analyzing how different definitions of isothermal transformations affect its energetics.

Findings

Engine efficiency can match equilibrium counterparts under certain conditions.

Persistence in the noise significantly impacts the engine's performance.

The type of noise influences whether the engine operates more or less efficiently.

Abstract

A Stirling engine made of a colloidal particle in contact with a nonequilibrium bath is considered and analyzed with the tools of stochastic energetics. We model the bath by non Gaussian persistent noise acting on the colloidal particle. Depending on the chosen definition of an isothermal transformation in this nonequilibrium setting, we find that either the energetics of the engine parallels that of its equilibrium counterpart or, in the simplest case, that it ends up being less efficient. Persistence, more than non Gaussian effects, are responsible for this result.

Figures

Equations

$$\gamma \frac{\text{d}x}{\text{d}t}=-{\partial }_{x}V+\gamma \eta$$

$$A:(k_2,T_2)\stackrel{\text{isothermal}}{⟶}B:(k_1,T_2)\stackrel{\text{isochoric}}{⟶}C:(k_1,T_1)\stackrel{\text{isothermal}}{⟶}D:(k_2,T_1)\stackrel{\text{isochoric}}{⟶}A$$

$$Q=-{\int }_i^f\text{d}tT\sigma$$

$$\mathcal{E}=\frac{⟨Q_1+Q_2⟩}{⟨Q_1⟩}=\frac{(T_1-T_2)\ln a}{T_1-T_2+T_1\ln a}$$

$$\gamma \dot{x}=-kx+\gamma {\eta }_{\text{act}}$$

$$⟨(x(t)-x(0){)}^2⟩=\frac{2T}{\gamma }t$$

$$\gamma \dot{x}=-{\partial }_{x}V+\gamma {\eta }_{\text{nG}}$$

$${\eta }_{\text{nG}}(t)=\sum _i{c}_i\delta (t-t_i)$$

$$⟨{\eta }_{\text{nG}}(t_1)\dots {\eta }_{\text{nG}}(t_n){⟩}_{\text{cumulant}}=\nu ⟨c^n{⟩}_p\delta (t_1-t_2)\dots \delta (t_{n-1}-t_n)$$

$${\partial }_{t}P(x,t)={\gamma }^{-1}{\partial }_x(kxP(x,t))+\nu \int \text{d}cp(c)\left(P(x-c,t)-P(x,t)\right)$$

$$\begin{array}{rl}\frac{\text{d}}{\text{d}t}⟨x^2⟩=& -\frac{2k}{\gamma }⟨x^2⟩+\nu ⟨c^2{⟩}_p\end{array}$$

$$⟨{\eta }_{\text{P}}(t){\eta }_{\text{P}}(t^{\prime })⟩=\frac{2T}{\gamma }\times \frac{{\text{e}}^{-\frac{|t-t^{\prime }|}{\tau }}}{2\tau }.$$

$$(k+i\gamma \omega )\tilde{x}(\omega )=\gamma {\tilde{\eta }}_{\mathrm{P}}(\omega )$$

$$⟨x^2⟩={\int }_{-\infty }^{+\infty }\frac{\text{d}\omega }{2\pi }\frac{{\gamma }^2⟨{\tilde{\eta }}_{\mathrm{P}}(\omega ){\tilde{\eta }}_{\mathrm{P}}(-\omega )⟩}{k^2+{\omega }^2{\gamma }^2}.$$

$$⟨x^2⟩=\frac{T}{k(1+k\tau /\gamma )}.$$

$$⟨Q_{AB}⟩$$

$$⟨Q_{BC}⟩$$

$$⟨Q_{CD}⟩$$

$$⟨Q_{DA}⟩$$

$$⟨W_{AB}⟩=\frac{T_2}{2}\ln a\frac{1+{\Omega }_2\tau }{1+{\Omega }_1\tau },⟨W_{CD}⟩=-\frac{T_1}{2}\ln a\frac{1+{\Omega }_2\tau }{1+{\Omega }_1\tau },⟨W_{BC}⟩=⟨W_{DA}⟩=0$$

$${\mathcal{E}}_{\text{sat}}=\frac{\ln a\frac{1+{\Omega }_2\tau }{1+{\Omega }_1\tau }}{\ln a\frac{1+{\Omega }_2\tau }{1+{\Omega }_1\tau }+\frac{1}{1+{\Omega }_2\tau }}$$

$${\mathcal{E}}_{\text{sat}}\simeq \frac{\ln a}{1+\ln a}-{\Omega }_2\tau \frac{a-1-\ln a}{(1+\ln a{)}^2}+\mathcal{O}({\tau }^2).$$

$$\gamma {\int }_{-\infty }^t\text{d}{t}^{\prime }{K}_{\text{diss}}(t-t^{\prime })\dot{x}(t^{\prime })=-kx+\gamma \eta ;⟨\eta (t)\eta (t^{\prime })⟩=\frac{2T}{\gamma }{K}_{\text{inj}}(|t-t^{\prime }|)$$

$$T_{\text{eff}}(\omega )=T\frac{K_{\text{inj}}(\omega )}{\text{Re}{K}_{\text{diss}}(\omega )}$$

$$⟨W_{AB}⟩=\frac{T_2}{2}\left[G(k_1)-G(k_2)\right];⟨W_{CD}⟩=-\frac{T_1}{2}\left[G(k_1)-G(k_2)\right];⟨W_{BC}⟩=⟨W_{DA}⟩=0$$

$$⟨Q_{AB}⟩=-\frac{T_2}{2}\left[G(k_1)-G(k_2)\right]+\frac{T_2}{2}\left[f(k_1)-f(k_2)\right];⟨Q_{BC}⟩=\frac{(T_1-T_2)}{2}f(k_1);$$

$$⟨Q_{CD}⟩=\frac{T_1}{2}\left[G(k_1)-G(k_2)\right]-\frac{T_1}{2}\left[f(k_1)-f(k_2)\right];⟨Q_{DA}⟩=\frac{(T_2-T_1)}{2}f(k_2);$$

$${\mathcal{E}}_{\text{sat}}=\frac{G(k_1)-G(k_2)}{f(k_1)+G(k_1)-G(k_2)}.$$

$${\int }_{k_2}^{k_1}\frac{f(k)}{kf(k_1)}\text{d}k>{\int }_{k_2}^{k_1}\frac{\text{d}k}{k}.$$

$$\gamma \dot{\mathbf{r}}=-\nabla V+\gamma f_0\mathbf{u}.$$

$${\partial }_t{\mathcal{P}}_t(\theta )=D_r\frac{{\partial }^2\mathcal{P}(\theta )}{\partial {\theta }^2}$$

$${\partial }_t⟨\cos \theta \cos {\theta }_0⟩=D_r\int \text{d}\theta \cos \theta \cos {\theta }_0\frac{{\partial }^2\mathcal{P}(\theta )}{\partial {\theta }^2}=-D_r⟨\cos \theta \cos {\theta }_0⟩$$

$${\partial }_t{\mathcal{P}}_t(\theta )=-\alpha \mathcal{P}(\theta )+\alpha \int \frac{\text{d}{\theta }^{\prime }}{2\pi }\mathcal{P}({\theta }^{\prime })$$

Full text

\articlenumber

x \doinum10.3390/—— \pubvolumexx

\externaleditorAcademic Editor: name \historyReceived: date; Accepted: date; Published: date \TitleStochastic Stirling engine operating in contact with active baths \AuthorRuben Zakine 1, Alexandre Solon 2, Todd Gingrich 2 and Frédéric van Wijland 1 \AuthorNamesRuben Zakine, Alexandre Solon, Todd Gingrich and Frédéric van Wijland

\corresCorrespondence: fvw@univ-paris-diderot.fr

1 Introduction

Every well-educated physicist has heard of Carnot or Stirling cycles. In equilibrium thermodynamics of macroscopic systems (such as a gas enclosed in some container), a cycle is a periodic sequence of transformations the system is subjected to, with a view, as far as engines are considered, to extracting work from the system. For a Carnot cycle, this is the well-known adiabatic-isothermal-adiabatic-isothermal sequence, while for a Stirling cycle the adiabatic transformations are replaced with isochoric ones. The analysis of small, microscopic or nanoscopic systems, such as a colloidal particle in some solvent, by contrast to the nineteenth century fluid systems, poses theoretical and experimental challenges. The former have been overcome by the advent of stochastic energetics at the end of the nineties Sekimoto (2010). Stochastic energetics (or stochastic thermodynamics) encompasses a series of concepts and methods that allow one to define work, heat, dissipation, energy, etc. at an instantaneous and fluctuating level. By taking averages one usually recovers (with often no need to consider the limit of macroscopic systems) the standard principles of thermodynamics. The gain, however, is enormous in that stochastic energetics also allows one to quantify fluctuations, which may not be negligible for small-scale systems. An excellent review on the latest developments of stochastic thermodynamics is that by Seifert Seifert (2012), while the earlier Schmiedl and Seifert paper Schmiedl and Seifert (2008) focuses specifically on the analysis of stochastic engines. Experimental realizations pose challenges of their own. These are concerned with the control of small-size objects (often by means of optical tweezers), coupled to the need to control other parameters of the experiment. The bath temperature is one of them. Another one is the optical trap stiffness that can be seen as playing a role analogous to the volume of the container enclosing the gas in the macroscopic version. The conjugate parameter (analogous to the pressure) is the particle position (squared). The first colloidal-made engines were concerned with a Stirling cycle Blickle and Bechinger (2011); Horowitz and Parrondo (2012), in which a sequence of transformations by which the bath temperature and the trap stiffness were varied was applied to the colloidal particle. This is no place to discuss what an adiabatic transformation actually means at the level of a colloidal particle in a solvent, suffice it to say that this has very recently been defined Martínez et al. (2015) and put to work in an actual Carnot cycle Martinez et al. (2016). A lot remains to be done at the experimental level and theoretical level alike, but it is fair to say that things are pretty well-understood as far as the theoretical framework is concerned. However, a somewhat unexpected generalization of these cycles seen as transformations between equilibrium states has recently been put forward by Krishnamurthy et al. Krishnamurthy et al. (2016). The generalization, in the spirit of the seminal work of Wu and Libchaber Wu and Libchaber (2000), consists in replacing the equilibrium bath by an active bath containing living bacteria in a stationary yet nonequilibrium state. The sequence of transformations thus occurs between nonequilibrium steady-states instead of between equilibrium ones. Due to the nonequilibrium nature of the bacterial bath, there is no way to define a bona fide temperature. There are, however, several ways to define an energy scale expressing the level of energetic activity of the bath (all of which reduce, in some equilibrium limit, to the physical temperature). The proposal of Krishnamurthy et al. (2016) is to use the colloid’s position fluctuations via $T_{\text{act}}=\frac{k}{2}\langle x^{2}\rangle$ (where $k$ is the trap stiffness). Another posssibility would have been the following: in the absence of any confining force, the colloidal particle will eventually diffuse away from its initial position, so that we might then expect $\langle(x(t)-x(0))^{2}\rangle=\frac{2T}{\gamma}t$, where $T$ is yet another acceptable active temperature (this would be the asymptotic slope in figure 2 of Wu and Libchaber (2000)). One might be inclined, somewhat subjectively, to view $T$ as better expressing the intrinsic properties of the bath, while $T_{\text{act}}$ must result from a balance between the bath and some external force. We will come back to that point at a later stage.

The purpose of this work is to analyze the results of Krishnamurthy et al. (2016) in the light of a specific modeling of the bacterial bath. Our modeling relies on a single hypothesis: the bath enters the colloid’s motion only through an extra noise term, and the noise statistics alone encode for the effect of the bath. Inspired by the suggestion of Krishnamurthy et al. (2016) that non Gaussian statistics are essential, we will propose that the noise to which the colloid is subjected may have itself non Gaussian statistics (recent advances of stochastic energetics for non Gaussian but white processes Kanazawa et al. (2012, 2013) have taught us how to manipulate such signals) and possibly possess persistence properties. We will begin by a reminder of the properties of the stochastic Stirling engine between equilibrium reservoirs. We will then consider the extension to nonequilibrium bath and see how equilibrium results are not affected by choosing isothermal processes based on $T_{\text{act}}$. Then, we will adopt a definition of active temperature based on the colloid’s diffusion constant and show that energy balance considerations are deeply modified and that the persitence of the noise is of key importance.

2 Stirling cycle between between equilibrium states: a quick review

2.1 Modeling the motion of a colloidal particle

The standard description of the dynamics of a colloidal particle in a solvent rests on a Langevin equation governing the evolution of the particle’s position $x(t)$. In the overdamped limit relevant to the description of a micron-sized particle, this Langevin equation reads

[TABLE]

where $\gamma$ is the friction coefficient characterizing the viscous drag of the particle in the solvent (this is the inverse mobility). The external potential $V$ depends on the particle’s position $x$ and an external control parameter of the potential (like the stiffness of the harmonic trap). Finally, $\eta$, which, with the chosen normalization, has the dimension of a velocity, stands for a Gaussian white noise with correlations $\langle\eta(t)\eta(t^{\prime})\rangle=\frac{2T}{\gamma}\delta(t-t^{\prime})$. Under those conditions, where the dissipation kernel exactly matches the noise correlator, as prescribed by Kubo Kubo (1966), the colloidal particle is in equilibrium (provided, of couse, the external potential is not time dependent). In experimental setups, the potential is harmonic and the particle’s motion is tracked in two-dimensional space, $\text{\bf r}=(x,y)$ and $V(x,k)=\frac{k}{2}(x^{2}+y^{2})$. We will stick to a one-dimensional description for notational simplicity. In the nonequilibrium setting we want to describe here, we shall encapsulate the effects of the interactions of the colloidal particle with its nonequilibrium environment into a single ingredient, namely the noise statistics. But there is no reason to expect the noise resulting from the interactions of the colloidal particle with the bacteria bath to be either Gaussian or white. We postpone the analysis of such active noises to the next section and now proceed with a reminder of Schmiedl and Seifert (2008); Blickle and Bechinger (2011).

2.2 Energetics of the Stirling cycle

In this subsection, we briefly review the results presented in Blickle and Bechinger (2011); Horowitz and Parrondo (2012). This serves as a way to set notations straight and to define the quantities of interest. A Stirling cycle $ABCDA$ is made of the following sequence of states in the stiffness-temperature space $(k,T)$:

[TABLE]

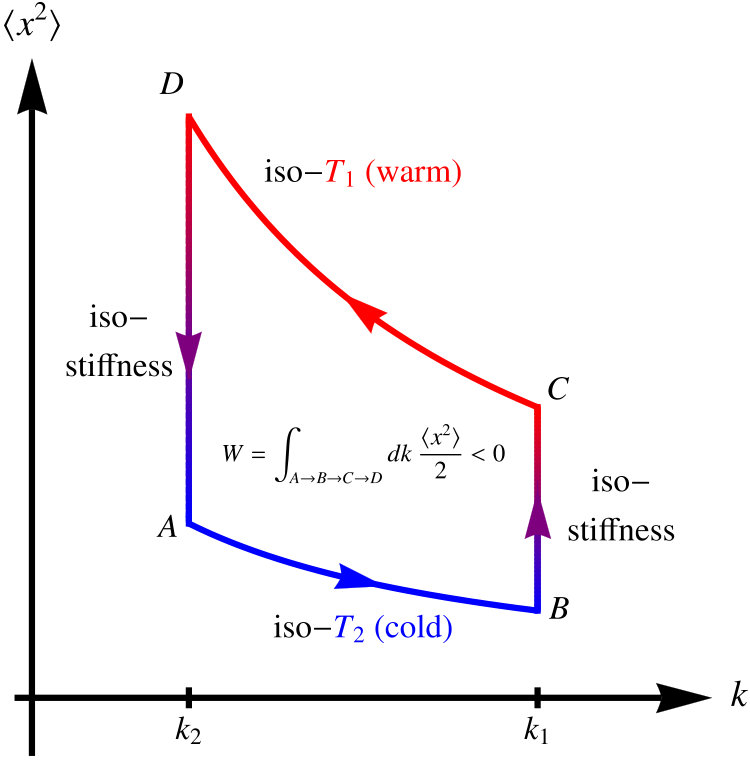

where the terminology isochoric of course refers to an iso-stiffness transformation. This cycle is sketched in figure 1.

We will denote by $a=k_{1}/k_{2}>1$ the stiffness ratio (a large value of $k$ is analogous to a more compressed state). The warm source is at $T_{1}$ while the cold source is at $T_{2}$ ($T_{1}>T_{2})$. The instantaneous fluctuating energy of the particle is $V(x,k)=\frac{k}{2}x^{2}$. The work done on the colloid along a protocol driving it from state $i$ to state $f$ is $W=\int_{i}^{f}\text{d}t\frac{\text{d}k}{\text{d}t}\frac{\partial V}{\partial k}=\int_{i}^{f}\text{d}k\frac{1}{2}x^{2}$. The heat received by the colloid during the same step is given by the integral of the entropy production along the given protocol:

[TABLE]

where $\sigma=T^{-1}\dot{x}(\gamma\dot{x}-\gamma\eta)=-T^{-1}k\dot{x}x$ is also the rate of work performed by the particle on the bath, and thus $Q$ is the work performed by the bath on the particle. Altogether we thus have $Q=\int_{i}^{f}kx\text{d}x$. If $p_{\text{eq}}(x)=\text{e}^{-kx^{2}/2T}/\sqrt{2\pi T/k}$ is the equilibrium distribution then, up to a constant $S=-\int\text{d}xp_{\text{eq}}(x)\ln p_{\text{eq}}(x)=-\frac{1}{2}\ln\frac{k}{2\pi T}+\frac{1}{2}$ is the equilibrium entropy and $\langle Q\rangle=\int_{i}^{f}T\text{d}S$, with $\text{d}S=-\frac{1}{2}\frac{\text{d}k}{k}+\frac{1}{2}\frac{\text{d}T}{T}$. This is consistent with $Q=\int_{i}^{f}kx\text{d}x=[\frac{kx^{2}}{2}]_{i}^{f}-\int_{i}^{f}\text{d}k\frac{x^{2}}{2}$, which is a promotion of the first law $V_{f}-V_{i}=W+Q$ to stochastic energies. Using that $\langle x^{2}\rangle=T/k$, it is a simple exercise to determine the average heat received by the system during each step, $\langle Q_{AB}\rangle=-\frac{1}{2}T_{2}\ln a<0$, $\langle Q_{BC}\rangle=\frac{1}{2}(T_{1}-T_{2})>0$, $\langle Q_{CD}\rangle=\frac{1}{2}T_{1}\ln a>0$ and $\langle Q_{DA}\rangle=-\frac{1}{2}(T_{1}-T_{2})<0$. Correspondingly, $\langle W_{AB}\rangle=\frac{T_{2}}{2}\ln a$, $\langle W_{BC}\rangle=0$, $\langle W_{CD}\rangle=-\frac{T_{1}}{2}\ln a$ and $\langle W_{DA}\rangle=0$. The total average work received by the colloid is $\langle W\rangle=\langle W_{AB}+W_{CD}\rangle=-\frac{1}{2}(T_{1}-T_{2})\ln a<0$. This means that the engine provides some work on average. Given that $Q_{1}=Q_{BC}+Q_{CD}$ and $Q_{2}=Q_{AB}+Q_{DA}$ are the heat effectively received by the colloid and the heat effectively given by the colloid to the bath, respectively, we define ${\mathcal{E}}=\frac{|\langle W\rangle|}{\langle Q_{1}\rangle}$ as the engine’s efficiency. The result

[TABLE]

If a perfect regenerator was used during the isochoric cooling $D\to A$ then the energy given out during this isochoric cooling could be used for the heating during the isochoric heating $B\to C$. Then the heat received by the colloid would reduce to $Q_{1}=Q_{CD}$ and the efficiency would become ${\mathcal{E}}_{C}=\frac{(T_{1}-T_{2})\ln a}{T_{1}\ln a}=1-\frac{T_{2}}{T_{1}}$ (this Carnot efficiency is of course an upper bound for ${\mathcal{E}}=\frac{{\mathcal{E}}_{C}\ln a}{{\mathcal{E}}_{C}+\ln a}$ as given in (4)). Again, these results can all be found in Blickle and Bechinger (2011). We have now set the stage for the purpose of this work, which is to re-examine each of these steps when the colloidal particle is in contact with nonequilibrium baths just as was carried out experimentally in Krishnamurthy et al. (2016).

3 Engine operating between nonequilibrium baths

3.1 Modified Langevin equation

We stick to our hypothesis

that the effects of the bacterial bath can be entirely encoded into a single random process, so that now the colloid’s position evolves according to

[TABLE]

where the active noise $\eta_{\text{act}}$ is a characteristic feature of the bacterial bath. Assuming this random signal inherits its properties from the bacteria making up the bath, we may expect that not only will the noise display non Gaussian statistics but it will also exhibit persistence properties captured by some memory kernel in the noise correlations. Among existing models, we may cite Run-and-Tumble noise, Active Brownian noise (see Solon et al. for a review), Active Ornstein-Uhlenbeck noise Szamel (2014) or even white yet non Gaussian Kanazawa et al. (2012). Following Krishnamurthy et al. (2016) we define a first active temperature $T_{\text{act}}$ by the steady-state value of $x^{2}$: $T_{\text{act}}\equiv k\langle x^{2}\rangle$. However, we introduce another active temperature that we denote by $T$ by means of the colloid’s mean-square displacement in the absence of a confining force, namely at $k=0$ we expect that

[TABLE]

at large times, so that $T=\frac{\gamma}{2t}\int_{0}^{t}\text{d}t_{1}\text{d}t_{2}\langle\eta_{\text{act}}(t_{1})\eta_{\text{act}}(t_{2})\rangle$. We stress that neither $T$ nor $T_{\text{act}}$ are bona fide temperatures. They merely are energy scales reflecting how the bath injects energy into the colloids.

3.2 The energetics is not altered if we use iso-$T_{\text{act}}$

steps

Using the definition of the work $W_{i\to f}=\int_{i}^{f}\text{d}k\frac{x^{2}}{2}$ we see that $\langle W_{i\to f}\rangle=\int_{i}^{f}\text{d}k\frac{T_{\text{act}}}{2k}$ which leads to the exact same expressions for the work as found in the previous section, up to the replacement of the equilibrium temperature with $T_{\text{act}}$. Similarly, the heat is given by the work exerted by the bath on the colloid, namely $Q_{i\to f}=\int_{i}^{f}\text{d}t\dot{x}(-\gamma\dot{x}+\gamma\eta_{\text{act}})$, which again simplifies into $Q_{i\to f}=\int_{i}^{f}\text{d}t\dot{x}(kx)$ and thus $Q_{i\to f}=[\frac{kx^{2}}{2}]_{i}^{f}-\int_{i}^{f}\text{d}k\frac{x^{2}}{2}$. After taking averages, we are back onto the expression found in equilibrium, again up to the replacement of temperatures by the corresponding $T_{\text{act}}$’s. Hence, within that set of definitions and within our modeling, a quasistatic engine operating between nonequilibrium baths cannot outperform an equilibrium one. In light of the experiments of Krishnamurthy et al. (2016) this leaves us with a puzzle that we will adress in the discussion section. In the following section, we suggest that perhaps another definition of the active isothermal process might lead to more striking differences with respect to an equilibrium engine.

4 Energetics using the diffusion constant as an active temperature

In this section we re-examine the Stirling engine operating between nonequilibrium baths using the temperature $T$ defined in Eq. (6) via the diffusion constant of an unconstrained particle. An isothermal process will now be understood as a process at constant $T$. Physically, this requirement is arguably more natural than processes at constant $T_{\rm act}$. Indeed, $T$ is an intrinsic measure of the activity of the bath, which can usually be tuned easily by the experimentalist, while $T_{\rm act}$ results from a balance between the bath’s activity and a given external potential.

This new definition immediately requires us to adopt specific models for the active noise $\eta_{\text{act}}$ because the explicit dependence of $\langle x^{2}\rangle$ on $T$ and $k$ is now of crucial importance. We examine successively the case in which $\eta_{\text{act}}$ is a non Gaussian but white noise, then an persistent noise with two-point correlations exponentially decreasing in time, a case that encompasses Ornstein-Uhlenbeck noise, Run-and-Tumble or Active Brownian noise.

4.1 A bath with white but non Gaussian statistics

Let’s now assume that the active nature of the bacterial bath only surfaces through the non Gaussian statistics of the noise $\eta_{\text{nG}}$ appearing in the Langevin equation,

[TABLE]

while memory effects can be ignored in a first approximation. A non Gaussian white noise $\eta_{\text{nG}}(t)$ can be formed by compounding Poisson point processes with random and independent amplitudesVan Kampen (1992). In practice, a realization of the noise over a time interval $[0,\mathcal{T}]$ is generated by first drawing a number of points, $n$, from a Poisson distribution with mean $\nu\mathcal{T}$. Then a collection of times $t_{i}$, with $i=1,\ldots,n$, are drawn uniformly in $[0,\mathcal{T}]$. To each $t_{i}$ is associated a jump amplitude $c_{i}$, where the $c_{i}$’s are independent but identically distributed random variables with distribution $p(c)$. The non Gaussian, white noise is constructed as the composition of these random-amplitude Poisson jumps:

[TABLE]

The generating functional of $\eta_{\text{nG}}(t)$ is $\langle\text{e}^{\int\text{d}t\;j(t)\eta_{\text{nG}}(t)}\rangle=\text{e}^{\nu\int\text{d}t(\langle\text{e}^{c\;j(t)}\rangle_{p}-1)}$, where the $p$ index denotes an average with respect to $c$ and $j(t)$ is the field conjugate to $\eta_{\text{nG}}$. The two parameters defining the noise statistics are the hitting frequency $\nu$ and the full jump distribution $p$. The Gaussian white noise limit is recovered as $\nu\to\infty$ and $\langle c^{2}\rangle_{p}\to 0$ while $\nu\langle c^{2}\rangle_{p}$ remains fixed. The noise has cumulants

[TABLE]

We denote by $T/\gamma=\nu\langle c^{2}\rangle_{p}/2$ so that $\langle\eta_{\text{nG}}(t)\eta_{\text{nG}}(t^{\prime})\rangle=(2T/\gamma)\delta(t-t^{\prime})$ and $T$ matches the definition given in Eq. (6). It is possible to show that, in the case of the non Gaussian white noise, this $T$ is actually identical to our prior definition $T_{\text{act}}=\langle x^{2}\rangle/k$. To prove this, we start from the master equation for the probability that $x(t)$ takes the value $x$ at time $t$, $P(x,t)$, which reads

[TABLE]

which we multiply by $x^{2}$ and integrate over $x$. This directly leads to

[TABLE]

Hence it results that in steady-state $k\langle x^{2}\rangle=T$, independently of the non Gaussian noise specifics. This is an extension of equipartition to a nonequilibrium context 111An identical equipartition holds for an underdamped Langevin equation with non Gaussian noise, for which $m\dot{v}=-\gamma v-V^{\prime}+\gamma\eta_{\text{nG}}$ leads to $m\frac{\text{d}\langle v^{2}\rangle}{\text{d}t}=-\gamma\langle v^{2}\rangle-\frac{\text{d}}{\text{d}t}\langle V\rangle+\frac{2\gamma T}{m}$. This indeed forces $\langle mv^{2}/2\rangle=T/2$ in the steady-state, irrespective of the white noise statistics. In a similar vein, one can also see that $\frac{\text{d}}{\text{d}t}\langle xv+\frac{\gamma}{m}\frac{x^{2}}{2}\rangle=\langle v^{2}\rangle-\frac{1}{m}\langle xV^{\prime}\rangle$, which leads to $\langle xV^{\prime}\rangle=m\langle v^{2}\rangle=T$ in the nonequilibrium steady-state.. It immediately follows that the average works and heats will be unchanged with respect to the equilibrium discussion of subsection 2.2. Note, however, that the heat is not given anymore by the entropy production $\delta Q=-T\sigma\text{d}t$ as in Eq. (3). It would be an interesting task to try and evaluate the corresponding $\sigma$ which is beyond the scope of the present discussion. (This might be feasible in an expansion in the jump size $a$ at fixed active $T$. Such an expansion around a Gaussian white noise is admittedly questionable in view of Pawula’s theorem Pawula (1967) but can be controled when manipulated with care Popescu and Lipan (2015)). Finally, that equipartition holds does not preclude strong non Gaussian effects to show up in the colloid’s position pdf. For instance, choosing $p(c)=\text{e}^{-|c|/a}/(2a)$ (with $\langle c^{2}\rangle_{p}=2a^{2}$) for the distribution of jumps allows us to find the stationary state distribution $P_{\text{ss}}(x)$. Indeed, with this choice of jump statistics E. Fodor and van Wijland (2017) for $\alpha=\frac{T}{2ka^{2}}-\frac{1}{2}$ positive we have $P_{\text{ss}}(x)=C|x/a|^{\alpha}K_{\alpha}(|x|/a)$ and $C=2^{-\alpha}a^{-1}/(\sqrt{\pi}\Gamma(1/2+\alpha))$, and thus $\langle x^{2}\rangle=\frac{T}{k}$ can be explicitly verified. Note $P_{\text{ss}}$ exhibits a cusp at the origin for $0\leq\alpha\leq 1/2$, namely for $ka^{2}<T<2ka^{2}$.

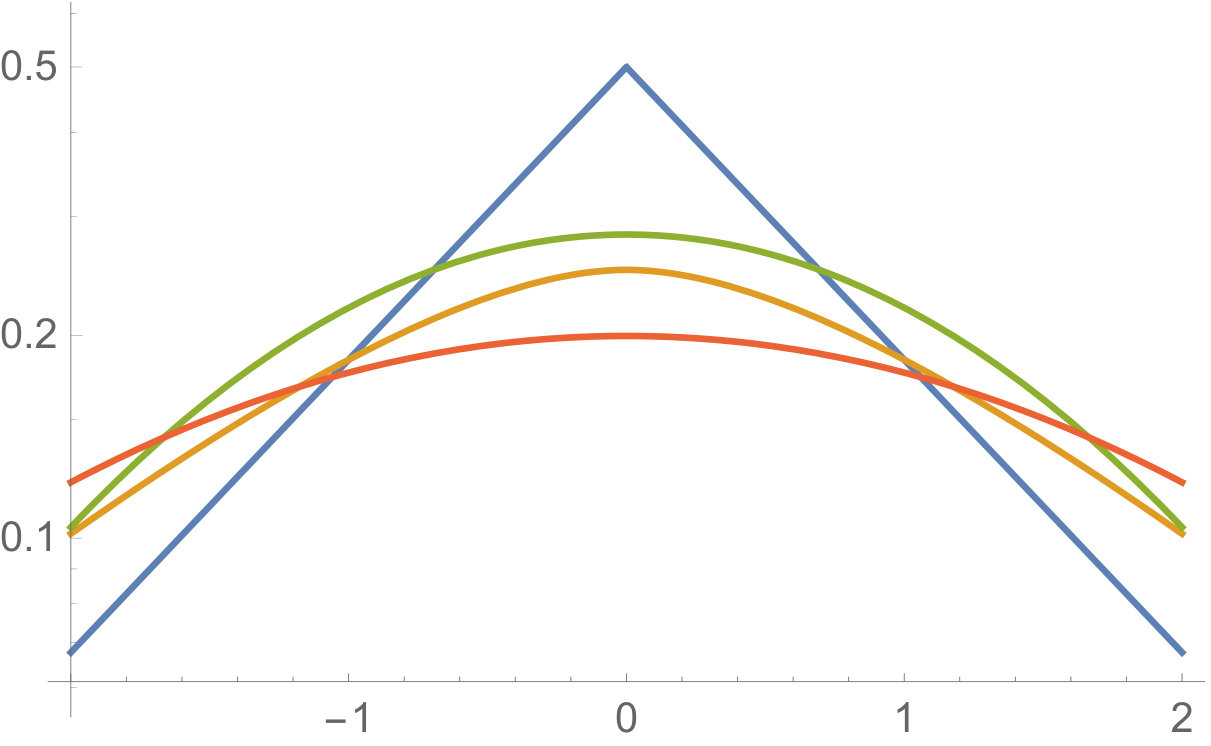

It comes as no surprise that the position statistics in the steady-state are strongly non Gaussian as illustrated in figure 2. However, it simply turns out that these non Gaussian fluctuations do not interfere with the energy balance of the Stirling engine (Appendix B shows explicitly that the value of the kurtosis of the position distribution is uncorrelated from the efficiency). We now turn our attention to an active noise displaying some persistence properties with however Gaussian statistics.

4.2 A bath with a persistent noise

We now address more realistic modelings of the noise produced by the bacterial bath, in the form of a stochastic force imparted on the colloid that captures the persistent motion of an active particle. Such persistent noise arises from three common classes of active dynamics: Run-and-Tumble particles, active Brownian particles, and active Ornstein-Uhlenbeck motion. All three classes exhibit noise correlations that decay exponentially with a characteristic time $\tau$:

[TABLE]

The prefactor $T$ in Eq. (12) matches our definition for $T$ from Eq. (6). We show in the Appendix A how the different models give rise to Eq. ((12)) and relate $T$ and $\tau$ to the microscopic parameters of the dynamics. Here we adopt a unified description of the three different models by analyzing the impact of their shared noise correlator, Eq. (12). Note that we restrict our discussion to one space dimension only for simplicity. In higher dimensions, the correlator of each component of the (vectorial) noise is still given by Eq. (12), and, by symmetry, our results trivially generalize to a spherically harmonic potential.

If we interpret the isothermal transformations of Fig. 1 as iso-$T$ processes (as opposed to iso-$T_{\text{act}}$), the energetics of our Sirling cycle now differs from the equilibrium analysis of subsection 2.2. During an iso-$T$ protocol, $\langle x^{2}\rangle$ does not trace an isotherm with the form $\langle x^{2}\rangle\propto k^{-1}$. The new form of the isotherm depends only on the two-point correlator $\langle\eta_{\text{P}}(t)\eta_{\text{P}}(t^{\prime})\rangle$ and not on higher-order correlations, allowing us to simultaneously treat all three types of active motion. Indeed, in Fourier space, Eq. (7) reads

[TABLE]

with the Fourier transform defined as $\tilde{f}(\omega)=\int_{-\infty}^{+\infty}f(t)e^{-i\omega t}\text{d}t$. One can then show that in steady state

[TABLE]

For the noise correlator Eq. (12), $\langle\tilde{\eta}_{\rm P}(\omega)\tilde{\eta}_{\rm P}(-\omega)\rangle=2T/(\gamma(1+\tau^{2}\omega^{2}))$ so that we obtain

[TABLE]

In the notation of Sec. 3.1, $T_{\rm act}\equiv k\langle x^{2}\rangle=T/(1+\Omega\tau)$ where we have defined the frequency $\Omega\equiv k/\gamma$.

Let us proceed, then, with the cycle Eq. (2) in which we consider isothermal processes at fixed $T$. The average work has the expression $\langle W_{i\to f}\rangle=\frac{1}{2}\int_{i}^{f}\text{d}k\frac{T}{k(1+\Omega\tau)}$, which is zero along an isochoric protocol, but which now reads $\langle W_{i\to f}\rangle=\frac{T}{2}[\ln\frac{k}{1+\Omega\tau}]_{i}^{f}$ along an iso-$T$ protocol. Similarly, the average heat reads $\langle Q_{i\to f}\rangle=[\frac{T/2}{1+\Omega\tau}]_{i}^{f}-\frac{1}{2}\int_{i}^{f}\text{d}k\frac{T}{k(1+\Omega\tau)}$. Putting everything together we find

[TABLE]

while the average works are given by

[TABLE]

and thus ${\mathcal{E}}=\frac{-\langle W\rangle}{\langle Q_{BC}+Q_{CD}\rangle}$ in the $T_{1}\gg T_{2}$ limit is

[TABLE]

In the limit of small correlation time ($\Omega_{1}\tau\ll 1$), we find that

[TABLE]

In Eq. (19) the correction to $\mathcal{E}_{\text{sat}}$ actually remains negative at arbitray values of $\tau$: the efficiency saturates to a lower value due to the persistent properties of the noise when compared to equilibrium (no persistence). The cost of maintaining nonequilibrium steady-state is not paid off by an improved efficiency! While the available work has increased, the required energy to operate the engine has increased by an even larger amount.

Let us stress here that the generality of these results, which depend only on the two-point correlator of the noise but not on higher-order statistics, can seem rather surprising because the behavior of active Ornstein-Uhlenbeck, Run-and-Tumble and Active Brownian particles in an harmonic trap are all qualitatively different. The case of an active Ornstein-Uhlenbeck noise in a quadratic potential is special in that the colloidal particle actually is in equilibrium Szamel (2014). The equilibrium distribution is $p_{\text{eq}}(x)\sim\text{e}^{-\frac{k(1+\Omega\tau)}{2T}x^{2}}$ (whether and how this extends beyond a quadratic potential was discussed in Fodor et al. (2016)), from which $T_{\rm act}=T/(1+\Omega\tau)$ is readily extracted. On the contrary, Active Brownian and Run-and-Tumble particles have a richer (nonequilibrium) physics. In particular, if the particle is persistent on a time scale larger than $\Omega^{-1}$, the steady-state distribution is not peaked around $x=0$ (the particle spends most of its time on the edge of the trap) Solon et al. . It is therefore surprising that these differences do not affect the thermodynamics of our engine.

4.3 A bath described by a more general Langevin equation

A more general description of the effect of the bath on the colloidal particle includes memory effect in the dissipation as well, as discussed by Berthier and Kurchan Berthier and Kurchan (2013) in a different context. One obtains a Langevin equation of the form

[TABLE]

with generic injection and dissipation kernels $K_{\text{inj}}$ and $K_{\text{diss}}$. Equilibrium is achieved on condition that $K_{\text{inj}}(\omega)$ and $\text{Re}K_{\text{diss}}(\omega)$ are equal. The ratio

[TABLE]

tells us about the mismatch between injection and dissipation. In the cases considered previously, with $K_{\text{diss}}(\omega)=1$, we ended up with $T_{\text{eff}}(\omega)=\frac{T}{1+(\omega\tau)^{2}}$. The characteristic frequency of the relaxation within the harmonic well being $\Omega$, we a posteriori understand that in the regime where persistence matters, namely when $\Omega\tau\gg 1$, $T_{\text{eff}}(\omega>\Omega)\to 0$, and thus the position spectrum will be cut-off beyond $\omega=\Omega$. It is thus no surprise that eventually $\langle x^{2}\rangle<T/k$, or $T_{\text{act}}<T$. Of course, in the presence of a more complicated dissipation kernel $K_{\text{diss}}$, the latter inequality can be challenged. Should one devise a dissipation kernal such that $T_{\text{act}}>T$, one might reasonably suspect that the thermodynamic efficiency could exceed that of the equilibrium Stirling engine.

Let us therefore consider how the energetics of the cycle in Fig. 1 is impacted by the relationship between $T_{\text{act}}$ and $T$. In particular, we repeat the analysis of Sec. 4.2 by assuming $T_{\text{act}}=Tf(k)$ for a generic function $f$. The derivation proceeds exactly as before and we obtain for the heat and work on each segment

[TABLE]

where $G(k)$ is defined such that $G^{\prime}=f/k$. The maximum efficiency in the limit $T_{1}\gg T_{2}$ then reads

[TABLE]

This leads to the simple criterion that, in this limit, the cycle outperforms an equilibrium Stirling engine if and only if

[TABLE]

In particular, if $f(k)$ is an increasing function of $k$ in the range $[k_{2};k_{1}]$, the active engine outperforms the equilibrium one. This could correspond to a physical situation in which energy injection happens at a particular, finite length scale. As an example, a semi-flexible filament immersed in a bath of Active Brownian particles is excited at a characteristic length scale Nikola et al. and could thus be a candidate to realize such an efficient engine.

5 Discussion: back to experiments

We have assumed all along that the tagged colloidal particle is subjected to a noise that inherits its properties from those of the bath while the rest of its dynamics is unchanged. That the effect of the nonequilibrium bath can be encoded in a single random signal as an extra force does not seem to be an outrageous hypothesis, though, given the size of the bacteria used in Krishnamurthy et al. (2016), comparable to that of the colloidal particle, perhaps hydrodynamic effects should be taken into account, as well as further memory effects (say, in the dissipation kernel). Within that framework, we have shown that with a definition of the isothermal process based on a iso-"potential energy", we see no reason for the equilibrium results to be altered in any way. Coming back to Krishnamurthy et al. (2016), aside from the limiting efficiency in the high $T_{1}\gg T_{2}$ limit, our theoretical observation is altogether rather consistent with the experiments. We have suggested an alernative definition of an isothermal process in which the active temperature is defined through the diffusion constant of a particle without any external potential. With this definition, in stark contrast, the efficiency of a Stirling engine takes a dramatically different form that involves the persistence time of the noise produced by the bacteria. Interestingly, we are able to pinpoint memory effects as being responsible for nontrivial efficiencies. Non Gaussian statistics alone is not a sufficient ingredient (we have shown equipartition to hold in the limiting non Gaussian but white scenario).

We hope the suggestion to use our alternative active temperature will trigger further experiments along the lines of Krishnamurthy et al. (2016).

Acknowledgements.

The authors thank Julien Tailleur and Jordan Horowitz for many discussions. A.S and T.G. acknowledge funding from the Betty and Gordon Moore Foundation. \appendixsectionsmultiple

Appendix A Active particle dynamics

For completeness, we define here Active Brownian and Run-and-Tumble particles (hereafter ABPs and RTPs). In both cases, the noise entering the Langevin equation Eq. (1) is written as a force of constant magnitude $f_{0}$ in a fluctuating direction $\mathbf{u}$, a unit vector. In arbitrary dimension (ABPs are only defined in $d\geq 2$)

[TABLE]

For ABPs, the direction $\mathbf{u}$ undergoes rotational diffusion while for RTPs a new direction is picked uniformly at a constant rate $\alpha$. Let us show that, in both cases, each component of the noise has correlations given by Eq. (12). We focus here on the 2d case. The derivation follows in the same way in higher dimensions (and $d=1$ for RTPs).

In 2d, $\mathbf{u}$ is parametrized by an angle $\theta$, $\mathbf{u}=(\cos\theta,\sin\theta)$. For ABPs, the Fokker-Planck equation associated with the evolution of the angle reads

[TABLE]

with $D_{r}$ the rotational diffusion coefficient. This gives for the $x$-component of $u_{x}=\cos\theta$

[TABLE]

where the last equality follows from integrating by parts. We thus have $\langle\cos\theta(t+t_{0})\cos\theta(t_{0})\rangle=\frac{1}{2}e^{-D_{r}t}$ so that, in the notations of Eq. (12), $\tau=D_{r}^{-1}$ and $T=f_{0}^{2}/(2D_{r})$.

One gets a similar result for RTPs which obey the Master equation

[TABLE]

with $\alpha$ the tumble rate. This leads in the same way to $\tau=\alpha^{-1}$ and $T=f_{0}^{2}/(2\alpha)$.

Appendix B Is kurtosis related to efficiency?

One may want to quantify deviations to the Gaussian distribution for the position Krishnamurthy et al. (2016). We define $\mu_{n}(X)$ the $n$-th moment of a random variable $X$ and we can compute renormalized kurtosis $\kappa$ defined as follow: $\kappa_{x}=\frac{\mu_{4}(x)}{3\mu_{2}(x)^{2}}-1=\frac{\langle x^{4}\rangle}{3\langle x^{2}\rangle^{2}}-1$ if $\langle x\rangle=0$. Let us focus on the ABPs case assuming that the derivation of the fourth moment for RTPs is similar. The Fokker-Planck equation in the 2d case for ABPs writes:

[TABLE]

We take a quadratic potential $V=\frac{1}{2}k\mathbf{r}^{2}$. In the stationary regime, multiplying the two members by $x^{4}$ and performing integration with respect to $\mathbf{r}$ and $\theta$ gives:

[TABLE]

Similarly we obtain:

[TABLE]

Using Eq. (33) to Eq. (35), we get:

[TABLE]

We might wonder whether the kurtosis can give indications on the efficiency of the stochastic Stirling engine. We can also compute kurtosis of $x$ for RTPs in 1d as we know the distribution Tailleur and Cates (2009). For this case we have $\kappa_{x}=-\frac{2\Omega}{\alpha+3\Omega}$ with $\alpha$ the tumbling rate. Here $\kappa_{x}<0$ and we have proved in Sec. 4.2 that efficiency was still lower than efficiency of the equilibrium case. This result should be compared to the kurtosis for $x$ that satisfies the steady state distribution of Sec. 4.1 where the noise is white and non Gaussian. For $P_{\text{ss}}(x)=C|x/a|^{s}K_{s}(|x|/a)$ and $C=2^{-s}a^{-1}/(\sqrt{\pi}\Gamma(1/2+s))$, kurtosis $\kappa_{x}=2/(1+2s)$ is strictly positive and the maximum efficiency is still the equilibrium one. Hence the kurtosis of the position distribution does not indicate how the efficiency relates to that of an equilibrium Stirling engine.
