ALMA reveals starburst-like interstellar medium conditions in a compact star-forming galaxy at z ~ 2 using [CI] and CO

TL;DR

This study uses ALMA observations to reveal that a compact star-forming galaxy at z~2 has interstellar medium conditions similar to local starbursts, with high density, intense radiation, and rapid star formation leading to a dense stellar core.

Contribution

First detailed ALMA analysis of a cSFG at z~2 showing starburst-like ISM conditions and short depletion times, linking galaxy compactness to merger activity and intense star formation.

Findings

ISM density ~6 x 10^4 cm^-3

Depletion time ≤ 140 Myr

Gas kinematics consistent with gravitational motions

Abstract

We present ALMA detections of the [CI] 1-0, CO J=3-2, and CO J=4-3 emission lines, as well as the ALMA band 4 continuum for a compact star-forming galaxy (cSFG) at z=2.225, 3D-HST GS30274. As is typical for cSFGs, this galaxy has a stellar mass of $1.89 \pm 0.47\,\times 10^{11}\,\rm{M}_\odot$, with a star formation rate of $214\pm44\,\rm{M}_\odot\,\rm{yr}^{-1}$ putting it on the star-forming `main-sequence', but with an H-band effective radius of 2.5 kpc, making it much smaller than the bulk of `main-sequence' star-forming galaxies. The intensity ratio of the line detections yield an ISM density (~ 6 $\times 10^{4}\,\rm{cm}^{-3}$) and a UV-radiation field ( ~2 $\times 10^4\,\rm{G}_0$), similar to the values in local starburst and ultra-luminous infrared galaxy environments. A starburst phase is consistent with the short depletion times ($t_{\rm H2, dep} \leq 140$ Myr) we find using three different proxies for the H2 mass ([CI], CO, dust mass). This depletion time is significantly shorter than in more extended SFGs with similar stellar masses and SFRs. Moreover, the gas fraction of 3D-HST GS30274 is smaller than typically found in extended galaxies. We measure the CO and [CI] kinematics and find a FWHM line width of ~$750 \pm 41 $ km s$^{-1}$. The CO and [CI] FWHM are consistent with a previously measured H$\alpha$ FWHM for this source. The line widths are consistent with gravitational motions, suggesting we are seeing a compact molecular gas reservoir. A previous merger event, as suggested by the asymmetric light profile, may be responsible for the compact distribution of gas and has triggered a central starburst event. This event gives rise to the starburst-like ISM properties and short depletion times. The centrally located and efficient star formation is quickly building up a dense core of stars, responsible for the compact distribution of stellar light in 3D-HST GS30274.

Figures

Tables

Table 1. Table 1: Global properties of 3D-HST GS30274.

RA	Dec	z	$M_{\ast }$	$\mathrm{SFR}$	$r_e$	$M_{\mathrm{dust}}$	Tdust	$M_{\left[\mathrm{CI}\right]}$	$L_{IR}$
deg	deg		${10}^{11}{M}_{\odot }$	$M_{\odot }{\mathrm{yr}}^{-1}$	kpc	${10}^8{M}_{\odot }$	K	${10}^6{M}_{\odot }$	${10}^{12}{L}_{\odot }$
53.13108	-27.77311	2.225	$1.89\pm 0.47$	$214\pm 44$	$2.5\pm 0.1$	$2.5\pm 0.6$	$45\pm 5$	$5.4\pm 1.4$	$2.3\pm 0.6$

Table 2. Table 2: The observed sub-mm properties of 3D-HST GS30274

Feature	Iline	L’line	S660μm
	Jy km/s	${10}^9$ K km/s pc2	mJy
CO (3–2)	$0.77\pm 0.06$	$21.0\pm 1.6$	…
CO (4–3)	$1.08\pm 0.04$	$16.5\pm 0.5$	…
$[$CI$]$ (1–0)	$0.32\pm 0.03$	$4.3\pm 0.4$	…
660 $\mu m^a$	…	…	$0.085\pm 0.014$

Table 3. Table 3: The H 2 mass, relative amount of H 2 , and H 2 depletion time of 3D-HST GS30274 derived by adopting the following approaches; [CI]: an H 2 mass based on atomic carbon; CO: an H 2 mass based on the CO J = = 3–2 luminosity; Dust mass: an H 2 mass based on the inferred dust mass from SED fitting in combination with a gas-to-dust ratio.

Approach	H2 mass (${10}^{10}{M}_{\odot })$	$M_{\mathrm{H2}}/\left(M_{\mathrm{H2}}+M_{\ast }\right)$	H2 depletion time (Myr)
[CI]	3.0 $\pm$ 0.3	0.14 $\pm$ 0.01	140 $\pm$30
CO starburst ${\alpha }_{\mathrm{CO}}$	1.7 $\pm$ 0.1	0.08 $\pm$ 0.005	80 $\pm$ 17
Dust mass	¡0.7 $\pm$ 0.2	¡0.04 $\pm$ 0.01	¡30 $\pm$ 10

Table 4. Table 4: The photometry of 3D-HST GS30274 used for the SED fitting. The fluxes in this table were compiled from the following references: (1) Skelton et al. ( 2014 , and references therein) , (2) Magnelli et al. ( 2013 ) , (3) Roseboom et al. ( 2010 ) .

Wavelength	Flux	Reference
$\mu$m	Jy
0.3676	3.83$\times {10}^{-7}$ $\pm$ 4.39$\times {10}^{-8}$	1
0.4263	8.54$\times {10}^{-7}$ $\pm$ 5.88$\times {10}^{-8}$	1
0.4328	8.12$\times {10}^{-7}$ $\pm$ 1.20$\times {10}^{-8}$	1
0.4603	8.36$\times {10}^{-7}$ $\pm$ 1.60$\times {10}^{-8}$	1
0.5063	9.83$\times {10}^{-7}$ $\pm$ 4.91$\times {10}^{-8}$	1
0.5261	1.11$\times {10}^{-6}$ $\pm$ 2.56$\times {10}^{-8}$	1
0.5378	1.09$\times {10}^{-6}$ $\pm$ 2.04$\times {10}^{-8}$	1
0.5764	1.41$\times {10}^{-6}$ $\pm$ 5.53$\times {10}^{-8}$	1
0.5959	1.39$\times {10}^{-6}$ $\pm$ 9.73$\times {10}^{-9}$	1
0.6233	1.55$\times {10}^{-6}$ $\pm$ 2.75$\times {10}^{-8}$	1
0.6781	1.61$\times {10}^{-6}$ $\pm$ 2.39$\times {10}^{-8}$	1
0.7361	1.93$\times {10}^{-6}$ $\pm$ 3.14$\times {10}^{-8}$	1
0.7684	2.09$\times {10}^{-6}$ $\pm$ 7.37$\times {10}^{-8}$	1
0.7705	2.11$\times {10}^{-6}$ $\pm$ 1.59$\times {10}^{-8}$	1
0.9048	2.76$\times {10}^{-6}$ $\pm$ 2.15$\times {10}^{-8}$	1
0.914	2.44$\times {10}^{-6}$ $\pm$ 1.17$\times {10}^{-7}$	1
1.2369	5.65$\times {10}^{-6}$ $\pm$ 1.08$\times {10}^{-7}$	1
1.2499	6.86$\times {10}^{-6}$ $\pm$ 9.88$\times {10}^{-8}$	1
1.5419	1.09$\times {10}^{-5}$ $\pm$ 4.80$\times {10}^{-8}$	1
1.6464	1.17$\times {10}^{-5}$ $\pm$ 1.87$\times {10}^{-7}$	1
2.1454	1.90$\times {10}^{-5}$ $\pm$ 1.62$\times {10}^{-7}$	1
2.2109	1.93$\times {10}^{-5}$ $\pm$ 1.40$\times {10}^{-7}$	1
3.6	2.52$\times {10}^{-5}$ $\pm$ 1.20$\times {10}^{-7}$	2
4.5	3.39$\times {10}^{-5}$ $\pm$ 1.33$\times {10}^{-7}$	2
5.8	4.83$\times {10}^{-5}$ $\pm$ 5.91$\times {10}^{-7}$	2
8.0	6.72$\times {10}^{-5}$ $\pm$ 6.66$\times {10}^{-7}$	2
24	3.57$\times {10}^{-4}$$\pm$ 1.01$\times {10}^{-5}$	2
100	3.53$\times {10}^{-3}$ $\pm$ 2.45$\times {10}^{-4}$	2
170	7.30$\times {10}^{-3}$ $\pm$ 7.03$\times {10}^{-4}$	2
250	1.19$\times {10}^{-2}$ $\pm$ 2.62$\times {10}^{-3}$	3
350	1.01$\times {10}^{-2}$ $\pm$ 3.19$\times {10}^{-3}$	3
500	3.19$\times {10}^{-3}$ $\pm$ 4.27$\times {10}^{-3}$	3
2200	8.5$\times {10}^{-5}$ $\pm$ 1.4$\times {10}^{-5}$	This work

Equations

$${\mathrm{L}}^{\prime }(\mathrm{K}\mathrm{km}{\mathrm{s}}^{-1}{\mathrm{pc}}^2)=3.25\times 10^7\mathrm{S\Delta v}{\nu }_{\mathrm{obs}}^{-2}{\mathrm{D}}_{\mathrm{L}}^2(1+\mathrm{z}{)}^{-3},$$

$$M_{[\mathrm{CI}]}({\mathrm{M}}_{\odot })=5.706\times 10^{-4}\mathrm{Q}({\mathrm{T}}_{\mathrm{ex}})\frac{1}{3}{\mathrm{e}}^{23.6/{\mathrm{T}}_{\mathrm{ex}}}{\mathrm{L}}_{[\mathrm{CI}](1-0)}^{\prime },$$

$$\log {\sigma }_{\mathrm{pred}}=0.5(\log M_{\ast }-\log r_{\mathrm{e}}-5.9).$$

Full text

1 Introduction

Recently, significant progress has been made in understanding the formation of the dense cores of massive galaxies. These forming cores have been discovered in the form of a population of massive ($M_{*}>10^{10}\,\rm{M}_{\odot}$), compact, star-forming galaxies (cSFGs) at $z\geq 2$ (Barro et al., 2013, 2014a; Nelson et al., 2014; Williams et al., 2014; van Dokkum et al., 2015). cSFGs are in a dusty star-forming phase (Nelson et al., 2014; Barro et al., 2014a; van Dokkum et al., 2015) with SFRs similar to or slightly lower than in star-forming galaxies on the main-sequence of star formation. cSFGs galaxies have similar morphological properties as compact quiescent galaxies, including high Sérsic indices, and centrally concentrated luminosity profiles. A comparison in the evolution of their respective number densities suggested that cSFGs are the direct progenitors of compact quenched objects (Barro et al., 2013; van Dokkum et al., 2015). This hypothesis was supported by NIR spectroscopy of a sample of cSFGs which revealed that their H$\alpha$ and [OIII] emission line widths are similar to the observed stellar velocity dispersion of compact quiescent galaxies (Nelson et al., 2014; Barro et al., 2014b).

Barro et al. (2014b) found that cSFGs have integrated velocity dispersions with full-width-half-maximum (FWHM) velocities as high as 600 km s*-1*. van Dokkum et al. (2015) argued that the broad H$\alpha$ line widths are driven by reservoirs of centrally-located rapidly-rotating gas. High spatial-resolution ALMA observations of the sub-mm continuum in cSFGs show that these galaxies have very compact dust emission, up to more than a factor of two smaller than the stellar emission (Barro et al., 2016; Tadaki et al., 2016). From the observed dust emission, Barro et al. (2016) and Tadaki et al. (2016) measured gas depletion times of only a few hundred Myr, similar to their estimated quenching timescales. The compact stellar, and dust morphologies are likely the result of dissipational processes, which in turn increase the velocity dispersions (Barro et al., 2013, 2014a; van Dokkum et al., 2015). This scenario for the compact distribution of matter in cSFGs is supported by theoretical models. These suggest that disc instabilities or gas-rich merger events can indeed drive the compaction of gas and induce a nuclear starburst event that quickly reduces the galaxy half-light radius (Barnes & Hernquist, 1991; Mihos & Hernquist, 1994; Wellons et al., 2015; Zolotov et al., 2015). The nuclear starburst will quickly build a compact stellar centre, possibly drive an outflow, and transform larger, star-forming galaxies into compact quiescent galaxies over a short time (Zolotov et al., 2015). Genzel et al. (2014) observed the signatures of strong nuclear outflows in the ionized gas kinematics of massive galaxies, some of which can be classified as cSFGs.

The properties of the atomic and molecular gas are a key piece of information missing in this scenario. Because the shut down of star formation is thought to be imminent in cSFGs (van Dokkum et al., 2015), a measurement of their gas mass and depletion time is essential. If cSFGs have a strong ongoing nuclear starburst, it is to be expected that the molecular gas has a short depletion time. The gas should furthermore have high densities with a strong impinging radiation field from young stars. The spatial distribution and kinematics of ionized gas suggests that cSFGs have rotating disks of ionized gas that are a factor of two more extended than the stellar distribution (van Dokkum et al., 2015). A key test of whether we are actually observing the building of the dense cores of massive galaxies through in situ star formation is a measurement of a high line width in molecular gas (e.g., Tacconi et al., 2006, 2008). Sub-mm line information probing the molecular gas content, the molecular gas conditions (density, radiation field), and the molecular gas kinematics are thus crucial to understand the nature of cSFGs.

Barro et al. (2016) used ALMA band 7 continuum imaging to probe the gas depletion time of six cSFGs and found that they are typically shorter than in extended main-sequence galaxies with similar stellar masses, SFRs, and redshift. Different groups have observed the gas content of extended main-sequence galaxies at $z>0$ either through their 12CO (hereafter CO) emission or the dust continuum (e.g., Aravena et al., 2010; Daddi et al., 2010; Tacconi et al., 2010; Geach et al., 2011; Aravena et al., 2012; Magdis et al., 2012a, b; Bauermeister et al., 2013; Saintonge et al., 2013; Tacconi et al., 2013; Tan et al., 2013; Santini et al., 2014; Béthermin et al., 2015; Daddi et al., 2015; Genzel et al., 2015; Berta et al., 2016; Decarli et al., 2016; Scoville et al., 2016). Both approaches (CO and dust) rely on uncertain conversion factors between the observed luminosity and an estimated gas mass. Independent measures of the gas mass in galaxies are therefore necessary to overcome the systematic uncertainty in these conversion factors and constrain galaxy gas masses. This is especially relevant in cosmic-ray or X-ray dominated environments such as starbursts and AGN hosting galaxies (Bisbas et al., 2015; Glover & Clark, 2016), the environments one can expect to exist in cSFGs.

Atomic carbon ([CI]) can be used to measure the physical properties of the ISM in addition to the conventional methods described above. The optically thin [CI] is a good tracer of the surface of molecular clouds. The optically thick CO traces the gas in cores shielded from UV radiation. Cosmic ray ionization allows for the co-existence of CO and [CI], for instance in starburst environments. [CI] emission can thus especially in these environments be used as a good tracer of the H2 mass in galaxies (Weiß et al., 2005; Papadopoulos et al., 2004). Bisbas et al. (2015) indeed showed that under the influence of a strong cosmic-ray field [CI] is a better tracer of the H2 mass than CO. Independently, Glover & Clark (2016) also found that [CI] is a better tracer of H2 in cosmic-ray dominated regions. Additionally, the line ratios between [CI] and CO emission can be used to constrain the UV radiation field and density of the ISM (e.g., Meijerink et al., 2007; Alaghband-Zadeh et al., 2013; Bothwell et al., 2016). Combining observations of the carbon fine-structure lines with CO is therefore a great strategy to build a more complete picture of the ISM characteristics (H2 mass, gas density, and UV radiation field) and study the mode of star formation in cSFGs. The CO and [CI] emission line detections can simultaneously be used to study the dynamics of the atomic and molecular gas in cSFGs.

In this paper we present Atacama Large sub/millimeter array (ALMA) detections of the CO J$=$3–2, CO J$=$4–3, and the [CI] 3P1–3P0 (hereafter [CI] 1–0) emission lines and band 4 continuum in a cSFG at $z=2.225$, 3D-HST GS30274. We study CO and [CI] kinematics, the density and UV radiation field of the ISM, and the global gas properties such as gas fraction and gas depletion time. In Section 2 we present the selection of 3D-HST GS30274 and the observations. The line and continuum detection of 3D-HST GS30274 and their analysis are presented in Section 3. We discuss our findings in Section 4 and present our conclusion in Section 5. Throughout this paper we assume a Chabrier initial mass function (Chabrier, 2003). All presented gas masses are pure molecular hydrogen-masses and do not include a correction for Helium unless stated otherwise.

2 Observations and Data reduction

2.1 Target selection

To select a cSFG a preliminary sample was drawn from the GOODS-South region in the 3D-HST catalogue (Skelton et al., 2014) that includes photometry from the U-band to the Spitzer 8 $\mu$m band. Using a BzK selection technique (Daddi et al., 2004) we selected galaxies that fall on the main-sequence of star-formation (Noeske et al., 2007; Daddi et al., 2008; Whitaker et al., 2014). We then requested the galaxies to have 1) A secure spectroscopic redshift between 2.0 and 2.5, to assure that the CO J$=$4–3 and the [CI] 1–0 line could be observed simultaneously within the same tuning; 2) A counterpart in the blind fields from Herschel/PACS (Magnelli et al., 2013) and SPIRE (Roseboom et al., 2010);

From the galaxies in the GOODS-South region from the 3D-HST survey that meet these criteria, we select the most massive cSFG following the classification by van Dokkum et al. (2015, $\log{(M_{*}/\rm{M}_{\odot})}>10.5$ and $\log{(r_{e}/\rm{kpc})}<\log{(M_{*}/\rm{M}_{\odot})}-10.7$): 3D-HST GS30274. This source has an effective radius of 2.5 $\pm$ 0.1 kpc (van der Wel et al., 2014, flag for the fit equals 2, which marks it as a bad fit). The Sérsic index of this galaxy is not well defined. The poor flag for the fitting and the undefined Sérsic index are the result of an asymmetric stellar light profile to the west of the centre of 3D-HST GS30274, suggestive of a merger remnant (Figure 1). 3D-HST GS30274 is a hard X-ray source with a luminosity of $1.15\times 10^{43}\,\rm{erg}\,\rm{s}^{-1}$, classified to have an active galactic nucleus (AGN; Xue et al., 2011; Luo et al., 2016). Line ratios of the H$\alpha$, [OI], [OIII], [SII], and [NII] emission lines also suggest 3D-HST GS30274 has an AGN (van Dokkum et al., 2005; Genzel et al., 2014). Moreover, this object is detected in the 1.4 GHz Very Large Array catalogue of the Extended Chandra Deep Field South with a flux of $84.2\pm 6.1\,\mu$Jy (Bonzini et al., 2012). Genzel et al. (2014) attributed the broad H$\alpha$ profile in 3D-HST GS30274 to be outflow-driven, though van Dokkum et al. (2015) argues that a large fraction of the broad line width can be explained by compact quickly rotating ionized gas.

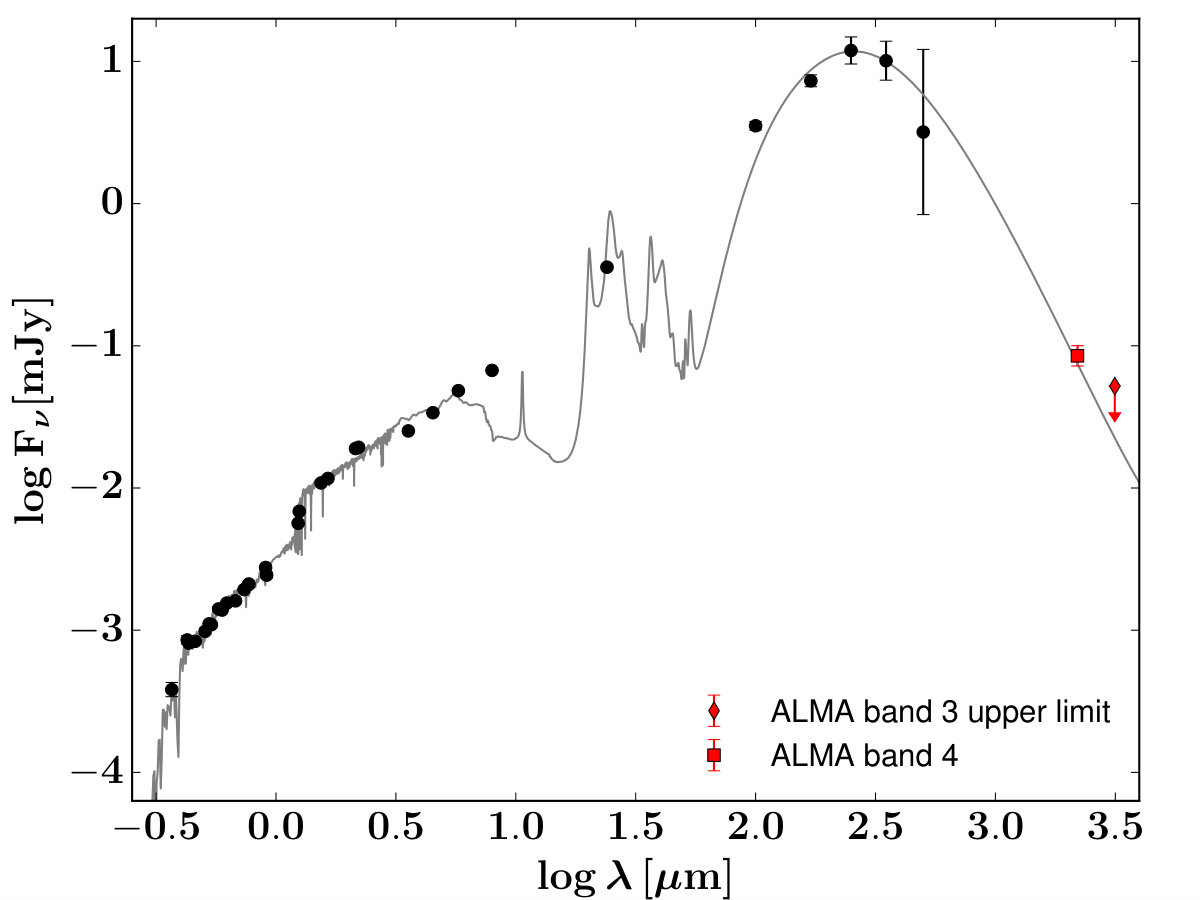

The stellar mass and SFR for this galaxy were calculated by fitting the spectral energy distribution (SED) using MAGPHYS (da Cunha et al., 2008, 2015), including photometry from Skelton et al. (2014) as well as the Herschel data presented in Magnelli et al. (2013) and Roseboom et al. (2010). Including also the ALMA band 4 continuum (see Section 3) we find a stellar mass and SFR of $1.89\pm 0.47\,\times 10^{11}\,\rm{M}_{\odot}$ and $214\pm 44\,\rm{M}_{\odot}\,\rm{yr}^{-1}$, respectively. We present the photometry used for the SED fitting in Table 4. The spectral energy distribution (SED) and the fit to it is presented in Figure 2. The global properties of 3D-HST GS30274 that we obtained from the SED fitting are presented in Table 1.

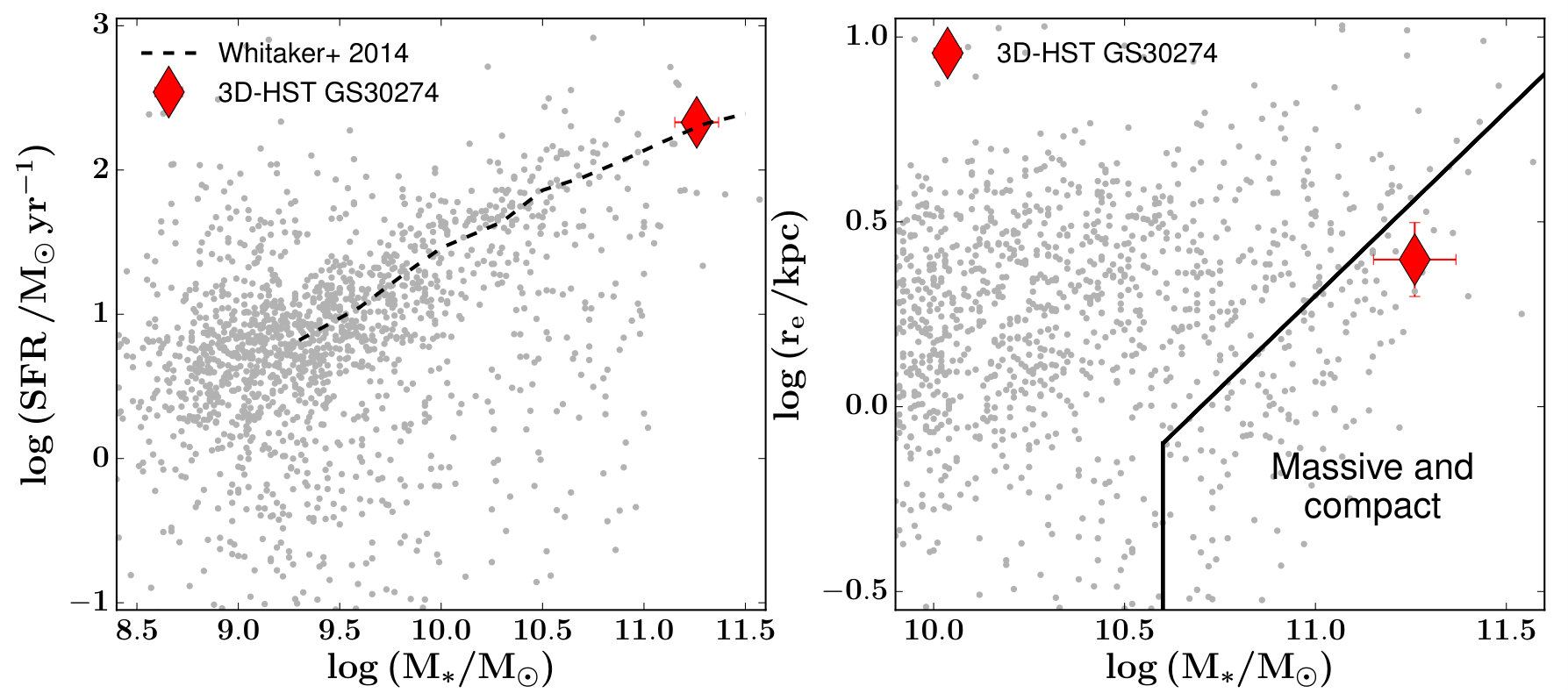

The location of 3D-HST GS30274 on the stellar mass – SFR relation and stellar mass – size relation of galaxies is shown in Figure 3. Its compact size and its location on the main-sequence meet the criteria set by Barro et al. (2013) and van Dokkum et al. (2015) to classify 3D-HST GS30274 as a typical cSFG.

2.2 Observations

The ALMA observations of 3D-HST GS30274 were carried out under project 2015.1.00228.S (PI: G. Popping). Band 3 observations of 3D-HST GS30274 were performed on January 12 2016 with a compact configuration (C36-1; shortest and longest baselines were 15.1 and 331 meters, respectively with an rms of 126.9 meters). The water vapour during the observations was PWV $=5$ mm. The integration time on 3D-HST GS30274 was 46 minutes. The data were calibrated using the standard ALMA pipeline (CASA version 4.5.1). One spectral window was centered at 99.322 GHz with a bandwidth of 1.875 GHz covering 3840 channels, to target the CO J$=$3–2 emission line. The other spectral windows were centered at 95.182, 107.199, and 105.241 GHz with a bandwidth of 1.875 GHz covering 128 channels. These spectral windows were used to observe the band 3 continuum of 3D-HST GS30274. Images were produced using the CLEAN task in CASA (McMullin et al., 2007), with a natural weighting. This resulted in a synthetic beam size of 3.4 $\times$ 2.16 arcsec2 with a position angle of 274 degrees. The typical rms noise level is 0.012 mJy/beam for the continuum and 0.16 mJy/beam/(100 km s*-1*) for the CO J$=$ 3–2 line.

The band 4 observations of 3D-HST GS30274 were performed on January 17 2016 and January 21 2016 with the same configuration as for the band 3 observations. The water vapour during the observations was PWV $=4.4$ mm on January the 17th and PWV $=2$ mm on January the 21st. The total integration time on 3D-HST GS30274 in band 4 was 89 minutes. The data were calibrated using the standard ALMA pipeline. One spectral window was centered at 142.568 GHz with a bandwidth of 1.875 GHz covering 240 channels, to target the CO J$=$4–3 emission line. A second spectral window was centered at 152.610 GHz with a bandwidth of 1.875 GHz covering 240 channels to target the [CI] 1–0 emission line. Two additional spectral windows were placed at 140.693 and 154.551 GHz with a bandwidth of 1.875 GHz covering 128 channels. These spectral windows were used to measure the band 4 continuum emission of 3D-HST GS30274. The imaging was done with the CLEAN task with natural weighting and resulted in a synthetic beam size of 2.22 $\times$ 1.54 arcsec2 with a position angle of 76 degrees. The typical rms noise level is 0.014 mJy/beam for the continuum and 0.076 mJy/beam/(100 km s*-1*) for the CO J$=$ 4–3 line and 0.08 mJy/beam/(100 km s*-1*) for the [CI] 1–0 line.

3 Results and Analysis

3.1 Emission line and continuum detections

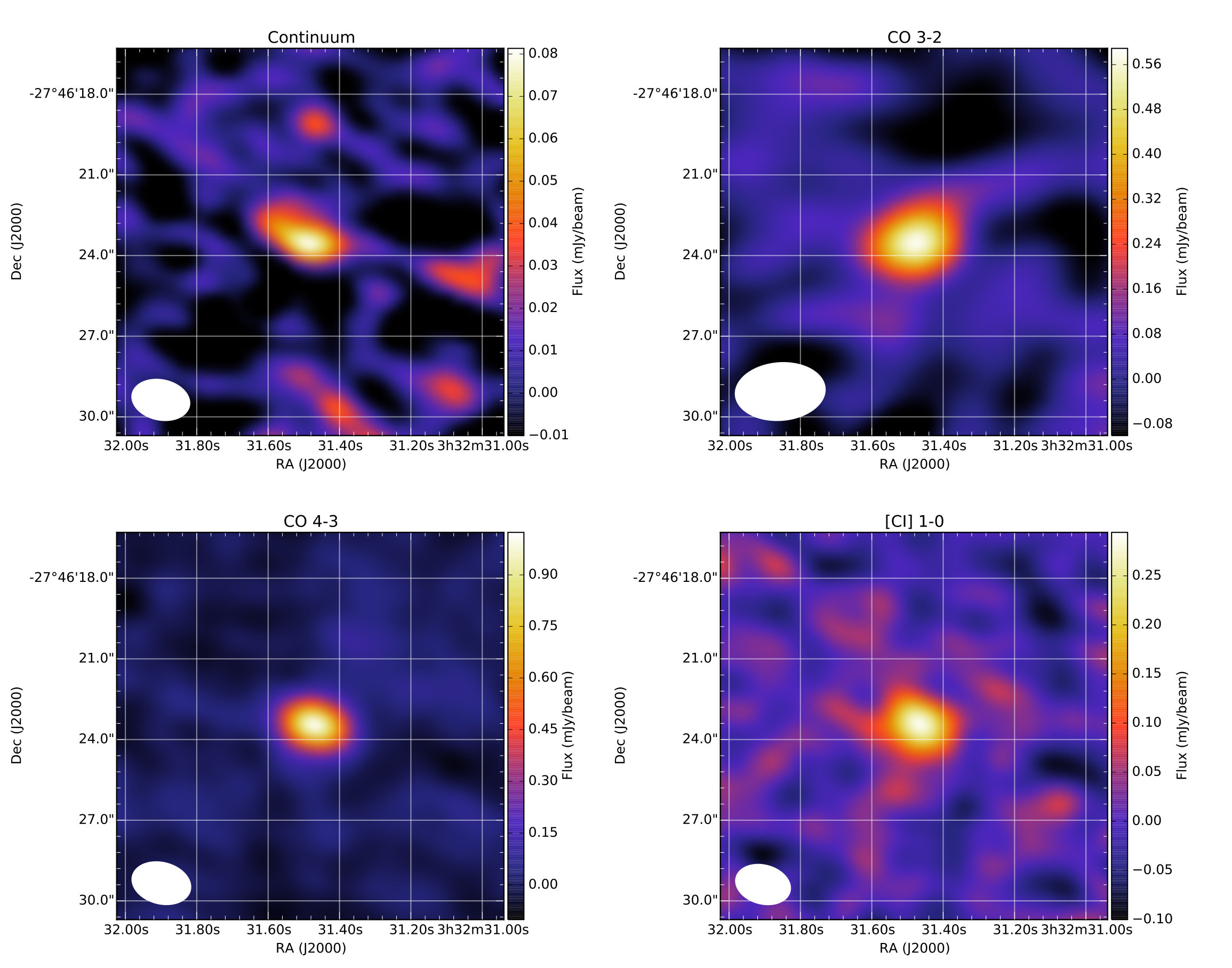

We present moment zero maps of the CO J$=$3–2, J$=$4–3, and [CI] 1–0 emission of 3D-HST GS30274 in Figure 4. We also show the band 4 continuum at a rest-frame wavelength of 660 $\mu m$. We see clear detections of the targeted CO and [CI] emission lines and the band 4 continuum. We detect the CO J$=$3–2, J$=$4–3, and the [CI] 1–0 line a signa-to-noise ratio of 12.8, 27, and 10.7, respectively. The band 4 continuum at a rest-frame wavelength of 660 $\mu m$ is detected with a signal-to-noise ratio of 6.1. The band 3 continuum at a rest-frame wavelength of 976 $\mu m$ is not detected, consistent with the flux intensity predicted by the MAGPHYS SED fit (Figure 2). In none of the cases do we spatially resolve the galaxy. This was to be expected, as its near-infrared half-light radius (0.53 arcsec Skelton et al., 2014) is significantly smaller than the minor axis of the primary beam obtained in the ALMA images (2.4 arcsec in band 3 and 1.54 arcsec in band 4).

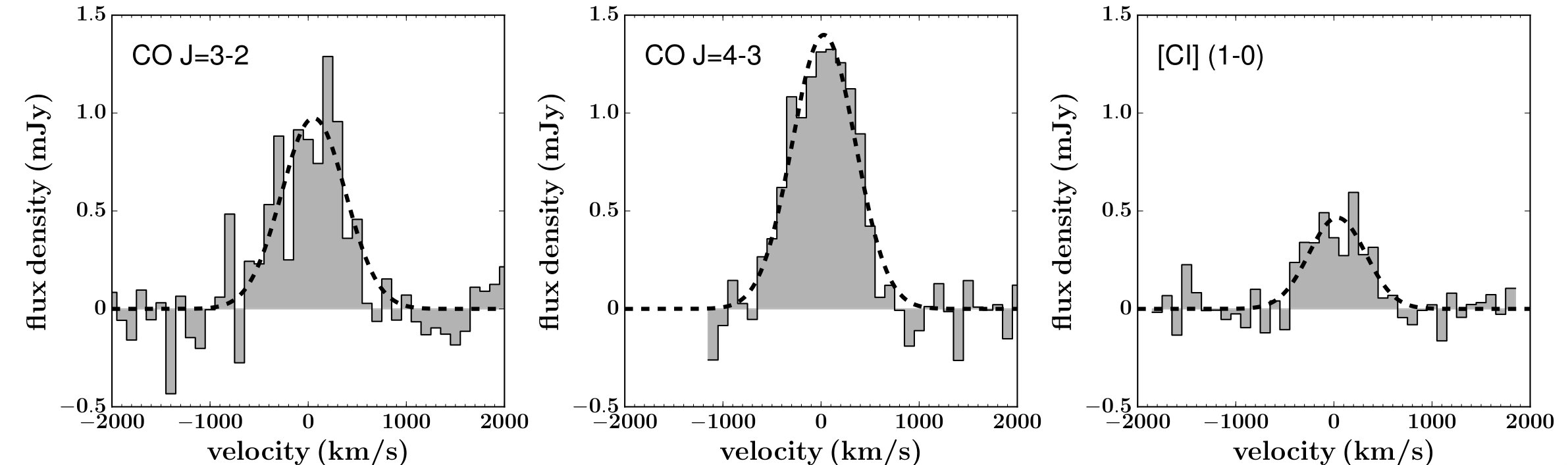

We show the flux density profile of the CO J$=$3–2, J$=$4–3, and [CI] 1–0 detections in Figure 5. We calculate the CO and [CI] line luminosities using the following relation (Solomon & Vanden Bout, 2005)

[TABLE]

where $S\Delta v$ is the integrated flux in units of $\rm{Jy}\,\rm{km}\,\rm{s}^{-1}$, $\rm{D}_{\rm L}$ the luminosity distance in Mpc, and $\nu_{\rm obs}$ the observed central frequency of the line. The integrated flux densities and line and continuum luminosities for 3D-HST GS30274 are presented in Table 2.

3.2 Infrared luminosity, stellar mass, SFR, and dust mass

We measure a total infrared (IR; 8 - 1000 $\mu$m) luminosity for 3D-HST GS30274 of $L_{\rm IR}=2.3\pm 0.6\,\times 10^{12}\,\rm{L}_{\odot}$. This was obtained by fitting the ALMA band 4, the Herschel/ PACS (Magnelli et al., 2013) and SPIRE continuum (Roseboom et al., 2010), and optical and NIR data photometry (Skelton et al., 2014) with the MAGPHYS (da Cunha et al., 2008) model (see Figure 2). These fits suggest a dust mass of $2.5\pm 0.6\,\times 10^{8}\,\rm{M}_{\odot}$, a dust temperature of $45\pm 5$ K, and a stellar mass and SFR of $1.89\pm 0.47\,\times 10^{11}\,\rm{M}_{\odot}$ and $214\pm 44\,\rm{M}_{\odot}\,\rm{yr}^{-1}$, respectively. The inferred IR luminosity classifies 3D-HST GS30274 as a ULIRG. This was expected as the most massive main-sequence galaxies at $z\sim 2$ are indeed ULIRGs (Daddi et al., 2005; Rodighiero et al., 2011).

Despite the presence of a bright AGN, it is unlikely that it strongly affects the SED fitting of 3D-HST GS30274. The UV-to-sub-mm SED of 3D-HST GS30274 can be well fitted by a stars-only model. Additionally, the galaxy shows a strong Balmer break at a rest-frame wavelength of $\lambda_{\rm rest}\sim 4000\,\AA$, which strongly constrains the contribution from an AGN to the continuum emission (Kriek et al., 2007; Marsan et al., 2015). Only at observed wavelengths of 8 and 100 $\mu$m does the MAGPHYS fit underestimate the observed flux. A comparison between the IR part of the SED of 3D-HST GS30274 and the templates presented in Kirkpatrick et al. (2015) suggests that an additional contribution of 20% to the total IR luminosity by an AGN can make up for the mismatch between the observed and fitted SED. This contribution would come on top of the emission already accounted for by stars and star formation.

3.3 Kinematics

The spectra presented in Figure 5 can be well fitted with a single gaussian with a dispersion of 328 $\pm$ 38, 321 $\pm$ 19, and 289 $\pm$ 39 km s*-1* for the CO J$=$3–2, CO J$=$4–3, and [CI] 1–0 lines, respectively. This corresponds to a FWHM of 764 $\pm$ 88, 751 $\pm$ 44, and 675 $\pm$ 92 km s*-1*, respectively. The gaussians are represented by the dashed black lines in Figure 5. The velocity profile does not show the classic ‘double horned’ structure that might be expected in a gas disk with a smooth surface brightness distribution. This may indicate significant random motions, a complex gas distribution, or a combination. We do not find any signatures in the flux density profile for a CO or [CI] outflow, such as a broad second gaussian component or a bright CO/[CI] component blue- and/or redshifted from the source systematic velocity. This does not necessarily suggest that no outflow is present. If outflows are present the observations are not deep enough to retrieve their weak signal. Furthermore, the spatial resolution might be too low to distinguish a blue- and/or redshifted component away from the galaxy centre.

3.4 Comparing line ratios with PDR models

To explore the properties of the ISM in 3D-HST GS30274 we compare the intensity ratios of the [CI] and CO lines to the outputs of molecular cloud models. We present the [CI] 1–0/ CO J$=$4-3 luminosity ratio of 3D-HST GS30274 as a function of its [CI] 1–0/ FIR luminosity ratio in Figure 6 (left panel). We overplotted the density and UV radiation field contours as presented in Alaghband-Zadeh et al. (2013), based on the Kaufman et al. (1999) and Kaufman et al. (2006) PDR models. With this approach we find that 3D-HST GS30274 has a density of $(6\pm 0.5)\times 10^{4}\,\rm{cm}^{-3}$ and a UV radiation field of $(2\pm 2)\times 10^{4}\,\rm{G}_{0}$. The models of Meijerink & Spaans (2005) and Meijerink et al. (2007) suggest that the ISM of 3D-HST GS30274 has a density of a few times $10^{5}\,\rm{cm}^{-3}$. Unfortunately, the Meijerink et al. models do not constrain the UV radiation field in 3D-HST GS30274 very well.

Although UV-to-sub-mm continuum SED fitting suggest that the AGN does not dominate the emission from 3D-HST GS30274, we did compare the observed line intensities to an X-ray Dominated Region (XDR) code (Meijerink & Spaans, 2005; Meijerink et al., 2007). The XDR-code was not able to reproduce the [CI] 1–0 / CO J$=$3–2 intensity ratio, whereas only poor convergence was reached for the [CI] 1–0 / CO J$=$4–3 intensity ratio suggesting densities larger than $10^{6.5}\,\rm{cm}^{-3}$. This supports the finding that the AGN only plays a minor role in the emission from 3D-HST GS30274.

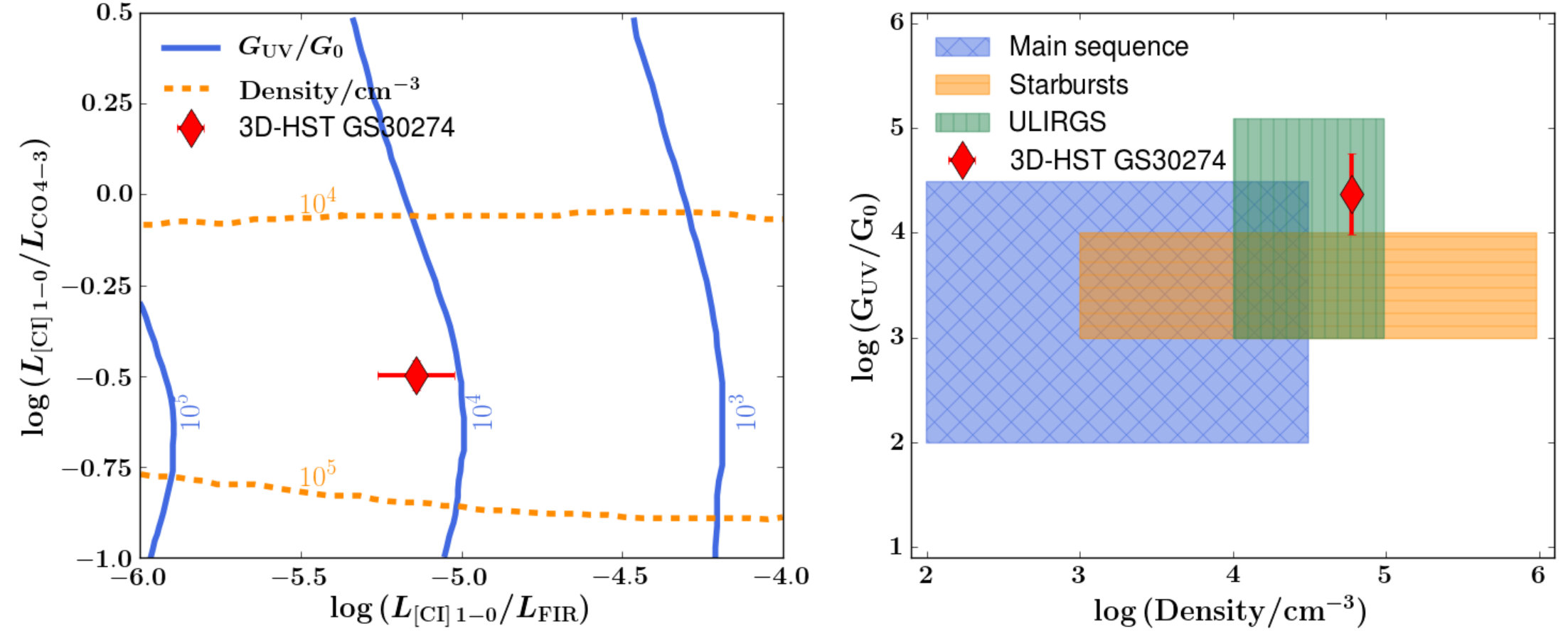

The constraints on the density and UV radiation field of the molecular ISM in 3D-HST GS30274 are similar to the conditions observed in ultra-luminous infrared galaxies (ULIRGS) and local (nuclear) starbursts (right panel of Figure 6. Multiple independent studies have estimated a molecular ISM density of $\sim 10^{5}\,\rm{cm}^{-3}$ in the local nuclear starburst NGC 253 (Bayet et al., 2004; Meier et al., 2015). The density and UV radiation field in the starburst region of Arp 220 is estimated to be $10^{4}$ – $10^{5}\,\rm{cm}^{-3}$ and $\sim 4\times 10^{4}G_{0}$ (e.g., Gerin & Phillips, 1998; Aalto et al., 2009; Scoville et al., 2015). Israel et al. (2015) used the line-ratio between [CI] and CO to study the ISM in a sample of local (nuclear) starbursts and estimated an average ISM density of $10^{4}$–$10^{5}\,\rm{cm}^{-3}$. Molecular emission-line studies of the nuclear region of M82 suggest the presence of dense components with densities up to $10^{6}\,\rm{cm}^{-3}$ and a UV radiation field up to $1.8\times 10^{3}$ (Bayet et al., 2008; Loenen et al., 2010). Pineda et al. (2012) found an average hydrogen density of $\sim 10^{5}\,\rm{cm}^{-3}$ and a UV radiation field of $3.1\times 10^{3}G_{0}$ in the starburst region 30 Doradus. Chevance et al. (2016) estimates a UV radiation field up to $1.8\times 10^{4}\,G_{0}$ in 30 Doradus.

The estimated ISM properties for 3D-HST GS30274 are on average in the same range as the ISM properties found in local ULIRGS and starbursts. This suggests that the molecular ISM in 3D-HST GS30274 is in a starburst phase.

3.5 H2 mass

In this subsection we will derive the H2 mass of 3D-HST GS30274 using three different approaches. We summarise the obtained H2 masses in Table 3.

3.5.1 Based on [CI]

To derive the H2 mass of 3D-HST GS30274 from the [CI] emission we first need to estimate the total carbon mass in 3D-HST GS30274. We derive the atomic carbon mass following Weiß et al. (2005), calculated from the [CI] 1–0 line luminosity as

[TABLE]

where $T_{\rm ex}$ is the excitation temperature of [CI] and $\rm{Q}(T_{\rm ex})=1+3e^{-T_{1}/T_{\rm ex}}+5e^{-T_{2}/T_{\rm ex}}$ is the [CI] partition function. $T_{1}$ and $T_{2}$ are the energies above the ground state, 23.6 K and 62.5 K, respectively.

Without knowledge of the [CI] 2–1 luminosity, we have to make an assumption for the excitation temperature of atomic carbon. We assume $T_{\rm ex}=30$ K, the average excitation temperature found in Walter et al. (2011). This results in a carbon mass of $5.4\pm 1.4\times 10^{6}\,\rm{M}_{\odot}$. This carbon mass is similar to the mass found in $z>2$ dusty SFGs and quasar host galaxies (Walter et al., 2011).

The derived density and UV radiation field would suggest a much higher excitation temperature of $\sim 200$ K for atomic carbon (Meijerink et al., 2007; Kaufman et al., 2006). Here it is important to remember that PDR models assume a specific geometry and a homogeneous medium (which is probably an unrealistic assumption). Line intensity ratios are sensitive to the chosen geometry, and especially the intensity ratio between [CI] 2–1 and [CI] 1–0 is sensitive to the homogeneity of the medium (Spaans, 1996). This is further demonstrated by the difficulty models have in reproducing this intensity ratio in environments with low-UV radiation fields and well defined spherically-symmetric density profiles (e.g., Pineda & Bensch, 2007; Papadopoulos et al., 2004). Danielson et al. (2011) observed atomic carbon and CO in a lensed DSFG at $z\sim 2.3$ with similar density and UV radiation field as 3D-HST GS30274. Its carbon and CO line ratios suggest an excitation temperature of a few hundred K. The carbon excitation temperature directly derived from the observed [CI] 2–1 and [CI] 1–0 luminosity ratio is 25–45 K, significantly lower. We therefore stick to the assumed excitation temperature of $T_{\rm ex}=30$ K, rather than adopting high temperatures of a few hundred degrees. If we were to change the carbon excitation temperature to for instance the dust temperature of the ISM in 3D-HST GS30274 (45 K), this would result in a change in carbon mass (and resulting H2 mass) of less than 3%.

The derived carbon mass of a galaxy can be used to estimate its H2 mass (e.g., Papadopoulos et al., 2004; Weiß et al., 2005; Wagg et al., 2006; Alaghband-Zadeh et al., 2013; Béthermin et al., 2016; Bothwell et al., 2016). [CI] is especially a good tracer in X-ray and cosmic-ray dominated environments (Bisbas et al., 2015; Glover & Clark, 2016). We estimate the H2 mass of 3D-HST GS30274 from its atomic carbon mass, assuming a carbon abundance of $\rm{X}_{\rm[CI]}=M_{\rm[CI]}/(6\,M_{\rm H2})=3\times 10^{-5}$ (Weiß et al., 2005; Danielson et al., 2011; Alaghband-Zadeh et al., 2013). We implicitly make the assumption that the atomic carbon is mostly neutral. The adopted carbon abundance is slightly higher than the Galactic abundance of $2\times 10^{-5}$ (Frerking et al., 1989). We estimated a metallicity of $12+\log{(\rm{O/H})}=9.07$ for 3D-HST GS30274 of using the fundamental metallicity relation (Mannucci et al., 2010). Our choice for $\rm{X}_{\rm[CI]}=3\times 10^{-5}$ agrees well with theoretical estimates of the carbon abundance in metal-rich environments by Glover & Clark (2016). We measure a molecular hydrogen mass of $M_{\rm H2}(\rm{[CI]})=3.0\pm 0.3\times 10^{10}\,\rm{M}_{\odot}$. The Galactic abundance of $2\times 10^{-5}$ would have resulted in an H2 mass of $M_{\rm H2}(\rm{[CI]})=4.5\pm 0.4\times 10^{10}\,\rm{M}_{\odot}$.

3.5.2 Based on CO

To use the CO J$=$3–2 emission as a tracer of H2 mass we first have to derive the CO J$=$1–0 line luminosity from the CO J$=$3–2 line luminosity. The ratio between the squared CO J$=$4–3 and CO J$=$3–2 intensities is $I_{\rm CO4-3}^{2}/I_{\rm CO3-2}^{2}=1.9\pm 0.3$. This is close to the line ratio one would expect if the lines are all in the Rayleigh–Jeans limit and in local thermodynamic equilibrium (LTE; $(\rm{J}=4^{2})/(\rm{J}=3^{2})=1.78$). We therefore assume that the flux intensity ratio between the CO J$=$3–2 and CO $J$= 1–0 line equals $3^{2}/1^{2}=9$. This gives a line luminosity for CO J$=$1–0 of $2.1\pm 0.2\times 10^{9}$ K km/s pc2. The assumption of a thermalized medium for the CO transitions is supported by the strong UV radiation field and high densities derived in Section 3.4.

In Section 3.4 we concluded that the ISM of 3D-HST GS30274 resembles the ISM in local starburst and starburst nuclei. We therefore adopt a CO-to-H2 conversion factor typically assumed for starburst and mergers ($\alpha_{\rm CO}=0.8\,\rm{M}_{\odot}/(\rm{K}\,\rm{km/s}\,\rm{pc}^{2})$, Downes & Solomon, 1998; Bolatto et al., 2013). This leads to a CO-based H2 mass of $1.7\pm 0.1\times 10^{10}\,\rm{M}_{\odot}$, approximately half of the mass derived from [CI].

3.5.3 Based on the dust mass

An additional method to measure the gas mass of 3D-HST GS30274 is to use the inferred dust mass of 3D-HST GS30274 from the SED fitting in combination with typically assumed gas-to-dust ratios ($M_{\rm gas}=\delta_{\rm GDR}(Z)M_{\rm dust}$, where $\delta_{\rm GDR}(Z)$ is the gas-to-dust ratio and a function of metallicity). We estimate $\delta_{\rm GDR}(Z)$ using the empirical calibration of Magdis et al. (2012a). We then find a gas mass (pure hydrogen) of $M_{\rm gas}=0.7\pm 0.2\times 10^{10}\,\rm{M}_{\odot}$. This mass represents the combined contribution from atomic and molecular gas and sets an upper limit on the H2 mass. We will not attempt to make a correction for this, though theoretical efforts suggest that a galaxy with similar stellar mass and SFR as in 3D-HST GS30274 at $z\sim 2$ has a molecular hydrogen fraction $M_{\rm H2}/(M_{\rm HI}+M_{\rm H2})\sim 75$% (Popping et al., 2015a). The derived upper limit for the H2 content of 3D-HST GS30274 from the dust mass is already three times as low as the [CI]-based H2 estimate.

3.6 Gas depletion time and galaxy gas fraction

We can use the measured H2 masses in combination with the estimated stellar mass and SFR to calculate the gas fraction and gas depletion time of 3D-HST GS30274. The gas fraction that we determine using the [CI]-based H2 estimate is $M_{\rm H2}/(M_{\rm H2}+M_{*})=0.14\pm 0.01$. The gas depletion time of 3D-HST GS30274 is $M_{\rm H2}/{\rm SFR}=140\pm 30\,\rm{Myr}$. The gas fractions obtained using the other approaches are 0.08 $\pm$ 0.005 for the CO-based H2 mass and less than 0.04 $\pm$ 0.01, for the dust-based H2 mass, whereas the gas depletion times are 80 $\pm$ 17 Myr and less than 30 $\pm$ 10 Myr for the CO-based and dust-based H2 estimates, respectively. The estimated gas fraction and depletion times are both low for star-forming galaxies. For example, they are both lower than what is typically found in the literature for extended star-forming galaxies at similar redshift and stellar mass (Tacconi et al., 2010; Magdis et al., 2012a; Tacconi et al., 2013; Saintonge et al., 2013). The gas fractions found by Barro et al. (2016) for six cSFGs at $z\sim 2.5$ are higher than the gas fraction we derived for 3D-HST GS30274. The gas depletion times on the other hand are similar, suggesting 3D-HST GS30274 and the cSFGs in Barro et al. (2016) may have a similar mode of star formation.

3.7 CO-to-H2 conversion factor

The independent measurements of the H2 mass allow us to constrain the CO-to-H2 conversion factor in 3D-HST GS30274, using the observed CO J$=$3–2 emission line. We first have to derive the CO J$=$1–0 line luminosity from the CO J$=$3–2 line luminosity, for which we use the CO J$=$1–0 line luminosity derived in Section 3.5.2. We find a CO-to-H2 conversion factor of $\alpha_{\rm CO}=\rm{M}_{\rm H2}/L^{\prime}_{\rm CO1-0}=1.4\pm 0.15\,\rm{M}_{\odot}/(\rm{K}\,\rm{km/s}\,\rm{pc}^{2})$. When using the H2 masses based on the total dust mass of 3D-HST GS30274, we find a CO-to-H2 conversion factor of $0.5\pm 0.3\,\rm{M}_{\odot}/(\rm{K}\,\rm{km/s}\,\rm{pc}^{2})$, respectively.

The CO-to-H2 conversion factors derived for 3D-HST GS30274 lie below the value typically assumed for main-sequence galaxies (ranging from 3.6 to 4.3 $\rm{M}_{\odot}/(\rm{K}\,\rm{km/s}\,\rm{pc}^{2})$, see Bolatto et al., 2013, for a review) and around the value usually assumed for starburst and mergers ($\alpha_{\rm CO}=0.8\,\rm{M}_{\odot}/(\rm{K}\,\rm{km/s}\,\rm{pc}^{2})$, Downes & Solomon, 1998). This fits in with the finding that the ISM in 3D-HST GS30274 is in a starburst phase.

3.8 The gas-to-dust ratio

We can constrain the gas-to-dust ratio in 3D-HST GS30274 using the dust mass obtained by SED fitting and the H2 mass obtained from the atomic carbon line. We find a molecular gas-to-dust ratio of $165\pm 45$ when using the carbon-based H2 estimate. Here we included a 1.36 correction for Helium, similar to gas-to-dust ratios quoted in the literature. We emphasise that we have only accounted for the gas in molecular form and did not correct for atomic hydrogen. Theoretical models and indirectly estimated gas masses from observations suggest that the molecular hydrogen fraction $f_{\rm H2}$ for a main-sequence galaxy at $z\sim 2$ is around 75 % (Popping et al., 2015b, e.g.,). Taking this correction into account, the resulting gas-to-dust ratio is $221\pm 60$. When using the CO-based H2 estimate instead we find a molecular gas-to-dust ratio of $94\pm 25$ and a total gas-to-dust ratio of $125\pm 33$. The CO-based gas-to-dust ratio is similar to the gas-to-dust ratio obtained using the empirical fitting relation presented in Magdis et al. (2012a). These observations also confirm that massive galaxies at $z\sim 2$ can already be significantly dust-enriched (e.g., Downes et al., 1992; Berta et al., 2016; Popping et al., 2016; Seko et al., 2016), though the exact level of enrichment highly depends on the chosen H2 mass estimator.

4 Discussion

We are now in the unique position to tie the information we obtained about the cold gas kinematics and physical properties, the gas fraction and the depletion time, and the studies of ionized gas in the literature together into one complete picture that aims to describe 3D-HST GS30274.

The velocity dispersion that we derive for 3D-HST GS30274 is significantly higher than typically found in extended star-forming galaxies with similar stellar mass and SFR at the same redshift (e.g., Tacconi et al., 2010, 2013). The derived velocity dispersions of CO and [CI] are in agreement with the H$\alpha$ velocity dispersion for this source (van Dokkum et al., 2015). van Dokkum et al. (2015) showed that the observed velocity dispersion of the H$\alpha$ gas in cSFGs is consistent with the dispersion expected for a system dominated by gravitational motions (with little contribution from outflows). We can repeat this exercise using the [CI] and CO observations of 3D-HST GS30274. Following van Dokkum et al. (2015) the predicted velocity dispersion of a galaxy is

[TABLE]

Assuming that the gas and stars are dynamically coupled, we can replace $M_{*}$ by $M_{\rm dyn}=M_{*}+1.36M_{\rm H2}$ (where the factor 1.36 accounts for the contribution by Helium). We assume that the effective radius of 2.5 $\pm$ 0.1 kpc (van der Wel et al., 2014) is still valid. When using the [CI]-based H2 mass, we find a predicted velocity dispersion for the gas of $340\pm 35$ km s*-1*. We predict velocity dispersions of 327 $\pm$ 40 and 316 $\pm$ 40 km s*-1* for the CO- and dust-based H2 mass estimates, respectively. The predicted velocity dispersions are similar to the observed velocity dispersion of the CO lines in 3D-HST GS30274 . This suggests that the observed velocity dispersions are consistent with being gravitationally driven by a compact distribution of both stars and gas. While AGN or star formation driven winds are likely present in this galaxy (Genzel et al., 2014), they do not appear to dominate the galaxy-integrated line widths in CO or [CI]. These results are a confirmation that we are likely seeing the build-up of the dense core of a massive galaxy.

The derived ISM characteristics match the ISM properties observed in local ULIRGS and starbursts very well (e.g., Bayet et al., 2004; Pineda et al., 2012; Meier et al., 2015, see Section 3.4). Additionally, the derived CO-to-H2 conversion factor for 3D-HST GS30274 is within the range typically assumed to starbursting galaxies. We have employed three methods to estimate the H2 mass of 3D-HST GS30274. All these approaches yield H2 depletion times shorter than typically found in more extended main-sequence galaxies with similar stellar mass and SFR at these redshifts ($\leq 140$ Myr). Such efficient star-formation fits the picture where a starburst is quickly and efficiently depleting the gas reservoir of 3D-HST GS30274. The short depletion time could also suggest that this galaxy is in the process of shutting down its star formation. This is consistent with the picture in which the star formation in a galaxy is quenched once it has formed a high stellar surface density core (e.g., Kauffmann et al., 2003; Franx et al., 2008; Wuyts et al., 2011; Bell et al., 2012; Fang et al., 2013; van Dokkum et al., 2014; Lang et al., 2014; Barro et al., 2015; Whitaker et al., 2015, 2016).

3D-HST GS30274 is classified as a merger remnant. A likely scenario for this object is that the merger event triggered compactification of the gas and induced a central starburst event. This explains the starburst ISM characteristics, the short depletion time, and the CO and [CI] kinematics that are consistent with a compact distribution of the gas. This is confirmation that we are likely seeing the build-up of the dense core in 3D-HST GS30274. This scenario is consistent with one of the scenarios suggested by Wellons et al. (2015) and Zolotov et al. (2015) for the formation of cSFGs. These models suggest that compaction is triggered by inflow episodes, such as gas-rich mergers, and is commonly associated with violent disc instabilities. The high central concentration of gas then quickly builds up a dense core. It may also accrete efficiently onto a black hole triggering a bright AGN, as observed in the X-ray and radio emission from 3D-HST GS30274. Future high-resolution observations are needed to properly measure the size of the compact molecular gas reservoir and better study the kinematic motions. The presented observations demonstrate that the main-sequence of star formation doesn’t solely consist of ’typical star-forming galaxies’, but can contain galaxies undergoing different modes of star formation.

5 Summary and Conclusion

We have presented ALMA CO, [CI], and dust continuum detections of the compact star-forming galaxy 3D-HST GS30274. These observations mark the first detections of sub-mm emission lines in cSFGs and provide a new insight into the origin of cSFGs and how they relate to compact quiescent galaxies.

The ratio between the different sub-mm emission lines suggests that the ISM is in a starburst phase. This is consistent with the short H2 depletion time of $\leq 140$ Myr we obtained for this source using three different H2 tracers. The observed CO and [CI] dynamical information for 3D-HST GS30274 is consistent with a scenario where the gas in 3D-HST GS30274 is situated in a compact reservoir.

The presented observations point towards a scenario where a previous merger has driven the gas in 3D-HST GS30274 towards a compact distribution in the galaxy centre and triggered a nuclear starburst event. The starburst event quickly depletes the cold gas and has started to build up a dense stellar core. The compact distribution of gas may feed a black hole which triggers the observed AGN. Ultimately, the combination of short depletion times, the AGN activity, and possibly star-formation driven outflows may quench 3D-HST GS30274 into a compact quiescent galaxy.

The presented work on 3D-HST GS30274 demonstrates that ALMA detections of sub-mm lines to probe the molecular gas mass, ISM characteristics, and molecular gas dynamics of cSFGs are an important puzzle piece to understand the formation history of the progenitors of compact quiescent galaxies.

Acknowledgements.

A large part of the analysis and writing of this paper was carried out at the ESO guesthouse in Santiago. GP (’the appendicitis guy’) thanks the staff of the ESO guesthouse for its hospitality and great care. We thank the referee for a very constructive report. GP thanks Karina Caputi, Juan Pablo Pérez-Beaupuits, and Rachel Somerville for stimulating discussions during the first stages of this project. Support for RD was provided by the DFG priority program 1573 ‘The physics of the interstellar medium’. BG acknowledges support from the ERC Advanced Investigator programme DUSTYGAL 321334. This paper makes use of the following ALMA data: ADS/JAO.ALMA#2015.1.00228.S. ALMA is a partnership of ESO (representing its member states), NSF (USA) and NINS (Japan), together with NRC (Canada), NSC and ASIAA (Taiwan), and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO and NAOJ.

Appendix A The photometry for 3D-HST GS30274 adopted in the SED fitting
