Entrance Channel Effects on the Quasifission Reaction Channel in Cr + W Systems

TL;DR

This study investigates how entrance channel effects, especially deformation and neutron-richness, influence quasifission in Cr + W heavy-ion reactions near the interaction barrier, revealing deformation effects dominate over neutron-richness at low energies.

Contribution

It provides new insights into the dominance of deformation effects over neutron-richness in quasifission at energies near the interaction barrier in Cr + W systems.

Findings

Deformation effects dominate over neutron-richness in quasifission.

Curvature parameter analysis correlates with reaction parameters.

Neutron-richness effects are less significant at near-barrier energies.

Abstract

Background: Formation of a fully equilibrated compound nucleus is a critical step in the heavy-ion fusion reaction mechanism but can be hindered by orders of magnitude by quasifission, a process in which the dinuclear system breaks apart prior to full equilibration. To provide a complete description of heavy-ion fusion it is important to characterize the quasifission process. In particular, the impact of changing the neutron-richness of the quasifission process is not well known. A previous study of Cr + W reactions at a constant 13 % above the Coulomb barrier concluded that an increase in neutron-richness leads to a decrease in the prominence of the quasifission reaction channel. Purpose: The interplay between the fusion-fission and quasifission reaction channels, with varying neutron-richness, was explored at a constant excitation energy, closer to the interaction barrier than the previous work, to see if the correlation between neutron-richness and quasifission is valid at lower energies. Methods: Mass distributions were determined for eight different combinations of Cr + W reactions at the Australian National University at 52.0 MeV of excitation energy in the compound nucleus. Results: A curvature parameter was determined for the fission-like fragment mass distributions and compared to various reaction parameters known to influence quasifission. Conclusions: The present work demonstrates that at energies near the interaction barrier the deformation effects dominate over the neutron-richness effects in the competition between quasifission and compound nucleus formation in these Cr + W systems and is an important consideration for future with heavy and superheavy element production reactions.

Figures

Tables

Table 1. Table 1: Entrance channel, compound nucleus formed, number of neutrons relative to the compound nucleus 230 formed by 50 Cr + 180 superscript 180 +^{180} W, W target thickness, center of mass energy E c.m. , excitation energy E CN ∗ subscript superscript absent CN {}^{*}_{\mathrm{CN}} , E / c . m . V B {}_{\mathrm{c.m.}}/\mathrm{V}_{\mathrm{B}} , ( N / Z ) CN subscript N Z CN \mathrm{(N/Z)}_{\mathrm{CN}} , calculated l max subscript 𝑙 max l_{\mathrm{max}} from the total reaction cross section  Tarasov and Bazin ( 2003 ) , and l crit subscript 𝑙 crit l_{\mathrm{crit}}   Tarasov and Bazin ( 2003 ) for each of the systems.

System	$\Delta$N	Target Thickness ($\mu$g cm-1)	Ec.m. (MeV)	E${}_{\mathrm{CN}}{}^{}{}_{}{}^{\ast }$ (MeV)	E${}_{c.m.}{}^{}/V_B$	${\left(N/Z\right)}_{\mathrm{CN}}$	$l_{\max }$ ($\hslash$)	$l_{\mathrm{crit}}$ ($\hslash$)
50Cr ${+}^{180}$W${\to }^{230}$Cf	0	48	210.0	52.0	1.07	1.35	67	58
50Cr ${+}^{186}$W${\to }^{236}$Cf	6	43	201.3	52.0	1.03	1.41	44	39
52Cr ${+}^{180}$W${\to }^{232}$Cf	2	48	214.1	52.0	1.09	1.37	76	71
52Cr ${+}^{184}$W${\to }^{236}$Cf	6	64	209.7	52.0	1.08	1.41	72	64
54Cr ${+}^{180}$W${\to }^{234}$Cf	4	46	215.4	52.3	1.11	1.39	85	76
54Cr ${+}^{182}$W${\to }^{236}$Cf	6	97	213.8	52.0	1.10	1.41	81	75
54Cr ${+}^{184}$W${\to }^{238}$Cf	8	64	211.8	52.0	1.09	1.43	76	72
54Cr ${+}^{186}$W${\to }^{240}$Cf	10	43	209.5	52.0	1.08	1.45	72	69

Table 2. Table 2: Bass average radii, β 2 subscript 𝛽 2 \beta_{2} values, semi-major radii, and semi-minor radii.

Nucleus	R(fm) (average)	${\beta }_2$ Möller et al. (1995)	R(fm) (semi-major)	R(fm) (semi-minor)
50Cr	3.89	0.0	–	–
52Cr	3.96	0.0	–	–
54Cr	4.02	0.0	–	–
180W	6.30	0.258	7.33	5.79
182W	6.33	0.259	7.36	5.81
184W	6.35	0.24	7.32	5.87
186W	6.38	0.23	7.30	5.92

Table 3. Table 3: Barriers for average, aligned, and anti-aligned orientations for each measured reaction system.

System	VBass(MeV) (average)	VBass(MeV) (aligned)	VBass(MeV) (anti-aligned)
50Cr ${+}^{180}$W	196.95	179.84	207.21
50Cr ${+}^{186}$W	195.59	180.31	204.70
52Cr ${+}^{180}$W	195.75	178.86	205.83
52Cr ${+}^{184}$W	194.80	179.00	204.17
54Cr ${+}^{180}$W	194.56	177.89	204.51
54Cr ${+}^{182}$W	194.12	177.46	204.10
54Cr ${+}^{184}$W	193.67	178.05	202.86
54Cr ${+}^{186}$W	193.22	178.35	202.10

Equations

$${\sigma }_{evr}=\sum _{\mathrm{J}=0}^{{\mathrm{J}}_{\max }}{\sigma }_{\mathrm{cap}}(\mathrm{J}){\mathrm{P}}_{\mathrm{CN}}(\mathrm{J}){\mathrm{W}}_{\mathrm{sur}}(\mathrm{J}),$$

$$\chi =(Z^2/A)/(Z^2/A{)}_{\mathrm{crit}}$$

$$(Z^2/A{)}_{\mathrm{crit}}=50.883(1-1.7826I^2)$$

$$I=(A-2Z)/A$$

$$R(\theta ,\varphi )=R_{\mathrm{avg}}[1+{\beta }_2{\text{Y}}_{20}(\theta ,\varphi )]$$

$$R_{\mathrm{semi}-\mathrm{Major}}(\theta ,\varphi )=R_{\mathrm{avg}}[1-\frac{{\beta }_2}{4}\sqrt{\frac{5}{\pi }}]$$

$$R_{\mathrm{semi}-\mathrm{Minor}}(\theta ,\varphi )=R_{\mathrm{avg}}[1+\frac{{\beta }_2}{2}\sqrt{\frac{5}{\pi }}]$$

Full text

Purpose: The interplay between the fusion-fission and quasifission reaction channels, with varying neutron-richness, was explored at a constant excitation energy, closer to the interaction barrier than the previous work, to see if the correlation between neutron-richness and quasifission is valid at lower energies.

Methods: Mass distributions were determined for eight different combinations of Cr + W reactions at the Australian National University at 52.0 MeV of excitation energy in the compound nucleus.

Results: A curvature parameter was determined for the fission-like fragment mass distributions and compared to various reaction parameters known to influence quasifission.

Conclusions: The present work demonstrates that at energies near the interaction barrier the deformation effects dominate over the neutron-richness effects in the competition between quasifission and compound nucleus formation in these Cr + W systems and is an important consideration for future with heavy and superheavy element production reactions.

††preprint: APS/123-QED

I Introduction

The fusion of two large nuclei has thus far been the primary mechanism for the formation of superheavy nuclei Oganessian et al. (2006, 2012); Oganessian (2007); Hamilton et al. (2013). There is great interest in producing new superheavy nuclei because each additional nucleon furthers our understanding of the limits of nuclear stability Hamilton et al. (2013); Hofmann and Munzenberg (2000) and there are predictions that there will be a spherical shell closure near N = 184 and Z $\approx$ 114-126 Bender et al. (1999). Experimental work has already shown indications of a region of enhanced stability in neutron-rich nuclei near Z $\geq 110$ and N $\approx$ 171 - 174 Oganessian et al. (2010); Hamilton et al. (2013). However, even these very neutron-rich nuclei are still $\sim$ 10 neutrons away from N=184. To reach nuclei in the N = 184 region more neutron-rich projectiles and targets than the commonly used stable 48Ca and actinide targets will be necessary  Hamilton et al. (2013); Oganessian et al. (2012); Bender et al. (1999, 2001); Nazarewicz et al. (2002). The next generation rare isotope facilities will allow exploration of the heavy ion fusion mechanism with medium mass neutron-rich projectiles that can form neutron-rich low mass superheavy nuclei Hofmann (2001); Loveland (2007); Smolaczuk (2010). Therefore, it is vital to have an understanding of the effect of increasing the neutron-richness of the system on the heavy-ion fusion reaction mechanism.

The cross section for the formation of a superheavy evaporation residue $\sigma_{evr}$ has been written as

[TABLE]

where J is the angular momentum, $\mathrm{\sigma_{cap}}$ is the capture cross section for a given entrance channel, PCN is the probability of forming a compound nucleus, and Wsur is the probability of the compound nucleus surviving against fission (Hinde et al. (2002a) and references therein). Following capture, formation of a fully fused compound nucleus can be hindered by the early separation of the dinuclear system, termed quasifission Back (1985); Toke et al. (1985). Quasifission has been shown to hinder fusion by orders of magnitude Berriman et al. (2001); Yanez et al. (2013); Hamilton et al. (2013) in some cases. A large effort has focused on understanding the entrance channel conditions that favor quasifission including: mass asymmetry Berriman et al. (2001), fissility of the compound nucleus Swiatecki (1982); Bjørnholm and Swiatecki (1982), reaction energy Tsang et al. (1983); Back (1985), magicity Itkis et al. (2007); Simenel et al. (2012), and neutron-richess of the compound nucleus (N/Z)CN Simenel et al. (2012); Sahm et al. (1985); Lesko et al. (1986); Vinodkumar et al. (2008); Liang et al. (2012); Adamian et al. (2000); Wang et al. (2010); Hammerton et al. (2015). Heavy-ion fusion is further complicated by entrance channel nuclear structure effects including large static deformations in the heavy reaction partner Hinde et al. (1995); Nishio et al. (2001); Lin et al. (2012); Wakhle et al. (2014).

So called mass-angle distributions (MAD) have been used extensively to study quasifission reaction dynamics Hinde et al. (2008a); Wakhle et al. (2014); du Rietz et al. (2013). Ref du Rietz et al. (2013) provides an overall view of MADs from reactions of medium mass projectiles and targets. Three regions were identified based on the shape of the mass distribution and the entrance channel charge product ZpZt. The study of reactions at the intersection of two of these regions will provide important information on the quasifission mechanism. Cr + W is a prime candidate to study as its charge product 1776 is at the intersection of reactions that show short time-scale quasifission (the dinuclear system separated after very little rotation with partial mass transfer) and medium time scale reactions (the system rotated through larger angles and the fragments have time to move towards mass equilibration) du Rietz et al. (2013).

Previous measurements of the Cr + W systems, at beam energies chosen to give a constant ratio to the respective interaction barriers VB Bass (1977) ,showed that the compound nucleus N/ZCN was important in determining the relative amount of quasifission Hammerton et al. (2015). In the present work, the effect of changing the neutron-richness of the compound nucleus was explored for the same Cr + W systems at a constant excitation energy E${}^{*}=52.0$ MeV, closer to the interaction barrier than the reactions reported in Hammerton et al. (2015) and similar to that used in hot-fusion reactions.

II Experimental Details

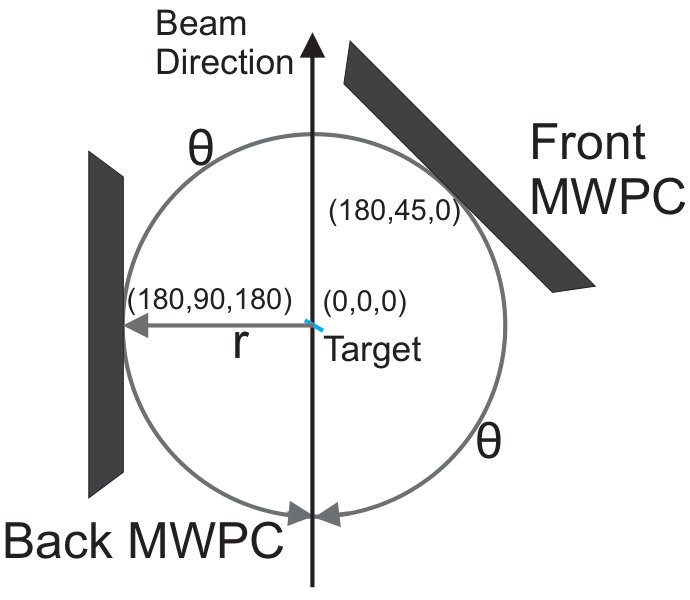

Beams of 50,52,54Cr provided by the 14UD electrostatic accelerator and superconducting LINAC at the Heavy Ion Accelerator Facility at the Australian National University (ANU) were used to bombard isotopically enriched targets of 180,182,184,186W with thicknesses ranging from $43-97~{}\mu$g/cm2 mounted on $40-60~{}\mu$g/cm2 carbon backings Greene and Kohley (2015). The details are given in Table 1. Fragments resulting from fusion-fission and quasifission reactions (collectively termed fission-like) were detected in coincidence using the ANU CUBE detector system Hinde et al. (1996). The detector system consisted of two large-area, position-sensitive multiwire proportional counters (MWPCs). A diagram of the CUBE detector set-up used in the present work is shown in Figure 1. Each MWPC had an active area of $28\times 36$ cm2 Hinde et al. (1996); du Rietz et al. (2013) that were used to cover laboratory scattering angles of $5^{\circ}<\theta<80^{\circ}$ and $50^{\circ}<\theta<125^{\circ}$. Time-of-flight and position information for coincident fission fragment events were used to calculate the mass distribution over all measured angles for full momentum transfer events using the kinematic coincidence technique Hinde et al. (2008b); du Rietz et al. (2013). From the measured velocity vectors of the coincident fragments the mass ratio, $M_{\mathrm{R}}=m_{1}/(m_{1}+m_{2})$ where $m_{1}$ and $m_{2}$ are the masses of the fission fragments, could be determined du Rietz et al. (2013).

From the list of the measured reactions given in Table 1 one can see that the most neutron-deficient (50Cr $+^{180}$W) and neutron-rich (54Cr $+^{186}$W) systems are different by ten neutrons, which provided an opportunity to study the (N/Z)CN dependence of the reactions while holding other variables that are known to affect the quasifission process constant. The Cr + W reactions all have the same entrance channel charge product, ZpZt, of 1776 and only the 52Cr has a closed shell at $N=28$. The W targets are deformed and have calculated $\beta_{2}$ values in the range of 0.225 to 0.254  Möller et al. (1995).

III Results and Discussion

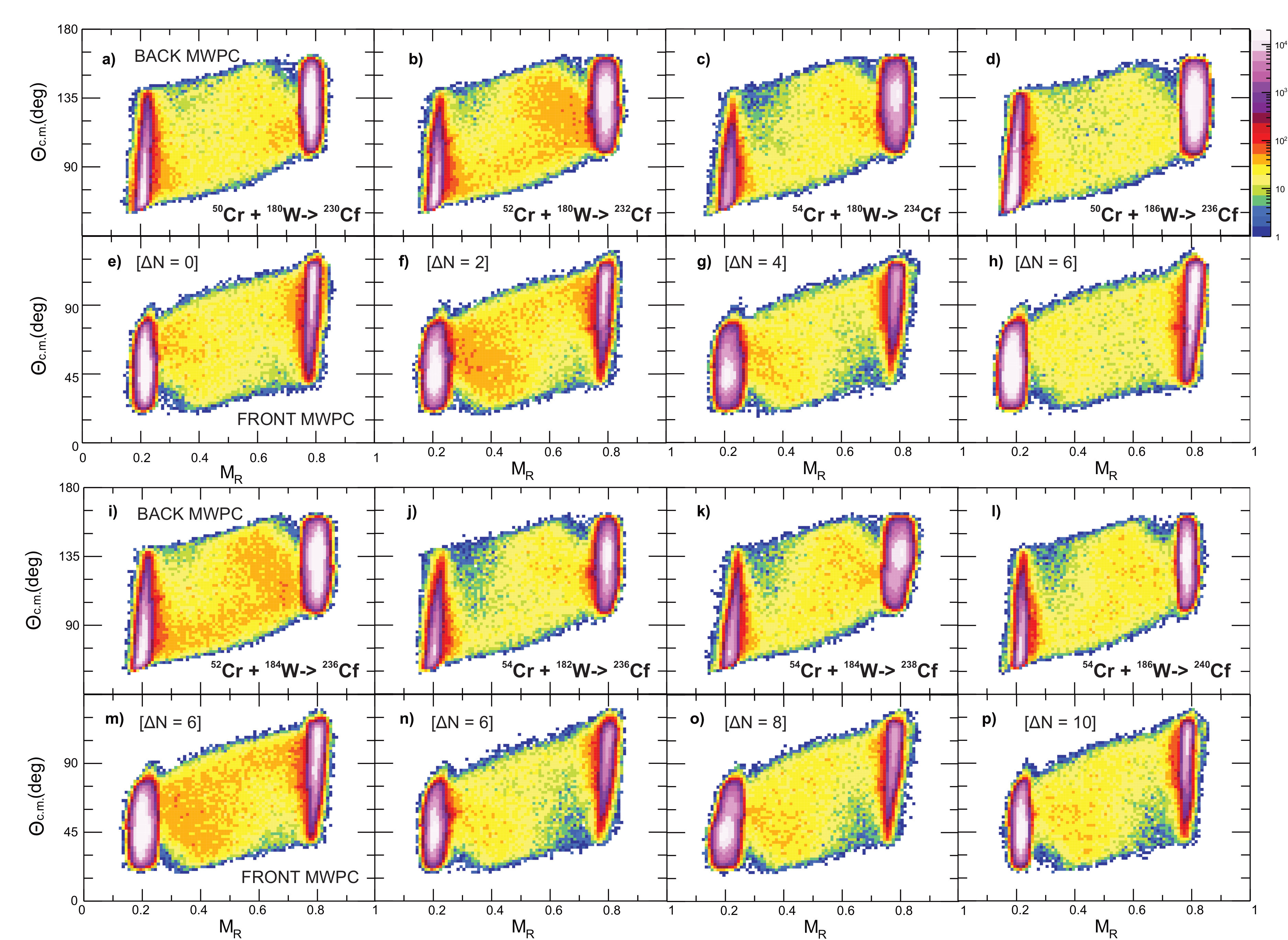

The effect of changing the neutron-richness on the reaction dynamics was explored by analyzing the mass-angle distributions (MAD) generated from the deduced mass ratios and center-of-mass angles ($\theta_{\mathrm{c.m.}}$) Thomas et al. (2008). The MADs for all eight of the Cr + W systems are shown in Figure 2. The MADs observed in the Back MWPC are shown in Panels a-c and i-l, and the MADs observed in the the Front MWPC are shown in Panels e-h and m-p. The intense bands of events at M${}_{\mathrm{R}}\sim$ 0.2 and 0.8 result from elastic scattering events. The region between these two bands contains events from quasifission and fusion-fission, termed the fission-like region. In the present work, the fission-like region was defined to be between mass ratios of 0.35 and 0.65. A notable feature in the fission-like region is the correlation between mass and angle. This correlation has been interpreted in the literature as a signature of quasifission. At center-of-mass energies greater than $\sim 20$ MeV, fragments from fusion-fission reactions will be found at all angles and will form a narrow peak in the mass ratio distribution at M${}_{\mathrm{R}}=0.5$ Colby Jr. et al. (1961); Toke et al. (1985). A correlation between mass and angle was observed in each MAD in Figure 2 indicating that in addition to fusion-fission a quasifission component is present.

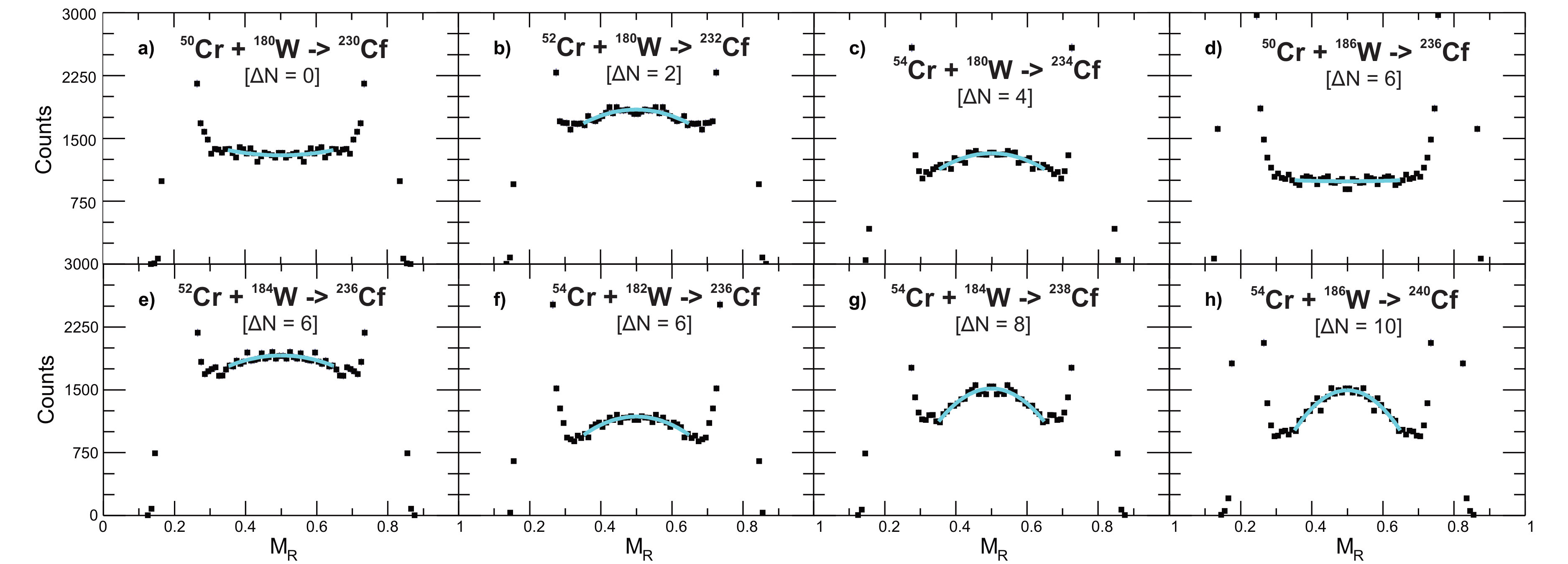

The angle integrated mass distributions generated for all eight of the Cr + W systems are shown in Figure 3. The large, sharp peaks at M${}_{\mathrm{R}}\sim$ 0.2 and 0.8 result from elastic scattering events. In the literature a broadening of the mass distribution in the fission-like region has been interpreted as an increase in the prominence of the quasifission reaction channel Lebrun et al. (1979).

Previously Hinde et al. (1996); Prokhorova et al. (2008); Williams et al. (2013); Hinde et al. (2008b); Itkis et al. (2011, 2004); Lin et al. (2012); Hammerton et al. (2015); Simenel et al. (2012) mass distributions were compared by fitting the fission-like region with a Gaussian function and extracting the width of the resulting Gaussian function. However, this method was not appropriate in the present work. In Figure 3, two systems, 50Cr$+^{180}$W (3 a) and 50Cr$+^{186}$W (3 d), stand in contrast to the others. Rather than having a maximum at a mass ratio of M${}_{\mathrm{R}}=0.5$, these two distributions have a minimum and cannot be characterized with a Gaussian function. Instead, each mass distribution was fitted in the fission-like region with a second degree polynomial function. The results of these fits are represented by the solid (blue) lines in each panel of Figure 3. The second derivative, determined as two times the second order coefficient of the function resulting from the fit, was used as a quantitative measure of the curvature of the mass distributions and called the curvature parameter. A more negative curvature parameter indicates that the mass distribution has a narrower peak in the fission-like region and the quasifission reaction channel is less prominent than in a system with a larger curvature parameter.

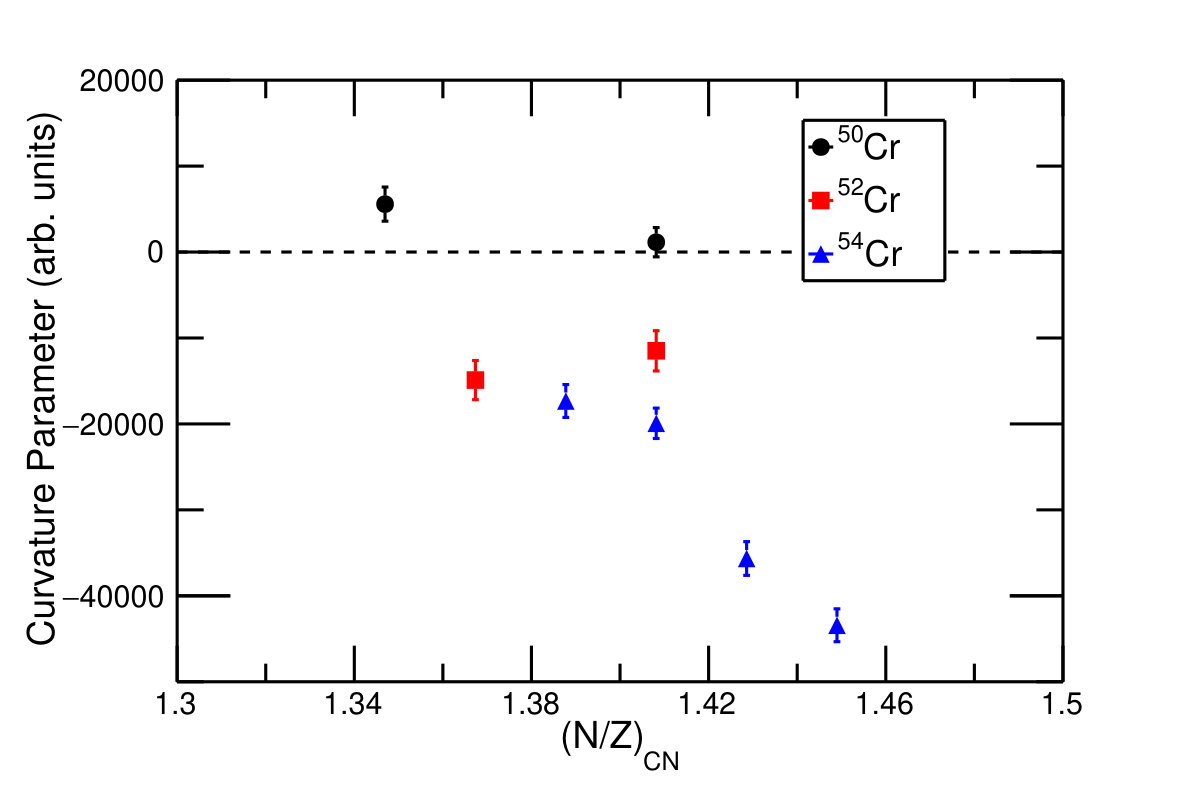

The curvature parameters determined for the mass distributions of the Cr + W systems are shown as a function of (N/Z)CN in Figure 4. While there is a general decrease in curvature with increasing neutron-richness the correlation is not as notable as that previously reported for the Cr + W systems measured at 13$\%$ above the Bass barrier Bass (1977) reported in Hammerton et al. (2015). Two systems of note are the two where 50Cr was the projectile which have a positive curvature indicating that the quasifission reaction channel was particularly enhanced (or the quasifission time scale was shorter) in these two systems compared to the other systems.

III.1 Bohr Independence Hypothesis

The Bohr Independence Hypothesis Bohr (1936) states that once a nucleus, with a given angular momentum, fully equilibrates in all degrees of freedom it loses all memory of the entrance channel. Thus, the decay of an equilibrated compound nucleus should be independent of the entrance channel through which it was produced.

The mass distributions of three systems where 236Cf was the compound nucleus are shown in Panels d-f of Figure 3. Note that in all three of these systems the compound nucleus was formed at the same excitation energy, 52.0 MeV. If compound nucleus formation was the dominant reaction channel in these systems then the Bohr Independence Hypothesis should apply and the decay of these three systems should be the same. The three mass distributions, however, are not the same. The mass distribution from the reaction of 54Cr$+^{182}$W$\rightarrow^{236}$Cf has a narrower mass distribution than that of 50Cr$+^{186}$W$\rightarrow^{236}$Cf and a curvature parameter that is a factor of $\sim$17 smaller. The mass distribution of 52Cr$+^{184}$W$\rightarrow^{236}$Cf falls in between the other two systems. This difference among the systems can be observed in Figure 4 where the curvature parameters determined for these systems are shown as a function of (N/Z)CN (1.41 for 236Cf). This is a deviation from the Bohr Independence Hypothesis and supports the conclusion that a significant fraction of the events in each of these mass distributions does not result from the decay of a fully fused compound nucleus, but rather undergoes an earlier separation via the quasifission reaction channel.

The possibility of different angular momentum distributions between each reaction system should be considered. The 50Cr reactions, with flat mass distributions, have the lowest angular momenta (Table 1). The 54Cr reactions, with the narrowest mass distributions, have the highest angular momenta. This is opposite to expectations if angular momentum alone was responsible to the increased mass widths Lebrun et al. (1979), thus the observation cannot be attributed to the angular momentum differences. Other possible correlations are discussed below.

III.2 Fissility and Mass Asymmetry

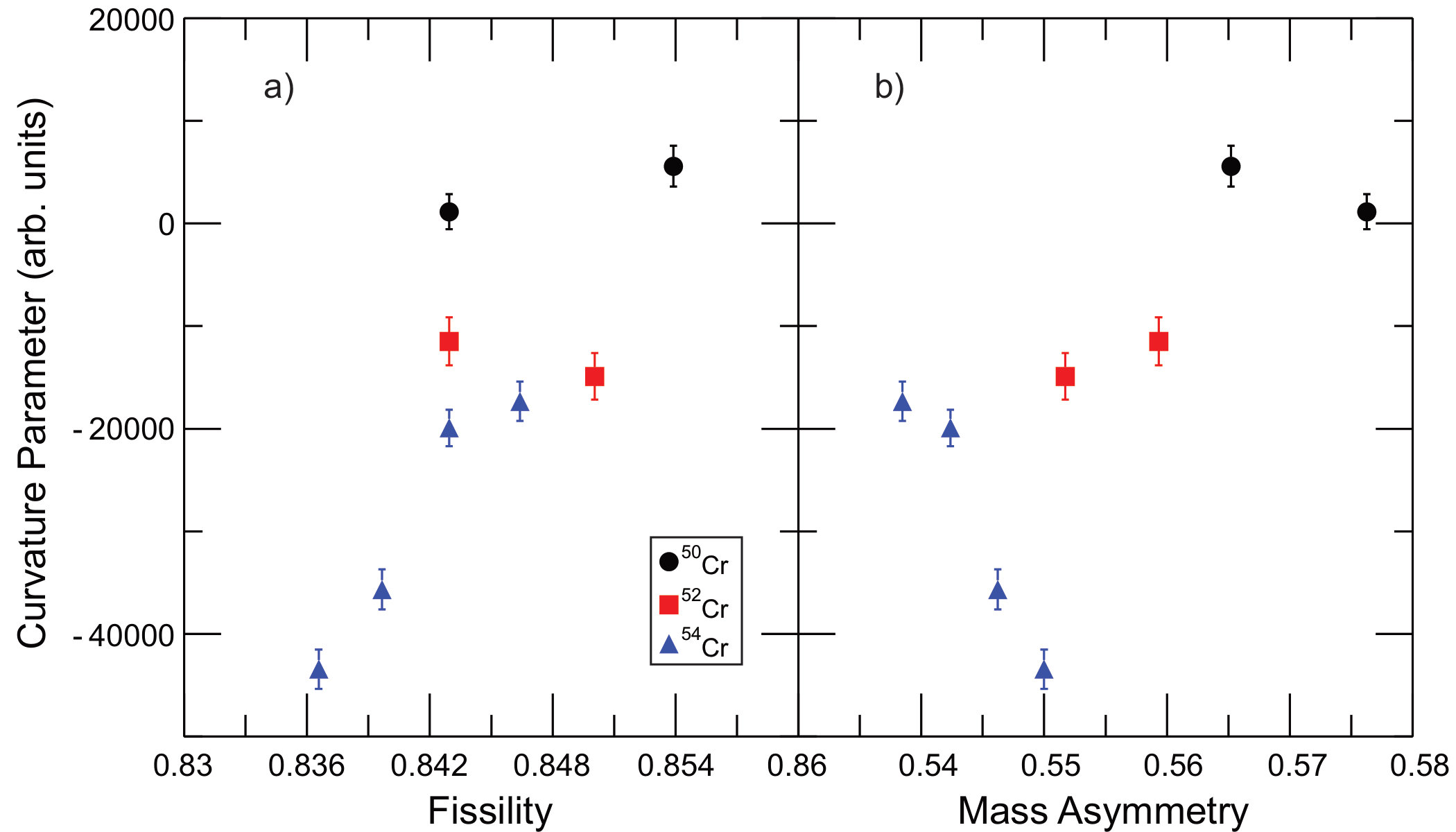

The fissility of the compound nucleus \raisebox{2.0pt}{\chi}_{\mathrm{CN}} and the mass asymmetry of the entrance channel $\alpha$ are two parameters that change with the entrance channel that are correlated with neutron-richness. \raisebox{2.0pt}{\chi}_{\mathrm{CN}} is inversely correlated with neutron-richness and defined as

[TABLE]

where

[TABLE]

and

[TABLE]

Swiatecki (1982); Bjørnholm and Swiatecki (1982). Previous studies Swiatecki (1982); Bjørnholm and Swiatecki (1982) of the \raisebox{2.0pt}{\chi}_{\mathrm{CN}} dependence of quasifission observed a decrease in quasifission with decreasing \raisebox{2.0pt}{\chi}_{\mathrm{CN}}.

Mass asymmetry, defined as $\alpha=(A_{\mathrm{Target}}-A_{\mathrm{Proj}})/(A_{\mathrm{Target}}+A_{\mathrm{Proj}})$ also decreases as the neutron-richness of the projectile increases. Decreasing mass asymmetry, however, has been shown to lead to an increase in quasifission  Berriman et al. (2001).

In many common theoretical models Zagrebaev et al. (2001); Swiatecki (1982); Bjørnholm and Swiatecki (1982); Adamian et al. (2000); Back et al. (2014); Adamian et al. (2012); Antonenko et al. (1993, 1995); Blocki et al. (1986); Adamian et al. (2003) either the fissility or mass asymmetry is used as the dominant predictor of the importance of quasifission. Thus, the choice of a model has resulted in conflicting conclusions as to the nature of the influence of neutron-richness on quasifission because of the differences between the correlation with fissility and the correlation with mass asymmetry. For example, measurements by Lesko et al. Lesko et al. (1986) and Liang et al. Liang et al. (2012) of Sn + Ni systems showed that (N/Z)CN increased as the quasifission flux increased. However, measurements of Sn + Zr by Vinodkumar et al. Vinodkumar et al. (2008) and Sahm et al. Sahm et al. (1985) found a decrease in quasifission as (N/Z)CN increased. Observations from previously reported measurements of Cr + W reactions at E${}_{\mathrm{c.m.}}/$V${}_{\mathrm{B}}=1.13$ Hammerton et al. (2015) indicated that the collisions did not exclusively form compound nuclei due to the change in compound nuclear fissility as the neutron-richness increased. In Figure 5, the curvature parameters determined for each system are shown as a function of \raisebox{2.0pt}{\chi}_{\mathrm{CN}} and $\alpha$. There is considerable scatter of the curvature parameters when plotted against either \raisebox{2.0pt}{\chi}_{\mathrm{CN}} or $\alpha$ although there is a general increase in the curvature parameter with increasing fissility.

III.3 Energetics

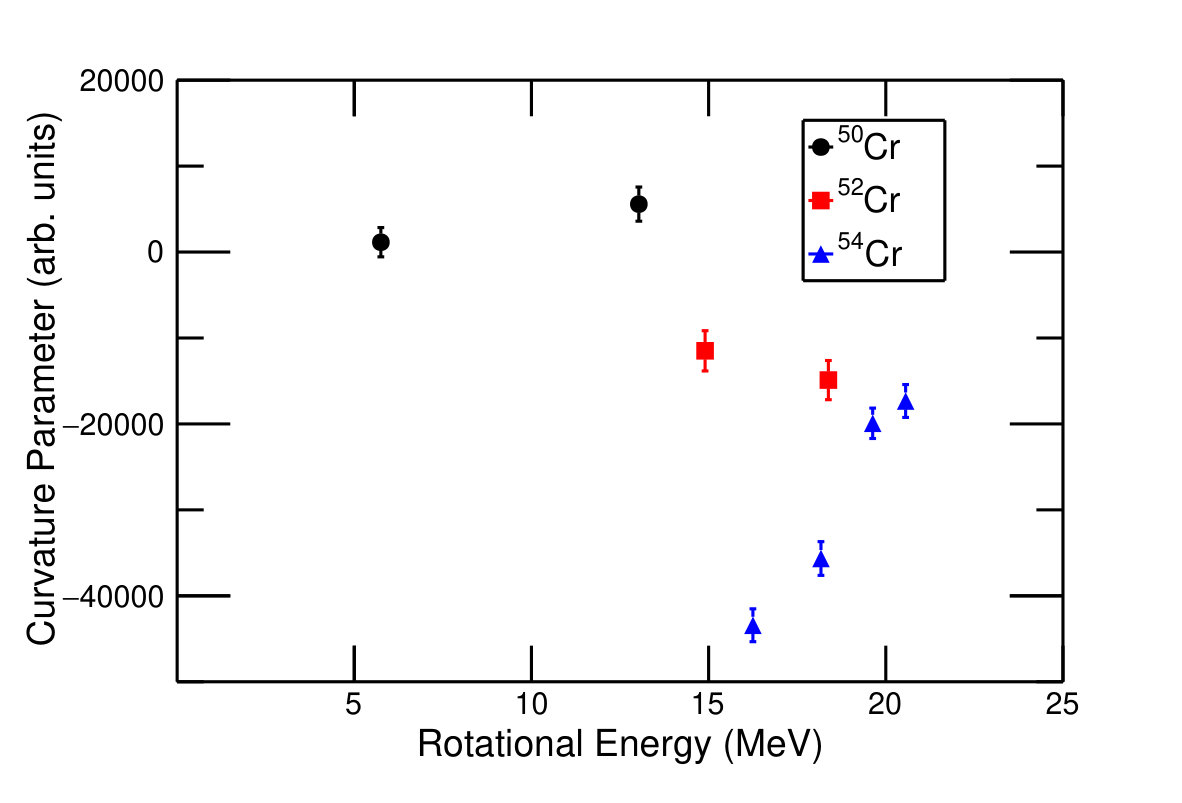

The center of mass energies for each system differed significantly to reach the same E${}^{*}_{\mathrm{CN}}=52.0$ MeV. This resulted in large variations in the maximum rotational energy available to each system, calculated as Erot = Ec.m. - VB. The maximum rotational energies carried by for the systems measured in this work ranged from 5.75 to 20.56 MeV. While the systems with the lowest rotational energies have the highest curvature, there is not an overall correlation between maximum rotational energies and curvature, as seen in Figure 6. Note that the previously reported Cr + W systems Hammerton et al. (2015), measured at Ec.m. /V${}_{\mathrm{B}}=1.13$, had a minimal change in rotational energy from 25.12 - 25.6 MeV, thus limiting the influence of this variable.

III.4 Deformation Effects

The 50,52,54Cr nuclei can be approximated as spherical, but 180,182,184,186W are all strongly deformed. The $\beta_{2}$ values calculated in Möller et al. (1995) are shown in Table 2. The significant deformation of the W nuclei results in a $\sim 1$ fm variation from the average radius of the semi-major and semi-minor radius, Table 3.

To reach E${}^{*}_{\mathrm{CN}}$ of 52.0 MeV, the center of mass energy of the reaction is lower and thus closer to the Bass barrier Bass (1977) relative to the energies necessary to reach E${}_{\mathrm{c.m.}}/\mathrm{V}_{\mathrm{B}}=1.13$. As shown by previous works Hinde et al. (1995, 1996); Nishio et al. (2010); Wakhle et al. (2014); Knyazheva et al. (2007); Hinde et al. (2008b); Nishio et al. (2008), deformation has a large impact near the interaction barrier. In reactions of deformed nuclei, the barrier is dependent on the orientation of the deformed nucleus. Generally, the reported interaction barrier is an average of all possible collision orientations.

Many previous works Hinde et al. (1995, 1996, 2002); Rafiei et al. (2008); Thomas et al. (2008); Hinde et al. (2008b); Nishio et al. (2001); Mitsuoka et al. (2002) have shown that at Ec.m. near or below the interaction barrier the structure of the nuclei involved in a heavy-ion fusion reaction, particularly a heavy reaction partner with a large deformation, has a significant effect on the reaction dynamics. When a deformed heavy nucleus takes part in the reaction the evaporation residue cross section was observed to be hindered at energies near the barrier Nishio et al. (2001); Mitsuoka et al. (2002). Similarly, at center-of-mass energies near the barrier, hindrance of the related fusion-fission reaction channel has also been attributed to the presence of a deformed heavy nucleus in the entrance channel  Hinde et al. (1995, 1996, 2002); Rafiei et al. (2008); Thomas et al. (2008); Hinde et al. (2008b). This loss in evaporation residue and fusion-fission production correlates with an increase in the strength of the quasifission reaction channel Hinde et al. (1995, 1996).

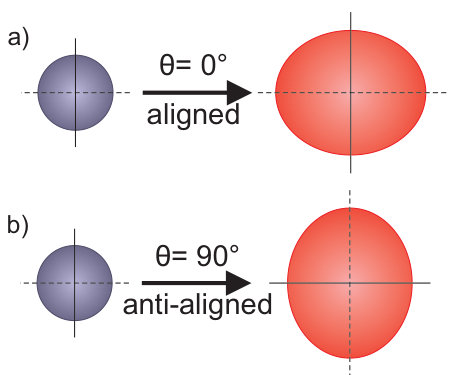

It is useful to consider the change in the barrier for the two extreme collision types at an impact parameter b=0. The nuclear symmetry axes of the two nuclei are aligned and the Cr collides with the tip of the prolate W (Figure  7, Panel a) or when the projectile and target nuclear symmetry axes are anti-aligned and the Cr interacts with the elongated side of the prolate W (Figure  7, Panel b).

Aligned collisions result in an elongated dinuclear system. This long shape leads to a preference for quasifission Hinde et al. (1995, 1996, 2008b). Conversely, anti-aligned collisions produce a compact dinuclear system that has an enhanced probability of forming a fully fused compound nucleus Hinde et al. (1995, 1996, 2008b).

The interaction barriers were calculated for the two orientations described above. First, the deformed tungsten nuclei was approximated as an ellipsoid of revolution where the various radii can be calculated from the expression

[TABLE]

where Ravg is the average radius of the two major axes, $\beta_{2}$ is the deformation parameter along the semi-major axis of interest, and $\mathrm{\textbf{Y}}_{20}$ is a spherical harmonic function ($\mathrm{\textbf{Y}}_{LM}$) where $L$ is 2, $M$ is 0, and $\beta_{4}$ is neglected Loveland et al. (2006). In a prolate deformed nucleus, there are two axes of interest: (1) the elongated semi-major axis, along the nuclear symmetry axis which is indicated by the dashed, black line in the example prolate deformed nucleus in Figure 7, (2) the shortened semi-minor axis indicated by the solid, black line in the example prolate deformed nucleus in Figure 7. The limiting case of the semi-major and semi-minor axes can be calculated as:

[TABLE]

The radius used in the present work was taken to be the Blocki half-density radius Bass (1977) given by the expression Ravg = $1.16*\mathrm{A}^{1/3}-1.39*\mathrm{A}^{-1/3}$. The average, semi-major, and semi-minor radii are listed for the Cr and W nuclei in Table 2. The semi-major and semi-minor axes change by more than 1 fm compared to the average radius, or by about 10$\%$ of the total, because of the strong deformation of the W nuclei. This change in radius has a large effect on the interaction barrier associated with each case considered in this discussion. The interaction radius for a given orientation ($\theta$ as defined in Figure 7) was determined as Rint($\theta$) = RCr($\theta$) + RW ($\theta$). The Bass barriers Bass (1977) for all three orientations (averaged, aligned, and anti-aligned) are shown in Table 3. As expected the barriers for the aligned collisions are lower than the average, while the barriers for the anti-aligned collisions are higher than the average barriers. In Figure 8, the curvature is plotted as a function of Ec.m. / VB for the average (Panel b), aligned (Panel a), and anti-aligned (Panel c) barriers with the dashed vertical line showing the barrier energy in each panel. For the two reactions of 50Cr, the anti-aligned collision type is strongly hindered as Ec.m. / V${}_{\mathrm{B}}(\mathrm{anti-aligned})=0.98$ and $1.01$.

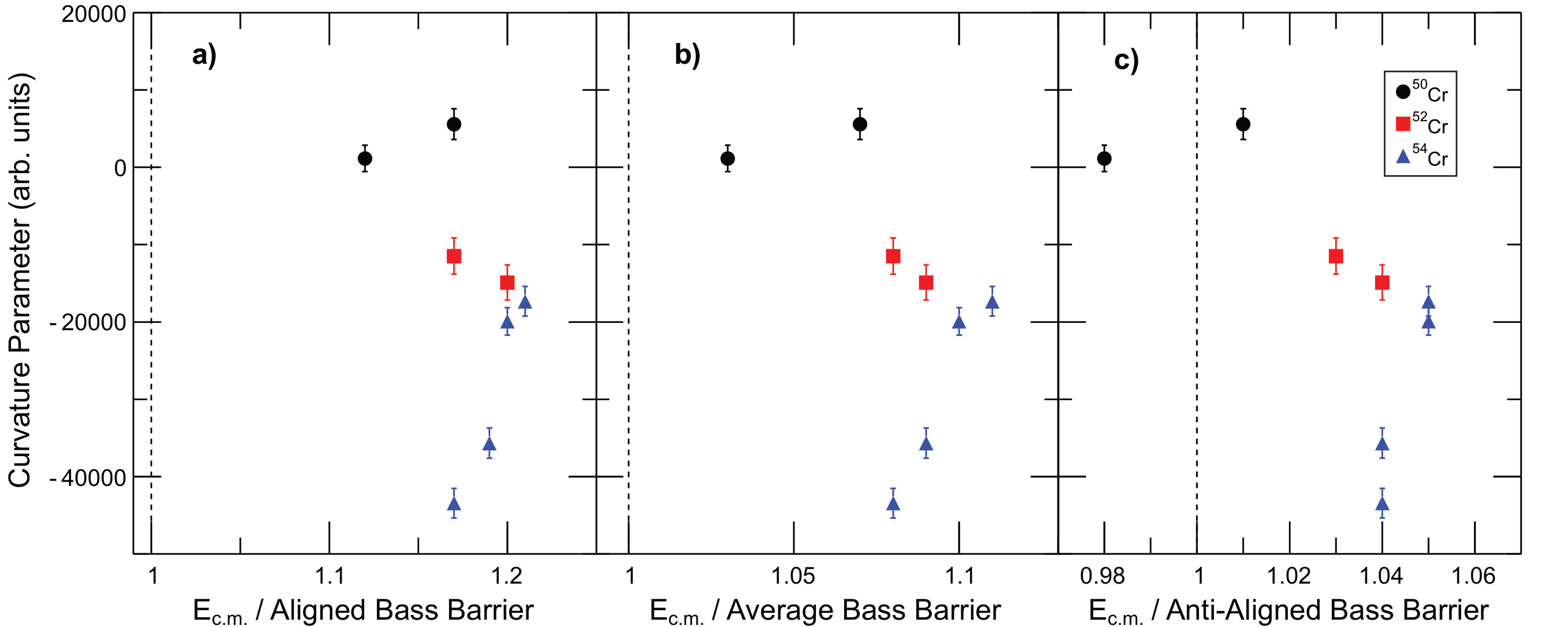

Previous work Hinde et al. (1995, 1996, 2002); Rafiei et al. (2008); Thomas et al. (2008); Hinde et al. (2008b); Nishio et al. (2001); Mitsuoka et al. (2002) has generally shown that quasifission increases near the barrier for heavier systems. In the present case, fusion in the anti-aligned orientation was seen to be hindered for the 50Cr systems, therefore, the majority of events that successfully capture and form a dinuclear system do so in the aligned orientation which preferentially leads to the quasifission reaction channel. The other systems in this work are able to capture in all orientations, including those that preferentially lead to fusion-fission, effectively lowering the curvature of the observed mass distributions and decreasing the amount of quasifission relative to the 50Cr systems.

IV Conclusions

Fission fragment mass distributions were measured for a series of Cr + W reactions at E${}^{*}_{\mathrm{CN}}=52.0$ MeV. A curvature parameter was defined to characterize each mass distribution; a more negative curvature parameter being consistent with the presence of a more prominent fusion-fission reaction channel. The Bohr Independence Hypothesis was not followed for three systems that form the same compound nucleus. Unlike the previously measured Cr + W systems, at Ec.m. / V${}_{\mathrm{B}}=1.13$, there was not a strong correlation between the curvature of the distribution and (N/Z)CN. Compound nuclear fissility, mass asymmetry, and rotational energy cannot completely explain the change in quasifission flux between the Cr + W systems. Significant variation in the maximum rotational energy gives an indication as to why the lower energies measured here lead to a higher quasifission flux compared to the previous results for the same Cr + W systems. The strong shift of the fusion barrier depending on the orientation of the deformed W targets significantly hinders the more compact dinuclear orientations that favor fusion, leading to an enhanced quasifission flux for the 50Cr $+^{180}$W and 50Cr $+^{186}$W systems. In reactions of neutron-rich projectiles and targets to form new heavy and superheavy isotopes it is vital to consider the effect of deformation on quasifission, particularly at energies near to the interaction barrier.

Acknowledgments. The authors are grateful for the high quality beams provided by the staff at the ANU accelerator facility. This work is supported by the National Science Foundation under Grants No. PHY-1102511 and No. IIA-1341088, by the U.S. Department of Energy under Grant No. DE-FG02-96ER40975 with Vanderbilt University, and the Australian Research Council Grants DP160101254, DP140101337, FL110100098, DP130101569, FT120100760, and DE140100784. This material is based upon work supported by the Department of Energy National Nuclear Security Administration through the Nuclear Science and Security Consortium under Award Number DE-NA0000979.
