Generalized uncertainty principle and extra dimensions

TL;DR

This paper reviews the extension of the generalized uncertainty principle (GUP) to higher-dimensional spacetimes, focusing on its implications for black hole physics and nonlocal gravity modifications at Planck scales.

Contribution

It critically examines existing literature on applying GUP to higher dimensions and discusses potential impacts on black hole and quantum gravity models.

Findings

GUP modifications can influence black hole properties in higher dimensions

Nonlocal gravity models are relevant for Planck scale physics

The literature on higher-dimensional GUP is diverse and evolving

Abstract

The generalized uncertainty principle (GUP) is a modification of standard quantum mechanics due to Planck scale effects. The GUP has recently been used to improve the short distance behaviour of classical black hole spacetimes by invoking nonlocal modifications of the gravity action. We present the problem of extending such a GUP scenario to higher dimensional spacetimes and we critically review the existing literature on the topic.

Figures

Equations

$$[x^i,p_j]=i\hslash {\delta }_j^i(1+f({\vec{p}}^2)),$$

$$\Delta x\Delta p\ge \frac{\hslash }{2}(1+\beta (\Delta p{)}^2).$$

$$\mathrm{d}{s}^2=-\left(1-\frac{2G\mathcal{M}(r)}{r}\right)\mathrm{d}{t}^2+{\left(1-\frac{2G\mathcal{M}(r)}{r}\right)}^{-1}\mathrm{d}{r}^2+r^2\mathrm{d}{\Omega }^2.$$

$$\mathcal{M}(r)$$

$$1=\int \frac{{\mathrm{d}}^{N}p}{1+\beta {\vec{p}}^2}\mid p⟩⟨p\mid ,$$

$$\mathrm{d}{\mathcal{V}}_p\equiv \frac{{\mathrm{d}}^{N}p}{1+\beta {\vec{p}}^2}\underset{\beta {\vec{p}}^2\gg 1}{\approx }{\vec{p}}^{N-3}\mathrm{d}p.$$

$$\Phi (r)=-\frac{G_{(N)}M}{(2\pi {)}^N}\int \mathrm{d}{\mathcal{V}}_{p}D\left(p\right){\mid }_{p_0=0}\exp \left(i\vec{p}\cdot \vec{x}\right),$$

$$\frac{\Phi (r)}{G_{(N)}M}=\underset{\text{classical potential}}{\underbrace{{\pi }^{1-\frac{N}{2}}\Gamma \left(\frac{N}{2}-1\right){\left(\frac{1}{r}\right)}^{N-2}}}-\underset{\text{GUP corrections}}{\underbrace{\frac{2}{(2\pi r\sqrt{\beta }{)}^{\frac{N}{2}-1}}{K}_{\frac{N-2}{2}}\left(\frac{r}{\sqrt{\beta }}\right)}}$$

$$\Delta x_{\mathrm{g}}\sim G_{(N)}\frac{M_{\mathrm{eff}}}{r^{N-1}}\left(\frac{r^2}{c^2}\right)\sim G_{(N)}\frac{\Delta p}{r^{N-3}}⇝\Delta x_{\mathrm{g}}^{N-2}\sim L_{(N)}^{N-1}\Delta p,$$

$$\Delta x\Delta p\ge \frac{\hslash }{2}\left(1+{\left(\sqrt{\beta }\Delta p\right)}^{\frac{N-1}{N-2}}\right),$$

$$\Delta x_{\mathrm{g}}\sim G_{(N)}\frac{M_{\mathrm{eff}}}{r^{N-1}}\left(\frac{r^2}{c^2}\right)\sim G_{(N)}\frac{\Delta p}{r^{N-3}}\sim L_{(N)}^{N-1}\Delta p^{N-2}$$

$$\mathrm{d}{\mathcal{V}}_p\equiv \frac{{\mathrm{d}}^{N}p}{1+(\beta {\vec{p}}^2{)}^{\frac{N-1}{2}}}\underset{\beta {\vec{p}}^2\gg 1}{\approx }\mathrm{d}p.$$

Full text

1 Generalized uncertainty principle and black holes

Gravitation plays no conventional role in quantum mechanical systems. Atoms are dominated by electromagnetic forces, with nuclear forces becoming relevant at the smaller sub-atomic scales. It is, however, interesting to ask how quantum mechanics deviates from its standard formulation if the above systems were subject to gravitational interactions. A full answer to this question would require a quantum theory of gravity, whose formulation is probably one of the biggest problems in fundamental physics. There is nevertheless a “side effect” of quantum gravity that one can estimate in a semiclassical way. For instance, one can consider a non-vanishing Newtonian gravitational interaction between the photon and the electron in Heisenberg’s microscope Gedankenexperiment Adl10 . As a result one finds a modification of standard commutation relations Ven86 ; ACV89 ; ACV93 ; Mag93 ; KMM95

[TABLE]

where the function $f$ is customarily assumed as $f(\vec{p}^{2})\simeq\beta\vec{p}^{2}+\dots$ to first order. Interestingly, the parameter $\beta$ turns out to be a natural ultraviolet cutoff, since the corresponding uncertainty relations prevent better spatial resolution than $\sqrt{\beta}$,

[TABLE]

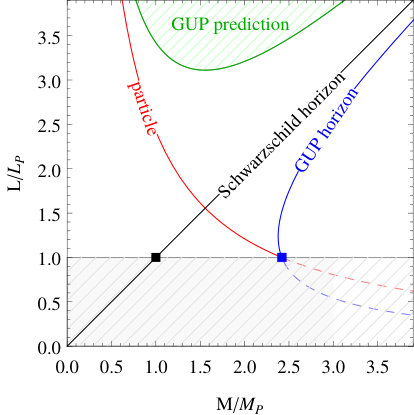

The above relation is the Generalized Uncertainty Principle (GUP), represented in Fig. 1.

The GUP has been studied in a variety of physical systems (for reviews see SNB12 ; Hos13 ; TaM15 ), and applied most notably to black holes and their evaporation Mag93 ; ChA03 ; APS01 ; COY14 . By assuming the emitted particles have momenta uncertainty proportional to the black hole temperature, $\Delta p\sim T$, and position uncertainty proportional to the black hole size, $\Delta x\sim GM$, one ends up with a non-divergent increase of the black hole temperature and vanishing heat capacity at the Planck scale. Such a scenario for the final stage of the evaporation would suggest the formation of a black hole remnant – a Planckian size, neutral object that might be considered as a dark matter candidate AdS99 ; APS01 . Unfortunately this particular GUP temperature profile cannot be associated to a surface gravity of any known black hole metric. In addition such remnants would turn to be hot, since their temperature is of the order of the Planck temperature $T_{\mathrm{P}}\sim 10^{32}$ K.

Against this background, it has recently been noted that GUP effects can be implemented at the level of the spacetime metric by a non-local deformation of the gravitational action IMN13 . This approach allows for calculating corrections to black hole thermodynamics by a genuine modification of the surface gravity. In the case of a spherically symmetric, static, and neutral black hole, one can solve the non-local equations and obtain the metric

[TABLE]

Here $\mathcal{M}(r)$ takes into account the spread of matter that is no longer concentrated in a point, as conventionally occurs in the Schwarzschild case Nic09 ; BaN93 ; BaN94 ; DeB08 ; SpS17 . For a specific profile of the nonlocal action, the mass distribution $\mathcal{M}(r)$ reproduces the ultraviolet smearing predicted by the GUP. The final result then reads

[TABLE]

with $M$ the ADM mass and $\gamma(s,\,x)$ the lower incomplete gamma function. A compelling feature of the GUP is that it implies a tail of the mass distribution trespassing the event horizon, in close analogy with the leakage of quantum mechanical effects that has been recently invoked to overcome the black hole information paradox GBU16 . The above metric features a two-horizon structure and an extremal configuration. The latter is a zero temperature state that nicely fits into the cold dark matter paradigm. Interestingly, the presence of the remnant makes the metric consistent with the expected self-complete character of gravity DFG11 ; DGG11 ; DvG10 ; DvG12 ; AuS13 ; AuS13b ; MuN12 ; Car14 ; CMN15 ; SpA11 ; NiS12 ; FKN16 . Rather than a complete evaporation, the black hole asymptotically approaches the remnant configuration, preventing the exposure of length scales smaller of $\sqrt{\beta}$ (see Fig. 1).

2 Extra dimensions and the Heisenberg microscope

Terascale quantum gravity is a formulation proposed to address the weak hierarchy problem of the Standard Model by assuming the existence of additional spatial dimensions RuS83 ; RuS83b ; AAD98 ; ADD98 ; ADD99 ; BaF99 ; RaS99a ; RaS99b ; ACD01 ; Gog99 ; Gog00 ; Gog02 . According to the Arkani-Hamed/Dimopoulos/Dvali (ADD) model, the spacetime is endowed with $N-3$ extra dimensions which are compactified at a length scale $R\sim 1$ mm or smaller. Gravity is the only fundamental interaction able to “see” the additional dimensions, which would become relevant only for high energy events (i.e., at the TeV or higher). If this is the case, GUP effects should be expected to set in at these energy scales rather than at the usual Planck scale. It is therefore natural to consider the higher dimensional extension of the non-local action proposed in IMN13 and derive the related black hole solution. To reach this goal, however, one has to face a potential ambiguity that we illustrate below.

According to the Kempf-Mangano-Mann (KMM) model KMM95 , the Hilbert space representation of the identity reads

[TABLE]

with $\vec{p}$ an $N$-dimensional spatial vector. This can be interpreted as saying that, while momentum operators preserve their standard character, position operators do not have physical eigenstates, as one expects in the presence of a minimal length $\sqrt{\beta}$. Accordingly the integration measure in momentum space is squeezed in the ultraviolet regime as follows

[TABLE]

We note the GUP correction becomes less and less important with increasing $N$.

The above profile of GUP corrections can be used to improve the higher dimensional Newtonian potential. This can offer a first taste of the repercussions of GUP, even before extending the action proposed in IMN13 to the higher dimensional case. To reach this goal one has to consider the exchange of virtual massless scalars between two static bodies at distance $r=|\vec{x}|$. The static gravitational potential is the Fourier transform of the massless scalar propagator,

[TABLE]

where the integration measure has been deformed as in (6). The net result reads

[TABLE]

for $r<R$. The short distance behaviour of the above potential is regular at the origin only for $N=3$, i.e., $\Phi=1/\sqrt{\beta}$ as $r\to 0$. For $N>3$ GUP corrections are suppressed and cannot improve the potential.

There are, however, other proposals. As stated in the introduction, the GUP arises from the inclusion of gravitational effects in quantum mechanics. This is the case of Heisenberg’s microscope. Additional dimensions should not disrupt the reasoning that leads to the GUP Adl10 ; Car14 . As for $N=3$ we identify two terms for the spatial uncertainty $\Delta x\sim\Delta x_{\mathrm{C}}+\Delta x_{\mathrm{g}}$, one coming from the Compton wavelength of a particle $\Delta x_{\mathrm{C}}\sim\lambda\sim 1/\Delta p<R$ and one due to the gravitational potential in the compact higher dimensional space. Specifically, the photon not only illuminates the electron but also exerts a gravitational force on it. The resulting acceleration causes the electron to be displaced by

[TABLE]

where $M_{\rm eff}=h/(\lambda c)$ is the photon effective mass, $G_{(N)}$ is the higher dimensional Newtonian constant, and $L_{(N)}$ is the new fundamental length scale that replaces the Planck length. In the above derivation we assumed the interaction distance $r\sim\Delta x_{\mathrm{g}}<R$. The above Gedankenexperiment motivates a modified higher dimensional GUP

[TABLE]

where we assumed $\sqrt{\beta}\sim L_{(N)}$. Eq. (10) is consistent with what proposed in ScC03 ; Maz13 ; Car13 ; Car14 ; LaC15 ; LaC16 and cleanly reproduces the higher dimensional Schwarzschild radii for energies above the terascale. On the other hand, such a proposal fails to improve the Newtonian potential and predicts GUP corrections even milder than those of the KMM model for $N>3$.

Alternatively, one can revise the basic reasoning behind Heisenberg’s microscope in higher dimensional space. Following Fig. 1, one can approach the quantum gravity scale from the left. In such a sub-Planckian regime, the gravitational corrections are still sub-leading, i.e., $\Delta x_{\mathrm{g}}<\Delta x_{\mathrm{C}}$. Accordingly, one can assume that at the leading order, the typical interaction distance is controlled by the Compton wavelength $r\sim\Delta x_{\mathrm{C}}\sim\lambda<R$. As a result, one finds a spatial uncertainty

[TABLE]

that is consistent with that proposed in Maz12 ; DMS15 ; Maz15 . Interestingly enough, the above relation can also improve the asymptotic behaviour of the momentum integration (6), as follows

[TABLE]

The repercussions of the GUP are no longer dependent on $N$, and the suppression of higher momenta is consistent with the original derivation for $N=3$. The above integration measure (12) relaxes the condition of reproducing the Schwarzschild radius in the trans-Planckian regime, even if the condition remains valid for distances $r>R$. Such a deviation of the curve from the Schwarzschild radius for $r<R$ is fully legitimate, since the quadratic correction in (6) is known to be the lowest energy correction to standard quantum mechanics and makes sense only for the four dimensional spacetime at scales $r>R$.

It is natural to expect that at scales $r<R$ where gravity becomes so strong as to probe additional dimensions, the GUP effects also become stronger as in (10). In other words, the picture based on matching a length scale dictated by general relativity ScC03 ; Maz13 ; Car13 ; Car14 ; LaC15 ; LaC16 loses its meaning at an energy regime characterized by string/p-brane effects AAS02 , noncommutative geometry KoN10 ; SSN06 or a variety of non-classical effects MNT12 . Such a vision is also consistent with a recent proposal aiming to interpret black holes in terms of a pre-geometric, purely quantum mechanical formulation CGM16 ; DvG14 ; SpS17 .

3 Conclusions

In this paper, we have reviewed the basic properties of the GUP in three or more dimensions. We have presented a black hole metric derived by a nonlocal action able to reproduce GUP effects IMN13 . Such a metric overcomes the usual limitations one encounters when considering GUP effects in Hawking radiation APS01 . Specifically, the new metric allows for the presence of cold remnants and the derivation of the black hole temperature in terms of surface gravity. In the second part of the paper, we provided an analysis of the GUP in higher dimensional spacetime. We showed there is a potential ambiguity in the deformation of the measure in momentum space. We highlighted that current proposals are unable to reproduce a consistent cutoff to improve the bad short distance behaviour of gravity in higher dimensional spacetimes ScC03 ; Maz13 ; Car13 ; Car14 ; LaC15 ; LaC16 . As a possible resolution to such a issue, we revised the reasoning of Heisenberg’s microscope in higher dimensional spacetimes. We proposed an improved version of the GUP valid at length scales below the extra-dimensional compactification radius. Our findings are consistent with previous approaches in the literature Maz12 ; DMS15 ; Maz15 . We plan to study the repercussions of such a proposal on black hole physics in a future investigation.

Acknowledgements.

This work has partially been supported by the project “Evaporation of the microscopic black holes” of the German Research Foundation (DFG) under the grant NI 1282/2-2.
