Anisotropic Etching of Graphite and Graphene in a Remote Hydrogen Plasma

TL;DR

This study explores the anisotropic etching of graphite and graphene using a remote hydrogen plasma, revealing distinct regimes and substrate-dependent etching behaviors, enabling precise nanostructure fabrication.

Contribution

It demonstrates the conditions for anisotropic etching in remote plasma regimes and shows substrate-dependent etching patterns in graphene, advancing nanofabrication techniques.

Findings

Remote plasma regime enables anisotropic etching with regular hexagon shapes.

Graphene on hBN exhibits highly anisotropic etching, unlike on SiO2.

Artificial defects can be used to create well-defined graphene nanostructures.

Abstract

We investigate the etching of a pure hydrogen plasma on graphite samples and graphene flakes on SiO$_2$ and hexagonal Boron-Nitride (hBN) substrates. The pressure and distance dependence of the graphite exposure experiments reveals the existence of two distinct plasma regimes: the direct and the remote plasma regime. Graphite surfaces exposed directly to the hydrogen plasma exhibit numerous etch pits of various size and depth, indicating continuous defect creation throughout the etching process. In contrast, anisotropic etching forming regular and symmetric hexagons starting only from preexisting defects and edges is seen in the remote plasma regime, where the sample is located downstream, outside of the glowing plasma. This regime is possible in a narrow window of parameters where essentially all ions have already recombined, yet a flux of H-radicals performing anisotropic etching is still present. At the required process pressures, the radicals can recombine only on surfaces, not in the gas itself. Thus, the tube material needs to exhibit a sufficiently low H radical recombination coefficient, such a found for quartz or pyrex. In the remote regime, we investigate the etching of single layer and bilayer graphene on SiO$_2$ and hBN substrates. We find isotropic etching for single layer graphene on SiO$_2$, whereas we observe highly anisotropic etching for graphene on a hBN substrate. For bilayer graphene, anisotropic etching is observed on both substrates. Finally, we demonstrate the use of artificial defects to create well defined graphene nanostructures with clean crystallographic edges.

Figures

Full text

Graphene nanoribbons (GNRs) have emerged as a promising platform for graphene nano devices, including a range of intriguing quantum phenomena beyond opening of a confinement induced band gapFujita et al. (1996); Nakada et al. (1996); Son, Cohen, and Louie (2006a, b); Trauzettel et al. (2007). In armchair GNRs, giant Rashba spin-orbit coupling can be induced with nanomagnets, leading to helical modes and spin filteringKlinovaja and Loss (2013). Further, Majorana fermions localized at the ends of the ribbon were predicted in proximity of an s-wave superconductorKlinovaja and Loss (2013). Zigzag ribbons, on the other hand, were proposed as a promising system for spin filtersSon, Cohen, and Louie (2006a). Theory showed that electronic states in zigzag ribbons are strongly confined to the edgeFujita et al. (1996); Nakada et al. (1996); Son, Cohen, and Louie (2006a), recently observed in experimentsTao et al. (2011); Pan et al. (2012); Zhang et al. (2013); Wang et al. (2016a). Further, edge magnetism was predicted to emerge at low temperaturesFujita et al. (1996); Nakada et al. (1996); Son, Cohen, and Louie (2006b); Yazyev (2010), with opposite GNR edges magnetized in opposite directions. High quality, crystallographic edges are very important here, since edge disorder suppresses magnetic correlationsYazyev (2010) and tends to cause electron localization, inhibiting transport studies. GNRs fabricated with standard electron beam lithography (EBL) and Ar/O2 etching typically exhibit pronounced disorder Han et al. (2007); Mucciolo, Castro Neto, and Lewenkopf (2009); Oostinga et al. (2010); Stampfer et al. (2009); Gallagher, Todd, and Goldhaber-Gordon (2010); Liu et al. (2009); Molitor et al. (2010), complicating transport studies.

Fabrication methods creating ribbons with clean crystallographic edges were recently developed, including carbon nanotube unzipping Jiao et al. (2010); Kosynkin et al. (2009), ultrasonication of intercalated graphite Li et al. (2008), chemical bottom up approaches Cai et al. (2010); Ruffieux et al. (2016), anisotropic etching by nickel nanoparticles Campos et al. (2009) or carbothermal etching of graphene sheets Nemes-Incze et al. (2010); Krauss et al. (2010). Here, we use a hydrogen (H) plasma etching technique McCarroll and McKee (1971); Yang et al. (2010); Shi et al. (2011); Xie, Jiao, and Dai (2010) because it allows precise, top-down and on-demand positioning and tailoring of graphene nanostructures. Such nanostructures can easily be designed to spread out into larger graphene areas incorporated into the same graphene sheet, thus providing for a relatively easy way to make electrical contacts.

In this work, we investigate the anisotropic H plasma etching of graphite surfaces in dependence of the gas pressure and the sample - plasma distance. We find that the etching characteristics can be divided into a direct and a remote plasma regime. In the direct plasma regime, the sample is placed within the glowing plasma, and surfaces show many hexagons of various sizes indicating a continuous defect induction throughout the etching process. In the remote plasma regime, on the other hand, the sample is placed downstream of the glowing plasma, and etching occurs only from preexisting defects which makes the fabrication of well defined graphene nanostructures possible. Further, we have prepared single layer (SL) and bilayer (BL) graphene flakes on SiO2 and hexagonal boron nitride (hBN) substrates and exposed them to the remote H plasma. We observe a strong dependence of the anisotropy of the etch on the substrate material. SL graphene on SiO2 is etched isotropically, confirming previous findingsShi et al. (2011); Diankov, Neumann, and Goldhaber-Gordon (2013), whereas we observe highly anisotropic etching of SL graphene on hBN Wang et al. (2016b), producing very regular and symmetric hexagonal etch pits. Anisotropic etching of SL graphene on hBN offers the possibility to fabricate diverse graphene nanostructure with well defined edges (e.g. GNRs) and allows investigation of their intrinsic electronic transport properties.

A pure H plasma was created in a quartz tube through a matching network by a $13.56\,$MHz radio frequency (RF) generator at a typical power of $30\,$W. This RF power was capacitively coupled to the $80\,$mm diameter tube by an outer electrode acting as a surfatronMoisan and Zakrzewski (1991). The pressure was regulated using a needle valve for 20 SCCM H gas flow of purity 6N. The sample was placed at a distance $d$ from the end of the surfatron, was electrically floating and a three-zone furnace controlled the temperature $T$. See supplementary online materials (SOM) for additional information. Ion impact energy is roughly the difference between the plasma potential and the floating potential and is around $10-15$ eV with an average ion mass of 2 amu. We estimate the ion flux to be significantly lower than $10^{15}$ ions/cm2s measured for a similar plasma setup but at lower pressureEren et al. (2012). In order to characterize and optimize the anisotropic etching process, we studied the influence of pressure, distance, and temperature on the etching process, generally finding good repeatability. We first investigated graphite flakes, allowing for rather simple and fast processing. The graphite specimenNGS were cleaned by peeling with scotch tape and subsequently exposed for one hour to a pure H plasma at $T=400\,\degC$.

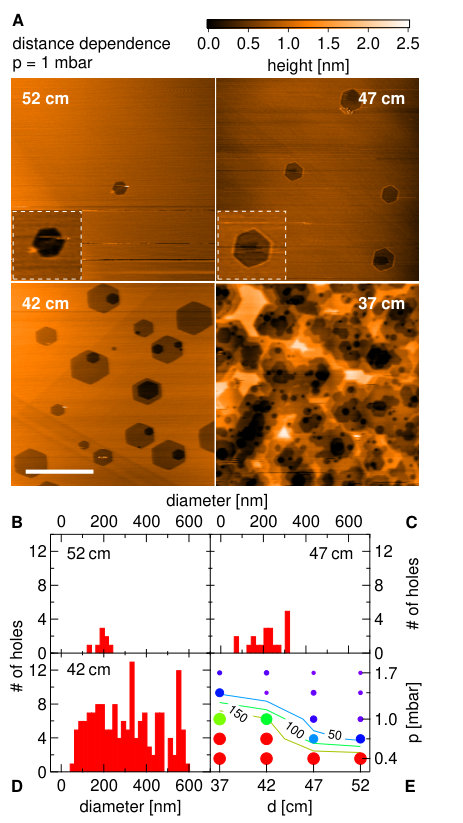

We first present the distance dependence of the H plasma process. Figure 1A shows AFM topography scans for exposures of one hour at four different distances at constant pressure $p=1\,$mbar. At the larger distances, etch pits of monolayer step height are created upon plasma exposure, exhibiting a regular hexagonal shape and demonstrating a strongly anisotropic process McCarroll and McKee (1971); Yang et al. (2010). All observed hexagons exhibit the same orientation. From previous studies, it is known that hexagons created by exposure to a remote H plasma exhibit edges pointing along the zigzag direction McCarroll and McKee (1971); Yang et al. (2010). As the sample is brought closer to the plasma, significantly more etch pits appear, often located at the border of existing holes, sharing one common hexagon side (see Figure 1A, $d=42\,$cm). For the closest position $d=37\,$cm – unlike the larger distances – the sample is located within the visible plasma glow region, resulting in a strong and several layers deep scarring of the entire surface.

To quantitatively study the distance dependence, we evaluated larger images to gather better statistics and plot histograms showing the number of holes as a function of diameter, see Figure 1B-D. The overall number of holes obviously increases strongly with decreasing sample-surfatron distance $d$. For small distances, a wide distribution of diameters is seen, ranging from several $100\,$nm down to nearly vanishing hexagon size, suggesting that new defects serving as etch seeds are created throughout the exposure time. The width of the hole diameter distribution is given by the anisotropic etch rate and the exposure duration in this regime. For larger $d$, on the other hand, the few holes seen have comparable diameters, consistent with etching proceeding predominantly from preexisting graphite defects, without adding new defects. This results in a narrow width of the distribution of hole sizes. As previously reported McCarroll and McKee (1971); Shi et al. (2011); Yang et al. (2010), exposure to energetic ions seems to create defects, while exposure to hydrogen radicals appears to result in anisotropic etching and growth of hexagons centered around preexisting defects and borders.

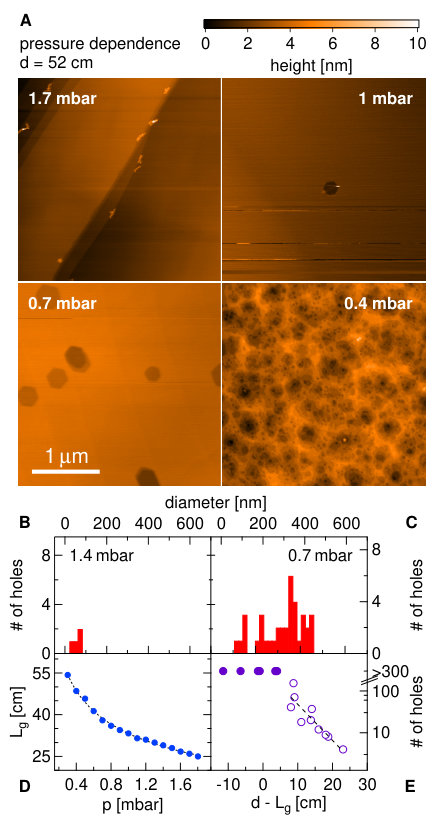

Next, we turn to the pressure dependence. In Figure 2A, AFM topography images are shown at four different pressures $p$ at constant distance $d=52\,$cm. The number of holes increases with decreasing pressure, similar to decreasing distance, giving rise to etch pits of monolayer step height at intermediate pressures. At the highest pressures, however, no etch pits were observed, in strong contrast to the lowest pressure, where ubiquitous and deep etching is seen, demonstrating the strong influence of $p$. Analyzing the etch pits using histograms confirms that $p$ and $d$ have a similar influence on the etching process (compare Figure 2B, C with Figure 1B-D). Figure 1E summarizes the histograms of all investigated graphite samples, using color to represent the number of holes, while the size of each marker is proportional to the width of the distribution of hole diameters. A clear correlation between the number of holes and the width of the distribution is seen: the largest circles are red, while the small circles are purple.

The analysis of the graphite exposure data leads to two qualitatively different types of processes: the direct and the remote plasma regime. In the direct plasma regime (large, red circles, Figure 1E), the sample is located directly within the plasma discharge region, hence exposing it to large densities of radicals and ions, capable of inducing defects throughout the exposure, giving a broad hole diameter distribution. In the remote plasma regime (small, purple circles, Figure 1E), on the other hand, the sample is positioned outside, downstream of the plasma generation region, where ions have recombined and only a residual flux of radicals is present. There, etching proceeds predominantly from preexisting defects and edges, leaving the basal planes mostly untouched. In this regime, a narrow distribution of hole diameters results, centered around the diameter given by the anisotropic etch rate and the exposure time.

Further, there is an intimate connection between distance and pressure: lower pressure results in a longer gas mean free path and therefore a larger average distance for recombination in the diffusive gas. This results in a larger length of the plasma column $L_{g}(p)$, measured from the edge of the visibly glowing plasma to the surfatron, see Figure 2D. Thus, changing the pressure with fixed sample position modifies the distance between sample and plasma edge. Hence, it is useful to introduce an effective distance $d^{\prime}=d-L_{g}(p)$, the distance from the sample to the edge of the glowing plasma. Thus, $d^{\prime}\lesssim 0$ roughly marks the direct plasma regime while $d^{\prime}\gg 0$ signifies the remote plasma regime. Reactive particles are generated inside the plasma column and start recombining once they have left the plasma generation region.

The reaction kinetics in low temperature H plasmas are highly non-trivial despite the relatively simple chemical compositionJanev, Reiter, and Samm (2003). Nevertheless, it is well known that at the pressures used here ($p\sim 1\,$mbar), the predominant radical decay mechanism is surface mediated association rather than gas collisions. Two colliding H atoms require a third body to carry away the excess energy for association to occur Dixon-Lewis, Sutton, and Williams (1962). However, under the present conditions, three body collisions are very unlikely, thus leaving only the surface assisted process (which also leads to surface heatingGrubbs and George (2006)). Recombination of ions, in contrast, can also occur through an additional collisional channel, in absence of a surface. Which species – ions or radicals – decay on a shorter length scale downstream of the plasma edge thus depends on both the surface properties and gas parameters. For anisotropic etching without defect creation, a flux of H radicals in absence of ions is needed, thus requiring the ion density to decay on a shorter length than the radicals.

The surface attenuation of H radicals thus plays an important role, and was previously studied Shuler and Laidler (1949); Grubbs and George (2006). Some glasses such as pyrex or quartz – as used in our experiments – were identified as a materials with a low recombination coefficient, particularly compared to some common metallic surfaces such as stainless steel and aluminum. This weak surface attenuation can open a downstream window offering a flux of H radicals while essentially all ions have already recombined, as desired and achieved here, see e.g. Figure 1B, 2B and 3 (below). Nevertheless, the etch rate in the downstream window was observed to decrease slowly over long periods of time, reaching a vanishingly small etch rate after more than 100 hours of plasma exposure. The elevated temperatures in the furnace may enhance impurity migration towards the surfaces of the tube, possibly amplifying the surface attenuation of H radicals. Larger anisotropic etch rates were observed when utilizing higher purity quartz tubes manufactured from synthetic fused silicaSup , supporting the assumption of the role of impurities. High impurity content and even small amounts of metallic deposition on the tube wall give wave damping due to dielectric losses and result in an enhanced decay of radicals.

To study the decay of reactive species, we note that the ion flux is proportional to the number of holes created. We find a roughly exponential decrease of the number of holes with distance, see Fig.2E and SOM, with a 1/e decay length of about 5 cm. The anisotropic etch rate, on the other hand, is related to the flux of H radicals. We extract the anisotropic etch rate, defined as the growth per unit time of the radius of a circle inscribed to the hexagonal etch pit, averaged over a number of holes, shown in Figure 4A. Only the largest set of hexagons of each exposed graphite sample were evaluated to obtain the etch rate, since smaller holes might not have etched from the beginning of the exposure. As expected, the anisotropic etch rate is largest for small distances, falling off quickly with increasing separation from the plasma edge. There is also an apparent pressure dependence, with larger pressures tending to give lower etch rates, see Fig. 4A. Given only two or three points along the d-axis for each pressure, and only few holes for some parameter sets ($d$, $p$), a reliable H-radical decay length cannot be extracted from these data. A theoretical estimate gives an H-radical decay length of $\sim 12\,$cm, see SOM, in agreement with observations in Fig. 4A, and longer than the ion decay length of $5\,$cm, as observed. The etch rates we extract are a few nm per min at $400\,{\rm{}^{\circ}C}$, consistent with previous reportsYang et al. (2010); Shi et al. (2011).

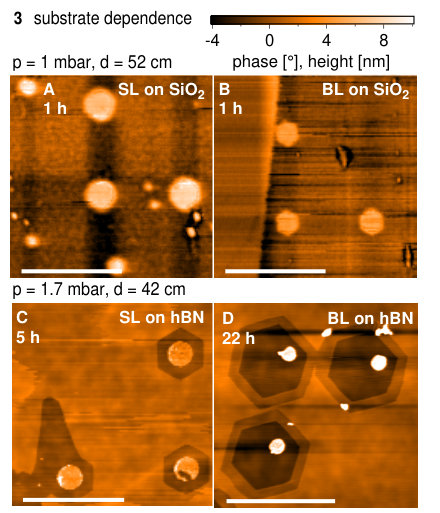

Next, we study the plasma exposure of SL and BL graphene exfoliated onto a SiO2 substrate using the established tape methodNovoselov et al. (2004). We patterned disks using standard EBL and reactive ion etching with an $\mathrm{Ar/O}_{2}$ plasma, resulting in circular graphene holes which were subsequently exposed to the remote H plasma in the regime where H radicals but essentially no ions are present, as determined from the graphite experiments. BL graphene grows regular hexagons with parallel sides (see Figure 3B), as expected from the graphite results. SL graphene, on the other hand, displayed mostly round holes (see Figure 3A), though some weakly developed, irregular hexagonal shapes are also occasionally seen. Further, several additional, not EBL defined holes appear on the SL after exposure, all smaller than the EBL initiated etch pits. After a second plasma exposure, the number of holes on the SL increased further, indicating generation of new defects, while only EBL defined holes appear on the BL. Note that the SL and BL regions shown in Figure 3A and B are located on the same graphene flake, ensuring identical plasma conditions.

In addition, the average hole diameter on SL is visibly larger than on the BL (Figure 3A and B) after the same exposure time, indicating a faster etch rate on SL. Thus, SL on SiO2 is more reactive when exposed to the plasma and no longer anisotropic when exposing . This is consistent with previous reportsDiankov, Neumann, and Goldhaber-Gordon (2013); Shi et al. (2011); Wang et al. (2016b), and is suspected to arise from charge inhomogeneities in the SiO2 substrateZhang et al. (2009); Decker et al. (2011); Xue et al. (2011) or other SiO2 surface properties. A broad range of plasma parameters in the remote regime were investigated for SL and BL samples on SiO2, giving qualitatively similar results (isotropic SL etching). The etch rate for SL and BL on SiO2 is shown in Figure 4B. For the SL samples, only the EBL defined holes were evaluated, ignoring the plasma induced defects, since these do not etch from the beginning of the exposure. Clearly, for all plasma parameters studied, SL exhibits a significantly larger etch rate compared to BL Diankov, Neumann, and Goldhaber-Gordon (2013); Yang et al. (2010), as already visible from the AFM images in Figure 3A and B. The temperature dependence of the etch rate for both SL and BL on SiO2 is shown in Figure 4C. The etch rates are strongly reduced at temperatures far above and below the process temperature, consistent with previous reports Yang et al. (2010); Diankov, Neumann, and Goldhaber-Gordon (2013), and consistent with reported hydrogen recombination rates on quartz increasing dramatically with temperature Kim and Boudart (1991).

To study the substrate dependence, we investigate SL and BL graphene on high-quality hBN crystals, as in Ref. Taniguchi and Watanabe, 2007. SL and BL graphene were aligned and deposited onto areas covered with several $10\,$nm thick hBN lying on a SiO2 substrate, following the recipe of Ref. Dean et al., 2010. Then, the same fabrication steps were repeated as before to fabricate circular graphene holes. Figure 3C shows an AFM topography image of SL graphene on hBN after $5\,$h of remote H plasma exposure. Clearly, very regular and well aligned hexagonal holes are visible, indicating a highly anisotropic etch. We observed this anisotropic SL graphene etching on hBN in more than 10 samples demonstrating the high reproducability of the process.

In Figure 3D we present an AFM topography image of a BL graphene flake on hBN which was exposed to the H plasma for $22\,$h. We observe anisotropic etching of the BL flake with a slightly higher etch rate for the top layer ($\sim 0.3\,$nm/min) compared to the bottom layer ($\sim 0.2\,$nm/min), leading to a staircase-like structure at the etch pit borders. As seen in Figure 3D, the hexagons in the bottom and the top layer are of the same orientation. We note that the bottom layer is on hBN while the top layer is laying on graphene. The situation of the top layer is comparable to the SL etching on a graphite surface, where it was shown that the edges of the hexagons are aligned with the zigzag direction of the graphite lattice McCarroll and McKee (1971); Yang et al. (2010). Since the bottom layer exhibits hexagons oriented in the same direction as the hexagons emerging on the top layer, this further confirms that the etching of SL graphene on hBN is yielding etch pits oriented along the zigzag direction. The ribbon defined by the two left hexagons in Figure 3D has a width of about $20\,$nm, demonstrating the fabrication of nanoscale graphene structures with a remote H plasma.

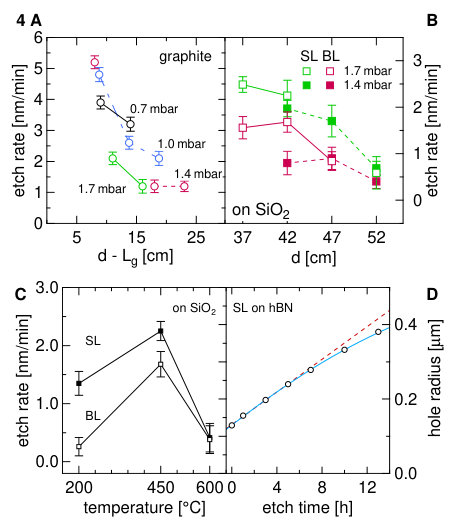

The size of the SL hexagons as a function of exposure time is shown in Figure 4D. A linear fit (dashed red) is clearly over estimating the etch rate for long exposure times, deviating from the data by several standard deviations for the longest times. This hints towards either an insufficient H atom collection mechanism as the etch pits are growing larger or an aging effect of the tube as discussed above.

Raman spectroscopy on SL and BL samples on hBN was performed before and after H plasma etching. The $D$ and $D^{\prime}$ disorder peaks were not seen (see SOM), both before and after H plasma etching. This suggests that neither defect formation nor hydrogenationFerrari et al. (2006); Elias et al. (2009); Sofo, Chaudhari, and Barber (2007); Eren et al. (2012) is occurring in the bulk 2D during plasma etching, taking into account the annealing of the sample during the cool down phaseElias et al. (2009), opening the door for high quality electrical properties.

The EBL defined circles stand very clearly visible in the center of the hexagons as an elevated region, as seen in Figure 3C and D, growing in height but not diameter upon further H plasma exposure. These discs appear also away from the graphene flakes directly on the hBN, wherever circles were EBL/$\mathrm{Ar/O}_{2}$-plasma defined. However, these elevated regions are also observed to shrink in height in ambient conditions. For a better understanding of the composition and behaviour of these surface structures, further investigations are required, which are however beyond the scope of this work. In addition, the adhesion between graphene and hBN often appears to be rather poor. Graphene flakes of several micrometres in length seem to be tilted with respect to the circular pillars induced by EBL. AFM tip forces or elevated temperatures may have shifted the flakes from their original positionWoods et al. (2016); Wang et al. (2016c).

In conclusion, we have investigated the pressure and distance dependence of the anisotropic etching of graphite surfaces in a H plasma. We have found that the etching characteristics can be divided into two regimes, the remote and the direct plasma regime. In the remote region of the plasma ($d^{\prime}>0$) etching only occurs at preexisting defect sites whereas for $d^{\prime}<0$ new defects are induced. Further, we have prepared SL and BL graphene flakes on SiO2 and hBN substrates and exposed them to the remote H plasma. We observed isotropic etching of SL graphene on SiO2, whereas on hBN it is highly anisotropic, exhibiting very regular and symmetric hexagonal etch pits. BL graphene, on the other hand, did not show a substrate dependence of the etching character and was anisotropic for both substrates.

By inducing artificial defects by lithographic means it becomes possible to pattern graphene nanostructures of various geometries with clean crystallographic edges defined by the etching in a remote H plasma. This leads to the opportunity to fabricate GNRs with well defined edges on a well suited substrate for electronic transport experiments, such as hBN. It would be interesting to study the etching process in dependence of the graphene electrochemical potential, which can be adjusted in-situ with a back gate during the etching process. Also, a remote nitrogen plasmaZhang et al. (2011) could be investigated to be potentially used in a similar way to define armchair edges via anisotropic etching of atomic nitrogen.

We would like to thank B. Eren, R. Maurand, C. Schönenberger and R. Steiner for helpful discussions and we acknowledge supported from the Swiss Nanoscience Institute (SNI), NCCR QSIT and Swiss NSF. Growth of hexagonal boron nitride crystals was supported by the Elemental Strategy Initiative conducted by the MEXT, Japan and JSPS KAKENHI Grant Numbers JP26248061, JP15K21722 and JP25106006.
