Probing and controlling spin chirality in Mott insulators by circularly polarized laser

TL;DR

This paper demonstrates how circularly polarized laser can directly couple to and control scalar spin chirality in Mott insulators, using Floquet theory to derive an effective Hamiltonian.

Contribution

It provides a systematic derivation showing the significant coupling of scalar spin chirality to circularly polarized light in a driven Hubbard model.

Findings

Scalar spin chirality couples directly to circularly polarized laser.

Coupling becomes significant when driving frequency and on-site interaction are comparable.

Potential for inducing or probing chirality in Mott insulators using circular dichroism.

Abstract

Scalar spin chirality, a three-body spin correlation that breaks time-reversal symmetry, is revealed to couple directly to circularly polarized laser. This is shown by the Floquet formalism for the periodically driven repulsive Hubbard model with a strong-coupling expansion. A systematic derivation of the effective low-energy Hamiltonian for a spin degree of freedom reveals that the coupling constant for scalar spin chirality can become significant for a situation in which the driving frequency and the on-site interaction are comparable. This implies that the scalar chirality can be induced by circularly polarized lights, or that it can be used conversely for probing the chirality in Mott insulators as a circular dichroism.

Figures

Equations

$${\hat{H}}_{\text{Hub}}(t)=-\sum _{ij\sigma }{t}_{ij}(t){\hat{c}}_{i\sigma }^{†}{\hat{c}}_{j\sigma }+\frac{1}{2}U\sum _i{\hat{n}}_i({\hat{n}}_i-1)$$

$$t_{ij}(t)=t_{ij}{e}^{-i\mathbf{A}(t)\cdot {\mathbf{R}}_{ij}},$$

$$t_{ij}(t)=\sum _{m=-\infty }^{\infty }{t}_{ij}^{(m)}{e}^{-im\omega t}=\sum _{m=-\infty }^{\infty }\left[t_{ij}{\mathcal{J}}_m({\alpha }_{ij})(-i{)}^m{e}^{im{\theta }_{ij}}\right]e^{-im\omega t},$$

$${\hat{H}}_{\text{SCE}}(t)+U\hat{D}=e^{i\hat{\mathcal{S}}(t)}[{\hat{H}}_{\text{Hub}}(t)-i{\partial }_t]e^{-i\hat{\mathcal{S}}(t)}$$

$$\begin{gathered} {\hat{H}}_{\text{SCE}}(t)+U[\hat{D},i\hat{\mathcal{S}}(t)]+{\partial }_t\hat{\mathcal{S}}(t) \\ =-\lambda \hat{T}(t)-\sum _{n=1}^{\infty }\frac{B_n}{n!}{\text{ad}}_{i\hat{\mathcal{S}}}^n\left((-1{)}^n\lambda \hat{T}(t)+{\hat{H}}_{\text{SCE}}(t)\right), \end{gathered}$$

$${\hat{R}}^{(1)}$$

$${\hat{R}}^{(2)}$$

$${\hat{R}}^{(3)}$$

$$-\frac{1}{12}[i{\hat{\mathcal{S}}}^{(1)},[i{\hat{\mathcal{S}}}^{(1)},\hat{T}+{\hat{H}}_{\text{SCE}}^{(1)}]],$$

$${\hat{R}}^{(4)}$$

$$-\frac{1}{12}[i{\hat{\mathcal{S}}}^{(1)},[i{\hat{\mathcal{S}}}^{(1)},{\hat{H}}_{\text{SCE}}^{(2)}]]-\frac{1}{12}[i{\hat{\mathcal{S}}}^{(1)},[i{\hat{\mathcal{S}}}^{(2)},\hat{T}+{\hat{H}}_{\text{SCE}}^{(1)}]]$$

$$-\frac{1}{12}[i{\hat{\mathcal{S}}}^{(2)},[i{\hat{\mathcal{S}}}^{(1)},\hat{T}+{\hat{H}}_{\text{SCE}}^{(1)}]].$$

$${\hat{\mathcal{S}}}^{(n)}=\sum _{d\ne 0}\sum _{m=-\infty }^{\infty }{\hat{\mathcal{S}}}_{d,m}^{(n)}{e}^{-im\omega t},$$

$$\hat{T}(t)=\sum _{m=-\infty }^{\infty }({\hat{T}}_{-1,m}+{\hat{T}}_{0,m}+{\hat{T}}_{+1,m})e^{-im\omega t},$$

$${\hat{H}}_{\text{SCE}}^{(1)}$$

$$i{\hat{S}}^{(1)}$$

$${\hat{H}}_{\text{SCE}}^{(2)}$$

$$i{\hat{S}}^{(2)}$$

$${\hat{\mathcal{P}}}_{ij}$$

$${\hat{\mathcal{P}}}_{ijk}$$

$${\hat{\mathcal{P}}}_{ij}=2{\hat{\mathbf{S}}}_i\cdot {\hat{\mathbf{S}}}_j+\frac{1}{2},$$

$${\hat{\mathcal{P}}}_{ijk}-{\hat{\mathcal{P}}}_{ijk}^{†}=-4i({\hat{\mathbf{S}}}_i\times {\hat{\mathbf{S}}}_j)\cdot {\hat{\mathbf{S}}}_k,$$

$${\hat{\mathcal{P}}}_{ijk}+{\hat{\mathcal{P}}}_{ijk}^{†}=2({\hat{\mathbf{S}}}_i\cdot {\hat{\mathbf{S}}}_j+{\hat{\mathbf{S}}}_j\cdot {\hat{\mathbf{S}}}_k+{\hat{\mathbf{S}}}_k\cdot {\hat{\mathbf{S}}}_i)+\frac{1}{2},$$

$${\hat{\mathbf{S}}}_i=\frac{1}{2}\sum _{{\sigma }_1{\sigma }_2}{\hat{c}}_{i{\sigma }_1}^{†}{\mathbf{\sigma }}_{{\sigma }_1{\sigma }_2}^{}{\hat{c}}_{i{\sigma }_2}^{},$$

$${\hat{H}}_{\text{spin}}(t)={\hat{P}}_0{\hat{H}}_{\text{SCE}}(t){\hat{P}}_0$$

$$J_{ij}(t)=\sum _{n,m=-\infty }^{\infty }(-1{)}^m\frac{4|t_{ij}{|}^2{\mathcal{J}}_{n+m}({\alpha }_{ij}){\mathcal{J}}_{n-m}({\alpha }_{ij})}{U-(n+m)\omega }\cos 2m(\omega t-{\theta }_{ij}).$$

$${\hat{F}}_{\text{spin}}=e^{i\hat{\Lambda }(t)}({\hat{H}}_{\text{spin}}(t)-i{\partial }_t)e^{-i\hat{\Lambda }(t)},$$

$${\hat{F}}_{\text{spin}}={\hat{H}}_{\text{spin},0}-\sum _{m\ne 0}\frac{[{\hat{H}}_{\text{spin},m},{\hat{H}}_{\text{spin},-m}]}{2m\omega }+\mathcal{O}({\omega }^{-2}).$$

$$[{\hat{\mathcal{P}}}_{ij},{\hat{\mathcal{P}}}_{jk}]={\hat{\mathcal{P}}}_{ijk}-{\hat{\mathcal{P}}}_{ijk}^{†},$$

$${\hat{F}}_{\text{spin}}={\lambda }^2\sum _{⟨i,j⟩}{J}_{ij}^{\text{(h)}}\left({\hat{\mathbf{S}}}_i\cdot {\hat{\mathbf{S}}}_j-\frac{1}{4}\right)+{\lambda }^4\sum _{ijk}{J}_{\chi ,ijk}^{\text{(h)}}({\hat{\mathbf{S}}}_i\times {\hat{\mathbf{S}}}_j)\cdot {\hat{\mathbf{S}}}_k,$$

$$J_{ij}^{\text{(h)}}=$$

$$J_{\chi ,ijk}^{\text{(h)}}=$$

$$\times$$

$$J_{\chi ,ijk}^{\text{(h)}}\sim -\frac{|t_{ij}{|}^2|t_{jk}{|}^2(U^2+2{\omega }^2{)}^2{\omega }^3{\alpha }_{ij}^2{\alpha }_{jk}^2}{2U^2(U^2-{\omega }^2{)}^2(U^2-4{\omega }^2{)}^2}\sin 2({\theta }_{ij}-{\theta }_{jk}),$$

$${\hat{H}}_{\text{SCE}}^{(3)}=-\sum _{l,n,m=-\infty }^{\infty }$$

$$\displaystyle i\hat{\mathcal{S}}^{(3)}=-\sum_{l,n,m=-\infty}^{\infty}\biggl{[}$$

$$+$$

Full text

I Introduction

While magnetism is a fundamental manifestation of electron correlation as typified by the coupling between spins emerging from the kinetic exchange processes for Mott-insulating electrons in the Hubbard model, such a link between charge and spin degrees of freedom also yields characteristic electromagnetic responses peculiar to Mott insulators Bulaevskii et al. (2008).

This has led us in the present work to pose a question: can illuminating a strongly-correlated electron system by a laser control spin structures? Indeed, periodically driven systems have recently become an important platform for novel nonequilibrium phenomena. Theoretically, the Floquet formalism dictates that a periodically driven system can be mapped onto an effective static Hamiltonian. The effective Hamiltonian can accommodate new phases of matter that would be unimaginable in equilibrium, where a prime example of Floquet engineering is the “Floquet topological insulator” Oka and Aoki (2009); Kitagawa et al. (2011); Lindner et al. (2011). It was initially proposed for two-dimensional Dirac systems irradiated by a circularly polarized laser. There, the effective Hamiltonian turned out to be the Haldane model Haldane (1988) for the anomalous quantum Hall effect in a honeycomb lattice, which, with imaginary hopping amplitudes, has been thought to be quite an unrealistic toy model. Derivation of the Haldane model in the Floquet formalism was done in Ref. Kitagawa et al. (2011), for driving frequencies higher than the electronic band width, with a perturbative expansion from the infinite driving frequency (the high-frequency expansion).

These works arouse interest in the properties of periodically driven Mott insulators. For instance, Ref. Mikami et al. (2016) discusses these and reveals transitions between Floquet topological insulators and Mott insulators, but magnetic correlations are not explicitly dealt with there. An interesting possibility then is that the spin degree of freedom, too, would be controlled by periodic electric fields in Mott insulators, since the coupling between spins is derived from the electron correlation Mentink et al. (2015); Bukov et al. (2016). Indeed, a seminal work Mentink et al. (2015) shows that the Heisenberg exchange interaction $J$ is modulated, even from antiferromagnetic to ferromagnetic, in strong linearly polarized lasers. The magnetic component of a laser is also shown to induce magnetic orders in spin systems Takayoshi et al. (2014a, b), but here we concentrate on the effects of electric fields. Thus a specific question we pose in the present paper is as follows: when a Mott insulator is illuminated by a circularly polarized laser, what kind of new spin states can emerge, especially topological states from an interplay of strong correlation and circularly polarized light?

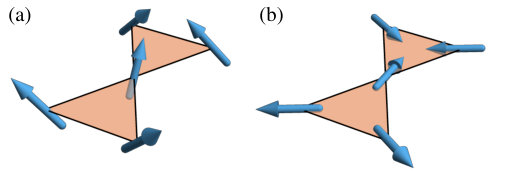

We expect the emergence of scalar spin chirality, which is spin correlations $(\hat{\bm{S}}_{i}\times\hat{\bm{S}}_{j})\cdot\hat{\bm{S}}_{k}$ forming finite solid angles as illustrated in Fig. 1(a), when a Mott insulator is irradiated by a circularly polarized laser. This can be readily seen in the high-frequency limit, since the leading-order effective Hamiltonian should then be the Hubbard model with complex hopping amplitudes as in the Haldane model. The scalar spin-chirality term is indeed known to appear in the third order of the strong-coupling expansion if the hopping amplitude is complex Sen and Chitra (1995).

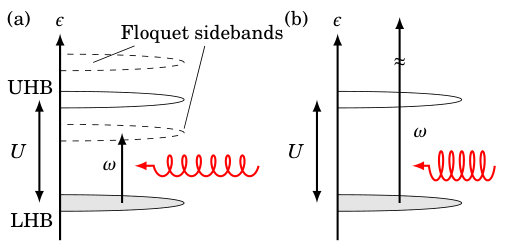

However, the high-frequency expansion is justified only when the driving frequency is higher than all the relevant energy scales in the system, such as the electronic band width and the on-site interaction [see Fig. 2(b)]. As the on-site repulsion in Mott insulators is typically a few eV, the applicable range of the high-frequency expansion becomes quite limited in realistic situations. So we need to extend the applicability of the emergent spin chirality to the case in which the driving frequency is smaller than the charge gap arising from the on-site repulsion [see Fig. 2(a)]. In the first part of the present paper, we have done this by systematically formulating the strong-coupling expansion for the periodically driven Hubbard model. We derive an effective spin Hamiltonian that has time-periodic couplings by eliminating the charge-excitation degree of freedom when the driving frequency does not cause a resonance between the upper and lower Hubbard bands. We then perform an expansion, that is valid when the driving frequency is higher than the exchange interaction even when the frequency is smaller than the charge gap. Intriguingly, the chiral coupling term obtained in this manner reveals that the coupling is actually much larger for $\omega\sim U$ than for $\omega\gg U$.

If scalar spin chirality exists, one remarkable consequence is the emergence of the “chiral spin liquid” phase. This phase is investigated for a complex Hubbard model and the derived spin Hamiltonian for static systems He et al. (2011); Bauer et al. (2014); Hickey et al. (2016), and even for a periodically driven system in a recent study Claassen et al. . We shall show that the scalar chiral coupling induced by circularly polarized lights can exceed a critical value estimated for the chiral spin liquid. Another point we shall note is that the emergent scalar-chirality term has a contribution proportional to the driving amplitude squared. This implies that the presence of scalar chirality in the Mott insulator should be fingerprinted in the dielectric function. These findings are expected to be useful for understanding and controlling characteristic materials such as herbertsmithite ZnCu3(OH)6Cl2 Norman (2016), which is an antiferromagnet on a frustrated lattice and known to be a spin liquid, and PdCrO2 Takatsu et al. (2014), which is suggested to have finite scalar spin chirality.

II Effective low-energy Hamiltonian

Let us start with the formulation. We consider the periodically driven Hubbard model,

[TABLE]

at half filling, where $U$ is the on-site repulsion with $\hat{n}_{i}=\sum_{\sigma}\hat{c}_{i\sigma}^{\dagger}\hat{c}_{i\sigma}$. The time-dependent hopping amplitude $t_{ij}(t)$ is represented by the Peierls substitution as

[TABLE]

where $t_{ij}$ is the bare hopping amplitude, $\bm{A}(t)=(1/2)(\bm{A}e^{-i\omega t}+\bm{A}^{\ast}e^{i\omega t})$ the uniform vector potential for a monochromatic laser, and $\bm{R}_{ij}=\bm{R}_{i}-\bm{R}_{j}$ with $\bm{R}_{i}$ being the location of the $i$th site. With the Jacobi-Anger identity, the hopping amplitude is expanded in a Fourier series as

[TABLE]

where $\mathcal{J}_{m}$ is the $m$th Bessel function, and we have denoted $\bm{A}\cdot\bm{R}_{ij}\equiv\alpha_{ij}e^{i\theta_{ij}}$.

For later convenience we decompose the Hamiltonian as $\hat{H}_{\text{Hub}}(t)=-\lambda\hat{T}(t)+U\hat{D}$, where $\hat{T}(t)$ is the kinetic energy operator, $\hat{D}=(1/2)\sum_{i}\hat{n}_{i}(\hat{n}_{i}-1)$ is the double occupancy operator, and $\lambda=1$ is a bookkeeping parameter for the perturbative expansion, i.e., we formally consider an expansion in $\lambda$.

II.1 Strong-coupling expansion

In order to derive the equation of motion for the spin degree of freedom, here we introduce a time-dependent canonical transformation $e^{i\hat{\mathcal{S}}(t)}$ to perform the strong-coupling expansion Bukov et al. (2016); Kitamura and Aoki (2016); Claassen et al. first, prior to the high-frequency expansion as we stressed in the Introduction. The time-dependent Schrödinger equation, $i\partial_{t}|\Psi(t)\rangle=\hat{H}_{\text{Hub}}(t)|\Psi(t)\rangle$, can then be expressed for the transformed Hamiltonian as

[TABLE]

for the transformed state vector $|\Phi(t)\rangle=e^{i\hat{\mathcal{S}}(t)}|\Psi(t)\rangle$. In this definition we have separated $U\hat{D}$ from the strong-coupling Hamiltonian $\hat{H}_{\text{SCE}}(t)$ to simplify Eq. (5) below.

Now we aim to express $|\Phi(t)\rangle$ in terms of spin configurations that span the $\hat{D}=0$ subspace. This can be done if $\hat{H}_{\text{SCE}}(t)$ is diagonal in $\hat{D}$ (i.e., $\hat{\mathcal{S}}(t)$ block-diagonalizing the Hamiltonian), and if $U$ is so large that $\hat{D}\neq 0$ sectors can be neglected for a low-energy description. Namely, to obtain the spin Hamiltonian, we should determine $\hat{\mathcal{S}}(t)$ to eliminate the terms offdiagonal in $\hat{D}$ by expanding in $\lambda$ as $\hat{H}_{\text{SCE}}(t)=\sum_{n=1}^{\infty}\lambda^{n}\hat{H}_{\text{SCE}}^{(n)}$ and $\hat{\mathcal{S}}(t)=\sum_{n=1}^{\infty}\lambda^{n}\hat{\mathcal{S}}^{(n)}$. For this we can rewrite Eq. (4) as

[TABLE]

where $B_{n}$ is the Bernoulli number and $\text{ad}_{X}Y=[X,Y]$.

Since $\hat{H}_{\text{SCE}}(t)=\mathcal{O}(\lambda)$ and $\hat{\mathcal{S}}(t)=\mathcal{O}(\lambda)$, the $N$th order term on the right-hand side is composed of $\hat{H}_{\text{SCE}}^{(n)}$ and $\hat{\mathcal{S}}^{(n)}$ with $n\leq N-1$, while the left-hand side with $n=N$. Namely, we can determine the form of $\hat{H}_{\text{SCE}}$ and $\hat{\mathcal{S}}$ order by order with this expression. If we denote $\hat{R}^{(n)}\equiv\hat{H}_{\text{SCE}}^{(n)}+[U\hat{D},i\hat{\mathcal{S}}^{(n)}]+\partial_{t}\hat{\mathcal{S}}^{(n)}$, they are expressed up to the fourth order as

[TABLE]

The operator $\hat{\mathcal{S}}$ should be determined such that $\hat{H}_{\text{SCE}}$ be block-diagonal. While in general $\hat{H}_{\text{SCE}}$ is not necessarily time-periodic 111 For example, one can choose a boundary condition for the time axis in such a way that the transformation coincides with that in the equilibrium case at the time at which the electric field is turned on., it is, as seen from Eq. (4), if the transformation $\hat{\mathcal{S}}(t)$ is time-periodic. Such a time-periodic transformation can be uniquely determined if one imposes that $\hat{\mathcal{S}}(t)$ does not contain block-diagonal terms. In such a case, one can decompose the transformation into Fourier components of block matrices as

[TABLE]

where ${\mathcal{S}}_{d,m}^{(n)}$ changes the double occupancy by $d$; $[\hat{D},\hat{\mathcal{S}}_{d,m}^{(n)}]=d\hat{\mathcal{S}}_{d,m}^{(n)}$. By decomposing Eq. (5) in terms of $d$ and $m$ as well and dividing both sides by $(dU-m\omega)$, one obtains explicit expressions for ${\mathcal{S}}_{d,m}^{(n)}$ and $\hat{H}_{\text{SCE}}^{(n)}$, as we shall see below.

II.2 Second-order perturbation

We can now give the explicit form of the effective spin Hamiltonian. Let us first decompose the hopping operator as

[TABLE]

where $\hat{T}_{d,m}$ changes the double occupancy by $d$. As we are interested in spin correlations up to three bodies, we neglect terms involving more than four sites. In such a situation, eigenvalues of the double occupancy operator $\hat{D}$ takes 0 or 1, so that one can restrict the range of the $d$ summation in Eq. (10) to $d=\pm 1$ 222 We can note that the present formalism is so general that it is applicable to SU($N$)-Hubbard model straightforwardly, in which case additional terms $\hat{T}_{\pm 2,m}$ and $\hat{\mathcal{S}}_{\pm 2,m}^{(n)}$ appear. .

Then Eqs. (6) and (7) give

[TABLE]

The expanded Hamiltonian is block-diagonal in $\hat{D}$ up to the truncation order, so that the $\hat{D}=0$ block, $\hat{P}_{0}\hat{H}_{\text{SCE}}\hat{P}_{0}$ with $\hat{P}_{0}$ being the projection onto the $\hat{D}=0$ sector, gives the spin Hamiltonian. The explicit form in terms of the spin operator is efficiently obtained by the following procedure:

(1) We first expand the commutators and express $\hat{P}_{0}\hat{H}_{\text{SCE}}\hat{P}_{0}$ in terms of products of $\hat{T}_{d,m}$ as $\hat{P}_{0}\hat{H}_{\text{SCE}}^{(1)}\hat{P}_{0}=0$, $\hat{P}_{0}\hat{H}_{\text{SCE}}^{(2)}\hat{P}_{0}=-\sum_{n,m}\hat{T}_{-1,m-n}\hat{T}_{+1,n}e^{-im\omega t}/(2(U-n\omega))+\text{H.c.}$

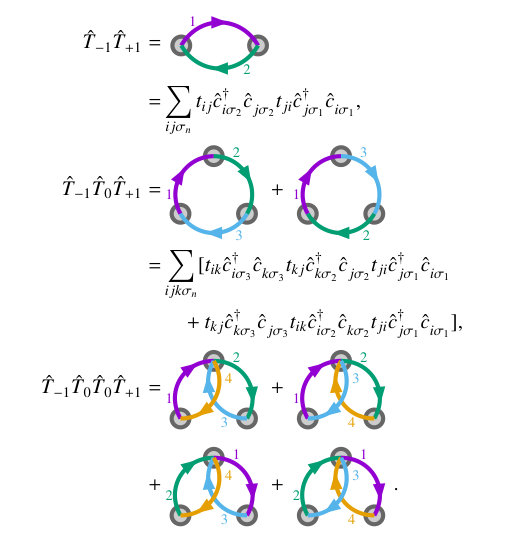

(2) We then represent the operator products diagrammatically as in Fig. 3, and we express them in terms of the original electron creation and annihilation operators as $\hat{T}_{-1,m-n}\hat{T}_{+1,n}=\sum_{ij}\sum_{\sigma_{1}\sigma_{2}}t_{ji}^{(m-n)}\hat{c}^{\dagger}_{i\sigma_{2}}\hat{c}_{j\sigma_{2}}t_{ij}^{(n)}\hat{c}^{\dagger}_{j\sigma_{1}}\hat{c}_{i\sigma_{1}}$.

(3) If we rearrange the electron operators, we can express these terms with cyclic permutation operators,

[TABLE]

Namely, $\hat{T}_{-1,m-n}\hat{T}_{+1,n}=\sum_{ij}t_{ji}^{(m-n)}t_{ij}^{(n)}(1-\hat{\mathcal{P}}_{ij})$, etc.

(4) Finally we express the permutation operators in terms of the spin operators;

[TABLE]

where

[TABLE]

with $\bm{\sigma}$ being the 1/2-spin Pauli matrix on $i$th site.

With this prescription, the leading-order spin Hamiltonian reduces to

[TABLE]

where the time-periodic exchange interaction is expressed as

[TABLE]

II.3 High-frequency expansion

Before going over to higher-order terms in the strong-coupling expansion, let us first look at how the time-dependent Heisenberg model, Eq. (22), behaves when the driving frequency is larger than the Fourier components of the exchange intercation, Eq. (23). In this situation, one can perform a high-frequency expansion Casas et al. (2001); Bukov et al. (2015); Eckardt and Anisimovas (2015) to derive the effective static Hamiltonian. For this, we introduce another time-periodic canonical transformation $\hat{\Lambda}(t)$ to obtain

[TABLE]

to eliminate the time dependence of the Hamiltonian in an expansion in $1/\omega$. If we denote the $m$th Fourier component of $\hat{H}_{\text{spin}}(t)$ as $\hat{H}_{\text{spin},m}$, the effective static Hamiltonian (quasienergy operator) $\hat{F}_{\text{spin}}$ is obtained as Casas et al. (2001); Bukov et al. (2015); Eckardt and Anisimovas (2015)

[TABLE]

With an identity

[TABLE]

we obtain the effective static Hamiltonian as a Heisenberg model that has an emergent scalar chirality term as

[TABLE]

where

[TABLE]

and the scalar chirality coefficient

[TABLE]

Note that, while the exchange coupling $J_{ij}^{\text{(h)}}$ is defined for bonds $\langle i,j\rangle$ (which coincides with that obtained originally in Ref. Mentink et al. (2015)), the chiral coupling $J_{\chi,ijk}^{\text{(h)}}$ is defined here for each sequence $ijk$, i.e., the coupling constant for a given combination of three sites $\{i,j,k\}$ is given as a sum of six different permutations, $J_{\chi,ijk}^{\text{(h)}}+J_{\chi,kij}^{\text{(h)}}+\cdots$.

These expressions should be accurate only when the driving frequency $\omega$ is much smaller than $U$. Otherwise, the higher-order terms in the strong-coupling expansion should become relevant, since they also include a fourth-order contribution in $\lambda$. We note that the high-frequency expansion introduced here, justified for $\omega\ll U$, is quite opposite to that of the periodically driven Hubbard model described by Eq. (1), which requires $U\ll\omega$. Here “high-frequency” means that the frequency is larger than $J_{ij}$, since the expansion is in the Fourier components of $J_{ij}$ devided by $\omega$.

In the leading order in the driving amplitude, the chiral coupling $J_{\chi,ijk}^{\text{(h)}}$ behaves as

[TABLE]

which is quartic in the electric field strength, so that this is certainly a nonlinear response. By contrast, the emergent scalar chirality is obtained as a linear response to the laser’s field due to the higher-order terms in the strong-coupling expansion, as we shall see below.

II.4 Fourth-order perturbation

Let us continue our formalism for the strong-coupling expansion to fourth order, which has to be complemented by the terms not contained in the above high-frequency expansion to complete the expression for chiral coupling with respect to the leading order in $\lambda$. The third-order perturbation Eq. (8) yields

[TABLE]

[TABLE]

By following the prescription given in Sec. II.2, we obtain the third-order terms for the spin Hamiltonian as

[TABLE]

where

[TABLE]

While Eq. (33) contains a scalar chirality term, it has no static component ($m=0$) as seen from the expression unless the bare hopping amplitude is complex. Oscillating components ($m\neq 0$) give an $\mathcal{O}(\lambda^{5})$ contribution in the high-frequency expansion.

As for the chiral coupling $J_{\chi,ijk}$, higher-order contributions emerge as the time average of the fourth-order perturbation, Eq. (9), and we have

[TABLE]

With this term, we arrive at an effective static Hamiltonian $\hat{F}_{\text{spin}}$ as

[TABLE]

with

[TABLE]

[TABLE]

The same expression was also obtained in a recent study Claassen et al. , where the effective Hamiltonian was derived by simultaneously eliminating the offdiagonal terms in $\hat{D}$ and the time dependence. The present formalism considers the strong-coupling and high-frequency expansion separately to perform them in turn. This clarifies that the high-frequency expansion is applicable when the driving frequency is larger than the effective exchange interaction rather than the hopping or on-site interaction, if the first strong-coupling expansion Eq. (5) is justified. The strong-coupling expansion is justified when the denominator $(U-n\omega)$ is sufficiently large or the numerator $\propto\mathcal{J}_{n}(A)$ is small. The present formalism can be utilized for the low-frequency ($\omega<J$) driving, if one only performs the strong-coupling expansion to analyze the time-periodic spin Hamiltonian $H_{\text{spin}}(t)$.

Further, we can notice that the first term in Eq. (38) has a contribution quadratic (as opposed to quartic) in the field amplitude, namely

[TABLE]

where $\bm{E}=i\omega\bm{A}$. This implies that the scalar spin chirality affects the optical responses of Mott insulators even in the linear-response regime. We will elaborate upon this observation later in the paper.

III Comparison with numerical calculations for circularly polarized lasers

Here we verify the validity of the expansion by comparing the results obtained from the effective Hamiltonian with numerically exact spectra of a periodically driven Hubbard cluster. Specifically, a circularly polarized laser with a vector potential $\bm{A}=A(1,i)$ is considered for a three-site Hubbard model in an equilateral triangular geometry with hopping amplitudes being unity. We note that the numerical calculation should contain finite-size effects, so we have to be careful in comparing the results with the perturbative expansion. However, when the expansion is justified (i.e., when the system is a Mott insulator), electrons cannot hop to distant sites in virtual processes, so that the finite-size effect should be small. In the following, we first discuss how to extract the coupling constants from numerical calculations, and then we compare them with those obtained by the perturbative expansion.

III.1 Numerical computation

A direct way to numerically calculate the effective spin Hamiltonian could be a continuous unitary transformation (also known as Wegner’s flow-equation approach) extended to periodically driven systems Kehrein (2007); Verdeny et al. (2013). Namely, one parametrizes the unitary transformation $e^{i\hat{\mathcal{S}}(t)}$ by the flow parameter $l$ to define the transformation with a differential equation,

[TABLE]

The generator of the transformation, $\hat{\eta}(l,t)$, can here be chosen as $\hat{\eta}(l,t)=[U\hat{D},\hat{F}(l,t)]$ for the strong-coupling expansion, or $\hat{\eta}(l,t)=-i\partial_{t}\hat{F}(l,t)$ for the high-frequency expansion. Taking $l\rightarrow\infty$ yields the desired effective Hamiltonian.

Here, let us employ an alternative way with smaller numerical costs, i.e., the numerical construction of the Floquet-Magnus Hamiltonian. As we have seen, if $|\Psi(t)\rangle$ satisfies the time-dependent Schrödinger equation, $e^{i\hat{\Lambda}(t)}\hat{P}_{0}e^{i\hat{\mathcal{S}}(t)}|\Psi(t)\rangle$ satisfies a static Schrödinger equation with $\hat{F}_{\text{spin}}$. Namely, the time-evolution operator $\hat{\mathcal{U}}(t,t_{0})$ can be represented as

[TABLE]

Since $\hat{\mathcal{S}}(t)$ and $\hat{\Lambda}(t)$ are time-periodic, one can express the effective Hamiltonian as

[TABLE]

up to modulo $\omega$ (due to the indefiniteness of the logarithm).

While the construction of the transformation $e^{i\hat{\Lambda}(t_{0})}\hat{P}_{0}e^{i\hat{\mathcal{S}}(t_{0})}$ is numerically demanding, the time-evolution operator can be calculated more easily by numerically integrating the equation of motion $i\partial_{t}\hat{\mathcal{U}}\left(t,t_{0}\right)=\hat{H}_{\text{Hub}}(t)\hat{\mathcal{U}}(t,t_{0})$. Hence diagonalization of $(i\omega/2\pi)\ln\hat{\mathcal{U}}(t_{0}+2\pi/\omega,t_{0})$ yields the eigenvalues (quasienergy, energy up to modulo $\omega$) of $\hat{F}_{\text{spin}}$ (along with those of $\hat{D}\neq 0$ sectors, which can be distinguished by checking the time average of the expectation value of the double occupancy).

Since the three-site spin model, $\hat{F}_{\text{spin}}=J(\hat{\bm{S}}_{1}\cdot\hat{\bm{S}}_{2}+\hat{\bm{S}}_{2}\cdot\hat{\bm{S}}_{3}+\hat{\bm{S}}_{3}\cdot\hat{\bm{S}}_{1}-3/4)+J_{\chi}(\hat{\bm{S}}_{1}\times\hat{\bm{S}}_{2})\cdot\hat{\bm{S}}_{3}$, has quadruply degenerated [math] and doubly degenerated $-6J\pm 2\sqrt{3}J_{\chi}$ as eigenvalues, one can reconstruct $J$ and $J_{\chi}$ from the computed eigenvalues without calculating the transformation $e^{i\hat{\Lambda}(t_{0})}\hat{P}_{0}e^{i\hat{\mathcal{S}}(t_{0})}$.

III.2 Behavior of the coupling constants

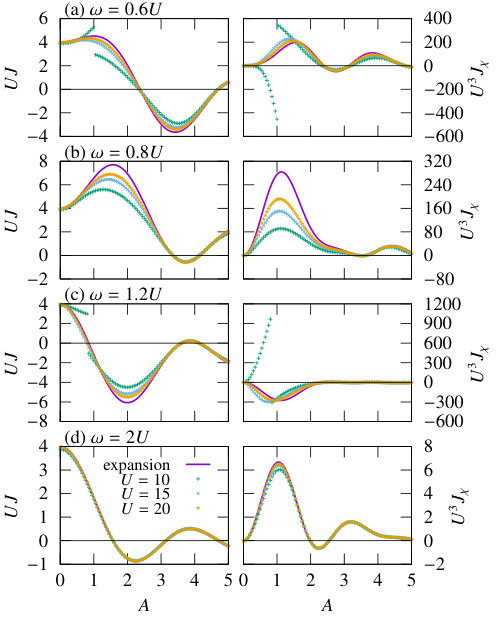

We can thus compare the behavior of the coupling constants. As Eqs. (28), (29), and (38) indicate, $UJ$ and $U^{3}J_{\chi}$ should be functions of $\omega/U$ in the leading-order, so that here we look at how the numerical result for these rescaled couplings changes with $U$ for a fixed $\omega/U$. Figure 4 displays $UJ$ and $U^{3}J_{\chi}$ against the intensity, $A$, of the periodic drive for various values of $\omega/U$. We can see that the perturbative expression agrees well with the numerical results, where the agreement becomes improved for increasing $U$ in all the cases.

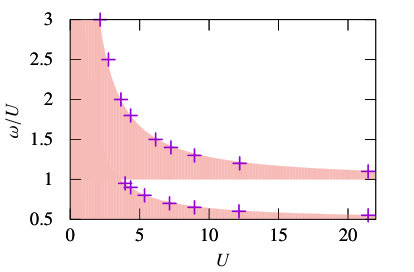

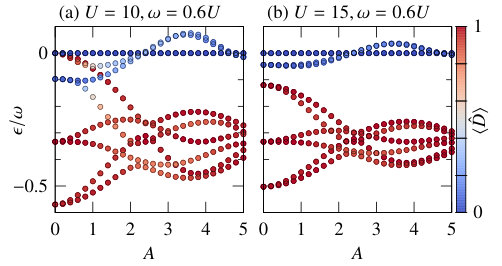

However, we also notice that coupling constants can become discontinuous against $A$ when $U$ is small. In particular, the chiral coupling $J_{\chi}$ deviates significantly from the perturbative result even qualitatively, which signals a breakdown of the strong-coupling expansion. We can indeed trace back its origin to a level crossing between $\hat{D}=0$ and $\hat{D}=1$ sectors of $\hat{F}_{\text{spin}}$, for which the strong-coupling expansion becomes inapplicable. Let us show an example of the quasienergy spectra along with the time-averaged expectation value of the double occupancy in Fig. 5 for $\omega=0.6U$. For a relatively large $U=15$, quasienergy eigenstates can be unambiguously classified into $\langle\hat{D}\rangle\sim 0$ and $1$, which can be transformed into $\hat{D}=0$ and $1$ sectors in the perturbative transformation. For a smaller $U=10$, on the other hand, level crossings between $\hat{D}=0$, $1$ sectors set in around $A\sim 1$. There, $\langle\hat{D}\rangle\sim 0$ states (doubly degenerate) continuously change into those with $\langle\hat{D}\rangle\sim 1$ when $A$ is increased, which cannot be described by the perturbative transformation.

Since the jumps in the coupling constants make qualitative behavior in a small-$A$ region significantly deviated from the perturbative results, we can regard it as a criterion for a breakdown of the expansion. The boundaries thus obtained are displayed against $U$ and $\omega/U$ in Fig. 6.

Let us now examine the accuracy of the conventional high-frequency expansion for the chiral coupling $J_{\chi}$ when $\omega/U$ is varied. Let us first look at Fig. 4(d), where the conventional high-frequency expansion is applicable to the Hubbard Hamiltonian Eq. (1) ($U\ll\omega$), yielding the Hubbard model with complex hopping amplitudes. We can see that this case is also described within the present formalism, as the result of the high-frequency expansion recovered when the denominators in Eqs. (28), (29), and (38) are expanded in $U/\omega$. This contrasts with Figs. 4(a)-4(c), where the conventional high-frequency expansion becomes inaccurate or even breaks down. Interestingly, such regions have chiral coupling that is significantly enhanced compared with the case of Fig. 4(d).

While the chiral coupling (normalized by $1/U^{3}$) is enhanced when the frequency is lowered [note the different vertical scales in Figs. 4(a)-4(d)], the convergence of the numerical result to the perturbative expression is achieved for smaller $U$ in the high-frequency case. Whether the original value (not normalized by $U$) is enhanced or not should hence be examined in terms of the ratio, $|J_{\chi}|/J$, of original values. We have retained the sign of $J$ to distinguish between ferromagnetic and antiferromagnetic cases.

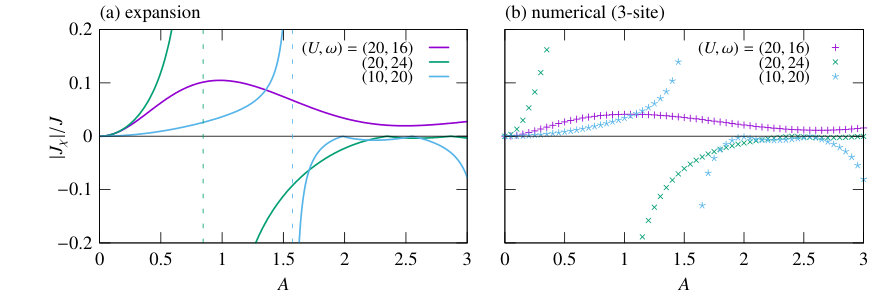

We plot the ratio against $A$ for various combinations of $(U,\omega)$ in Fig. 7. The overall ratio indeed has larger values for the cases corresponding to Figs. 4(b) [for $(U,\omega)=(20,16)$] and  4(c) [$(U,\omega)=(20,24)$] than that of Fig. 4(d) [$(U,\omega)=(10,20)$]. The ratio diverges when the exchange interaction $J$ vanishes. When we have chiral coupling, the possibility arises for the emergence of a chiral spin liquid, which is a topologically nontrivial state. This was investigated in a recent study Claassen et al. using the density-matrix renormalization-group method. Thus, while the chiral coupling $J_{\chi}$ considered here, being a higher-order effect, is basically smaller than $J$, the coupling can still be significant, exceeding a critical value of $|J_{\chi}|/J$ for the chiral spin liquid, which is estimated to be about 0.16 Bauer et al. (2014).

On the other hand, it is imperative to establish a method to detect such nontrivial chiral orders. As we shall propose in the next section, we show that the coupling between scalar chirality and a circularly polarized laser can be invoked to probe the spin chirality.

Before closing this section, let us remark on the heating effects implicitly neglected in the present analysis. In general, periodically driven macroscopic systems heat up, to an infinite temperature in the long-time limit. The quasienergy operator describes such infinite-temperature states in the thermodynamic limit D’Alessio and Rigol (2014); Lazarides et al. (2014), which cannot obviously be described within the $\hat{D}=0$ sector due to doublon excitations. The heating effect can be seen through the breakdown of the strong-coupling expansion when higher-order terms are considered. We have generally a factor of $(mU-n\omega)^{-1}$ in the expansion with $0\leq m\leq\text{min}[M,L]/2$ for the $M$th-order terms in $L$-site systems. This factor can become considerably large for arbitrary $U$ and $\omega$ 333 If we define $\delta_{k}$ through a recurrence relation, $\delta_{0}=\lceil U/\omega\rceil\omega-U$, $\delta_{k+1}=|\lceil\omega/\delta_{k}-1/2\rceil\delta_{k}-\omega|$, it satisfies $0\leq\delta_{k+1}\leq\delta_{k}/2$ and has a form $\delta_{k}=m_{k}U-n_{k}\omega$ with integers $m_{k}\neq 0,n_{k}$. as $M,L$ are increased. This will lead to a breakdown of the expansion, which implies that the eigenstate cannot be described within the $\hat{D}=0$ sector as in ordinary degenerate perturbation.

However, even if the expansion is invalidated due to an $M$th-order term, one can still truncate the expansion at $(M-1)$th order. Then the remaining $\mathcal{O}(\lambda^{M})$ terms describe transitions toward the $\hat{D}\neq 0$ sectors, which represent the heating in terms of doublon excitations. We expect that such $M$ can be made large for appropriately chosen values of $U,\omega$ for the heating to be slow enough. The heating within the $\hat{D}=0$ sector also exsists, due to divergent higher-order terms in the high-frequency expansion Eq. (25), which is known to be slow in high-frequency driving Mori et al. (2016); Kuwahara et al. (2016).

IV Lasers as a probe for spin chiralities

The strong-coupling expansion has revealed that scalar spin chirality couples with circularly polarized laser. Conversely, this implies that the existence of spin chirality in Mott insulators should be fingerprinted in the optical response for circularly polarized lasers. In other words, a Mott insulator should exhibit circular dichroism if it possesses spin chirality.

To examine this, one might intuitively expect that the dielectric function of the present system can be obtained by differentiating the effective Hamiltonian $\hat{F}_{\text{spin}}$ with respect to the driving amplitude. Whether this holds true is not trivial in general nonequilibrium situations, since the effective Hamiltonian does not represent the total energy of the system but the energy up to modulo $\omega$, and we may also have to consider nonequilibrium quasienergy distributions. However, in the present case, we can justify this in the linear-response regime as follows:

Let us evaluate the dielectric function (tensor) $\varepsilon_{\mu\nu}(\omega)$ with the Kubo formula, which reads Bulaevskii et al. (2008)

[TABLE]

Here, $|\Psi_{\alpha}\rangle$ denotes an eigenstate of the undriven system with an eigenenergy $\epsilon_{\alpha}$, $\beta$ is the inverse temperature, $Z=\sum_{\alpha}e^{-\beta\epsilon_{\alpha}}$ the partition function, $0^{+}$ a positive infinitesimal, and $\hat{P}^{\mu}$ the $\mu$-component of the polarization operator $\hat{\bm{P}}=\sum_{i}\hat{n}_{i}\bm{R}_{i}$.

To relate this expression with spin correlations, it is convenient to rewrite the expression to obtain

[TABLE]

with $\hat{H}_{\text{u}}$ being the Hubbard Hamiltonian for the undriven case. Here again we consider the strong-coupling expansion for the undriven Hamiltonian, where the transformation is generated by $\mathcal{S}_{0}\equiv\mathcal{S}(t;A=0)$. When $e^{-\beta U}\ll 1$, we can restrict the range of $\alpha$ summation to the $\hat{D}=0$ sector. By expanding the denominators with $\epsilon_{\alpha}-\epsilon_{\alpha^{\prime}}$ for $\alpha^{\prime}$ in the $\hat{D}=0$ sector, and with $\epsilon_{\alpha}-\epsilon_{\alpha^{\prime}}-U$ for $\alpha^{\prime}$ in the $\hat{D}=1$ sector, we obtain

[TABLE]

where $\bm{R}_{ij}=(x_{ij},y_{ij})$, $\mathcal{A}_{ijk}\equiv(\bm{R}_{ik}\times\bm{R}_{jk})_{z}/2=-\mathcal{A}_{jik}$ is the area of a triangle enclosed by sites $i,j,k$, and $\langle\hat{O}\rangle_{\text{th}}=Z^{-1}\sum_{\alpha}e^{-\beta\epsilon_{\alpha}}\langle\Phi_{\alpha}|\hat{O}|\Phi_{\alpha}\rangle$ with $|\Phi_{\alpha}\rangle=\hat{P}_{0}e^{i\hat{\mathcal{S}}_{0}}|\Psi_{\alpha}\rangle$. This is indeed related to the effective static Hamiltonian through an expected formula,

[TABLE]

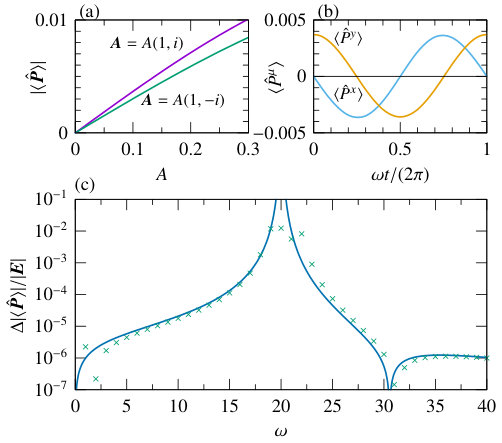

As Eq. (45) manifestly indicates, nonzero imaginary offdiagonal parts emerge in the dielectric function in the presence of the scalar chirality order. Thus we have the emergence of a circular dichroism, i.e., a difference in the reflectivity between left- and right-circularly-polarized light. This is actually illustrated in Fig. 8(a), where we consider a three-site Hubbard model with a chiral term,

[TABLE]

which simulates the last term in Eq. (45) to obtain the expectation value of the polarization operator $\hat{\bm{P}}$ for the eigenstate corresponding to the ground state of $\hat{F}_{\text{spin}}$. While the direction of the induced polarization rotates as shown in Fig. 8(b), its amplitude is time-independent and exhibits the circular dichroism for a right-circularly-polarized light [$\bm{A}=A(1,i)$] or a left-circularly-polarized one [$\bm{A}=A(1,-i)$], as seen in Fig. 8(a). The difference, $\Delta|\langle\hat{\bm{P}}\rangle|$, in the amplitude between left and right circular polarizations agrees qualitatively with the predicted value from Eq. (45), as is evident in Fig. 8(c). Namely, we can conclude that the scalar chirality order can be probed by circularly polarized lasers in the Mott insulators.

Even in the absence of scalar chirality, we can point out another possibility for using the circularly polarized laser as a probe if we exploit cooperative effects when other magnetic orders coexist. One example is vector spin chirality order. The scalar chirality term would then act as a Zeeman term if there is a vector spin chirality $\langle\bm{S}_{i}\times\bm{S}_{j}\rangle$ [see Fig. 1(b)] in a mean-field sense 444 We note that the inverse of this phenomenon may be regarded as the twist-exchange interaction proposed in Ref. Secchi et al. (2013). Namely, the scalar chirality term acts as a Dzyaloshinskii-Moriya interaction in the presence of a collinear magnetic order as $(\hat{\bm{S}}_{i}\times\hat{\bm{S}}_{j})\cdot\langle\hat{\bm{S}}_{k}\rangle$.. Namely, the presence of uniform vector chirality should result in laser-induced magnetization, i.e., the inverse Faraday effect. Here we have neglected the in-plane magnetic components of the oscillating laser field. The magnetic component is shown to act as a Zeeman field along $z$-axis in the Floquet effective Hamiltonian, as shown in Refs. Takayoshi et al. (2014a, b). While these contributions are expected to be distinguished by, e.g., a frequency or temperature dependence, this should be elaborated upon in future works.

V Summary

In this study, we have investigated a topological feature induced by the circularly polarized laser in strongly correlated electron systems. We have formulated the strong-coupling expansion for the periodically driven Hubbard model to reveal that the scalar spin chirality term emerges when the system is driven by a circularly polarized laser. We have found that the induced scalar chirality should be significant when the driving field becomes comparable to the driving frequency, where the conventional high-frequency expansion fails. We have further shown that the obtained formula for chiral coupling conversely implies a circular dichroism, in the linear-response regime, in Mott insulators when scalar chirality order exists.

These results indicate novel future directions: Now that the present study shows that the scalar spin chiral system is not just a toy model but can be generated when periodically driven, we can question how the emergent scalar chirality will affect spin systems with various kinds of lattice structures or interactions. The chiral spin liquid phase, e.g. in a Kagomé antiferromagnet, is a representative case, as studied in Refs. He et al. (2011); Bauer et al. (2014); Hickey et al. (2016); Claassen et al. . Application to known materials such as herbertsmithite ZnCu3(OH)6Cl2 Norman (2016) by combining with first-principles calculations will be an important direction. A related compound, GaCu3(OH)6Cl2, is estimated to have $U/t\sim 17$-$23$ Mazin et al. (2014), which is suitable in the context of the present discussion. Typical orders of magnitude for spin interactions with, say, $A=1$ and $\omega=4$ eV, amount to $J\sim 85$ meV and $J_{\chi}\sim 8$ meV. PdCrO2 Takatsu et al. (2014) is another candidate for application, since it is an antiferromagnet reported to have a scalar spin chirality, hence it is expected to exhibit the circular dichroism proposed above. Applying the present formalism to the SU($N$) Hubbard model is another interesting path, which can be realized in cold-atom systems with, e.g., Ytterbium atoms having SU(6) Taie et al. (2012).
