Diffraction-limited plenoptic imaging with correlated light

TL;DR

This paper demonstrates that correlation measurements can enhance plenoptic imaging, achieving diffraction-limited resolution while significantly increasing depth of field, surpassing traditional trade-offs in optical imaging.

Contribution

It introduces a correlation-based method that pushes the fundamental limits of resolution and depth of field in plenoptic imaging.

Findings

Maintains diffraction-limited resolution with increased depth of field

Achieves a sevenfold increase in depth of field

Provides both theoretical and experimental validation

Abstract

Traditional optical imaging faces an unavoidable trade-off between resolution and depth of field (DOF). To increase resolution, high numerical apertures (NA) are needed, but the associated large angular uncertainty results in a limited range of depths that can be put in sharp focus. Plenoptic imaging was introduced a few years ago to remedy this trade off. To this aim, plenoptic imaging reconstructs the path of light rays from the lens to the sensor. However, the improvement offered by standard plenoptic imaging is practical and not fundamental: the increased DOF leads to a proportional reduction of the resolution well above the diffraction limit imposed by the lens NA. In this paper, we demonstrate that correlation measurements enable pushing plenoptic imaging to its fundamental limits of both resolution and DOF. Namely, we demonstrate to maintain the imaging resolution at the diffraction limit while increasing the depth of field by a factor of 7. Our results represent the theoretical and experimental basis for the effective development of the promising applications of plenoptic imaging.

Figures

Equations

$${\Sigma }_{z_a,z_b}^{\mathrm{ref}}({\mathbf{\rho }}_a):=\int d^2{\mathbf{\rho }}_b{\Gamma }_{z_a,z_b}\left(\frac{z_a}{z_b}{\mathbf{\rho }}_a-\frac{{\mathbf{\rho }}_b}{M}\left(1-\frac{z_a}{z_b}\right),{\mathbf{\rho }}_b\right),$$

$$\left|1-\frac{z_a}{z_b}\right|<\frac{\Delta x}{\Delta u}=\frac{d{z}_a/z_b}{\max [\lambda z_b/a,2\lambda /(M_b{\mathrm{NA}}_b),2\delta u/M]}$$

$$G^{(2)}({\mathbf{\rho }}_a,{\mathbf{\rho }}_b;t_a,t_b)$$

$$E_i^{(+)}({\mathbf{\rho }}_i,t_i)=\int d\Omega \int d^2\mathbf{\kappa }{a}_{\mathbf{k}}{e}^{-i\Omega t_i}{g}_i({\mathbf{\rho }}_i,\mathbf{k}),$$

$$⟨a_{{\mathbf{k}}_1}^{†}{a}_{{\mathbf{k}}_2}^{†}{a}_{{\mathbf{k}}_3}{a}_{{\mathbf{k}}_4}⟩$$

$$G^{(2)}({\mathbf{\rho }}_a,{\mathbf{\rho }}_b)=I_a({\mathbf{\rho }}_a)I_b({\mathbf{\rho }}_b)+\Gamma ({\mathbf{\rho }}_a,{\mathbf{\rho }}_b),$$

$$\Gamma ({\mathbf{\rho }}_a,{\mathbf{\rho }}_b)={\left|\int d^2\mathbf{\kappa }{g}_a^{\ast }({\mathbf{\rho }}_a,\mathbf{\kappa })g_b({\mathbf{\rho }}_b,\mathbf{\kappa })\right|}^2$$

$$g_a({\mathbf{\rho }}_a,\mathbf{\kappa })=\int d^2{\mathbf{\rho }}_{s}f({\mathbf{\rho }}_s){\mathrm{e}}^{\mathrm{i}\left(\mathbf{\kappa }-\frac{\omega }{c{z}_a}{\mathbf{\rho }}_a\right)\cdot {\mathbf{\rho }}_s}G({\mathbf{\rho }}_s{)}_{\left[\frac{\omega }{c{z}_a}\right]}$$

$$g_b({\mathbf{\rho }}_b,\mathbf{\kappa })$$

$$\displaystyle\Gamma_{z_{a},z_{b}}(\bm{\rho}_{a},\bm{\rho}_{b})=\Biggl{|}\!\int\!d^{2}\bm{\rho}_{o}\!\int\!d^{2}\bm{\rho}_{s}A(\bm{\rho}_{0})F(\bm{\rho}_{s})$$

$$\displaystyle\quad\times G(\bm{\rho}_{s})_{\left[\frac{\omega}{c}\!\left(\frac{1}{z_{b}}-\frac{1}{z_{a}}\right)\!\right]}\mathrm{e}^{-\frac{\mathrm{i}\omega}{cz_{b}}\!\left[\left(\bm{\rho}_{o}-\frac{z_{b}}{z_{a}}\bm{\rho}_{a}\right)\!\cdot\bm{\rho}_{s}+\bm{\rho}_{o}\cdot\frac{\bm{\rho}_{b}}{M}\right]}\Biggr{|}^{2},$$

$${\Sigma }_{z_a,z_b}({\mathbf{\rho }}_a)=\int d^2{\mathbf{\rho }}_b{\Gamma }_{z_a,z_b}({\mathbf{\rho }}_a,{\mathbf{\rho }}_b).$$

$${\Sigma }_{z_a,z_a}({\mathbf{\rho }}_a)\propto \int d^2{\mathbf{\rho }}_o|A({\mathbf{\rho }}_o){|}^2{\left|\tilde{F}\left[\frac{\omega }{c{z}_a}\left({\mathbf{\rho }}_o-{\mathbf{\rho }}_a\right)\right]\right|}^2$$

$${\mathbf{\rho }}_s$$

$${\mathbf{\rho }}_o$$

$${\Gamma }_{z_a,z_b}({\mathbf{\rho }}_a,{\mathbf{\rho }}_b)\sim F{\left(-\frac{{\mathbf{\rho }}_b}{M}\right)}^2{\left|A\left[\frac{z_b}{z_a}{\mathbf{\rho }}_a-\frac{{\mathbf{\rho }}_b}{M}\left(1-\frac{z_b}{z_a}\right)\right]\right|}^2.$$

$${\Gamma }_{z_a,z_b}\left[\frac{z_a}{z_b}{\mathbf{\rho }}_a-\frac{{\mathbf{\rho }}_b}{M}\left(1-\frac{z_a}{z_b}\right),{\mathbf{\rho }}_b\right]\sim F{\left(-\frac{{\mathbf{\rho }}_b}{M}\right)}^2{\left|A({\mathbf{\rho }}_a)\right|}^2.$$

$${\Gamma }_{z_a,z_b}({\mathbf{\rho }}_a,{\mathbf{\rho }}_b)={\left|\int d^2{\mathbf{\rho }}_{o}A({\mathbf{\rho }}_o){\mathrm{e}}^{-\frac{\mathrm{i}\omega {\mathbf{\rho }}_o\cdot {\mathbf{\rho }}_b}{c{z}_{b}M}}\mathcal{C}\left({\mathbf{\rho }}_{\mathbf{o}}-\frac{z_b}{z_a}{\mathbf{\rho }}_a\right)\right|}^2,$$

$$\mathcal{C}(\mathbf{\rho })\propto \exp \left(-\frac{1}{2}{\left(\frac{\omega \sigma }{c{z}_b}\right)}^2\frac{|\mathbf{\rho }{|}^2}{1-\frac{\mathrm{i}\omega {\sigma }^2}{c{z}_b}\left(1-\frac{z_b}{z_a}\right)}\right).$$

$$\mathcal{J}(\mathbf{\rho })\propto \exp \left(-{\left(\frac{\omega \sigma }{c{z}_b}\right)}^2\frac{|\mathbf{\rho }{|}^2}{1+{\left(\frac{\omega {\sigma }^2}{c{z}_b}\left(1-\frac{z_b}{z_a}\right)\right)}^2}\right).$$

$$\frac{{\sigma }_i(\alpha )}{\alpha }=\frac{1}{\alpha }\sqrt{\frac{1}{2}{\left(\frac{c{z}_a}{\omega \sigma }\right)}^2{\alpha }^2+\frac{{\sigma }^2}{2}{\left(1-\alpha \right)}^2}.$$

$$\bar{\alpha }={\left(1+{\left(\frac{c{z}_a}{\omega {\sigma }^2}\right)}^2\right)}^{-1}.$$

$${\Sigma }_{z_a,z_b}\left(\frac{z_a}{z_b}{x}_a\right)=\int d{x}_o|A(x_o){|}^2{\mathcal{J}}_1(x_o-x_a),$$

$${\Gamma }_{z_a,z_b}\left(\frac{z_a}{z_b}{x}_a,x_b=0\right)={\left|\int d{x}_{o}A(x_o){\mathcal{C}}_1(x_o-x_a)\right|}^2,$$

$${\Sigma }_{z_a,z_b}^{\mathrm{ref}}\left(x_a\right)=\int d{x}_b{\Gamma }_{z_a,z_b}\left(\frac{z_a}{z_b}{x}_a-\frac{x_b}{M}\left(1-\frac{z_a}{z_b}\right),x_b\right),$$

Full text

Plenoptic imaging (PI) is a novel optical method for recording visual information adelson . Its peculiarity is the ability to record both position and propagation direction of light in a single exposure. PI is currently employed in the most diverse applications, from stereoscopy adelson ; muenzel ; levoy , to microscopy microscopy1 ; microscopy2 ; microscopy3 ; microscopy4 , particle image velocimetry piv , particle tracking and sizing tracking , wavefront sensing thesis_wu ; eye ; atmosphere1 ; atmosphere2 and photography, where it currently enables digital cameras with refocusing capabilities website ; ng . The capability of PI to simultaneously acquire multiple-perspective 2D images brings it among the fastest and most promising methods for 3D imaging with the available technologies 3dimaging . Indeed, high-speed and large-scale 3D functional imaging of neuronal activity has been demonstrated microscopy4 . Furthermore, first studies for surgical robotics surgery , endoscopic application endoscopy and blood-flow visualization piv2 have been performed.

The key component of standard plenoptic cameras is a microlens array inserted in the native image plane, that reproduces repeated images of the main camera lens on the sensor behind it adelson ; ng . This enables reconstruction of light paths, employed, in post-processing, for refocusing different planes, changing point of view and extending depth of field (DOF) within the acquired image. However, a fundamental trade-off between spatial and angular resolution is naturally built in standard plenoptic imaging. If $N_{\mathrm{tot}}$ is the total number of pixels per line on the sensor, $N_{x}$ the number of microlenses per line, and $N_{u}$ the number of pixels per line associated with each microlens, then $N_{x}N_{u}=N_{\mathrm{tot}}$. Essentially, standard PI gives the same resolution and DOF one would obtain with a $N_{u}$ times smaller NA. The final advantage is thus practical rather than fundamental, and is limited to higher luminosity (hence SNR) of the final image and parallel acquisition of multi-perspective images.

Correlation plenoptic imaging (CPI) has recently been proposed for overcoming this fundamental limit cpi_prl . The main idea is to exploit the second-order spatio-temporal correlation properties of light to perform spatial and directional detection on two distinct sensors: Using correlated beams cpi_prl ; cpi_qmqm ; cpi_technologies , high-resolution “ghost” imaging is performed on one sensor pittman ; gatti ; laserphys ; valencia ; scarcelliPRL while simultaneously obtaining the angular information on the second sensor. As a result, the relation between the spatial ($N_{x}$) and the angular ($N_{u}$) pixels per line, at fixed $N_{\mathrm{tot}}$, becomes linear: $N_{x}+N_{u}=N_{tot}$ cpi_prl .

In this paper, we present the first experimental realization of CPI. Our CPI scheme has higher DOF and higher resolution than traditional PI; compared to conventional imaging, it maintains the diffraction-limited resolution but has a $7$ times larger DOF. Therefore, CPI truly pushes imaging to the fundamental limits imposed by the wave nature of light. Our proof-of-principle experiment indicates that CPI can enhance the potentials of PI, paving the way towards its promising applications, especially in situations where the fast acquisition typical of PI needs to be accompanied by high resolution, such as microscopy and 3D imaging. In fact, compared to other 3D imaging techniques, CPI has the advantage of not requiring neither scanning methods (as in confocal microscopy), nor delicate interferometric techniques (as in holography and ptychography), or fast pulsed illumination (as in time-of-flight imaging) tracking ; bookmicroscopy ; kim2010principles ; hansard2012tof .

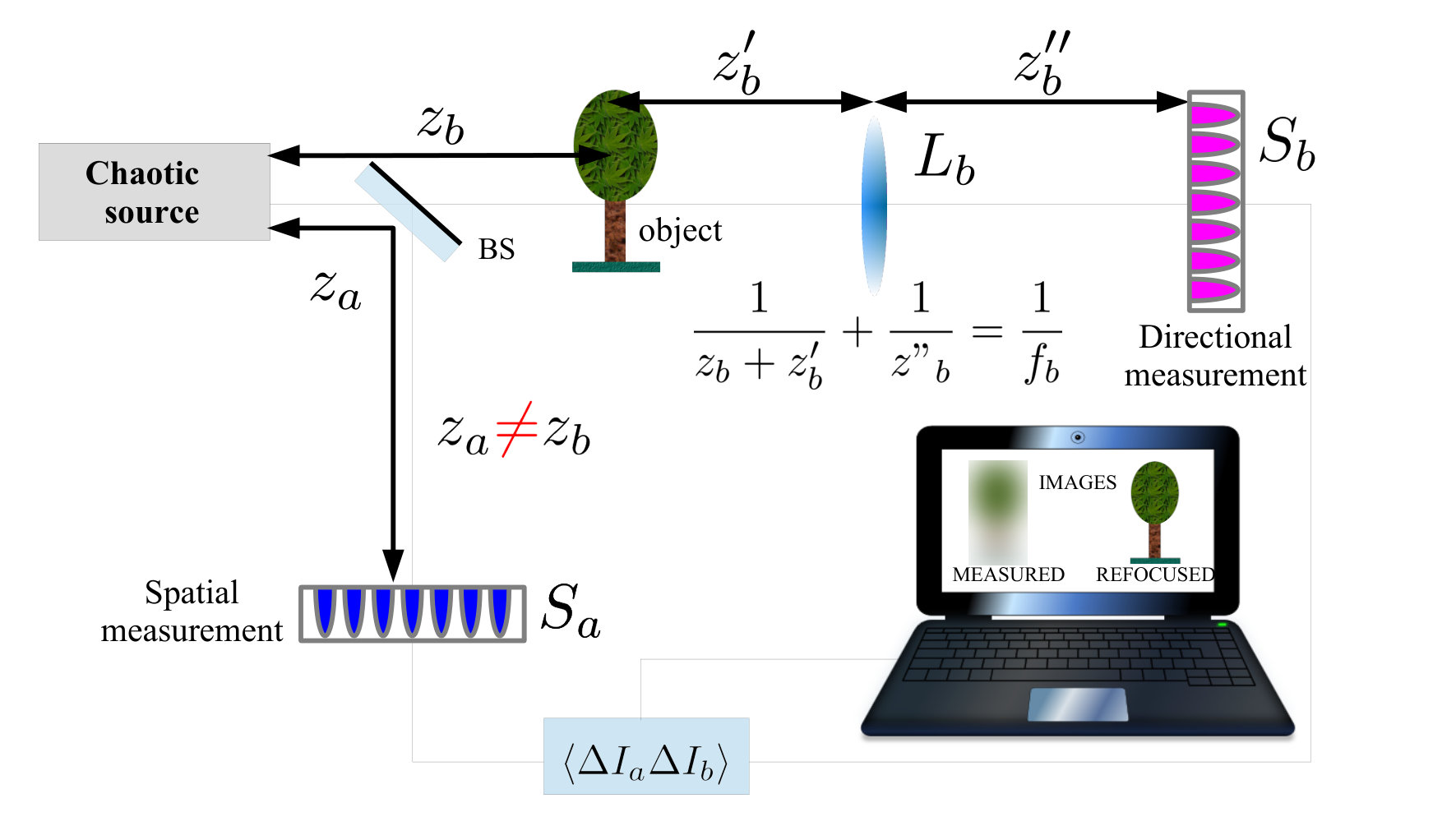

A schematic representation of the experimental setup is reported in Figure 1; technical details are in Appendix C. Based on the ghost imaging phenomenon valencia ; scarcelliPRL , intensity correlation measurement between each pixel of $S_{a}$ and the whole sensor $S_{b}$, described by the Glauber correlation function scully , enables retrieving an image of the object on the plane of $S_{a}$. Such “ghost” image is focused provided the distance $z_{a}$ between the source and the sensor $S_{a}$ is equal to the distance $z_{b}$ between the source and the object valencia ; scarcelliPRL : Due to the spatio-temporal correlation properties of chaotic light, the light source plays the role of a focusing element, and replaces the lens of a standard imaging system characterized by an image magnification $m=1$ scarcelliPRL . This justifies the name of spatial sensor for detector $S_{a}$, despite it detects a light beam that has never passed through the object. Like standard imaging, both the maximum achievable resolution set by the diffraction-limit ($\Delta x^{f}$) and the DOF of the ghost image are expected to be defined by the numerical aperture of the focusing element (here, the chaotic light source), as seen from the object ($\mathrm{NA}$). In our case: $\Delta x^{f}=\lambda/\mathrm{NA}=14\>\mu\mathrm{m}$ and, for objects at the resolution limit, $\mathrm{DOF}=\lambda/\mathrm{NA}^{2}=0.37\,\mathrm{mm}$. In our experiment, the pixel size is chosen to be comparable with the maximum achievable resolution: $\delta x=7.2\>\mu\mathrm{m}\approx\Delta x^{f}/2$, thus enabling imaging at the diffraction limit.

To understand how CPI enables increasing the DOF of the acquired image and changing the viewpoint (as required for 3D imaging), let us study the role of the high-resolution sensor $S_{b}$. Each pixel of this sensor corresponds to the source point from which the detected signal has been emitted. Correlation measurements between pixels of $S_{a}$ and $S_{b}$ may thus enable tracing “light rays” by joining each object point with each source point cpi_prl ; cpi_qmqm . Therefore, the high resolution of $S_{b}$ does not inhibit retrieval of the (ghost) image of the object on $S_{a}$, but simply provides displaced coherent images, one for each source point (see Appendix A). The conventional (incoherent) ghost image can be recovered by summing the correlations over the whole sensor $S_{b}$, which corresponds to using the typical “bucket” detector of ghost imaging.

The refocusing capability of CPI is governed by the resolution of the source image retrieved by $S_{b}$, which is defined, together with the numerical aperture $\mathrm{NA}_{b}$ of the lens $L_{b}$, by the diffraction of light at the object (see Appendix A) cpi_prl ; cpi_qmqm . In our experiment, both the resolution limit defined by the lens ($\lambda/\mathrm{NA}_{b}=14\>\mu\mathrm{m}$), and the pixel size of $S_{b}$ ($\delta u=72\>\mu\mathrm{m}$), have been chosen in such a way that the resolution on the source plane $\Delta u$ is mostly defined by diffraction at the object ($\lambda z_{b}/a$, where $a$ is the length scale of the smallest details of the object). We thus operate in a regime where imaging performances are limited by the wave nature of light, and not by the microlens size as in standard PI.

In our experiment, we have employed a test target to mimic small details and easily monitor the image resolution, both in the out-of-focus and in the refocused image. In Figure 7, we report the experimental results obtained for element 3 of group 2: the three slits have center-to-center distance $d=0.198~{}\mathrm{mm}$ and slit width $a=d/2$. In the left column, we report the out-of-focus image obtained on $S_{a}$ by measuring correlation with the whole detector $S_{b}$, when the mask is placed significantly out of the focused plane ($z_{b}-z_{a}\gtrsim 20\mathrm{mm}$); this is equivalent to the blurred image any conventional imaging system, characterized by the same NA as our CPI scheme, would retrieve at the given defocusing distance. In the right column, we report the same image after implementing the CPI refocusing algorithm cpi_prl

[TABLE]

where $\Gamma_{z_{a},z_{b}}(\bm{\rho}_{a},\bm{\rho}_{b})$ represents the measured correlation of intensity fluctuations $\langle\Delta I_{a}\Delta I_{b}\rangle$ between point $\bm{\rho}_{a}$ on $S_{a}$ and point $\bm{\rho}_{b}$ on $S_{b}$. The refocusing capability of CPI clearly appears from Figure 7, based on the enhanced resolution and contrast of the refocused image.

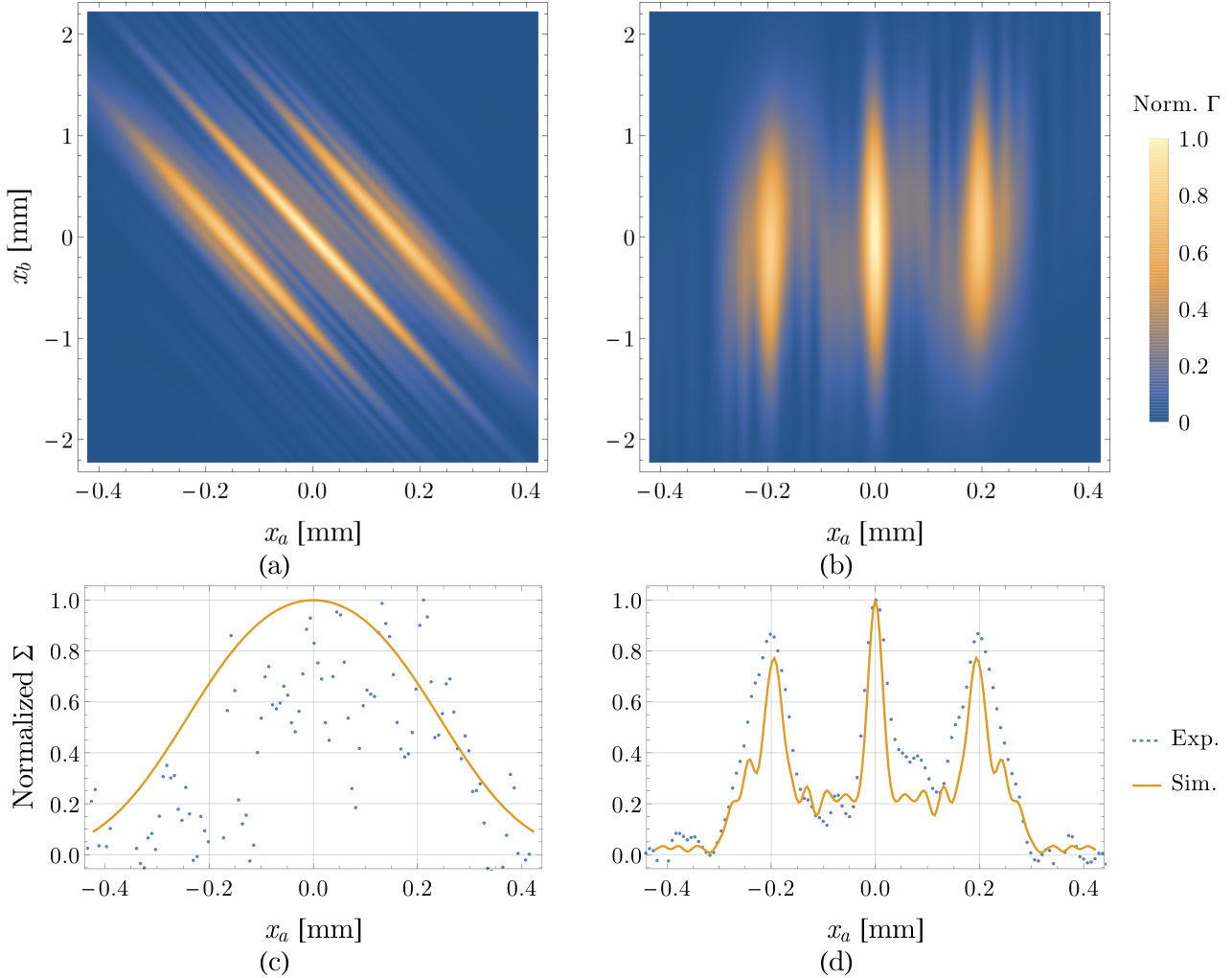

To understand the physical origin of the refocusing capability of CPI, we report in Figure 3(a) the result of the pixel-by-pixel correlation of the intensity fluctuations evaluated on the planes of $S_{a}$ and $S_{b}$ [i.e., $\Gamma_{z_{a},z_{b}}(\bm{\rho}_{a},\bm{\rho}_{b})$ from Eq. (B1), after integration over $y_{a}$ and $y_{b}$], in the same experimental scenario of Figure 7. For each pixel of the angular sensor $S_{b}$, we observe on $S_{a}$ a displaced image of the object: Hence, imaging the light source on the high-resolution sensor $S_{b}$ enables changing the perspective on the observed scene. This result explains why the standard ghost image reported in Figure 3(c) is blurred: When no angular information is retrieved (i.e., when integration over $S_{b}$ is performed), all displaced images combine into the out-of-focus image $\Sigma_{z_{a},z_{b}}(\bm{\rho}_{a})=\int d^{2}\bm{\rho}_{b}\,\Gamma_{z_{a},z_{b}}(\bm{\rho}_{a},\bm{\rho}_{b})$. In ghost imaging, integration performed by the bucket detector clearly erases the precious information contained in the raw data of CPI. On the contrary, CPI exploits the extra information gained by the high resolution detector $S_{b}$. As shown in Figure 3(b), all displaced images are realigned by the reshaping and resizing algorithm that appears in the integrand of Eq. (1), hence, no blurring occurs anymore upon integration over $S_{b}$, and the refocused image of Figure 3(d) is obtained. Figures 3(c) and (d) also show the excellent agreement between experimental data (points) and theoretical predictions (solid line).

Let us now focus our attention on the central point of the paper, namely, the unique opportunity offered by CPI to refocus without sacrificing diffraction-limited image resolution, as defined by the numerical aperture of the imaging system. In Figure 4(c), the dashed (white) line represents geometrical-optics prediction for the maximum range of “perfect” refocusing in CPI, given by cpi_prl

[TABLE]

with $\Delta x$ the resolution on sensor $S_{a}$, and $\Delta u$ the resolution on the source plane. In the right hand side of Eq. (2), we have expressed both quantities in the simple case of double-slit objects of width $a$ and center-to-center distance $d=2a$. The resolution $\Delta x=dz_{a}/z_{b}$ is defined by the geometrical projection of the image of the mask on the sensor plane. The resolution $\Delta u$ is defined by the larger contribution associated with diffraction at the object (i.e., $\lambda z_{b}/a$), numerical aperture of $L_{b}$ and pixel size $\delta_{u}$; these last two contributions enter into play for objects quite close to the light source [i.e., for $z_{b}=2a/(M_{b}\mathrm{NA}_{b})$ and $z_{b}=2\delta_{u}a/(M\lambda)$, respectively]. Based on Eq. (2), the physical quantities defining the spatial and the angular resolution of CPI are thus the object position $z_{b}$ and the object features $a$ and $d$. The density plot in Figure 4(c) reports visibility $V(d/\Delta x^{f},z_{b}-z_{a})$ of the refocused CPI images of double-slit masks, evaluated in the present experimental setup (see Appendix A-B). Besides giving the degree of reliability of the geometrical prediction of Eq. (2), this plot unveils the physical limit of resolution and DOF in CPI.

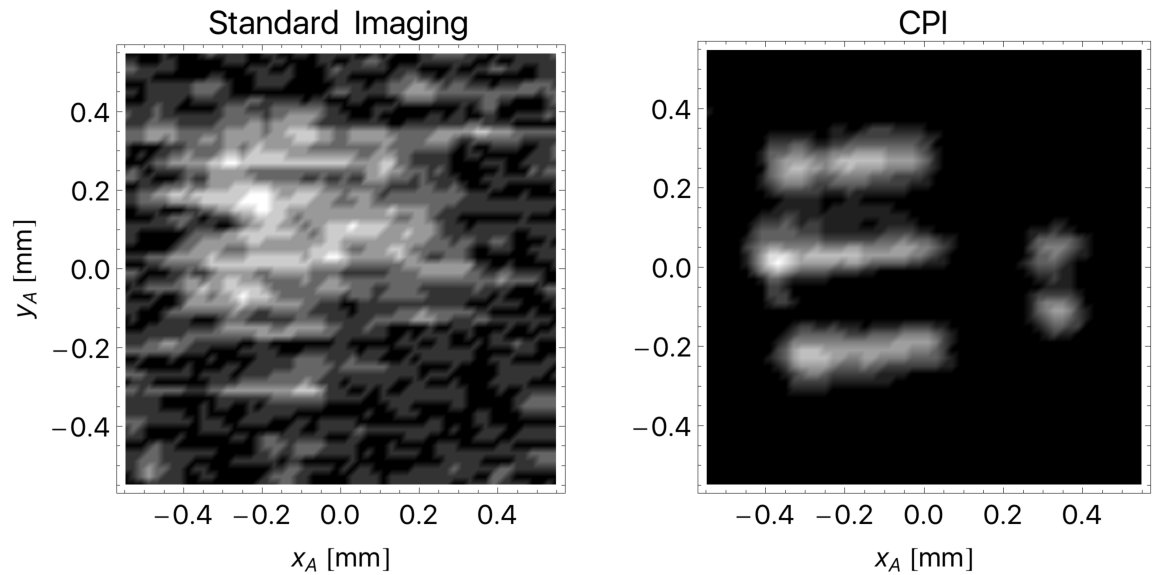

To compare CPI with both standard imaging and standard PI, we consider imaging devices having the same NA as the light source in our experiment, and report in Figures 4(a)-(b) the visibility they achieve. For standard PI, we have considered $N_{u}=3$ to avoid strongly compromising image resolution. Comparison of Figures 4(a), (b) and (c) indicates that CPI combines at best the advantages of standard and plenoptic imaging: It preserves the resolution of standard imaging while increasing the DOF even beyond the typical values of standard PI. Interestingly, for close up ($z_{b}<z_{a}$), object details larger than $d\gtrsim\sqrt{8\lambda z_{a}}\simeq 2.8\Delta x^{f}$ (the refocusing limit corresponding to $z_{b}=z_{a}/2$) can always be refocused by CPI, no matter how close the object is to the source. For $z_{b}>z_{a}$, the maximum achievable depth of field is significantly larger than in both standard imaging and standard PI. As demonstrated in Appendix D, the refocusing range in CPI is limited by interference and diffraction at the object, for close-up, and only by diffraction, for distant objects. Such dependence can be understood in terms of Klyshko picture klyshko , as applied to ghost imaging with chaotic light valencia . Hence, CPI reaches the fundamental limits imposed by the wave nature of light to both image resolution and DOF.

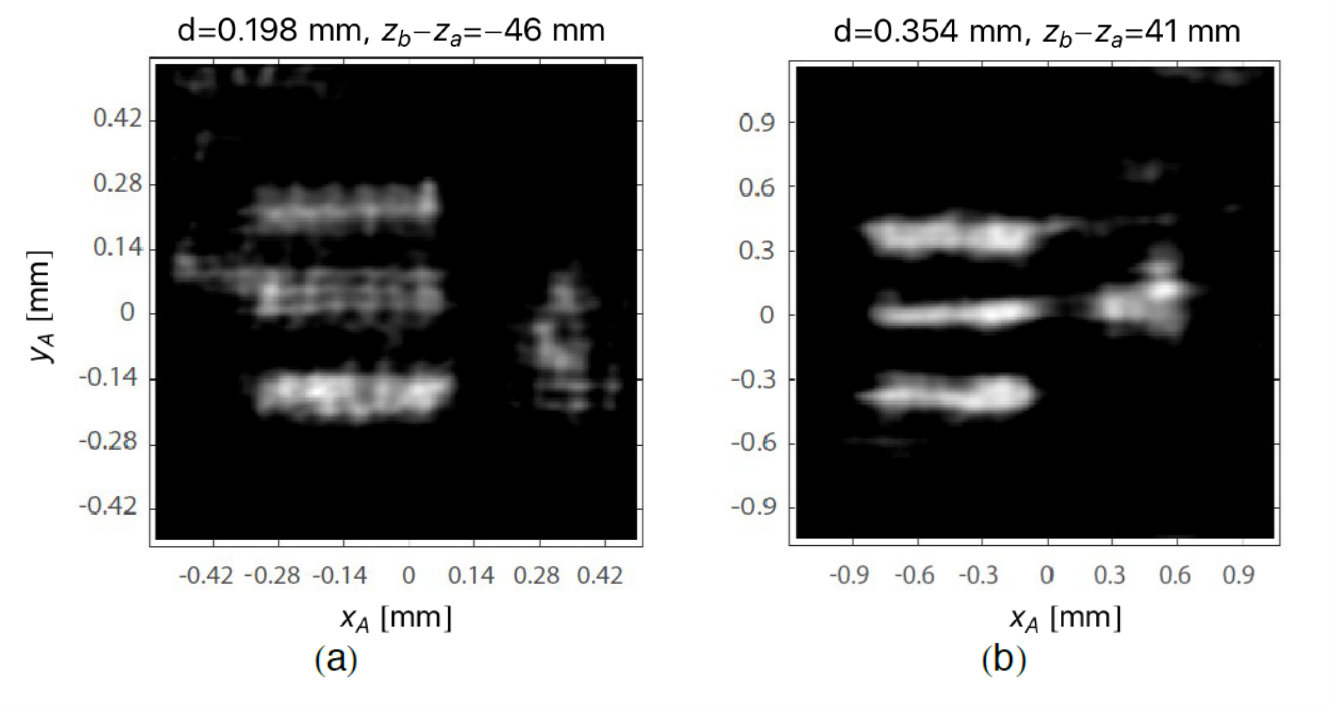

Points A, B, and C in Figure 4 represent the experimental scenarios corresponding to the results reported in Figure 7 (B), and in Figures 7(a)-(b) (A and C). In all three points CPI clearly guarantees a significant DOF advantage. In particular, the object corresponding to A and B can be refocused by CPI in a range more than $7$ times larger than in standard imaging, and $2.5$ larger than in a standard PI device characterized by a three times worst spatial resolution ($N_{u}=3$). For the wider object corresponding to point C, the maximum achievable DOF with CPI is $4$ times larger than with standard imaging, and twice larger than with a standard PI with $N_{u}=3$. It is worth emphasizing that the DOF of the standard ghost image represents the axial resolution of CPI ($\Delta z^{CPI}=\lambda/\mathrm{NA}^{2}$); hence, the ratio between the depth of fields of CPI and standard imaging fixes the number of planes that can be refocused by CPI.

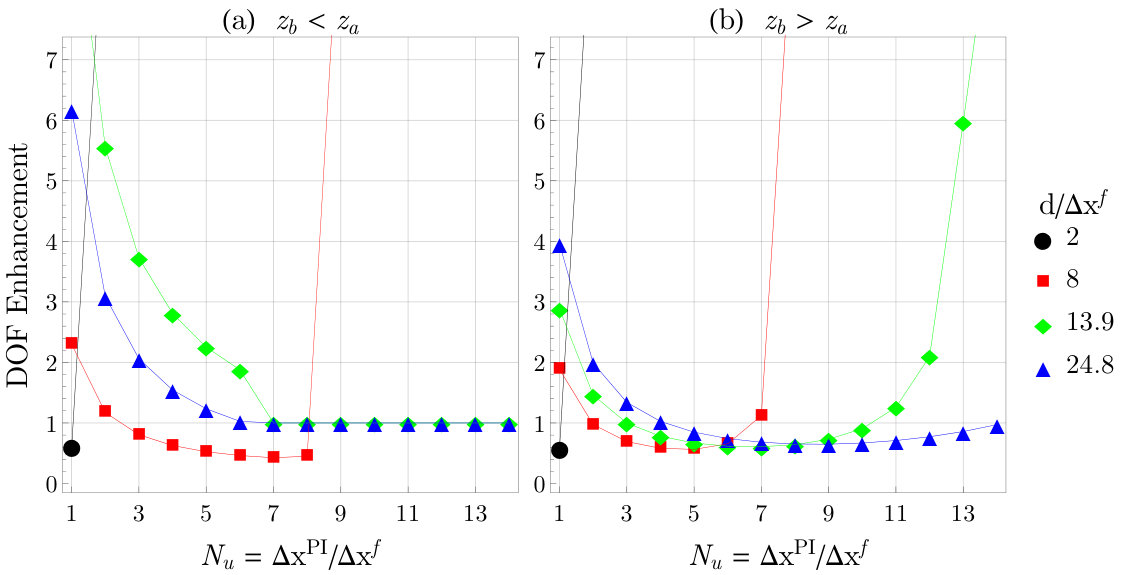

To summarize the above results, in Figure 5, we plot the DOF enhancement offered by CPI with respect to standard PI as a function of the resolution compromise of conventional PI. The DOF enhancement is defined as the ratio between the maximum achievable DOF of CPI and standard PI; the resolution compromise of standard PI corresponds to the ratio between the maximum image resolutions of standard PI and CPI/standard imaging and is represented by the number of angular pixels $N_{u}$ of standard PI. All parameters are the same employed in Figure 4. To better emphasize the lack of refocusing limit for close up, we have chosen to separately plot the two cases of object closer to and farther away from the conjugate plane $z_{b}=z_{a}$. In line with the results in Figure 4, CPI always outperforms standard PI. In fact, the DOF of CPI is generally larger than for standard PI, although there are ranges of $N_{u}$ where PI may overcome the DOF of CPI by loosing resolution.

Conclusions and outlook.— We have demonstrated that CPI can push plenoptic imaging to its fundamental limits of both resolution and maximum achievable DOF: Unlike standard PI, CPI has no constraints on image resolution, which stays diffraction-limited as in standard imaging systems. Still, CPI enables increasing the DOF well beyond the typical value of standard imaging. The advantages of both standard and plenoptic imaging are thus combined at best in CPI, whose maximum achievable DOF is solely limited by interference and diffraction at the object (see, e.g., Figures 9-10). Several technologies have been introduced in the past years where light correlation properties enable going beyond the capabilities of standard imaging systems (e.g., pittman ; valencia ; qu_superres ; qu_superres2 ; sofi ; undetected ); however, in most cases, previous technologies exploited the correlations in either position or momentum, but not both. The simultaneous use of both momentum and position correlation has so far only been used for fundamental demonstrations bennink ; dangelo_kim ; scarcelli_er ; here, for the first time, it is exploited to push the fundamental limits of practical imaging systems.

CPI has the potential to strongly improve the performances of both microscopy, where high lateral and axial resolutions are required together with large DOF, and 3D imaging, where fast multiperspective acquisitions are desired. Future studies will be devoted to acquisition time optimization, considering hardware (fast CMOS, smart sensors remondino2013tof ) and software solutions (compressed-sensing and sparse measurement techniques katz ) to regain the single-shot advantage of conventional plenoptic imaging.

Appendix A CPI with chaotic light

Let us review the main steps for demonstrating the refocusing capability of CPI, and Eq. (1) of the main text; a complete discussion can be found in Refs. cpi_prl ; cpi_qmqm . Thank to the chaotic nature of our light source, the intensities measured at point $\bm{\rho}_{a}$ of the sensor $S_{a}$ at time $t_{a}$ and at point $\bm{\rho}_{b}$ of the sensor $S_{b}$ at time $t_{b}$ are characterized by spatio-temporal correlations, described by the Glauber correlation function scully

[TABLE]

Here, $E_{i}^{(\pm)}$ are the positive- and negative-frequency components of the electric field [$E^{(+)}=(E^{(-)})^{\dagger}$] at each detector, and the expectation value is evaluated by considering the quantum state $\varrho$ of the source. The fields are propagated from the output plane of the source to each detector by the paraxial optical transfer functions $g_{a}$ and $g_{b}$, as

[TABLE]

where the integral runs over frequencies $\Omega$ and transverse momenta $\bm{\kappa}$, and $a_{\bm{k}}$ is the canonical field operator of the mode $\bm{k}$. In the paraxial approximation, the 3D wave vector reads $\bm{k}=(\bm{\kappa},\Omega/c)$. When the source is both stationary and quasi-monochromatic, with peak frequency $\omega$, the correlation function depends only on $\tau=t_{a}-t_{b}$, and the time dependent part approximately factorizes with respect to the space-dependent part. In addition, for a chaotic source, the four-point expectation value involved in Eq. (3) reduces to the sum of two terms,

[TABLE]

Therefore, upon neglecting the time dependence (i.e.,  working within the coherence time of the source), the second-order correlation function in Eq. (3) reads

[TABLE]

where the first term is the mere product of intensities at the points $\bm{\rho}_{i}$ on $S_{i}$, with $i=a,b$. The second term

[TABLE]

represents the nontrivial part of the second-order correlation, that yields the correlation of intensity fluctuations and encodes plenoptic imaging properties.

To unveil such properties, we first need to compute the transfer functions in the setup of Figure 1 of the main text. Up to irrelevant normalization factors and phases, we have:

[TABLE]

in the reflected arm and

[TABLE]

in the transmitted arm, with $G(\bm{\rho})_{[\beta]}=\exp(i\beta\bm{\rho}^{2}/2)$, $A(\bm{\rho}_{o})$ the object transmission function, and $f(\bm{\rho}_{s})$ the source amplitude profile. Notice that in Eq. (9) we have assumed that the lens $L$, that focuses the image of the source on the sensor $S_{b}$ with magnification $M$, is diffraction-limited. Given the propagators of Eqs. (8)-(9), one can compute the nontrivial part of the correlation function in Eq. (7), which yields, up to trivial factors,

[TABLE]

where $F=|f|^{2}$ is the source intensity profile.

On one hand, Eq. (A) indicates that a focused coherent image of the object $A(\bm{\rho}_{0})$ is obtained when $z_{a}=z_{b}$. The focusing condition is shared by the ghost image, which is given by the integral of Eq. (A) over the sensor $S_{b}$:

[TABLE]

Interestingly, the focused ghost image

[TABLE]

is formally identical to a standard incoherent image (with no magnification): It sets a quasi one-to-one correspondence between points of the object plane and points of the sensor $S_{a}$. The point-spread function (PSF) of the ghost image is given by the squared modulus of the Fourier Transform of the source intensity profile ($\tilde{F}$); in ghost imaging, the source intensity profile thus plays the exact same role that a lens plays in standard imaging. The image resolution $\Delta\rho_{a}\simeq 2\pi cz_{a}/(\omega D_{s})=:\lambda/NA$ is defined by the numerical aperture NA of the focusing element (here, the source), characterized by the effective diameter $D_{s}$.

On the other hand, due to the first-order image of the source on sensor $\mathrm{D}_{b}$, Eq. (A) also entails a correspondence between points of the source plane and pixels of the sensor $S_{b}$ ($\bm{\rho}_{b}=-M\bm{\rho}_{s}$), whose uncertainty $\Delta\rho_{b}=M\lambda z_{b}/a$ is determined by the typical size $a$ of the smallest detail of the object, that acts as a pupil for the lens $L$, and by the distance $z_{b}$. The resolution of the source image is thus limited by diffraction at the object.

The plenoptic properties of $\Gamma_{(z_{a},z_{b})}$ clearly emerge in the geometrical optics limit $\omega\to\infty$. Indeed, in this limit, the double integral in Eq. (A) can be approximated by a stationary-phase approximation, which reveals that the object and source points that provide the prominent contribution to the integral are related to the detection points by

[TABLE]

The first result is expected by the aforementioned first-order imaging of the source. The second line is nontrivial, since it is not related to any first-order imaging property, but it connects points of the object to points of both sensors. Thus, in the geometrical optics limit, we can deduce the asymptotic behavior of the nontrivial part of the second-order correlation function:

[TABLE]

If $z_{b}\neq z_{a}$, the integration of this result over ${\bf\rho}_{b}$, which is equivalent to retrieving an out-of-focus (incoherent) ghost image, erases information on the aperture function of the object, and leads to a blurred image (see Figure 3(c) of the main text). This indicates the crucial role played by the high-resolution detector $S_{b}$, as opposed to the bucket detector of standard ghost imaging. In fact, based on Eq. (15), one can use the information obtained from intensity correlation measurements to refocus the coherent correlation plenoptic image of the object, by applying a refocusing algorithm that is very similar to the one of standard PI ng :

[TABLE]

The integration of the refocused correlation function of Eq. (16) over $\bm{\rho}_{b}$ [as reported in Eq. (1) of the main text] increases the signal-to-noise ratio of the final refocused image obtained by CPI without blurring it, as demonstrated in Figure 3(d) of the main text.

Appendix B CPI with a Gaussian source

The case of a source with Gaussian intensity profile $F(\bm{\rho}_{s})=\exp[-\bm{\rho}_{s}^{2}/(2\sigma^{2})]/(2\pi\sigma^{2})$ is particularly relevant, since it is analytically feasible,and, most important, can be used to model our experimental source. Based on Eq. (A), the correlation of intensity fluctuations can be expressed as the convolution of the aperture function of the object with the (coherent) CPI point-spread function (PSF) $\mathcal{C}(\bm{\rho})$, namely,

[TABLE]

where, for a Gaussian source cpi_qmqm ,

[TABLE]

It is also immediate to verify that the PSF $\mathcal{J}$ of the (incoherent) ghost image described by Eq. (11), is related to the PSF of CPI by the relationship $\mathcal{J}(\bm{\rho})\propto|\mathcal{C}(\bm{\rho})|^{2}$. In the case of a Gaussian source, we have cpi_qmqm :

[TABLE]

The result in Eq. (19), typical of both ghost imaging and conventional incoherent imaging, also enables a clearer understanding of Figure 4 of the main text, where the visibility of the incoherent image is asymmetric with respect to the object position $z_{b}=z_{a}$. In fact, the asymmetry can be appreciated only in panel (c) of Figure 4 of the main text, and would disappear if one fixes the object distance $z_{b}$ and varies the sensor distance $z_{a}$. Indeed, when $z_{a}$ is kept fixed as in our experimental case, the image of a point object placed in $\bm{\rho}_{o}$, at a distance $z_{b}\neq z_{a}$ from the source, is a Gaussian centered in $\bm{\rho}_{a}=\bm{\rho}_{o}/\alpha$, with $\alpha=z_{b}/z_{a}$, and characterized by the width

[TABLE]

The factor $1/\alpha$ is a magnification due to the geometrical projection of the object onto a plane different from its conjugate image plane. Hence, the quantity that actually determines the image resolution in Eq. (20) is $\sigma_{i}(\alpha)$, and is minimized by

[TABLE]

The quantity $\bar{\alpha}$ is always smaller than one, hence, the image resolution is minimum for $\bar{z}_{b}=\bar{\alpha}z_{a}<z_{a}$, with $\bar{\alpha}$getting smaller for larger source widths, as well as smaller wavelengths and $z_{a}$.

Appendix C Experimental methods

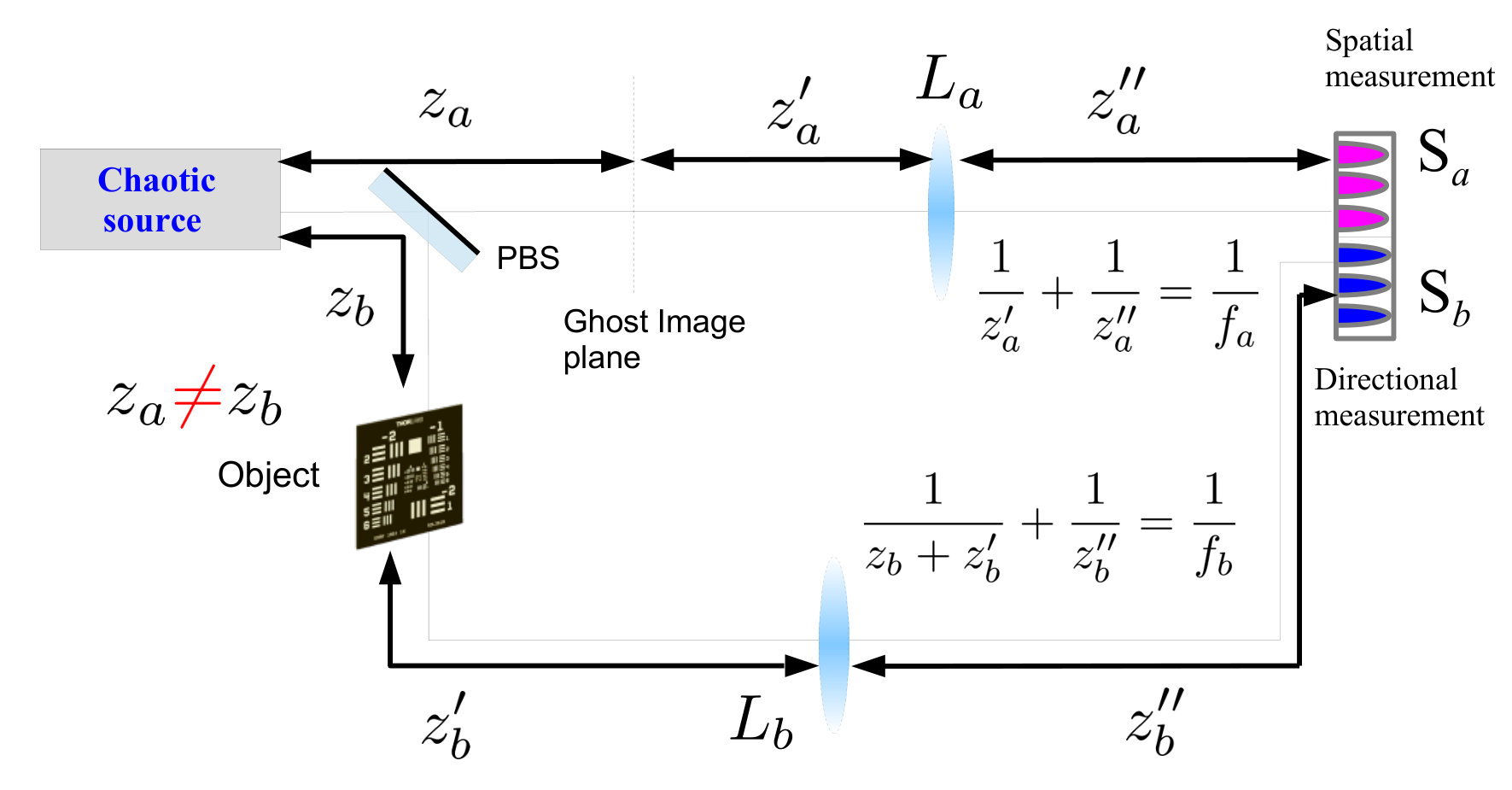

The detailed experimental setup is reported in Figure 6.

The chaotic source is made by a CW single-mode laser with wavelength $\lambda=532\,\mathrm{nm}$ and tunable power up to $5W$ (Azur Light Systems ALS-532nm-SF). The laser beam, after being expanded to give a spot size of $\sigma=1.08\>\mathrm{mm}$, passes through a polarizer before impinging on a rotating ground glass disk, spinning at $0.05\>\mathrm{Hz}$, at a distance of about $4\>\mathrm{cm}$ from the center. Light from the source is then divided by a polarizing beam-splitter (PBS); the combination of polarizer and PBS enables balancing the intensities at the sensors $S_{a}$ and $S_{b}$, which are different regions of the same sCMOS camera (Hamamatsu ORCA-Flash 2.8 camera C11440-10C), thus maximizing their SNR. The reflected beam passes through the object of interest (ThorLabs 1951 USAF Resolution Test Targets), propagates toward a lens ($L_{b}$) of focal length $f_{b}=300\,\mathrm{mm}$, and reaches the angular sensor $S_{b}$. The angular detector $S_{b}$ is in the conjugate plane of the source, whose image is magnified by $M_{b}=1$. The transmitted beam propagates toward a lens ($L_{a}$) of focal length $f_{a}=125\,mm$, reproducing on the spatial sensor $S_{a}$, with a magnification $M_{a}=1$, the image of the ghost imaging plane (set at a distance $z_{a}=92\,\mathrm{mm}$ from the source). The camera is characterized by a pixel size of $3.6\>\mathrm{\mu m}$, which is much smaller than both the spatial resolution (given by the diffraction limit associated with the smaller one between the source and the lens $L_{a}$ numerical apertures) and the angular resolution (given, for the chosen values of $z_{b}$ and object size, by diffraction at the object). We have thus performed a binning of the camera pixels to match the effective pixels $\delta x$ and $\delta u$ with the resolution of the spatial and angular measurements, respectively. In particular, during data acquisition, we have performed a 2x2 binning, to get $\delta_{x}=7.2\>\mathrm{\mu m}\approx\Delta x^{f}/2$, with $\Delta x^{f}=14\>\mu\mathrm{m}$. In post-processing, a further $10\times 1$0 binning was performed on the region of the camera sensor dedicated to the angular measurement, thus getting $\delta u=72\>\mathrm{\mu m}<\Delta u/2$, with $\Delta u=\lambda z_{b}/a$ in our experiment.

We acquire $50\,000$ frames for all measurements $A$, $B$ and $C$ at a frame rate of $45.4\>\mathrm{s}^{-1}$, and with an exposition time $\tau_{\mathrm{meas}}=21\,\mathrm{\mu s}$ (the minimum enabled by the camera) approximately 100 times smaller than the source coherence time. The acquired frames are processed to evaluate the spatio-temporal correlation, which is expected to give the result of Eq. (A), and the refocusing algorithm [as described by Eq. (1) of the main text], thus getting the CPI images reported in both Figure 2 of the main text and in Figures 2 (a) and (b). Indeed, in Figure 7(a) and (b), we report the experimental refocused images obtained, respectively, for element 3 of group 2 (having $d=0.198~{}\mathrm{mm}$) placed at a distance $z_{b}=46\,\mathrm{mm}$ from the source (measurement A), and for element 4 of group 1 (having $d=0.354\,\mathrm{mm}$) placed at $z_{b}=133\,\mathrm{mm}$ (measurement C). Such experiments have been performed around the maximal displacements $z_{b}\neq z_{a}$ of the objects that were enabled by our setup. The SNR in Figure 7(a) is lower because that the displaced coherent images retrieved for $z_{b}=z_{a}/2$ are twice larger than the object, and distributed over a region wider than the illuminated area; the coherent images are thus often affected by a poor SNR, which reflects on the final refocused image. To avoid this issue, the divergence of the light source needs to be designed to account for such displacement and enlargement.

Appendix D DOF advantage of CPI

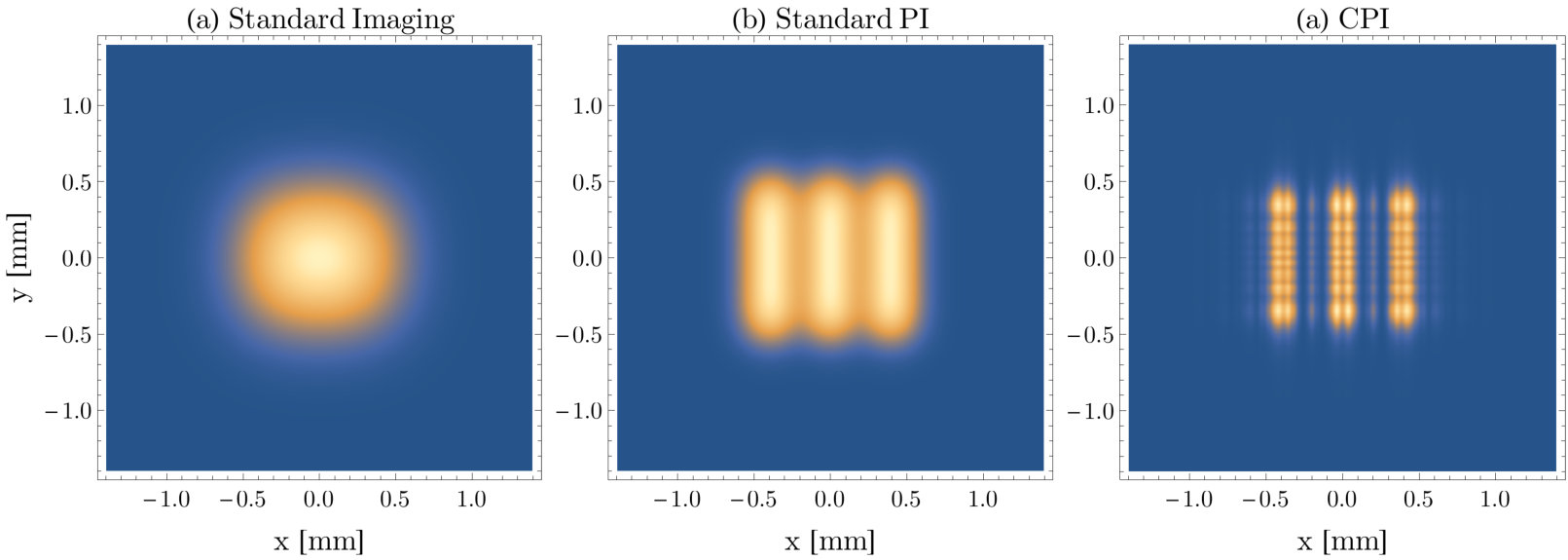

In Fig. 8, we report the comparison of CPI with both conventional imaging and conventional PI, in the same scenario corresponding to the experimental measurement (C) reported in Fig. 7(b): Beside gaining diffraction limited resolution, CPI clearly enables improving the DOF with respect to both conventional modalities.

To analyze the fundamental limitations characterizing our CPI scheme, we shall compare the DOF of CPI and ghost imaging (which is always representative of standard imaging). In Figures 9 and 10, we report the incoherent ghost image (left column)

[TABLE]

the coherent image from CPI (central column)

[TABLE]

and the refocused image from CPI (rigth column)

[TABLE]

with $\mathcal{J}_{1}(x)=\int dy\mathcal{J}(x,y)$ and $\mathcal{C}_{1}(x)=\int dy\mathcal{C}(x,y)$, where $\mathcal{J}$ and $\mathcal{C}$ are defined in Eqs. (18)-(19). The results are shown for three single-slits of different width $a$, in Figure 9, and for a double-slit mask, in Figure 10. The results have been obtained by considering the experimental setup of Figure 6, with a Gaussian source of width $\sigma=1.08$ mm, as retrieved from a fit of the measured source intensity profile. In line with the experiment, we fix $z_{a}$ while changing $z_{b}$.

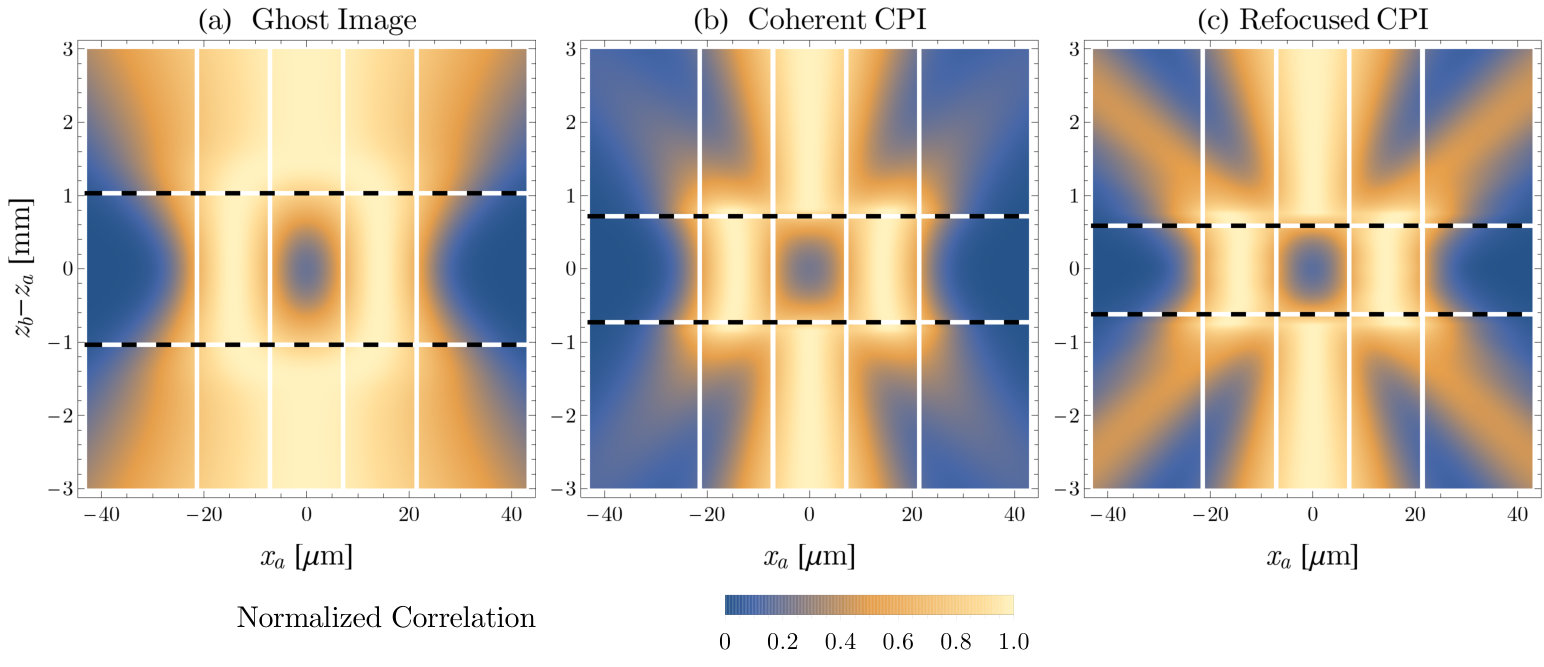

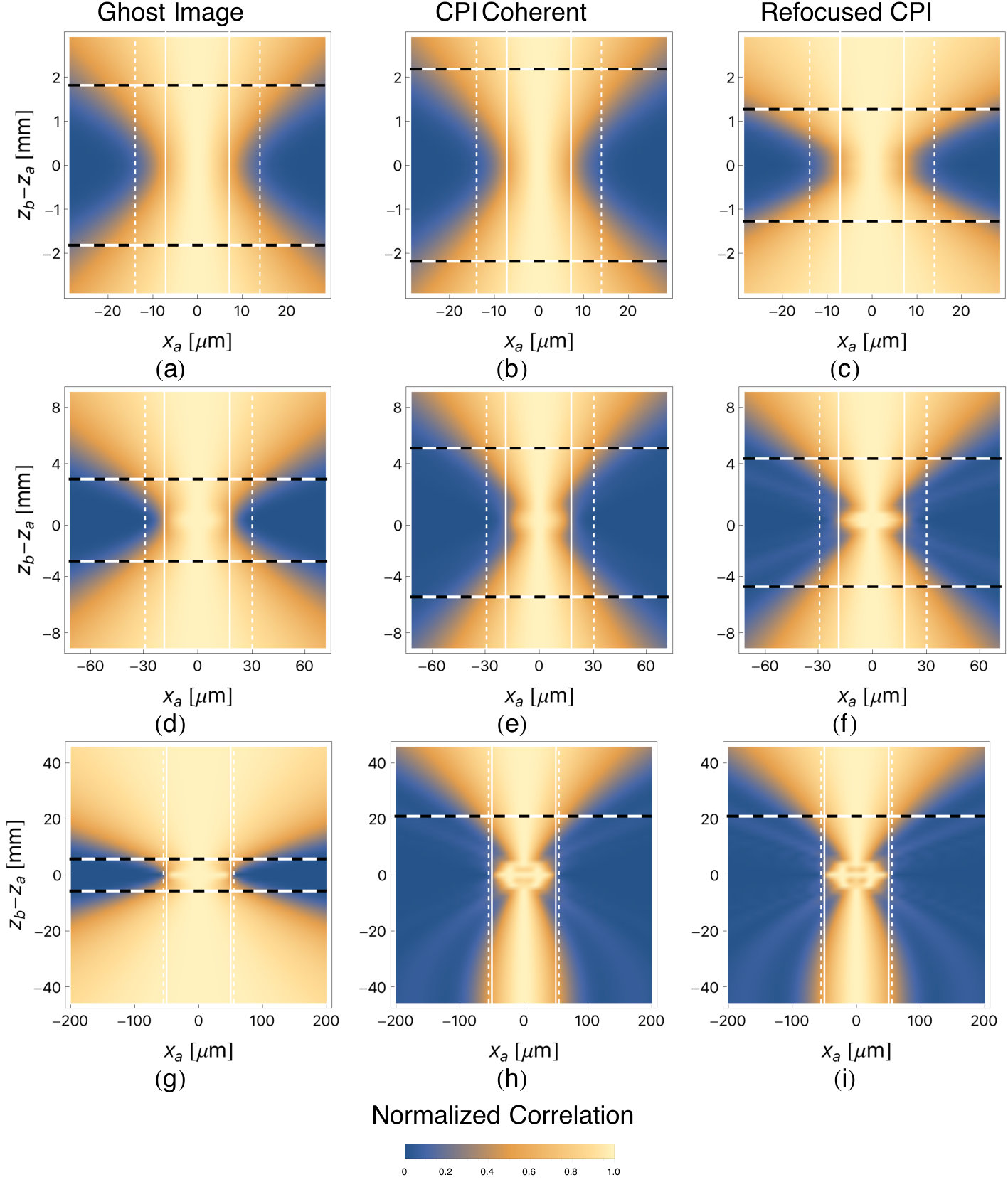

In Figure 9, the resolution limit (vertical dashed lines) is defined by adding to the half width $a/2$ of the object the quantity $2\sqrt{2\ln 2}\sigma_{PSF}$ corresponding to the Rayleigh criterion for a Gaussian PSF of width $\sigma_{PSF}$; the DOF (horizontal dashed lines) is given by the value of $z_{b}-z_{a}$ at which the half width at half maximum of the image reaches the resolution limit. Based on both Figure 9, the coherent image always has a wider DOF than ghost imaging. But what limits the maximum achievable DOF of the refocused correlation plenoptic image? On one hand, for close and wide enough objects ($z_{b}<z_{a}$ and $a\gtrsim 5\Delta x^{f}$), Figure 9(i) predicts an unlimited DOF for the coherent image, which results in an unlimited refocusing capability for CPI. On the other hand, in general [e.g., Figures 9(c) and (f)], the final refocused image does not necessarily maintain the improved DOF of its underlying coherent images. This is due to the detrimental effect diffraction has on the reliability of the retrieved angular information: The one-to-one correspondence between points of the angular sensor $S_{b}$ and points on the source plane may be compromised by diffraction at the object. Notice that for large enough objects [e.g., Figures 9(g) and (i)], diffraction enters into play only at object distances $z_{b}>z_{a}$ that are equal or larger than the DOF of the coherent image; hence, the refocused image has essentially the same DOF of its underlying coherent images [e.g., Figures 9(i)].

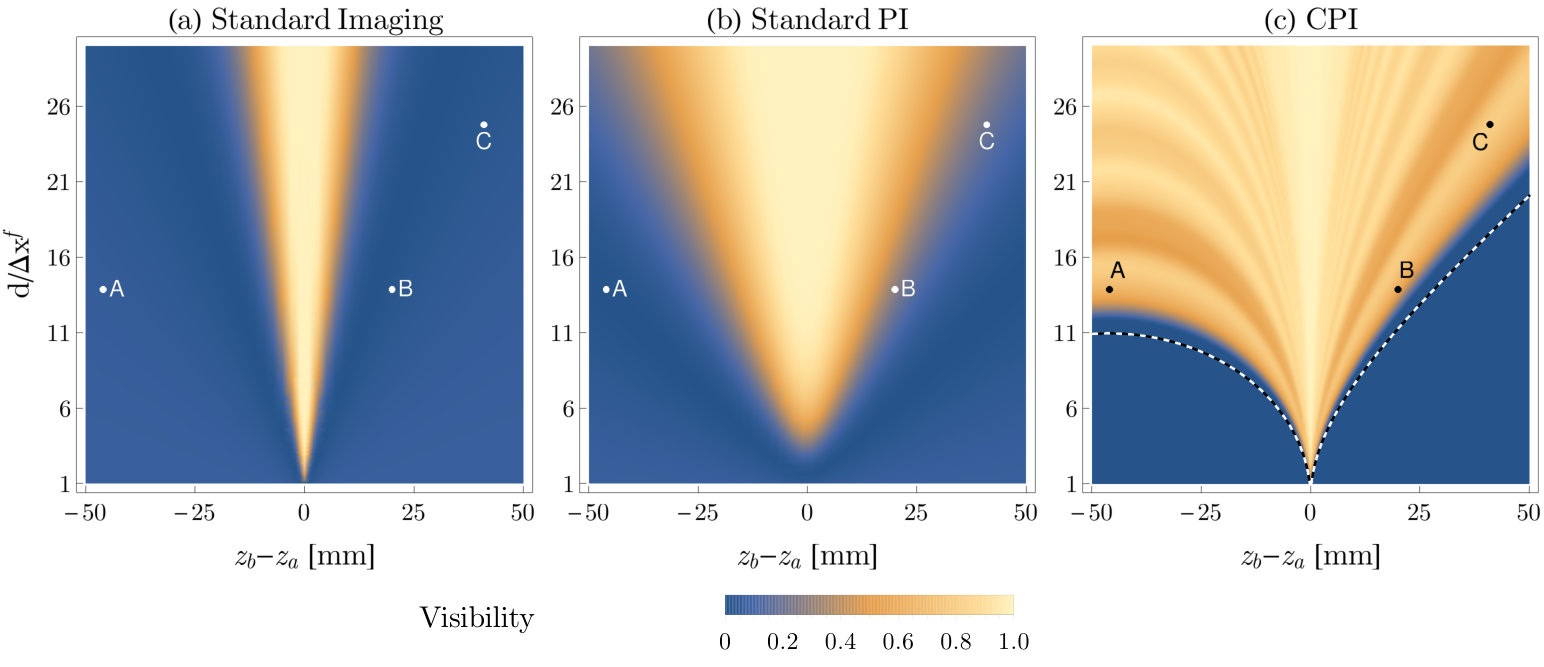

However, due to the coherent nature of CPI, a complete analysis of the DOF requires accounting for interference. In Figure 10, the DOF is obtained by the visibility of the double-slit image: The Rayleigh resolution criterion applied to the image of a double-slit having slit width $a$ and center-to-center distance $d=2a$, gives a visibility $V=10\%$. Based on Figure 10, interference between light passing through the two slits limits the DOF both for the coherent and for the final CPI refocused image.
