Surface Gravities for 228 M, L, and T Dwarfs in the NIRSPEC Brown Dwarf Spectroscopic Survey

TL;DR

This study analyzes surface gravity indicators in 228 low-mass stars and brown dwarfs using near-infrared spectra, revealing trends with age and spectral type, and refining gravity classification methods.

Contribution

It combines new and existing spectra to calibrate gravity-sensitive spectral indices and relates them to age estimates across spectral types M5-T9.

Findings

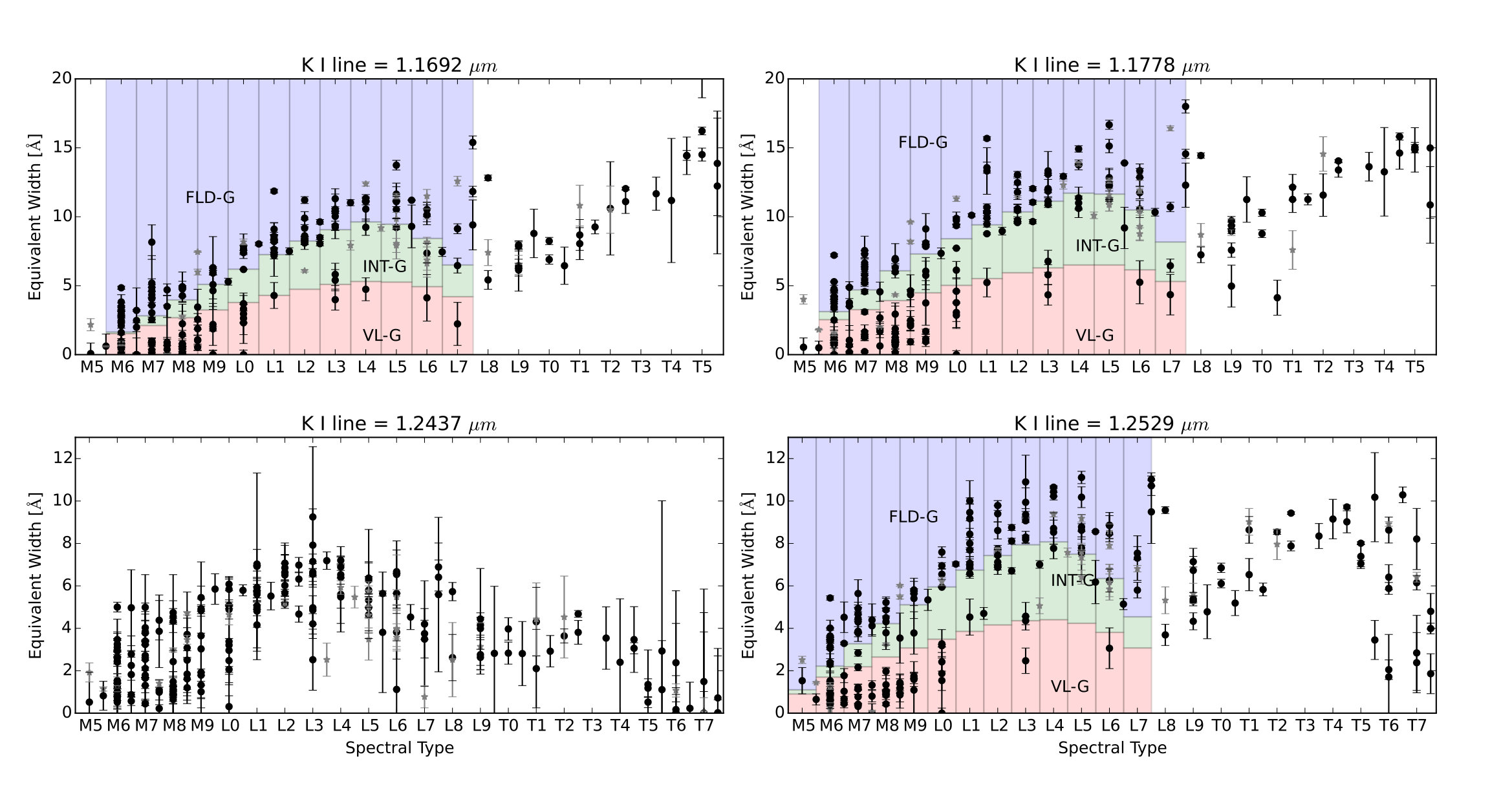

Distinct double peaks in K I EW at ~L5 and T5.

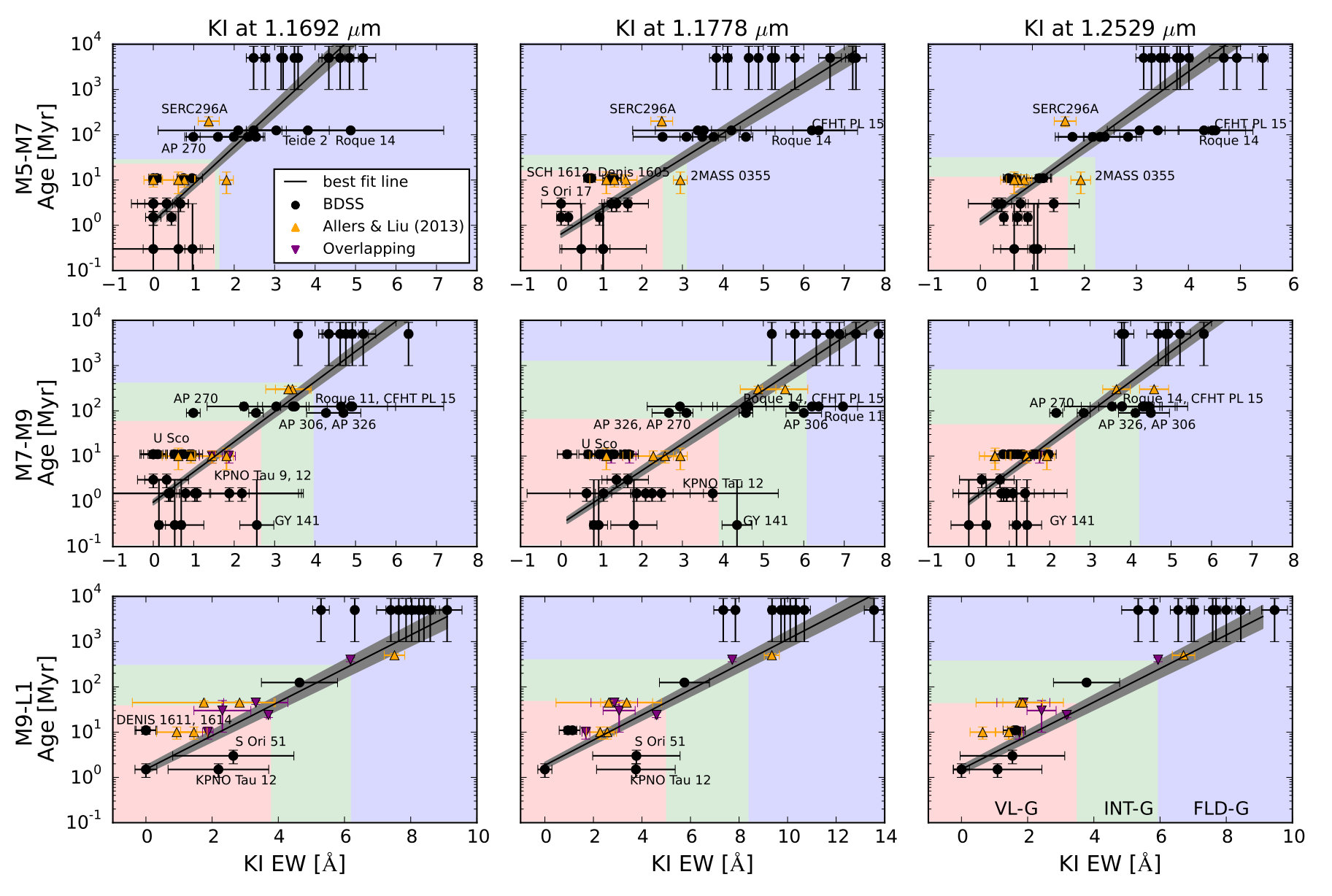

Linear relationship between log(Age) and K I EW.

Gravity classifications suggest youth but lack precise age estimates.

Abstract

We combine 131 new medium-resolution (R~2000) J-band spectra of M, L, and T dwarfs from the Keck NIRSPEC Brown Dwarf Spectroscopic Survey (BDSS) with 97 previously published BDSS spectra to study surface-gravity-sensitive indices for 228 low-mass stars and brown dwarfs spanning spectral types M5-T9. Specifically, we use an established set of spectral indices to determine surface gravity classifications for all M6-L7 objects in our sample by measuring equivalent widths (EW) of the K I lines at 1.1692, 1.1778, 1.2529 um, and the 1.2 um FeHJ absorption index. Our results are consistent with previous surface gravity measurements, showing a distinct double peak - at ~L5 and T5 - in K I EW as a function of spectral type. We analyze K I EWs of 73 objects of known ages and find a linear trend between log(Age) and EW. From this relationship, we assign age ranges to the very low gravity, intermediate gravity, and field gravity designations for spectral types M6-L0. Interestingly, the ages probed by these designations remain broad, change with spectral type, and depend on the gravity sensitive index used. Gravity designations are useful indicators of the possibility of youth, but current datasets cannot be used to provide a precise age estimate.

Figures

Tables

Table 1. Table 1 Observations and Designations

Designation	Disc.	Short Name	SpT	SpT	UT Date of	A0V	Slit Width	Exp. Time
	Ref			Ref	Observation	Calibrator	[arcsec]	[s]
2MASS J06195260-2903592	29	2MASS 0619-2903	M5	1	11/21/2004	HD 41473	0.38	1200
2MASS J00433134+2054316	68	LHS 1135	d/sdM5	54	12/4/2003	HD 7215	0.38	600
GJ 577 BC	64	Gl 577 BC	M5.5+M5.5	88	3/24/2003	HD 132072	0.38	600
2MASS J16262152-2426009	40	$\rho$ Oph GY 5	M5.5	81	5/14/2003	HD 151736	0.38	600
WDS J04325+1732Ba	27	GG Tau Ba	M6	103	11/7/2004	HD 28354	0.38	1200
2MASS J14594626+0004427	54	2MASS 1459+0004	M6	54	7/19/2005	HD 123233	0.38	1200
2MASS J22344161+4041387	29	2MASS 2234+4041AB	M6+M6	2	12/4/2003	BD +39 4890	0.38	600
2MASS J16051403-2406524	78	DENIS-P 1605-2406	M6	78	5/2/2004	HD 147384	0.38	1200
2MASS J04262939+2624137	11	KPNO Tau 3	M6	11	11/7/2004	24 Tau	0.38	600
2MASS J04312405+1800215	10	MHO Tau 4	M6	11	12/4/2003	HD 27761	0.38	600
2MASS J16262780-2426418	102	$\rho$ Oph GY 37	M6	104	5/12/2003	HD 151736	0.38	1200
2MASS J05375745-0238444	8	SOri 12	M6	8	12/4/2003	HD 37887	0.38	1200
2MASS J05390449-0238353	8	SOri 17	M6	8	2/9/2004	HD 294285 (A1V)	0.38	1200
2MASS J16014955-2351082	3	USco CTIO 66AB	M6+M6	3	5/12/2003	HD 151736	0.38	600
2MASS J02535980+3206373	29	2MASS 0253+3206	M6	1	12/4/2003	BD+3i 500 (A3)	0.38	600
2MASS J08402975+1824091	42	2MASS 0840+1824	M6	48	12/4/2003	HD 89239	0.38	480
2MASS J10494146+2538535	36	2MASS 1049+2538	M6	36	12/4/2003	HD 89239	0.38	600
2MASS J03230483+4816111	97	AP 310	M6	97	7/20/2003	HD 22401	0.38	1200
Cl* Melotte 20 AP 316	97	AP 316	M6	97	11/22/2004	HD 20842	0.38	1200
2MASS J14121215-0035165	68	GJ 3828B	M6	45	4/30/2004	HD123233	0.38	1200
2MASS J03473900+2436226	108	Roque 16	M6	108	11/22/2004	24 Tau	0.38	1200
2MASS J03520670+2416008	73	Teide 2	M6	73	12/4/2003	HD 23512	0.38	1200
2MASS J15514732-2623477	3	USco CTIO 121	M6	3	7/19/2003	HD 141442	0.38	1200
UScoCTIO 85	3	UScoCTIO 85	M6	3	3/25/2003	HD 142703	0.38	1200
2MASS J10562886+0700527	107	Wolf 359	M6	47	12/6/2000	HD 93346	0.38	120
2MASS J04321606+1812464	10	MHO Tau 5	M6.5	10	2/8/2003	HD 25175	0.38	480
2MASS J16262226-2424070	89	$\rho$ Oph GY 11	M6.5	104	7/22/2004	HD 151736	0.38	1800
2MASS J16121185-2047267	94	SCH 1612-2047	M6.5	94	4/7/2009	HD 144925	0.38	1200
2MASS J03180906+4925189	97	AP 301	M6.5	97	7/20/2003	HD 22401	0.38	1200
2MASS J07401922-1724449	82	Gl 283B	M6.5	48	12/31/2001	HD 61486	0.38	400
2MASS J03454126+2354099	95	PPL 1	M6.5	72	12/29/2001	HD 34317	0.38	600
2MASS J04351455-1414468	29	2MASS 0435-1414	M7	1	12/4/2003	HD 31743	0.38	600
2MASS J03204346+5059396	83	AP 270	M7	6	12/4/2003	HD 20842	0.38	2400
2MASS J05382088-0246132	8	SOri 31	M7	5	2/9/2004	HD 294285 (A1V)	0.38	1200
2MASS J05373648-0241567	8	SOri 40	M7	8	12/4/2003	HD 37887	0.38	1200
2MASS J16020429-2050425	3	USco CTIO 100	M7	3	5/13/2003	HD 151736	0.38	600
2MASS J15591135-2338002	3	USco CTIO 128	M7	3	3/25/2003	HD 142703	0.38	1200
2MASS J03354735+4917430	97	AP 325	M7	97	12/4/2003	HD 20842	0.38	1800
2MASSI J0952219-192431	36	2MASS 0952-1924	M7	36	12/4/2003	HD 90606	0.38	600
2MASS J03551257+2317378	9	CFHT PL 15	M7	96	2/8/2003	HD 25175	0.38	1200
2MASS J11571691+2755489	47	CTI 115638.4+28	M7	47	4/30/2004	HD105388	0.38	1200
2MASS J11061897+0428327	68	LHS 2351	M7	54	12/14/2000	HD 75159	0.38	600
2MASS J03464298+2424506	108	Roque 14	M7	108	12/4/2003	HD 7215	0.38	600
2MASS J15593777-2254136	3	USco CTIO 132	M7	3	5/14/2003	HD 151736	0.38	400
2MASS J16553529-0823401	101	VB 8	M7	44	6/10/2001	HD 152515 (A2V)	0.38	600
2MASS J18355309-3217129	54	2MASS 1835-3217	M7p	54	7/19/2005	HD 168086	0.38	1200
2MASS J04361038+2259560	77	CFHT-BD-Tau 2	M7.5	11	12/23/2002	HD 40686	0.38	600
2MASS J16261882-2426105	28	ISO-Oph 23	M7.5	104	5/2/2004	HD 147384	0.38	1800
2MASS J15594366-2014396	3	USco CTIO 130	M7.5	3	4/30/2004	HD 147013	0.38	1200
Cl* Melotte 20 AP 326	97	AP 326	M7.5	97	11/6/2004	HD 23860	0.38	2400
2MASS J03455065+2409037	108	Roque 13	M7.5	108	11/21/2004	24 Tau	0.38	1200
WDS J04325+1732Bb	27	GG Tau Bb	M7.5	103	11/7/2004	HD 28354	0.38	1200
2MASS J12073346-3932539	35	2MASS 1207-3932	M8	53	12/30/2001	HD 112832 (A3V)	0.38	1200
2MASS J04363893+2258119	77	CFHT-BD-Tau 3	M8	11	11/21/2004	HD 105388	0.38	1200
2MASS J16191646-2347235	78	DENIS 1619-2347	M8	78	7/18/2005	HD 151736	0.38	1200
2MASS J16192988-2440469	78	DENIS 1619-2440	M8	78	7/22/2004	HD 151736	0.38	1200
2MASS J04305718+2556394	11	KPNO Tau 7	M8	11	11/21/2004	HD 28354	0.38	600
2MASS J16262189-2444397	40	$\rho$ Oph GY 3	M8	105	5/2/2004	HD 147384	0.38	1200
2MASS J16224385-1951057	94	SCH 1622-1951	M8	94	4/7/2009	HD 144254	0.38	600
2MASS J16235155-2317270	94	SCH 1623-2317	M8	94	4/7/2009	HD 144925	0.38	600
2MASS J03471792+2422317	84	Teide 1	M8	72	11/7/2004	24 Tau	0.38	1200
2MASS J10471265+4026437	69	LP 213-67	M8+L0	26	12/4/2003	HD 98152	0.38	480
2MASS J03194133+5030451	97	AP 306	M8	97	2/8/2003	HD 21038	0.38	1200
2MASSI J2349489+122438	69	LP 523-55	M8	36	11/6/2004	HD 222749	0.38	600
2MASS J03471208+2428320	108	Roque 11	M8	33	11/22/2004	25 Tau	0.38	1200
2MASS J19165762+0509021	100	VB 10	M8	44	6/10/2001	HD 180759	0.38	600
2MASS J04151471+2800096	11	KPNO Tau 1	M8.5	11	11/22/2004	HD 28354	0.38	1200
2MASS J04300724+2608207	11	KPNO Tau 6	M8.5	11	11/7/2004	HD 28354	0.38	1200
2MASS J04355143+2249119	11	KPNO Tau 9	M8.5	11	12/4/2003	HD 27761	0.38	1200
2MASS J16265128-2432419	89	$\rho$ Oph GY 141	M8.5	66	5/13/2003	HD 151736	0.38	960
2MASS J16273863-2438391	40	$\rho$ Oph GY 310	M8.5	104	4/30/2004	HD 147013	0.38	960
2MASS J03434028+2430113	9	Roque 7	M8.5	76	11/21/2004	24 Tau	0.38	1200
2MASS J21402931+1625183	36	2MASS 2140+1625	M8.5+L2	26	11/8/2009	HD 210501	0.38	600
BD+16 2708B	75	Gl 569 BC	M8.5+M9	59	4/23/2002	HD131714 (A3V)	0.38	480
2MASS J11395113-3159214	35	2MASS 1139-3159	M9	87	12/30/2001	HD 102412 (A2V)	0.38	1200
2MASS J16110360-2426429	78	DENIS 1611-2426	M9	78	5/2/2004	HD 147384	0.38	1200
2MASS J16145258-2017133	78	DENIS 1614-2017	M9	78	7/18/2005	HD 151736	0.38	1200
2MASS J04190126+2802487	67	KPNO Tau 12	M9	67	11/7/2004	HD 28354	0.38	1200
2MASS J03435353+2431115	108	Roque 4	M9	108	12/24/2002	HD 23489 (A2V)	0.38	1200
2MASS J01400263+2701505	36	2MASS 0140+2701	M9	80	11/8/2009	HD 7215	0.38	600
2MASS J12391934+2029519	49	2MASS 1239+2029	M9	49	12/24/2002	HD 109055	0.38	600
2MASS J22085600-1227448	54	2MASS 2208-1227	M9	54	7/18/2005	HD 213030	0.38	1200
2MASS J08533619-0329321	68	LHS 2065	M9	47	4/22/2002	CCDM J08581+0132AB (A2V)	0.38	480
2MASS J22373255+3922398	51	G 216-7B	M9.5	51	12/24/2002	BD+394890	0.38	600
2MASS J01415823-4633574	52	2MASS 0141-4633	L0	52	11/6/2004	HD 8977	0.38	1200
2MASSI J0443376+000205	43	2MASS 0443+0002	L0	1	11/21/2004	24 Tau	0.38	1200
2MASS J06085283-2753583	29	2MASS 0608-2753	L0	1	12/4/2003	HD 31743	0.38	600
2MASS J04272799+2612052	11	KPNO Tau 4	L0	23	12/24/2002	HD 23489 (A2V)	0.38	1200
2MASS J00274197+0503417	91	PC 0025+0447	L0	1	12/24/2002	BD+0345	0.38	1200
UGCS J053903.20-023019.9	110	SOri 51	L0	23	12/24/2002	HD 40686	0.38	1200
2MASS J17312974+2721233	87	2MASS 1731+2721	L0	87	4/14/2014	HD 165029	0.38	1200
2MASS J21073169-0307337	29	2MASS 2107-0307	L0	29	11/7/2004	HD202990	0.38	1200
2MASS J10221489+4114266	106	HD 89744B	L0	106	3/6/2001	HD 90470 (A2V)	0.38	1200
2MASS J03393521-3525440	68	LP 944-20	L0	1	12/4/2003	HD 23536	0.38	600
WISEA J043535.82+211508.9	56	WISE 0435+2115	sdL0	56	12/14/2013	HD 35036	0.38	2400
2MASS J14413716-0945590	74	DENIS 1441-0945	L0.5	53	3/24/2003	HD 132072	0.38	1200
2MASS J04062677-3812102	54	2MASS 0406-3812	L1	54	11/12/2014	HD 30397	0.38	2400
2MASS J00332386-1521309	38	2MASS 0033-1521	L1	1	11/7/2004	HD 218639	0.38	1200
2MASS J02081833+2542533	50	2MASS 0208+2542	L1	50	12/5/2000	BD +18 337A	0.38	1200
2MASS J03454316+2540233	57	2MASS 0345+2540	L1	54	12/4/2000	NSV 1280	0.38	2400
2MASS J10352455+2507450	50	2MASS 1035+2507	L1	50	12/31/2001	HD 98154 (A3V)	0.38	1200
2MASS J14532582+1420410	54	2MASS 1453+1420	L1	54	7/19/2005	HD 123233	0.38	1200
2MASS J21304464-0845205	53	2MASS 2130-0845	L1	54	6/11/2001	HD 205147 (A2)	0.38	1200
2MASS J02355993-2331205	37	GJ 1048B	L1	37	12/31/2001	HR 8569 (A2V)	0.38	1200
2MASS J13313310+3407583	54	2MASS 1331+3407	L1p	54	6/9/2011	10 Boo	0.38	1800
2MASS J14403186-1303263	54	2MASS 1440-1303	L1p	54	6/9/2011	HD 132072	0.38	1200
2MASS J17561080+2815238	54	2MASS 1756+2815	L1p	54	9/3/2012	HD 165029	0.38	1800
2MASS J05381462-0240154	109	SOri 47	L1.5	79	3/24/2003	HD 63741	0.38	3600
WISEA J054318.95+642250.2	56	WISE 0543+6422	L2	56	12/14/2013	HD 33654	0.38	1440
2MASS J00154476+3516026	50	2MASS 0015+3516	L2	50	12/5/2000	BD +18 122A	0.38	1200
2MASS J00311925-3840356	55	2MASS 0031-3840	L2	55	12/2/2014	HD 224622	0.38	1200
2MASS J08472872-1532372	29	2MASS 0847-1532	L2	29	12/4/2003	HD 74284	0.38	600
2MASS J20575409-0252302	29	2MASS 2057-0252	L2	1	10/6/2009	HD 203769	0.38	1800
2MASS J13054019-2541059	90	Kelu-1	L2+L3.5	98	4/29/1999	HR 5146 (A1V)	0.38	1200
WISEA J065958.55+171710.9	56	WISE 0659+1717	L2	56	11/20/2013	HD 39953	0.38	960
WISEA J235459.79−185222.4	56	WISE 2354-1852	L2	56	12/14/2013	HD 219833	0.38	1800
2MASS J14313097+1436539	92	2MASS 1431+1436	L2p	92	6/9/2011	HD 131951	0.38	2400
2MASS J16202614-0416315	106	Gl 618.1B	L2.5	106	5/12/2003	SAO 160448	0.38	2400
2MASS J21041491-1037369	29	2MASS 2104-1037	L2.5	53	8/9/2011	HD 202990	0.38	1800
WISEA J060742.13+455037.0	56	WISE 0607+4550	L2.5	56	12/14/2013	HD 45105	0.38	1800
2MASS J22081363+2921215	50	2MASS 2208+2921	L3	30	12/31/2001	HR 8569 (A2V)	0.38	1200
2MASS J10042066+5022596	85	G 196-3B	L3	30	3/6/2001	HD 83869 (A1V)	0.38	1200
2MASS J17260007+1538190	50	2MASS 1726+1538	L3	30	9/1/2002	HD 160765 (A1V)	0.38	1200
2MASS J11463449+2230527	49	2MASS 1146+2230	L3	49	11/21/2004	HD 105388	0.38	1200
2MASS J13004255+1912354	36	2MASS 1300+1912	L3	20	4/7/2009	HD 116960	0.38	600
2MASS J15065441+1321060	36	2MASS 1506+1321	L3	54	4/26/2000	ups Ser (A3V)	0.38	1200
2MASS J14243909+0917104	7	GD 165B	L3	58	6/3/1999	HD 135775 (A2)	0.38	600
WISEA J053257.29+041842.5	56	WISE 0532+0418	L3	56	11/20/2013	HD 39953	0.38	720
2MASS J13023811+5650212	54	2MASS 1302+5650	L3p	54	4/9/2012	81 UMa	0.38	2400
2MASS J22244381-0158521	50	2MASS 2224-0158	L3.5	58	10/7/2011	HD 210501	0.38	2400
2MASS J12563716-0224522	93	SDSS 1256-0224	sdL3.5	21	4/7/2009	q Vir	0.38	1800
2MASS J00361617+1821104	86	2MASS 0036+1821	L4	58	7/28/2000	HD 216716	0.38	1200
2MASS J11550087+2307058	49	2MASS 1155+2307	L4	49	11/22/2004	HD 105389	0.38	1200
2MASS J21580457-1550098	53	2MASS 2158-1550	L4	54	10/9/2001	HD 211278	0.38	1200
2MASS J09211410-2104446	87	SIPS 0921-2104	L4	20	4/7/2009	HD 82724	0.38	600
2MASS J18410861+3117279	50	2MASS 1841+3117	L4p	50	10/10/2001	BD +27 3016A	0.38	1200
WISEA J071552.38−114532.9	56	WISE 0715-1145	L4p	56	11/20/2013	HD 43607	0.38	960
2MASS J08053189+4812330	43	SDSS 0805+4812	L4+T5.5	58	4/7/2009	HD 71906	0.38	1200
2MASS J11122567+3548131	50	Gl 417 BC	L4.5+L6	1	12/29/2001	HD 96951 (A1V)	0.38	1200
2MASS J08350622+1953050	25	2MASS 0835+1953	L5	54	11/11/2014	HD 74721	0.38	1800
2MASS J17430860+8526594	65	G 259-20 B	L5	65	6/8/2012	HD 172864 (A2)	0.57	1920
2MASS J14460061+0024519	34	SDSS 1446+0024	L5	58	7/19/2005	HD 123233	0.38	1200
2MASS J17210390+3344160	29	2MASS 1721+3344	L5p	20	6/9/2011	HD 165029	0.38	1800
2MASS J18212815+1414010	54	2MASS 1821+1414	L5p	54	7/18/2005	HD 165029	0.38	1200
2MASS J23512200+3010540	54	2MASS 2351+3010	L5p	54	10/7/2011	HD 210501	0.38	1200
2MASS J00043484-4044058	39	GJ 1001 B	L5+L5	58	11/6/2004	HD 2339	0.38	1200
2MASS J17281150+3948593	50	2MASS 1728+3948	L5+L6.5	50	4/27/2000	HR 6814 (A3V)	0.38	2400
2MASS J02052940-1159296	32	DENIS 0205-1159	L5+L8	58	8/20/1999	rho Cet	0.38	1200
2MASS J13153094-2649513	41	2MASS 1315-2649	L5+T7	53	3/24/2003	HD 132072	0.38	1200
2MASS J15532142+2109071	49	2MASS 1553+2109	L5.5	49	7/19/2005	HD 123233	0.38	1200
2MASS J15074769-1627386	86	2MASS 1507-1627	L5.5	58	6/3/1999	HR 6061	0.38	600
2MASS J22443167+2043433	31	2MASS 2244+2043	L6	1	10/10/2001	HD 210501	0.38	1200
2MASS J07400712+2009216	58	2MASS 0740+2009	L6	25	12/2/2014	HD 58296	0.38	2400
2MASS J10101480-0406499	29	2MASS 1010-0406	L6	29	3/30/2015	HD 79752	0.38	1200
2MASS J21522609+0937575	87	2MASS 2152+0937	L6+L6	87	11/7/2004	HD 210501	0.38	1200
2MASS J12281523-1547342	32	DENIS 1228-1547	L6+L6	58	6/3/1999	HR 4911	0.38	600
2MASS J08503593+1057156	49	2MASS 0850+1057	L6+L7	49	12/6/2000	HD 48481	0.38	2400
2MASS J22521073-1730134	46	2MASS 2252-1730	L6+T2	46	11/7/2004	HD218639	0.38	1200
2MASS J04234858-0414035	34	SDSS 0423-0414	L6+T2	19	12/31/2001	HD 34317	0.38	1200
2MASS J03001631+2130205	54	2MASS 0300+2130	L6p	54	10/8/2011	HD 232258	0.38	3000
2MASS J11181292-0856106	54	2MASS 1118-0856	L6p	54	4/14/2014	HD 93346	0.38	2400
2MASS J21481633+4003594	54	2MASS 2148+4003	L6.5p	54	8/9/2011	HD 209932	0.38	1200
2MASS J01033203+1935361	50	2MASS 0103+1935	L7	54	12/4/2000	HD 16694 (B9)	0.38	2400
2MASS J15261405+2043414	50	2MASS 1526+2043	L7	50	6/4/2005	26 Ser	0.38	1200
2MASS J21513979+3402444	54	2MASS 2151+3402	L7p	54	10/7/2011	HD 210501	0.38	2400
2MASS J05325346+8246465	17	2MASS 0532+8246	sdL7	22	12/24/2002	HD 34360	0.38	600
2MASS J09310955+0327331	58	SDSS 0931+0327	L7.5	58	4/7/2009	HD 79108	0.38	1800
2MASS J11211858+4332464	25	SDSS 1121+4332	L7.5	25	4/12/2014	HD 109615	0.38	2400
2MASS J00150206+2959323	54	2MASS 0015+2959	L7.5p	54	10/8/2011	HD 9711	0.38	2400
2MASS J16322911+1904407	49	2MASS 1632+1904	L8	54	8/31/2002	SAO 102579 (B9.5V)	0.38	1200
2MASS J13314894-0116500	43	SDSS 1331-0116	L8	58	4/7/2009	HD 116960	0.38	1800
2MASS J09121469+1459396	106	Gl 337CD	L8+T0	19	12/29/2001	HD 80613 (A1V)	0.38	1200
DENIS-P J025503.3-470049	74	2MASS 0255-4700	L9	19	12/3/2014	HD 28812	0.38	1200
2MASS J03105986+1648155	50	2MASS 0310+1648	L9+L9	19	10/9/2001	34 Ari	0.38	1200
2MASS J14053729+8350248	24	2MASS 1405+8350	L9	24	6/8/2012	HD 172864 (A2)	0.57	960
WISEA J082640.45−164031.8	56	WISE 0826-1640	L9	56	12/14/2013	HD 72282	0.38	2400
WISE J020625.27+264023.6	55	WISE 0206+2640	L9p	55	12/2/2014	HD 19600	0.38	2400
2MASS J16471580+5632057	55	WISE 1647+5632	L9p	55	4/12/2014	HD 143187	0.38	900
2MASS J03284265+2302051	50	2MASS 0328+2302	L9.5	58	12/29/2001	HD 23409 (A2V)	0.38	1200
2MASS J12074717+0244249	43	2MASS 1207+0244	T0	19	12/14/2013	HD 111744	0.38	1800
2MASS J15203974+3546210	25	SDSS 1520+3546	T0	25	4/7/2009	26 Ser	0.38	1800
2MASS J15164306+3053443	25	SDSS 1516+3053	T0.5	25	6/20/2014	26 Ser	0.38	1800
2MASS J01514155+1244300	34	SDSS 0151+1244	T1	19	10/9/2001	34 Ari	0.38	1200
SDSS J083717.21-000018.0	60	SDSS 0837-0000	T1	19	12/5/2000	69 Leo	0.38	2400
2MASS J10210969-0304197	60	SDSS 1021-0304	T1+T5	19	6/11/2001	HD 90212	0.38	2000
2MASS J09090085+6525275	25	SDSS 0909+6525	T1.5	25	4/7/2009	39 UMa	0.38	1800
2MASS J12545393-0122474	60	SDSS 1254-0122	T2	19	3/7/2001	k Vir (A3V)	0.38	1200
2MASS J12095613-1004008	14	2MASS 1209-1004	T2+T7.5	19	4/9/2012	Q Vir	0.38	2400
2MASS J11061197+2754225	63	2MASS 1106+2754	T2.5	63	4/7/2009	HD 105388	0.38	600
2MASS J01365662+0933473	4	SIMP 0136+0933	T2.5	4	11/8/2009	BD +18 337A	0.38	1800
2MASS J17503293+1759042	34	SDSS 1750+1759	T3.5	19	10/9/2001	HD 165029	0.38	1200
2MASS J22541892+3123498	15	2MASS 2254+3123	T4	19	7/25/2000	HD 216716	0.38	1200
2MASS J05591914-1404488	14	2MASS 0559-1404	T4.5	19	12/4/2000	NSV 1280	0.38	1200
2MASS J09261537+5847212	34	SDSS 0926+5847	T4.5	19	12/23/2002	HD 77692 (A2V)	0.38	1200
2MASS J07554795+2212169	15	2MASS 0755+2212	T5	15	3/30/2015	HD 71906	0.38	600
2MASS J15031961+2525196	16	2MASS 1503+2525	T5	19	4/9/2012	HD 140775	0.38	1200
WISE J133750.46+263648.6	70	WISE 1337+2636	T5	70	6/8/2012	HD 122945	0.57	1440
2MASS J23565477-1553111	15	2MASS 2356-1553	T5.5	19	8/19/1999	SAO 191988	0.38	1200
WISE J195436.15+691541.3	70	WISE 1954+6915	T5.5	70	6/9/2012	HD 172728	0.57	1440
2MASS J16241436+0029158	111	SDSS 1624+0029	T6	19	6/2/1999	HR 6255 (A2Vs)	0.38	1200
WISE J003830.54+840517.7	70	WISE 0038+8405	T6	70	8/9/2011	HD 33541	0.76	3600
WISE J184041.77+293229.2	70	WISE 1840+2932	T6	70	9/3/2012	HD 165029	0.38	1800
WISE J223720.39+722833.8	70	WISE 2237+7225	T6	70	9/8/2011	HD 207636	0.38	1200
2MASS J09373487+2931409	15	2MASS 0937+2931	T6p	19	3/7/2001	AG +27 1006	0.38	1200
2MASS J12255432-2739466	12	2MASS 1225-2739	T6+T8	19	4/7/2009	HD 119752	0.38	1800
WISE J125015.56+262846.9	70	WISE 1250+2628	T6.5	70	6/8/2012	HD 122945	0.57	1440
2MASS J07271824+1710012	15	2MASS 0727+1710	T7	19	12/29/2001	HD 74721	0.38	1200
WISE J113949.24-332425.1	99	WISE 1139-3324	T7	99	2/21/2013	HD 101169	0.57	2400
WISE J175929.37+544204.7	70	WISE 1759+5442	T7	70	6/8/2012	HD 172728	0.57	1440
WISE J233543.79+422255.2	70	WISE 2335+4222	T7	70	9/5/2011	HD 222749	0.76	1800
2MASS J15530228+1532369	15	2MASS 1553+1532	T7+T7	19	6/11/2001	HD 147005	0.38	2400
2MASS J14571496-2121477	13	Gl 570 D	T7.5	19	3/6/2001	HD 133569	0.38	1000
WISE J042417.94+072744.1	70	WISE 0424+0727	T7.5	70	9/24/2012	HD 31411	0.57	2400
WISE J214706.78-102924.0	70	WISE 2147-1029	T7.5	70	6/9/2012	HD 203769	0.57	1440
2MASS J04151954-0935066	15	2MASS 0415-0935	T8	19	12/6/2000	HD 48481	0.38	2400
WISE J031624.35+430709.1	70	WISE 0316+4307	T8	70	9/5/2011	HD 21038	0.76	6000
WISE J043052.92+463331.6	70	WISE 0430+4633	T8	70	9/24/2012	HD 31069	0.57	2400
WISE J105047.9+505606.2	70	WISE 1050+5056	T8	70	6/9/2012	HD 99966	0.57	1800
WISE J144806.48-253420.3	99	WISE 1448-2534	T8	99	2/21/2013	HD 129544	0.57	2400
WISE J173623.03+605920.2	70	WISE 1736+6059	T8	70	9/3/2012	HD 172728	0.38	1800
WISE J181329.40+283533.3	70	WISE 1813+2835	T8	70	6/8/2012	HD 165029	0.57	1800
WISE J195500.42-254013.9	70	WISE 1955-2540	T8	70	6/9/2012	HD 190285	0.57	1440
WISE J200520.38+542433.9	71	WISE 2005+5424	sdT8	71	6/8/2012	HD 199217/HD 205314	0.57	6600
WISE J051208.66-300404.4	70	WISE 0512-3004	T8.5	70	9/25/2012	HD 36965	0.57	2400
WISE J054047.00+483232.4	70	WISE 0540+4832	T8.5	70	9/25/2012	HD 45105	0.57	2400
WISE J000517.48+373720.5	70	WISE 0005+3737	T9	70	10/7/2011	HD 9711	0.38	2400
WISE J003829.05+275852.1	70	WISE 0038+2758	T9	70	9/8/2011	HD 7215	0.38	4800
WISE J033515.01+431045.1	70	WISE 0335+4310	T9	70	9/25/2012	HD 21038	0.57	2400

Table 2. Table 2 Equivalent Widths and Spectral Index values for the BDSS J band spectra

Name	SpT	K I EW ($\AA$)	K I EW ($\AA$)	K I EW ($\AA$)	K I EW ($\AA$)	FeHJ	Gravity Scores	Gravity Type
		$1.1692\mu m$	$1.1778\mu m$	$1.2437\mu m$	$1.2529\mu m$	$1.20\mu m$	K1 K2 K4 FeH
2MASS 0619-2903	M5	0.1$\pm$0.64	0.52$\pm$0.58	0.41$\pm$1.24	1.51$\pm$0.57	1.021$\pm$0.014	n n 0. n	N/A
LHS 1135	d/sdM5	2.15$\pm$0.37	4.0$\pm$0.3	1.91$\pm$0.4	2.51$\pm$0.16	1.045$\pm$0.004	N/A	N/A
Gl 577 BC	M5.5	0.6$\pm$0.04	1.81$\pm$0.04	1.15$\pm$0.1	1.44$\pm$0.05	1.042$\pm$0.001	n n 0. n	N/A
Rho Oph GY 5	M5.5	0.55$\pm$0.82	0.5$\pm$0.46	0.81$\pm$0.61	0.65$\pm$0.24	1.021$\pm$0.01	n n 2. n	N/A
2MASS 1459+0004	M6	0.79$\pm$0.76	1.49$\pm$0.7	1.53$\pm$1.47	1.57$\pm$0.68	1.021$\pm$0.018	2. 2. 2. 2.	VL-G
2MASS 2234+4041	M6	-0.02$\pm$0.64	0.53$\pm$0.51	0.97$\pm$0.83	0.15$\pm$0.3	1.026$\pm$0.011	2. 2. 2. 2.	VL-G
DENIS-P 1605-2406	M6	0.1$\pm$0.1	0.74$\pm$0.09	0.8$\pm$0.2	0.53$\pm$0.09	1.039$\pm$0.002	2. 2. 2. 2.	VL-G
KPNO Tau 3	M6	-0.71$\pm$0.17	-0.81$\pm$0.1	1.19$\pm$0.19	0.7$\pm$0.09	1.025$\pm$0.002	2. 2. 2. 2.	VL-G
MHO Tau4	M6	0.45$\pm$0.1	0.96$\pm$0.08	1.0$\pm$0.12	0.91$\pm$0.06	1.037$\pm$0.002	2. 2. 2. 2.	VL-G
Rho Oph GY 37	M6	0.96$\pm$0.16	1.04$\pm$0.14	0.58$\pm$0.31	1.1$\pm$0.14	1.032$\pm$0.003	2. 2. 2. 2.	VL-G
SOri 12	M6	0.67$\pm$0.2	1.23$\pm$0.18	0.74$\pm$0.41	0.42$\pm$0.18	1.027$\pm$0.005	2. 2. 2. 2.	VL-G
SOri 17	M6	-0.94$\pm$0.52	-0.04$\pm$0.49	0.77$\pm$1.05	1.39$\pm$0.46	1.029$\pm$0.011	2. 2. 2. 2.	VL-G
USco CTIO 66	M6	0.87$\pm$0.19	1.54$\pm$0.18	1.38$\pm$0.37	1.29$\pm$0.17	1.039$\pm$0.004	2. 2. 2. 2.	VL-G
2MASS 0253+3206	M6	2.77$\pm$0.12	4.12$\pm$0.1	2.39$\pm$0.19	3.56$\pm$0.09	1.067$\pm$0.002	0. 0. 0. 0.	FLD-G
2MASS 0840+1824	M6	3.49$\pm$0.06	5.29$\pm$0.03	3.47$\pm$0.04	4.01$\pm$0.02	1.095$\pm$0.001	0. 0. 0. 0.	FLD-G
2MASS 1049+2538	M6	2.48$\pm$0.21	3.83$\pm$0.18	3.06$\pm$0.34	3.15$\pm$0.15	1.072$\pm$0.005	0. 0. 0. 0.	FLD-G
AP 310	M6	2.32$\pm$0.4	3.52$\pm$0.37	0.5$\pm$0.84	2.38$\pm$0.39	1.066$\pm$0.01	0. 0. 0. 0.	FLD-G
AP 316	M6	1.53$\pm$0.86	2.54$\pm$0.79	2.58$\pm$1.81	2.29$\pm$0.81	1.07$\pm$0.02	1. 1. 0. 0.	FLD-G
GJ 3828 B	M6	4.86$\pm$0.1	7.22$\pm$0.09	5.02$\pm$0.21	5.43$\pm$0.1	1.126$\pm$0.003	0. 0. 0. 0.	FLD-G
Roque 16	M6	2.13$\pm$1.1	3.48$\pm$0.99	1.48$\pm$2.16	3.42$\pm$0.93	1.056$\pm$0.024	0. 0. 0. 0.	FLD-G
Teide 2	M6	3.83$\pm$0.5	4.19$\pm$0.49	2.46$\pm$1.02	3.05$\pm$0.48	1.073$\pm$0.013	0. 0. 0. 0.	FLD-G
USco CTIO 85	M6	2.99$\pm$0.16	4.14$\pm$0.14	2.65$\pm$0.3	3.45$\pm$0.14	1.095$\pm$0.003	0. 0. 0. 0.	FLD-G
USco CTIO 121	M6	3.48$\pm$0.32	4.76$\pm$0.29	3.26$\pm$0.59	3.65$\pm$0.28	1.09$\pm$0.007	0. 0. 0. 0.	FLD-G
Wolf 359	M6	3.16$\pm$0.03	4.64$\pm$0.03	2.93$\pm$0.05	3.46$\pm$0.02	1.078$\pm$0.001	0. 0. 0. 0.	FLD-G
MHO Tau 5	M6.5	-2.16$\pm$0.06	0.18$\pm$0.05	0.87$\pm$0.12	0.45$\pm$0.05	1.036$\pm$0.001	2. 2. 2. 2.	VL-G
Rho Oph GY 11	M6.5	-0.72$\pm$0.74	1.01$\pm$0.71	1.67$\pm$1.51	1.08$\pm$0.68	1.027$\pm$0.017	2. 2. 2. 2.	VL-G
SCH 1612-2047	M6.5	-0.06$\pm$0.12	0.68$\pm$0.1	0.58$\pm$0.21	0.68$\pm$0.1	1.034$\pm$0.002	2. 2. 2. 2.	VL-G
AP 301	M6.5	1.97$\pm$0.32	3.79$\pm$0.29	2.24$\pm$0.68	1.76$\pm$0.32	1.083$\pm$0.008	0. 0. 1. 0.	FLD-G
Gl 283 B	M6.5	3.21$\pm$0.07	4.88$\pm$0.06	2.78$\pm$0.14	3.29$\pm$0.06	1.06$\pm$0.002	0. 0. 0. 0.	FLD-G
PPL 1	M6.5	2.61$\pm$2.03	3.57$\pm$1.61	5.1$\pm$1.75	4.54$\pm$0.7	1.119$\pm$0.035	0. 0. 0. 0.	FLD-G
2MASS 0435-1414	M7	0.09$\pm$0.06	0.22$\pm$0.05	0.47$\pm$0.1	0.42$\pm$0.04	1.023$\pm$0.001	2. 2. 2. 2.	VL-G
AP 270	M7	0.99$\pm$0.18	3.11$\pm$0.17	1.66$\pm$0.34	2.15$\pm$0.16	1.047$\pm$0.004	2. 2. 2. 2.	VL-G
SOri 31	M7	-0.0$\pm$0.36	1.37$\pm$0.34	0.49$\pm$0.7	0.76$\pm$0.34	1.03$\pm$0.008	2. 2. 2. 2.	VL-G
SOri 40	M7	0.35$\pm$0.51	1.62$\pm$0.47	1.82$\pm$1.08	0.33$\pm$0.52	1.048$\pm$0.012	2. 2. 2. 2.	VL-G
USco CTIO 100	M7	0.75$\pm$0.16	1.32$\pm$0.16	1.3$\pm$0.33	1.21$\pm$0.14	1.053$\pm$0.004	2. 2. 2. 2.	VL-G
USco CTIO 128	M7	0.97$\pm$0.25	1.26$\pm$0.21	2.1$\pm$0.5	1.13$\pm$0.23	1.065$\pm$0.006	2. 2. 2. 1.	VL-G
AP 325	M7	2.54$\pm$0.17	4.56$\pm$0.17	2.55$\pm$0.36	2.85$\pm$0.16	1.1$\pm$0.004	1. 1. 1. 0.	INT-G
LHS 2351	M7	4.31$\pm$0.26	5.77$\pm$0.20	3.76$\pm$0.52	3.83$\pm$0.23	1.11$\pm$0.008	0. 0. 0. 0.	FLD-G
2MASS 0952-1924	M7	3.58$\pm$0.02	5.21$\pm$0.03	3.4$\pm$0.04	3.78$\pm$0.02	1.092$\pm$0.001	0. 0. 0. 0.	FLD-G
CFHT 15	M7	3.06$\pm$0.67	6.36$\pm$0.59	3.18$\pm$1.36	4.45$\pm$0.59	1.155$\pm$0.016	0. 0. 0. 0.	FLD-G
CTI 115638.4+28	M7	5.19$\pm$0.31	7.27$\pm$0.27	4.06$\pm$0.58	4.69$\pm$0.26	1.116$\pm$0.007	0. 0. 0. 0.	FLD-G
Roque 14	M7	5.02$\pm$1.93	6.18$\pm$0.95	3.77$\pm$1.17	4.28$\pm$0.44	1.131$\pm$0.006	0. 0. 0. 0.	FLD-G
USco CTIO 132	M7	8.07$\pm$1.42	7.6$\pm$1.04	5.06$\pm$1.4	5.63$\pm$0.62	1.149$\pm$0.021	0. 0. 0. 0.	FLD-G
VB 8	M7	4.63$\pm$0.44	6.64$\pm$0.27	3.82$\pm$0.5	4.93$\pm$0.26	1.096$\pm$0.008	0. 0. 0. 0.	FLD-G
2MASS 1835-3217	M7p	4.01$\pm$0.71	5.45$\pm$0.6	2.76$\pm$1.37	3.89$\pm$0.63	1.056$\pm$0.016	0. 0. 0. 1.	FLD-G
CFHT BD Tau 2	M7.5	0.65$\pm$2.62	0.55$\pm$1.23	1.02$\pm$0.52	0.8$\pm$0.25	1.029$\pm$0.02	2. 2. 2. 2.	VL-G
ISO-Oph 23	M7.5	0.63$\pm$0.35	1.83$\pm$0.34	0.2$\pm$0.77	-0.22$\pm$0.37	1.023$\pm$0.008	2. 2. 2. 2.	VL-G
USco CTIO 130	M7.5	0.87$\pm$0.24	1.68$\pm$0.22	1.11$\pm$0.42	1.32$\pm$0.2	1.061$\pm$0.005	2. 2. 2. 1.	VL-G
AP 326	M7.5	4.7$\pm$0.38	2.69$\pm$0.39	4.42$\pm$0.83	4.12$\pm$0.38	1.106$\pm$0.01	0. 2. 0. 0.	FLD-G
Roque 13	M7.5	3.56$\pm$0.72	4.55$\pm$0.69	3.79$\pm$1.58	4.38$\pm$0.69	1.124$\pm$0.019	0. 1. 0. 0.	FLD-G
GG Tau Bb	M7.5dbl	-0.33$\pm$0.08	2.03$\pm$0.07	1.53$\pm$0.16	-0.04$\pm$0.08	1.038$\pm$0.002	2. 2. 2. 2.	VL-G
2MASS 1207-3932	M8	1.45$\pm$0.29	1.22$\pm$0.27	1.11$\pm$0.59	1.32$\pm$0.27	1.077$\pm$0.007	2. 2. 2. 1.	VL-G
CFHT BD Tau 3	M8	0.8$\pm$0.17	1.06$\pm$0.16	1.26$\pm$0.38	0.95$\pm$0.17	1.065$\pm$0.004	2. 2. 2. 2.	VL-G
DENIS 1619-2347	M8	-0.41$\pm$0.22	0.67$\pm$0.2	0.86$\pm$0.42	1.96$\pm$0.19	1.055$\pm$0.005	2. 2. 2. 2.	VL-G
DENIS 1619-2440	M8	0.12$\pm$0.23	0.17$\pm$0.22	1.45$\pm$0.44	0.84$\pm$0.21	1.04$\pm$0.005	2. 2. 2. 2.	VL-G
KPNO Tau 7	M8	0.31$\pm$2.93	1.94$\pm$1.44	0.91$\pm$2.97	0.94$\pm$1.22	1.051$\pm$0.041	2. 2. 2. 2.	VL-G
Rho Oph GY 3	M8	0.13$\pm$0.07	0.81$\pm$0.07	1.11$\pm$0.16	0.43$\pm$0.07	1.043$\pm$0.002	2. 2. 2. 2.	VL-G
SCH 1622-1951	M8	0.69$\pm$0.11	1.56$\pm$0.09	1.03$\pm$0.23	1.0$\pm$0.1	1.063$\pm$0.002	2. 2. 2. 2.	VL-G
SCH 1623-2317	M8	0.52$\pm$0.08	1.02$\pm$0.05	0.64$\pm$0.09	1.05$\pm$0.04	1.079$\pm$0.003	2. 2. 2. 1.	VL-G
Teide 1	M8	2.27$\pm$0.8	2.94$\pm$0.71	4.8$\pm$1.58	3.86$\pm$0.76	1.132$\pm$0.021	2. 2. 1. 0.	VL-G
AP 306	M8	4.29$\pm$0.46	5.98$\pm$0.4	0.9$\pm$0.94	4.49$\pm$0.41	1.132$\pm$0.01	0. 1. 0. 0.	FLD-G
LP 523-55	M8	4.81$\pm$0.56	6.3$\pm$0.28	4.61$\pm$0.68	5.22$\pm$0.25	1.127$\pm$0.01	0. 0. 0. 0.	FLD-G
Roque 11	M8	4.9$\pm$1.08	7.01$\pm$1.04	2.66$\pm$2.34	4.25$\pm$1.04	1.133$\pm$0.029	0. 0. 0. 0.	FLD-G
VB 10	M8	4.93$\pm$0.08	6.87$\pm$0.06	4.34$\pm$0.13	4.88$\pm$0.05	1.141$\pm$0.002	0. 0. 0. 0.	FLD-G
LP 213-67	M8dbl	2.73$\pm$0.15	4.34$\pm$0.08	2.97$\pm$0.1	3.25$\pm$0.05	1.085$\pm$0.002	N/A	N/A
KPNO Tau 1	M8.5	1.07$\pm$0.68	2.43$\pm$0.59	2.51$\pm$1.31	0.91$\pm$0.66	1.064$\pm$0.016	2. 2. 2. 2.	VL-G
KPNO Tau 6	M8.5	1.02$\pm$0.32	2.11$\pm$0.29	1.86$\pm$0.59	0.86$\pm$0.29	1.068$\pm$0.007	2. 2. 2. 2.	VL-G
KPNO Tau 9	M8.5	1.85$\pm$0.42	2.26$\pm$0.42	1.58$\pm$0.93	1.36$\pm$0.41	1.062$\pm$0.01	2. 2. 2. 2.	VL-G
Rho Oph GY 141	M8.5	2.55$\pm$0.38	4.4$\pm$0.34	3.75$\pm$0.73	1.45$\pm$0.32	1.097$\pm$0.008	2. 1. 2. 1.	VL-G
Rho Oph GY 310	M8.5	0.53$\pm$0.15	0.94$\pm$0.14	1.16$\pm$0.32	1.17$\pm$0.15	1.047$\pm$0.003	2. 2. 2. 2.	VL-G
Roque 7	M8.5	3.4$\pm$1.12	4.59$\pm$1.06	3.08$\pm$2.5	3.58$\pm$1.09	1.131$\pm$0.029	1. 1. 1. 0.	INT-G
Gl 569 BC	M8.5dbl	7.45$\pm$0.04	9.63$\pm$0.03	4.71$\pm$0.08	6.02$\pm$0.03	1.16$\pm$0.001	0. 0. 0. 0.	FLD-G
2MASS 1139-3159	M9	1.86$\pm$0.14	1.68$\pm$0.14	1.8$\pm$0.28	1.74$\pm$0.13	1.064$\pm$0.003	2. 2. 2. 2.	VL-G
DENIS 1611-2426	M9	-0.16$\pm$0.32	0.95$\pm$0.31	1.02$\pm$0.68	1.54$\pm$0.31	1.073$\pm$0.008	2. 2. 2. 2.	VL-G
DENIS 1614-2017	M9	-0.34$\pm$0.26	1.12$\pm$0.27	1.34$\pm$0.56	1.67$\pm$0.24	1.045$\pm$0.006	2. 2. 2. 2.	VL-G
KPNO Tau 12	M9	2.23$\pm$1.37	3.73$\pm$1.16	2.36$\pm$2.66	0.99$\pm$1.24	1.132$\pm$0.032	2. 2. 2. 1.	VL-G
Roque 4	M9	4.6$\pm$0.91	5.7$\pm$0.81	3.06$\pm$1.96	3.86$\pm$0.91	1.177$\pm$0.025	1. 1. 1. 0.	INT-G
2MASS 0140+2701	M9	5.95$\pm$0.17	8.1$\pm$0.13	4.83$\pm$0.24	5.76$\pm$0.11	1.139$\pm$0.003	0. 0. 0. 1.	FLD-G
2MASS 1239+2029	M9	6.09$\pm$2.76	9.02$\pm$1.21	5.37$\pm$1.51	5.7$\pm$0.5	1.134$\pm$0.04	0. 0. 0. 1.	FLD-G
2MASS 2208-1227	M9	5.08$\pm$1.01	6.04$\pm$0.89	3.77$\pm$1.96	5.38$\pm$0.89	1.151$\pm$0.028	0. 1. 0. 1.	FLD-G
LHS 2065	M9	6.31$\pm$0.05	7.85$\pm$0.04	4.93$\pm$0.1	5.81$\pm$0.05	1.19$\pm$0.001	0. 0. 0. 0.	FLD-G
2MASS 2140+1625	M9dbl	6.0$\pm$0.19	8.19$\pm$0.12	3.45$\pm$0.21	5.47$\pm$0.09	1.207$\pm$0.003	N/A	N/A
G 216-7B	M9.5	5.31$\pm$0.21	7.39$\pm$0.34	5.86$\pm$0.65	5.28$\pm$0.48	1.198$\pm$0.007	0. 0. 0. 0.	FLD-G
2MASS 0141-4633	L0	3.29$\pm$0.78	2.89$\pm$0.65	3.25$\pm$1.52	1.83$\pm$0.72	1.105$\pm$0.017	2. 2. 2. 2.	VL-G
2MASS 0443+0002	L0	3.7$\pm$0.06	4.6$\pm$0.05	2.06$\pm$0.13	3.18$\pm$0.05	1.13$\pm$0.001	2. 2. 2. 2.	VL-G
2MASS 0608-2753	L0	2.23$\pm$0.67	3.1$\pm$0.5	2.44$\pm$0.92	2.44$\pm$0.36	1.095$\pm$0.012	2. 2. 2. 2.	VL-G
KPNO Tau 4	L0	-1.97$\pm$0.24	-0.1$\pm$0.2	0.3$\pm$0.43	-1.15$\pm$0.21	1.048$\pm$0.005	2. 2. 2. 2.	VL-G
PC0025+0447	L0	2.94$\pm$0.62	6.05$\pm$0.54	3.35$\pm$1.35	3.29$\pm$0.61	1.149$\pm$0.016	2. 1. 2. 1.	VL-G
SOri 51	L0	2.44$\pm$1.58	3.84$\pm$1.36	2.77$\pm$2.89	1.47$\pm$1.41	1.089$\pm$0.039	2. 2. 2. 2.	VL-G
2MASS 1731+2721	L0	7.41$\pm$0.14	9.35$\pm$0.12	6.07$\pm$0.28	6.96$\pm$0.13	1.229$\pm$0.004	0. 0. 0. 0.	FLD-G
2MASS 2107-0307	L0	7.67$\pm$0.26	9.73$\pm$0.23	5.86$\pm$0.51	7.59$\pm$0.23	1.234$\pm$0.007	0. 0. 0. 0.	FLD-G
HD 89744 B	L0	7.8$\pm$0.73	9.89$\pm$0.35	4.88$\pm$0.41	6.56$\pm$0.21	1.23$\pm$0.011	0. 0. 0. 0.	FLD-G
LP 944-20	L0	6.18$\pm$0.02	7.72$\pm$0.02	5.07$\pm$0.03	5.94$\pm$0.02	1.197$\pm$0.001	0. 1. 0. 1.	FLD-G
WISE 0435+2115	sdL0	8.17$\pm$0.25	11.3$\pm$0.22	4.64$\pm$0.53	6.19$\pm$0.23	1.119$\pm$0.006	N/A	N/A
DENIS 1441-0945	L0.5	8.03$\pm$0.11	10.11$\pm$0.09	5.81$\pm$0.22	7.03$\pm$0.1	1.242$\pm$0.003	0. 0. 0. 0.	FLD-G
2MASS 0406-3812	L1	4.31$\pm$0.79	5.28$\pm$0.76	4.72$\pm$1.74	4.61$\pm$0.8	1.116$\pm$0.021	1. 2. 1. 2.	VL-G
2MASS 0033-1521	L1	8.24$\pm$0.36	10.34$\pm$0.3	5.12$\pm$0.74	6.86$\pm$0.3	1.22$\pm$0.01	0. 0. 0. 1.	FLD-G
2MASS 0208+2542	L1	8.23$\pm$0.11	10.33$\pm$0.1	5.73$\pm$0.22	7.69$\pm$0.1	1.261$\pm$0.003	0. 0. 0. 0.	FLD-G
2MASS 0345+2540	L1	7.37$\pm$0.07	8.77$\pm$0.06	5.59$\pm$0.14	7.07$\pm$0.07	1.225$\pm$0.002	0. 1. 0. 1.	FLD-G
2MASS 1035+2507	L1	8.2$\pm$0.39	9.93$\pm$0.36	4.16$\pm$0.87	6.99$\pm$0.37	1.25$\pm$0.012	0. 0. 0. 1.	FLD-G
2MASS 1453+1420	L1	9.08$\pm$0.38	13.54$\pm$0.34	5.92$\pm$0.87	9.43$\pm$0.33	1.315$\pm$0.013	0. 0. 0. 0.	FLD-G
2MASS 2130-0845	L1	8.6$\pm$0.26	10.69$\pm$0.23	5.75$\pm$0.57	8.45$\pm$0.24	1.262$\pm$0.007	0. 0. 0. 0.	FLD-G
GJ 1048 B	L1	8.38$\pm$0.27	10.36$\pm$0.23	7.01$\pm$0.57	8.01$\pm$0.23	1.274$\pm$0.008	0. 0. 0. 0.	FLD-G
2MASS 1331+3407	L1p	7.17$\pm$0.21	9.46$\pm$0.18	5.74$\pm$0.4	6.58$\pm$0.18	1.221$\pm$0.006	1. 0. 1. 1.	INT-G
2MASS 1440-1303	L1p	7.72$\pm$1.65	13.49$\pm$1.37	6.63$\pm$3.54	9.23$\pm$1.52	1.345$\pm$0.051	0. 0. 0. 0.	FLD-G
2MASS 1756+2815	L1p	11.86$\pm$0.13	15.67$\pm$0.11	4.97$\pm$0.32	10.01$\pm$0.12	1.215$\pm$0.004	0. 0. 0. 1.	FLD-G
SOri 47	L1.5	7.51$\pm$0.25	8.97$\pm$0.25	5.54$\pm$0.55	4.7$\pm$0.25	1.212$\pm$0.008	0. 1. 1. 1.	INT-G
WISE 0543+6422	L2	8.25$\pm$0.1	9.74$\pm$0.11	6.04$\pm$0.23	6.89$\pm$0.11	1.245$\pm$0.004	0. 1. 1. 1.	INT-G
2MASS 0015+3516	L2	8.28$\pm$0.21	10.52$\pm$0.11	5.14$\pm$0.17	6.94$\pm$0.06	1.249$\pm$0.007	0. 0. 1. 1.	FLD-G
2MASS 0031-3840	L2	11.21$\pm$0.2	13.04$\pm$0.19	6.81$\pm$0.5	9.78$\pm$0.22	1.303$\pm$0.007	0. 0. 0. 0.	FLD-G
2MASS 0847-1532	L2	8.65$\pm$0.56	10.59$\pm$0.26	6.62$\pm$0.38	7.74$\pm$0.13	1.274$\pm$0.008	0. 0. 0. 1.	FLD-G
2MASS 2057-0252	L2	8.36$\pm$0.07	9.58$\pm$0.05	5.69$\pm$0.14	7.44$\pm$0.06	1.268$\pm$0.002	0. 1. 0. 1.	FLD-G
Kelu 1	L2	6.08$\pm$0.08	11.46$\pm$0.06	5.23$\pm$0.15	7.74$\pm$0.06	1.231$\pm$0.002	1. 0. 0. 1.	FLD-G
WISE 0659+1717	L2	9.13$\pm$0.53	11.75$\pm$0.45	6.64$\pm$1.13	7.17$\pm$0.49	1.255$\pm$0.016	0. 0. 1. 1.	FLD-G
WISE 2354-1852	L2	8.13$\pm$0.44	10.49$\pm$0.39	6.56$\pm$0.91	8.59$\pm$0.37	1.282$\pm$0.013	1. 0. 0. 1.	FLD-G
2MASS 1431+1436	L2p	9.88$\pm$0.34	12.45$\pm$0.3	7.04$\pm$0.77	9.42$\pm$0.32	1.185$\pm$0.01	0. 0. 0. 1.	FLD-G
Gl 618.1 B	L2.5	8.04$\pm$0.14	9.65$\pm$0.12	4.67$\pm$0.31	6.72$\pm$0.13	1.244$\pm$0.004	1. 1. 1. 1.	INT-G
2MASS 2104-1037	L2.5	8.5$\pm$0.12	12.04$\pm$0.1	6.32$\pm$0.25	8.11$\pm$0.11	1.283$\pm$0.004	0. 0. 0. 1.	FLD-G
WISE 0607+4550	L2.5	9.61$\pm$0.14	11.05$\pm$0.13	7.01$\pm$0.3	8.74$\pm$0.13	1.258$\pm$0.004	0. 0. 0. 1.	FLD-G
2MASS 2208+2921	L3	3.96$\pm$0.51	4.33$\pm$0.46	2.53$\pm$1.07	2.47$\pm$0.44	1.141$\pm$0.013	2. 2. 2. 2.	VL-G
G 196-3B	L3	5.41$\pm$0.38	5.79$\pm$0.36	4.21$\pm$0.36	4.35$\pm$0.15	1.157$\pm$0.005	1. 2. 2. 2.	VL-G
2MASS 1726+1538	L3	5.83$\pm$0.51	6.82$\pm$0.45	5.14$\pm$1.04	4.55$\pm$0.48	1.199$\pm$0.014	1. 1. 1. 1.	INT-G
2MASS 1146+2230	L3	9.23$\pm$0.16	10.87$\pm$0.15	6.51$\pm$0.37	8.2$\pm$0.16	1.296$\pm$0.005	0. 1. 0. 0.	FLD-G
2MASS 1300+1912	L3	10.33$\pm$0.1	13.07$\pm$0.08	6.66$\pm$0.15	9.07$\pm$0.07	1.214$\pm$0.002	0. 0. 0. 1.	FLD-G
2MASS 1506+1321	L3	10.55$\pm$0.14	11.85$\pm$0.1	7.16$\pm$0.31	9.36$\pm$0.13	1.257$\pm$0.005	0. 0. 0. 1.	FLD-G
GD 165 B	L3	9.33$\pm$0.3	11.14$\pm$0.27	4.81$\pm$0.59	8.3$\pm$0.26	1.289$\pm$0.012	0. 0. 0. 1.	FLD-G
WISE 0532+0418	L3	10.05$\pm$1.26	13.37$\pm$1.13	9.22$\pm$2.83	10.92$\pm$1.19	1.404$\pm$0.044	0. 0. 0. 0.	FLD-G
2MASS 1302+5650	L3p	11.3$\pm$0.58	12.05$\pm$0.53	7.89$\pm$1.35	9.95$\pm$0.59	1.288$\pm$0.021	0. 0. 0. 1.	FLD-G
2MASS 2224-0158	L3.5	11.03$\pm$0.16	12.93$\pm$0.15	7.19$\pm$0.34	7.01$\pm$0.16	1.175$\pm$0.005	0. 0. 1. 1.	FLD-G
SDSS 1256-0224	sdL3.5	7.9$\pm$0.36	12.28$\pm$0.28	2.52$\pm$0.7	5.08$\pm$0.35	1.102$\pm$0.009	N/A	N/A
2MASS 0036+1821	L4	11.1$\pm$0.2	13.78$\pm$0.29	6.51$\pm$0.37	10.24$\pm$0.16	1.313$\pm$0.009	0. 0. 0. 0.	FLD-G
2MASS 1155+2307	L4	4.76$\pm$0.6	10.6$\pm$0.48	6.28$\pm$1.2	8.51$\pm$0.48	1.304$\pm$0.017	2. 1. 0. 0.	FLD-G
2MASS 2158-1550	L4	10.58$\pm$0.69	11.39$\pm$0.6	5.7$\pm$1.6	8.67$\pm$0.63	1.289$\pm$0.021	0. 1. 0. 0.	FLD-G
SIPS 0921-2104	L4	11.13$\pm$0.04	13.8$\pm$0.04	7.2$\pm$0.14	10.65$\pm$0.06	1.231$\pm$0.001	0. 0. 0. 1.	FLD-G
2MASS 1841+3117	L4p	9.26$\pm$0.46	10.99$\pm$0.4	5.44$\pm$1.05	7.75$\pm$0.43	1.244$\pm$0.013	1. 1. 1. 1.	INT-G
WISE 0715-1145	L4p	11.36$\pm$0.18	14.91$\pm$0.15	6.9$\pm$0.4	10.47$\pm$0.17	1.234$\pm$0.006	0. 0. 0. 1.	FLD-G
GJ 1001 B	L4.5	11.5$\pm$0.16	12.62$\pm$0.14	5.73$\pm$0.35	9.18$\pm$0.14	1.254$\pm$0.005	0. 0. 0. 1.	FLD-G
SDSS 0805+4812	L4.5dbl	12.37$\pm$0.11	13.85$\pm$0.1	5.93$\pm$0.25	9.38$\pm$0.1	1.285$\pm$0.004	N/A	N/A
2MASS 0835+1953	L5	11.14$\pm$0.29	12.25$\pm$0.24	6.44$\pm$0.67	8.61$\pm$0.26	1.234$\pm$0.009	0. 0. 0. 0.	FLD-G
G 259-20 B	L5	13.71$\pm$0.26	16.66$\pm$0.23	4.64$\pm$0.7	11.09$\pm$0.26	1.284$\pm$0.009	0. 0. 0. 0.	FLD-G
Gl 417 B	L5	9.19$\pm$0.18	10.11$\pm$0.16	5.45$\pm$0.4	7.58$\pm$0.17	1.243$\pm$0.005	1. 1. 0. 0.	FLD-G
SDSS 1446+0024	L5	10.51$\pm$0.48	12.83$\pm$0.47	5.06$\pm$1.26	8.76$\pm$0.51	1.212$\pm$0.016	0. 0. 0. 0.	FLD-G
2MASS 1721+3344	L5p	11.6$\pm$0.41	15.12$\pm$0.36	5.77$\pm$1.03	10.2$\pm$0.42	1.241$\pm$0.014	0. 0. 0. 0.	FLD-G
2MASS 1821+1414	L5p	9.22$\pm$0.11	11.25$\pm$0.1	5.32$\pm$0.27	7.79$\pm$0.11	1.229$\pm$0.003	1. 1. 0. 0.	FLD-G
2MASS 2351+3010	L5p	11.19$\pm$0.89	12.35$\pm$0.78	6.42$\pm$2.18	7.53$\pm$0.92	1.18$\pm$0.026	0. 0. 0. 1.	FLD-G
2MASS 1553+2109	L5.5	9.24$\pm$1.09	9.24$\pm$0.96	3.72$\pm$2.61	6.01$\pm$0.99	1.127$\pm$0.031	1. 1. 1. 1.	INT-G
DENIS 0205-1159	L5.5	8.03$\pm$0.82	10.91$\pm$0.36	3.51$\pm$0.85	6.41$\pm$0.29	1.122$\pm$0.017	1. 1. 1. 2.	INT-G
2MASS 1507-1627	L5.5	11.2$\pm$0.02	13.9$\pm$0.03	5.64$\pm$0.09	8.56$\pm$0.04	1.252$\pm$0.001	0. 0. 0. 0.	FLD-G
2MASS 1315-2649	L5.5dbl	7.89$\pm$0.39	10.86$\pm$0.33	4.97$\pm$0.86	7.61$\pm$0.36	1.171$\pm$0.011	N/A	N/A
2MASS 2244+2043	L6	4.2$\pm$1.02	5.24$\pm$0.91	1.22$\pm$2.04	3.03$\pm$0.91	1.008$\pm$0.023	2. 2. 2. 2.	VL-G
2MASS 0740+2009	L6	7.34$\pm$0.56	10.55$\pm$0.49	3.9$\pm$1.29	6.19$\pm$0.52	1.079$\pm$0.014	1. 0. 1. 2.	INT-G
2MASS 1010-0406	L6	10.11$\pm$0.38	11.74$\pm$0.35	5.63$\pm$0.86	8.45$\pm$0.36	1.174$\pm$0.011	0. 0. 0. 0.	FLD-G
DENIS 1228-1547	L6	10.18$\pm$0.26	11.92$\pm$0.17	5.47$\pm$0.27	7.9$\pm$0.13	1.229$\pm$0.006	0. 0. 0. 0.	FLD-G
2MASS 0850+1057	L6dbl	6.61$\pm$0.36	8.78$\pm$0.31	3.96$\pm$0.76	5.87$\pm$0.34	1.1$\pm$0.009	N/A .	N/A
2MASS 2152+0937	L6dbl	6.82$\pm$0.88	9.33$\pm$0.76	5.31$\pm$1.86	6.16$\pm$0.79	1.083$\pm$0.023	N/A	N/A
2MASS 0300+2130	L6p	10.11$\pm$0.57	12.88$\pm$0.51	6.65$\pm$1.29	8.85$\pm$0.53	1.219$\pm$0.017	0. 0. 0. 0.	FLD-G
2MASS 1118-0856	L6p	10.56$\pm$0.41	13.35$\pm$0.38	6.68$\pm$0.94	8.86$\pm$0.42	1.223$\pm$0.014	0. 0. 0. 0.	FLD-G
2MASS 2148+4003	L6.5p	7.44$\pm$0.2	10.34$\pm$0.16	4.55$\pm$0.45	5.13$\pm$0.2	1.15$\pm$0.005	1. 1. 1. 0.	INT-G
2MASS 0103+1935	L7	6.46$\pm$0.35	6.42$\pm$0.33	3.49$\pm$0.75	5.82$\pm$0.3	1.093$\pm$0.009	1. 1. 0. n	INT-G
2MASS 1526+2043	L7	9.14$\pm$0.25	10.71$\pm$0.23	4.18$\pm$0.58	7.56$\pm$0.25	1.153$\pm$0.007	0. 0. 0. n	FLD-G
2MASS 1728+3948	L7dbl	9.85$\pm$0.33	11.56$\pm$0.3	4.6$\pm$0.73	7.34$\pm$0.31	1.101$\pm$0.01	0. 0. 0. n	FLD-G
2MASS 2151+3402	L7p	2.3$\pm$1.04	4.33$\pm$1.0	3.68$\pm$2.19	7.31$\pm$0.96	1.163$\pm$0.029	2. 2. 0. n	VL-G
2MASS 0532+8246	sdL7	12.59$\pm$0.29	16.4$\pm$0.14	0.8$\pm$0.42	6.81$\pm$0.13	1.238$\pm$0.018	N/A	N/A
2MASS 2252-1730	L7.5	11.5$\pm$0.32	13.06$\pm$0.3	3.89$\pm$0.8	8.57$\pm$0.34	1.161$\pm$0.01	0. 0. 0. n	FLD-G
SDSS 0931+0327	L7.5	11.87$\pm$0.27	14.58$\pm$0.24	6.42$\pm$0.64	11.02$\pm$0.27	1.238$\pm$0.009	0. 0. 0. n	FLD-G
SDSS 1121+4332	L7.5	15.39$\pm$0.35	17.96$\pm$0.35	6.91$\pm$0.99	10.71$\pm$0.41	1.271$\pm$0.013	0. 0. 0. n	FLD-G
2MASS 0015+2959	L7.5p	9.35$\pm$1.27	12.35$\pm$1.13	5.76$\pm$2.9	9.48$\pm$1.24	1.155$\pm$0.042	0. 0. 0. n	FLD-G
2MASS 1632+1904	L8	5.44$\pm$0.44	7.23$\pm$0.4	2.57$\pm$1.06	3.69$\pm$0.46	1.04$\pm$0.011	N/A	N/A
SDSS 1331-0116	L8	12.82$\pm$0.15	14.44$\pm$0.14	5.74$\pm$0.38	9.57$\pm$0.14	1.184$\pm$0.005	N/A	N/A
2MASS 0255-4700	L9	6.44$\pm$0.12	8.95$\pm$0.13	2.62$\pm$0.32	5.38$\pm$0.14	1.039$\pm$0.003	N/A	N/A
2MASS 0310+1648	L9	6.58$\pm$0.43	9.22$\pm$0.41	3.11$\pm$1.06	5.62$\pm$0.46	1.016$\pm$0.011	N/A	N/A
2MASS 1405+8350	L9	7.86$\pm$0.22	9.72$\pm$0.22	4.14$\pm$0.51	7.1$\pm$0.22	1.036$\pm$0.006	N/A	N/A
WISE 0826-1640	L9	7.95$\pm$0.25	9.35$\pm$0.22	4.01$\pm$0.55	5.27$\pm$0.23	1.035$\pm$0.006	N/A	N/A
WISE 0206+2640	L9p	6.29$\pm$0.37	7.57$\pm$0.34	2.77$\pm$0.86	4.33$\pm$0.36	1.015$\pm$0.009	N/A	N/A
WISE 1647+5632	L9p	6.11$\pm$1.15	5.12$\pm$1.14	4.28$\pm$2.35	6.62$\pm$1.01	1.028$\pm$0.027	N/A	N/A
2MASS 0328+2302	L9.5	8.79$\pm$1.14	11.18$\pm$1.08	2.81$\pm$2.85	4.75$\pm$1.1	1.003$\pm$0.028	N/A	N/A
2MASS 1207+0244	T0	6.9$\pm$0.22	8.78$\pm$0.2	2.82$\pm$0.55	6.1$\pm$0.2	1.076$\pm$0.006	N/A	N/A
Gl 337 C	T0	7.4$\pm$0.61	8.71$\pm$0.57	2.53$\pm$1.6	5.33$\pm$0.67	1.049$\pm$0.016	N/A	N/A
SDSS 0423-0414	T0	8.14$\pm$0.23	10.4$\pm$0.21	3.59$\pm$0.59	6.83$\pm$0.24	1.073$\pm$0.006	N/A	N/A
SDSS 1520+3546	T0	8.25$\pm$0.18	10.29$\pm$0.19	3.97$\pm$0.48	6.84$\pm$0.2	1.047$\pm$0.005	N/A	N/A
SDSS 1516+3053	T0.5	6.47$\pm$0.61	4.17$\pm$0.62	2.71$\pm$1.39	5.21$\pm$0.56	0.987$\pm$0.015	N/A	N/A
SDSS 0151+1244	T1	8.72$\pm$0.78	11.34$\pm$0.7	2.11$\pm$1.85	6.54$\pm$0.74	1.033$\pm$0.02	N/A	N/A
SDSS 0837-0000	T1	8.08$\pm$0.69	12.22$\pm$0.61	4.28$\pm$1.56	8.58$\pm$0.61	1.023$\pm$0.017	N/A	N/A
SDSS 0909+6525	T1.5	9.26$\pm$0.27	11.26$\pm$0.25	2.89$\pm$0.7	5.86$\pm$0.29	1.031$\pm$0.007	N/A	N/A
SDSS 1254-0122	T2	10.42$\pm$1.58	11.67$\pm$0.69	3.65$\pm$0.28	8.54$\pm$0.1	1.012$\pm$0.017	N/A	N/A
2MASS 1106+2754	T2.5	11.08$\pm$0.41	13.42$\pm$0.28	3.82$\pm$0.49	7.89$\pm$0.21	1.059$\pm$0.008	N/A	N/A
SIMP 0136+0933	T2.5	12.04$\pm$0.05	14.06$\pm$0.05	4.69$\pm$0.15	9.42$\pm$0.06	1.054$\pm$0.002	N/A	N/A
2MASS 1209-1004	T3	10.52$\pm$0.56	14.6$\pm$0.54	4.55$\pm$1.52	8.0$\pm$0.64	0.991$\pm$0.017	N/A	N/A
SDSS 1021-0304	T3	10.76$\pm$0.61	7.58$\pm$0.61	4.46$\pm$1.39	9.02$\pm$0.57	1.006$\pm$0.015	N/A	N/A
SDSS 1750+1759	T3.5	11.7$\pm$0.53	13.57$\pm$0.5	3.48$\pm$1.35	8.34$\pm$0.53	1.051$\pm$0.015	N/A	N/A
2MASS 2254+3123	T4	11.34$\pm$1.45	13.15$\pm$1.23	2.25$\pm$2.58	9.03$\pm$0.85	1.077$\pm$0.028	N/A	N/A
2MASS 0559-1404	T4.5	14.46$\pm$0.11	15.8$\pm$0.09	3.05$\pm$0.22	9.71$\pm$0.08	1.07$\pm$0.003	N/A	N/A
SDSS 0926+5847	T4.5	14.47$\pm$0.44	14.64$\pm$0.47	3.52$\pm$1.33	9.01$\pm$0.49	1.037$\pm$0.014	N/A	N/A
2MASS 0755+2212	T5	16.23$\pm$0.07	15.04$\pm$0.05	0.52$\pm$0.22	8.01$\pm$0.06	1.056$\pm$0.001	N/A	N/A
2MASS 1503+2525	T5	14.5$\pm$0.11	14.99$\pm$0.11	1.21$\pm$0.35	7.04$\pm$0.13	1.054$\pm$0.004	N/A	N/A
WISE 1337+2636	T5	20.42$\pm$0.4	14.81$\pm$0.45	1.27$\pm$1.37	7.34$\pm$0.51	1.104$\pm$0.015	N/A	N/A
2MASS 2356-1553	T5.5	N/A	N/A	2.76$\pm$5.53	10.16$\pm$1.71	1.094$\pm$0.052	N/A	N/A
WISE 1954+6915	T5.5	N/A	N/A	1.14$\pm$1.71	3.5$\pm$0.77	0.991$\pm$0.02	N/A	N/A
2MASS 1225-2739	T6	N/A	N/A	1.07$\pm$0.27	8.93$\pm$0.11	1.027$\pm$0.002	N/A	N/A
SDSS 1624+0029	T6	N/A	N/A	-2.2$\pm$0.68	5.89$\pm$0.26	1.03$\pm$0.005	N/A	N/A
WISE 0038+8405	T6	N/A	N/A	0.23$\pm$1.31	6.44$\pm$0.49	1.096$\pm$0.013	N/A	N/A
WISE 1840+2932	T6	N/A	N/A	-2.36$\pm$4.3	1.51$\pm$1.68	1.029$\pm$0.039	N/A	N/A
WISE 2237+7225	T6	N/A	N/A	2.44$\pm$1.49	8.64$\pm$0.52	1.009$\pm$0.014	N/A	N/A
2MASS 0937+2931	T6p	N/A	N/A	-0.9$\pm$1.03	2.05$\pm$0.4	0.994$\pm$0.021	N/A	N/A
WISE 1250+2628	T6.5	N/A	N/A	0.21$\pm$0.95	10.26$\pm$0.34	1.049$\pm$0.009	N/A	N/A
2MASS 0727+1710	T7	N/A	N/A	-0.97$\pm$0.88	6.14$\pm$0.3	1.001$\pm$0.007	N/A	N/A
2MASS 1553+1532	T7	N/A	N/A	0.0$\pm$0.57	6.41$\pm$0.22	0.949$\pm$0.005	N/A	N/A
WISE 1139-3324	T7	N/A	N/A	-1.03$\pm$3.49	2.65$\pm$1.41	0.988$\pm$0.038	N/A	N/A
WISE 1759+5442	T7	N/A	N/A	-0.86$\pm$2.83	2.43$\pm$1.13	1.041$\pm$0.028	N/A	N/A
WISE 2335+4222	T7	N/A	N/A	2.4$\pm$2.49	8.08$\pm$0.9	1.07$\pm$0.025	N/A	N/A
Gl 570 D	T7.5	N/A	N/A	N/A	N/A	1.019$\pm$0.019	N/A	N/A
WISE 0424+0727	T7.5	N/A	N/A	N/A	N/A	1.028$\pm$0.02	N/A	N/A
WISE 2147-1029	T7.5	N/A	N/A	N/A	N/A	0.946$\pm$0.016	N/A	N/A
2MASS 0415-0935	T8	N/A	N/A	N/A	N/A	0.99$\pm$0.002	N/A	N/A
WISE 0316+4307	T8	N/A	N/A	N/A	N/A	1.17$\pm$0.059	N/A	N/A
WISE 0430+4633	T8	N/A	N/A	N/A	N/A	0.821$\pm$0.013	N/A	N/A
WISE 1050+5056	T8	N/A	N/A	N/A	N/A	0.859$\pm$0.016	N/A	N/A
WISE 1448-2534	T8	N/A	N/A	N/A	N/A	0.98$\pm$0.034	N/A	N/A
WISE 1736+6059	T8	N/A	N/A	N/A	N/A	1.051$\pm$0.022	N/A	N/A
WISE 1813+2835	T8	N/A	N/A	N/A	N/A	0.971$\pm$0.01	N/A	N/A
WISE 1955-2540	T8	N/A	N/A	N/A	N/A	0.966$\pm$0.023	N/A	N/A
WISE 2005+5424	sdT8	N/A	N/A	N/A	N/A	0.893$\pm$0.011	N/A	N/A
WISE 0512-3004	T8.5	N/A	N/A	N/A	N/A	0.118$\pm$0.05	N/A	N/A
WISE 0540+4832	T8.5	N/A	N/A	N/A	N/A	1.021$\pm$0.012	N/A	N/A
WISE 0005+3737	T9	N/A	N/A	N/A	N/A	0.896$\pm$0.035	N/A	N/A
WISE 0038+2758	T9	N/A	N/A	N/A	N/A	1.149$\pm$0.025	N/A	N/A
WISE 0335+4310	T9	N/A	N/A	N/A	N/A	0.664$\pm$0.02	N/A	N/A

Table 3. Table 3 BDSS Objects With Known Ages

Designation	Short Name	Right Ascension	Declination	SpT	Age	Gravity Type	Notes	%	Membership
					[Myr]			Membership	Ref.
2MASS J22443167+2043433	2MASS 2244+2043	22 44 31.674	+20 43 43.30	L6	$149\begin{array}{c}+51\\ -19\end{array}$	VL-G	AB Dor	99.6	7
2MASS J03230483+4816111	AP 310	03 23 04.83	+48 16 11.2	M6	$90\pm 10$	FLD-G	Alpha Persei	100	25
Cl* Melotte 20 AP 316	AP 316	03 27 01.3	+49 14 40	M6	$90\pm 10$	FLD-G	Alpha Persei	100	25
2MASS J03180906+4925189	AP 301	03 18 09.06	+49 25 19.0	M6.5	$90\pm 10$	FLD-G	Alpha Persei	100	25
2MASS J03204346+5059396	AP 270	03 20 43.47	+50 59 39.6	M7	$90\pm 10$	VL-G	Alpha Persei	54	12
2MASS J03354735+4917430	AP 325	03 35 47.36	+49 17 43.1	M7	$90\pm 10$	INT-G	Alpha Persei	62	12
Cl* Melotte 20 AP 326	AP 326	03 38 55.2	+48 57 31	M7.5	$90\pm 10$	FLD-G	Alpha Persei	100	25
2MASS J03194133+5030451	AP 306	03 19 41.334	+50 30 45.15	M8	$90\pm 10$	FLD-G	Alpha Persei	100	25
2MASSI J0443376+000205	2MASS 0443+0002	04 43 37.610	+00 02 05.18	L0	$24\pm 3$	VL-G	Beta Pic	99.8	7
-	-	-	-	-	500	-	Lithium	-	34
2MASS J03393521-3525440	LP 944-20	03 39 35.220	-35 25 44.09	L0	400$\pm$40	FLD-G	Castor	99.7	7,24
-	-	-	-	-	500	-	Lithium	-	34
2MASS J06085283-2753583	2MASS 0608-2753	06 08 52.836	-27 53 58.35	L0	$30\pm 20$	VL-G	$\beta$ Pic/Columba/	Ambiguous	7, 35
							Cha-Near
GJ 577 BC	Gl 577 BC	15 05 50.07	+64 02 49.0	M5.5+M5.5	$70\begin{array}{c}+30\\ -40\end{array}$	N/A	Companion	-	13
2MASS J22344161+4041387	2MASS 2234+4041	22 34 41.62	+40 41 38.8	M6	$1\begin{array}{c}+1\\ -.5\end{array}$	VL-G	Companion	-	1
-	-	-	-	-	-	-	LkH$\alpha$ 233	-	1
BD+16 2708B	Gl 569 BC	14 54 29.36	+16 06 08.9	M8.5+M9	112.5$\pm$12.5	FLD-G	Companion	-	30
2MASS J11122567+3548131	Gl 417 BC	11 12 25.674	+35 48 13.17	L4.5+L6	$750\begin{array}{c}+140\\ -120\end{array}$	FLD-G	Gyrochronology	-	31
-	-	-	-	-	80-300	-	Companion	-	32
2MASS J03473900+2436226	Roque 16	03 47 39.01	+24 36 22.7	M6	125$\pm$8	FLD-G	Pleiades	100	27
2MASS J03520670+2416008	Teide 2	03 52 06.71	+24 16 00.9	M6	125$\pm$8	FLD-G	Pleiades	68	11
2MASS J03454126+2354099	PPL 1	03 45 41.265	+23 54 09.95	M6.5	125$\pm$8	FLD-G	Pleiades	69	11
2MASS J03551257+2317378	CFHT PL 15	03 55 12.571	+23 17 37.82	M7	125$\pm$8	FLD-G	Pleiades	100	3
2MASS J03464298+2424506	Roque 14	03 46 42.99	+24 24 50.6	M7	125$\pm$8	FLD-G	Pleiades	100	26
2MASS J03455065+2409037	Roque 13	03 45 50.65	+24 09 03.8	M7.5	125$\pm$8	FLD-G	Pleiades	65	11
2MASS J03471208+2428320	Roque 11	03 47 12.08	+24 28 32.0	M8	125$\pm$8	FLD-G	Pleiades	100	26
2MASS J03471792+2422317	Teide 1	03 47 17.925	+24 22 31.71	M8	125$\pm$8	VL-G	Pleiades	68	11
2MASS J03434028+2430113	Roque 7	03 43 40.289	+24 30 11.40	M8.5	125$\pm$8	INT-G	Pleiades	100	3
2MASS J03435353+2431115	Roque 4	03 43 53.53	+24 31 11.5	M9	125$\pm$8	INT-G	Pleiades	100	27
2MASS J16262152-2426009	Rho Oph GY 5	16 26 21.528	-24 26 00.96	M5.5	$0.3\begin{array}{c}+2.7\\ -.2\end{array}$	N/A	Rho Oph	100	8
2MASS J16262780-2426418	Rho Oph GY 37	16 26 27.810	-24 26 41.82	M6	$0.3\begin{array}{c}+2.7\\ -.2\end{array}$	VL-G	Rho Oph	100	8
2MASS J16262226-2424070	Rho Oph GY 11	16 26 22.269	-24 24 07.06	M6.5	$0.3\begin{array}{c}+2.7\\ -.2\end{array}$	VL-G	Rho Oph	100	8
2MASS J16261882-2426105	ISO-Oph 23	16 26 18.821	-24 26 10.52	M7.5	$0.3\begin{array}{c}+2.7\\ -.2\end{array}$	VL-G	Rho Oph	100	8
2MASS J16262189-2444397	Rho Oph GY 3	16 26 21.899	-24 44 39.76	M8	$0.3\begin{array}{c}+2.7\\ -.2\end{array}$	VL-G	Rho Oph	100	8
2MASS J16265128-2432419	Rho Oph GY 141	16 26 51.284	-24 32 41.99	M8.5	$0.3\begin{array}{c}+2.7\\ -.2\end{array}$	VL-G	Rho Oph	100	8
2MASS J16273863-2438391	Rho Oph GY 310	16 27 38.631	-24 38 39.19	M8.5	$0.3\begin{array}{c}+2.7\\ -.2\end{array}$	VL-G	Rho Oph	100	22
2MASS J05375745-0238444	S Ori 12	05 37 57.457	-02 38 44.44	M6	3$\pm$1	VL-G	Sigma Orionis	75	2
2MASS J05390449-0238353	S Ori 17	05 39 04.491	-02 38 35.37	M6	3$\pm$1	VL-G	Sigma Orionis	75	2
2MASS J05382088-0246132	S Ori 31	05 38 20.882	-02 46 13.27	M7	3$\pm$1	VL-G	Sigma Orionis	75	2
2MASS J05373648-0241567	S Ori 40	05 37 36.485	-02 41 56.73	M7	3$\pm$1	VL-G	Sigma Orionis	75	2
UGCS J053903.20-023019.9	S Ori 51	05 39 03.21	-02 30 19.9	L0	3$\pm$1	VL-G	Sigma Orionis	75	2
2MASS J12073346-3932539	2MASS 1207-3932	12 07 33.467	-39 32 54.00	M8	10$\pm$3	VL-G	TWA	100	18
2MASS J11395113-3159214	2MASS 1139-3159	11 39 51.140	-31 59 21.50	M9	10$\pm$3	VL-G	TWA	100	18
WDS J04325+1732Ba	GG Tau Ba	04 32 30.25	+17 31 30.9	M6	1.5$\pm$.5	VL-G	Taurus	100	28
2MASS J04262939+2624137	KPNO Tau 3	04 26 29.392	+26 24 13.79	M6	1.5$\pm$.5	VL-G	Taurus	100	16
2MASS J04312405+1800215	MHO Tau 4	04 31 24.057	+18 00 21.53	M6	1.5$\pm$.5	VL-G	Taurus	100	5
2MASS J04321606+1812464	MHO Tau 5	04 32 16.067	+18 12 46.45	M6.5	1.5$\pm$.5	VL-G	Taurus	100	5
2MASS J04361038+2259560	CFHT BD Tau 2	04 36 10.387	+22 59 56.03	M7.5	1.5$\pm$.5	VL-G	Taurus	100	19
WDS J04325+1732Bb	GG Tau Bb	04 32 30.31	+17 31 29.9	M7.5	1.5$\pm$.5	VL-G	Taurus	100	28
2MASS J04363893+2258119	CFHT BD Tau 3	04 36 38.938	+22 58 11.90	M8	1.5$\pm$.5	VL-G	Taurus	100	19
2MASS J04305718+2556394	KPNO Tau 7	04 30 57.187	+25 56 39.48	M8	1.5$\pm$.5	VL-G	Taurus	100	4
2MASS J04151471+2800096	KPNO Tau 1	04 15 14.714	+28 00 09.61	M8.5	1.5$\pm$.5	VL-G	Taurus	100	4
2MASS J04300724+2608207	KPNO Tau 6	04 30 07.244	+26 08 20.79	M8.5	1.5$\pm$.5	VL-G	Taurus	100	4
2MASS J04355143+2249119	KPNO Tau 9	04 35 51.432	+22 49 11.95	M8.5	1.5$\pm$.5	VL-G	Taurus	100	4
2MASS J04190126+2802487	KPNO Tau 12	04 19 01.270	+28 02 48.70	M9	1.5$\pm$.5	VL-G	Taurus	100	15
2MASS J04272799+2612052	KPNO Tau 4	04 27 27.997	+26 12 05.27	L0	1.5$\pm$.5	VL-G	Taurus	100	16
2MASS J01415823-4633574	2MASS 0141-4633	01 41 58.233	-46 33 57.43	L0	45$\pm$4	VL-G	Tucana Horlogium	99.5	33
2MASS J16051403-2406524	DENIS 1605-2406	16 05 14.033	-24 06 52.48	M6	11$\pm$2	VL-G	U Sco	100	20
2MASS J16014955-2351082	U Sco CTIO 66AB	16 01 49.557	-23 51 08.20	M6+M6	11$\pm$2	VL-G	U Sco	100	10
2MASS J16121185-2047267	SCH 1612-2047	16 12 11.860	-20 47 26.72	M6.5	11$\pm$2	VL-G	U Sco	100	14
2MASS J16020429-2050425	U Sco CTIO 100	16 02 04.296	-20 50 42.57	M7	11$\pm$2	VL-G	U Sco	100	14
2MASS J15591135-2338002	U Sco CTIO 128	15 59 11.359	-23 38 00.24	M7	11$\pm$2	VL-G	U Sco	100	14
2MASS J15594366-2014396	U Sco CTIO 130	15 59 43.665	-20 14 39.61	M7.5	11$\pm$2	VL-G	U Sco	100	14
2MASS J16191646-2347235	DENIS 1619-2347	16 19 16.463	-23 47 23.54	M8	11$\pm$2	VL-G	U Sco	100	14
2MASS J16192988-2440469	DENIS 1619-2440	16 19 29.882	-24 40 46.97	M8	11$\pm$2	VL-G	U Sco	100	14
2MASS J16224385-1951057	SCH 1622-1951	16 22 43.854	-19 51 05.77	M8	11$\pm$2	VL-G	U Sco	100	14
2MASS J16235155-2317270	SCH 1623-2317	16 23 51.560	-23 17 27.03	M8	11$\pm$2	VL-G	U Sco	100	14
2MASS J16110360-2426429	DENIS 1611-2426	16 11 03.609	-24 26 42.94	M9	11$\pm$2	VL-G	U Sco	100	14
2MASS J16145258-2017133	DENIS 1614-2017	16 14 52.588	-20 17 13.32	M9	11$\pm$2	VL-G	U Sco	100	14

Table 4. Table 4 Best Fit Parameters for Age vs. K I Equivalent Width

SpT	A	3${\sigma }_A$	B	3${\sigma }_B$
	[Myr]		[${\AA }^{-1}$]
		K I at 1.1692 $\mu$m
M6$\pm$1	1.21397	0.18509	0.82751	0.03330
M7$\pm$1	1.11259	0.13018	0.80449	0.02633
M8$\pm$1	0.96102	0.12268	0.66583	0.02163
M9$\pm$1	0.49177	0.08032	0.47582	0.01421
L0$\pm$1	1.51591	0.29961	0.37076	0.01813
		K I at 1.1778 $\mu$m
M6$\pm$1	0.64072	0.09984	0.55605	0.02238
M7$\pm$1	0.49738	0.06485	0.58026	0.01879
M8$\pm$1	0.31632	0.04927	0.59087	0.01819
M9$\pm$1	0.23653	0.04466	0.42362	0.01261
L0$\pm$1	1.85884	0.29051	0.27824	0.01156
		K I at 1.2529 $\mu$m
M6$\pm$1	0.43282	0.07065	0.84337	0.03082
M7$\pm$1	0.46584	0.06145	0.80843	0.02697
M8$\pm$1	0.46064	0.06628	0.77101	0.02500
M9$\pm$1	0.59026	0.07495	0.49215	0.01194
L0$\pm$1	1.86551	0.29311	0.38854	0.01493

Table 5. Table 5 Age Ranges For A13 Gravity Classifications for K I EWs

	Age Ranges [Myr]
SpT	K I at 1.1692 $\mu$m			K I at 1.1778 $\mu$m			K I at 1.2529 $\mu$m
	VL-G	INT-G	FLD-G	VL-G	INT-G	FLD-G	VL-G	INT-G	FLD-G
M6	0.3–22	22–27	27–10 Gyr	0.3–16	16–35	35–10 Gyr	0.3–12	12–32	32–10 Gyr
M7	0.3–55	55–205	205–10 Gyr	0.3–39	39–262	262–10 Gyr	0.3–27	27–208	208–10 Gyr
M8	0.3–57	57–413	413–10 Gyr	0.3–64	64–1.21 Gyr	1.21 Gyr–10 Gyr	0.3–50	50–817	817–10 Gyr
M9	0.3–17	17–128	128–10 Gyr	0.3–19	19–290	290–10 Gyr	0.3–19	19–190	190–10 Gyr
L0	0.3–38	38–296	296–10 Gyr	0.3–46	46–403	403–10 Gyr	0.3–42	42–378	378–10 Gyr

Equations

$$Age=A\times 10^{B\times EW}$$

Full text

††slugcomment: Accepted to The Astrophysical Journal

\MakePerPage

footnote

**footnotetext: The data presented herein were obtained at the W.M. Keck Observatory, which is operated as a scientific partnership among the California Institute of Technology, the University of California and the National Aeronautics and Space Administration. The Observatory was made possible by the generous financial support of the W.M. Keck Foundation.

I. Introduction

Brown dwarfs are the lowest-mass products of star formation, with masses so low that they will never achieve stable hydrogen fusion in their cores (Kumar, 1962, 1963; Hayashi & Nakano, 1963). Substellar objects are classified by their spectral morphology as types M, L, T, and Y, a sequence which represents both a decrease in effective temperature and changes in chemical abundances. Since their discovery 20 years ago (Nakajima et al., 1995; Rebolo et al., 1995), most brown dwarfs have been found through infrared large area surveys such as the Two Micron All Sky Survey (2MASS; Skrutskie et al. 2006), the Sloan Digital Sky Survey (SDSS; York et al. 2000), the United Kingdom Infrared Deep Sky Survey (UKIDSS; Lawrence et al. 2007), and the Wide-field Infrared Survey Explorer (WISE; Wright et al. 2010), among others. See, for example, Kirkpatrick et al. (1991, 1999); Hawley et al. (2002); Burgasser et al. (2006); Chiu et al. (2006); Burningham et al. (2010); Cushing et al. (2011) for details on brown dwarf discoveries made by the various surveys.

Extensive follow-up using both optical and infrared imaging and spectroscopy has enabled astronomers to begin characterizing the physical properties of brown dwarfs, primarily through comparisons to atmospheric and evolutionary models, like those of Burrows et al. (2001), Saumon & Marley (2008), Allard et al. (2012), and Baraffe et al. (2015). It is possible to constrain the effective temperatures, surface gravities, and metallicities of brown dwarfs within the limits of current models, e.g. Cushing et al. (2008); Rice et al. (2010). As the number of confirmed brown dwarfs has increased, the properties typical of field brown dwarfs have been constrained, outliers have been recognized, and methods of identifying extremely young or old objects have emerged (see Kirkpatrick et al. 2010; Allers & Liu 2013 and references therein).

I.1. Surface Gravity as an Age Indicator

Unlike stars, brown dwarfs contract and cool as they age, producing a degeneracy between the mass, age, and temperature such that temperature alone cannot reveal the mass or age of a given brown dwarf. For example, an L dwarf could be a young, planetary-mass brown dwarf, a moderately aged high-mass brown dwarf, or an old low-mass star. Brown dwarfs contract considerably in their first $\sim$ 300 Myr and significantly increase their surface gravity ($g=GM/R^{2}$) from log $g\sim 3.5$ to log $g\sim 5$ in units of cm s*-2* (Burrows et al., 2001). Obtaining a surface gravity estimate is an important step towards disentangling the mass and age of a brown dwarf.

Surface gravity affects several features in the optical and near infrared (NIR) spectra of brown dwarfs. Photospheric pressure, which is proportional to surface gravity assuming hydrostatic equilibrium, broadens atomic features and influences the chemical pathways of both atomic and molecular species (Lodders, 1999). Neutral alkali lines such as K I  and Na I are weaker in low-gravity objects compared to higher gravity objects at similar spectral types because lower photospheric pressure decreases the column densities of the absorbing species above the photosphere, causing the absorption features to appear weaker in low gravity dwarfs. FeH absorption also appears weaker in lower gravity objects, while VO shows stronger absorption at lower gravity, as noted by McGovern et al. (2004) and Allers & Liu (2013). Additionally, the overall shape of the H-band spectral energy distribution is much “peakier” at lower gravities (Lucas et al., 2001; Allers et al., 2007; Looper et al., 2008; Rice et al., 2011), likely due to lower H2 collision induced absorption (CIA), which is a result of the lower photospheric pressure at lower gravities (Kirkpatrick et al., 2006; Saumon & Marley, 2008).

Kirkpatrick (2005) proposed a scheme in which a gravity classification (i.e. $\alpha$, $\beta$, $\gamma$, $\delta$) is appended to the spectral type of a brown dwarf as a means of distinguishing between field, intermediate, low, and very-low gravity objects with similar temperatures. For each spectral type, the gravity sequence acts as a proxy for an age sequence, and low-gravity objects of a particular spectral type are younger than their field counterparts at the same spectral type. Cruz et al. (2009) explored this gravity classification scheme using red-optical spectroscopy of 23 L dwarfs, primarily distinguishing the young objects from field-age objects by the weakness of their alkali lines, though also using the FeH, CrH, TiO and VO absorption bands as diagnostics.

Allers & Liu (2013), hereafter A13, were the first to present a systematic technique using NIR spectroscopy to determine surface gravities of low-mass stars and brown dwarfs. A13 defines spectral indices and pseudo-equivalent widths (EWs) of various gravity-sensitive features in lower resolution NIR spectra to classify the spectra into three groups: low (VL-G), intermediate (INT-G), and high (FLD-G) gravity objects, roughly corresponding to young ($\lesssim$ 30 Myr), intermediate ($\sim$30–200 Myr), and field age ($\gtrsim$ 200 Myr) objects. Because brown dwarfs are significantly brighter in the NIR than the optical, a NIR gravity classification scheme is applicable to more targets. A13 determined gravity classifications for 73 low-mass stars and brown dwarfs showing signs of youth. Gagné et al. (2015c) applied the method prescribed in A13 to 182 objects of spectral types M4–L7 in the search for low-mass members of young moving groups.

In this paper we follow up on prior NIR spectroscopy by our group and use a modified A13 method to determine surface gravities for 228 M, L, and T dwarfs. Twenty of these targets overlap with the A13 sample, and 5 objects overlap with the Gagné et al. (2015c) sample. Many previously unpublished NIR spectra from the NIRSPEC Brown Dwarf Spectroscopic Survey (BDSS) are reported and analyzed.

I.2. The NIRSPEC Brown Dwarf Spectroscopic Survey

In 1999, the Near-Infrared Spectrometer (NIRSPEC; McLean et al. 1998) was commissioned for the W.M. Keck II 10-m telescope on Mauna Kea in Hawaii. NIRSPEC was built at the University of California, Los Angeles (UCLA), and designed for both medium (R=$\lambda/\Delta\lambda\sim 2000$) and high (R$\sim$20,000) resolution spectroscopy in the 1–5 $\mu$m  regime. The BDSS was one of the key science drivers for NIRSPEC. The primary goal of the BDSS as outlined in McLean et al. (2003) is to gather a large suite of NIR spectra of low-mass stars and brown dwarfs in order to examine their spectral properties and make comparisons to evolutionary and atmospheric models. The low temperatures (T $\lesssim$ 2500 K) of brown dwarfs make them excellent targets for NIR studies. Over the past 15 years, the BDSS team has gathered a large spectroscopic database of brown dwarfs and low-mass stars (see §2, Appendix), much of which is presented in McLean et al. (2001, 2003); McGovern et al. (2004); McLean et al. (2007); Rice et al. (2010); Prato et al. (2015).

McGovern et al. (2004) presented the first comprehensive infrared observations to reveal gravity-sensitive spectral signatures in young low-mass stars and brown dwarfs. The infrared and optical spectra of late-type giant stars and old field dwarfs were compared with the spectra of several young brown dwarfs to identify gravity-sensitive features, such as the K I lines in the $J$-band, as well as TiO, VO, and FeH absorption systems. The paper also reported on the use of these spectral features to test the membership of potential very low mass brown dwarfs in young clusters. McGovern et al. (2004) therefore forms the basis of the surface gravity analysis presented in this paper.

In this paper, we measure equivalent widths of K I lines in the $J$-band and FeH absorption at 1.2 $\mu$m for all targets in the BDSS, and use the A13 method to determine surface gravities for all objects for which the method is viable (spectral types M5– L7). We expand upon previous surface gravity studies by calibrating the surface gravity classifications against objects of known ages from the literature, and discuss the extension of the gravity classifications beyond type L7. In Section 2, we discuss our observations and data reduction methods. Section 3 describes our method of determining surface gravity, and Section 4 discusses general trends, interesting objects revealed by our analysis, and the ability of the gravity indices to distinguish the ages of objects. Section 5 summarizes our results.

II. Sample

We present medium-resolution $J$-band spectra of 85 M dwarfs, 92 L dwarfs, and 51 T dwarfs, obtained as part of the BDSS. Ninety-seven spectra were published previously in McLean et al. (2003), Burgasser et al. (2003b), McGovern et al. (2004), Rice et al. (2010), Kirkpatrick et al. (2010), Luhman (2012), Thompson et al. (2013), Mace et al. (2013a), Mace et al. (2013b) and Kirkpatrick et al. (2014), and the remaining 131 are presented here for the first time. By design, our sample spans a large range of spectral types, ages, and distances. In addition to known standards and field objects, we have observed peculiar objects such as $J-K_{s}$ color outliers and known young and old objects. Sixty-four of our targets have age estimates based on their likely associations with clusters or moving groups, such as the Pleiades, Upper Scorpius, and Taurus regions, or from spectral analysis of stellar companions. However, the majority of the sample comprises field brown dwarfs and low-mass stars selected from the 2MASS and WISE surveys. As illustrated in Figure 1, our largest population of objects is late-type M dwarfs.

II.1. Observations

Targets were observed using the strategy described in McLean et al. (2003) for the NIRSPEC instrument on the Keck II telescope in the non-echelle (medium-resolution) mode. For this mode, the slit used is typically 0.38*′′* wide (two pixels), though for several fainter T dwarfs and for observing conditions with sub-optimal seeing, the 0.57*′′* slit was used. For most observations, 300 s exposures were taken in nod pairs of 20*′′* separation along the 42*′′* slit. These nods were generally done in ABBA format for a total observing time of 20 minutes per target. Fainter objects were observed for longer, as needed. An A0V star at a similar airmass to each target was used for telluric corrections. If there were no nearby A0V stars, calibrators as early as B9 or as late as A3 were used instead. In the N3 filter ($\sim$1.15–1.35 $\mu$m), the A0V stars typically only contain the Pa$\beta$  absorption line at 1.282 $\mu$m  which we interpolate over in the reduction process. In addition to telluric calibrators, flat field and dark frames were taken, as well as spectra of Ne and Ar lamps for wavelength calibration. Observation information for all targets in our sample is listed in Table 1, as well as spectral types taken from the literature.

II.2. Data Reduction

All spectroscopic reductions were made using the REDSPEC package1, software produced at UCLA by S. Kim, L. Prato, and I. McLean specifically for the reduction of NIRSPEC data as described in McLean et al. (2003). The REDSPEC code first corrects for spatial and spectral distortion on the array using Ne and Ar lamp lines with wavelengths taken from the National Institute of Standards and Technology (NIST)2 (Kramida et al., 2015). Nod pairs of the target and calibrator are then background subtracted and divided by a flat field. Known bad pixels are removed as well. Spectra are obtained by summing over a range of $\sim$10 pixels (depending on seeing) and then dividing by the A0V calibrator spectrum to remove telluric features. Each pair of spectra was normalized and combined with other pairs (when available) to achieve a higher signal-to-noise ratio (SNR). This sample contains targets with SNR $\sim$10–200, though the majority of the spectra have SNR of at least 20. Finally, heliocentric velocity corrections were applied to the normalized spectra. We also performed a quality check on all data to ensure that wavelength dispersion solutions differed by less than $\sim 10^{-5}$ Å/pixel. Plots and data files for all of our reduced spectra are available publicly through the BDSS archive3 or by request.

11footnotetext: http://www2.keck.hawaii.edu/inst/nirspec/redspec.html22footnotetext: http://physics.nist.gov/asd33footnotetext: http://bdssarchive.org

III. Surface Gravity: Methods and Results

Below we describe our method for calculating the EWs and spectral indices used to determine the surface gravities of our objects. We then present surface gravity estimates for all M6–L7 objects in the BDSS, as well as EW and spectral index values for all BDSS objects.

III.1. Equivalent Widths

We compute pseudo-EWs for the four neutral potassium lines in the $J$-band following the method described in A13. For accurate comparison, we use the same line and pseudo-continuum windows as defined in A13 (see Figure 2). The light grey shaded regions indicate the line windows used, while the dark grey shows the continuum windows. The K I doublet at 1.1692 $\mu$m and 1.1778 $\mu$m share the continuum windows on either side of the doublet, and the 1.2437 $\mu$m and 1.2529 $\mu$m lines share the continua surrounding the 1.2529 $\mu$m line. A13 chooses to exclude the 1.2437 $\mu$m line from their final analysis because of the FeH contamination on the blue side of the line. For completeness, we compute and report EWs for this line. Indeed, we find that the 1.2437 $\mu$m line exhibits more scatter and weaker correlation with surface gravity at this resolving power, and thus we also exclude it from our analysis.

Following a similar method to A13, we estimate a continuum value using a linear regression fit to the flux in the continuum windows. The EW calculations are performed using a Monte Carlo technique of 1000 iterations to estimate our uncertainties. Unlike A13, we do not use the rms scatter about the continuum fit to estimate the flux uncertainty. Instead, for each iteration of the Monte Carlo calculation, we modulate the flux in each pixel by adding a noise factor calculated by multiplying a random number drawn from a Gaussian centered at 0 with a sigma of 1, multiplied by the estimated noise determined by the SNR of that pixel. The equivalent width for each flux modulation is recorded, and we then compute the median and standard deviation of the EWs as the best estimate and 1$\sigma$ uncertainties. This is a similar method to the one described in Aller et al. (2016), who found that the method in A13 tended to underestimate flux errors in modest SNR spectra (SNR $\lesssim$ 200).

We tested this technique using a range of number of iterations in our Monte Carlo calculations. We found that $\gtrsim$ 500 iterations were required to achieve stable results and that there is no significant difference between $10^{3}$ and $10^{6}$ iterations. In the interest of computational time, we opted for $10^{3}$ iterations.

Table 2 lists our values for EW and uncertainties for the four K I lines in the $J$-band for all objects in the BDSS. The first K I doublet at 1.17 $\mu$m disappears from the $J$-band spectra of dwarfs of spectral types $\sim$T5 and later. The K I doublet at 1.25 $\mu$m persists through $\sim$T7 (see spectral plots in Appendix). For this reason, objects later than T5 will have no K I EW measurements at 1.17 $\mu$m and objects later than T7 will have no K I EW measurements at 1.25 $\mu$m.

In Figure 3, we show results for the four K I EWs versus spectral type for all M, L, and T dwarfs in the sample. Spectral types are taken from the literature (see Table 1) and are measured in the NIR, if available. Shaded regions in Figure 3 show the boundaries proposed by A13 to designate low, intermediate, and high surface gravity objects, for objects of spectral type M6–L7.

It should be noted that for some objects with apparently very low K I absorption, the calculated EW can be less than zero. Visual inspection of these spectra shows that they do have very small or nonexistent K I lines. In these cases, we have plotted these targets with EW values of zero, but the values listed in Table 2 are as measured. We believe this effect is because the EW calculation windows were chosen for objects with much deeper absorption lines. Objects with very weak K I lines and a slightly higher continuum within the line-calculating region than the continuum region can thus have a negative EW. The negative EW does not affect the gravity classification of VL-G for these objects, so we chose to stay consistent with the A13 line and continuum boundaries when computing EWs.

III.2. FeHJ Index

In addition to the K I equivalent width measurements, we studied the FeHJ index from A13. This index measures the 1.2 $\mu$m FeH absorption feature for medium-resolution (R$\sim$750–2000) data for objects of spectral type M6-L6. Figure 2 shows the window used for computing the index in light grey, and the windows used for estimating the continuum in dark grey. FeH absorption is found in late-type M dwarfs, most L dwarfs, and seen weakly in some T dwarfs. FeH absorption depth is known to correlate with surface gravity (McGovern et al., 2004). Objects near the L/T transition do not show signs of FeH because the atmospheric conditions (i.e. cooler temperatures) have caused this molecule to precipitate (see, e.g. Marley & Robinson 2014). Spectral types later than $\sim$ T1 show a slight re-emergence of the molecule (Burgasser et al., 2002), perhaps due to cloud-clearing, allowing flux to emerge from deeper layers within the brown dwarf, where some FeH remains in gaseous form (see also Tremblin et al. 2016 for an alternate interpretation).

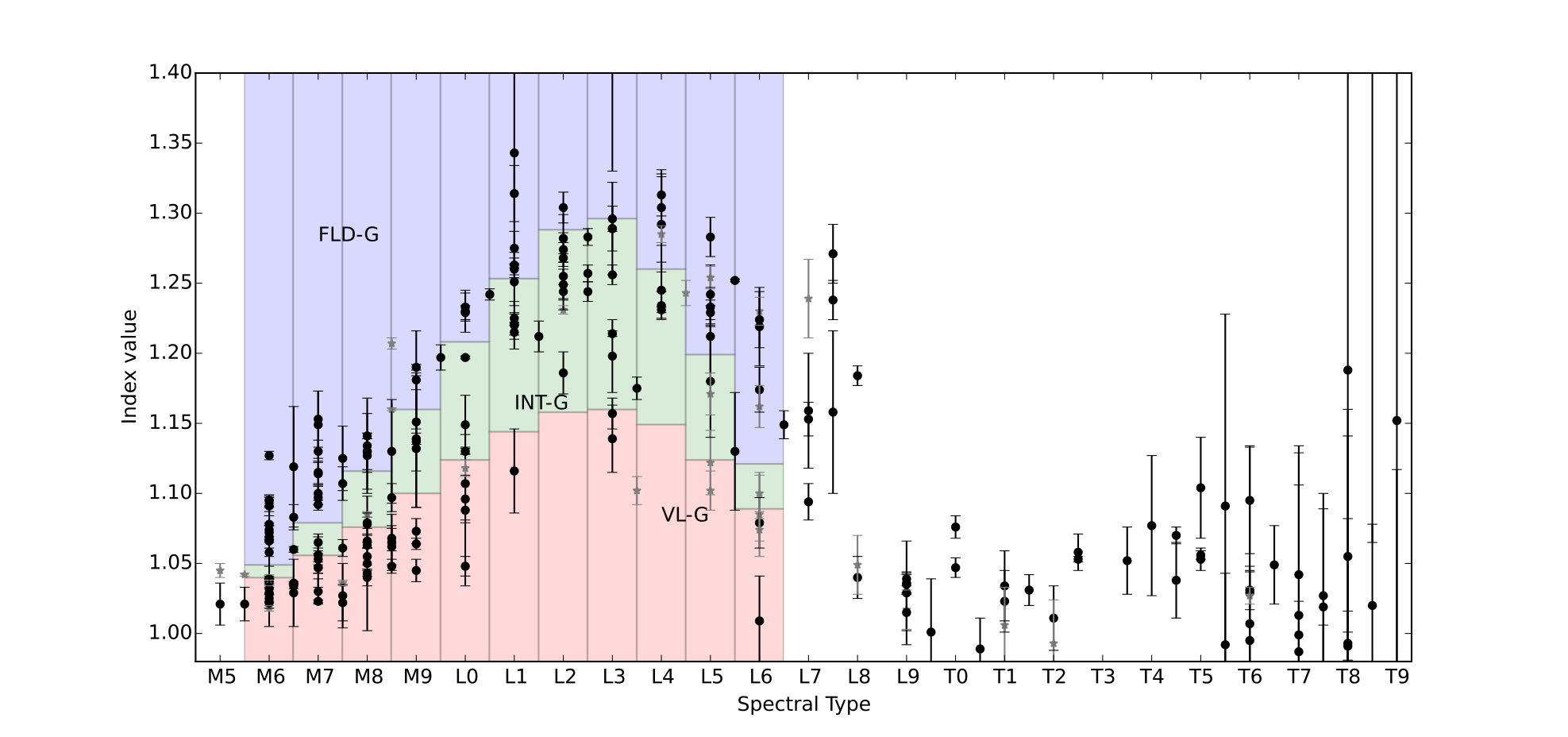

We present our FeHJ index values for all objects in the BDSS in Figure 4. An index value of $\sim$1 is expected for the L/T transition dwarfs, indicating little to no absorption present in this spectral region. FeHJ values for all BDSS targets are listed in Table 2.

III.3. Gravity Scores

A13 determined gravity score cutoff values for each K I EW for spectral types M5–L7 and for the FeHJ index for spectral types M6–L6 using a sample of known young and field objects. They assigned final gravity types using a median value of scores from multiple spectral indices across the 0.9 – 2.5 $\mu$m range, at both low and moderate resolutions. A13 gravity types for moderate resolution spectra are calculated from four scores determined by the following indices: VO (z-band), H-band continuum, FeH (either z or J band), and the mean score of the Na I and K I EWs. As described above, we used similar methods and cutoff ranges to calculate our spectral indices and EWs. However, because we only had $J$-band spectra for most of our targets, we determined a gravity type using only the $J$-band medium-resolution indices from A13.

Gravity scores were computed for the K I EWs at 1.1692 $\mu$m, 1.1778 $\mu$m, and 1.2529 $\mu$m as well as for the FeHJ index. To determine gravity scores for our sample, we compared our computed EW and FeHJ values to the cutoffs tabulated in A13. If the index value was higher than the INT-G cutoff, it received a score of “0”, indicating field gravity. If the index value was between the INT-G and VL-G cutoffs, it received a score of “1” and if the index value was smaller than the VL-G cutoff it received a value of “2”, indicating low surface gravity. Similar to Aller et al. (2016), we opted not to use the “?” value, defined in A13, if the object receives a score that hints at intermediate gravity but has 1$\sigma$ uncertainties that overlap with field gravity values. These objects received a score of “1”. We computed the median score from these four indices to determine the final gravity designation for each target. Following the method from A13, median scores less than or equal to 0.5 are classified as “FLD-G”, scores between 0.5 and 1.5 are classified as “INT-G”, and scores greater than or equal to 1.5 receive “VL-G” classification. Table 2 lists gravity scores and the resultant gravity classification for objects of spectral type M5-L7. When available, the gravity score given by A13 is also listed.

Using multiple indices to characterize the surface gravity allows some objects to be seen as having borderline gravity classifications between VL-G and INT-G or INT-G and FLD-G. The combination of multiple indices is more robust against any particular index skewing the classification. Errors in an index might come from measurement errors or from physical effects causing the absorption in one index to be abnormal compared to the other indices calculated for a particular target. Sixty-two objects out of the 159 for which A13 gravity types were computed had more than one type of score. However, only 7 targets received individual index scores spanning all three gravity types, and three of these objects are binaries or subdwarfs (see § III.5).

III.4. Radial Velocity

One consideration we made in our calculations was the effect of radial velocity (RV) on the EW measurements and therefore on the gravity estimations. One resolution element in the medium-resolution mode of NIRSPEC is equivalent to 150 km s*-1*. Though rarely occurring, high RV targets could have their spectra shifted by a large enough amount that the calculation of a gravity estimate would be significantly altered. In order to understand the effect of RV on our EW and spectral index values, we examined 21 objects in our sample with known RVs from the literature, with RV magnitudes ranging from $\sim$5 km s*-1* to 195 km s*-1*. First, we shifted their spectra to account for the known RV offset. Then, we recalculated their K I EWs and FeHJ indices and gravity types, and compared these values to our original calculations. Only two of our targets, the known L subdwarfs 2MASS 0532+8246, SDSS 1256-0224 had RVs in excess of 100 km s*-1*(Burgasser et al. 2003b, 2009, respectively). The other 19 targets had RVs $\lesssim$ 30 km s*-1*.

None of our RV-shifted targets had differing gravity types from our original calculations. K I EW and FeHJ index values differed by less than $\sim$5 % for all of the targets. Few dwarfs have measured RVs in excess of 200 km s*-1* as the majority belong to the disk population and have similar space motions to the Sun. Because non-echelle NIRSPEC spectra can only resolve radial velocities greater than 150 km s*-1* without cross-correlating to known RV targets, we estimate that this has a minimal impact on our measured gravity types.

We performed additional analysis to test the effect of RV on the EW measurements by performing a Monte Carlo simulation of 1000 iterations on high SNR spectra of both field age and young targets, each time drawing a random RV from a normal distribution with $\sigma_{RV}$ of 100 km s*-1* and re-calculating the EW. The resulting median and standard deviation of the distribution were entirely consistent with our original measurements. We therefore conclude that the RV of the target does not influence these calculations.

III.5. Excluded Objects

We present J-band spectra and measure equivalent widths and FeH absorption for all BDSS targets, where relevant. However, two sub-populations of our sample were removed from the surface gravity analysis: known binaries and subdwarfs, whose spectral features are known to vary from the general field population for reasons other than their surface gravity.

III.5.1 Binaries

LP 213-67 (M8+L0; Close et al. 2003), 2MASS 0850+1057 (L6+L7; Reid et al. 2001; Burgasser et al. 2011a), SDSS 0805+4812 (L4+T5; Burgasser 2007; Burgasser et al. 2016a), 2MASS 2140+1625 (M8.5+L2; Close et al. 2003), 2MASS 2152+0937 (L6+L6; Reid et al. 2006), 2MASS 1315-2649 (L3.5+T7; Burgasser et al. 2011b) are known spectral binaries in our sample. We caution against inferring a gravity type or age estimate for these objects, as their combined spectra could have an effect on the gravity-sensitive indices. For example, 2MASS 1315-2649 (L3.5+T7), which Burgasser et al. (2011b) finds to be at least 1 Gyr old given its kinematics, has an INT-G gravity type, which would imply an age of $\lesssim$ 100 Myr. It is possible that this discrepancy in age estimate is caused by binarity.

III.5.2 Subdwarfs

Four targets in our sample are known subdwarfs, LHS 1135 (d/sd M5; Kirkpatrick et al. 2010), WISE 0435+2115 (sd L0; Kirkpatrick et al. 2014), SDSS 1256-0224 (sd L3.5; Burgasser et al. 2009), and 2MASS 0532+8246 (sd L7; Burgasser 2007). These objects tend to have large space motions, are typically found to be part of the Galactic halo population, and generally have sub-solar metallicity, although they exhibit stronger hydride features than similarly classified dwarfs. Because of their low metal content, we chose to exclude these objects from our analysis and do not determine gravity types for the subdwarfs in our sample. It should be noted that subdwarfs can exhibit small K I EWs due to their lower metal content. These smaller EWs can be misleading as it is thought that these objects are quite old, and should not exhibit signs of low gravity. For example, the red K I doublet in the J band of SDSS 1256-0224 is weak enough to infer low gravity, though the strength of its FeHJ index implies high gravity and as a subdwarf it is likely older than $\sim$ 5 Gyr.

IV. Discussion

IV.1. Comparison to Allers & Liu (2013)

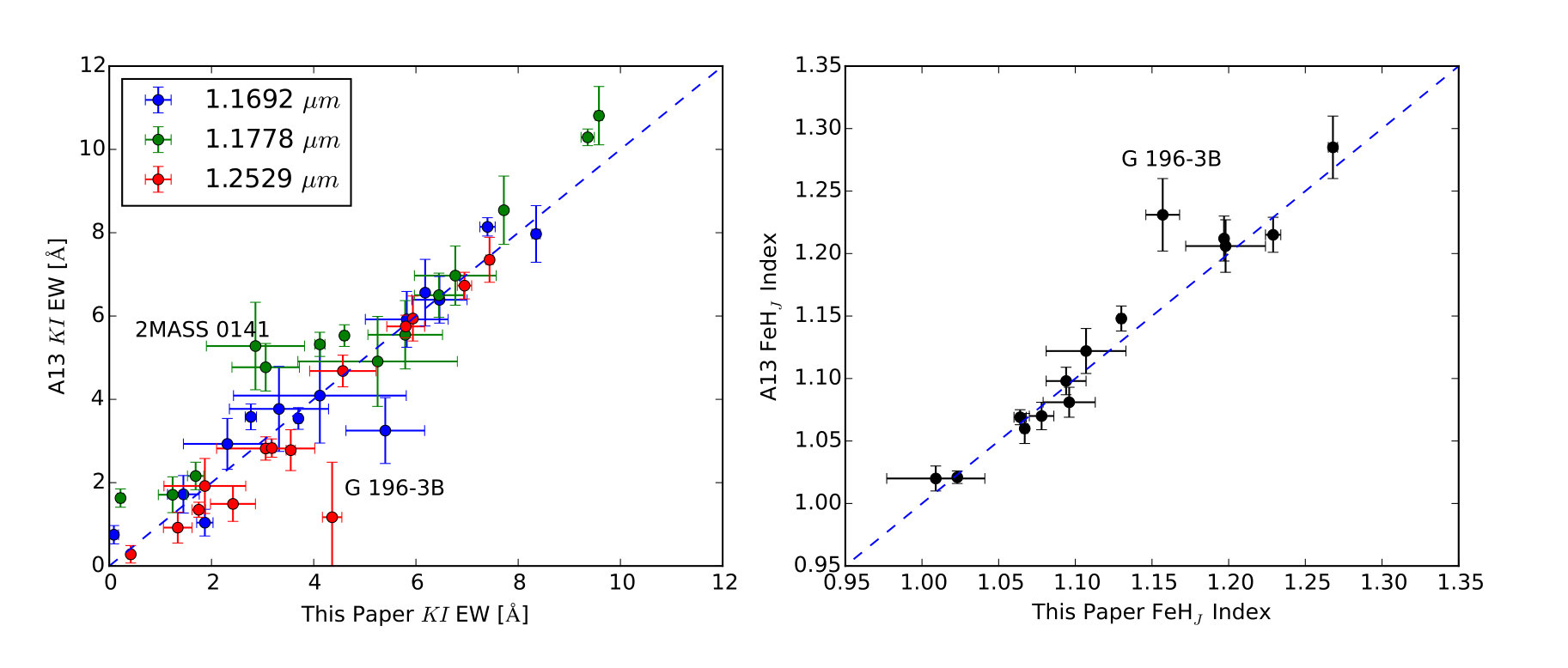

In Figure 5, we plot our K I EW values (left) and FeHJ index values (right) versus those of A13, for the overlapping targets in our samples. We find that although the two data sets use different instruments with different resolving powers, our results are consistent within the uncertainties. The 1.1778 $\mu$m EW values appear to be slightly higher on average in A13 than in our own analysis, but our values are consistent within 2$\sigma$. The 1.2529 $\mu$m line appears to have the opposite result, with our values being slightly higher than those presented in A13. The major outlier is G196-3B, which has a lower SNR spectrum in A13, as indicated by its larger error bar. A13’s value is less than 2$\sigma$ away from our result.

We find that the modified technique using only J-band indices with NIRSPEC R $\sim$ 2000 spectra produces consistent results to the gravity classifications determined using spectral indices across the z, J, H, and K bands. Of the 20 matching targets between the two samples, all targets except one receive the same designation as found by A13, allowing for overlap in the borderline designations. For example, A13 finds that PC0025+0447 has intermediate gravity, while we classify it as borderline VL-G/INT-G. The exception is GL 417 BC (L4.5+L6) which we exclude because of its binary nature. When compared to the index value cutoffs for an L5 dwarf, we designate this object as FLD-G, as does A13.

IV.2. Overall Trends

Before discussing overall trends in our sample, we must clarify that all spectral types for our objects were compiled from the references listed in Table 1. Some objects were classified in the red-optical, while others were classified in the NIR, and objects can have a spectral type uncertainty as large as $\pm$2 spectral types. Such discrepancies have been well documented in the literature and several methods have been presented in various papers for determining spectral types. For this reason, we can expect that the uncertainty in spectral type will cause larger uncertainty in the the overall trends.

As noted in Burgasser et al. (2002) and McLean et al. (2003), potassium equivalent widths in the $J$-band tend to rise with increasing spectral type from M5 to $\sim$L5 and at $\sim$L5–L7 the EWs drop, rising again with increasing spectral type around L8. We see this same trend in the full sample (Figure 3), though it shows a large amount of scatter. Objects lying below the trend exhibited by the field dwarfs are primarily those exhibiting signs of youth (VL-G and INT-G). However, some objects show signs of low gravity in one absorption feature, while exhibiting field-like features elsewhere in their spectrum. For this reason, gravity types should be based on multiple gravity-sensitive indices, as A13 also cautions.

The behavior of the FeHJ index follows a similar trend to the K I EWs (Figure 4), although the FeHJ index peaks at $\sim$L3, drops out almost entirely near the L/T transition, and then re-emerges at much lower levels of absorption in the mid-T spectral types, before again dropping out almost entirely in the late T’s. This trend is similar to results seen by Burgasser et al. (2003) for the FeH feature at 0.9896 $\mu$m. They note a weakening in FeH band strength in late-type L dwarfs followed by a slight strengthening, near spectral type $\sim$T5.5, before disappearing again. Burgasser et al. (2003) proposes that the re-emergence of this feature in the T dwarfs is an indication of cloud clearing. Holes in the cloud deck or a complete lack of clouds in the upper atmosphere allow the observer to detect light from deeper within the atmosphere of the brown dwarf, where the temperatures are warm enough to sustain the presence of the FeH molecule. This interpretation has recently been challenged by Tremblin et al. (2016), who find that the FeH reversal can be reproduced by thermochemical instability effects, rather than cloud opacity changes. Regardless of the interpretation, we verify the trend in the re-emergence of FeH absorption.

The A13 gravity classifications do not extend to spectral types cooler than L7. We are unable to extend these classifications to later spectral types, even with our larger sample. Establishing a low gravity sequence requires a large enough sample of field dwarfs to determine the field sequence. Additionally, a large sample of known young objects are required to determine the location of the low gravity objects. Currently there are very few known young late-type L or early T dwarfs, none of which are in our sample. Searches for very low mass objects in nearby young moving groups could yield a larger sample to carry out such a study, but this is not possible with the sample presented here.

Some of the VL-G and INT-G objects in our sample are known “red” L dwarfs because their $J-K_{s}$ colors are significantly redder than the $J-K_{s}$ colors of typical field dwarfs. Red $J-K_{s}$ color can be an indication of youth, though the term “red” should be reserved for those L dwarfs with red $J-K_{s}$ color that do not otherwise show signs of youth (see Kirkpatrick et al. 2010 for further discussion of the red and blue L dwarfs). Likewise, L dwarfs with significantly bluer $J-K_{s}$ colors compared to typical field dwarfs are called “blue”, though this nomenclature should also be reserved for those L dwarfs with significantly bluer colors that do not exhibit signs of very low metallicity. In general, we find that the “red” and “blue” L dwarfs do not show consistent signs of low or high gravity, respectively.

IV.3. Comparison of Objects of Known Age

To understand the age limits represented by the gravity classifications, we compare objects with known or predicted ages in the literature, determined by independent methods, such as kinematics or companionship to a well characterized star. Table 3 lists age estimates and gravity types for 64 objects in the BDSS with previously determined ages. All BDSS targets that are candidate or suspected members of nearby young associations are included. Likelihood of membership (where available in the literature) is noted as well. Also included are several targets with age estimates from their more massive companions. Figure 6 shows the three adopted gravity-sensitive K I EWs and the FeHJ index versus spectral type for objects with known ages for dwarfs of spectral type M5.5-L0. Binaries from Table 3 are not shown, nor is the only single object of spectral type later than L0 in our sample of known-age objects, 2MASS 2244+2043 (L6, VL-G, AB Dor). Red symbols represent objects of ages $<$ 30 Myr, green symbols denote objects between $\sim$30 and 100 Myr, and blue symbols represent objects $>$100 Myr. Varying shapes are used to distinguish between the different young associations (see figure legend for more details).

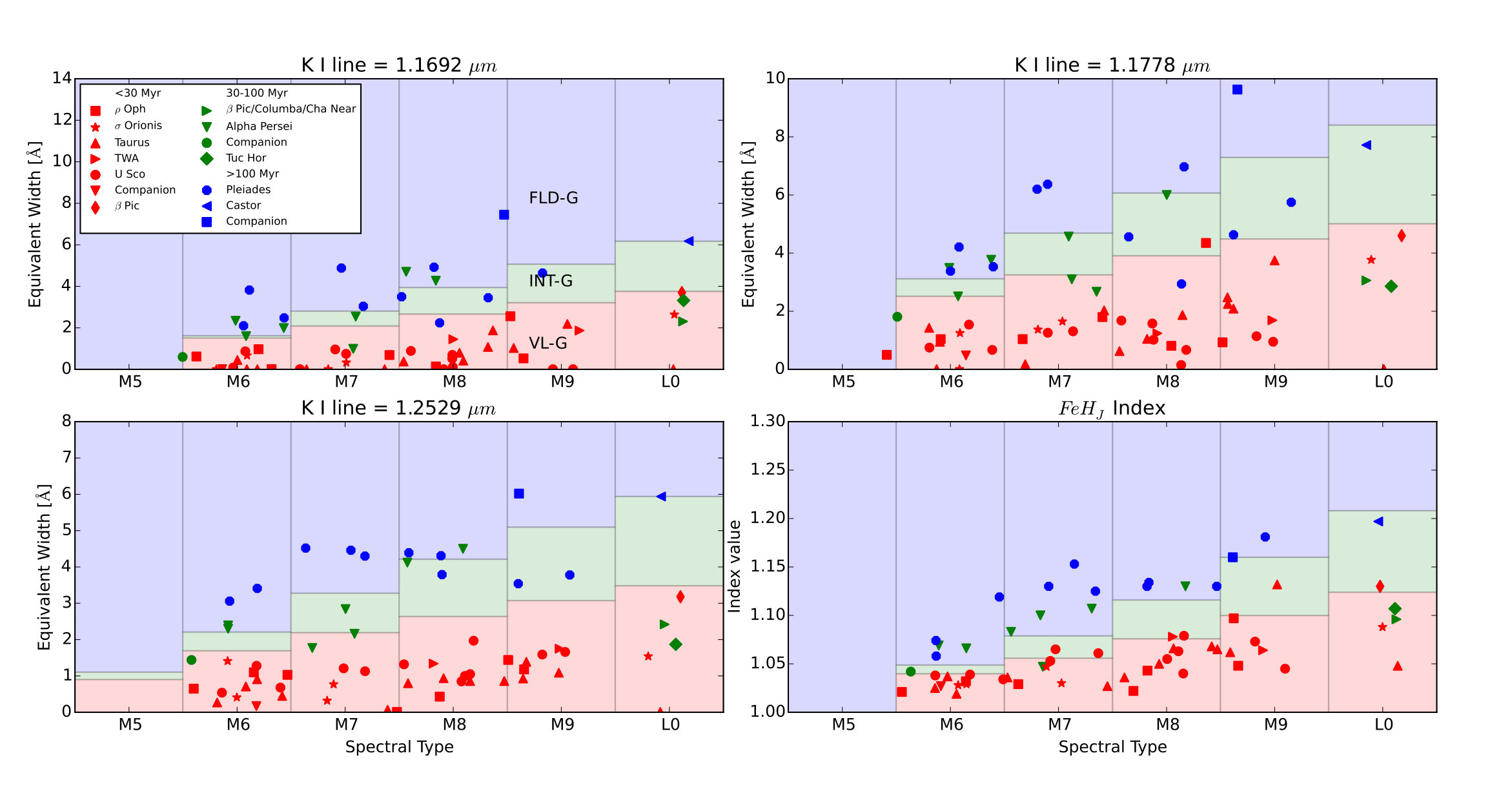

As seen in Figure 6 and Table 3, members of various associations tend to have the gravity type corresponding to the estimated age of the association. A few targets have previously been found to be interlopers, so we exclude these from our analysis. Additionally, several objects with known ages are also tight binaries with potentially contaminated spectra (see § III.5.1). Binaries of known ages are listed in Table 3, but are excluded from Figure 6 and any additional age calibration analysis (§ IV.5). Below we discuss each of the associations in order of estimated age.

All six of the $\rho$ Ophiuchi candidates ($<$1 Myr, Greene & Meyer 1995), all thirteen Taurus ($\sim$ 1.5 Myr, Briceño et al. 2002) candidates, and 2MASS 2234+4041 (1 Myr; Companion to LkH$\alpha$  233; Allers et al. 2009), have VL-G classifications, as expected. For targets with $\sigma$ Orionis (3 Myr, Brown et al. 1994) designations, all but one of the six targets is classified as VL-G. Only S Ori 47 is classified as INT-G (not shown in Figure 6 or Table 3). Unlike the other $\sigma$ Orionis candidates, this target’s $J$-band spectrum shows very clear K I absorption features, more akin to a field dwarf, as noted in McGovern et al. (2004). McGovern et al. (2004) conclude that this object is likely a several Gyr old object located $\sim$120 pc away, with a mass near the hydrogen burning limit, and is not associated with the $\sigma$ Orionis cluster. Our analysis of S Ori 47 suggests that S Ori 47 is likely much younger than 1 Gyr, but certainly older than $\sim$30 Myr and very unlikely to be associated with $\sigma$ Orionis. Based on the age vs. EW values in Section IV.5, we estimate that S Ori 47 has an age closer to $\sim$150 Myr, and is likely an intermediate aged field dwarf. For this reason, we have excluded S Ori 47 from the age-calibrated sample in § IV.5.

Both TW Hya ($\sim$10 Myr, Bell et al. 2016) targets have VL-G classifications. Of the fifteen objects with Upper Scorpius (11 $\pm$ 2 Myr, Pecaut et al. 2012) designations in our sample, all but three have VL-G classifications. U Sco 121, 85, and 132 each have FLD-G designations, and they are all previously suspected non-members (Muzerolle et al., 2003). Our analysis supports this conclusion. These three objects are not shown in Figure 6 or Table 3 and are excluded from the age-calibrated sample in § IV.5. The $\beta$ Pic (21–26 Myr; Bell et al. 2016) target, 2MASS 0443+0002, is classified as VL-G.

2MASS 0141-4633 in Tucana Horlogium (45 $\pm$4 Myr, Bell et al. 2016) is classified as VL-G. 2MASS 0608-2753 also receives a VL-G classification. Based on results from Gagné et al. (2014) and Faherty et al. (2016), we list this target as a candidate member of three groups: Cha-Near ($\sim$10 Myr, Zuckerman & Song 2004), $\beta$ Pic, and Columba ($42\begin{subarray}{c}+6\\ -4\end{subarray}$ Myr, Bell et al. 2016).

Of the Alpha Persei (80–100 Myr, Stauffer et al. 1999) members, one is classified VL-G, one is INT-G, and the other five are FLD-G. AP 270, which receives a VL-G classification, is less likely to be a member of Alpha Persei and could potentially be a young interloper. Gl 577 BC (70 Myr; companion) is classified as FLD-G.

The majority of the Pleiades ($\sim$125 Myr) targets receive FLD-G classifications. Two Pleiades members (Roque 7 and Roque 4) are classified as INT-G, and Teide 1 is a borderline VL-G/INT-G object, but all three of these targets have much lower SNR spectra (SNR $\sim$10) and thus have much more uncertain gravity types. Simon et al. (2006) used a comparison to the Pleiades to date Gl 569 BC at $\sim$100 Myr. Gl 569 BC receives a FLD-G classification using our method, similar to the Pleiades objects studied here.

Surprisingly, the AB Doradus ($149\begin{subarray}{c}+51\\ -19\end{subarray}$ Myr, Bell et al. 2016) candidate 2MASS 2244+2043 is classified as VL-G in our analysis. Several other studies of the members of AB Doradus have determined a variety of gravity classifications for different members. A13 and Faherty et al. (2016) also present AB Doradus members with VL-G signatures, as well as members with INT-G and FLD-G classifications. Aller et al. (2016) presents new AB Doradus members with INT-G classifications.

LP 944-20 has been identified as a member of the Castor moving group (400 $\pm$40 Myr, Zuckerman et al. 2013), though the existence of the group is disputed and age estimates vary broadly for proposed members. (See e.g., Monnier et al. 2012 and Mamajek et al. 2013). However, LP 944-20 also has a Li measurement in Reiners & Basri (2009), suggesting an age $<$ 500 Myr and implying that this target is younger than the typical “old” field dwarf. This target receives a FLD-G designation.

The object in our sample with the oldest measured age is Gl 417BC, which Allers et al. (2010) estimate to be $750\begin{subarray}{c}+140\\ -120\end{subarray}$, based on gyrochronology. Kirkpatrick et al. (2001) estimates an age of 80–300 Myr based on various dating methods for Gl 417A. This target is also a FLD-G object.

Our analysis suggests that the VL-G classification is only sensitive to ages as old as $\sim$20–30 Myr, as originally proposed in A13. The INT-G designation appears to probe only the $\sim$30–100 Myr range, while the FLD-G designation probes $\gtrsim$100 Myr, not $\gtrsim$200 Myr as suggested by A13. However we see that, similar to the results seen in Faherty et al. (2016), there is a spread in gravity classifications even amongst targets belonging to the same association although they are assumed to be coeval. In Section IV.5 we further examine the age ranges probed by each gravity designation as a function of spectral type and K I line.

IV.4. Potentially Young Objects

Here we highlight targets with VL-G and INT-G designations that are not previously discussed in A13, and are not known members of nearby young associations or young clusters. For each of the targets, we calculate the BANYAN II v1.4 likelihood of membership in various nearby young moving groups, as well as likelihood of being a young ($<$1 Gyr) or old ($>$ 1 Gyr) field object (Gagné et al., 2014; Malo et al., 2013). The BANYAN II tool utilizes the 3D space motions and positions of many nearby young moving groups to determine via bayesian statistics the likelihood of a target being a member of a nearby young association. Not all associations are accounted for, so a BANYAN II “young field” object could be a member of a young association not included in BANYAN II, or it could indeed be a young field dwarf, that is, a field dwarf exhibiting signs of youth. BANYAN II requires at least target coordinates and proper motion to estimate membership probability, but we input distance and radial velocity information for the BANYAN II online tool when available from the literature. We used the priors developed by and outlined in Gagné et al. (2014) and did not use the uniform priors option.

2MASS 1459+0004 is an M6 dwarf with a VL-G designation. Kirkpatrick et al. (2010) present the discovery of this object as well as a proper motion of $\mu_{\alpha}$= 308 $\pm$ 248 mas yr*-1and $\mu_{\delta}$= -342 $\pm$ 275 mas yr-1*. BANYAN II results for this target suggest $\lesssim$ 1 % likelihood of this object belonging to Argus or AB Dor, a 13.9 % probability of being a young field object, and 85.85 % likelihood of being an old field object, based solely on the target’s coordinates and proper motion. If we assume the target is $<$ 1 Gyr old, it then receives a 98.2 % probability of being a young field object.

2MASS 1331+3407 in an L1pec object with an INT-G classification noted as being particularly red by Kirkpatrick et al. (2010). Gagné et al. (2014) found that this object has no likelihood of belonging to a nearby young moving group, so this is most likely an intermediate-aged field dwarf. Having particularly red spectroscopic or photometric features can be an indication of youth, though Kirkpatrick et al. (2010) emphasizes that the term “red” should be reserved for objects with significantly red $J-K_{s}$ colors or spectra that do not show signs of youth.

2MASS 0543+6422 is an L2 dwarf with an INT-G classification. Gagné et al. (2015c) also gave this object an INT-G classification based on an IRTF SpeX spectrum and do not find any probability of this object belonging to currently known young moving groups.

2MASS 1841+3117 is an L4pec dwarf with an INT-G designation. The optical spectrum for this object in Kirkpatrick et al. (2000) is noticeably blue, which can imply higher gravity, however the K I lines in the J band exhibit signs of lower gravity. It is possible that the peculiar nature of its spectrum is implying that a physical mechanism other than low-gravity could be the cause of the smaller K I EWs, or that its blueness could be caused by some reason other than high surface gravity. BANYAN II results using coordinates, proper motion, and parallax for this object (Faherty et al., 2009) suggest a 54 % probability that this object is a young field object.

2MASS 1553+2109 is an L5.5 dwarf with an INT-G classification. This object is known to have red NIR colors and strong Li absorption (Kirkpatrick et al., 1999), a further indication that it is a young field dwarf. Based on the BANYAN II results using the kinematics from Schmidt et al. (2010), this object has 30.5 % likelihood of being a young field dwarf, and a 69.5 % likelihood of being an old field dwarf.

2MASS 0740+2009 is an INT-G classified L6 dwarf, previously found to have unusually red $J-K_{s}$ colors (Thompson et al., 2013). Its red colors could be attributed to lower surface gravity, in this case, and is likely younger than $\sim$ 100 Myr. Using the kinematics and distance from Faherty et al. (2009) and the the BANYAN II predictions, we find only a 2.4 % likelihood that this object belongs to the young field population and a 97.6 % likelihood of being an old field dwarf.

2MASS 2151+3402 is an L7pec dwarf with a VL-G classification. However, (Kirkpatrick et al., 2010) find that it has slightly blue NIR colors. This particular object has a low SNR spectrum and it is likely that the noise contaminated the estimation of the K I EWs. We smoothed the spectrum using a Gaussian 1D Kernel with a width of 3 pixels and re-calculated the K I EWs using the methods described above. After smoothing, the gravity scores this object receives are “1”, “1”, and “0”. Additionally, if FeHJ were defined for L7 dwarfs, this would likely receive a FLD-G designation for that index, making it more likely a FLD-G object overall. Schneider et al. (2014) publish a measurement of the H${}_{2}(K)$ index for this object, which they measure to be larger than the median H${}_{2}(K)$ value for L7 dwarfs. The H${}_{2}(K)$ index (Canty et al., 2013) is an index designed to measure the slope of the K-band continuum, which is known to be “peakier” in low-gravity objects. A high H${}_{2}(K)$ for this object is further indication that this is likely to be a field-gravity object. However, BANYAN II predictions based on the proper motion from Kirkpatrick et al. (2010) and the sky coordinates suggest a slight ($<$ 1%) probability that this object could be a member of $\beta$ Pic or Columba, a $\sim$1–2 % probability of belonging to Argus or AB Dor, and a 34.4 % likelihood of being a young field object.

IV.5. Determining Ages

To further investigate the ability of the gravity indices to determine ages, we study the dependence of object age, taken from the literature, with K I EW for the lines at 1.1692 $\mu$m, 1.1778 $\mu$m, and 1.2529 $\mu$m  binned by spectral type (Figure 7). There are a total of 73 objects used in this analysis, which are not known to be binaries and are assumed to be reliable age calibrators. Of these, 51 objects are BDSS targets, 15 objects come from A13, and 7 objects overlap both the BDSS and A13 samples. An additional 24 BDSS targets without known associations to young moving groups that received FLD-G designations in all four indices are also plotted, with age estimates of 5$\pm$4 Gyr. Each panel plots age vs. K I EW for a bin of three spectral types, because of the need to remove the previously shown trend of EW with spectral type. In general, spectral types are only known to $\pm$ 1 type, so this coarser grouping of spectral types is analogous to the inherent spread in spectral features seen by objects of the same given spectral type. There is a clear linear trend between the K I EWs and log(Age) as displayed in Figure 7. Thus, for each graph we perform a weighted orthogonal distance regression to determine a best fit function of the form in Equation 1 using the scipy.odr package 111https://docs.scipy.org/doc/scipy/reference/odr.html in python.

[TABLE]

Parameters and 3$\sigma$ uncertainties for the best fit lines for each spectral type bin from M6 to L0 and each K I line are listed in Table 4. For ages in units of Myr and EWs measured in Å, the coefficient A is in units of Myr and B is Å*-1*.

Figure 7 shows only three of the spectral type bins. The figures for spectral types M7 $\pm$ 1 and M9 $\pm$ 1 show similar trends and are not shown, however the best fit parameters for these spectral type bins are listed in Table 4.We were unable to achieve satisfactory fits to the function of log(Age) vs. FeHJ index, likely because the range of values for the FeHJ index is much smaller. Additionally, we were unable to extend the age vs. EW relationship beyond $\sim$L0 because of the lack of later-type, age-calibrated objects in our sample.

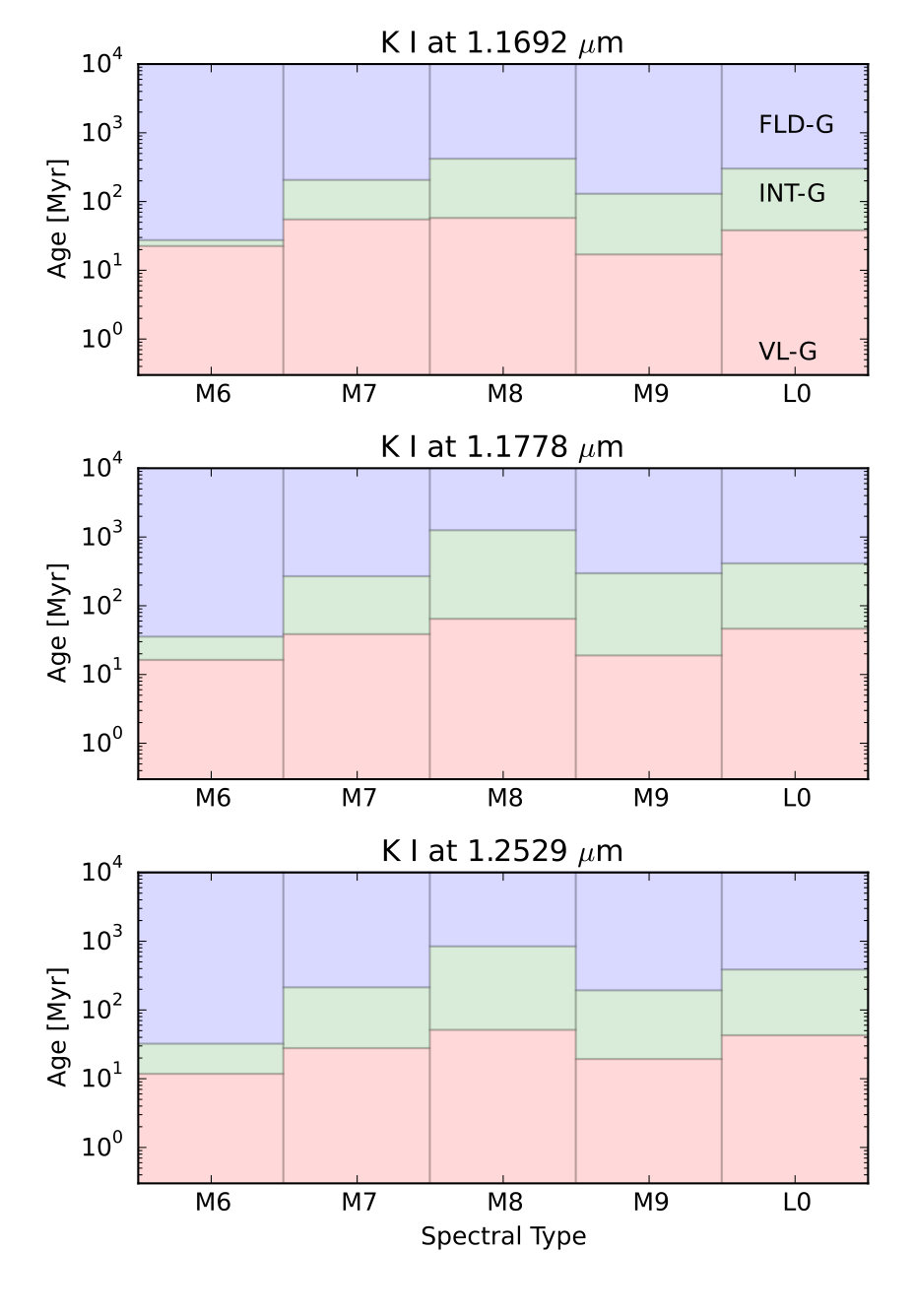

The red, green, and blue shaded regions in Figure 7 are taken from the A13 boundaries for VL-G, INT-G, and FLD-G for the average spectral type at each wavelength. These aid in demonstrating the large and varying age ranges probed by each of the gravity types. From this figure, one can see that the large inherent spread in EW value makes it difficult to draw firm conclusions about the age of an object solely based on the measurement of its K I EWs. Coeval objects of similar spectral types can have widely varying EWs, as mentioned previously in regards to the AB Doradus moving group.

Although it is tempting to assign ages to each of the targets based on the relationships shown in Figure 7 and Table 4, we discourage against this because of the inability to significantly determine an age by combining the age estimates from each of the K I EWs. Instead, we have determined broad age limits for each of the gravity classifications at each spectral type and for each K I line. These are provided in Table 5 and shown in Figure 8. We determine the age at which each of the gravity classifications intersects the best-fit lines from Figure 7 for each spectral type bin and each K I line. The lower age limits are set by $\rho$ Oph at 0.3 Myr and the upper age limits are set by age estimates of the field population at $\sim$10 Gyr. The results in Table 5 and Figure 8 show how large of a spread in age estimates there can be for objects of similar spectral types with varying gravity types. For example, an M8 target with an INT-G classification would be estimated to have an age ranging from 50 Myr – 1.21 Gyr depending on the K I line used. An M9 INT-G target on the other hand, has age estimates ranging from 17 – 290 Myr. Additionally, the bounds of the intermediate age range for a single K I index across all 5 spectral types show large variation. The most extreme example of the range in age estimates for a single K I line is seen for the upper age limit probed by INT-G for the K I line at 1.1778 $\mu$m, which ranges from 35 Myr to 1.21 Gyr depending on spectral type. We find that assigning a specific age range to the A13 gravity classifications is beyond the scope of this paper.

Uncertainty in age determination and gravity classification was also discussed in Aller et al. (2016). The authors of that paper determined uncertainties on the gravity types using a Monte Carlo approach in order to distinguish borderline objects that might otherwise be classified as FLD-G objects, but show hints of youth. The broad range of ages associated with each gravity classification indicates the importance of further age analysis using other techniques. For example, kinematic information, potential young moving group membership, or stellar/sub-stellar benchmark companions could further distinguish the age of a particular object. Low-mass stars and brown dwarfs exhibiting signs of low gravity merit follow-up observations to confirm or refute their potential youth status.

IV.6. The Future for Surface Gravity Analysis

With the aforementioned limitations of gravity classification as a method for establishing the age of a young brown dwarf, we can make significant advances in this field in several ways. First, a larger sample of young L and T dwarfs of known ages is needed to extend the A13 classifications to later spectral types. In this paper, we do not have a large enough sample of young objects with spectral types later than $\sim$ L6 in order to expand these classifications into the L/T transition. The unshaded regions of Figures 3 and 4 display the regime in which significant progress can be made in furthering our understanding of gravity and age at varying masses and temperatures for these substellar objects.

Several recent works have highlighted discoveries in this area. Examples include the new bonafide T5.5 member of AB Doradus (Gagné et al., 2015a), the young L7 TW Hya interloper presented in Gagné et al. (2016), the two new candidate L7 members of TW Hya presented in Kellogg et al. (2016) and Schneider et al. (2016), and the 10 candidate YMG members of spectral type L7-T4.5 found with Pan-STARRS and WISE in Best et al. (2015). Additionally, discoveries of jovian exoplanets around young stars present a method for studying objects that appear very similar to young field L and T dwarfs. Some examples of these exciting discoveries include 51 Eri b (Macintosh et al., 2015) and GU Psc b (Naud et al., 2014). Progress in extending the sample of known-age late-M and early-L dwarfs will also further our understanding of observational signatures of brown dwarf evolution. To this end, Burgasser et al. (2016b) presented the first planetary-mass member of 32 Ori (L1). Kinematic information of M and L dwarfs with Gaia (Gaia Collaboration et al., 2016b, a) will confirm or refute the membership of young moving group candidates and allow for discoveries of new members.

Second, high-resolution spectroscopy obtained with the next generation of 30-m class telescopes in conjunction with improved atmospheric models will allow us to better correlate surface gravity with age in these young brown dwarfs. The current atmospheric models have incomplete line lists and do not accurately represent the observed behavior of the K I lines. The diversity of spectral features present in low-mass stars and brown dwarfs likely stems from physical properties and atmospheric conditions that we cannot probe at these moderate resolving powers or using these particular diagnostics. If atmospheric models continue to improve in tandem with observational capabilities, it may be possible to better isolate the effect that surface gravity has on brown dwarf spectral features.

V. Summary

We presented 228 $J$-band spectra of M, L, and T dwarfs in the BDSS, the largest set of publicly available NIR spectra at R $\sim$ 2000. Using the same J-band gravity sensitive indices as Allers & Liu (2013), we calculated K I equivalent widths and FeH absorption to determine gravity classifications for objects of spectral type M6–L7. Our technique is verified with 20 overlapping targets from A13, for which we derive similar gravity classifications despite using fewer spectral indicators. A subset of 73 objects with known (or suspected) ages from the literature (after excluding binaries from the full sample of known-age objects) define the trend of K I EW with age. By assigning ages to the boundaries of each gravity designation for spectral types M6–L0, we find that the age ranges probed by each of the K I lines vary widely. With a larger sample of age-calibrated M, L, and T dwarfs it will be possible to estimate ages for the entire sample with much greater certainty. This level of precision will likely require high signal-to-noise, high-resolution spectra of benchmark systems and detailed model comparison. Until then, the gravity designations from A13 remain a useful tool for dividing the low-mass products of star formation by relative age.

VI. Acknowledgements

The authors wish to recognize and acknowledge the very significant cultural role and reverence that the summit of Mauna Kea has always had within the indigenous Hawaiian community. We are most fortunate to have the opportunity to conduct observations from this mountain. This research has benefitted from the M, L, T, and Y dwarf compendium housed at DwarfArchives.org. This research has made use of the SIMBAD database, operated at CDS, Strasbourg, France. We thank the anonymous referee for their insightful comments, which improved the paper.

Facilities: Keck:II(NIRSPEC)
