Searches for the Anomalous FCNC Top-Higgs Couplings with Polarized Electron Beam at the LHeC

TL;DR

This study investigates the potential to detect anomalous flavor-changing neutral current top-Higgs couplings at the LHeC using polarized electron beams, employing advanced analysis methods to improve sensitivity over current limits.

Contribution

It introduces a detailed analysis of top-Higgs FCNC couplings at the LHeC with polarized electron beams, comparing cut-based and multivariate methods to enhance detection sensitivity.

Findings

Probing of Br(t→uh) down to 0.019% with MVA at high energies.

Polarized electron beams improve the sensitivity limits.

Comparison of analysis methods shows MVA outperforms cut-based analysis.

Abstract

In this paper, we study the single top and Higgs associated production $\rm e^- p\rightarrow \nu_e \bar{t} \rightarrow \nu_e h \bar{q}(h\rightarrow b\bar{b})$ in the top-Higgs FCNC couplings at the LHeC with the electron beam energy of $E_{e}$ = 60 GeV and $E_{e}$ = 120 GeV, combination of a 7 TeV and 50 TeV proton beam. With the possibility of e-beam polarization ($p_{e}$ = 0, $\pm0.6$), we distinct the Cut-based method and the Multivariate Analysis (MVA) based method, and compare with the current experimental and theoretical limits. It is shown that the branching ratio Br $\rm(t\to uh)$ can be probed to 0.113 (0.093) $\%$, 0.071 (0.057) $\%$, 0.030 (0.022) $\%$ and 0.024 (0.019) $\%$ with the Cut-based (MVA-based) analysis at ($E_{p}$, $E_{e}$) = (7 TeV, 60 GeV), ($E_{p}$, $E_{e}$) = (7 TeV, 120 GeV), ($E_{p}$, $E_{e}$) = (50 TeV, 60 GeV) and ($E_{p}$, $E_{e}$) = (50 TeV, 120 GeV) beam energy and 1$\sigma$ level. With the possibility of e-beam polarization, the expected limits can be probed down to 0.090 (0.073) $\%$, 0.056 (0.045) $\%$, 0.024 (0.018) $\%$ and 0.019 (0.015) $\%$, respectively.

Figures

Tables

Table 1. Table 1: The results from different experimental and phenomenological channels.

Channels	Data Set	Limits
$t\overline{t}\to \mathrm{Wbqh}\to \ell \nu b\gamma \gamma q$	ATLAS, 4.7 (20.3) ${\mathrm{fb}}^{-1}$ @ 7 (8) TeV	$\mathrm{Br}$ $\%$ FCNC_limit_tHq_ATLAS ; FCNC_limit_tHq_ATLAS1
$t\overline{t}\to \mathrm{Wbqh}\to \ell \nu b\gamma \gamma q$	CMS, 19.5 ${\mathrm{fb}}^{-1}$ @ 8 TeV	$\mathrm{Br}$ $\%$ FCNC_limit_tHq_CMS
$D^0-\overline{D^0}$ mixing data	-	$\mathrm{Br}$ $\%$ FCNC_limit_tHq_DDbar
$Z\to c\overline{c}$ and EW observables	-	$\mathrm{Br}$ $\%$tqh_z2bb
$\mathrm{Wt}\to \mathrm{Whq}\to \ell \nu b\gamma \gamma q$	LHC, 3000 ${\mathrm{fb}}^{-1}$ @ 14 TeV, $3\sigma$	$\mathrm{Br}$ $\%$ tqh_ppWhj
$t\overline{t}\to \mathrm{Wbqh}\to \ell \nu b\gamma \gamma q$	LHC, 3000 ${\mathrm{fb}}^{-1}$ @ 14 TeV	$\mathrm{Br}$ $\%$ EFT_tqH_2
$t\overline{t}\to \mathrm{tqh}\to \ell \nu \mathrm{bb}\overline{b}q$	ILC, 3000 fb-1 @ 500 GeV	$\mathrm{Br}$ $\%$ ILC_tqh
$\mathrm{th}\to \ell \nu b{\tau }^{+}{\tau }^{-}$	LHC, 100 fb-1 @ 13 TeV	$\mathrm{Br}$ $\%$ EFT_tqH_3
$\mathrm{th}\to \ell \nu b{\ell }^{+}{\ell }^{-}X$	LHC, 100 fb-1 @ 13 TeV	$\mathrm{Br}$ $\%$ EFT_tqH_3
$\mathrm{th}\to \mathrm{jjbb}\overline{b}$	LHC, 100 fb-1 @ 13 TeV	$\mathrm{Br}$ $\%$ EFT_tqH_3

Table 2. Table 2: Expected cross sections after all the selections for signal and backgrounds at the LHeC with an integrated luminosity of 1000 ​ fb − 1 1000 superscript fb 1 \rm 1000\ fb^{-1} , b-tagging efficiency ϵ b subscript italic-ϵ b \rm\epsilon_{b} = 60 % percent \% , jet mis-identification rates ϵ c subscript italic-ϵ c \rm\epsilon_{c} = 10 % percent \% , ϵ light subscript italic-ϵ light \rm\epsilon_{light} = 1 % percent \% by Cut-based method. Especially, we select e-beam polarizations as p 0 subscript 𝑝 0 p_{0} = 0, p 1 subscript 𝑝 1 p_{1} = 0.6 and p 2 subscript 𝑝 2 p_{2} = -0.6.

		S	B	SS
	$p_0$	0.14	0.93	4.191
60 GeV $\oplus$ 7 TeV $@$ LHeC	$p_1$	0.05	0.37	2.651
	$p_2$	0.22	1.49	5.302
	$p_0$	0.32	1.98	6.652
120 GeV $\oplus$ 7 TeV $@$ LHeC	$p_1$	0.13	0.79	4.207
	$p_2$	0.51	3.16	8.414
	$p_0$	1.29	5.80	15.341
60 GeV $\oplus$ 50 TeV $@$ LHeC	$p_1$	0.52	2.32	9.702
	$p_2$	2.07	9.28	19.404
	$p_0$	2.14	10.26	19.238
120 GeV $\oplus$ 50 TeV $@$ LHeC	$p_1$	0.86	4.10	12.167
	$p_2$	3.43	16.42	24.335

Table 3. Table 3: The same as Table 2 but for MVA-based method. We select e-beam polarizations as p 0 subscript 𝑝 0 p_{0} = 0, p 1 subscript 𝑝 1 p_{1} = 0.6 and p 2 subscript 𝑝 2 p_{2} = -0.6.

		S	B	SS
	$p_0$	0.125	0.520	4.921
60 GeV $\oplus$ 7 TeV $@$ LHeC	$p_1$	0.050	0.208	3.112
	$p_2$	0.200	0.833	6.224
	$p_0$	0.281	0.992	7.874
120 GeV $\oplus$ 7 TeV $@$ LHeC	$p_1$	0.112	0.397	4.980
	$p_2$	0.450	1.588	9.960
	$p_0$	0.652	0.830	16.934
60 GeV $\oplus$ 50 TeV $@$ LHeC	$p_1$	0.261	0.332	10.710
	$p_2$	1.043	1.328	21.420
	$p_0$	1.082	1.629	20.785
120 GeV $\oplus$ 50 TeV$@$ LHeC	$p_1$	0.433	0.652	13.145
	$p_2$	1.732	2.606	26.291

Table 4. Table 4: The integrated luminosity ( ℒ ℒ \cal L ) needed to get the upper bounds on the Br ​ ( t → qh ) Br → t qh \rm Br(t\to qh) at 95 % percent 95 95\% C.L. obtained from the experiments. Both the Cut (MVA) based results and 1 σ 𝜎 \sigma (2 σ 𝜎 \sigma ) limits with e-beam polarization are presented.

Channels and Limits	Method	$ℒ{\left[{\mathrm{fb}}^{-1}\right]}_{1\sigma }$			$ℒ{\left[{\mathrm{fb}}^{-1}\right]}_{2\sigma }$
		$p_0$	$p_1$	$p_2$	$p_0$	$p_1$	$p_2$
$t\overline{t}\to \mathrm{Wbqh}\to \ell \nu b\gamma \gamma q$	Cut	0.93	2.32	0.58	3.60	9.00	2.25
ATLAS, 4.7 (20.3) ${\mathrm{fb}}^{-1}$ @ 7 (8) TeV
$\mathrm{Br}$ $\%$ FCNC_limit_tHq_ATLAS ; FCNC_limit_tHq_ATLAS1	MVA	0.58	1.44	0.36	2.24	5.60	1.40
$t\overline{t}\to \mathrm{Wbqh}\to \ell \nu b\gamma \gamma q$	Cut	2.86	7.15	1.79	11.10	27.76	6.94
CMS, 19.5 ${\mathrm{fb}}^{-1}$ @ 8 TeV
$\mathrm{Br}$ $\%$ FCNC_limit_tHq_CMS	MVA	1.78	4.45	1.11	6.91	17.27	4.32
$D^0-\overline{D^0}$ mixing data	Cut	2.32	5.79	1.45	8.99	22.48	5.62
$\mathrm{Br}$ $\%$ FCNC_limit_tHq_DDbar	MVA	1.44	3.60	0.90	5.60	13.99	3.50
$Z\to c\overline{c}$ and EW observables	Cut	13.13	32.83	8.21	51.01	127.53	31.88
$\mathrm{Br}$ $\%$ tqh_z2bb	MVA	8.17	20.43	5.11	31.74	79.35	19.84

Table 5. Table 5: The same as Table 4 but for some other phenomenological studies.

Channels and Limits	Method	$ℒ{\left[{\mathrm{fb}}^{-1}\right]}_{1\sigma }$			$ℒ{\left[{\mathrm{fb}}^{-1}\right]}_{2\sigma }$
		$p_0$	$p_1$	$p_2$	$p_0$	$p_1$	$p_2$
$\mathrm{Wt}\to \mathrm{Whq}\to \ell \nu b\gamma \gamma q$	Cut	10.05	25.14	6.28	39.05	97.63	24.41
LHC, 3000 ${\mathrm{fb}}^{-1}$ @ 14 TeV
$3\sigma$, $\mathrm{Br}$ $\%$ tqh_ppWhj	MVA	6.26	15.64	3.91	24.30	60.75	15.19
$t\overline{t}\to \mathrm{Wbqh}\to \ell \nu b\gamma \gamma q$	Cut	10.95	27.37	6.84	42.52	106.31	26.58
LHC, 3000 ${\mathrm{fb}}^{-1}$ @ 14 TeV
$\mathrm{Br}$ $\%$ EFT_tqH_2	MVA	6.81	17.03	4.26	26.46	66.15	16.54
$t\overline{t}\to \mathrm{tqh}\to \ell \nu \mathrm{bb}\overline{b}q$	Cut	46.20	115.50	28.87	179.44	448.60	112.15
ILC, 3000 fb-1 @ 500 GeV
$\mathrm{Br}$ $\%$ ILC_tqh	MVA	28.75	71.86	17.97	111.65	279.13	69.78
$\mathrm{th}\to \ell \nu b{\tau }^{+}{\tau }^{-}$	Cut	25.75	64.37	16.09	100.01	250.03	62.51
LHC, 100 fb-1 @ 13 TeV
$\mathrm{Br}$ $\%$ EFT_tqH_3	MVA	16.02	40.05	10.01	62.23	155.58	38.89
$\mathrm{th}\to \ell \nu b{\ell }^{+}{\ell }^{-}X$	Cut	11.97	29.92	7.48	46.48	116.20	29.05
LHC, 100 fb-1 @ 13 TeV
$\mathrm{Br}$ $\%$ EFT_tqH_3	MVA	7.45	18.61	4.65	28.92	72.30	18.08
$\mathrm{th}\to \mathrm{jjbb}\overline{b}$	Cut	4.47	11.17	2.79	17.35	43.38	10.84
LHC, 100 fb-1@13TeV
$\mathrm{Br}$ $\%$ EFT_tqH_3	MVA	2.78	6.95	1.74	10.80	26.99	6.75

Equations

$$\mathcal{L}={\kappa }_{\mathrm{tuh}}\bar{\mathrm{t}}\mathrm{uh}+{\kappa }_{\mathrm{tch}}\bar{\mathrm{t}}\mathrm{ch}+h.c.,$$

$${\mathrm{\Gamma }}_{\mathrm{t}}$$

$$\mathrm{Br}(\mathrm{t}\to \mathrm{u}(\mathrm{c})\mathrm{h})=\frac{{\kappa }_{\mathrm{tu}(\mathrm{c})\mathrm{h}}^2}{\sqrt{2}{\mathrm{G}}_{\mathrm{F}}{\mathrm{m}}_{\mathrm{t}}^2}\frac{(1-{\tau }_{\mathrm{h}}^2{)}^2}{(1-{\tau }_{\mathrm{W}}^2{)}^2(1+2{\tau }_{\mathrm{W}}^2)}\approx 0.512{\kappa }_{\mathrm{tu}(\mathrm{c})\mathrm{h}}^2$$

$${\mathrm{e}}^{-}\mathrm{p}\to {\nu }_{\mathrm{e}}(\bar{\mathrm{t}}\to ({\mathrm{W}}^{-}\to \mathrm{jj})\bar{\mathrm{b}})$$

$${\mathrm{e}}^{-}\mathrm{p}\to {\mathrm{e}}^{-}\mathrm{jjj}$$

$${\mathrm{e}}^{-}\mathrm{p}\to {\nu }_{\mathrm{e}}\mathrm{jjj}$$

$${\mathrm{e}}^{-}\mathrm{p}\to {\nu }_{\mathrm{e}}(\mathrm{h}\to \mathrm{b}\bar{\mathrm{b}})\mathrm{j}$$

$${\mathrm{e}}^{-}\mathrm{p}\to {\nu }_{\mathrm{e}}(\mathrm{z}\to \mathrm{b}\bar{\mathrm{b}})\mathrm{j},$$

$$/{\mathrm{E}}_{\mathrm{T}}^{\mathrm{missing}}\ge 15\mathrm{GeV},$$

$${\mathrm{p}}_{\mathrm{T}}^{{\mathrm{k}}_0}\ge 15\mathrm{GeV},{\mathrm{k}}_0=\mathrm{j},\mathrm{b},\mathrm{\ell },$$

$$|{\eta }^{\mathrm{j}}|<5,|{\eta }^{\mathrm{b}}|<5,|{\eta }^{\mathrm{\ell }}|\le 3,$$

$$\mathrm{\Delta R}({\mathrm{k}}_1{\mathrm{k}}_2)>0.4,{\mathrm{k}}_1{\mathrm{k}}_2=\mathrm{jj},\mathrm{j}\mathrm{\ell },\mathrm{jb},\mathrm{bb},\mathrm{b}\mathrm{\ell }.$$

$${\chi }^2=(\frac{{\sigma }_{\mathrm{tot}}-{\sigma }_{\mathrm{B}}}{{\sigma }_{\mathrm{B}}\delta }{)}^2$$

Full text

Top quark, Higgs boson, Anomalous Couplings, LHeC, Polarization

I Introduction

The Large Hadron Electron Collider (LHeC) is the second electron-hadron collider following HERA LHeC_design_Note . With remarkable higher energy and luminosity, the LHeC is a major step towards understanding the Higgs physics and QCD. For the LHeC colliding energy, the 7 TeV proton beam at the LHC as well as the 50 TeV proton beam at the future FCC-he FCC-he_Study and a new 60 GeV electron beam LHeC_design_Note are envisaged. To probe new physics, the anomalous flavor changing neutral current (FCNC) Yukawa interactions, between the top-Higgs and either an up or charm quark, would provide a clear signal. The SM Lagrangian can be extended by the following terms,

[TABLE]

where the real parameters $\rm\kappa_{tuh}$ and $\rm\kappa_{tch}$ denote the FCNC couplings of the Higgs to up-type quarks. The total decay width of the top-quark $\Gamma_{t}$ is

[TABLE]

where the decay width $\rm\Gamma_{t\to W^{-}b}^{SM}$ and $\rm\Gamma_{t\rightarrow u(c)h}$ can be found in twb_NLO and decay_tqH , respectively. Thus, the branching ratio for $\rm t\rightarrow u(c)h$ can be approximately given by

[TABLE]

where $\rm G_{F}$ is the Fermi constant and $\rm\tau_{W}=\frac{m_{W}}{m_{t}}$. The W boson and top quark masses are chosen to be $\rm m_{W}=79.82\ GeV$ and $\rm m_{t}=173.2\ GeV$, respectively.

Up to now, the investigation of $\rm t\to qh$ anomalous couplings have been experimented by many groups, which gives the stronge limits on the top-Higgs FCNC couplings. For instance, according to the ATLAS and CMS collaborations, the upper limits of Br $\rm(t\to qh)<0.79$ $\%$ FCNC_limit_tHq_ATLAS ; FCNC_limit_tHq_ATLAS1 and Br $\rm(t\to qh)<0.45$ $\%$ FCNC_limit_tHq_CMS have been set at 95 $\%$ confidence level (C.L.). Except for the direct collider measurements, the low energy observable, by bounding the tqH vertex from the observed $\rm D^{0}-\bar{D^{0}}$ mixing FCNC_limit_tHq_DDbar , the upper limit of Br $\rm(t\to qh)<5\times 10^{-3}$ may be produced. Furthermore, through $\rm Z\to c\bar{c}$ decay and electroweak observables, the upper limit of Br $\rm(t\to qh)<0.21$ $\%$ tqh_z2bb can be obtained.

On the other hand, based on the experimental data, many phenomenological studies are performed from different channels. For instance, tqh_ppWhj found that the branching ratios Br $\rm(t\to qh)$ can be probed to 0.24 $\%$ at 3$\sigma$ level at 14 TeV LHC with an integrated luminosity of 3000 $\rm fb^{-1}$ through the process $\rm Wt\to Whq\to\ell\nu b\gamma\gamma q$. EFT_tqH_2 explored the top-Higgs FCNC couplings through $\rm t\bar{t}\to Wbqh\to\ell\nu b\gamma\gamma q$ and found the branching ratios Br $\rm(t\to uh)$ can be probed to 0.23 $\%$ at 3$\sigma$ sensitivity at 14 TeV LHC with L = 3000 $\rm fb^{-1}$. And ILC_tqh obtained the Br $\rm(t\to qh)$ to be 0.112 $\%$ based on the process of $\rm t\bar{t}\to tqh\to\ell\nu bb\bar{b}q$. The process of $\rm th\to\ell\nu b\tau^{+}\tau^{-}$ has been studied in EFT_tqH_3 and they estimated the upper limits of Br $\rm(t\to uh)<0.15$ $\%$ at 100 $\rm fb^{-1}$ of 13 TeV data for multilepton searches. The results from different experiments and theoretical channels are summarized in Table 1.

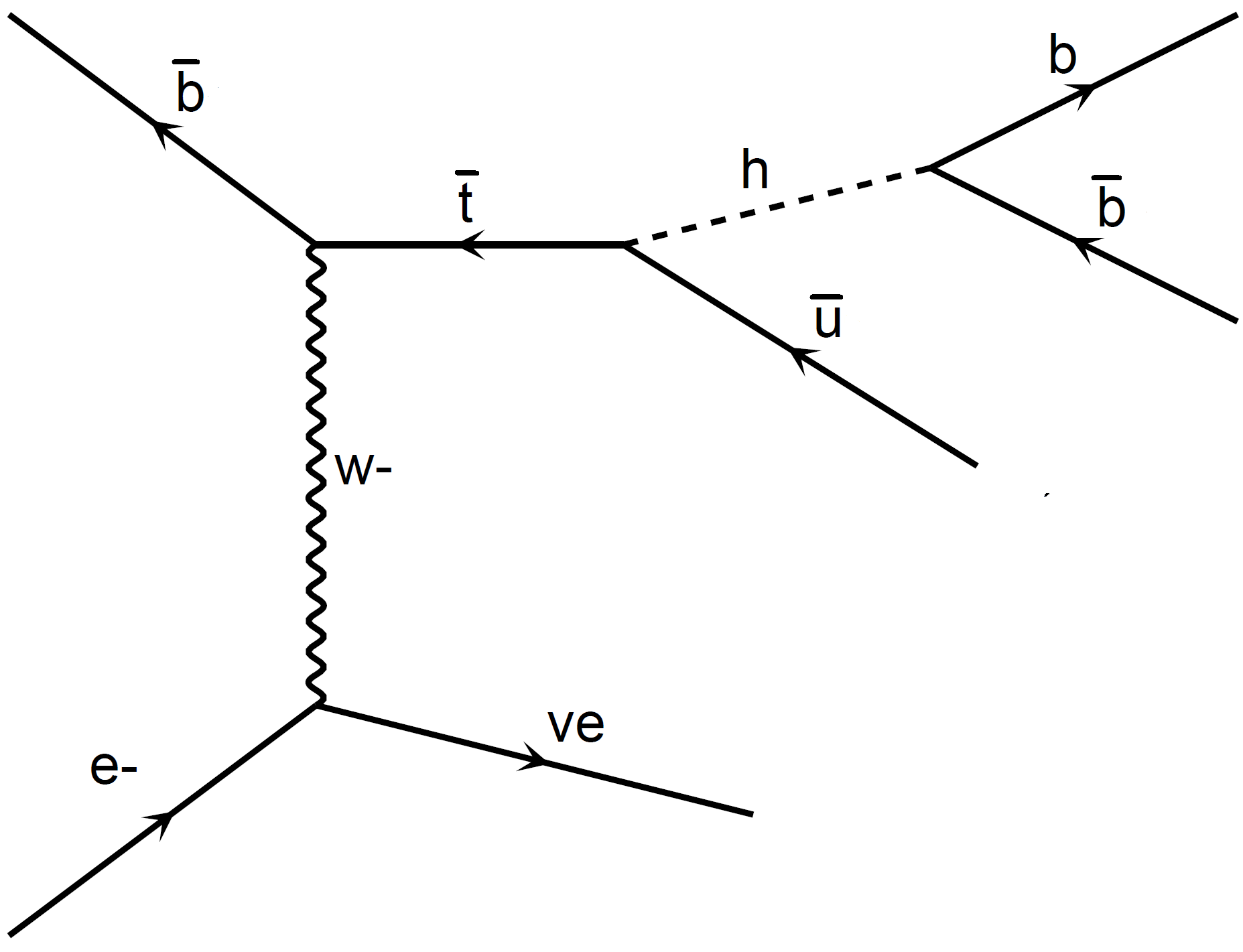

In this study, we examined the $\rm e^{-}p\rightarrow\nu_{e}\bar{t}\rightarrow\nu_{e}h\bar{q}$ at the LHeC where the Higgs boson decays to $b\bar{b}$, at a 7 (50) TeV with a 60 (120) GeV electron beam and 1000 $\rm fb^{-1}$ integrated luminosity. The possibility of e-beam polarization is also considered. The Feynman diagram is plotted in Fig. 1. The main backgrounds which yield the same or similar final states to the signal are listed as below:

[TABLE]

where j = g, u, $\rm\bar{u}$, d, $\rm\bar{d}$, c, $\rm\bar{c}$, s, $\rm\bar{s}$, b and $\rm\bar{b}$ if possible. Notice $\rm e^{-}p\rightarrow e^{-}jjj$ is the neutral current multi-jet QCD background, and all the others are belong to charged current (CC) productions. For the single top background $\rm e^{-}p\rightarrow\nu_{e}(\bar{t}\rightarrow(W^{-}\rightarrow jj)\bar{b})$, the produced top quark will decay to a W boson and a b-jet. The W boson continues to decay to non-b-jet final states, which might mis-tagged as a b-jet. With the same final states, $\rm e^{-}p\rightarrow\nu_{e}(h\rightarrow b\bar{b})j$ and $\rm e^{-}p\rightarrow\nu_{e}(z\rightarrow b\bar{b})j$ are the irreducible backgrounds corresponding to associated Higgs jet and Z jet which contain three QED couplings. $\rm e^{-}p\rightarrow\nu_{e}jjj$ is the CC multi-jet QCD background. Similar as the single top background, a mis-identification of one or more of the final state light jets to b-jet, makes this process a reducible background.

II Tools and Method

During the simulation, we first extract the Feynman Rules by using the FeynRules package FeynRules2.0 and generate the event with MadGraph@NLO MadGraph5 . PYTHIA6.4 Pythia6.4 was set to solve the initial and final state parton shower, hadronization, heavy hadron decays, etc. We use CTEQ6L CTEQ6L as the parton distribution function and set the renormalization and factorization scale to be $\mu_{r}=\mu_{f}$. We take the input heavy particle masses as $\rm m_{h}=125.7\ GeV$, $\rm m_{t}=173.2\ GeV$, $\rm m_{Z}=91.1876\ GeV$ and $\rm m_{W}=79.82\ GeV$, respectively. We employ the following basic pre-selections cuts to select the events:

[TABLE]

where $\rm\Delta R=\sqrt{\Delta\Phi^{2}+\Delta\eta^{2}}$ is the separation with $\Delta\eta$ and $\Delta\Phi$ in the rapidity-azimuth plane, $\rm p_{T}^{jet,b,\ell}$ and $\rm|\eta^{jet,b,\ell}|$ are the transverse momentum and the pseudo-rapidity of jets, b-jets and leptons while $\rm\not{E}_{T}^{missing}$ is the missing transverse momentum. Then we adopt a Cut-based method and a Multivariate Analysis (MVA) based method for signal and background analysis, respectively.

II.1 Cut-based method

In order to distinguish between signal-related events and background-related events as much as possible, we set a series of cuts. We list all the Cut-based selections here:

• •

cut1: the basic pre-selection cuts.

• •

cut2: the selection $\rm e^{-}p\rightarrow\not{E}^{missing}_{T}+0\ \ell+\geq 3\ jets,\ (with\ at\ least\ 2\ tagged\ b-jets).$

• •

cut3: Missing transverse energy $\rm{\not{E}}^{missing}_{T}>20\ GeV$.

• •

cut4: the reconstructed top quark mass window $\rm m_{t}\in[148\ GeV,178\ GeV]$.

• •

cut5: the reconstructed W boson mass window $\rm m_{W}<50\ GeV\ or\ m_{W}>90\ GeV$.

• •

cut6: the reconstructed Z boson mass window $\rm m_{Z}<55\ GeV\ or\ m_{Z}>95\ GeV$.

• •

cut7: the reconstructed higgs mass window $\rm m_{h}\in[100\ GeV,130\ GeV]$.

II.2 MVA-based method

We implemented the MVA method using the Root Toolkit for Multivariate Analysis (TMVA) TMVA . After cut1, cut2 and cut3, we especially select several input variables to discriminate the signal and background events, thus resulting better signal significance. Specifically, we define a set of totally 44 kinematic variables and choose the most effective ones for Boosted Decision Trees (BDT) training, which are: the b-jet number ($\rm N_{bjet}$), the separation in the $\rm\Phi-\eta$ plane between jets ($\rm\Delta R^{B_{1}B_{2}}$, $\rm\Delta R^{B_{1}J_{1}}$), the difference in azimuthal angle between jets ($\rm\Delta\Phi^{B_{1}B_{2}}$, $\rm\Delta\Phi^{B_{1}J_{1}}$), the transverse momentum of the jet ($\rm p_{T}^{J_{1}}$), the difference in $|\eta|$ between Higgs jet system ($\rm\Delta\eta^{hJ_{1}}$). It is worth noting that e-beam polarization is considered in both Cut-based method and MVA-based method.

III Results

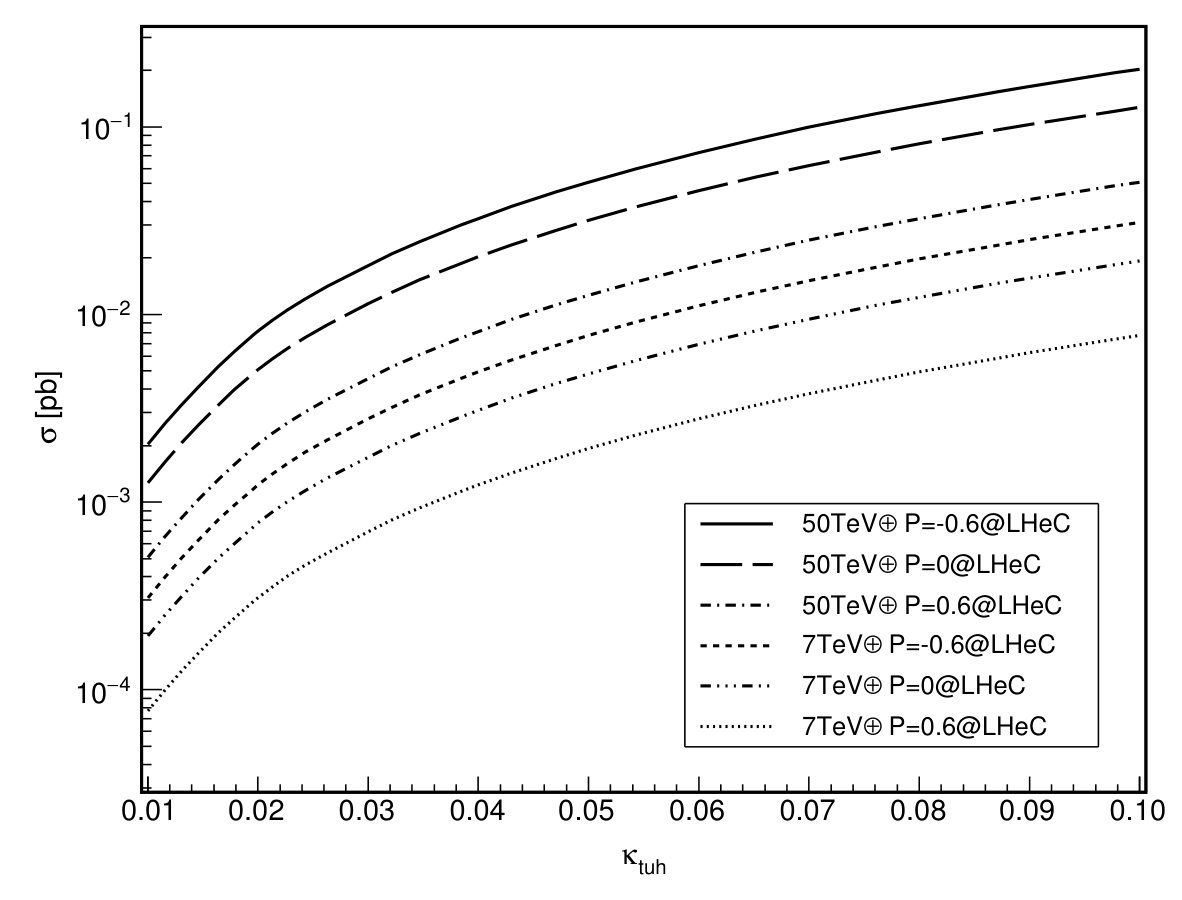

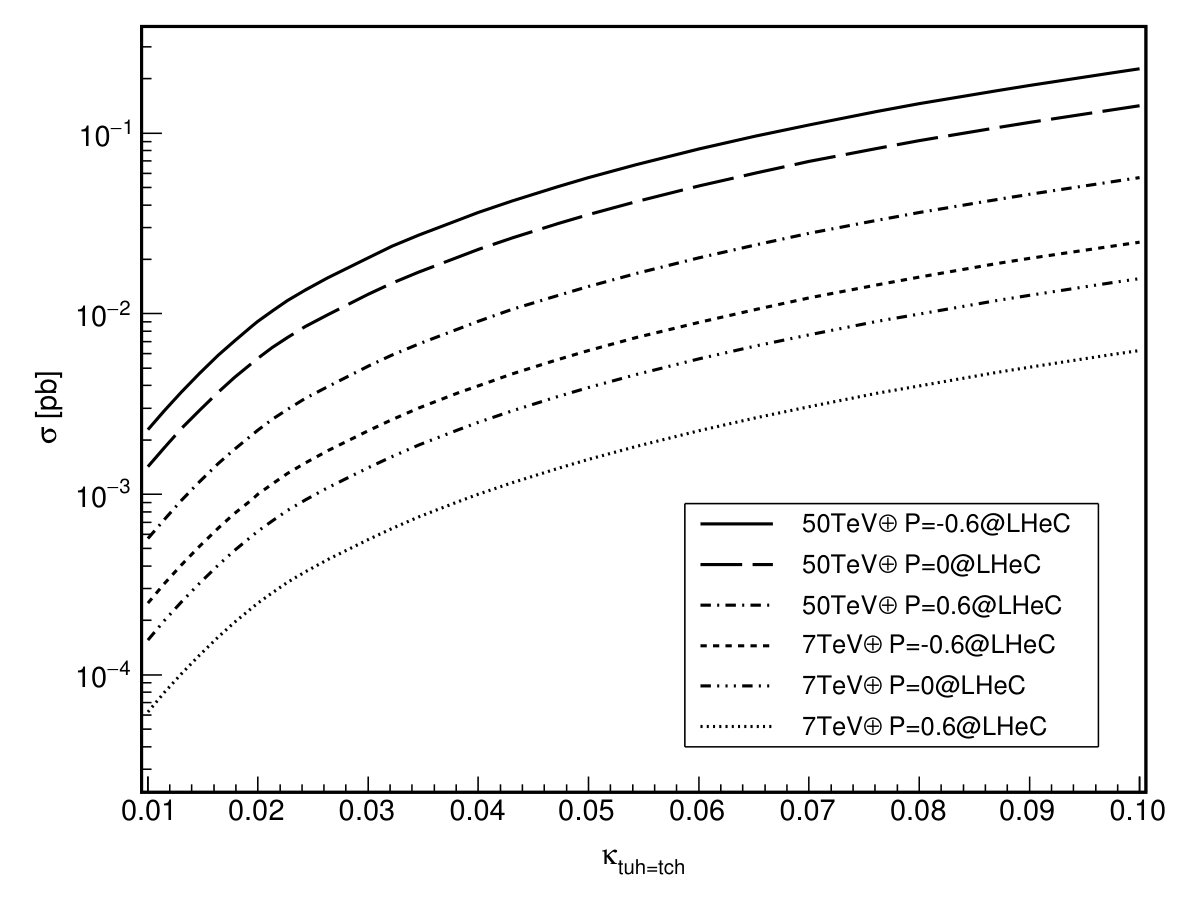

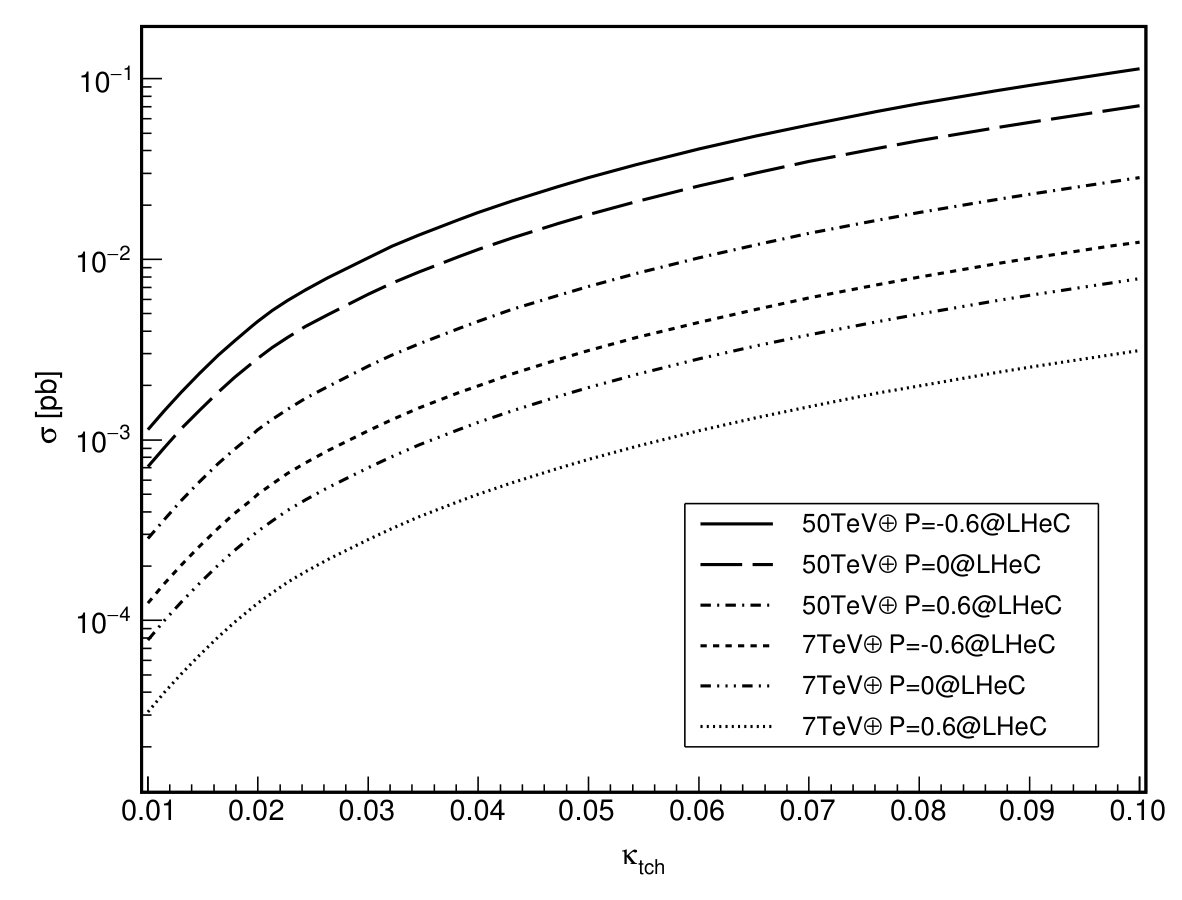

In Fig. 2 (60) GeV and Fig. 3 (120) GeV, we show the dependence of the cross section $\rm\sigma$ on the top-Higgs FCNC couplings $\rm\kappa_{tqh}$ at $E_{e}$ = 60 (120) GeV with $p_{e}$ = $\pm$0.6 electron beam polarization combination of a 7 (50) GeV proton beam for three different cases. (I) $\kappa_{tqh}=\kappa_{tuh},\kappa_{tch}=0,$ (II) $\kappa_{tqh}=\kappa_{tch},\kappa_{tuh}=0$ and (III) $\kappa_{tqh}=\kappa_{tuh}=\kappa_{tch}$. Obviously, the cross section of $\kappa_{tqh}=0.1$ can be 100 times larger than that of $\kappa_{tqh}=0.01$, and the cross section of 50 TeV can be 9.1 (6.6) times larger than that of 7 TeV with a 60 (120) GeV electron beam. We also find that the cross section between polarized and unpolarized electron beam cases are related as: $\sigma_{e^{-}_{r}}=\sigma_{e^{-}_{0}}\cdot(1-p_{e^{-}_{r}})$, $\sigma_{e^{-}_{l}}+\sigma_{e^{-}_{r}}=2\sigma_{e^{-}_{0}}$, independent of being case I, II or III. Here $\sigma_{e^{-}_{r}}$, $\sigma_{e^{-}_{l}}$ and $\sigma_{e^{-}_{0}}$ represent the right, left and without electron beam polarization, respectively.

The cross section of the signal and backgrounds (in units of fb) are summarized in Table 2 (Cut-based method) and Table 3 (MVA-based method). From these tables, we calculate the signal significance $S/\sqrt{S+B}$ as 4.191 (15.341) and 6.652 (19.236) for 7 and 50 TeV by Cut-base method and 4.921 (16.934) and 7.874 (20.785) by MVA-based method after imposing all the relevant event selections (only the first three selections in MVA-based method), respectively. Obviously, compared to the Cut-based method, the MVA-based method can get a better signal significance. As expected, with the $p_{2}$ = -0.6 e-beam polarization, the results are improved as 5.302 (19.404) and 8.414 (24.335) for Cut-based method and 6.224 (21.420) and 9.960 (26.291) for MVA-based method. In addition to effective cuts, enhancing the b-tagging efficiency together with reducing the jet mis-identification rates is one of the other way to improve the signal significance. It is confirmed that the signal significance can be increased from 4.191, 6.652, 15.341 and 19.238 to 8.366, 13.840, 33.750 and 44.154 with $\rm\epsilon_{b}=80$ $\%$, $\rm\epsilon_{c}=1$ $\%$, $\rm\epsilon_{light}=0.1$ $\%$ with the same value of the input parameters and kinematic cuts.

In order to estimate the sensitivity to the anomalous tqH couplings, we used chi-square ($\chi^{2}$) function Anomaloustqr ; tqr :

[TABLE]

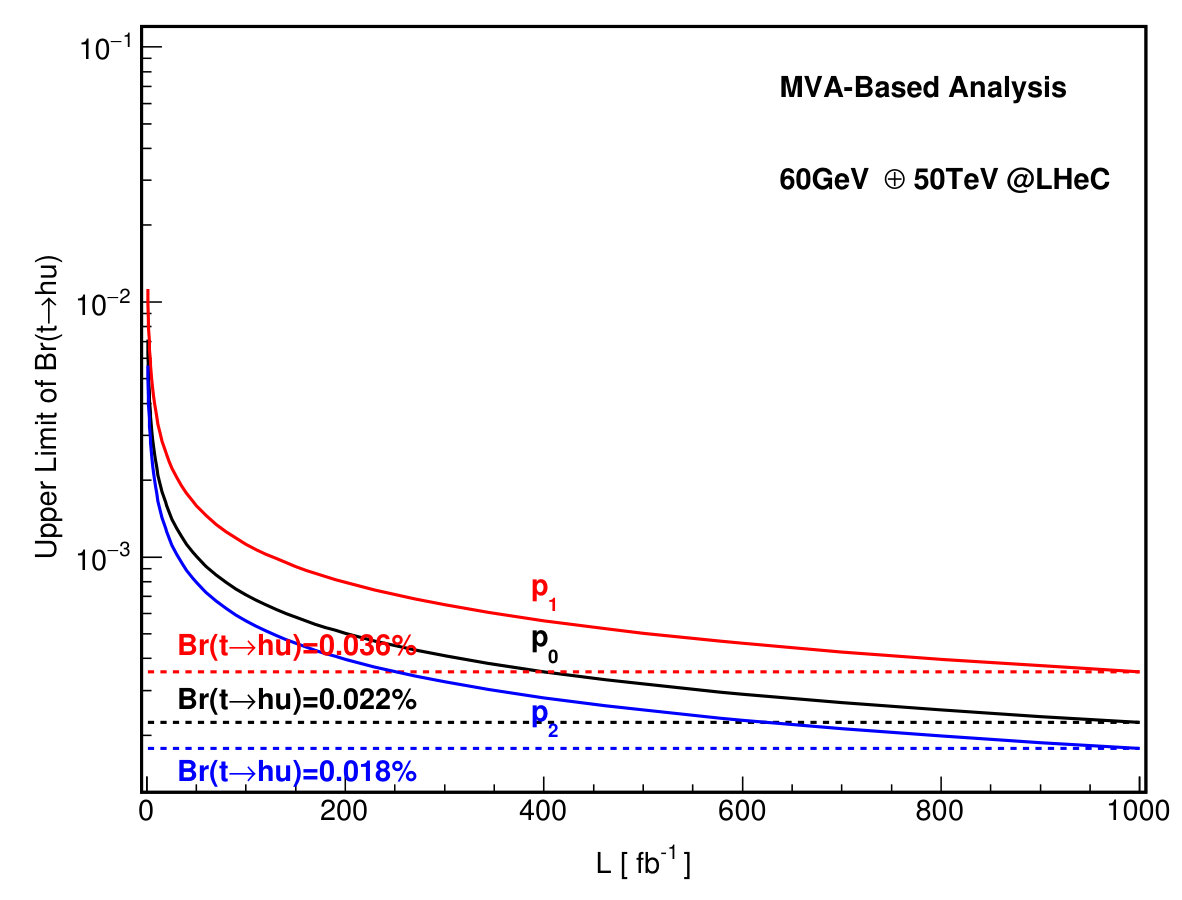

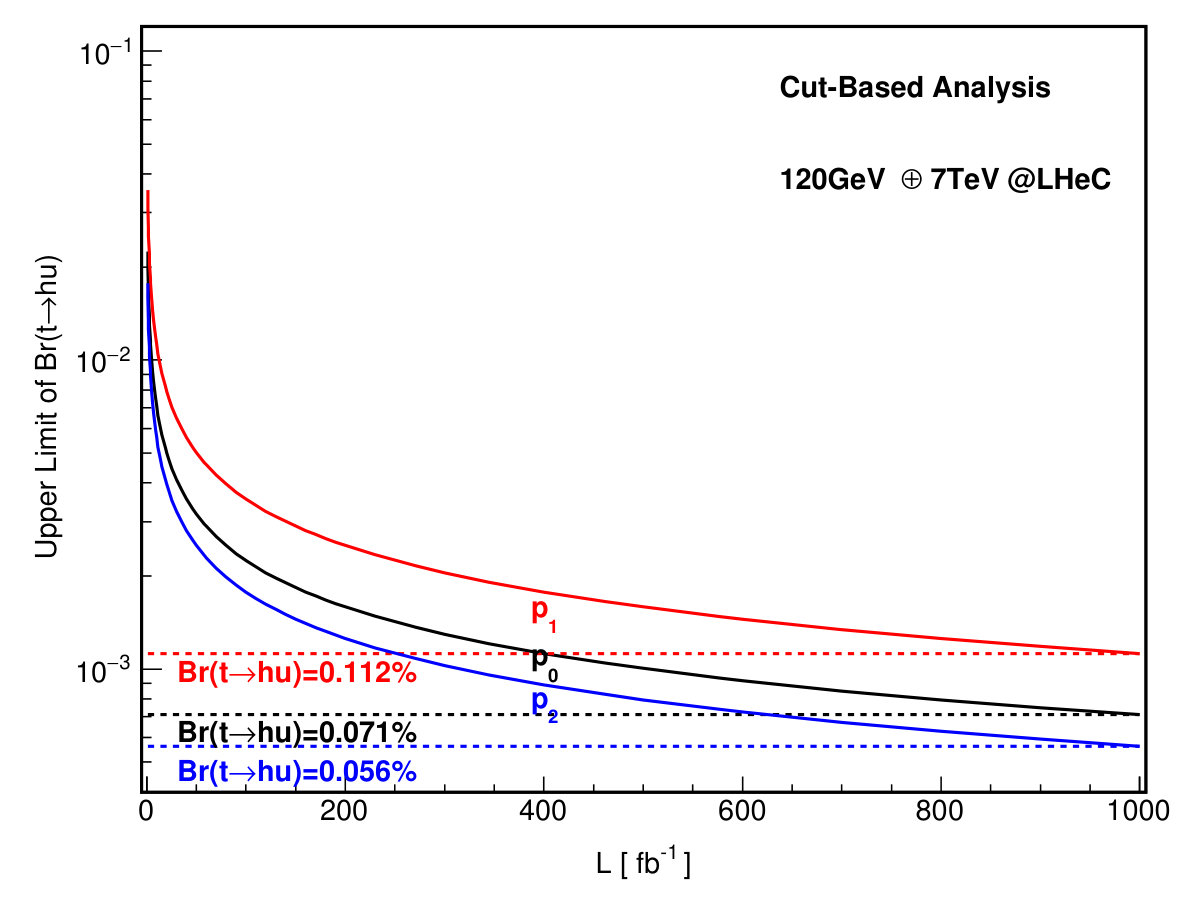

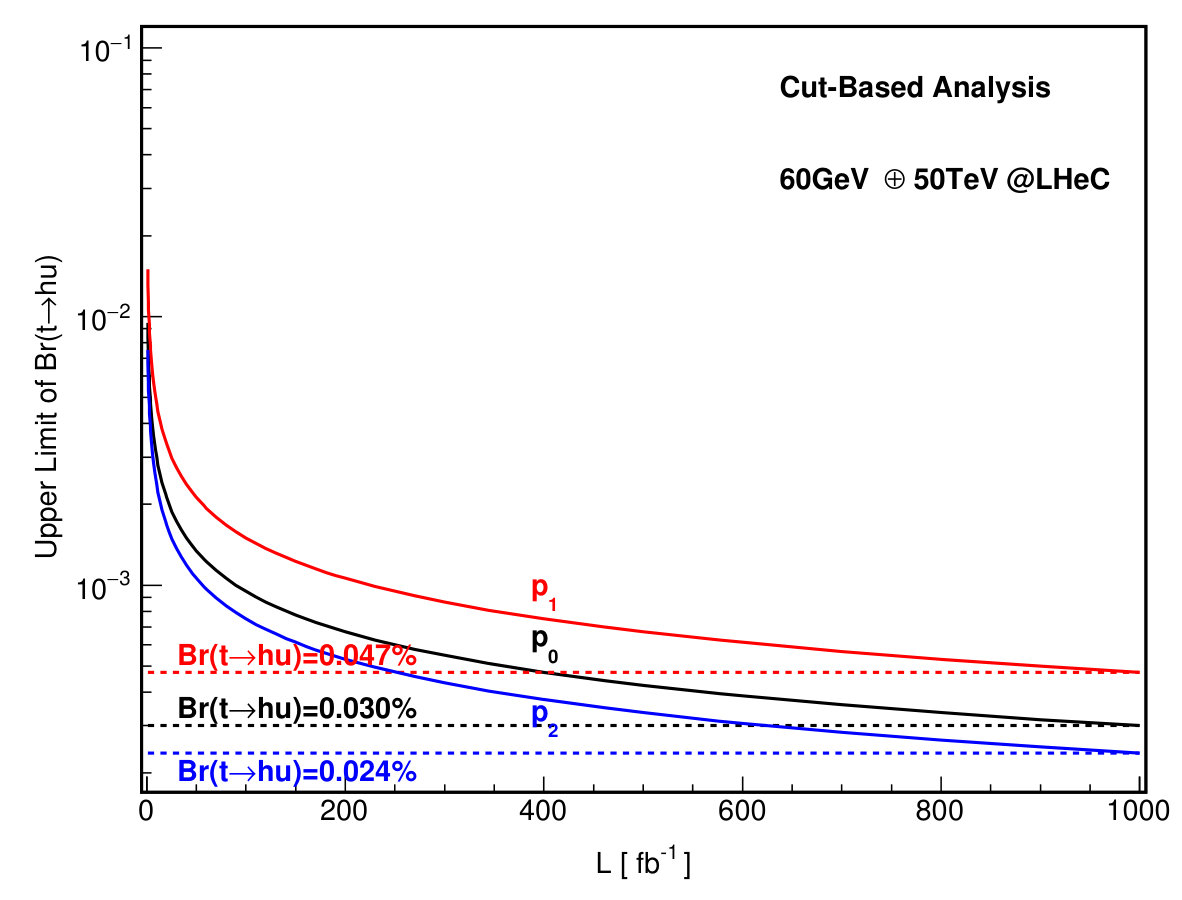

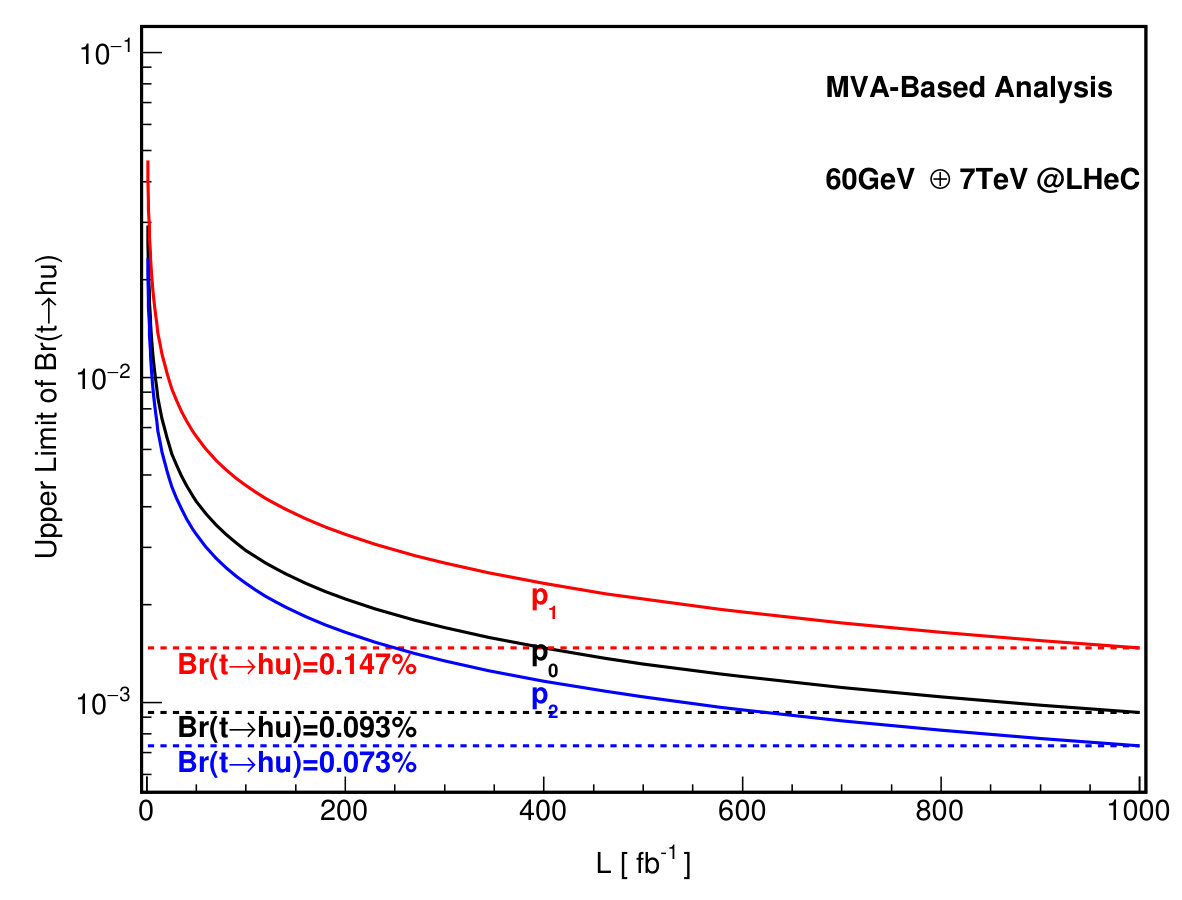

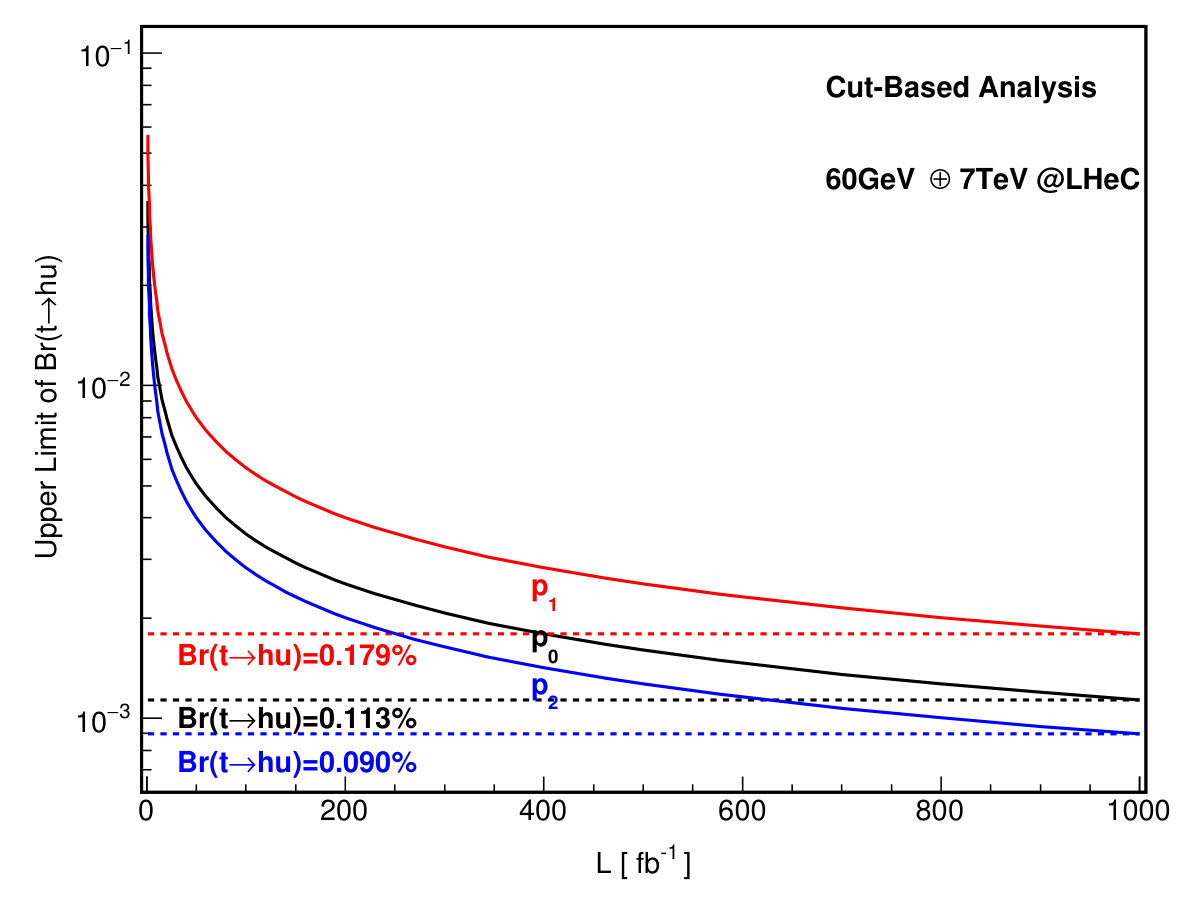

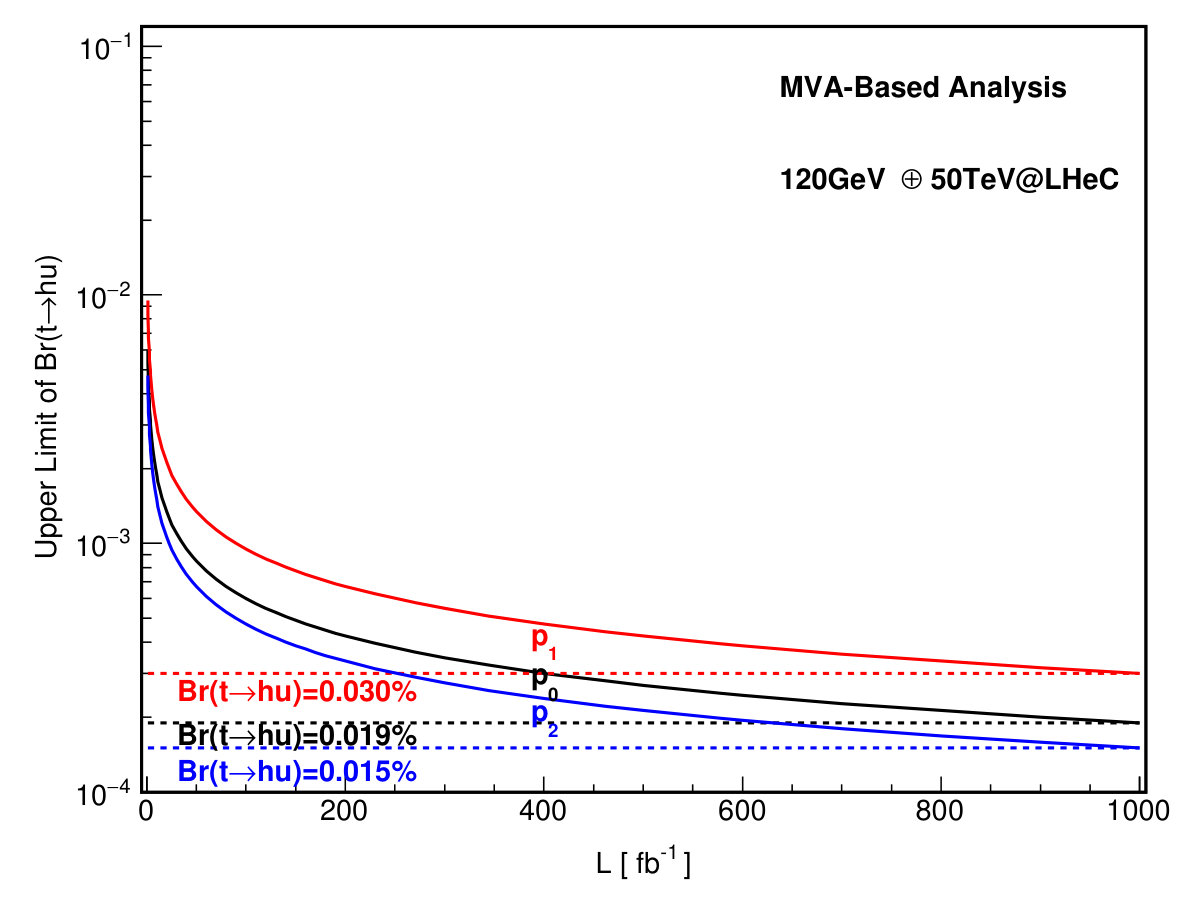

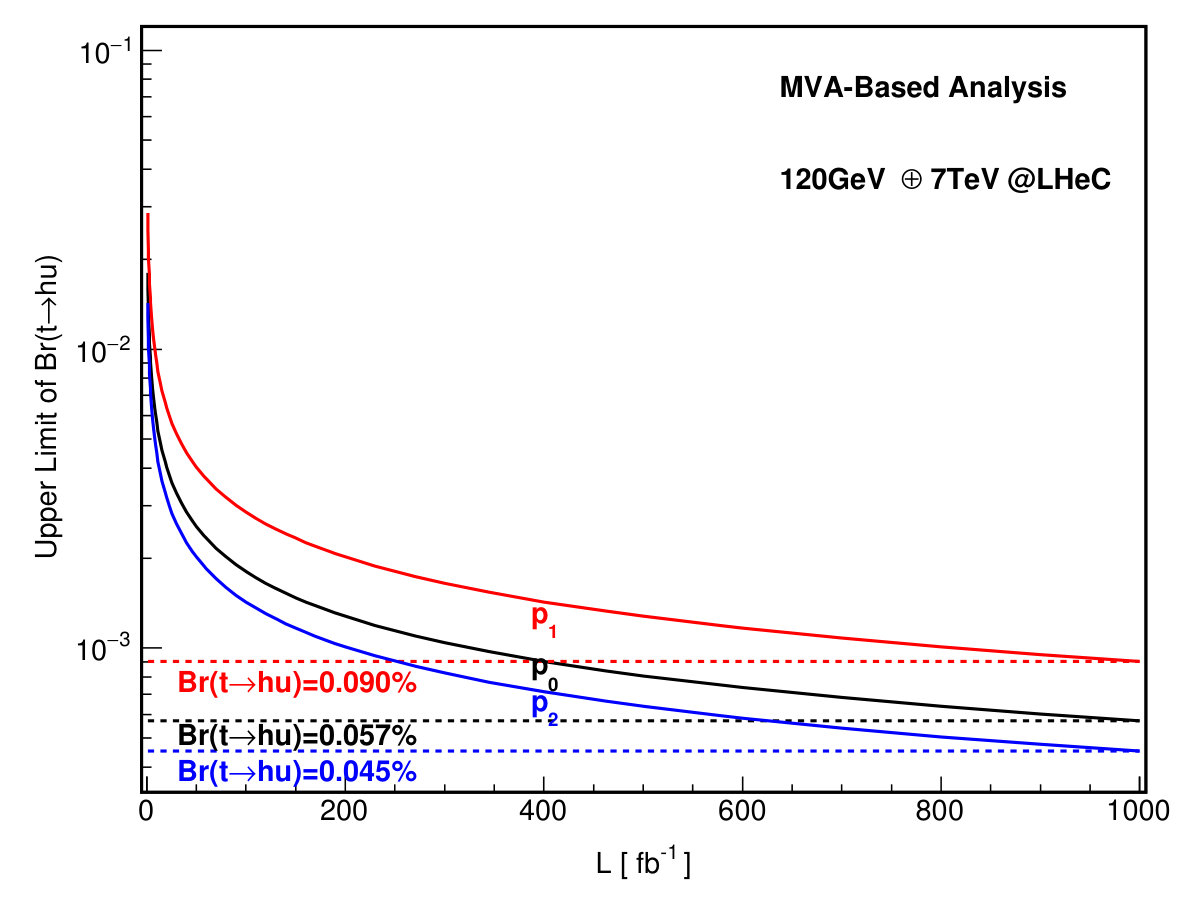

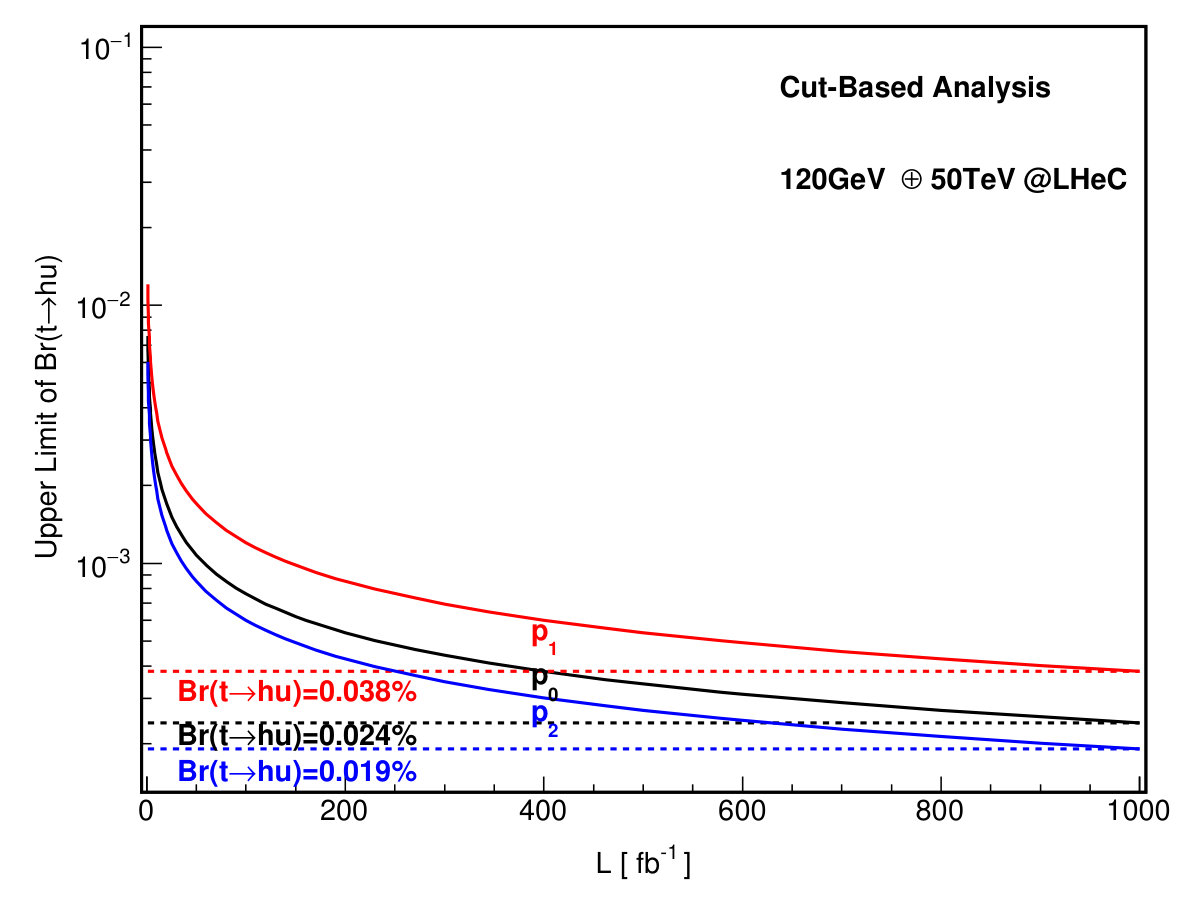

where $\rm\sigma_{tot}$ is the total cross section and $\rm\delta$ is the statistical error. In Fig. 4 (Cut-based Analysis) and Fig. 5 (MVA-based Analysis) TMVA , we plot the contours of 1$\sigma$ limits to $\kappa_{tqH}$ at 7 (50) GeV LHeC and 60 (120) GeV electron beam with different polarizations. The red, blue and black curves represent the 0.6, -0.6 and without electron beam polarization. From these figures, we can see that the branching ratio $\rm Br$ $(t\to uh)$ can be probed to $0.113$ (0.093) $\%$, $0.071$ (0.057) $\%$, $0.030$ (0.022) $\%$ and 0.024 (0.019) $\%$ with the Cut-based (MVA-based) Analysis at ($E_{p}$, $E_{e}$) = (7 TeV, 60 GeV), ($E_{p}$, $E_{e}$) = (7 TeV, 120 GeV), ($E_{p}$, $E_{e}$) = (50 TeV, 60 GeV) and ($E_{p}$, $E_{e}$) = (50 TeV, 120 GeV) beam energy. As expected, the MVA-based method has a great advantage and also the 50 TeV high energy can get better results than the 7 TeV ones. Furthermore, it is clear that the limits can be probed down to 0.090 (0.073) $\%$, 0.056 (0.045) $\%$, 0.024 (0.018) $\%$ and 0.019 (0.015) $\%$ with the e-beam polarization of $p_{2}$ = -0.6.

Finally, we give a precise integrated luminosity ($\cal L$) corresponding to the critical limits obtained by the experimental results (Table 4) and other phenomenological studies (Table 5) . With the e-beam polarization $p_{2}$ = -0.6, the $\cal L$ needed to get the upper bounds on the $\rm Br$ $(t\to qh)$ is reduced significantly. A detailed comparison between the LHeC collider(s) and the LHC or linear colliders are given.

IV Conclusion

In this paper, we investigated the anomalous FCNC Yukawa interactions between the top quark, the Higgs boson, and either an up or charm quark with a channel $\rm e^{-}p\rightarrow\nu_{e}\bar{t}\rightarrow\nu_{e}h\bar{q}(h\rightarrow b\bar{b})$ at the LHeC. The signal significance $S/\sqrt{S+B}$ can be obtained as 4.191 (4.921), 6.652 (7.874), 15.341 (16.934) and 19.238 (20.785) with the Cut-based (MVA-based) method at ($E_{p}$, $E_{e}$) = (7 TeV, 60 GeV), ($E_{p}$, $E_{e}$) = (7 TeV, 120 GeV), ($E_{p}$, $E_{e}$) = (50 TeV, 60 GeV) and ($E_{p}$, $E_{e}$) = (50 TeV, 120 GeV). Similarly, our results show that the branching ratio $\rm Br$ $(t\to uh)$ can be probed to 0.113 (0.093) $\%$, 0.071 (0.057) $\%$, 0.030 (0.022) $\%$ and 0.024 (0.019) $\%$, and with the e-beam polarization $p_{2}=-0.6$, the expected limits can be greatly reduced. Finally, a detailed comparison between our study and the critical limits obtained by the experiments and other phenomenological studies are shown. We thus give an overview of the search potential on the anomalous top-Higgs couplings with polarized electron beam at the LHeC.
