Maximum Entropy Inferences on the Axion Mass in Models with Axion-Neutrino Interaction

TL;DR

This paper employs the Maximum Entropy Principle to constrain the axion mass in models with axion-neutrino interactions, providing specific mass ranges and implications for dark matter and experimental tests.

Contribution

It introduces a novel application of MEP to infer axion mass considering neutrino interactions and current experimental bounds, offering new mass interval predictions.

Findings

Inferred axion mass range: 0.1 eV to 0.2 eV with full parameter fixing.

Broader axion mass range: 0.1 eV to 6.3 eV when fixing only the axion mass.

Light axion as a viable dark matter candidate.

Abstract

In this work we use the Maximum Entropy Principle (MEP) to infer the mass of an axion which interacts to photons and neutrinos in an effective low energy theory. The Shannon entropy function to be maximized is suitably defined in terms of the axion branching ratios. We show that MEP strongly constrains the axion mass taking into account the current experimental bounds on the neutrinos masses. Assuming that the axion is massive enough to decay into all the three neutrinos and that MEP fixes all the free parameters of the model, the inferred axion mass is in the interval $0.1\ $eV$\ <m_{A}<0.2$ eV, which can be tested by forthcoming experiments such as IAXO. However, even in the case where MEP fixes just the axion mass and no other parameter, we found that $0.1$ eV $< m_A < 6.3$ eV in the DFSZ model with right-handed neutrinos. Moreover, a light axion, allowed to decay to photons and the lightest neutrino only, is determined by MEP as a viable dark matter candidate.

Figures

Equations

$$\mathrm{Pr}(\{n_k{\}}_{k=0}^m)\equiv \frac{N!}{n_0!n_1!\cdots n_m!}\prod _{k=0}^m(B{R}_k{)}^{n_k},$$

$$S_N=-\sum _{\{n_i\}}^N\mathrm{Pr}(\{n_k{\}}_{k=0}^m)\ln \mathrm{Pr}(\{n_k{\}}_{k=0}^m),$$

$${\mathcal{L}}_{eff}=\frac{1}{2}{\partial }_{\mu }A{\partial }^{\mu }A-\frac{1}{2}{m}_A^2{A}^2-\frac{g_{A\gamma }}{4}A{F}_{\mu \nu }{\tilde{F}}^{\mu \nu }-\frac{g_{A\nu }}{2}{\overline{\nu }}_i{\gamma }^{\mu }{\gamma }_5{\nu }_i{\partial }_{\mu }A$$

$$g_{A\nu }=\frac{C_{A\nu }}{f_A},$$

$$g_{A\gamma }=\frac{\alpha }{2\pi f_A}{\tilde{C}}_{A\gamma },$$

$${\tilde{C}}_{A\gamma }=\left(\frac{C_{a^{\prime }\gamma }}{C_{a^{\prime }g}}-\frac{2}{3}\frac{4+m_u/m_d}{1+m_u/m_d}\right).$$

$$m_A\simeq \frac{m_{\pi }{f}_{\pi }}{f_A}\frac{\sqrt{m_u/m_d}}{1+m_u/m_d}\approx 0.48\frac{m_{\pi }{f}_{\pi }}{f_A},$$

$$\Gamma ={\Gamma }_0+\sum _i{\Gamma }_i,$$

$${\Gamma }_0$$

$${\Gamma }_i$$

$$B{R}_0$$

$$B{R}_i$$

$$\mathrm{Pr}(\{n_k{\}}_{k=0}^3)=\frac{N!}{n_0!n_1!n_2!n_3!}\prod _{k=0}^3(B{R}_k{)}^{n_k}.$$

$$\begin{array}[]{ccccc}\Delta m_{12}^{2}&=&m_{2}^{2}-m_{1}^{2}&=&(7.45\pm 0.25)\times 10^{-5}\,\mathrm{eV}^{2}\\ &&&&\\ \Delta m_{31}^{2}&=&m_{3}^{2}-m_{1}^{2}&=&(2.55\pm 0.05)\times 10^{-3}\,\mathrm{eV}^{2}\text{.}\end{array}$$

$$m_1=m_{\nu },m_2=\sqrt{m_{\nu }^2+7.45\times 10^{-5}},m_3=\sqrt{m_{\nu }^2+2.55\times 10^{-3}}.$$

$$0.059\text{ eV}<\sum _{i=1}^3{m}_i<0.23\text{eV,}$$

$$S_N(m_A|m_{\nu },r_{\nu })=S(m_A|m_{\nu },r_{\nu })+\ln (2\pi N)+O(\frac{1}{N^2})$$

$$S(m_A|m_{\nu },r_{\nu })=\ln (B{R}_{0}B{R}_{1}B{R}_{2}B{R}_3)$$

$$B{R}_i(m_A,m_{\nu },r_{\nu })=\frac{1}{4},i=0,1,2,3$$

$$0.1\text{eV}<m_A<0.2\text{eV}.$$

$$B{R}_0={\left[1+32{\pi }^2\frac{r_{\nu }^2}{{\alpha }^2}\frac{m_{\nu }^2}{m_A^2}{\left(1-\frac{4m_{\nu }^2}{m_A^2}\right)}^{1/2}\right]}^{-1}andB{R}_1=1-B{R}_{\gamma \gamma }$$

$$\mathrm{Pr}(N;n_0)=\frac{N!}{n_0!(N-n_0)!}B{R}_0^{n_0}(1-B{R}_0{)}^{N-n_0}$$

$$S_N$$

$$S_{{}_0}(m_A,m_{\nu },r_{\nu })$$

$$B{R}_0=B{R}_1=1/2,$$

$$\frac{m_{\nu }}{m_A}\approx \frac{\sqrt{1-\sqrt{1-\frac{{\alpha }^2}{4{\pi }^2{r}_{\nu }^2}}}}{2}$$

$$r_{\nu }=\frac{\sqrt{3\sqrt{3}}}{4\pi }\alpha =0.00132$$

$$\sigma (x)$$

$$H_u^0(x)$$

$$H_d^0(x)$$

$$\mathcal{L}\supset -\frac{{\alpha }_s}{8\pi }\frac{A}{f_A}{G}_{\mu \nu }^a{\tilde{G}}^{a,\mu \nu }.$$

$$\frac{A(x)}{f_A}=C_{a^{\prime }g}\frac{a^{\prime }(x)}{f_{a^{\prime }}}$$

$$\mathcal{L}\supset F_{ij}{\overline{L}}_i{\tilde{H}}_b{\nu }_{jR}^{\prime }+h.c.$$

Full text

I Introduction

Although the discovery of the Higgs boson and its properties have represented a major advance for verifying the mass generation mechanism through spontaneous symmetry breaking, along with its consequences, an explanation for the values of most of the elementary particles masses is still missing. It is understood in the Standard Model that the photon has zero mass due to an unbroken gauge symmetry, and the weak vector bosons $W$ and $Z^{0}$ have interdependent masses resulting from the electroweak symmetry breakdown. Still, according to the Standard Model, the Higgs boson and all the charged fermions have arbitrary nonzero masses, with the neutrinos being massless. This last feature is in contradiction with the neutrinos oscillation phenomena, whose description requires nonzero neutrino mass differences. As a matter of fact, the present experimental limits show that neutrinos are ultralight compared to the other known massive particles. All of this might suggests that a new principle or mechanism is necessary to reach a more satisfactory understanding of the elementary particles masses.

It was found in Ref. dEnterria:2012eip that the peak of a function constructed by multiplying the basic fourteen Standard Model branching ratios of the Higgs boson decay channels occurs for a Higgs boson mass which is in good agreement to the experimental value measured at the LHC. Additionally, it was also mentioned in Ref. dEnterria:2012eip a possible analogy with some sort of entropy arguing that the mass of the Higgs boson has a value that allows for the largest number of ways of decays into elementary particles. The work of Ref. Alves:2014ksa indeed showed that the value of the Higgs boson mass results from the Maximum Entropy Principle (MEP) jaynes , where the information entropy is suitably defined in terms of the Higgs branching ratios into Standard Model particles, furnishing the most accurate Higgs boson mass theoretical determination to date.

Our premise in invoking MEP is to consider an ensemble of $N$ non-interacting identical spinless particles which have $m$ basic decay modes. The probability that the ensemble evolve to a final state configuration, with $n_{0}$ bosons decaying into the mode with branching ratio $BR_{0}$, $n_{1}$ bosons decaying into the mode with branching ratio $BR_{1}$, and so on until $n_{m}$ bosons decaying into the mode having branching ratio $BR_{m}$, is given by the following multinomial distribution

[TABLE]

in which $\sum_{k=0}^{m}BR_{k}=1$, and $\sum_{k=0}^{m}n_{k}=N$. From these probabilities, the Shannon entropy shannon associated to the evolution of the initial ensemble to the final state in which all $N$ scalars have decayed is given by

[TABLE]

with $\sum_{\{n_{i}\}}^{N}(\bullet)\equiv\sum_{n_{0}=0}^{N}\sum_{n_{1}=0}^{N}\cdots\sum_{n_{m}=0}^{N}(\bullet)\times\delta\left(N-\sum_{i=0}^{m}n_{i}\right)$ Alves:2014ksa . The entropy $S_{N}$ is a function of unknown quantities as masses of particles and coupling constants entering in the branching ratios $BR_{k}$. We propose that such quantities can be inferred through maximization of $S_{N}$, also taking into account constraints that may enter as prior information. Similar approaches using information and configurational entropies can be found, for example, in Refs. mep .

Our aim in this work is to use MEP to infer the mass of the axion, taking into account a model which the axion decays to neutrinos and photons. More specifically, we made the following assumptions on the axion field, $A(x)$. First, its particle excitation, the axion, decays dominantly into a pair photons and also into a pair of neutrinos. Second, its low energy effective Lagrangian describing the interactions with photons and neutrinos is given by

[TABLE]

where $F^{\mu\nu}$ is the electromagnetic field strength with $\widetilde{F}^{\mu\nu}\equiv\epsilon^{\mu\nu\lambda\rho}F_{\lambda\rho}/2$ its dual; $\nu_{i}(x)$, $i=1,\,2,\,3$, denotes the mass eigenstates neutrinos fields; $m_{A}$ is the axion mass; $f_{A}$ the axion decay constant, which is a high energy scale; $g_{A\gamma}$ and $g_{A\nu}$ are the axion-photon and axion-neutrino coupling constants, respectively. Another important remark is that we are tacitly assuming that neutrinos are Dirac fermions. Therefore, the coupling between the axion and the neutrinos vanish in the massless limit. In Appendix A we show an example of an ultraviolet completed model leading to the effective Lagrangian in Eq. (3).

The axion is a hypothetical pseudo Nambu-Goldstone boson remnant of an anomalous $U(1)$ symmetry, spontaneously broken at the energy scale $f_{A}$, present in extensions of the Standard Model motivated to solve the the strong CP problem through the Peccei-Quinn mechanism Peccei:1977hh ; Weinberg:1977ma ; Wilczek:1977pj (for a review of the strong CP problem and axions see, for example, Refs. Kim:2008hd ; Jaeckel:2010ni ). The actual constraints from the experiments searching for the axion limits $f_{A}$ to be much above the electroweak scale, i. e., $f_{A}\gg v=246$ GeV. Consequently, the axion interacts very weakly with all other particles by the reason that the associated coupling constants are suppressed by $f_{A}$. We define the axion-neutrino coupling constant in Eq. (3) as

[TABLE]

where $C_{A\nu}$ is the coefficient of the axion-neutrino coupling which depends on the ratios of vacuum expectation values (see Appendix A). The axion-photon coupling constant is, by its turn,

[TABLE]

with $\alpha$ the fine structure constant, and the coefficient of the axion-photon coupling

[TABLE]

In the coefficient ${\widetilde{C}}_{A\gamma}$ the anomaly coefficients $C_{a^{\prime}\gamma}$ and $C_{a^{\prime}g}$ are model dependent and typically of order one, with $m_{u}/m_{d}\approx 0.56$ the ratio of up and down quark masses. Such a coefficients for different models, as well as other features of the axion, can be found in Dias:2014osa . Additionally, the axion mass is also suppressed by the energy scale $f_{A}$ and given by Weinberg:1977ma

[TABLE]

in which $m_{\pi}$ and $f_{\pi}$ are the pion mass and its decay constant, respectively. This makes the axion an ultralight particle for $f_{A}\gg 246$ GeV.

Our paper is organized as follows: In the next section we briefly discuss as we intend to use the MEP in order to obtain the axion mass considering the lightest neutrino mass and the coupling constants as inputs. In section III we present a first part of our results which consider axions decaying into pairs of neutrinos and pair of photons, and a second part of the results corresponding to axions decaying only into pair of the lightest neutrinos, in addition to a pair of photons, which is presented in IV. We present our conclusions in section V

II Parameters inferences from MEP

Let us consider an initial state ensemble with a very large number $N$ of axions. After a time $t\gg 1/\Gamma$, with the total axion decay width given by the sum of the partial decay widths into a pair of photons, $\Gamma_{0}$, plus the ones into pairs of neutrinos, $\Gamma_{i}$, i. e.,

[TABLE]

the initial state ensemble evolves to a final state bath of photons and neutrinos. The summation above (and below) extends only over those neutrinos whose masses are less than $m_{A}/2$. If the axion is massive enough it could decay in all three active neutrinos, where $i=1,\,2,\,3$.

The axion partial decay widths derived from the effective Lagrangian in Eq. (3) are

[TABLE]

where $m_{i}$ is the $i$-th neutrino mass and $\beta_{i}=\sqrt{1-\frac{4m_{i}^{2}}{m_{A}^{2}}}$.

These widths lead to the following branching ratios for the axion decaying into a pair of photons and into pairs of neutrinos

[TABLE]

in which we define $r_{\nu}=\left|C_{A\nu}/\widetilde{C}_{a\gamma}\right|$ as the ratio of the anomaly coefficients of the axion-neutrino coupling, ${C}_{A\nu}$, and the axion-photon coupling, ${\widetilde{C}}_{A\gamma}$. This ratio is equivalent to the ratio of the associated coupling constants given by $\left|g_{A\nu}/g_{A\gamma}\right|=2\pi r_{\nu}/\alpha$.

There are many possible final states characterized by the number of axions which decay into a pair of photons, $n_{0}$, and by the numbers axions which decay into each possible pair of neutrinos, $n_{i},\;i=1,2,3$. Considering that the axion can decay into the three neutrinos plus the photon, according to Eq. (1) the probability that the ensemble of $N$ axions decay into a particular final state characterized by $n_{0}$, $n_{1}$, $n_{2}$, and $n_{3}$ is

[TABLE]

The entropy function is then constructed from Eq. (2) summing over all the partitions satisfying $\sum_{k=0}^{3}n_{k}=N$.

According to MEP, the initial ensemble evolves to a final state of maximum entropy permitting us to infer the values of the unknown quantities through maximization of $S_{N}$. We do this taking into account the prior information of the neutrinos mass from the best fit mass squared differences determined by the data of neutrinos oscillations, considering the normal hierarchy pattern King:2017 ,

[TABLE]

Thus, $S_{N}$ depends, effectively, on the three parameters $m_{A}$, $r_{\nu}$, and the lightest neutrino mass which we denote as $m_{\nu}$. Finally, our analysis do not depend on the neutrinos mass hierarchy pattern, so that the same results are obtained if the inverted hierarchy is assumed.

Contrary to the situation of the Higgs boson mass inference done in ref. Alves:2014ksa , where the Higgs mass was the last independent Standard Model parameter to be determined, in the model under study we have three independent parameters as we just discussed. In principle, MEP could force all these parameters to be fixed at the global maximum of the entropy. However, this is not the case of the Standard Model, for example. The Higgs mass does not correspond to a global maximum of $S$, but just to a constrained maximum. Some parameters of the Standard Model are related by its symmetries imposing strong constraints on these parameters, for example, the $W$ and $Z$ bosons masses. This fact reveals that not all the parameters of the model might be determined by the MEP. Nevertheless, the success in the Higgs mass prediction suggests that MEP can be useful in inferring the masses of scalar particles when the other parameters are fixed by some different mechanisms.

In this work we remain agnostic about the type of inference that MEP can actually perform, waiting for the experimental evidence to settle that. Therefore, we take two main hypothesis: first, the entropy function is maximized in $m_{A}$ only, with the other parameters considered as prior information, that is, $S_{N}\equiv S_{N}(m_{A}|m_{\nu},r_{\nu})$; second, a more restrict hypothesis: S_{N}\equiv S_{N}(m_{A},m_{\nu},r_{\nu})\ where we will show that MEP can be more determinant in the sense that having information about one of the parameters: (i) axion mass, (ii) neutrino mass, and (iii) ratio of the coupling constants, the other two parameters can be univocally determined by this principle.

The hypothesis in which $S_{N}\equiv S_{N}(m_{A}|m_{\nu},r_{\nu})$ has a more direct analogy with thermodynamics where the entropy is a function of the energy, which in our case is the axion mass. The ratio $r_{\nu}$ and the lightest neutrino mass $m_{\nu}$ are free parameters which should be determined prior to the inference of axion mass. However it is important to mention that Shannon entropy in our formulation is not defined as a entropy per particle, as function of an energy per particle, as is usual in Thermodynamics. This does not spoil our study and deserves a deeper discussion relative to our inference process. First of all, our weights in Shannon entropy are not Boltzmann weights of some known problem of interacting particles in contact with a thermal reservatory exactly as is studied in Statistical Mechanics. Only in this situation, the Shannon entropy should be equivalent to Boltzmann entropy definition. Nevertheless, even without this equivalence it is important to mention that MEP is a general and universal method than Statistical Mechanics approach, and its basis are governed by probability theory. In this context we can write the entropy of any probability distribution and maximize it in relation to their physical parameters.

We impose the most recent experimental constraints from the neutrino oscillation experiments summarized in Ref. King:2017

[TABLE]

The upper bound from the Planck Collaboration measurements of CMB anisotropies Ade:2015xua for the sum of the neutrino masses, along with Eq. (15) for a massless lightest neutrino, translate to the following constraint that will be taken into account in our inference process

[TABLE]

which implies the interval $0<m_{\nu}<0.0712$ eV, for the lighest neutrino mass. In the next sections we will present our results.

III Results I: Axions decaying into the three neutrinos and photons

First, we suppose that the axion is heavy enough to decay into a pair of photons and all the three neutrinos.

The entropy, given by Eq. (2), can be written as Cichon

[TABLE]

with

[TABLE]

where the branching ratios are related as $\sum_{i=0}^{3}BR_{i}=1$.

It can be shown that the global maximum of $S$ is obtained when all the branching ratios are equal

[TABLE]

However, it is also possible that this type of solution cannot be attainable if further constraints arise from an UV complete theory in which the parameters do not allow that the Eq. (19) be satisfied. If further constraints are absent or if they are weak, then we should expect that nearly equal branching ratios constitute another prediction coming from MEP.

First of all we investigate the entropy supposing that MEP fixes just the axion mass, i.e., $S=S(m_{A}|m_{\nu},r_{\nu})$, with the other parameters either previously known or at least bounded by some data. As we have just discussed, this might be the case if the UV complete theory fixes somehow the $r_{\nu}$ of the model and possibly other parameters. In our approach, we, therefore, allow $m_{\nu}$ to vary according to the constraints of Eqs. (15), (16). In this case, for each fixed $m_{\nu}$ and $r_{\nu}$, we just seek for a solution ($m_{A}$) that maximizes $S(m_{A}|m_{\nu},r_{\nu})$ given by Eq. (18). The light green shaded area of Figure 1 shows the MEP inference for the axion mass for the range of the $r_{\nu}$ taking into account the neutrino masses constraints from Eq. (16).

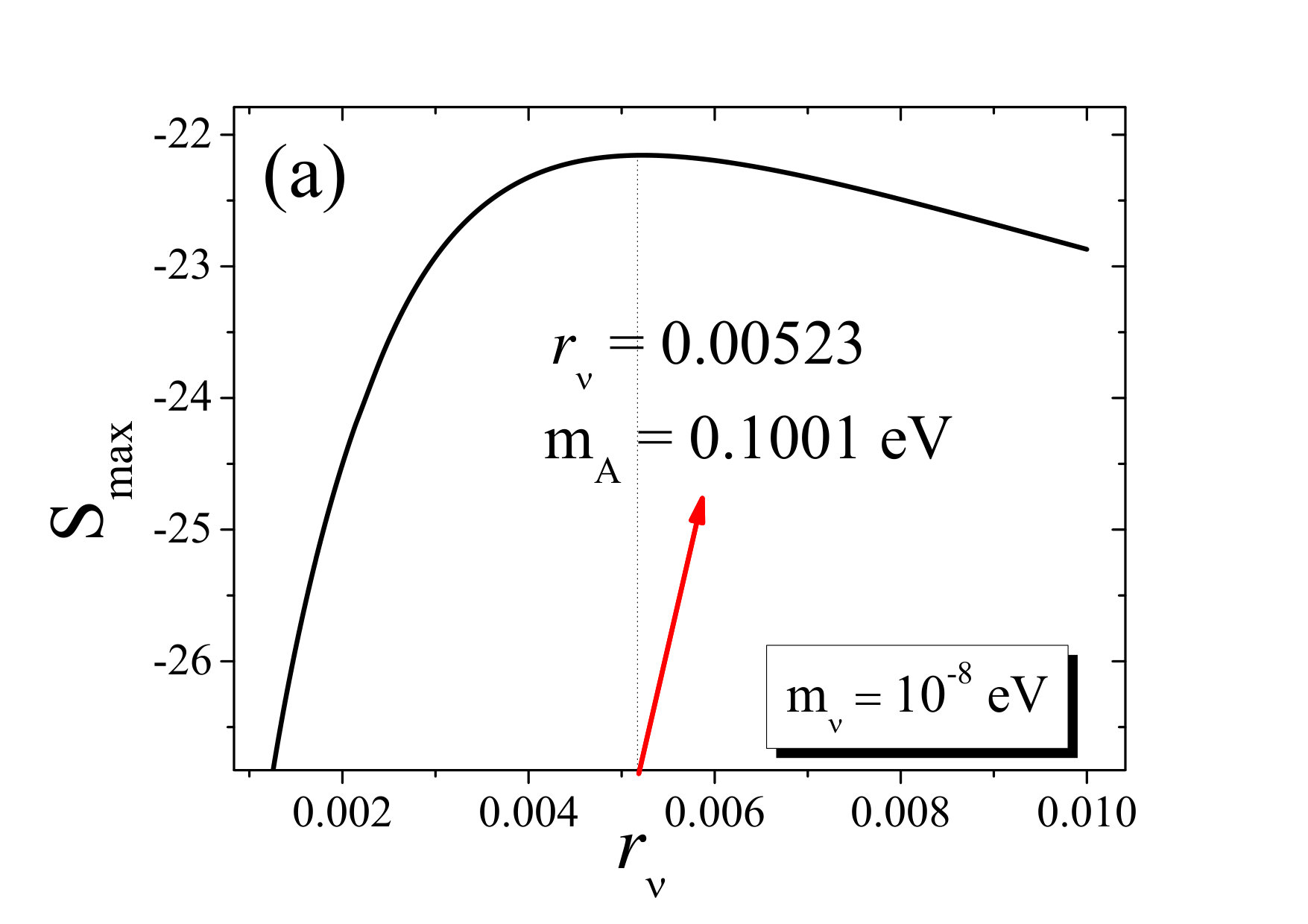

The gray curves in Figure 1 correspond to axion mass maximizing the entropy for the case in which the maximum lightest neutrino mass (upper curve) and the minimum lightest neutrino mass (lower curve) were assumed. Such curves can be identified as iso-lightest-neutrino-mass curves in the diagram $r_{\nu}\times m_{A}$. The following plots (a) and (b), in Figure 2 show the maximum entropy values assumed in each point of gray lines respectively for minimum ($m_{\nu}=10^{-8}$ eV) and maximum ($m_{\nu}=0.0721226$ eV) lightest neutrino mass. It is important to mention that even when we used $m_{\nu}=10^{-7}$ eV the same result was obtained and the gray line remains the same. Obviously, numerically for $m_{\nu}=0$ eV we have no results.

This suggests that we can look to MEP in more restrict optimization than just seeking for a solution $m_{A}$, given $m_{\nu}$ and $r_{\nu}$. Then a stronger inference can be made optimizing $S\mathbf{\equiv}S(m_{A},m_{\nu},r_{\nu})$ which result is represented by the blue line where given one of the parameters, is possible to obtain the other two ones. We give a more detailed explanation as follows. The boundary gray lines cross the blue line exactly in the points that correspond to peak presented in the plots (a) and (b) in the same Figure 2. The inset plot in Figure 1 corresponds to a focused area of the blue line region. Just to give an example for $r_{\nu}=0.00174$, the point over the blue line, of the highest entropy in the green region, corresponds to $m_{A}=0.12$ eV and $m_{\nu}=0.03$ eV. In this same inset plot, the dashed black curve in the allowed region corresponds exactly to the intermediate value of lightest neutrino mass: $m_{\nu}=0.03$ eV. This iso-lightest-neutrino-mass curve is exactly between the bounds lines (gray lines) as expected. Therefore, the light green region can be understood as a family of iso-lightest-neutrino-mass curves of the diagram $r_{\nu}\times m_{A}$, which cross the blue line which is composed by the optimal values found in each iso-lightest-neutrino-masses curves. In other words, the blue line is composed by values which MEP fixes all the three parameters.

The dashed red line in Figure 1 shows the limit to allowed values of $r_{\nu}$ for the DFSZ-type model with right-handed neutrinos which we present in Appendix A. In the same Figure the dashed dark green line shows the limit from astrophysics on the coupling (see below).

The inference is stronger for small $r_{\nu}$ up to $\sim 0.0017$, for higher values, the upper boundary of the Figure 1 increases towards higher axion masses while the lower boundary remains nearly constant with $r_{\nu}$. Note that, under this hypothesis, we need to know $r_{\nu}$ and $m_{\nu}$ in order to get $m_{A}$. The DFSZ model with right-handed neutrinos restricts $r_{\nu}<0.46\cos^{2}\beta$, which determines the dashed red line (see Appendix A).

We observe that under the consideration of more restrict optimization (blue line in Fig. 1), MEP constrains the axion mass to lie within

[TABLE]

We observe that the interval in Eq. (20) is in the threshold of the projected sensitivity of the IAXO experiment Armengaud:2014gea . Thus, our hypothesis can tested experimentally in the near future.

We should mention that the interval of Eq. (20) for the axion mass derived from MEP is compatible with the limits from astrophysics (compilation of the actual astrophysical limits on the axion mass and coupling constants are given in Ref. pdg ). For example, studies concerning the evolution of stars on the horizontal branching Ayala:2014pea put the constraint $m_{A}<0.5$ eV ($f_{A}>1.3\times 10^{7}$ GeV) on the DFSZ model. There is an astrophysical limit that could potentially impact on the interval in Eq. (20), but it also depends on the axion-electron coupling. A bound from red giants in the Galactic globular cluster M5 provided $m_{A}\,\cos^{2}\beta<15.3$ meV at $95\%$ CL Viaux:2013lha , in the DFSZ model having the axion-neutrino coupling coefficient $C_{Ae}=\cos^{2}\beta/3$111In the DFSZ model this happens to be the case in which the right-handed electron field couples to the same Higgs doublet that give mass to the u-type quarks. If, on the other hand the right-handed electron field couples to the same Higgs doublet that give mass to the d-type quarks then the axion-neutrino coupling coefficient turns out to be $C_{Ae}=-\mathrm{sin^{2}}\beta/3$, as can be seen in Appendix A, and the corresponding astrophysical limits turns out to be on $m_{A}\,{\mathrm{sin^{2}}\beta}$.. Taking into account Eq. (20) it means that $\cos^{2}\beta<0.0752$ implying that $r_{\nu}<0.034$. This restriction on $r_{\nu}$ is shown in Figure 1 (dark green dashed line) which leads to $0.1$ eV <m_{A}<6.3\ eV for the DFSZ model with the right-handed neutrinos which we present in Appendix A.

IV Results II: Axions decaying into the lightest neutrinos and photons.

Let us suppose now that the axion has only two decay modes: one into a pair of photons, and other into a pair of the lightest neutrinos. In this case, the two relevant branching ratios are

[TABLE]

The probability of $N$ axions decaying in $n_{0}$ photon pairs and $n_{1}=N-n_{0}$ neutrino pairs is

[TABLE]

In the limit $N\rightarrow\infty$, by the central limit theorem, $\Pr(N;n_{0})\rightarrow\frac{\exp\left[-\frac{(n_{0}-N\cdot BR_{0})^{2}}{2NBR_{0}(1-BR_{0})}\right]}{\sqrt{2\pi N\cdot BR_{0}(1-BR_{0})}}$ and the entropy can be written as

[TABLE]

In this case, the maximum of $S_{N}$ given by Eq. (23) ocurrs for

[TABLE]

in close analogy to Eq. 19.

In the Appendix B we derive the algebraic solutions to this equation in details but an important difference to the previous case is that, as shown in the Appendix B, the solutions of Eq. (25) can only be found in terms of the ratio $z\equiv m_{\nu}/m_{A}$. This implies that one parameter remains necessarily free in the inference method. There are two interesting asymptotic regimes which we want to discuss. First $z\approx 1/2$, and second $z<<1$.

The first one is the threshold regime where $m_{A}\approx 2m_{\nu}$. This is a type of solution which we also found in the case where the Higgs boson has an additional decay channel to dark matter Alves:2014ksa .

The second interesting regime occurs when $m_{\nu}<<m_{A}$, in this case it is possible to show that (see Appendix B)

[TABLE]

Moreover, as this relation should be positive, there is a lower bound on $r_{\nu}$ given by

[TABLE]

which is a solution of the fourth order equation in $z$ explicit in Appendix B. This is compatible with the inferred couplings in the case of three neutrinos studied in the previous section.

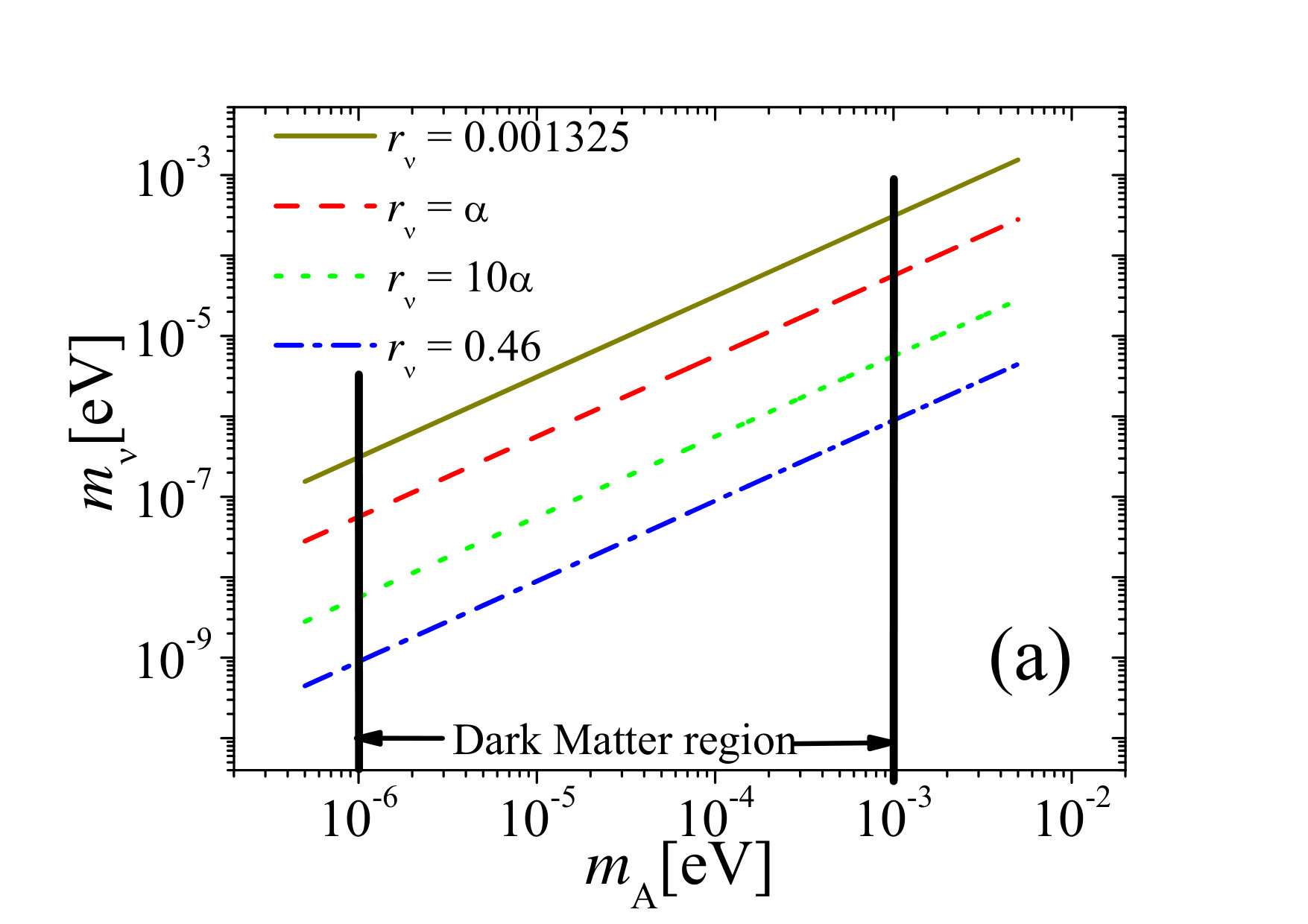

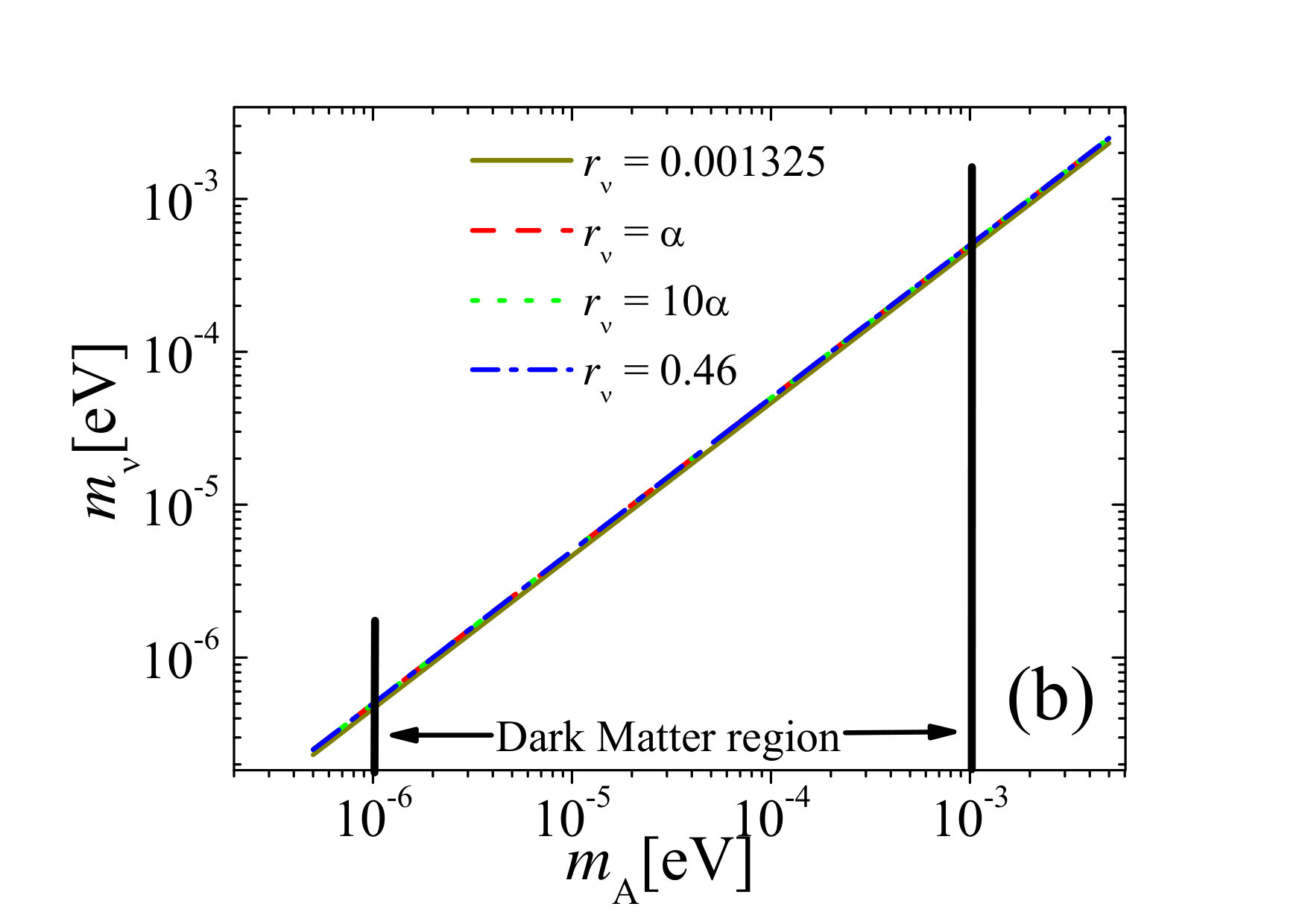

In Figure 3 we show the inferred masses as a function of the axion-neutrino coupling. The upper plot in Figure 3 displays the $z<<1$ regime, so the axion and the neutrino masses can be very different depending on $r_{\nu}$ which varies from the smallest possible value of 0.00132, for which $z$ is positive, up to the maximum value of 0.46 allowed by the axion model under consideration. In the lower plot we show the other interesting regime where $m_{A}\approx 2m_{\nu}$, again allowing the range $0.00132<r_{\nu}<0.46$. In this former case, the mass inference is barely dependent of the coupling constant. In both plots we also show the region of the axion mass parameter where the axion can constitute, at least, part of the cold dark matter of the Universe and be detected by a haloscope like Asztalos:2011bm , or other proposed experiments as Horns:2012jf ; TheMADMAXWorkingGroup:2016hpc ; Millar:2016cjp .

Recently, the axion mass was calculated with lattice QCD methods Borsanyi:2016ksw to lie in the range 10^{-6}\eV$<m_{A}<1.5\times 10^{-3}$ eV which fits exactly in the bulk of the region shown inside the bars in Fig. (3) . If the axion mass confirms the lattice QCD result, one can use the MEP prediction to bound the lightest neutrino mass and the coupling constant with the results presented in this work. Once confirmed, this would add a strong evidence in favor of MEP as a valuable inference tool in particle physics.

V Conclusions

In this paper we employed MEP to a model where axions couple to photons and neutrinos. By demanding that the Shannon entropy of an ensemble of axions decaying to photons and neutrinos be maximized, we made inferences about the masses of the axion taking into account its relationship with neutrinos masses and $r_{\nu}$, which is proportional to the ratio of axion-neutrino coupling constant and axion-photon coupling constant.

In the case where the axion decays into the three neutrino mass eigenstates, and taking the hypothesis that the entropy is assumed to be a function of the axion mass, the lightest neutrino mass, and the $r_{\nu}$ which is the ratio of the axion coupling constants, under the more restrict optimization MEP is able to make a sharp prediction: 0.1\ eV $\ <m_{A}<0.2\;$ eV. On the other hand, if in the entropy $r_{\nu}$ and $m_{\nu}$ are given as inputs, i.e., $S=S(m_{A}|r_{\nu},m_{\nu}$), considering the DFSZ model with right-handed neutrinos, MEP jointly with astrophysical bounds constrain the axion mass to be $0.1$ eV $<m_{A}<6.3$ eV.

If the axion decays only into a pair of the lightest neutrinos and photons, the inference has two regime of solutions allowing the axion as a dark matter candidate. First, when the axion mass is much larger than the lightest neutrino mass, ($z<<1$), the inference of the axion mass has a strong dependence on the ratio of the coupling constant ($r_{\nu}$) as shown in Figure 3 (a). On the other hand, if $m_{A}\approx 2m_{\nu}$ ($z\approx 1/2$), the axion mass has a very weak dependence on $r_{\nu}$ as expected (see Figure 3 (b)). For example: if $m_{A}=10^{-4}$ eV, and $z$ $\approx 1/2$, the MEP fixes the lightest neutrino mass around $5\times 10^{-5}$ eV; However, if $z<<1$, the MEP predicts lightest neutrino mass within $10^{-8}$eV$\ <m_{\nu}<10^{-5}$eV. In this case, for example, if $r_{\nu}=\alpha$, then $m_{\nu}=7\times 10^{-6}$ eV.

Finally, we would like to stress that MEP can furnish a sharp prediction if the neutrino mass is determined and knowing $r_{\nu}$ from some model as shown in our Figure 1.

Appendix A Ultraviolet model completion for to the axion-neutrinos effective

Lagrangian.

The effective Lagrangian in Eq. (3) might originate from UV completed models having a global chiral $U(1)_{PQ}$ Peccei-Quinn symmetry. Such a symmetry is characterized by the fact it has an anomaly in the quarks sector, leading to a mechanism for solving the strong CP problem Peccei:1977hh . The $U(1)_{PQ}$ symmetry is assumed to be spontaneously broken at an very high energy scale giving rise to a pseudo Nambu-Goldstone boson, the axion Weinberg:1977ma ; Wilczek:1977pj .

A model leading to the effective Lagrangian in Eq. (3) must have neutrinos fields carrying charge of the $U(1)_{PQ}$ symmetry. In order to have a plausible model we consider the DFSZ invisible axion model Zhitnitsky:1980tq ; Dine:1981rt , and add to it three right-handed neutrinos $\nu_{iR}^{\prime}$ 222Recently, some axion models with right-handed neutrinos have been proposed to deal with others problems left open by the Standard Model, like for example the neutrinos masses invoking the type-I seesaw mechanism Dias:2014osa ; Celis:2014zaa ; Celis:2014iua ; Clarke:2015bea . In the model example we assume here the neutrinos are taken to be of the Dirac type. Also, we do not specify any mechanism for generating small masses for those particles since this is not the focus of our work.. The DFSZ model contains a neutral singlet scalar field, $\sigma(x)$, and two Higgs doublets, $H_{u}(x)$, $H_{d}(x)$, with all these fields carrying charge of the $U(1)_{PQ}$ symmetry. The scalar potential constructed from these fields is assumed to have a non-trivial minimum with the vacuum expectation values $\langle\sigma\rangle=v_{\sigma}/\sqrt{2}$, breaking the $U(1)_{PQ}$ symmetry, and $\langle H_{u,d}\rangle=[0\,\,v_{u,d}/\sqrt{2}]^{T}$, breaking the electroweak $SU(2)_{L}\otimes U(1)_{Y}$ symmetry. These vacuum expectation values satisfies $\sqrt{v_{u}^{2}+v_{d}^{2}}=v=246$ GeV $\ll v_{\sigma}$. Also, it can be seen that the decay constant is such that $f_{a^{\prime}}=\sqrt{v_{\sigma}^{2}+4v_{u}^{2}v_{d}^{2}/v^{2}}\approx v_{\sigma}$.

Let us see how the coefficient $C_{A\nu}$ of the axion-neutrinos coupling in Eq. (3) are determined in a specific model. Such a coefficient depends on how the neutrinos fields couple to the scalar fields. Omitting the Goldstone bosons degrees of freedom – absorbed by the electroweak gauge bosons – $\sigma$ and the neutral components of $H_{u}$, $H_{d}$ can be parametrized as

[TABLE]

In this parametrization $h_{d}(x)$, $h_{u}(x)$, and $\rho(x)$ are CP even Higgs fields, which are decoupled from the axion low energy effective Lagrangian in Eq. (3), and $a^{\prime}(x)$ the CP odd pseudo-Nambu-Goldstone boson to be identified with the axion field $A(x)$. Such an identification is done by mean of the axion-gluons coupling defined as

[TABLE]

so that the relation in the relation

[TABLE]

the energy scale $f_{A}$ is the axion decay constant, with $C_{{a^{\prime}}g}$ being the axion-gluon anomaly coefficient of the model. For the model we are taking into account the axion-gluon anomaly coefficient is $C_{{a^{\prime}}g}=3(X_{u}+X_{d})=6$. The charges of the $U(1)_{PQ}$ symmetry of the scalar fields $\sigma$, $H_{u}$, and $H_{d}$ are, respectively, $X_{\sigma}=1$, $-X_{u}=-2\,\mathrm{cos^{2}}\beta$, and $X_{d}=2\,\mathrm{sin^{2}}\beta$, with $\mathrm{tan}\beta=v_{u}/v_{d}$.

We assume that the axion-neutrino coupling arises from an interaction involving the Standard Model left-handed lepton doublets, $L_{i}$, according to the following Yukawa interaction

[TABLE]

in which $F_{ij}$, with $i,j=1,2,3$, is a $3\times 3$ matrix, and $b=u$ or $d$ if $\nu_{iR}^{\prime}$ couples to ${H}_{u}$ or ${H}_{u}$. We also assume that Majorana mass terms $m_{ij}\,\overline{\nu_{iR}^{\prime c}}\nu_{jR}^{\prime}$ are suppressed, by the $U(1)_{PQ}$ symmetry or some other extra symmetry, relative to the Dirac mass terms arising from Eq. (33). Neutrinos masses at the sub-eV scale require small couplings $F_{ij}$ ($\lesssim 10^{-12}$ for $v_{d}\sim 100$ GeV). It is not essential to our developments to make explicit a mechanism for achieving those small couplings $F_{ij}$ and forbidden the Majorana mass terms, but we mention that this could be done with discrete symmetries allowing certain non-renormalizable operators Dias:2005dn . After electroweak symmetry breakdown Eq. (33) leads to

[TABLE]

With a chiral rotation $\nu_{jR}^{\prime}\rightarrow\nu_{jR}^{\prime}\exp\left[iX_{H_{b}}{a^{\prime}(x)}/{f_{a^{\prime}}}\right]$, the field $a^{\prime}(x)$ is removed from the above interaction leaving it as a Dirac mass term. But the coupling of the $a^{\prime}(x)$ field with the neutrinos fields is induced from the kinetic term $\overline{\nu}^{\prime}_{iR}i\gamma^{\mu}{\nu}^{\prime}_{iR}\partial_{\mu}a^{\prime}$ as

[TABLE]

where ${\nu}_{i}$ denotes neutrinos mass eigenstates. Thus, defining $C_{A\nu}=X_{H_{b}}/C_{{a^{\prime}}g}$ in Eq. (35) we have the axion-neutrino interaction in the effective Lagrangian of Eq. (3). The coefficient $C_{\nu}$ in this model is

[TABLE]

For example, if only $H_{d}$ couples to the charged right-handed charged leptons fields the ratio of anomaly coefficients in Eq. (6) is ${C_{a^{\prime}\gamma}}/{C_{a^{\prime}g}}=8/3$, so that ${\widetilde{C}}_{A\gamma}\approx 0.72$. In this case $r_{\nu}=|C_{A\nu}/{\widetilde{C}}_{A\gamma}|\approx 0.46\,\mathrm{cos^{2}}\beta$ (or $0.46\,\mathrm{sin^{2}}\beta$). On the other hand, if only $H_{u}$ couples to the charged right-handed charged leptons fields the ratio of anomaly coefficients in Eq. (6) is ${C_{a^{\prime}\gamma}}/{C_{a^{\prime}g}}=2/3$, and ${\widetilde{C}}_{A\gamma}\approx-1.28$. In this case $|r_{\nu}|=|C_{A\nu}/{\widetilde{C}}_{A\gamma}|\approx 0.26\,\mathrm{cos^{2}}\beta$ (or $0.26\,\mathrm{sin^{2}}\beta$). The expressions for the coefficients ${C_{a^{\prime}\gamma}}/{C_{a^{\prime}g}}$ can be found in Dias:2014osa .

Just for completion we present the axion-electron coupling in the DFSZ model we are considering. Proceeding with a chiral rotation in the right-handed charged leptons singlet fields $e_{iR}^{\prime}\rightarrow e_{iR}^{\prime}\exp\left[-iX_{H_{b}}{a^{\prime}(x)}/{f_{a^{\prime}}}\right]$ the coefficients of the axion-electron derivative coupling is

[TABLE]

Appendix B Algebraic solutions in the one neutrino case

The solution of this equation $BR_{\gamma\gamma}(C_{\nu},m_{A},m_{\nu})=1/2$ leads to equation

[TABLE]

where $z^{2}=\frac{m_{\nu}^{2}}{m_{A}^{2}}$. Writing such equation in $x=z^{2}$, a simple cubic equation appears:

[TABLE]

where $a=4$, $b=-1$, $c=0$ and, $d(r_{\nu})=\left(32\pi^{2}\frac{r_{\nu}^{2}}{\alpha^{2}}\right)^{-2}$.

Denoting $p=\frac{c}{a}-\frac{b^{2}}{3a^{2}}=-\frac{1}{48}$, and $q(\overline{C_{\nu}})=\frac{2b^{3}}{27a^{3}}-\frac{bc}{3a^{2}}+\frac{d(r_{\nu})}{a}=\frac{-2}{27\cdot 4^{3}}+\frac{1}{4}\left(32\pi^{2}\frac{r_{\nu}^{2}}{\alpha^{2}}\right)^{-2}=\allowbreak\frac{1}{4096\pi^{4}}\frac{\alpha^{4}}{r_{\nu}^{4}}-\frac{1}{864}$ and defining

[TABLE]

and by solving this cubic equation we have 3 solutions:

[TABLE]

where $t(r_{\nu})=\left(-\frac{q(r_{\nu})}{2}+\frac{1}{2}\sqrt{\Delta(r_{\nu})}\right)^{1/3}+\left(-\frac{q(r_{\nu})}{2}-\frac{1}{2}\sqrt{\Delta(r_{\nu})}\right)^{1/3}$,

[TABLE]

and

[TABLE]

We must observe that only $x_{1}$ and $x_{2}$ are positive numbers while $x_{3}$ is negative, as we observe in Figure 4 that show $x_{1}$, $x_{2}$, and $x_{3}$ as function of $r_{\nu}$.

So, both solutions $x_{1}$ and $x_{2}$ determine two direct relations between the axion mass and the neutrino mass: $m_{A}=x_{1}^{-1/2}(r_{\nu})m_{\nu}$ and $m_{A}=x_{2}^{-1/2}(r_{\nu})m_{\nu}$. By Figure 4, we can obtain the two asymptotic cases by considering two situations:

Situation I: $z<<1$;

For such situation, we can consider the approximation: $G(z)=z^{2}\sqrt{1-4z^{2}}\approx z^{2}-2z^{4}=\frac{\alpha^{2}}{32\pi^{2}r_{\nu}^{2}}$, which leads to a simple relation:

[TABLE]

valid for$\ r_{\nu}\geq\frac{\sqrt{3\sqrt{3}}\alpha}{4\pi}\simeq 0.00132$, which asymptotically behaves as

[TABLE]

and therefore $\frac{m_{\nu}}{m_{A}}\rightarrow 0$ when $r_{\nu}\rightarrow\infty$.

Situation II: $z\approx 1/2$;

In this case  we consider the approximation: $G(z)=z^{2}\sqrt{1-4z^{2}}=z^{2}\sqrt{(1-2z)(1+2z)}\approx\frac{1}{4}\sqrt{2(1-2z)}=\frac{\alpha^{2}}{32\pi^{2}r_{\nu}^{2}}$. We have

[TABLE]

for higher $r_{\nu}$.

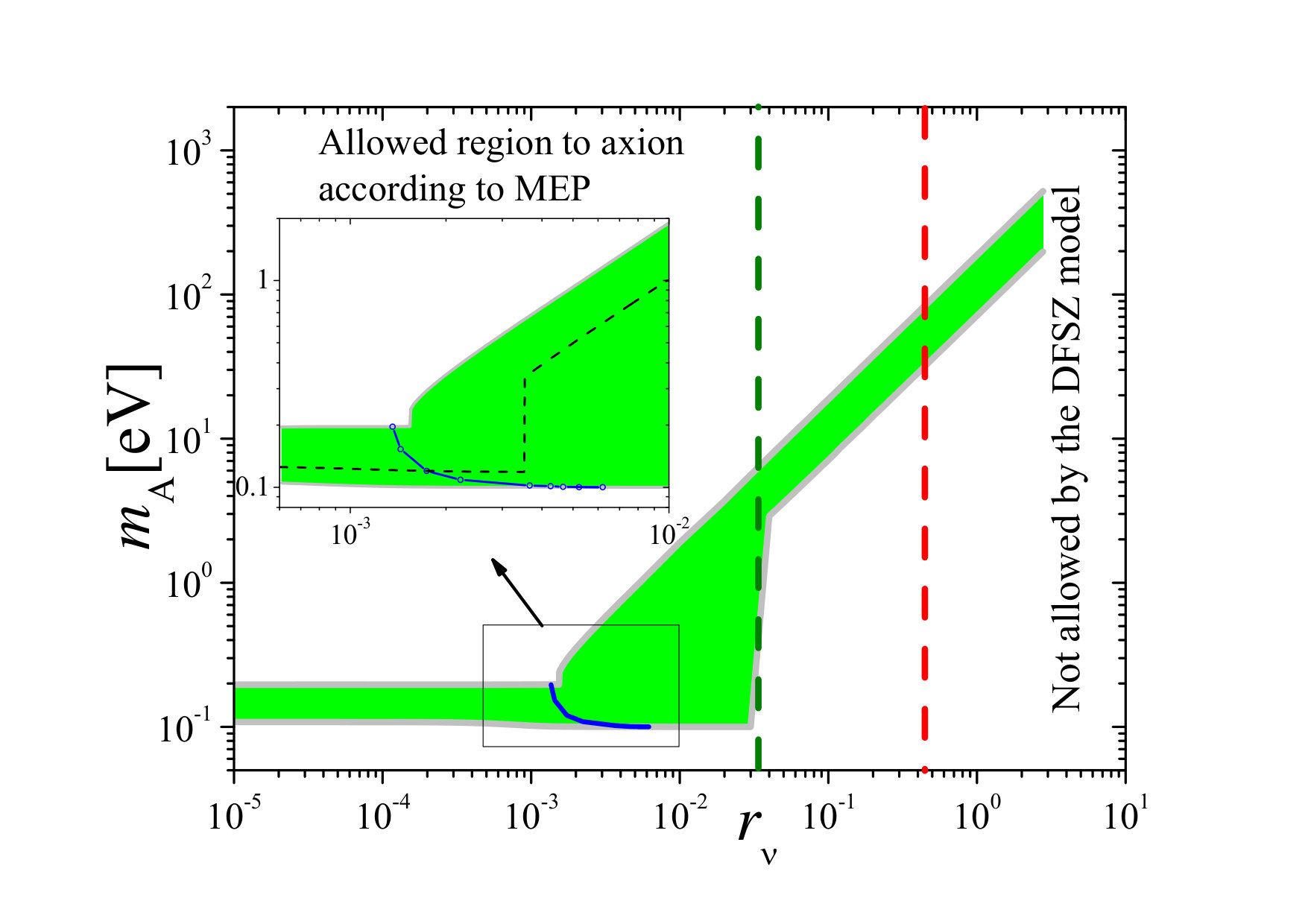

Let us better explore some important points. In Figure 5 we can observe such result from two different ways. Left plot shows the maximum condition $BR_{0}=1/2$. The parallel lines represent different values of $\left(32\pi^{2}\frac{r_{\nu}^{2}}{\alpha^{2}}\right)^{-1}$while the curve corresponds to the plot of $z^{2}(1-4z^{2})^{1/2}$. We can see that given $r_{\nu}$ we obtain two distinct values of $z$ (two intersections). For $r_{\nu}\simeq 0.00132$ we have a only intersection point which corresponds to the $z=1/\sqrt{6}\simeq 0.408\,$. In Right plot we check the same situation but looking for the entropy. We consider $S_{0}$ in the base two and not $e$. This implicates that maximum of the $S_{0}$ is $-2$ ($BR_{0}=BR_{1}=1/2$). This global maximum occurs for two distinct $z$-values for different values of $r_{\nu}$ except by $z=$ $1/\sqrt{6}$ (or $r_{\nu}=0.00132$).
