Multi-component order parameter superconductivity of Sr$_2$RuO$_4$ revealed by topological junctions

TL;DR

This study uses topological Nb/Ru/Sr$_2$RuO$_4$ junctions to investigate the multi-component order parameter of Sr$_2$RuO$_4$, revealing distinct behaviors between the 1.5-K chiral p-wave phase and the 3-K phase.

Contribution

It demonstrates the use of topological junctions to differentiate between multi-component and single-component superconducting phases in Sr$_2$RuO$_4$.

Findings

Large noise in 1.5-K phase disappears in 3-K phase

Chiral domain-wall motion explains junction behavior differences

Confirms multi-component order parameter in 1.5-K phase

Abstract

Single crystals of the Sr$_2$RuO$_4$-Ru eutectic system are known to exhibit enhanced superconductivity at 3~K, in addition to the bulk superconductivity of Sr$_2$RuO$_4$ at 1.5~K. The 1.5-K phase is believed to be a spin-triplet, chiral $p$-wave state with the multi-component order parameter, giving rise to chiral domain structure. In contrast, the 3-K phase is attributable to enhanced superconductivity of Sr$_2$RuO$_4$ in the strained interface region between Ru inclusion of a few to tens of micrometers in size and the surrounding Sr$_2$RuO$_4$. We investigate the dynamic behavior of a topological junction, where a superconductor is surrounded by another superconductor. Specifically, we fabricated Nb/Ru/Sr$_2$RuO$_4$ topological superconducting junctions, in which the difference in phase winding between the $s$-wave superconductivity in Ru micro-islands induced from Nb and the superconductivity of Sr$_2$RuO$_4$ mainly governs the junction behavior. Comparative results of the asymmetry, hysteresis and noise in junctions with different sizes, shapes, and configurations of Ru inclusions are explained by the chiral domain-wall motion in these topological junctions. Furthermore, a striking difference between the 1.5-K and 3-K phases is clearly revealed: the large noise in the 1.5-K phase sharply disappears in the 3-K phase. These results confirm the multi-component order-parameter superconductivity of the bulk Sr$_2$RuO$_4$, consistent with the chiral $p$-wave state, and the proposed non-chiral single-component superconductivity of the 3-K phase.

Figures

b). Furthermore, the vortex flow, if playing a crucial role, should be observable below the onset temperature of the 3-K phase or at least below the temperature where zero resistance emerges (1.8 K in the case of STJs). In contrast, the observed asymmetric $I$-$V$ curves with anomalous hysteresis and telegraphic-like noise are observed only when the bulk superconductivity in SRO (see Figs. 4 and 5) sets in. In addition, we again emphasize that we cooled down the junctions rather slowly in a zero-field environment prepared by magnetic shielding in order to suppress any significant effect of tra

Tables

Table 1. Table 1: Properties of junctions at 0.3 K (sorted by the L s / L c subscript 𝐿 s subscript 𝐿 c L_{\textrm{s}}/L_{\textrm{c}} ratio)

	Ru size ($\mu$m2)	$L_{\text{s}}$ ($\mu$m)	$L_{\text{c}}$ ($\mu$m)	$L_{\text{s}}$/$L_{\text{c}}$	stable/unstable switching	state	asymmetry	$I$-$V$ ordinary hysteresis	$I$-$V$ unusual hysteresis	Instability
big-STJ	2$\times$20	36	6.3	5.7	yes	unstable	yes	yes	yes	yes
						stable	yes	small	no	no
equal-DTJ	2$\times$6, 2$\times$6	16	12.6	1.3	yes	unstable	yes	yes	yes	yes
						stable	yes	small	no	no
small-STJ	2$\times$5	6	6.3	1.0	no	stable	yes	yes	no	small
unequal-DTJ	2$\times$6, 2$\times$4	12	12.6	1.0	no	stable	no	no	no	no
ETJ-1	2$\times$3	2	6.3	0.3	no	stable	small	small	no	no
ETJ-2	2$\times$3	2	6.3	0.3	no	stable	small	small	no	no

Equations

$$\begin{array}{r}{I}_{\text{c}}=\text{max}[\frac{I_{\text{co}}}{2\pi }{\int }_0^{{\theta }_{\text{DW}}}d\theta \text{sin}{\phi }_{+}(\theta ;{\theta }_{\text{DW}},\delta \phi )\\ +{\int }_{{\theta }_{\text{DW}}}^{2\pi }d\theta \text{sin}{\phi }_{-}(\theta ;{\theta }_{\text{DW}},\delta \phi )]\end{array}$$

Full text

I Introduction

Spin-triplet superconductivity is rich in physics due to its spin and orbital degrees of freedom compared to ordinary spin-singlet superconductivity. The layered perovskite oxide Sr2RuO4 (SRO) is one of the leading candidates of spin-triplet superconductors (TSCs) with superconducting transition temperature ($T_{\textrm{c}}$) of 1.5 K Maeno2012 . Since the discovery of superconductivity in SRO Maeno1994 , an intensive amount of experimental and theoretical works have been performed to understand the nature of its superconducting order parameter Machenzie2003 ; Maeno2012 ; Anwar2015 ; Anwar2016 .

Superconductivity of SRO is extremely sensitive even to non-magnetic impurities Nikugawa2003 . Spin susceptibility measurements by the nuclear magnetic resonance (NMR) Ishida1998 and the polarized neutron scattering Duffy2000 below $T_{\textrm{c}}$ supports the spin-triplet scenarios. Recently, invariant spin-susceptibility is re-confirmed using Ru and Sr nuclei and O as well Ishida2015 ; Manago2016 . The muon spin rotation and magneto-optical Kerr effect evidence the time-reversal symmetry breaking in the superconducting order parameter of SRO Xia2006 . These observations support the chiral $p$-wave spin-triplet nature of the order parameter that can be represented as $d=\hat{z}(k_{x}\pm ik_{y})$. Recent observations of long range proximity effect emerged at SrRuO3/SRO interface also supports the spin-triplet scenario for SRO Anwar2015 ; Anwar2016 . Because of the orbital phase winding, it is believed that SRO is a typical example of topological superconductors, and gapless states consisting of Majorana fermions are expected to emerge at its boundaries Matsumoto1999 ; Read2000 ; Stone2004 ; Qi2011 ; Kashiwaya2011 ; Alicea2012 ; Tanaka2012 . Extensive theoretical work Maeno2012 also supports that the nature of the orderparameter of SRO is chiral $p$-wave spin-triplet with broken time reversal symmetry, although there are still unresolved issues Hicks2010 ; Yonezawa2013 ; Hassinger2017 .

Two-fold degeneracy of chirality leads to the formation of chiral domains with clockwise $(k_{x}+ik_{y})$ and anticlockwise $(k_{x}-ik_{y})$ chirality in the orbital order parameter. As a result, two chiral domains are naturally separated by a chiral domain wall (chiral-DW), like ferromagnetic domain walls in a ferromagnetic material. Recently, the existence of chiral-DWs and its dynamic behavior has been investigated experimentally and theoretically Kindwingira2006 ; Xia2006 ; Kambara2008 ; Kambara2010 ; Hicks2010 ; Anwar2013 ; Saitoh2015 ; Bouhon2010 ; Nago2016 . Kindwingra $et$ $al.$ Kindwingira2006 , reported complicated and hysteretic diffraction patterns in Pb/Cu/SRO junctions. They explained their data in the scenario of chiral-DW dynamics and suggested the chiral-DW size of the order of 1 $\mu$m. The size of a chiral domain is controversial and it may depend on the experimental probe, e.g. experiments using Kerr effect Xia2006 , probing the bulk time-reversal symmetry breaking, and scanning SQUID Hicks2010 , probing a local magnetic field due to the edge current, suggested 50 $\mu$m and 0.4 $\mu$m, respectively. It is difficult to estimate the upper limit that can also depend on quality of the sample. However, recently Saitoh $et$ $al.$ Saitoh2015 , studied the “inversion symmetry” in the magnetic field dependence of the critical current of Nb/SRO junctions while varying the junction size, and estimated the domain size to be 5 $\mu$m. The value is similar to the value proposed in our previous report Anwar2013 , in which we investigated Nb/Ru/SRO topological junctions and observed the telegraphic noise attributable to chiral-DW motion Anwar2013 .

A “topological junction” consists of a superconductor that is surrounded by another superconductor in such a way that the difference in phase winding mainly dictates the junction behavior Anwar2013 ; Nakamura2011 ; Nakamura2012 . Intuitively, transport properties of a topological junction where a spin-singlet superconductor (SSC) is surrounded by a chiral $p$-wave TSC can also detect the dynamic behavior of the order parameter of TSC. We have already reported such dynamic behavior in topological junctions that are fabricated using naturally existing Ru metal inclusions inside SRO-Ru eutectic single crystals. Spin-singlet superconductivity is induced into Ru by putting Nb ($T_{\textrm{c}}$=9 K) directly onto a Ru inclusion. For utilization of chiral-DWs of SRO based junctions, it is now important to investigate the controllability of chiral-DW motion. In this article, we report our systematic study of current voltage ($I$-$V$) characteristics of Nb/Ru/SRO junctions fabricated in different configurations. It is observed that chiral domain dynamics is strictly related to the geometry and size of junctions.

II Experimentation

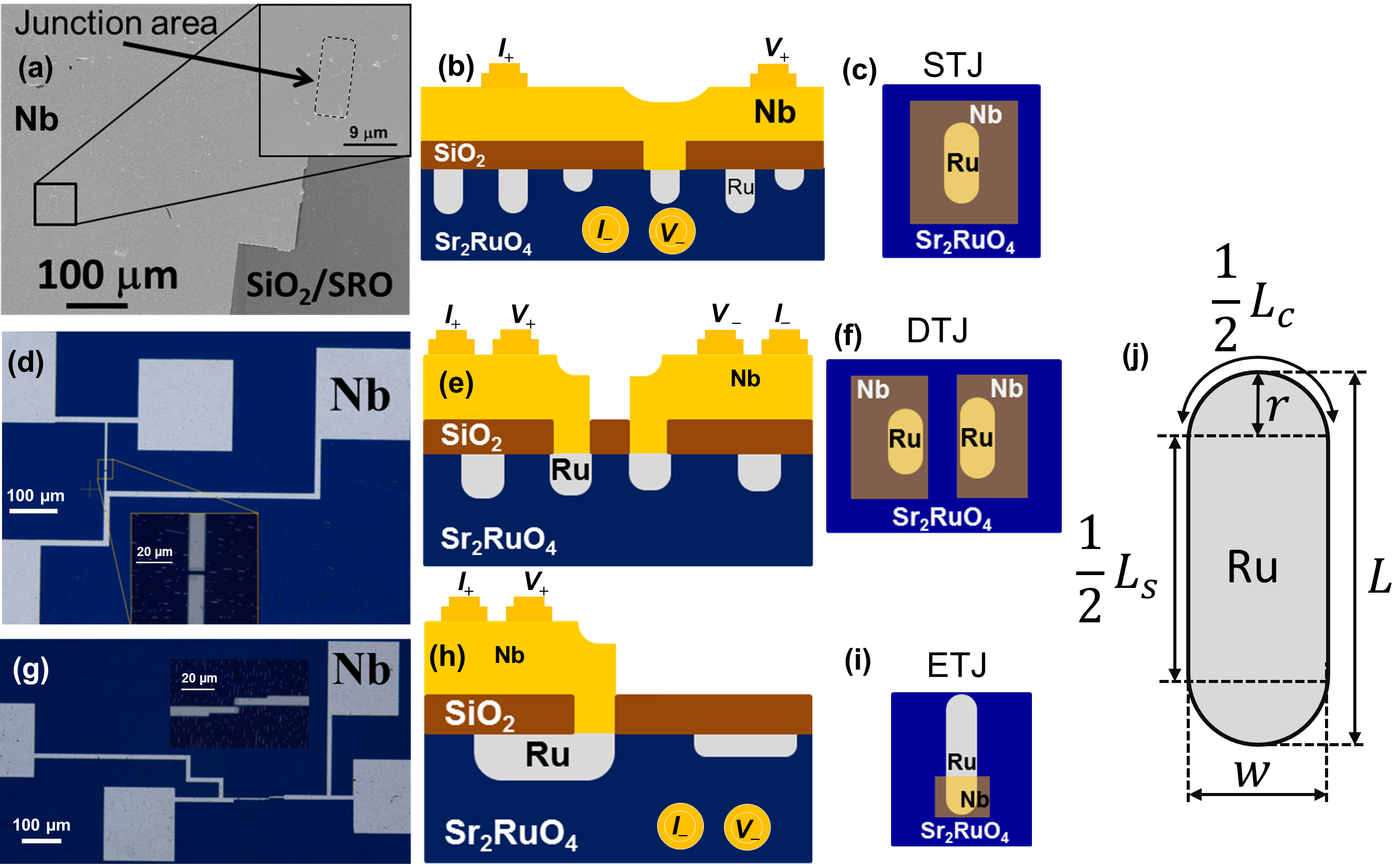

We fabricated Nb/Ru/SRO micron-sized superconducting topological junctions using SRO-Ru eutectic crystals. Typically the width of a Ru inclusion is $\approx$ 2 $\mu$m, the length is of the order of 1-50 $\mu$m, and the depth is about 10 $\mu$m Maeno1998 . The crystals were grown using a floating zone method Mao2000 . In a SRO-Ru eutectic crystal, the onset $T_{\textrm{c}}$ is significantly enhanced up to 3 K. This superconducting phase with enhanced $T_{\textrm{c}}$ is known as the 3-K phase Maeno1998 ; Yaguchi2003 . As suggested by various measurements Yaguchi2003 ; Maeno2012 , the 3-K phase emerges at the SRO/Ru interface, possibly because of induced local strain on SRO side as demonstrated using pure SRO under uniaxial strains Hicks2014 ; Taniguchi2015 ; Hicks2017 .

Rectangular SRO-Ru substrates of the size 3$\times$3$\times$0.5 mm3 were prepared by cutting the crystal along the $ac$-plane and cleaving it along the $ab$-plane. Note that the $ab$-surface of SRO does not show a good electrical contact with metals like Nb, Pb, etc., because of its bad adhesion and possible surface reconstruction of the Ru-O octahedra Matzdorf2000 . However, Ru metal inclusions provide a good adhesion to develop a good electrical contact. On the other hand, epitaxial growth of a materials with relatively lower crystal mismatch on SRO can also improve the electrical contact Anwar2015 ; Anwar2016 . More importantly, a Ru inclusion naturally provides an embedded metal surrounded by a TSC, being quite suitable to develop a topological junction. For these reasons, we used SRO-Ru eutectic crystals.

Next, the $ab$-surface of SRO substrates was polished using diamond slurry of 0.25-$\mu$m average particle size. Shortly after, a 300-nm thick SiOx layer was deposited on the $ab$-surface using RF sputtering technique with a backing pressure of $\approx$ 10*-7* mbar. Such a thick insulating layer guarantees the prevention any pin-holes to provide a short between Nb and Sr2RuO4. Then we coated the substrate with the photoresist (TSMR-8800) and exposed the photoresist with maskless lithography based on UV-laser only selected areas to achieve targeted junction geometries. The exposed resist was removed with TMAH2-83$\%$ developer for 120 sec. The substrate was rinsed with DI-water for 30 sec and dried with N2 gas. The exposed part of the SiOx layer was etched away with CHF3 gas, which opened a window over a desired area that we want to use as a junction area. In this process, a fluoride thin film may be generated on the surface of the sample. Therefore, we performed O2 plasma cleaning of the junction area. The resist was removed using N-methyl-2-pyrolidone (NMP) and the substrate was cleaned with acetone and isopropanol. In the next step, we prepared the Nb electrodes using a lift-off technique with bilayer photoresist (LOR-10A and TSMR-8800) and by UV-laser photolithography. Ar-ion etching was performed in situ immediately prior to deposition of Nb layer in order to remove newly formed RuOx layer. A 600-nm thick Nb layer was sputtered with a base pressure of $10^{-9}$ mbar. Finally, the lift-off was accomplished with NMP.

It is a natural question whether we can control the dynamic behavior by changing the junctions configurations. To find the answer, we investigated the topological junctions with different configurations. The first type is single topological junctions (STJs), where a Nb electrode was deposited over a full single Ru-inclusion as presented in Fig. 1(a-c). For these junctions, two electrical leads ($\phi$ 25 $\mu$m gold wires) were connected with Nb electrode and other two leads were connected directly to a side of the eutectic crystal as shown in Fig. 1b. We prepared two STJs, one with a 20-$\mu$m long Ru inclusion (big-STJ) and another with a 5-$\mu$m long Ru inclusion (small-STJ). The second type is double topological junctions (DTJs), in which two separate Nb electrodes were deposited on two parallel and 4-$\mu$m-apart Ru inclusions (see Fig. 1(d-f)). For DTJs, two electrical leads were connected to each of the Nb electrodes. We prepared two different DTJs: equal-DTJ, where both Ru-inclusions are of the same size ($\approx$ 6 $\mu$m long) and unequal-DTJ, where one Ru-inclusion is 4-$\mu$m long and the other is 6-$\mu$m long. The third type is edge topological junctions (ETJs), in which one Nb electrode was deposited only on the edge of Ru inclusion ($3\times 2~{}\mu$m2), as shown in Fig. 1(g-i). The lead configuration of this type of junction is similar to that for the STJ (Fig. 1(h)). Figure 1j shows schematically a rectangular with round tips Ru-inclusion with total length $L$ and width $w$. The total length of the straight part is $L_{\textrm{s}}=2L_{\textrm{s}}=2(L-2r)=2(L-w)$ and total length of curved part is $L_{\textrm{c}}=2\pi r=\pi w$. For all junctions, gold wires for the electrical leads are attached using room-temperature-cure silver paste (Dupont, 4922N). The transport measurements are performed with a 3He cryostat down to 300 mK. The cryostat was magnetically shielded with high-permeability material (Hamamatsu Photonics, mu-metal).

III Results

III.1 Temperature-dependent resistance

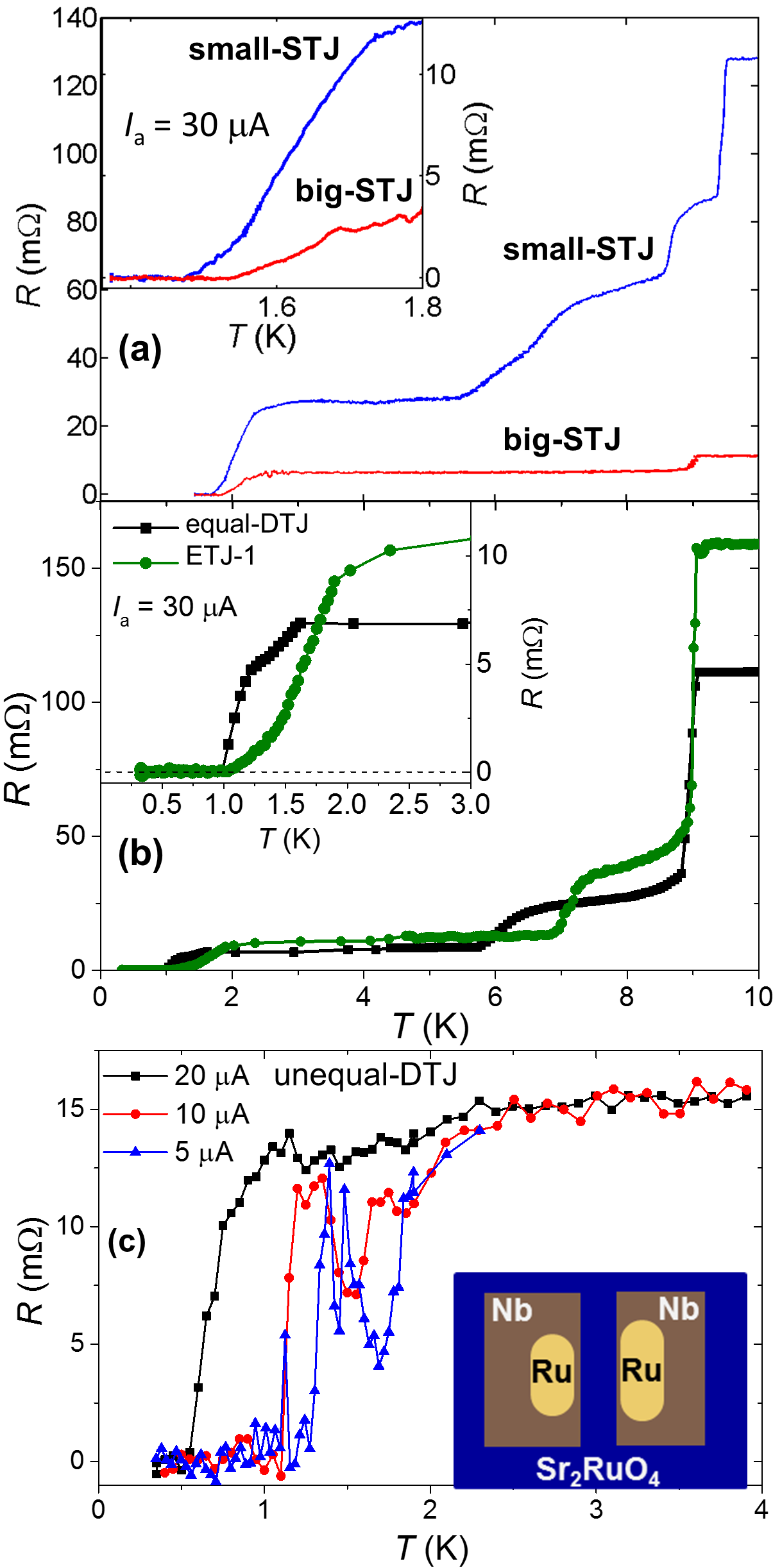

Figure 2(a) presents the temperature dependent resistance data of a big and a small STJs. Different superconducting transitions are observed. The first sharp transition around 9 K is corresponding to $T_{\textrm{c}}$ of Nb that is not much different than the bulk $T_{\textrm{c}}$ of Nb. It reflects the good quality of the Nb layers. Final transition starts around 2.8 K is initiating from 3-K phase that leads to zero resistance close to 1.8 K (1.6 K) for big-STJ (small-STJ). Normal state resistance defined at 10 K is of ther order of 100-150 m$\Omega$. It indicates the formation of metallic interface between Ru and Nb. Note, zero resistance is achieved significantly above the $T_{\textrm{c-bulk}}$ ($T_{\textrm{c}}$ of 1.5-K phase) Anwar2013 . Figure 2(b) shows the temperature dependent resistance of the equal-DTJ and ETJ, measured with 30 $\mu$A applied current ($I_{\textrm{a}}$). Multiple transitions are obviously present. For all of these junctions, the first transition occurs at 9 K corresponding to superconductivity in the Nb electrodes. However, the second and broad transition appears at 5.8 K and 6.5 K for equal-DTJ and ETJ, respectively. This second transition arises due to the induction of spin-singlet superconducting correlations into the Ru metal. At lower temperatures, the transition corresponding to the 3-K phase occurs at 1.5 K and 2 K for equal-DTJ and ETJ, with zero resistance transition at 0.9 K and 1 K, respectively. These junctions exhibit the zero resistance $T_{\textrm{c}}$ lower than the ideal $T_{\textrm{c}}$ of the bulk SRO (1.5 K) due to lower critical current density and/or lower Nb/Ru interface transparency.

Figure 2(c) presents the resistance as a function of temperature for an unequal-DTJ. For this junction, we present the resistance data only below 4 K, focusing on the transitions at lower temperatures since the transitions at higher temperatures are similar to those in the other junctions. Interestingly, a sharp transition occurs at 1.75 K for applied current $I_{\textrm{a}}=5~{}\mu$A (blue triangles). On further cooling, normal state resistance is recovered at around 1.4 K and jumps to zero resistance at 1.25 K. This anomalous behaviour is suppressed with the increase in $I_{\textrm{a}}$. Note that the normal state resistance is robust again increase in $I_{\textrm{a}}$. These facts indicate that a strong suppression in the critical current only in the vicinity of the 1.5-K phase transition Nakamura2011 attributable to topological phase competition between the $s$-wave and $p$-wave superconductivity. Such behavior was not observed in other topological junctions studied here. Although such strong suppression was reported in Refs. Nakamura2011, ; Nakamura2012, , it was not observed in other simpler topological junctions studied here.

III.2 Current-voltage curves

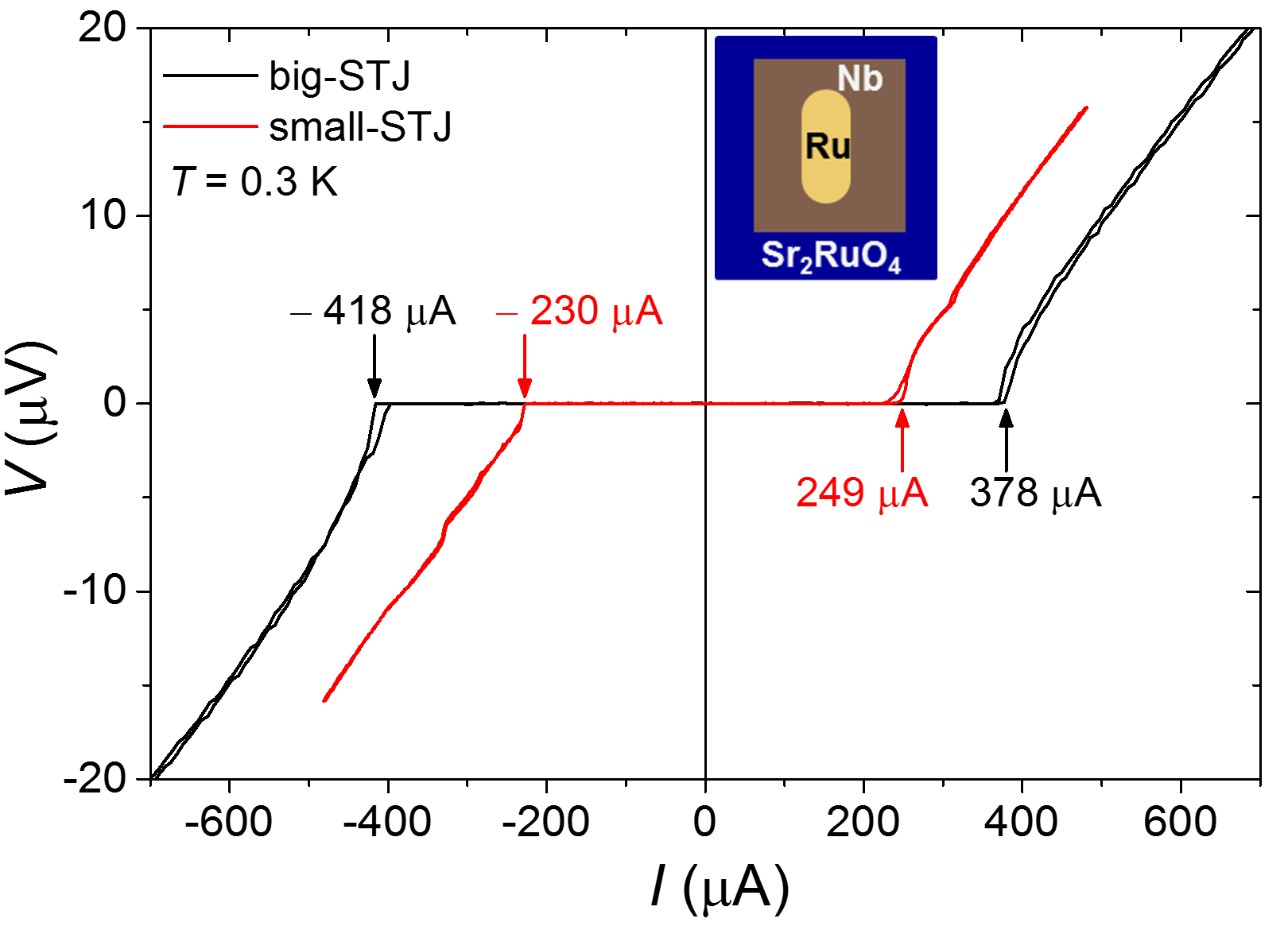

Figure 3 shows current-voltage ($I$-$V$) curves at 0.3 K for the big-STJ (black curve) and small-STJ (red curve); schematic of the junction is shown as the inset of Fig. 3. Both junctions exhibit asymmetric $I$-$V$ curves with respect to the direction of the current ($I_{\textrm{c+}}\neq|I_{\textrm{c-}}|$). It is observed that $\Delta I_{\textrm{c}}=I_{\textrm{c+}}-|I_{\textrm{c-}}|=-40~{}\mu$A and $+19~{}\mu$A for the big-STJ and small-STJ, respectively. The sign and magnitude of the observed asymmetry ($\Delta I_{\textrm{c}}$) varies with cooling cycles. Below $T_{\textrm{c-bulk}}$, the $I$-$V$ curves in most cases are asymmetric, but always become symmetric above $T_{\textrm{c-bulk}}$ (see Fig. 4c). This asymmetric behavior below $T_{\textrm{c-bulk}}$ is consistent with the previous observations on Pb/Ru/SRO junctions, where Pb electrodes were deposited on many Ru inclusionsNakamura2011 ; Nakamura2012 . If such asymmetric $I$-$V$ curves arises due to some inhomogeneity or asymmetry at the interfaces of the junction, the asymmetry should not be altered by thermal cycles. On the other hand, some trapped vortices and/or current crowding at the interface can also give rise to asymmetric $I$-$V$s. If it is the case, the asymmetry must present even in the 3-K phase. These are in contrast with the present and previous observations Nakamura2011 ; Nakamura2012 ; Anwar2013 . Thus, the asymmetry is probably attributable to existence of chiral-DWs: our junctions exhibit different chiral-DW configurations depending on current sweeps and cooling cycles.

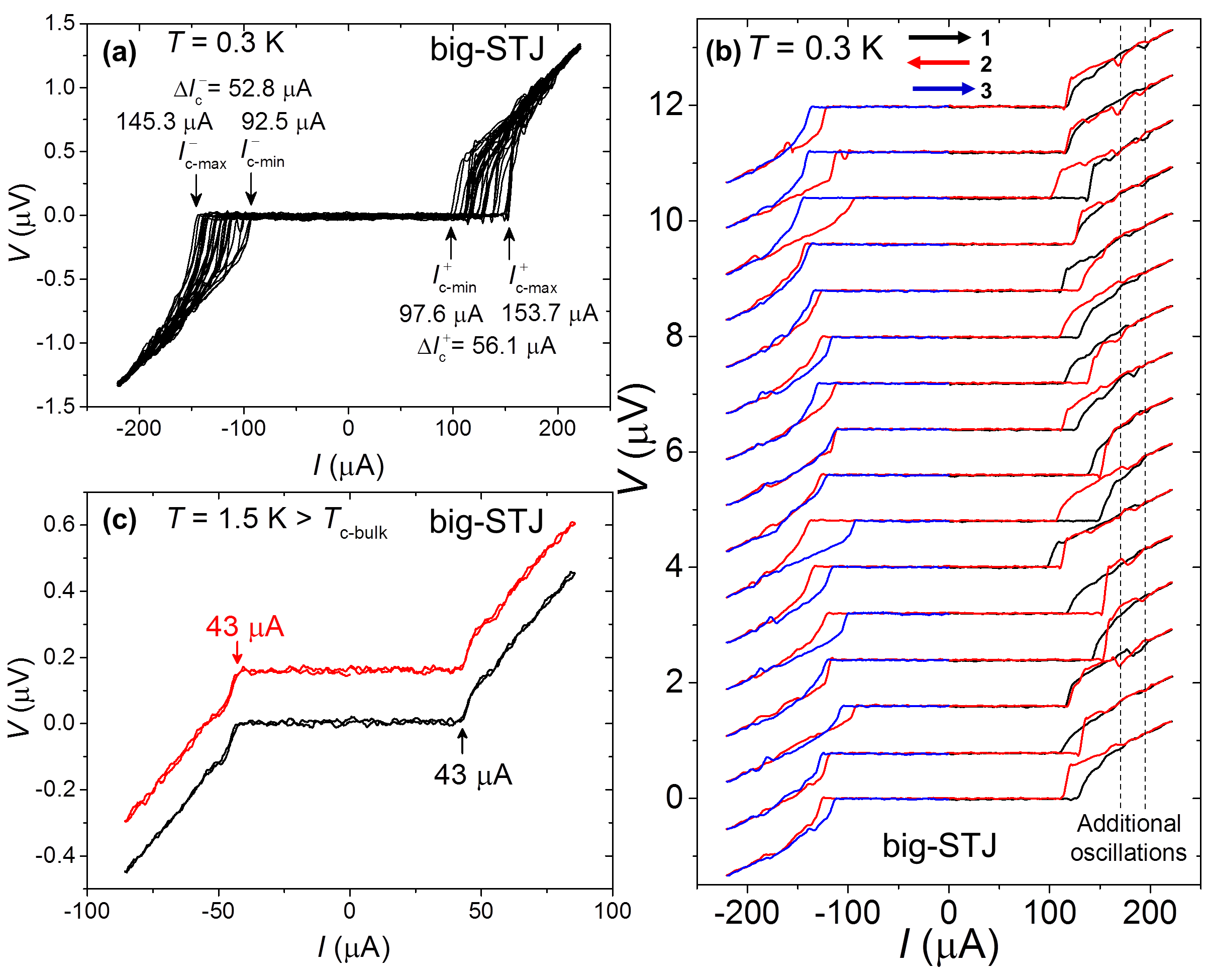

Interestingly, these junctions do not show the same behavior for every cooling cycle. Figure 4a represents sixteen $I$-$V$ curves of a big-STJ measured consecutively (without disturbing temperature) at 0.3 K during another cooling cycle different from that presented in Fig. 3. This time, $I_{\textrm{c}}$ is reduced by more than 50$\%$ and also unstable with the variations more than $\approx$50 $\mu$A. These $I$-$V$ curves also exhibit the unstable and unconventional hysteretic behavior ($I_{\textrm{c}}$ is smaller than the retrapping current $I_{\textrm{r}}$; $I_{\textrm{c}}$¡$I_{\textrm{r}}$), see Fig. 4(b). Only three $I$-$V$ curves out of sixteen exhibit normal hysteretic behavior ($I_{\textrm{c}}>I_{\textrm{r}}$). Note that above $I_{\textrm{c}}$ there are also additional oscillations (mainly two, indicated by the dotted black lines in Fig. 4b). This oscillation demonstrates that the dynamic behavior is present above the critical current of the junction. Such an unstable and hysteretic behavior is observed only below 1.42 K (1.5-K phase). Figure 4c shows two $I$-$V$ curves measured at 1.5 K during two different cooling cycles and in both cases the $I$-$V$ curves are rather stable with no asymmetry and hysteresis.

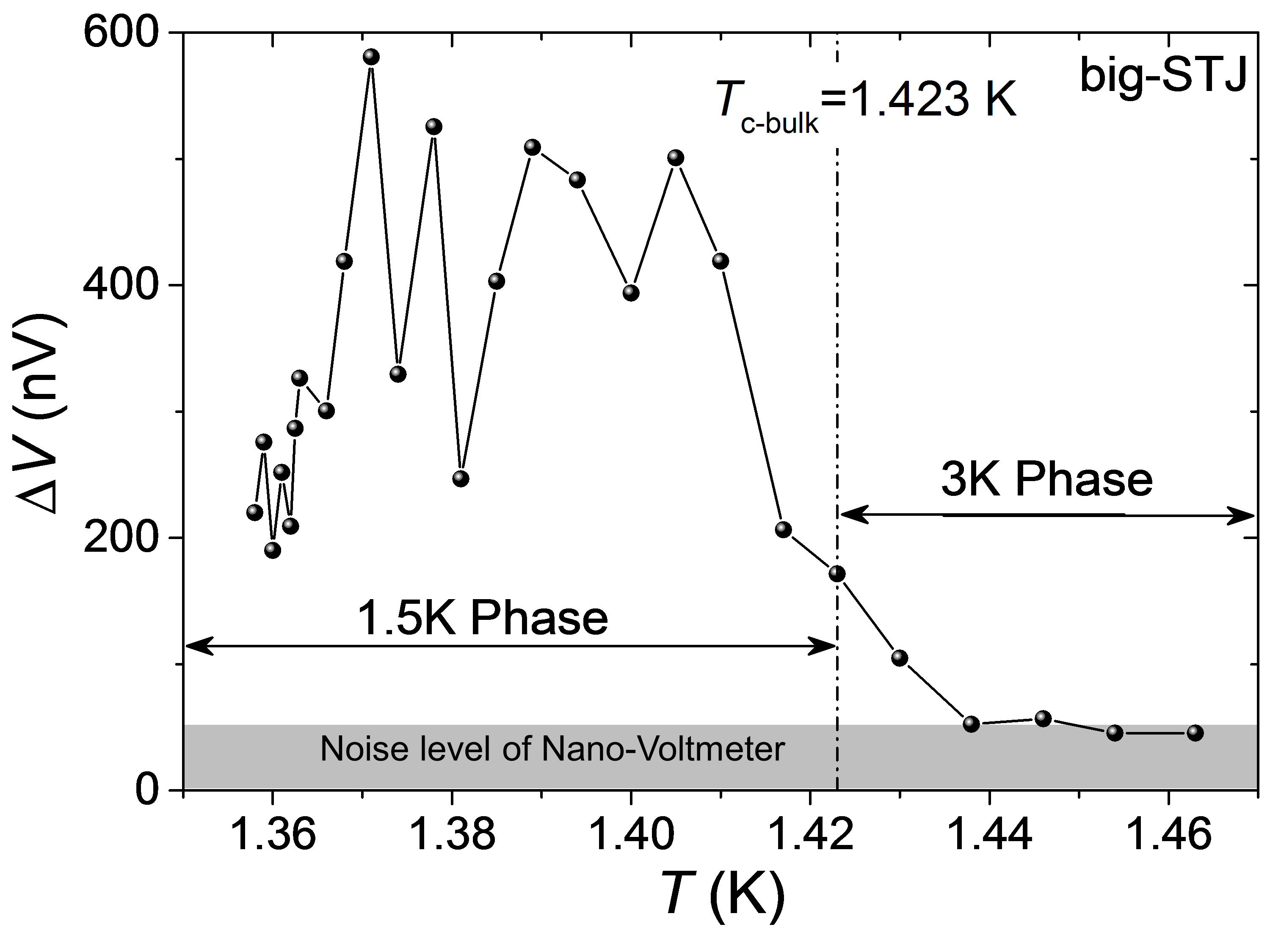

In order to clarify the temperature evolution of the stability, we investigated the voltage as a function time (telegraphic-like noise) at constant applied current while slowly increasing the temperature from 1.36 K to 1.47 K. The applied current is small enough so that $V$=0 even at 1.47 K. One normally anticipate that $V$ stays zero at lower $T$ because $I_{\textrm{c}}$ increase at lower $T$. Interestingly enough, Fig. 5 shows that dynamic behavior is strongly suppressed at 1.423 K, ${\it T}_{\textrm{c-bulk}}$ of SRO single crystals used in these experiments. Furthermore, noise amplitude is higher close to the transition and decreases at lower temperatures with enhanced $I_{\textrm{c}}$.

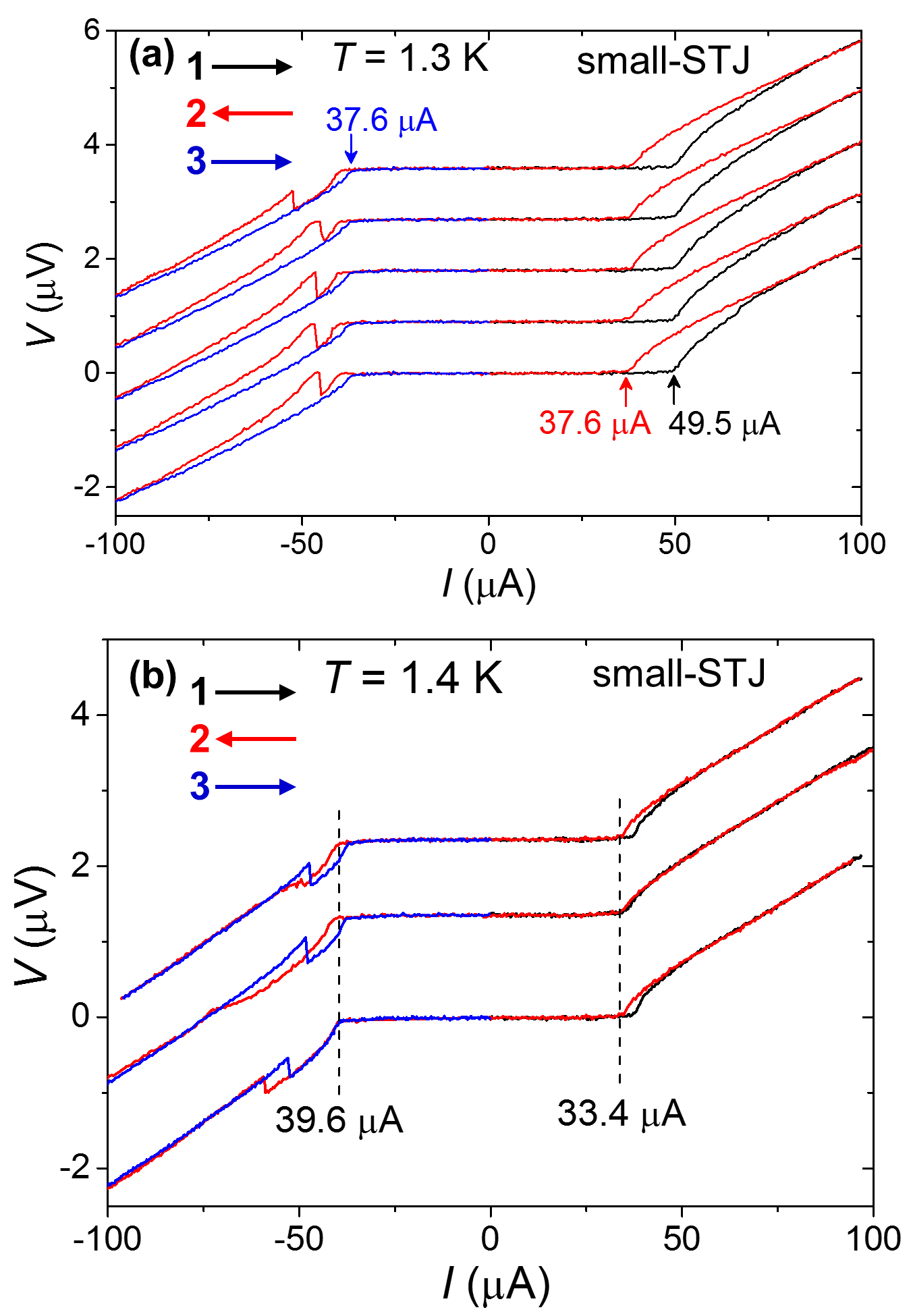

The small-STJ shows rather stable $I$-$V$ curves at low temperatures in almost all cooling cycles. However, as represented in Fig. 6(a) at 1.3 K close to 3-K phase, the $I$-$V$ curves are persistently and strongly hysteretic with normal behavior ($I_{\textrm{c}}>I_{\textrm{r}}$). Interestingly, a sharp and anomalous transition is observed during current-increasing sweep with negative current. Figure 6b presents three consecutive $I$-$V$ curves at 1.4 K but during the another cooling cycle. This time, hysteresis for positive current is suppressed but anomalous transitions occur for both forward and backward sweeps of negative current. These results suggest that stability of topological junctions has improved at low temperatures (0.3 K) with the reduction of the junction area, as shown in Fig. 3; but at higher temperatures (close to the 1.5-K phase transition), they are still relatively unstable.

Previously, most of the studies on Pb/Ru/Sr2RuO4 junctions use Pb patches deposited over many Ru-inclusions. In that case, there are many parallel topological junctions with different cross-sectional areas. In contrast, in the present study and in Ref. Anwar2013, the devices consist of well-defined single or double topological junctions. Interestingly, in all of these studies result in normal junction behavior only above $T_{\textrm{c-bulk}}$; below $T_{\textrm{c-bulk}}$ the junction $I_{\textrm{c}}$ is unstable with asymmetric $I$-$V$s. Nevertheless, only weak signatures of $I_{\textrm{c}}$ suppression is observed in the latter studies with well-defined single or double junctions.

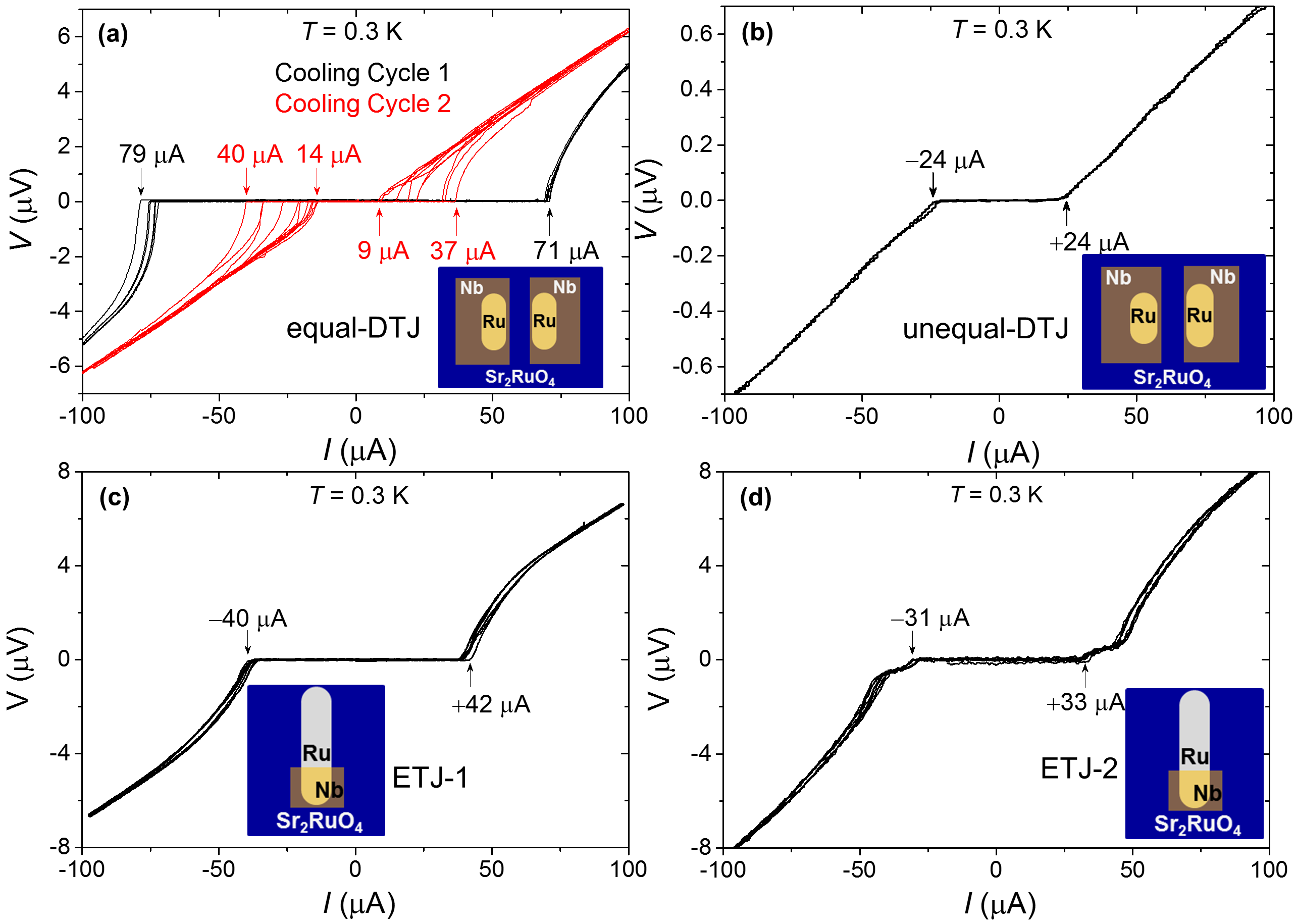

To further understand and control the dynamic behavior of topological junctions, we investigated the DTJs and ETJs. Figure 7(a) shows the $I$-$V$ curves of an equal-DTJ (schematic of the junction is given in the inset of Fig. 7(a)) measured at 0.3 K for two different cooling cycles. Obviously, strong instability in $I_{\textrm{c}}$ with variation of more than $\approx 30~{}\mu$A is observed in the junctions. $I$-$V$ characteristics depend on cooling cycle as well, although the size of one Ru inclusion is $6\times 2~{}\mu$m2 (of the order of junction area of small-STJ, which is rather stable). In the stable state (black curves), $I$-$V$ curves are only weakly asymmetric and no hysteretic behavior is observed. Interestingly, the strong stability is achieved by reducing the size of one of the Ru-inclusions down to $4\times 2~{}\mu$m2 (second Ru-inclusion has the same size of $6\times 2~{}\mu$m2). But this junction (unequal-DTJ) shows rather low critical current even at low temperatures (see Fig. 7(b)). This low critical current is also seen in the resistance behavior; strong suppression of $T_{\textrm{c}}$ even with 20 $\mu$A (Fig. 2(c)). These results suggest that the instability in equal-DTJ arises due to chiral-DW interaction and current distribution around the all round parts of both Ru-inclusions

Figures 7(c) and (d) present $I$-$V$ curves (five consecutive loops) of two different ETJs but of the same junction area ($3\times 2~{}\mu$m2). It is clear that for both of these junction the $I$-$V$ characteristic curves are persistently stable. There still is a very weak normal hysteretic behavior and asymmetry. Nevertheless, these facts, suggest that ETJs exhibit higher stability.

IV Discussions

Before starting our discussion, we briefly summarize our main experimental results related to the stability of our topological junctions fabricated in various configurations. The big-STJ in most cases exhibits unstable behavior with $\approx 60\%$ reduction in critical current compaired with that in a stable state. In the unstable state, the $I$-$V$s exhibit unconventional hysteretic behavior ($I_{\textrm{c}}<I_{\textrm{r}}$) but only below $T_{{\textrm{c-bulk}}}$. Above $T_{\textrm{c-bulk}}$, the $I$-$V$s are rather stable, symmetric and non-hysteretic. The stability can be achieved with the reduction of the junction area down to $6\times 2~{}\mu$m2 the small-STJ. Stability of topological junctions can be controlled also by changing the configuration of the junctions, e.g. equal-DTJ are unstable relative to unequal-DTJ but ETJ is completely stable. Note that instability depends on cooling cycle as well.

Our results reveal that the stability is dependent on junction size, the bigger the more unstable as summarized in Table 1. Furthermore, the unstable behavior emerges only below $T_{{\textrm{c-bulk}}}$. Such a dynamic behaviour is consistently explained by the motion of chiral-DWs of the SRO spin-triplet superconductor. Below, we perform calculations using a simple model based on two chiral-DWs to simulate our results. We consider two chiral-DWs separating two chiral domains with opposite chirality and intersecting a circular Ru-inclusion as illustrated in Fig. 8(a) and 8(b). For simplicity, we fixed one chiral-DW ’F’ at $\theta=0$, while the other chiral-DW ’M’ at some angle $\theta=\theta_{{\textrm{DW}}}$ is free to move between stable and metastable states. For such a chiral-DW configuration, $I_{\textrm{c}}$ can be calculated using the following relation Anwar2013 ,

[TABLE]

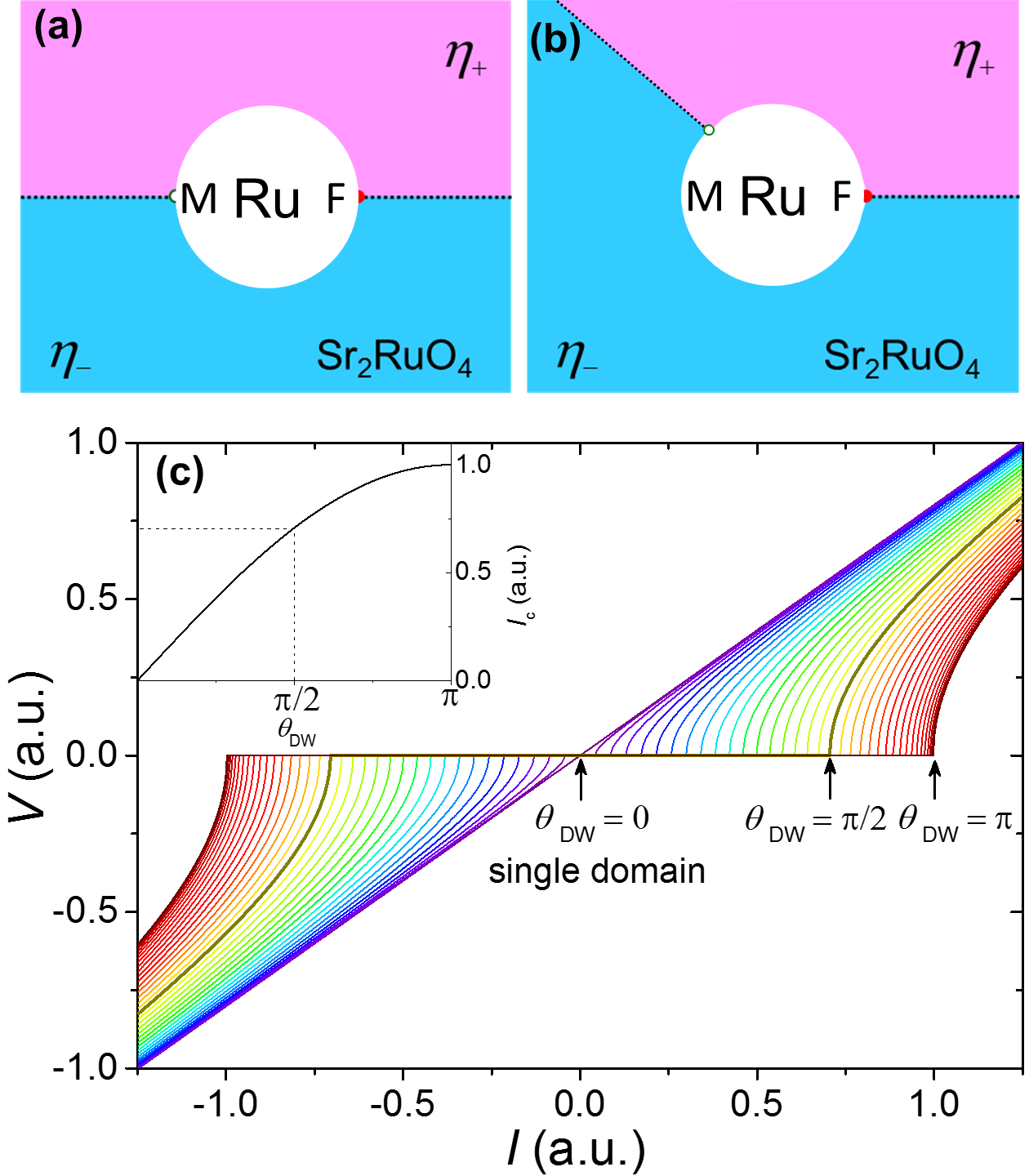

where, $\delta\varphi$ is the phase difference at $\theta=0$ between an $s$-wave spin-singlet superconductivity (induced into Ru from Nb electrode) and $p$-wave spin-triplet superconductivity SRO. For the single-valuedness and symmetry of the order parameter, we consider the phase difference across a chiral-DW $\alpha=\pi-\theta_{\textrm{DW}}$ and $\alpha_{{\textrm{M}}}=-\alpha_{{\textrm{F}}}$ (see Figs. 8(a)) and  8(b) and $\delta\varphi$ is varied so that $I_{\textrm{c}}$ becomes maximal. Calculated $I$-$V$ curves using the relation for an overdamped junction and $I_{\textrm{c}}$ at various $\theta_{\textrm{DW}}$ varying from $0-\pi$ are given in Fig. 8(c). The sinusoidal variations of $I_{\textrm{c}}$ as function of $\theta_{\textrm{DW}}$ is shown in the inset of Fig. 8(c). The maximum $I_{\textrm{c}}$ is found for M at position $\theta_{{\textrm{DW}}}=\pi$ and $\delta\varphi=\alpha=0$ as shown in Fig. 8(a). The $I_{\textrm{c}}$ reduces down by 30% for $\theta_{{\textrm{DW}}}=0.5\pi$ ($\delta\varphi=0.25\pi$ and $\alpha=0.5\pi$); this configuration is shown schematically in Fig. 8(b). The 60% suppression in the $I_{\textrm{c}}$ is achieved at $\theta_{{\textrm{DW}}}=0.3\pi$ ($\delta\varphi=0.35\pi$ and $\alpha=0.7\pi$); such a reduction corresponds to the small $I_{\textrm{c}}$ of the big-STJ in the unstable state.

Realistically, the Ru-inclusions embedded in SRO crystals used in this work are in a rectangular shape with two circular edges and straight parts (see Fig. 1(j)). The edges must have higher crystal mismatch between SRO and Ru due to larger curvature. Such mismatch results in higher pinning potential providing suitable pinning sites to pin the chiral-DWs. In this scenario, the smooth straight parts of Ru-inclusions have comparatively lower pinning potential. Therefore, the most stable configuration with maximum $I_{\textrm{c}}$ is obtained by pinning two chiral-DWs at the tips of opposite circular edges of a Ru-inclusion. Our simple model calculations also predict that the stability with maximum $I_{\textrm{c}}$ is obtained when the chiral-DW M is pinned at $\theta_{{\textrm{DW}}}=\pi$. The stability of the junction is disturbed with the increase in the temperature and external magnetic field scans as well Kindwingira2006 ; Anwar2013 . But high enough $I_{\textrm{c}}$ ($\approx 400~{}\mu$A) can itself be a dragging-force to move the chiral-DWs from a stable state to neighbouring metastable states that results in reduction and fluctuations in $I_{\textrm{c}}$. Nevertheless, it would be difficult to eliminate the chiral-DW since the chirality is degeneracy of the angular momentum direction of Copper pairs and does not couple with electric current strongly. Such dynamic effects can be the origin of the unconventional hysteretic behaviour ($I_{\textrm{c}}>I_{\textrm{r}}$) and variations in $I>I_{\textrm{c}}$ by switching a chiral-DW to another close by metastable state. That means chiral-DW motion can be initiated in criticality region (between zero voltage transition and straight ohmic behavior). This is also supported by the observations of oscillations just above $I_{\textrm{c}}$ in $I$-$V$ curves for STJs in unstable state (see Fig. 4(b)).

The stability in the Nb/Ru/SRO junctions is expected to be achieved by reducing the size of the junction down to the size of the chiral domain. The small-SJT junction with the junction area of $2\times 5\mu$m2 is rather stable. It suggests that the size of a chiral domain is of the order of $5~{}\mu$m Saitoh2015 . Interestingly, small-STJ shows the sharp switching in $I$-$V$ curves at 1.3 K only for negative current (Fig. 6). Such an unusual $I$-$V$ characteristics behavior is already reported by Kambara $et~{}al.$, Kambara2008 ; Kambara2010 in Ru/SRO junctions. Those results were attributed to the current-induced motion of chiral-DWs in 3-K phase.

We summarise the device configuration parameters and results of stability in Table 1. It revels that the devices having higher $L_{\textrm{s}}/L_{\textrm{c}}$ ratio are more unstable. It suggests that the stability can be achieved with increasing the length of the curved length $L_{\textrm{c}}$ of the Ru-inclusion. On the other hand, Eq (1) shows that the direction ($\theta$ is defined as normal to the Ru/SRO interface) is constant for a flat part, and strongly varying for curved part of the Ru-inclusion. In addition, the pinning potential should be lower for the flat part and higher for the curved part due to larger lattice mismatch along the curvature. These considerations suggest that the stability of Nb/Ru/SRO topological junctions can be controlled by correctly selecting the part of the Ru-inclusion to place the Nb electrode. These are our results, DTJs and ETJs.

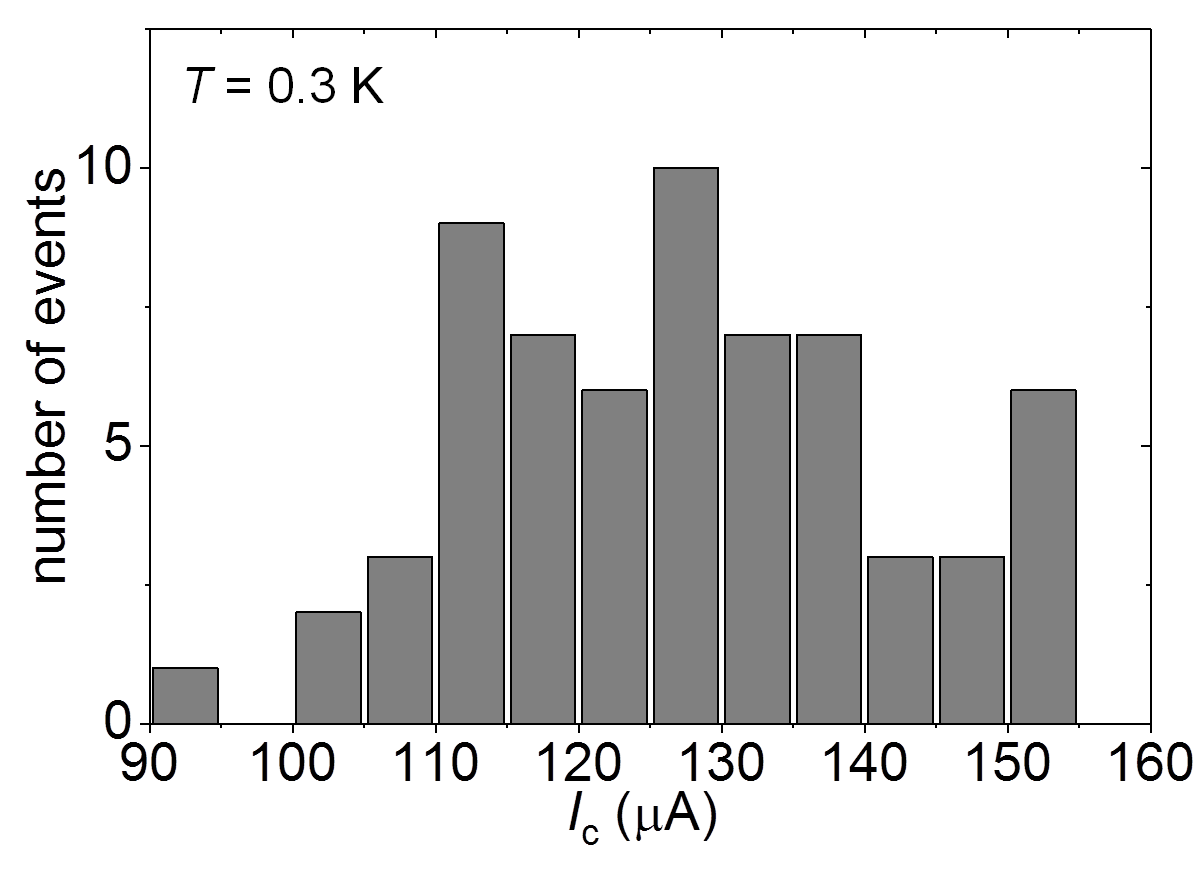

Our systematic investigations suggest that the switching in the $I_{\textrm{c}}$ due to chiral-DWs motion between neighbouring metastable states, can vary $I_{\textrm{c}}$ in discrete current values rather than continuously. Figure 9 shows the histogram of $I_{\textrm{c}}$ variations in big-STJ. Note that we included both $+I_{\textrm{c}}$ and $-I_{\textrm{c}}$ obtained from the data presented in Fig. 4(a and b). In an unstable state $I_{\textrm{c}}$ is mainly distributed between $110~{}\mu$A and $140~{}\mu$A. Furthermore, the $I_{\textrm{c}}$ variations are not completely continuous but to claim the discreteness more data may be needed. That will be future of our study; quantum variations in $I_{\textrm{c}}$ due to chiral-DW motion.

Recently, Etter et al. Etter2014 , proposed that transport properties of topological junctions based on the eutectic SRO-Ru system depend strongly on phase winding. They found that in the 3-K phase the phase winding is zero and junction exhibits ordinary or unfrustrated behaviour. However, the phase winding is non-zero ($\pm 1$) in the 1.5-K phase and junction is frustrated due to the phase mismatch between Ru and SRO. This proposed behavior is similar to our experimental observation. Specifically, this theory suggests stability will be enhanced with increase in the Ru size. In contrast, we observed that larger Ru size shows more unstable behavior.

Before closing discussion, we would like to comment on the effect of possible vortex trapping. Some vortices can be trapped in the junction even under a very small residual field during cooling down below $T_{\textrm{c}}$. The dynamics of such trapped vortices can cause anisotropic $I$-$V$ curves due to the vortex flow from the Ru/SRO interface to the bulk SRO, or vice versa Lee2002 . However, it is difficult to explain the anomalous hysteresis Yu1993 (see Fig. 4b). Furthermore, the vortex flow, if playing a crucial role, should be observable below the onset temperature of the 3-K phase or at least below the temperature where zero resistance emerges (1.8 K in the case of STJs). In contrast, the observed asymmetric $I$-$V$ curves with anomalous hysteresis and telegraphic-like noise are observed only when the bulk superconductivity in SRO (see Figs. 4 and 5) sets in. In addition, we again emphasize that we cooled down the junctions rather slowly in a zero-field environment prepared by magnetic shielding in order to suppress any significant effect of trapped vortices.

V Conclusion

We investigated Nb/Ru/SRO topological junctions fabricated in various configurations, sizes and shapes of the Ru inclusions. Such superconducting junctions exhibit contrasting instabilities in the critical currents between the $s$-wave proximitized Ru and SRO. Junctions with relatively large Ru inclusions are rather unstable and exhibit a large noise, asymmetry in current reversal, and hysteresis in current-sweep loops and on cooling cycles. In contrast, junctions with a size smaller than about 5 $\mu$m exhibit ordinary stable $I$-$V$ characteristics. A striking disappearance of the noisy character is observed when the junction is slowly heated across the bulk $T_{\textrm{c-bulk}}$ into the 3-K interfacial superconductivity region.

All these results are coherently explained if the bulk superconducting phase (the 1.5-K phase) of SRO has multi-component order parameter resulting in superconducting domain structure. This is consistent with the chiral $p$-wave superconductivity of the bulk SRO and the non-chiral superconductivity of the 3-K phase. We systematically investigated various junctions but still more statistics is needed to have a firm conclusion. Our work will stimulate research work to explore the physics of topological superconducting junctions and functionality of their dynamic behavior.

VI Acknowledgment

We thank S. Kashiwaya, and Rina Takashima for fruitful discussions. This work is supported by the Topological Quantum Phenomena (Nos. JP22103002 and JP25103721) and Topological Materials Science (JSPS KAKENHI JP15H05852) on Innovative Areas from the Japan Society for the Promotion of Science (JSPS). MSA is supported as an International Research Fellow of the JSPS.
