The multiplicity of massive stars: a 2016 view

TL;DR

This paper reviews recent advances in understanding the multiplicity of massive stars, highlighting new observational insights, formation constraints, and implications for their evolution over the past five years.

Contribution

It synthesizes recent survey results to improve understanding of massive star multiplicity, formation conditions, and evolutionary outcomes.

Findings

Increased observational data on massive star multiplicity

New constraints on star formation processes

Insights into the evolution of massive binary systems

Abstract

Massive stars like company. Here, we provide a brief overview of progresses made over the last 5 years by a number of medium and large surveys. These results provide new insights on the observed and intrinsic multiplicity properties of main sequence massive stars and on the initial conditions for their future evolution. They also bring new interesting constraints on the outcome of the massive star formation process.

Figures

Tables

Table 1. Table 1: Overview of recent spectroscopic surveys and their observed ( f SB obs superscript subscript 𝑓 SB obs f_{\mathrm{SB}}^{\mathrm{obs}} ) and bias-corrected ( f SB corrected superscript subscript 𝑓 SB corrected f_{\mathrm{SB}}^{\mathrm{corrected}} ) binary fraction. The sample size ( N 𝑁 N ), number of detected binaries ( N SB subscript 𝑁 SB N_{\mathrm{SB}} ) and number of binaries with an orbital solution ( N SBO subscript 𝑁 SBO N_{\mathrm{SBO}} ) are also given. Error bars are computed following binomial statistics.

Region/Survey	SpT	$N$	$N_{\mathrm{SB}}$	$N_{\mathrm{SBO}}$	$f_{\mathrm{SB}}^{\mathrm{obs}}$	$f_{\mathrm{SB}}^{\mathrm{corrected}}$	Reference
Milky Way: O-type starsa
BESO Survey	O	243	166	–	$0.68\pm 0.03$	–	Chini et al. (2012)
Young Clusters	O	71	40	34	$0.56\pm 0.06$	$0.69\pm 0.09$	Sana et al. (2012)
GOSSS	O	194	97 (low)	–	$0.50\pm 0.03$	–	Sota et al. (2014)
	O		117 (high)	–	$0.60\pm 0.03$	–
IACOBb	O	141	66	–	$0.47\pm 0.04$	–	Simón-Díaz (these proceedings)
Clusters/Assoc	O	161	68 (low)	68	$0.42\pm 0.04$	–	Aldoretta et al. (2015)
	O		96 (high)	68	$0.60\pm 0.04$	–
OWN	O	205	102	85	$0.50\pm 0.03$	–	Barbá (these proceedings)
Cyg OB2	O	45	23	23	$0.51\pm 0.07$	–c	Kobulnicky et al. (2014)
	OB	128	48	48	0.38 $\pm$ 0.04	0.55c
Milky Way: B-type stars
Cyg OB2	B0-2	83	25	25	$0.30\pm 0.05$	–c	Kobulnicky et al. (2014)
BESO Survey	B0-3	226	105	–	$0.46\pm 0.03$	–	Chini et al. (2012)
	B4-9	353	67	–	$0.19\pm 0.02$	–
Large Magellanic Cloud
30Dor/VFTS	O	360	124	–	$0.35\pm 0.03$	$0.51\pm 0.03$	Sana et al. (2013)
30Dor/TMBM	O			79	–	$\approx 0.58$	Almeida et al. (2017)
30Dor/VFTS	B0-3	408	102	–	$0.25\pm 0.02$	$0.58\pm 0.11$	Dunstall et al. (2015)

Full text

††volume: 329††journal: The lives and death-throes of massive stars††editors: A.C. Editor, B.D. Editor & C.E. Editor, eds.

1 Introduction

The presence of close companions introduces new physics that has the potential to affect all stages of stellar evolution, from the pre-main sequence phase, to the type of end-of-life explosions and to the properties and orbital evolution of double-compact objects that may ultimately lead to detectable gravitational wave bursts. In this short paper, we highlight major observational advances that have occurred in the last five years, with no ambition to provide a complete historical review. More information on works published prior to 2012 can be found in e.g., Mason et al. (2009), Sana & Evans (2011) and references therein. As in our previous report, we will focus on the initial multiplicity conditions, i.e. that of main-sequence massive stars.

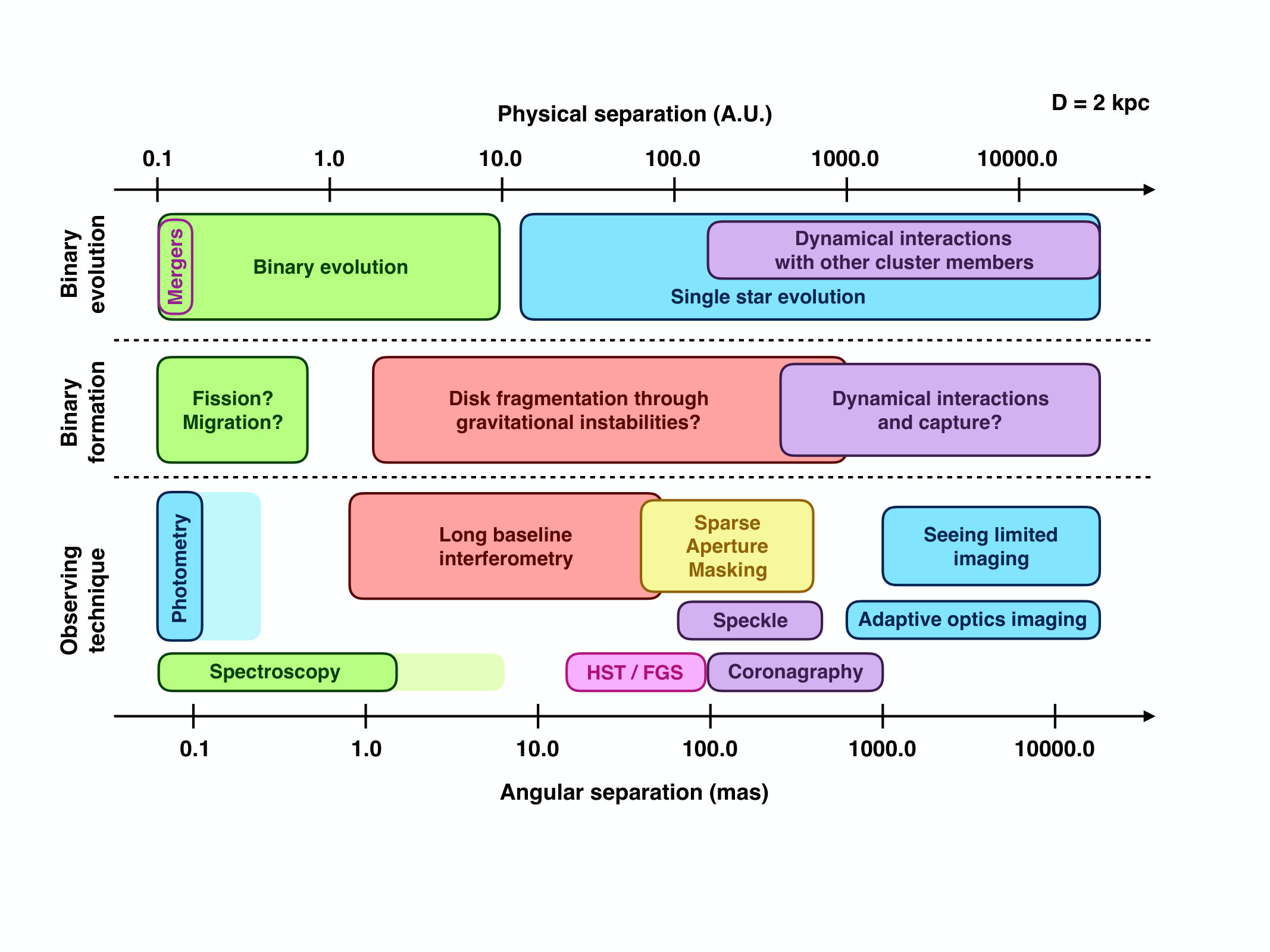

As described by, e.g., Mason et al. (1998), Sana & Evans (2011) and Moe & Di Stefano (2016), four or five orders of magnitudes in separation need to be investigated to cover the entire parameter space relevant for the formation and evolution of massive stars (Fig. 1). This can only be achieved by a combination of instrumental techniques that all have their own regime of optimal sensitivities (masses, brightnesses, separation, flux contrasts, mass-ratios, …). Recent advances is long-baseline interferometry – mostly the magnitude limit and efficiency of the observations (see Sect. 3) – have allowed us to bridge the spectroscopic and imaging regimes (the so-called interferometric gap, Mason et al. (1998)). However, this is currently only possible for distances of up to $\sim$4 kpc as, farther away, most massive stars become too dim for current interferometric instrumentation.

In this short overview, we will focus on the spectroscopic (Sect.2) and interferometric (Sect. 3) regimes, with emphasis on surveys that have not been discussed elsewhere in these proceedings (see the contributions of Barbá, Simón-Díaz and Vink). We will follow the terminology adopted in Sana et al. (2014):

The number of observed targets or sample size ($N$), 2. -

**The number of multiple systems ** ($N_{\mathrm{m}}$): number of observed central objects with at least one companion, 3. -

The fraction of multiple systems or multiplicity fraction: $f_{\mathrm{m}}=N_{\mathrm{m}}/N$, 4. -

The number of companions ($N_{\mathrm{c}}$): total number of companions observed around a given sample of $N$ central objects, 5. -

The fraction of companions or companion fraction ($f_{\mathrm{c}}=N_{\mathrm{c}}/N$): average number of companions per central object.

Depending on the context, these quantities can be restricted to sub-categories, such as spectroscopic binaries systems (SBs) (Sect. 2) or to specific separation ranges (Sect. 3).

2 Spectroscopic surveys

2.1 Galactic surveys

In the last few years, two kinds of Galactic surveys have brought our understanding of massive star multiplicity to a new level:

1. (i)

surveys focusing on specific young clusters (Sana et al. (2012)) or OB association (Cyg OB2; Kiminki & Kobulnicky (2012); Kobulnicky et al. (2014)). These surveys have acquired a large number of observational epochs per target, allowing them to obtain orbital solutions for most of the detected spectroscopic binaries in their sample. They can further be considered as volume limited surveys in their own targeted regions. 2. (ii)

Galaxy-wide surveys with various spectral resolving power ($R=\lambda/\delta\lambda$) and number of epochs, and which are mostly magnitude limited, e.g.: 3. -

The Galactic O-Star Spectroscopic Survey (GOSSS; Sota et al. (2011, 2014), Maíz Apellániz et al. (2016)): a (mostly) single-epoch survey at $R\approx 2500$ , which main objective is to bring to a firm ground the spectral classification of galactic O stars down to $B=13$; 4. -

The BESO Survey of Galactic O and B stars (Chini et al. (2012)): a $R=50\,000$ multi-epoch campaign that has allowed to search for radial-velocity (RV) variations in the observed sample; 5. -

The IACOB survey (Simón-Díaz et al. (2015) and references therein, see also these proceedings): multi-epoch high-resolution spectroscopic survey of Northern Galactic O- and B-type stars active since 2008; 6. -

The OWN survey (Barbá et al. (2014), see also Barbá in these proceedings): a high-resolution spectroscopic monitoring of Southern O and WN stars with enough multi-epoch observations to measure the orbital properties of most detected binaries.

2.2 The Tarantula region

Simultaneously to these groundbreaking observational campaigns in the Milky Way, the VLT-Flames Tarantula Survey (VFTS, Evans et al. (2011); see Vink et al., these proceedings) has systematically investigated about 800 massive OB and WR stars in the 30 Dor region in the Large Magellanic Cloud. Using 6-epochs spectroscopic at moderate resolving power $R\sim 7000$, the VFTS – and its sequel program, the Tarantula Massive Binary Monitoring (TMBM, Almeida et al. (2017)) — has provided direct observational constraints on the massive stars multiplicity properties in a metallicity environment that is reminiscent of that of more distant galaxies at $z\sim 1-2$.

Recent results of the VFTS are described in Vink et al. (these proceedings). Here we provide more insight into the TMBM project. TMBM was designed to obtain multi-epoch spectroscopy of O-type binaries in the 30 Dor region with sufficient time sampling to measure the orbital properties of objects with orbital periods of up to about one year. TMBM targeted 60% of every O-type binary candidates detected in the VFTS (see Sana et al. (2013)) – i.e., 93 out of 152 – and obtained orbital solution for 78 of them. While specific objects are still being analysed, results so far have allowed to identify two very interesting binaries, for which (quasi)-chemically homogeneous evolution ((q)CHE) seems to be required to explain their observed properties. In both cases, (q)CHE may affect the binary evolutionary path, by preventing the merging (VFTS 352) or Roche lobe overflow (R145):

VFTS 352 is an overcontact 29+29 M⊙ short period system ($P_{\mathrm{orb}}=1.12$ d) that shows evidence of enhanced internal mixing possibly putting both components on a (q)CHE track (Almeida et al. (2015)). Ongoing abundance measurements may help to validate the existence of such an alternative scenario (Mandel & de Mink (2016)) to produce massive black holes with properties similar to that at the origin of the recent gravitational wave detection (Abbott et al. (2016), Mandel & de Mink (2016)). 2. -

RMC 145 (aka R145) is a WN6h + O3.5If∗/WN7 system with a high eccentricity ($e=0.78$) and rather low inclination ($i=39\pm 6^{\mathrm{o}}$). Once suggested to contain a 300 M⊙ star, Shenar et al. (2017) showed that the current masses were most likely of the order of 80 M⊙. Best estimates for initial masses yield values of 105 and 90 M⊙ for the primary and secondary component respectively. Comparison with evolution tracks and the system high eccentricity suggest (q)CHE, allowing the system to have avoided episodes of mass-transfer so far.

2.3 The spectroscopic binary fraction

The previously described spectroscopic surveys of O and B stars, which have samples of tens to hundreds of stars, yield detected spectroscopic binary fractions ($f_{\mathrm{SB}}^{\mathrm{obs}}$) that range from $f_{\mathrm{SB}}^{\mathrm{obs}}\sim 0.25$ for the B-type stars in the 30 Dor region to about $f_{\mathrm{SB}}^{\mathrm{obs}}\sim 0.7$ for O stars in the Milky Way (see Table 1). Much of this range can be explained by the nature and quality of the data (signal-to-noise ratio, number of epochs, …) that directly impact the RV accuracy achieved by these surveys, hence the probability to detect significant Doppler shifts. Overall, all galactic O-star surveys yield a detected spectroscopic binary fraction $f_{\mathrm{SB}}^{\mathrm{obs}}>0.5$, setting a firm lower limit on the intrinsic multiplicity fraction. The most optimistic estimates even reach $f_{\mathrm{SB}}^{\mathrm{obs}}\sim 0.6$ to $0.7$ before any bias correction.

The overall binary detection probability of these surveys are difficult to estimate because it requires the knowledge of the parent orbital distributions of the targeted sample – which are of course ill-constrained – and a model of the sensitivity of each survey. Recent estimates yield an overall detection probability of spectroscopic binaries with $P_{\mathrm{orb}}$ up to $\approx 10$ years of the order of 0.65 to 0.8 for O-type stars (Sana et al. (2012, 2013); Kobulnicky et al. (2014)). Corresponding intrinsic binary fractions are then in the range of $f_{\mathrm{SB}}^{\mathrm{corrected}}\approx 0.5$ to $0.7$. It remains to be seen whether the differences observed between the Milky Way and 30 Dor surveys are indeed genuine, possibly resulting from environmental or from stellar (binary) evolution effects.

For B-type stars, $f_{\mathrm{SB}}^{\mathrm{obs}}$ rather lays in the range of 0.30 to $0.46$. For these stars, the detection rate is expected to be lower owing to fainter objects and smaller Doppler shifts, on average, resulting from smaller masses involved. Detailed considerations of the observational biases are needed to better quantify the intrinsic B-type star multiplicity fraction. Interestingly, measurements in the 30 Dor region show that, once biases are taken into account, the O- and the B-type binary fractions are compatible within errors, with both mass ranges yielding $f_{\mathrm{SB}}^{\mathrm{corrected}}\approx 0.58$ (admittedly errors remain quite large for B stars, see Table 1).

2.4 The orbital periods

The initial orbital periods – and their overall distribution – are one of the most important quantities to properly predict the pre-supernova evolution of binary systems. Indeed, $P_{\mathrm{orb}}$ is the prime parameter that defines whether a system will interact through mass exchange. It sets the timing of the interaction and, to a large degree, its nature. Currently, only a few surveys have gathered enough observational epochs on a sufficiently large sample of binaries to construct observed period distributions. Constraints on the period distribution can in principle be obtained from modelling the distribution of the RV-variations (e.g., Sana et al. (2013); Dunstall et al. (2015)), but this requires assumptions on, e.g., the range of orbital periods (see discussion in Almeida et al. (2017)).

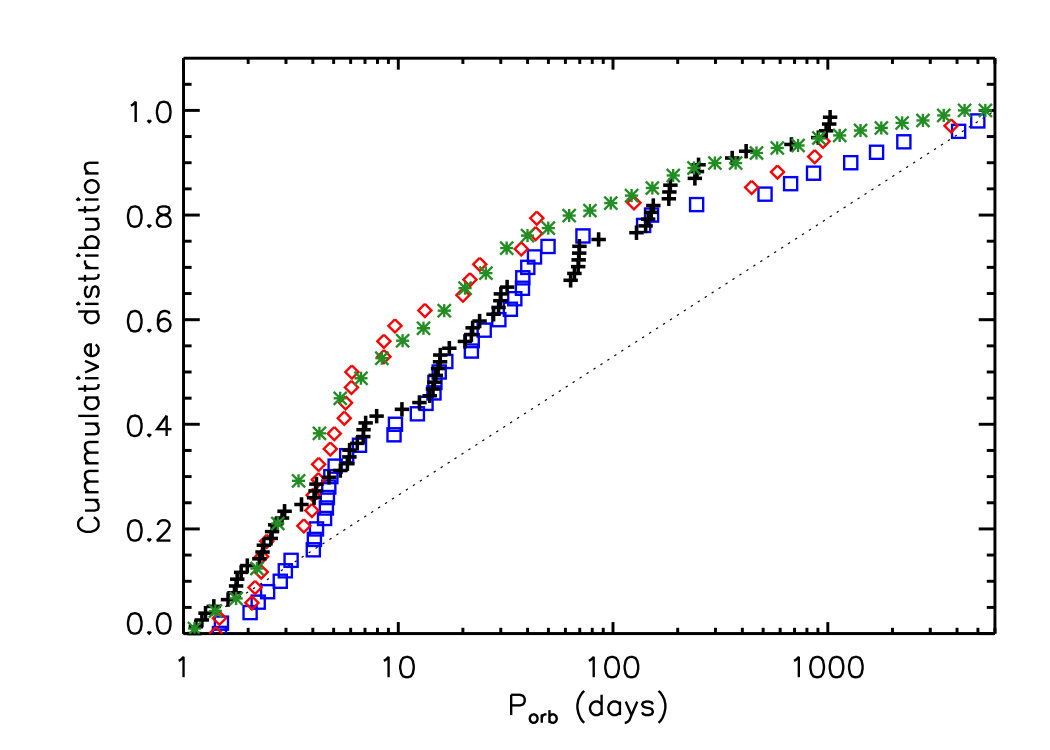

So far, three published surveys bring direct constraints on the orbital period distributions. These are displayed in Fig. 2 and show a large degree of similarities, despite the rather different environments in terms of stellar density and metallicity. Further more, preliminary results of the OWN survey (Barbá, these proceedings) confirm and improve the statistics for Galactic massive stars. Future work will allow to investigate whether the small differences seen in Fig. 2 are statistically significant or whether they result from different observational biases, sample sizes and selection effects. In the former case, these may hold clues to the formation process and early dynamical evolution of massive stars as suggested by, e.g., Kobulnicky et al. (2014).

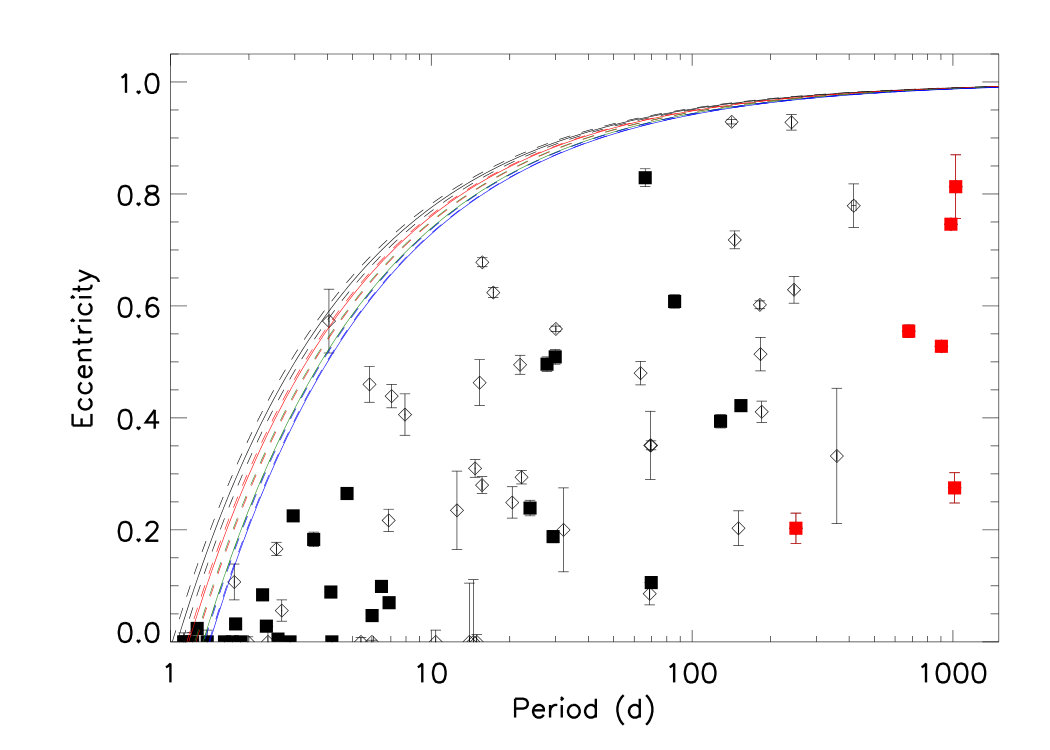

The systematic and long-term nature of the OWN and VFTS/TMBM surveys have allowed to detect and characterise an unprecedented number of long period systems. Thanks to these efforts, the period-eccentricity diagram, once showing a dearth of long-period low-eccentricity systems (see e.g., Sana et al. (2012)), is now well populated (Fig. 2 for TMBM, see also Barbá, these proceedings). The presence of these systems argues against dynamical capture and suggests that most of these spectroscopic binaries have been created during the formation process.

3 High-angular resolution surveys

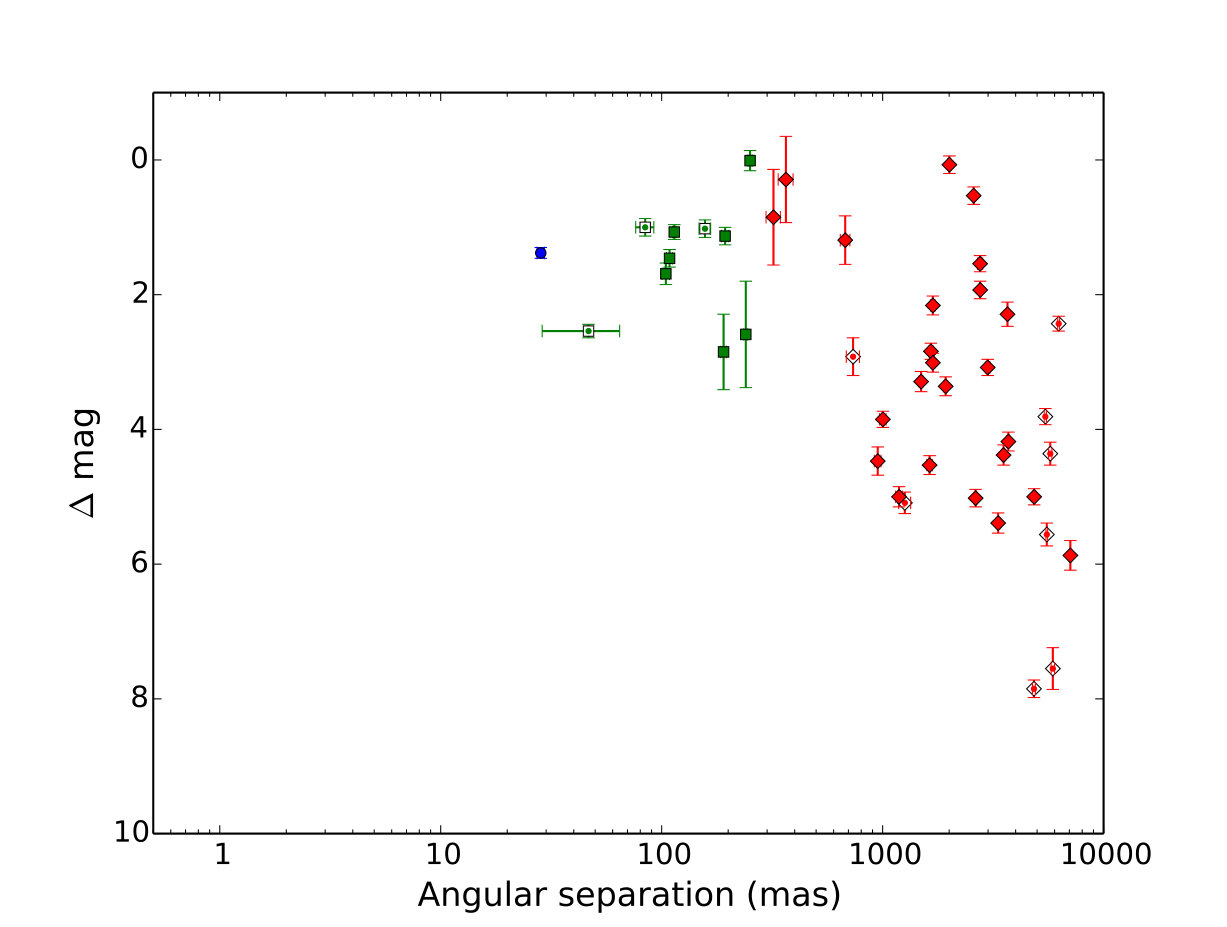

Two important Galactic surveys have allowed to systematically bridge the interferometric gap that was separating the spectroscopic and imaging domains (Mason et al. (1998), see also Fig. 1). Both surveys show that the interferometric gap contains a significant number of companions and confirm previous suspicions that the end product of massive star formation is a multiple system.

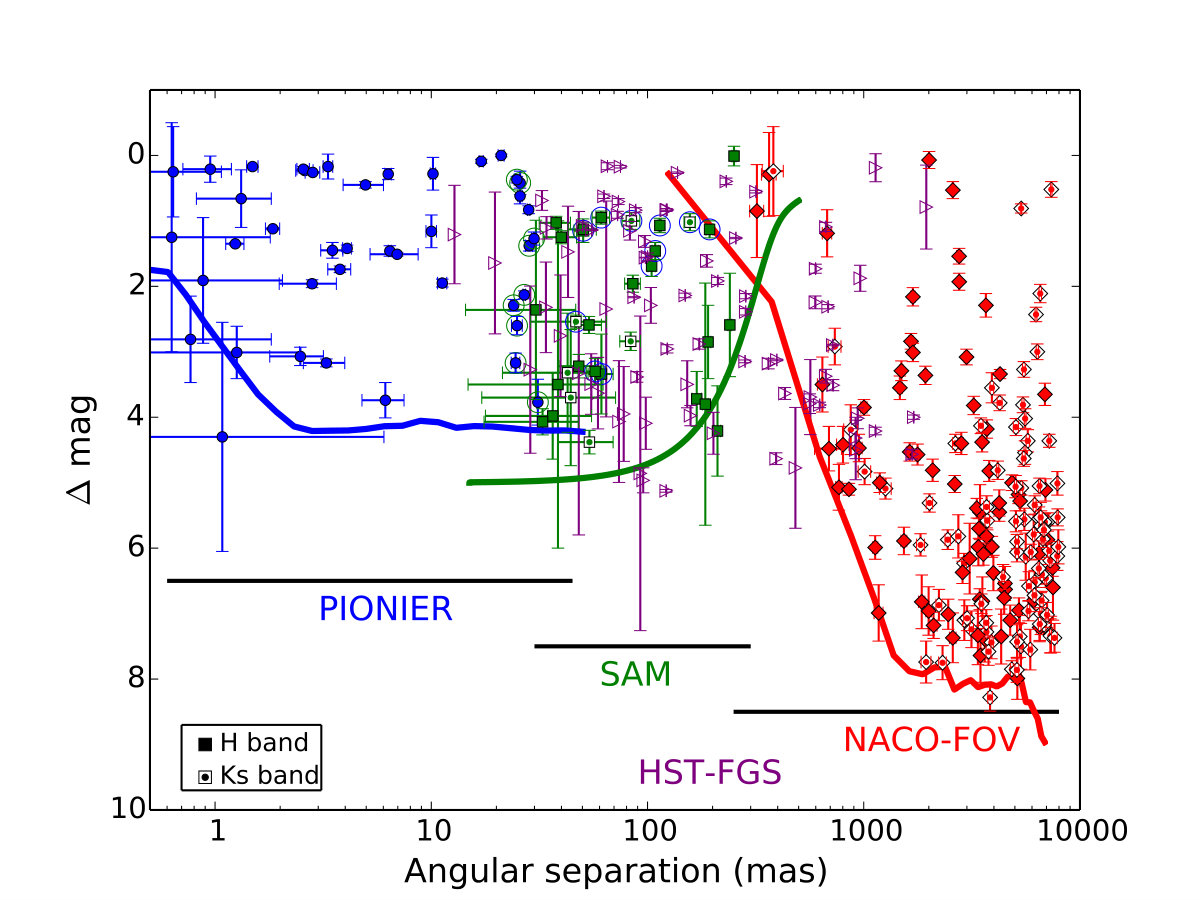

The Southern MAssive Star at High angular resolution (SMASH+, Sana et al. (2014)) is an ESO Large Program that targeted O-type stars in the Southern sky ($\delta<0^{\mathrm{o}}$). SMASH+ combined long baseline interferometry (VLTI/PIONIER; 117 objects), aperture masking (VLT/NACO-SAM; 162 objects) and adaptive optics (VLT/NACO-FOV; 162 objects) to search for companions with separations in the range of 1 to 8000 mas. 264 companions were detected, of which almost 200 were previously unresolved. After excluding runaway stars that show no resolved companions, 55% of the 96 targets observed with the full suite of instruments revealed a companion in the range of 1 to 200 mas. Combined with existing spectroscopy (see Sect. 2), the SMASH+ results yield a multiplicity fraction at angular separation $\rho<8$” of $f_{\mathrm{m}}=0.90\pm 0.03$ and an averaged number of companions of $f_{\mathrm{c}}=2.1\pm 0.2$. Interestingly, all dwarfs stars in the SMASH+ sample have a bound companion within $\sim 100$ AU. 2. -

The HST fine guidance sensor survey (HST-FGS, Aldoretta et al. (2015)) observed 224 O- and B-type stars in both hemispheres. The survey allowed to resolved 58 multiple systems (incl.  43 new detections) with typical separation in the range of $\approx 20$ to 1000 mas. Focusing on the 214 stars in clusters and associations, the HST-FGS resolved a companion for 31% of them. The authors performed their own literature review (see also Table 1) and obtained $0.5<f_{\mathrm{m}}<0.7$ and $0.7<f_{\mathrm{c}}=1.7$. The HST-FGS survey nicely covers the sensitivity gap between the NACO-SAM and FOV techniques in the SMASH+ survey and shows that companions are also found at these separations.

4 News from M17: clues to the origin of massive binaries?

Current constraints on the multiplicity of massive stars show that about half of them belong to binary systems with orbital periods of less than one month. This corresponds to separations below $\sim 1$ AU. The existence of such tight binaries is currently not predicted by massive star formation theories. In this context, the recent Xshooter spectroscopic campaign towards a dozen young massive stars and mYSOs in the 1 Myr-old M17 region by Ramírez-Tannus et al.  (Ramírez-Tannus et al. (2017), see also these proceedings) is worth mentioning. Most objects were observed only once. While no double-lined profiles were detected, the sample shows an intriguingly low RV-dispersion ($\sigma_{\mathrm{1D}}$), of the order of 5.5 km s*-1* (Fig. 4) only while values of 20 to 40 km s*-1* would have been expected for the typical multiplicity properties.

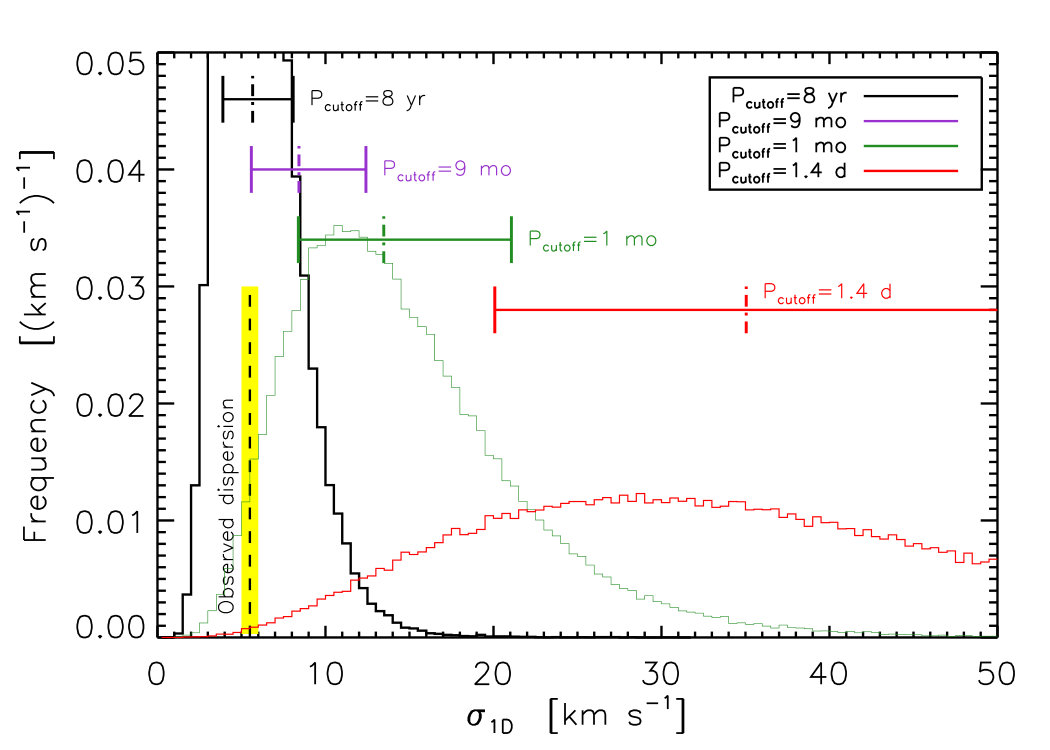

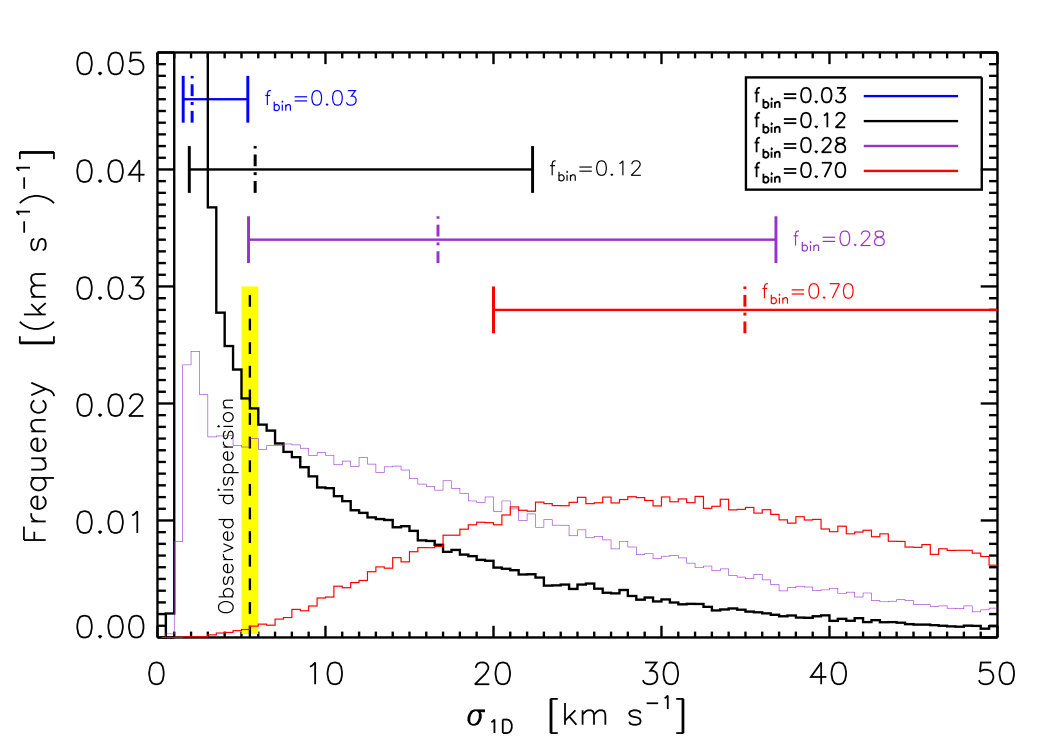

Subsequent Monte-Carlo analysis confirms that such a low $\sigma_{\mathrm{1D}}$ is indeed incompatible with the multiplicity properties of well characterised massive star populations such as those presented in Table 1. Our results point either to a very low binary fraction ($f_{\mathrm{SB}}\sim 0.12$ only) or to a lack of short period binaries ($P_{\mathrm{cutoff}}>9$ months). The first scenario would require to invoke that star formation has had a different outcome in M17 than in other OB-star regions in the Milky Way. The latter scenario may suggest that binaries first form at larger separations and then quickly harden to meet the observational constraints derived from slightly older populations (Table 1). Such migration scenario may be driven by interaction with other companions in a multiple systems, or with remnant of the accretion disk. The cut-off period may then be related to physical length-scales representative of the bloated pre-main-sequence stellar radii or of their accretion disks. The full discussion is to be found in Ramírez-Tannus et al. (2017) and Sana et al. (2017).

5 Final word

The results obtained in the last 5 years have definitely established the importance of massive star multiplicity. New large surveys have resulted in unprecedentedly high multiplicity and companion fraction, with values as large as $f_{\mathrm{m}}>0.9$ and $f_{\mathrm{c}}>2$ being obtained before bias-correction when considering the entire range of separations. Of particular interest is the relative similarities of the multiplicity properties measured so far for different samples, despite different environments, sample ages and even metallicities. The one exception is the results from the M17 region (see Sect. 4). More work is definitely required to further explore the possible effects of age and metallicity on the multiplicity properties. As a final note, we insist on the critical need for observers to characterise the various observational biases as carefully as possible, including selection effects and sensitivity limits. While time consuming to establish, these quantities are indeed critical to retrieve the intrinsic multiplicity properties from the observations. A posteriori attempts to combine different samples may turn more complicated without this specific information at hand (see e.g., Moe & Di Stefano (2016)).

Ackowledgments

The author is thankful to Rodolfo Barbá and Simón-Díaz for sharing OWN and IACOB results prior to publication (OWN results were used in the preliminary comparison shown in Fig. 2) and to colleagues and collaborators for many stimulating discussions.
