Exact phase diagram and topological phase transitions of the XYZ spin chain

TL;DR

This paper constructs the exact phase diagram of the XYZ spin chain using block spin renormalization, revealing topological phase transitions characterized by winding numbers and zero modes, and clarifies the topological nature of these phases.

Contribution

It provides an exact phase diagram of the XYZ spin chain, identifying topological transitions and linking them to winding numbers and zero modes through a renormalization group approach.

Findings

Exact phase diagram matches Baxter's solution.

Topological phase transitions characterized by winding numbers.

Zero modes associated with Mott phases and Ising order.

Abstract

Within the block spin renormalization group we are able to construct the "exact" phase diagram of the XYZ spin chain. First we identify the Ising order along $\hat x$ or $\hat y$ as attractive renormalization group fixed points of the Kitaev chain. Then in a global phase space composed of the anisotropy $\lambda$ of the XY interaction and the coupling $\Delta$ of the $\Delta\sigma^z\sigma^z$ interaction we find that the above fixed points remain attractive in the two dimesional parameter space. We therefore classify the gapped phases of the XYZ spin chain as: (1) either attracted to the Ising limit of the Kitaev-chain which in turn is characterized by winding number $\pm 1$ depending whether the Ising order parameter is along $\hat x$ or $\hat y$ directions; or (2) attracted to the Mott phases of the underlying Jordan-Wigner fermions which is characterized by zero winding number. We therefore establish that the exact phase boundaries of the XYZ model in Baxter's solution indeed correspond to topological phase transitions. The topological nature of the phase transitions of the XYZ model justifies why our analytical solution of the three-site problem which is at the core of the renormalization group treatment is able to produce the exact phase diagram of Baxter's solution. We argue that the distribution of the winding numbers between the three Ising phases is a matter of choice of the coordinate system, and therefore the Mott-Ising phase is entitled to host apprpriate form of zero modes. We further observe that the renormalization group flow can be cast into a geometric progression of a properly identified parameter. We show that this new parameter is actually the size of the (Majorana) zero modes.

Figures

Tables

Table 1. Table 1: Multiplication table summarizing the effect of various operators on two-spin states.

$|s_1{s}_2⟩$	${\sigma }_1^x{\sigma }_2^x$	${\sigma }_1^y{\sigma }_2^y$	${\sigma }_1^z{\sigma }_2^z$	${\sigma }_1^x{\sigma }_2^y-{\sigma }_1^y{\sigma }_2^x$	${\sigma }_1^z{\sigma }_2^z$
$\uparrow \uparrow$	$\downarrow \downarrow$	$-\downarrow \downarrow$	$+\uparrow \uparrow$	$0$	$+\uparrow \uparrow$
$\downarrow \downarrow$	$\uparrow \uparrow$	$-\uparrow \uparrow$	$+\downarrow \downarrow$	$0$	$+\downarrow \downarrow$
$\uparrow \downarrow$	$\downarrow \uparrow$	$+\downarrow \uparrow$	$-\uparrow \downarrow$	$-2i\downarrow \uparrow$	$-\uparrow \downarrow$
$\downarrow \uparrow$	$\uparrow \downarrow$	$+\uparrow \downarrow$	$-\downarrow \uparrow$	$+2i\uparrow \downarrow$	$-\downarrow \uparrow$

Equations

$$H_{\mathrm{XYZ}}=\sum _j(J+\lambda ){\sigma }_j^x{\sigma }_{j+1}^x+\sum _j(J-\lambda ){\sigma }_j^y{\sigma }_{j+1}^y$$

$$+\Delta \sum _j{\sigma }_j^z{\sigma }_{j+1}^z.$$

$${\sigma }_j^z=1-2c_j^{†}{c}_j,{\sigma }_j^x=e^{i{\varphi }_j}(c_j+c_j^{†}),{\sigma }_j^y=-i{e}^{i{\varphi }_j}(c_j-c_j^{†}),$$

$$H=$$

$$+\Delta \sum _j(2n_j-1)(2n_{j+1}-1)$$

$$H=i\sum _j(J+\lambda )a_j{b}_{j+1}+(\lambda -J)b_j{a}_{j+1}.$$

$$|1{⟩}^{+}=|\uparrow \uparrow \uparrow ⟩,|2{⟩}^{+}=|\uparrow \downarrow \uparrow ⟩,$$

$$|3{⟩}^{+}=\left(|\uparrow \uparrow \downarrow ⟩+|\downarrow \uparrow \uparrow ⟩\right)/\sqrt{2},$$

$$|4{⟩}^{+}=\left(|\uparrow \uparrow \downarrow ⟩-|\downarrow \uparrow \uparrow ⟩\right)/\sqrt{2}.$$

$$H=2\left[\begin{array}{ccc}\Delta & 0& \sqrt{2}\lambda \\ 0& -\Delta & \sqrt{2}J\\ \sqrt{2}\lambda & \sqrt{2}J& 0\end{array}\right].$$

$$\left[\begin{array}{cc}⟨{\varphi }_{+}|\mathcal{O}|{\varphi }_{+}⟩& ⟨{\varphi }_{+}|\mathcal{O}|{\varphi }_{-}⟩\\ ⟨{\varphi }_{-}|\mathcal{O}|{\varphi }_{+}⟩& ⟨{\varphi }_{-}|\mathcal{O}|{\varphi }_{-}⟩\end{array}\right]$$

$${\omega }_m=m2\sqrt{2}\sqrt{J^2+{\lambda }^2},m=0,\pm 1,$$

$$|{\psi }_0{⟩}^{\zeta }=\frac{1}{\sqrt{J^2+{\lambda }^2}}\left(-\lambda |1{⟩}^{\zeta }+J|2{⟩}^{\zeta }\right),$$

$$|{\psi }_{\pm }{⟩}^{\zeta }=\frac{1}{\sqrt{2}\sqrt{J^2+{\lambda }^2}}\left(J|1{⟩}^{\zeta }+\lambda |2{⟩}^{\zeta }\right)+\frac{\pm 1}{\sqrt{2}}|3{⟩}^{\zeta }.$$

$$|{\varphi }_{+}⟩$$

$$|{\varphi }_{-}⟩$$

$$\bar{a}$$

$${\sigma }_{0,2}^x=(-\bar{a}-\bar{b}){\sigma }^{\prime x}$$

$${\sigma }_{0,2}^y=(-\bar{a}+\bar{b}){\sigma }^{\prime y}$$

$$(J+\lambda ){\sigma }_0^x{\sigma }_2^x\to (J+\lambda )(-\bar{a}-\bar{b}{)}^2{\sigma }_n^{\prime x}{\sigma }_{n+1}^{\prime x}$$

$$(J-\lambda ){\sigma }_0^y{\sigma }_2^y\to (J-\lambda )(-\bar{a}+\bar{b}{)}^2{\sigma }_n^{\prime y}{\sigma }_{n+1}^{\prime y}$$

$$J^{\prime }\pm {\lambda }^{\prime }=-\frac{(J\pm \lambda {)}^3}{2(J^2+{\lambda }^2)}$$

$$J^{\prime }=\frac{J}{2}\frac{J^2+3{\lambda }^2}{J^2+{\lambda }^2},{\lambda }^{\prime }=\frac{\lambda }{2}\frac{{\lambda }^2+3J^2}{{\lambda }^2+J^2}.$$

$$y^{\prime }=y\frac{3+y^2}{1+3y^2},y=\frac{\lambda }{J}$$

$$y_{n+1}-y_n=2y_n\frac{1-y_n^2}{1+3y_n^2}.$$

$$H_{\mathrm{FP},y^{\ast }=+1}=4i{J}_{\infty }\sum _j{a}_j{b}_{j+1}.$$

$$y_n=\tanh u_n=\frac{e^{u_n}-e^{-u_n}}{e^{u_n}+e^{-u_n}}$$

$$y_{n+1}\equiv \tanh (u_{n+1})=\frac{e^{3u_n}-e^{-3u_n}}{e^{3u_n}+e^{-3u_n}}=\tanh (3u_n),$$

$$y_n=\tanh \left(3^n\mathrm{arctanh}(y_0)\right),$$

$$(1+y){\psi }_{j+1}^{(b)}+(1-y){\psi }_{j-1}^{(b)}=0.$$

$$u=\frac{1}{2}\ln \left(\frac{y+1}{y-1}\right).$$

$$E_{g,n}=\frac{2\sqrt{2}}{3}{J}_n\sqrt{1+y_n^2}=\frac{2\sqrt{2}}{3}{J}_n\frac{\sqrt{\cosh (2u_n)}}{\cosh (u_n)}$$

$$J_{n+1}=J_n\left(1-\frac{1}{e^{2u_n}+e^{-2u_n}}\right),$$

$$J_n$$

$$\approx J_0\prod _{i=1}^{n_{\mathrm{conv}}}\left(1-\frac{1}{e^{2u_i}+e^{-2u_i}}\right),$$

Full text

I Introduction

The XYZ spin chain is the most anisotropic from of the Heisenberg spin chain where the coupling between $x$, $y$ and $z$ components of adjacent spins are generically different,

[TABLE]

Baxter was able to solve the eight-vertex model BaxterPRL ; Baxter8V from which also the exact solution of the XYZ model follows BaxterXYZ ; McCoy . Recent progress in the off-diagonal Bethe ansatz has also enabled exact solutions for arbitrary boundary field ODBA ; odba-npb . The limit $\Delta=0$ is exactly solvable in terms of Jordan-Wigner (JW) fermions LSM where the coupling $J$ translates into the hopping amplitude of the JW fermions, and the coupling $\lambda$, the deviation from isotropic limit induces p-wave superconducting pairing between the resulting spin-less JW fermions Mattis2006 . In this limit this model and even generalizations of this model NXY ; Raghu2011 ; Sen can be solved exactly where the non-trivial topology is encoded in a non-zero winding number $n_{w}$ (of the ensuing Anderson pseudo-vector) manifests itself as Majorana zero modes localized at the chain ends which is best pictured in terms of the Kitaev chain Kitaev2001 .

When written in terms of the JW fermions which are particle excitations of the XY limit LSM , the coupling $\Delta$ will correspond to density interaction between the fermions and hence introduces further many-body effects into the problem Fradkin . Luther noticed that the above JW mapping translates the XYZ model into the lattice version of the massive Thirring model Luther . This enabled a Bethe ansatz solution for the massive Thirring model Bergknoff . The equivalence between massive Thirring model and the sine-Gordon (bosonic) theory has its own rich literature Fradkin ; Tsvelik ; Gogolin .

In the $\lambda=0$ limit we are dealing with a liquid of JW fermions interacting through $\Delta$ term which corresponds to massless Thirring model. In this limit if the coupling $\Delta$ is below a certain critical value $\Delta_{c}$ the system remains gapless, but if it is stronger than $\Delta_{c}$ the system enters the Mott insulating phase and becomes gapped. The picture in the $\lambda=0$ is therefore that of a critical line that ends at a a Berezinskii-Kosterlitz-Thouless (BKT) point $\Delta_{c}$ and the algebraic correlations of the gapless phase are rendered exponential with a correlation length determined by the spectral gap. The field theory value of $\Delta_{c}$ is $\pi J/2$ while the exact solution gives $\Delta_{c}=J$ Fradkin . The XXZ limit that would correspond to massless Thirring model has been analyzed from spin systems and entanglement points of view Langari2009 ; Song2013 where the critical value is obtained to be $\Delta_{c}=J$. In the $\lambda=0$ situation a Dzyaloshinskii-Moriya interaction of strength $D$ can be added to the above $XXZ$ form which results in a gapless line separating the spin-fluid phase from ferromagnetic and/or anti-ferromagnetic Ising phases depending on the sign of $\Delta$ Langari2009 . The XXZ model in external magnetic field was also found to posses a critical line separating the saturated magnetized phase from the Ising phase at large $\Delta$ Langari98 .

When both the pairing gap $\lambda$ and the interaction parameter $\Delta$ compete with each other, in the limit where $\Delta$ dominates we expect a gapped phase that corresponds to the Mott insulating phase of the corresponding Thirring model. When $\Delta$ is negligible the parameter $\lambda$ being a pairing strength of the JW fermions, gives rise to a (p-wave) pairing gap. The above gapped phases must be separated by a gapless line in the plane of $(\Delta,\lambda)$ denNijs . Indeed Ercolessi and coworkers using the exact solution of Baxter BaxterPRL ; Baxter8V ; BaxterXYZ calculated the Renyi entropy and identify lines of essential singularity Ercolessi2011 ending at tricritical points where the lines join. They find that two of the tricritical points are conformally invariant Ercolessi2011 ; Ercolessi2013 .

Earlier attempt using block-spin renormalization group (RG) was undertaken by Langari Langari2004 who used a two site cluster to study the phase diagram of the model in presence of a transverse field. However clusters with even number of sites are not able to provide a true Kramers doublet degenerate ground states. Therefore the two low-energy states used in the above work consists in, one singlet, and one triplet (split by the Zeeman coupling) which are not connected by the time reversal operation. In this work, by introducing a conserved charge and making use of the mirror symmetry we are able to break the Hilbert space of the three site problem into blocks of maximum three dimension which can then be analytically diagonalized. Such an analytical solution of the three site cluster of the XYZ model enables us to construct a phase portrait of the XYZ model when both $\Delta$ and $\lambda$ are present. Before discussing the result let us note that in the Ising limit, ferromagnetic (FM) and antiferromagnetic (AFM) Ising chains are related by a simple unitary transformation at alternating sites. We therefore colloquially use the term ”Ising order” (IO) to refer to both magnetization of the FM Ising case and the staggered magnetization in the AFM Ising case. Now let us summarize the outcome of our block spin RG: (1) First within the XY model (i.e. $\Delta=0$ case) we are able to identify Ising limits corresponding to IO along $\hat{x}$ or $\hat{y}$ as two attractive RG fixed points of the Kitaev chain. This therefore attaches topological significance to IO along $\hat{x}$ or $\hat{y}$ which are characterized with a winding number $\pm 1$, respectively. (2) When we turn on the coupling $\Delta$ for a region that $\Delta$ dominates again we have an attractive Ising fixed point for very large $\Delta$ which however is characterized with a zero winding number. To emphasize the non-zero winding number, we call states with IO along $\hat{x}$ and $\hat{y}$ the Kitaev-Ising (KI) fixed points, while the sate with IO along $\hat{z}$ direction the Mott-Ising (MI) fixed point. (3) The gapless lines that separate regions with winding numbers of $0,\pm 1$ within our block spin RG treatment using three-site cluster coincides with the exact phase boundaries obtained from the Baxter’s exact solution.

The main message of this paper will be that the XYZ model has essentially three different gapped phases characterized with winding numbers $n_{w}=0,\pm 1$. The phase portrait of the model can be described by BKT repellers and Ising attractors with different topological charge. In the JW representation the $n_{w}=0$ phase corresponds to a Mott insulating phases, while the other two correspond to p-wave superconducting states. While the Mott phase of JW fermions corresponds to IO order along $\hat{z}$, the topologically non-trivial superconducting phase will correspond to IO along $\hat{x}$ or $\hat{y}$. The winding number of the gapped phases changes between the above three values upon crossing the critical (gapless) lines. The essential significance of the topology is that the topological charges are not sensitive to many details, including the size of the cluster as long as it does not miss the essential symmetries of the Hamiltonian. This explains why a three-site problem that correctly embeds the Kramers doublet structure of the ground states is capable of capturing the exact phase diagram of the model.

II formulation

Let us start by stating simple, but very important property of the XYZ model. For the XYZ Hamiltonian the quantity $\zeta=\prod_{i=1}^{N}\sigma^{z}_{i}$ is a constant of motion. This is straightforward to see: Assume any arbitrary state with some arrangements of $\uparrow$ and $\downarrow$ spins. Operating with the XYZ Hamiltonian on it since there are two consecutive $\sigma^{x}$ or two consecutive $\sigma^{y}$ operations on the spins of the system, the total number of spin flips is even and hence either two $\uparrow$ are turned into two $\downarrow$ (or vice versa) or the $\uparrow\downarrow$ is turned into $\downarrow\uparrow$ which does not change the value of $\zeta$. This observation indeed will allow us to analytically nail down the three-site problem and write down its ground state properties in the closed form. Two possible $\zeta=\pm 1$ values correspond to number parity of JW fermions. Indeed the JW transformation Mattis2006 ,

[TABLE]

where $\phi_{j}$ is the phase string defined as $\phi_{j}=\pi\sum_{i<j}c^{\dagger}_{i}c_{i}$ converts the above Hamiltonian to,

[TABLE]

The XY part of the above Hamiltonian ($\Delta=0$) when rewritten in terms of the following Majorana fermions $a_{j}=c_{j}+c^{\dagger}_{j}$ and $b_{j}=i(c_{j}-c^{\dagger}_{j})$ becomes,

[TABLE]

In the Ising limit $J=+(-)\lambda$, the above Hamiltonian couples every Majorana fermion (MF) $a$ with a Majorana fermion $b$ to its right (left), leaving a $b$ MF at the left (right) of the chain, and one $a$ MF at the right (left) of the chain Kitaev2001 ; NXY ; Alicea , as depicted in the inset of Fig. 1 (See also discussion following Eq. (17)).

II.1 Three site problem

Consider three sites labeled by $j=0,1,2$ for which we would like to construct the matrix representation of the Hamiltonian (I) in the $\sigma^{z}$ basis which is a $8$ dimensional space. Conservation of $\zeta$ breaks the Hilbert space into two $4$ dimensional blocks. The $\uparrow$ spin configuration corresponds to $\sigma^{z}=+1$ and hence $c^{\dagger}c=0$. In the $\zeta=+1$ sector, there are four states, $|{\uparrow\uparrow\uparrow}\rangle$, $|{\uparrow\downarrow\uparrow}\rangle$, $|{\uparrow\uparrow\downarrow}\rangle$ and $|{\downarrow\uparrow\uparrow}\rangle$. The first two are even with respect to reflection with respect to the middle site. Therefore the last two better be combined into even and odd combinations to give the following symmetry adopted basis in $\zeta=+1$ sector:

[TABLE]

Similarly for the $\zeta=-1$ sector all we need is to replace $\uparrow$ and $\downarrow$ spins. The Hamiltonian being invariant under reflection with respect to the middle site does not mix even and odd-parity states and hence $|{4}\rangle^{+}$ is already an eigen-state. Straightforward application of the multiplication table 1 to all bonds on the above state reveals the energy of $|{4}\rangle^{+}$ state to be zero.

Using this table we can operate with the Hamiltonian in the three dimensional space of even states which (for both $\zeta=\pm 1$ sectors) gives,

[TABLE]

The above form is suggestive as it corresponds to two levels at $\pm 2\Delta$ coupled by ”hybridization” of strengths $2\sqrt{\lambda}$ and $2\sqrt{J}$ to a third level at energy [math]. The observation at the three-site level is that the transformation $\Delta\to-\Delta$ accompanied by $\lambda\leftrightarrow J$ does not change the spectrum. However this simple observation helps us to identify a symmetry of the XYZ spin chain in general of any size: Indeed in Eq. (I) this comes from the unitary transformation $\sigma^{x}_{j}\to\sigma^{x}_{j}$, $\sigma^{y}_{j}\to(-1)^{j}\sigma^{y}_{j}$, $\sigma^{z}_{j}\to(-)^{j}\sigma^{z}_{j}$ that preserves the $SU(2)$ algebra. The above transformation when translated into the language of JW fermions is actually a particle-hole transformation only in one sub-lattice which induces the change in the role of $\lambda$ and $J$.

II.2 Block spin renormalization group transformations

When we are dealing with odd number of sites the ground state will belong to a Kramers doublet. In the language of JW fermions this correspond to odd number-parity of JW fermions which has a chance to produce Majorana fermions. In the case of XYZ model where the quantity $\zeta$ is conserved, the two degenerate ground states correspond to $\zeta=\pm 1$. The basic idea of block-spin RG is to construct the matrix elements of the operator ${\cal O}=\sigma^{x}_{j},\sigma^{y}_{j},\sigma^{z}_{j}$ in the space of the these doublet $\{|{\phi_{\zeta}}\rangle\}$, $\zeta=\pm$ as

[TABLE]

which being $2\times 2$ matrix can again be rewritten in terms of Pauli matrices $\sigma^{\prime a},~{}a=x,y,z$. This can be interpreted as new spin-half degrees of freedom on a coarse-grained lattice Langari98 . The relation between the new couplings and the old couplings is the block-spin RG transformation. In the following two sections we proceed with implementation of this RG program first for the limiting cases from which we learn about topology of the attractors, and next for a general case.

III Limiting cases: XY and XXZ chains

Before considering the solution of the problem in the most general case $\lambda\neq 0,\Delta\neq 0$, it is instructive to consider the special cases first to establish the Ising limit of the Kitaev-chain Hamiltonian as a renormalization group fixed point. We provide analytic solutions for the RG flow and will identify a length scale associated with the MFs. Then we will proceed to construct the whole picture for the phase diagram.

III.1 The XY limit: $\lambda\neq 0$ and $\Delta=0$

This limit is exactly solvable by the JW transformation giving a half-filled chain of JW fermions hopping with amplitude $J$ and with p-wave superconducting pairing of strength $\lambda$ between them Kitaev2001 . This superconductor belongs to BDI NXY class of topological superconductors characterized by a winding number. Changing the sign of $\lambda$ amounts to changing the winding number. For any non-zero $\lambda$ we have a topologically non-trivial gapped (superconducting) phase. The gapped phases corresponding to positive and negative values of $\lambda$ are separated by a gap closing at $\lambda=0$. To set the stages for the general case of the XYZ spin chain, first of all, let us see how can the above picture be reproduced in the block spin RG language.

In the XY limit where $\Delta=0$, the eigenvalue equation (49) gives three eigenvalues,

[TABLE]

with corresponding eigen-states in $\zeta=\pm 1$ sectors,

[TABLE]

Obviously the Kramers doublet of ground states is given by $|{\phi_{\zeta}}\rangle=|{\psi_{-}}\rangle^{\zeta}$ for $\zeta=\pm 1$, which explicitly reads,

[TABLE]

Evaluating the matrix elements of the original spin variables linking the adjacent blocks gives,

[TABLE]

where we only need the sites $0,2$ at the boundary of three site cluster. The $\vec{\sigma}^{\prime}$ denotes the coarse-grained Pauli matrices for a given block which describe the fluctuations in the ground state of Kramers doublets $|{\phi_{\zeta}}\rangle$. These coarse-grained Pauli matrices are mutually connected to neighboring blocks only through sites $0,2$. Note that it is not surprising that the spin variables at sites $0,2$ of the cluster transform identically under coarse-graining, as the three site cluster has a reflection symmetry with respect to the middle site which has been nicely manifested in the Kramers doublet ground states (7) and (8). Therefore the interaction terms connecting neighboring blocks are transformed as

[TABLE]

Using Eq. (9) allows to identify the coarse-grained couplings $J^{\prime}$ and $\lambda^{\prime}$ as,

[TABLE]

or equivalently,

[TABLE]

These equations are invariant under $J\leftrightarrow\lambda$ which is actually due to symmetry operation discussed under Eq. (5). Since the physics of XY Hamiltonian is given only by the ratio of the above parameters, dividing the above flow equations gives,

[TABLE]

Note that the above flow equation is invariant under $y\to y^{-1}$. This is natural since the above transformation is the same as $\lambda\leftrightarrow J$. Obviously $y^{*}=0$ is a fixed point, which then due to this symmetry implies that it is equivalent to $y^{*}=\infty$ fixed point. The invariance of fixed points under $y^{*}\to 1/y^{*}$ implies that there could be fixed points at $y^{*}=\pm 1$ as well. This can be explicitly obtained by constructing the difference equation Strogatz for the variable $y$ that reads,

[TABLE]

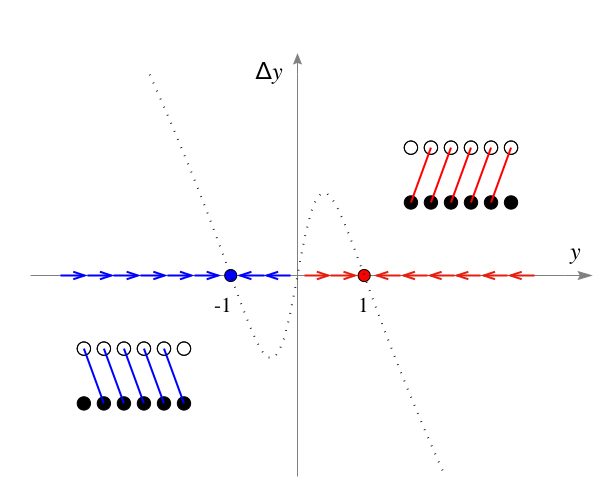

The zeros of the right hand side give the fixed points Strogatz $y^{*}=\pm 1$ which are both attractive fixed points along with a repulsive fixed point at $y^{*}=0$. The invariance of the flow equations under $y\to 1/y$ imply that the infinity is also repulsive fixed point. Under this symmetry operation, the attractive fixed points at $y^{*}=\pm 1$ map to themselves. This has been plotted in Fig. 1.

The interpretation of this flow diagram is as follows: first of all, $\lambda=0$ corresponding to gapless phase of the filled Fermi sea of JW fermions is a repulsive (unstable) fixed point. In the language of the JW fermions this is nothing but the instability of a Fermi system with respect to the superconducting pairing interactions (i.e. $\lambda$). Any non-zero $\lambda$ flows ultimately to the $\pm J$ depending on the sign of $\lambda$. In terms of $J_{x,y}=J\pm\lambda$ it means that the smallest of $J_{x}$, $J_{y}$ is renormalized to zero, and the fixed point is an Ising chain polarized along $\hat{x}$ or $\hat{y}$ direction. In such an Ising ground state, every MF of a given type is paired with a MF of opposite type in either right (red, fixed point $\lambda/J=+1$) or left (blue, fixed point $\lambda/J=-1$). To clarify this let us repeat the analysis of Kitaev Kitaev2001 : For the fixed point at $y^{*}=1$ denoted by red in Fig. 1 the Majorana representation of the Hamiltonian is,

[TABLE]

In terms of new fermions denoted by red links in the inset of Fig. 1 , i.e. $f^{\dagger}_{j}=a_{j}+ib_{j+1}$ the above Hamiltonian is simply $2J\sum_{j=0}^{N-1}f^{\dagger}_{j}f_{j}$ which does not include the $a_{0}$ nor $b_{N-1}$ which are denoted as unpaired circles in the inset of Fig. 1. Similarly the other fixed point at $y^{*}=-1$ corresponds to a Kitaev chain where every MF of type $a$ is paired with the $b$ MF to its left, leaving again two unpaired MFs at the chain end Akbari . The two fixed points $y^{*}=\pm 1$ are related by the $\lambda\to-\lambda$ transformation which in the language of original spins amounts to a rotation around $\hat{z}$ axis of the spins, $\sigma^{x}\to\sigma^{y}$ and $\sigma^{y}\to-\sigma^{x}$.

Therefore the KI fixed points at $y^{*}=\pm 1$ with their non-trivial topology that ultimately spawn two sharply localized Majorana zero modes at the two ends of the chain are the fixed points of the XY (Kitaev) chain. This interpretation can be understood intuitively: For e.g. the $y=y^{*}=1$ point the resulting MFs are sharply (Dirac delta) localized at the two ends of the chain. If one solves the zero mode eigenvalue problem with a simple Z-transform method NXY one finds that away from the fixed point, one still has the MFs at the two ends, but this time they are exponentially decaying instead of being Dirac-delta localized (see Eq.21). Take any chain with $y$ away from $y^{*}$ with its exponentially localized pair of MFs at the chain ends, and look at the MFs at larger length scales: After every scale transformation the MF wave function will be more and more localized. This means that at very large length scales the MF will look like a Dirac-delta localized MF. This is the meaning of flowing towards Dirac-delta-localization – i.e. the $y=y^{*}$ – point.

Let us now show that the recursive relation (16) can be explicitly solved. Let us change of variable $y$ as,

[TABLE]

which after a little algebra renders the recursive Eq. (16) to a simple geometric progression for the new variable,

[TABLE]

whose solution $u_{n}=3^{n}u_{0}$ implies,

[TABLE]

where the system size at the $n$’th RG level, $\ell_{n}=3^{n}$ appears quite naturally in this solution.

The relation $u_{n}=\ell_{n}u_{0}$ suggests that $u$ must be some sort of length scale. The question is, what kind of length scale is it? The answer to this question is surprisingly simple and physical: Assume that Eq. (4) has a zero mode solution of the form which has amplitude $\psi^{(b)}_{j}$ at every site $j$ of the lattice. Then it will satisfy the recursive relation,

[TABLE]

This equation is solved by the exponentially decaying ansatz, $\psi_{j}^{(b)}=\exp(-j/u)$, where,

[TABLE]

This is nothing but the transformation (18) in disguise. This relation enables us to interpret the quantity $u$ as the length scale associated with the zero modes.

This solution enables us to figure out the flow of the energy gap per site ($u_{n}=\ell_{n}u_{0}$),

[TABLE]

The symmetry of the problem under $\lambda\to-\lambda$ is reflected at this stage in a symmetric functional dependence on $u_{0}$. For $y_{0}=\tanh u_{0}=0$ the above equation gives $E_{g,n}=2\sqrt{2}J_{n}$. On the other hand the flow equation (15) for $J$ will become $J_{n+1}=J_{n}/2$ which gives $J_{n}=J_{0}(1/2)^{n}$ vanishing for $n\to\infty$ and hence giving a gapless system, in agreement with the exact solution of the XY model NXY . For any non-zero value of $y_{0}$, with the behavior of gap for $u_{0}\sim y_{0}\to 0$ in mind, the ratio of $\cosh$ terms in the above expression for large enough length scales is always close to $1$ and therefore the essential factor that determines the behavior of gap is the behavior of $J_{n}$ at large length scales. Therefore we need to solve the recursive relation (15) for $J$ which is,

[TABLE]

where $u_{n}$ is a geometric progression corresponding to the size of MF. The solution to the above equation is,

[TABLE]

where we have used the fact that due to geometric progression nature of $u_{n}$, the $e^{-u_{n}}$ rapidly converges to zero in $n_{\rm conv}\sim-(\ln u_{0}/\ln 3)$ steps. This causes the terms in parenthesis to come close to $1$ which prevents vanishing of the $J$ in large length scales. A lower bound for the $J$ in large $n$ limit is obtained for very small $u_{0}$ by setting $u_{0}=0$ in all the $n_{\rm conv}$ terms in the parenthesis which gives the lower bound for $J$ and hence $E_{g}$ at large length scales as,

[TABLE]

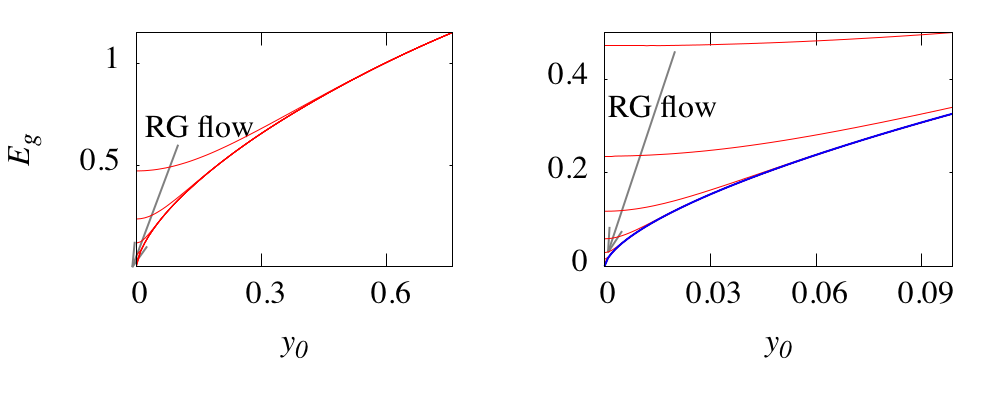

Numerical evaluation of the iterative equation quickly converges and results in plots represented in Fig. 2. The trends of the gap curves as function of the initial gap parameter $y_{0}$ are indicated by arrows in both panels. In the right panel we have magnified the range of $y_{0}<0.1$ to which the limiting (blue) curve given by $E_{g}^{\rm fit}=1.4076y_{0}^{0.631}$ gives a perfect fit. Indeed zooming in by a further order of magnitude does not change the exponent up to third decimal point, which indicates the quality of fit. It is remarkable that the above exponent is so close to the lower bond estimated in Eq. (26). The exact solution from the JW transformation gives a superconducting state with pairing potential proportional to $y_{0}$ and hence the exact gap exponent is actually $1$. However, the value of $\ln 2/\ln 3$ obtained above gives the finite size value of the gap exponent.

A final note is that the behavior of flow Eq. (16) near the critical point $y^{*}=0$ (where the gap is zero) is given by $y_{n+1}=3y_{n}$. Assuming a divergent correlations length $\xi(y)\sim|y|^{-\nu}$ and demanding $3\xi(y_{n+1})=\xi(y_{n})$ gives the correlation length exponent for the XY model by $\nu=1$.

III.2 XXZ limit: $\lambda=0$ and $\Delta\neq 0$

This limit indeed has been studied much in its spin, fermionic (massless Thirring model), and its bosonic disguise (Sine-Gordon model). To slightly generalize it, let us add a Dzyaloshinskii-Moriya (DM) interaction Langari2009 and on every link we consider the operators,

[TABLE]

The Hamiltonian (27) not only conserves the the fermion number parity $\zeta=\prod_{j}\sigma^{z}_{j}=\pm 1$, but also is invariant with respect to rotation around $z$ axis, and hence the total $\sigma^{z}$ is also conserved. To search for our Kramers doublets we are interested in a sector with total $\sigma^{z}$ equal to $\pm 1$. In the $\zeta=+1$ sector we define the following states,

[TABLE]

The $\zeta=-1$ space is similarly obtained by flipping every spin. With respect to the DM interaction as can be seen from table 1, an imaginary factor $i$ as $iD$ is involved. In this case, changing the sign of $\zeta$ amounts to $i\to-i$, i.e. the complex conjugation. A formal way to see this in general is that $\zeta$ is the eigenvalue of the operator $Z=\prod_{j}\sigma^{z}_{j}$. The $\zeta$ label of a state with odd number of sites changes if the operator $X=\prod_{j}\sigma^{x}_{j}$ acts on it. It is readily seen that $X$ commutes with $\sum_{i}\sigma^{x}_{i}\sigma^{x}_{i+1}$ and $\sum_{i}\sigma^{y}_{i}\sigma^{y}_{i+1}$ terms while it anti-commutes with DM terms of $\sum_{i}\sigma^{x}_{i}\sigma^{y}_{i+1}$ type. Therefore for any state $|{\psi}\rangle$, there exists a state $|{\psi^{\prime}}\rangle=X|{\psi}\rangle$ whose values of $D$ are negative of each other, and hence in the $\zeta=-1$ sector instead of $J+iD$ one has $J-iD$. More compactly for any $\zeta$, the DM interaction upgrades $J$ to $J+i\zeta D$.

The effect of each individual term of the above Hamiltonian on a two-spin state is summarized in table 1. For $\zeta=1$ sector, the effect of the above Hamiltonian on various states can be easily seen to be,

[TABLE]

which gives the matrix representation,

[TABLE]

where as emphasized $\xi=J+iD\equiv r\exp{i\theta}$ combines $J,D$ into a single complex parameter. The eigenvalues of the above matrix for the $\zeta=+1$ and $\sigma^{z}=1$ sector are,

[TABLE]

For both negative and positive values of $\Delta$ the ground state corresponds to $m=-1$, and asymptotically approaches the first excited state at [math] for $\Delta\to-\infty$, but never touches it. Therefore the ground state doublet is given by,

[TABLE]

We have used the fact that switching between $\zeta=\pm 1$ is equivalent to complex conjugation which replaces $e^{i\theta}$ and $e^{-i\theta}$. Let us emphasize again that as far as the multiplication table 1 is concerned the effect of introducing the DM interaction is to replace $J\to\xi=J+iD\equiv r\exp(i\theta)$. This looks like a global gauge transformation by an angle $\theta$ when expressed in terms of the JW fermions that modulates the hopping. Let us see how does it show up in the RG language.

The matrix elements of $\vec{\sigma}_{0}$ operator in the Kramers doublet space is summarized as,

[TABLE]

Note that as expected from Eq. (31) and (32), the sites [math] and $2$ at two ends of the three site cluster are related by $e^{-i\theta}\to e^{i\theta}$. The above matrices give the couplings between the coarse-grained spin variables as,

[TABLE]

Note that the spin at site [math] of a given cluster is connected to spin at site $2$ of the neighboring cluster which leads to cancellation of the DM phases $\theta$, thereby making $J$ and $D$ scale identically. The above equation in terms of the combined complex variable $\xi=J+iD$ becomes,

[TABLE]

where $b$ and $c$ are real and incorporate no phase to $\xi$ through the RG scaling. The above equation is remarkable in that it implies that the magnitude $r=\sqrt{J^{2}+D^{2}}$ scales the the same way as $J$, but the phase $\theta$ does not change:

[TABLE]

The fact that in the one-dimensional version of the DM interaction, the $\theta$ does not change as the length scale is changed is actually a manifestation of the fact that the non-zero $\theta$ is basically a global gauge transformation of the $\theta=0$ limit. As in the rest of the paper we wish to compare the results of the XXZ model against the XYZ, let us fix $\theta=0$ (corresponding to $D=0$).

In terms of $z=\frac{1}{\sqrt{8}}\frac{\Delta}{J}$, the flow equations (37) becomes,

[TABLE]

This naturally suggests to define,

[TABLE]

in terms of which the flow equations (38) is simplified to,

[TABLE]

In terms of $z$ the energy gap per site can be written as $3E_{g}=\Delta+\sqrt{\Delta^{2}+8J^{2}}=2\sqrt{2}J(z+\sqrt{z^{2}+1})$ or equivalently,

[TABLE]

The difference equation describing the flow of $v$ is,

[TABLE]

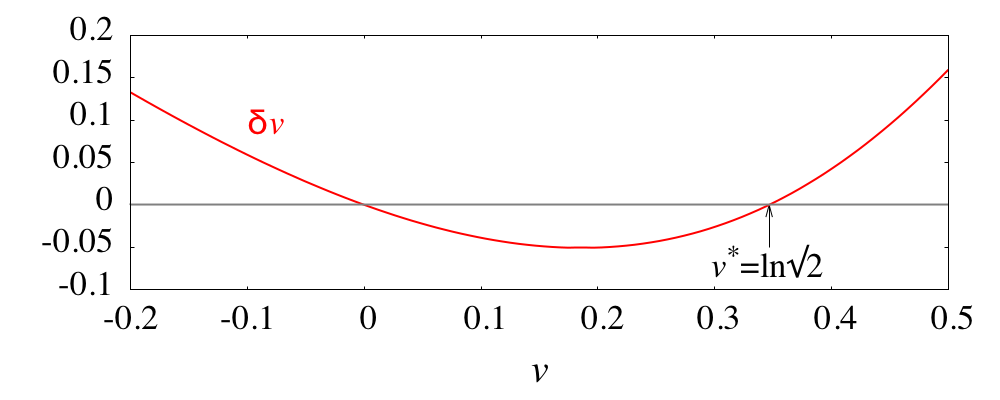

which has been plotted in Fig. 3.

The above equation has a repulsive fixed point at $v^{*}=\ln\sqrt{2}$ which corresponds to the BKT point $z^{*}=1/(2\sqrt{2})$ or $\Delta=J$.

We have numerically evaluated the flow equation (40) and have used it to generate a flow for the gap of the XXZ model, Eq. (41) in Fig. 4. The flow of the energy gap for the left (right) of BKT point $v^{*}=\ln\sqrt{2}$ has been plotted in blue (red). For clarity of presentation we have normalized the blue plots to $J$, while the red plots are normalized to $\Delta$ which is the dominant and natural energy scale on the right side of the BKT point. The direction of the flow has been indicated by gray arrows. To the left of the BKT point $v^{*}=\ln\sqrt{2}$, every thing flows to $v=0$ (corresponding to $z\sim\Delta/J=0$) and hence the relevant energy scale is $J$ which sets the scale of the energy gap. But on the other hand since for every $v$ one always has $\cosh^{2}v>1$, the second of Eq. (40) indicates that $J$ flows faster than the geometric progression $J_{n+1}=J_{n}/2$ which implies that the energy scale $J$ in the large $n$ (long length) limit approaches to zero and therefore the left of the BKT point (blue) lines is a gapless phase. Indeed one can do a formal expansion around the non-interacting attractive fixed point at $v^{*}=0$ which gives,

[TABLE]

where for large $n$, the quantity $\epsilon$ is exponentially small at large length scales. With this the behavior of gap function for the left of BKT point can be understood and it can be seen why all the blue curves settle on the $E_{g}/J=2\sqrt{2}/3$ line.

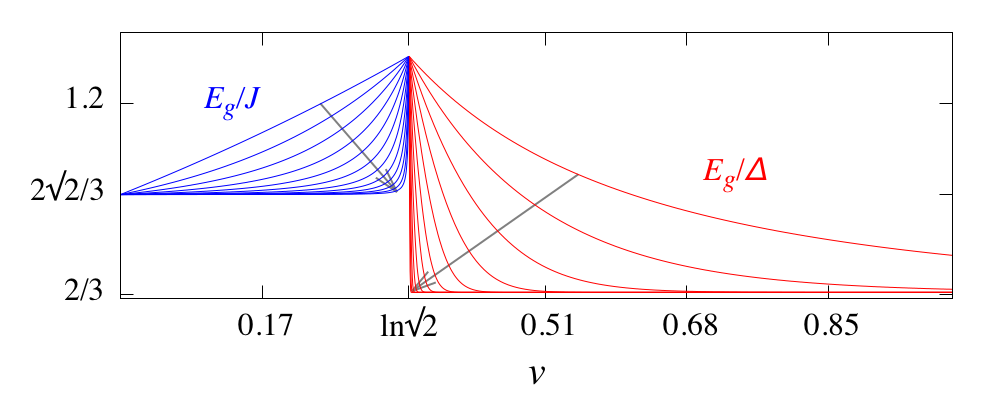

Now let us move to the right of BKT point in Fig. 4 that corresponds to the Mott phase. Expanding around the BKT repulsive fixed point $v^{*}=\ln\sqrt{2}$, we can write,

[TABLE]

where $\kappa=5/3$ and we have used $e^{2v^{*}}=2$ along with the fact that for large $n$, $\kappa^{n}-1\approx\kappa^{n}$. The first of the above equation shows that in the large $v$ limit where $\Delta/J\sim z=\sinh v\sim e^{v}/2$ diverges, the relevant energy scale is $\Delta$. The second equation indicates how does the scale $J$ fade away at large length scales, and the third equation shows why in the $n\to\infty$ where $v\to\infty$, the ratio of energy gap per site $E_{g}$ and $\Delta$ approaches the $2/3$ in agreement with Fig. 4. However since the energy scale $\Delta$ in the right of BKT point is not renormalized to zero, the right of BKT point $v^{*}=\ln\sqrt{2}$ is actually a gapped phase corresponding to the Mott insulating phase of the underlying JW fermions.

Fig. 4 nicely shows that for every $0<v<\ln\sqrt{2}$ corresponding to $0<\Delta<J$ the gap settles on $2\sqrt{2}J/3$ which eventually approaches to zero as does $J$ in the long length limit. The closer $\Delta$ is to zero, earlier in RG steps the gap reaches the zero. For values of $\Delta<J$ that are closer to $J$, a larger RG iteration, i.e. a longer length is required to attain the zero gap. But eventually for long enough length scales, all Hamiltonians with $0<\Delta<J$ end up in a gapless state. This gapless state terminates at the BKT point $\Delta=J$.

A further hallmark of the BKT transition is the behavior of the gap to the right of BKT point. In the MI phase the gap is essentially given by the $2\Delta/3$ at every length scale. The closer the $\Delta$ is to the right of BKT, it takes a longer length to settle the gap to $2\Delta/3$ asymptote. Combining the asymptotic behavior of Eqs.(44), (45), (46) we obtain

[TABLE]

where $\nu$ is the correlation length exponent $\xi(v)\propto|v-v^{*}|^{-\nu}$ which satisfies $\xi(v_{n+1})=\xi(v_{n})/3$. This algebraic behavior of the logarithm of the gap is the three-site block-spin RG version of the BKT behavior denNijs ; Fradkin ,

[TABLE]

Equipped with block-spin RG interpretation of the phase transitions of XY and XXZ models, we are now prepared to construct a global phase diagram of the XYZ model.

IV Phase diagram of the XYZ spin chain

The role of $\lambda\neq 0$ when $\Delta=0$ is to open up a topologically non-trivial bulk-gap. The role of $\Delta\neq 0$ when $\lambda=0$ on the other hands is to open up a an Ising gap, or in the language of the massive Thirring model to open up a Mott gap. To distinguish this Ising limit from the Ising limit of the XY model, we call the former Mott-Ising gap, while for the gapped state due to p-wave pairing of JW fermions we use the term KI gap. Now it is desirable to have both these gap opening mechanisms together, and to study the critical (gapless) line separating these regions. For this purpose we need to analytically diagonalize the three-site Hamiltonian (5) which gives the following equation for the eigenvalues $\omega$:

[TABLE]

This is already in its canonical form $\omega^{3}-12P^{2}\omega+16Q=0$, which admits three trigonometric solutions,

[TABLE]

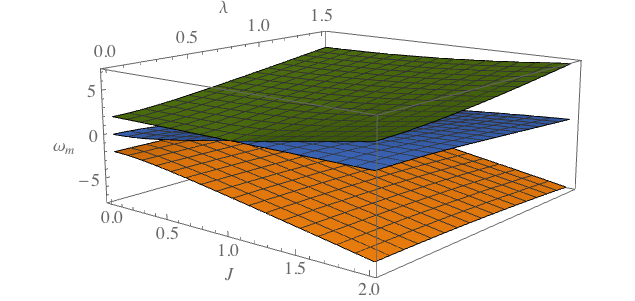

where $m=0,1,2$. In the MI limit where hybridizations $\lambda$ and $J$ vanish, the roots of the cubic equation given by trigonometric formula (50) reduce to,

[TABLE]

In the MI limit the ground state is the root that starts at $-2\Delta$ and always remains the ground state, except for the special point $J=0,\lambda=\Delta$ where the first excited state touches the ground state. This is shown in Fig. 5. This indicates that $\omega_{0}$ always remains the ground state.

Therefore the ground state wave function corresponding to this energy is,

[TABLE]

where the naming $d^{2}$ is chosen such that $d$ will have the dimension of energy. Note that the above ground state is non-degenerate as long as $(J,\lambda)\neq(0,\Delta)$. On the boundary of each cluster only the spins $\vec{\sigma}_{0}$ and $\vec{\sigma}_{2}$ are living which might be connected to neighboring blocks. The symmetry under exchange of site indices $0,2$ in the cluster is manifest in the above Kramers doublet ground states. So we only need to compute the transformation of one of them, e.g. $\vec{\sigma}_{0}$. The computation is straightforward noting that every operation $\sigma^{x,y}$ changes the conserved quantity $\zeta$ and hence only has off-diagonal components between the two ground states with $\zeta=\pm 1$. For the same reason, operator $\sigma^{z}$ does not change the charge $\zeta$ (fermion parity in the language of JW fermions) and hence only has diagonal components. This gives,

[TABLE]

which result in the flow equations,

[TABLE]

To proceed further, let us define the dimensionless version of $\Delta$ and $\lambda$ in units of $J$ with $\Delta=xJ,\lambda=yJ$ . Then the dimensionless version of the flow equations become,

[TABLE]

where $\varepsilon$ is the dimensionless ground state energy defined by $\varepsilon=\omega_{0}/J$. Let us check the limit, $x\to 0$ of XY model where we obtain $\varepsilon\to-2\sqrt{2}\sqrt{1+y^{2}}$ which implies $\alpha\to y/\sqrt{2(1+y^{2})}$, $\beta\to 1/\sqrt{2(1+y^{2})}$, $\gamma\to-1/\sqrt{2}$ whereby the flow equations give $x^{\prime}=0$, $y^{\prime}=y(y^{2}+3)/(1+3y^{2})$ which is the same as Eq. (16).

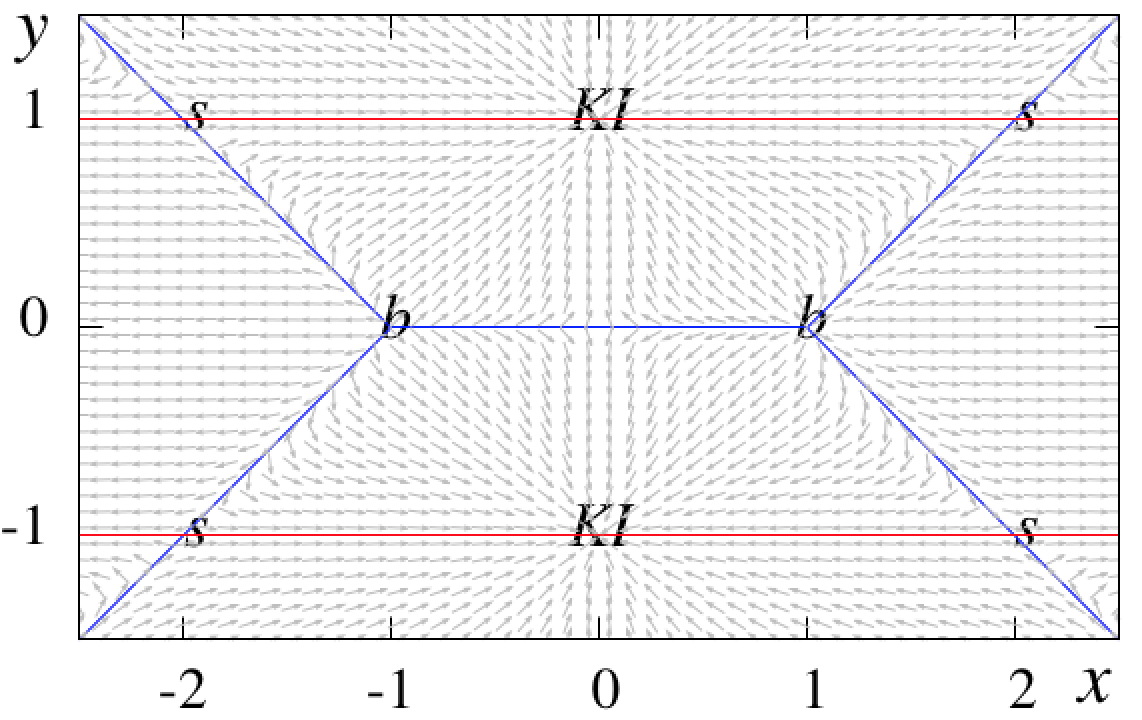

The phase portrait of the above set of flow equations is shown in Fig. 6 where the horizontal axis denotes $x=\Delta/J$ and the vertical axis represents $y=\lambda/J$. In the language of Jordan-Wigner fermions, the $x$ is a measure of many-body interaction between the JW fermions, and $y$ controls the p-wave superconducting interaction between these spin-less fermions. We colloquially use the term IO to refer to staggered magnetization in the case of AFM Ising point, and to magnetization in the case of FM Ising point. Since these two are related by a canonical transformation, we do not distinguish them and only refer to them by Ising order. For definiteness let us assume that $J>0$ and spell out the phase diagram obtained by the block-spin RG method.

The phase portrait of the XYZ model in Fig. 6 is characterized by Ising attractors at $(x,y)=(0,\pm 1)$ which are denoted as KI and $(x,y)=(\pm\infty,0)$ – not shown in the figure – and repellers at six BKT points two of which are denoted by letter $b$ and the other four are along the asymptotes $|y|=|x|-1$. Therefore there are totally six BKT points that when joined together determine the phase boundary depicted as blue line in this figure. The BKT points at $(x,y)=(\pm 1,0)$ are tricritical points Ercolessi2013 .

This blue line coincides with the exact phase boundary extracted from the solution of Baxter denNijs . There are four saddle points at $(x,y)=(\pm 2,\pm 1)$ that guide the flow lines. The blue gapless lines divide the plane of $x=\Delta/J$ and $y=\lambda/J$ into four regions. The Ising attractors at far right (left) of the $x=\Delta/J$ axis correspond to AFM (FM) Ising order. For $J>0$ ($J<0$), the KI attractors at $(x,y)=(0,\pm 1)$ correspond to AFM (FM) Ising order along $\hat{x}$ and $\hat{y}$ directions. As we saw in section III.1 the KI points are characterized with a winding number corresponding to which a pair of MFs are spawn at the two ends of the spin chain. Now the KI attractors with their non-trivial topology have turned into global attractors in the plane of $\Delta$ and $\lambda$.

The equation of the gapless phase boundaries (blue lines) of the phase portrait in Fig. 6 are given by,

[TABLE]

which agrees with the exact solution denNijs ; Ercolessi2011 and should be compared e.g. with Fig. 3 of den Nijs denNijs . The whole region $y>\Theta(|x|-1)$ is attracted to the KI point at $(x,y)=(0,+1)$ with winding number $n_{w}=+1$ and IO along $\hat{x}$ direction. The entire region $y<-\Theta(|x|-1)$ is attracted to the other KI point at $(x,y)=(0,-1)$ with winding number $n_{w}=-1$ and IO along $\hat{y}$ direction. The rest of the plane for $|x|>|y|+1$ is attracted to the MI fixed point with winding number $n_{w}=0$ and IO along $\hat{z}$ direction. In the language of JW fermions it means that when a p-wave superconducting bulk gap is opened by a non-zero $\lambda$, turning on the interaction $\Delta$ between the JW fermions is not capable to close the gap and change the topological charge from $n_{w}=\pm 1$ of the KI point to the $n_{w}=0$ of the MI phase, unless the interaction $\Delta$ is larger enough to satisfy $|\Delta|>|J|+|\lambda|$.

The repulsive fixed pint at $(\Delta=J,\lambda=0)$ corresponds to the BKT transition from critical (gapless) phase to the massive MI phase. The field theory treatment in terms of sine-Gordon theory gives a critical value $\Delta_{c}=\pi J/2$ Fradkin , while the exact solution gives $\Delta_{c}=J$ BaxterXYZ . As discussed in previous sections, the fixed points at $(\Delta=0,\lambda=\pm J)$ correspond to Ising fixed points of the Kitaev chain which have now turned into globally attractive fixed points. These points are gapped Ising phases, however to distinguish them from the Mott-Ising phase, it is appropriate to call them Kitaev-Ising points. The present picture means that the KI fixed points obtained from the XY limit that corresponds to Ising magnets polarized in $\hat{x}$ or $\hat{y}$ directions, and is entitled to a non-zero winding number, remain attractive fixed points in a broader parameter range where the interaction between JW fermions ($\Delta$) can also be present. For interacting XYZ chain the $\hat{x}$ or $\hat{y}$ polarized KI fixed points remain the flow destination as long as the pairing interaction $\lambda\sim y$ is strong enough to satisfy $|y|>|x|-1$. Otherwise the Mott-Ising fixed point that polarizes the system along the $\hat{z}$ axis will win.

V Discussions and summary

We have analyzed the phase diagram of the XYZ model. In the limiting case of the XY spin chain that corresponds the Kitaev chain model of spinless JW fermions paired with p-wave superconducting interaction $\lambda$, we find that the Ising limit of the Kitaev chain that leaves a pair of sharply localized Majorana fermions in the two ends of the chain is actually the RG fixed point. In the XY limit we were further able to analytically solve the flow equation. This allowed us to identify a geometric progression inherent in the RG flow as a length scale associated with zero modes of the system, namely the size of Majorana fermions. The Kitaev-Ising fixed points of the XY limit are characterized by a non-zero winding number. We further find that within the three-site cluster employed in our analysis the – superconducting – gap at non-zero values of $\lambda$ develops as $\lambda^{\ln 2/\ln 3}$.

The other extreme limit is that of the XXZ chain where the exact BKT point at $\Delta=J$ is obtained from a block spin RG based on the three site problem. We analytically obtain the asymptotic behavior of the RG flow which enables us to establish the $\Delta>J$ region is gapped and flows to the Mott-Ising fixed point. Then we considered the effect of nonzero $\lambda$ and $\Delta$ which in the language of JW fermions corresponds to the massive Thirring model. In this general case we find that the ground state of the XYZ model is essentially gapped. The phase portrait is characterized by Ising attractors and BKT repellers. The gapless (blue) lines in Fig. 6 is essentially the exact result of Baxter. But the new insight of the present analysis is that our phase portrait attaches topological significance to the Baxter’s exact solution. Indeed in the $y>\Theta(|x|-1)$ the KI fixed point with winding number $n_{w}=+1$ which corresponds to Ising order along $\hat{x}$ direction is a global attractor, while in the $-y>\Theta(|x|-1)$ region the KI fixed point with winding number $n_{w}=-1$ is a global attractor in the space of parameters $\Delta,\lambda$. For very strong $|\Delta|$, the Mott-Ising attractor takes over which in characterized with a winding number $n_{w}=0$. Therefore the blue lines in Fig. 6 divide the parameters space of the XYZ model into regions where across the (blue) border a winding number changes, and hence the transition from one gapped (Ising ordered) state to another gapped state is actually a topological phase transition. The underlying topology explains why a simple three-site problem is able to capture the exact phase diagram of the model.

The KI fixed points spawn a pair of Majorana fermions sharply localized in the chain ends. Going from the KI fixed point e.g. at $(x,y)=(0,+1)$ to the other one corresponds to changing the polarization direction from $\hat{x}$ to $\hat{y}$ direction. This in the language of Majorana fermions corresponds to exchanging the two Majorana fermions of type $a$ and $b$ in the opposite ends of the chain which requires the change of topology.

The picture presented so far relies on the $\sigma^{z}$ basis used in our analysis. Indeed thinking in terms of the couplings $J_{x}=J+\lambda$, $J_{y}=J-\lambda$, $J_{z}=\Delta$, the three Ising limits can be mapped to each other by coordinate transformation. Therefore assigning the three winding numbers $n_{w}=\pm 1$ to IO along $\hat{x}$ and $\hat{y}$ and $n_{w}=0$ to IO along $\hat{z}$ is a matter of choice. The reason is that the JW fermions and their associated MFs are constructed from the transverse spin variables $\sigma^{x},\sigma^{y}$. To that extent even the Mott-Ising phase at large $\Delta$ can be thought of a KI point when expressed in terms of JW fermions constructed from, e.g. $\sigma^{z},\sigma^{x}$ variables. Hence the Mott phase of the Thirring model is entitled to have zero modes and hence is topologically non-trivial. Indeed in one dimensional helical liquids a topologically non-trivial gap can be opened by two-particle interactions Sela . To see how the above symmetry with respect to choice of the coordinate system is reflected in the phase diagram of Fig. 6, let us consider a portion of the blue phase boundary that connects the two BKT points marked as b in the figure. Equation of this phase is $J_{x}=J_{y},|J_{z}|<|J_{x}|$. Changing the coordinate system the equation of the boundary line would be $J_{x,y}=J_{z}$, which means $J\pm\lambda=\Delta$, which then gives $x\mp y=1$ that is nothing but the equation of the portion of the blue line emanating from the BKT point $(x,y)=(1,0)$ to the up-right and down-right of the figure.

It has been recently found that the ground state of the XYZ chain has non-trivial multi-fractality spectrum Atas1 ; Atas2 which is entirely different from the type of multi-fractal behavior in (disordering) Anderson transition and might have to do with the many-body localization Fisher ; Slagle . It is therefore desirable to develop an understanding of the XYZ model from the perspective of topology which can also shed light on the role of topology in the corresponding problem of interacting fermions or bosons. It would be interesting to examine the role of topology – that can be diagnosed by the bipartite charge fluctuation Slagle – in the multi-fractal behavior of the ground state.

To summarize, we have obtained the exact phase diagram of the XYZ spin chain. The gapless lines correspond to topological phase transitions through which the appropriate Majorana zero modes are exchanges across the chain ends.

VI acknowledgements

I thank Takanori Sugimoto, B. Normand and T. Farajollahpour for discussions. This work supported by Alexander von Humboldt fellowship for experienced researchers.
