$0$-$\pi$ transitions in a Josephson junction of irradiated Weyl semimetal

TL;DR

This paper proposes an experimental setup using irradiated Weyl semimetals to observe tunable 0-${ extpi}$ transitions in Josephson currents, revealing anisotropic oscillations linked to chiral node separation.

Contribution

It introduces a novel method to induce and control 0-${ extpi}$ transitions in Weyl semimetal-based Josephson junctions via photon irradiation.

Findings

Josephson current exhibits anisotropic periodic oscillations as a function of chiral node separation.

Photon irradiation can precisely tune the effective chiral node separation.

The proposed setup is robust and feasible for experimental realization.

Abstract

We propose a setup for the experimental realization of unexpected and anisotropic $0$-$\pi$ transitions of the Josephson current, in a junction whose link is made of irradiated Weyl semi-metal (WSM), due to the presence of chiral nodes. We show using a Green's function technique that the Josephson current through a time-reversal symmetric WSM has anisotropic periodic oscillations as a function of $k_0L$, where $k_0$ is the (relevant) separation of the chiral nodes and $L$ is the length of the sample. This is unexpected, for time-reversal symmetric systems, although it has been shown earlier for time-reversal symmetry breaking WSMs. We then show that the effective value of $k_0$ can be tuned with precision by irradiating the sample with photons resulting in $0$-$\pi$ transitions of the critical current. Finally, we discuss the robustness of our setup.

Figures

Equations

$$H_0(\mathbf{k})=\sum _{i=x,y,z}{\lambda }_i{\sigma }^i\sin (k_i)+M(\mathbf{k}){\tau }^y{\sigma }^y+ϵ(\mathbf{k}){\tau }^y{\sigma }^x$$

$$H_{\mathrm{W}}\approx \lambda \left[{\sigma }^x{k}_x+{\sigma }^z{k}_z\pm {\sigma }^y{k}_y\frac{\sqrt{{\lambda }^2-m^2}}{\lambda }\right]+\mathcal{O}(k^2).$$

$$\mathbf{A}(t)=(A_x\cos (\omega t),A_y\sin (\omega t+\theta ),0).$$

$$H_{\mathrm{eff}}=H_{(0)}+\sum _{n\ne 0}\frac{H_{(n)}{H}_{(-n)}}{n\omega }+\mathcal{O}(1/{\omega }^2),$$

$$M(k)$$

$$\mathrm{and}ϵ(k)$$

$$D_3=$$

$$\displaystyle\left\{\begin{array}[]{ll}\lambda^{2}\sin k_{x}\sin k_{y}-\epsilon\cos k_{x}\cos k_{y},&\text{if}~{}n~{}\text{is even}\\ -\lambda^{2}\cos k_{x}\cos k_{y}+\epsilon\sin k_{x}\sin k_{y},&\text{if}~{}n~{}\text{is odd}.\\ \end{array}\right.$$

$$2({\tilde{k}}_0-k_0)=2\delta k_0\approx -\frac{(e{A}_x{)}^2+m(e{A}_y{)}^2}{2\sqrt{{\lambda }^2-m^2}}.$$

$${\xi }_L\equiv e\delta A_y\approx \frac{\pi }{J_1(e{A}_y)}\frac{\sqrt{{\lambda }^2-m^2}}{mL}.$$

$$H(\mathbf{k})=\sum _{i=x,y,z}\frac{{\lambda }_i}{a}{\sigma }^i\sin (k_{i}a)+M(\mathbf{k}){\tau }^y{\sigma }^y.$$

$$E_{\mathbf{k}\pm }={\left(\frac{\lambda }{a}\right)}^2$$

$${\left[\left(\frac{\lambda }{a}\right)\sin (k_{y}a)\pm M(\mathbf{k})\right]}^2.$$

$$H({\mathbf{k}}_0+\mathbf{q})=\lambda \left[{\sigma }^x{q}_x+{\sigma }^z{q}_z\mp {\sigma }^y\left(\frac{q_y^{2}a}{2}\right)\right]$$

$$H({\mathbf{k}}_0+\mathbf{q})\approx \lambda \left[{\sigma }^x{q}_x+{\sigma }^z{q}_z\pm {\sigma }^y\sqrt{1-\frac{a^2{m}^2}{{\lambda }^2}}{q}_y\right]$$

$${\zeta }^1$$

$${\zeta }^4$$

$$d_{n,1}$$

$$d_{n,2}$$

$$d_{n,3}$$

$$d_{n,4}$$

$$-ϵJ_n(e^{\ast }{A}_y)e^{in\theta }\{\begin{array}{ll}\cos (k_{y}a)& \text{if }n\text{ is even}\\ i\sin (k_{y}a)& \text{if }n\text{ is odd}\end{array}$$

$$d_{n,5}$$

$$-2t_h{J}_n(e^{\ast }{A}_x)\cos (k_{x}a+\frac{n\pi }{2})\text{ and }$$

$$d_{n,6}$$

$$H_{\text{eff}}(\mathbf{k})=H_{(0)}(\mathbf{k})+\frac{1}{\hslash \omega }\sum _{n\ne 0}\frac{H_{(n)}(\mathbf{k})H_{(-n)}(\mathbf{k})}{n}+O(\frac{1}{{\omega }^2})$$

$$D_1^{(0)}(\mathbf{k})$$

$$D_2^{(0)}(\mathbf{k})$$

$$D_3^{(0)}(\mathbf{k})$$

$$D_4^{(0)}(\mathbf{k})$$

$$D_5^{(0)}(\mathbf{k})$$

$$D_6^{(0)}(\mathbf{k})$$

$$D_1^{(1)}(\mathbf{k})$$

$$D_3^{(1)}(\mathbf{k})$$

$$\{\begin{array}{ll}(\frac{\lambda }{a}{)}^2\sin (k_{x}a)\sin (k_{y}a)-2t_hϵ\cos (k_{x}a)\cos (k_{y}a)& \text{if }n\text{ is even}\\ -(\frac{\lambda }{a}{)}^2\cos (k_{x}a)\cos (k_{y}a)+2t_hϵ\sin (k_{x}a)\sin (k_{y}a)& \text{if }n\text{ is odd}\end{array}$$

$$D_4^{(1)}(\mathbf{k})$$

$${\tilde{E}}_{\mathbf{k}\pm }=(D_1(\mathbf{k})\pm D_4(\mathbf{k}){)}^2+(D_2(\mathbf{k})\pm D_5(\mathbf{k}){)}^2+(D_3(\mathbf{k}){)}^2.$$

$$D_1(\mathbf{k})=\pm D_4(\mathbf{k})\text{ , }{D}_2(\mathbf{k})=\pm D_5(\mathbf{k})\text{ , }{D}_3(\mathbf{k})=0.$$

$$m_{\text{eff}}$$

$${\lambda }_{\text{eff}}$$

Full text

Introduction.—Weyl semimetals are 3D topological systems with two or more ‘Weyl’ nodes in the bulk where valence and conduction bands touch Vishwanath2011 ; Burkov2011a ; Burkov2011b ; Zyuzin2012a ; Hosur2012 . According to a no-go theorem Nielsen1981 , such Weyl nodes appear as pairs in momentum space with each of the nodes having a definite ‘chirality’, a quantum number that depends on the Berry flux enclosed by a closed surface around the node. Attempts to understand the effects of such chiral nodes have initiated an extensive field of research in the last few years, both in theory as well as in experiments. Exotic transport phenomena have been predicted due to the presence of the chiral nodes Vazifeh2013 ; Son2013 ; Turner2013 ; Biswas2013 ; Hosur2013 ; Burkov2014 ; Gorbar2014 ; Uchida2014 ; Khanna2014 ; Ominato2014 ; Sbierski2014 ; Burkov2015a ; Burkov2015b ; Goswami2015 ; Baum2015 ; Khanna2016 ; Behrends2016 ; Rao2016 ; Baireuther2016a ; Tao2016 ; Marra2016 ; Li2016 ; Baireuther2016b ; Madsen2016 and an ever increasing number of experiments are being reported regularly Xu2015a ; Xu2015b ; Lv2015a ; Lv2015b ; Lu2015 ; Jia2016 to confirm some of these predictions.

One such phenomenon, predicted recently, occurs at the interface of a WSM and a superconductor (SC), where both the processes, normal reflection and Andreev reflection, become inter-nodal Uchida2014 , i.e, occur from one node to another node of opposite chirality. This extra transfer of momentum gives rise to an unusual oscillation Khanna2016 of Josephson current in a SC-WSM-SC setup with the period being proportional to both the distance between the two nodes in momentum space and the length of the WSM sample. The observation of such oscillations could be a direct proof of the existence of the chiral nodes, but since the momentum separation of the chiral nodes remains fixed for a given material, it is not likely to be usable as a tuning parameter. On the other hand, it has also been understood recently how time periodic perturbations can affect the WSM Wang2014 ; Hubener2016 ; Ishizuka2016 ; Chan2016 ; Yan2016 ; Deb2017 , and in particular, how a high frequency incident elliptically polarized light can slightly modify the position of the effective chiral nodes of the WSM Chen2016 . This provides the possibility that the external parameters controlling the perturbation can serve as tuning parameters in adjusting the separation of the chiral nodes.

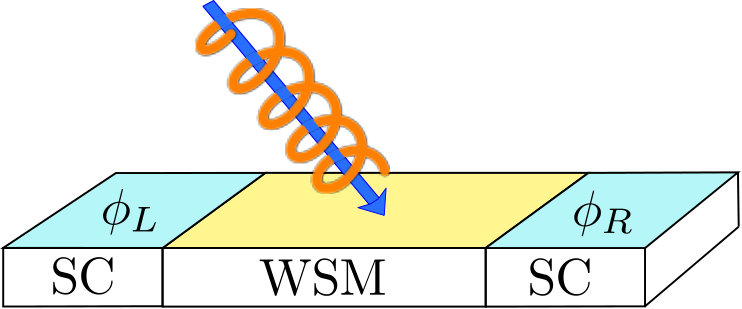

In this paper, we combine these two ideas in proposing a setup (see Fig. 1) for observing the unusual oscillation in the Josephson effect in a WSM sandwiched between two superconductors by tuning only external parameters, such as the intensity or the phase of the polarized light, which impinges on the WSM. As the period of oscillation of the Josephson current is proportional to both the length of the sample as well as the separation of the Weyl nodes, depending on the length of the sample, even a small perturbative change in the separation of the nodes can give rise to a complete [math]-$\pi$ transition of the Josephson current. Note that the [math]-$\pi$ transition or change in sign of the critical current is expected Bulaevski1977 ; Buzdin1982 ; Buzdin1991 ; Rmpsfs in time-reversal broken systems, like the SC-ferromagnet-SC junction and has even been observed experimentally Ryazanov2001 . The transition was also shown earlier in a time-reversal breaking WSM Khanna2016 , but, motivated by the fact that almost all experimentally discovered WSMs Xu2015a ; Xu2015b ; Lv2015a ; Lv2015b ; Lu2015 ; Jia2016 break inversion symmetry instead of time-reversal symmetry, in this paper, we show that it occurs in a time-reversal invariant setup, using linearly polarized light.

The existence of chiral nodes in a WSM is also topologically protected against perturbations, and, although they can be moved around in momentum space, Gauss law prevents the annihilation of the nodes unless two of them with opposite chirality are brought together Turner2013 . This provides the robustness of our proposal.

Model and setup.—Weyl semimetals require either time-reversal ($\mathcal{T}$) or inversion ($\mathcal{I}$) symmetry or both to be broken. The simplest model for a broken $\mathcal{T}$ symmetric WSM has two Weyl nodes in the Brillouin zone, and has been studied extensively. But most of the present day WSM materials break $\mathcal{I}$ symmetry. An inversion broken WSM is required to have at least four Weyl nodes in the Brillouin zone. A simple four band model with such an $\mathcal{I}$ broken WSM phase is the following Chen2016 :

[TABLE]

where $\lambda_{i}$ are the spin orbit couplings, which are taken to be isotropic, i.e, $\lambda_{i}=\lambda$, $M(k)=m+2-\cos(k_{x})-\cos(k_{z})$ is the kinetic energy and $\epsilon(k)=\epsilon[1-\cos(k_{y})-\cos(k_{z})]$ is a perturbation that breaks the $C_{4}$ symmetry about $k_{y}$ direction. $\tau(\sigma)$ represents the orbital (spin) degree of freedom. $H_{0}({\bf k})$ is $\mathcal{T}$ symmetric, i.e, $\sigma^{y}H_{0}^{*}({\bf k})\sigma^{y}=H_{0}(-{\bf k})$, however, $\tau^{x}H_{0}({\bf k})\tau^{x}\neq H_{0}(-{\bf k})$ for any value of the parameters due to the $M({\bf k})$ term and therefore inversion symmetry is intrinsically broken in this model. At $\epsilon=0$ this model realizes the WSM phase when $m<\lambda$, with four Weyl nodes along the $k_{y}$ axis at $k_{y}=\pm(\pi/2\pm k_{0})$ where $k_{0}=\pi/2-\sin^{-1}(m/\lambda)$ as shown in Fig. 2(a). The effective anisotropic Weyl Hamiltonian near these points is given by

[TABLE]

Note that the anisotropy is controlled by the ratio of $m/\lambda$. At $\epsilon\neq 0$ the $C_{4}$ symmetry about $k_{y}$ is absent and the Weyl nodes can move away from the $k_{y}$ axis in the $k_{x}-k_{y}$ plane. Further details of the model are discussed in the supplementary supp section.

In the presence of elliptically polarized light propagating in the $z$ direction, the Hamiltonian changes via the Peierls substitution ${\bf{k}}\rightarrow{\bf k}+e{\bf A}(t)$, with,

[TABLE]

At large (compared to the band width) driving frequency $\omega$, the system can still be effectively described by a static Hamiltonian. There are a number of approximation schemes Mikami2016 ; Feldman1984 ; Mananga2011 ; Casas2001 ; Kuwahara2016 ; Eckardt2015 ; Bukov2015 available to find the effective Hamiltonian. In the van Vleck approximation Eckardt2015 ; Bukov2015 , the effective Hamiltonian to order $1/\omega$, is given by

[TABLE]

where $H_{(n)}$ are the Fourier components of the time dependent Hamiltonian. The Fourier components can be found analytically supp and the effective Hamiltonian $H_{\rm eff}({\bf k})=\tilde{H}_{0}({\bf k})+H^{\prime}({\bf k})$ where $\tilde{H}_{0}$ is equal to the bare Hamiltonian in absence of light $H_{0}({\bf k})$ with anisotropic renormalization of the parameters : $\lambda_{i}=\lambda J_{0}(eA_{i})$ and

[TABLE]

The additional term is $H^{\prime}=D_{3}\sigma_{Z}$ with,

[TABLE]

For small amplitudes (when $eA_{i}\ll 1$), this additional term can be neglected. Further, for linearly polarized light, $\theta=\pi/2$, the additional term vanishes. This is the case that we will consider in the rest of the paper.

The position of Weyl nodes in the irradiated WSM, described by $H_{\rm eff}$, can now be controlled by the amplitude of the incident radiation. At $\epsilon=0$, the four Weyl nodes are along the $k_{y}$ axis at $k_{y}=\pm(\pi/2\pm\tilde{k}_{0})$ where $\tilde{k}_{0}=\pi/2-\sin^{-1}(|m_{\rm eff}|/\lambda_{\rm eff})$. The material dependent parameters $m$ and $\lambda$, which cannot be directly tuned easily, change to effective values given by $m_{\rm eff}=(m+1-J_{0}(eA_{x}))$ and $\lambda_{\rm eff}=\lambda J_{0}(eA_{y})$. The separation of two nearby Weyl nodes with opposite chirality is now given by $2\tilde{k}_{0}$. For small amplitudes $eA_{i}$, the change in separation is,

[TABLE]

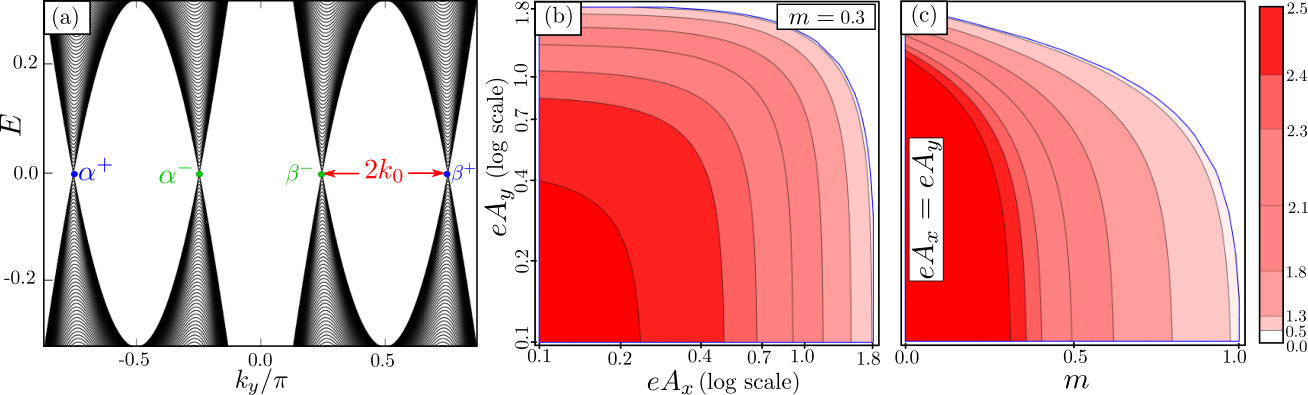

We plot $2\tilde{k}_{0}$ in Figs. 2(b) and  2(c) with the variation of $eA_{x}$ and $eA_{y}$ of the incident radiation amplitude and with $m$ and $eA_{0}=|eA_{x}|=|eA_{y}|$ respectively, demonstrating the tunability of the separation of the Weyl nodes by incident linearly polarized light.

Josephson current.—Andreev reflection in a WSM-SC system can take place involving various nodes, $\alpha^{\pm},\beta^{\pm}$, as shown in Fig. 2(a). If there was no chirality associated with the nodes, one would naively expect pairing between nodes $\alpha^{+(-)}$ to $\beta^{+(-)}$, which are the zero-momentum pairings. But, due to the overall spin conserving processes at a WSM-superconductor (SC) junction Uchida2014 ; Khanna2016 , the helical quasiparticle excitations at the Weyl nodes allow only transport between nodes of opposite chirality. This implies that inter-nodal scattering can occur, say, from node $\alpha^{+}$ to node $\alpha^{-}$ (an inter-nodal distance of $2k_{0}$) or from node $\alpha^{+}$ to $\beta^{-}$, (an inter-nodal distance of $\pi$). As shown, for $\mathcal{T}$ broken systems, in Ref. Khanna2016 , such momentum separation of the chiral nodes, $2k_{0}$ contributes to transfer of momentum at the superconducting interface each time a reflection/Andreev reflection process takes place. As a result, the energies of the bound-states between the two superconductors oscillate as a function of $k_{0}L$ with oscillation frequency of $\pi$.

Although our model does not break time reversal, the main conclusions of Ref. Khanna2016 do carry over to our system as well because these oscillations are the manifestation of chiral nodes rather than symmetry. We can now expect two possible momentum scales ($\pi$ and 2$k_{0}$); however, as we shall see below, the smaller of the two momentum scales, $2k_{0}$ is the relevant momentum scale at low energy transport. The expected oscillation in Josephson current results from the fact that the Josephson current is carried by these bound states.

We proceed to numerically evaluate Josephson current using a Green’s function technique Vidal1994 , further details of which are given in the supplemental material supp . The numerical method is well tested, and for various parameter ranges, we make sure that the continuum contribution to the Josephson current remains small compared to the bound-state contribution. In our numerical simulation we take a superconducting pair potential $\Delta=0.05$ times the hopping amplitude in the Weyl semimetal. A large system size is required to ensure that the finite size gap in the WSM is smaller than the superconducting gap. One way we check this is to reach at least the length $L$ after which the current decays as $1/L$. We also restrict ourselves to $\epsilon=0$, so that the Weyl nodes are along the $y$-axis.

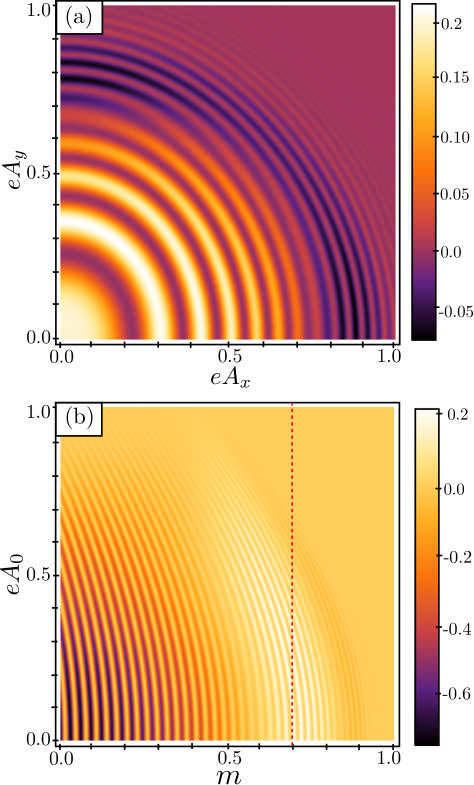

First, we study the Josephson current in the absence of light. As we increase the length $L$, we find oscillations in $J_{y}$ (the Josephson current in the direction of the Weyl node splitting in momentum space) with a period of oscillation $\pi/k_{0}$. In contrast, the Josephson current along the perpendicular $x$-direction, $J_{x}$ is independent of $L$, apart from the trivial $1/L$ fall off. As has already been stated, the effect of irradiating the WSM sample by linearly polarized light is to change the effective distance between the Weyl nodes. This leads to (anisotropic) oscillations in the Josephson current as a function of the amplitudes of the impinging light. The variation in $J_{y}$ as a function of the amplitudes of linearly polarized light is shown in Fig. 3(a), where the frequency of the drive, $\omega$, is much larger than the band-width. Note that the oscillations are not quite radially symmetric, which is not unexpected, since the change in $k_{0}$ is not symmetrically affected, c.f, Eq. (8). The alternation of the positive and negative values of the current or the [math]-$\pi$ oscillations are clearly visible and can be further tuned by changing the amplitudes $eA_{x}$ and $eA_{y}$. Fig. 3(b) shows the oscillations in the parameter space of $m$ and the amplitude of the incident light $eA_{0}=eA_{x}=eA_{y}$. It is interesting to note that the oscillations in the current (Fig. 3) roughly match the graph of the change in the momentum distance between the nodes (Fig. 2) for the same changes in parameters. This confirms our claim that the oscillations that are seen in the Josephson current are essentially oscillations in $\tilde{k}_{0}L$.

In passing we would like to point out that, the Josephson current, in general, can oscillate with other system parameters. Such oscillations may appear, among other reasons, due to modifications of density of states, although [math]-$\pi$ transitions are unlikely. Moreover, such oscillations would not depend on the size of the system in the limit of large system size. We briefly discuss such variations of the Josephson current, $J_{x}$, with radiation parameters in the supplemental material supp .

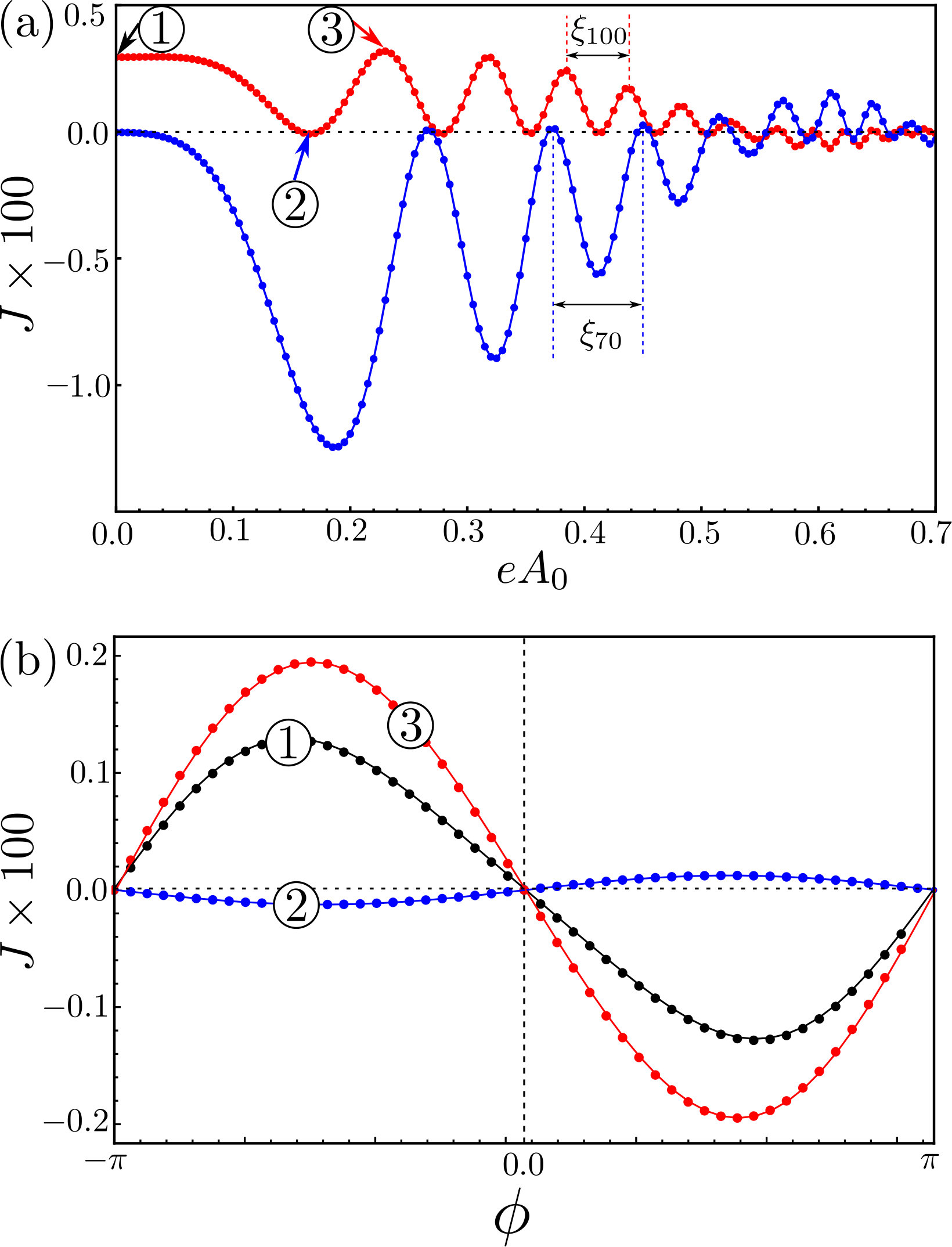

Tunability of the [math]-$\pi$ transition.—In Fig. 4, we show the Josephson current for different values of the amplitude of incident light. The point to note here is that even a small change in the amplitude of light can cause [math]-$\pi$ transitions in the critical current. This is the central result of the paper, [math]-$\pi$ transitions in the Josephson current can be tuned by irradiating a WSM sample. For an already irradiated sample, only a small change in intensity is required to observe a [math]-$\pi$ transition. The change in amplitude of $A_{y}$ required to observe one full oscillation, in the limit of large $L$ (the length of the WSM) and for linearly polarized light with $A_{x}=0$ is,

[TABLE]

The larger the system size, the smaller is this change in amplitude required, $\xi_{L}\propto 1/L$. The intensity of the light is $I=c_{0}A_{y}^{2}$, where $c_{0}=\frac{1}{2}c\epsilon_{0}\omega^{2}$, $c$ being the speed of light and $\epsilon_{0}$ being the dielectric constant. The corresponding change in intensity required to observe a full oscillation is $\delta I=2c_{0}A_{y}\delta A_{y}\approx 4\pi c_{0}\sqrt{\lambda^{2}-m^{2}}/me^{2}L$ for a small drive amplitude. In WSM candidate materials like TaAs, the average $v_{f}$ has been measured Xu2015a ; Xu2015b ; Lv2015a ; Lv2015b ; Lu2015 to be $\hbar v_{f}=2eV\textup{\AA}$ (at $300K$) and the average band-gap ($2m$) at the $\Gamma$ point is $\approx 0.2eV$. So we approximate $\lambda=\hbar v_{F}=2eV\textup{\AA}$ and $m=0.1eV$. Using the average lattice constant $a=5\textup{\AA}$, $\hbar\omega=117meV$ for a CO2 laser with $eA_{y}=0.1\textup{\AA}^{-1}$ and assuming the length of WSM to be $100\mu m$, we find $\delta I\approx 2\times 10^{10}W/m^{2}=10^{-3}I$. Further, with appropriate choice of parameters, the system can also act as an on-off switch, where turning on the laser changes the sign of the current supp , which may be of technological significance.

Discussion.—A discussion of the shortcomings of our analysis and the conditions needed for the successful observation of the physics that have we described here is in order. A few approximations have been made in our analysis which may not hold in a realistic sample. We have assumed that the system is uniformly irradiated by a coherent source. However, in a real experiment, the irradiation within the sample will be limited to be within the skin depth. For a skin depth of a few layers of the atomic structure, the actual value of the radiation needed to observe an oscillation, Eq. 9, will need to be modified, although we expect the effect to remain intact. One advantage of our proposal is that the radiation intensity required is low and in fact, decreases with increasing system size, though the length of the system might be limited by the coherence length of the laser. We leave more detailed studies studies, including the effect of decaying radiation amplitude through the sample, for the future.

We have presented our results for a simple model of a WSM with four Weyl nodes along a particular axis. Real systems often have many more Weyl nodes. However, along any particular direction, it is not natural to expect more than four Weyl nodes, so we expect our results to hold even in those systems as long as the Josephson current is measured along the direction in which the Weyl nodes are expected.

Summary and Conclusion.—To summarize, in this paper we have studied, first, how the [math]-$\pi$ transitions in the Josephson current in a time-reversal invariant WSM can result from the presence of chiral nodes. Without breaking the time-reversal symmetry, and hence, retaining the topological stability of the Weyl nodes, we have presented a way to observe such oscillations by an all-electric tunable setup using linearly polarized light. We have presented numerical evidence of such [math]-$\pi$ transitions, which are highly anisotropic and depend strongly on the orientation of the Weyl nodes.

Note.—During the review of our manuscript, we noticed the work of Bovenzi et al Beenakker1704 . They study the normal and Andreev reflection processes at the junction of a WSM (with broken $\mathcal{T}$ symmetry) with a normal superconductor and observe that, while reflection within the same node is always blocked, Andreev reflection from one node to another can also be blocked at a WS junction if the interface or pair potential does not couple the two chiralities. This extra blocking is labelled “chirality blockade” in their work.

Appendix

.1 Lattice model of a WSM without inversion symmetry

We consider a four band fermionic model on a cubic lattice that has multiple WSM phases with different numbers of Weyl nodes. Assuming periodic boundary conditions in all directions, the hamiltonian is $\hat{\mathcal{H}}=\sum_{\bf k}\psi^{\dagger}_{\bf k}H({\bf k})\psi_{\bf k}$ where $\psi_{\bf k}$ is the four component electron annihilation operator and

[TABLE]

Here $M({\bf k})=m+2t_{h}\left[2-\cos(k_{x}a)-\cos(k_{z}a)\right]$, $m$ is half the band gap at the $\Gamma$ point, $t_{h}$ is the nearest neighbour coupling in the $x$ and $z$ directions, $\lambda_{i}$ are the anisotropic spin orbit couplings and $a$ is the lattice constant. $\sigma$ ($\tau$) denote the spin (orbital) degree of freedom. This model has a $C_{4}$ rotational symmetry about the $k_{y}$ axis which can be lifted by adding a term $\epsilon({\bf k})\tau^{y}\sigma^{x}$ where $\epsilon({\bf k})=\epsilon\left[1-\cos(k_{y}a)-\cos(k_{z}a)\right]$. At $t_{h}=0.5$ and $a=1$, this yields Eq. (1) of the main text. For brevity, in this work we assume $m>0$ and isotropic spin orbit terms : $\lambda_{i}=\lambda$. Further, we only consider the case $\epsilon=0$.

The model satisfies $\sigma^{y}H^{*}({\bf k})\sigma^{y}=H({\bf-k})$ and therefore it is time reversal invariant. However $\tau^{x}H({\bf k})\tau^{x}\neq H({\bf-k})$, i.e. the model breaks inversion symmetry. Thus a WSM phase can be expected in the model. The eigenvalues of $H({\bf k})$ are $\pm\sqrt{E_{{\bf k}\pm}}$ where,

[TABLE]

Then $E_{{\bf k}\pm}=0$ at $k_{x},k_{z}=0,\pi/a$ and $\lambda\sin(k_{y}a)=\pm aM({\bf k})$. Expanding $H({\bf k})$ around any of these zeros gives an effective Weyl hamiltonian. Thus the model describes a WSM if the zeros of $E_{{\bf k}\pm}$ exist.

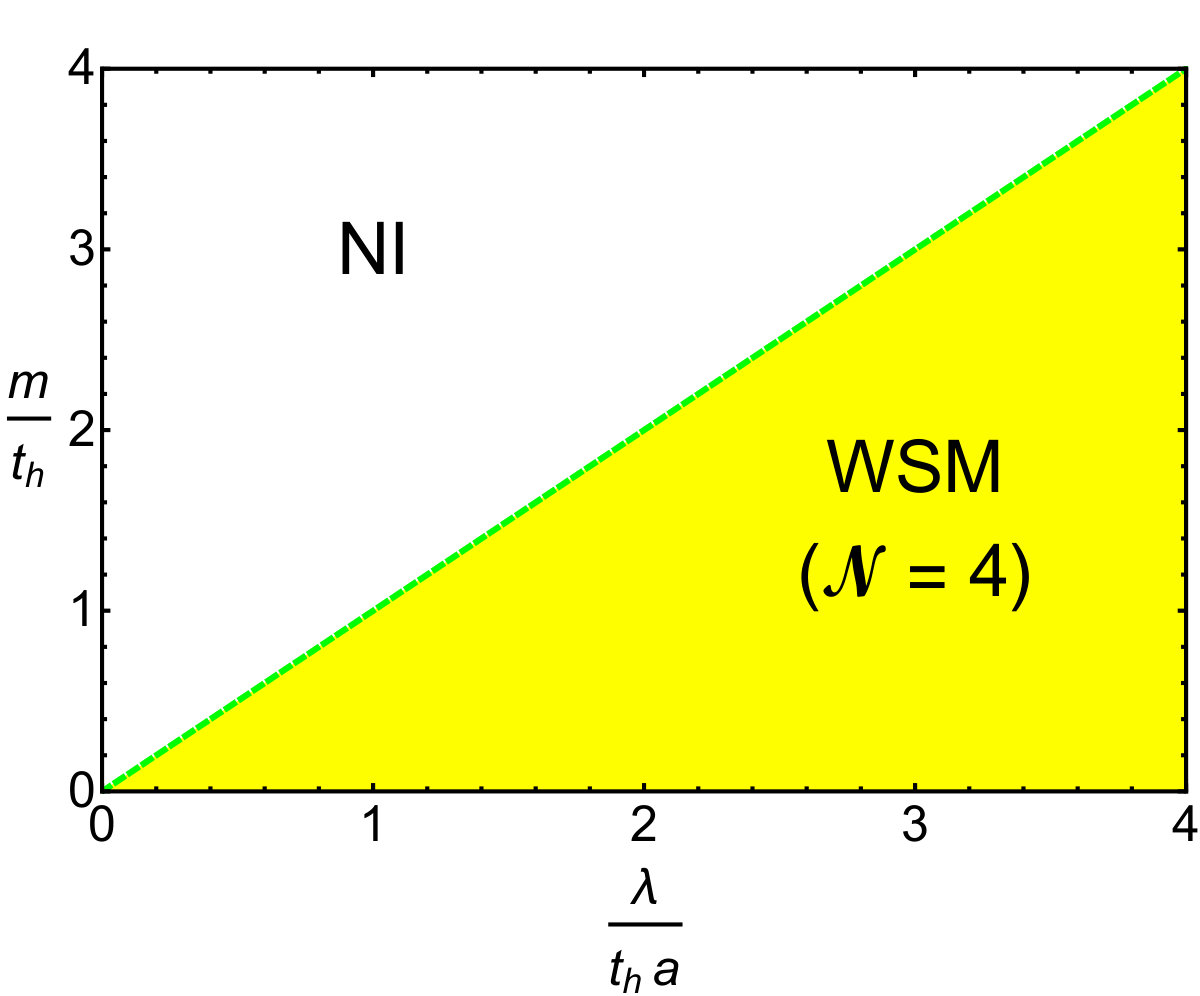

If $\lambda<ma$, then there are no zero energy states in the bandstructure and the model describes a normal insulator. At $\lambda=ma$, the bulk gap closes at ${\bf k_{0}}a=(0,\pm\pi/2,0)$ and close to these points $H({\bf k})$ is, (upto $O(q_{x}^{2}+q_{z}^{2})$)

[TABLE]

which is neither a Dirac nor a Weyl hamiltonian since it is linear in $q_{x}$ and $q_{z}$ but quadratic in $q_{y}$.

If $ma<\lambda<(m+4t_{h})a$, then the model has nodes at $k_{x}=0=k_{z}$, $\sin(k_{y}a)=\pm am/\lambda$. The latter equation has 4 solutions : $\pm\sin^{-1}(am/\lambda)$, $\pm(\pi-\sin^{-1}(am/\lambda)$ and close to these nodes, the hamiltonian is, (upto $O({\bf q}^{2})$)

[TABLE]

which is the anisotropic Weyl hamiltonian with chirality $\pm 1$. Due to Kramer’s theorem, the minimal model for inversion symmetry broken WSM must have atleast four Weyl nodes. Therefore this phase of the model describes the simplest possible WSM with broken inversion symmetry.

Additional Weyl nodes can appear on the $k_{x},k_{z}=\pi/a$ planes, at larger values of $\lambda$ : a total of 12 for $(m+4t_{h})a<\lambda<(m+8t_{h})a$ and 16 for $(m+8t_{h})a<\lambda$. In this work we use parameters so that only 4 nodes exist. Additional nodes are expected to increase the total current but not affect the results qualitatively.

.2 Effective Hamiltonian in the presence of polarised light

In the presence of elliptically polarized light of frequency $\omega$ propagating along the $z$ direction, the system is described by a time dependent hamiltonian which is related to $H({\bf k})$ by the Peierls substitution. In SI units this means, ${\bf k}\rightarrow{\bf k}+(e/{\hbar}){\bf A}(t)$, where ${\bf A}(t)=(A_{x}\cos(\omega t),A_{y}\sin(\omega t+\theta),0)$. The resulting time dependent Hamiltonian, can then be written as a Fourier series $H({\bf k},t)=\sum_{n}H_{(n)}({\bf k})e^{in\omega t}$. The Fourier modes $H_{(n)}({\bf k})$ are $4\times 4$ matrices and can therefore be written as $H_{(n)}({\bf k})=\sum_{i}d_{n,i}({\bf k})\zeta^{i}$ where we have defined matrices $\zeta^{i}$ in the spin ($\sigma$) and orbital ($\tau$) space as

[TABLE]

For brevity, we define $e^{*}=ea/\hbar$. Then, using some identities on Bessel functions we can compute the Fourier modes explicitly as,

[TABLE]

Assuming that the frequency of radiation $\omega$ is much larger than the band-width of the model, we can replace the time dependent hamiltonian $H({\bf k},t)$ by an effective static hamiltonian called the Floquet hamiltonian $H_{\text{eff}}({\bf k})$. In the van Vleck approximationBukov2015 this is,

[TABLE]

Using the expressions for $H_{(n)}({\bf k})$ defined above, we find $H_{\text{eff}}({\bf k})=\sum_{j,a}\left[D_{a}^{(j)}({\bf k})/{(\hbar\omega)^{j}}\right]\zeta^{a}$. The tree level ($j=0$) terms are -

[TABLE]

Clearly at the zeroth order, $H_{\text{eff}}({\bf k})$ is equal to the bare hamiltonian $H({\bf k})$ (Eq. 10) with anisotropic renormalisation of the parameters. Therefore in the presence of light, the positions of the Weyl nodes change slightly. The leading order ($j=1$) terms are -

[TABLE]

The first order correction to the effective hamiltonian is of the form $D_{3}({\bf k})\sigma^{z}$ and has the effect of moving the Weyl nodes in the $k_{z}$ direction so that they are not all in the same plane. Here we consider linearly polarized light ($\theta=\pi/2$), so that this correction vanishes exactly and the Weyl nodes remain fixed on the $k_{z}=0$ plane.

Since $H_{\text{eff}}({\bf k})$ is of the same form as the bare hamiltonian, the new eigenvalues $\pm\sqrt{\tilde{E}_{{\bf k}\pm}}$ can be computed similarly to be,

[TABLE]

The position of the Weyl nodes can be found by solving for the zeros of $\tilde{E}_{{\bf k}\pm}$ i.e.,

[TABLE]

At $\epsilon=0$, weak intensity of light ($e^{*}A\ll 1$) and for $ma<\lambda<(m+4t_{h})a$, there are 4 Weyl nodes at $k_{x}=0=k_{z}$, $\sin(k_{y}a)=\pm am_{\text{eff}}/\lambda_{\text{eff}}$ where the effective parameters are,

[TABLE]

The positions of Weyl nodes along $k_{y}a$ axis i.e., $\pm\sin^{-1}(am_{\text{eff}}/\lambda_{\text{eff}})$ and $\pm\left[\pi-\sin^{-1}(am_{\text{eff}}/\lambda_{\text{eff}})\right]$ are, (to $O(A^{4})$)

[TABLE]

Then the separation between two nearby Weyl nodes is $2\tilde{k}_{0}a=\pi-2\sin^{-1}(am_{\text{eff}}/\lambda_{\text{eff}})$ and for weak intensities this is,

[TABLE]

Using $t_{h}=0.5$ and $a=1=\hbar$ we get the Eq (5) of the main text.

.3 Green’s function method for computing the Josephson current

To compute the Josephson current along a given direction, we write the effective hamiltonian $\hat{\mathcal{H}}_{\text{eff}}$ in Nambu basis, as a tight binding model with open boundary conditions in that direction and with periodic boundary conditions in the two perpendicular directions. Then if $\psi_{r,{\bf k}}$ is the eight component electron-hole annihilation operator at site $r$ and perpendicular wavenumber ${\bf k}$, we can write -

[TABLE]

To maintain unitarity in the problem, we must have $\left[H_{\text{hop}}(r-r^{\prime},{\bf k})\right]^{\dagger}=H_{\text{hop}}(r^{\prime}-r,{\bf k})$ and $\left[H_{\text{d}}(r,{\bf k})\right]^{\dagger}=H_{\text{d}}(r,{\bf k})$. Now $\hat{N}_{r}=\sum_{\bf k}\psi^{\dagger}_{r,{\bf k}}\psi_{r,{\bf k}}$ is the number operator at site $r$ of the system. The rate of increase of charge at site $r$ is the sum of currents from nearest neighbour sites of $r$ to it,

[TABLE]

In equilibrium (or in a steady state) $\langle-e\dot{\hat{N}}_{r}\rangle=0$ but there might be a net current along one direction ie $J_{r-\delta\rightarrow r}=-J_{r+\delta\rightarrow r}\neq 0$. Only terms in $\hat{\mathcal{H}}_{\text{eff}}$ connecting site $r$ to other sites can contribute to the commutator. Thus we find,

[TABLE]

The equal time averages in above equation have to be found through the lesser Green’s function $G^{+-}(\omega)$. In equilibrium,

[TABLE]

where $f(\omega)$ is the Fermi-Dirac distribution function and $G^{R(A)}(\omega)$ is the retarded (advanced) Green’s function of the complete device. The advanced and retarded Green’s functions are related by

[TABLE]

For an isolated (but irradiated) WSM, the retarded Green’s function is,

[TABLE]

We model the coupling with the superconductor by adding a self-energy $\hat{\Sigma}(\omega)$ Khanna2014 ; Khanna2016 to the first and last sites of the bare Green’s function $G^{R}_{0}$. $\hat{\Sigma}$ accounts for tunnelling processes between the WSM and superconductor at the boundaries. The total retarded Green’s function of the SWS device is

[TABLE]

In this work, we numerically compute the retarded Green’s function $G^{R}(\omega)$ and use that to find the lesser Green’s function $G^{+-}(\omega)$. Integration over $\omega$ yields the equal time averages required to find the Josephson current $J_{r-\delta\rightarrow r}$.

*Along y direction : * In this case, the effective hamiltonian is written as a tight-binding model with open boundary conditions in the $y$ direction. Using $\xi$ to denote the particle-hole degree of freedom in Nambu basis and the notations defined earlier this is,

[TABLE]

Here we have assumed that the incident light is linearly polarized, i.e. $\theta=\pi/2$. These expressions can be used to compute the current $J$ which is discussed in the main text.

*Along x direction : * In this case, the effective hamiltonian is written as a tight-binding model with open boundary conditions in the $x$ direction. This is given by,

[TABLE]

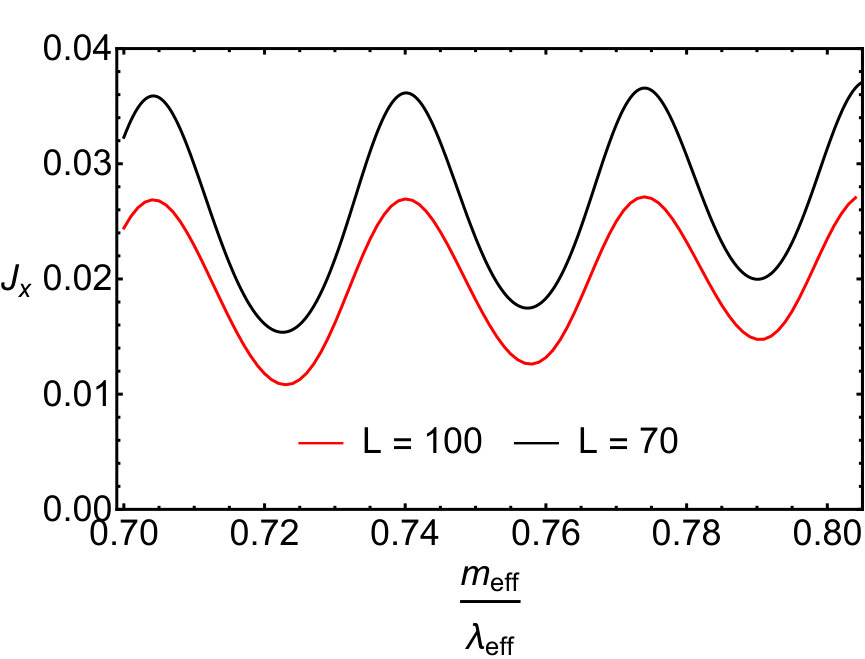

These expressions can be used to compute the current $J_{x}$, shown in Fig. 6. The current along $x$ also has oscillations as a function of $m_{\text{eff}}/\lambda_{\text{eff}}$, but no [math]-$\pi$ transitions. Moreover, the frequency of this oscillation is independent of the length $L$ of the WSM. Therefore this is not the same $k_{0}L$ oscillation that the current along the $y$ direction shows. Rather this is due to the changes in the density of states and other details of the model. Note that transport along $x$ direction cannot occur at normal incidence because the Weyl nodes are at finite $k_{y}$. The $J_{x}$ shown in Fig. 6 is the total current from all transverse momenta, whereas the $J$ along $y$ shown in the main text is the current at normal incidence $k_{x}=k_{z}=0$.
