Local Photoemission Spectra and Effects of Spatial Inhomogeneity in the BCS-BEC Crossover Regime of a Trapped Ultracold Fermi Gas

TL;DR

This paper theoretically analyzes local photoemission spectra in a trapped ultracold Fermi gas across the BCS-BEC crossover, comparing with experiments and discussing implications for understanding pseudogap phenomena and quantum simulation.

Contribution

It introduces a theoretical framework incorporating strong pairing fluctuations and trap effects to interpret local photoemission spectra in ultracold Fermi gases.

Findings

Theoretical results agree with recent JILA experiments under current conditions.

Current spectroscopy methods have limitations in detecting the pseudogap.

Results aid in applying trapped gases as quantum simulators for homogeneous systems.

Abstract

We theoretically investigate single particle excitations in the BCS (Bardeen-Cooper-Schrieffer)-BEC (Bose-Einstein-Condensation) crossover regime of an ultracold Fermi gas. Including strong pairing fluctuations within a $T$-matrix approximation, as well as effects of a harmonic trap potential in the local density approximation, we calculate the local photoemission spectrum in the normal state. Recently, JILA group has measured this quantity in a $^{40}$K Fermi gas, in order to examine homogeneous single-particle properties of this system. Comparing our results with this experiment, we show that, this attempt indeed succeeds under the JILA's experimental condition. However, we also find that the current local photoemission spectroscopy still has room for improvement, in order to examine the pseudogap phenomenon predicted in the BCS-BEC crossover region. Since ultracold Fermi gases are always in a trap, our results would be useful in applying this system to various homogeneous Fermi systems, as a quantum simulator.

Figures

Equations

$$H=\sum _{\mathbf{p},\sigma }{\xi }_{\mathbf{p}}{c}_{\mathbf{p},\sigma }^{†}{c}_{\mathbf{p},\sigma }-U\sum _{\mathbf{p},{\mathbf{p}}^{\prime },\mathbf{q}}{c}_{\mathbf{p}+\mathbf{q},\uparrow }^{†}{c}_{{\mathbf{p}}^{\prime }-\mathbf{q},\downarrow }^{†}{c}_{{\mathbf{p}}^{\prime },\downarrow }{c}_{\mathbf{p},\uparrow }.$$

$$\frac{4\pi a_s}{m}=-\frac{U}{1-U{\sum }_{\mathbf{p}}^{p_{\mathrm{c}}}1/(2{\epsilon }_{\mathbf{p}})}.$$

$$G(\mathbf{p},i{\omega }_n)=\frac{1}{i{\omega }_n-{\xi }_{\mathbf{p}}-\Sigma (\mathbf{p},i{\omega }_n)},$$

$$\Sigma (\mathbf{p},i{\omega }_n)=T\sum _{\mathbf{q},i{\nu }_n}\Gamma (\mathbf{q},i{\nu }_n)G^0(\mathbf{q}-\mathbf{p},i{\nu }_n-i{\omega }_n).$$

$$\Gamma (\mathbf{q},i{\nu }_n)=-\frac{U}{1-U\Pi (\mathbf{q},i{\nu }_n)},$$

$$\Pi (\mathbf{q},i{\nu }_n)$$

$$\Gamma (\mathbf{q},i{\nu }_n)=\frac{\frac{4\pi a_s}{m}}{1+\frac{4\pi a_s}{m}\left[\Pi (\mathbf{q},i{\nu }_n)-\sum _{\mathbf{p}}\frac{1}{2{\epsilon }_{\mathbf{p}}}\right]}.$$

$$H_3=\sum _{\mathbf{p}}\left[{\epsilon }_{\mathbf{p}}+{\omega }_3-{\mu }_3\right]b_{\mathbf{p}}^{†}{b}_{\mathbf{p}}+t_{\mathrm{rf}}\sum _{\mathbf{p}}\left[e^{-i{\omega }_{\mathrm{L}}t}{b}_{\mathbf{p}+{\mathbf{q}}_{\mathrm{L}}}^{†}{c}_{\mathbf{p},\uparrow }+h.c.\right],$$

$$I(\mathbf{p},t)=⟨{\dot{N}}_3(\mathbf{p},t)⟩=i{\int }_{-\infty }^t\mathrm{d}{t}^{\prime }⟨[H_{\mathrm{T}}(t^{\prime }),\hat{I}(\mathbf{p},t)]⟩,$$

$$\hat{I}(\mathbf{p},t)={\dot{N}}_3(\mathbf{p},t)=-i{t}_{\mathrm{rf}}\left[e^{-i{\omega }_{\mathrm{L}}t}{b}_{\mathbf{p}+{\mathbf{q}}_{\mathrm{L}}}^{†}(t)c_{\mathbf{p},\uparrow }(t)-h.c.\right]$$

$$I(\mathbf{p},\Omega )=2\pi t_{\mathrm{rf}}^{2}A(\mathbf{p},{\xi }_{\mathbf{p}}-\Omega )f({\xi }_{\mathbf{p}}-\Omega ).$$

$$A(\mathbf{p},\omega )=-\frac{1}{\pi }\mathrm{Im}\left[G(\mathbf{p},i{\omega }_n\to \omega +i\delta )\right],$$

$$V(\mathbf{r})=\frac{1}{2}m{\omega }_{\mathrm{tr}}^2{r}^2$$

$$G(\mathbf{p},i{\omega }_n,\mathbf{r})=\frac{1}{i{\omega }_n-{\xi }_{\mathbf{p}}(\mathbf{r})-\Sigma (\mathbf{p},i{\omega }_n,\mathbf{r})},$$

$$I(\mathbf{p},\Omega ,\mathbf{r})=2\pi t_{\mathrm{rf}}^{2}A(\mathbf{p},{\xi }_{\mathbf{p}}(\mathbf{r})-\Omega ,\mathbf{r})f({\xi }_{\mathbf{p}}(\mathbf{r})-\Omega ),$$

$$I_{\mathrm{PES}}(\mathbf{p},\omega )=\frac{2\pi t_{\mathrm{rf}}^2}{V}{p}^2\int \mathrm{d}\mathbf{r}A(\mathbf{p},\omega -\mu (\mathbf{r}),\mathbf{r})f(\omega -\mu (\mathbf{r})).$$

$$I_{\mathrm{LPES}}(\mathbf{p},\omega )=\frac{2\pi t_{\mathrm{rf}}^2}{V}{p}^2\int \mathrm{d}\mathbf{r}A(\mathbf{p},\omega -\mu (\mathbf{r}),\mathbf{r})f(\omega -\mu (\mathbf{r}))P(\mathbf{r}).$$

$$P(\mathbf{r})=e^{-\frac{J(r)}{w}},$$

$$J(r)=J_0{\left(\frac{2r^2}{w^2}\right)}^2{e}^{-\frac{2r^2}{w^2}},$$

$$P(\mathbf{r})=\Theta (R_{\mathrm{cut}}-r),$$

$$N=2T\int \mathrm{d}\mathbf{r}\sum _{\mathbf{p},i{\omega }_n}{e}^{i{\omega }_n\delta }G(\mathbf{p},i{\omega }_n,\mathbf{r}).$$

$$\Gamma (\mathbf{q}=0,i{\nu }_n=0,\mathbf{r}=0{)}^{-1}=0.$$

$$1=-\frac{4\pi a_s}{m}\sum _{\mathbf{p}}\left[\frac{1}{2{\xi }_{\mathbf{p}}}\tanh \frac{{\xi }_{\mathbf{p}}}{2T_{\mathrm{c}}}-\frac{1}{2{\epsilon }_{\mathbf{p}}}\right].$$

$$h=\sum _{\mathbf{p}}\int \mathrm{d}\omega ⟨⟨I_{\mathrm{uniform}}(\mathbf{p},\omega )/p^2⟩⟩⟨⟨I_{\mathrm{LPES}}(\mathbf{p},\omega )/p^2⟩⟩,$$

$$I_{\mathrm{uniform}}(\mathbf{p},\omega )=2\pi t_{\mathrm{rf}}^2{p}^{2}A(\mathbf{k},\omega -\mu ,\mathbf{r}=0)f(\omega -\mu ).$$

$$⟨⟨X(\mathbf{p},\omega )⟩⟩=\frac{X(\mathbf{p},\omega )}{\sqrt{{\sum }_{\mathbf{p}}\int \mathrm{d}\omega X^2(\mathbf{p},\omega )}}.$$

$$T_{\mathrm{F}}(\mathbf{r})={\epsilon }_{\mathrm{F}}-V(\mathbf{r})({\epsilon }_{\mathrm{F}}\ge V(\mathbf{r})).$$

Full text

I Introduction

While the high tunability of various physical parameters is an advantage of ultracold Fermi gasBloch2008 ; Giorgini2008 ; Chin2010 ; Levin2005 , the spatial inhomogeneity by a trap potential may be a weak point of this many-body system, especially when one tries to use it as a quantum simulator for other uniform Fermi systems. Using a tunable interaction associated with a Feshbach resonanceChin2010 ; Timmermans2001 , we can now study superfluid properties of 40K and 6Li Fermi gases at various interaction strengths in a systematic mannerRegal2004 ; Zwierlein2004 ; Bartenstein2004 ; Kinast2004 . Thus, when the above-mentioned weak point is overcome, one would be able to concentrate on the so-called BCS (Bardeen-Cooper-Schrieffer)-BEC (Bose-Einstein condensation) crossover phenomenonLevin2005 ; Nozieres1985 ; SadeMelo1993 ; Randeria1995 ; Ohashi2002 ; Perali2002 ; Pieri2004 ; Ketterle2008 ; Zwerger2012 , without being annoyed by the unwanted spatial inhomogeneity. Since understanding strong correlations is crucial in various Fermi systems, such as high-$T_{\rm c}$ cupratesRenner1998 ; Perali2000 ; Damascelli2003 ; Chen2006 , as well as neutron starsDean2003 , such improvement would also make an impact on these fields.

So far, several ideas have been proposed/developed to overcome this problem. One idea is to use the combined Gibbs-Duhem equation with the local density approximation (LDA)Ho2010 , which enables us to evaluate the pressure $P$ of a uniform Fermi gas from the observed density profile in a trapped Fermi gas. Then, we can determine other thermodynamic quantities in a uniform Fermi gas from $P$ by way of appropriate thermodynamic identities. This method is now widely used in cold Fermi gas physicsSalomon2010 ; Zwierlein2012 ; Horikoshi2016 .

To suppress effects of a harmonic potential, non-harmonic trap potential has also been testedHadzibabic2013 ; Zwierlein2016 . Very recently, for a 6Li Fermi gas in a cylindrical trap potential (where atoms feel almost uniform potential in the central region), Zwierlein and co-workers have measured the atomic momentum distribution, to observe a clear signature of the Fermi surface formation below the Fermi temperature $T_{\rm F}$Zwierlein2016 .

In addition to these, Jin and co-workers have recently invented a local photoemission-type spectroscopy (LPES)Sagi2015 . While the previous photoemission-type spectroscopy (PES) has no spatial resolutionStewart2008 ; Gaebler2010 , LPES employs a space selective imaging techniqueDrake2012 ; Sagi2012 ; Sagi2013 , to only observe single-particle excitations around the trap center (where effects of a harmonic trap is weak). Since the combined Gibbs-Duhem equation with LDA is only valid for thermodynamic quantities, LPES is expected to contribute to the understanding of excitation properties of a uniform Fermi gas in the crossover region.

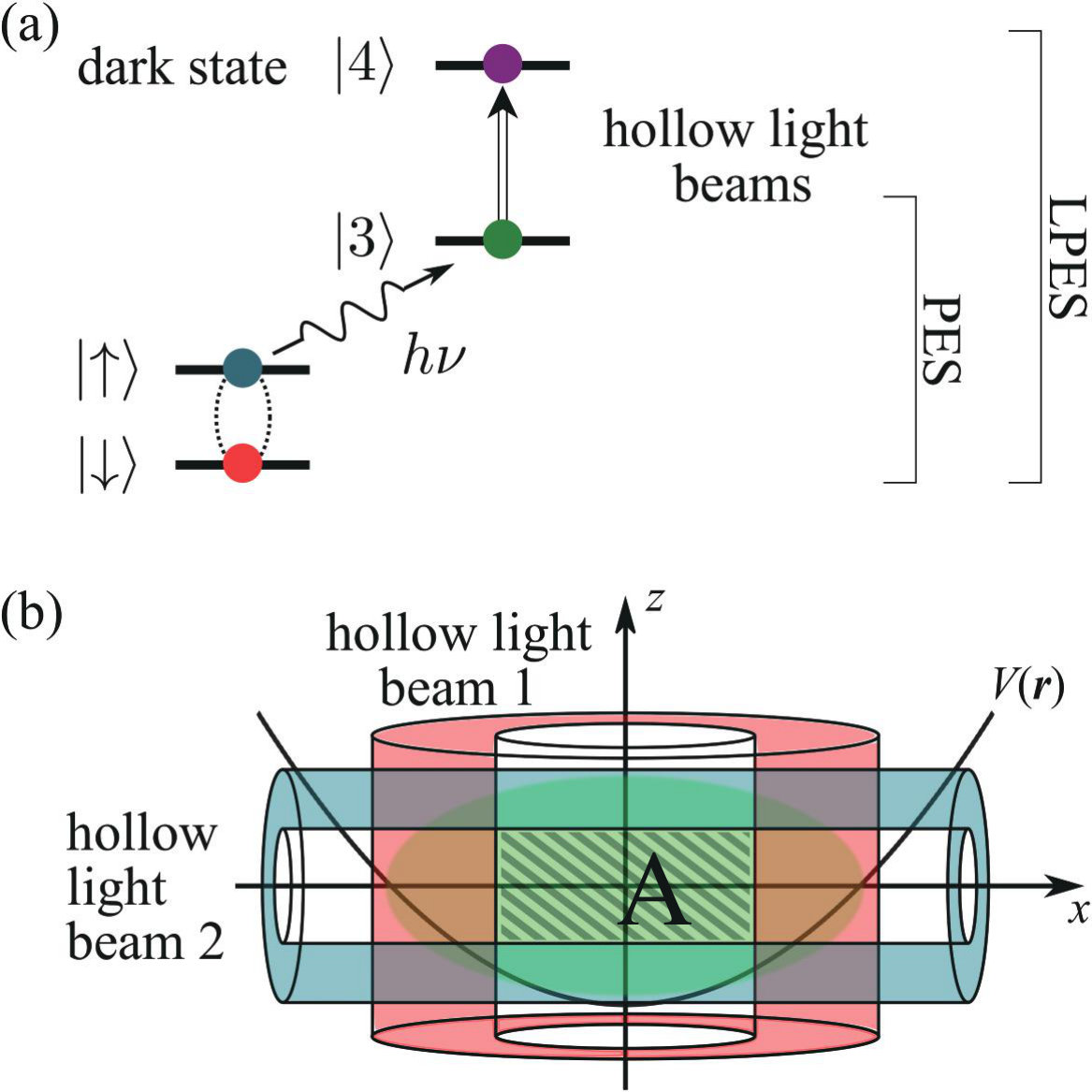

Figure 1 schematically shows difference between PES and LPES. In PESStewart2008 ; Gaebler2010 ; Torma2000 ; Torma2016 , rf-photons are applied to the whole gas cloud, to transfer atoms in the $|\uparrow\rangle$-state to the third one $|3\rangle$, as shown in panel (a). The photoemission spectrum is then obtained by probing $|3\rangle$, by using a time-of-flight (TOF) technique. In LPESSagi2015 , on the other hand, before TOF measurement, additional hollow light beams are applied to the system (Fig. 1(b)), to selectively excite $|3\rangle$-state atoms around the edge of the gas cloud to the fourth state $|4\rangle$ (“LPES” in Fig. 1(a)). When $|4\rangle$ is chosen so as to be invisible in the successive TOF measurement, LPES can selectively probe atoms in the trap center.

Because of this advantage, LPES is also expected to be able to resolve a long-standing debate on the pseudogap problem in this field. Since pairing fluctuations are strong in the BCS-BEC crossover region, the formation of preformed Cooper pairs, as well as the associated pseudogap phenomenon (where a gap-like structure appears in the single-particle density of states (DOS) in the normal state) have theoretically been predictedTsuchiya2009 ; Watanabe2010 ; Hui2010 ; Chien2010 ; Perali2011 ; Chen2014 . Experimentally, although the direct observation of DOS is still difficult in cold Fermi gas physics, the recent PES experiment on a 40K Fermi gasStewart2008 ; Gaebler2010 has found an anomalous spectral structure which is consistent with the predictionTsuchiya2009 ; Watanabe2010 ; Hui2010 ; Chien2010 ; Perali2011 ; Chen2014 . However, it has also been argued that the observed anomaly is not a signature of pseudogap, but simply comes from the spatial inhomogeneity of a trapped Fermi gasNascimbene2011 ; Nascimbene2010 , so that the existence of this many-body phenomenon is still controversial. To resolve this debate, LPES is very promising, because this experiment can, in principle, eliminate effects of a trap from the spectrum. Since the pseudogap phenomenon has also been discussed in high-$T_{\rm c}$ cuprates as a key to clarify the pairing mechanismPerali2002 ; Randeria1992 ; Singer1996 ; Janko1997 ; Yanase2001 ; Rohe2001 , the observation of pseudogap in the simpler gas system would also contribute to the study of this more complicated electron system.

In the recent LPES experiment on a 40K Fermi gasSagi2015 , the observed spectrum is similar to the previous PES resultStewart2008 ; Gaebler2010 , which looks supporting the pseudogap scenario. However, because the current LPESSagi2015 still needs at least about 30% of trapped atoms in order to obtain detectable spectral intensity, it must be done, not at the trap center, but for a finite volume fraction around the trap center. Thus, it is still unclear whether the observed LPES spectra really describe single particle properties of a homogeneous system or they still involve non-negligible inhomogeneous effects by a harmonic trap.

The purpose of this paper is to theoretically investigate the local photoemission-type spectroscopy (LPES) in the BCS-BEC crossover regime of a trapped normal Fermi gas. Including pairing fluctuations in the BCS-BEC crossover region within the framework of a strong-coupling $T$-matrix approximation (TMA), as well as effects of a harmonic trap within the local density approximation (LDA), we assess to what extent LPES can eliminate effects of a harmonic trap from the photoemission spectrum. We clarify the region where the current LPES technique can obtain single-particle properties of a uniform Fermi gas, in the phase diagram with respect to the temperature and the strength of pairing interaction. We also discuss how the local photoemission spectrum is sensitive to detailed spatial selection.

This paper is organized as follows. In Sec. II, we explain our formulation. In addition to the combined TMA with LDA to describe a trapped Fermi gas in the BCS-BEC crossover region, we also explain how to theoretically evaluate the local photoemission spectrum. In Sec. III, we show our numerical results. We compare calculated spectra with the recent experiment on a 40K Fermi gasSagi2015 . Throughout this paper, we set $\hbar=k_{\rm B}=1$, for simplicity. In the uniform case, the system volume $V$ is taken to be unity.

II Formulation

We start from a two-component Fermi gas described by the BCS Hamiltonian,

[TABLE]

We first explain TMA formalism and PES expression in the uniform case. Later, we explain how to incorporate effects of a harmonic trap into the theory within LDA. In Eq. (1), $c^{\dagger}_{{\bm{p}},\sigma}$ is the creation operator of a Fermi atom in the hyperfine state described by pseudo-spin $\sigma=\uparrow,\downarrow$. $\xi_{\bm{p}}=\varepsilon_{\bm{p}}-\mu={\bm{p}}^{2}/(2m)-\mu$ is the kinetic energy, measured from the Fermi chemical potential $\mu$, where $m$ is an atomic mass. $-U~{}(<0)$ is an attractive pairing interaction, which is assumed to be tunable by a Feshbach resonance techniqueChin2010 . As usual, we measure the interaction strength in terms of the observable $s$-wave scattering length $a_{\rm s}$, which is related to $-U$ as,

[TABLE]

where $p_{\rm c}$ is a momentum cutoff.

Strong-coupling corrections to single-particle excitations are conveniently described by the self-energy $\Sigma({\bm{p}},i\omega_{n})$ in the single-particle thermal Green’s functionMahan1981 ; Rickayzen2013 ,

[TABLE]

where $\omega_{n}$ is the fermion Matsubara frequency. In this paper, we deal with the self-energy correction $\Sigma({\bm{p}},i\omega_{n})$ within the $T$-matrix approximation (TMA)Perali2002 ; Pieri2004 ; Tsuchiya2009 ; Watanabe2010 , which is diagrammatically given in Fig. 2. We briefly note that TMA can describe the BCS-BEC crossover behavior of $T_{\rm c}$, as well as the pseudogapped density of states in the crossover regionPerali2002 ; Pieri2004 ; Tsuchiya2009 ; Watanabe2010 . This strong-coupling theory has also been used to calculate the conventional PESTsuchiya2011 , to successfully explain the observed spectra in a 40K Fermi gasStewart2008 ; Gaebler2010 . Thus, we expect that TMA is also suitable for our purpose.

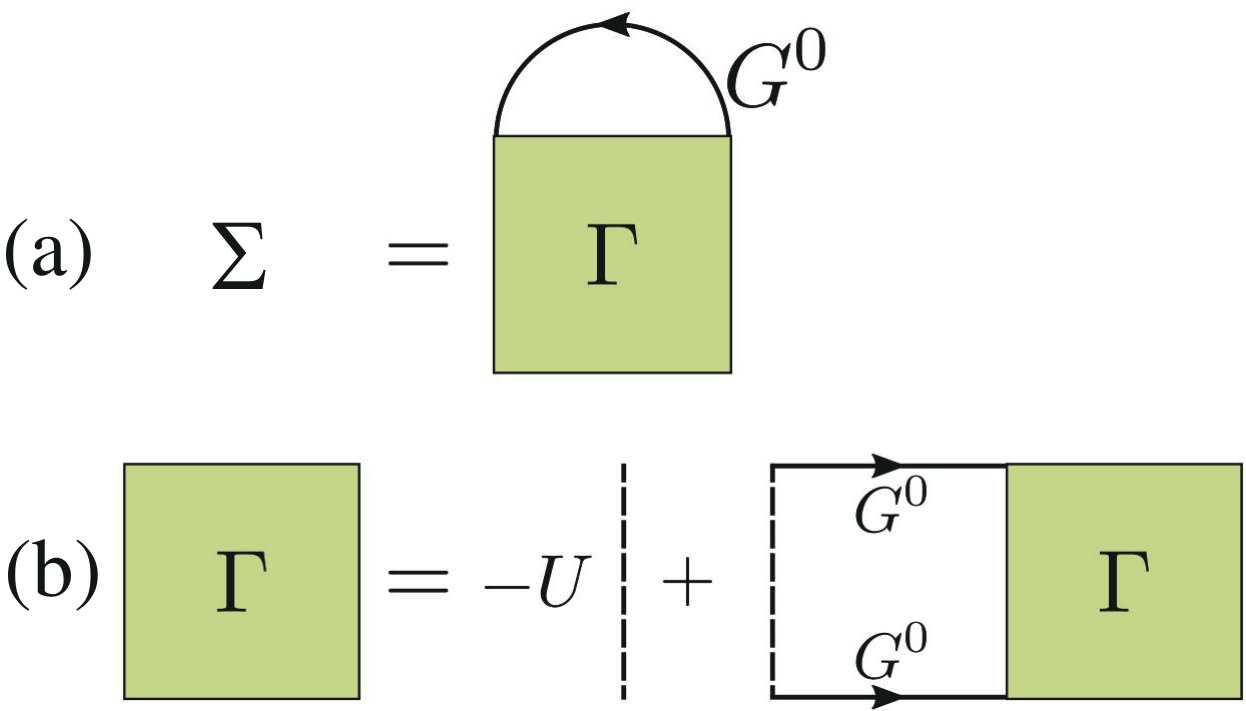

The summation of the TMA diagrams in Fig. 2 gives

[TABLE]

Here, $i\nu_{n}$ is the boson Matsubara frequency, and $G^{0}({\bm{p}},i\omega_{n})=1/[i\omega_{n}-\xi_{\bm{p}}]$ is the bare single-particle Green’s function. In Eq. (4), the particle-particle scattering matrix,

[TABLE]

describes fluctuations in the Cooper channel, where

[TABLE]

is the lowest-order pair correlation function, with $f(x)$ being the Fermi distribution function. As usual, the momentum summation in Eq. (6) involves the ultraviolet divergence, which however, does not affect the final result, when the interaction strength is measured in terms of the $s$-wave scattering length $a_{s}$ as,

[TABLE]

To describe excitations from $|\uparrow\rangle$ to $|3\rangle$ by rf-photonsStewart2008 ; Gaebler2010 , we add the corresponding HamiltonianTorma2000 ; Bruun2001 ; Kinnuen2004 ; Yan2005 ; Chen2009 ,

[TABLE]

to our model in Eq. (1). In Eq. (8), $b_{\bm{p}}^{\dagger}$ is the creation operator of a Fermi atom in $|3\rangle$ with the kinetic energy $\varepsilon_{\bm{p}}+\omega_{3}-\mu_{3}$, measured from the chemical potential $\mu_{3}$ (where $\omega_{3}$ is the energy difference between $|\uparrow\rangle$ and $|3\rangle$). The last term in Eq. (8) ($\equiv H_{\rm T}$) describes a photon-assisted tunneling between $|\uparrow\rangle$ and $|3\rangle$ in the rotational wave approximationTorma2000 ; Bruun2001 ; Kinnuen2004 ; Yan2005 ; Chen2009 ; Ohashi2005 , where $t_{\rm rf}$ is the transfer matrix element between the two states, and ${\bm{q}}_{\rm L}$ and $\omega_{\rm L}$ are the momentum and energy of rf-photon, respectively.

The tunneling current $I({\bm{p}},t)$ from $|\uparrow\rangle$ to $|3\rangle$ is given as the increase rate of the number $N_{3}({\bm{p}},t)$ of $|3\rangle$-state atoms with momentum ${\bm{p}}$. Treating the tunneling Hamiltonian $H_{\rm T}$ within the linear response theoryMahan1981 , one obtains

[TABLE]

where

[TABLE]

is a current operator, with $H_{\rm T}(t^{\prime})=e^{iHt^{\prime}}H_{\rm T}e^{-iHt^{\prime}}$. The photoemission spectrum $I({\bm{p}},\omega)$ is given as the Fourier transformed tunneling current $I({\bm{p}},t)$ in terms of the time-variable $t$. Assuming that the photon momentum ${\bm{q}}_{\rm L}$ is negligibly small and the third state $|3\rangle$ is initially vacant ($f(\varepsilon_{\bm{p}}+\omega_{3}-\mu_{3})=0$), we have,

[TABLE]

Here, $\Omega\equiv\omega_{3}+\mu_{3}-\mu-\omega_{\rm L}$ is sometimes referred to as the detuning frequency in the literature. Equation (11) involves the single-particle spectral weight $A({\bm{p}},\omega)$, which is related to the analytic continued single-particle Green’s function in Eq. (3) as

[TABLE]

where $\delta$ is an infinitesimally small positive number. Thus, the photoemission spectrum $I({\bm{p}},\Omega)$ in Eq. (11) gives us useful information about many-body corrections to single-particle excitations in the BCS-BEC crossover region.

We now include effects of a harmonic trap. In LDA, this extension is achieved by simply replacing $\mu$ and $\mu_{3}$ by the position-dependent ones, $\mu({\bf r})=\mu-V({\bf r})$ and $\mu_{3}({\bf r})=\mu_{3}-V({\bf r})$, respectivelyTsuchiya2011 ; Butts1997 ; Ohashi2003 ; note1 . Here,

[TABLE]

is a harmonic potential with the trap frequency $\omega_{\rm tr}$note2 . Equations (3)-(7) then depend on ${\bm{r}}$ through $\mu({\bm{r}})$. For example, the LDA single-particle thermal Green’s function has the form,

[TABLE]

where $\xi_{\bm{p}}({\bm{r}})=\varepsilon_{\bm{p}}-\mu({\bm{r}})$. The LDA photoemission spectrum is given by,

[TABLE]

where $A({\bm{p}},\omega,{\bm{r}})=-{\rm Im}[G({\bm{p}},i\omega\to\omega+i\delta,{\bm{r}})]/\pi$. We briefly note that $\Omega$ in Eq. (15) is still ${\bm{r}}$-independent in LDA.

In the conventional photoemission spectroscopy (PES) with no spatial resolutionStewart2008 ; Gaebler2010 , the spectrum $I_{\rm PES}({\bm{p}},\omega)$ is obtained from the spatial average of Eq. (15) over the entire gas cloud. When we slightly modify the expression so that we can directly compare our results with experimental data, we have

[TABLE]

Here, $V=4\pi R_{\rm F}^{3}/3$ is a characteristic volume of the gas cloud, where $R_{\rm F}=(24Nk_{\rm F}^{-3})^{1/3}$ is the Thomas-Fermi radiusPethick (where $N$ and $k_{\rm F}$ are the number of Fermi atoms and the Fermi momentum in the trap center in LDA, respectively). In obtaining Eq. (16), we have changed the variable as $\Omega=\xi_{\bm{p}}-\omega$, and have multiplied the spectrum by $p^{2}$, following the PES experimentStewart2008 ; Gaebler2010 .

As mentioned in Sec. I, the local photoemission spectroscopy (LPES) developed by JILA groupSagi2015 uses a space selective imaging techniqueDrake2012 ; Sagi2012 ; Sagi2013 . This can be conveniently incorporated into the theory by inserting a “space selective function” $P({\bm{r}})$, which describes the probability that a $|3\rangle$-state atom at ${\bm{r}}$ is not scattered into $|4\rangle$, into the PES expression in Eq. (16). The resulting LPES spectrum is given by,

[TABLE]

In the JILA’s experimentSagi2015 , the space selection has been done by using two hollow light beams, both of which have the second-order Laguerre-Gaussian profileDrake2012 , to kick out atoms in the outer region of the gas cloud to the invisible $|4\rangle$-state (see Fig. 1). To model this set-up, we takenote5

[TABLE]

where

[TABLE]

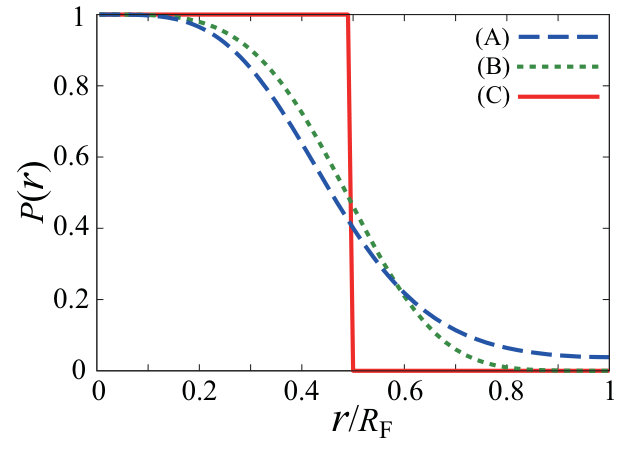

with $J_{0}$ and $w$ describing the power and the waist of the beam, respectively. For clarity, we show the detailed spatial variation of $P({\bm{r}})$ in Fig. 3. We briefly note that, although $P({\bm{r}})$ in Eq. (18) does not exactly reproduce the experimental set-up (with two hollow light beams, see Fig. 1(b))Sagi2015 ; note5 , we will later show that the LPES spectrum is actually not so sensitive to the detailed spatial variation of $P({\bm{r}})$.

In this paper, we also consider the case with a sharp cutoff,

[TABLE]

where $\Theta(x)$ is the step function, and $R_{\rm cut}$ is a cutoff radius.

Before ending this section, we comment on our numerical calculations. We first determine the Fermi chemical potential $\mu(T)$ in the normal state from the LDA number equationOhashi2003 ,

[TABLE]

Using the calculated $\mu(T)$, we evaluate the local photoemission spectrum $I_{\rm LPES}({\bm{p}},\omega)$ in Eq. (17). For this purpose, we numerically execute the analytic continuation, $G({\bm{p}},i\omega_{n}\to\omega+i\delta,{\bm{r}})$, in the Padé approximationVidberg1977 ; Beach2000 , to evaluate the spectral weight $A({\bm{p}},\omega,{\bm{r}})$ in Eq. (17). In this paper, we focus on the normal state above the superfluid phase transition temperature $T_{\rm c}$. In LDA, $T_{\rm c}$ is determined as the temperature at which the Thouless criterionThouless1960 is satisfied at the trap center (${\bm{r}}=0$)Ohashi2003 , that is,

[TABLE]

This condition gives the same form as the ordinary $T_{\rm c}$-equation in the BCS theory as,

[TABLE]

As usual, we numerically solve Eq. (23) together with the number equation (21), to self-consistently determine $T_{\rm c}$ and $\mu(T_{\rm c})$.

III Local Photoemission spectra in the BCS-BEC crossover region

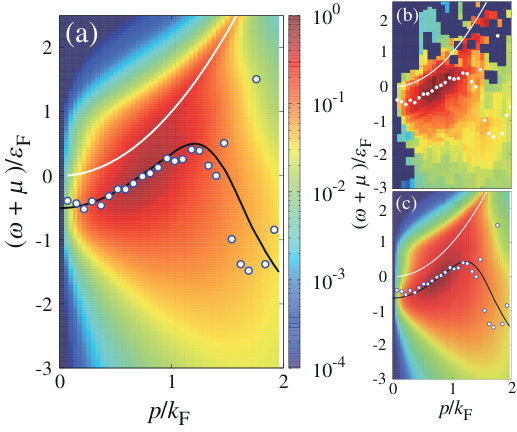

Figure 4(a) shows the calculated intensity $I_{\rm LPES}({\bm{p}},\omega)$ of the local photoemission spectrum in the unitary regime of an ultracold Fermi gas at $T=1.24T_{\rm c}$. In this figure, $30\%$ of trapped atoms in the central region are selectively probed. We find that the overall structure of the spectral intensity $I_{\rm LPES}({\bm{p}},\omega)$ agrees well with the recent LPES experiment on a 40K Fermi gas (Fig. 4(b))Sagi2015 . In particular, our result quantitatively explains the back-bending behaviour of the observed spectral peak (white circles in panels (a) and (b)), see the black solid line in Fig. 4(a). Such agreements are also obtained at different interaction strengths in the crossover region, although we do not explicitly show them in this paper. These agreements confirm the validity of our approach in this regime.

Figure 4(c) shows the case when 30% of atoms are selected by the sharp cutoff function in Eq. (20), which gives almost the same result as Fig. 4(a). We also see in Fig. 5 that, although the parameter set $(w,J_{0})$ in $P({\bm{r}})$ in Eq. (18) which probes 30% of atoms is not unique, the spectral peak line is not sensitive to this ambiguity. These indicate that, once the probing rate ($\equiv N_{\rm prob}/N$) is fixed, the detailed spatial selection is not so crucial for the local photoemission spectrum.

To assess to what extent LPES detects single-particle properties of a uniform Fermi gas from a trapped Fermi gas, we conveniently introduce the quantity,

[TABLE]

where $I_{\rm uniform}({\bm{p}},\omega)$ is the photoemission spectrum in a uniform Fermi gas with the same temperature and interaction strength as the trapped case. The atomic number density in this uniform case is chosen to be equal to the central density in the trapped case. In the present formalism, $I_{\rm uniform}({\bm{p}},\omega)$ is given by,

[TABLE]

In Eq. (24), $\langle\langle X({\bm{p}},\omega)\rangle\rangle$ means the normalization,

[TABLE]

We note that one obtains $h=1$, when the local photoemission spectrum $I_{\rm LPES}({\bm{p}},\omega)$ is the same as the uniform result, $I_{\rm uniform}({\bm{p}},\omega)$. The decrease from the unity ($h<1$) means that the spectrum is still influenced by spatial inhomogeneity by a harmonic trap.

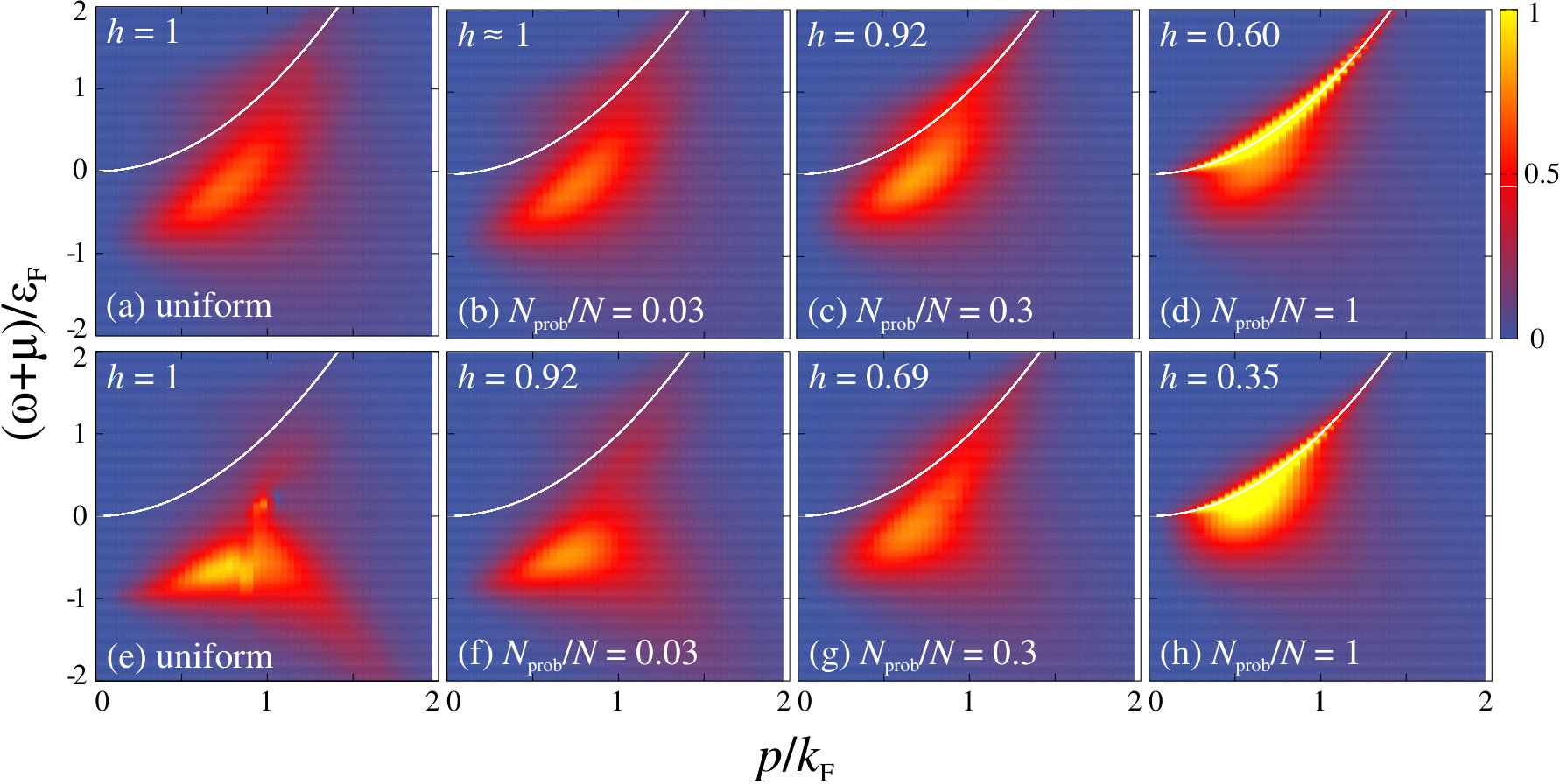

Figures 6(a)-(d) show how the probing rate $N_{\rm prob}/N$ affects $I_{\rm LPES}({\bm{p}},\omega)$, when $(k_{\rm F}a_{s})^{-1}=0.1$ and $T=1.24T_{\rm c}$. The spectral structure in the experimental situation (panel (c)) looks closer to the uniform result in panel (a) than the conventional PES case in panel (d) (where all the atoms in the trap contribute to the spectrum). Indeed, the value $h=0.92$ in the case of Fig. 6(c) is very close to unity. In this sense, the space selective imaging technique in the recent LPES experiment on a 40K Fermi gasSagi2015 is considered to succeed in observing single-particle excitations in a (nearly) uniform Fermi gas.

However, we point out that the current experimental limitation N_{\rm prob}/N\ \raise 1.29167pt\hbox{>}\kern-8.00003pt\lower 3.01385pt\hbox{\sim}\ 0.3 is not always enough to obtain single-particle properties of a uniform Fermi gas. For example, in the unitarity limit at $T_{\rm c}$, Fig. 6(g) shows that the similarity of the spectrum to the uniform result is at most $h=0.69\ll 1$. Indeed, we see in Fig. 6(g) that the spectrum has large intensity around the the free-particle dispersion (white solid line), compared to the uniform case in panel (e). This structure is rather close to the PES case shown in panel (h). To obtain $h=0.92$ in this case, one needs to tune the probing rate down to $N_{\rm prob}/N=0.03$ (Fig. 6(f)), which is, however, beyond the current experimental limitation.

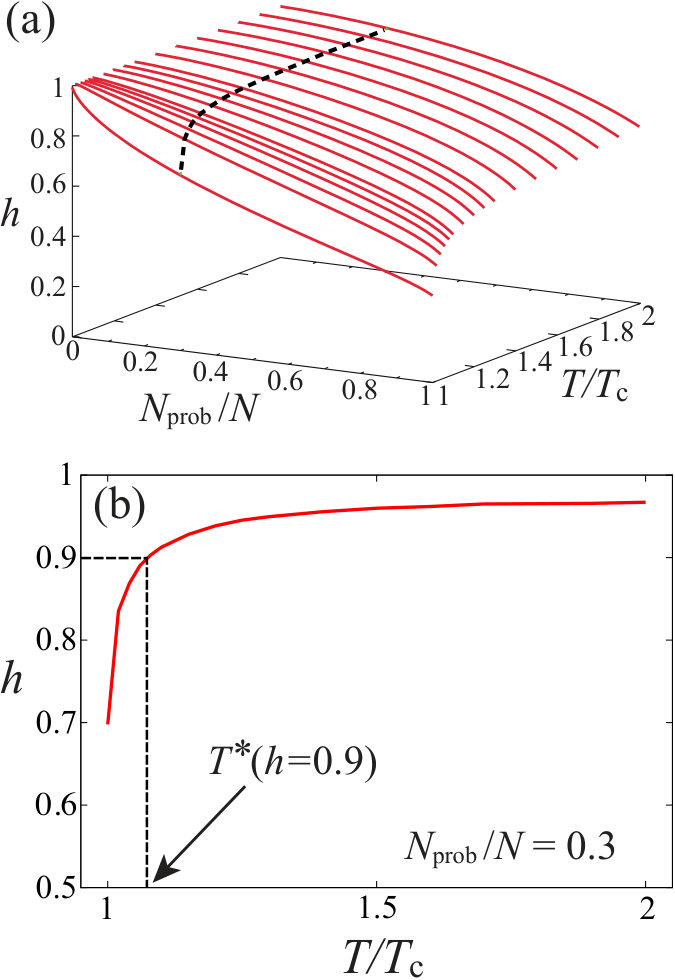

These results indicate that, not only the probing rate $N_{\rm prob}/N$, but also the temperature is crucial to obtain $h\simeq 1$. Indeed, Fig. 7 shows that the $h$-factor remarkably decreases near $T_{\rm c}$. Thus, one needs to take a smaller value of the probing rate than $N_{\rm prob}/N=0.3$, to obtain single-particle properties of a uniform Fermi gas at $T\simeq T_{\rm c}$.

The decrease of $h$ near $T_{\rm c}$ is related to the pseudogap phenomenon appearing in the central region of a trapped Fermi gas. To see this, it is convenient to introduce the LDA local Fermi temperature $T_{\rm F}({\bm{r}})$, given by,

[TABLE]

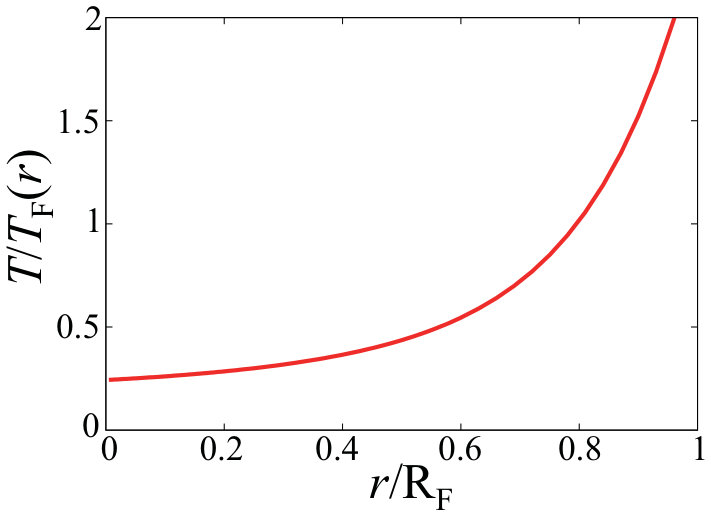

Equation (27) is a natural extension of the ordinary Fermi temperature to the LDA case with the position-dependent Fermi chemical potential $\mu({\bm{r}})=\mu-V({\bm{r}})$. In Eq. (27), the Fermi energy $\varepsilon_{\rm F}=(3\pi^{2}n(0))^{2/3}/(2m)$ involves the particle density $n(0)$ of a trapped free Fermi gas at ${\bm{r}}={\bm{0}}$. When the temperature is scaled as $T/T_{\rm F}({\bm{r}})$, it increases with moving away from the trap center, as shown in Fig. 8. Because of this, even when strong pairing fluctuations cause pseudogapped single-particle excitations in the trap center below the so-called pseudogap temperature $T_{\rm pg}$Tsuchiya2011 ; note6 , pairing fluctuations are still weak in the outer region of the gas cloud where $T/T_{\rm F}({\bm{r}})>T_{\rm pg}/T_{\rm F}(0)$, leading to the vanishing pseudogap phenomenon there. This naturally gives the coexistence of the pseudogapped central region and the outer region with no pseudogapped local density of states.

When $T_{\rm c}\leq T\leq T_{\rm pg}$, such spatially inhomogeneity would remarkably decrease $h$ from unity, unless the pseudogapped region spreads out over the entire spatial region where LPES observes atoms. In the case of Fig. 3 ($N_{\rm prob}/N=0.3$), the size of the spatial region where LPES observes atoms is as large as about half the Thomas-Fermi radius $R_{\rm F}$. We briefly note that, even at $T_{\rm c}$, the pseudogapped spatial region does not so spread out in the unitary regimeWatanabe2012 . As a result, single-particle properties are still inhomogeneous in the region where LPES observes atoms, leading to the decrease of $h$.

When $T>T_{\rm pg}$, the spatial inhomogeneity by the pseudogap phenomenon no longer exists. Because of this, a large value of $h~{}(\simeq 1)$ is expected compared to the pseudogapped case, which causes the difference between Figs. 6(c) and (g).

Although there is no clear boundary about the validity of the current LPES experiment (with $N_{\rm prob}/N\simeq 0.3$), it is convenient to introduce the quantity $T^{*}(N_{\rm prob}/N=0.3)$ which is given as the temperature at which the $h$-factor reaches $h=0.9$ (see Fig. 7(b)). As a criterion, we then identify the region above $T^{*}$ (where $h\geq 0.9$) as the region where LPES can (approximately) eliminate effects of a harmonic trap from photoemission spectra.

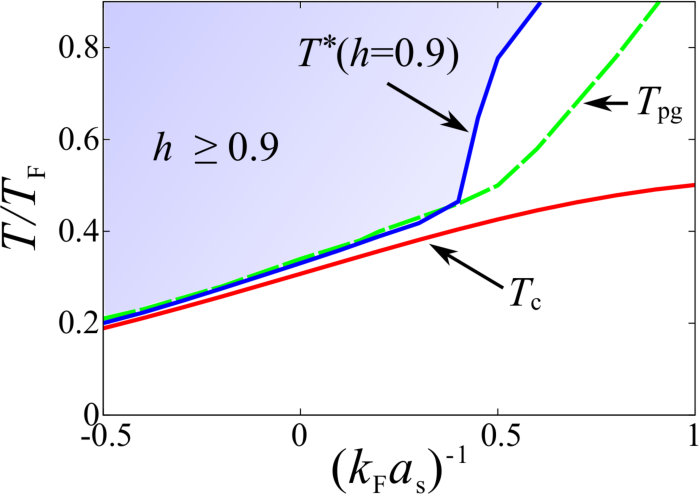

Using this criterion, we conveniently identify the region where the current LPES experiment ($N_{\rm prob}/N=0.3$) works, as shown in Fig. 9. In this figure, we see that the most of the pseudogap regime ($T_{\rm c}\leq T\leq T_{\rm pg}$) is outside this region. Thus, the current LPES experiment with N_{\rm prob}/N\ \raise 1.29167pt\hbox{>}\kern-8.00003pt\lower 3.01385pt\hbox{\sim}\ 0.3 needs further improvement, in order to confirm the pseudogap phenomenon in the BCS-BEC crossover regime of a uniform Fermi gas. At present, it seems difficult to select narrower spatial region so as to give a larger $h$, because of the limitation of the detectable spectral intensity in the current experimental technologySagi2015 . Thus, a promising idea is to combine the current LPES technique with the non-harmonic (box-type and cylindrical) trap potentialHadzibabic2013 ; Zwierlein2016 mentioned in Sec. I. Then, the spatial inhomogeneity inside the selected region would be suppressed to some extent.

IV Summary

To summarize, we have discussed single-particle excitations in the BCS-BEC crossover regime of a trapped ultracold Fermi gas. Including pairing fluctuations within a strong-coupling $T$-matrix approximation (TMA), as well as effects of trapping potential using the local density approximation (LDA), we have calculated the local photoemission spectrum $I_{\rm LPES}({\bm{p}},\omega)$ in the normal state above $T_{\rm c}$. We showed that our results agree well with the recent local photoemission spectroscopy (LPES) experiment on a 40K Fermi gas, without introducing any fitting parameter. To conveniently estimate the similarity between the observed photoemission spectrum in a trapped Fermi gas and that in the homogeneous case, we have introduced a quantity (which is referred as the $h$-factor in this paper), to show that the recently observed LPES spectra in the unitary regime of a trapped 40K Fermi gas are very close to those in a uniform Fermi gas.

However, we also found that the current LPES experiment (which requires the probing rate N_{\rm prob}/N\ \raise 1.29167pt\hbox{>}\kern-8.00003pt\lower 3.01385pt\hbox{\sim}\ 0.3 to obtain detectable spectral intensity) does not always work well, for the purpose of eliminating effects of a harmonic trap from the spectrum. In particular, we showed that the $h$-factor remarkably deviates from unity in the most of the pseudogap regime when N_{\rm prob}/N\ \raise 1.29167pt\hbox{>}\kern-8.00003pt\lower 3.01385pt\hbox{\sim}\ 0.3, which means that the current photoemission spectrum still involves effects of spatial inhomogeneity there. Thus, in order to use LPES to resolve the debate about the existence of the pseudogap in the BCS-BEC crossover regime of a uniform Fermi gas, it is necessary to improve this experiment beyond the current limitation (N_{\rm prob}/N\ \raise 1.29167pt\hbox{>}\kern-8.00003pt\lower 3.01385pt\hbox{\sim}\ 0.3).

For this improvement, one needs to either observe a smaller spatial region around the trap center, or use another type of trap potential. In this regard, the recent experimental work on non-harmonic trapHadzibabic2013 ; Zwierlein2016 is promising. Since it gives a flatter potential than the ordinary harmonic potential in the central region, the combined LPES with such a non-harmonic trap may enable us to obtain the photoemission spectrum with $h\simeq 1$ within the current experimental limitation (N_{\rm prob}/N\ \raise 1.29167pt\hbox{>}\kern-8.00003pt\lower 3.01385pt\hbox{\sim}\ 0.3). The theoretical confirmation of this expectation is our interesting future problem. Extracting homogeneous information about a strongly interacting Fermi gas from experiments on a trapped Fermi gas is an important issue in cold Fermi gas physics, especially when this highly tunable system is used as a quantum simulator for other homogeneous Fermi systems. Thus, our results would be useful when such an application is intended for the study of single-particle excitations.
