Carroll symmetry of plane gravitational waves

TL;DR

This paper reveals that the symmetry group of plane gravitational waves aligns with the Carroll group in 2+1 dimensions, linking gravitational wave geometry to Carrollian structures and exploring light scattering properties.

Contribution

It establishes a connection between plane gravitational wave symmetries and Carroll groups, providing new geometric insights and analyzing light scattering as a metamaterial.

Findings

Plane waves' isometry group is identified as the Carroll group.

Plane waves can be embedded into Bargmann spaces, linking to Carroll manifolds.

Calculated electric permittivity of gravitational waves as metamaterials.

Abstract

The well-known 5-parameter isometry group of plane gravitational waves in $4$ dimensions is identified as Levy-Leblond's Carroll group in $2+1$ dimensions with no rotations. Our clue is that plane waves are Bargmann spaces into which Carroll manifolds can be embedded. We also comment on the scattering of light by a gravitational wave and calculate its electric permittivity considered as an impedance-matched metamaterial.

Figures

Equations

$$\mathrm{g}={\delta }_{ij}d{X}^{i}d{X}^j+2dUdV+K_{ij}(U)X^i{X}^{j}d{U}^2,$$

$$\mathbf{x}\to A\mathbf{x}+\mathbf{c},v\to v-\mathbf{b}\cdot A\mathbf{x}+f,$$

$$\left(\begin{array}[]{cccc}A&{\bf b}&0&{\mathbf{c}}\\ 0&1&0&e\\ -{\bf b}^{\dagger}{}A&-\frac{1}{2}{\bf b}{}^{2}&1&f\\ 0&0&0&1\end{array}\right),$$

$$\mathbf{r}\to A\mathbf{r}+\mathbf{b}t+\mathbf{c},t\to t+e,s\to s-\mathbf{b}\cdot A\mathbf{r}-\frac{1}{2}{\mathbf{b}}^{2}t+f.$$

$$\mathbf{X}=P(u)\mathbf{x},U=u,V=v-\frac{1}{4}\mathbf{x}\cdot \dot{a}(u)\mathbf{x},$$

$$\mathrm{g}=a_{ij}(u)d{x}^{i}d{x}^j+2dudv,$$

$$\ddot{P}=KP,P^{†}\dot{P}=\dot{P^{†}}P.$$

$$K=\frac{1}{2}P\left(\dot{L}+\frac{1}{2}{L}^2\right)P^{-1},L=a^{-1}\dot{a},$$

$$\mathrm{Tr}\left(\dot{L}+\frac{1}{2}{L}^2\right)=0.$$

$$\mathbf{x}\to \mathbf{x}+H(u)\mathbf{b}+\mathbf{c},u\to u,v\to v-\mathbf{b}\cdot \mathbf{x}-\frac{1}{2}\mathbf{b}\cdot H(u)\mathbf{b}+f,$$

$$H(u)={\int }_{u_0}^{u}a(t{)}^{-1}dt.$$

$$(\mathbf{b},\mathbf{c},f).({\mathbf{b}}^{\prime },{\mathbf{c}}^{\prime },f^{\prime })=(\mathbf{b}+{\mathbf{b}}^{\prime },\mathbf{c}+{\mathbf{c}}^{\prime },f+f^{\prime }-\mathbf{b}\cdot {\mathbf{c}}^{\prime }),$$

$$\left(\begin{array}[]{cccc}\bm{1}&{\bf b}&0&{\mathbf{c}}\\ 0&1&0&0\\ -{\bf b}^{\dagger}&-\frac{1}{2}{\bf b}{}^{2}&1&f\\ 0&0&0&1\end{array}\right).$$

$$\mathbf{p}=a\dot{\mathbf{x}},\mathbf{k}=\mathbf{x}-H\mathbf{p},m=1,$$

$$\mathbf{x}(u)=H(u)\mathbf{p}+\mathbf{k},v(u)=-\frac{1}{2}\mathbf{p}\cdot H(u)\mathbf{p}+eu+d,$$

$$(\mathbf{p},\mathbf{k},e,d)\to (\mathbf{p}+\mathbf{b},\mathbf{k}+\mathbf{c},e,d+f-\mathbf{b}\cdot \mathbf{k})$$

$$P(u)=\chi(u)\,\mathrm{diag}\big{(}e^{\alpha(u)},e^{-\alpha(u)}\big{)}$$

$$\mathrm{g}={\chi }^2\left[e^{2\alpha }(d{x}^1{)}^2+e^{-2\alpha }(d{x}^2{)}^2\right]+2dudv$$

$$\ddot{\chi }+{\dot{\alpha }}^2\chi =0,$$

$$K_{ij}(U)X^i{X}^j=\frac{1}{2}\mathcal{A}(U)\left[(X^1{)}^2-(X^2{)}^2\right],\mathcal{A}=\frac{2}{{\chi }^2}\frac{d}{du}\left({\chi }^2\frac{d\alpha }{du}\right).$$

$$\frac{1}{2}{K}_{ij}(U)X^i{X}^j=\tan U\left[(X^2{)}^2-(X^1{)}^2\right].$$

$$H_{11}(u)={\int }_0^u{\cos }^{-2}w{e}^{-2w}dw,H_{22}(u)={\int }_0^u{\cos }^{-2}w{e}^{+2w}dw$$

$$P(u)=\chi(u)\left(\begin{array}[]{cc}\cosh\beta(u)&\sinh\beta(u)\\ \sinh\beta(u)&\cosh\beta(u)\end{array}\right)$$

$$K(U{)}_{ij}{X}^i{X}^j=\mathcal{B}(U)X^1{X}^2,\mathcal{B}=\frac{2}{{\chi }^2}\frac{d}{du}\left({\chi }^2\frac{d\beta }{du}\right).$$

$$K_{ij}(U)X^i{X}^j=\cos (\omega U)X^1{X}^2+\frac{1}{2}\sin (\omega U)\left[(X^1{)}^2-(X^2{)}^2\right]$$

$$Z\to e^{-\frac{1}{2}i\omega e}Z,U\to U+e,V\to V,$$

$$H(u)=\left(\frac{\tan (\omega u)}{\omega }-\frac{\tan (\omega u_0)}{\omega }\right)\mathrm{Id}.$$

$$t=\frac{\tan (\omega U)}{\omega },\mathbf{r}\equiv \mathbf{x}=\frac{\mathbf{X}}{\cos (\omega U)},s\equiv v=V-\frac{\omega {\mathbf{X}}^2}{2}\tan (\omega U),$$

$$\mathrm{g}=-d{t}^2+g_{ab}(u)d{x}^{a}d{x}^b,g_{ab}d{x}^{a}d{x}^b=a_{ij}(u)d{x}^{i}d{x}^j+d{z}^2,$$

$$\mathrm{curl}\mathbf{E}$$

Full text

02.20.Sv Lie algebras of Lie groups;

04.30.-w Gravitational waves

††preprint: arXiv:1702.08284v3 [gr-qc]

I Introduction

A gravitational plane wave is the $4$-manifold, $\mathbb{R}^{4}$ globally, endowed with the Lorentz metric BaJeRo ; BoPiRo ; EhlersKundt ; Sou73 ; exactsol ; Gibb75 ; Garriga ; Torre ,

[TABLE]

where the symmetric and traceless matrix $K(U)=\left(K_{ij}(U)\right)$ characterizes the profile of the wave. Here $U$ and $V$ are light-cone coordinates, whereas ${\bf X}=(X^{1},X^{2})$ parametrizes the transverse plane which carries the flat Euclidean metric $d{\bf X}^{2}=\delta_{ij}\,dX^{i}dX^{j}$. This metric is a Brinkmann pp-wave metric Bri . Since the only non-vanishing curvature components are $R^{i}_{\,UjU}=-R^{V}_{\,ijU}=-K_{ij}$, it is Ricci-flat. In $3+1$ dimensions, (I.1) is the general form of a Ricci-flat Brinkmann metric.

In this paper we identify, following Sou73 , the isometry group of the gravitational wave (I.1) we denote here by $C$, as the Carroll group in $2+1$ dimensions with broken rotations.

Let us recall that the Carroll group, $C(d+1)$, has originally been introduced as an unusual contraction, $c\to 0$, of the Poincaré group ${\mathrm{E}}(d,1)$ Leblond ; SenGupta ; Carrollvs . It acts on $(d+1)$-dimensional flat “Carroll space-time”, ${\mathcal{C}}^{d+1}$, with coordinates $({\bf x},v)$, according to

[TABLE]

where $A\in{\rm O}(d)$ and ${\mathbf{c}}\in{\mathbb{R}}^{d}$ represent spatial orthogonal transformations and translations; ${\bf b}\in{\mathbb{R}}^{d}$ and $f\in{\mathbb{R}}$ generate “Carrollian boosts” and translations of “Carrollian time”, $v$, respectively. Let us recall that the flat Carroll space-time, ${\mathcal{C}}^{d+1}\cong\mathbb{R}^{d+1}$, is endowed with the degenerate metric $\gamma=d{\bf x}^{2}$ with kernel spanned by the constant vector field $\xi=\partial_{v}$, and is equipped with its flat affine connection. The Carroll group, $C(d+1)$, is thus the group of all affine transformations of “space-time” which leave $\gamma$ and $\xi$ invariant.

Long considered as a sort of mathematical curiosity Ancille ; Carrollvs ; BeGoLo , the Carroll group has reemerged more recently in brane-dynamics GiHaYi ; thoughts , for the BMS group DGH-BMS , in string theory CaGoPo ; DGH-BMS ; Bag , and in non-relativistic gravitation BeGoRoRoVe .

We find it useful to record our notations: $({\bf X},U,V)$ denote “Brinkmann” coordinates which appear in (I.1), whereas $({\bf x},u,v)$ in (III.1) are Baldwin-Jeffery-Rosen (BJR) coordinates BaJeRo ; Sou73 , convenient for determining both the isometries and the geodesics Sou73 . In Minkowski space-time, $K=0$, both coordinates reduce to the usual light-cone coordinates $({\bm{r}},t,s)$.

II The Carroll group and Bargmann symmetries

Our clue is that the space-time with metric (I.1) is also a Bargmann manifold DBKP ; DGH91 in that it carries a null, covariantly constant, vector field, namely $\xi={\partial}_{V}$.

Bargmann spaces are convenient tools to study non-relativistic dynamics in one lower dimension DBKP ; DGH91 ; Eisenhart ; Cariglia  : the quotient of a $(d+1,1)$-dimensional Bargmann space by the foliation generated by $\xi$ carries a $(d+1)$-dimensional Newton-Cartan structure DBKP ; $U$ in (I.1), can be viewed as non-relativistic time and $-\frac{1}{2}K_{ij}(U){X^{i}}{X^{j}}\,$ as a time dependent quadratic scalar potential. Non-relativistic motions in Newton-Cartan spacetime are projections of null geodesics in extended Bargmann space-time Eisenhart ; DBKP ; DGH91 ; the $\xi$-preserving isometries of the latter project to non-relativistic Galilean symmetries.

The metric (I.1) describes, in Bargmann language, the Eisenhart lift of a (possibly anisotropic) planar oscillator with time dependent frequencies DBKP ; DGH91 ; Eisenhart ; Cariglia ; BDP ; its $\xi$-preserving isometries span the [centrally extended] Newton-Hooke group [without rotations in the anisotropic case] ZHAGK ; when $K=0$, the latter goes over to the [centrally extended] Galilei group (also referred to as the Bargmann group in $(d+1,1)$ dimension) DBKP ; DGH91 . The latter is conveniently represented by the matrices

[TABLE]

where $A\in{\mathrm{O}}(d)$; ${\bf b},{\mathbf{c}}\in{\mathbb{R}}^{d}$; and $e,f\in{\mathbb{R}}$ stand for a Galilei time translation and for a “Carroll time” translation, respectively. The superscript † means transposition. The Bargmann group (II.1) acts affinely by matrix multiplication on Bargmann extended spacetime $\mathbb{R}^{d+1,1}$ parametrized by $({\bm{r}},t,s)$, according to

[TABLE]

Recall that flat Bargmann space is endowed with the metric $\mathrm{g}=\mathrm{d}{\bm{r}}^{2}+2dt\,ds$, and the null, constant, vector field $\xi=\partial_{s}$. The null hyperplane ${\mathcal{C}}_{t_{0}}^{d+1}$ defined by $t=t_{0}=\mathop{\rm const.}\nolimits$ is a Carroll spacetime Carrollvs ; DGH-BMS as it carries a twice-symmetric, semi-positive “metric”, $d{\bm{r}}^{2}=\mathrm{g}_{|{}t=t_{0}}$, whose kernel is generated by $\xi$. The restriction of the Levi-Civita connection of the Bargmann metric is then a distinguished Carroll connection on ${\mathcal{C}}_{t_{0}}^{d+1}$ DGH-BMS , coordinatized by ${\bf x}={\bm{r}}$ and $v=s$. The action (I.2) of the Carroll group is readily recovered by putting $e=0$ in (II.2) and performing an easy redefinition of space and “Carroll time” translations. The Carroll group, $C(d+1)$ is hence the subgroup of the Bargmann group (II.1), defined by $e=0.$ It is therefore a subgroup of all isometries, i.e., of the Poincaré group, ${\mathrm{E}}(d+1,1)$, in the flat case. From now on, we set $d=2$ again.

III Isometries of plane gravitational waves

Our first step in identifying the isometries of the plane wave (I.1) is to recast the metric in a new coordinate system $({\bf x},u,v)$ BaJeRo ; Sou73 , which allows us to determine the isometry group in terms of elementary functions, see eqn. (III.6) below. This can be achieved Gibb75 ; exactsol ; Garriga with the help of a change of coordinates $({\bf X},U,V)\to({\bf x},u,v)$, namely

[TABLE]

where $a(u)=P(u)^{\dagger}{}P(u)$ for some non-singular $2\times 2$ matrix $P(u)$555 The square root, $P$, of the matrix $a>0$ is not uniquely defined since $RP$ with $R(u)\in{\mathrm{O}}(2)$ is another one. However, eqns (III.3) guarantee that $\dot{R}=0$, i.e., that $P$ is merely defined up to ${\mathrm{O}}(2)$. Conditions (III.3) implies that $K=\ddot{P}P^{-1}$ in (I.1) is indeed symmetric.. The change of coordinates allows us to present the metric (I.1) in the form

[TABLE]

provided the matrix $P(u)$ is a solution of the joint system

[TABLE]

Since

[TABLE]

the Ricci flatness of the metric (III.2), namely $\mathrm{Tr}(K)=0$, is given by the equation BaJeRo ; Sou73 ,

[TABLE]

Isometries. We now claim that the (generic) isometries of (III.2) form a $5$-dimensional Lie group. Following Souriau Sou73 , in terms of the BJR $({\bf x},u,v)$, the latter acts on space-time as,

[TABLE]

where $H$ is a (symmetric) $2\times 2$ matrix verifying $\dot{H}=a^{-1}$, that is,

[TABLE]

Manifestly, ${\mathbf{c}}\in{\mathbb{R}}^{2}$ and $f$ generate transverse-space resp. null translations along the $v$ coordinate Gibb75 . Moreover, the group law deduced from (III.6),

[TABLE]

is precisely that of the Carroll group, (I.2) with no rotations, i.e. $A=\mathrm{Id}$. Thus the isometry group of the above gravitational wave is indeed the group $C\subset{}C(2+1)$ of matrices

[TABLE]

The vector ${\bf b}\in{\mathbb{R}}^{2}$ generates, in particular, a Carroll boost acting as in (III.6), while ${\mathbf{c}}\in\mathbb{R}^{2}$ and $f$ are Carrollian “space-time” translations, as before. Let us note that $C$ is a normal subgroup of the Carroll group of $C(2+1)$, $C(2+1)/C\cong{\mathrm{O}}(2)$.

It is worth stressing that while the way the Carroll group is implemented on an $u=\mathop{\rm const.}\nolimits$ null hypersurface does depend on the (fixed) value of $u$ Torre , all these actions can be derived from the simple Carroll action at $u=u_{0}$ according to (III.6)-(III.7). The coordinate transformation (III.1) followed backwards yields the Carroll action in terms of the Brinkmann coordinates and we recover eqn. # (3) in Torre .

Geodesic motion. As noted by Souriau Sou73 , the conserved quantities associated with geodesic motions are then readily determined by Noether’s theorem. Choosing, with no restriction, $u$ as parameter, they are

[TABLE]

interpreted as linear momentum, boost-momentum and “mass” (unity in our parametrization). In BJR coordinates, the geodesics have then the remarkable explicit expression

[TABLE]

where $e=\frac{1}{2}\mathrm{g}_{\mu\nu}\,\dot{x}^{\mu}\dot{x}^{\nu}$ is. (This constant is negative/zero/positive for timelike/null/spacelike geodesics). $d$ is an integration constant. The isometry group acts on the above constants of the motion as

[TABLE]

allowing us, in particular, to carry any geodesic to a geodesic defined by ${\bm{p}}=\mathbf{k}=0$ and $d=0$, which then becomes “vertical” Sou73 , ${\bf x}=0,\;v=c\,u.$ Conversely, any geodesic can be obtained by “exporting a vertical one” by an isometry : the only group-invariant property of the trajectory is the sign of $e$.

IV Classical examples

Let us illustrate our procedure by simple examples.

The restriction of flat Minkowski space with metric $\mathrm{g}=d{\bm{r}}^{2}+2dt\,ds$ to the constant “time” slice $t_{0}=0$ is a Carroll manifold with $\xi=\partial_{s}$, upon which the restriction $e=0$ of the Bargmann group (II.1) acts, consistently with the Carroll action (I.2), via (III.6) with $H(t)=(t-t_{0})\,\mathrm{Id}\,.$ The conserved quantities (III.10) take the familiar Galilean form. Shifting the basepoint, $t_{0}\to t_{0}^{\prime}$, merely shifts the transformation law of $v$ by a constant, namely v\to v-{\bf b}.{\bf x}-{\hbox{\textstyle\frac{1}{2}}}{\bf b}^{2}(t_{0}^{\prime}-t_{0})+f. 2. 2.

For a less trivial example, consider, e.g.,

[TABLE]

with $\alpha(u)$ some arbitrarily chosen function. The associated metric

[TABLE]

is Ricci-flat if

[TABLE]

see (III.5). The pp-wave profile is, in this case,

[TABLE]

From the mechanical point of view, this metric describes two uncoupled time-dependent harmonic oscillators, one attractive, the other repulsive, with opposite frequency-squares.

The metric (IV.2) is manifestly invariant against transverse space and advanced time-translations, ${\bf x}\to{\bf x}+{\mathbf{c}}$ and $v\to{}v+f$, respectively, while retarded time, $u$, is kept fixed. The orthogonal group, ${\mathrm{O}}(2)$, is clearly broken since the spatial metric is not diagonal unless $\alpha(u)=0$. Carroll boosts act as in (III.6) with $H(u)=\int^{u}_{u_{0}}\!\!P(w)^{-2}dw,$ where $P$ is as in (IV.1).

To have a toy example, let us take, e.g., $\alpha(u)=u$. Then a Ricci-flat metric which is regular in the neighborhood of $u=0$ is given, for example, by $\chi(u)=-\cos u$, whose profile is

[TABLE]

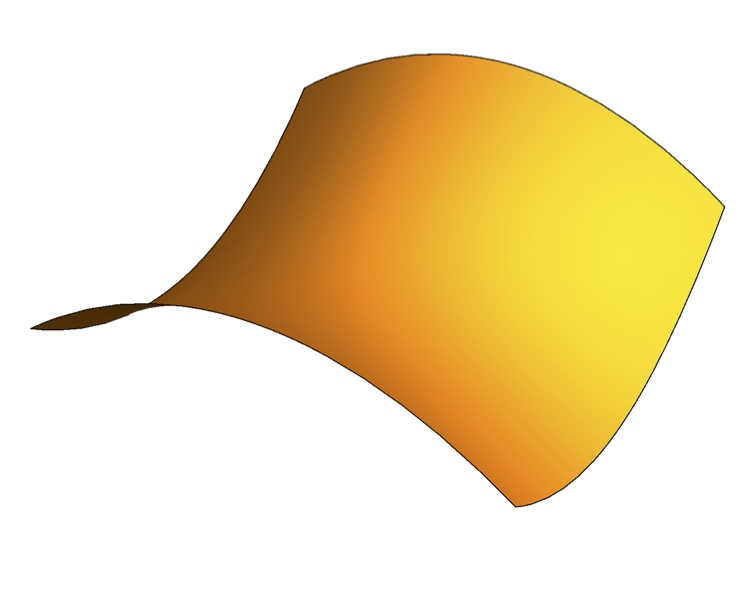

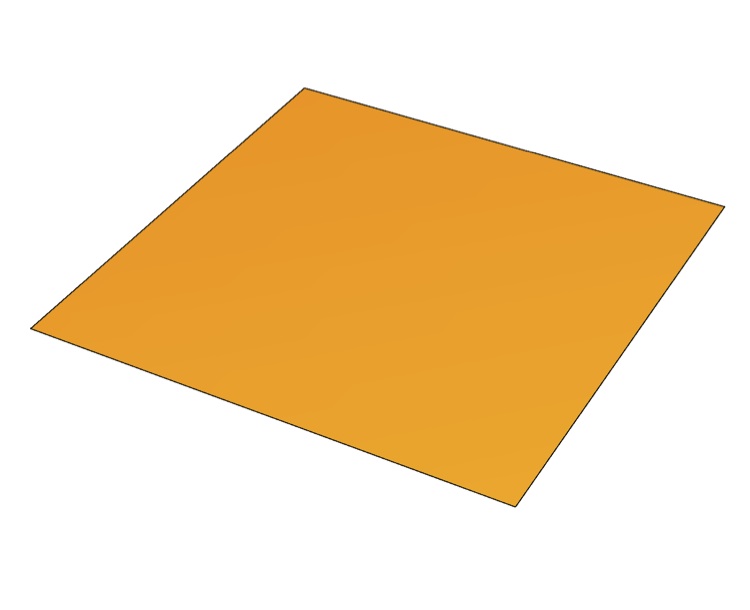

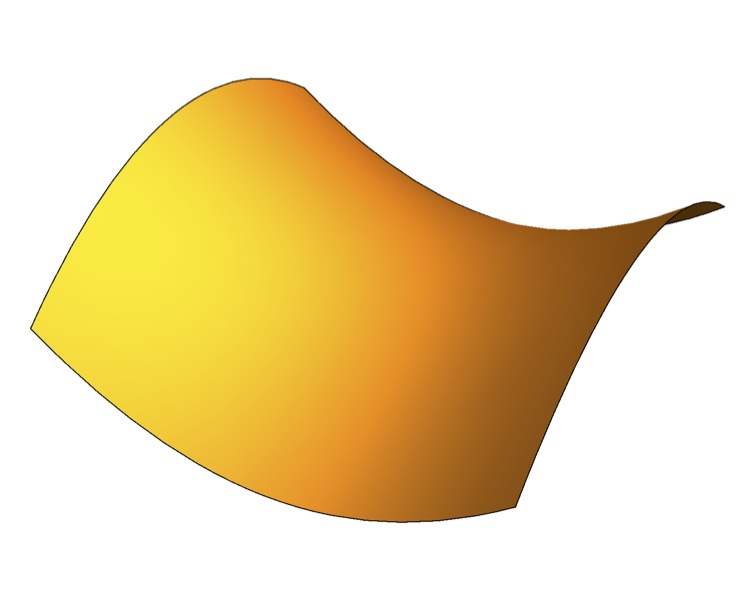

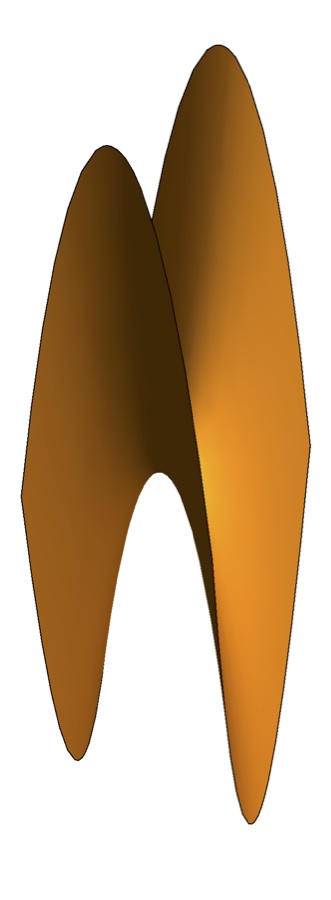

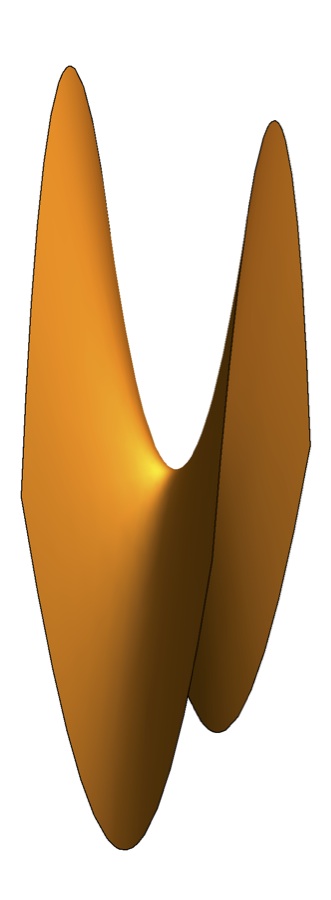

It describes a saddle-like surface with “time”-dependent scale, depicted on Fig.1, which shows the change of the profile when $u$ passes from negative to positive666For $u=\pm\pi/2$ $\chi=\det(a(u))^{1/4}$ vanishes. This is a general property which indicates a mere coordinate singularity Sou73 ..

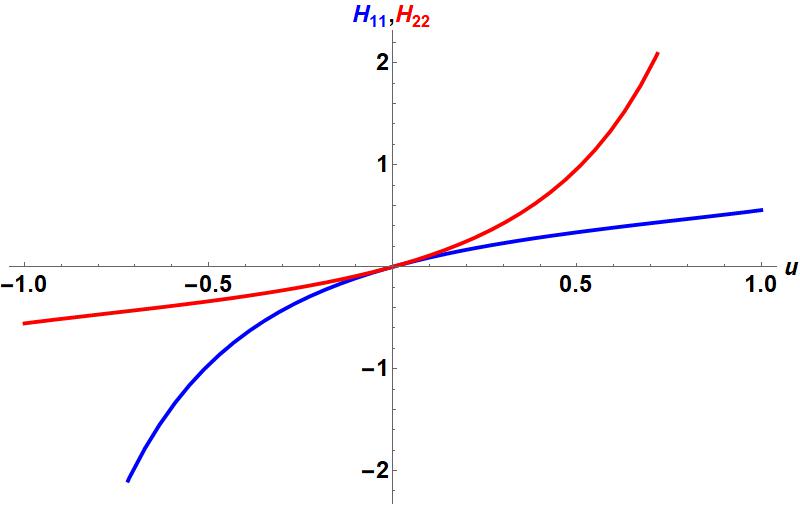

The components of the matrix-valued function H=\mathrm{diag}\big{(}H_{11},H_{22}\big{)},

[TABLE]

which rules both how Carroll boosts act, (III.6), and the evolution of geodesics, (III.11), are plotted on Fig.2. For $u>0$ the component {\color[rgb]{1,0,0}H_{22}} increases rapidly while {\color[rgb]{0,0,1}H_{11}} is damped. For $u<0$ the behavior is the opposite, consistently with the change of profile shown on Fig.1 .

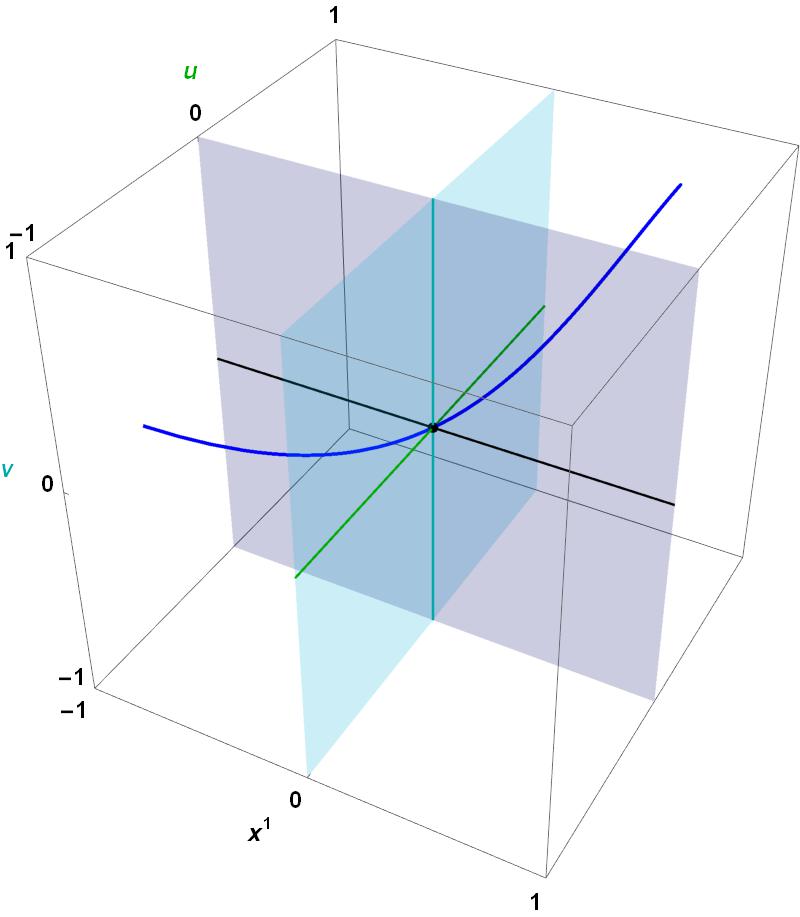

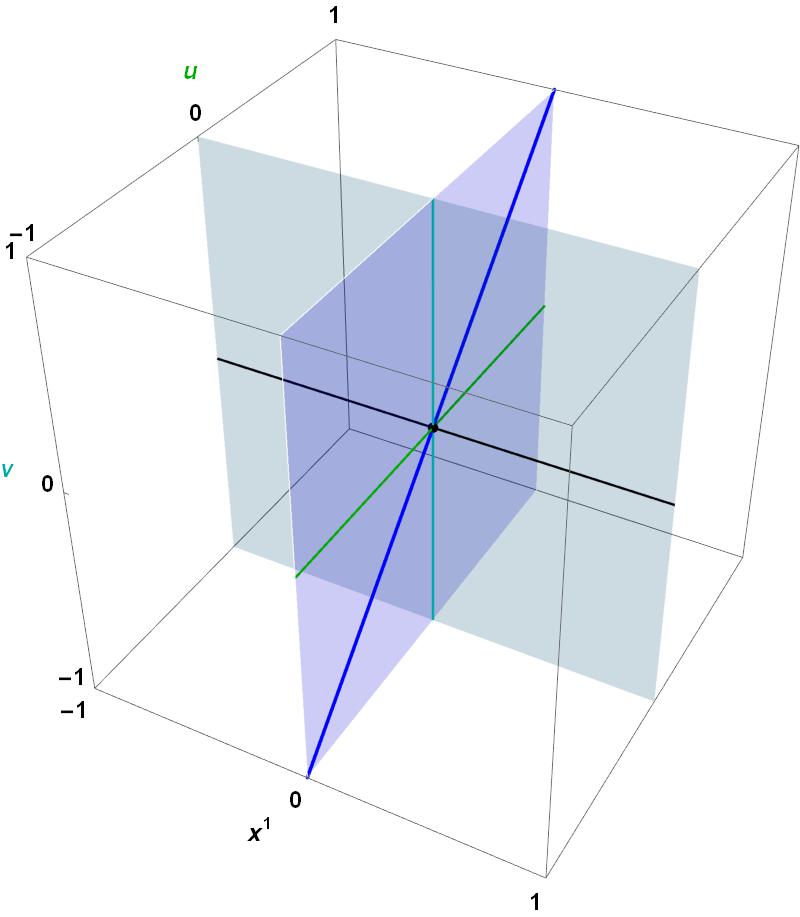

The evolution of a geodesic, shown on Fig.3a, is consistent with the profile change : the repulsive and attractive directions are interchanged when $u$ changes sign. As said in sec. III, the curling trajectory could actually be “straightened out”, see Fig.3b, by transforming ${\bm{p}}\to 0,\mathbf{k}\to 0,d\to 0$ by a suitable action of the Carroll group, see (III.12).

Let us mention that choosing instead of (IV.1):

[TABLE]

with $\beta(u)$ an otherwise arbitrary function, we find that the associated metric (III.2) is Ricci-flat if $\ddot{\chi}+\dot{\beta}^{2}\,\chi=0$. The pp-wave profile becomes

[TABLE]

The examples (IV.4) and (IV.8) can be combined, keeping $\alpha$ and $\beta$ independent, to end up with the most general profile. 3. 3.

So far, the functions ${\mathcal{A}}$ and ${\mathcal{B}}$ encoding the polarization states of the gravitational wave have been traded as arbitrary. Now in the periodic case the isometry group is actually $6$-dimensional exactsol . In fact, if

[TABLE]

with $\omega=\mathop{\rm const.}\nolimits$, then, putting $Z=X^{1}+iX^{2}$, one finds that the advanced time translations

[TABLE]

act isometrically for all $e\in\mathbb{R}$. This subgroup of the Bargmann group (II.1) is however clearly not a subgroup of the Carroll group $C(2+1)$ which leaves $U$ fixed, see (III.9).

V Carroll symmetry of an isotropic oscillator

When $K=-\omega^{2}\,\mathrm{Id}$ with $\omega=\mathop{\rm const.}\nolimits$, the metric (I.1) does not solve the vacuum Einstein equations and is therefore not that of a gravitational wave; it describes instead an isotropic harmonic oscillator DBKP ; DGH91 . However the procedure described in Sec. III can be carried out at once : $P=\cos(\omega U)\,\mathrm{Id}$ is a solution of (III.3) ; then (III.1) yields (III.2) with $\mathrm{g}_{ij}(u)=\cos^{2}(\omega u)\delta_{ij}$. Integrating (III.7) we get,

[TABLE]

Then (III.6) yields the Carroll action on oscillator-Bargmann space. Redefining the time and renaming ${\bf x}$ and $v$ allows us to recover, moreover, Niederer’s transformation Niederer ; BDP ,

[TABLE]

which maps every (half-oscillator-period)$\times\mathbb{R}^{d+1}$ conformally onto the Bargmann space, $\mathbb{R}^{d+1,1},$ of a free particle, d{{\bm{r}}}^{2}+2dt\,ds={\cos^{-2}(\omega U)}\big{(}d{\bf X}^{2}+2dU\,dV-\omega^{2}{{\bf X}}^{2}\,dU^{2}\big{)}. It is worth noting that, in terms of the redefined time, (V.1) is in fact $H(t)=(t-t_{0})\,\mathrm{Id},$ consistently with what we had found in the flat case.

We mention that the Niederer trick (V.2) could be used for an alternative derivation of the Carroll symmetry. Recall first that the free (Minkowski) metric has the (extended) Schrödinger group as group of $\xi$-preserving conformal symmetries DGH91 . The latter is in turn exported to the oscillator by (V.2). Now, as said before, the $t=0$ slice of flat Bargmann space is a Carroll manifold ${\mathcal{C}}^{d+1}$, with the Carroll symmetry group embedded into the Bargmann group by eliminating the time translations (II.1). Moreover, for $t=0$777For $t=t_{0}=\mathop{\rm const.}\nolimits$ the conformal factor is constant and can be absorbed by a redefinition of the metric. the conformal factor is equal to one. The image is therefore an isometry. However, the Niederer trick fails to work in the anisotropic case (and thus for a gravitational wave), whose Bargmann space is not conformally flat ZHAGK .

VI Scattering of light by a gravitational wave

We conclude by some additional comments on the scattering of light by a plane gravitational wave. In Westerberg:2014lra the analogy between photon production in a medium with a time-dependent refractive index and particle production (and its absence) G_Rosen ; Gibb75 ; Deser:1875zz ; Liu:2007yk ; Jones:2016zqw by gravitational waves has been stressed and the prospects for laboratory experiments explored. For this purpose the Baldwin-Jeffery-Rosen form of the metric would seem to be the most useful. In fact one may use the general formulae developed by Tamm, Skrotskii and Plebanski Tamm ; Skrotskii ; Plebanski ; McCall to extract the relevant permittivities $\epsilon^{ab}=\epsilon^{ba}$ and permeabilities $\mu^{ab}=\mu^{ba}$. We mainly follow the notation of Plebanski but use the opposite signature convention and a different notation for permittivity and permeability.

We define $t=x^{0}$, $z=x^{3}$, $u=\frac{1}{\sqrt{2}}(z-t),\,v=\frac{1}{\sqrt{2}}(z+t)\,$ and write the metric (III.2) as

[TABLE]

where $a,b=1,2,3$ and $i=1,2$. Now in the coordinates $(t,{\bf x})$, where ${\bf x}=(x^{a})$, Maxwell’s equations take the usual flat-space form in a medium

[TABLE]

where $D^{a}=\epsilon^{ab}E_{b},\,B^{a}=\mu^{ab}H_{b}.$ Since $g_{00}=-1$ and $g_{0a}=0$ in these coordinates, there are no magneto-electric effects, which in turn implies that the medium is “impedance matched”, that is, $\epsilon^{ab}=\mu^{ab}=\sqrt{-g}\,g^{ab}.$ In detail, one has

[TABLE]

If instead of the Maxwell equations one were to look at the Dirac equation, one might be able to treat the analogue for gravitational waves of the Kapitza-Dirac effect Kapitza for electromagnetic waves.

VII Conclusion

Plane gravitational waves have long been known to have a $5$-dimensional isometry group. The first three parameters are readily identified as translations in transverse space, resp. along one of the light-cone generators. The other two have remained somewhat mysterious, though; here we identify the latter as Carroll boosts. In fact, we show that the isometry group of (I.1) is the Carroll group without rotations. If the matrix $a=(a_{ij}(u))$ in (III.2) happens to depend on $u$ periodically, then $u$-translational symmetry is restored and the isometry group is enhanced to a 6-parameter group; see (IV.10). In the isotropic case, as in section V, rotations are also restored and we end up with the 7-parameter centrally extended Newton-Hooke group. In the flat case, $K\equiv 0$, the latter becomes the Bargmann group, which is a subgroup of the $10$-parameter Poincaré group.

The appearance of these typically non-relativistic structures is surprising in that the theory is fully general relativistic. It is also unexpected, since the Carroll group has originally been defined as an ultra-relativistic contraction of the Poincaré group. Moreover, bearing in mind that (conformal) Carroll structures have been shown to dwell in the edge of space-time, e.g., conformal infinity of certain solutions of Einstein’s equation DGH-BMS , it is remarkable to witness the Carroll group appearance in the bulk of some instances of the latter, namely gravitational plane waves. From our point of view, the key formulae are

The metric in Baldwin-Jeffery-Rosen coordinates, (III.2); 2. 2.

The exact equation for the matrix $a$ in (III.5) related to various profiles, cf. Fig.1; 3. 3.

The explicit form of the action of the Carroll group, eqn. (III.6), viewed as a subgroup of the Bargmann group, (III.9); 4. 4.

In BJR coordinates the geodesics are expressed in terms of the conserved quantities associated with the Carroll symmetry through Noether’s theorem, (III.11), and can be determined explicitly when the matrix $H(u)$ in (III.7) is calculated, yielding Fig.3. This fact plays a key rôle in our subsequent applications to the memory effect Memory and thus underlines the importance of Carroll symmetry for the study of gravitational waves.

Our clue is the double role played by “Bargmann space” — which is both a relativistic space-time and a convenient tool to study non-relativistic physics in one lower dimension. From the group theory point of view, our finding corresponds to the fact that the Bargmann (centrally extended Galilei) and Carroll groups are both subgroups of the Poincaré group in one higher dimension – a way of seeing we find more convenient than the original derivation by group contraction Leblond ; SenGupta ; Carrollvs . This is the point of view espoused systematically in Sections II, III, and IV to unveil the Carroll structure of the group of isometries of the gravitational waves under study. A similar argument, developed in Section V, sheds some light also on the Niederer trick Niederer . Section VI comments about using BJR coordinates in studying the scattering of light by gravitational waves.

In this paper we identified the isometries of plane gravitational waves with the Carroll group with no rotations. Conformal extensions can also be studied, through, with the remarkable outcome that the celebrated BMS group is, in fact, a conformal Carroll group DGH-BMS . It is puzzling to ask what role (if any) the latter could play for gravitational waves.

Acknowledgements.

Enlightening discussions with T. Schücker are warmly acknowledged. GWG would like to thank the Laboratoire de Mathématiques et de Physique Théorique de l’Université de Tours for hospitality and the Région Centre for a “Le Studium” research professorship. PH is grateful for hospitality at the IMP of the Chinese Academy of Sciences in Lanzhou. Support by the National Natural Science Foundation of China (Grant No. 11575254) is acknowledged.
