Thin-Shell Wormholes in Neo-Newtonian Theory

TL;DR

This paper constructs and analyzes the stability of an acoustic thin-shell wormhole within neo-Newtonian theory, exploring how different fluids and parameters affect its stability and the necessity of negative energy at the throat.

Contribution

It introduces a novel neo-Newtonian framework for acoustic wormholes and investigates their stability with various fluid models and parameters, highlighting the conditions for stability.

Findings

Stable wormholes require negative energy at the throat.

Proper neo-Newtonian parameters can ensure stability.

Different fluid types influence the stability conditions.

Abstract

In this paper, we constructed an acoustic thin-shell wormhole (ATW) under neo-Newtonian theory using the Darmois-Israel junction conditions. To determine the stability of the ATW by applying the cut-and-paste method, we found the surface density and surface pressure of the ATW under neo-Newtonian hydrodynamics just after obtaining an analog acoustic neo-Newtonian solution. We focused on the effects of the neo-Newtonian parameters by performing stability analyses using different types of fluids, such as a linear barotropic fluid (LBF), a Chaplygin fluid (CF), a logarithmic fluid (LogF), and a polytropic fluid (PF). We showed that a fluid with negative energy is required at the throat to keep the wormhole stable. The ATW can be stable if suitable values of the neo-Newtonian parameters $\varsigma$, $A$, and $B$ are chosen.

Figures

Equations

$${\partial }_t{\rho }_i+\nabla \cdot ({\rho }_i\vec{v})+p\nabla \cdot \vec{v}=0$$

$$\dot{\vec{v}}+(\vec{v}\cdot \nabla )\vec{v}=-\frac{\nabla p}{\rho +p}.$$

$$\rho$$

$${\rho }^n$$

$$\vec{v}$$

$$\psi$$

$$-$$

$${\partial }_{\mu }(f^{\mu \nu }{\partial }_{\nu }\psi )=0.$$

$$\frac{1}{\sqrt{-g}}{\partial }_{\mu }(\sqrt{-g}{g}^{\mu \nu }{\partial }_{\nu }\psi )=0,$$

$$\displaystyle f^{\mu\nu}=\sqrt{-g}g^{\mu\nu}=\frac{\rho_{0}}{c_{s}^{2}}\left[\begin{array}[]{ccc}-1&\quad-\frac{(1+\varsigma)}{2}v_{x}&\quad-\frac{(1+\varsigma)}{2}v_{y}\\ \\ -\frac{(1+\varsigma)}{2}v_{x}&\quad c_{s}^{2}-\varsigma{v}_{x}^{2}&\quad-\varsigma{v}_{x}{v}_{y}\\ \\ -\frac{(1+\varsigma)}{2}v_{y}&\quad-\varsigma{v}_{x}{v}_{y}&\quad c_{s}^{2}-\varsigma{v}_{y}^{2}\end{array}\right].$$

$$\displaystyle g_{\mu\nu}=\sqrt{\frac{\rho_{0}}{c_{s}^{2}+v^{2}\frac{(\varsigma-1)^{2}}{4}}}\left[\begin{array}[]{ccc}-(c_{s}^{2}-\varsigma v^{2})&\quad-\frac{(1+\varsigma)}{2}v_{x}&\quad-\frac{(1+\varsigma)}{2}v_{y}\\ \\ -\frac{(1+\varsigma)}{2}v_{x}&\quad 1+\frac{(\varsigma-1)^{2}}{4c_{s}^{2}}v_{y}^{2}&\quad-\frac{(\varsigma-1)^{2}}{4c_{s}^{2}}v_{x}v_{y}\\ \\ -\frac{(1+\varsigma)}{2}v_{y}&\quad-\frac{(\varsigma-1)^{2}}{4c_{s}^{2}}v_{x}v_{y}&\quad 1+\frac{(\varsigma-1)^{2}}{4c_{s}^{2}}v_{x}^{2}\end{array}\right].$$

$$d{s}^2=\sqrt{\frac{{\rho }_0}{c_s^2+v^2\frac{(\varsigma -1{)}^2}{4}}}\left[-(c_s^2-\varsigma v^2)d{t}^2-(1+\varsigma )(\vec{v}\cdot d\vec{r})dt+d{\vec{r}}^2+\frac{(\varsigma -1{)}^2}{4c_s^2}{\left(v_{y}dx-v_{x}dy\right)}^2\right].$$

$$d{s}^2$$

$$d\tau =dt+\frac{(1+\varsigma )v_{r}dr}{2(c_s^2-\varsigma v_r^2)},d\phi =d\varphi +\frac{\varsigma (1+\varsigma )v_r{v}_{\varphi }dr}{r(c_s^2-\varsigma v_r^2)}.$$

$$d{s}^2$$

$$\vec{v}=\frac{A}{r}\hat{r}+\frac{B}{r}\hat{\varphi },$$

$$\psi (r,\varphi )=-A\ln r-B\varphi .$$

$$d{s}^2$$

$${\beta }_1$$

$${\beta }_3$$

$$r_e=\sqrt{\varsigma (A^2+B^2)},r_h=\sqrt{\varsigma }|A|.$$

$$\displaystyle g_{\mu\nu}=\beta_{1}\left[\begin{array}[]{clcl}-f&\quad\quad\quad 0&-\frac{B\beta_{3}}{r}\\ 0&\quad(1+\beta_{2}){\cal Q}^{-1}&0\\ -\frac{B\beta_{3}}{r}&\quad\quad\quad 0&\left(1+\frac{\beta_{4}}{r^{2}}\right)\end{array}\right],$$

$$\displaystyle g^{\mu\nu}=\frac{\beta_{1}(1+\beta_{2})}{-g}\left[\begin{array}[]{clcl}-\Big{(}1+\frac{\beta_{4}}{r^{2}}\Big{)}{\cal Q}^{-1}&\quad\quad 0&\quad\quad-\frac{B\beta_{3}}{r{\cal Q}}\\ 0&\quad\frac{-g{\cal Q}}{(1+\beta_{2})^{2}}&\quad\quad 0\\ -\frac{B\beta_{3}}{r{\cal Q}}&\quad\quad 0&\quad\quad\frac{f_{1}}{{\cal Q}}\end{array}\right],$$

$$f_1$$

$$-g$$

$$d{s}^2$$

$$f(r)$$

$$=$$

$$d{s}^2=-\mathcal{F}d{\varsigma }^2+\mathcal{G}d{r}^2+\mathcal{H}d{\phi }^2,$$

$$M^{(\pm )}=\left\{r^{(\pm )}\ge a,a>r_h\right\},$$

$$\Sigma :R(r,\tau )=r-a(\tau )=0.$$

$$\mathrm{d}{s}_{\Sigma }^2=-\mathrm{d}{\tau }^2+a(\tau {)}^2\mathrm{d}{\varphi }^2.$$

$${S^i}_j=-\frac{1}{8\pi }\left(\left[{K^i}_j\right]-{{\delta }^i}_{j}K\right).$$

Full text

Thin-shell wormhole; Darmois-Israel formalism; Canonical acoustic black hole; Stability; Neo-Newtonian theory

I Introduction

Einstein’s general theory of relativity is one of the towering achievements of twentieth-century theoretical physics and has contributed many important ideas to this field, such as the existence of black holes and compact objects. The theory of general relativity has also revealed the existence of objects called wormholes that connect two different regions of the universe fl ; er . The pioneering work on wormholes was first performed by Morris and Thorne mth1 ; mth2 , and then Visser had the brilliant idea of building thin-shell wormholes mth2 ; mv1 ; mv2 ; mv3 ; is to minimize the negative matter in the throat. Since Visser‘s novel work, various thin-shell wormholes have been studied eiroa1 ; ayan1 ; lobo1 ; eiroa2 ; ali1 ; alii ; rah ; mazh1 ; ali ; kimet ; kimett ; po ; eiroa3 ; ali2 ; ern1 ; ern2 ; lemos1 ; lemos2 ; ayan2 ; ayan3 ; myrzakulov ; kim ; peter1 ; sharifcy1 ; sharifcy2 ; sh1 ; sh2 ; sh3 ; baji ; Xian ; bilic ; fagnic ; visser ).

In this study, our aim is to construct acoustic thin-shell wormholes (ATWs) under neo-Newtonian theory. For this purpose, we briefly study analog gravity, which is a classical Newtonian treatment. The pressure is the main ingredient of general relativity; indeed, the Newtonian approach is valid only for pressure-less fluids, so that there is a neo-Newtonian generalization that can incorporate pressure effects. Neo-Newtonian theory gives a first-order correction, as a result, that is approximately similar to the exact general relativity velten ; oli ; fab . In the literature, there are many applications of neo-Newtonian theory that provide interesting ways to study the effects of analog gravity, such as the Aharonov-Bohm (AB) effect caused by the acoustic geometry of a vortex in the fluid Fabris2013 . McCrea in McCrea deduced the neo-Newtonian equations that were later refined in Harrison ; Lima1997 later obtained a final expression for the equation of fluid that considers a perturbative treatment of the neo-Newtonian equations (see also velten ; oli ; fab ). Moreover, velten ; oli ; fab studied acoustic black holes in the framework of neo-Newtonian hydrodynamics, and Salako:2015tja analyzed the effect of neo-Newtonian hydrodynamics on the super-resonance phenomenon.

Analog gravity has led to a number of ideas such as an analog Schwarzschild metric solution known as a canonical acoustic metric, the Painleve–Gullstrand acoustic metric visser1 , a rotating analog metric visser1 ; unruh2 ; visser2 , and analog Anti-de-Sitter (AdS) and de Sitter (dS) black hole solutions lib . In addition, following previous results, Nandi et al. nandi introduced the concept of acoustic traversable wormholes, using the analogy of acoustic black holes. This technique was also used to investigate the nature of curvature singularities to study the light ray trajectories in an optical medium, which are equivalent to the sound trajectories in the acoustic analog. On the other hand, we note a series of studies that were carried out to calculate the quasi-normal modes, the super-radiance, and the area spectrum saavedra1 ; saavedra2 .

In this article, we study an ATW under neo-Newtonian hydrodynamics, which is a modification of the usual Newtonian theory that correctly incorporates the effects of pressure. We concentrate on investigating the stability of the ATW using different types of gases, such as a linear barotropic fluid (LBF) kuf2 ; varela , a Chaplygin fluid (CF) cg1 ; cg2 ; GCCG ; GCCG1 , a logarithmic fluid (LogF) ali1 ; ali2 , and a polytropic equation of state for the fluid (PF) sarkar . The paper is organized as follows: In Sec. II, we review acoustic black holes under neo-Newtonian theory. In Sec. III, we construct the ATW and show that an exotic fluid with negative energy is required at the throat to keep the wormhole stable. In Sec. IV, we investigate the stability analyses using the CF, LogF, and PF. In Sec. V, we discuss our results.

II Acoustic Black Holes in neo-Newtonian theory

McCrea McCrea and Harrison Harrison developed the basic foundations of neo-Newtonian theory in which the effects of pressure are considered contrary to the Newtonian theory. In this section, we present a brief overview of neo-Newtonian hydrodynamics and introduce the acoustic black hole metric obtained in Fabris2013 . First, we present the neo-Newtonian equations are given by Fabris2013 ; McCrea ; Harrison ; rrrr ; velten ; oli ; fab ; carlos

[TABLE]

and

[TABLE]

Note that $\rho_{i}$ is an initial fluid density, $p$ is a pressure and $\vec{v}$ is a flow/fluid velocity. The Eq.(1) and Eq.(2) are the continuity equation and the Euler equation modified due to gravitational interaction, respectively. It is to be noted that the newtonian equations are recovered for a small pressure ($p\sim 0$).

We assume that the fluid is barotropic, i.e. $p=p(\rho)$, inviscid and irrotational, being the equation of state $p=k\rho^{n}$, with $k$ and $n$ constants. We write the fluid velocity as $\vec{v}=-\nabla\psi$ where $\psi$ is the velocity potential. Now, we linearise the equations (1) and (2) by perturbating $\rho$, $\vec{v}$ and $\psi$ as follows:

[TABLE]

where $\rho$ is the fluid density. Then the wave equation becomes

[TABLE]

where $\varsigma=1+kn\rho_{0}^{n-1}$, that can be given as

[TABLE]

The Eq. (8) can also be rewritten as the Klein-Gordon equation for a massless scalar field in a curved (2+1)-dimensional spacetime as follows velten ; oli ; fab

[TABLE]

where

[TABLE]

So in terms of the inverse of $g^{\mu\nu}$ we obtain the effective (acoustic) metric given in the form

[TABLE]

The effective line element can be written as

[TABLE]

In polar coordinates ($\vec{v}=v_{r}\hat{r}+v_{\phi}\hat{\phi}$ and $d\vec{r}=dr\hat{r}+rd\phi\hat{\phi}$) we have

[TABLE]

where $\tilde{\rho}=\sqrt{\rho_{0}}\left[c_{s}^{2}+(v_{r}^{2}+v_{\phi}^{2})\frac{(\varsigma-1)^{2}}{4}\right]^{-1/2}$ and neo-Newtonian paramater $\varsigma=1+kn\rho_{0}^{n-1}$. At this point it is appropriate to apply the following coordinate transformations

[TABLE]

In this way the line element can be written as

[TABLE]

Now considering a static and position independent density, the flow/fluid velocity is given by

[TABLE]

which is a solution obtained from the continuity equation and the velocity potential is

[TABLE]

Thus, considering $c_{s}=1$ and substituting (26) and (27) into the metric (25) we obtain the acoustic black hole in neo-Newtonian theory which is given by

[TABLE]

where

[TABLE]

Note that $r_{e}$ is a radius of ergo-region and $r_{h}$ is an event horizon, i.e.,

[TABLE]

Now, the metric (28) can be written in the form of

[TABLE]

and the inverse of the $g_{\mu\nu}$:

[TABLE]

where

[TABLE]

Next we consider a general symmetric metric form (28) for $B=0$,

[TABLE]

with

[TABLE]

or we can write it in more compact form as follows:

[TABLE]

where $\mathcal{F}=\sqrt{\beta_{1}f(r)}$ , $\mathcal{G}=\sqrt{\frac{\beta_{1}(1+\beta_{2})}{f(r)}}$ and \mathcal{H}=\sqrt{\beta_{1}r^{2}\Big{(}1+\frac{\beta_{4}}{r^{2}}\Big{)}}.

III Construction of Thin-Shell Wormholes in Neo-Newtonian theory

In this section, we construct the thin-shell wormholes in neo-Newtonian theory by using the metric (45). To construct the wormhole, we use the cut and paste technique baji ; bilic ; fagnic ; visser . First, we choose two identical regions

[TABLE]

in which $a$ is chosen to be greater than the event horizon $r_{h}$. If we now paste these regular regions at the boundary hypersurface $\Sigma^{(\pm)}=\left\{r^{(\pm)}=a,a>r_{H}\right\}$, then we end up with a complete manifold $M=M^{+}\bigcup M^{-}$. In accordance with the Darmois–Israel formalism the coordinates on $M$ can be choosen as $x^{\alpha}=(t,r,\theta,\phi)$. On the other hand for the coordinates on the induced metric $\Sigma$ we write $\xi^{i}=(\tau,\theta,\phi)$. Finally for the parametric equation on the induced metric $\Sigma$ we write

[TABLE]

Note that in order to study the dynamics of the induced metric $\Sigma$, in the last equation we let the throat radius of the wormhole to be time dependent by incorporating the proper time on the shell i.e., $a=a(\tau)$. For the induced metric we have the spacetime on the shell

[TABLE]

The junction conditions on $\Sigma$ reads

[TABLE]

Note that in the last equation ${S^{i}}_{j}=diag(-\sigma,p)$ is the energy momentum tensor on the thin-shell, on the other hand $K$, and $[K_{ij}]$, are defined as $K=trace\,[{K^{i}}_{i}]$ and $[K_{ij}]={K_{ij}}^{+}-{K_{ij}}^{-}$, respectively. Keeping this in mind, we can go on by writing the expression for the extrinsic curvature ${K^{i}}_{j}$ as follows

[TABLE]

The unit vectors ${n_{\mu}}^{(\pm)}$, which are normal to $M^{(\pm)}$ are choosen as

[TABLE]

[TABLE]

[TABLE]

Then, the extrinsic curvature is given by baji ; bilic ; fagnic ; visser

[TABLE]

[TABLE]

Using the definitions $[K_{{}_{{i}{j}}}]\equiv K_{{}_{{i}{j}}}^{+}-K_{{}_{{i}{j}}}^{-}$, and $K=tr[K_{{i}{j}}]=[K_{\;{i}}^{{i}}]$, and the surface stress–energy tensor $S_{{}_{{i}{j}}}={\rm diag}(\sigma,p)$ it follows the Lanczos equations on the shell

[TABLE]

Note that for a given radius $a$, the energy density on the shell is $\sigma$, while the pressure $p=p_{{\theta}}$. If we now combine the above results for the surface density baji ; bilic ; fagnic ; visser

[TABLE]

and the surface pressure

[TABLE]

Since we are going to study the wormhole stability at a static configuration we need to set $\dot{a}=0$, and $\ddot{a}=0$. For the surface density in static configuration it follows that

[TABLE]

and similarly the surface pressure

[TABLE]

It’s obvious from Eq. (59) that the surface density is negative, i.e. $\sigma_{0}<0$, which implies that the weak and dominant energy conditions are violated.

IV Stability Analysis

In this section we are going to analyze the stability of the WH. Starting from the energy conservation it follows that baji ; bilic ; fagnic ; visser

[TABLE]

[TABLE]

where $\mathcal{A}$ is the area of the wormhole throat. By replacing $\sigma(a)$ we can find the equation of motion as follows

[TABLE]

with the potential

[TABLE]

In order to investigate the stability of WH let us expand the potential $V(a)$ around the static solution by writing

[TABLE]

The second derivative of the potential is

[TABLE]

where we have introduced $\psi^{\prime}=p^{\prime}/\sigma^{\prime}$.

The wormhole is stable if and only if $V^{\prime\prime}(a_{0})>0$. The equation of motion of the throat, for a small perturbation becomes

[TABLE]

Noted that for the condition of $V^{\prime\prime}(a_{0})\geq 0$, WH is stable where the motion of the throat is oscillatory with angular frequency $\omega=\sqrt{\frac{V^{\prime\prime}(a_{0})}{2}}$. In this work we are going to use five different models for the fluid to explore the stability analysis; the LBF kuf2 ; varela , the CF cg1 ; cg2 ; GCCG ; GCCG1 , the LogF ali1 ; ali2 and finally PF sarkar .

IV.1 Stability analysis of ATW via the LBF

In our first case, we choose the LBF with the equation of state given by kuf2 ; varela

[TABLE]

it follows that

[TABLE]

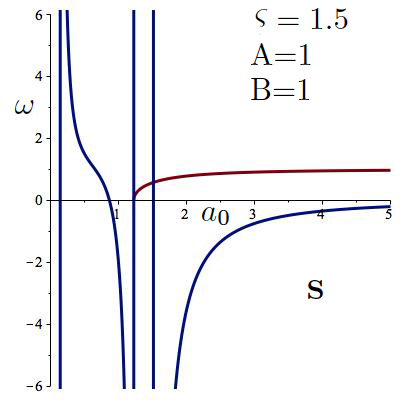

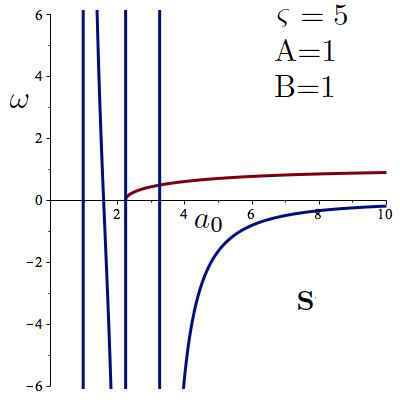

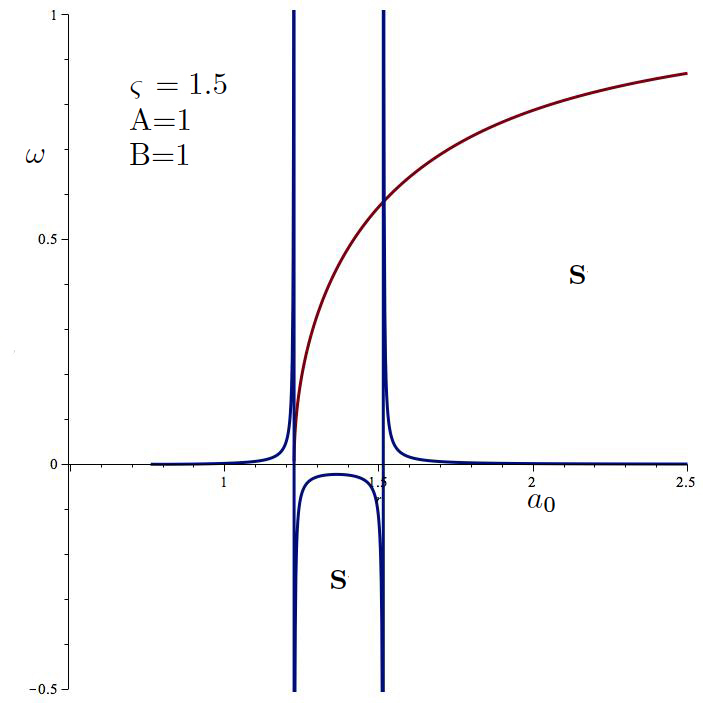

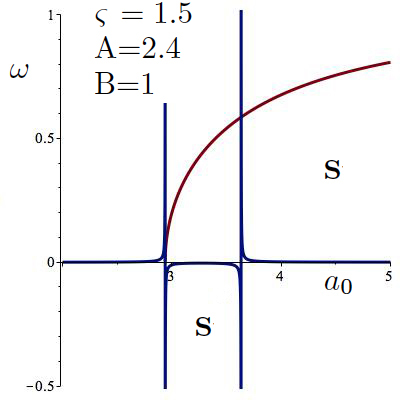

Note that $\omega$ is a constant parameter. In order to see more clearly the stability we show graphically the dependence of $\omega$ in terms of $a_{0}$ for different values of the parameter $\varsigma$, $A$ and $B$ in Fig.1.

IV.2 Stability analysis of ATW via the CF

According to the CF, we can model the fluid with the following equation of state cg1 ; cg2 ; GCCG ; GCCG1

[TABLE]

to find

[TABLE]

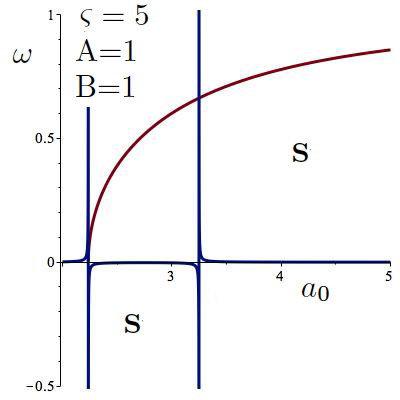

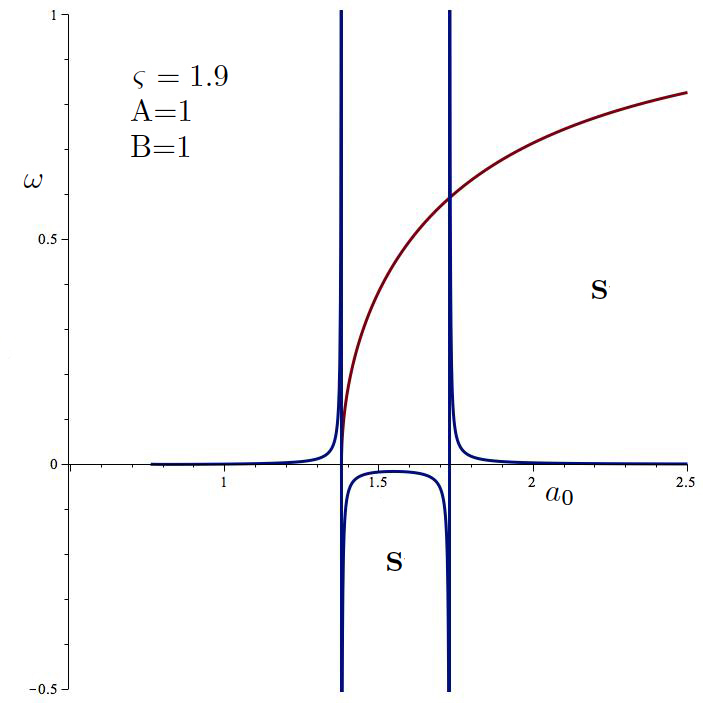

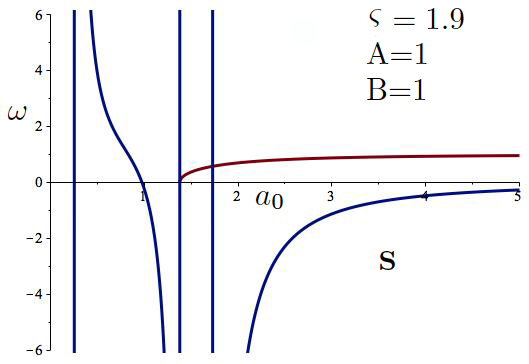

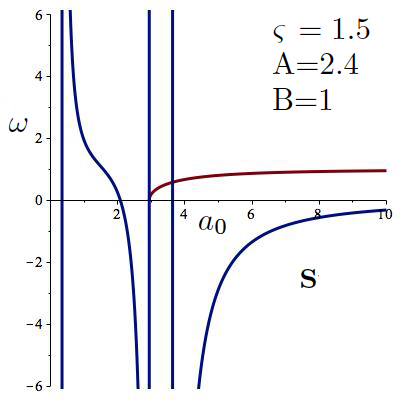

To see the stability regions let us show graphically the dependence of $\omega$ in terms of $a_{0}$ for different values of the parameter $\varsigma$, $A$ and $B$, given in Fig.2.

IV.3 Stability analysis of ATW via the LogF

Our next example is the LogF ali1 ; ali2 , with the equation of state

[TABLE]

then

[TABLE]

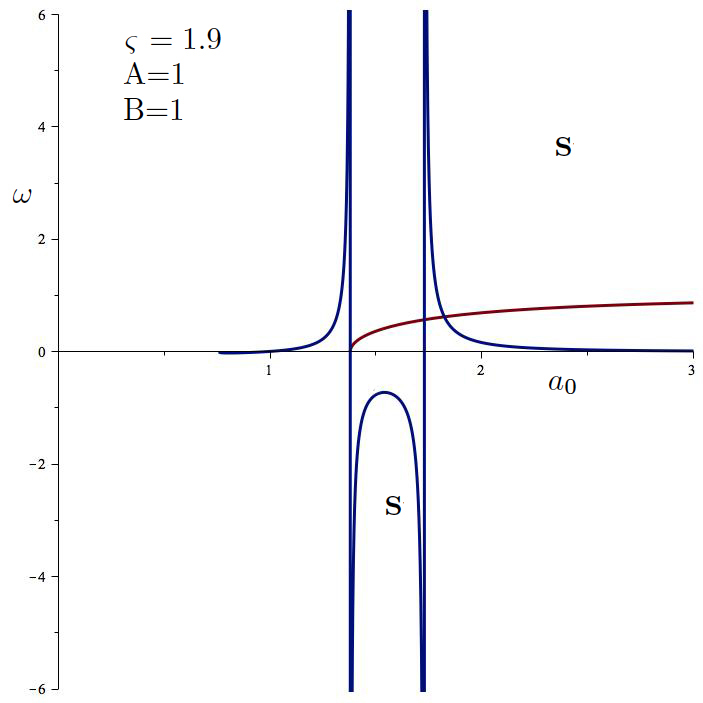

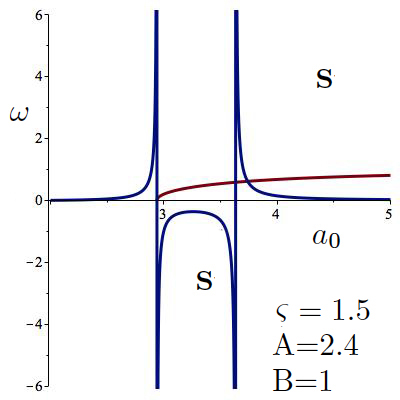

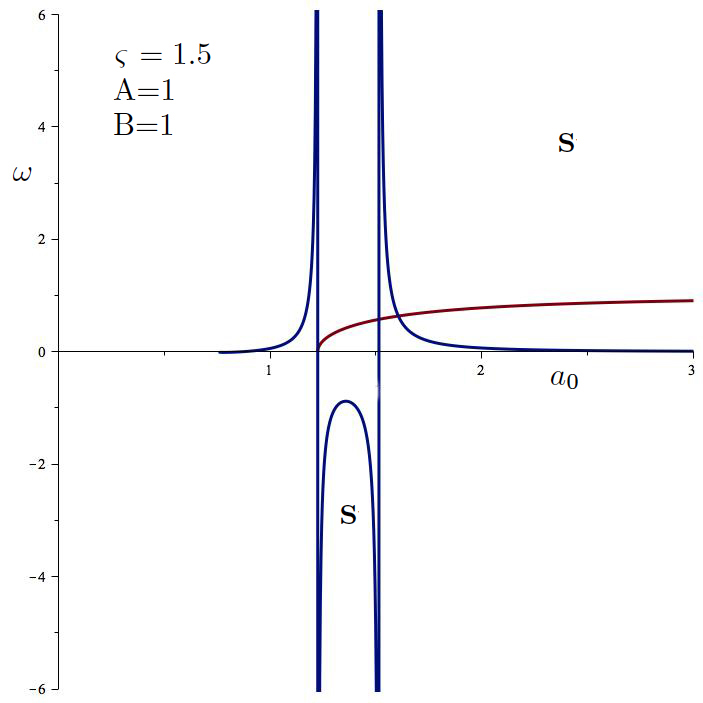

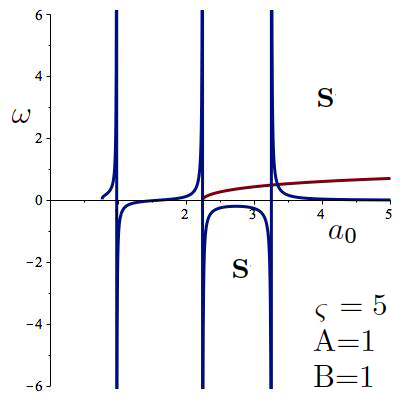

For detailed information we can show graphically the dependence of $\omega$ in terms of $a_{0}$ by choosing different values of the parameter $\varsigma$, $A$ and $B$, in Fig.3.

IV.4 Stability analysis of ATW via PF

The equation of state for the fluid according to the PF can be written as sarkar ; poli

[TABLE]

It follows that

[TABLE]

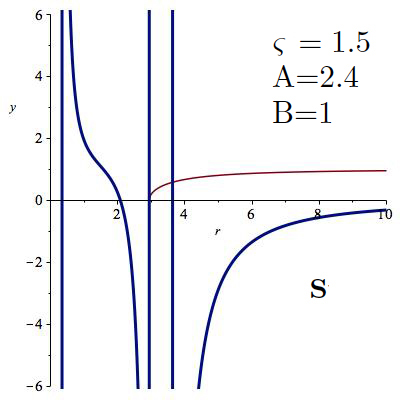

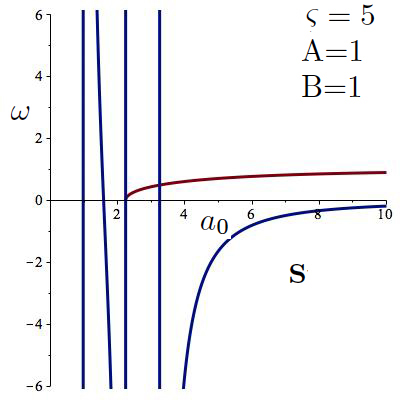

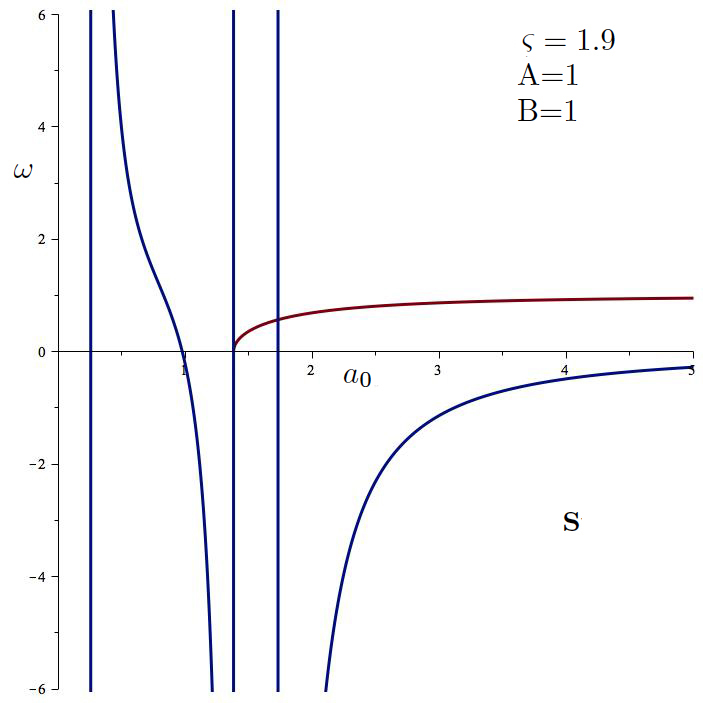

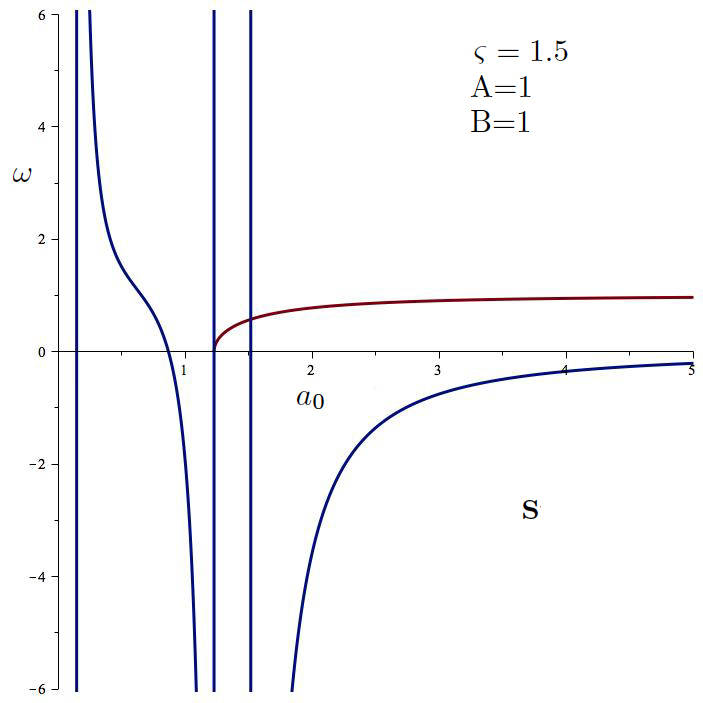

For detailed information we plot $\omega$ in terms of $a_{0}$ by choosing different values of the parameter $\varsigma$, $A$ and $B$, as shown in Fig.4.

V Conclusion

In this paper, we constructed a new ATW in the context of neo-Newtonian hydrodynamics, which is a modification of the usual Newtonian theory that correctly incorporates the effects of pressure. We used a cut-and-paste technique to join together two regular regions, and then we computed the analog surface density and surface pressure of the fluid. The stability analyses were carried out using an LBF, CF, LogF, and PF to show that the ATW can be stable if one chooses suitable values of the parameters $\varsigma$, $A$, and $B$. In Fig. 1, after we chose specific values of $\varsigma$ as $1.5$, $1.9$, and $5$ with $A=B=1$ and $\varsigma=1.5$ with $A=2.4$ and $B=1$, we showed that the stability region (S) for the ATW is supported with the LBF. The sizes of the stability regions decrease with increasing values of $\varsigma$ and $A$. In Fig. 2, we chose values of $\varsigma$ as $1.5$, $1.9$, and $5$ with $A=B=1$ and $\varsigma=1.5$ with $A=2.4$ and $B=1$ to show the effect of the CF on the ATW. Then, in Fig. 3, we chose the same parameters again, but we used different fluids, such as the LogF, to show that the stability regions change with varying values of the parameters $\varsigma$ and $A$. Lastly, we used the PF to show the stability regions, using the same parameters. Increasing values of the neo-Newtonian parameter $\varsigma$ decrease the sizes of the stability regions. Thus, we noted that the effects of pressure influence the stability of the model. We showed that fluids with negative energy are required at the throat to keep the wormhole stable, leading us to conclude that $\varsigma$ is the most critical factor for the existence of a stable ATW.
