Delayed or no feedback? - Gas outflows in Type 2 AGNs. III

TL;DR

This study analyzes ionized gas outflows in a large sample of AGNs and star-forming galaxies, revealing that outflows are predominantly driven by AGN activity and may not immediately suppress star formation.

Contribution

It provides a large-scale statistical analysis linking AGN luminosity and outflow signatures to galaxy properties, highlighting the delayed impact of AGN feedback on star formation.

Findings

AGN outflows increase with luminosity and Eddington ratio.

Luminous AGNs show strong non-gravitational gas kinematics.

AGNs with strong outflows have similar star formation rates to star-forming galaxies.

Abstract

We present gas kinematics based on the [OIII] $\lambda$5007 line and their connection to galaxy gravitational potential, active galactic nucleus (AGN) energetics, and star formation, using a large sample of ~110,000 AGNs and star-forming (SF) galaxies at z<0.3. Gas and stellar velocity dispersions are comparable to each other in SF galaxies, indicating that the ionized gas kinematics can be accounted by the gravitational potential of host galaxies. In contrast, AGNs clearly show non-gravitational kinematics, which is comparable to or stronger than the virial motion caused by the gravitational potential. The [OIII] velocity-velocity dispersion (VVD) diagram dramatically expands toward high values as a function of AGN luminosity, implying that the outflows are AGN-driven, while SF galaxies do not show such a trend. We find that the fraction of AGNs with a signature of outflow kinematics, steeply increases with AGN luminosity and Eddington ratio. In particular, the majority of luminous AGNs presents strong non-gravitational kinematics in the [OIII] profile. AGNs with strong outflow signatures show on average similar specific star formation rate (SSFR) to that of starforming galaxies. In contrast, AGNs with weak or no outflows have an order of magnitude lower SSFR, suggesting that AGNs with current strong outflows do now show any negative AGN feedback and that it may take the order of a dynamical time to impact on star formation over galactic scales.

Figures

Tables

Table 1. Table 1 Number of objects in each group

redshift	AGN	Composite	S-F
(1)	(2)	(3)	(4)
0.003 z 0.1	14923 (6733)	14714 (4700)	58928 (23999)
0.1 z 0.2	7382 (4495)	5614 (1857)	10019 (2967)
0.2 z 0.3	447 (289)	384 (147)	315 (86)
0.003 z 0.3	22752 (11517)	20709 (6704)	69265 (27052)

Table 2. Table 2 Δ Δ \Delta SSFR

	AGN+composite	AGNs	Composite	S-F
		all mass
(1)	(2)	(3)	(4)	(5)
0.3 log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$	$-0.11\pm 0.35$	$-0.15\pm 0.37$	$-0.05\pm 0.32$	$-0.01\pm 0.43$
0 log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$ 0.3	$-0.38\pm 0.43$	$-0.54\pm 0.45$	$-0.24\pm 0.36$	$-0.01\pm 0.25$
log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$ 0	$-0.52\pm 0.45$	$-0.78\pm 0.40$	$-0.35\pm 0.39$	$0.01\pm 0.26$
-2 log Lbol/LEdd	$-0.07\pm 0.41$	$-0.19\pm 0.35$	$0.09\pm 0.43$
-3 log Lbol/LEdd -2	$-0.45\pm 0.36$	$-0.66\pm 0.35$	$-0.32\pm 0.29$	$0.00\pm 0.26$
log Lbol/LEdd -3	$-0.87\pm 0.37$	$-1.12\pm 0.26$	$-0.59\pm 0.27$
		10.5 log M⊙ 11
0.3 log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$	$-0.07\pm 0.37$	$-0.12\pm 0.37$	$0.05\pm 0.34$	$0.11\pm 0.25$
0 log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$ 0.3	$-0.38\pm 0.44$	$-0.53\pm 0.45$	$-0.21\pm 0.36$	$0.01\pm 0.30$
log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$ 0	$-0.51\pm 0.44$	$-0.76\pm 0.41$	$-0.33\pm 0.37$	$-0.01\pm 0.31$
-2 log Lbol/LEdd	$-0.06\pm 0.37$	$-0.18\pm 0.35$	$0.17\pm 0.29$
-3 log Lbol/LEdd -2	$-0.44\pm 0.38$	$-0.66\pm 0.35$	$-0.29\pm 0.31$	$0.00\pm 0.30$
log Lbol/LEdd -3	$-0.86\pm 0.36$	$-1.10\pm 0.25$	$-0.59\pm 0.27$
		10 log M⊙ 10.5
0.3 log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$	$-0.15\pm 0.32$	$-0.21\pm 0.32$	$-0.10\pm 0.30$	$-0.02\pm 0.23$
0 log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$ 0.3	$-0.32\pm 0.33$	$-0.45\pm 0.35$	$-0.27\pm 0.31$	$-0.02\pm 0.25$
log ${\sigma }_{\mathrm{OIII}}$’/${\sigma }_{\ast }$ 0	$-0.43\pm 0.34$	$-0.65\pm 0.31$	$-0.37\pm 0.32$	$-0.01\pm 0.27$
-2 log Lbol/LEdd	$-0.06\pm 0.32$	$-0.20\pm 0.30$	$0.04\pm 0.31$
-3 log Lbol/LEdd -2	$-0.41\pm 0.28$	$-0.60\pm 0.28$	$-0.36\pm 0.26$	$-0.02\pm 0.26$
log Lbol/LEdd -3	$-0.65\pm 0.28$	$-0.90\pm 0.22$	$-0.56\pm 0.24$

Equations

$${\lambda }_0=\frac{\int \lambda f_{\lambda }d\lambda }{\int f_{\lambda }d\lambda }.$$

$$[\Delta {\lambda }_{[\text{mbox}Oiii]}{]}^2=\frac{\int {\lambda }^2{f}_{\lambda }d\lambda }{\int f_{\lambda }d\lambda }-{\lambda }_0^2,$$

$$\log {\mathrm{L}}_{\mathrm{IR}}(\mathrm{erg}{\mathrm{s}}^{-1})=\mathrm{logSFR}({\mathrm{M}}_{\odot }\mathrm{y}{\mathrm{r}}^{-1})+43.591$$

Full text

1. Introduction

Active galactic nuclei (AGNs) are often believed to play a significant role in galaxy evolution. As the observed scaling relations between black hole mass and global properties of their host galaxies seem to require self-regulation between black hole growth and galaxy evolution (Kormendy & Ho, 2013), theoretical models often include AGN feedback as a core component of galaxy evolution (e.g., Di Matteo et al., 2005; Croton et al., 2006; Dubois et al., 2013; DeGraf et al., 2015; Dubois et al., 2016; Hopkins et al., 2016). Nonetheless, understanding how black holes and galaxies coevolve over Hubble time is observationally limited due to the scarcity of direct measurements of scaling relations at high redshift (Woo et al., 2006; Treu et al., 2007; Woo et al., 2008; Bennert et al., 2011; Park et al., 2015), and the nature of AGN feedback and the coupling of the AGN energy output with the interstellar matter (ISM) is a subject of active research in this field.

AGN gas outflows are often observed over galaxy scales (Nesvadba et al., 2006; Liu et al., 2013; Harrison et al., 2014; Husemann et al., 2014, 2016; Karouzos et al., 2016a), hence, outflows may function as an effective channel of AGN feedback. By connecting nuclear activity with the larger scale ISM and star formation (SF), AGN outflows may push gas out of host galaxies and/or heat up the ISM, leading to suppression of SF (Silk & Rees, 1998; Fabian, 2012). On the other hand, outflows may trigger SF by compressing the ISM (Zubovas et al., 2013; Ishibashi & Fabian, 2014). Currently, the evidence of negative AGN feedback on SF is yet to be conclusive (e.g., Villar-Martín et al., 2016), while detections of positive feedback on SF have been reported by several observational works based on individual objects (e.g., Cresci et al., 2015; Carniani et al., 2016). Thus, it is of importance to investigate the true nature of AGN feedback and understand the overall effect of AGNs through gas outflows.

The direct connection between AGN activity and SF seems complex as various observations have been presented in the literature. For typical AGNs, a positive correlation has been reported between AGN luminosity, probed by either optical or X-ray, and SF luminosity (e.g., Netzer, 2009; Diamond-Stanic & Rieke, 2012; Woo et al., 2012; Matsuoka & Woo, 2015), indicating an average scaling between AGN activity and SFR. In contrast, at high redshift in particular, X-ray AGNs seem to show enhanced SFR (Rosario et al., 2012; Santini et al., 2012). Since the SFR of AGN host galaxies is difficult to measure and there may be systematic differecne among various SFR indicators based on UV, optical, IR signatures (e.g. Matsuoka & Woo, 2015; Rosario et al., 2016), more detailed investigation is required to reveal the nature of AGN and SF connection. In comparing with non-AGN galaxies, a recent study by Shimizu et al. (2015) reported that X-ray and optical AGNs tend to have lower specific star formation rate (SSFR) compared to star-forming galaxies. A similar work by Ellison et al. (2016b) showed that radio and optical AGNs have on average lower SSFR than star-forming galaxies, while mid-infrared selected AGNs show comparable or slightly higher SSFR than star-forming galaxies. These results based on the present-day galaxies may suggest that AGN feedback suppresses SF. However, the physical mechanism for connecting AGN and SF is yet to be clear, requiring further detailed studies of the link between outflows and SF.

To understand the role of AGN gas outflows in galaxy evolution, it is important to investigate how common and strong these outflows are so that AGNs as a population, instead of individual objects, can be used for connecting outflows with AGN energetics and galaxy evolution. While the demography of ionized gas outflows in AGNs was limited to relatively small samples in the past (Nelson & Whittle, 1996; Boroson, 2005; Greene & Ho, 2005), more robust results became available recently based on statistical samples of AGNs from large surveys (e.g., Mullaney et al., 2013; Bae & Woo, 2014; Woo et al., 2016).

To perform a statistical investigation of gas outflows and their connection to AGN activity, we are performing a series of studies using a large sample of type 2 AGNs from Sloan Digital Sky Survey (SDSS). In the first of this series, Woo et al. (2016, here after, Paper 1) presented a census of ionized gas outflows based on the [O iii]$\lambda$5007 kinematics, by analyzing a sample of 39,000 present-day type 2 AGNs. At least 50% of AGNs over the full luminosity range explored in that study, shows kinematic signatures of gas outflows. This outflow fraction is considered as a lower limit for low-luminosity AGNs since their outflow indicator (i.e., a wing component of the [O iii] line) is relatively weak and the gravitational potential of their host galaxy dominates in forming the emission line profile. In fact, for high-luminosity AGNs, the outflow fraction is over 90%, indicating that the majority of energetic AGNs show outflows. The steep increase of the outflow fraction with Eddington ratio indicates a close link between outflow kinematics and AGN accretion. In contrast, we find no strong correlation between radio luminosity and ionized gas kinematics, indicating that the outflows are not directly connected to radio activity for most AGNs. In the second of this series, Bae & Woo (2016) presented 3-D biconical outflow models combined with a thin dust plane, in order to constrain the intrinsic physical nature of gas outflows. Our models successfully reproduced the observed emission line profiles and the distribution of the velocity-velocity dispersion (VVD) diagram measured from the [O iii] line. Based on the Monte Carlo simulations of the VVD distribution, we constrained the physical parameters of the outflows, including launching velocity, opening angle, and dust extinction (Bae & Woo, 2016, hereafter Paper II).

In this paper, we mainly compare AGNs and SF galaxies in terms of the [O iii] kinematics and their link to SF, in order to investigate the role of gas outflows as AGN feedback. Throughout the paper, we use the cosmological parameters as $H_{0}=70$ km s*-1* Mpc*-1*, $\Omega_{\rm m}=0.30$, and $\Omega_{\Lambda}=0.70$.

2. Sample & Analysis

2.1. Sample selection

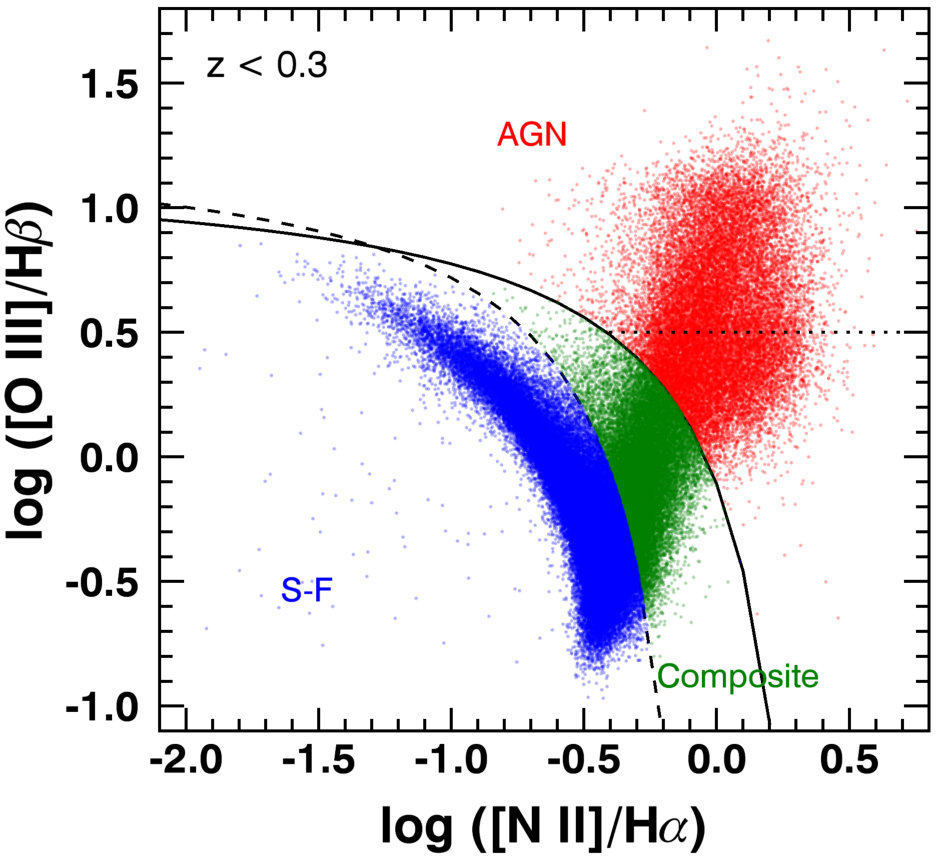

We extend our previous sample of AGNs in Paper I to all emission line galaxies at z<$$\sim0.3, by including star-forming galaxies. The initial sample of 235,922 emission line galaxies is selected from the SDSS Data Release 7 (Abazajian et al., 2009), using the MPA-JHU Catalogue111http://www.mpa-garching.mpg.de/SDSS/, with signal-to-noise ratio (S/N) $\geq$ 10 in the continuum, and S/N $\geq$ 3 in the four emission lines, H$\beta$, [O iii]$\lambda$5007, H$\alpha$, and [N ii] $\lambda$6584, which are used to classify each object in the diagnostic diagram (see Fig. 1). Using this initial sample, we applied a further constraint to select objects with well-defined emission line profiles with the amplitude-to-noise (A/N) ratio larger than 5 for the [O iii] and H$\alpha$ lines. As a result, we obtained a total of 112,726 emission line galaxies, which are classified into three groups: AGNs, composite objects, and star-forming galaxies as listed in Table 1, based on the classification scheme by Kauffmann et al. (2003). In the first paper of this series, we presented the detailed analysis on the pure AGN and composite samples (Paper I). In this work, we mainly compare AGNs with SF galaxies in terms of [O iii] kinematics, and investigate how gas outflows are related to star-formation.

2.2. Sample properties

We derive the properties of each galaxy in the sample in order to compare them with ionized gas kinematics, as we presented in detail for AGNs in Paper 1. Here, we briefly summarize sample properties. First, we adopt the stellar velocity dispersion and stellar mass from the MPA-JHU catalogue to investigate the host galaxy mass scale and gravitational potential. In the following analysis, we include stellar velocity dispersion ($\sigma_{*}$) value down to 30 km s*-1*, which is slightly lower than the instrumental resolution of the SDSS spectra while we exclude unreliably values ($\sigma_{*}$ $>$ 420 km s*-1*) as recommended by the SDSS catalogue222http://classic.sdss.org/dr7/algorithms/veldisp.html. Since stellar velocity dispersions are more uncertain for lower mass galaxies due to the spectral resolution limit as well as the lower S/N, we will also use the stellar mass (M*∗) estimates as a tracer of the host galaxy gravitational potential. As shown in Fig 2, the sample galaxies follow the correlation between stellar mass and stellar velocity dispersion as expected from Fiber-Jackson relation (Faber & Jackson, 1976) although the scatter becomes larger for lower mass galaxies due to measurement uncertainties. Note that three groups have different mass ranges. While the stellar mass of the most AGN host galaxies ranges from 109.5* to 1011.5 M*⊙, that of SF galaxies lies between $\sim$108* to 1011 M*⊙*. Thus, when we compare AGNs with SF galaxies, we will use stellar mass fixed subsamples, to account for the difference of their gravitational potential.

In addition to the host galaxy properties, we also determine the properties of black holes. For black hole mass estimates, we use the updated scaling relations, e.g., black hole mass-stellar velocity dispersion (MBH-$\sigma_{*}$) relation based on the reverberation-mapped AGNs from Woo et al. (2015) (see also Woo et al., 2010; Park et al., 2012; Grier et al., 2013) and black hole mass - stellar mass relation (Marconi & Hunt, 2003). As we pointed out in Paper I, the range of black hole mass significantly changes depending on the adopted scaling relation. We adopted the black hole mass estimates based on the black hole mass - stellar mass relation to be consistent with Paper 1, while the choice of the black hole mass estimates do not change the main results presented in this paper.

2.3. [O iii] kinematics

We used the strong [O iii] line at 5007Å line as a tracer of the ionized gas outflows, by measuring the velocity shift from the systemic velocity and the velocity dispersion compared to the stellar velocity dispersion, as we discussed in Paper I. Here we briefly summarize the procedure for completeness. Using the SDSS spectra, we first fitted stellar absorption lines with a series of stellar population models, which were constructed with the penalized pixel-fitting code (Cappellari & Emsellem, 2004) based on simple stellar population models with solar metallicity and various ages (60 Myrs to 12.6 Gyrs) (Sánchez-Blázquez et al., 2006). Based on the stellar absorption fit, we determined the systemic velocity, which will be used for calculating the velocity shift of [O iii].

By subtracting the best-fit stellar population model, we generated pure emission line spectra, on which we fitted the [O iii] line with one or two Gaussian components using the MPFIT code (Markwardt 2009). Only if the [O iii] line profile shows a prominent wing component, i.e., the peak of the second component is a factor of three larger than the noise level (i.e., A/N ratio $>$ 3), we adopted the 2nd Gaussian component, in order to avoid unreliable detection of wing features.

Once we obtained the best fit model for [O iii], we calculated the first and second moments of the line profile using the best-fit model as

[TABLE]

[TABLE]

where $f_{\lambda}$ is the flux at each wavelength. Then, we calculated the velocity shift (VOIII) of the first moment of [O iii] with respect to the systemic velocity, which is determined from stellar absorption lines, and the velocity dispersion ($\sigma_{\rm OIII}$ ) of [O iii] from the second moment. We determined the uncertainty of VOIII and $\sigma_{\rm OIII}$  by performing Monte Carlo simulations, which generate the distribution of measurements based on the 100 mock spectra generated by randomizing flux with flux error at each wavelength. We adopted the 1 $\sigma$ dispersion of the distribution as the measurement uncertainty, respectively for VOIII and $\sigma_{\rm OIII}$ .

When we examined the fractional error of $\sigma_{[\mbox{O\,{iii}}]}$ of the sample, the distribution shows a Gaussian distribution with a mean value of $-0.80\pm 0.50$ in log scale (-0.89$\pm$0.44 for AGNs, -0.74$\pm$0.39 for composite objects, and -0.79$\pm$0.54 for SF galaxies), which corresponds to $\sim$16% uncertainty. To avoid uncertain measurements, we excluded 7902 objects, that have a large uncertainty (i.e. fractional error $>$ 1), from the sample (7.0%) when we used the measurements of the [O iii] kinematics in the analysis. In the case of VOIII, the mean uncertainty is $29.1\pm 19.2$ km s*-1* for AGNs, $30.8\pm 54.8$ km s*-1* for composite objects, and $23.9\pm 16.3$ km s*-1* for SF galaxies, indicating that very weak velocity shifts (i.e., $<$ 30 km s*-1*) are difficult to detect. Note that the quoted errors are the r.m.s from the distribution of errors of individual objects. The measured [O iii] velocity dispersions were corrected for the wavelength-dependent instrumental resolution of the SDSS spectroscopy, which is close to 55-60 km s*-1* at the observed wavelength of [O iii]. A number of objects has relatively narrow [O iii], for which the measured $\sigma_{[\mbox{O\,{iii}}]}$ is smaller than the instrumental resolution. We excluded 1872 objects with very low velocity dispersion (i.e., $\sigma_{[\mbox{O\,{iii}}]}$ $<$ 30 km s*-1*) or unresolved [O iii]. In total we excluded 8.7% of the sample, which have either very small velocity dispersion (i.e., $\sigma_{[\mbox{O\,{iii}}]}$ $<$ 30 km s*-1*) or large fractional errors ($>$1). Note that including these objects does not change our conclusions in the following analysis.

3. Results

3.1. gravitational vs. non-gravitational kinematics

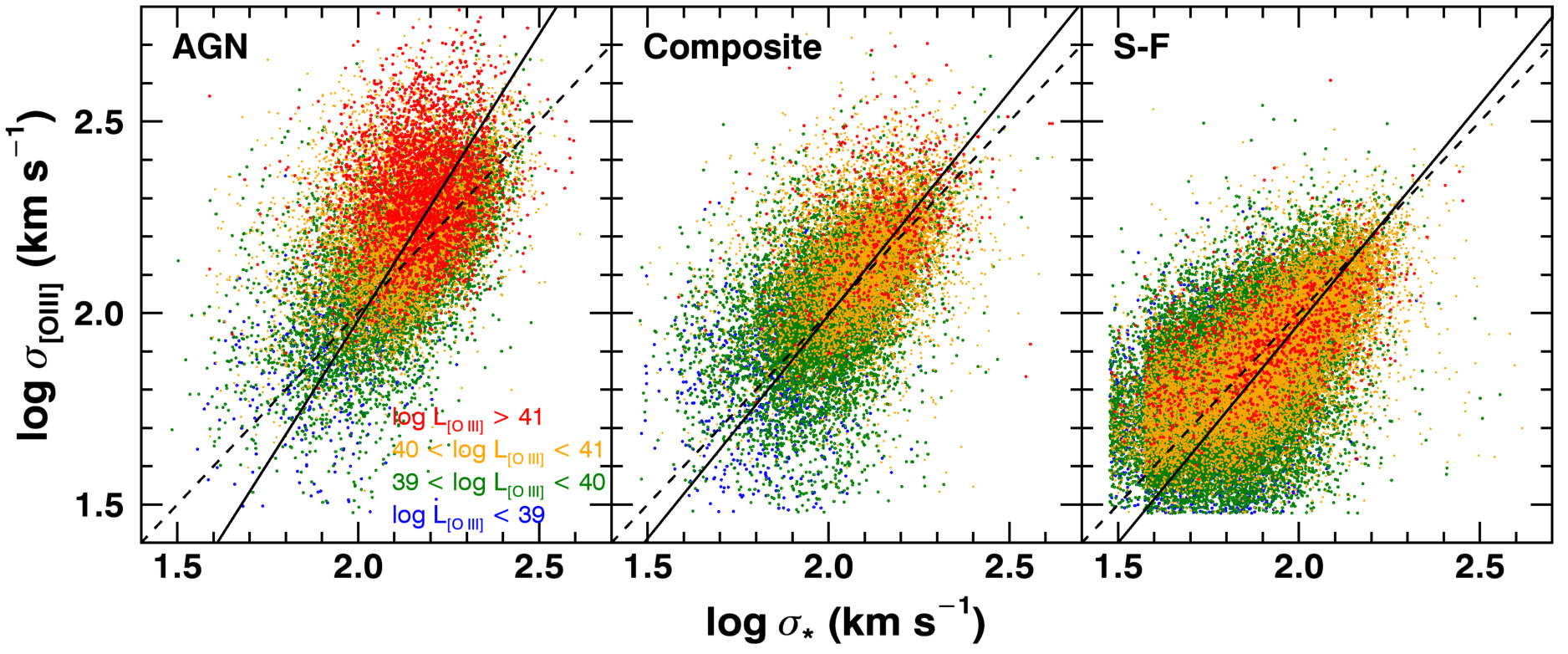

To investigate the signature of gas outflows, we compare gas and stellar kinematics using [O iii] velocity dispersion ($\sigma_{\rm OIII}$ ) and stellar velocity dispersion ($\sigma_{*}$) in Figure 3. We find a clear difference between AGN sample and SF galaxies. AGNs with larger $\sigma_{\rm OIII}$  have larger $\sigma_{*}$, indicating that the host galaxy gravitational potential plays a role in broadening the gas emission lines. However, the relation is not linear as $\sigma_{\rm OIII}$  is larger than $\sigma_{*}$ particularly for high luminosity AGNs. As we discussed in Paper I, we interpret the ratio of $\sigma_{\rm OIII}$  to $\sigma_{*}$ larger than unity as an indication of non-gravitational kinematic components, i.e. outflows.

In contrast, SF galaxies show almost one-to-one relationship between $\sigma_{\rm OIII}$  and $\sigma_{*}$, suggesting that the broadening of gas emission line can be entirely accounted by the virial motion due to the galaxy gravitational potential. Note that the non-linear relation between $\sigma_{\rm OIII}$  and $\sigma_{*}$ for the AGN sample is mainly due to the wing component in the [O iii] line profile, which is not well constrained when FWHM is used to represent the velocity of [O iii] line (see Paper I for detailed discussion). In the case of composite objects, $\sigma_{\rm OIII}$  and $\sigma_{*}$ are linearly correlated each other. Although AGN outflows may be present in composite objects, the outflow velocity is relatively low due to the average low luminosity (see the lack of high [O iii] velocity AGNs in Figure 3), hence the non-gravitational kinematic component can be easily diluted by the dominant virial component.

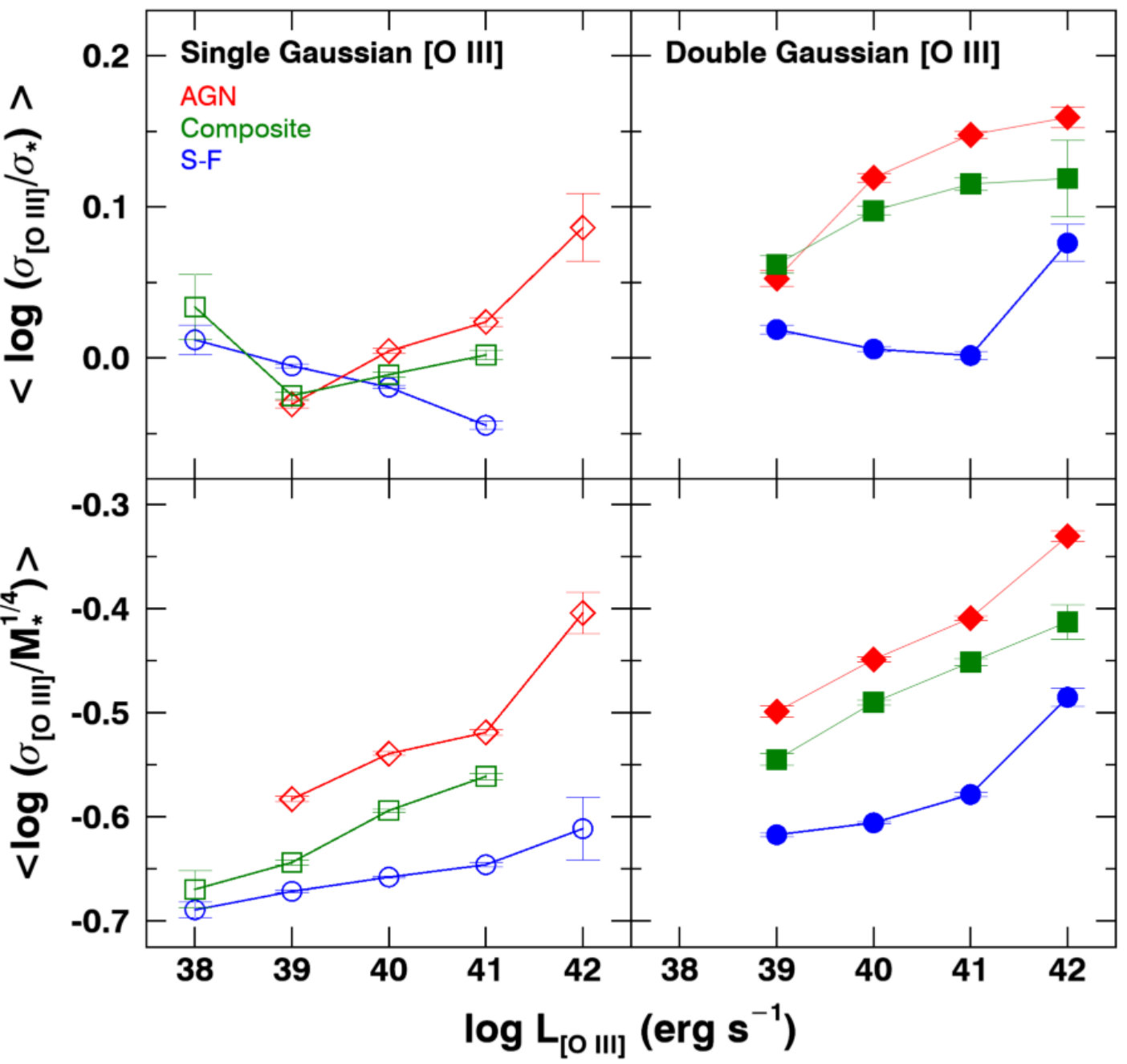

In Figure 4, we investigate the ratio between $\sigma_{\rm OIII}$  and $\sigma_{*}$  as a function of [O iii] luminosity. Here we separate the emission line galaxies, depending on the presence of a wing component in [O iii] (i.e., single Gaussian vs. double Gaussian). Regardless of AGN activity, most objects without a wing component show the $\sigma_{\rm OIII}$ /$\sigma_{*}$ ratio close to unity except for the AGNs in the highest luminosity bin, indicating that [O iii] gas kinematics of these objects are mostly due to the host galaxy gravitational potential.

In contrast, among the objects with a wing component in [O iii] (right panels in Figure 4), there is a systemic difference of the $\sigma_{\rm OIII}$ /$\sigma_{*}$ ratio between AGNs and SF galaxies. For AGNs, $\sigma_{\rm OIII}$  is much larger than $\sigma_{*}$ (by 0.13 dex on average), indicating the presence of non-virial kinematics, while for SF galaxies, $\sigma_{\rm OIII}$  is comparable to $\sigma_{*}$ except for the highest luminosity bin (the average ratio log ($\sigma_{\rm OIII}$ /$\sigma_{*}$) = 0.01). Note that we detect a wing component in [O iii], which is fitted by the second Gaussian component, for $\sim$39% of SF galaxies. However, the $\sigma_{\rm OIII}$  values are similar to stellar velocity dispersions.

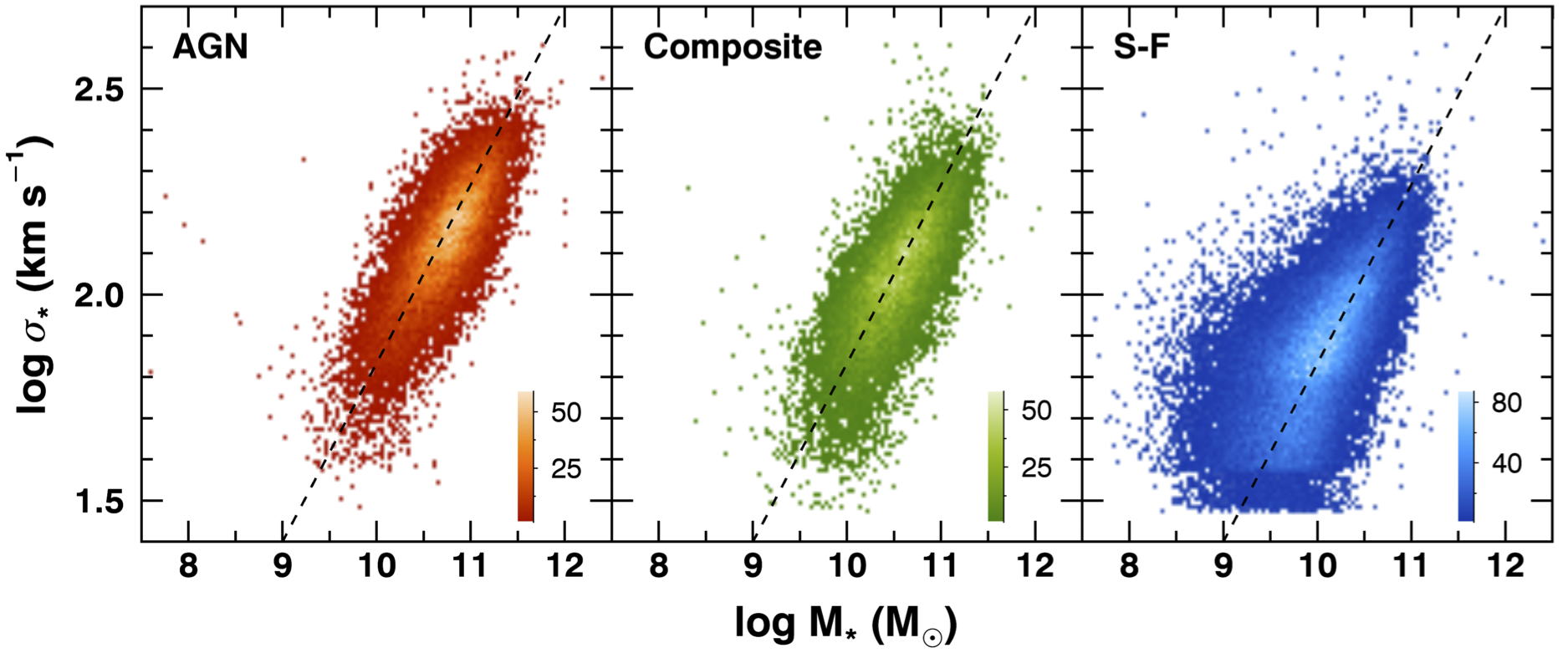

Instead of $\sigma_{*}$, we can use stellar mass to normalize gas outflow kinematics by the host galaxy gravitational potential (bottom panels of Figure 4). We find qualitatively same trends that the broadening of [O iii] in AGNs cannot be entirely accounted by the gravitational potential while the broadening of [O iii] in SF galaxies are mainly due to the host galaxy potential. The average difference between AGNs and SF galaxies is 0.16 dex. Note that even among the objects with single Gaussian [O iii], we clearly detect the systematic difference of the ratio between AGNs and SF galaxies (the average difference is 0.11 dex).

3.2. [O iii] velocity dispersion vs. luminosity

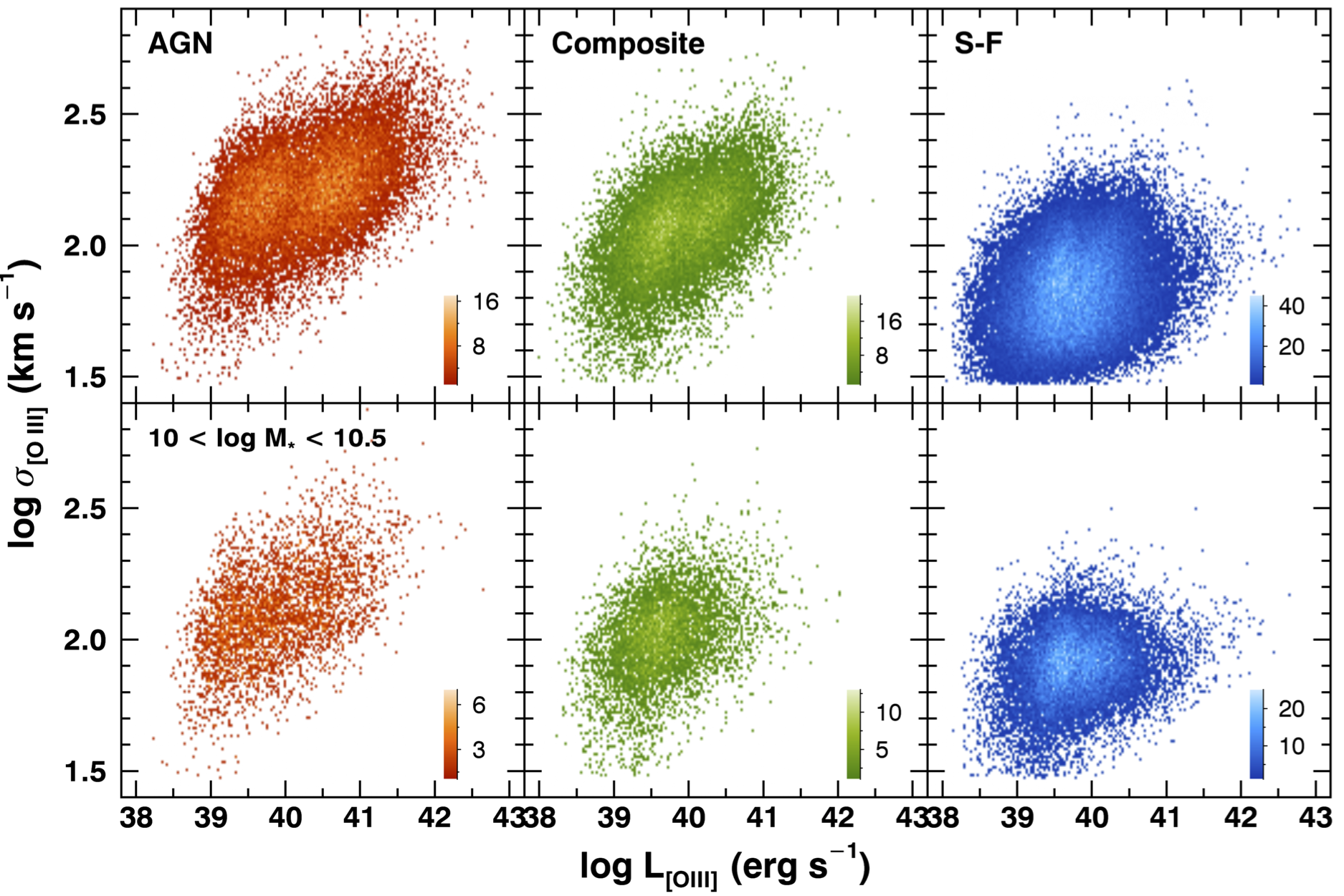

We investigate how the [O iii] kinematics are related to [O iii] luminosity for AGNs and SF galaxies in Figure 5. There is an increasing trend of $\sigma_{\rm OIII}$  with increasing luminosity in AGNs although the trend is very broad. The increasing trend is also present among composite objects while the the luminosity range of [O iii] is an order of magnitude narrower. These trends show that gas outflows are stronger in AGNs with higher luminosity, indicating AGN energetics are responsible for the outflow kinematics. In contrast, we find no clear increasing trend among SF galaxies. On average the $\sigma_{\rm OIII}$  is lower in SF galaxies while the range of $\sigma_{\rm OIII}$  is as broad as that of AGNs. Since the average stellar mass of AGNs and SF galaxies is very different as we pointed out in S.2.2, we plot the same comparison after limiting stellar mass between 1010 and 1010.5 (bottom panels in Fig. 5). Again, we find that AGNs and SF galaxies show different trends, suggesting that these different trends are not due to the difference in mass scales between AGN and SF galaxy samples.

3.3. [O iii] velocity-velocity dispersion diagram

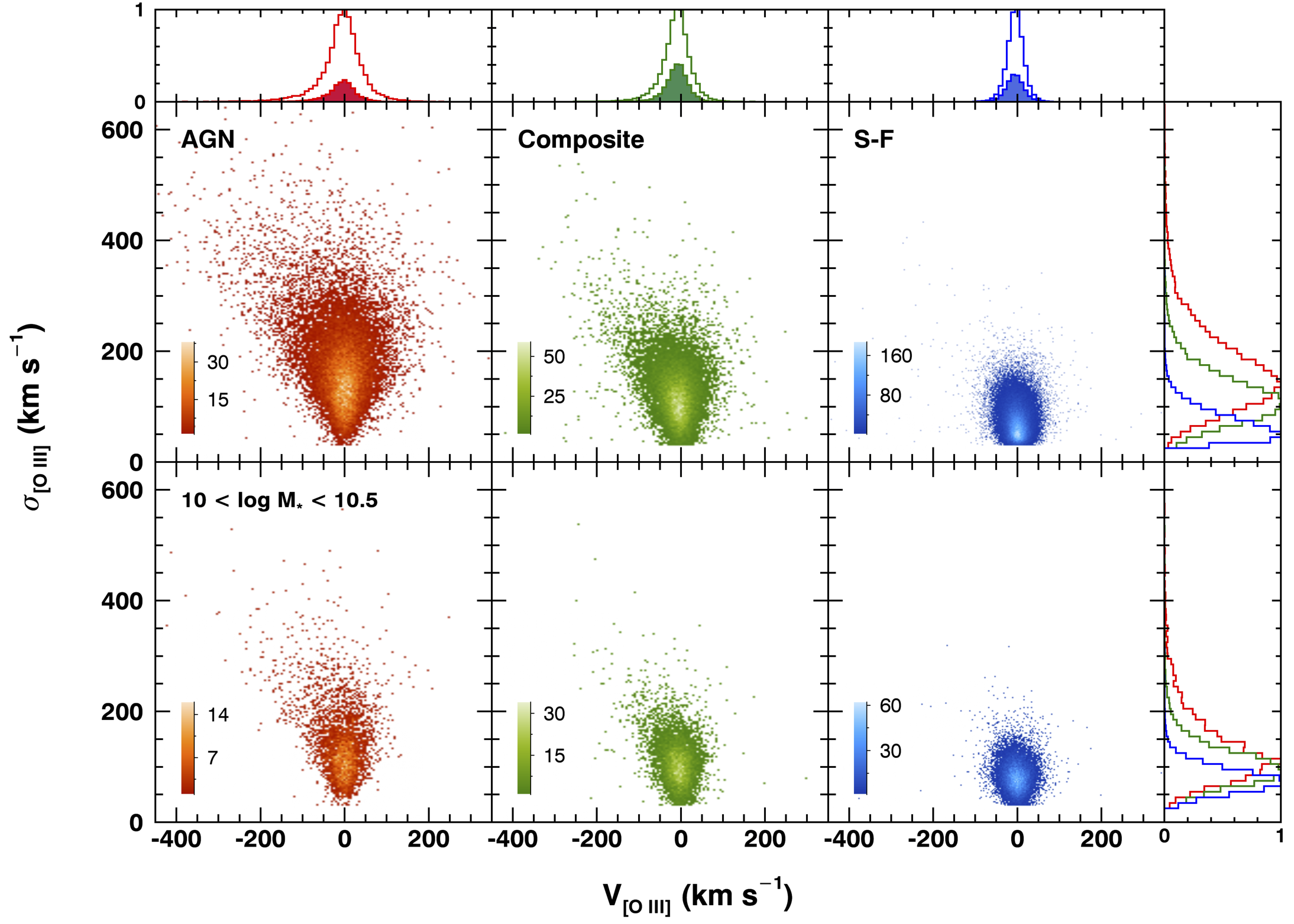

In Figure 6, we combine the velocity and velocity dispersion of [O iii] to investigate the difference of gas kinematics between AGNs and SF galaxies. We find a dramatic contrast between AGNs and SF galaxies in terms of the range of gas velocities. While SF galaxies are concentrated at the lower center with a limited range of velocity shift ($|$VOIII$|$ $<$ 100 km s*-1*) and velocity dispersion ($\sigma_{\rm OIII}$  $<$ $\sim$150 km s*-1*), AGNs show a much larger distribution, including AGNs with extreme kinematics (i.e., $|$VOIII$|$ $>$ 200 km s*-1* and $\sigma_{\rm OIII}$ $>$400 km s*-1*).

The average $\sigma_{\rm OIII}$  is $175.1\pm 76$, $125.3\pm 49.9$, and $73.2\pm 28.6$ km s*-1*, respectively for AGNs, composite objects, and SF galaxies, indicating that AGNs have more than a factor of 2 broader [O iii] than SF galaxies. Also, the dispersion of the $\sigma_{\rm OIII}$  distribution is significantly different with a factor of $\sim$3 broader distribution in AGNs. Note that the $\sigma_{\rm OIII}$  distribution is skewed toward high values, indicating the presence of extreme kinematics in the AGN sample. In the case of VOIII, the average value is $-4.0\pm 60.6$, $-8.0\pm 40.3$, and $0.0\pm 23.2$ km s*-1*, respectively for AGNs, composite objects, and SF galaxies, indicating that the average VOIII is similar among 3 groups. This is mainly due to the fact that the majority of objects have relatively low velocity shift, which can not be well constrained for given VOIII uncertainties (see S.2.3). However, we clearly detect that the distribution of VOIII of AGNs is a factor of $\sim$3 broader than that of SF galaxies, suggesting the influence of gas outflows in AGNs.

Considering the fact that galaxy bulge gravitational potential can also broaden the emission line, of which velocity dispersion is expected to correlate with stellar mass, we plot subsamples of AGNs and SF galaxies in the same stellar mass range, 10 $<$ log M*∗* $<$ 10.5 (bottom panels in Figure 6). In this case, the range of velocity and velocity dispersion decrease, however the strong difference in the VVD distributions still remains. The mean $\sigma_{\rm OIII}$  is $139.8\pm 64.6$, $109.2\pm 40.3$, and $83.1\pm 24.7$, respectively for AGNs, composite objects, and SF galaxies, showing a factor of $\sim$2 difference in terms of the mean value and dispersion of the distribution between AGNs and SF galaxies. The distribution of VOIII is similar to that of the total sample, with the mean VOIII = $-5.7\pm 47.7$, $-6.1\pm 31.8$, $-0.9\pm 23.3$, respectively for AGNs, composite objects, and SF galaxies.

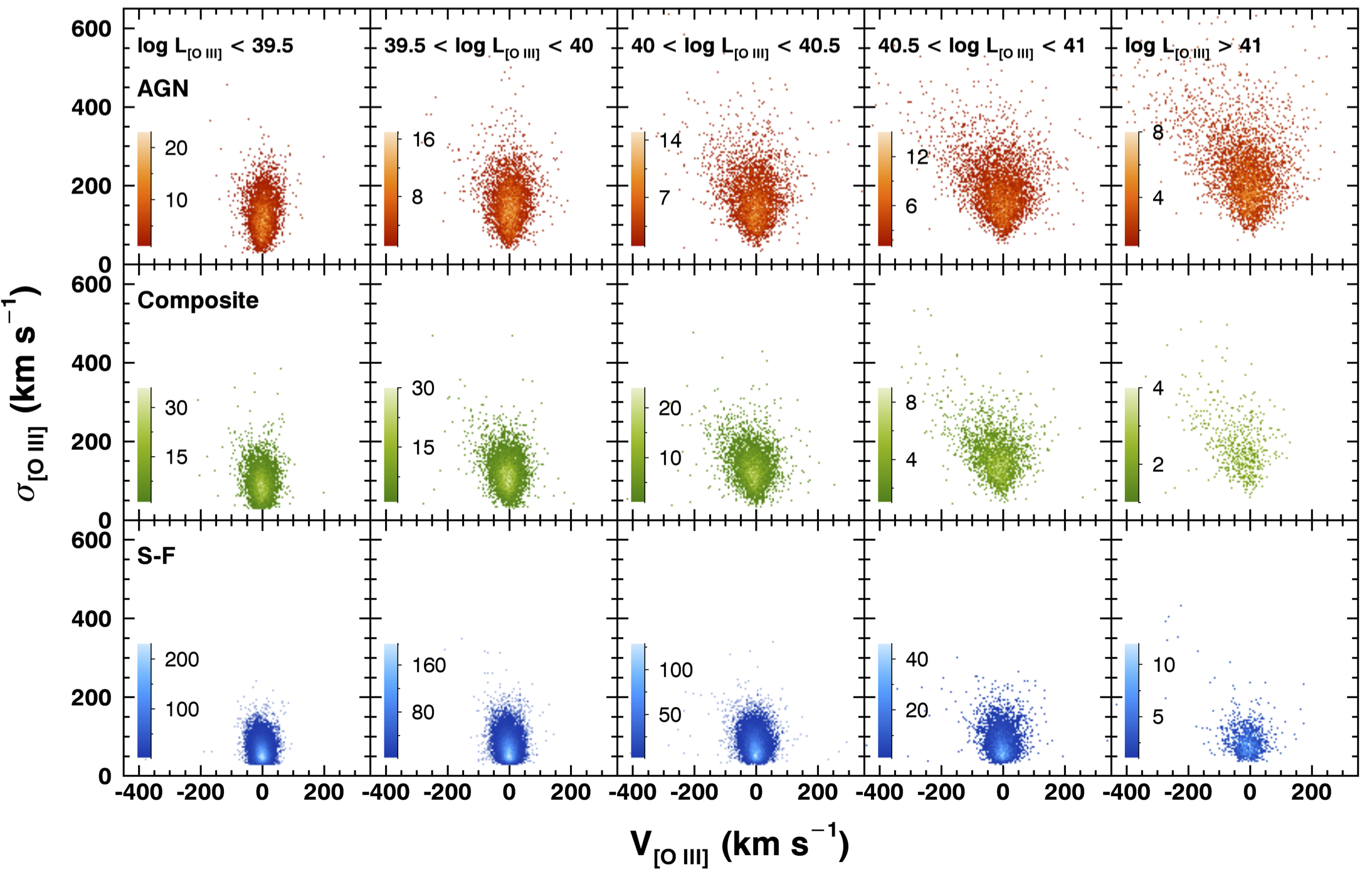

In Figure 7 we present the VVD diagram as a function of [O iii] luminosity, respectively for AGNs (top), composite objects (middle), and SF galaxies (bottom). In AGNs we find the VVD diagram dramatically expands toward higher values with increasing [O iii] luminosity, indicating the gas outflows are driven by AGN energetics. Composite objects in general follow the same trend although at the highest luminosity bin, the number of objects is relatively small. In contrast, SF galaxies do not show any significant change of the VVD diagram as a function of [O iii] luminosity, suggesting that photoionization mechanism of the [O iii] line is not directly responsible for the [O iii] kinematics. As we already showed in Figure 4, the gas kinematics are mainly governed by the gravitational potential of the host galaxy.

If we investigate the VVD diagram as a function of stellar mass, instead of the [O iii] luminosity, we find no dramatic expansion of the diagram. The VVD distribution is already broad even at low mass regime. Other than the increase of the sample size, AGNs, Composite objects and SF galaxies show similar distributions, suggesting that stellar mass is not directly related to the expansion of the VVD diagram.

3.4. Star formation vs. outflows

3.4.1 IR-based SFR

In this section we investigate how the outflow kinematics are related to star formation in the host galaxies. Since the star formation rate (SFR) of AGN host galaxies is difficult to directly measure due to the contamination of AGN emission to SFR indicators, i.e., the H$\alpha$ line, UV continuum, etc (e.g., Matsuoka & Woo, 2015), we use the SFR based on IR luminosity by adopting the catalogue of Ellison et al. (2016a), which provides the IR luminosity of $\sim$330,000 SDSS galaxies and the estimated SFR converted from IR luminosity based on the conversion equation by Kennicutt (1998),

[TABLE]

In their work Ellison et al. (2016a) determined IR luminosity from artificial neural network techniques, which were tested and trained based on the Herschel-SDSS Strip 82 matched sample of 1136 galaxies. As recommended by Ellison et al. (2016a), we used reliable estimates of SFR using $\sigma_{\rm ANN}$ $<$ 0.1 (see also Ellison et al., 2016b). In this case, a total of 30,352 objects (26.9%) is excluded from our AGN+composite+SF sample in Table 1. More specifically, 10,316 objects from pure AGNs (45.3%), 4,710 objects from composite objects (22.7%), and 15,326 objects from SF galaxies (22.1%) were removed due to the $\sigma_{\rm ANN}$ $<$ 0.1 criterion. Since we loose a large fraction of AGNs, we tried to use a less conservative criterion, i.e., $\sigma_{\rm ANN}$ $<$ 0.3, in order to include more objects with less secure SFR estimates. In this case, 12,042 objects (10.7% of the total sample) were excluded (3,375, 1,781, and 6,886 objects respectively from pure AGNs, composite objects, and SF galaxies). The results based on the sample with $\sigma_{\rm ANN}$ $<$ 0.3 remained qualitatively the same. Note that the IR-based SFR represents the average SFR over $\sim$108 years as the IR emission is reradiated by cold dust around OB stars. In addition to IR-based SFR, we also used the D4000 provided by the SDSS catalogue for a consistency check (see Section 4.3).

3.4.2 Correlation between AGN outflows and SFR

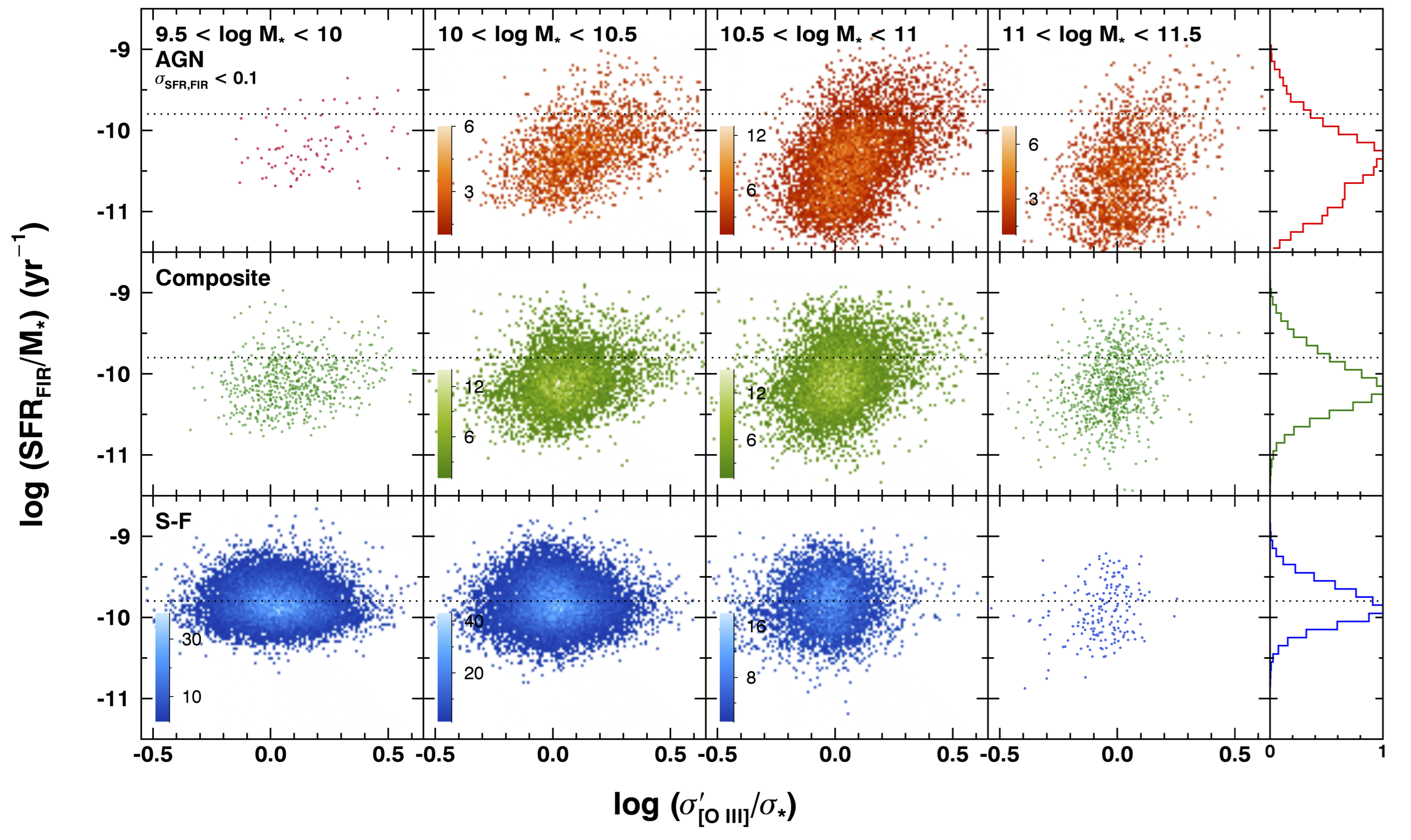

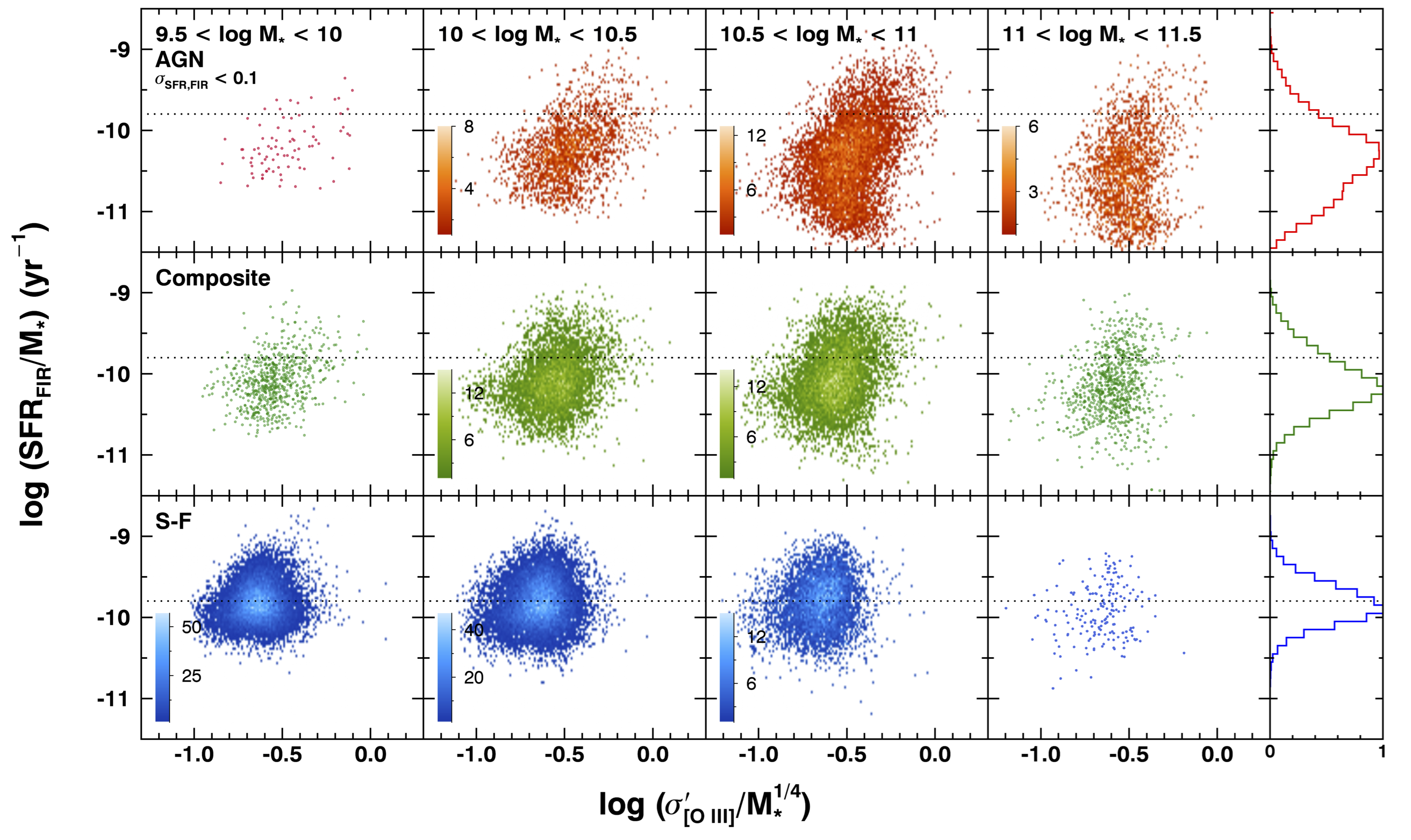

In Figure 8, we present the specific star formation rate (SSFR), by dividing the estimated SFR by stellar mass, as a function of the outflow velocities. To account for the difference of stellar mass range between AGN and SF galaxies, we present the comparison in each stellar mass bin. Here, the outflow velocities as expressed as $\sigma_{\rm[OIII]}^{\prime}$, are calculated by adding the velocity and velocity dispersion of [O iii] in quadrature, which can be understood as the corrected velocity dispersion of [O iii] accounting for the projection effect (for details, see Bae & Woo, 2016). Then, the outflow velocities are normalized by stellar velocity dispersion in order to show the non-gravitational (i.e., outflow) kinematics.

In the case of SF galaxies, the SSFR does not change along the stellar mass bin, showing that non-AGN galaxies form a star forming sequence with a constant SSFR within a factor of $\sim$2 scatter (see Table 2). In each stellar mass bin, the distribution of log SSFR is centered at the mean value of $-9.8\pm 0.3$ yrs*-1*, which is averaged over all SF galaxies. With respect to the normalized gas kinematics, we find no correlation, indicating that the kinematics of ionized gas are not related to SF. As expected, SFR is not affected by gas kinematics in SF galaxies since gas kinematics are mainly due to the galaxy gravitational potential rather than AGN outflows. Note that at lower stellar mass bin, stellar velocity dispersion is on average more uncertain, broadening the distribution of gas-to-stellar velocity dispersion ratio.

In contrast, we find that AGNs and composite objects have on average lower SSFR than SF galaxies. The mean log SSFR is $-10.4\pm 0.5$ and $-10.1\pm 0.4$, respectively for pure AGNs and composite objects, showing a factor of 4 and 3 lower SFR than non-AGN galaxies at fixed stellar mass. Moreover, we find that the SSFR of AGN sample tend to increase with increasing outflow velocities. In the 10.5$<$ log M*⊙/M⊙* $<$ 11 bin, for example, there is a clear increasing trend of SSFR with increasing outflow velocities in AGNs, while the distribution is almost round in SF galaxies. This trend implies a close connection between AGN outflows and star formation in the host galaxies. Interestingly, AGNs with higher outflow velocities have on average higher SSFR than AGNs with lower outflow velocities, implying that outflows do not instantly suppress SF, although the time scale of SF quenching has to be carefully investigated. Since AGNs with strong outflows show higher SFR than AGNs with weak outflows, this may indicate a close link between outflows and SF.

We find no evidence of enhanced SF in AGNs. Even for the AGNs with extreme outflow velocities, SSFR is not very high and rather it is comparable to that of SF galaxies (dashed line), suggesting that host galaxies of extreme AGN outflows have regular SFR compared to SF galaxies. In contrast, SSFR decreases with decreasing outflow velocities. For example, AGNs with no or weak outflows (i.e., when $\sigma^{{}^{\prime}}_{\rm OIII}\sim\sigma_{*}$), SSFR is almost an order of magnitude lower than SF galaxies or AGNs with strong outflows. In other words, AGNs with strong outflows have similar SFR compared to SF galaxies, while AGNs with weak/no outflows have much lower SFR than non-AGN galaxies. Thus, the 0.6 dex mean difference of SSFR between AGN and SF galaxy samples is mainly due to the population of AGNs with weak [O iii] outflows.

The stellar velocity dispersion measured from SDSS spectra may not be the best parameter to represent the virial motion caused by the gravitational potential of the host galaxies, particularly for lower mass galaxies, since the spectral resolution of the SDSS spectroscopy is limited, and the effect of the rotational broadening and the projection due to the random inclination of the stellar disk to the line-of-sight can be significant for rotation-dominant galaxies. Considering these effects, we use stellar mass, instead of $\sigma_{*}$, to normalize the gas kinematics. Assuming the Fiber-Jackson relation, we use stellar mass to the 1/4 power (M${}_{*}^{1/4}$) as a proxy for stellar velocity dispersion representing the virial motion (bottom panel in Fig. 9). We see qualitatively similar distribution of SSFR with the normalized outflow kinematics. Except for the AGNs with lowest SSFR, there is a general trend that AGNs with higher outflow velocities have higher SSFR, while the SSFR of AGNs with no outflows have much lower SSFR.

3.4.3 Distribution of SSFR of AGNs and SF galaxies

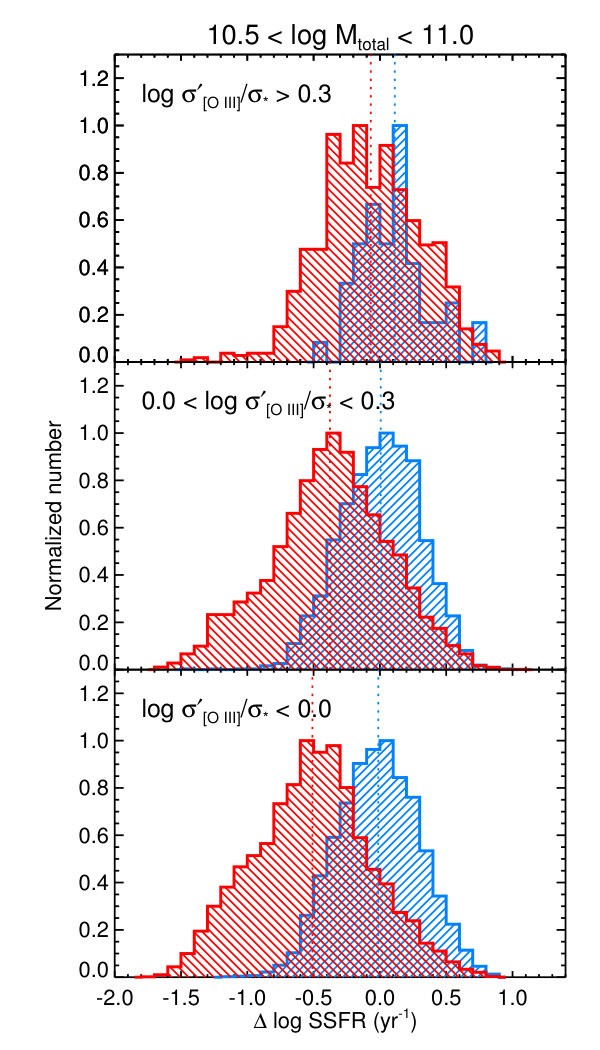

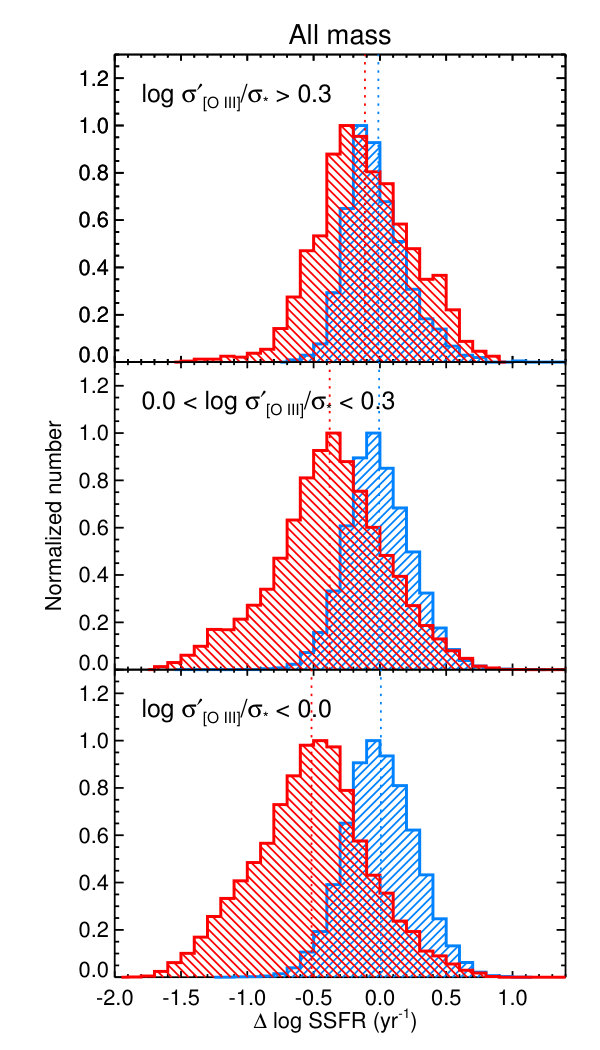

To further investigate the difference of SSFR between AGNs and SF galaxies, we compare the distribution of SSFR between AGNs (pure AGN + composite objects; red), and SF galaxies (blue) in Figure 9. Here we divide the sample into 3 groups: strong (i.e., log $\sigma_{\rm[OIII]}^{\prime}$/\sigma_{*}$$> 0.3; top panel), intermediate (i.e., 0$<$ log $\sigma_{\rm[OIII]}^{\prime}$/\sigma_{*}$$< 0.3; middle panel), and weak outflows (i.e., log $\sigma_{\rm[OIII]}^{\prime}$/\sigma_{*}$$<0; bottom panel). While the distribution of SSFR is broad, AGNs with intermediate and weak outflows have lower SSFR by $0.38\pm 0.43$ and $0.52\pm 0.45$ dex, respectively, compared to the mean SSFR of SF galaxies. In contrast, AGNs with strong outflows have similar SSFR compared to SF galaxies (see Table 2 for details). Considering the stellar mass difference between AGNs and SF galaxy sample, we compare the SSFR distribution at fixed stellar bass bin, e.g., at $10.5<$ log M*∗* $<11$ (right panel in Figure 9). We find a similar trend of decreasing mean SSFR with decreasing outflow velocities. Since the distribution of SSFR is very broad ($\sim$1 dex in FWHM), large ranges of AGN outflow velocities and SFR are present in the sample. However, it is clear that there is strong trend of decreasing SSFR for AGNs with no outflows.

Although it is previously found that optical and X-ray AGNs have on average lower SSFR than SF galaxies (e.g. Shimizu et al., 2015; Ellison et al., 2016b), a physical mechanism for explaining the trend was not clearly identified. We try to interpret these results by connecting AGN outflows with SF in the following scenario. When gas is supplied, both AGN and SF are triggered as we typically observe the correlation between X-ray and IR luminosities (e.g. Netzer, 2009). However, it would take the order of a dynamical time for outflows to impact on the ISM over galactic scales. Once the outflows start playing a role in impacting on the ISM, we may observe the decrease of both SFR and AGN activity. After that, as the AGN activity decreases, the outflow kinematics become weaker and finally disappear. In this scenario, we link AGNs with strong outflows hosted by galaxies with regular SFR and AGNs with no outflows hosted by galaxies with lower SFR as a evolutionary sequence. Perhaps, we are seeing for the first time, the physical link between AGN outflows and the delayed suppression of SF.

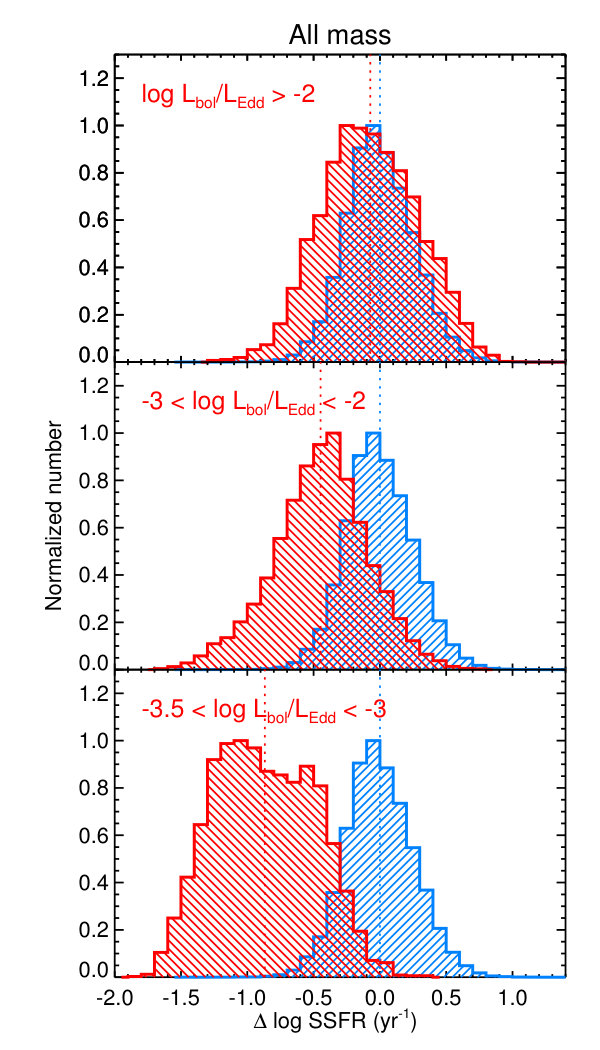

We further investigate whether SSFR is related with AGN energetics since outflow velocities and AGN luminosity show a broad correlation, albeit with a large scatter. In Figure 10, we present the distribution of SSFR, after dividing AGNs into three Eddington ratio bins. Note that since we cannot detect a very weak [O iii] line, the Eddington ratio of the AGN sample ranges from 10*-4* to 1 while most AGNs are located within 10*-3.5* $<$ log L/LEdd $<$ -0.5 (see Figure 5 in Paper 1). We find a similar trend that low Eddington AGNs have clearly lower SSFR than SF galaxies, while high Eddington AGNs have comparable SSFR with respect to SF galaxies. While the difference of SSFR distribution is negligible between high Eddington AGNs and SF galaxies with a small negative offset of $0.07\pm 0.41$, low Eddington AGNs clearly show much lower SSFR by $0.87\pm 0.37$ dex, indicating that SFR is much lower in the host galaxies of low Eddington AGNs. The same trend is detected when we limit the sample within the stellar mass bin 10.5$<$ log M*∗/M⊙* $<$ 11 (right panel in Figure 10).

Combing the trend of SSFR with outflow velocities and Eddington ratios, it seems that more energetic AGNs with strong outflows and high Eddington accretion tend to be hosted by typical SF galaxies, while low-Eddington AGNs with weak/no outflows have relatively quiescent host galaxies.

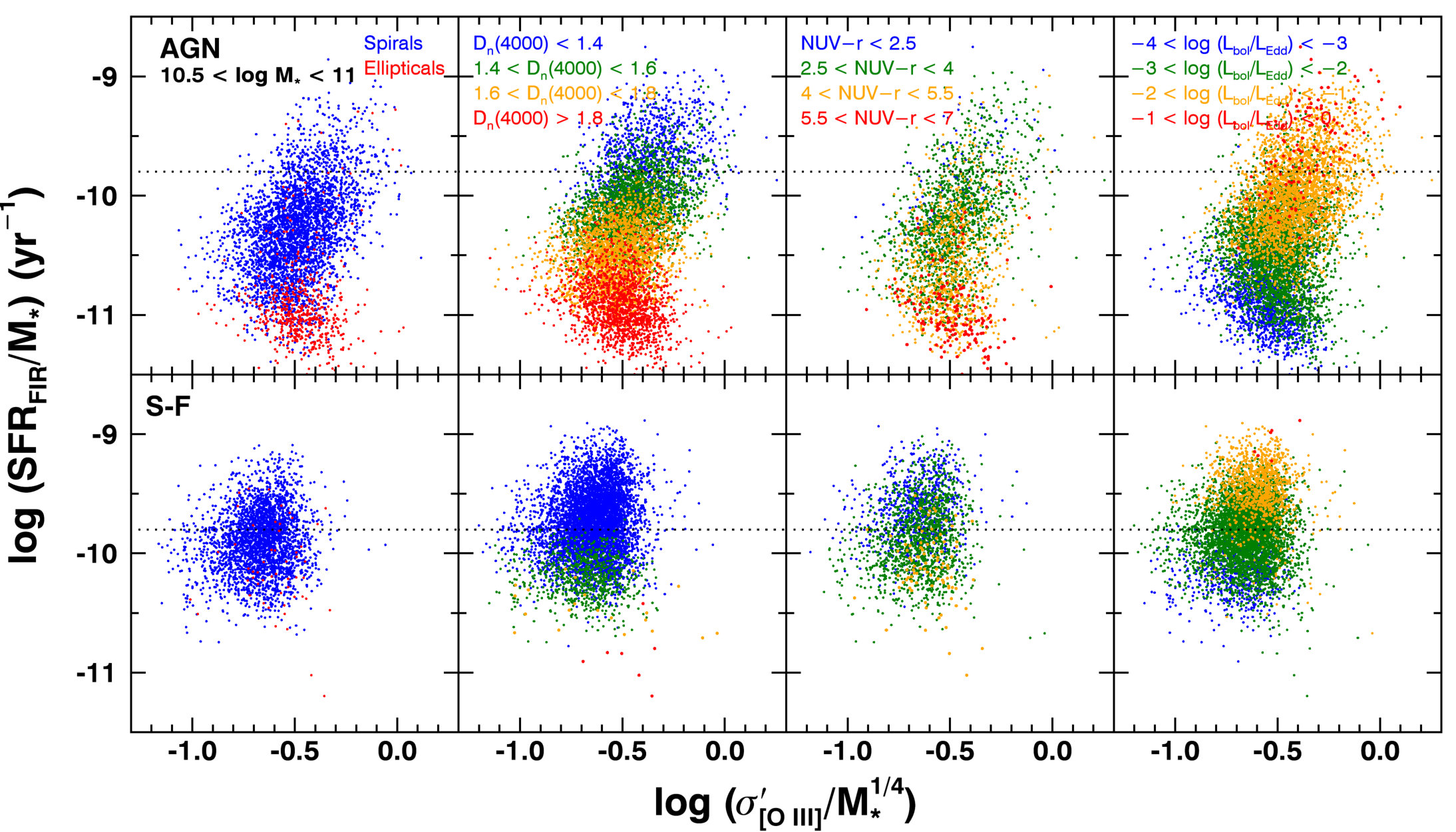

In Figure 11, we investigate how host galaxy properties are related with AGN outflows and SSFR. First, we adopt the galaxy morphology information from Galaxy Zoo (1st col. in Figure 11; Lintott et al., 2011). Since each galaxy is classified as elliptical, spiral, or uncertain object, we only present ellipticals and spirals by excluding uncertain objects. In AGN sample spiral galaxies generally follow the broad trend between SSFR and outflow velocities while elliptical galaxies are located separately at a much lower SSFR region. These elliptical galaxies would not be included in our emission line galaxy sample if AGN was not present since they have no or weak emission lines from star forming region. However, by excluding these elliptical galaxies, we still see that the SSFR of AGNs ranges down to much lower level compared to that of SF galaxies. Considering the potential contamination of elliptical host galaxies in the AGN sample, we investigated the SSFR distribution using only spiral galaxies. We find that the difference of mean SSFR between AGNs and SF galaxies and the decreasing SSFR with decreasing outflow velocities and Eddington ratios remain the same, indicating that the contamination of elliptical galaxies is not mainly responsible for the much lower SSFR of AGNs with no outflows. Second, we color-code AGNs based on the 4000Å-break strength D4000 as a SFR indicator (Brinchmann et al., 2004), which is adopted from the MPA-JHU catalogue (2nd col. in Figure 11). As expected SSFR correlates with D4000 in AGNs, while SF galaxies have overall lower values of D4000. The decreasing trend of D4000 with increasing outflow velocities confirms a consistency between IR-based SFR and D4000-based SFR. Third, we also utilize the UV-to-optical color as a SFR indicator. By matching our SDSS sample with GALEX General Release 6/7 including AIS and MIS data (Morrissey et al., 2007), we obtained NUV-r color for 38,105 objects. As shown in Figure 11 (3rd col.), we find qualitatively the same trend although the size of the matched sample is relatively small. Finally, we present Eddington ratios in the 4th col. in Figure 11, showing a clear increasing trend with both SSFR and outflow velocities, albeit with considerable scatter. These findings indicate that a clear trend, although not bimodal, is present between high Eddington, strong outflow AGNs in SF galaxies and low Eddington, no outflow AGNs in weakly star-forming galaxies.

4. Discussion

4.1. Delayed feedback or gas depletion?

We reported that optical type 2 AGNs have on average lower SSFR compared to SF galaxies as previously found by Shimizu et al. (2015) and Ellison et al. (2016b) based on X-ray, optical, and radio AGNs. However, there is a large range of SSFR among AGNs, and we discovered a link between AGN outflows and SSFR. While AGNs with powerful outflows have comparable SSFR with respect to SF galaxies, AGNs with weak or no outflows tend to have much lower SSFR. Moreover, there is a clear trend that the mean SSFR decreases with decreasing Eddington ratios. Combining these two trends, we see a distribution from AGNs with strong outflow, high Eddington accretion, and regular SFR to AGNs with no outflow, low Eddington accretion, and much lower SFR. The trend between Eddington ratio and SSFR naturally explains the observed AGN-star formation luminosity relation in the local universe (Netzer, 2009; Chen et al., 2013; Matsuoka & Woo, 2015).

We may interpret these trends as a evolutionary sequence i.e., when there is gas supply, both AGN and SF are triggered. AGNs with high-Eddington accretion develop strong outflows while SF is on-going as in regular SF galaxies. When the outflows start impacting on the ISM after the order of a dynamical time, the effect of AGN feedback is observable as the SFR decreases while AGN becomes weaker and no strong outflows are visible. Note that the SFR based on IR luminosity traces the reradiation by cold dust around OB stars and averaged over $\sim$108 yrs. Also, the Eddington ratio was calculated based on [O iii] luminosity, which does not reflect the short time scale flickering of accretion disk activity. Rather, [O iii] luminosity is averaged over longer time scale. If the outflow can effectively push the gas supply and/or prevent the cooling of the ISM, it is naturally expected that both SFR and AGN accretion will decrease. The distribution of AGNs from strong outflow, high Eddington, and regular SFR to no outflow, low Eddington, and low SFR may be understood as the evolutionary sequence caused by delayed AGN feedback.

Alternatively, the same evolutionary sequence can be interpreted as the consequence of depletion of gas supply. When gas is supplied, both AGN and SF are triggered. However, once gas is depleted, both AGN activity and SF decreases. Thus, we naturally expect that AGNs with strong outflow, high Eddington, and regular SFR become AGNs with no outflow, low Eddington, and low SFR. In this case, no AGN feedback is invoked and simply gas depletion causes the transition.

Instead of evolutionary sequence, it is also possible that intrinsic gas content varies among galaxies at given stellar mass. If the amount of gas is intrinsically large, AGNs may tend to be high-Eddington with strong outflows and host galaxies show regular SFR as in SF galaxies. On the other hand, if gas content is intrinsically lower, SFR is lower than that of galaxies in star-forming sequence, and AGNs have relatively low Eddington and weak outflows.

For given our data set, it is not clear which scenario best explains the observed trend. In particular, in the evolutionary sequence scenario, it is very difficult to confirm whether AGN feedback causes the transition or the transition is natural outcome of gas depletion. In the case of the 3rd scenario, we may be able to investigate the difference of intrinsic gas content based on CO observations by selecting AGNs with strong and no outflow for given stellar mass and morphology.

4.2. Bias against high star-formation rate galaxies?

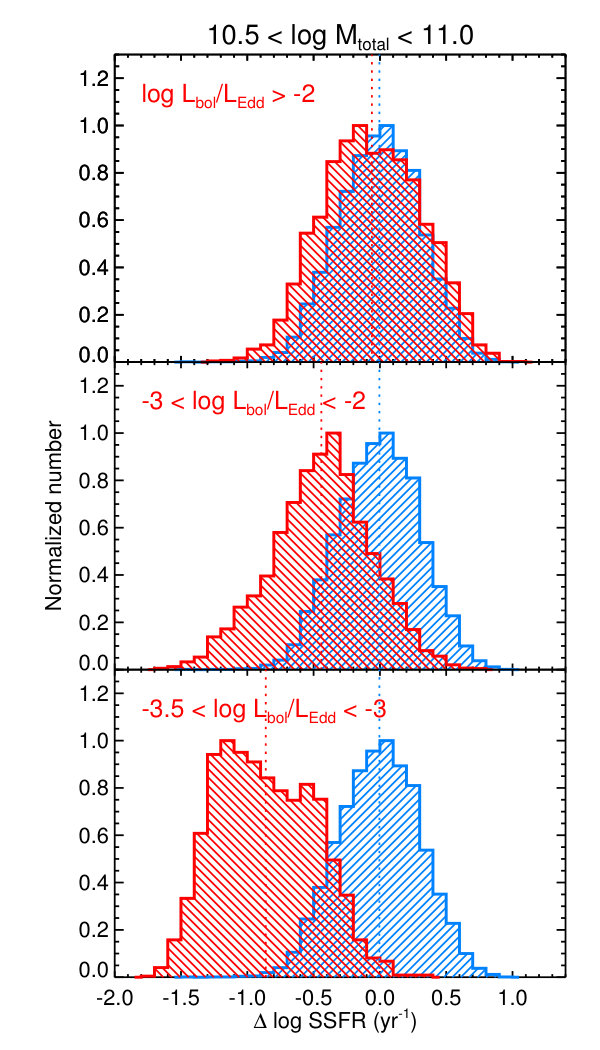

The decreasing trend of SSFR with decreasing Eddington ratio down to 10*-3.5* shown in Figure 10 can be interpreted in two different ways: selection bias and intrinsic nature. We first examine whether the lower SSFR of low Eddington AGNs is due to the selection bias. Since we classify AGNs based on the emission line flux ratios in the BPT diagram, if AGNs produce weak emission lines, which can be over-shined by the emission produced by strong star formation, the combined observed emission lines are likely to be classified as SF galaxies rather than AGNs. Thus, it is possible that we may miss very weak black hole activity present in strongly SF galaxies due to the limitation of the optical BPT classification. Note that we do not consider very weak black hole activity with extremely low Eddington ratios ($<<$10*-4*) (e.g., Gallo et al., 2008; Miller et al., 2015) since these very weak activities are not generally considered as AGN population and the feedback energy from these objects is expected to be negligible in the context of galaxy evolution. If we focus on low Eddington ratio AGNs between 10*-4* and 10*-2*, it is not clear why we should expect these AGNs are dominantly hosted by highly SF galaxies, while we expect that very weak black hole activity is present in most galaxies. By selecting SF galaxies, Chen et al. (2013) reported that the mean SF luminosity correlates with the mean AGN X-ray luminosity down to Eddington ratio $\sim 10^{-3}$ (see also Rafferty et al., 2011), although it is extremely difficult to investigate the distribution of Eddington ratios below $\sim 10^{-3}$ (see e.g. Jones et al., 2016).

For investigating whether our optical AGN sample misses low Eddington AGNs hosted by strongly SF galaxies, X-ray AGN sample is very useful since optical BPT-based classification can be avoided. In fact, Shimizu et al. (2015) reported that their Swift-BAT AGN sample shows on average lower SSFR compared to SF galaxies, indicating the same trend as we found in our sample.

We independently investigate this issue by selecting X-ray AGNs from Swift-BAT 70 month catalogue (Baumgartner et al., 2013) after matching with our SDSS sample. Although the number of X-ray AGNs, for which we can determine stellar mass and Eddington ratio, is relatively small, these 59 X-ray AGNs show a consistent trend that AGNs with low Eddington ratio tend to show lower SSFR than AGNs with high Eddington ratio. For example, since the Eddington ratio (log Lbol/LEdd) of this matched sample ranges from -3 to 0, we divide them into 3 groups. We find that the D4000-based SSFR of high Eddington AGNs (log Lbol/LEdd $>$ -1) is higher by 0.13 and 0.83 dex, respectively, than that of intermediate (-2$<$ log Lbol/LEdd $<$-1 ) and low Eddington AGNs (log Lbol/LEdd $<$ -2), although the distribution of SSFR in each group is very large with rms of 0.7 to 0.8 dex due to presumably small number statistics. Note that we were not able to use IR-based SFR since IR luminosity taken from Ellison et al. (2016a) is available only for 20 out of 59 objects. Although we see a consistent trend between Eddington ratios and SSFR based on the X-ray sample, we cannot firmly conclude whether the lack of low-Eddington AGNs in SF galaxies in our optical sample is due to selection effect or intrinsic nature since the size of the matched sample is very small and the X-ray flux limit of the Swift-BAT sample is still shallow (down to Lbol/LEdd <$$\sim-3).

In investigating the trend between SSFR and Eddington ratio, it is important to reliably estimate AGN bolometric luminosity. In the case of optically-identified type 2 AGNs, the [O iii] luminosity is typically used for calculating Eddington ratios as in our study (e.g. Kauffmann et al., 2003; Choi et al., 2009). However, the bolometric correction of [O iii] is difficult to determine due to various effects, including dust extinction and the dependency on the ionization parameter (Netzer, 2009; Matsuoka & Woo, 2015). Also, star forming region can contribute to the [O iii] flux observed through an aperture larger than the size of the narrow-line region. Therefore, it is important to decompose the AGN and SF fraction in the observed [O iii] luminosity (e.g., Jones et al., 2016). By simply assuming the maximum AGN fraction in the [O iii] luminosity of SF galaxies as 1%, 10%, and 50%, we simulate the distribution of SSFR as in Figure 10 in order to test the effect of the contribution of non-detected AGNs in SF galaxies. We find that the case of 1% and 10% AGN luminosity does not change the decreasing trend of the SSFR as a function of Eddington ratios down to 10*-3*. When we assume 50% of [O iii] in SF galaxies is originated from AGNs, we still see the same trend while the difference of SSFR between high and low Eddington AGNs becomes smaller.

Due to the aforementioned issues and uncertainty of Eddington ratio, it is clear that more detailed investigations are required to confirm the trend of the decreasing SSFR with decreasing Eddington ratios. In particular, a detailed comparison between X-ray and optical AGNs, for example, using the optical follow-up survey of the Swift-BAT AGNs (Koss et al., 2017), will be very useful to constrain the nature of host galaxies of low Eddington AGNs, which is beyond the scope of this paper.

4.3. Uncertainty of IR-based SFR

Since we have adopted the estimated SFR based on IR from Ellison et al. (2016a), it is important to discuss whether the main results of this paper is affected by the uncertainty of IR-based SFR. As shown In Figure 11, other SFR indicators, i.e., D4000 and UV-to-optical color show consistent results. While SF galaxies have overall lower values of Dn4000, there is a clear spread of D4000 among AGNs, which broadly correlates with outflow velocities. Also, the UV-to-optical color shows a similar trend with AGN outflow velocities. These results suggest that although the IR-based SFR is not the best SF indicator, there is a clear trend of SSFR with AGN outflow velocities, while SF galaxies do not show such a trend.

5. Summary & Conclusion

Using a large sample of $\sim$110,000 type 2 AGNs out to z$\sim$0.3, we investigated the kinematics of the ionized gas outflows, demography of outflows in AGNs and SF galaxies, and the connection between outflows and SF. We summarize the main results as follows.

$\bullet$ Gas and stellar velocity dispersions are comparable to each other in SF galaxies, indicating that he gravitational potential of host galaxies determines are mainly responsible for gas and stellar kinematics.

$\bullet$ In contrast, AGNs show much larger [O iii] velocity dispersion than stellar velocity dispersion, indicating that strong non-gravitational kinematics, i.e., outflows, are present. The kinematic component of outflows is comparable to or stronger than the virial motion caused by the gravitational potential.

$\bullet$ The fraction of AGNs with outflows steeply increases with AGN luminosity and Eddington ratio. In particular, the majority of luminous AGNs presents strong non-gravitational kinematics in the [O iii] profile.

$\bullet$ We find a dramatic difference of the outflow signatures between AGNs and star-forming galaxies. The distribution in the [O iii] velocity - velocity dispersion diagram dramatically expands toward large values with increasing AGN luminosity, implying that the outflows are AGN-driven, while that of SF galaxies show no significant change as a function of [O iii] luminosity.

$\bullet$ The SSFR of non-outflow AGNs is much lower than that of strong outflow AGNs, while the SSFR of strong outflow AGNs is comparable to that of SF galaxies. We interpret this trend as a result of delayed AGN feedback as it takes the order of a dynamical time for the outflows to suppress star formation. Alternatively, gas depletion or intrinsic difference of gas content may cause the trend.
