Long-Lived Non-Equilibrium Interstitial-Solid-Solutions in Binary Mixtures

TL;DR

This study investigates the formation and stability of non-equilibrium interstitial solid solutions in binary mixtures of hard spheres, revealing long-lived trapped small particles and contrasting with previous equilibrium predictions.

Contribution

It demonstrates that in certain binary mixtures, small particles become trapped in interstitial sites, forming long-lived non-equilibrium structures unlike previously predicted equilibrium solutions.

Findings

Small particles occupy up to 14% of interstitial sites.

Small particles are trapped in octahedral holes, not hopping further.

Long-lived non-equilibrium structures observed in experiments and simulations.

Abstract

We perform particle resolved experimental studies on the heterogeneous crystallisation process of two compo- nent mixtures of hard spheres. The components have a size ratio of 0.39. We compared these with molecular dynamics simulations of homogenous nucleation. We find for both experiments and simulations that the final assemblies are interstitial solid solutions, where the large particles form crystalline close-packed lattices, whereas the small particles occupy random interstitial sites. This interstitial solution resembles that found at equilibrium when the size ratios are 0.3 [Filion et al., Phys. Rev. Lett. 107, 168302 (2011)] and 0.4 [Filion, PhD Thesis, Utrecht University (2011)]. However, unlike these previous studies, for our system sim- ulations showed that the small particles are trapped in the octahedral holes of the ordered structure formed by the large particles, leading to long-lived non-equilibrium structures in the time scales studied and not the equilibrium interstitial solutions found earlier. Interestingly, the percentage of small particles in the crystal formed by the large ones rapidly reaches a maximum of around 14% for most of the packing fractions tested, unlike previous predictions where the occupancy of the interstitial sites increases with the system concentration. Finally, no further hopping of the small particles was observed.

Figures

Equations

$$q_{lm}(i)=\frac{1}{N_b(i)}\sum _{j=1}^{N_b(i)}{Y}_{lm}({\mathbf{r}}_{ij}),$$

$$q_l(i)=\sqrt{\frac{4\pi }{2l+1}\sum _{m=-l}^l|q_{lm}(i){|}^2}$$

$${\bar{q}}_{lm}(i)=\frac{1}{{\tilde{N}}_b(i)}\sum _{k=0}^{{\tilde{N}}_b(i)}{q}_{lm}(k),$$

$${\bar{q}}_l(i)=\sqrt{\frac{4\pi }{2l+1}\sum _{m=-l}^l|{\bar{q}}_{lm}(i){|}^2}$$

Full text

††preprint: AIP/123-QED

I Introduction

Solid solutions are some of the toughest and most versatile crystalline materials cahn2009 . Steel is a hugely solid solution verhoven07book , it is an interstitial solid solution (ISS) in which the iron atoms form an ordered crystal lattice, with the smaller carbon atoms in the interstices. Substitutional solid solutions (SSS) are also important, there the second component is not in the interstices between atoms of the first component, but substitutes for atoms of the first component, on the lattice. Very recent developments in electron microscopy have for the first time allowed us to analyse the disorder of an SSS of iron in platinum yang17 . Also, High Entropy Alloys (HEAs), which are effectively a multicomponent SSS, are currently very actively studied as they are among the toughest materials known gludovatz14 ; Filion2011 ; Filion2011b ; Zhang2014 ; Royall2015 .

Hard spheres, as epitomised by colloids, are widely used as models to study the self-assembly and phase behaviour processes of atoms and molecules. Since the structural evolution of colloidal suspensions can be followed in real space by means of confocal imaging, their study has allowed us to monitor the crystallisation process of different systemsIvlev2012 . Additionally, the equilibrium structures of such processes have also been successfully characterised in simulations, which is crucial for fundamental understanding and for many applications, including material science, metallurgy, and biotechnologySandomirski2011 ; Saunders2005 . The most popular example of these systems is monodisperse hard spheres, where the particles interact only by hard-core repulsions and whose phase behaviour has been widely studied, through both simulations and experimentsFilion2011b . These studies have identified the face-centered cubic (fcc) -often in a random mixture with hexagonal close packing (hcp)-, as the solid stable structureSchofield2005 ; Filion2011 .

Crystallisation of multicomponent colloidal mixtures has acquired more interest, as these present a richer and more complex phase behaviour than their monocomponent counterpart Pham2016 ; Schofield2005 ; Trizac1997 ; Filion2011 ; Hunt2000 ; Bartlett1992 ; Leocmach2010 . Amongst these systems, we find binary mixtures of hard spheres, which are composed of two populations of spheres of differing sizes. Similar to one-component hard spheres, they are also the simplest multicomponent colloidal system and thus, form a reference model to study phase transitions of mixturesSchofield2005 ; Trizac1997 ; Filion2011 ; Hunt2000 . Crystals of these systems were observed by Sanders and Murray back in 1978, whilst analysing the microscopic structure of gem opals, which are composed of silica colloids and had an structure analogue to AlB2 and NaZn13 Sanders1978 . So far, both experimental and simulation studies have identified that the phase diversity found in binary mixtures depends on the size ratio of the components, the number ratio and total concentration of the particles Filion2011b ; Filion2011 ; Vermolen2009 ; Christova2005 . These studies have produced structures resembling the ones found in nature for different salts like NaCl, NaZn13, AlB2 Trizac1997 ; Bartlett1992 ; Vermolen2009 ; Hunt2000 ; Filion2011 , the Laves structures MgCu2, MgNi2, MgZn2Sanders1978 ; Filion2011 ; Filion2011b , and most recently, stable ISSFilion2011 ; Filion2011b . This large diversity of equilibrium structures highlights their potential for applications in photonics, optics, semiconductors and structure design Trizac1997 ; Vermolen2009 ; Filion2011 ; Hunt2000 . In addition, due to their simplicity, binary hard sphere mixtures are ideal models to study the kinetics of crystallisation in salts, metal alloys, metallic glasses and any other crystallising system where there is more than one species, and so there is a compositional variable Filion2011 ; Filion2011b ; Zhang2014 ; Royall2015 ; gludovatz14 .

However, only a few experimental studies have focused on the crystallisation process of binary hard spheres, which can be due to the difficulty of obtaining close-packed ordered structures. This is related to slow kinetics, caused by a competition of the growth of crystal nuclei and compositional fluctuations. In addition, the differences in sedimentation rates between the particles also play an important role in preventing crystallisationRoyall2008 ; Vermolen2008 ; Velikov2002 ; Hunt2000 ; Eldridge1995 . Similar to one-component systems, the particles in the crystalline structure have a higher translational entropy than in the metastable fluid, which compensates for the decrease of entropy as the system becomes more ordered Trizac1997 ; Schofield2005 ; Hunt2000 ; Bartlett1992 ; Eldridge1995 . In addition, it has been proposed that the theoretically predicted structures will only be thermodynamically stable if their maximum close packing fraction exceeds the correspondent 0.7405 for fcc or hcp lattices of one-component systems Schofield2005 ; Hunt2000 ; Trizac1997 ; Eldridge1995 .

Interestingly, these studies have also shown some discrepancies between the experimental observations and the predicted assemblies for particular size ratios and compositions, especially at concentrations near the glass transition Schofield2005 ; Filion2011 ; Eldridge1995 . Furthermore, the kinetic contributions to crystallisation, along with microscopic mechanisms that yield the ordering of mixtures are not yet fully understood Eldridge1995 , accentuating the complexity of these systems over one-component ones, and limiting their promising applications. Based on the interest in understanding such crystallisation processes, our goal is to study experimentally the heterogeneous crystallisation of a mixture of colloidal hard spheres at the particle-resolved level and compare our results with previous predictions. We also use simulations to study the evolution of the crystals, in particular the dynamics of the small particles, and propose a mechanism for the crystal formation. We observed that only interstitial solid solutions (ISS) are formed regardless of the different packing fractions tested in both experiments and simulations, as predicted Filion2011b . In such structures, the crystalline phase –a mixture of fcc and hcp lattices– is formed only by the large particles, whereas the small particles are positioned in a fraction of the octahedral holes of the ordered phase. We compared the composition of our ISS with the equilibrium composition previously predicted for a related systemFilion2011b , and we observed interesting discrepancies at high packing fractions. By studying the dynamics of the system we found a trapping effect of the small particles which could be preventing further crystallisation and equilibrium filling of the octahedral holes.

This paper is organised as follows. In section II we describe the experimental and simulations details, along with the techniques used for the analysis of the ordered phases. In section III we first present the results for crystallisation for our experiments and their structural analysis. We compare such results with previous work. We continue with the structural analysis of the ordered phases found on the simulations and the study of the evolution and quality of the crystals. We then focus on the dynamics of the species. We finalise by proposing a crystallisation mechanism for our system following the results obtained through simulations. Finally, in section IV we present our conclusions.

II Methods

II.1 Experiments

The binary system used in the experiments consisted on sterically stabilised poly(methylmethacrylate) (PMMA) particles fluorescently labeled with rhodamine and coumarin dyes to enable separate fluorescent imaging. The sizes of the big particles have a diameter of 1700 nm with a polydispersity of 7%, whereas the small particles are 669 nm in diameter and 7.8% polydispersity, obtained by scanning electron microscopy. In spite of their large polydispersity, both particles are able to crystallise on their own. These dimensions yield a size ratio ($\gamma=\sigma_{\mathrm{{S}}}/\sigma_{\mathrm{{L}}}$) of 0.39. The dried particles were suspended separately in a solvent mixture of 27% w/w cis-decahydrophnaphtalene (cis-decalin) and cyclohexyl bromide (CHB) that matches the density and refractive index of the particles. Additionally, tetrabutylammonium bromide (TBAB) salt was added in order to screen the charges, conditions that allow the particles to behave in a very close manner to hard spheres Royall2013 ; Vermolen2009 ; Royall2007 .The suspensions were left to equilibrate for several hours, after which they were mixed together at a fixed number particle ratio, $N_{L}/N_{S}$=1, and at several total volume fractions, $\phi_{\mathrm{{tot}}}$, defined as $\phi_{\mathrm{{tot}}}=\phi_{\mathrm{{L}}}+\phi_{\mathrm{{S}}}$, where $\phi_{\mathrm{{L}}}$ and $\phi_{\mathrm{{L}}}$ refer to the partial packing fractions of each species. These were calculated based on the amount of particles and solvent weighed, following $\phi_{\mathrm{{L/S}}}=m_{\mathrm{{L/S}}}/(m_{\mathrm{{L}}}+m_{\mathrm{{S}}}+m_{\mathrm{{solvent}}})$. After shaking, the samples were confined to squared glass capillaries of 0.50 x 0.50 mm (Vitrocom) and sealed at each end with epoxy. The samples were studied by means of confocal laser scanning microscopy, CLSM (Leica SP5 fitted with a resonant scanner) using two different channels at 543 nm and 488 nm and NA 63x oil immersion objective. For particle tracking, 3D data sets were recorded by taking a full scan of the capillary in the $z$ axis, making sure the pixel size was equal in all axes (0.125 $\mu$m/pixel). We used particle resolved studies to determine the crystalline structure Ivlev2012 . The crystallisation time was calculated in Brownian time units for the large particles, i.e., the time it takes for the large spheres to diffuse a particle radius, given by $\tau_{B}=(\sigma_{\mathrm{{L}}}/2)^{2}/6D=0.963$ s, where D is the diffusion constant. The Brownian time $\tau_{B}$ thus sets our unit of time. Observations were carried out for over a month, which corresponds to $2.6\times 10{{}^{6}}$ $\tau_{B}$, and were made all along the length and height of the capillaries, which were left standing in a vertical position.

II.2 Simulations

Hard-sphere simulations were carried out using the open-source event-driven molecular dynamics DynamO packagebannerman2011 ; Bannerman2009 in isothermal-isochoric (NVT) conditions for a binary mixture. The total number of particles is $\mathrm{N_{tot}}$= 10 968. Particles of both species are of equal mass, $m=1$. The size and number ratio, as well as the final total particle densities were chosen to match the ones from the experiments, thus $\gamma$= 0.39 and $\phi_{\mathrm{{tot}}}$ from 0.52 to 0.64, respectively. A fluid system at $\phi_{\mathrm{{tot}}}$ = 0.282 was used as the initial configuration, which was then linearly compressed following Stillinger and LubachevskyStillinger1993 to the appropriate packing fractions until an equilibrated structure was found. Experiments of colloidal systems have shown that the particles stick irregularly on the walls of the cell they are contained, thus producing an irregular surface over which the crystallisation takes placeRoyall2003 . Due to limitations in reproducing said phenomenon and thus the final surface, we elected to conduct our simulations with periodic boundary conditions. Future work could focus on simulating such environment and its influence over the kinetics of the system presented herein.

Finally, simulation times were scaled to the experimental data. We inferred our $\tau_{B}$ in the simulations through the relationship $\tau_{\alpha}$= 2.597 $\tau_{B}$, obtained previously by comparing event-driven MD simulations and colloidal experiments of a one-component hard sphere system at $\phi$=0.38, where the structural relaxation time $\tau_{\alpha}$ of the simulations was found to equal 0.404 simulation time unitsRoyall2014 . Since this mapping pertains to a one-component system, here we confirm that the relaxation of the large particles is similar in the binary system of interest herein. Therefore, we calculated $\tau_{\alpha}$ of the large particles from the trajectories at the same packing fraction ($\phi_{\mathrm{{tot}}}$=0.38). This we did by computing the intermediate scattering function (ISF), F(\mathrm{k},t)=N^{-1}\big{<}\sum_{j=1}^{N}\mathrm{exp}[-i\mathrm{k}\cdot(x_{j}(t)-x_{j}(0)\big{>}. To characterise the mobility in the length scale of a particle diameter, we evaluated $F(k,t)$ at the wavenumber $k=2\pi/\sigma_{\mathrm{{L}}}$Royall2014 ; Dunleavy2015 . We obtained a value of $\tau_{\alpha}$=0.526 simulation time units, which is comparable to the one obtained by the mentioned work, thus confirming the validity of our approach, and enabling us to use the aforementioned relationship to infer the $\tau_{B}$ for our simulations.

II.3 Location of particles in experiment

In order to determine the local ordering of the crystals formed in our experiments, we analysed separately the structures formed by each component through particle tracking. To locate the particles in the experiments, 3D data sets were directly analysed using the algorithm described in Leocmach and Tanaka Leocmach2013 .

II.4 Identification of local crystal structure

Analysis of the crystalline structure for both experiments and simulations, was done following Lechner and Dellago Lechner2009 by obtaining the bond orientational order parameters (BOO), based on complex spherical harmonics. This analysis gives information of the degree and type of ordering, thus enabling us to differentiate between distinct crystalline phases. We focused on the locally averaged order parameters $\bar{q}_{4}$ and $\bar{q}_{6}$ for square and hexagonal orders, respectively. These parameters take into account the effect of the second nearest neighbours, which distinguish more clearly amongst different arrangementsLechner2009 . The methodology followed is detailed elsewhereLechner2009 ; Jungblut2011 ; RiosdeAnda2015 . Briefly for each particle $i$ and regardless of its small or large nature, we identify the nearest neighbours $N_{b}(i)$ using a cutoff corresponding to the contact distance between the closest large particles (obtained through the pair distribution function, $g(r)$). For the experiments said distance corresponded to 1.38$\sigma_{\mathrm{{L}}}$, whereas for the simulations this number was 1.25$\sigma_{\mathrm{{L}}}$. Finally for the perfect (by construction) NaCl-type lattice the cutoff was 1.1$\sigma_{\mathrm{{L}}}$. Using said list of neighbours, the local order parameters, or Steinhardt order parameters can be obtained:

[TABLE]

and summing over all the harmonics:

[TABLE]

where $Y_{lm}(\bm{r}_{ij})$ correspond to the spherical harmonics, $l$ and $m$ are integer parameters, the latter running from $m=-l$ to $m=+l$, and $r_{ij}$ corresponds to the vector from particle $i$ to particle $j$. However, these parameters only contain information about the first shell surrounding particle $i$. In order to obtain information about the second shell, and thus, the locally averaged order parameters, we need to sum over the list of $\tilde{N}_{b}(i)$ of particle $i$ and the particle $i$ itself, giving:

[TABLE]

and again summing over all the harmonics we get:

[TABLE]

II.5 Determination of the Lengthscale of Crystalline Ordering

Following the analysis described in Fullerton2016 ; Klotsa2013 for identifying the size of domains, we determined in both experiments and simulations the typical crystalline domain size as N\textsubscript{Q}=N^{-1}\big{<}\vec{Q}^{*}\cdot\vec{Q}\big{>}, where $N$ is the total number of particles. Here $\vec{Q}=\sum_{p=1}^{N}\vec{q}_{6}(p)$ is the sum over all particles of the normalised complex vector $\vec{q}_{6}(p)$, whose components are the spherical harmonics with $\it{l}$=6. $\vec{q}_{6}(p)$ normalisation is done by setting the average of $\vec{q}_{6}(p)\cdot\vec{q}_{6}(p)^{*}=1$. The values taken by $N\textsubscript{Q}$ will depend on the amount of particles oriented in the same fashion. The value of NQ is an estimate of the average number of particles in a coherently ordered crystallite.

III Results and Discussion

We present our analysis in three sections: we first identify the ordering and quality of the structures found in both our experiments and simulations (Sec. III.1). We then focus on the dynamics of our two species in both the fluid and the crystalline regions in our simulations (Sec. III.2). Finally, we compare the composition of our ISS with an equilibrium system with a comparable size ratio and propose a mechanism for the formation of the structures found (Sec. III.3).

III.1 Analysis of the crystalline structures: identification of Interstitial Solid Solutions (ISS)

Filion and collaborators used computer simulations to study a mixture of binary hard spheres with a size ratio Filion2011b only slightly higher (0.4) than ours (0.39). They calculated the equilibrium phase diagram, which we reproduce in Fig. 1 (a). There, the symbols represent our experimental state points for the experiments on heterogeneous nucleation (diamonds) and simulations (circles and triangles). Filion predicted that at equilibrium, there is coexistence between interstitial solid solutions (ISS), and a fluid phase (F)Filion2011b . The ISS consists of a regular close-packed lattice, with the small particles filling some but not all the octahedral holes; the fraction of these holes varies continuously with composition.

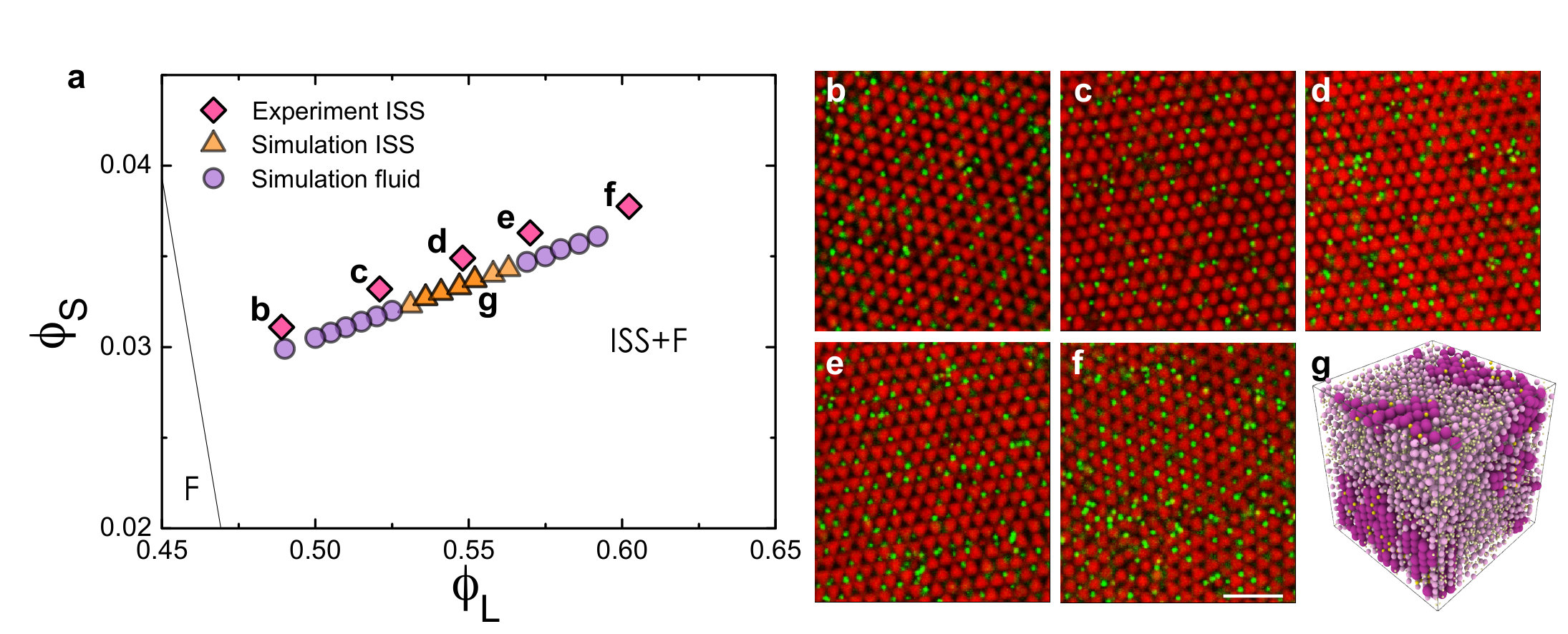

Indeed we do observe crystalline structures built up by the large particles with interstitial small particles positioned in a random fashion (Snapshots Fig. 1), regardless of the $\phi_{\mathrm{{tot}}}$ and in coexistence with a fluid phase, for both the experiments and the simulations. Surprisingly, we did not find ordered structures for the simulations below $\phi_{\mathrm{{tot}}}$=0.563 or above $\phi_{\mathrm{{tot}}}$=0.610, where the mixtures did not crystallise (Fig. 1 purple circles).

In our experiments, nucleation of the crystals is heterogeneous, the crystals grew parallel to the walls of the capillaries and the fluid phase was present far away from the walls. The presence of a flat wall clearly facilitates the nucleation process and thus the mixture is able to crystallise in a $\phi_{\mathrm{{tot}}}$ range larger than the simulations, where the nucleation starts in the bulk.

The ordered structures found are stable ISSDeCristofaro1977 , on the timescales we consider. In these, the crystals grow from the fluid phase and form ordered structures composed of the larger particles forming a close packed crystal, and the smaller particles in the interstices. The composition of these crystals is much poorer in the small particles than it is in the original fluid, where the number ratio is one. Campbell2008 ; Filion2011

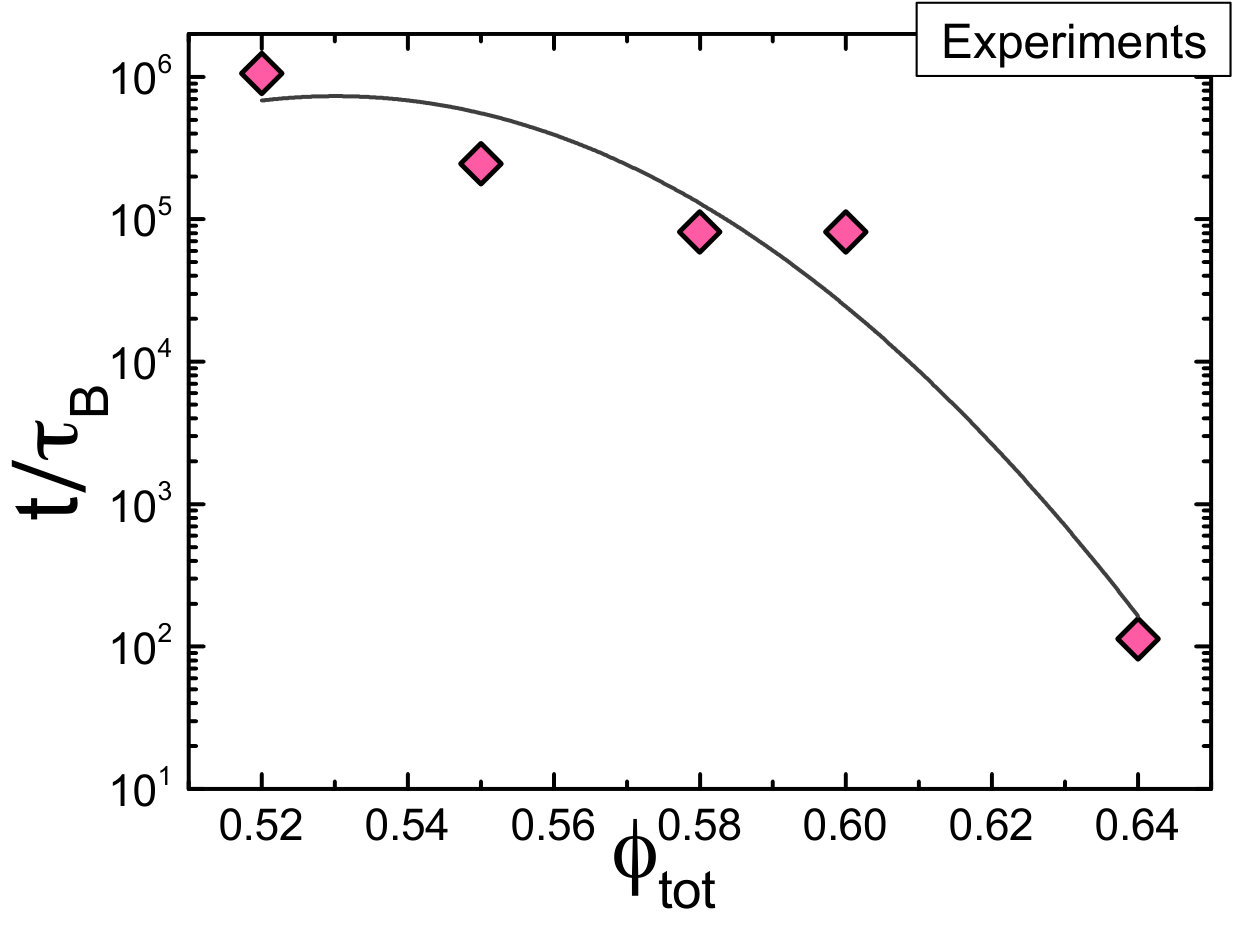

The heterogeneous crystallisation of our mixtures was studied as a function of the total volume fractions $\phi_{\mathrm{{tot}}}$ = $\phi_{L}$ + $\phi_{S}$ and we found that increasing this parameter increases the crystallisation rate, as shown in Fig. 2. This observation is in agreement with one component systems Sandomirski2011 .

III.1.1 Local structure of the large particles

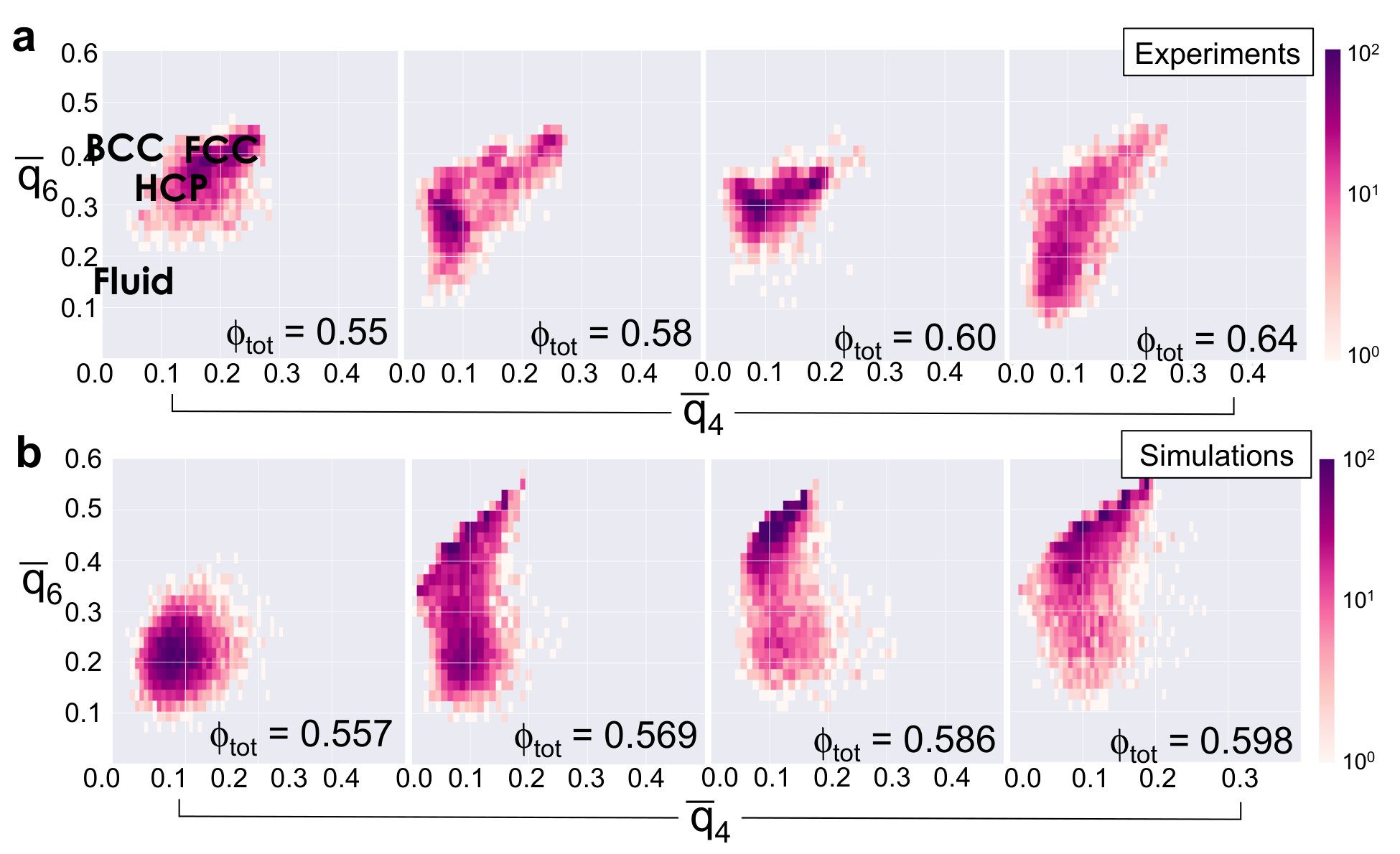

For all of our samples, the equilibrium structure expected is an interstitial solid solution in coexistence with a fluidFilion2011b . In such assemblies, the large particles are expected to form a mixture of hcp and fcc lattices, known as random hexagonal close packing (rhcp), since the free energy difference between these two crystalline phases is very smallFilion2011 ; Filion2011b . The results of the analysis of the crystals formed only by the large particles for the experiments and simulations are summarised in Fig. 3 (a and b, respectively), where we can observe that in both cases the crystalline phases do consist of a mixture of fcc and hcp lattices in coexistence with a fluid phase for all the total volume fractions tested. This random stacking has been identified before in experiments of heterogeneous nucleation of one-component systems Sandomirski2011 .

III.1.2 Local environment of the small particles: an analysis on the crystal quality and the vacancies in simulations

In the ISS the small particles are situated in the octahedral holes of the fcc and hcp lattices formed by large particles. Filion et al. showed, for their smaller size ratio of 0.3, that the small particles are able to hop at lower pressures– where the system is far from close-packing– fill all the octahedral holes and yield an ISS with the NaCl structureFilion2011 . On the other hand, for the larger size ratio of 0.4, Filion and coworkers also found that the ISS are the stable assembly, however, for this larger size ratio they do not report the formation of a perfect crystalline NaCl structure, nor they show the dynamics of the small particles like for $\gamma$=0.3Filion2011b . In our experiments a similar size ratio of 0.39, we also observed only ISS, and we could not observe hopping of the small particles in direct imaging. Due to the limitations on tracking the motion of the small particles, we decided to conduct hard sphere molecular dynamics simulations in order to quantify both the small sphere ordering and dynamics.

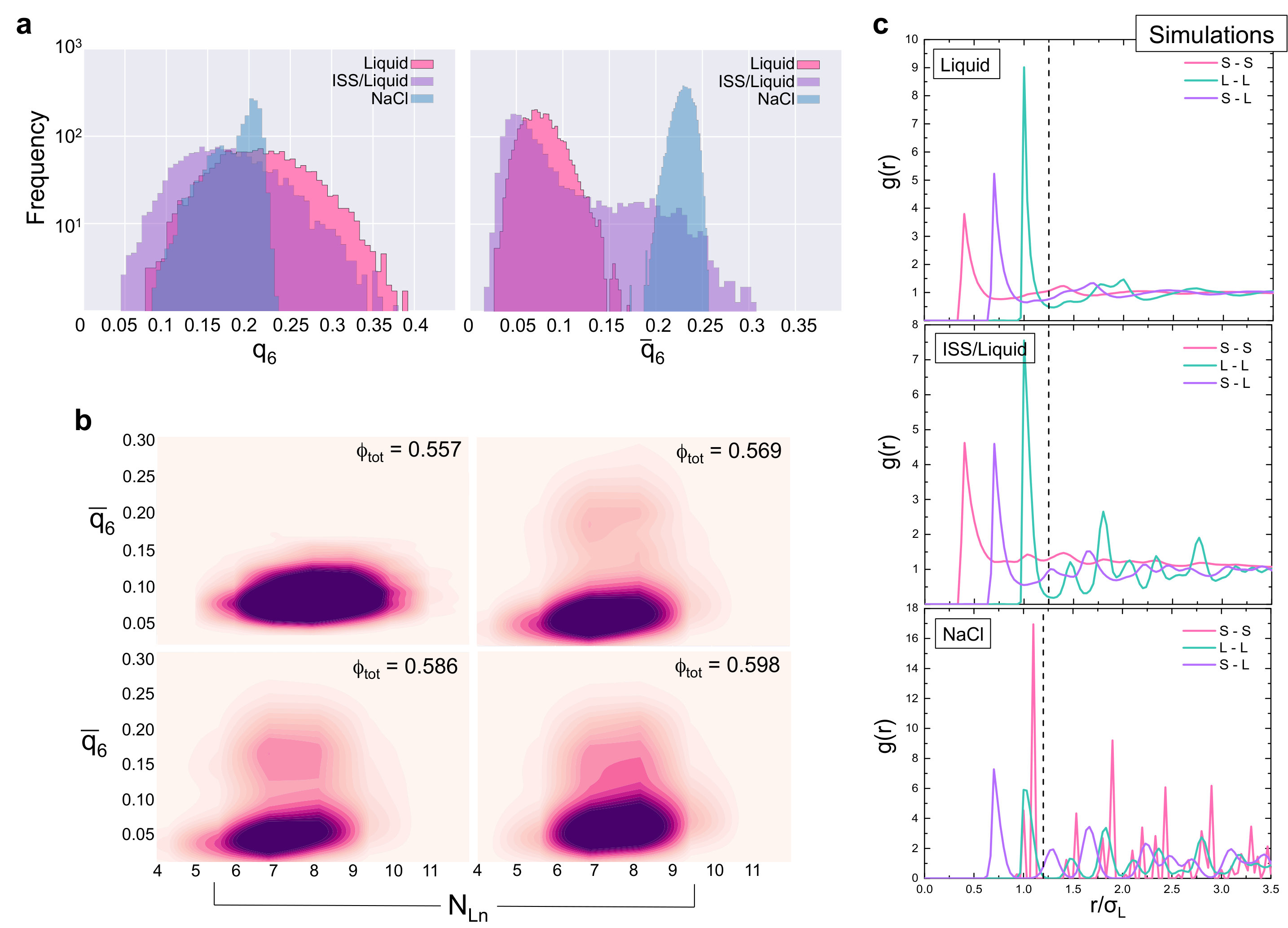

Using simulation data, we calculated the BOO $q_{6}$ and $\bar{q}_{6}$ values for the small component, see Fig. 4(a) and (b). In Fig. 4(a), we plot $q_{6}$ (left) and $\bar{q}_{6}$ (right) in the liquid state, in a state that is partially crystallised with remaining liquid, and in a perfect NaCl-type crystal. It is clear that $q_{6}$ does not differentiate between the different configurations, but $\bar{q}_{6}$ does distinguish between the liquid and the ISS. So we use the Lechner-Dellago averaged $\bar{q}_{6}$ in order to identify the fluid or crystalline nature of the particles. Values of $\bar{q}_{6}$ above 0.15 are very rare in the liquid, while in a well-ordered NaCl structure $\bar{q}_{6}$ is almost always above 0.15.

In Fig. 4(b), we show heat maps of the probability distribution $p(N_{\mathrm{Ln}},\bar{q}_{6})$ for 4 states, one liquid (top-left) and three ISS/liquid mixtures. The samples with liquid and ISS show two populations. The dominant one, with $\bar{q}_{6}<0.15$ is the liquid, but there is a smaller population with $\bar{q}_{6}>0.15$, which is consistent with values of $\bar{q}_{6}$ in the crystal. The association between this second population and the crystal is further supported by the fact that small particles here have around 6 to 8 large-particle neighbours. In the NaCl structure, each small particle has 6 large-particle nearest neighours, and our cutoff distance for neighbours (dotted line in Fig. 4(c)) is above the small-large nearest neighbour distance, so we would find at least 6 neighbours — precisely what we observed.

III.1.3 Composition of the crystalline domains

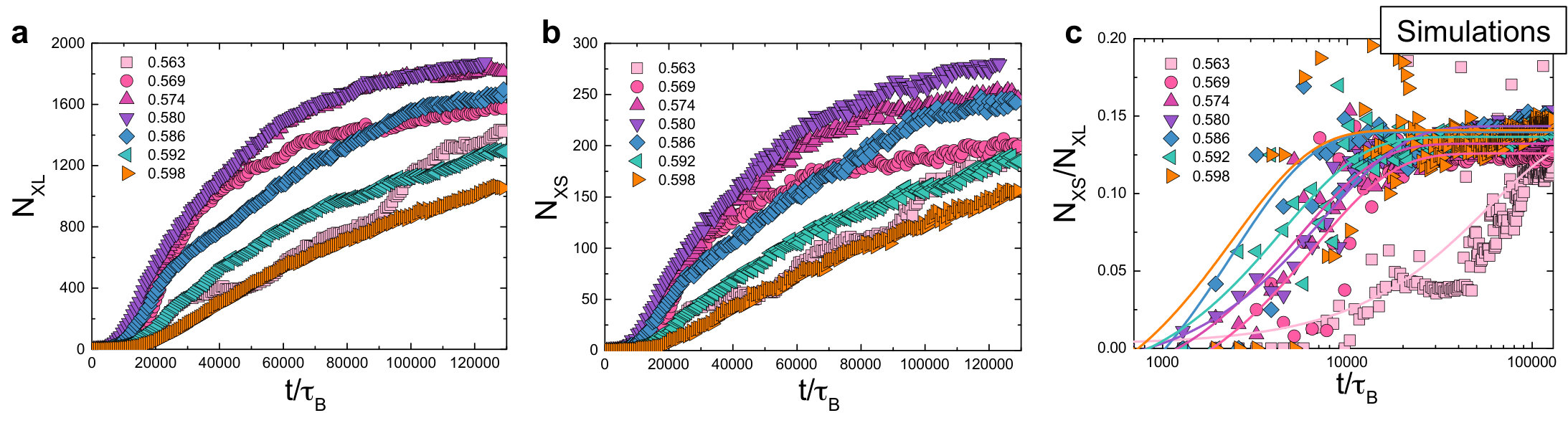

We followed the crystal growth by estimating NXL and the small particles located at the octahedral holes (NXS), according to their $\bar{q}_{6}$ values. These results are shown in Fig. 5 (a) and (b), respectively. Here, we observe that both quantities reach a plateau, indicating no further crystal growth and suggesting no hopping of the small particles within the interstitial sites of the fcc and hcp lattices, as discussed previouslyFilion2011 . Next, we calculated the amount of NXS relative to NXL forming the ordered structure. We found two notable phenomena. Firstly, the octahedral holes are filled rapidly as the nucleation takes place (Fig. 5 (c)) with a maximum filling of the octahedral sites of around 14%, above $\phi_{\mathrm{{tot}}}$=0.586 (see Fig. 8 (b)). Secondly, we observed no further changes in the proportion of crystalline particles, suggesting a trapping effect. Since the number of small crystalline particles also reached a constant value, we infer that they become trapped (and immobilised) in the the crystalline structure once it is formed. These phenomena will be investigated in detail in the following sections.

III.1.4 Crystalline domains in experiment and simulation

Notably, see Figs. 1 and 6, the range of packing fractions that crystallised on the simulation timescale was smaller than that of the experiments. But in both experiments and simulations, there are ranges of volume fraction where maximal crystallisation occurs. In experiments we observe regions in the system where there is largely complete crystallisation of the large particles: at $\phi_{\mathrm{{tot}}}=0.55$, $0.58$ and $0.60$ —see Fig. 6 (a), the fraction of large particles identified as crystalline is around 65% or above.

In our simulations, the total amount of crystalline structure is much smaller, reaching the highest amount around 18% at $\phi_{\mathrm{{tot}}}$=0.580, after which it started to decrease, as shown in Fig. 6 (b). The need for a higher $\phi_{\mathrm{{tot}}}$ to observe crystallisation on the simulation timescale ($\phi_{\mathrm{{tot}}}$=0.563 in comparison with $\phi$=0.53 for one component systemsschilling2010 ) might be due to a higher free energy barrier to generate nuclei necessary for crystallisation. The drop of the crystalline fraction of our system at $\phi_{\mathrm{{tot}}}=0.598$ is similar to the one where one-component systems exhibit slow dynamics $\phi\simeq 0.58$Royall2015 , and is related to the particles moving more slowly as their concentration increases, requiring a long time to rearrange in ordered structures. A similar trapping phenomenon could be happening here, where the particles do not move fast enough to rearrange and form crystals.

To determine if these crystalline large particles are in one large crystalline domain, or if the system is polycrystalline, we follow Klotsa and Jack Fullerton2016 ; Klotsa2013 . These authors defined a parameter NQ to describe the size of coherent crystallites, i.e., the typical number of particles in a coherently ordered crystal. We applied this analysis to both our experiments and simulations to determine which conditions yielded the crystals with the highest quality. In the case of the experiments, we analysed the final crystals formed by the large particles, whereas for the simulations, we studied the evolution of NQ through the crystallisation of the different samples.

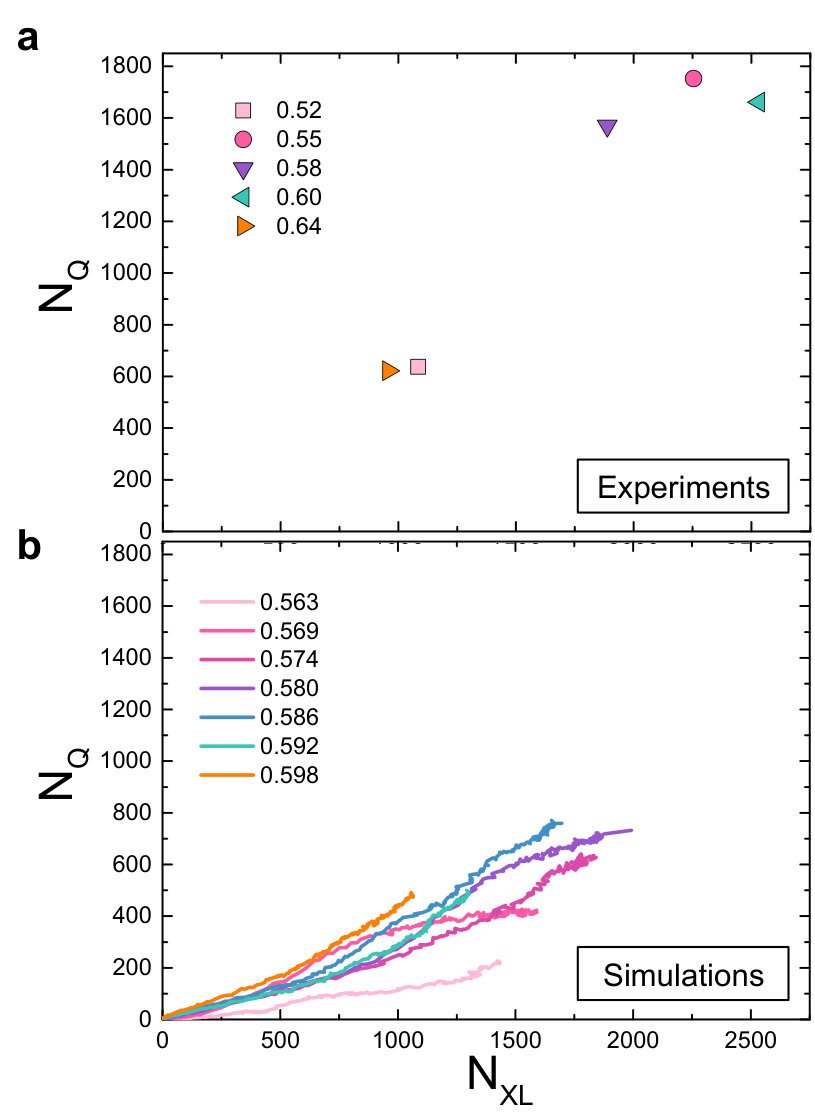

The results are presented in Fig. 6, where we compare this parameter with the number of large crystalline particles for both cases, NXL. It is evident from these results that the size of the crystalline domains obtained from heterogeneous nucleation in the experiments is higher than the homogenous nucleation present in the simulations, as NQ presents significantly larger values in the former for similar NXL. Furthermore, the NQ values for the experiments are close to the number of crystalline particles. Reasons for this include the presence of the flat walls of the capillaries, larger system sizes or the need for longer waiting times. Indeed flat walls can serve as a template able to enhance the nucleation and layering of the particles and thus improve the orientation of the crystalSandomirski2011 ; Dullens2004 . On the other hand, estimations of the crystallisation time for our experiments for homogenous nucleation were found to be two orders of magnitude larger than the corresponding crystallisation time on our simulations, suggesting that longer waiting times are required for experimental homogenous crystallisation. This might be related to the higher polydispersity in the experimental system. Moreover, said time surpasses our limit for experimental timescale observations of a month ($2.6\times 10^{6}$ $\tau_{B}$).

Finally, the system size in the experiments is of order $10^{5}$ times bigger than the simulations. Hence it seems likely that our experiments can crystallise over a wider range and form crystals with a greater quality due to a combination of the reasons mentioned above.

In the case of simulations, the numerical values of NQ are significantly smaller than NXL, suggesting the presence of several clusters in all the samples. Also, a non-monotonic behaviour of this value is noted, since the highest values of the former do not correspond to the largest ones for the latter. This is evident for $\phi_{\mathrm{{tot}}}$=0.598, whose maximum NXL surpasses the corespondent of $\phi_{\mathrm{{tot}}}$=0.563 and 0.569, with higher amounts of crystalline particles (Fig. 6 (b) orange, light pink, and pink lines, respectively). Interestingly, the dependence between these two parameters is not linear, with NQ increasing faster than the crystal growth. A possible reason for this could be fast coalescence between the forming crystallites. Indeed, $\phi_{\mathrm{{tot}}}$=0.574 (Fig. 6 (b) dark pink line) shows a faster increase of NQ around NXL$\sim 1000$, which could be a consequence of two clusters merging to form a larger one.

III.2 The dynamics of both large and small particles

are arrested in the crystals

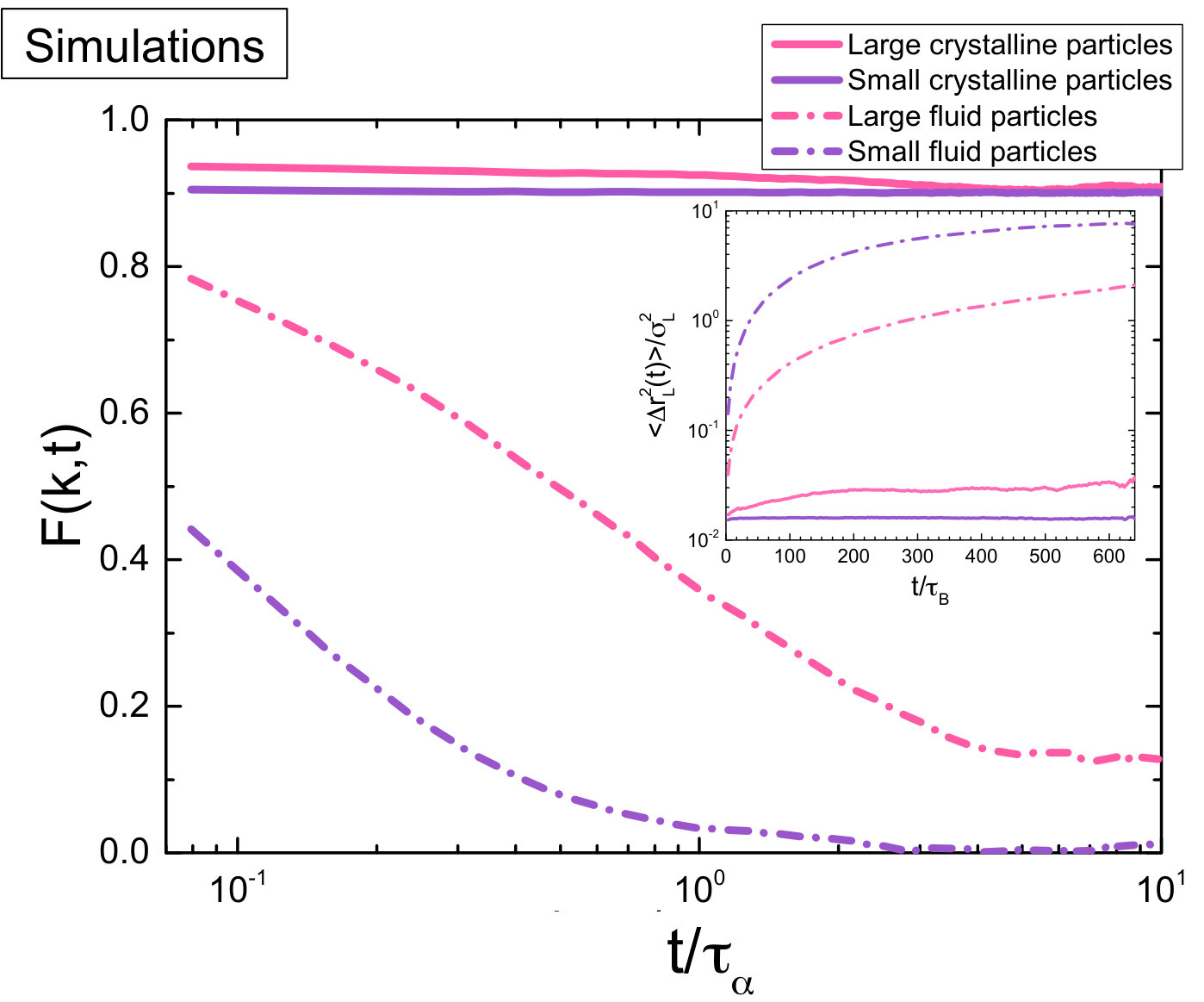

In order to show that our small particles were indeed localised, we computed both the mean square displacement (MSD, \big{\langle}\Delta r^{2}_{\mathrm{L}}(t)\big{\rangle}=\big{\langle}(r_{\mathrm{L}}(t)-r_{\mathrm{L}}(0))^{2}\big{\rangle}) and the intermediate scattering function (ISF), as described previouslyDunleavy2015 for the simulations with $\phi_{\mathrm{{tot}}}$=0.586 for geometrically selected large and small particles in both liquid and crystalline regions. This was done at the final points of the simulation, where the ratio NXS/NXL remained constant. These results are shown in Fig. 7. We observe that both the large and small particles in the liquid region present movement (Fig. 7, dotted pink and purple lines, respectively), i.e. their MSD (insert) and ISF present a behaviour typical for a confined random walk and fluids, respectively. In contrast, both species located in crystalline regions do not show any movement, identified as a flat line close to zero in the MSD and as a non-decaying line on the ISF (Fig. 7, continuous lines). We can conclude therefore that indeed, once the crystals are formed, the small particles are immobile within the crystal formed by the large particles; unable to hop and fill all the available octahedral holes, and thus our ISS remain as long-lived out-of-equilibrium structures.

III.3 Comparison of our results at a size ratio $\gamma$=0.39

to those of Filion et al. at size ratios of 0.3 and 0.4

We found that the small particles occupy the octahedral sites of the crystalline lattices in an incomplete fashion, forming a dilute ISS which in our computer simulations consistently has a composition close to seven large particles for every one small particle, much less than the one-to-one ratio in the original fluid phase.

An ISS has also been identified before in binary mixtures with a smaller size ratio of 0.3 compared to 0.39 here Filion2011 . Filion and coauthors found that in order for the small particles to hop from one octahedral hole to the other, they needed to go through the adjacent tetrahedral hole ($\sim$0.225$\sigma_{\mathrm{{L}}}$ across). Although slow, they found that their smaller particles could hop, whereas (see Fig. 7) our larger small particles cannot.

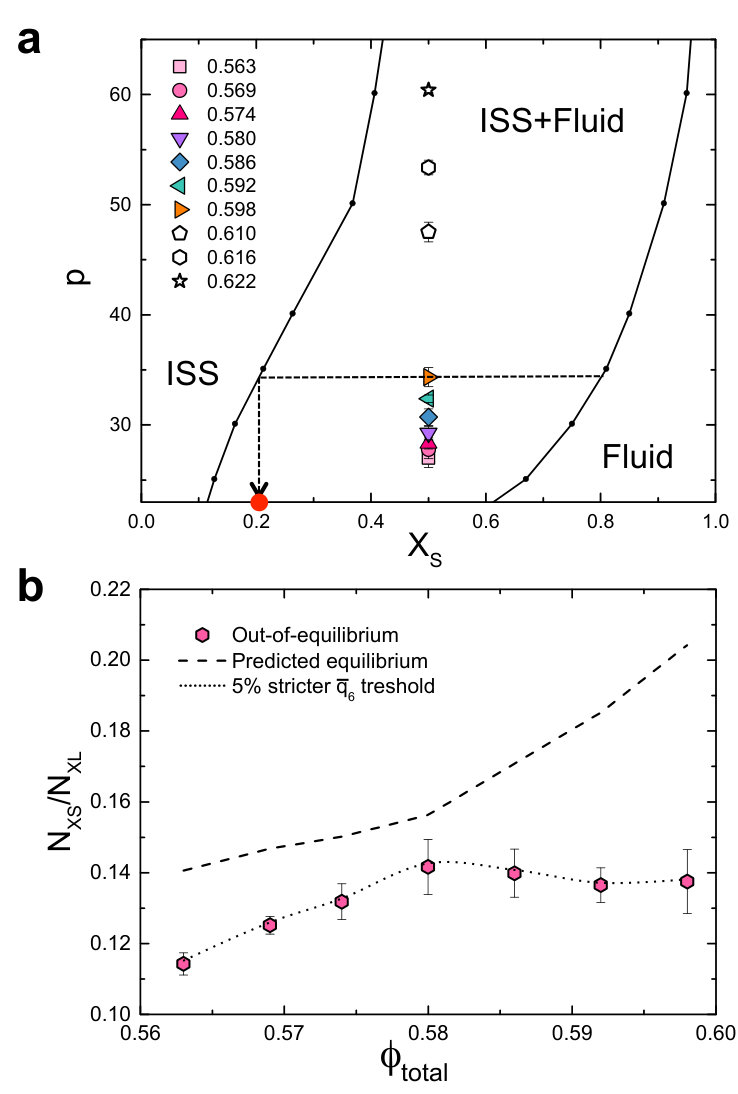

Filion also studied the size ratio 0.4, closer to the one used here. For that size ratio, the ISS equilibrium region in the phase diagram is larger than for 0.3. In order to confirm that our ISS are out-of-equilibrium, we compared our simulation values of XS, with the equilibrium values determined by Filion Filion2011b . As shown in Fig. 8(a), we determined the final pressure in our simulations, and then using tie lines (which are horizontal here as the two phases have the same pressure) read off the compositions of both phases. The comparison of these results and the ones corresponding to our ISS are shown in Fig. 8(b), where the dashed curve is the equilibrium XS, and the dotted curve and points are our results. In all cases, the amount of small particles within the crystalline structure of large ones is smaller than the one predicted for an ISS in equilibrium. This difference is large for systems at higher volume fractions.

Thus we conclude that our ISS are out of equilibrium, and presumably are out of equilibrium when they nucleate and grow. As the large particles crystallise into an ordered structure, some of the small particles become trapped in the octahedral holes, forming the ISS. But under the conditions we study, the integration of the small particles into the growing crystal appears to be inefficient, resulting in the low number of small particles in the crystal. This then causes the composition of the remaining fluid to become increasingly rich in the small particles, as the crystal grows.

As we can see in Fig. 8(a), increasing XS will ultimately move the fluid out of the coexistence region and into the one-phase fluid region of the phase diagram. So, we believe this change in composition contributes to the growth of the crystal slowing and stopping.

IV Conclusions

Interstitial solid solutions (ISS) were identified in both particle resolved experiments and simulations of a binary mixture with a size ratio of 0.39. Through particle resolved studies carried out on the experimental results, we were able to identify that the crystalline structure was made up by the large particles forming a mixture of fcc and hcp lattices, with low crystallinity, and where the small particles are localised randomly within the octahedral holes. Simulations showed the same crystalline structure and allowed us to follow the crystallisation process and quantify the amount of filling by the small particles and, significantly, the dynamics of the small particles in the ISS. With this information, we were able to propose a crystallisation mechanism where the large particles form ordered structures independent containing small particles, which become rapidly trapped within the growing crystal to a maximum of $\sim 14\%$, a smaller filling from the predicted in equilibrium conditions, particularly for packing fractions above 0.586. This exclusion of the small particles depletes the fluid around the growing crystal and we believe that this compositional change prevents further crystalline growth. Finally, we were able to show that the small particles are not able to penetrate the formed crystalline structure nor to move within the available octahedral holes, thus producing long-lived out-of-equilibrium ISS.

V Acknowledgements

The authors are grateful to John Russo for simulation discussions. IRdA would like to thank Conacyt for financial support. CPR acknowledges the Royal Society for funding and Kyoto University SPIRITS fund. FT and CPR acknowledge the European Research Council (ERC consolidator grant NANOPRS, project number 617266). This work was carried out using the computational facilities of the Advanced Computing Research Centre, University of Bristol.
