Starspots on WASP-107 and pulsations of WASP-118

TL;DR

This study analyzes K2 photometry of WASP-107 and WASP-118, detecting starspot occultations, stellar pulsations, and refining system parameters, while also setting limits on planetary albedos and searching for additional planets.

Contribution

It reports the first detection of starspot occultations on WASP-107 and identifies gamma Doradus pulsations in WASP-118, providing new insights into stellar activity and system characterization.

Findings

Starspot occultations detected on WASP-107.

Gamma Doradus pulsations observed in WASP-118.

No transit-timing variations or additional planets found.

Abstract

By analysing the K2 short-cadence photometry we detect starspot occultation events in the lightcurve of WASP-107, the host star of a warm-Saturn exoplanet. WASP-107 also shows a rotational modulation with a period of 17.5 +/- 1.4 d. Given that the rotational period is nearly three times the planet's orbital period, one would expect in an aligned system to see starspot occultation events to recur every three transits. The absence of such occultation recurrences suggests a misaligned orbit unless the starspots' lifetimes are shorter than the star's rotational period. We also find stellar variability resembling gamma Doradus pulsations in the lightcurve of WASP-118, which hosts an inflated hot Jupiter. The variability is multi-periodic with a variable semi-amplitude of about 200 ppm. In addition to these findings we use the K2 data to refine the parameters of both systems, and report non-detections of transit-timing variations, secondary eclipses and any additional transiting planets. We used the upper limits on the secondary-eclipse depths to estimate upper limits on the planetary geometric albedos of 0.7 for WASP-107b and 0.2 for WASP-118b.

Figures

Tables

Table 1. Table 1: MCMC system parameters for WASP-107 and WASP-118.

		WASP-107	WASP-118
Parameter	Symbol	Value	Value	Unit
Transit epoch	t0	$2457584.329746\pm 0.000011$	$2457423.044825\pm 0.000020$	BJD
Orbital period	P	$5.72149242\pm 0.00000046$	$4.0460407\pm 0.0000026$	d
Area ratio	${\left(R_p/R_{\star }\right)}^2$	$0.020910\pm 0.000058$	$0.006679\pm 0.000010$	…
Transit width	t14	$0.11411\pm 0.000081$	$0.20464\pm 0.00010$	d
Ingress and egress duration	t12, t34	$0.01467\pm 0.00012$	$0.01610\pm 0.00012$	d
Impact parameter	b	$0.139\pm 0.024$	$0.206\pm 0.015$	…
Orbital inclination	i	$89.560\pm 0.078$	$88.24\pm 0.14$	∘
Orbital eccentricity	e	0 (adopted; 0.025 at $2\sigma$)	0 (adopted; 0.028 at $2\sigma$)	…
Orbital separation	a	$0.0553\pm 0.0013$	$0.05450\pm 0.00049$	au
Stellar mass	M⋆	$0.691\pm 0.050$	$1.319\pm 0.035$	M⊙
Stellar radius	R⋆	$0.657\pm 0.016$	$1.754\pm 0.016$	R⊙
Stellar density	${\rho }_{\star }$	$2.441\pm 0.023$	$0.2445\pm 0.0024$	${\rho }_{\odot }$
Planet mass	Mp	$0.119\pm 0.014$	$0.52\pm 0.18$	$M_{\mathrm{Jup}}$
Planet radius	Rp	$0.924\pm 0.022$	$1.394\pm 0.013$	$R_{\mathrm{Jup}}$
Planet density	${\rho }_p$	$0.152\pm 0.017$	$0.193\pm 0.066$	${\rho }_{\mathrm{Jup}}$
Planet equilibrium temperaturea	Tp	$736\pm 17$	$1753\pm 34$	K
Limb-darkening coefficients	$a_1$, $a_2$, $a_3$, $a_4$	0.710, –0.773, 1.520, –0.641	0.522, 0.313, –0.071, –0.045	…

Table 2. Table 2: Phase and longitude positions of every detected starspot occultation event.

Transit	Phase		Stellar
number			longitudea [∘]
1	$-0.0033$ $\pm$	$0.0002$	$-22.4$ $\pm$	$1.6$
1	$0.0062$ $\pm$	$0.0002$	$45.0$ $\pm$	$2.2$
2	$-0.0064$ $\pm$	$0.0002$	$-47.6$ $\pm$	$2.4$
6	$-0.0018$ $\pm$	$0.0002$	$-12.1$ $\pm$	$1.4$
7	$0.0051$ $\pm$	$0.0002$	$36.2$ $\pm$	$1.9$
8	$-0.0028$ $\pm$	$0.0002$	$-18.5$ $\pm$	$1.5$
9	$-0.0059$ $\pm$	$0.0002$	$-42.9$ $\pm$	$2.1$
9	$0.0056$ $\pm$	$0.0002$	$40.3$ $\pm$	$2.0$
13	$0.0004$ $\pm$	$0.0002$	$2.4$ $\pm$	$1.3$

Full text

††pagerange: Starspots on WASP-107 and pulsations of WASP-118–References††pubyear: 2017

1 INTRODUCTION

The Kepler (Borucki et al., 2010) and K2 (Howell et al., 2014) missions have provided the community with high-precision photometric observations of 2449 confirmed transiting exoplanets to date among a total of 2716 confirmed transiting exoplanets, according to NASA Exoplanet Archive111http://exoplanetarchive.ipac.caltech.edu/. In addition, K2 is also observing exoplanets previously found by the ground-based transit surveys such as WASP (Pollacco et al., 2006). WASP-107 and WASP-118 are among the brightest systems observed by K2, which allows for detailed characterisation owing to high-precision lightcurves combined with existing spectroscopic observations performed by Anderson et al. (2017) and Hay et al. (2016).

WASP-107b is a warm Saturn in a 5.7-d orbit around a V=11.6, K6 main-sequence star (Anderson et al., 2017). The planet lies in the transition region between ice giants and gas giants, with a mass of 2.2 $M_{\rm Nep}$ or 0.12 $M_{\rm Jup}$, but an inflated radius of 0.94 $R_{\rm Jup}$. The WASP discovery photometry revealed a possible stellar rotational modulation with a period of $\sim$ 17 d and an amplitude of 0.4 per cent. This led Anderson et al. (2017) to propose that the host star is magnetically active.

WASP-118b is an inflated hot Jupiter with a mass of 0.51 $M_{\rm Jup}$ and a radius of 1.4 $R_{\rm Jup}$. It orbits a V=11.0 F6IV/V star every 4.0 d (Hay et al., 2016).

If a transiting planet crosses a starspot it will produce a temporary brightening in the transit (Silva, 2003). Starspot occultation events can provide an accurate measurement of the stellar rotational period and the obliquity, i.e. the angle between the stellar rotational axis and the planet’s orbital axis. Obliquities can tell us about a planet’s dynamical history and about planet migration mechanisms. If the obliquity is small, the same starspot can be occulted recurrently at different stellar longitudes, such as in the case of an aligned Qatar-2 system (Močnik et al., 2016a; Dai et al., 2017). Alternatively, if a system is misaligned, the transit chord will cross stellar active latitudes only at certain preferential phases, such as in the case of HAT-P-11b (Sanchis-Ojeda & Winn, 2011).

The presence of a massive close-in planet may induce tides that can lead to multi-periodic non-radial pulsations, and in special cases radial pulsations of the host star (Schuh, 2010; Herrero et al., 2011). However, only a handful set of pulsating exoplanet hosts have been found so far. V391b, for example, has been found orbiting an sdB star through pulsation-timing variations (Silvotti et al., 2007). The first main-sequence star where asteroseismology was applied to exoplanetary research is $\mu$ Arae (Bazot et al., 2005). High precision and long-term Kepler observations have lead to the discovery of several transiting exoplanet host stars which exhibited solar-like oscillations (Davies et al., 2016), whose typical semi-amplitudes are of the order of a few ppm for main-sequence stars (Baudin et al., 2011).

WASP-33 was the first transiting-exoplanet host star exhibiting $\delta$ Scuti pulsations, with a semi-amplitude of about 900 ppm (Collier Cameron et al., 2010; Herrero et al., 2011). One of the harmonics has a frequency 26 times the orbital frequency, suggesting that WASP-33’s pulsations might be induced by the planet. A more confident claim for the planet-induced stellar pulsations was made recently for HAT-P-2 system, a possible low-amplitude $\delta$ Scuti pulsator with a 87 minutes pulsation period and an amplitude of 40 ppm (de Wit et al., 2017). Its pulsation modes correspond to exact harmonics of the planet’s orbital frequency and are thought to be induced by the transient tidal interactions with its massive (8 $M_{\rm Jup}$), short-period (5.6 d) and highly eccentric (e = 0.5) planet (de Wit et al., 2017). Systems such as WASP-33 and HAT-P-2 provide a laboratory to study star–planet interactions. The observations provided by the K2 mission have led to the discovery of another pulsating transiting exoplanet host star, namely HAT-P-56 which is likely a $\gamma$ Doradus pulsator (Huang et al., 2015). While the exact asteroseismic analysis approach can vary depending on the class of variability, one can investigate any potential star–planet interactions and derive precise stellar mass, radius and the depth-dependant chemical composition, given the appropriate modelling capabilities (Schuh, 2010).

In this paper, we present a detection of starspots in the K2 lightcurve of WASP-107, and pulsations in the lightcurve of WASP-118. We also refine system parameters for both systems, search for transit-timing variations, phase-curve modulations and any additional transiting planets, and provide a measurement of the rotational period for WASP-107.

Simultaneously with our paper, Dai & Winn (2017) have announced an analysis of the same K2 short-cadence observations of WASP-107. Their results are in a good agreement with ours.

2 THE K2 OBSERVATIONS

WASP-107 was observed by K2 in the 1-min short-cadence observing mode during Campaign 10 between 2016 July 6 and 2016 September 20. The dominant systematics present in the K2 lightcurves are the sawtooth-shaped artefacts caused by the drift of the spacecraft. We attempted to correct for the drift artefacts using the same self-flat-fielding (SFF) procedure as described in Močnik et al. (2016b). However, since the drifts of the spacecraft were variable during this observing campaign, we obtained better results using the K2 Systematic Correction pipeline (K2SC; Aigrain et al. 2016), which uses break-points to isolate different drift behaviours to overcome the issue of inconsistent drifts. The K2SC procedure was designed for the K2 long-cadence observing mode and had to be modified slightly to accept the short-cadence data. The main modification was to split the input short-cadence lightcurve into smaller overlapping sections, which were processed individually by K2SC and then merged back together using the overlapping sections. However, since the WASP-107 lightcurve exhibits pronounced modulations, the K2SC failed to correct the drift artefacts properly at three different 2-d-long sections centred at BJD 2457624.7, 2457631.8 and 2457638.3. We replaced these sections with the lightcurve we obtained using the above-mentioned SFF procedure. Using this approach we achieved a median 1-min photometric precision of 260 ppm, compared to 870 ppm before the artefact correction, and 300 ppm using only the SFF procedure. The final drift-corrected lightcurve of WASP-107 is shown in Fig. 1. We used this lightcurve to study the rotational modulation of the host star in Section 6. For all other analyses we used the normalized version of the lightcurve, which we produced with PyKE tool KEPFLATTEN (Still & Barclay, 2012), which divides the measured flux with a low-order polynomial fit with window and step sizes of 3 and 0.3 d, respectively, which effectively removed any low-frequency modulations.

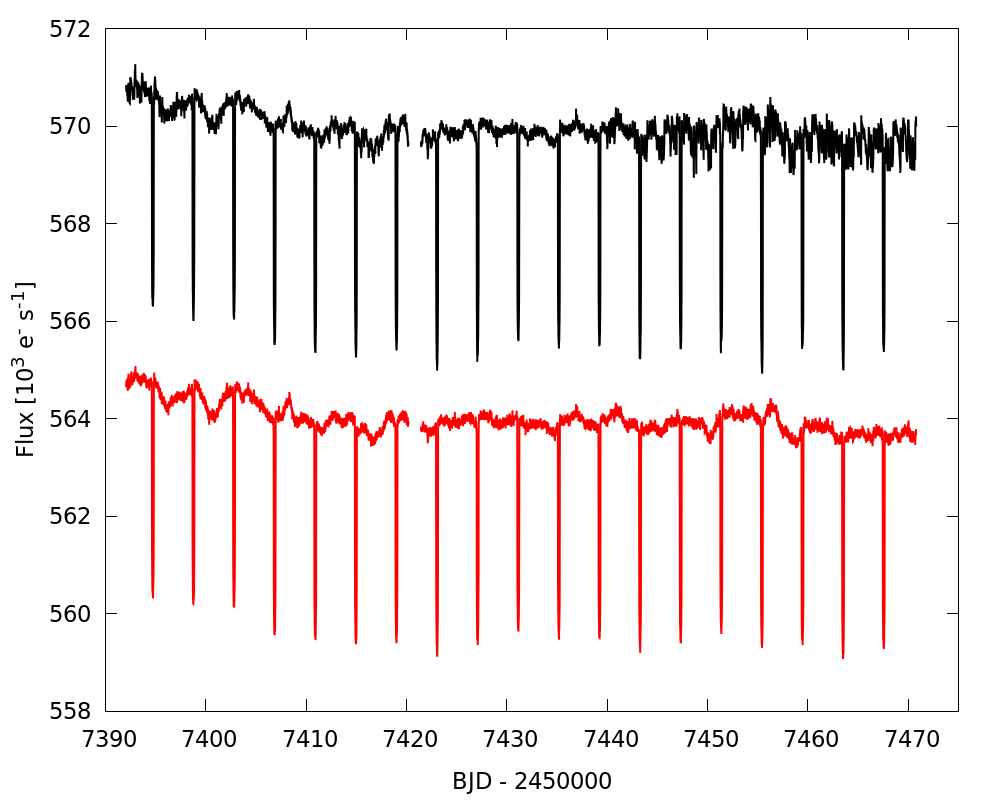

WASP-118 was observed during the K2 Campaign 8 between 2016 January 4 and 2016 March 23, also in the short-cadence mode. Because the spacecraft’s drifts were more consistent during Campaign 8, we produced a slightly better lightcurve with our SFF procedure than with K2SC. The drift-corrected lightcurve of WASP-118 is shown in red in Fig. 2. In addition to the transits, the lightcurve exhibits variability with a $\sim$ 5-d time-scale. The variability is inconsistent and incoherent, and cannot be interpreted as a rotational modulation with confidence. We produced the normalized version of the lightcurve in the same way as for WASP-107. The normalized lightcurve revealed multi-periodic higher-frequency variability with a semi-amplitude of $\sim$ 200 ppm (see Fig. 3). We suggest that this variability is produced by the weakly pulsating host star (see Section 7).

Because the presence of pulsations in the lightcurve of WASP-118 could affect the analysis, we used the lightcurve with embedded pulsations only for the pulsations analysis in Section 7. For every other aspect of analysis we produced another lightcurve in which we removed these higher-frequency, low-amplitude pulsations. This was done by modifying our SFF procedure. Instead of the usual 5-d time-steps, we split the lightcurve into sections of individual spacecraft drifts before applying the SFF correction. Since the typical 6-h time-scale at which the drifts occur is considerably shorter than the observed pulsation time-scales, our modified SFF procedure effectively removed the pulsations from the lightcurve, along with any other variabilities at longer time-scales. This produced the lightcurve with a final median 1-min photometric precision of 210 ppm. We used this version of lightcurve for every aspect of the analysis, except for the analysis of pulsations in Section 7.

3 SYSTEM PARAMETERS

To determine the system parameters we simultaneously analysed the K2 transit photometry and radial-velocity measurements for both planets using a Markov Chain Monte Carlo (MCMC) code (Collier Cameron et al., 2007; Pollacco et al., 2008; Anderson et al., 2015). We used all the radial-velocity datasets that have been reported in the corresponding discovery papers (Anderson et al. 2017 and Hay et al. 2016), except the HARPS-N in-transit dataset for WASP-118. This dataset was excluded in order to prevent biasing the system parameters owing to a large scatter and underestimated error bars, as pointed out by the authors of the discovery paper. It may be that some of this scatter results from the pulsations that we now report. Limb darkening was accounted for using a four-parameter law, with coefficients calculated for the Kepler bandpass and interpolated from the tabulations of Sing (2010).

For the MCMC analysis of WASP-107 we used the normalized lightcurve, from which we excluded any starspot occultation events (see Section 5), because failing to do so may lead to inaccurate system parameter determination, as discussed by Oshagh et al. (2013). Similarly, the presence of pulsations in the lightcurve of WASP-118 may have affected the precise transit analysis and so we instead used the lightcurve with pulsations removed.

We first imposed a circular orbit in the main MCMC analysis for both planets. We then estimated the upper limits on eccentricities in a separate MCMC run by allowing the eccentricities to be fitted as a free parameter. To improve the precision of the orbital ephemerides we also ran another MCMC analysis for both systems that included all the available ground-based photometric datasets used in the discovery papers which expanded the observational time-span and reduced the uncertainty on the orbital period by factors of 6.5 for WASP-107 and 2.3 for WASP-118. For these additional photometric datasets, we used limb-darkening coefficients from Claret (2000, 2004), as appropriate for different bandpasses.

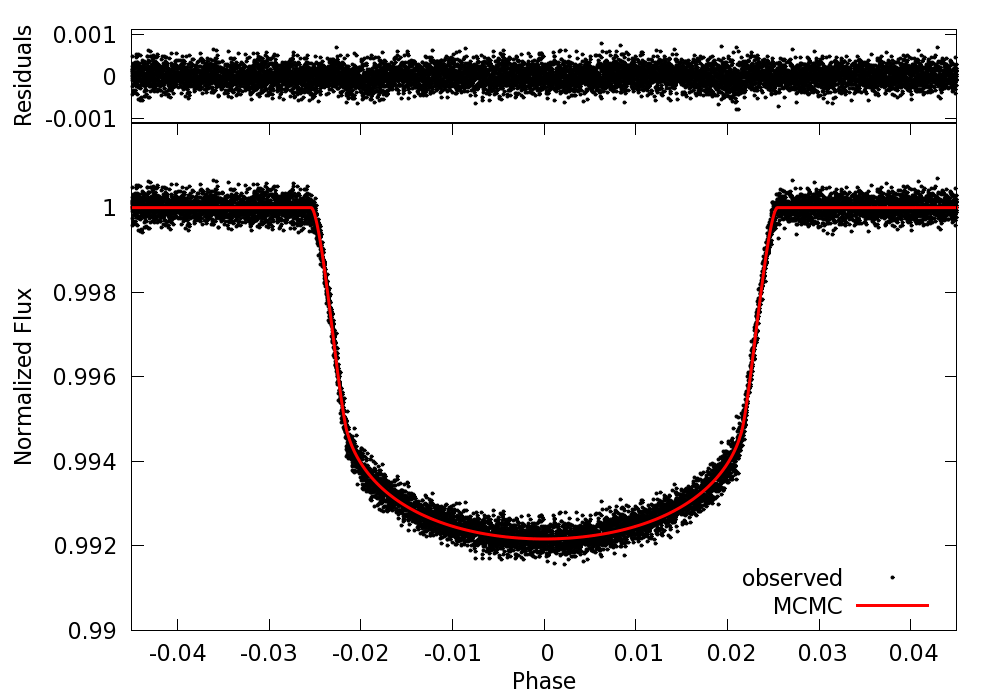

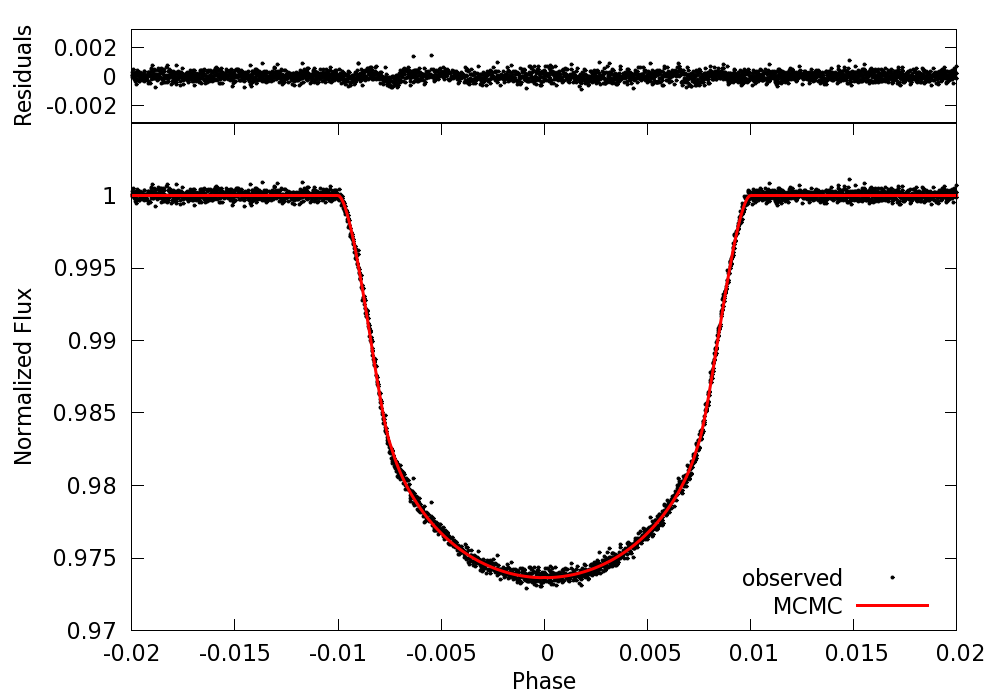

The resulting system parameters are given in Table 1 and the corresponding transit models are shown in Figs. 4 and 5.

4 NO TTV OR TDV

Inter-planet gravitational interactions can cause transit-timing variations (TTVs) and transit-duration variations (TDVs) (Agol et al., 2005). The detection of these variations can therefore reveal additional planets in the system. Typical reported TTV amplitudes range from a few seconds and up to several hours with periods of the order of a few days (Mazeh et al., 2013). TDVs are expected to be in phase with the TTVs but at a significantly lower amplitude (Nesvorný et al., 2013).

To search for TTVs and TDVs we ran another MCMC analysis on individual transits for both systems. We again removed the starspot occultation events from the WASP-107 lightcurve and used the pulsation-free lightcurve of WASP-118 since the lightcurve variability could affect the timing accuracy (Oshagh et al., 2013).

Against the hypothesis of equal transit timing spacings and constant transit durations the measured TTVs and TDVs for WASP-107 correspond to $\chi^{2}$ values of 11.1 and 6.6, respectively, for 10 degrees of freedom. Similarly, for WASP-118 the TTV and TDV $\chi^{2}$ values are 26.8 and 15.7, respectively, for 19 degrees of freedom. Thus there are no significant TTVs or TDVs. The upper limits for WASP-107 are 20 and 60 s for TTVs and TDVs respectively, for periods shorter than 80 d. For WASP-118 the upper limits are 40 and 100 s. Given the absence of any statistically significant TTV or TDV variations, we can conclude that any additional close-in, massive planets are unlikely in either of the two systems.

5 STARSPOTS ON WASP-107

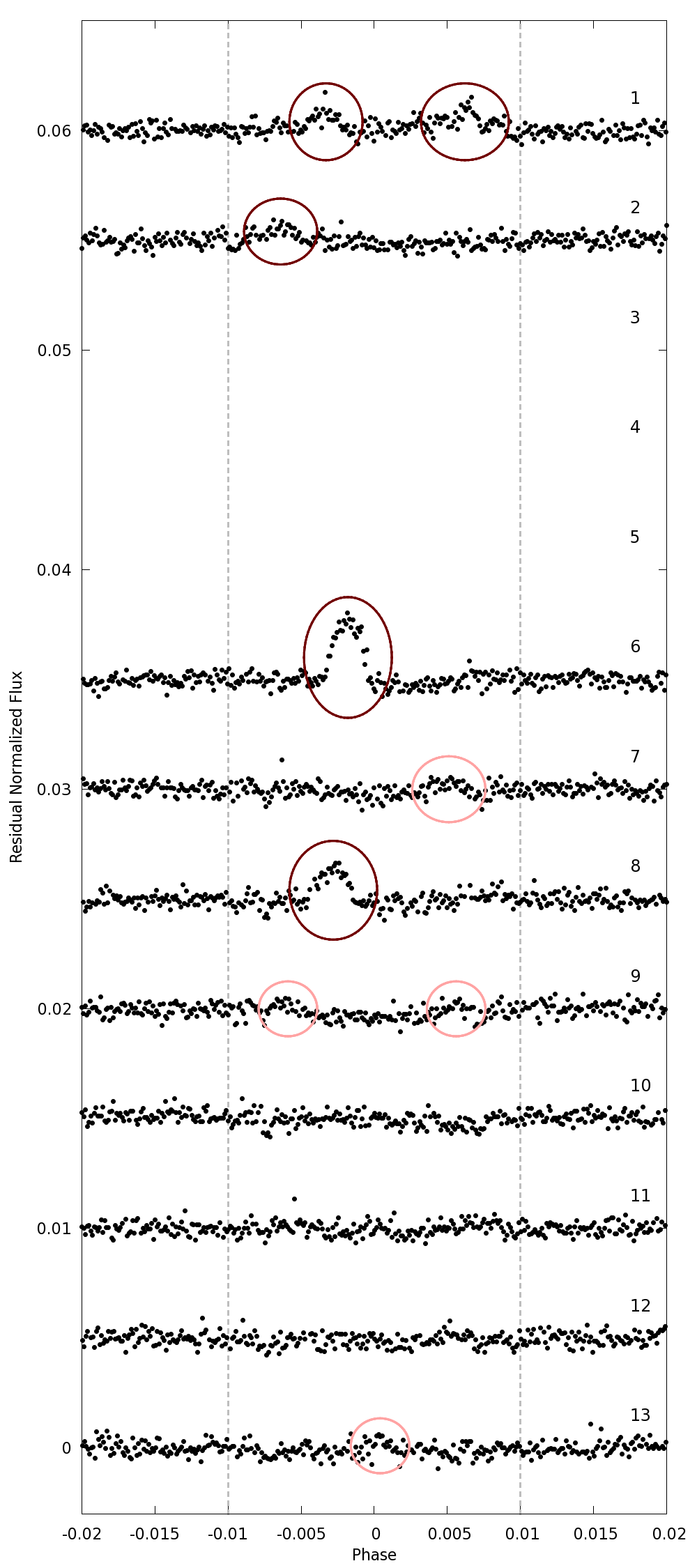

In Fig. 6 we show the lightcurve of WASP-107 centred at individual transits after subtracting the best-fitting MCMC transit model from Section 3. The residual lightcurve reveals several starspot occultation events. Each of us has individually examined the residual lightcurve by eye and marked the events as definite or possible occultations. Here we report occultation events that were marked by at least two colleagues. This gives 5 definite starspot occultation events (marked with dark-red ellipses in Fig. 6) and 4 possible events (marked with light-red ellipses) within the 10 observed transits. Table 2 lists all the marked definite and possible occultation events, measured orbital phases at which they occur and the corresponding stellar longitudes which we calculated using the system parameters from Table 1. There may well be additional, smaller-amplitude spots present in some of the transits, in addition to those listed.

Given the stellar rotational period of $17.5\pm 1.4$ d (see Section 6) and the planet’s orbital period of 5.72 d (see Table 1), one would expect in an aligned system to see the same starspot being occulted again three transits later, with a longitude shift of $-7^{\circ+31}_{\,\,\,-26}$. Occultations one, two or four transits later would be hard to detect, since the phase shifts would be in multiples of $120^{\circ}$, and therefore the spots would either be close to the limb, where they are hard to detect owing to limb darkening, or not on the visible face at all.

There is only one pair of starspot occultations that might be a recurrence. If the occultation event in transit 6 and the first occultation in transit 9 (see Fig. 6) were caused by the same starspot, they would imply an orbital period of $18.8\pm 0.2$ d. Although this is compatible with the $17.5\pm 1.4$-d rotational period derived from the rotational modulation (see Section 6) there are reasons to doubt that the pair was actually caused by the same starspot. Firstly, a starspot from transit 8 does not produce an occultation pair at a similar phase shift in transit 11. Secondly, the starspot lifetimes for main-sequence stars are of the order of days (Bradshaw & Hartigan 2014 and citations therein), which means that in 17 d, the time it takes for the planet to orbit its host star three times, a starspot could disappear.

Overall, we do not find compelling evidence for recurring starspots, which would suggest that the system might be misaligned. However, because of the 17-d time span between recurrences that could be readily observed, we cannot exclude the possibility that it is an aligned system with relatively short starspot lifetimes.

6 ROTATIONAL MODULATION OF WASP-107

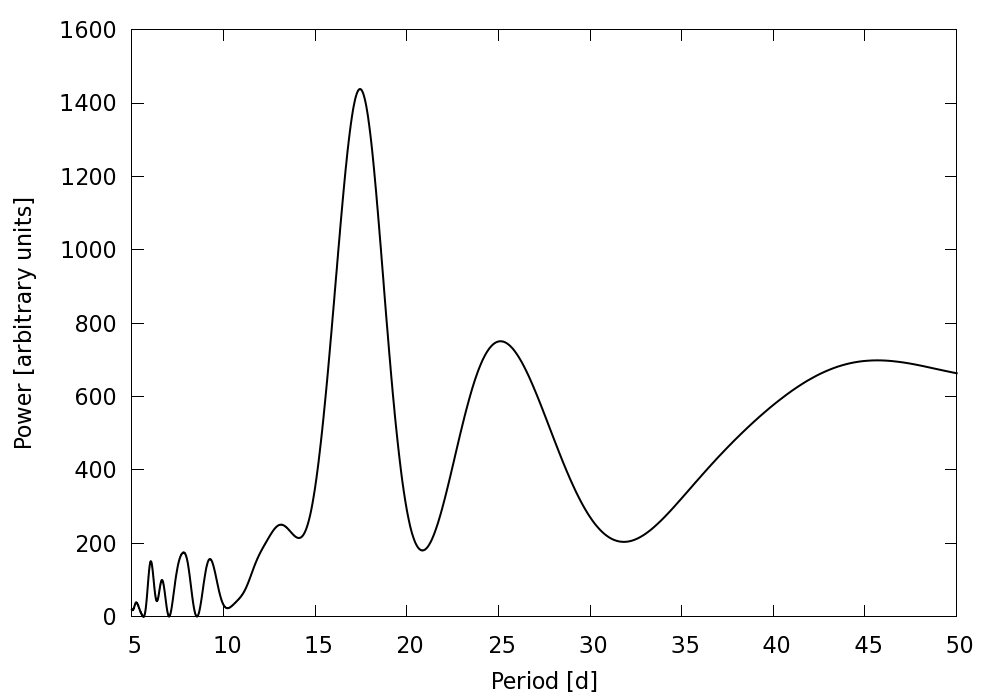

The lightcurve of WASP-107 in Fig. 1 reveals a low-frequency modulation with a semi-amplitude of about 0.2 per cent. To measure the periodicity of this modulation we removed the planetary transits and calculated a Lomb-Scargle periodogram (see Fig. 7). The highest peak in the periodogram and its full width at half maximum correspond to a periodicity of $17.5\pm 1.4$ d.

Knowing that the stellar surface harbours starspots (see Section 5), we believe that this modulation is caused by the stellar rotation. Using the stellar radius from Table 1 and assuming that the rotational axis is orthogonal to the line of sight, the measured rotational modulation period implies a stellar rotational velocity of $1.9\pm 0.2$ km s*-1*. This value agrees with the spectroscopic projected rotational velocity of $2.5\pm 0.8$ km s*-1* (Anderson et al., 2017). Our rotational modulation period and amplitude also agree well with the period of $17\pm 1$ d and amplitude of 0.4 per cent that were derived from the ground-based photometry and reported in the discovery paper by Anderson et al. (2017).

7 STELLAR PULSATIONS OF WASP-118

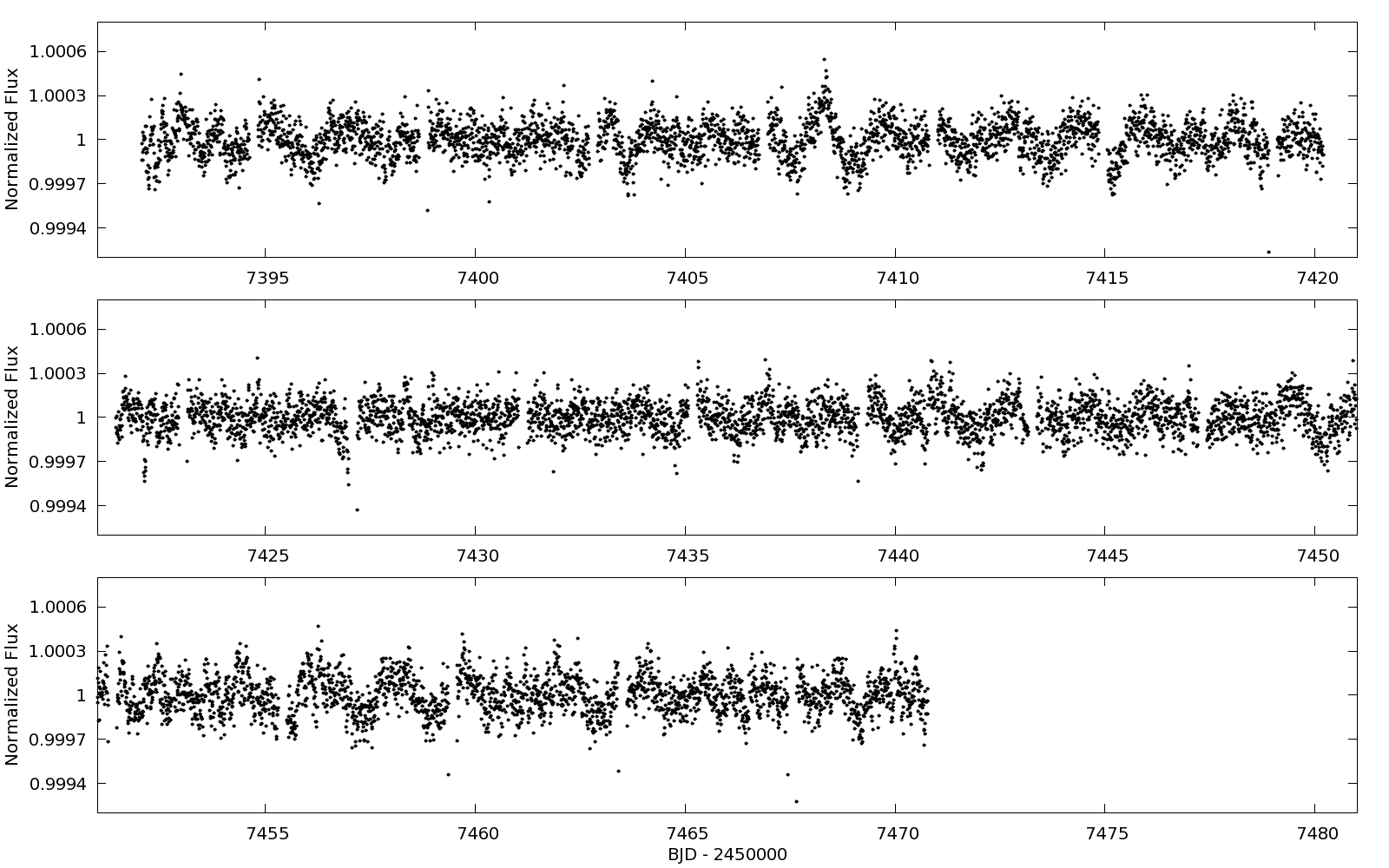

Fig. 3 provides a close-up view of the higher-frequency photometric variability in the lightcurve of WASP-118, after removing incoherent low-frequency modulations. This variability is not correlated with the spacecraft’s drifts, is preserved using four different data-reduction procedures, is not present in the K2 lightcurves of other nearby stars, and is not correlated with the orbital phase.

The variability cannot be realistically considered as a rotational modulation because its short 2-d period would require the star to rotate three times faster than the spectroscopically measured projected rotational velocity. This would only be possible if the system were hugely misaligned, in contradiction with the Rossiter–McLaughlin measurements by Hay et al. (2016) who suggested that the system is aligned. The variability is therefore most likely to be weak pulsations of the host star.

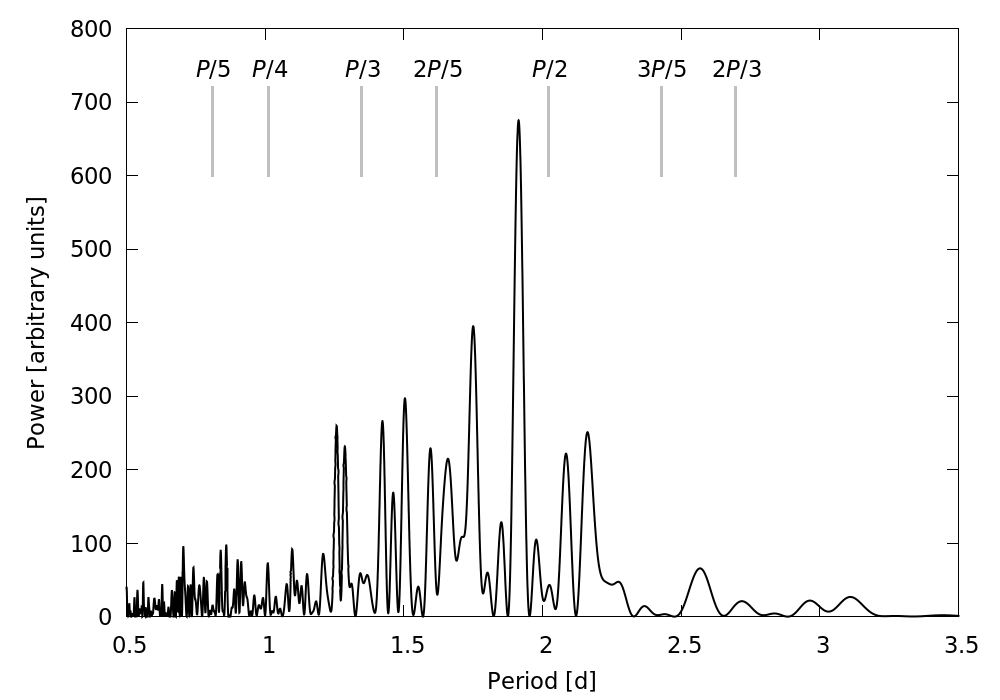

The semi-amplitude of the pulsations is $\sim$ 200 ppm. The Lomb-Scargle periodogram reveals that the variability is multi-periodic (see Fig. 8) with the highest peak at 1.9 d. To check whether the normalization procedure affected the detected pulsations we ran signal injection tests and found that the applied normalization procedure preserves 80 per cent of the variability at the peak pulsation period near 1.9 d.

Kaye et al. (1999) introduced a $\gamma$ Doradus pulsating type for main-sequence and subgiant stars of spectral types A7–F5. $\gamma$ Doradus stars exhibit non-radial, high-order and low-degree multiperiodic pulsations with periods of 0.4–3 d and amplitudes below 0.1 mag. The pulsation amplitude of such stars may vary during an observing season by as much as a factor of 4.

The spectral type and variability characteristics of WASP-118 suggest that the star is probably a weak, late-type $\gamma$ Doradus pulsator.

If the stellar pulsations were induced by the star–planet interactions, we would expect them to appear at exact harmonics of the planet’s orbital period, such as in the cases of WASP-33 (Herrero et al., 2011) and HAT-P-2 (de Wit et al., 2017). We found no match when comparing the main harmonics of the WASP-118b’s orbital period with the measured pulsations’ periodicities (see Fig. 8). Despite the lack of any commensurabilities with the main harmonics, we cannot yet reject any complex commensurabilities nor the possibility that the pulsations were induced by the orbiting planet. A detailed follow-up asteroseismic analysis is required to further investigate the star–planet interactions as a possible cause for the observed pulsations in the lightcurve of WASP-118.

8 NO PHASE-CURVE MODULATIONS

Phase-curves in exoplanet systems consist of three main components at optical wavelengths: 1) ellipsoidal modulation, 2) Doppler beaming, and 3) planetary reflection (e.g. Esteves et al. 2013). Additionally, a transiting planet may produce a secondary eclipse, an occultation of the planet by its host star, which blocks the reflected light during the occultation. Therefore, the depth of the secondary eclipse is twice the semi-amplitude of the reflectional modulation.

To produce a phase-curve of WASP-107 we had to remove the significant rotational modulation prior to phase-folding the lightcurve. However, because the ratio between the 5.7-d orbital period and the 17-d rotational modulation is not small enough, this would also remove any phase-curve modulations. For WASP-118 we again removed stellar variability which would again remove any phase-curve modulations. However, in both systems the procedures would not have removed any secondary eclipses present. A non-detection of secondary eclipses in both systems therefore allowed us to estimate conservative upper limits on the secondary-eclipse depths of 100 ppm for WASP-107 and 50 ppm for WASP-118.

Using the system parameters from Table 1, the theoretically expected semi-amplitudes of ellipsoidal, Doppler beaming and reflectional modulation for WASP-107 are 0.03, 0.2 and $75A_{\rm g}$ ppm, respectively, where $A_{\rm g}$ is the planet’s geometrical albedo. For WASP-118, the expected semi-amplitudes are 1, 0.7 and $150A_{\rm g}$ ppm. These amplitudes have been calculated using the relations from Mazeh & Faigler (2010). While the expected amplitudes for the ellipsoidal and Doppler beaming modulations are below the K2 photometric precision, the inflated planetary radii could produce a significant reflectional modulation in both systems. Using the upper limits for secondary eclipse depths and theoretically expected amplitudes for reflectional modulations allows us to constrain the planetary geometric albedos to less than 0.7 for WASP-107b and less than 0.2 for WASP-118b.

9 NO ADDITIONAL TRANSITING PLANETS

To search for signatures of any additional transiting planets in the normalized lightcurves of both systems, we first removed the transits of the known transiting planets and then calculated the box-least-square periodograms of any other periodic signals with the PyKE tool KEPBLS. The absence of any significant residual signals in the period range 0.5–30 d results in transit-depth upper limits of 130 ppm for any additional transits in the WASP-107 system and 140 ppm in WASP-118.

10 AGES OF THE HOST STARS

We estimated the ages of both host stars by comparing the measured stellar densities from Table 1 and the published spectroscopic effective temperatures to isochrones computed from the stellar evolution models. This was done with the Bayesian mass and age estimator BAGEMASS (Maxted et al., 2015a), which uses the GARSTEC code (Weiss & Schlattl, 2008) to compute the evolution models. The best-fitting stellar evolution tracks provided the age estimates of $8.3\pm 4.3$ Gyr for WASP-107 and $2.3\pm 0.5$ Gyr for WASP-118.

The rate at which a star rotates acts as another age estimator. Over time, stars lose angular momentum through magnetised stellar winds and gradually slow down (Barnes, 2003). Knowing the rotational period of WASP-107 from the detected rotational modulation (see Section 6), we estimated the stellar age with the gyrochronological relation by Barnes (2007) to obtain $0.6\pm 0.2$ Gyr.

Our isochronal age estimate for WASP-118 agrees well with the age provided by Hay et al. (2016) who used the same approach but using the system parameters derived only from the ground-based observations.

The age discrepancy between the isochronal and gyrochronological age estimate for WASP-107 is significant. Similar discrepancies have been observed for many other K-type stars hosting transiting exoplanets (e.g. Maxted et al. 2015b). It has been suggested that stars hosting massive short-period planets may have been spun-up by the tidal interaction with the planet and thus exhibit a lower gyrochronological age (Maxted et al., 2015b). However, the warm-Saturn WASP-107b is not massive enough and does not orbit close enough to its host star to cause a significant tidal spin-up. A more probable reason for the observed age discrepancy in the case of WASP-107 is the radius anomaly, in which late-type stars exhibit larger radii than is predicted by the stellar models (Popper, 1997). The radius anomaly is an active research topic driven by the advances in simulating convections in low-mass stars (Ludwig et al., 2008) and incorporating magnetic fields into stellar models (Feiden & Chaboyer, 2013). Morales et al. (2010) have demonstrated that the presence of starspots near the poles of low-mass stars could affect the stellar radii and cause the observed radius anomaly. The age discrepancy of magnetically active K-type WASP-107 may therefore be tentatively attributed to starspots.

11 CONCLUSIONS

The two main results presented in this paper are the direct detection of magnetic activity in the short-cadence K2 lightcurve of WASP-107 and the detection of stellar variability of WASP-118.

The magnetic activity of WASP-107 is manifest firstly as a rotational modulation which gives a stellar rotational period of $17.5\pm 1.4$ d. We also detect a total of 5 definite and 4 possible starspot occultation events. With the planet’s orbital period being nearly one-third of the rotational period of the star, we might expect to see the same starspot recurring every three transits. Since we found no evidence of recurring starspots, we suggest that the system is misaligned, unless the starspots’ lifetimes are shorter than the rotational period of the star.

The multi-periodic variability in the lightcurve of WASP-118 indicates that the star is likely a low-amplitude $\gamma$ Doradus pulsator. WASP-118 is a good target for a follow-up asteroseismic analysis in order to obtain more precise stellar parameters and to investigate star–planet interactions as a possible cause for the observed stellar pulsations.

Our refinement of WASP-107 system parameters may also prove beneficial, since the planet lies in the transition region between ice and gas giants. Knowing precise system parameters of such planets is crucial for understanding why some ice giants do not become gas giants.
