A nontrivial crossover in topological Hall effect regimes

TL;DR

This paper develops an exact theory for the topological Hall effect in systems with magnetic skyrmions, revealing different regimes and a nontrivial transformation into the spin Hall effect with oscillating Hall currents.

Contribution

It provides an exact solution for electron scattering on skyrmions, clarifies the regimes of THE, and explains the transition to the spin Hall effect.

Findings

Identification of multiple THE regimes.

Transformation of THE into spin Hall effect with oscillations.

Differentiation of chirality-driven Hall responses.

Abstract

We propose a new theory of the topological Hall effect (THE) in systems with chiral magnetization vortices such as magnetic skyrmions. We solve the problem of electron scattering on a magnetic skyrmion exactly, for an arbitrary strength of exchange interaction and the skyrmion size. We report the existence of different regimes of THE and resolve the apparent contradiction between the adiabatic Berry phase theoretical approach and the perturbation theory for THE. We traced how the topological charge Hall effect transforms into the spin Hall effect upon varying the exchange interaction strength or the skyrmion size. This transformation has a nontrivial character: it is accompanied by an oscillating behavior of both charge and spin Hall currents. This hallmark of THE allows one to differentiate the chirality driven contribution to Hall response in the experiments.

Figures

Equations

$$\Bigl{(}\frac{{\bf p}^{2}}{2m_{\ast}}-\alpha{\bf M}({\bf r})\cdot\hat{\bf S}\Bigr{)}\Psi=E\Psi,$$

$${\lambda }_a=ak(\Delta /2E),$$

$$k_{\uparrow ,\downarrow }^2=2m_{\ast }(E\pm \eta \Delta /2)/{\hslash }^2.$$

$$\Psi=\begin{pmatrix}e^{ik_{\uparrow}x}u_{\uparrow}\\ e^{ik_{\downarrow}x}u_{\downarrow}\end{pmatrix}+\frac{1}{\sqrt{r}}\begin{pmatrix}e^{ik_{\uparrow}r}\bigl{(}f_{\uparrow\uparrow}u_{\uparrow}+f_{\uparrow\downarrow}u_{\downarrow}\bigr{)}\\ e^{ik_{\downarrow}r}\bigl{(}f_{\downarrow\uparrow}u_{\uparrow}+f_{\downarrow\downarrow}u_{\downarrow}\bigr{)}\end{pmatrix},$$

$$\frac{d{\sigma }_{\alpha \beta }}{d\theta }=\frac{k_{\alpha }}{k_{\beta }}|f_{\alpha \beta }(\theta ){|}^2.$$

$$Q=\frac{1}{4\pi }\int \mathbf{n}\left({\partial }_x\mathbf{n}\times {\partial }_y\mathbf{n}\right)d\mathbf{r}=\eta \frac{\kappa }{2}\left({\cos \Lambda |}_{\infty }-{\cos \Lambda |}_0\right).$$

$$V_{sc}=-\frac{\Delta }{2}\left(\begin{array}{cc}-\eta (1-n_z(r))& e^{-i\kappa \theta -i\gamma }{n}_{\parallel }(r)\\ e^{i\kappa \theta +i\gamma }{n}_{\parallel }(r)& \eta (1-n_z(r))\end{array}\right),$$

$$f_{\alpha \beta }(\theta )=\frac{1}{\sqrt{2\pi i{k}_{\uparrow }}}\sum _m{e}^{im\theta }{\left(\begin{array}{cc}{S}_m^{\uparrow \uparrow }-1& S_m^{\uparrow \downarrow }\\ e^{i\kappa \theta +i\gamma }\sqrt{\frac{k_{\uparrow }}{k_{\downarrow }}}{S}_m^{\downarrow \uparrow }& e^{i\kappa \theta +i\gamma }\sqrt{\frac{k_{\uparrow }}{k_{\downarrow }}}\left(S_m^{\downarrow \downarrow }-1\right)\end{array}\right)}_{\alpha \beta },$$

$$\frac{d{\sigma }_{\alpha \beta }}{d\theta }=\frac{k_{\alpha }}{k_{\beta }}|f_{\alpha \beta }{|}^2=G_{\alpha \beta }(\theta )+{\Sigma }_{\alpha \beta }(\theta ),$$

$${\Sigma }_{\alpha \beta }^{tr}={\int }_0^{2\pi }{\Sigma }_{\alpha \beta }(\theta )\sin \theta d\theta .$$

$$j_{\alpha \beta }=2\pi k_{\beta }{\Sigma }_{\alpha \beta }^{tr}.$$

$$j_H=j_{\uparrow \uparrow }+j_{\downarrow \downarrow }+j_{\uparrow \downarrow }+j_{\downarrow \uparrow },$$

$$j_{SH}=j_{\uparrow \uparrow }-j_{\downarrow \downarrow }+j_{\uparrow \downarrow }-j_{\downarrow \uparrow }.$$

$${\psi }_m=e^{im\theta }\left(\begin{array}{c}{g}_m^{(1)}(r)\\ e^{i\kappa \theta +i\gamma }{g}_m^{(2)}(r)\end{array}\right),$$

$$\left(H_m^{{}^{\prime }}+\frac{\Delta }{2E}{k}^{2}W\right)q_m=0,$$

$$H_m^{{}^{\prime }}=\left(\begin{array}{cc}\frac{1}{r}{\partial }_r\left(r{\partial }_r\right)-\frac{m^2}{r^2}+k_{\uparrow }^2& 0\\ 0& \frac{1}{r}{\partial }_r\left(r{\partial }_r\right)-\frac{(m+\kappa {)}^2}{r^2}+k_{\downarrow }^2\end{array}\right),$$

$$W=\left(\begin{array}{cc}-\eta (1-n_z(r))& n_{\parallel }(r)\\ n_{\parallel }(r)& \eta (1-n_z(r))\end{array}\right).$$

$$q_m^{(1)}=\left(\begin{array}{c}{J}_m(k_{\uparrow }r)-K_m^{11}{Y}_m(k_{\uparrow }r)\\ -K_m^{21}{Y}_{m+\kappa }(k_{\downarrow }r)\end{array}\right),$$

$$q_m^{(2)}=\left(\begin{array}{c}-K_m^{12}{Y}_m(k_{\uparrow }r)\\ J_{m+\kappa }(k_{\downarrow }r)-K_m^{22}{Y}_{m+\kappa }(k_{\downarrow }r)\end{array}\right),$$

$$\frac{d{S}_m}{dr}=i\frac{\pi r}{4}\frac{\Delta }{2E}{k}^2\left(R_m^{-}+S_m{R}_m^{+}\right)W\left(R_m^{-}+R_m^{+}{S}_m\right),$$

$$R_m^{\pm }(r)=\left(\begin{array}{cc}{H}_m^{(1,2)}(k_{\uparrow }r)& 0\\ 0& H_{m+\kappa }^{(1,2)}(k_{\downarrow }r)\end{array}\right),$$

$$V=\sum _{i=1,2,3}{V}_i,V_i=-A{\mathbf{n}}_i\mathbf{\sigma }\delta \left(\mathbf{r}-{\mathbf{r}}_i\right),$$

$$f_{\alpha \beta }\left(\theta \right)=-\frac{m_{\ast }}{{\hslash }^2}\frac{e^{i\pi /4}}{\sqrt{2\pi k}}⟨{\mathbf{k}}^{\prime },\alpha |T|\mathbf{k},\beta ⟩,$$

$$T=V+V{G}_{0}V,$$

$$⟨{\mathbf{k}}^{\prime },\alpha |T|\mathbf{k},\beta ⟩=⟨{\mathbf{k}}^{\prime },\alpha |V|\mathbf{k},\beta ⟩+⟨{\mathbf{k}}^{\prime },\alpha |V{G}_{0}V|\mathbf{k},\beta ⟩,$$

$$⟨{\mathbf{k}}^{\prime },\alpha |V|\mathbf{k},\beta ⟩=-A\sum _{i=1,2,3}{e}^{i\left(\mathbf{k}-{\mathbf{k}}^{\prime }\right){\mathbf{r}}_i}{v}_{i,\alpha \beta },$$

$$⟨{\mathbf{k}}^{\prime },\alpha |V{G}_{0}V|\mathbf{k},\beta ⟩=$$

$$=-i\frac{A^2{\pi }^{2}m}{{\hslash }^2}\sum _{{\alpha }^{\prime }}\sum _{i,j}{e}^{i\left(\mathbf{k}{\mathbf{r}}_j-{\mathbf{k}}^{\prime }{\mathbf{r}}_i\right)}{H}_0^{(1)}\left(k{r}_{ij}\right)v_{i,\alpha {\alpha }^{\prime }}{v}_{j,{\alpha }^{\prime }\beta },$$

$${v_{i,\alpha\beta}}=\left\langle\alpha\right|{{\bf{n}}_{i}}\bm{\sigma}\left|\beta\right\rangle={\left({\begin{array}[]{*{20}{c}}{{n_{iz}}}&{{n_{i-}}}\\ {{n_{i+}}}&{-{n_{iz}}}\end{array}}\right)}_{\alpha\beta}.$$

$${\left|⟨{\mathbf{k}}^{\prime },\alpha |T|\mathbf{k},\beta ⟩\right|}^2=A^2\sum _{i,j}{e}^{i\left(\mathbf{k}-{\mathbf{k}}^{\prime }\right){\mathbf{r}}_{ij}}{v}_{i,\alpha \beta }{v}_{j,\alpha \beta }^{\ast }+$$

$$\frac{2A^3{\pi }^{2}m}{{\hslash }^2}\mathrm{Im}\sum _{i,j,l,{\alpha }^{\prime }}{e}^{i\left(\mathbf{k}{\mathbf{r}}_{jl}+{\mathbf{k}}^{\prime }{\mathbf{r}}_{li}\right)}{H}_0^{(1)}\left(k_{{\alpha }^{\prime }}{r}_{ij}\right)v_{i,\alpha {\alpha }^{\prime }}{v}_{j,{\alpha }^{\prime }\beta }{v}_{l,\alpha \beta }^{\ast }$$

$$+O\left(A^4\right).$$

$${{\left|T_{{\mathbf{k}}^{\prime }\mathbf{k}\alpha \alpha }\right|}^2}_{A^3}=\frac{A^{3}2{\pi }^{2}m}{{\hslash }^2}\mathrm{Im}\sum _{i,j,l}{e}^{i\left(\mathbf{k}{\mathbf{r}}_{jl}+{\mathbf{k}}^{\prime }{\mathbf{r}}_{li}\right)}{H}_0^{(1)}\left(k{r}_{ij}\right){\Omega }_{ijl,\alpha },$$

Full text

I Introduction

Anomalous Hall effect (AHE) has been a subject of intensive experimental research and theoretical debates for over a decade Dyakonov (2008); Nagaosa et al. (2010); Sinitsyn (2008). The AHE is often classified into extrinsic and intrinsic contributions. The former is due to spin-dependent scattering of charge carriers and thus depends on the scatterers, the intrinsic contribution is described in terms of band structure in crystal momentum space and anomalous velocity causing spin separation for electrons moving in an external electric field Dyakonov (2008). While attributing a particular mechanism to an experimental data often remains a difficult task, these AHE mechanisms are based on the same physical phenomena in their origin, the spin-orbit interaction. For a charged particle with a spin moving in an electric field a magnetic field appears in its moving frame which interacts with the particle’s spin. The electric field can be either a built-in crystal field or that produced by an impurity or an external field. The spin-orbit interaction underlying AHE couples particle motion with its spin and directly leads to the spin separation. The spin separation in its turn results in a transverse charge separation and a finite Hall response when the carries are spin polarized, usually due to a macroscopic magnetization of the sample Nagaosa et al. (2010); Abakumov and Yassievich (1972).

Along with the normal Hall effect and anomalous Hall effect a fundamentally different phenomena has been recently discovered, namely Topological Hall effect (THE)Neubauer et al. (2009); Lee et al. (2009). The THE appears in systems with non-coplanar ordering of magnetic moments resulting in a non-zero spin chirality of the magnetization field. Although the spin-orbit interaction is often responsible for appearance of the chiral magnetization fieldsLobanov et al. (2016); Hagemeister et al. (2015); Rózsa et al. (2016), the charge separation arises from exchange interaction of a mobile electron with a non-trivial spatial configuration of magnetic ion spins and thus it is indeed qualitatively different from the AHE.

The THE has been observed experimentally in quite a few systems including 3D pyrochlore lattices Taguchi et al. (2001); Machida et al. (2007), antiferromagnetsSürgers et al. (2014); Ueland et al. (2012), spin glassesFabris et al. (2006); Taniguchi et al. (2004), thin films of EuO Ohuchi et al. (2015), materials with colossal magnetoresistanceMatl et al. (1998); Jakob et al. (1998) and in a 2D diluted magnetic semiconductor (Ga,Mn)AsOveshnikov et al. (2015). An impressive manifestation of THE has been found for various thin films containing magnetic skyrmions - vortex-like topologically non-trivial spatially localized configuration of magnetization field Nagaosa and Tokura (2013), that produces an observable THE responseKanazawa et al. (2015). A pronounced THE has been also observed for magnetic skyrmion lattices in MnSi Mühlbauer et al. (2009); Neubauer et al. (2009); Li et al. (2013); Chapman et al. (2013), FexCo1-xSi Münzer et al. (2010), FeGe Yu et al. (2011), arrays of magnetic skyrmionsZhou and Ezawa (2014); Ma et al. (2015) and other artificial statesGilbert et al. (2015); Li et al. (2014). This makes magnetic skyrmions considered as new promising objects for applications in novel magnetic devicesNagaosa and Tokura (2013); Nayak et al. (2017), they can be used for racetrack memoryKang et al. (2016); Liang et al. (2015); Tomasello et al. (2014); Maccariello et al. (2017) with THE based read-out Zhang et al. (2015); Fert et al. (2013); Zhang et al. (2014).

Up to now there has been no complete theory of THE describing various magnetic materials with metallic type of conductivity. The existing theories either make use of the adiabatic Berry phase approach valid for the case of a strong exchange interactionBruno et al. (2004); Tatara et al. (2007); Ye et al. (1999), calculate the spin-dependent scattering perturbatively in the case of a weak exchange strengthDenisov et al. (2016); a and Kawamura (2002); Onoda et al. (2004) or use tight-binding simulationsNdiaye et al. (2017); Ohe et al. (2007); Metalidis (2007). These theories give contradictive predictions concerning the role of the carrier spin polarization in THE. In this paper we suggest a universal theoretical approach capable of describing THE for arbitrary strength of the exchange interaction and structure parameters. We attest to the existence of different regimes of THE and describe the transition between charge Hall and spin Hall topological effects, which has previously lacked proper understanding.

The applicability of various theoretical approaches depends on the adiabatic parameter introduced as $\lambda_{a}=\omega_{ex}\tau$, where $\hbar\omega_{ex}$ is the spin splitting energy due to a local exchange interaction between an electron and magnetic ions spin texture, $\tau$ is the time of electron’s flight through a region of a chiral magnetization field. In this work we reveal the qualitatively different regimes of THE with respect to the magnitude of $\lambda_{a}$.

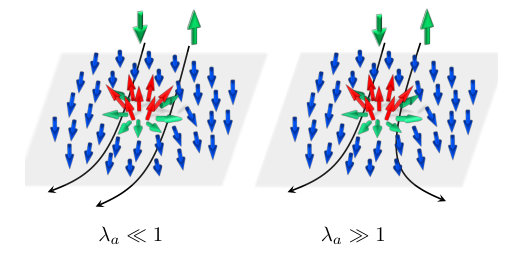

Let us consider the limiting cases. The adiabatic regime corresponds to $\lambda_{a}\gg 1$ (strong exchange interaction and large skyrmion size, typical for strong ferromagnets), at that quantum transitions between spin subleves are suppressed and the carrier spin quantization axis follows the direction of local magnetization. The adiabatic approximation considers the effect of magnetization on the carrier motion via a geometric phase, which the carrier wavefunction acquires while moving through the region with non-zero chiralityYe et al. (1999); Bruno et al. (2004). This phase is usually regarded as Berry phase or Pancharatnam phaseBerry (1984); Lyanda-Geller et al. (2001). In analogy with Aaronov-Bohm effect this phase can be related to an effective magnetic field. The hallmark of the adiabatic approximation is that this effective magnetic field is opposite for spin-up and spin-down electrons (see Fig. 1, right panel); so the polarization of electron gas is essential to produce a transverse charge current response Bruno et al. (2004); Tatara et al. (2007). In this regard it is similar to AHE discussed above where the average polarization of the carriers was needed to produce a transversal charge separation from the spin separation.

The opposite limiting case corresponds to $\lambda_{a}\ll 1$ (weak exchange interaction and small skyrmion size, typical for spin glasses and diluted magnetic semiconductors). In this case the non-adiabatic perturbation allows quantum transitions between the spin sublevels split by the exchange field, so the appropriate theory should account for the spin-flip scattering Onoda et al. (2004); a and Kawamura (2002); Denisov et al. (2016). The core prediction of the weak coupling theory is that THE is possible even for spin unpolarized carriersa and Kawamura (2002); Onoda et al. (2004). In our previous workDenisov et al. (2016) we showed, that this is due to the fact, that while the current of non-polarized carriers flows along the sample the transverse charge separation occurs without spin Hall effect (see Fig. 1, left panel). This is in a contrast to the prevailing spin Hall effect at large $\lambda_{a}$.

In this paper we present a theory covering the whole range of the adiabatic parameter values including the limiting cases of very large or very small $\lambda_{a}$. In our approach we calculate an exact scattering cross section of an itinerant carrier on a localized magnetic chiral vortex. We show that the non-zero chirality leads to an asymmetric contribution to the cross section and gives rise to the transverse Hall current. We trace the evolution of this asymmetric contribution with $\lambda_{a}$ and describe how the transverse charge current at $\lambda_{a}\ll 1$ transfers into a transverse spin current at $\lambda_{a}\gg 1$ (see Fig.1). We have found that at $\lambda_{a}\sim 1$ THE undergoes a nontrivial crossover: both spin and charge Hall currents exhibit oscillatory behavior, which provides a new tool for an experimental detection of THE.

II General theory

We consider an electron in a 2D film scattering on a magnetic vortex characterized by a non-zero spin chirality. We put no restrictions on the adiabatic parameter magnitude. The electron interacts with the magnetization field by means of exchange interaction. To extract the pure THE contribution in the following we assume a simple electron band with a quadratic dispersion completely unaffected by spin-orbit interaction. We also neglect dynamics of magnetic centers thus describing the magnetization by a classical vector field ${\bf M\left({\bf r}\right)}$ with the parametrization introduced below. The electron eigenstate wavefunction $\Psi$ with the energy $E$ satisfies the following Schrödinger equation:

[TABLE]

where ${\bf p}$ is the 2D momentum operator, $\hat{\bf S}$ is the electron spin operator, $m_{\ast}$ is the electron in-plane effective mass and $\alpha$ is the exchange coupling constant.

Let us analyze the asymptotic of $\Psi$. Outside of the vortex core the itinerant carrier is embedded into the homogeneous magnetization environment ${\bf M}=\eta M{\bf e}_{z}$, which gives rise to the carrier band spin splitting $\Delta=\alpha M$ ($\eta=\pm 1$ is the background magnetization direction normal to the film plane outside of the core). We assume $\Delta/2E<1$ so that both spin subbands are activated (the electron energy $E$ is of the order of Fermi energy). We introduce the adiabatic parameter $\lambda_{a}$ in the form:

[TABLE]

where $k=\sqrt{2m_{\ast}E/\hbar^{2}}$ and $a$ is the vortex size. Due to background magnetization outside of the vortex core the spin-down and spin-up states with the same energy have different wavevectors:

[TABLE]

Far from the vortex core ($kr\gg 1$) the wavefunction is given by:

[TABLE]

where the first term is the incident plane wave and the second term is the outgoing cylindrical wave, $u=(u_{1},u_{2})^{T}$ is the incoming wave polarization spinor ($|u_{1}|^{2}+|u_{2}|^{2}=1$), $f_{\alpha\beta}(\theta)$ is the scattering amplitude, $\theta$ is the scattering angle, it is also the polar angle in the coordinate system used as the incident plane wave is assumed coming along the $x$-axis. There are four scattering channels: two spin-conserving channels $\left|\uparrow\right\rangle\rightarrow\left|\uparrow\right\rangle$, $\left|\downarrow\right\rangle\rightarrow\left|\downarrow\right\rangle$, and two spin-flip channels $\left|\uparrow\right\rangle\rightarrow\left|\downarrow\right\rangle$, $\left|\downarrow\right\rangle\rightarrow\left|\uparrow\right\rangle$. The partial differential scattering cross sections for each channel are given by

[TABLE]

We proceed with discussing of the magnetization field ${\bf M}({\bf r})=M{\bf n}({\bf r})$, where ${\bf r}=(x,y)$ is an in-plane radius vector, ${\bf n}$ is a unit vector describing the spatial dependence of the magnetization direction. We introduce the commonly used parametrization for the chiral magnetization field ${\bf n}=(\sin{\Lambda}\cos{\Phi},\sin{\Lambda}\sin{\Phi},\eta\cos{\Lambda})$, where the vortex profile $\Lambda(r)$ depends on the in-plane radius vector magnitude $r$, $\Phi(\theta)=\kappa\theta+\gamma$, where $\theta$ is the polar angle. The nonzero value of the spin chirality is described by the integer parameter $\kappa$ called vorticity, which determines the direction of the in-plane twist, helicity $\gamma$ determines the initial phase of this rotation. The vortex perpendicular orientation $\eta=\pm 1$ denotes the background magnetization direction normal to the film plane outside of its core (we assume that the sign of $\cos{\Lambda(r\rightarrow\infty)}=+1$ is fixed). The topological characteristic of such a structure is the topological charge (also known as winding number):

[TABLE]

A topologically nontrivial structure of the magnetization field $Q\neq 0$ is called magnetic skyrmion. It has an opposite orientation of magnetization inside and outside of its core. A topological Hall response in a system with magnetic skyrmions has been considered in a meanfield approximation Ye et al. (1999); Onoda et al. (2004). On the contrary, the method we use in our work is exact and accounts for the local character of interaction during the scattering. The emergence of Hall response is due to local noncollinear ordering of magnetic moments. Therefore, even chiral configurations with zero winding number (e.g. co-vortices Sapozhnikov et al. (2016) which have $Q=0$, but $\kappa\neq 0$) should also produce a transverse scattering contributing to THE.

In order to calculate the scattering amplitude $f_{\alpha\beta}(\theta)$ let us introduce a set of basis states for the considered scattering problem. We notice that the specific angular dependence of chiral magnetic vortex allows one to separate $r$ and $\theta$ in Eq.(1) 111The corresponding operator commuting with a total Hamiltonian in Eq.(1) is given by $-i\partial_{\theta}+\kappa\hat{S}_{z}$. Indeed, the explicit form of the scattering potential $V_{sc}$ due to an electron exchange interaction with the magnetization field ${\bf M}({\bf r})$ is given by:

[TABLE]

where $n_{z}(r)=\cos{\Lambda(r)}$, $n_{\parallel}(r)=\sin{\Lambda(r)}$. The off-diagonal components of $V_{sc}$ mixing spin-up and spin-down states contain an additional angular factor $e^{i\kappa\theta}.$ Hence, the Hamiltonian (1) eigenstates can be labeled by an angular momentum projections $m$ with the angular part of the eigenfunction given by a combination of $e^{im\theta}|\uparrow\rangle$ and $e^{i(m+\kappa)\theta+i\gamma}|\downarrow\rangle$ states (see details in Appendix A). Taking this into account $f_{\alpha\beta}(\theta)$ is written in the form:

[TABLE]

where ${S}^{\alpha\beta}_{m}$ are the partial scattering matrices. ${S}^{\alpha\beta}_{m}$ are computed for an arbitrary adiabatic parameter $\lambda_{a}$ using the phase-functions method (the details are given in Appendix A). The dependence of the differential cross section (5) on $\lambda_{a}$ is the main subject of the following section.

III Analysis of scattering

III.1 General properties of asymmetric scattering

Let us mention some general aspects of the scattering on a magnetic skyrmion. As equation (6) suggests the harmonics with the opposite angular momentum projections $m$ and $-m$ are not identical, so that ${S}_{m}\neq{S}_{-m}$, and the cross section $d\sigma_{\alpha\beta}$ gets an asymmetric contribution. Let us divide $d\sigma_{\alpha\beta}$ into symmetric and antisymmetric parts:

[TABLE]

where $G_{\alpha\beta}(\theta)=G_{\alpha\beta}(-\theta)$ is symmetric, and $\Sigma_{\alpha\beta}(\theta)=-\Sigma_{\alpha\beta}(-\theta)$ is antisymmetric with respect to the scattering angle $\theta$. It is the antisymmetric part $\Sigma_{\alpha\beta}$ that gives rise to the net perpendicular current and the following Hall response.

The properties of the asymmetric scattering $\Sigma_{\alpha\beta}$ strongly depend on the adiabatic parameter $\lambda_{a}$. The latter is expressed as a product of two dimensionless parameters $ka$ and $\Delta/2E$ (2). The adiabatic parameter discriminates between two qualitatively different regimes leading to either spin Hall effect or charge Hall effect in the electron scattering on a skyrmion. The magnitude of $ka$ determines the number of angular harmonics contributing to the scattering; $ka/2\ll 1$ corresponds to s-scatteringLandau and Lifshit︠s︡ (1977), while in the case $ka/2>1$ multiple angular harmonics contribute to $f_{\alpha\beta}$ so that the scattering cross section (8) has a complex dependence on the scattering angle $\theta$ mostly in the range of small $\theta$. Also, the larger is the skyrmion size (and $ka$) the larger is the magnitude of the cross section. Regarding the role of $\Delta/2E$, when the exchange splitting exceeds the scattering energy $\Delta/2E>1$, only one spin subband contributes to the transport and the initial electron state becomes fully polarized. Obviously, in this limiting case the transverse spin current and charge current are equal regardless the skyrmion size $a$ and the value of $\lambda_{a}$. We will not discuss this regime.

Let us clarify the role of the vortex parameters $\kappa$, $\gamma$ and $\eta$ on the asymmetric part of the scattering cross section $\Sigma_{\alpha\beta}$. The helicity $\gamma$ enters $f_{\alpha\beta}$ only through a common phase factor $e^{i\gamma}$, hence it doesn’t affect the scattering cross section $d\sigma_{\alpha\beta}/d\theta\sim|f_{\alpha\beta}|^{2}$; in what follows we take $\gamma=0$ for simplicity. The sign of the vorticity $\kappa$ determines the sign of the scattering asymmetry. Indeed, the replacement $\kappa\rightarrow-\kappa$ leads to $\Sigma_{\alpha\beta}(\theta)\rightarrow\Sigma_{\alpha\beta}(-\theta)=-\Sigma_{\alpha\beta}(\theta)$. As will be further discussed below the role of the background magnetization $\eta$ appears to be not so trivial. There is a global property related to $\eta$: $\Sigma_{\alpha\beta}(\theta,\eta)=\Sigma_{\bar{\alpha}\bar{\beta}}(-\theta,-\eta)$, where $\bar{\alpha}$ denotes the spin state opposite to $\alpha$. However, whether the type of asymmetry (sign of $\Sigma_{\alpha\beta}(\theta)$) changes upon $\eta\rightarrow-\eta$ depends on the scattering regime (small or large $\lambda_{a}$).

We would like to highlight that the particular shape of a magnetic vortex profile $n_{z}({r})=\cos{\Lambda(r)}$ has rather quantitative effect on the scattering. Moreover, whether $\Lambda(r)$ describes a topologicaly nontrivial magnetic skyrmion ($\Lambda_{0}\neq\Lambda|_{\infty}$ and $Q\neq 0$) or trivial magnetic vortex ($\Lambda_{0}=\Lambda|_{\infty}$ and $Q=0$) doesn’t have any qualitative concequences on $\Sigma_{\alpha\beta}(\theta)$ behaviour. In particular, the cross section asymmetry is due to a nonzero integer $\kappa$ rather than to the concrete form of $n_{z}(r)$. To be specific, we firstly focus on a magnetic skyrmion with $\kappa=+1$. Scattering on a topologicaly trivial strucuture $Q=0$ is considered in section V. We demonstrate that it has properties similar to those of the scattering on topologically non-trivial skyrmions.

III.2 Scattering on a magnetic skyrmion with $\kappa=+1$

In this section we consider a skyrmion with $\kappa=+1$ of a finite radius, so that for $r>a/2$ there is no perturbation of magnetization over its uniform background value. Inside its core $r<a/2$ the skyrmion was parameterized via $\Lambda(r)=\pi\sin^{2}\left(\pi/2(1+2r/a)\right)$.

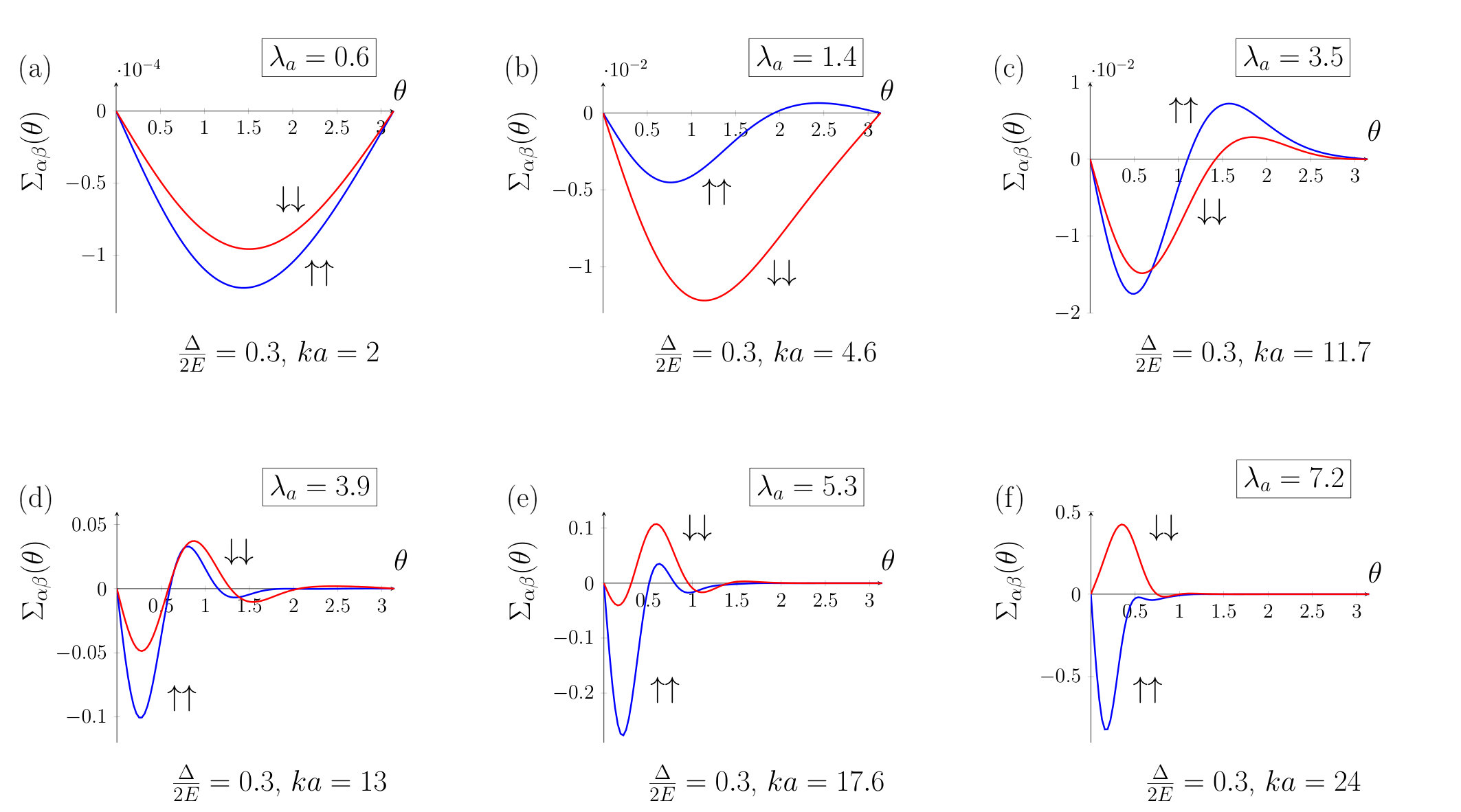

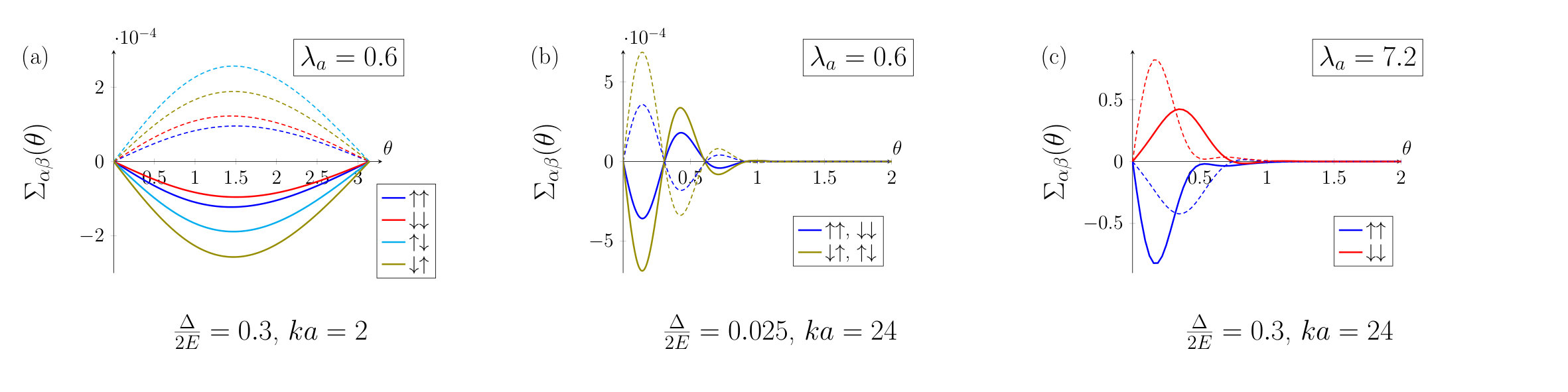

Fig. 2 shows the asymmetric part of the scattering cross section $\Sigma_{\alpha\beta}(\theta)$ computed using equations (7) and (14). Positive (negative) values of $\Sigma_{\alpha\beta}(\theta)$ for the positive scattering angle $\theta$ in Fig. 2 correspond to the preferable scattering to the left (to the right) with respect to the incident flux direction. Figs. 2a,b illustrate the scattering for a small $\lambda_{a}$ while the case of a large $\lambda_{a}$ is shown in Fig. 2c, in both cases $\Delta/2E<1$. The results are shown for the two opposite skyrmion orientations $\eta=\pm 1$ (solid and dashed lines respectively).

III.2.1 Weak coupling regime

The weak coupling regime corresponds to a small magnitude of the adiabatic parameter $\lambda_{a}<1$. Fig. 2a illustrates the case of s-type scattering ($ka\sim 1$). It is clearly seen that each scattering channel has the same sign of $\Sigma_{\alpha\beta}(\theta)$, so both spin-up and spin-down electrons are preferably scattered into the same half-plane. In this regime the transverse charge current clearly dominates over the spin current and the topological Hall effect leads to a pronounced transverse charge current even for non-polarized electrons.

From the symmetry point of view this effect is similar to the ordinary Hall effect; the presence of $z$-component of a pseudovector breaking the time reversal symmetry leads to a transverse pure charge current when an electric current flows along the sample. Non-collinear magnetic textures have a non-zero spin chirality that is a combination of three non-collinear spins forming the magnetization field \chi_{123}={\bf n}_{1}\cdot\bigl{[}{\bf n}_{2}\times{\bf n}_{3}\bigr{]}, where the spatial positions of the sites $1,2,3$ are arranged in the clockwise direction (Fig.3) and ${\bf n}_{i}$ is the local direction of magnetization at i-th site. The chirality breaks time reversal symmetry and behaves as $z$-component of a pseudovector under mirror-reflections; so does any linear combination of $\chi_{ijk}$ for different space points $i,j,k$. At a small $\lambda_{a}$ when the Born series expansion is applicable, the dominant term contributing to $\Sigma_{\alpha\beta}$ is directly related to a linear combination of $\chi_{ijk}$Denisov et al. (2016), thus in the weak coupling regime the magnetization field chirality is analogous to a magnetic field acting on spinless particles and producing a transverse charge current. The chiral symmetry allows for the existence of such an effective magnetic field for arbitrary $\lambda_{a}$, in consistence with our finding that the transverse charge current persists up to $\lambda_{a}\sim 1$.

In order to shed some light on the appearance of the same scattering asymmetry for spin-up and spin-down electrons let us consider a scattering of an electron on a triad of non-coplanar spins (Fig. 3). The details of the calculations are presented in Appendix B. For spin conserving scattering channels the spin chirality manifests itself in the interference between spin-conserving scattering on one of the magnetic centers in the triad and double spin-flip scattering on the other two (Fig. 3). The key feature of this interference is that its contribution to the asymmetric part of the cross section has the same sign for spin-up and spin-down diagonal scattering channels ($\Sigma_{\downarrow\downarrow}$ and $\Sigma_{\uparrow\uparrow}$ ). This is because the opposite signs in the matrix elements for spin-conserving scattering of spin-up and spin-down electron on scatterer 1 are compensated by the sign change for the double spin-flip scattering on scatterers 2,3 (see Appendix B). Exactly the same effect appears for non-diagonal (spin-flip) scattering channels $\Sigma_{\uparrow\downarrow},\Sigma_{\downarrow\uparrow}$.

While the asymmetry in the weak coupling regime is the same for spin-up and spin-down electrons, the asymmetrical cross section also depends on the skyrmion size. For small $ka$ the cross section is determined by the lowest angular harmonics so the asymmetric part takes the form $\Sigma_{\alpha\beta}(\theta)\sim\sin{\theta}$ (Fig. 2a). When multiple angular harmonics are involved ($ka\gg 1$), the asymmetric part of the cross section oscillates with the scattering angle as shown in Fig. 2b. Increasing the skyrmion size while keeping $\lambda_{a}\ll 1$ suppresses both spin and charge transverse currents due to oscillating structure of $\Sigma_{\alpha\beta}(\theta)$. In Fig 2b the relations $\Sigma_{\uparrow\uparrow}=\Sigma_{\downarrow\downarrow}$, $\Sigma_{\uparrow\downarrow}=\Sigma_{\downarrow\uparrow}$ hold in agreement with the perturbation theory Denisov et al. (2016) in the limit of $\Delta/E\rightarrow 0$.

In the weak coupling regime the contribution to the asymmetric scattering from spin-flip processes always prevails over that from spin-conserving ones. Reversing the background magnetization (skyrmion orientation) sign $\eta\rightarrow-\eta$ changes the preferred transverse scattering direction for each scattering channel and therefore changes the sign of the Hall effect. In Figs. 2a,b the asymmetric part $\Sigma_{\alpha\beta}(\theta)$ for $\eta=-1$ is plotted in dashed lines.

III.2.2 Adiabatic regime

Fig. 2c corresponds to the adiabatic regime $\lambda_{a}\gg 1$. Here only spin-conserving terms are shown since spin-flip scattering is suppressed.As can be clearly seen in Fig. 2c, spin-up and spin-down electrons have different scattering asymmetry, they are preferably scattered into the opposite half-planes creating a transverse spin current. This feature is described by the adiabatic Berry phase theory, which allows to reduce the scattering on a skyrmion to the action of an effective magnetic field having opposite sign for spin-up and spin-down electrons. According to this mechanism a finite spin polarization of the carriers is necessary to convert spin Hall effect into a nonzero transverse charge currentBruno et al. (2004); Yin et al. (2015).

Unlike the case of a small $\lambda_{a}$, the type of the scattering asymmetry in Fig. 2c is determined solely by the electron initial spin state (for a fixed vorticity $\kappa$), i.e. spin-up electrons scatter to the left regardless skyrmion orientation $\eta=\pm 1$. This behavior is also in agreement with the explanation given by the adiabatic theory. The effective magnetic field associated with the geometric Berry phase acquired by the electron wavefunction moving through the spin texture is opposite for spin-up and spin-down states as they are at the opposite poles of the Bloch sphereBruno et al. (2004). The background magnetization inversion $\eta\rightarrow-\eta$ doesn’t swap the electron spin-up and spin-down states on the Bloch sphere and hence the sign of the effective magnetic field is not changed.

Since $\Delta/2E<1$ the adiabatic regime $\lambda_{a}\gg 1$ is achieved only when $ka\gg 1$. Therefore, the spin Hall effect for $\lambda_{a}\gg 1$ with both spin subbands activated always involves many angular harmonics in the scattering. At $\lambda_{a}\gg 1$ the Born approximation is invalid, at that the quasi-classical approach becomes more adequate when an electron is treated as a localized wavepacket adiabatically moving in a smooth magnetization field.

III.2.3 Crossover

Let us now discuss evolution of asymmetric scattering between the weak coupling and adiabatic regimes. As $\lambda_{a}$ is getting larger the spin-flip processes get suppressed as spin-up and spin-down electrons of equal energy now have significantly different wavevectors (3), this results in rapidly oscillating factors in the spin-flip scattering matrix elements. Consequently, the spin-independent contribution to the asymmetric scattering vanishes. Moreover, the scattering picture becomes completely different: moving away from the weak coupling regime one should account for higher order Born series. Then the scattering is better described treating an electron as a spatially localized wavepacket moving in the effective magnetic field due to Berry curvature which has different sign for spin-up and spin-down electron states.

The details of the crossover appear to be different depending on whether the exchange interaction strength $\Delta$ is varied keeping $ka$ constant or the skyrmion size $a$ is varied keeping the exchange strength fixed (2). The evolution of the asymmetrical part of the differential cross section $\Sigma_{\alpha\beta}(\theta)$ with the skyrmion size is shown in Fig. 4. Only spin conserving channels are shown for the purpose of clarity. The first and the last frames in Fig. 4a,f correspond to the limiting cases considered in the previous section (see Fig. 2a,c).

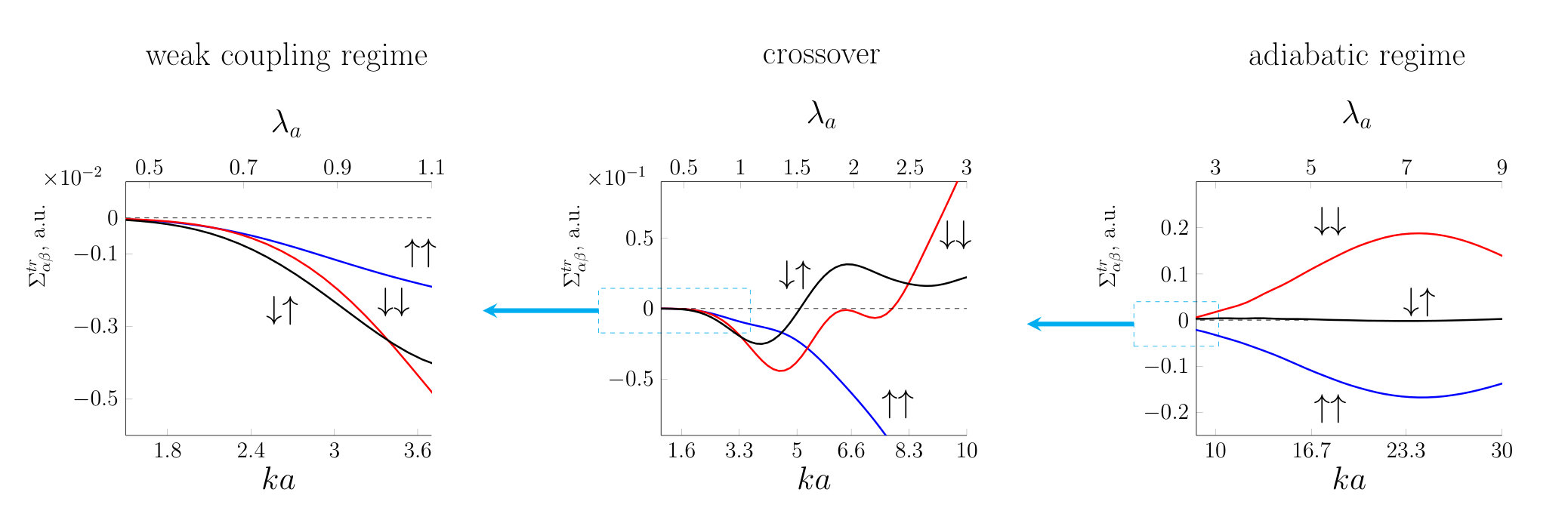

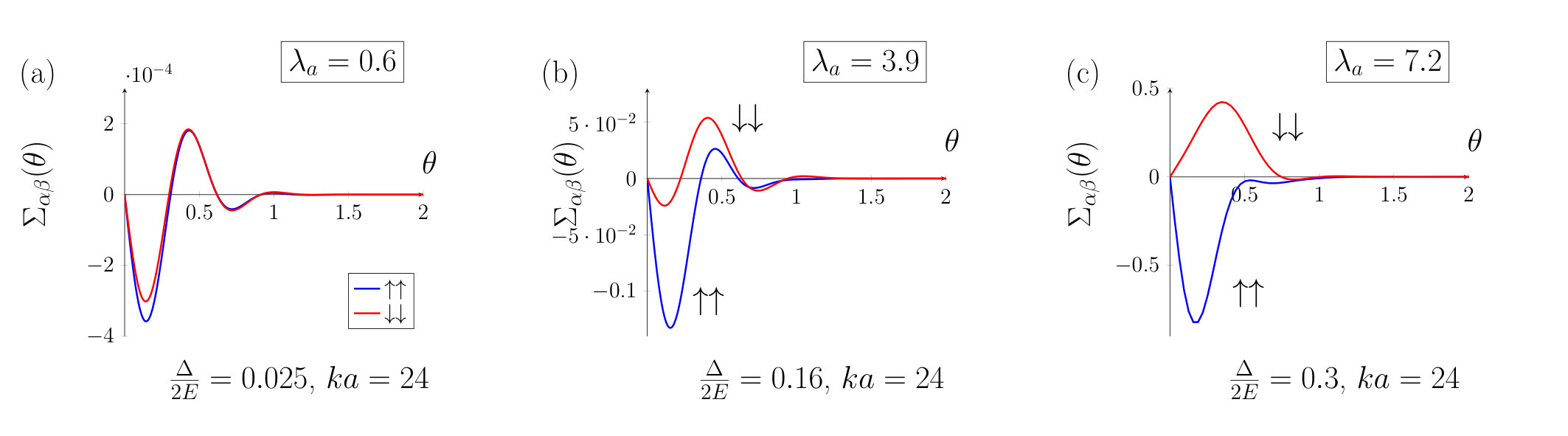

At a small $\lambda_{a}$ and $ka$ (Fig. 4a) both spin-up and spin-down electrons are scattered into the same half-plane (for skyrmion orientation $\eta=+1$ it is the right half-plane). The increase of the skyrmion size affects the scattering in two ways making the crossover less trivial than it might be. Firstly, at $ka>1$ higher angular harmonics with $|m|>1$ begin to contribute to the scattering amplitude and give rise to the oscillating structure of the angular dependence (Fig.4b,c). This is a geometrical effect, a similar pattern with a predominance of forward scattering over backscattering appears in the scattering cross section of a spinless particle on a cylindrical barrier, it is analogous to Mie scattering in 3D. However, in our case the contribution of the higher angular harmonics is different for spin-up and spin-down electrons because they have different wavevectors (3). This leads to the onset of the asymmetric scattering into the opposite half-plane for spin-up electrons in the range of angles close to the backscattering $\theta\sim\pi$, while spin-down electrons still scatter into the same half-plane for arbitrary magnitude of the scattering angle (Fig.4b). As $ka$ is further increased angular harmonics with $|m|>1$ contribute both to spin-up and spin-down scattering patterns, which move towards small angles. At that, the asymmetry sign for spin-up and spin-down electrons is again matched in the whole range of the scattering angles (Fig.4c,d). These peculiarities of $\Sigma_{\uparrow\uparrow}(\theta),\Sigma_{\downarrow\downarrow}(\theta)$ dynamics occur when neither Born series approximation is valid nor the adiabatic quasiclassical wavepacket is formed. The observable behavior arises from interference between different trajectories of a delocalized wavepacket moving in a chiral magnetization field (in this regime $ka\sim 2\pi$ and spatial interference is most important). As $\lambda_{a}$ is increased even further, the system enters the adiabatic regime with the opposite asymmetry for spin-up and spin-down electrons (Fig.4e,f).

The scattering asymmetry for $\eta$-parallel channel (spin-up for $\eta=+1$) is the same at the opposite sides of the crossover: spin-up is mostly scattered into the right half-plane as in the weak coupling regime. For $\eta$-antiparallel channel (spin-down for $\eta=+1$) the sign of the asymmetry is changed; spin-down electron in Fig. 4f is scattered into different (left) half-plane than for a small $\lambda_{a}$ (Fig. 4a). Spin-flip scattering channels (their evolution is not presented) have very similar behavior; the difference is that at higher $\lambda_{a}$ they become highly suppressed in magnitude preserving the oscillating structure.

Although probably more difficult from experimental point of view, the transition from weak to adiabatic regime can be also tuned by the exchange constant keeping $ka=const$. The crossover over the same range of $\lambda_{a}$ tuned by the exchange strength $\Delta$ is shown in Fig. 5. Note, that this type of the crossover is possible only at $ka\gg 1$. If, on the opposite $ka\ll 1$ then $\lambda_{a}=1$ corresponds to $\Delta\gg E$ but then the spin-down electrons with a nonzero kinetic energy do not exist and so spin and charge Hall currents coincide. As $ka\gg 1$ a number of angular harmonics contribute to the scattering already in the weak coupling case so the whole evolution of the asymmetry difference occurs within the range of angles close to the forward scattering.

IV Charge Hall and spin Hall currents

The topological Hall effect is measured as a current appearing in the direction perpendicular to the applied electric field. One should therefore calculate the total flux of the scattered carriers in the transverse direction. The corresponding quantity is the total transverse cross section ${\Sigma}_{\alpha\beta}^{tr}$ given byDenisov et al. (2016):

[TABLE]

An incident electron in an initial spin state $\beta$ having drift velocity $v_{\beta}$ would contribute to the transverse current $j_{\alpha\beta}$ of electrons in the final spin state $\alpha$:

[TABLE]

The transverse currents $j_{\alpha\beta}$ have several important properties. The spin-flip channels obey $j_{\uparrow\downarrow}=j_{\downarrow\uparrow}$, which is a consequence of the hermitian property of the Hamiltonian (6). In the adiabatic regime the spin-flip channels are suppressed $j_{\uparrow\downarrow}=0$, while transverse spin-conserving currents have the same magnitude and the opposite sign for spin-up and spin-down $j_{\uparrow\uparrow}=-j_{\downarrow\downarrow}$. This is in full accordance with the Berry curvature having opposite sign for spin-up and spin-down carriers. In the weak coupling regime when both $\lambda_{a}\ll 1$ and $\Delta/2E\rightarrow 0$ the asymmetric scattering does not depend on spin, the currents of spin-conserving channels coincide $j_{\uparrow\uparrow}=j_{\downarrow\downarrow}$, while the spin-flip transverse currents are two times greater $j_{\downarrow\uparrow}=2j_{\uparrow\uparrow}$.

For an unpolarized incident electron flux the transverse charge current $j_{H}$ characterizing the charge Hall effect and the spin current $j_{SH}$ characterizing the spin Hall effect can be calculated as:

[TABLE]

For the crossover driven by variation of a skyrmion size the evolution of ${\Sigma}_{\alpha\beta}^{tr}$ for different scattering channels is shown in Fig. 6 (for the same set of parameters as in Fig. 4). The corresponding charge current $j_{H}$ and spin current $j_{SH}$ evolution is presented in Fig. 7.

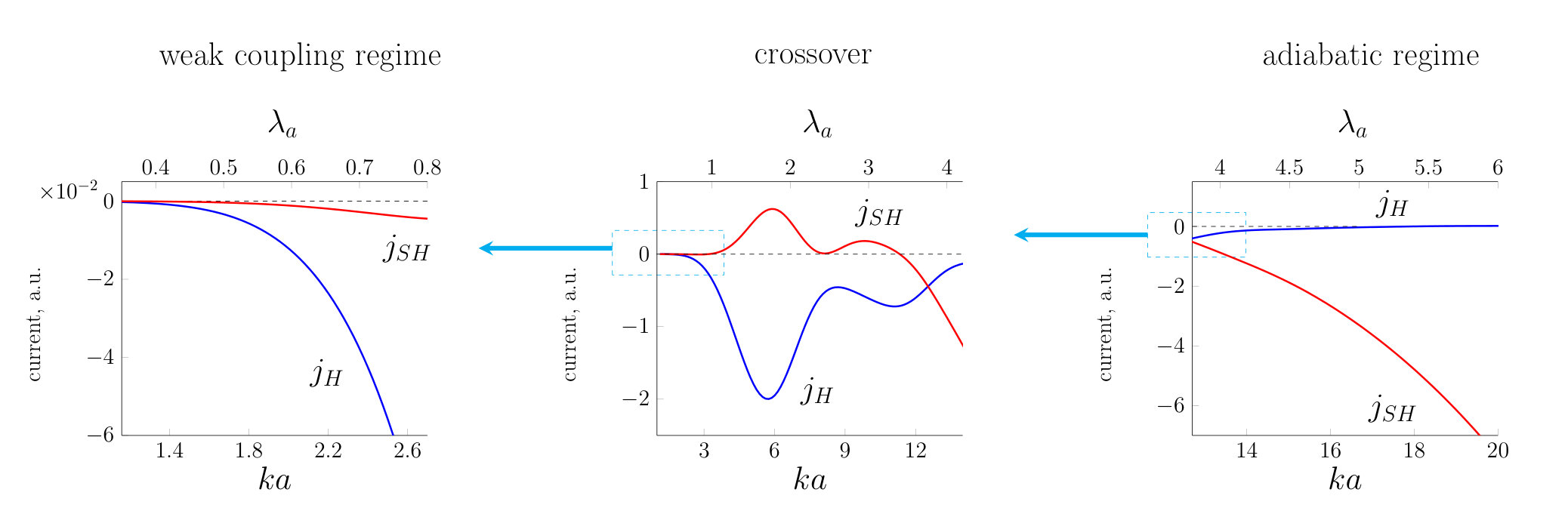

At a small $\lambda_{a}$ (Fig. 6, left panel) the asymmetrical transverse electron flux in each scattering channel (spin conserving and spin-flip) is of the same sign, that is the carriers are preferably scattered to the same transverse direction regardless their spin. The charge Hall current therefore strongly prevails over the spin Hall current as clearly seen in Fig. 7. At a large $\lambda_{a}\gtrsim 5$ spin-flip channels are suppressed; spin-up and spin-down electron are scattered in the opposite directions (right panel Fig. 6). Consequently, spin Hall current strongly dominates over the charge Hall current (Fig. 7, right panel). In this regime similarly to AHE the charge Hall current can appear only if the incident electrons are spin polarized, i.e. there is unequal number of spin-up and spin-down electrons. It is worthwhile noticing that for a fixed wavelength the magnitude of the cross section increases with the skyrmion size.

Let us discuss a crossover tuned by a skyrmion size in more details. The main feature of the intermediate region is that the asymmetric total cross section $\Sigma_{\alpha\beta}^{tr}$ has a nontrivial oscillating structure with pronounced peaks. These oscillations reflect the complex pattern of $\Sigma_{\alpha\beta}(\theta)$: The first peak of $\Sigma_{\alpha\beta}^{tr}$ occurs when spin-up and spin-down channels start to diverge (Fig. 4b), while the second peak emerges when spin-down and spin-up scattering channels restore their similar behavior (see Fig. 4c,d). Hence, the oscillating structure of $\Sigma_{\alpha\beta}^{tr}$ reflects the electron wave interference at $ka\sim 2\pi$ and deviation from Born series towards adiabatic scenario.

These properties of the transverse flux of the carriers lead to a nontrivial behavior of transverse charge $j_{H}$ and spin $j_{SH}$ currents shown in Fig. 7. The discovered oscillating structure of the transverse currents can be used to differentiate THE contribution from other Hall contributions. We predict that upon varying skyrmion size or Fermi level the observable topological Hall response would acquire a nonmonotonic and oscillating structure, which can be regarded as a characteristic feature of THE response when treating the experiments.

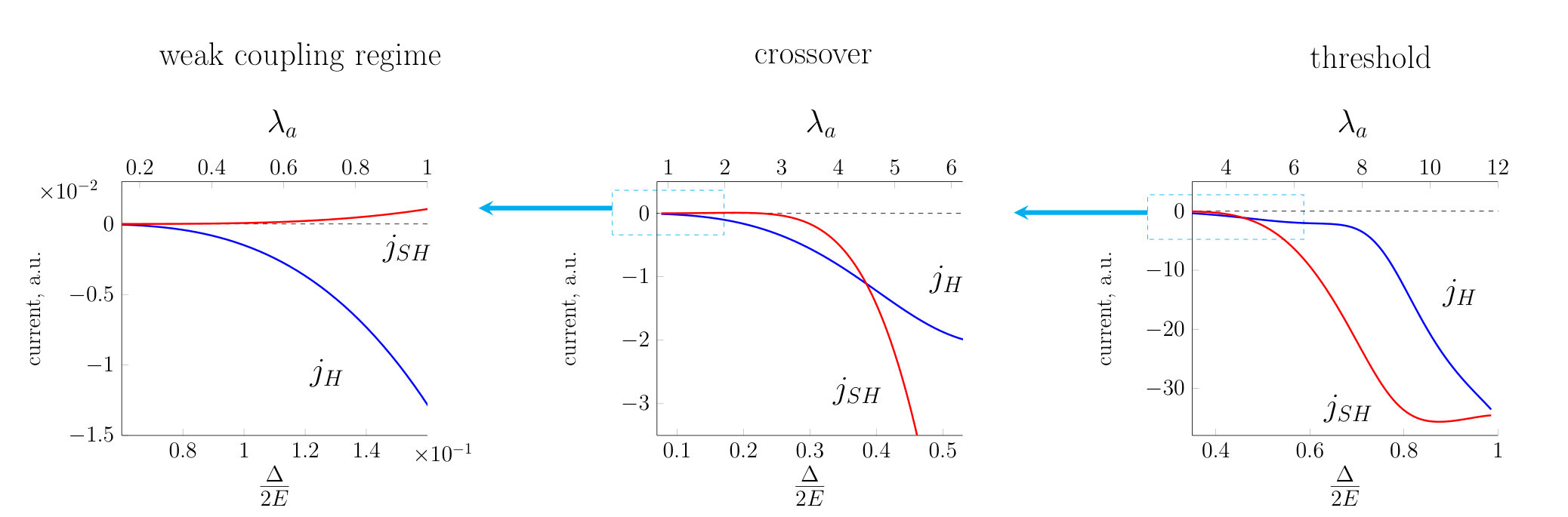

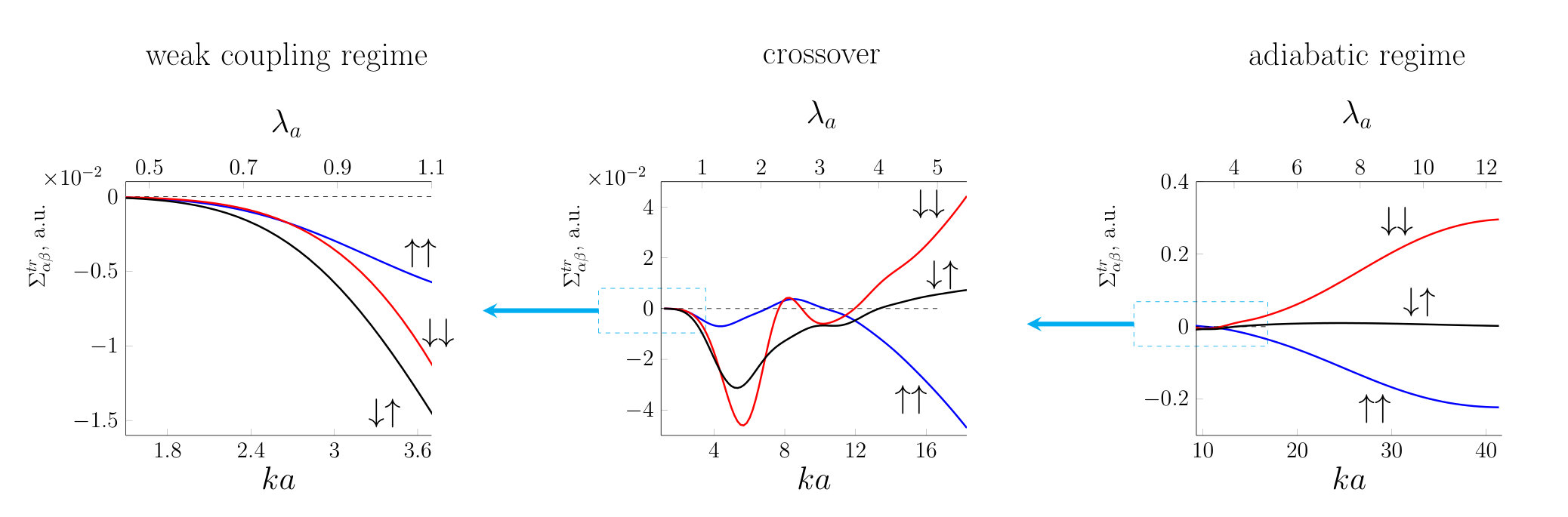

The evolution of $j_{H},j_{SH}$ driven by variation of the exchange strength $\Delta$ is shown in Fig. 8. Unlike the previously considered case there is no oscillating structure associated with the geometrical interference effect as the skyrmion size is not changed (the parameter $ka$ is fixed). An important difference from the skyrmion size driven crossover is that above the threshold $\Delta/2E=1$ there is only one spin subband with a nonzero kinetic energy (spin-up for the skyrmion orientation $\eta=+1$) and hence the transverse charge and spin currents coincide. At a small $\lambda_{a}$ the charge current $j_{H}$ dominates over $j_{SH}$. For larger $\Delta$ both currents become comparable, with further increase of $\lambda_{a}$ there is no suppression of charge current $j_{H}$, instead the scattering in the spin-down channel is being suppressed so that the contribution to both charge and spin currents comes from the spin-up channel finally leading to $j_{H}=j_{SH}$ (Fig. 8).

V Scattering on a topologically trivial magnetic vortex

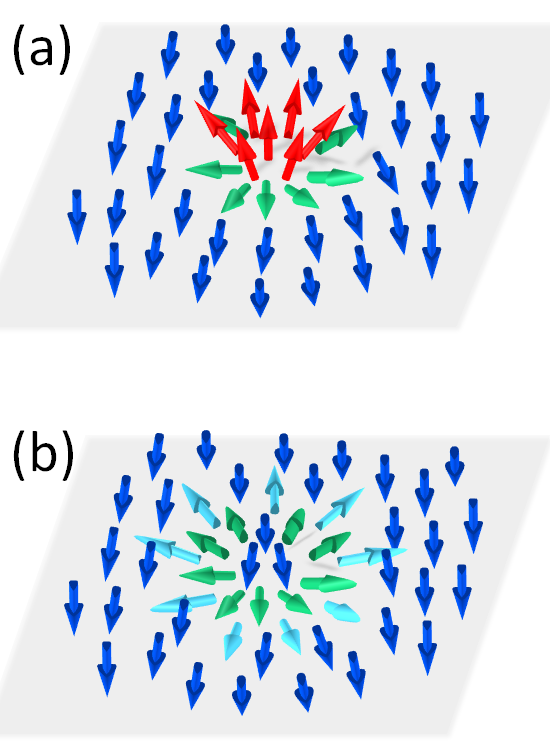

Another interesting finding of our study is that the magnetic vortex topological charge itself is not essential for the discussed phenomena. Our theory predicts that even chiral configurations with zero topological charge such as a co-vortice shown in Fig. 9b can exhibit transverse scattering properties similar to that of a topologically charged magnetic skyrmion (Fig. 9a). In Fig. 10 we present evolution of the total transverse scattering cross section $\Sigma_{\alpha\beta}^{tr}$ for the topologicaly trivial magnetic vortex. Inside its core $r<a/2$ the vortex is parametrized with the profile $\Lambda(r)=4\pi r/a(1-2r/a)$. Similarly to the magnetic skyrmion considered in the previous sections, there are different regimes of asymmetric electron scattering. At a small $\lambda_{a}$ (Fig. 10, left panel) the charge transverse effect dominates with each scattering channel having the same sign of $\Sigma_{\alpha\beta}^{tr}$. At a large $\lambda_{a}$ (Fig. 10, right panel) there is a pronounced spin Hall effect with spin-flip channels being suppressed. The intermediate region $\lambda_{a}\sim 1$ exhibits an oscillating crossover.

This finding highlights that the microscopic origin of THE originates from a local chiral ordering of the magnetic moments rather than from a global topology of the magnetization field. THE can be expressed in terms of a topological characteristic of the magnetic structure only when the mean field approximation is applicable and the local deviations of the magnetization can be neglectedYe et al. (1999); Bruno et al. (2004). The mean field approach is adequate for arrays of magnetic skyrmionsZhou and Ezawa (2014); Ma et al. (2015), skyrmion latticesNeubauer et al. (2009); Yu et al. (2011) and other dense skyrmion systems. However, an electron scattering on an individual chiral vortex cannot be reduced to an electron motion in a homogeneous effective magnetic field.

VI Summary

The presented analysis of microscopic electron scattering on a chiral magnetization field enabled us to formulate the following features of the topological Hall effect. When both free carriers spin subbands are involved there are two qualitatively different regimes characterized by the adiabatic parameter $\lambda_{a}$. In the range $\lambda_{a}\ll 1$ a charge carrier exchange interaction with a skyrmion leads to the transverse charge current with a negligible spin Hall effect. On the contrary, in the adiabatic regime $\lambda_{a}\gg 1$ the spin Hall effect dominates and the transverse charge current appears only if there is a substantial spin polarization of the carriers, this regime is similar to the anomalous Hall effect. Our theory allowed us to trace the nontrivial crossover between the two regimes for the intermediate values of $\lambda_{a}$. For the most realistic crossover driven by a skyrmion size or the carriers Fermi level the transverse spin and charge currents oscillate with $\lambda_{a}$ reflecting the electron wave interference at $ka\sim 2\pi$ and deviation from the second Born approximation towards adiabatic scenario. The discovered characteristic feature of topological Hall effect can be used as a new tool for experimental detection of THE.

VII Acknowledgments

We thank M. M. Glazov for helpful discussion. The work has been carried out under the financial support from Russian Science Foundation, project 17-12-01182 (analytical theory)and project 17-12-01265 (numerical calculations), K.S.D. thanks Russian Foundation of Basic Research (Project no.16-32-00798) for financial support.

Appendix A Methods

In this Appendix we consider the calculation of scattering amplitude ${f}_{\alpha\beta}(\theta)$ via the phase-function method. The scattering potential of a chiral magnetic vortex (6) commutes with operator $\hat{j}=-i\partial_{\theta}+\kappa\hat{S}_{z}$, so the eigenfunctions are characterised by the corresponding quantum number $j$ having half-integer values. Throughout the paper we label these eigenstates by the angular momentum projection $m=j-1/2$ (taking integer values). The eigenfunctions are written:

[TABLE]

where $g_{m}^{(1,2)}(r)$ are the functions of radius vector $r$; they satisfy the system of equations:

[TABLE]

where ${q}_{m}\equiv(g_{m}^{(1)}(r),g_{m}^{(2)}(r))^{T}$ is the two-component function of $r$, the matrices ${H}_{m}^{{}^{\prime}}$, ${W}$ are given by:

[TABLE]

[TABLE]

The operator ${H}_{m}^{{}^{\prime}}$ corresponds to the free motion Hamiltonian, while ${W}$ is the perturbation due to the magnetic vortex. Outside of the core $r>a/2$ the term ${W}$ vanishes so that ${q}_{m}$ becomes a combination of Bessel functions:

[TABLE]

[TABLE]

where $J_{m},Y_{m}$ are the $m$-th order Bessel functions of the first and second kind, respectively. $K_{m}$ is $2\times 2$ constant matrix which determines the $m$-th scattering matix $S_{m}=(1+iK_{m})(1-iK_{m})^{-1}$. The scattering amplitude $f_{\alpha\beta}(\theta)$ is given by a sum over elements of $S_{m}$ (Eq. 7). The matrices $K_{m}$ (or $S_{m}$) are found from the exact solution of Eq. (12) inside the skyrmion core $r<a/2$.

The partial scattering matrices ${S}_{m}$ were calculated using phase-functions methodBabikov (1967). This technique considers the scattering parameters ($K_{m}(r),S_{m}(r)$) as functions of radius vector $r$ in the region $r<a/2$. The matrices $S_{m}(r)$ describe the scattering on a potential being cut off at the point $r$. The advantage of the approach is that instead of solving Schrödinger equation (1) one should solve numerically the first order matrix differential nonlinear equation for $S_{m}(r)$:

[TABLE]

where

[TABLE]

$H_{m}^{(1,2)}$ are the $m$-th order Hankel functions of the first and second kind, and $W(r)$ is the potential defined by the vortex structure (13). The bondary condition is $S_{m}^{\alpha\beta}(r=0)=\delta_{\alpha\beta}$. Since we consider a vortex of a finite size with uniform background magnetization outside, the value of the partial scattering matrix at the boundary $S_{m}(a/2)$ gives the scattering amplitude (7).

Appendix B 2D scattering on a triad of spins

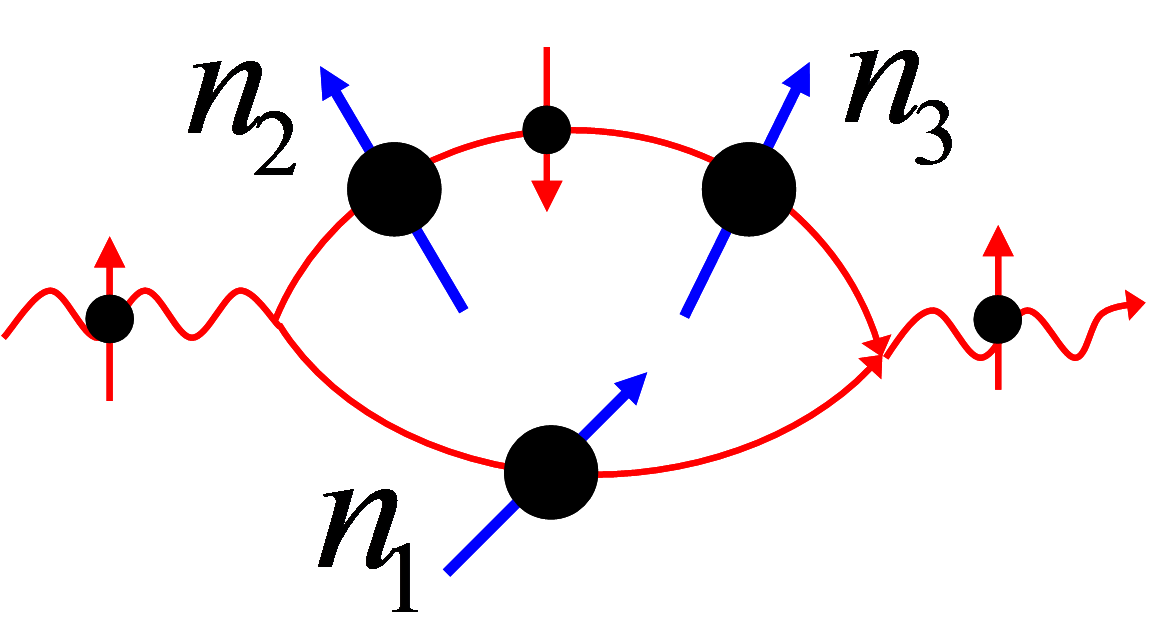

In this Appendix we explain the microscopic origin of the charge Hall response due to non-zero spin chirality in the weak-coupling regime. Let us consider a scattering of an electron on a triad of non-coplanar spins (Fig. 3). The incident electron comes along $x$-direction and the scatterers forming the triad are located symmetrically with respect to the reflection in $xz$ plane so that their spatial arrangement does not produce any scattering asymmetry in transversal $y$ direction. We take the scattering potential in the form:

[TABLE]

where ${\bf r_{i}}$ is the radius-vector of the $i$-th scatterer, ${\bm{\sigma}}$ is the vector of Pauli matrices, ${{\bf n}_{i}}$ are the unit length vectors indicating magnetization directions of the three scatterers, the constant $A$ accumulates the exchange interaction strength and the magnitudes of the electron and the scatterers spins.

In the weak coupling case the kinetic energy difference between spin-up and spin-down electrons can be neglected so that $k_{\uparrow}\approx k_{\downarrow}\equiv k$. The spin-dependent scattering amplitude $f_{\alpha\beta}(\theta)$ for scattering from a state $\left|{\bf k},\beta\right\rangle$ (${\bf k}$ points along $x$-direction) into a state $\left|{\bf k^{\prime}},\alpha\right\rangle$ defined in (4) can be expressed in terms of $T$-matrix asAdhikari (1986):

[TABLE]

where $\theta$ is the scattering angle between ${\bf k}$ and ${\bf k^{\prime}}$, $\alpha,\beta$ are spin indices. In the second Born approximation the $T$-matrix is given by:

[TABLE]

where $V$ is the scattering potential (Eq. 15), $G_{0}$ is the 2D Green’s function of a free propagating electron.

To calculate $f_{\alpha\beta}$ via Eq. (16) we need the matrix elements of $T$-matrix:

[TABLE]

where ${{\bf{r}}_{ij}}={{\bf{r}}_{i}}-{{\bf{r}}_{j}}$, ${r_{ij}}=\left|{{{\bf{r}}_{ij}}}\right|$, $H_{0}^{(1)}$ is Hankel function of the first kind, and $v_{i,\alpha\beta}$ are spin matrix elements:

[TABLE]

The scattering cross section is given by $d\sigma_{\alpha\beta}/d\theta=|f_{\alpha\beta}|^{2}$, so we calculate

[TABLE]

We focus on the scattering asymmetry related to the spin chirality of the magnetization field, for the considered triad that is \chi_{c}={\bf n}_{1}\cdot\bigl{[}{\bf n}_{2}\times{\bf n}_{3}\bigr{]}. Thus, any chirality related phenomena would include all three spins of the triad. The first term in (21) corresponding to the first Born approximation consists of combinations of only two spin matrix elements (20) and appears to be irrelevant to the chirality related scattering. The spin chirality $\chi_{c}$ first appears in the third order on the exchange interaction $A$. Let us consider the third order terms for spin conserving scattering channel $(\alpha=\beta)$. We obtain:

[TABLE]

where

[TABLE]

The chirality aware term here is the imaginary part:

[TABLE]

As it is clearly seen in (22) this part appears to have the same sign for spin-up and spin-down scattering channels. Analogously, for the spin-flip third order scattering channels we obtain:

[TABLE]

Similarly to the diagonal channels (22), the sign of the spin-chirality terms is also the same for the two opposite spin-flip scattering channels (B). Finally, the spin chirality aware part contributing to the cross section appears to be the following:

[TABLE]

where $\delta_{\alpha\beta}$ is the Kronecker delta. The spin chirality driven term does not depend on the incident electron spin: ${\left|{{T_{\uparrow\uparrow}}}\right|^{2}_{\chi}}={\left|{{T_{\downarrow\downarrow}}}\right|^{2}_{\chi}}$, ${\left|{{T_{\uparrow\downarrow}}}\right|^{2}_{\chi}}={\left|{{T_{\downarrow\uparrow}}}\right|^{2}_{\chi}}$. Let us emphasize the origin of this result. The spin chirality contribution is always due to the interference between one spin-conserving and two spin-flip scattering events. While for the spin-conserving scattering amplitude the sign is opposite for spin-up and spin-down states (20), it is compensated by the sign change for the double spin flip process.
