Electron Electric Dipole Moment in Mirror Fermion Model with Electroweak Scale Non-sterile Right-handed Neutrinos

TL;DR

This paper investigates the electron electric dipole moment within a mirror fermion model featuring electroweak-scale non-sterile right-handed neutrinos and a tetrahedral symmetry, analyzing experimental constraints and related observables.

Contribution

It introduces a detailed analysis of CP violation and experimental constraints in a novel mirror fermion model with electroweak-scale right-handed neutrinos and horizontal symmetry.

Findings

The model's parameter space is constrained by the latest ACME EDM limit.

Additional phases in Yukawa couplings significantly affect low energy observables.

The study compares EDM constraints with muon magnetic moment and lepton flavor violation data.

Abstract

The electric dipole moment of the electron is studied in detail in an extended mirror fermion model with the following unique features of (a) right-handed neutrinos are non-sterile and have masses at the electroweak scale, and (b) a horizontal symmetry of the tetrahedral group is used in the lepton and scalar sectors. We study the constraint on the parameter space of the model imposed by the latest ACME experimental limit on electron electric dipole moment. Other low energy experimental observables such as the anomalous magnetic dipole moment of the muon, charged lepton flavor violating processes like muon decays into electron plus photon and muon-to-electron conversion in titanium, gold and lead are also considered in our analysis for comparison. In addition to the well-known CP violating Dirac and Majorana phases in the neutrino mixing matrix, the dependence of additional phases of the new Yukawa couplings in the model is studied in detail for all these low energy observables.

Figures

Tables

Table 1. Table 1: The current global fit results ( ± 1 ​ σ plus-or-minus 1 𝜎 \pm 1\sigma ) of three mixing angles taken from  Esteban:2016qun

Mixing angles	Normal Hierarchy (best fit)	Inverted Hierarchy ($\Delta {\chi }^2=0.83$)
${\sin }^2{\theta }_{12}$	${0.306}_{-0.012}^{+0.012}$	${0.306}_{-0.012}^{+0.012}$
${\sin }^2{\theta }_{23}$	${0.441}_{-0.021}^{+0.027}$	${0.587}_{-0.024}^{+0.020}$
${\sin }^2{\theta }_{13}$	${0.02166}_{-0.00075}^{+0.00075}$	${0.02179}_{-0.00076}^{+0.00076}$

Table 2. Table 2: SM values of the capture rates (in unit of 10 6 ​ s − 1 superscript 10 6 superscript s 1 10^{6}\,{\rm s}^{-1}   muoncapturerate ) and the dimensionless overlap integrals (evaluated under the assumption that the proton and neutron distributions within each nuclei are the same  Kitano:2002mt ) for titanium, gold and lead.

Nuclei	${\Gamma }_{\mathrm{capt}}$ (${10}^6$ s-1)	$D$
${}_{22}{}^{}{}_{}{}^{48}$Ti	2.59	0.0864
${}_{79}{}^{}{}_{}{}^{197}$Au	13.07	0.189
${}_{82}{}^{}{}_{}{}^{208}$Pb	13.45	0.161

Equations

$$Y_B\equiv n_B/s=(8.61\pm 0.09)\times 10^{-11}.$$

$$d_e=(-2.1\pm 3.7_{\mathrm{stat}}\pm 2.5_{\mathrm{syst}})\times 10^{-29}e\cdot \mathrm{cm}.$$

$$|d_e|<8.7\times 10^{-29}e\cdot \mathrm{cm},$$

$$-{\mathcal{L}}_S$$

$${\mathcal{L}}_M=g_M\left(l_R^{M,T}{\sigma }_2\right)\left(i{\tau }_2\tilde{\chi }\right)l_R^M+H.c..$$

$${\mathcal{L}}_S^l$$

$${\mathcal{U}}_{im}^{Lk}$$

$${\mathcal{U}}_{im}^{Rk}$$

$$U_{\nu}=U^{\dagger}_{\rm CW}=\frac{1}{\sqrt{3}}\left(\begin{array}[]{cccc}1&1&1\\ 1&\omega^{2}&\omega\\ 1&\omega&\omega^{2}\\ \end{array}\right)\;,$$

$${\mathcal{L}}_{l_i}^{\mathrm{EDM}}=-i\frac{d_{l_i}}{2}{\bar{l}}_i{\sigma }^{\mu \nu }{\gamma }_5{l}_i{F}_{\mu \nu },$$

$$\mathcal{M}\left(l_i^{-}\to l_j^{-}\gamma \right)={ϵ}_{\mu }^{\ast }(q){\bar{u}}_j(p^{\prime })\left\{i{\sigma }^{\mu \nu }{q}_{\nu }\left[C_L^{ij}{P}_L+C_R^{ij}{P}_R\right]\right\}{u}_i(p),$$

$${\mathcal{L}}_{\mathrm{eff}}=-\frac{1}{2}{\bar{l}}_j\left\{i{\sigma }^{\mu \nu }\left[C_L^{ij}{P}_L+C_R^{ij}{P}_R\right]\right\}{l}_i{F}_{\mu \nu }.$$

$$d_{l_i}$$

$$g_{0S}=|g_{0S}|e^{i{\delta }_0},g_{1S}=|g_{1S}|e^{i{\delta }_1},g_{0S}^{\prime }=|g_{0S}^{\prime }|e^{i{\delta }_0^{\prime }},g_{1S}^{\prime }=|g_{1S}^{\prime }|e^{i{\delta }_1^{\prime }}.$$

$$\alpha ={\delta }_0-{\delta }_0^{\prime },\beta ={\delta }_1-{\delta }_1^{\prime }.$$

$$\displaystyle U_{\rm PMNS}=\left(\begin{array}[]{ccc}c_{12}c_{13}&s_{12}c_{13}&s_{13}e^{-i\delta_{\rm CP}}\\ -s_{12}c_{23}-c_{12}s_{23}s_{13}e^{i\delta_{\rm CP}}&c_{12}c_{23}-s_{12}s_{23}s_{13}e^{i\delta_{\rm CP}}&s_{23}c_{13}\\ s_{12}s_{23}-c_{12}c_{23}s_{13}e^{i\delta_{\rm CP}}&-c_{12}s_{23}-s_{12}c_{23}s_{13}e^{i\delta_{\rm CP}}&c_{23}c_{13}\end{array}\right)\cdot P$$

$$U_{\mathrm{PMNS}}^M=U_{\mathrm{PMNS}}^{\prime }=U_{\mathrm{PMNS}}^{\prime M}=U_{\mathrm{CW}}$$

$$U_{\mathrm{PMNS}}^M=U_{\mathrm{PMNS}}^{\prime }=U_{\mathrm{PMNS}}^{\prime M}=U_{\mathrm{PMNS}}$$

$$m_{{\varphi }_{0S}}\approx m_{{\varphi }_{kS}}=m_S=1\mathrm{GeV}.$$

$$g_S⟨{\varphi }_S⟩\sim \sqrt{M_R/\mathrm{TeV}}\times \mathrm{MeV}.$$

$$m_{l_k^M}=m_M,$$

$$d_{l_i}\approx +\frac{e}{32{\pi }^2}\frac{1}{m_M}{J}_{l_i},$$

$$J_{l_i}\equiv \mathrm{Im}\sum _{k=0}^3\sum _{m=1}^3{\mathcal{U}}_{im}^{Lk}{\left({\mathcal{U}}_{im}^{Rk}\right)}^{\ast }.$$

$$J^{A}_{e}=|g_{0S}|\,|g^{\prime}_{0S}|\,\Big{(}C_{1}\sin(\alpha)+C_{2}\sin(\delta_{\rm CP}-\alpha)\Big{)}+\,2\,|g_{1S}|\,|g^{\prime}_{1S}|\,C_{2}\sin(\delta_{\rm CP})\cos(\beta)\,$$

$$C_1$$

$$C_2$$

$$J_e^B=|g_{0S}||g_{0S}^{\prime }|\sin (\alpha ).$$

$$\mathrm{Br}({\mu }^{-}+\mathrm{Ti}\to e^{-}+\mathrm{Ti})$$

$$\mathrm{Br}({\mu }^{-}+\mathrm{Au}\to e^{-}+\mathrm{Au})$$

$$\mathrm{Br}({\mu }^{-}+\mathrm{Pb}\to e^{-}+\mathrm{Pb})$$

$$\mathrm{Br}({\mu }^{-}+\mathrm{Al}\to e^{-}+\mathrm{Al})$$

$$\mathrm{Br}({\mu }^{-}+\mathrm{Ti}\to e^{-}+\mathrm{Ti})$$

$$\mathrm{Br}(\mu \to e\gamma )$$

Full text

I Introduction

The particle spectrum of the Standard Model (SM) has now been completed by the discovery of the 125 GeV Higgs boson at the Large Hadron Collider (LHC). Nevertheless, many questions remained unanswered within the SM. On the conceptual side, we do not understand the instability of the Higgs boson mass under quantum corrections, indicating that SM is very sensitive to new physics beyond the TeV scale; while on the phenomenological side, we have issues like the Baryon Asymmetry of the Universe (BAU), dark matter, and neutrino masses etc. The current popular view is that SM is just a low energy effective theory of a better one at a higher scale with new physics that can address some or all of the above issues. Indeed many beautiful ideas had been suggested in the literature to solve some of these issues. Current LHC constraint is already quite stringent on the scale of new physics $\Lambda_{\rm NP}\sim$ a half to a few TeV, should the new physics be supersymmetry or extra dimension or sequential fourth generation, or technicolor etc. While one should continue the direct searches for new particles at the LHC, looking for new physics indirectly from low energy observables where new particles only exist virtually at the loop level is an important alternative avenue. Historically one can recall that the charm quark was predicted long before its discovery by the GIM mechanism Glashow:1970gm , which was engaged to suppress flavor changing neutral currents in the box diagrams of the $K\overline{K}$ kaon system.

The electric dipole moment (EDM) of an elementary particle is one such low energy observable which is sensitive to new CP violating phases from new physics. As is well known the CP violation phase in the Cabibbo-Kobayashi-Maskawa (CKM) quark mixing matrix is too minuscule to account for the BAU, characterized by the ratio of the net baryon number density to the entropy density in the Universe planck2015 ,

[TABLE]

Moreover, the SM contribution to the electron EDM from the CKM CP violation phase must arise at least at the four-loop level Shabalin:1978rs ; Shabalin:1979mw ; EDM:SM ; Booth:1993af . The reasons are as follows: Due to the structure of the particle exchange symmetry in the loop integrals of the various diagrams, the $W$ boson EDM vanishes to two-loop order in SM model, but it can be non-vanishing with one more gluon-dressed loop. By attaching the two external $W$ boson lines of the three-loop diagrams to the electron one can generate the electron EDM in SM. Thus the resulting electron EDM ($d_{e}$) in SM is a four-loop result, estimated to be $\sim 8\times 10^{-41}e\cdot{\rm cm}$ Booth:1993af , which is twelve orders of magnitude below the current experimental limit (see below). Therefore a positive measurement of the electron EDM at the current sensitivities of various experiments or their projected improvements in the near future would definitely imply new sources of CP violation. New CP violating phases might then be helpful to solve the BAU puzzle.

The latest measurement of the electron EDM was done by the ACME Collaboration Baron:2013eja using the polar molecule thorium monoxide (ThO) just a few years back,

[TABLE]

This corresponds to a 90% confidence limit,

[TABLE]

which is an improvement by a factor of 12 over the previous best measurements.

In this work, we study the electron EDM in a class of mirror fermion model proposed some time ago by one of the authors Hung:2006ap . We will demonstrate that the above ACME limit can put stringent constraints on the parameter space of the extended mirror fermion model discussed below.

Here we briefly review the salient features of the original mirror model Hung:2006ap . In contrast with the left-right symmetric models, the gauge group was chosen to be the same as SM, only mirror fermions were introduced. Right-handed neutrinos were introduced as well, but instead of being sterile singlets, they were put inside right-handed weak doublets with mirror charged leptons for each generation. In addition to the SM Higgs doublet, the Georgi-Machacek (GM) triplets Georgi:1985nv ; Chanowitz:1985ug were also needed to provide Majorana masses for right-handed neutrinos. To obtain the correct electroweak symmetry breaking pattern, the triplet vacuum expectation value (VEV) should be around the electroweak scale as well. Thus the non-sterile right-handed neutrinos have Majorana masses of the order of electroweak scale which imply immediate consequences at the LHC! Furthermore, an electroweak scalar singlet was also bought into the model to generate tiny Dirac neutrino masses of order eV through small enough VEV and provide very small mixings between SM fermions and their mirrors.

Recently, many phenomenological implications of the mirror model Hung:2006ap have been explored further. We summarize what we have been done in a series of works involving various collaborations: In Hoang:2013jfa , the model was challenged by the electroweak precision measurements. It was shown that the dangerously large contributions to the oblique parameters from the mirror fermions (especially the $S$ parameter) can be tamed by the opposite contributions from the Higgs triplets. In Hoang:2014pda , the original mirror model was extended by adding a mirror Higgs doublet so as to accommodate the LHC data for the SM Higgs signal strengths of various channels. Searches for mirror fermions at the LHC were studied in Chakdar:2015sra for mirror quarks and Chakdar:2016adj for mirror leptons. In Hung:2015nva , the neutrino and charged lepton masses and mixings were discussed in the mirror model with a horizontal $A_{4}$ symmetry imposed on the lepton sector. Subsequently, in Hung:2015hra , the charged lepton flavor violating (CLFV) radiative decay $\mu\to e\gamma$ was studied in details in this mirror model with the $A_{4}$ symmetry extension, updating an earlier calculation Hung:2007ez done for the original model. Moreover, the $\mu-e$ conversion in nuclei was also studied Hung:2017voe . In Chang:2016ave , the CLFV Higgs decay $h(125\,{\rm GeV})\to\mu\tau$ was studied for the extended mirror model with a mirror Higgs doublet Hoang:2014pda .

There exists a huge amount of studies of the electron EDM in the literature for other new physics models with CP violation, for example, the generic two Higgs doublet model Jung:2013hka , minimal supersymmetric standard model (MSSM) Nath:1991dn ; Ibrahim:1997gj ; Ellis:2008zy ; Ibrahim:2014oia , models with sterile neutrinos Abada:2015trh , etc. For recent reviews on this topics, see for example Pospelov:2005pr ; Engel:2013lsa ; Chupp:2014gka ; LinderPlastscherQueiroz . We focus on the electron EDM in the mirror model with the $A_{4}$ symmetry as discussed in Hung:2015nva .

This paper is organized as follows. In Sect. II, we give some more details of the model by spelling out the relevant lepton and scalar spectra, their $A_{4}$ assignments, and the new Yukawa couplings. In Sect. III, we present the formulas of the lepton EDMs. In Sect. IV, we first discuss the assumptions and scenarios used in the numerical analysis and then present the numerical results for the electron EDM. We conclude in Sect. V. Some useful formulas are relegated to the end by an Appendix.

II Brief Review of the Model

In this section, we highlight the original mirror fermion model discussed in Hung:2006ap and its recent $A_{4}$ extension Hung:2015nva .

For each generation $i$, the SM lepton doublet $l_{Li}$ and singlet $e_{Ri}$ are accompanied with mirror fields $l^{M}_{Ri}$ and $e^{M}_{Li}$ respectively. For the scalars, $\Phi_{M}$ is the mirror Higgs doublet of $\Phi$, both have hypercharge $Y/2=1/2$; $\xi$ and $\tilde{\chi}$ are the two GM triplets with $Y/2$ equal 0 and 1 respectively; and $\phi_{0S}$ and $\phi_{iS}$ $(i=1,2,3)$ are all singlets.

Recall that the tetrahedron symmetry group $A_{4}$ has four irreducible representations $\bf 1$, $\bf 1^{\prime}$, $\bf 1^{\prime\prime}$, and $\bf 3$ with the following multiplication rule ${\bf 3}\times{\bf 3}={\bf 3_{1}}(23,31,12)+{\bf 3_{2}}(32,13,21)+{\bf 1}(11+22+33)+{\bf 1^{\prime}}(11+\omega^{2}22+\omega 33)+{\bf 1^{\prime\prime}}(11+\omega 22+\omega^{2}33)$ where $\omega=e^{2\pi i/3}=-\frac{1}{2}+i\frac{\sqrt{3}}{2}$. Note $\omega^{2}=\omega^{*}$. For the $A_{4}$ assignments, $l^{M}_{Ri}$, $e^{M}_{Li}$, $l_{Li}$, $e_{Ri}$ and $\phi_{iS}$ are triplets while all other fields are singlets.

In the gauge eigenbasis (fields with superscript 0), one can write down the following $A_{4}$ invariant Yukawa couplings,

[TABLE]

The singlet scalars $\phi_{0S},\vec{\phi}_{S}=(\phi_{1S},\phi_{2S},\phi_{3S})$ are the only fields connecting the SM fermions and their mirror counterparts. After the scalar singlets develop small VEVs $v_{0}=\langle\phi_{0S}\rangle$ and $v_{i}=\langle\phi_{iS}\rangle$ of order $10^{5}$ eV, one obtains the tiny neutrino Dirac mass Hung:2006ap .

On the other hand, the Majorana mass term for the non-sterile right-handed neutrinos can be generated by the following $A_{4}$ invariant Lagrangian Hung:2006ap ; Hung:2015nva

[TABLE]

When the neutral component of the $A_{4}$ singlet $\tilde{\chi}$ develops a VEV $\langle\chi_{0}\rangle=v_{M}\sim v_{\rm SM}=246$ GeV, one obtains the Majorana mass at the electroweak scale Hung:2006ap .

In terms of the physical mass eigenstate fields, the Yukawa couplings in (3) read

[TABLE]

where we have grouped the singlet and triplet scalars $\phi_{0S}$ and $\vec{\phi}_{S}$ into $\phi_{kS}$ with $k=0,1,2,3$. The coupling coefficients ${\cal U}^{L\,k}_{im}$ and ${\cal U}^{R\,k}_{im}$ are given by Hung:2015hra

[TABLE]

where the matrix elements for the auxiliary matrices $M^{k}_{jn}$ and $M^{\prime\,k}_{jn}$ with $k=0,1,2,3$ depend on the new Yukawa couplings. Their definitions can be found in Hung:2015hra . $U_{\rm PMNS}$ is the usual neutrino mixing matrix defined as $U_{\rm PMNS}=U_{\nu}^{\dagger}U^{l}_{L}=U_{\rm CW}U^{l}_{L}$ with Hung:2015hra

[TABLE]

and $U^{l}_{L}$ is the unitary matrix that diagonalizes the charged lepton mass matrix. In the $A_{4}$ limit, $U^{l}_{L}=1$. In Hung:2015nva , it was parameterized as a Wolfenstein-like matrix with elements whose values are constrained by the experimental input of $U_{\rm PMNS}$. Analogously the mirror and right-handed counter-parts of $U_{\rm PMNS}$ are $U^{M}_{\rm PMNS}$, $U^{\prime}_{\rm PMNS}$ and $U^{\prime M}_{\rm PMNS}$ defined as $U^{M}_{\rm PMNS}=U^{\dagger}_{\nu}U^{l^{M}}_{R}$, $U^{\prime}_{\rm PMNS}=U_{\nu}^{\dagger}U^{l}_{R}$, and $U^{\prime M}_{\rm PMNS}=U^{\dagger}_{\nu}U^{l^{M}}_{L}$. Certainly, among these four PMNS-type mixing matrices, only $U_{\rm PMNS}$ has been determined experimentally.

III Charged Lepton Electric Dipole Moments

The electric dipole moment (EDM) operator is defined as

[TABLE]

where $F_{\mu\nu}$ is the electromagnetic field strength and the coefficient $d_{l_{i}}$ is the electric dipole moment for the $i$-th generation charged lepton $l_{i}$.

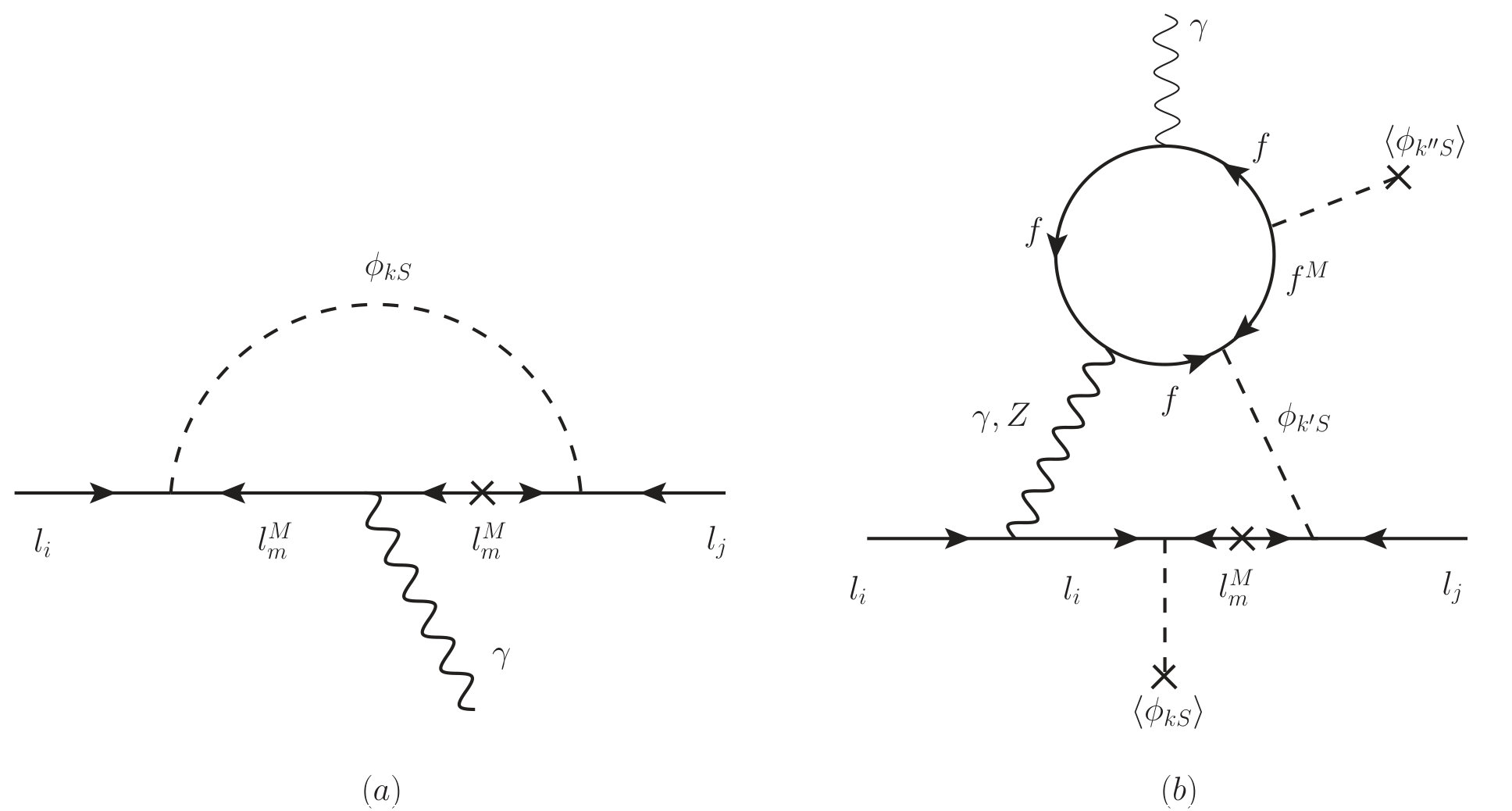

The one-loop and two-loop Feynman diagrams contributing to the charged lepton EDMs in the mirror model that we are discussing are depicted in Fig. 1. The two-loop Zee-Barr type diagram Barr:1990vd in Fig. 1b is completely negligible due to the mixings between SM fermions and their mirrors which are proportional to the very small VEVs of the singlets. Moreover it is suppressed by two more powers of the small new Yukawa couplings as compared with the one-loop diagram in Fig. 1a. We will focus on the one-loop diagram in Fig. 1a. The one-loop amplitude for the process $l^{-}_{i}(p)\to l^{-}_{j}(p^{\prime})+\gamma(q)$ has been computed in Hung:2015hra with the following matrix element,

[TABLE]

where $P_{L,R}=(1\mp\gamma_{5})/2$ are the chiral projection operators and the coefficients $C^{ij}_{L,R}$ are summarized in the Appendix for convenience.

The amplitude $\cal M$ in Eq. (10) can be reproduced by the following effective interaction

[TABLE]

Comparing with the lepton EDM Lagrangian in Eq. (9), we can extract the electric dipole moment $d_{l_{i}}$ as Hung:2015hra

[TABLE]

where $m_{l^{M}_{m}}$ and $m_{\phi_{kS}}$ are mirror leptons and scalar Higgs masses respectively, ${\mathcal{U}}^{L\,k}_{im}$ and ${\mathcal{U}}^{R\,k}_{im}$ are defined in (6) and (7), and ${\mathcal{J}}(r)$ is a loop function defined in the Appendix (Eq. (37)). We note that the dependence of new Yukawa couplings are hidden in the auxiliary matrices $M^{k}_{jn}$ and $M^{\prime\,k}_{jn}$ in the definitions of ${\mathcal{U}}^{L\,k}_{im}$ and ${\mathcal{U}}^{R\,k}_{im}$ given in (6) and (7) respectively.

We note the contribution from the mirror fermion-scalar singlet loop to the charged lepton EDM is similar to the chargino-sneutrino loop in MSSM Ibrahim:2014oia . One can check that our EDM expression in (12) is consistent with the MSSM result given by (11) in Ibrahim:2014oia .

IV Analysis

We will first discuss the parameter space that is relevant in our numerical analysis. Our approach here is similar to those adopted in previous works Hung:2015hra ; Chang:2016ave .

• •

The six new Yukawa couplings $g_{0S}$, $g_{1S}$, $g_{2S}$, $g^{\prime}_{0S}$, $g^{\prime}_{1S}$, $g^{\prime}_{2S}$ are in general complex. Recall that we have the following relations $g_{2S}=(g_{1S})^{*}$ and $g^{\prime}_{2S}=(g^{\prime}_{1S})^{*}$ due to the reality of the eigenvalues of the Dirac neutrino mass matrix Hung:2015nva . Thus we will write the couplings as follows:

[TABLE]

The new phases in these Yukawa couplings are the new sources of CP violation. Note that one can absorb the phase $\delta_{0}$ of $g_{0S}$ in the first term in (3) by redefinition of $\phi_{0S}$. However, it will show up at the fourth term as $e^{i(\delta^{\prime}_{0}-\delta_{0})}$. Similarly, one can absorb the phase $\delta_{1}$ of $g_{1S}$ in the second term in (3) by redefinition of $\vec{\phi}_{S}$ but it will reappear at the fifth term as $e^{i(\delta^{\prime}_{1}-\delta_{1})}$. Since $g_{2S}=(g_{1S})^{*}$ and $g^{\prime}_{2S}=(g^{\prime}_{1S})^{*}$, similar comment can be made for the third and the sixth terms in (3). Thus one expects any physical observable must be depending on the phase differences

[TABLE]

For $\delta_{0,1}$ and $\delta^{\prime}_{0,1}$ range from 0 to $2\pi$, $\alpha$ and $\beta$ range from $-2\pi$ to $2\pi$.

• •

For the PMNS matrix it is most commonly parameterized as PDG-neutrinos

[TABLE]

where $s_{ij}\equiv\sin\theta_{ij}$, $c_{ij}\equiv\cos\theta_{ij}$ with $\theta_{ij}\in[0,\pi/2]$ being the mixing angles, $\delta_{\rm CP}\in[0,2\pi]$ being the CP-violating Dirac phase, and $P={\rm diag}[1,e^{i\alpha_{21}/2},e^{i\alpha_{31}/2}]$ is the Majorana phase matrix. While the current neutrino experimental data are not sensitive to these Majorana phases, one can show that the electron EDM is independent of these phases in the mirror fermion model that we are studying. We will set $\delta_{\rm CP}=-\pi/2$ (or equivalently $3\pi/2$) as suggested by recent data of the different appearance rates for $\nu_{\mu}\to\nu_{e}$ IwamotoICHEPTalk ; Adamson:2016tbq and $\bar{\nu}_{\mu}\to\bar{\nu}_{e}$ IwamotoICHEPTalk , as well as $\bar{\nu}_{\mu}$ disappearance rate Adamson:2016xxw in various experiments, which is consistent with the most recent global analysis of neutrino oscillation data Gonzalez-Garcia:2015qrr ; Esteban:2016qun . The current global fit results of three mixing angles were given in Table 1 of Ref. Esteban:2016qun . For convenience, we list them in Table 1 here.

• •

For the three unknown PMNS matrices we assume that they are equal to each other and study the following two scenarios:

• –

Scenario A

[TABLE]

• –

Scenario B

[TABLE]

• •

For the masses of the singlet scalars $\phi_{kS}$, we assume

[TABLE]

Recall that in the seesaw mechanism the light neutrino mass is $m_{\nu}^{\rm light}\sim(m_{\nu}^{D})^{2}/M_{R}$. If the neutrino Dirac mass $m_{\nu}^{D}$ is generated at the electroweak scale, one must require the right-handed neutrino mass scale $M_{R}$ to be at the grand unification scale in order to achieve light neutrino mass $m_{\nu}^{\rm light}$ of order eV. However, in the electroweak scale seesaw mechanism Hung:2006ap , $m^{D}_{\nu}\sim g_{S}\langle\phi_{S}\rangle$ and $M_{R}$ is of the order electroweak scale. To achieve eV light neutrino mass, one needs

[TABLE]

Thus for $M_{R}\sim v_{\rm SM}=246$ GeV, as $g_{S}$ varies from $5\times 10^{-4}$ to $1$, $\langle\phi_{S}\rangle$ varies from 1 GeV to 0.5 MeV. The mass of the singlet $m_{\phi_{S}}\sim\lambda_{S}\langle\phi_{S}\rangle$ where $\lambda_{S}$ is a generic quartic coupling of order one in the scalar potential. So we choose the common mass $m_{S}$ to be 1 GeV in (19) as a nominal value.

Similarly, for the mirror lepton masses, we assume they are degenerate, i.e.

[TABLE]

and vary the common mass $m_{M}$ from 100 to 800 GeV. Thus $m_{M}\gg m_{S}$, the loop function ${\cal J}(m^{2}_{\phi_{kS}}/m^{2}_{l^{M}_{m}})\approx{\cal J}(0)=1/2$ which is not sensitive to the masses of the singlets and the mirror leptons.

With these assumptions, the electric dipole moment in (12) can be simplified as

[TABLE]

where

[TABLE]

One can easily show that $J_{e}$ is independent of the Majorana phases while $J_{\mu}$ and $J_{\tau}$ in general do.

For Scenario A, $J_{e}$ can be expressed as

[TABLE]

with

[TABLE]

$J_{e}^{A}$ achieves its extremum at $\tan\alpha=-\cot\delta_{\rm CP}+\frac{C_{1}}{\sin\delta_{\rm CP}\,C_{2}}$ and $\sin\beta=0$. Numerically, $|J_{e}^{A}|$ and therefore $|d_{e}|$ is maximized at $\alpha\approx 4.93$ ($4.95$) for normal (inverted) hierarchy and $\beta=0$. For Scenario B, we simply have

[TABLE]

Note that in Scenario B, only the magnitudes of the $A_{4}$ singlet couplings $g_{0S}$ and $g^{\prime}_{0S}$ and their relative phase $\alpha$ entered in (25), the Dirac phase $\delta_{\rm CP}$ and the $A_{4}$-triplet couplings $g_{1S}$ and $g^{\prime}_{1S}$ do not contribute! Clearly, $J_{e}^{B}$ is maximized at $\alpha=\pi/2$ such that $d_{e}$ has its largest value.

• •

For comparisons, we include in our analysis the CLFV processes $\mu-e$ conversion in nuclei (titanium, gold and lead) and $\mu\to e\gamma$, and the muon anomalous magnetic dipole moment (MDM).

The present experimental upper limits on the branching ratios of $\mu-e$ conversion for nuclei titanium Dohmen:1993plB , gold Bertl:2006up and lead Honecker:1996zf are

[TABLE]

And the projected sensitivities for aluminum and titanium are  Bartoszek:2014mya ; COMETphase1 ; Kuno:2013mha ; Knoepfel:2013ouy ; Barlow:2011zza

[TABLE]

The current limit TheMEG:2016wtm and projected sensitivity Renga:2014xra for ${\rm Br}(\mu\rightarrow e\gamma)$ from the MEG experiment are

[TABLE]

For the muon anomalous magnetic dipole moment, we have from the E821 experiment muonanomaly the $3.6\sigma$ discrepancy between the measurement and the SM prediction

[TABLE]

where the first errors are experimental and the second systematic. In the numerical work, we will combine the two errors in quadrature.

• •

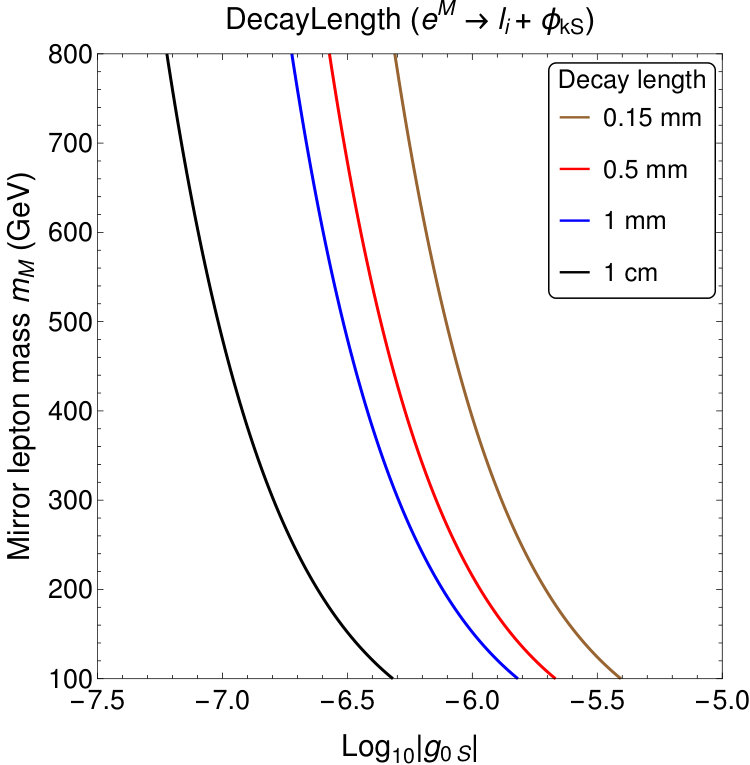

The decay length (see Appendix B) of the mirror lepton is also computed. In Fig. (2), we show the contour plots of 0.15, 0.5, 1mm and 1 cm for the decay length of $e^{M}\to l_{i}+\phi_{kS}$ on the ($g_{0S},m_{M}$) plane. We sum over all $i$ and $k$ and set $|g_{0S}|=|g_{0S}^{\prime}|=|g_{1S}|=|g_{1S}^{\prime}|$ for simplicity. In the limit of $m_{M}\gg m_{S}$, the decay length is sensitive to neither the two scenarios mentioned above nor the neutrino mass hierarchies and the CP phases.

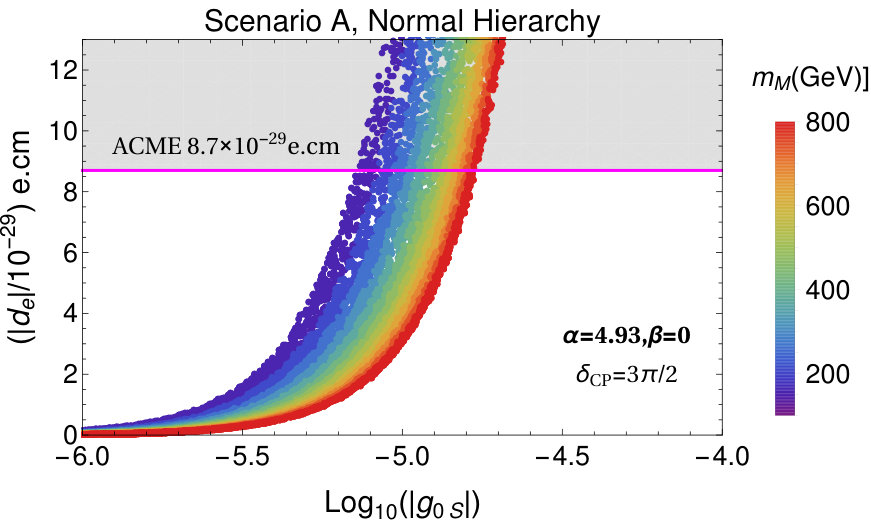

In Fig. (3), we plot the electron EDM as a function of $\log_{10}|g_{0S}|$ in Scenario A and normal hierarchy for $\alpha=4.93$ and $\beta=0$ where $|J_{e}^{A}|$ is maximized. For simplicity, we set $|g_{0S}|=|g_{0S}^{\prime}|=|g_{1S}|=|g_{1S}^{\prime}|$. Different color represents different mirror lepton mass $m_{M}$ as indicated by the palette at the right side of the plot. The pink line is the current limit of electron EDM from ACME Baron:2013eja . Results for inverted hierarchy are similar and will not be shown.

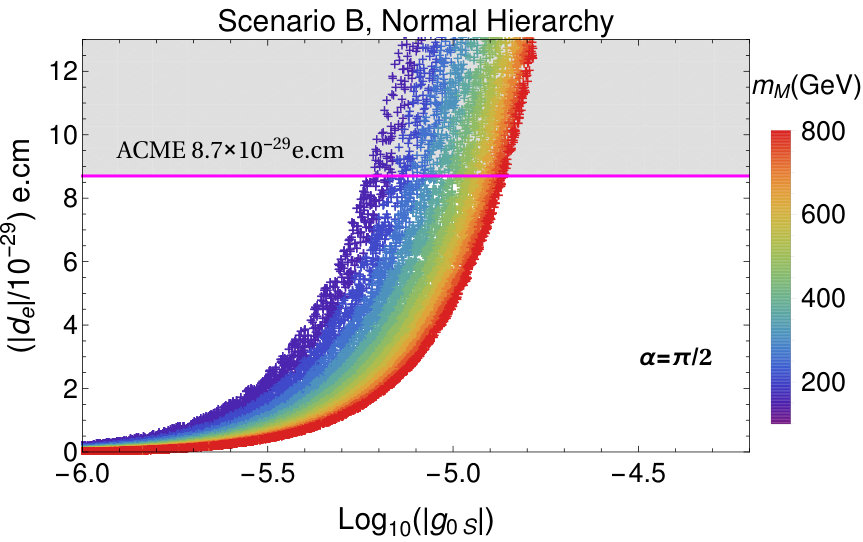

Fig. (4) is the same as Fig. (3) for Scenario B with $\alpha=\pi/2$ where $|J^{B}_{e}|$ is maximized. Note that for Scenario B, from (21) and (25) in Appendix C, the electron EDM is independent of $\beta$ and vanishes for $\alpha=0$.

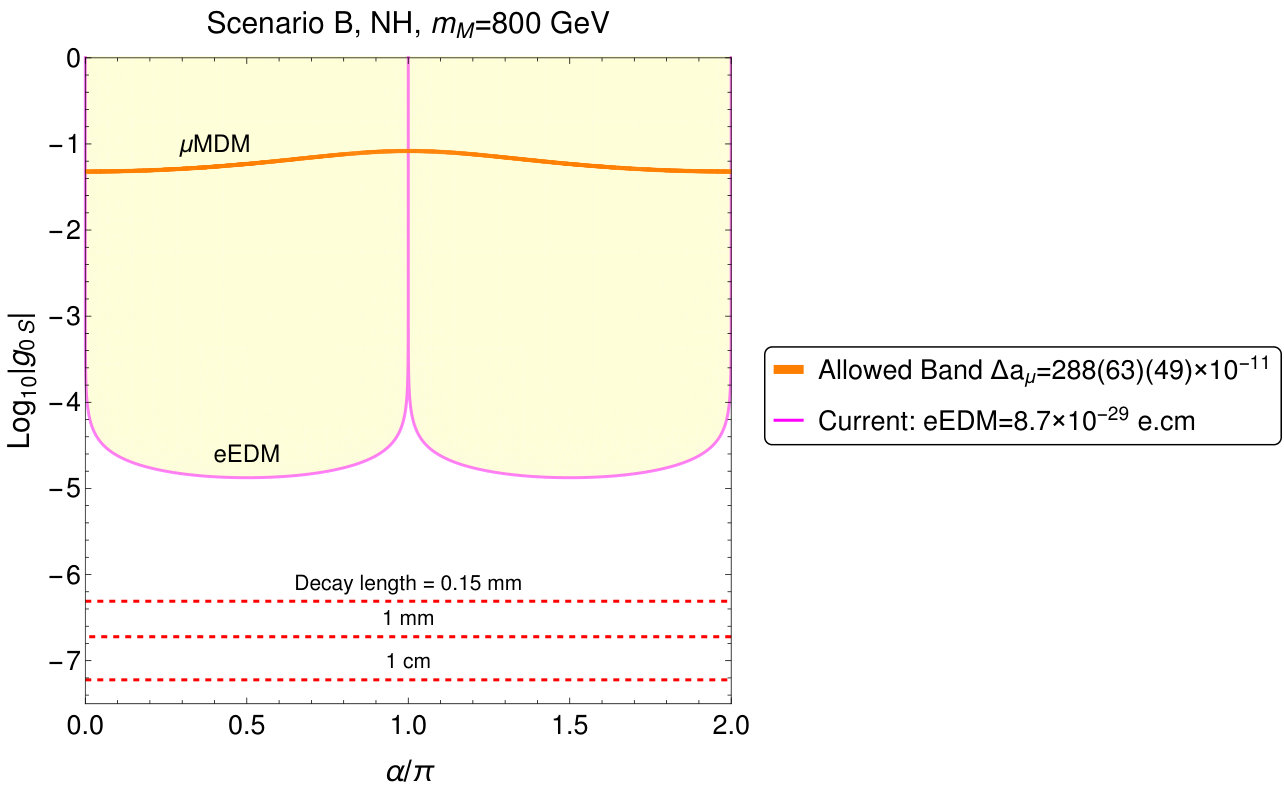

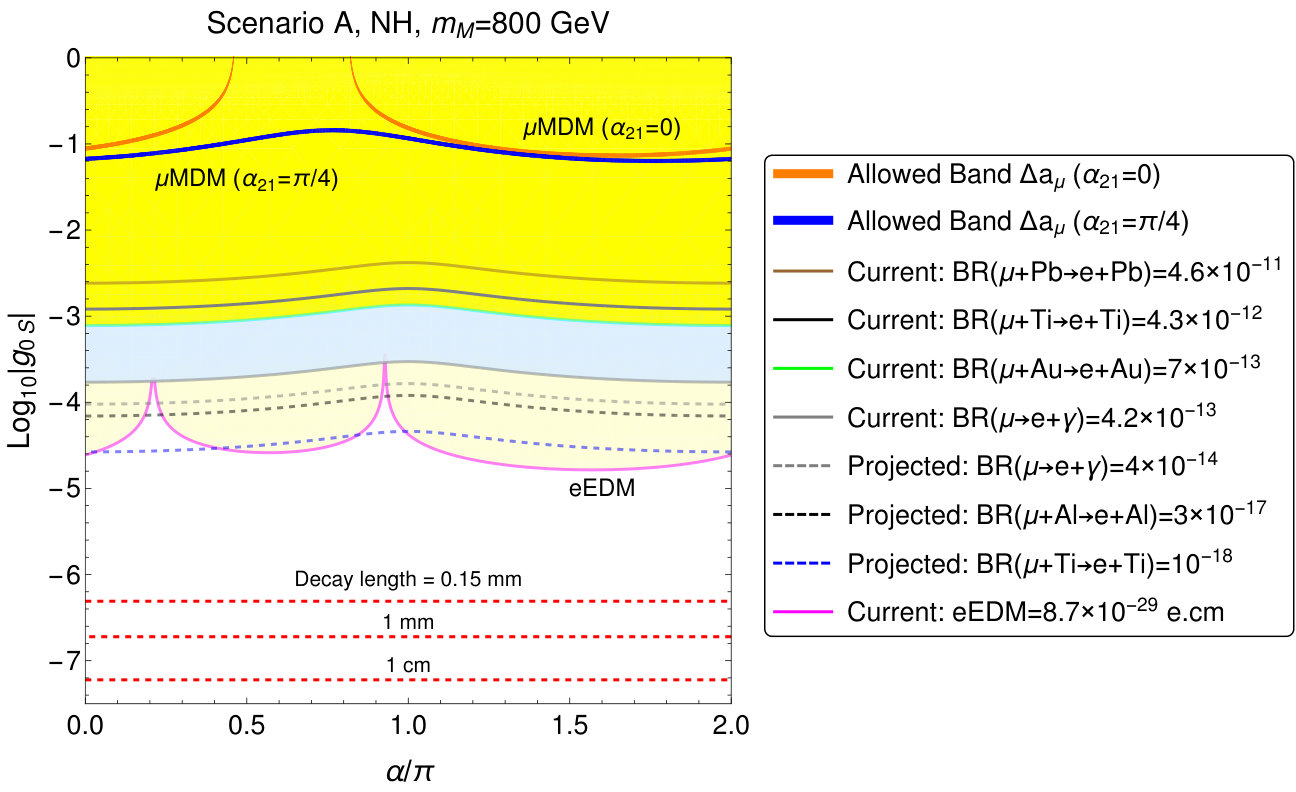

In Fig. (5) and Fig. (6), we show the constraints on the magnitude of the couplings and the CP phase $\alpha$ from the current limits and projected sensitivities of $\mu-e$ conversion, $\mu\to e\gamma$ and electron EDM from various experiments for normal hierarchy with $m_{M}=800$ GeV in both Scenario A and B respectively. We set $\beta=0$ for simplicity. Results for negative $\alpha$ are symmetric to those of positive $\alpha$ and will not be shown. We note that from (42) and (45) in Appendix E, both $\mu\to e\gamma$ and $\mu-e$ conversion are approximately vanishing for $m_{M}\gg m_{S}$ in Scenario B. We also note that CP phases (both Dirac and Majorana phases) can enter into the muon anomaly calculation as in the case of MSSM case Nath:1991dn . The orange (blue) band in Fig. (5) for Scenario A is the $3.6\sigma$ discrepancy of the muon anomaly given in (33) with the Majorana phase $\alpha_{21}=0$ ($\pi/4$). For Scenario B, the muon anomaly does not depend on the Majorana phases. However, they are not favored by the CLFV processes which constrains the couplings to be much smaller.

Since there is no significant difference for both neutrino mass hierarchies, we only show the normal hierarchy case for all plots. Results for other values of the mirror fermion mass are qualitatively the same and will be omitted too.

V Conclusion

We have studied the electron EDM in the mirror fermion model with electroweak scale non-sterile right-handed neutrinos and a horizontal $A_{4}$ symmetry in the lepton and scalar sectors. Modulo the possibility of cancellation in the various CP violation phases in different scenarios such that the quantity $J_{e}$ defined in Eq. (22) vanishes, current experimental limit on the electron EDM imposes the most stringent constraints on the parameter space of the model, as compared with other low energy precision observables like $\mu\to e\gamma$ and $\mu-e$ conversion in nuclei. However, projected sensitivities of $\mu\to e\gamma$ from MEG and of $\mu-e$ conversion experiments at Mu2e, Mu2e II, COMET and PRISM, can provide comparable if not more stringent constraints on the parameters of the mirror fermion model.

The region of parameter space that can “explain” the muon anomalous magnetic dipole moment in the mirror fermion model is not favored by the current limits of these CLFV processes and the electron EDM from various experiments, which suggest much smaller couplings of order $10^{-4}$ to $10^{-5}$.

On the other hand, the parameter space that can be probed by current and near future experiments for these CLFV processes and the electron EDM is close to the region where the mirror leptons, when produced at the LHC, have the decay length of about 1 mm. Besides missing energies, the search strategies for these mirror leptons at the LHC Chakdar:2016adj may have to include displaced vertices located at distances from 1 mm to 1 cm away from the beam axises. It is interesting to note that SM background is expected to be small in this region and signatures for mirror leptons could be distinctive. It is also interesting to see how, in the mirror model, low energy experiments (rare processes, electron EDM) guide the direct searches at high energy experiments (like the LHC) for new particles such as the mirror leptons.

For the two scenarios that we considered in this work, our results are not sensitive to the two neutrino mass hierarchies.

Besides EDM, the new CP violating Yukawa couplings studied here may have implications for leptogenesis via the asymmetry of two CP conjugate rates of mirror lepton decay $l^{M}_{m}\to l_{i}\phi_{kS}$ and $\bar{l}^{M}_{m}\to\bar{l}_{i}\phi^{*}_{kS}$. Unfortunately, the small magnitudes of these new Yukawa couplings deduced from this work indicate that the asymmetry generated might be too small. This issue is interesting and deserved for further investigation.

To complete the story, one might want to extend the $A_{4}$ symmetry to the quark sector. The experimental constraints from the well established quark mixings in the CKM model must then be faced quarkA4 . Needless to say, it is also of interest to study the neutron EDM in the mirror fermion model. Work on this is now in progress and will be reported elsewhere.

Acknowledgments

This work is supported by the Ministry of Science and Technology (MoST) of Taiwan under grant 104-2112-M-001-001-MY3.

Appendix

In this Appendix, we collect some useful formulas used in this work.

(A) $C^{ij}_{L}$ and $C^{ij}_{R}$

These coefficients were computed in Hung:2015hra and we collect their expressions here for convenience.

[TABLE]

where $m_{i,j}$, $m_{l^{M}_{m}}$ and $m_{\phi_{kS}}$ are the SM leptons, mirror leptons and scalar singlets masses respectively, with the subscripts $i,j,m$ being the generation indices. In the calculation Hung:2015hra , we have assumed $m_{l^{M}_{m}}\gg m_{i,j}$ and set $m_{i,j}\to 0$ in the loop functions ${\cal I}(r)$ and ${\cal J}(r)$, which are simply given by

[TABLE]

Note that ${\cal I}(0)=1/12$ and ${\cal J}(0)=1/2$.

(B) Decay Length of Mirror Leptons

For an unstable relativistic particle, its decay length $l$ is given by $l=\beta\gamma c\tau$, where $\beta=v/c$ is its velocity, $\gamma=1/(1-\beta^{2})^{1/2}$ its dilation factor, and $\tau=(\sum\Gamma)^{-1}$ its total lifetime with $\Gamma$ being its partial width.

The decay rate for $l^{M}_{m}\to l_{i}+\phi_{kS}$ is given by

[TABLE]

(C) Muon Anomaly

For Scenario A, the muon anomaly is given by

[TABLE]

where

[TABLE]

For Scenario B, we have

[TABLE]

Note that the muon anomaly depends on the Majorana phase $\alpha_{21}$ for Scenario A but not for Scenario B in the mirror fermion model we are studying.

Exact analytical formula of the anomalous MDM for lepton $l_{i}$ can be found in Hung:2015hra .

(D) $\mu-e$ Conversion and Radiative Decay $\mu\to e\gamma$

The branching ratios for the $\mu-e$ conversion rate and $\mu\to e\gamma$ are related as Hung:2017voe

[TABLE]

where $\Gamma_{\rm capt}$ and $D$ are the capture rate and overlap integral of the nuclei $N$ respectively. Their values for different nuclei are listed in Table 2 for convenience. $\Gamma_{\mu}$ is the total width of the muon. Detailed analytical expressions for $\mu-e$ conversion in nuclei can be found in Hung:2017voe .

For Scenario A, we have

[TABLE]

where

[TABLE]

We note that the CP violation phases enter into the decay rate of $\mu\to e\gamma$ in Eq. (43).

For Scenario B, we have

[TABLE]

Perhaps this null result needs some explanations. Note that the amplitude for $l_{i}\to l_{j}+\gamma$ ($i\neq j$) is proportional to the off-diagonal elements of $C^{ij}_{L,R}$. However, under the set up of the parameters space discussed in Sect. IV, $C^{ij}_{L}$, for example, has the following form

[TABLE]

where $a,b,c$ are some constants related to the masses. In Scenario B, one has

[TABLE]

One can easily check \sum_{k=0}^{3}M^{\prime k}\Big{(}M^{\prime k}\Big{)}^{\dagger}, \sum_{k=0}^{3}M^{k}\Big{(}M^{k}\Big{)}^{\dagger} and \sum_{k=0}^{3}M^{\prime k}\Big{(}M^{k}\Big{)}^{\dagger} are diagonal in $i,j$. Since $U_{\rm PMNS}$ is unitary, this implies $C^{B,ij}_{L}$ is diagonal. Similarly, $C^{B,ij}_{R}$ is also diagonal. Thus $\Gamma^{B}\left(\mu\to e\gamma\right)\approx 0$, and there is no $\mu-e$ conversion as well in Scenario B, according to Eq. (42).

In general, the charged lepton flavor violating processes can depend on Majorana phases Gavela:2009cd . However, in both Scenario A and B of the mirror fermion model that we are studying, one can check that these Majorana phases do not enter in $\mu\to e\gamma$.

Exact formulas for the rate of $l_{i}\to l_{j}+\gamma$ can be found in Hung:2015hra .
