Dynamo Scaling Relationships

TL;DR

This paper explores dynamo scaling laws relating magnetic and kinetic energies, comparing simple models with simulations of stellar cores to understand magnetic field generation during star evolution.

Contribution

It introduces and compares two simple dynamo models, incorporating magnetostrophy and inertia, with simulation data for stellar core magnetic behavior.

Findings

Models align with simulation data for stellar cores

Magnetostrophic and inertial effects influence dynamo scaling

Insights into magnetic field evolution in star life cycles

Abstract

This paper provides a brief look at dynamo scaling relationships for the degree of equipartition between magnetic and kinetic energies. Two simple models are examined, where one that assumes magnetostrophy and another that includes the effects of inertia. These models are then compared to a suite of convective dynamo simulations of the convective core of a main-sequence B-type star and applied to its later evolutionary stages.

Figures

Equations

$$\nabla \times \left[\rho \mathbf{v}\times \mathbf{\omega }+2\rho \mathbf{v}\times \mathbf{\Omega }+\frac{\mathbf{J}\times \mathbf{B}}{c}+\nabla \text{bcdot}\sigma \right]=0.$$

$$ME/KE\propto \beta (\mathrm{Ro},\mathrm{Re})+{\mathrm{Ro}}^{-1}.$$

Full text

††editors: J. J. Eldridge††volume: 329††journal: The lives and death-throes of massive stars

1 Introduction

The effects of astrophysical dynamos can be detected at the surface and in the environment of many magnetically-active objects, such as stars (e.g., Christensen et al., 2009; Donati & Landstreet, 2009; Donati, 2011; Brun et al., 2015). Yet predicting the nature of the saturated state of such turbulent convective dynamos remains quite difficult. Nevertheless, one can attempt to approximate the shifting nature of those dynamos. There may be the potential to identify a few regimes for which some global-scale aspects of stellar dynamos might be estimated with only a knowledge of the basic parameters of the system. For instance, consider how the magnetic energy of a system may change with a modified level of turbulence and also how rotation may influence it. Establishing the global-parameter scalings of convective dynamos, particularly with stellar mass and rotation rate, is useful given that they provide an order of magnitude approximation of the magnetic field strengths generated within the convection zones of stars as they evolve from the pre-main-sequence to a terminal phase. This could be especially useful in light of the recent evidence for magnetic fields within the cores of red giants, pointing to the existence of a strong core dynamo being active in a large fraction of main-sequence, intermediate-mass stars (Fuller et al., 2015; Cantiello et al., 2016; Stello et al., 2016). In turn, such estimates place constraints upon transport processes, such as those for angular momentum.

2 Scaling of Magnetic and Kinetic Energies

Convective flows often possess distributions of length scales and speeds that are peaked near a single characteristic value. One estimate of these quantities in stellar convection zones assumes that the energy containing flows possess a kinetic energy proportional to the stellar luminosity ($L$) that is approximately $\mathrm{v_{rms}}\propto\left(2L/\rho_{\mathrm{CZ}}\right)^{1/3}$ (Augustson et al., 2012) , where $\rho_{\mathrm{CZ}}$ is the average density in the convection zone. However, such a mixing-length velocity prescription only provides an order of magnitude estimate (e.g., Landin et al., 2010). Since stars are often rotating fairly rapidly, their dynamos may reach a quasi-magnetostrophic state wherein the Coriolis acceleration also plays a significant part in balancing the Lorentz force. Such a balance has been addressed and discussed at length in Christensen (2010), Brun et al. (2015), and Augustson et al. (2016).

In Augustson et al. (2017), it is shown that one can derive a scaling relationship based upon the vorticity equation. In particular, integrating the enstrophy equation and ignoring any loss of enstrophy through the boundary requires that

[TABLE]

Thus, the primary balance is between inertial, Coriolis, Lorentz, and viscous forces. Scaling the derivatives as the inverse of a characteristic length scale $\ell$ and taking fiducial values for the other parameters in the above equation yields $\mathrm{ME/KE\propto 1+Re^{-1}+Ro^{-1}}$, when divided through by $\rho\mathrm{v_{rms}^{2}}/\ell^{2}$. Here the Reynolds number is taken to be $\mathrm{Re}=\mathrm{v_{rms}}\ell/\nu$. However, the leading term of this scaling relationship is found to be less than unity, at least when assessed through simulations. Replacing it with a parameter to account for dynamos that are subequipartition leaves

[TABLE]

Here $\beta$ is unknown apriori as it depends upon the intrinsic ability of the non-rotating system to generate magnetic fields, which in turn depends upon the specific details of the system such as the boundary conditions and geometry of the convection zone.

For a subset of dynamos, like those discussed in Augustson et al. (2016), Equation (1) may hold. Such dynamos are sensitive to the degree of rotational constraint on the convection and upon the intrinsic ability of the convection to generate a sustained dynamo. The inertial term, in particular, may permit a minimum magnetic energy state to be achieved, bridging the subequipartition slowly rotating dynamos to the rapidly rotating magnetostrophic regime, where $\mathrm{ME/KE}\propto\mathrm{Ro}^{-1}$. For low Rossby numbers, or large rotation rates, it is possible that the dynamo can reach superequipartition states where $\mathrm{ME/KE}>1$. Indeed, it may be much greater than unity, as is expected for the Earth’s dynamo (e.g., Roberts & King, 2013).

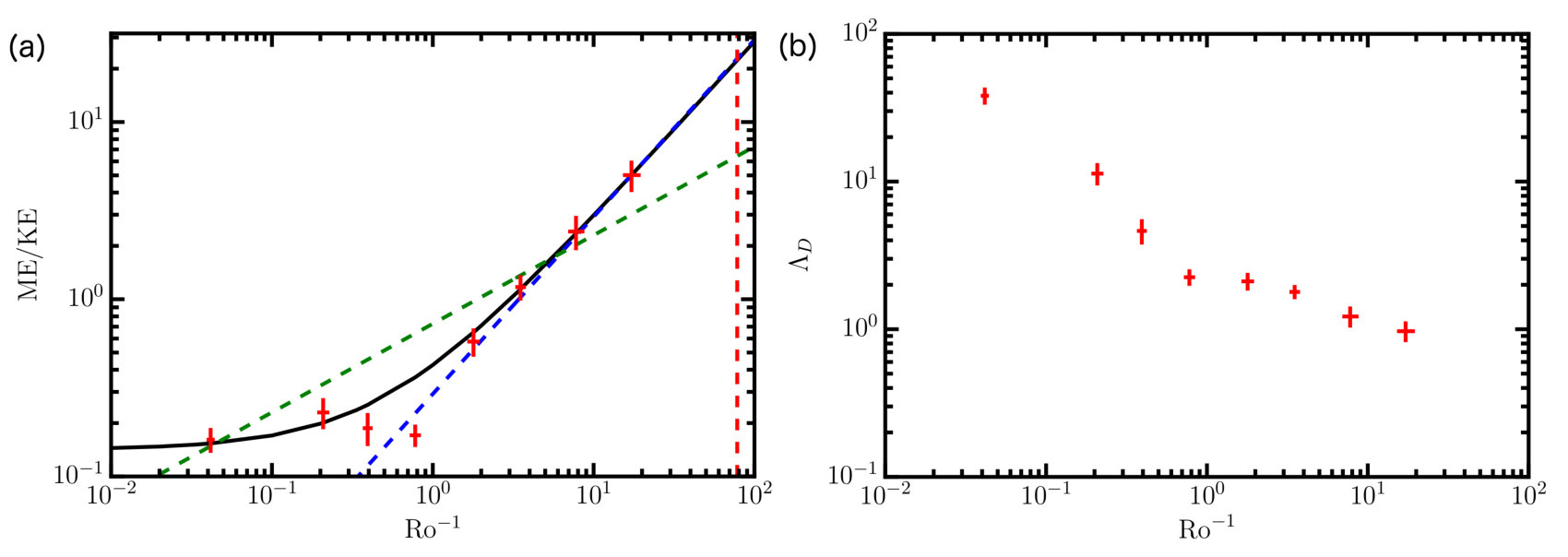

Consider the data for the evolution of a set of MHD simulations using the Anelastic Spherical Harmonic code presented in Augustson et al. (2016). These simulations attempt to capture the dynamics within the convective core of a 10 $M_{\odot}$ B-type star. Given the choices of rotation rates for this suite of simulations, they have nearly three decades of coverage in Rossby number, as shown in Figure 1(a). In that figure, the force-based scaling given in Equation (1) is depicted by the black curve (where $\mathrm{ME/KE}\propto 0.5+\mathrm{Ro}^{-1}$). This scaling does a reasonable job of describing the nature of the superequipartition state for a given Rossby number. These simulated convective core dynamos appear to enter a regime of magnetostrophy for the four cases with the lowest average Rossby number, where the scaling for the magnetostrophic regime is denoted by the dashed blue line in Figure 1(a). This transition to the magnetostrophic regime can be better understood through Figure 1(b), which shows the dynamic Elsasser number ($\Lambda_{D}=\mathrm{B_{rms}}^{2}/(8\pi\rho_{0}\Omega_{0}\mathrm{v_{rms}}\ell)$, where $\ell$ is the typical length scale of the current density $\mathbf{J}$). So as $\Lambda_{D}$ approaches unity, the balance between the Lorentz and the Coriolis forces also approaches unity, indicating that the dynamo is close to magnetostrophy.

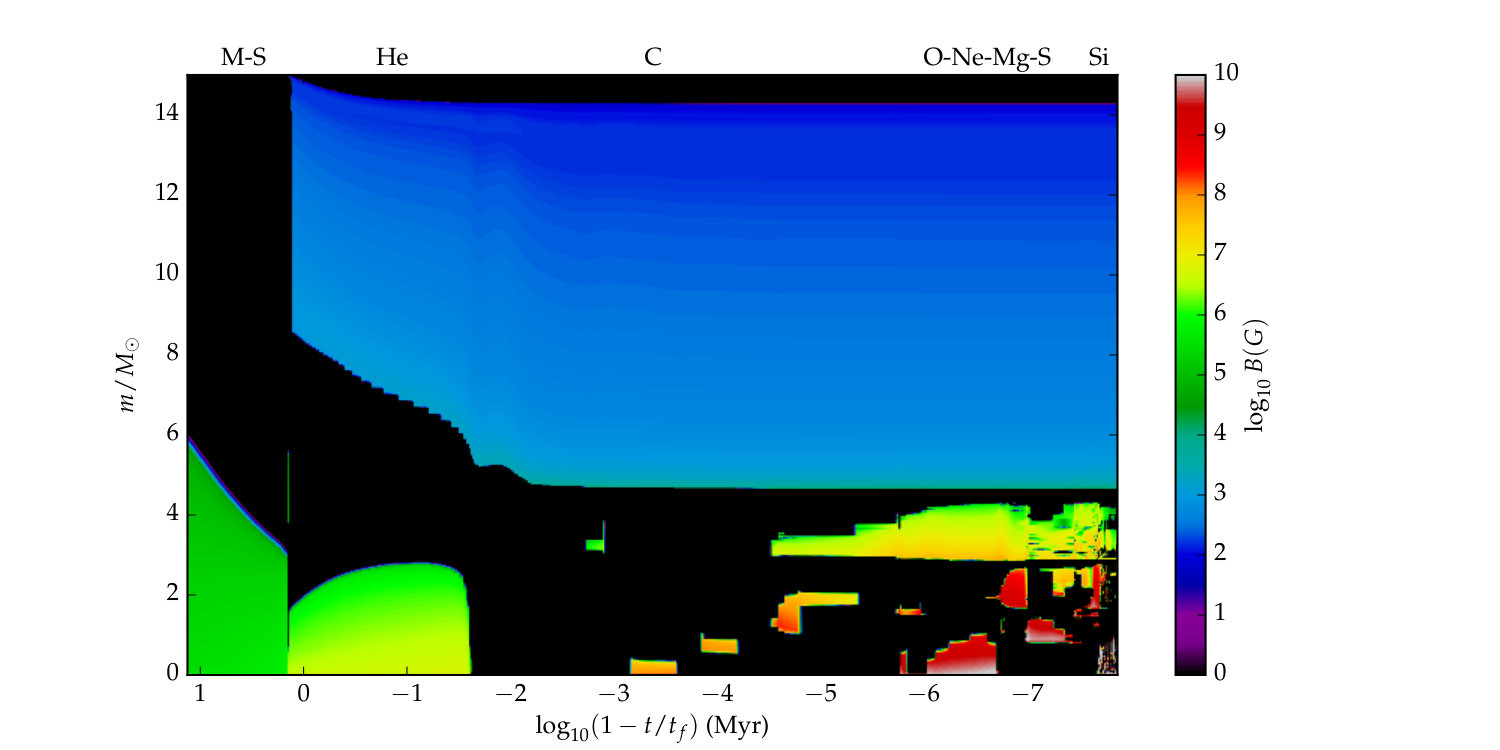

The scaling relationship between the magnetic and kinetic energies of convective dynamos in turn provide an estimate of the rms magnetic field strength in terms of the local rms velocity and density at a particular depth in a convective zone. Therefore, these relationships permit the construction of magnetic Kippenhahn diagrams that show the equipartition magnetic field, which is estimated based on the mixing length velocities achieved in stellar evolution models, as shown in Figure 2 for a 15 $M_{\odot}$ star. During the main sequence, the magnetic field generated by the dynamo running in the convective core has an estimated rms strength of about $10^{6}$ Gauss, which is consistent with the simulations described in Augustson et al. (2016). Likewise, during the helium-burning phase, the equipartition magnetic field rises to about $10^{7}$ Gauss. During subsequent burning phases, the field amplitude continues to rise largely due to the increasing density of the convective regions where it eventually reaches $10^{10}$ Gauss during the oxygen-neon and silicon burning stages. The density dependence of the equipartition magnetic field can be seen more directly in the scaling $B\propto\rho_{\mathrm{CZ}}^{1/6}L^{1/3}$, which follows from the scaling of the mixing length velocity discussed above, and by noting the surface luminosity of the star does not change significantly during these late-stage burning phases.

3 Conclusions

As discussed in Augustson et al. (2017) and Augustson (2017), there appear to be two scaling laws for the level of equipartition of magnetic and kinetic energies that are applicable to stellar systems, one in the high magnetic Prandtl number regime and another in the low magnetic Prandtl number regime. Within the context of the large magnetic Prandtl number systems, the ratio of the magnetic to the kinetic energy of the system scales as $\mathrm{ME/KE}\propto\beta+\mathrm{Ro}^{-1}$, where $\beta$ depends upon the details of the non-rotating system, as mentioned above in §2 and in Augustson et al. (2016). For low magnetic Prandtl number and fairly rapidly rotating systems, such as the geodynamo and rapidly rotating low-mass stars, another scaling relationship may be more applicable. This scaling relies upon a balance of buoyancy work and magnetic dissipation and it yields a ratio of magnetic to kinetic energy that scales as the inverse square root of the convective Rossby number (Davidson, 2013; Augustson et al., 2017). In either case, it is likely that the magnetic energy can grow to be near or above equipartition with the kinetic energy, which allows the estimation of the magnetic energy at various stages of evolution as shown in Figure 2. Future magnetic field estimates will consider both the magnetic Prandtl number and the star’s rotational evolution, utilizing angular momentum transport techniques such as those discussed in Amard et al. (2016). Yet, more work is needed to establish more robust scaling relationships that cover a greater range in both magnetic Prandtl number and Rossby number. Likewise, numerical experiments should explore a larger range of Reynolds number and level of supercriticality. Indeed, as in Yadav et al. (2016), some authors have already attempted to examine such an increased range of parameters for the geodynamo. Nevertheless, to be more broadly applicable in stellar physics, there is a need to find scaling relationships that can bridge both the low and high magnetic Prandtl number regimes that are shown to exist within main-sequence stars. The authors are currently working toward this goal, as will be presented in an upcoming paper.
