Graphene-based electron transport layers in perovskite solar cells: a step-up for an efficient carrier collection

TL;DR

This study demonstrates that graphene-based electron transport layers significantly enhance carrier collection efficiency and film quality in perovskite solar cells, leading to potential improvements in device performance.

Contribution

The paper provides experimental evidence that graphene-doped ETLs improve carrier dynamics and film crystallinity in perovskite solar cells, advancing scalable fabrication methods.

Findings

Carrier collection efficiency doubled with graphene-based ETL.

MAPI layer shows lower trap density and better crystalline quality.

Graphene ETL maintains MAPI in tetragonal phase regardless of temperature.

Abstract

The electron transport layer (ETL) plays a fundamental role in perovskite solar cells. Recently, graphene-based ETLs have been proved to be good candidate for scalable fabrication processes and to achieve higher carrier injection with respect to most commonly used ETLs. In this work we experimentally study the effects of different graphene-based ETLs in sensitized MAPI solar cells. By means of time-integrated and picosecond time-resolved photoluminescence techniques, the carrier recombination dynamics in MAPI films embedded in different ETLs is investigated. Using graphene doped mesoporous TiO2 (G+mTiO2) with the addition of a lithium-neutralized graphene oxide (GO-Li) interlayer as ETL, we find that the carrier collection efficiency is increased by about a factor two with respect to standard mTiO2. Taking advantage of the absorption coefficient dispersion, we probe the MAPI layer morphology, along the thickness, finding that the MAPI embedded in the ETL composed by G+mTiO2 plus GO-Li brings to a very good crystalline quality of the MAPI layer with a trap density about one order of magnitude lower than that found with the other ETLs. In addition, this ETL freezes MAPI at the tetragonal phase, regardless of the temperature. Graphene-based ETLs can open the way to significant improvement of perovskite solar cells.

Figures

Tables

Table 1. Table 1: List of the investigated samples and description of their corresponding ETLs.

Sample	ETL
Reference	No ETL
ETL 1	mTiO2
ETL 2	G+mTiO2
ETL 3	mTiO2 plus GO-Li
ETL 4	G+mTiO2 plus GO-Li

Table 2. Table 2: Results of the fits of data of Fig.  2 b: τ 1 subscript 𝜏 1 \tau_{1} and τ 2 subscript 𝜏 2 \tau_{2} are the decay time constants, C 𝐶 C is the contribution of τ 1 subscript 𝜏 1 \tau_{1} to the fit and η 𝜂 \eta is the radiative efficiency.

Sample	${\tau }_1$ (ns)	${\tau }_2$ (ns)	$C$	$\eta$
Reference	25	–	1.00	1
ETL 1	25	2.05	0.43	0.48
ETL 2	15	1.99	0.36	0.27
ETL 3	15	1.24	0.20	0.16
ETL 4	15	1.30	0.34	0.24

Equations

$$I(t)=f(t)+g(t)$$

$$f(t)=\Theta (t-t_0)[C{e}^{-(t-t_0)/{\tau }_1}+(1-C)e^{-(t-t_0)/{\tau }_2}]$$

$$g(t)=C\frac{e^{-(t-t_0)/{\tau }_1}}{e^{T/{\tau }_1}-1}+(1-C)\frac{e^{-(t-t_0)/{\tau }_2}}{e^{T/{\tau }_2}-1}$$

$$I_{\mathrm{PL}}=\eta P,$$

$$\Gamma (T)={\Gamma }_0+{\gamma }_{\mathrm{ac}}T+\frac{{\gamma }_{\mathrm{LO}}}{e^{E_{\mathrm{LO}}/k_{\mathrm{B}}T}-1},$$

Full text

Perovskite solar cells, electron transport layer, graphene, photoluminescence

I Introduction

In the last decade, hybrid organic-inorganic materials with the perovskite structure, most notably CH3NH3Pb(I,Cl)3, have become the most promising light-harvesting active layer for the implementation of high efficiency and low cost solar cells Grätzel (2014); Hodes (2013); Xiao et al. (2016); Lee et al. (2012); Heo et al. (2013); You et al. (2014); Zhou et al. (2014); Nanni et al. (2014). As a matter of fact, the power conversion efficiency of perovskite solar cells (PSCs) has shown a very fast growth, increasing from 3.8% Kojima et al. (2009) in 2009 to 22.1% NRE (2016) in 2016. The ease of fabrication and the high radiative efficiency have made perovskites also extremely attractive for the development of bright LEDs and lasers Veldhuis et al. (2016); Sutherland and Sargent (2016); Palma et al. (2016a, b).

Nevertheless, a major drawback originates from the poor material stabilityXu et al. (2016); Xiao et al. (2016): decomposition after exposure to moisture, cracks and defects generated by thermal stresses, crystal phase transition, UV-light exposure represent the principal causes of agingXu et al. (2016); Xiao et al. (2016). Moreover, a high density of trap states, both on surfaces and in grain boundaries Xiao et al. (2016); Draguta et al. (2016); Wu et al. (2015); Kim et al. (2014), are present in polycrystalline perovskites, used for solar cells and light emitters. Indeed, even though theoretical predictions show that deep trap states are not generally formed inside perovskites grains, the opposite is observed at the grain boundaries and at the surfacesXiao et al. (2016); Park, Grätzel, and Miyasaka (2016). Therefore, sophisticated passivation strategies are essential for increasing the efficiency of PSCs and light emitters Son et al. (2016); Giordano et al. (2016); deQuilettes et al. (2016); Park, Grätzel, and Miyasaka (2016).

For CH3NH3PbI3 (MAPI) perovskites, a correlation between the solar cell efficiency and the grain morphology was recently demonstrated Shao, Yuan, and Huang (2016). Results of local short-circuit photocurrent, open-circuit voltage and dark drift current within individual grains correlate these quantities to different crystal facets, as a consequence of a facet-dependent density of trap states Leblebici et al. (2016) and it was also proven that the structural order of the electron transport layer (ETL) impacts the overall cell performance Shao, Yuan, and Huang (2016). Moreover, the nature of grain boundaries was shown to affect the carrier recombination kinetics because of non-radiative pathways that would also play a role in the process of charge separation and collection deQuilettes et al. (2016).

It turns out that the possibility of controlling the morphology of the perovskite thin film and the understanding if different realizations of the ETL can modify the morphology of the grains are of the utmost relevance to further improvements of perovskite based solar cells.

Recently, graphene and related two-dimensional materials have been introduced in the device structure in order to improve the charge injection and/or collection at the electrodes: an enhancement of the power conversion efficiencyAcik and Darling (2016) and a long-term stabilityAgresti et al. (2016a) was obtained. As a matter of fact, interfaces between perovskite and transport layers have been recently demonstrated to dramatically affect the charge recombination processes and material instability within the working device.Capasso et al. (2016) In fact, when free charges are fast injected from perovskite to the electron transport layer, the perovskite degradation is slowed down and the non-radiative recombination is reducedAhn et al. (2016). In particular, the insertion of graphene flakes into the mesoporous-TiO2 layer (mTiO2) and of lithium-neutralized graphene oxide (GO-Li) as interlayer at perovskite/mTiO2 interface showed enhanced conversion efficiency and stability on both small and large area devices by demonstrating the crucial role of graphene interface engineering in perovskite-based devicesAgresti et al. (2017). Thus, the influence of mesoscopic-graphene modified substrates onto the perovskite film need to be investigated more in details to finely control the photovoltaic performance of complete devices.

Given the typical size of the grains (a few hundreds of nanometers), high resolution techniques as TEM (Transmission Electron Microscopy), AFM (Atomic-Force Microscopy), SNOM (Scanning Near-field Optical Microscopy), etc. are employed to investigate the grain morphology but a difficult task is to correlate physical properties at the nanoscale with the device performance measuring, for instance, the $I$-$V$ curve of the cellLeblebici et al. (2016). Thus, it would be of extreme relevance to extract information on the active film morphology with much easier techniques on a length scale of tens/hundreds of microns and even larger so to assess the homogeneity of the film deposition and the reliability of the synthesis protocol and post-deposition treatments. Moreover, the high spatial resolution analysis can explore a limited thickness of the film, and therefore it appears difficult to get information in the case of a real device. Photoluminescence (PL) spectroscopy is an effective tool to investigate the film quality: in fact, from the comparison of samples with different ETLs, it is possible to extract quantitative information on the carrier capture and transport and, by the spectral shape, identify the crystalline phase of the active layer and evaluate the density of traps/defects. Moreover, given the limited thickness (few hundreds of nm) of the perovskite film in solar cells and given the steep behavior of the absorption coefficient in MAPILöper et al. (2015), by varying the excitation wavelength in the range 300-700 nm, it is possible to probe thicknesses of the film from a hundred of nm to the whole film layer.

In this paper we aim to establish the effects of different graphene-based ETLs in sensitized MAPI solar cells. In particular we will study the ETL effects on the carrier collection efficiency and on the MAPI morphology along the thickness. By picosecond time-resolved measurements we correlate the carrier recombination dynamics to the crystalline quality of the active material in presence/absence of the ETL. We will find an increase of the electron collection efficiency up to a factor 3 with respect to standard mTiO2. Taking advantage of the absorption coefficient dispersion, we are able to assess the film morphology along the thickness. In fact, by tuning the excitation wavelength, we investigate a thickness range from 150 to 400 nm and we can highlight the morphology changes induced by different ETLs. Our results will indicate that, when a graphene doped mesoporous TiO2 (G+mTiO2) with the addition of a GO-Li interlayer is used as ETL, the morphology of the MAPI film embedded in the mesoporous layer is frozen in the tetragonal phase, regardless of the temperature. In addition, the defect concentration is about one order of magnitude lower than that found with the other ETLs.

II Results and discussion

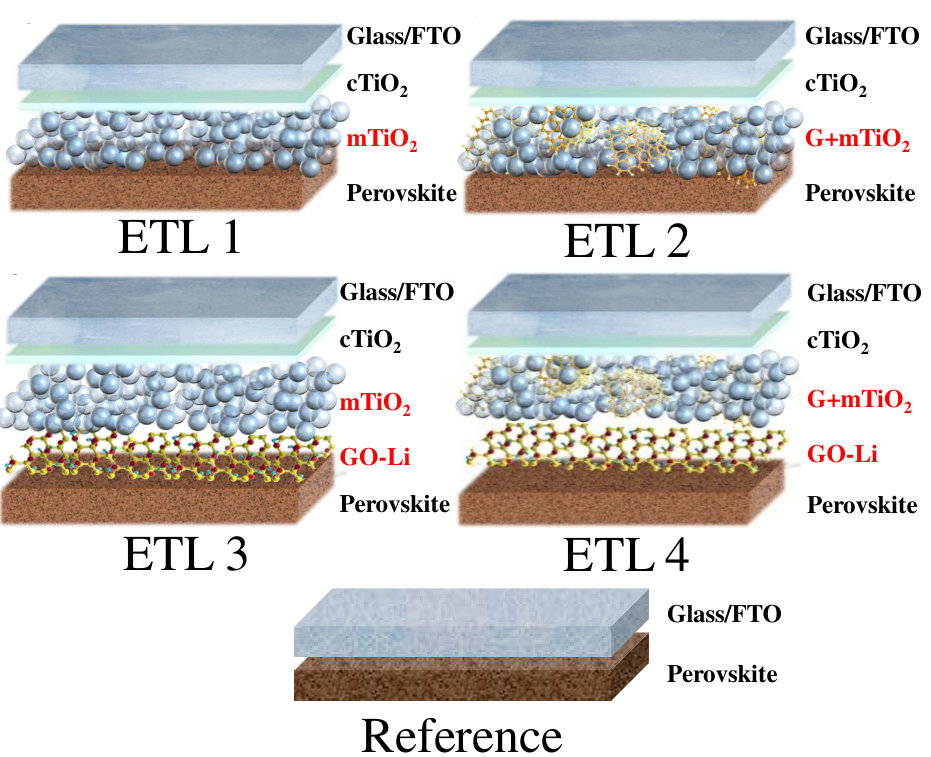

Four types of samples were prepared using different combinations of ETLs: mTiO2, G+mTiO2, mTiO2 plus GO-Li interlayer and G+mTiO2 plus GO-Li interlayer. The different sample structures are schematically shown in Fig. 1 and listed in Tab. 1. For clear comparison a sample of MAPI on FTO without ETL (reference sample) was also investigated. Details on the sample preparation are reported in the Experimental Section. It is worth noting that PL analysis was carried out on simple photo-electrodes, lacking of the hole collecting layer and the bottom contact: this allows us to focus only on the electron collection and transport after the electron-hole pairs creation due to the photon absorption. Moreover, PL experiments can be realized illuminating the samples either from the perovskite film side (side A) or the FTO side (side B). Varying the excitation wavelength and the excitation side, we can differently penetrate into the MAPI film and selectively probe spatial regions few tens of nm near the ETL or far from it.

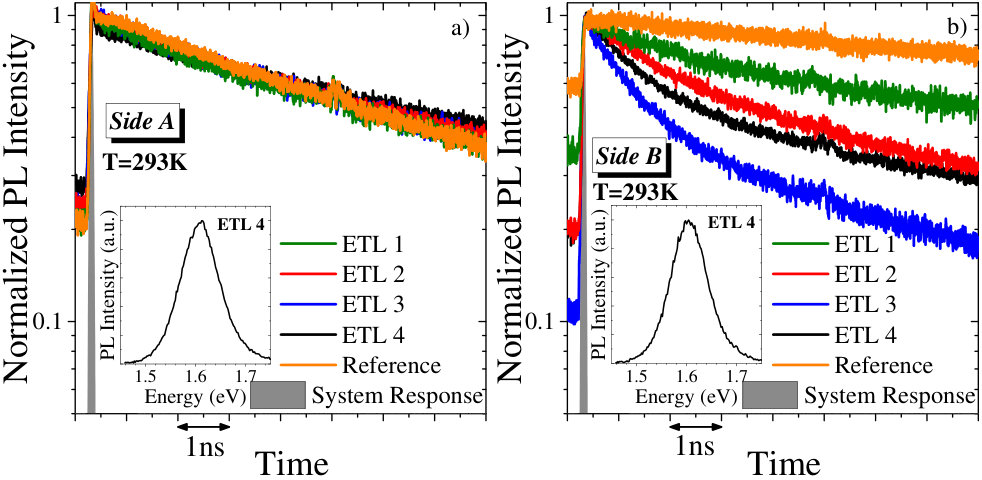

In Fig. 2 PL decays at room temperature, after excitation with photons of 2.06 eV, are compared for the different samples, while in the inset a PL spectrum at room temperature is shown: typical spectra of the tetragonal phase are observedMilot et al. (2015); Dar et al. (2016). By exciting from side A (Fig. 2a), the PL decays are identical for all samples and no effect related to the presence of the ETL is detected. In contrast there is a significant difference in the PL decay by exciting from side B depending on the sample, as shown in Fig. 2b: faster decays are observed in presence of ETL, especially when graphene and/or GO-Li are used. It is worth noting that the PL decay of reference sample excited from side B is slower with respect to the decays of side A. This can be attributed to non-radiative states at the surface of the uncovered perovskite film (side A).

To extract information about the efficiency in the carrier injection from perovskite to ETL, we first fitted the decays of Fig. 2b with a double exponentialSon et al. (2016); Bi et al. (2016), taking into account the laser pulse repetition period Warren et al. (2013). The fitting function $I(t)$ can be written as

[TABLE]

where $f(t)$ is the original double exponential and $g(t)$ the correction term due to the intrinsic periodic nature of TCSCP measurementsWarren et al. (2013):

[TABLE]

[TABLE]

In the previous equations $\theta$(t) is the Heaviside function, $\tau_{1}$ and $\tau_{2}$ are the decay time constants, $T$ is the laser pulse repetition period (13.15 ns), $C$ is the contribution of $\tau_{1}$ exponential to the fit and $t_{0}$ is a constant. The results obtained by the fitting procedure are reported in Tab. 2. Inserting graphene-based ETLs in the samples reduces $\tau_{1}$ from 25 ns to 15 ns while the reduction of $\tau_{2}$ depends on the ETL. In the literatureSon et al. (2016); Bi et al. (2016) the longer decay constant ($\tau_{1}$) is ascribed to the radiative recombination in MAPI while the shorter decay constant can be attributed to the carrier removal from MAPI layer towards the ETL.

To get rid of the local inhomogeneities in the samples, which can give rise to variation of the TI-PL intensity and considering that the PL time evolution does not depend on the detection spot, we estimate the TI-PL intensity from the PL decay. It turns out that we can express the integrated PL intensity ($I_{\mathrm{PL}}$) as

[TABLE]

where $\eta$ is the radiative efficiency and $P$ is the pump intensity, equals to 10 W/cm2 for all the TR-PL measurements. Assuming a unitary radiative efficiency for the reference sample, we can evaluate the change in $\eta$ for the different ETLs (see Tab. 2). Lower $\eta$ is obtained in case of ETLs 2, 3 and 4: thus the insertion of graphene and/or GO-Li interlayer improves the electron capture from perovskite to ETL by a factor between two and three with respect to ETL 1. We want to remark that this result does not necessarily imply an increase of the solar cell short circuit current density ($J_{\mathrm{sc}}$) of the same amount. In fact hole collection by the hole transport layerPydzińska et al. (2016) and non-radiative recombination in the ETL have to be taken into account. However, as shown in the Supporting Information, a significant increase of $J_{\mathrm{sc}}$ is measured for complete cell when ETL 4 is used.

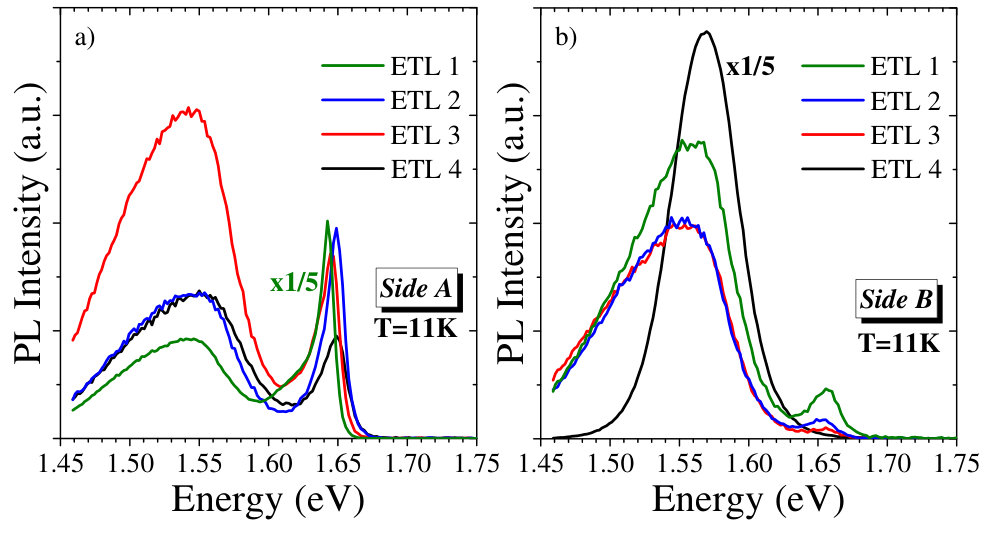

More insight in the role of the ETL can be obtained by PL spectra at low temperature ($T=11$ K). In Fig. 3 PL spectra, obtained by exciting the samples from side A (Fig. 3a) and side B (Fig. 3b), are reported. The PL spectra from side A show two peaks. As expected for $T<150$ K in MAPI perovskite Milot et al. (2015); Kong et al. (2015), the peak at about 1.65 eV is attributed to the orthorhombic phase of MAPI. But the major contribution to the spectra comes from the other peak, centered at 1.55 eV. This emission is likely due to the sum of two contributions: the radiative recombination arising from the residual tetragonal phase at 1.56 eV and the radiative recombination from localized states below 1.52 eV. In the literature, these localized states are identified with radiative trapsWu et al. (2015); Fang et al. (2015) or, recently, to methylammonium-disordered domains in orthorhombic phase of MAPIDar et al. (2016). We want to remark that, in both interpretations of the low energy side emission as radiative traps or disordered domains, a carrier localization is present. More relevant is the fact that the low energy states are radiative and do not produce a loss of photogenerated carriers.

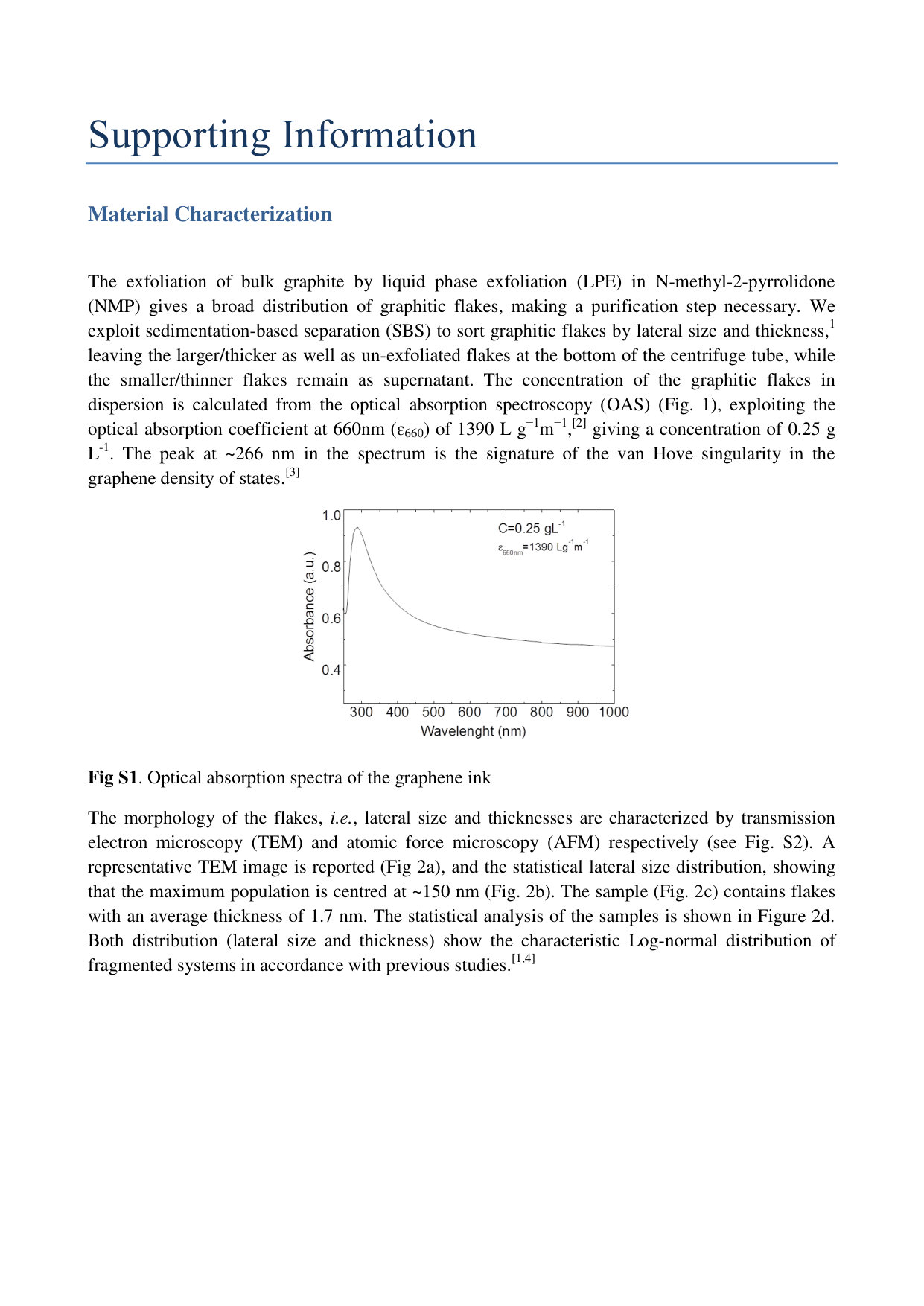

Considering that the absorption length of the MAPI film at about 2 eV is roughly 200 nm Löper et al. (2015) and that the thickness of the perovskite layer in our samples is about 350 nm (see Fig. S5 in the Supporting Information), we can conclude that the emission, exciting from side A, comes mostly from the MAPI film and that no effect related to the presence of the ETL is detected. On the contrary, the excitation from side B can reveal the ETL effect on the MAPI. As a matter of fact, relevant differences are observed between the emissions from side B (Fig. 3b). First of all we observe a smaller contribution of the orthorhombic phase for all the samples with respect to the excitation from side A. Moreover, in the case of GO-Li plus G+mTiO2 (ETL 4), we detect a strong reduction of the radiative traps at 1.52 eV and the dominance of the emission from the tetragonal phase at 1.56 eV.

Such results suggest that an incomplete phase transition occurs for the perovskite wrapped into the mesoporous ETL layer. In particular, in the case of ETL 4, where the PL lineshape shows a negligible low energy tail and a smaller linewidth with respect to the other samples, we can argue that the crystallization of the MAPI film is very good, as also confirmed by the scanning electron microscopy (SEM) image reported in Fig. S4 of the Supporting Information. However, the interaction of MAPI and ETL inhibits the phase transition, at least for a thickness of about 200 nm (see SEM cross section in Fig. S5 of the Supporting Information). In order to confirm and test our hypothesis we performed PL measurements as a function of temperature, excitation wavelength and excitation power.

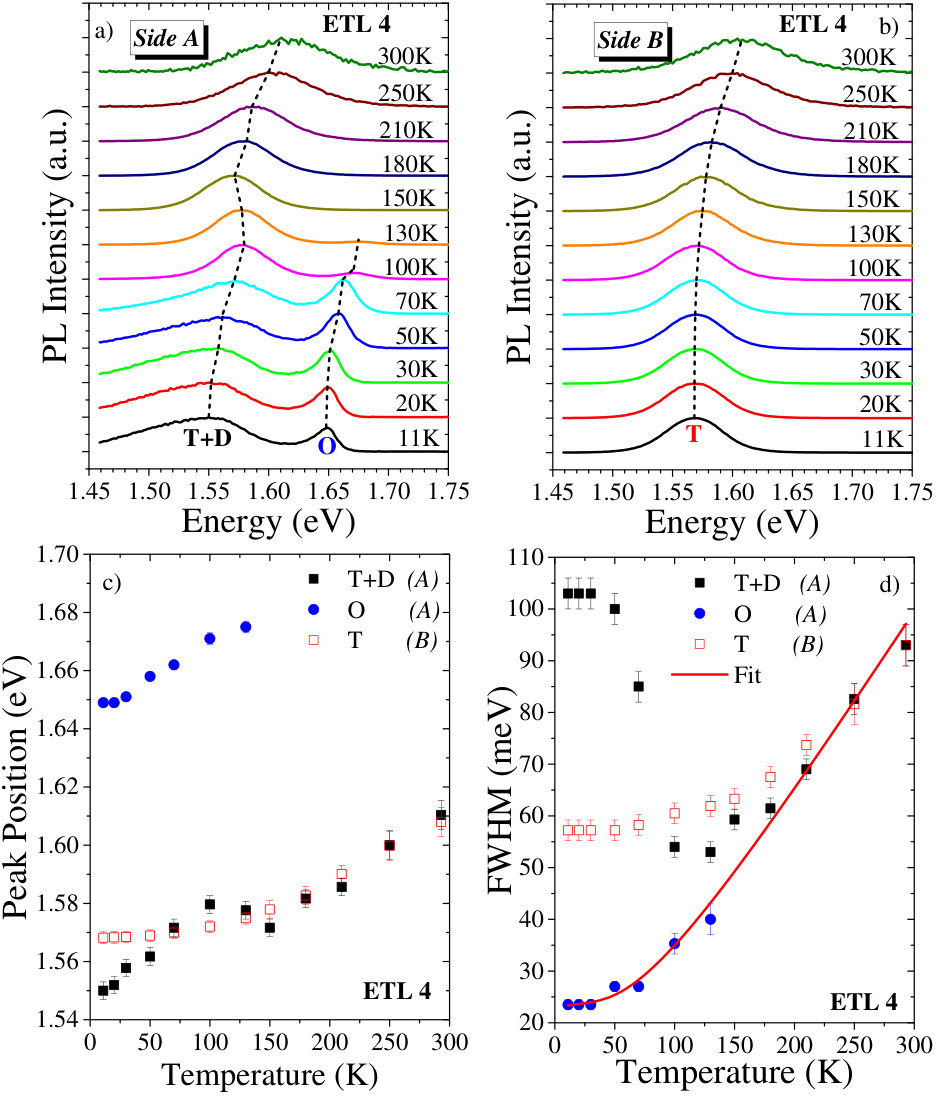

In Fig. 4a we report the emission spectra of ETL 4 exciting from side A, varying the sample temperature from 10 to 300 K. As already shown before, at low temperature we observe two bands, one at 1.65 eV corresponding to the orthorhombic phase and one at about 1.55 eV corresponding to the sum of the emission from optically active trap states and the emission from a residual tetragonal phase. As expectedKong et al. (2015); Fang et al. (2015); Dar et al. (2016); Wright et al. (2016), increasing the temperature, the orthorhombic phase emission shifts at higher energy (see Fig. 4c), showing a monotonic increase of its full width at half maximum (FWHM) (see Fig. 4d), and it disappears above 150 K, where the phase transition of MAPI from orthorhombic to tetragonal phase occurs. By increasing the temperature, the low energy band shows instead the typical S shape both in the peak emission energy (see Fig. 4c) and its FWHM (see Fig. 4d). This is an indication of the phase transition from orthorhombic to tetragonal phase, with the concurrent lower contribution of the traps. Above 150 K the PL spectrum has only one peak, arising from the tetragonal phase emission, which continues to monotonically blue shift increasing the temperature (see Fig. 4c), as expectedKong et al. (2015); Fang et al. (2015); Dar et al. (2016); Wright et al. (2016). Apart from different relative weights of the emission bands, for all samples we find PL spectra very similar to the one of the sample with ETL 4 when the excitation is performed from side A.

A very similar trend with temperature, as shown in Fig. 4a for ETL 4, is found for ETL 1, 2 and 3, irrespective of the excitation side, and this trend is commonly reported in the literatureDar et al. (2016). On the contrary, relevant differences are observed in case of ETL 4 exciting from side B (Fig. 4b). By increasing the temperature, the PL spectrum shows a single band, corresponding to the tetragonal phase, with a monotonic increase of the emission energy (see Fig. 4c) and the FWHM (see Fig. 4d). Such behavior indicates that the MAPI film embedded in the mesoporous ETL side remains in the tetragonal phase even down to 10 K.

The FWHM of the PL bands as a function of temperature can be fitted taking into account the temperature-independent inhomogeneous broadening and the interaction between carriers and acoustic and longitudinal optical (LO) phononsDar et al. (2016); Wright et al. (2016), using the following equation:

[TABLE]

where $\Gamma_{0}$ is the inhomogeneous broadening, $\gamma_{\mathrm{ac}}$ and $\gamma_{\mathrm{LO}}$ are the acoustic and LO phonon-carrier coupling strengths, respectively, and $E_{\mathrm{LO}}$ is the LO phonon energy. We fitted the FWHM data extracted from the PL from side A: in particular we considered the orthorhombic phase from 10 K to 150 K and the tetragonal phase from 150 K up to room temperature. If the two set of data can be fitted with a single function, we can conclude that the acoustic and optical phonons causing the PL line broadening have very similar energies for the two phases. The solid line in Fig. 4d shows the best fitting curve and a good agreement is reached between the data and the model with the fitting parameters $\Gamma_{0}=(23\pm 1)$ meV, $\gamma_{\mathrm{ac}}=(30\pm 5)$ µeV/K, $\gamma_{\mathrm{LO}}=(75\pm 5)$ meV, $E_{\mathrm{LO}}=(19\pm 1)$ meV. These values well agree with data in the literature Dar et al. (2016); Wright et al. (2016).

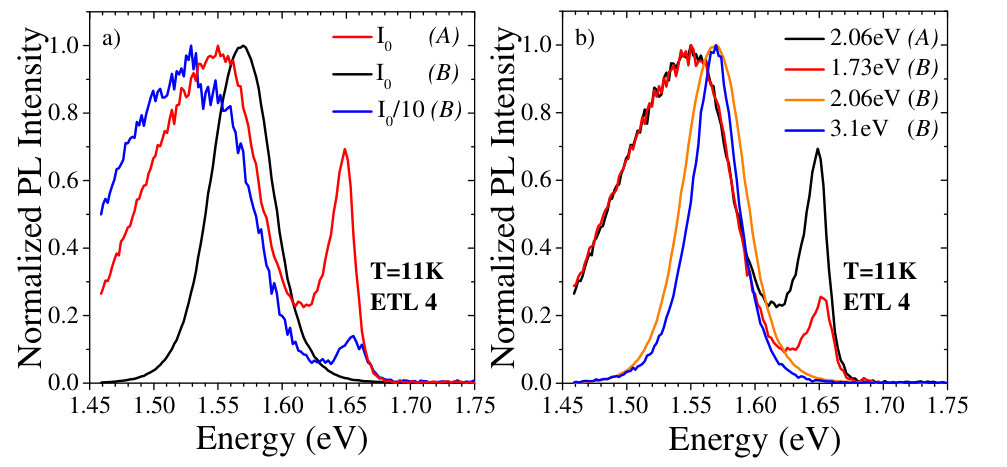

A further evidence proving that the emission band at low temperature in ETL 4 must be attributed to a tetragonal crystalline phase of MAPI with good quality, is given in Fig. 5a. We report two spectra, already shown before, from side A (red curve) and side B (black curve), acquired at the same average excitation intensity $I_{0}=10$ W/cm2. Decreasing the excitation intensity by one order of magnitude, the emission from side B changes completely, showing a spectrum (blue curve) similar to the side A (red curve), with the dominant contribution of the traps and a small signal from the orthorhombic phase. This is explained by the fact that, lowering the power density, only the trap energy levels close to the band gap tail are filled. In addition, the PL spectrum of the sample ETL 4, obtained by exciting from side B with an intensity of $I_{0}/10$ (blue curve in Fig. 5a), is very similar to the spectra of the ETLs 1, 2 and 3 (Fig. 3b) by exciting from side B with an higher intensity $I_{0}$. This means that the trap density in the mesoporous region of MAPI in ETL 4 is lower, of about one order of magnitude, with respect to the other samples. This result agrees with the better crystal quality found by SEM analysis for ETL 4 (see Fig. S4 in the Supporting Information).

As stated previously, to confirm that the crystalline nature of the film changes when in contact with the ETL, in particular in presence of GO-Li plus G+mTiO2, we probed the ETL 4 along the thickness exploiting the different absorption coefficient of MAPI varying the excitation photon energies. We spanned the range from 1.73 to 3.1 eV, where FTO and cTiO2 have a low and nearly constant absorption. The result of this experiment, performed at 11 K, is reported in Fig. 5b. Let us focus on side B. At high photon energy excitation, 3.1 eV (blue curve) and 2.06 eV (orange curve), the MAPI is excited for a few tens of nanometers close to the ETL and, as already observed above, the spectra show only the tetragonal phase (which should not be observed at this temperature since the only stable phase below 150 K is the orthorhombic). Decreasing the excitation photon energy down to 1.73 eV, the absorption coefficient of MAPI decreases and therefore the sample is excited more uniformly in depth. The resulting spectrum (red curve) shows an increase of the contribution of the orthorhombic phase. For comparison, a spectrum from side A with an excitation of 2.06 eV is reported (black curve). The comparison of this spectrum with that at 1.73 eV from side B (red curve) shows, apart from a difference in the intensity of the orthorhombic phase, exactly the same contribution from the radiative traps and the tetragonal phase. The observed behavior proves that the crystalline nature of MAPI at low temperature is influenced by the interaction with the ETL, which inhibits the MAPI phase change into the orthorhombic form.

Our results demonstrate a substantial improvement of the active layer morphology of ETL 4 with an efficient carrier capture from the ETL. This is confirmed by a remarkable increase in power conversion efficiency (PCE) for complete devices, obtained by $I$-$V$ characterization (see Fig. S6, S7 and Tab. S1 in the Supporting Information), which is mainly ascribed to an improved short circuit current density ($J_{\mathrm{SC}}$).

III Conclusions

We investigated the effects of different graphene-based ETLs in sensitized MAPI photoelectrodes. In particular we have compared four different samples with the following ETLs: mTiO2, G+mTiO2, mTiO2 plus GO-Li interlayer and G+mTiO2 plus GO-Li interlayer. We have studied the ETL effects on the carrier collection efficiency and on the MAPI morphology and quality along the thickness. In presence of ETL, we found faster PL decays by exciting on FTO side with respect to the MAPI side which is explained by efficient electron removal from MAPI layer due to the ETL. In particular an increase of the electron collection efficiency up to a factor 3 with respect to standard mTiO2 is reported.

Moreover, the MAPI layer embedded in G+mTiO2 plus GO-Li ETL shows a crystalline quality much better than the other samples, with a trap density about one order of magnitude lower. Exploiting the dispersion of the MAPI absorption coefficient, we could probe the sample along the thickness, finding that the morphology of the MAPI film embedded in the G+mTiO2 plus GO-Li ETL is frozen in the tetragonal phase, regardless of the temperature. Moreover, the observed morphology improvement of the MAPI encapsulated in the mTiO2 plus GO-Li layer supports the increased efficiency measured for the complete devices.

Finally, our results show that graphene based ETLs significantly improve both the carrier collection and the crystalline quality of the active material, opening new routes to the development of efficient and stable MAPI solar cells.

IV Experimental section

Sample preparation. Solar cells photoelectrodes were prepared on Fluorine-doped Tin Oxide (FTO) conductive glass (Pilkington TEC 8, 8 $\Omega$/$\square$, 25 mm${}\times{}$25 mm). The substrates were cleaned in an ultrasonic bath, using three sequential steps: detergent with de-ionized water, acetone and 2-Propanol (10 min for each step). The substrates were covered by a compact layer of TiO2 (cTiO2). A solution of acetylacetone (2 mL), titanium diisopropoxide (3 mL) and ethanol (45 mL) was deposited onto the FTO substrates by Spray Pyrolysis Deposition at 450 ${}^{\circ}\mathrm{C}$. The final thickness of the cTiO2 layer was measured about 50 nm by a Dektak Veeco 150 profilometer.

The mTiO2 layer was obtained starting by an ethanol solution of 18NR-T titania paste (Dyesol) dissolved in pure ethanol (1:5 by weight), stirred overnight. The graphene-doped mTiO2 was obtained by adding sonicated graphene ink (1% in vol.), prepared by dispersing 5 g of graphite flakes (+100 mesh, $\geq$75%, Sigma Aldrich) in 500 mL of N-methyl-2-pyrrolidone, NMP (Sigma Aldrich). The initial dispersion was ultrasonicated (VWR) for 6 hours and subsequently ultracentrifuged using a SW32Ti rotor in a Beckman-Coulter Optima XPN ultracentrifuge at 10000 rpm ($\sim$12200 g) for 30 mins at 15 ∘C. After ultracentrifugation, the upper 80% supernatant was extracted by pipetting. The concentration of the graphitic flakes is calculated from the OAS (see Fig. S1 in the Supporting Information), giving a concentration of 0.25 g L*-1*. The morphology of the flakes, i.e., lateral size and thicknesses are characterized by transmission electron microscopy (TEM) and atomic force microscopy (AFM), respectively (see Fig. S2 in the Supporting Information) giving a lateral size distribution of 150 nm and thickness of 1.7 nm. Raman spectroscopy data are found in the Supporting Information (see Fig. S3). Both standard mTiO2 and G+mTiO2 dispersions were sonicated 10 min prior to be spin-coated in air at 1700 rpm for 20 s onto the cTiO2 surface, followed by a calcination step at 450 ${}^{\circ}\mathrm{C}$ for 30 min.

The GO-Li interlayer was realized by spin coating (2000 rpm for 10 s) 200 µL of GO-Li dispersion in ethanol/H2O (3:1) prepared as reported in Ref. Agresti et al., 2016b. After the deposition, the substrates were annealed at 110 ${}^{\circ}\mathrm{C}$ for 10 min.

The photo-electrodes were completed by depositing the perovskite active layer in dry conditions (relative humidity less than 30%) by a double step method: a lead iodide solution (PbI2 in N,N-dimethylformamide, 1 M, heated at 70 ${}^{\circ}\mathrm{C}$) was spin coated at 6000 rpm for 10 s on heated substrates (50 ${}^{\circ}\mathrm{C}$) which were then dipped into a CH3NH3I (Dyesol) in anhydrous 2-propanol solution (10 mg/mL) for 15 min. Finally, the samples were heated at 80 ${}^{\circ}\mathrm{C}$ for 20 min in air. The MAPI absorbing layer has a typical thickness of 350 nm with a perovskite penetration into mesoporous layer of about 200 nm. The samples were not encapsulated. Complete solar cells were realized with the same structure of the investigated samples to compare the PL results with the current-voltage ($I$-$V$) characteristics. In the case of complete devices doped spiro-OMeTAD (73.5 mg/mL) in chlorobenzene solution doped with tert-butylpyridine (TBP 26.77 µL/mL), lithium bis(trifluoromethanesulfonyl)imide (LiTFSI 16.6 µL/mL), and cobalt(III) complex (FK209 from Lumtec, 7.2 µL/mL) is spin coated (2000 rpm for 20 s) onto the tested photo-electrodes. The final devices are completed by Au counter-electrode thermal evaporation (100 nm). $I$-$V$ characteristics are recorded under AM1.5G solar simulator Solar Constant from KHS at 1000 W/m2 (1 sun). Results on the solar cells are shown in the Supporting Information.

Optical Absorption Spectroscopy (OAS). The OAS of the as-produced inks was carried out in the 300-1000 nm range with a Cary Varian 5000i UV-vis-NIR spectrometer. The absorption spectra was acquired using a 1 mL quartz glass cuvette. The ink is diluted to 1:7 in NMP. The NMP solvent baseline was subtracted. The concentration of graphitic flakes is determined from the extinction coefficient at 660 nm, using $A=\alpha lc$ where $l$ [m] is the light path length, $c$ [gL*-1*] is the concentration of dispersed graphitic material, and $\alpha$ [Lg*-1m-1*] is the absorption coefficient, with $\alpha\sim 1390$ Lg*-1m-1* at 660 nm.Lotya et al. (2009)

Transmission electron microscopy (TEM). The exfoliated flakes morphology is characterized by using a TEM JOEL JEM 1011, using an acceleration voltage of 100 kV. The sample preparation was performed diluting the ink in NMP (1:10). 20 µL of the diluted sample were drop cast on copper grids (200 mesh), and dried in vacuum overnight. Statistical analyses are fitted with log-normal distributions.

Atomic force microscopy (AFM). The dispersions are diluted 1:30 in NMP. 100 µL of the dilutions are drop-casted onto Si/SiO2 wafers. AFM images are acquired with Bruker Innova AFM in tapping mode using silicon probes (frequency = 300 kHz, spring constant = 40 Nm*-1*). Statistical analysis are fitted with log-normal distributions.

Raman spectroscopy. The graphene inks are drop-cast onto Si/SiO2 wafers (LDB Technologies Ltd.) and dried under vacuum. Raman measurements are collected with a Renishaw inVia confocal Raman microscope using an excitation line of 514 nm with a 100X objective lens, and an incident power of $\sim 1$ mW on the sample. 20 spectra are collected for each sample. Peaks are fitted with Lorentzian functions.

Scanning electron microscopy (SEM). Electrodes are imaged by aim of a field-emission scanning electron microscope FE-SEM (JOEL JSM-7500 FA). The acceleration voltage is set at 5 kV. Images are collected using the in-lens sensors (secondary electron in-lens image, SEI) and the secondary electron sensor (lower secondary electron image, LEI). No coating is applied.

Photoluminescence spectroscopy (PL). PL experiments were performed, in a quasi back-scattering geometry, keeping the samples in a closed cycle cryostat and the temperature was changed from 10 to 300 K. Time integrated photoluminescence (TI-PL) measurements were performed exciting the samples by different mode-locked ps laser sources: a tunable (700–850 nm and 350–425 nm with the second harmonic generator) Ti-Sapphire laser operating at 81.3 MHz repetition rate with 1.2 ps pulses and a 4 ps Rhodamine 6G dye laser synchronously pumped by the second harmonic of a mode-locked Nd-YAG laser, operating at 76 MHz. The PL signal was spectrally dispersed by a 50 cm monochromator providing a spectral resolution of 1 meV and detected by a microchannel plate photomultiplier. Time resolved (TR-PL) measurements were carried out exciting the samples by the ps dye laser operating at 600 nm and using time-correlated single photon counting technique (TCSPC) with a temporal resolution of about 60 ps.

Acknowledgements.

FB acknowledges funding from the Italian Ministry for Education, University and Research within the Futuro in Ricerca (FIRB) program (project DeLIGHTeD, Protocollo RBFR12RS1W). We warmly acknowledge Franco Bogani for fruitful discussions. This work was partially supported by ENTE CARIFI grant n. 2015/11162 and from the European Union’s Horizon 2020 research and innovation programme under grant agreement n. 696656 - GrapheneCore1.
