Cold, anisotropically-interacting van der Waals molecule: TiHe

TL;DR

This study reports the production and detection of the Ti-He van der Waals molecule at cryogenic temperatures, with binding energies aligning with theoretical predictions, enabling new research avenues in low-temperature cluster chemistry.

Contribution

First experimental realization and spectroscopic characterization of the Ti-He van der Waals molecule at cryogenic temperatures, validated by ab initio calculations.

Findings

Ground-state Ti-He binding energies match theoretical calculations.

Successful laser-induced fluorescence detection of Ti-He molecules.

Potential for exploring low-temperature van der Waals cluster chemistry.

Abstract

We have used laser ablation and helium buffer-gas cooling to produce the titanium-helium van der Waals molecule at cryogenic temperatures. The molecules were detected through laser-induced fluorescence spectroscopy. Ground-state Ti-He binding energies were determined for the ground and first rotationally excited states from studying equilibrium thermodynamic properties, and found to agree well with theoretical calculations based on newly calculated ab initio Ti-He interaction potentials, opening up novel possibilities for studying the formation, dynamics, and non-universal chemistry of van der Waals clusters at low temperatures.

Figures

Tables

Table 1. Table 1: The calculated energy levels of 48 Ti 4 He (in K) and the corresponding Hund’s case (e) quantum numbers ( J a = 2 subscript 𝐽 𝑎 2 J_{a}=2 for all levels), along with the experimentally measured binding energies of the four largest observed transitions. The experimental statistical error bars are ± 0.1 plus-or-minus 0.1 \pm 0.1  K, with an additional common systematic error of ± 0.25 plus-or-minus 0.25 \pm 0.25 K.

Theory				Experiment
$N$	$J$	$E$ (K)		Frequency (cm-1)	$E$ (K)
0	$2$	$-1.8244$		25228.15	-1.95
1	$1$	$-1.5292$		25228.10	-1.33
1	$3$	$-1.5079$		25228.03	-1.52
1	$2$	$-1.4689$		25227.99	-1.40

Equations

$$n_{\text{TiHe}}=g{n}_{\text{Ti}}{n}_{\text{He}}{\lambda }_{dB}^3\cdot e^{-E/T}$$

$$f(T)=c{T}^{-3/2}{e}^{-(E/T)}$$

$$\hat{H}=\frac{-1}{2\mu R}\frac{{\partial }^2}{\partial R^2}R+\frac{{\hat{\mathbf{N}}}^2}{2\mu R^2}+{\hat{H}}_{\text{SO}}+\sum _{\Lambda ,\Sigma }{V}_{\Lambda \Sigma }(R)|\Lambda \Sigma ⟩⟨\Lambda \Sigma |,$$

Full text

Weakly bound complexes of atoms and molecules held together by long-range van der Waals (vdW) forces are key to understanding a wide range of phenomena in physics and chemistry, ranging from classical and quantum chaos Amitrano and Berry (1992) and phase transitions Frantsuzov et al. (2006) to the universal physics of Efimov trimers and quantum droplets Wang et al. (2013); Bulgac (2002); von Stecher (2011). In condensed-phase chemical physics, vdW clusters serve as a model to study the mechanisms of solvation, nucleation, and chemical reactivity Worsnop et al. (1986); Brahms et al. (2011); Tang et al. (2002). In the context of quantum many-body physics, vdW molecules can be used to explore the formation of exotic quasiparticles in superfluid helium nanodroplets Schmidt and Lemeshko (2015). Helium-containing vdW molecules are the lightest of all vdW clusters, and hence are of particular interest as model systems, in which to study the emergence of macroscopic quantum phenomena such as superfluidity Toennies and Vilesov (1998).

Thus far, the experimental study of He-containing vdW molecules has focused on molecules formed in supersonic expansions Luo et al. (1993); Kunitski et al. (2015); Smalley et al. (1976); Stephenson and Rice (1984); Tang et al. (2002); McKellar (2006). Recent groundbreaking advances in the production and trapping of translationally cold molecules Carr et al. (2009) made it possible to create trapped ensembles of cold polar molecules with high enough densities to study collisions and chemical reactions Carr et al. (2009); Ospelkaus et al. (2010); Singh et al. (2012) and carry out ultra-precise spectroscopic measurements to probe the physics beyond the Standard Model Baron et al. (2014). The production and trapping of cold vdW molecules would similarly enable highly sensitive spectroscopic detection of heretofore unobserved clusters, as well as the study and control of their quantum dynamics Brahms et al. (2010, 2011); Friedrich (2013); Krems (2004).

We have recently observed the formation of cold, ground-state LiHe molecules in a cryogenic He buffer gas Tariq et al. (2013). The LiHe molecule has a single near-threshold bound state with a binding energy of 0.024 cm*-1* Murrell et al. (2002) comparable to that of the He2 dimer Luo et al. (1993); Friedrich (2013). Due to their vanishingly small binding energies, these molecules belong to an exotic class of quantum halo dimers characterized by extremely delocalized wavefunctions, universal properties, and enormously large three-body formation rates Jensen et al. (2004); Wang et al. (2013). As the binding energies of most other atoms and molecules with He are much larger than those of LiHe and He2 Brahms et al. (2011), it is far from obvious whether atom-He vdW clusters would form upon immersing the parent atoms into cryogenic He buffer gas. In fact, no such clusterization was observed in recent buffer gas cooling experiments involving large hydrocarbon molecules Piskorski et al. (2014).

Here, we report on the first observation of a cold vdW molecule TiHe with a binding energy of 80 times that of LiHe, thereby providing direct experimental evidence for the formation of deeply bound vdW molecules at cold (rather than ultracold) temperatures of 1-2 K, where three-body recombination occurs in the much less explored non-universal and multiple partial wave regimes, opening up the prospects for the experimental study of new few-body physics at finite collision energy Wang and Esry (2011).

Unlike the atom-He complexes previously studied, the TiHe molecule features anisotropic interactions due to the highly degenerate ${}^{3}F_{2}$ ground state of atomic Ti; these anisotropic interactions have previously only been observed in collisional experiments Hancox et al. (2005); Krems et al. (2005); Lu et al. (2008). To our knowledge, the TiHe vdW complex is the first neutral molecular ground state described by Hund’s case (e) ever detected; this state had been observed previously for molecular ions and Rydberg molecules Carrington et al. (1996); Zhu et al. (1993); Osterwalder et al. (2004). We carry out rigorous ab initio and multichannel bound-state calculations of the complex’s bound levels and find quantitative agreement with experiment.

High densities of cold atomic titanium are produced by laser ablation of a solid titanium target and 4He buffer-gas cooling Lu et al. (2008) as described in the Supplemental Material TiH . Ground-state titanium atoms are detected by laser absorption spectroscopy on the $a^{3}F_{2}\rightarrow\ y^{3}F_{2}$ transition at $25107.410$ cm*-1* Sansonetti et al. (2005). Helium densities are measured with a pressure gauge; we have measured TiHe signal at helium densities from $3\times 10^{16}$ cm*-3* to $8\times 10^{17}$ cm*-3*. In this environment, we expect TiHe molecules to form by three-body recombination Tariq et al. (2013). We search for the TiHe molecules produced using laser-induced fluorescence (LIF) spectroscopy.

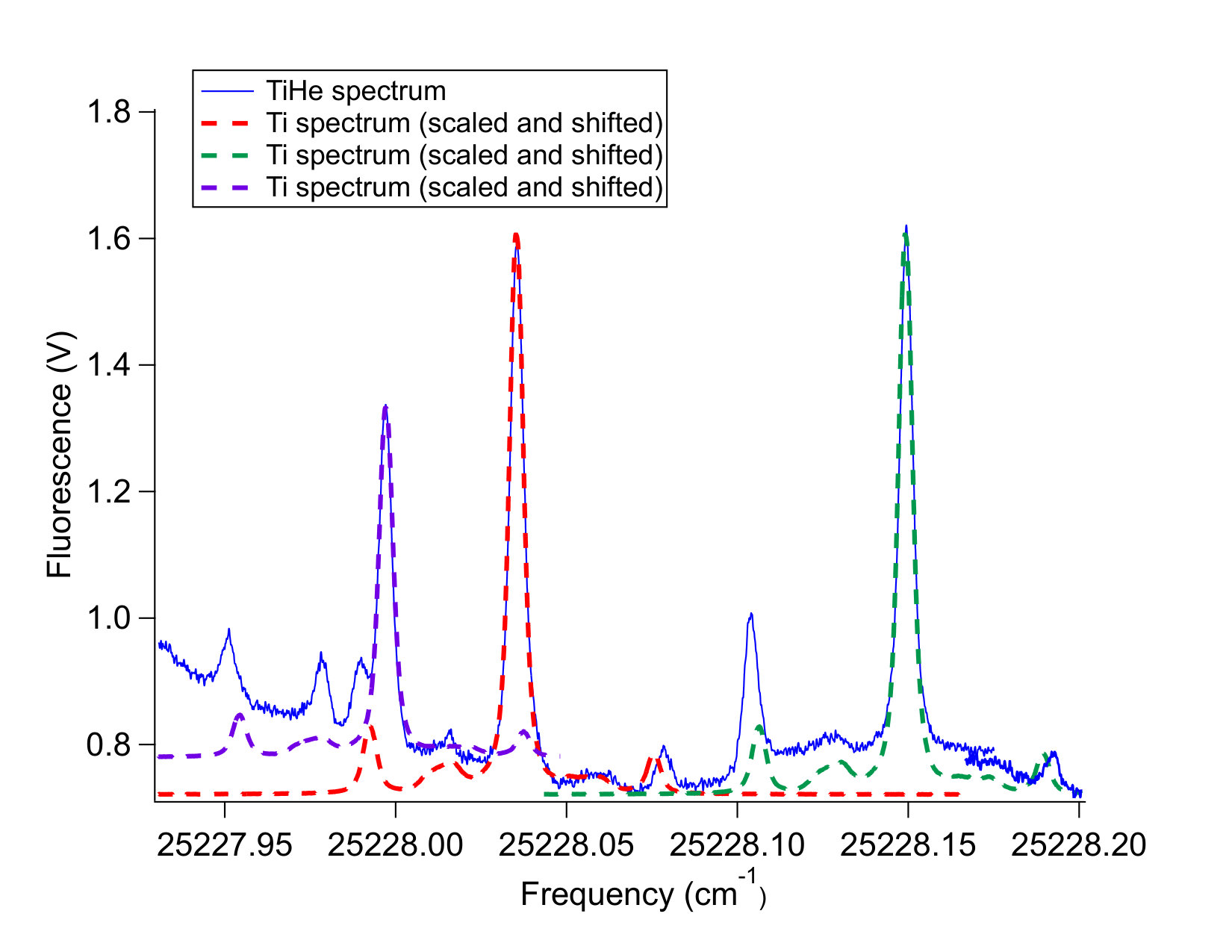

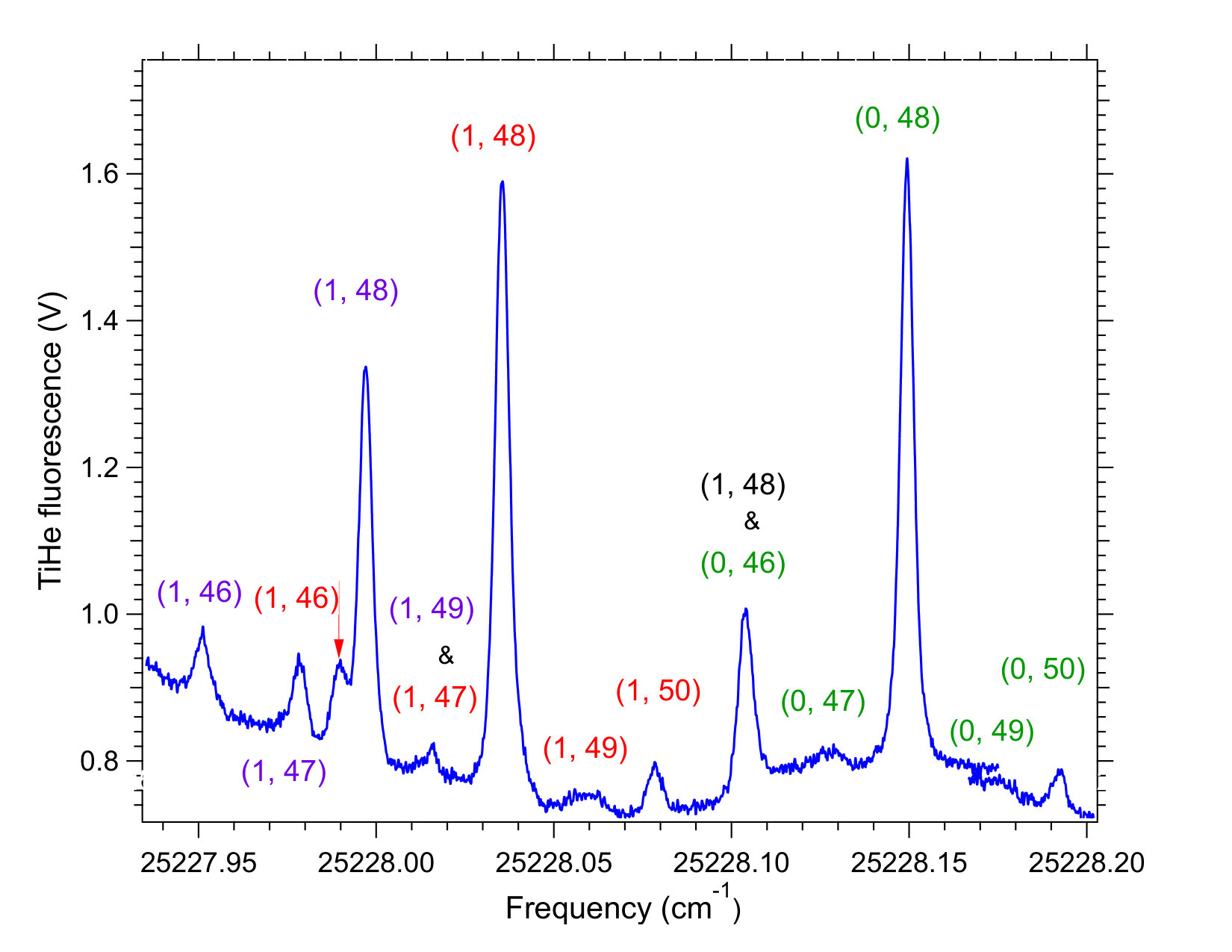

A spectroscopic search near the $a^{3}F_{2}\rightarrow\ y^{3}F_{3}$ atomic Ti transition at $25227.220$ cm*-1* Sansonetti et al. (2005) revealed LIF signals blue-detuned from this transition by roughly 1 cm*-1*, as shown in Fig. 1. All data discussed in this paper is from these peaks; additional spectral peaks are discussed in the Supplemental Material TiH .

The spectrum is complicated by the presence of multiple isotopes of titanium (due to the low natural abundance of 3He, we expect all signals to correspond to 4He). Fortunately, line identification is straightforward because the observed isotope shifts closely match those of the atomic transition, as discussed in the Supplemental Material TiH .

Unfortunately, the excited state structure is not known sufficiently well to identify the remaining lines by their spectral patterns TiH . Thankfully, we are able to determine the ground state properties of the larger peaks through their equilibrium properties, and conclude that they correspond to TiHe molecules, as explained below.

We studied the dependence of the LIF signal on temperature, helium density, and titanium density ($T$, $n_{\text{He}}$ and $n_{\text{Ti}}$). In equilibrium, the expected TiHe density for a single bound state of degeneracy $g$ is

[TABLE]

where $E$ is the binding energy and $\lambda_{dB}$ is the reduced-mass thermal deBroglie wavelength Brahms et al. (2010).

We calibrate our LIF signal with a simultaneously measured absorption signal from Ti atoms to determine the TiHe optical depth (OD), which is proportional to density. We measure the Ti OD directly via absorption spectroscopy.

We measure the temperature of the gas from the atomic Ti spectrum. The Ti linewidth has contributions from Doppler broadening, pressure broadening, and the natural linewidth. We experimentally measure a pressure broadening coefficient of $1\times 10^{-10}$ Hz cm3. We deconvolve the Voigt profile of the Ti peak into its Gaussian and Lorentzian contributions Olivero and Longbothum (1977) and calculate the translational temperature for the Ti atoms from the measured Gaussian width. As expected, the gas temperatures measured from the Ti spectroscopy are higher than the cell wall temperatures, due to heating by ablation Skoff et al. (2011). Typically the gas temperature is 0.4 K to 1.5 K higher, depending on the ablation energy and time after ablation. We note that, under the conditions explored in this work, the TiHe linewidth is the same as the Ti linewidth to within our experimental error.

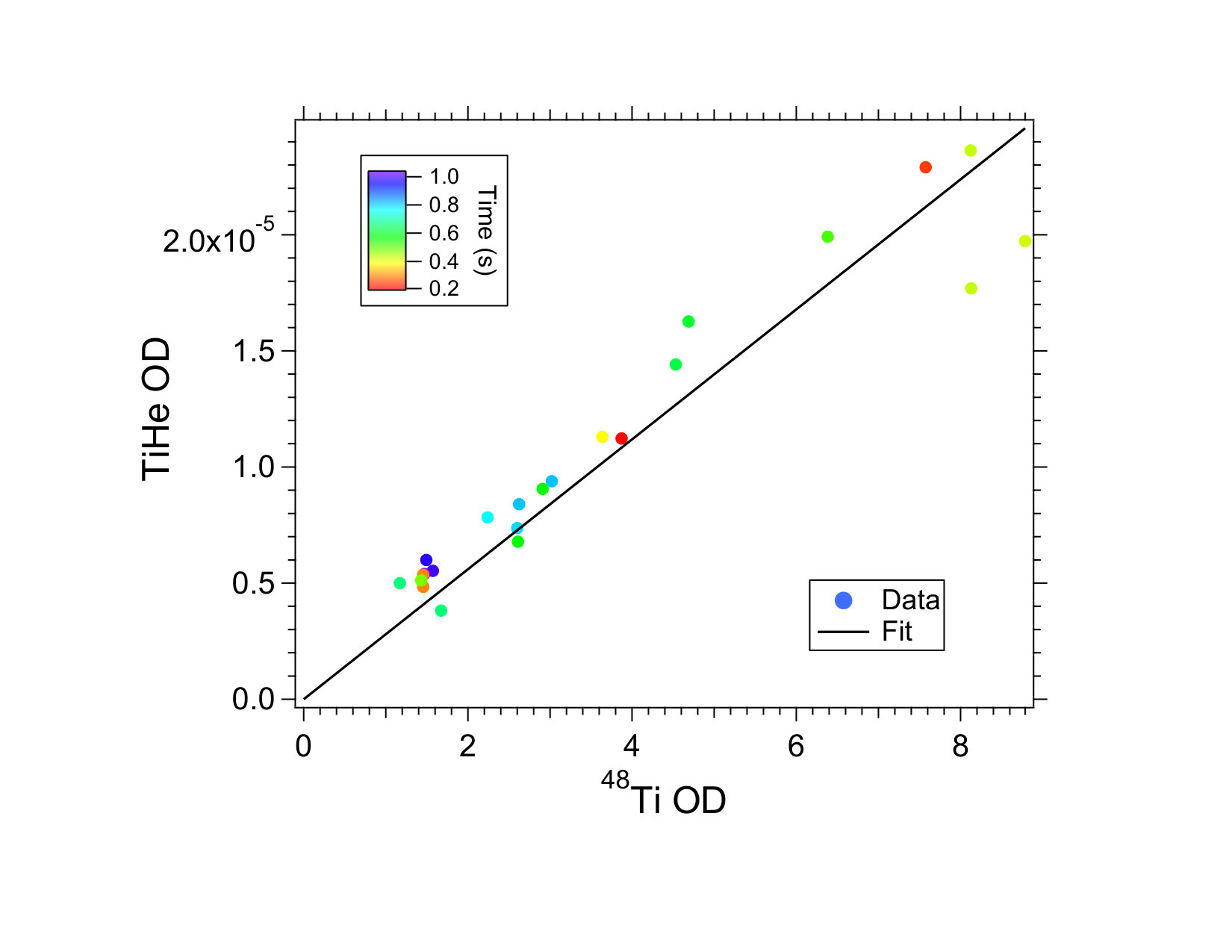

Figure 2 shows the dependence of the TiHe density on the Ti density for fixed helium density and “fixed” temperature (by selecting a subset of data within a narrow temperature range). The expected linear dependence is seen. Importantly, this is independent of the time after ablation, up to the earliest times measured (roughly 0.2 s after ablation, limited by our detection system). This indicates that the TiHe population reaches thermal equilibrium with the Ti and He atoms on a timescale faster than we are observing, and a timescale faster than the timescale on which temperatures and titanium densities are changing in the cell (due to diffusion and cooling). Because the TiHe density is proportional to the Ti density at all times we observe, in subsequent analysis we consider the ratio TiHeOD/TiOD.

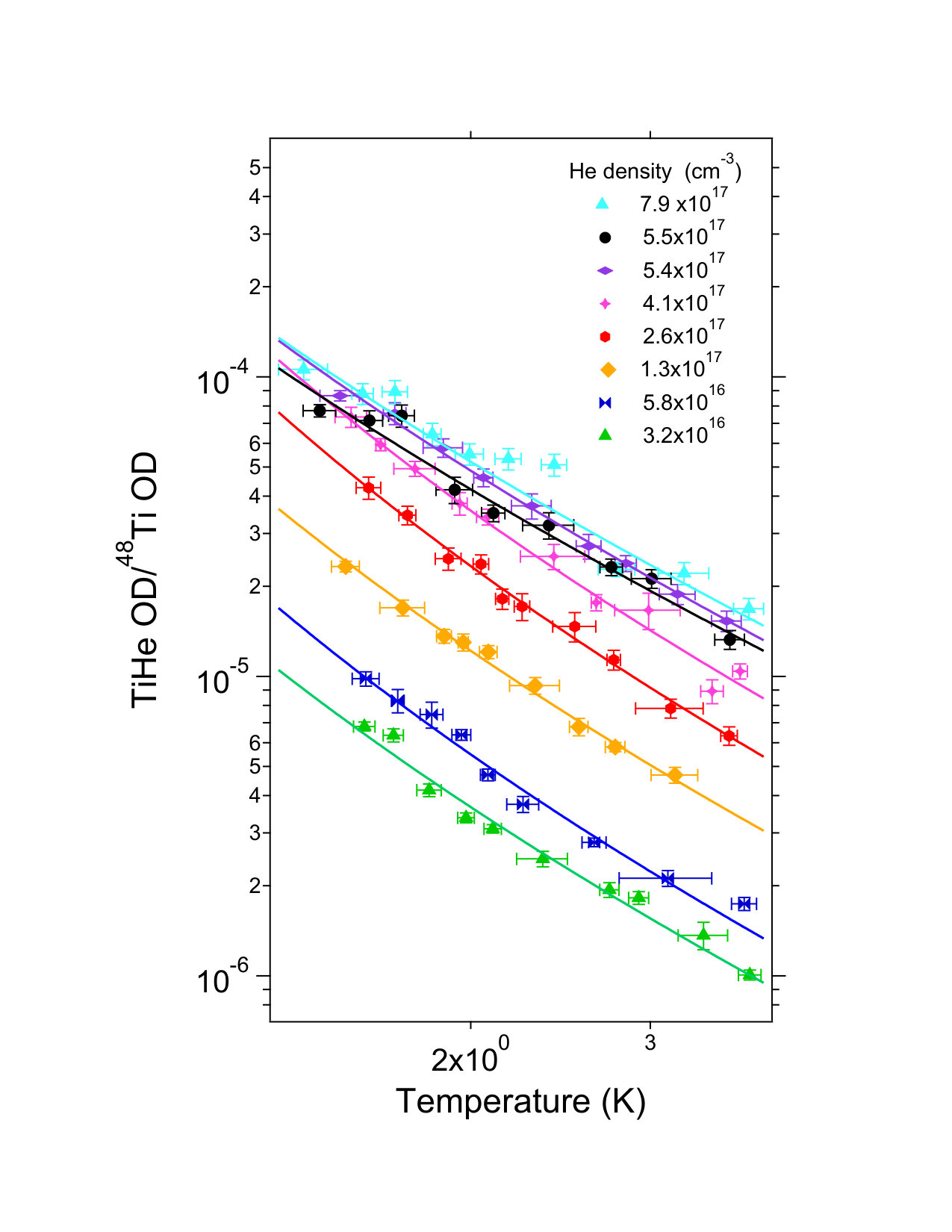

To study the temperature dependence, the TiHeOD/TiOD ratio is measured at fixed helium density and fit to the function

[TABLE]

as per Eq. (1). This was repeated at multiple helium densities ranging from $3\times 10^{16}$ cm*-3* to $8\times 10^{17}$ cm*-3*. Typical data and fits are shown in Fig. 3.

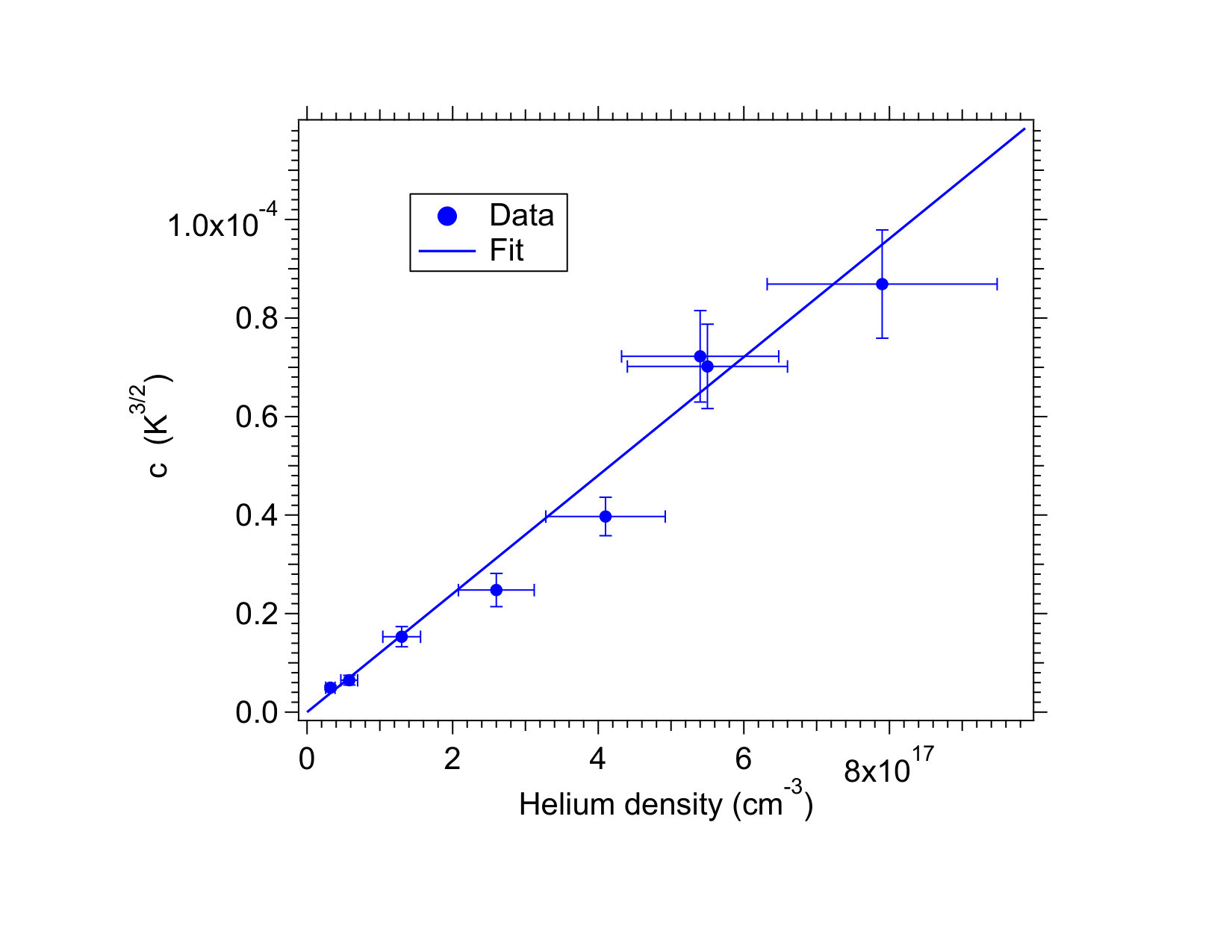

The energies from these fits show no dependence on the helium density, however the $c$ coefficient of Eq. (2) shows a linear dependence on the helium density, as shown in Fig. 4. This is the expected behavior from Eq. (1), and indicates that the transitions originate from diatomic molecules, and not trimers or helium clusters.

From a weighted average of the fit values of $E$, we determine the binding energies of the ground-state energy levels corresponding to each transition. The TiHe transitions that were studied in this experiment and their measured binding energies ($E$) are shown in Table 1. These four transitions were the only ones that could be observed over a wide temperature and density range; the signal-to-noise of the remaining molecular transitions made them difficult to measure at high temperatures. Some of these transitions could not be identified as due to Ti isotopes and we suspect that they originate from the $N=1$ ground state, but this could not be determined conclusively due to a lack of knowledge of the excited state structure TiH .

The experimental values presented in Table 1 have a statistical error of $\pm 0.1$ K. Systematic errors—dominated by the uncertainty in the helium density—add an additional systematic error of $\pm 0.25$ K Quiros (2016). Because the different transitions are measured under the same conditions, the uncertainty in the binding energy differences should be the statistical error of $\pm 0.1$ K.

To theoretically simulate the energy level spectrum of TiHe, we carry out multichannel bound-state calculations based on the Hamiltonian (in atomic units)

[TABLE]

where $R$ is the Ti-He internuclear distance, $\mu$ is the reduced mass TiH , $\hat{\bm{N}}$ is the rotational angular momentum of the complex, $\hat{H}_{\text{SO}}=A\hat{\bm{L}}_{a}\cdot\hat{\bm{S}}_{a}$ is the spin-orbit (SO) interaction, which couples the electronic orbital and spin angular momenta of Ti to form the resultant $\hat{\bm{J}}_{a}$, and $A$ is the SO constant. The Ti-He interaction potential is expanded in terms of the adiabatic electronic basis functions $|\Lambda\Sigma\rangle$ where $\Lambda$ and $\Sigma$ are the projections of $\hat{\bm{L}}_{a}$ and $\hat{\bm{S}}_{a}$ on the molecular axis.

To obtain the most accurate parametrization of the Hamiltonian (3), we carried out new high-level ab initio calculations of the adiabatic potentials $V_{\Lambda\Sigma}(R)$ using the state-averaged complete active space self-consistent field (CASSCF) method Kłos et al. (2004) to obtain reference states with proper $\Lambda$, followed by internally-contracted multireference self-consistent field calculations  Werner and Knowles (1988) with single and double excitations and a Davidson correction Langhoff and Davidson (1974) (ic-MRCISD+Q) to account for higher excitations.

For an improved description of the Ti-He interaction energy, we use a quintuple-zeta basis set (aug-cc-pwcv5Z-DK) specifically designed for Douglass-Kroll integrals in all-electron scalar relativistic calculations, augmented additionally with a $3s3p2d2f1g1h$ set of mid-bond functions Kłos et al. (2004). This basis is much larger than used in the previous ab initio calculations Kłos et al. (2004); Krems et al. (2005). We correct the interaction energies for the basis set superposition error and for size-consistency at $R=500a_{0}$. The new potentials are uniformly more attractive by $\sim$1.3 cm*-1* than the previous potentials due to a larger basis set used in this work and the inclusion of the mid-bond functions. The new potential minima occur at shorter values of $R$ (by $\sim$0.2-0.3 $a_{0}$); however, the energy order of the new $V_{\Lambda\Sigma}$ potentials is the same as obtained previously Kłos et al. (2004); Krems et al. (2005).

We obtain the bound-state energy levels of TiHe by diagonalizing the Hamiltonian (3) expressed in the basis of direct products of Hund’s case (e) basis functions TiH obtained by vector coupling of $\hat{\bm{J}_{a}}$ and $\hat{\bm{N}}$ to form the total angular momentum of the complex $\hat{\bm{J}}$ and the radial basis functions in the discrete variable representation Colbert and Miller (1992). The calculated bound-state energies are converged to $<1$%.

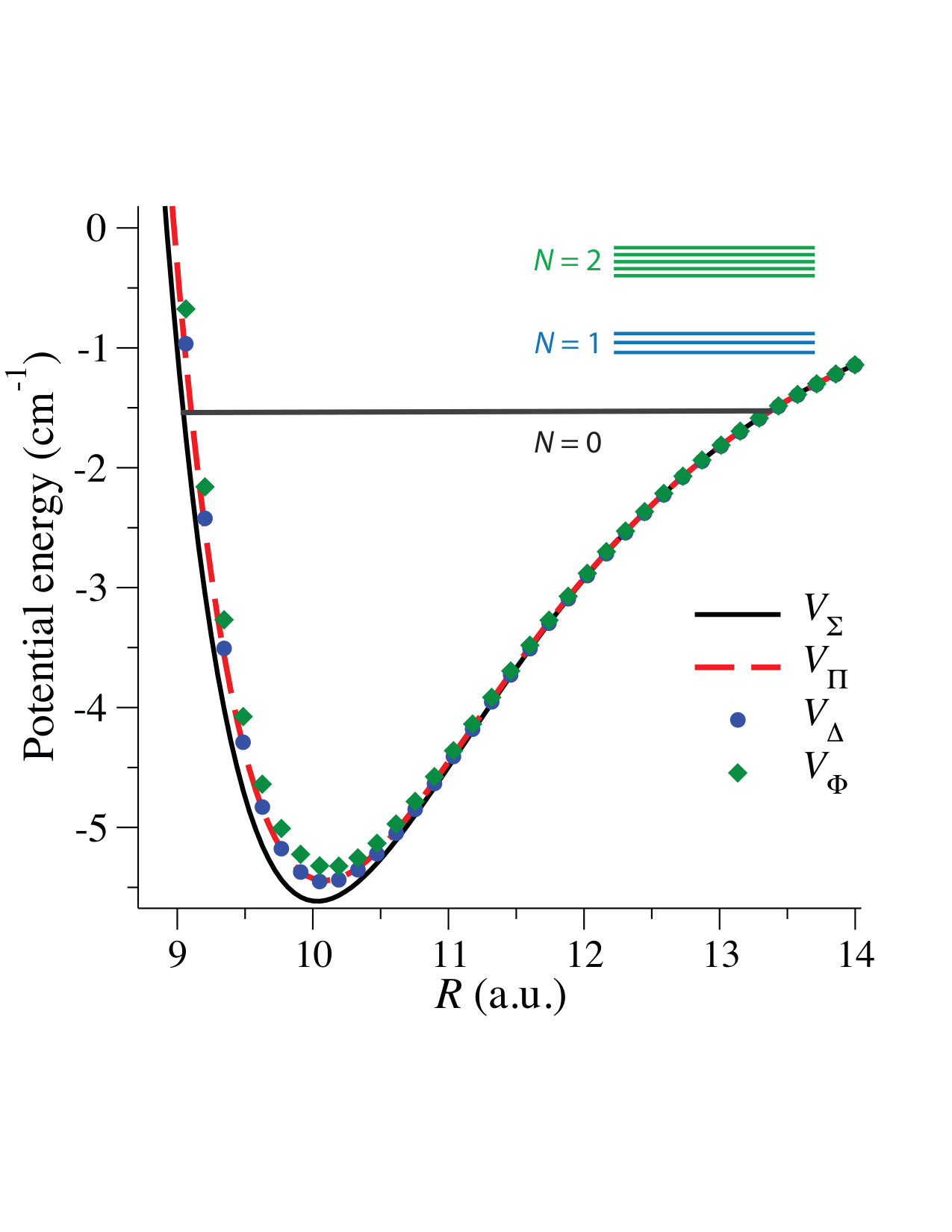

Figure 5 shows our ab initio interaction potentials for the TiHe electronic states of $\Sigma,\Pi,\Delta$, and $\Phi$ symmetries ($\Lambda=0{-}3$). The potentials are nearly degenerate at all $R$ due to the suppressed electronic anisotropy of the ground-state Ti electronic configuration ($3d^{2}4s^{2}$) Kłos et al. (2004); Krems et al. (2005). Analysis of molecular eigenvectors shows a very small amount of mixing between the different $N$-states, which is expected since the anisotropic terms are small compared to the splitting between the rotational levels. Thus, $N$ is a good quantum number for the lowest bound states of Ti$(^{3}F)$-He, and its rotational energy level structure (see Fig. 5) can be fully understood in terms of the rigorously conserved quantum numbers $J_{a}$, $J$, and $N$, a nearly perfect example of Hund’s case (e) coupling scheme.

The calculated energies of the lowest rotational states of TiHe are listed in Table I. The ground rotational energy level ($N=0$) is non-degenerate and has a binding energy of 1.82 K. The excited rotational states in different $N$ manifolds are split by the interaction anisotropy into $(2N+1)$ sublevels with $J=|J_{a}-N|,\ldots,J_{a}+N$. The calculated binding energies are in excellent agreement with experiment for $N=0$ and $N=1$ (see Table 1), demonstrating that our ab initio potentials are highly accurate. The levels in the $N=2$ and $N=3$ manifolds were not observed experimentally. This is expected: the selection rules for the electronic transitions between Hund’s case (e) levels allow only $q$-branch transitions TiH . The excited state rotational manifold is less weakly bound by $\sim 1$ cm*-1* (determined from the blueshift) so it is unlikely to support $N=2$ or $N=3$ rotational levels.

In summary, we have observed the formation of cold TiHe vdW molecules featuring an exotic angular momentum coupling scheme—Hund’s case (e)—arising from the anisotropic nature of the ground-state Ti-He interaction. The molecules were detected in their ground and first excited rotational states and our thermodynamic measurements of their binding energies are in quantitative agreement with theoretical calculations based on highly accurate ab initio interaction potentials. Our results show that the ground and rotationally excited TiHe molecules can form in cryogenic He buffer gas, opening up the possibility of studying three-body recombination and non-universal physics in the multiple partial wave regime Wang and Esry (2011); Suno and Esry (2009). The chemical reactions, inelastic scattering, and Zeeman predissociation of cold vdW molecules can now be investigated experimentally and possibly controlled with external electromagnetic fields Krems (2004). This work could also be extended to explore the formation of larger clusters (such as TiHe2 trimers) at higher helium densities.

This material is based upon work supported by the National Science Foundation under Grant No. PHY 1265905. J.K. acknowledges support from the NSF Grant No. CHE-1565872 to Millard Alexander.
